DESIGN & SPECIFICATION OF ITI’S RANGE OF STRUCTURAL ENGINEERED WOOD PRODUCTS LAMINATED VENEER LUMBER || I-JOISTS || GLUE LAMINATED BEAMS
• Design of sub-floor, upper floor & roof framing systems
• Quantified bill of materials and easy to read construction layouts
• Design computations with engineering sign off certification available

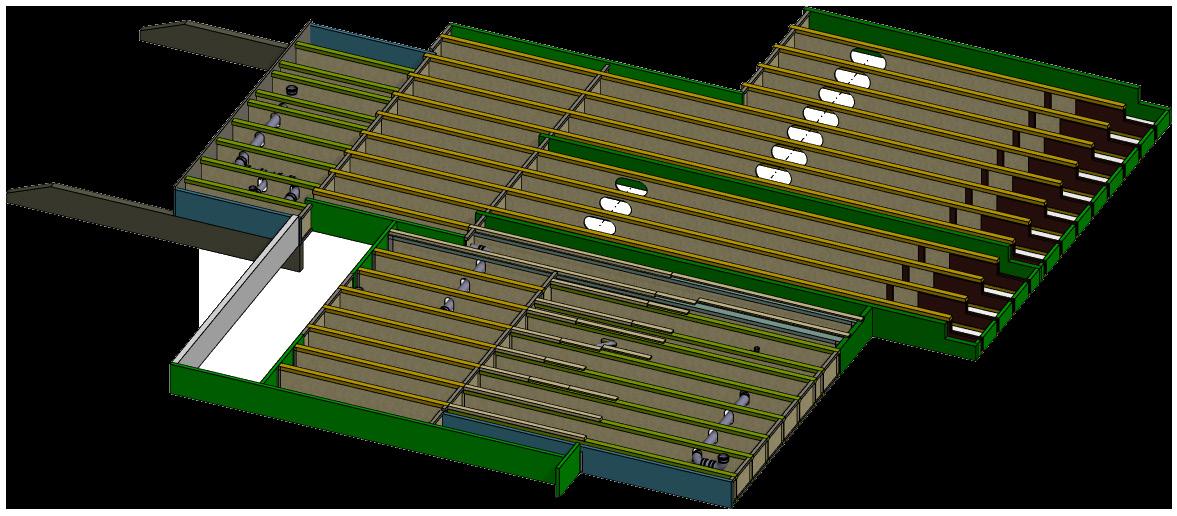

• Interactive 3D model viewable on computers and mobile devices via Showroom
• IFC4 Files available to coordinate with other components such as structural steel
• Locally based technical support
EFFICIENCIES
OF FLOOR TRUSSES || ECONOMY
OF I-JOIST
ITI can provide additional processing to I-Joists and Laminated Veneer Lumber floor and roof systems to increase efficiencies onsite and reduce exposure to time and margin consuming errors made during installation
• Docked to length joists and beams
• Timbers clearly marked to match construction layouts

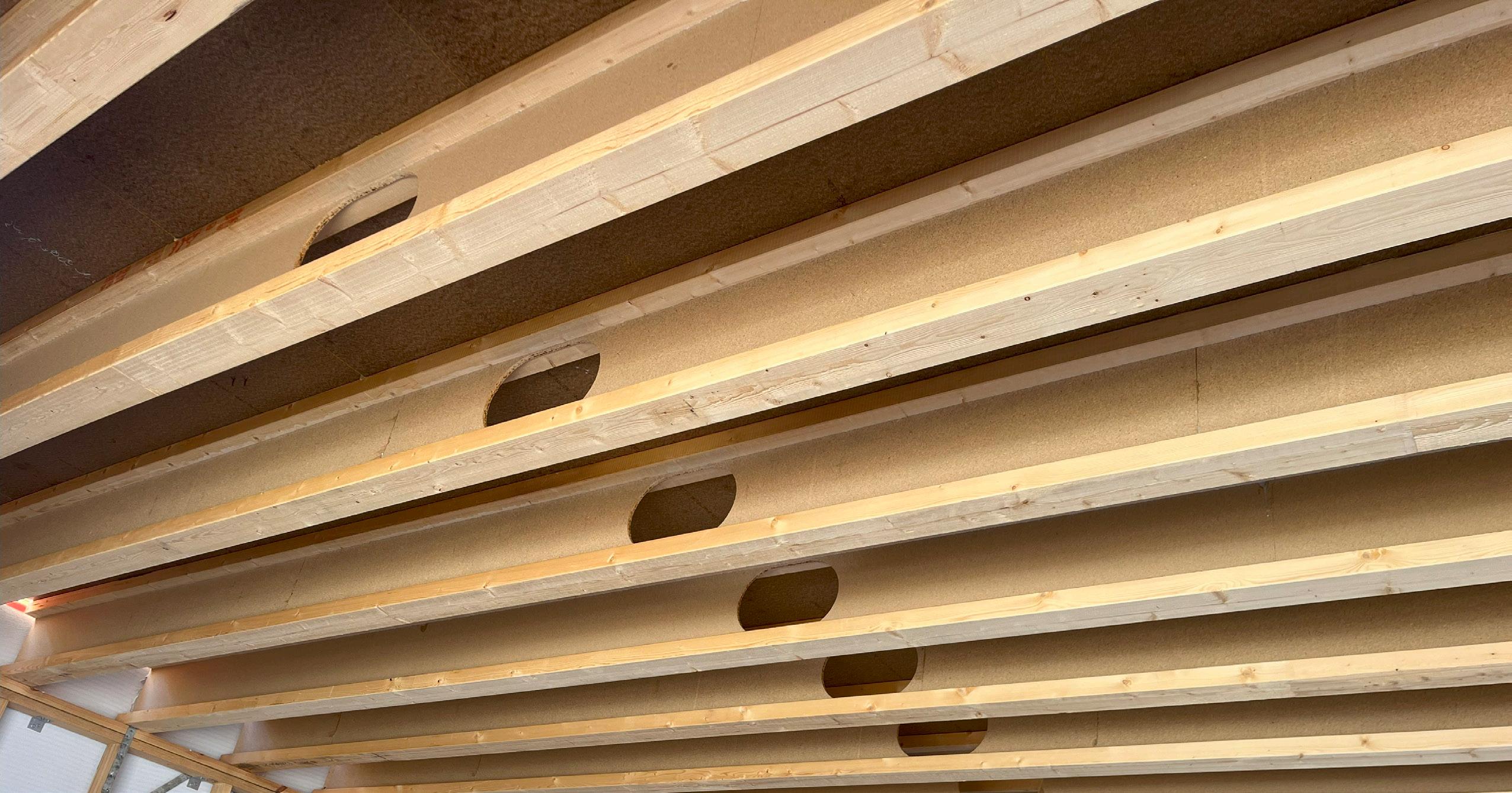

• Plumbing and ducted Service holes
• Member augmenting (Box gutters and truss heel cuts)

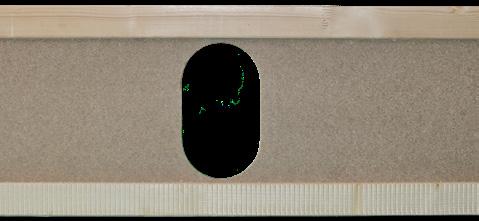

Truss Heel Cut Service Holes

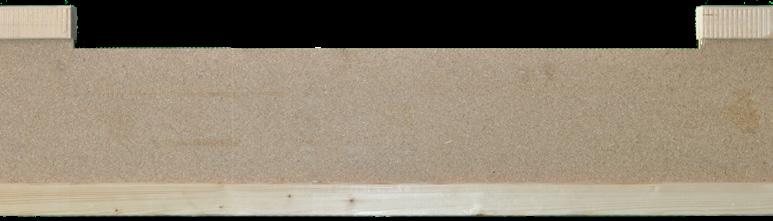

Shower Rebate
Box Gutter Cut
Showroom Demo
Engineered Wood Products PRODUCTS SPECIFIED
• Lightweight LVL product for general framing members - up to 30% lighter than other LVL products
• Harvested from highly sustainable forests in Finland
• Metsa Group planted over 270 million seedlings between 2010 and 2020
• Metsa Group forests are growing roughly at a rate of 110 million cubic meters per year
• Forest harvesting and natural lose equate to roughly 90 million cubic meters per year
SPECFRAME 11.7
• Lightweight LVL made from New Zealand Radiata Pine
• Ecconomical alternative LVL for efficient specification of trimmers and balcony joists
• Available in common floor depth sizes for hassle free installation
• Supported by Bureau Veritas’ S-Mark product accreditation scheme
SPECLAM 15
• Non-visual c-grade glue laminated beam suited to high loads
• Key product offering used to remove steel from floor framing
• Available in floor system depths to eliminate the need for packing of beams on site
• 600m Pre-camber as standard to
resistance to dead load deflection
Long. Standard lengths up to 12 m.
Strong. Products are made from carefully selected construction timber and special board materials.
Lightweight. Lower weight when compared to ordinary structural timber or open web floor trusses makes for an easy-to-handle product speeding up installation time.
E14.5 Kerto
