About ITI

ITI Australia has been revolutionising the External Cladding and Lining Solutions for builders, architects, designers, and DIY legends since 1987. Collaborating closely with all sectors within the industry, ITI has championed the strength, aesthetics, and environmental advantages of various building materials. Over three decades, ITI has established a robust distribution network encompassing 130,000m² of undercover storage facilities nationwide, added to that a state-of-the-art remanufacturing, treating, and priming plant located in Chile, an office in Indonesia, and three distribution points in New Zealand.

In a world of ordinary, ITI Australia stands as a true disrupter in the building products industry. We have redefined the landscape of quality, innovation, and excellence. As pioneers, we offer nothing but the best of the best, setting a new standard for external cladding and lining solutions.

It’s time to experience the ITI Australia difference for yourself. As disruptors, we invite you to also challenge the status quo, elevate your exteriors, and embark on a journey of exceptional quality and innovation.

As ITI’s product footprint continues to expand, the thought process hasn’t changed; our mission is and always will be to offer solutions. This catalogue encompasses the very best and latest of our External Cladding and Lining Solutions for 2024, and we hope you enjoy it.

But be warned, this catalogue contains real solutions, and once you open it, you may never look at external cladding and lining products the same again!

Western Red Cedar Te Kowhai House, Waikato NZ

Design Pine

VistaClad

A product for every application

Navigating the complex process of selecting the perfect external cladding and lining for modern architecture can be daunting. At ITI Australia, we understand the challenges involved, especially with the growing trend in modern architecture to replace traditional brick with innovative cladding solutions. Considering environmental considerations, lifestyle preferences, and safety concerns like bushfires, finding the right solution is crucial.

Our extensive product range at ITI Australia is designed to cater to every application in this evolving architectural landscape. From low-maintenance fibre cement or composite cladding to the timeless beauty of natural Australian Hardwoods, we’ve got you covered. As modern architecture increasingly leans towards cladding, count on ITI Australia to provide cutting-edge External Cladding and Lining Solutions that not only meet but exceed your expectations.

Our unwavering commitment to quality, sustainability, and innovation ensures that the exterior walls of your home are not only protected but also transformed into a thing of beauty. Embrace the shift in modern design trends with confidence, knowing that ITI Australia is here to offer solutions that harmonise with the evolving face of architecture.

Vista Clad

Western Red Cedar

Design Pine

Western Red Cedar - Threepwood Farm House Queenstown

Timber Solutions

Design Pine

Classic Weatherboard

Classic Weatherboard

Size: 138 x 18mm

Lengths: 5.4m

Cover: 118mm

Lm/m2: 8.47m

Rusticated Weatherboard

Rusticated Weatherboard

Size: 138 x 18mm

Lengths: 5.4m

Cover: 118mm

Lm/m2: 8.47m

Classic Weatherboard

Size: 185 x 18mm

Lengths: 5.4m, 6.0m

Cover: 165mm

Lm/m2: 6.06m

Chamfer Board Weatherboard

Colonial

Chamfer Board H3

Size: 166 x 18mm

Lengths: 5.4m, 6.0m

Cover: 148mm

6.75m

Colonial Weatherboard

Size: 90 x 18mm

Lengths: 5.4m

Cover: 77mm

Lm/m2: 12.98m

Colonial Weatherboard

Size: 185 x 18mm

Lengths: 5.4m

Cover: 173mm

Lm/m2: 5.78m

Rusticated Weatherboard

Size: 185 x 18mm

Lengths: 5.4m, 6.0m

Cover: 165mm

6.06m

Rolled Rusticated Weatherboard

Rolled Rusticated W/Board H3

Size: 138 x 18mm Lengths: 5.4m Cover: 115mm

8.69m

Full Splayed Weatherboard

Chamfer Board H3

176 x 18mm

4.8m, 5.4m

Colonial Weatherboard

Size: 138 x 18mm

Lengths: 5.4m

Cover: 126mm Lm/m2: 7.93m

Full Splayed Weatherboard

Size: 175 x 22mm

Lengths: 5.4m

Cover: 155mm

6.45m

Colonial Weatherboard

Size: 158 x 18mm

Lengths: 5.4m

Cover: 146mm

Lm/m2: 6.84m

Selecting a Paint Colour

Light colours with a light reflective value (LRV) of >30% are recommended as dark colours absorb light and heat. An elevated temperature build up in Design Pine can lead to a number of problems including distortion, surface cracking or resin bleed. A colour guide with information on LRV and cool colours can be found on www.designpine.com

Shiplap

Smooth Edged Shiplap H3

Size: 90 x 18mm

Lengths: 5.4m

Cover: 173mm Lm/m2: 5.78m

138 x 18 Sawn Face Shiplap (VIC)

Size: 138 x 18mm

Lengths: 3.6m, 4.2m, 4.8m, 5.4m, 6.0m

Cover: 124mm

Lm/m2: 8.06m

Tongue & Groove Boards

VJ Tongue + Groove H3

Size: 90 x 18mm

5.4m

Cover: 85mm

Eaves Lining Boards

321 Regency Eaves Lining H3

Size: 90 x 11mm

5.4m

Cover: 84mm

Lm/m2: 11.9m

Weatherboard Stop

Weatherboard Corners

VJ SHIPLAP

Size: 138 x 18mm

5.4m, 6.0m

118mm

8.74m

Design Pine Timber Solutions

Smooth Edged Shiplap H3

138 x 18mm

3.6m, 4.2m, 4.8m, 5.4m, 6.0m

124mm

8.06m

Making sure you nail the installation of Design Pine Timber cladding is key for it to look great and stay strong in the long run.

As you dive into this installation adventure, just make sure to go through each step with a keen eye to make sure everything turns out awesome. It’s all about getting that flawless outcome we’re aiming for.

Tongue & Groove H3

138 x 18mm

4.8m, 5.4m, 6.0m

129mm

321 Regency Eaves Lining H3

302 V-Joint/Rev Eaves Lining H3

138 x 11mm

5.4m

7.57m

Weatherboard Mouldings

Timber Solutions

Western Red Cedar

Cedar

ITI Australia’s range of Western Red Cedar products are responsibly sourced from the carefully managed natural forests of British Columbia and Vancouver Island in Canada.

Before being shipped, the timber undergoes grading in Canada and is supplied as clear or select tight knot (STK) grade.

Upon arrival in Australia, it undergoes an air-drying process which acclimatises the timber to local conditions before being profiled. This meticulous process ensures that the timber achieves its optimal performance in the Australian environment.

Western Red Cedar is widely coveted for its exceptional qualities that set it apart in the world of timber. Renowned for its remarkable durability, this wood exhibits natural resistance to decay and insects, making it an ideal choice for outdoor Cladding and Lining applications.

Western Red Cedar is the original lightweight building material, furthermore it boasts excellent thermal insulating properties, making it an eco-friendly choice for energy-efficient Cladding and Lining projects.

Cedar panelling – Generational Retreat by Studio2 Architects

Cedar panelling – Generational Retreat by Studio2 Architects

Cedar Product Range

Cedar Ceiling and Soffit - #3 House by Studio2 Architects

Timber Solutions

Australian Hardwood

Blackbutt T5

Profile: T5, End Matched, Dressed or Sawn Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 52mm / 72mm / 120mm Thickness: 19mm

Colour: Heartwood ranges from blonde to golden yellow to pale brown with an occasional slight pinkish tinge. Sapwood light in colour so generally indistinguishable

Durability: Above ground: Class 1 Density: Dry: 900kg/m3

BAL Rating: BAL 29

Blackbutt NotchClad

NotchClad

Forest Red Gum T5

Grade: Std & Btr Grade, Feature Grade (Plain End)

Profile: NotchClad, Plain End, Dressed Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 72mm / 120mm Thickness: 19mm

Colour: Heartwood ranges from blonde to golden yellow to pale brown with an occasional slight pinkish tinge. Sapwood light in colour so generally indistinguishable

Durability: Above ground: Class 1 Density: Dry: 900kg/m3

BAL Rating: BAL 29

Grade: Std & Btr Grade, Feature Grade

Profile: T5, End Matched, Dressed or Sawn Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 52mm / 72mm / 120mm Thickness: 19mm

Colour: Light red to rich deep red

Durability: Above ground: Class 1 Density: Dry: 1000kg/m3

BAL Rating: BAL 19

Forest Red Gum NotchClad

NotchClad

Grade: Std & Btr Grade, Feature Grade (Plain End)

Profile: NotchClad, Plain End, Dressed Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 72mm / 120mm Thickness: 19mm

Colour: Light red to rich deep red

Durability: Above ground: Class 1 Density: Dry: 1000kg/m3

BAL Rating: BAL 19

Grade: Std & Btr Grade, Feature Grade

T5 cladding

T5 cladding

Ironbark (Mixed) T5

Profile: T5, End Matched, Dressed or Sawn Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 52mm / 72mm / 120mm Thickness: 19mm

Colour: Heartwood ranges from light grey to deep dark red-brown with contrasting sapwood

Durability: Above ground: Class 1 Density: Dry: 1100kg/m3

BAL Rating: BAL 19 Grade: Std & Btr Grade, Feature Grade (Plain End)

Ironbark (Mixed) NotchClad

Profile: NotchClad, Plain End, Dressed Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 72mm / 120mm Thickness: 19mm

NotchClad

Colour: Heartwood ranges from light grey to deep dark red-brown with contrasting sapwood

Durability: Above ground: Class 1 Density: Dry: 1100kg/m3

BAL Rating: BAL 19 Grade: Std & Btr Grade, Feature Grade

Silvertop T5

Profile: T5, End Matched, Dressed or Sawn Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 52mm / 72mm / 120mm Thickness: 19mm

Colour: A blonde species with the colour range of light yellow to pale brown, sometimes with golden & pinkish hues. A popular aesthetic replacement for Blackbutt.

Durability: Above ground: Class 2 Density: Dry 850kg/m3 avg

BAL Rating: BAL 19

Silvertop NotchClad

NotchClad

Grade: Std & Btr Grade, Feature Grade (Plain End)

Profile: NotchClad, Plain End, Dressed Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 72mm / 120mm Thickness: 19mm

Colour: A blonde species with the colour range of light yellow to pale brown, sometimes with golden & pinkish hues. A popular aesthetic replacement for Blackbutt.

Durability: Above ground: Class 2 Density: Dry 850kg/m3 avg

BAL Rating: BAL 19

Grade: Std & Btr Grade, Feature Grade

T5 cladding

T5 cladding

Timber Solutions

Spotted Gum (QLD) T5

Profile: T5, End Matched, Dressed or Sawn Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 52mm / 72mm / 120mm

Thickness: 19mm

Colour: Heartwood varies from pale grey-browns to rich chocolate brown and red while sapwood is lighter and distinctive

Durability: Above ground: Class 1

BAL Rating: BAL 29

Spotted Gum (QLD) NotchClad

Corners

NotchClad

Density:

Dry: 990kg/m3

Grade: Std & Btr Grade, Feature Grade (Plain End)

Profile: NotchClad, Plain End, Dressed Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 72mm / 120mm

Thickness: 19mm

Colour: Heartwood varies from pale grey-browns to rich chocolate brown and red while sapwood is lighter and distinctive

Durability: Above ground: Class 1

BAL Rating: BAL 29

Density:

Dry: 990kg/m3

Grade: Std & Btr Grade, Feature Grade

Sizes: 42 x 32mm / 57 x 32mm / 42 x 42mm

Species: Blackbutt / Forest Rd Gum / Ironbark (Mixed) / Silvertop / Spotted Gum (QLD)

Profile: DPR/E4E or Sawn

Finish: Raw, Clear Oiled or Pigmented Oiled

Grade: Std & Btr Grade E4E

T5 cladding

Timber Solutions

Imported Hardwood

Merbau T5

T5 cladding

Merbau NotchClad

Corners

NotchClad

Profile: T5, End Matched, Dressed or Sawn Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 52mm / 72mm / 120mm Thickness: 19mm

Colour: Heartwood may be bright yellow when first cut but becomes pale to dark reddish brown

Durability: Above ground: Class 1 Density: Dry 850Kg/m3

BAL Rating: BAL 29

Grade: Select Grade

Profile: NotchClad, Plain End, Dressed Face

Finish: Raw, Clear Oiled or Pigmented Oiled

Cover: 72mm / 120mm

Thickness: 19mm

Colour: Heartwood may be bright yellow when first cut but becomes pale to dark reddish brown

Durability: Above ground: Class 1 Density: Dry 850Kg/m3

BAL Rating: BAL 29

Grade: Select Grade

Sizes: 42 x 32mm / 42 x 42mm / 66 x 66mm*

Species: Merbau

Profile: DPR/E4E

Finish: Raw, Clear Oiled or Pigmented Oiled

Grade: Select Grade

Timber Solutions

Cypress Pine

Renowned for its exceptional qualities, Cypress Pine stands as a testament to nature’s artistry.

As you explore the possibilities of incorporating Cypress Pine into your projects, it’s important to note that checking is a natural characteristic of this remarkable wood.

This unique feature adds to the authenticity of the material, embodying the rustic appeal that has made

Cypress Pine a favourite choice for designers, builders, and homeowners alike. With its distinct grain patterns and warm tones.

Cypress Pine embraces the concept of imperfect beauty, enhancing the character and depth of each piece. Embrace the authenticity of nature with

Cypress Pine, where every check tells a story and adds to the enduring allure of this remarkable wood.

Maintaining the natural allure of Cypress Pine is as straightforward as it is rewarding. With its inherent durability and resistance to decay, Cypress Pine requires minimal upkeep, allowing you to enjoy its timeless beauty without the hassle of constant maintenance.

Here are some key pointers to ensure your Cypress Pine surfaces continue to radiate their natural charm:

Regular Cleaning: Keep your Cypress Pine surfaces clean by gently removing dirt and debris using a soft brush or cloth.

This prevents any accumulation that could potentially mar its appearance.

Protective Coatings: Applying a suitable wood finish or coating can provide an added layer of protection against the elements. While not strictly necessary, it can extend the longevity of your Cypress Pine and enhance its resistance to wear.

Inspect for Damage: Periodically inspect your Cypress Pine for any signs of damage, such as cracks or splits. Addressing such issues promptly can prevent them from worsening over time.

Sunlight Exposure: Like any natural material, Cypress Pine can undergo slight colour changes when exposed to sunlight. This patina effect, often desired for its character, can be minimized by using UV-protective finishes. ITI strongly encourages the use of a paint colour with a high LRV value.

Avoid Harsh Cleaning Agents: When cleaning, opt for mild, non-abrasive cleaning solutions that won’t compromise the wood’s natural finish.

Cypress Pine’s innate strength and weather-resistant properties make it a remarkable choice for both indoor and outdoor applications. By following these simple maintenance steps, you can ensure that your Cypress Pine surfaces continue to exude their distinctive charm, standing as a testament to both nature’s artistry and your commitment to preserving its enduring beauty.

Timber is the ultimate renewable resource. Weathertex products are Australian owned with a better than zero carbon footprint, environmentally sensitive and in touch with today’s industrial standards, for a cleaner environment.

We have a very unique manufacturing process and the only product of its kind in the world, containing absolutely no added silica, glues, resins or formaldehydes. Being completely safe during installation and throughout its long life, Weathertex ticks all the boxes.

All Weathertex products are manufactured using waste timber, PEFC certified from State Forests.No old growth hardwood is ever used, so there’s minimal environmental impact and avoids depletion of natural resources.

Sustainability & Certifications

At Weathertex, sustainability isn’t just a buzzword; it’s the cornerstone of everything we do. We take pride in our commitment to the environment, sourcing our materials responsibly from sustainable forests and being 3rd party accredited for transparency. Our manufacturing processes prioritise energy efficiency and water conservation, ensuring that we minimise our environmental footprint at every step. We believe in creating products that last, reducing the need for replacements and further preserving natural resources.

Benefits

MADE IN AUSTRALIA

Family owned and manufactured in the Hunter region, NSW since 1939.

TRUSTED

Weathertex voted #1 MOST TRUSTED brand in the building industry by Architecture & Design latest survey. Won SUPPLIER OF THE YEAR in the Australian Construction Awards.

STYLISH CHOICES

A wide selection of profiles available in various styles, textures and sizes. Easy to incorporate the natural with primed profiles together to offer multiple design options. Curved walls can be achieved down to a minimum of 2.5m radius for Selflok and 7m for Weathergroove.

DURABLE

Termite Resistant. Warranty tried and tested not to rot, split or crack for up to 25 years. Natural range is the only timber product in the market to provide a 10 year warranty. 1000 kg/m3 product density with a minimum 32MPa rating.

SAFE

Low VOC. Meets Australian Building Standards. 100% natural product.

CodeMark Australia certified (exc. Rubix) No added silica, glues, resins or formaldehydes.

SUSTAINABLE

Better than zero carbon footprint with Third Party Credentials - GreenTag certification, PhD, PEFC. Low embodied energy.

VALUE FOR MONEY

No special tools required for cutting. Large panels and lower wastage costs on Weathergroove Range. Lightweight product - reduces labour costs.

QUICK & EASY INSTALLATION

Larger panels for quick installation. 9.5mm thickness and matching accessories across all products making it easier to mix multiple profiles within a project. Easier to paint than other materials on the market due to its smoother surface.

Timber Solutions

Product Range Weathertex

NATURAL

Made from real Australian hardwoods.

The only natural timber product with 10 year warranty not to rot, split or crack.

Various styles & treatments - Leave to silver-off in direct sunlight, stain or a combination of both to produce totally unique aesthetic results.

Global GreenTag Platinum certification when left unsealed. Curved walls can be achieved down to a minimum of 2.5m radius for Selflok and 7m for Weathergroove. Bushfire attack levels up to and including BAL 19 construction.

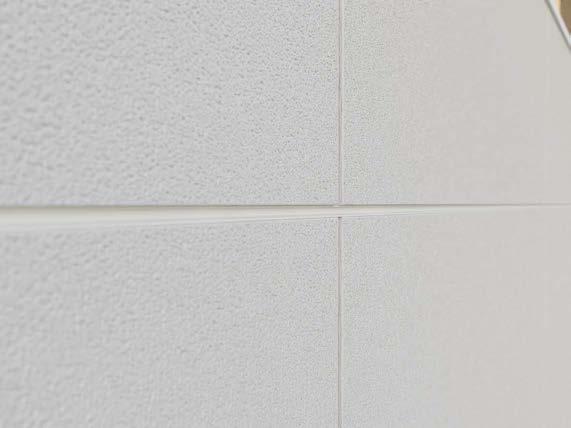

Architectural Panels

Plus Natural

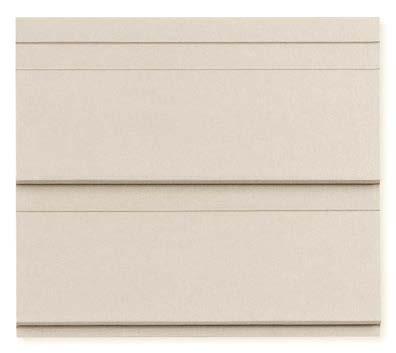

Weatherboards

Accessories

Small Internal LF CornerWeathergroove Joiner*

Small External LF CornerLong Vertical Joiner (Selflok)

Small End Stop External Combo Corner

Small Internal Corner Small Z Flashing

Small External CornerSmall Corner Plug

Internal Combo Corner

Weathergroove 75^ Natural

3660h x 1196w mm

Weathergroove 150^ Natural

3660h x 1196w mm

Weathergroove

300^ Natural

3660h x 1196w mm

Weathergroove 1200^ Natural

3660h x 1196w mm

Selflok Vgroove 150^ Natural

300h x 3660w mm

Selflok Ecogroove 150^ Natural

300h x 3660w mm

Wall Shingles Plus

Classic Shingles

225h x 1196w mm

Weathergroove Fusion Natural

3660 x 1196mm

Selflok Ecogroove 75^ Natural

300h x 3660w mm

WEATHERGROOVE

Made from real Australian hardwoods. Quick cost effective installation. Weathergroove has a universal edge which makes it possible to flip and reuse offcuts.

25 year warranty on Weathergroove Panels. Off stud joining option enables minimal waste and less timber stud layout.

Tallest panel size in Australia - 3.66m height.

Bushfire attack levels up to and including BAL 19 construction.

Product Range

Weathergroove

3660h

Weathergroove 300 Smooth

Weathergroove

Weathergroove

3660h x 1196w mm

2745h x 1196w mm

2440h x 1196w mm

Weathergroove

3660h x 1196w mm

2745h x 1196w mm

2440h x 1196w mm

Weathergroove

3660h x 1196w mm

Weathergroove 1200 Smooth 3660h x 1196w mm

2745h x 1196w mm

Weathergroove 1200 Woodsman

3660h x 1196w mm

SELFLOK

Made from real Australian hardwoods. Lightweight product.

25 year warranty on Pre-primed Selflok weatherboards.

Off stud joining option enables minimal waste and less timber stud layout.

Can be cut with standard carpentry tools.

Bushfire attack levels up to and including BAL 19 construction.

Product Range

Selflok Ecogroove 75^ Smooth

300h x 3660w mm

Selflok Millwood Smooth

300h x 3660w mm

Selflok Ecogroove 150^ Smooth

300h x 3660w mm

Selflok Millwood Ruff-Sawn

300h x 3660w mm

Accessories

Ecogroove

Ecogroove

Millwood

Texwood

Colonial

Long

Selflok Ecogroove 150^ Woodsman

300h x 3660w mm

Selflok Texwood Smooth

300h x 3660w mm

Selflok Ecogroove 300^ Smooth

300h x 3660w mm

Selflok Colonial Smooth

300h x 3660w mm

PRIMELOK

Made from real Australian hardwoods.

Lapping of board conceals fixings.

25 year warranty not to rot, split or crack.

Exclusive easy-aligning boards saving time and labour costs.

Single person install.

Bushfire attack levels up to and including BAL 19 construction.

Product Range

Smooth 200h x 3660w mm

Woodsman 200h x 3660w mm

Smooth 170h x 3660w mm

Primelok

Primelok

Primelok Federation

Primelok Federation Ruff-Sawn 170h x 3660w mm

Primelok Shadowood Smooth 170h x 3660w mm

Timber Solutions

Weathertex

CLASSIC

Made from real Australian hardwoods.

Value option - perfect for renovations on a tight budget.

25 year warranty on Classic weatherboards and 10 year warranty on wall Shingles Plus not to rot, split or crack.

Off stud cladding joining option enables minimal waste and less timber stud layout.

Can be cut with standard carpentry tools.

Bushfire attack levels up to and including BAL 19 construction.

Product Range

Classic Ruff-Sawn

Accessories

Traditional Off Stud JoinerInternal Combo Corner

Rusticated Joiners External Combo Corner

Large External CornerLarge End Stop

Large Internal CornerLarge Long Vertical Joiner

Weathergroove JoinerLarge Corner Plug

Classic Shingles Plus Smooth

RUBIX

Made from real Australian hardwoods. Self locking system.

10 year warranty on Rubix Panels.

Modern clean lines.

Create unique geometric patterns.

Bushfire attack levels up to and including BAL 19 construction.

Product Range

Rubix

Accessories

Why build with Hardie™

Key benefits of Hardie™ fibre cement products

Design versatility

Provides contemporary clean lines and pared-back aesthetics for homes with simple, bold forms.

Durable

Engineered to endure. Hardie™ bre cement is re resistant and resistant to damage from moisture and termites.

Fire resistant

Will not contribute to the spread of re.

Resistant to moisture damage

Offers dimensional stability resisting swelling, movement and warping.

Flexible colour

Pre-primed and ready to paint in any colour.

Low maintenance

Easy to clean and holds on to paint well.

Resistant to termite damage Stands up to termite attack.

Made in Australia

Choose Hardie™ bre cement to support local manufacturing.

Hardie™ Fine Texture Cladding

Hardie™ Oblique™ Cladding 200 & 300

It’s Possible™ to make modern like never before with James Hardie

What is fibre cement?

Fibre Reinforced Cement (FRC), or simply, fibre cement, is a popular building material developed by James Hardie in the early 1980s, when pioneering the use of alternative reinforcing materials to create building products. Hardie ™ fibre cement products are manufactured in Australia, so by choosing James Hardie, you are supporting local.

What is Hardie™ fibre cement made of?

Hardie™ fibre cement is made from a mixture of cement, sand, water and cellulose fibre, sourced from sustainably grown pine trees. Small amounts of other chemical additives are used to help the process or provide products with certain characteristics. This unique mixture of materials helps to build beautiful, low-maintenance and durable home exteriors across Australia.

Some Hardie™ external cladding products look like timber, how are they different?

Hardie™ exterior cladding solutions are engineered to stand up to harsh Australian conditions, including coastal conditions. With products such as Linea™ Weatherboard and Axon™ Cladding, you can harness the features and

charm of traditional weatherboard and vertical-joint timber styles without the hassles of timber and with the benefits of Hardie™ fibre cement. Durable, low maintenance and with broad design potential, Hardie ™ exterior cladding is resistant to shrinking, swelling and cracking and will hold paint longer than wood.

Why should you choose Hardie™ fibre cement products?

Building with Hardie™ fibre cement products give you the power to realise your vision. Bold forms, clean, sleek lines, and façade articulations – the possibilities are endless.

The Hardie™ Architectural Collection combines the renowned durability and product performance of our existing exterior cladding portfolio with new distinctive textures and profiles. Created to complement each other, this curated cladding collection offers endless design possibilities so you can build modern homes from the ground up, with confidence.

The Hardie™ Architectural Collection is backed by a suite of solutions, from guides to technical support and expert advice, giving Builders, Architects and Designers an uncomplicated framework to deliver full lightweight homes efficiently and with confidence.

Sub heading

James Hardie™

Axent™ Trim - Hardie™ Architectural Collection

Add the perfect nishing touches to a new home or renovation, and ensure the window and door trims stay looking as good as the Hardie™ bre cement cladding.

Ideal to use as a durable batten to achieve a modern board and batten look, as well as internal and external corners. Hardie™ Axent™ Trim won’t shrink, swell, warp or split like soft wood trims can.

Notes:

Fibre Cement Solutions

James Hardie™

Hardie™ Axent™ Trim Tools

Hardie™ Blade 185mm

A poly-diamond blade for fast and clean cutting of Hardie™ fibre cement products.

Diameter: 185mm

Selling Unit: 1 each

300660

Hardie™ Joint Sealant^

300mL cartridge

A general purpose, paintable, exterior grade polyurethane joint sealant.

300mL cartridge

Selling Unit: 20 per box

305534

Hardie™ Blade 254mm

A poly-diamond blade for fast and clean cutting of Hardie™ fibre cement products.

Diameter: 254mm

Selling Unit: 1 each

303375

Hardie™ Joint Sealant^

600mL sausage

A general purpose, paintable, exterior grade polyurethane joint sealant.

600mL sausage

Selling Unit: 20 per box

305672

All dimensions and masses provided are approximate only and subject to manufacturing tolerances. Products are to be installed in accordance with the relevant and current Product Installation Guide and Technical Documentation For information relating to installation, best practices, warnings and warranties visit www.jameshardie.com.au or phone us on 13 11 03.

Key:

^ Hardie™ Joint Sealant is unsuitable as a fire rated sealant. ° Excludes pallet, glut and packaging.

Fibre Cement Solutions

Axon™ Cladding - Hardie™ Architectural Collection

Axon™ Cladding is a vertically grooved cladding panel that looks sharp and uniform.

Pre-primed and easy to install, Axon™ Cladding delivers a pristine look that lasts.

Axon™ Cladding is suitable for use in residential applications wherever a modern design is required, including external walls in composite construction, upper-storey and ground-level extensions, and internal feature walls.

Notes:

All dimensions and masses provided are approximate only and subject to manufacturing tolerances. Products are to be installed in accordance with the relevant and current Product Installation Guide and Technical Documentation For information relating to installation, best practices, warnings and warranties visit www.jameshardie.com.au or phone us on 13 11 03.

Grained Texture 133mm wide groove spacing Smooth Texture 400mm wide groove spacing

Axon™ Cladding Accessories

Hardie™ 9mm Aluminium External

Square Corner 3,000mm

Aluminium extrusion that creates a square edge in external corner.

Length: 3,000mm

Selling Unit: 5 per pack

306100

Hardie™ Aluminium Snap On Corner

2 piece 3,000mm

A ready to paint aluminium extrusion set, to be used at internal and external corner junctions to conceal the board edge.

305513

Jointer: 306192

Connector: 306193

Length: 3,000mm (2 pieces per set)

Selling Unit: 5 sets per pack

Hardie™ 9mm Aluminium Base

Slimline Starter and Connector

Aluminium base trim that creates a neat edge to the cladding whilst improving installation by supporting the bottom of the panel.

Length: 3,000mm

Selling Unit: 5 per pack

Hardie™ 9mm Aluminium

Horizontal h Flashing

A ready to paint aluminium horizontal flashing to be used for horizontal control joints.

Length: 3,000mm

Selling Unit: 5 per pack 305613

Hardie™ 9mm Aluminium

Base Trim 3,000mm

Jointer: 306105

Connector: 306111

Fibre Cement Solutions

A elegant aluminium trim for the base which can be used to cover the slab edges or as a detail under balconies and cantilevers. An alignment tab helps installation and creates a 6mm horizontal shadow line between the classing and the trim.

Selling Unit: 5 per pack

305520

Jointer: 306190

Connector: 306191

Heading Sub heading

James Hardie™

Hardie™ 9mm Aluminium lnternal

Corner 3,000mm

A ready to paint aluminium extrusion, to be used at internal corner junctions to conceal the board edge.

Length: 3,000mm

Selling Unit: 5 per pack

Hardie™ 9mm Aluminium Recessed

Horizontal Jointer and Connector

A recessed horizontal jointer that creates a 6mm horizontal shadow line.

Length: 3,000mm

Selling Unit: 5 per pack

Hardie™ 9mm Aluminium

Horizontal h Jointer

A ready to paint aluminium jointer, used to join the Hardie™ 9mm

Aluminium Horizontal h Flashing.

Selling Unit: 10 per pack 305614

Hardie™ 50mm Foam Back Sealing

Tape 25m roll

A self-adhesive foam tape to help improve water tightness. It is applied under sheet joins to the vapour permeable membrane along the stud face.

Length: 25 metres long roll

Selling Unit: 1 each 304560

Fibre Cement Solutions

Brushed Concrete Cladding - Hardie™ Architectural Collection

This unique texture, which is embedded into the panel, is reminiscent of softly brushed concrete making it distinctively tactile. This sophisticated texture is perfect for creating modern facades, appearing smooth from a distance and surprisingly detailed up-close when used in ground oor applications.

Hardie™ Brushed Concrete Cladding can be used alone for a modern minimalist nish, or complementary to other Hardie™ exterior cladding solutions achieving a personalised design.

The textured pre-sealed bre cement panels are connected to each other with shiplap joints and supported by a range of Hardie™ 9mm accessories, resulting in a streamlined installation process and a consistent, quality nish.

The 8.5mm thick panels are compatible with a selection of Hardie™ 9mm accessories ensuring multiple Hardie™ cladding panels can be mixed and matched for diverse designs.

Notes:

All

Key:

+ Refer to the Hardie™ Fine Texture Cladding and Hardie™ Brushed Concrete Cladding Installation Guide for recommendations regarding fixing to steel frames.

° Excludes pallet, glut and packaging.

Hardie™ Brushed Concrete Cladding

The fresh, owing lines of Hardie™ Brushed Concrete Cladding are ideal for creating modern minimalist facades with interest.

Fibre Cement Solutions

James Hardie™

Hardie™ Brushed Concrete Cladding Design Led Accessories

Hardie™ 9mm Aluminium External

Slimline Corner

Jointer: 306190

Connector: 306191

A sleek external corner with a sharp, minimal edge. It holds the panels tight with just 3.5mm of coverage.

Hardie™ 9mm Aluminium Recessed Horizontal Jointer and Connector

A recessed horizontal jointer that creates a 6mm horizontal shadow line.

Length: 3,000mm

Selling Unit: 5 per pack

Hardie™ 9mm Aluminium Internal

Concave Corner

A concave internal corner that gives 10mm of cover to conceal panel edges.

Length: 3,000mm

Selling Unit: 5 per pack

Jointer: 306192

Connector: 306193

Hardie™ 9mm Aluminium External Square Corner

Jointer: 306104

Connector: 306110

Hardie™ 9mm Aluminium Base Slimline

Starter and Connector

Aluminium base trim that creates a neat edge to the cladding whilst improving installation by supporting the bottom of the panel.

Length: 3,000mm

Selling Unit: 5 per pack

Brushed Concrete Cladding Functional Accessories

Aluminium extrusion that creates a square edge in external corner.

Selling Unit: 5 per pack

Hardie™ 9mm Aluminium Internal Corner

Aluminium extrusion that creates an

Hardie™ 9mm Aluminium Horizontal Express Jointer and Connector

A horizontal jointer that creates a 6mm horizontal shadow line whilst concealing the edge of the bottom panels.

Selling Unit: 5 per pack

External Corner using Hardie™ Axent™ Trim

External corner created with 2 Hardie™ Axent™ Trims 45x19mm.

Selling Unit: 1 each

Internal Corner using Hardie™ Axent™ Trim

Internal corner created with 1 Hardie™ Axent™ Trim 45x38mm.

A self-adhesive foam tape to help improve water tightness. It is applied under sheet joins to the vapour permeable membrane along the stud face.

Length: 25 metres long roll

Selling Unit: 1 each 304560

Hardie™ 9mm Aluminium

Base Trim and Connector

A elegant trim used to cover the slab edges or as a detail under balconies and cantilevers.

Selling Unit: 1 each

Jointer: 306105

Connector: 306111

Fibre Cement Solutions

Fine Texture Cladding - Hardie™ Architectural Collection

For the beauty of clean lines and a modern look. The render look feels calming and uncluttered compared with the busyness of a brick wall. Its subtlety aids design by putting the focus on the building’s form, or by allowing bold cladding features to standout.

Hardie™ Fine Texture Cladding is a pre-sealed bre cement panel embedded with a ne render texture. It’s durable and lower maintenance than traditional cement render to stay looking good for many years to come.

Use in residential single and medium density buildings including alterations and additions on timber or light gauge steel+ framed buildings.

Selling

Notes:

All dimensions and masses provided are approximate only and subject to manufacturing tolerances. Products are to be installed in accordance with the relevant and current Product Installation Guide and Technical Documentation For information relating to installation, best practices, warnings and warranties visit www.jameshardie.com.au or phone us on 13 11 03.

Key:

+ Refer to the Hardie™ Fine Texture Cladding and Hardie™ Brushed Concrete Cladding Installation Guide for recommendations regarding fixing to steel frames.

° Excludes pallet, glut and packaging.

Achieve a modern, minimalist aesthetic with Hardie™ Fine Texture Cladding. The smooth, natural sand texture adds warmth and diffuses light, giving your new home, renovation or extension a ne matte nish.

Hardie™ Fine Texture Cladding

Fibre Cement Solutions

James Hardie™

Hardie™ Fine Texture Cladding Design Led Accessories

Hardie™ 9mm Aluminium External

Slimline Corner

Jointer: 306190

Connector: 306191

A sleek external corner with a sharp, minimal edge. It holds the panels tight with just 3.5mm of coverage.

Hardie™ 9mm Aluminium Recessed

Horizontal Jointer and Connector

A recessed horizontal jointer that creates a 6mm horizontal shadow line.

Length: 3,000mm

Selling Unit: 5 per pack

Jointer: 306192

Connector: 306193

Hardie™ 9mm Aluminium Internal

Concave Corner

A concave internal corner that gives 10mm of cover to conceal panel edges.

Length: 3,000mm

Selling Unit: 5 per pack

Fine Texture Cladding Functional Accessories

Hardie™ 9mm Aluminium External Square Corner

Aluminium extrusion that creates a square edge in external corner.

Selling Unit: 5 per pack

Jointer: 306104

Connector: 306110

Hardie™ 9mm Aluminium

Internal Corner

Aluminium extrusion that creates an

Hardie™ 9mm Aluminium Base Slimline

Starter and Connector

Aluminium base trim that creates a neat edge to the cladding whilst improving installation by supporting the bottom of the panel.

Length: 3,000mm

Selling Unit: 5 per pack

External Corner using Hardie™ Axent™ Trim

External corner created with 2 Hardie™

Axent™ Trims 45x19mm.

Selling Unit: 1 each

Hardie™ 9mm Aluminium Horizontal

Express Jointer and Connector

A horizontal jointer that creates a 6mm horizontal shadow line whilst concealing the edge of the bottom panels.

Selling Unit: 5 per pack

Internal Corner using Hardie™ Axent™ Trim

Internal corner created with 1 Hardie™ Axent™ Trim 45x38mm.

A self-adhesive foam tape to help improve water tightness. It is applied under sheet joins to the vapour permeable membrane along the stud face.

Length: 25 metres long roll

Selling Unit: 1 each 304560

Hardie™ 9mm Aluminium

Base Trim and Connector

A elegant trim used to cover the slab edges or as a detail under balconies and cantilevers.

Selling Unit: 1 each

Jointer: 306105

Connector: 306111

Matrix™ Cladding - Hardie™ Architectural Collection

Matrix™ Cladding is a pre-primed exterior cladding system with a geometric look created by an express joint which leaves a precise 10mm gap between panels.

Choose from various panel sizes to create a variety of geometric shapes in square, vertical, horizontal and brick pattern layouts.

Matrix™ Cladding panels are installed on vertical cavity battens with horizontal backing strips. They’re suitable for use in residential and medium-density applications wherever a modern look is required. It brings design diversity and suits mixed cladding designs in new builds as well as upper oor and ground oor extensions.

Matrix™ Cladding

Notes:

Key:

9mm Aluminium External

Aluminium extrusion that creates a square

Backing Strip 1,190mm

A weather seal at horizontal panel joints Facade Panel and

Backing Strip 2,990mm

A weather seal at horizontal panel joints Facade Panel and

screw for fastening to 0.5mm to 1.6mm

A poly-diamond blade for fast and clean fibre cement products.

A general purpose, paintable, exterior

Fibre Cement Solutions

James Hardie™

Heading Sub heading

Hardie™ 18mm PVC Cavity Vent Strip

A perforated PVC extrusion used at the bottom of walls behind cladding.

Length: 3,000mm

Selling Unit: 25 per pack 305555

Hardie™ Backing Strip 2,390mm

A weather seal at horizontal panel joints for use with ExoTec™ Facade Panel and System and Matrix™ Cladding.

Length: 2,390mm

Selling Unit: 10 per pack or each 305558

Hardie™ Facade Washers

Facade washers used for exposed fastener fixing with ExoTec™ Facade Panel and System and Matrix™ Cladding.

Selling Unit: 1,000 per bag

305565

Hardie™ Drive Screw 41mm

Phillips Drive Collated

A class 3 self-tapping wing-tipped screw for fastening to 0.5mm to 1.6mm BMT light gauge steel frames. Suitable for use in most auto feed screw guns.

Selling Unit: 1,000 per box

305982

Hardie™ Joint Sealant^ 300mL cartridge

A general purpose, paintable, exterior grade polyurethane joint sealant. 300mL cartridge

Selling Unit: 20 per box 305534

Hardie™ Base Coat 15kg Bag

A water-resistant base coat compound.

Selling Unit: 1 each 304491

All dimensions and masses provided are approximate only and subject to manufacturing tolerances. Products are to be installed in accordance with the relevant and current Product Installation Guide and Technical Documentation For information relating to installation, best practices, warnings and warranties visit www.jameshardie.com.au or phone us on 13 11 03.

^ Hardie™ Joint Sealant is unsuitable as a fire rated sealant. ° Excludes pallet, glut and packaging.

Fibre Cement Solutions

Stria™ Cladding- Hardie™ Architectural Collection

Achieve a range of sleek looks with customisable Stria™ Cladding. Featuring deep grooves from the thick shiplap cladding boards, the Stria™ range is an easy way to get strong horizontal or vertical line details in modern home and townhouse designs. Stria™ Cladding suits contemporary looks where a bold, but pared back aesthetic is desired. Introduce design versatility into your home by varying the application and switch between widths and orient the boards vertically or panelise them with the vertical ashing stop accessory.

Stria™ Cladding Standard Profile 325mm wide: 14mm thick with a square horizontal edge. It has a deep 15mm wide groove at 300mm intervals.

Stria™ Cladding Wide Profile 405mm wide: 14mm thick with a square horizontal edge. It has a deep 15mm wide groove at 380mm intervals.

Stria™ Cladding is suitable for use in residential applications wherever a timeless, classic and enduring look is required, including external walls in composite or full construction, upper-storey and ground-level extensions and internal feature walls.

Stria™ Cladding Standard Pro le 325mm wide

Stria™ Cladding Accessories

Hardie™ 14mm Aluminium External

Corner 3,000mm

A neat aluminium external corner for 14mm thick Hardie™ fibre cement boards in horizontal or vertical orientations. Use with Hardie™ Oblique™ and Stria™ Cladding.

Length: 3,000mm

Selling Unit: 5 per pack 305519

Hardie™ 75x75mm COLORBOND®

Corner Flashing 3,000mm

A COLORBOND® corner flashing for use behind cladding at internal and external corners.

Length: 3,000mm

Selling Unit: 5 per pack 305564

Hardie™ 14mm Aluminium Trimline

Joint Flashing 3,000mm

A horizontal jointer for additional rows of Hardie™ Oblique™ or Stria™ cladding in a vertical orientation. The lip butts into the boards below while a 6mm gap is left to the boards above.

Jointer: 306128

Connector: 306132

Length: 3,000mm

Selling Unit: 5 per pack

Hardie™ 14mm Aluminium Trimline

Internal Corner Jointer

An internal corner that works with Hardie™

14mm Aluminium Trimline Joint Flashing 3,000mm (Product code 306128). Used to join additional rows of Hardie™ Oblique™ or Stria™ cladding.

Selling Unit: 20 per pack 306131

Key: ^ Hardie™ Joint Sealant is unsuitable as a re rated sealant.

Fibre Cement Solutions

James Hardie™

Heading Sub heading

Hardie™ 14mm Aluminium Internal

Corner 3,000mm

A neat aluminium internal corner for 14mm thick Hardie™ fibre cement boards in horizontal or vertical orientations. Use with Hardie™ Oblique™ and Stria™ Cladding.

Length: 3,000mm

Selling Unit: 5 per pack 305518

Hardie™ Castellated Batten

20x45x2,700mm

A non-structural horizontal timber batten for cavity construction. The grooves provide drainage and ventilation. Use with Hardie™ Oblique™ and Stria™ Cladding shiplap boards in a vertical orientation.

Selling Unit: 10 per pack 306181

Hardie™ 14mm Aluminium Trimline

External Corner Jointer

An external corner that works with Hardie™

14mm Aluminium Trimline Joint Flashing 3,000mm (Product code 306128). Used to join additional rows of Hardie™ Oblique™ or Stria™ cladding.

Selling Unit: 20 per pack 306130

Hardie™ 18mm PVC Cavity Vent Strip

A perforated PVC extrusion used at the bottom of walls behind cladding.

Length: 3,000mm

Selling Unit: 25 per pack

Fibre Cement Solutions

Heading

Sub headingJames Hardie™

Oblique™ Cladding - Hardie™ Architectural Collection

Evoke a bold, contemporary aesthetic with the wide grooves and bespoke design exibility of Hardie™ Oblique™ Cladding.

Hardie™ Oblique™ Cladding is the only Hardie™ exterior cladding with a slanted groove edge, delivering highlights and shadows. With two widths available – 200mm and 300mm – the boards can be mixed and matched.

When installed vertically, the 2,750mm length boards suit common wall heights which can help to reduce waste, while the 4,200mm lengths give tall walls a continuous look, reducing the need for horizontal joints.

The horizontal Hardie™ Castellated Battens simplify the installation of the boards in a vertical orientation, allowing ventilation and drainage  through the cavity. Install a single width throughout, alternate the two widths, or create custom staggered combinations, delivering a fresh, contemporary aesthetic.

300mm

200mm

Hardie™ Oblique™ Cladding bespoke arrangement

Fibre Cement Solutions

James Hardie™

Hardie™ Oblique™ Cladding Accessories

Hardie™ 14mm Aluminium External

Corner 3,000mm

A neat aluminium external corner for 14mm thick Hardie™ fibre cement boards in horizontal or vertical orientations. Use with Hardie™ Oblique™ and Stria™ Cladding.

Length: 3,000mm

Selling Unit: 5 per pack 305519

Hardie™ 75x75mm COLORBOND®

Corner Flashing 3,000mm

A COLORBOND® corner flashing for use behind cladding at internal and external corners.

Length: 3,000mm

Selling Unit: 5 per pack 305564

Hardie™ 14mm Aluminium Trimline

Joint Flashing 3,000mm

A horizontal jointer for additional rows of Hardie™ Oblique™ or Stria™ cladding in a vertical orientation. The lip butts into the boards below while a 6mm gap is left to the boards above.

Jointer: 306128

Connector: 306132

Length: 3,000mm

Selling Unit: 5 per pack

Hardie™ 14mm Aluminium Trimline

Internal Corner Jointer

An internal corner that works with Hardie™

14mm Aluminium Trimline Joint Flashing 3,000mm (Product code 306128). Used to join additional rows of Hardie™ Oblique™ or Stria™ cladding.

Selling Unit: 20 per pack 306131

Hardie™ 14mm Aluminium Internal

Corner 3,000mm

A neat aluminium internal corner for 14mm thick Hardie™ fibre cement boards in horizontal or vertical orientations. Use with Hardie™ Oblique™ and Stria™ Cladding.

Length: 3,000mm

Selling Unit: 5 per pack 305518

Hardie™ Castellated Batten

20x45x2,700mm

A non-structural horizontal timber batten for cavity construction. The grooves provide drainage and ventilation. Use with Hardie™ Oblique™ and Stria™ Cladding shiplap boards in a vertical orientation.

Selling Unit: 10 per pack 306181

Hardie™ 14mm Aluminium Trimline

External Corner Jointer

An external corner that works with Hardie™

14mm Aluminium Trimline Joint Flashing 3,000mm (Product code 306128). Used to join additional rows of Hardie™ Oblique™ or Stria™ cladding.

Selling Unit: 20 per pack 306130

Hardie™ 18mm PVC Cavity Vent Strip

A perforated PVC extrusion used at the bottom of walls behind cladding.

Length: 3,000mm

Selling Unit: 25 per pack

305555

Notes:

All dimensions and masses provided are approximate only and subject to manufacturing tolerances. Products are to be installed in accordance with the relevant and current Product Installation Guide and Technical Documentation For information relating to installation, best practices, warnings and warranties visit www.jameshardie.com.au or phone us on 13 11 03.

Key:

° Excludes pallet, glut and packaging.

Fibre Cement Solutions

Sub headingJames Hardie™

Linea™ Weatherboard - Hardie™ Hamptons Collection

Linea™ Weatherboard is a pre-primed thick horizontal weatherboard with deep shadow lines. Linea™ Weatherboard is the weatherboard that weathers well.

Linea™ Weatherboard is suitable for residential homes inspired by the Hamptons look. Ideal for exterior walls on new builds, renovations or extensions, and can be used for internal feature walls.

Linea™ Weatherboard Accessories

Linea™ Aluminium External Slimline

Boxed Corner 3,600mm Long

A ready to paint aluminium extrusion to be used with Linea™ Weatherboard to create external boxed corners.

Length: 3,600mm

Selling Unit: 5 per pack

305512

Linea™ Aluminium Corner Soaker for 150mm wide boards

A ready to paint aluminium external corner soaker for use with Linea™ Weatherboard.

Selling Unit: 100 per box

305574

Linea™ PVC Box Corner Z Flashing 2,700mm long

A PVC Z flashing for use with Linea™ Weatherboard in conjunction with Axent™ Trim to form external corners.

Length: 2,700mm

Selling Unit: 25 per pack

305570

Linea™ Aluminium Universal Window Adaptor 3,700mm long

A ready to paint aluminium extrusion to be used adjacent to windows to finish the edge of Linea™ Weatherboard.

Length: 3,700mm

Selling Unit: 5 per pack

305510

Hardie™ Drive Screw 41mm

Phillips Drive Collated

A class 3 self-tapping wing-tipped screw for fastening to 0.5mm to 1.6mm BMT light gauge steel frames. Suitable for use in most auto feed screw guns.

Selling Unit: 1,000 per box

305982

Hardie™ Blade 254mm

A poly-diamond blade for fast and clean cutting of Hardie™ fibre cement products.

Diameter: 254mm

Selling Unit: 1 each

Fibre Cement Solutions

James Hardie™

Linea™ 16mm Aluminium Internal Corner 3,600mm

A ready to paint aluminium extrusion to be used with Stria™ Cladding and Linea™ Weatherboard to create internal corners.

Length: 3,600mm

Selling Unit: 5 per pack

305511

Linea™ Aluminium Corner Soaker for 180mm wide boards

A ready to paint aluminium external corner soaker for use with Linea™ Weatherboard.

Selling Unit: 100 per box

305572

Linea™ PVC Starter Strip 3,000mm long

A perforated PVC starter strip used to set out the bottom edge of Linea™ Weatherboard at the correct angle.

Length: 3,000mm

Selling Unit: 25 per pack

305571

Hardie™ Drive Screw 41mm Square Drive

A class 3 self-tapping wing-tipped screw for fastening to 0.5mm to 1.6mm BMT light gauge steel frames.

Selling Unit: 1,000 per box

305984

Hardie™ Blade 185mm

A poly-diamond blade for fast and clean cutting of Hardie™ fibre cement products.

Diameter: 185mm

Selling Unit: 1 each

300660

Hardie™ Joint Sealant^ 300mL cartridge

A general purpose, paintable, exterior grade polyurethane joint sealant. 300mL cartridge

303375

Hardie™ Joint Sealant^ 600mL sausage

A general purpose, paintable, exterior grade polyurethane joint sealant. 600mL sausage

Selling Unit: 20 per box

305672

Selling Unit: 20 per box 305534

Fibre Cement Solutions

Primeline™ Weatherboard - Hardie™ Hamptons Collection

Primeline™ Weatherboard is a pre-primed, site painted weatherboard in a range of pro les from contemporary to traditional.

The range includes the following weatherboards:

PrimeLine™ Heritage: a double-width weatherboard with rebated edges to create shadow lines.

PrimeLine™ Newport: a smooth, narrow weatherboard. Compatible with the Hardie™ Lock xing system.

PrimeLine™ Chamfer: a double-width weatherboard with clean lines to create a shadow effect.

Primeline™ Weatherboard is suitable for use as external cladding in residential single and medium-density homes, including renovations and extensions, where a traditional or contemporary weatherboard look is required. Ideal for full or composite construction designs on either timber or light gauge steel framed homes.

Fibre Cement Solutions

James Hardie™

Primeline™ Weatherboard Accessories

Hardie™ Aluminium Snap On Corner

2 piece 3,000mm

A ready to paint aluminium extrusion set, to be used at internal and external corner junctions to conceal the board edge.

Length: 3,000mm

(2 pieces per set)

Selling Unit: 5 sets per pack

305513

305525

PrimeLine™ Galvanised Universal Off Stud Joint Clip+

A galvanised metal clip to be used for off stud jointing of PrimeLine™ Heritage and PrimeLine™ Chamfer Weatherboard. Note: Not suitable for coastal applications, see installation manual for further information.

Selling Unit: 100 per box

Hardie™ Drive Screw 41mm

Phillips Drive Collated

A class 3 self-tapping wing-tipped screw for fastening to 0.5mm to 1.6mm BMT light gauge steel frames. Suitable for use in most auto feed screw guns.

Selling Unit: 1,000 per box

305982

Hardie™ Blade 185mm

A poly-diamond blade for fast and clean cutting of Hardie™ fibre cement products.

Diameter: 185mm

Selling Unit: 1 each

300660

Hardie™ Joint Sealant^ 300mL cartridge

A general purpose, paintable, exterior grade polyurethane joint sealant. 300mL cartridge

Selling Unit: 20 per box

305534

305568

Hardie™ 7.5mm PVC Starter Strip

3,000mm

A perforated PVC extrusion, used with PrimeLine™ Newport Weatherboard to kick out the bottom row to the correct angle.

Length: 3,000mm

Selling Unit: 25 per pack

Hardie™ Drive Screw 41mm

Square Drive

A class 3 self-tapping wing-tipped screw for fastening to 0.5mm to 1.6mm BMT light gauge steel frames.

Selling Unit: 1,000 per box

305984

Hardie™ Fibreshears

Electric tool for cutting fibre cement sheets.

Selling Unit: 1 each

300653

Hardie™ Blade 254mm

A poly-diamond blade for fast and clean cutting of Hardie™ fibre cement products.

Diameter: 254mm

Selling Unit: 1 each

303375

Hardie™ Joint Sealant^ 600mL sausage

A general purpose, paintable, exterior grade polyurethane joint sealant. 600mL sausage

Selling Unit: 20 per box

305672

Notes:

All dimensions and masses provided are approximate only and subject to manufacturing tolerances. Products are to be installed in accordance with the relevant and current Product Installation Guide and Technical Documentation For information relating to installation, best practices, warnings and warranties visit www.jameshardie.com.au or phone us on 13 11 03.

Key:

+ Not suitable for coastal applications, see installation manual for further information. ∆ Compatible with the Hardie™ Lock fixing system. # Double board profile. ^ Hardie™ Joint Sealant is unsuitable as a fire rated sealant. ° Excludes pallet, glut and packaging.

Product Availability

Timber

DesignPine

Rolled Rus�cated Weatherboard

Rus�cated Weatherboard Chamfer Board

Full Splayed Weatherboard

Colonial Weatherboard Smooth Edged Shiplap H3

VJ Shiplap

138 x 18 Sawn Face Shiplap

VJ Tongue + Groove H3

321 Regency Eaves Lining H3 Weatherboard Stop Quad

302 V-Joint/Rev Eaves Lining H3

External Corner Mould

External Corner (11mm)

Corner Mould

Tri Quad

Wind Mould

Cover Strip

Cover Ba

Product Availability

HeadingCategoryProduct

Ship-Lap (6mm channel) Clad Smooth & Bandsawn Raw, Clear Oiled or Pigmented Oiled

Ship-Lap (12mm channel) Clad Smooth & Bandsawn Raw, Clear Oiled or Pigmented Oiled

Ship-Lap (22mm channel) Clad Smooth & Bandsawn Raw, Clear Oiled or Pigmented Oiled

Ship-Lap/VJ (reversible) Clad Smooth Raw, Clear Oiled or Pigmented Oiled

TIM Clad Smooth & Bandsawn Raw, Clear Oiled or Pigmented Oiled

Tesse llated Clad Smooth & Bandsawn Raw, Clear Oiled or Pigmented Oiled

VJ Clad/Lining Smooth Raw, Clear Oiled or Pigmented Oiled

Ship-Lap Clad/Lining Smooth Raw, Clear Oiled or Pigmented Oiled

VJ Lining Smooth Raw, Clear Oiled or Pigmented Oiled

VJ Lining Smooth Raw, Clear Oiled or Pigmented Oiled

Ship-Lap (6mm channel) Lining Smooth Raw, Clear Oiled or Pigmented Oiled

Ship-Lap (6mm channel) Lining Smooth Ra w, Clear Oiled or Pigmented Oiled

Ship-Lap (12mm channel) Lining Smooth Raw, Clear Oiled or Pigmented Oiled

Ship-Lap (12mm channel) Lining Smooth Raw, Clear Oiled or Pigmented Oiled

Tessellated Lining Smooth Raw, Clear Oiled or Pigmented Oiled

Corners 32 Smooth & Bandsawn Raw, Clear Oiled or Pigmented Oiled

Corners 42 Smooth & Bandsawn Raw, Clear Oiled or Pigmented Oiled

Blackbu� T5

Blackbu� NotchClad

Forest Red Gum T5

Forest Red Gum NotchClad

Ironbark (Mixed) T5

Ironbark (Mixed) NotchClad

Silvertop T5

Silvertop NotchClad

Spo �ed Gum (QLD) T5

Spo �ed Gum (QLD) NotchClad

Corners (Blackbu� / Forest Rd Gum / Ironbark (Mixed) / Silvertop / Spo �ed Gum (QLD)

Merbau T5

Merbau NotchClad

Corners (Solid Merbau)

Corners (F/J Merbau)

White Cypress F/J KD Sawn Hamptons Weatherboard

White Cypress KD Sawn Cladding End Matched

Product Availability

HeadingCategoryProduct

Weathergroove75^ Natural

Weathergroove150^ Natural

Weathergroove300^ Natural

Weathergroove1200^ Natural

Classic Shingles Plus Natural

Weathergroove Fusion Natural

Sel fl ok Vgroove150^ Natural

Sel fl ok Ecogroove 75^ Natural

Sel fl ok Ecogroove 150^ Natural

Weathergroove 75 Smooth

Weathergroove 75 Woodsman

Weathergroove 150 Smooth

Weathergroove 150 Woodsman

Weathergroove 150 Ruff -Sawn

Weathergroove 300 Smooth

Weathergroove 600 Smooth

Weathergroove Fusion Smooth

Weathergroove 1200 Smooth

Weathergroove 1200 Woodsman

Sel fl ok Ecogroove 75^ Smooth

Sel fl ok Ecogroove 150^ Smooth

Sel fl ok Ecogroove 150^ Woodsman

Sel fl ok Ecogroove 300^ Smooth

Sel fl ok Millwood Smooth

Sel fl ok Millwood Ruff -Sawn

Sel fl ok Texwood Smooth

Sel fl ok Colonial Smooth

Product Availability

Primelok Smooth

Primelok

Primelok Woodsman

Primelok Woodsman

Primelok Federa� on Smooth

Primelok Federa� on Smooth

Primelok Federa� on Ruff -Sawn

Primelok

Primelok Shadowood Smooth

Primelok

Classic Smooth

Classic Ruff -Sawn

Classic Smooth

Classic Rus� cated Smooth

Classic Shingles Plus Smooth

Weathertex Accessories Stocked / Special Order Na� onally

Apex 2 Groove Profi le Charred Cedar

Apex 2 Groove Profi le Western Red Cedar

Apex 2

Apex 2 Groove Profi le Swedish Oak

Apex 2

Apex 2 Groove Profi le Hawaiian Walnut

Apex

Apex 2 Groove Profi le Carbonised Osage

Apex

Apex Flat Profi le Misty Grey

Apex

Apex Flat Profi le Carbonised Osage

Apex

Apex Flat Profi le Charred Cedar

Apex

Apex Flat Profi le Western Red Cedar

Apex

Digital Solutions

External Cladding and Lining Solutions Digital Marketing Toolkit

EDM Posts to your customers

The digital marketing toolkit is a game changer for your business. With a comprehensive array of tools and resources tailored specifically around our External Cladding and Lining solutions catalogue, it will allow you to connect with your audience like never before.

Multiple pieces of content designed to highlight the unique array of Cladding and Lining solutions ITI has to offer, this toolkit will provide the competitive edge you need. It streamlines your efforts, allowing you to showcase the ITI offering effectively, engage with your customers on multiple channels, and drive sales. In an increasingly digital world, this Cladding and Lining Solutions toolkit ensures that ITI’s range of Cladding and Lining Solutions will stand out for you, driving growth and success for your business.

Speak to your ITI Representative to discuss access to the External Cladding and Lining Solutions Digital Marketing Toolkit for your Business.

Speak to your ITI Representative to discuss access to the External Cladding and Lining Solutions

Digital Marketing Toolkit for your Business.

59 Dunheved Circuit, ST MARYS NSW 2760 P: 02 8805 5000 F: 02 9623 0492 salesnsw@iti.net.au

NEWCASTLE

19 Nelson Rd, CARDIFF NSW 2285

P: 02 4953 7666 F: 02 4954 3966 salesnc@iti.net.au

BRISBANE

62 Creek Street, BUNDAMBA QLD 4304

P: 07 3436 8400 F: 07 3436 8499 salesqld@iti.net.au

TOWNSVILLE

54 - 62 Enterprise Street, BOHLE QLD 4818

P: 07 4724 5509 F: 07 4721 0917 salestsv@iti.net.au

ADELAIDE

82-94 Grand Trunkway, PORT ADELAIDE SA 5015

P: 08 8447 0400 F: 08 8447 0440 salesSA@iti.net.au

MELBOURNE

68-80 Kirkham Rd, KEYSBOROUGH VIC 3173

P: 03 9392 8400 F: 03 9391 8709 salesvic@iti.net.au

PERTH

102-108 Bannister Rd, Canningvale WA 6155

P: 08 9256 5700 F: 08 9455 2905 saleswa@iti.net.au

INTERNATIONAL

New Zealand, Indonesia & Chile

NSWOS369
