Air motors for industrial applications on the food sector.

Compact and lightweight

Heat resistant

Safe

Suitables for sterilizing

Easy to control

Low maintenance

Rugged

Start and stop without overheating

Water resistant

•Meat shaver

•Meat trimmer

•Meat slicer

•Fish deboning

•Plucking machine

•Dehiding machine

•Dairy equipment

•Bottling, capping and filling

•Coating and wrapping

•Clipping

•Sausage processing www.fiamgroup.com head, with the function of rotating it to tighten the plastic lid of casing jars.

•And more...

Would you like find out more about the benefits of this italian technology? Discover the free eBook, for you.

The capping is done by taking advantage of the stall torque of the air motor.

Considering the highly humid and corrosive environment, the customer discarded from the beginning the idea of installing an electric motor, to avoid short circuits that would be created due to the presence of a high percentage of humidity, and secondly, to avoid corrosive phenomena resulting from the presence of water and salt in the solution contained inside the jars containers.

The application involved an air motor made with an outer casing of plastic material of the type of POM C Ertacetal, a material that gives high mechanical strength as well as excellent dimensional stability. In addition, stainless steel AISI316 has been used for the output shaft in order to definitively avert the risk of corrosive phenomena.

From this Case Study we can see the main advantages of an Air Motor for Food machinery, an industry characterized by high humidity and with strict cleaning and sterilization requirements, for which Motors have all the necessary features:

•IP67 degree of protection that prevents water/steam/dust from entering the motor and damaging it

• Safe and reliable operation even at high temperatures

• High corrosion resistance due to galvanic treatments that make them highly resistant to aggressive agents

• Fabrication with high-quality stainless steel according to ISO standards

• Gears lubricated with food-grade lubricant

• Cavity-free outer surfaces that prevent dust and dirt accumulation and ensure ease of cleaning and sterilization

Not only Fiam offers a wide catalog range of models in the stainless steel version with IP67 Protection and with ATEX Certification, perfect for application in the Food industry, but there are also numerous “unique” customized solutions, often designed together with the customer in co-engineering mode. A truly important aspect of distinction of Fiam and our R&D.

DISCOVER OUR CATALOG OF 200+ SECOND-HAND MACHINES

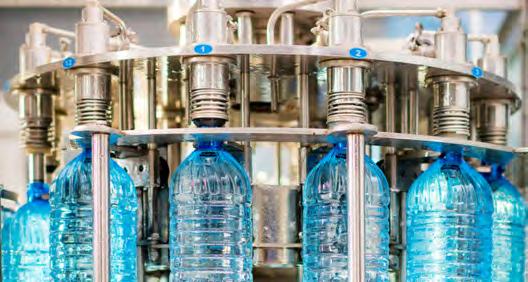

Go green, go second-hand: the excellence of used bottling machinery
