& FENCES
ALUMINIUM | TIMBER | STEEL Edition 08
GATES
F
ABOUT FENTEC
Fentec has been designing, manufacturing and delivering innovative and stylish fence and gate systems to the good people of NZ since the early 90s.
The Fentec range has been designed with your budget in mind. Utilising years of experience and traditional construction methods all of our products have been manufactured as costeffective, innovative and stylish systems for your property.
AVAILABLE NATIONWIDE
WIDE RANGE OF PRODUCTS
TRUSTED BRAND AND SERVICE
CUSTOM SIZE OPTIONS AVAILABLE
WHERE TO BUY OUR PRODUCTS
You can find Fentec products in stores all over New Zealand. Visit our website to find the store nearest you; WWW.FENTEC.CO.NZ
If you have any enquiries, please contact us at: sales@fentec.co.nz or 0800 002 725
0800 002 725 2
Folow us on social media - fentec.co.nz fentecgroup
HERE AT FENTEC, WE SPECIALISE IN PROVIDING YOU WITH QUALITY, COMPETITIVE FENCE AND GATE SYSTEMS THAT WILL ENHANCE THE VALUE AND SAFETY OF YOUR PROPERTY.
ALUMINIUM YOUR FENCE COMPONENTS
Strong and Durable yet light in weight – it can provide the strength of steel with one third of the weight. Aluminium also has an innate resistance to atmospheric conditions and coupled with a powder-coated finish means that rust will never be a problem.
Strong Welded Construction - All Fentec aluminium gates and fences are welded to ensure strength and durability.
Powder-coated Finish - The powder coated finish coupled with the natural properties of aluminium means that you will never have problems with rust.
LODGE
Landscape
fentec.co.nz 0800 002 725 4 5
PANEL
POOLS HOME EDUCATION SECURITY WARRANTY All aluminium product is covered by warranty under the conditions of Fentec’s warranty agreement, a copy of which is available on request. 5 Years
Pool ALTO DELTA MANSION BALUSTRADE FORTRESS
VISTAWALL
FLANGE POST OPTION FACE FIXED POST OPTION IN-GROUND POST OPTION Packs of 4 or 6 brackets For balustrades Aluminium or Plastic Brackets Caps
ALUMINIUM
LIGHT, DURABLE AND STRONG WELDED ALUMINIUM FENCES AND GATES FORTRESS
LODGE
RAKING
DELTA
ALTO
MANSION BALUSTRADE
LODGE
WHEN LESS IS MORE The Lodge range offers great value without compromising strength or style. The design is simple, strong and constructed from rust-free aluminium for long-term durability, making our Lodge range the perfect choice for your property.
LODGE LANDSCAPE PANEL
PRODUCT CODE PANEL HEIGHT
FALLP0924 900mm
FALLP1224 1200mm
PANEL LENGTH 2400mm
HORIZONTAL RAILS 38 x 25mm
VERTICAL BARS 16mm dia
BRACKETS REQUIRED FAPB3825 x4
LODGE LANDSCAPE GATE
PRODUCT CODE GATE HEIGHT
FALLG0995 900mm
FALLG1295 1200mm
GATE WIDTH 950mm
GATE STILES 50 x 50mm
HARDWARE OPTIONS See page 24
ALUMINIUM
*Not suitable for pool fencing
FEATURES
*Not suitable for pool fencing
LODGE POOL PANEL
PRODUCT CODE FALFP1222
PANEL HEIGHT 1200mm
PANEL LENGTH 2400mm
HORIZONTAL RAILS 38 x 25mm
VERTICAL BARS 16mm dia
BRACKETS REQUIRED FAPB3825 x4
LODGE POOL GATE
PRODUCT CODE FALSG1295
GATE HEIGHT 1200mm
GATE WIDTH 950mm
GATE STILES 50 x 50mm
HARDWARE OPTIONS See page 22
LODGE DRIVEWAY GATE
PRODUCT CODE FALDG1223
GATE HEIGHT 1200mm
GATE WIDTH 1200 - 2350mm each
GATE STILES 50 x 50mm
HARDWARE OPTIONS See page 23
Custom sizes availabe
fentec.co.nz 0800 002 725 8 9
X 25 mm RAIL
POST
38
50 X 50 mm
EXTERNAL BRACKET ROUND VERTICALS
*Post and hardware sold separately
DELTA
STRONG & DURABLE Delta fencing is the durable and cost-effective solution for landscape fencing, swimming pool fencing, and school safety. Designed to comply with all fence safety regulations, Delta will enhance your property, protect your family, and your home.
FEATURES
40 X 40 mm
50 X 50 mm
DELTA FENCE PANEL
FADFP9522 950mm
FADFP1222 1200mm
PANEL LENGTH 2250mm
HORIZONTAL RAILS 40 x 40mm
VERTICAL BARS 19 x 19mm
BRACKETS REQUIRED FAPB4040 x4
DELTA RAKING PANEL
FARFP9522 950mm
FARFP1222 1200mm
PANEL LENGTH 2250mm
HORIZONTAL RAILS 40 x 40mm
VERTICAL BARS 19 x 19mm
BRACKETS REQUIRED FARB4040 x4
ALUMINIUM
panel rakes to 45 degrees
DELTA PEDESTRIAN GATE
FADSG9595 950mm
FADSG1295 1200mm
GATE WIDTH 950mm
GATE STILES 50 x 50mm
HARDWARE OPTIONS See page 22
DELTA DRIVEWAY GATE PRODUCT
FADDG9595 950mm
FADDG1223 1200mm
GATE WIDTH 1200 - 2350mm each
19 X 19mm
GATE STILES 50 x 50mm
Custom sizes available
fentec.co.nz 0800 002 725 10 11
RAIL
POST EXTERNAL BRACKET
VERTICALS
CODE PANEL HEIGHT
PRODUCT
GATE
PRODUCT CODE
HEIGHT
CODE PANEL HEIGHT
PRODUCT
CODE GATE HEIGHT
HARDWARE OPTIONS See page 23 *Post and hardware sold separately
ALTO PANEL
THE VERSATILE PANEL! The Alto panel can be installed with rods up or with rods down, a great design for secure boundary fencing. Designed to comply with all fence safety regulations, the Alto panel will enhance your property and protect your family and your investment. 40
ALUMINIUM
ALTO FENCE PANEL
PRODUCT CODE PANEL HEIGHT
FAAFP1222 1200mm
FAAFP1522 1500mm
PANEL LENGTH 2250mm
HORIZONTAL RAILS 40 x 40mm
VERTICAL BARS 19 x 19mm
BRACKETS REQUIRED FAPB4040 x4
ALTO PEDESTRIAN GATE
FAASG1295 1200mm
FAASG1595 1500mm
GATE WIDTH 950mm
GATE STILES 50 x 50mm
ALTO DRIVEWAY GATES
PRODUCT CODE GATE HEIGHT
FAADG1223 1200mm
FAADG1523 1500mm
GATE WIDTH 1200 - 2350mm each
GATE STILES 50 x 50mm
HARDWARE OPTIONS See page 23
Custom sizes available
fentec.co.nz 0800 002 725 12 13
X 40 mm RAIL
X 50 mm POST
BRACKET
X 19mm VERTICALS
50
EXTERNAL
19
FEATURES
CODE GATE HEIGHT
PRODUCT
HARDWARE OPTIONS See page 22 *Post and hardware sold separately
MANSION
DESIGN WITH A DIFFERENCE The Mansion is modern, sleek and extra-strong. With a double top rail and square vertical bars, this panel is perfect for both residential and commercial applications. A great option for your front boundary with driveway gates to match, or as a balustrade around your deck or pool.
MANSION FENCE PANEL
PRODUCT CODE PANEL HEIGHT
FAMFP1222 1200mm
FAMFP1522 1500mm
FAMFP1822 1800mm
PANEL LENGTH 2250mm
HORIZONTAL RAILS 40 x 40mm
VERTICAL BARS 19 x 19mm
BRACKETS REQUIRED FAPB4040 x6
FEATURES
MANSION PEDESTRIAN GATE
PRODUCT CODE GATE HEIGHT
FAMSG1295 1200mm
FAMSG1595 1500mm
FAMSG1895 1800mm
GATE WIDTH 950mm
GATE STILES 50 x 50mm
HARDWARE OPTIONS See page 22
MANSION DRIVEWAY GATE
PRODUCT CODE GATE HEIGHT
FAMDG1223 1200mm
FAMDG1523 1500mm
FAMDG1823 1800mm
GATE WIDTH 1200 - 2350mm each
GATE STILES 50 x 50mm
HARDWARE OPTIONS See page 23
Custom sizes available
fentec.co.nz 0800 002 725 14 15
X 40 mm RAIL
POST EXTERNAL BRACKET
VERTICALS
40
50 X 50 mm
19 X 19mm
ALUMINIUM *Post and hardware sold separately
AXIS
FIRST OF ITS KIND! The unique design of Axis Aluminium Fences creates a ‘floating vertical’ effect for a modern, linear look for pools and garden fences. Not only is our Axis fencing quick and simple to install, it also complies with all safety obligations of the New Zealand building code, giving you a fast, affordable solution to your home boundary problems. 25 X
AXIS FENCE PANEL
PRODUCT CODE PANEL HEIGHT
FAXFP1222 1200mm
PANEL LENGTH 2250mm
HORIZONTAL RAILS 25 x 25mm
VERTICAL BARS 50x 25mm
BRACKETS REQUIRED FAPB2525 x4
AXIS PEDESTRIAN GATE
PRODUCT CODE GATE HEIGHT
FAXSG1295 1200mm
GATE WIDTH 950mm
GATE STILES 50 x 25mm
HARDWARE OPTIONS See page 22
AXIS DRIVEWAY GATE
PRODUCT CODE GATE HEIGHT
FAXDG1223 1200mm
GATE WIDTH 1200 - 2350mm each
GATE STILES 50 x 25mm
HARDWARE OPTIONS See page 23
Custom sizes available
*Post and hardware sold separately
fentec.co.nz 0800 002 725 16 17
RAIL
POST EXTERNAL BRACKET
VERTICALS
25 mm
50 X 25 mm
50 X 25mm
FEATURES
ALUMINIUM
FORTRESS PANEL
DESIGNED TO PROVIDE SUPERIOR PROTECTION Fortress is manufactured from heavy-wall aluminium componentry, welded for strength and powder-coated for long-term durability. The modular design and comparatively light panel makes installation quick and easy.
FORTRESS PANEL – SPEAR
PRODUCT CODE PANEL HEIGHT
FAFFP1822-S 1800mm
FAFFP2122-S 2100mm
PANEL LENGTH 2250mm
HORIZONTAL RAILS 40 x 40mm
VERTICAL BARS 25 x 25mm
BRACKETS REQUIRED FAPB4040 x6
FORTRESS PANEL – ROD
PRODUCT CODE PANEL HEIGHT
FAFFP1822-R 1800mm
PANEL LENGTH 2250mm
HORIZONTAL RAILS 40 x 40mm
VERTICAL BARS 25 x 25mm
BRACKETS REQUIRED FAPB4040 x6
FORTRESS DRIVEWAY GATES
PRODUCT CODE GATE HEIGHT
FAFDG1823-S 1800mm Spear
FAFDG2123-S 2100mm Spear
FAFDG1823-R 1800mm Rod
GATE WIDTH 1200 - 2350mm each
GATE STILES 65 x 65mm
HARDWARE OPTIONS See page 23
Custom sizes available
IMPORTANT NOTE: The Fortress range does not meet the requirements of F9 Pool fencing applications and should not be installed where children could be at risk of impalement on top of fence.
fentec.co.nz 0800 002 725 18 19
ALUMINIUM
SPEAR TOP ROD TOP 40 X 40 mm RAIL 65 X 65 mm POST 25 X 25mm VERTICALS FEATURES ROD OR SPEAR OPTION *Post and hardware sold separately
BALUSTRADE
ALUMINIUM BALUSTRADES are a cost effective alternative to timber balustrades. Constructed from high quality aluminium, the balustrade range can be top mounted, face fixed or installed in–ground.
BARRIER BALUSTRADE
PRODUCT CODE PANEL HEIGHT
FABBP1224 1200mm
PANEL LENGTH 2335mm
HORIZONTAL RAILS 50 x 25mm
VERTICAL BARS 19 x 19mm
POSTS 65 x 65mm
POST CENTRE 2400mm
BRACKETS REQUIRED FAPB5025 x4
BARRIER RAKING BALUSTRADE
PRODUCT CODE PANEL HEIGHT
FABRP1224 1200mm
PANEL LENGTH 2335mm
HORIZONTAL RAILS 50 x 25mm
VERTICAL BARS 19 x 19mm
POSTS 65 x 65mm
POST CENTRE 2400mm
BRACKETS REQUIRED FARB5025 x4
DELTA BALUSTRADE
PRODUCT CODE PANEL HEIGHT
FADBP9511 950mm
FADBP1211 1200mm
PANEL LENGTH 1110mm
HORIZONTAL RAILS 40 x 40mm
ALUMINIUM
*panel rakes to 45 degrees
FEATURES
SAFETY
FROM FALLING
A fence or barrier is required where people can fall from a height of one meter or more including retaining walls, decks & balconies.
Our Balustrade range meets the NZ building code when installed in accordance with Fentec Producer Statements. Contact our technical support team for assistance
Helpful Links building.govt.nz/f4-safety-from-falling/ building.govt.nz/guidance-on-barrier-design/
CONTACT OUR TECHNICAL SUPPORT TEAM FOR PROUCER STATEMENTS OR ANY OTHER ASSISTANCE - 0800 002 725
VERTICAL BARS 19 x 19mm
POSTS 65 x 65mm
POST CENTRE 1175mm
BRACKETS REQUIRED FAPB4040 x4
DELTA RAKING BALUSTRADE
PRODUCT CODE PANEL HEIGHT
FADBR9511 950mm
FADBR1211 1200mm
PANEL LENGTH 1110mm
HORIZONTAL RAILS 40 x 40mm
VERTICAL BARS 19 x 19mm
POSTS 65 x 65mm
POST CENTRE 1175mm
BRACKETS REQUIRED FARB4040 x4
MANSION BALUSTRADE
PRODUCT CODE PANEL HEIGHT
FAMBP1211 1200mm
FAMBP1511 1500mm
PANEL LENGTH 1110mm
HORIZONTAL RAILS 40 x 40mm
VERTICAL BARS 19 x 19mm
POSTS 65 x 65mm
POST CENTRE 1175mm
BRACKETS REQUIRED FAPB4040 x6
*panel rakes to 45 degrees
fentec.co.nz 0800 002 725 20 21

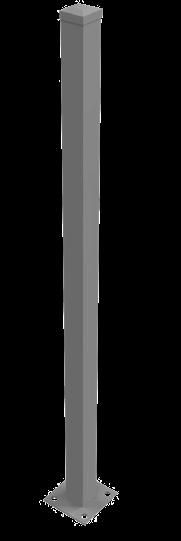

FLANGE POST OPTION FACE FIXED OPTION IN-GROUND OPTION
FIXING OPTION *Post and hardware sold separately
SLEEK AND MODERN THE PREMIUM DESIGN
VISTAWALL
The sleekest design in fencing, Fentec VistaWall is for the designers and discerning homeowners who want to make their boundary a feature and a statement. With four different designs featuring slats or palings, VistaWall is the versatile solution.
VISTAWALL
fentec.co.nz 0800 002 725 22 23

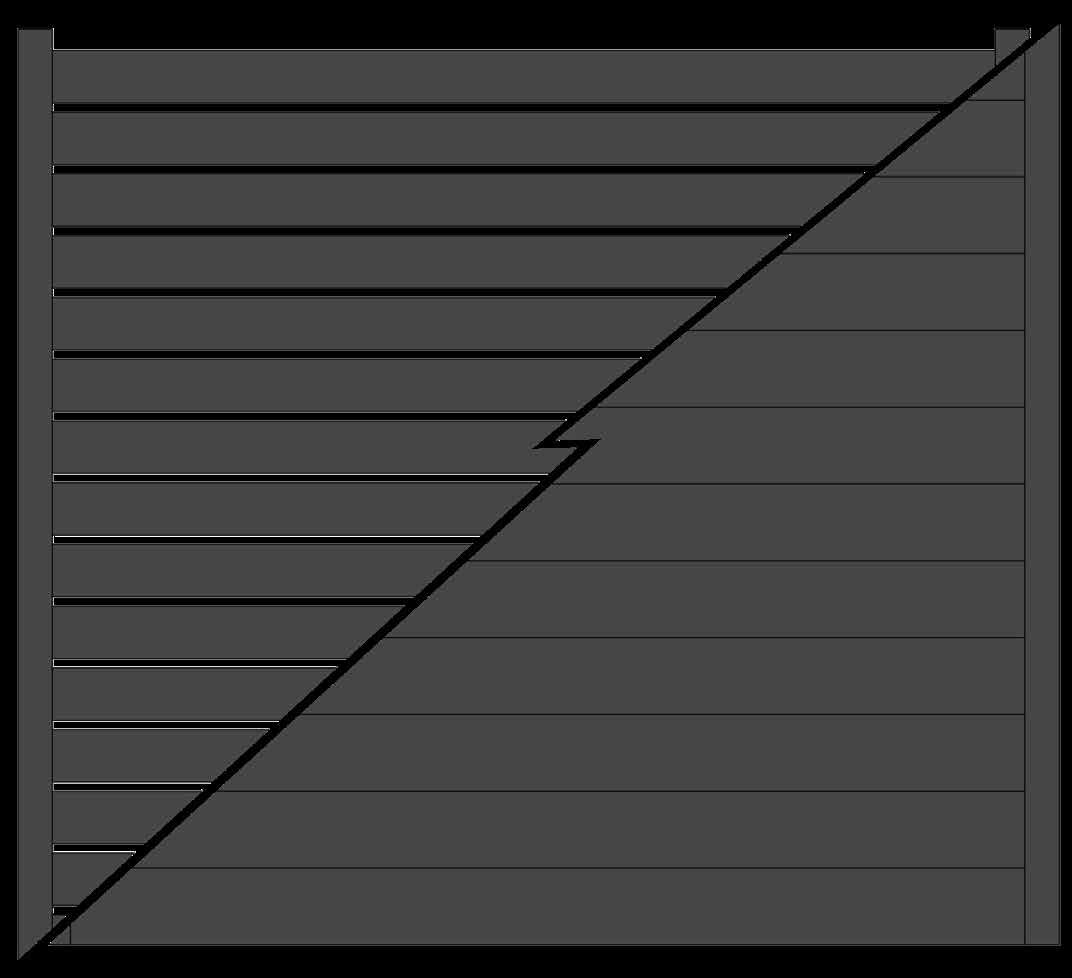

SLAT SOLID
VISTAWALL
DESIGNED TO BE QUICK AND SIMPLE TO INSTALL , with modular components and hidden fixings, VistaWall provides the ultimate minimalist look. Add value to your home with the contemporary fence that everyone wants, featuring strong aluminium construction, with no twisting or warping and low maintenance, It’s the modern fence you’ll love for ever.
VISTAWALL HORIZONTAL SLAT
PRODUCT CODE PANEL HEIGHT
FVHLFP1218 1200mm
FVHLFP1518 1500mm
FVHLFP1818 1800mm
WIDTH 1800mm
PANEL PROFILE 100X16mm slats with 18mm spacing
ALUMINIUM
FEATURES
ALUMINIUM SLATS
100X16MM
MODULAR ASSEMBLY
FIXINGS HIDDEN BEHIND CHANNEL COVERS
VISTAWALL VERTICAL SLAT
PRODUCT CODE PANEL HEIGHT
FVVLFP1218 1200mm
FVVLFP1518 1500mm
FVVLFP1818 1800mm
WIDTH 1800mm
PANEL PROFILE 100X16mm slats with 18mm spacing
VISTAWALL HORIZONTAL SOLID
PRODUCT CODE PANEL HEIGHT
FVHOFP1218 1200mm
FVHOFP1518 1500mm
FVHOFP1818 1800mm
WIDTH 1800mm
PANEL PROFILE 145x16mm tongue & groove palings
VISTAWALL VERTICAL SOLID
PRODUCT CODE PANEL HEIGHT
FVVOFP1218 1200mm
FVVOFP1518 1500mm
FVVOFP1818 1800mm
WIDTH 1800mm
Black Eclipse® Thunder Monument® Colours are shown as accurately as printing allows.
TONGUE & GROOVE PALINGS 145X16MM
PANEL PROFILE 145x16mm tongue & groove palings
fentec.co.nz 0800 002 725 24 25
HARDWARE – ALUMINIUM
Locking Latch
Aluminium KwikFit Hinges
Self-closing Hinges
HARDWARE OPTIONS | PEDESTRIAN GATE
PRODUCT
A 2 x Aluminium KwikFit hinges & screws - Sold as a pair
B 2 x Self-closing hinges & screws - Sold as a pair
C 1 x Single sided locking latch & screws
D 1 x Snap latch &
HARDWARE OPTIONS | DOUBLE GATE
PRODUCT
A 1 x Single sided locking latch & screws
B 1 x Snap latch & screws
C 2 x Plate gudgeons & 2 x Adjustable pivots
D 2 x Aluminium KwikFit hinges & screws
E 1 x Drop bolt & screws
Plate Gudgeons & Adjustable Pivots
Aluminium KwikFit Hinges
fentec.co.nz 0800 002 725 26 27
Snap Latch
A E C D B
Single Sided
Drop Bolts LATCH OPTIONS HINGE OPTIONS HARDWARE
DOUBLE GATE
screws
E 1 x Magnetic pool latch & screws
OPTIONS LATCH OPTIONS A B Snap Latch Single Sided Locking Latch Magnetic Pool Latch C D E
GATE CODE FHQF1000 FHTC1000 FHLL1000 FHDL1000 FHML1000 CLEARANCES 20MM 20MM 20MM 20MM 20MM CODE FHLL1000 FHDL1000 FHSH1000 FHQF1000 FHDB1000 CLEARANCES 20MM 20MM 75MM 20MM N/A
HINGE
PEDESTRIAN

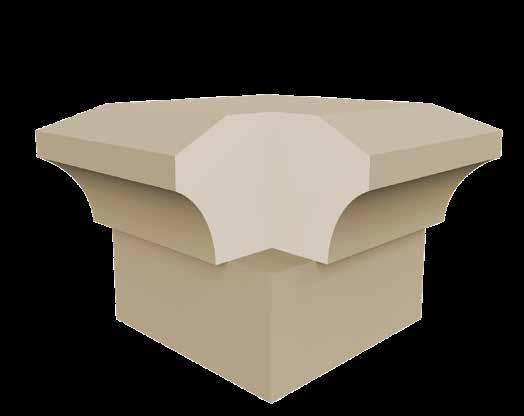

POSTS & CAPS
IN-GROUND & FACE-FIXED POSTS
BRACKETS
PANEL BRACKETS
PRODUCT CODE
SIZE
SUITABLE FOR
FAPB2525-4
4 Pack 25x25mm & 16 x tek screws
Axis Range
PRODUCT CODE
SIZE
SUITABLE FOR
FLANGED POSTS
FAPB3825-4
4 Pack 38x25mm & 8 x tek screws
Lodge Range
PRODUCT CODE
SIZE
SUITABLE FOR
FAPB4040-6
6 Pack 40x40mm & 12 x tek screws
Alto, Delta, Mansion & Fortress Range
PRODUCT CODE
SIZE
SUITABLE FOR
STEEL
PRODUCT CODE
SIZE
SUITABLE FOR
FAPB5025-4
4 Pack 50x25mm & 8 tek screws
Barrier Balustrade Range
FARB4040
40x40mm & 4 tek screws
Delta Raking Range
PRODUCT CODE FPC5025 SIZE 50x25mm PRODUCT CODE FPC5050
FPC6565
PRODUCT CODE
SIZE
SUITABLE FOR
FARB5025
50x25mm & 4 tek screws
Barrier Raking Range
fentec.co.nz 0800 002 725 28 29
RAKING PANEL BRACKETS PRODUCT CODE SIZE LENGTH FINISH FAP5018 50x50mm 1800mm Black FAP5021 50x50mm 2100mm Black
50x25mm 1800mm Black
65x65mm 1800mm Black
65x65mm 2100mm Black
65x65mm 2500mm Black
65x65mm 2800mm Black
100x100mm 2500mm Black PRODUCT CODE SIZE LENGTH FINISH FAF5013 50x50mm 1300mm
FAP5218
FAP6518
FAP6521
FAP6525
FAP6528
FAP1025
Black
FAF5016 50x50mm 1600mm Black
FAF5213 50x25mm 1300mm Black
FAF6513 65x65mm 1300mm Black
FAF6519 65x65mm 1900mm Black
PRODUCT CODE SIZE LENGTH FINISH FSF6519 65x65mm 1900mm
65x65mm
100x100mm
Black FSP6525
2500mm Black FSP1030
3000mm Black
POSTS PRODUCT CODE FAC5050 SIZE 50x50mm PRODUCT CODE FAC6565 SIZE 65x65mm POST CAPS - ALUMINIUM
SIZE
POST CAPS - PLASTIC
SIZE 50x50mm PRODUCT CODE
SIZE 65x65mm PRODUCT CODE FPC1000
100x100mm
STEEL
Strong and Durable - New Zealand’s harsh climate calls for the strength and durability of COLORBOND® steel fencing. Made to withstand heat, wind and the test of time, your Fentec Steel fence lives on and on while maintaining its appearance year after year.
Strong and durable. Easy to maintain
Simple Installation - Fentec Steel Fencing systems are designed to be easy and quick to install and for many DIY customers it is the go. Simple; we supply a complete kit set ready to go, with installation guides and free support from our technical support office to get you underway. We make it hassle-free & cost-effective.
COLOURWALL CLASSIC
COLOURWALL SLAT-TOP
SLATWALL STEEL
SLATWALL TIMBER
EASYWALL
fentec.co.nz 0800 002 725 30 31
WARRANTY All steel product and components are covered by warranty under the conditions of Fentec’s warranty agreement, a copy of which is available on request. 5 Years
POOLS HOME EDUCATION SCREENING
COLOURWALL

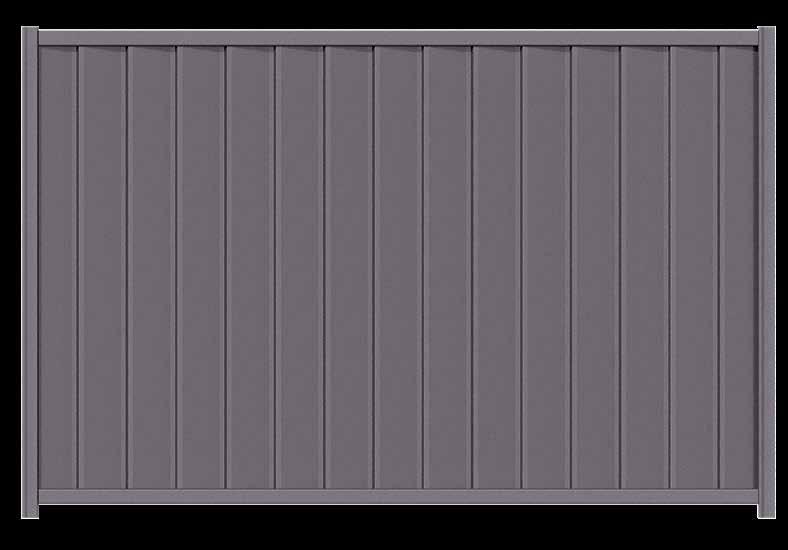

THE TRULY SAME-BOTH-SIDES FENCE ColourWall is ideal for residential properties because it is durable and stable, and both neighbours get the ‘good’ side of the fence. Quick and easy to install, ColourWall options include a solid fence, or add a touch of art with slat top option.
COLOURWALL CLASSIC
PRODUCT CODE PANEL HEIGHT
FCPC1200 1200mm
FCPC1500 1500mm
FCPC1800 1800mm
FCPC2100 2100mm
PANEL LENGTH 2380mm
PANEL PROFILE Reflect Panel
STEEL FENCE
FEATURES
POST
COLOURWALL SLAT-TOP
PRODUCT CODE PANEL HEIGHT
FCST1500 1500mm
FCST1800 1800mm
FCST2100 2100mm
PANEL LENGTH 2380mm
PANEL PROFILE Reflect Panel / Slats
SLAT PANEL 3 x 55mm slats with 25mm spacings
STOCK COLOURS AVAILABLE
TOP RAIL
STOCK COLOURS AVAILABLE
COLOURWALL CLASSIC Available in all 4 colours, except the 2100mm height that is available only in Black, Thunder and Slate Grey.
COLOURWALL SLAT-TOP Available in Black, Thunder and Slate Grey.
BOTTOM RAIL
fentec.co.nz 0800 002 725 32 33
Slate Grey Woodland Grey®
Black Eclipse® Thunder Monument® Frost Surfmist® Colours are shown as accurately as printing allows.
SLATWALL
THE BEST APPEARANCE PRIVACY SCREENING SlatWall is the ideal choice for screening outdoor living areas and courtyards, as it allows natural light penetration while providing privacy. The SlatWall with timber panels is an alternative to an all-steel fence.
SLATWALL STEEL
PRODUCT CODE PANEL HEIGHT
FSWS1200 1200mm
FSWS1500 1500mm
FSWS1800 1800mm
PANEL LENGTH 2380mm
PANEL PROFILE 55 x 7.5mm slats with 25mm spacings
Available in Black, Thunder and Slate Grey.
FEATURES
SLATWALL TIMBER
PRODUCT CODE PANEL HEIGHT
FSWT1200 1200mm
FSWT1500 1500mm
FSWT1800 1800mm
PANEL LENGTH 2380mm
PANEL PROFILE H3 Treated Radiata 70 x 12mm with 11mm spacings
VERSATILITY
SMART, INTEGRATED SlatWall is designed to seamlessly integrate with ColourWall and EasyWall fencing, or it can be installed as a stand-alone fencing system.
fentec.co.nz 0800 002 725 34 35
STEEL FENCE
TOP RAIL POST BOTTOM RAIL
THE ULTIMATE ALTERNATIVE TO
TIMBER FENCING

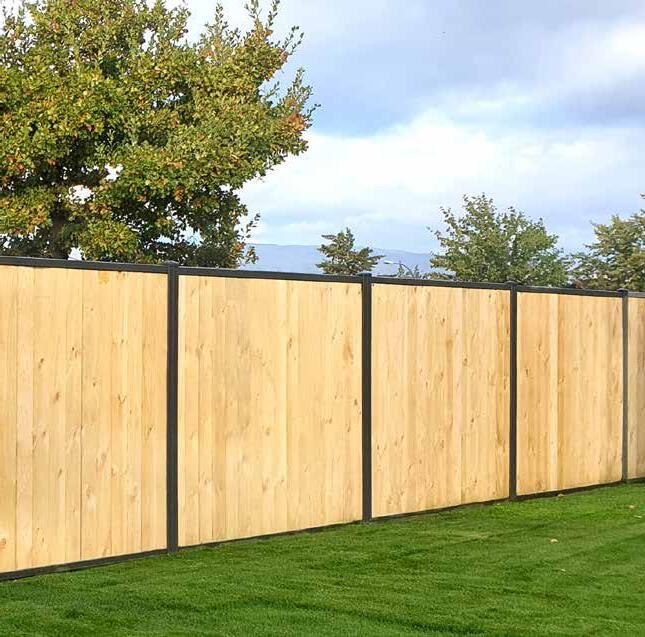

EasyWall is the ultimate boundary fence; stable, durable and simple to install. It combines the strength of steel posts and rails with the natural beauty of cross-laminated timber planks.
fentec.co.nz 0800 002 725 36 37
EASYWALL Easy as 1, 2, 3... Post cap Top rail C-Post Bottom Rail Post cap Top rail C-Post VERTICAL HORIZONTAL MiniCLT Plank MiniCLT Plank Bottom Rail
EASYWALL
EASYWALL
THE ULTIMATE BOUNDARY FENCE EasyWall combines the strength of steel posts and rails with the natural beauty of cross-laminated timber planks. Quick and easy to install, EasyWall will add great value to your property. FEATURES
EASYWALL VERTICAL
FEWV100 1800mm
WIDTH 2250mm
POSTS 2400mm
RAILS 2230mm
MINICLT PLANKS 275 x 1790mm
NOTE: Requires 8x Laminata MiniCLT Planks to complete 1x fence section (H1800 x L2250mm)
*Sold Separately
EASYWALL HORIZONTAL
PRODUCT CODE PANEL HEIGHT
FEWH100 1670 or 1800mm
WIDTH 1830mm
POSTS 2400mm
RAILS 1800mm
MINICLT PLANKS 275 x 1790mm
NOTE: Requires 6x Laminata MiniCLT Planks to complete 1x fence section (H1670 x L1830mm)
Requires 7x Laminata MiniCLT Planks to complete 1x fence section (H1800 x L1830mm)
*Sold Separately
STEEL POST & RAIL | MINICLT PLANKS
STEEL POST & RAILS Fentec steel post & rails provides strength to this superior slim profile fence option preventing twisting and warping over time.
MINICLT PLANKS MiniCLT by Laminata is a Cross Laminated Timber plank developed using the latest high performance European glue lamination technology. Cross Laminated Timber construction provides strength by gluing three layers of timber, with the middle layer at right angles to the outer layers.
NOTE: MiniCLT Planks are supplied by Laminata - laminata.co.nz
fentec.co.nz 0800 002 725 38 39
PRODUCT CODE PANEL HEIGHT
EASYWALL
glue between adjacent layers Layer along principal direction of panel Layers perpendicular to principal direction of panel
Face
TOP RAIL POST BOTTOM RAIL MINICLT PLANKS
CLADDING IDEAS
STEEL GATE FRAME
The best way to keep your gate strong and straight for years is to use a steel gate frame. Constructed from hot-dip galvanised steel this frame can handle anything. Attach your own timber, iron or cladding to this frame to form a robust gate that will match in with its surroundings.
STEEL GATE FRAME HOT DIP GALVANIZED
COLOURSTEEL IRON
CUT OUT FOR LATCHING
PRODUCT CODE FSGFSG1795
GATE FRAME HEIGHT 1700mm
GATE FRAME WIDTH 950mm
HORIZONTAL SLAT TIMBER
PROFILE 25mm x 25mm
FINISH Hot dip galvanised
fentec.co.nz 0800 002 725 40 41
PALING TIMBER
TIMBER
Treated Radiata Pine H3 - Highly resistant to the weather in New Zealand and especially resistant to rot, providing years of trouble free use in outdoor situations.
Kiln-Dried Timber - Kiln-dried timber produces a consistent of dryness throughout the timber to prevent warping or twisting of the gate once installed.
Waterproof Structural Adhesives - Longevity is further guaranteed with the use of quality waterproof adhesives used in all joining processes.
fentec.co.nz 0800 002 725 42 43
MANOR
THE STATELY CHARACTER of the manor design makes this one of our most popular designs. Its curved top rail gives an inviting atmosphere to any entranceway.
CURVED TOP RAIL
MORTISE & TENON JOINT
MANOR PEDESTRIAN GATE
PRODUCT CODE GATE HEIGHT
FTMSG1210 1200mm
FTMSG1510 1500mm
FTMSG1810 1800mm
GATE WIDTH 1000mm
GATE FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
HARDWARE OPTIONS See page 50
MANOR DRIVEWAY GATES
PRODUCT CODE GATE HEIGHT
FTMDG1215 1200mm
FTMDG1515 1500mm
FTMDG1815 1800mm
GATE WIDTH 1500mm x 2
GATE FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
HARDWARE OPTIONS See page 51
Custom sizes available
MANOR FENCE PANEL
70 X 45 mm
FRAME
H3.2 TREATED RADIATA PINE
PRODUCT CODE PANEL HEIGHT
FTMFP1220 1200mm
FTMFP1522 1500mm
FTMFP1822 1800mm
PANEL WIDTH 2000mm
PANEL FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
fentec.co.nz 0800 002 725 44 45 TIMBER
COTTAGE
THE COTTAGE design is suited for both tall or low fence heights. This design creates a statement to any property and provides the privacy you require.
70 X 45 mm
FRAME
COTTAGE PEDESTRIAN GATE
PRODUCT CODE GATE HEIGHT
FTCSG1210 1200mm
FTCSG1510 1500mm
FTCSG1810 1800mm
GATE WIDTH 1000mm
GATE FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
HARDWARE OPTIONS See page 50
COTTAGE DRIVEWAY GATES
MORTISE & TENON JOINT
PRODUCT CODE GATE HEIGHT
FTCDG1215 1200mm
FTCDG1515 1500mm
FTCDG1815 1800mm
GATE WIDTH 1500mm x 2
GATE FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
HARDWARE OPTIONS See page 51
COTTAGE FENCE PANEL
PRODUCT CODE PANEL HEIGHT
FTCFP1220 1200mm
FTCFP1520 1500mm
FTCFP1820 1800mm
H3.2 TREATED RADIATA PINE
PANEL WIDTH 2000mm
PANEL FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
Custom sizes available
fentec.co.nz 0800 002 725 46 47
TIMBER
STUDIO
THE STUDIO design is constructed with horizontal lines which are enhanced by a 10mm gap between each paling. This design provides a modern look and will enhance any property.
70 X 45MM
FRAME
STUDIO PEDESTRIAN GATE
PRODUCT CODE GATE HEIGHT
FTSSG1210 1200mm
FTSSG1510 1500mm
FTSSG1810 1800mm
GATE WIDTH 1000mm
GATE FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
HARDWARE OPTIONS See page 50
STUDIO DRIVEWAY GATES
MORTISE & TENON JOINT
PRODUCT CODE GATE HEIGHT
FTSDG1215 1200mm
FTSDG1515 1500mm
FTSDG1815 1800mm
GATE WIDTH 1500mm x 2
GATE FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
HARDWARE OPTIONS See page 51
STUDIO FENCE PANEL
PRODUCT CODE PANEL HEIGHT
FTSFP1220 1200mm
FTSFP1520 1500mm
FTSFP1820 1800mm
H3.2 TREATED RADIATA PINE
PANEL WIDTH 2000mm
PANEL FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
Custom sizes available
fentec.co.nz 0800 002 725 48 49
TIMBER
HOMESTYLE
THE HOMESTYLE design is a clean, smart looking gate. The ultra clean lines are enhanced by the vertical palings.
70 X 45 mm
FRAME
HOMESTYLE PEDESTRIAN GATE
PRODUCT CODE GATE HEIGHT
FTHSG1210 1200mm
FTHSG1510 1500mm
FTHSG1810 1800mm
GATE WIDTH 1000mm
GATE FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
HARDWARE OPTIONS See page 50
HOMESTYLE DRIVEWAY GATES
MORTISE & TENON JOINT
PRODUCT CODE GATE HEIGHT
FTHDG1215 1200mm
FTHDG1515 1500mm
FTHDG1815 1800mm
GATE WIDTH 1500mm x 2
GATE FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
HARDWARE OPTIONS See page 51
HOMESTYLE FENCE PANEL
PRODUCT CODE PANEL HEIGHT
FTHFP1220 1200mm
FTHFP1520 1500mm
FTHFP1820 1800mm
BANDSAWN
FRONT FACE
H3.2 TREATED
RADIATA PINE
PANEL WIDTH 2000mm
PANEL FRAME 70 x 45mm
TIMBER Radiata Pine clears H3.2 treated
CONSTRUCTION Mortise and tenon joints
Custom sizes available
fentec.co.nz 0800 002 725 50 51
TIMBER
HARDWARE – TIMBER
PEDESTRIAN GATE
HARDWARE
DOUBLE GATE
Cranked Hinge Straps & Coach Bolts
Drop Bolts
Hinge Straps & Coach Bolts
Cranked Hinge Straps & Coach Bolts
HARDWARE FOR PEDESTRIAN GATE
PRODUCT CODE
A 2 x Tee-hinge & screws
B 2 x 300mm hinge straps
FHTH1000
FHHS3500 with 2 x Plate gudgeon
C 2 x 300mm cranked hinge straps
FHCS3000 with 2 x Plate gudgeon
D 1 x Snap latch & screws
E 1 x Padbolt & screws
FHDL1000
FHPB1000
F 1 x Ring latch & screws FHRL1000
HARDWARE FOR DOUBLE GATE
PRODUCT CODE
A 1 x Snap latch & screws
B 1 x Ring latch & screws
C 1 x Drop bolts & screws
D 2 x 350mm hinge straps
FHDL1000
FHRL1000
FHDB1000
FHHS3500 with 2 x Plate gudgeons
E 2 x 300mm cranked hinge straps
FHCS3000 with 2 x Plate gudgeon
fentec.co.nz 0800 002 725 52 53
E
Latch
Snap
A C D B
Ring Latch
Padbolt Ring Latch Snap Latch
Hinge Straps & Coach Bolts
Tee-Hinges
D A B C E F
POST CAPS
MAKE A STATEMENT and add the finishing touch to your timber fence with a Fentec Post Top or Cap. With six standard designs in Classic and Replica 45 to choose from there will be one that works for your project.
CLASSIC POST TOPS
CLASSIC PLAIN
PRODUCT CODE SIZE (mm)
FCPL10075 100 x 75
FCPL100100 100 x 100
FCPL125125 125 x 125
FCPL150150 150 x 150
FCPL200200 200 x 200
CLASSIC DOME
PRODUCT CODE SIZE (mm)
FCDO10075 100 x 75
FCDO100100 100 x 100
TIMBER
CLASSIC PYRAMID
PRODUCT CODE SIZE (mm)
FCPY10075 100 x 75
FCPY100100 100 x 100
FCPY125125 125 x 125
FCPY150150 150 x 150
CLASSIC POST HEAD
PRODUCT CODE SIZE (mm)
FCPH100100 100 x 100
CLASSIC TOPS REPLICA 45
DIFFERENCE
POST TOP SITS ON THE TOP OF THE POST
CAP SLIDES OVER THE POST
CLASSIC BALL
PRODUCT CODE SIZE (mm)
FCBA10075 100 x 75
FCBA100100 100 x 100
REPLICA 45 CAPS
CLASSIC ACORN
PRODUCT CODE SIZE (mm)
FCAC10075 100 x 75
FCAC100100 100 x 100
The 45mm moulding of the Replica 45 Cap is mitred around the top of the post and can be custom made to fit different sized posts.
REPLICA 45 PLAIN
PRODUCT CODE SIZE (mm)
FRPL10075-45 100 x 75
FRPL100100-45 100 x 100
FRPL125125-45 125 x 125
FRPL150150-45 150 x 150
FRPL200200-45 200 x 200
REPLICA 45 ACORN
PRODUCT CODE SIZE (mm)
FRAC10075-45 100 x 75
FRAC100100-45 100 x 100
FRAC125125-45 125 x 125
FRAC150150-45 150 x 150
FRAC200200-45 200 x 200
45mm
REPLICA 45 PYRAMID
PRODUCT CODE SIZE (mm)
FRPY10075-45 100 x 75
FRPY100100-45 100 x 100
FRPY125125-45 125 x 125
FRPY150150-45 150 x 150
FRPY200200-45 200 x 200
REPLICA 45 BALL
PRODUCT CODE SIZE (mm)
FRBA10075-45 100 x 75
FRBA100100-45 100 x 100
FRBA125125-45 125 x 125
FRBA150150-45 150 x 150
FRBA200200-45 200 x 200
fentec.co.nz 0800 002 725 54 55
DESIGN
WWW.FENTEC.CO.NZ | 0800 002 725
Design specifications included in this catalogue are subject to change without notice
