Architecture Portfolio | Ishara Ranasinghe

ARCHITECTURE

I S H A R A

R A N A S I N G H E

2



MY PROFI LE Hello! I’ m Ishara, I ‘m passionate Architect who has completed Bachelor of Architecture Degree at University of Moratuwa, Sri Lanka. My creative mind is given true passion for art and design. This portfolio is a compilation of my work throughout five years of bachelor’s degree and two years of professional work. Skilled in Architectural design, interior design, graphic design, digital sketching and 3d visualization.

EXPERIENCE 2022 Aug - present

Freelance Architect

2021 Sep - 2022 july

Junior Architect C plus Design, Nugegoda, Sri lanka

2018 June - 2019 Feb

Architectural intern Sunil Gunawardhana Associates, Colombo, Sri lanka

EDUCATION 2015 - 2021

Bachelor of Architecture (Honours) University of Moratuwa, Sri lanka

2006 - 2014 Bandaranayke college - Gampaha, Sri lanka Secondry school

SKILLS ISHARA RANASINGHE A R C H I T E C T | B.A r c h ( H o n s. )

No 420/c, Naduna, Ganemulla.

Sri Lanka +94719934290 isharanasinghe95@gmail.com Ishara Ranasinghe ishara.ranasinghe Ishara Ranasinghe

CAD AutoCAD 3D modeling

Sketchup | Blender

Rendering

Lumion | V-ray | Enscape | Blender

Adobe CC

Photoshop | Indesign | Lightroom | illustrator | Premire Pro

Presentations

Powerpoint | Word | Excel | Indesign

LANGUAGES Sinhala Native language English Second Language

3

Contents.

S t o c k I n D e si g n

M Y P R O F I L E 2 A C A D A M I C P R O J E C T S 4 - 1 7 A R C H I T E C T U R A L I L L U S T R A T I O N S 1 8 - 2 1 A R C H I T E C T R A L V I Z U A L I T I O N S ( P R O F E S S I O N A L P R A C T I C E ) R E S I D E N T I A L P R O J E C T S 2 2 - 3 3 R E C R E A T I O N A L P R O J E C T S 3 4 - 4 3 C O M M E R C I A L P R O J E C T S 4 4 - 4 6 INTERIOR PROJEC TS

4 7 - 4 9

I N T E R N A T I O N A L P R O J E C T S 5 0 - 5 1

4

01.

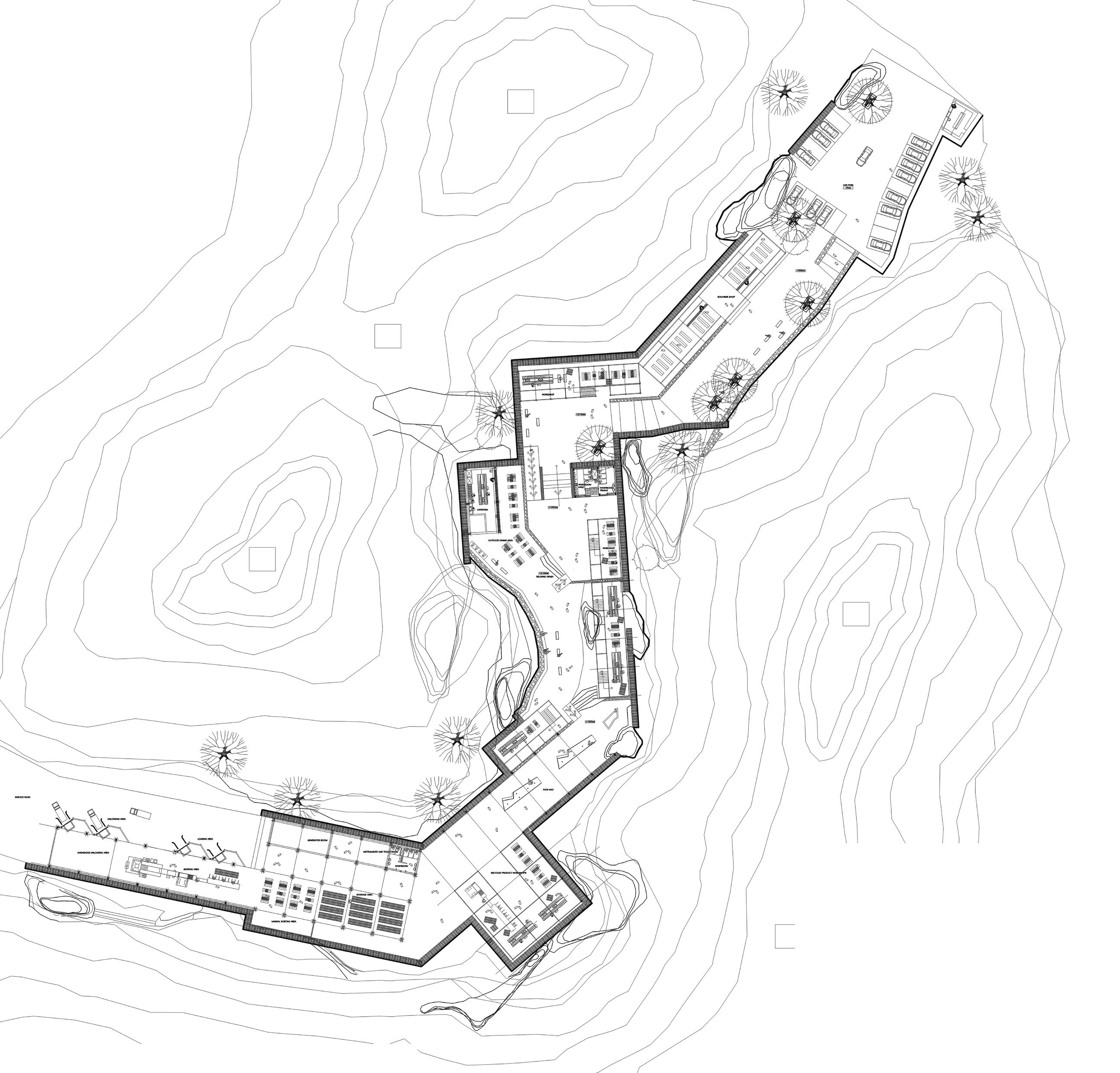

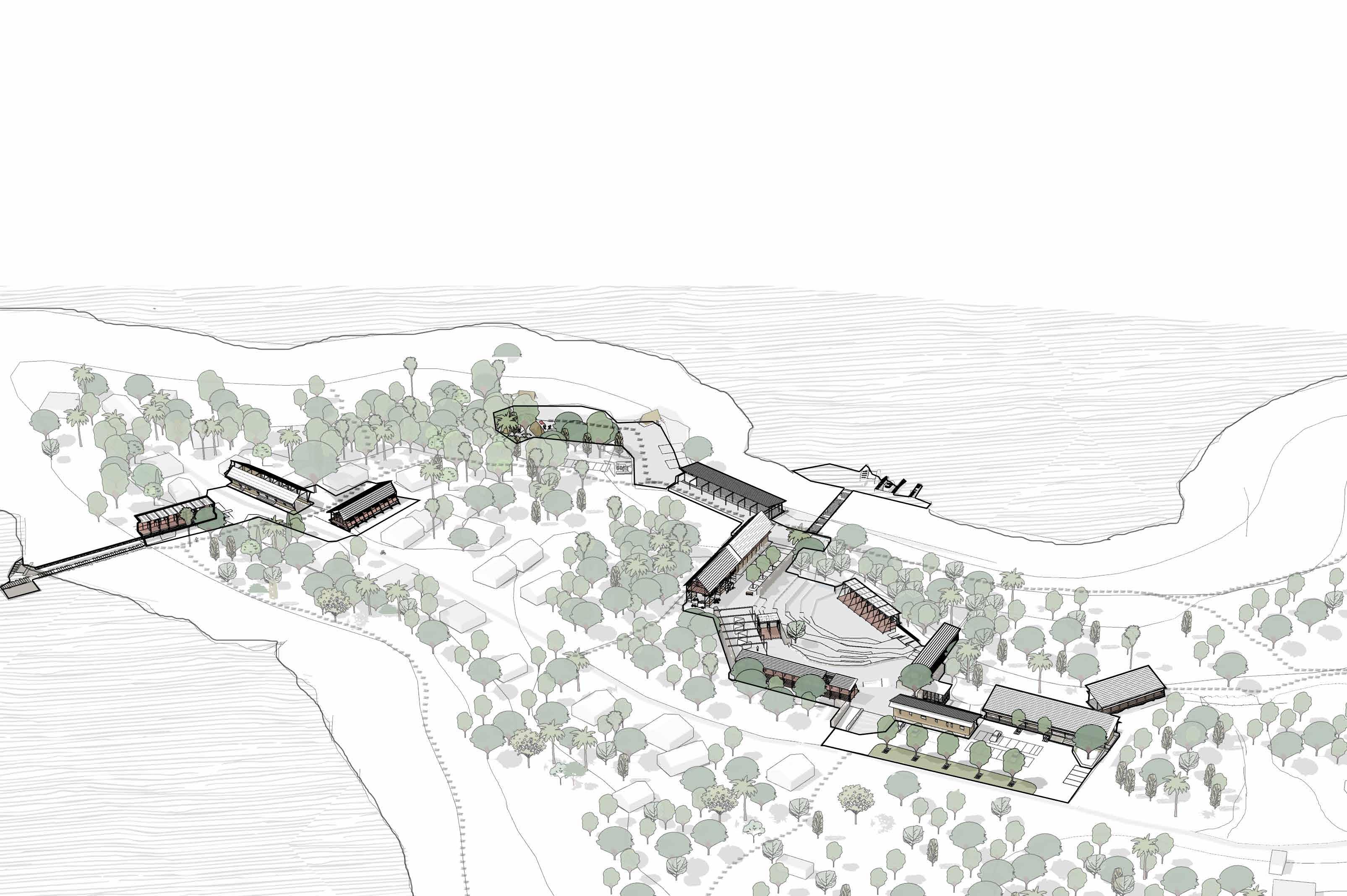

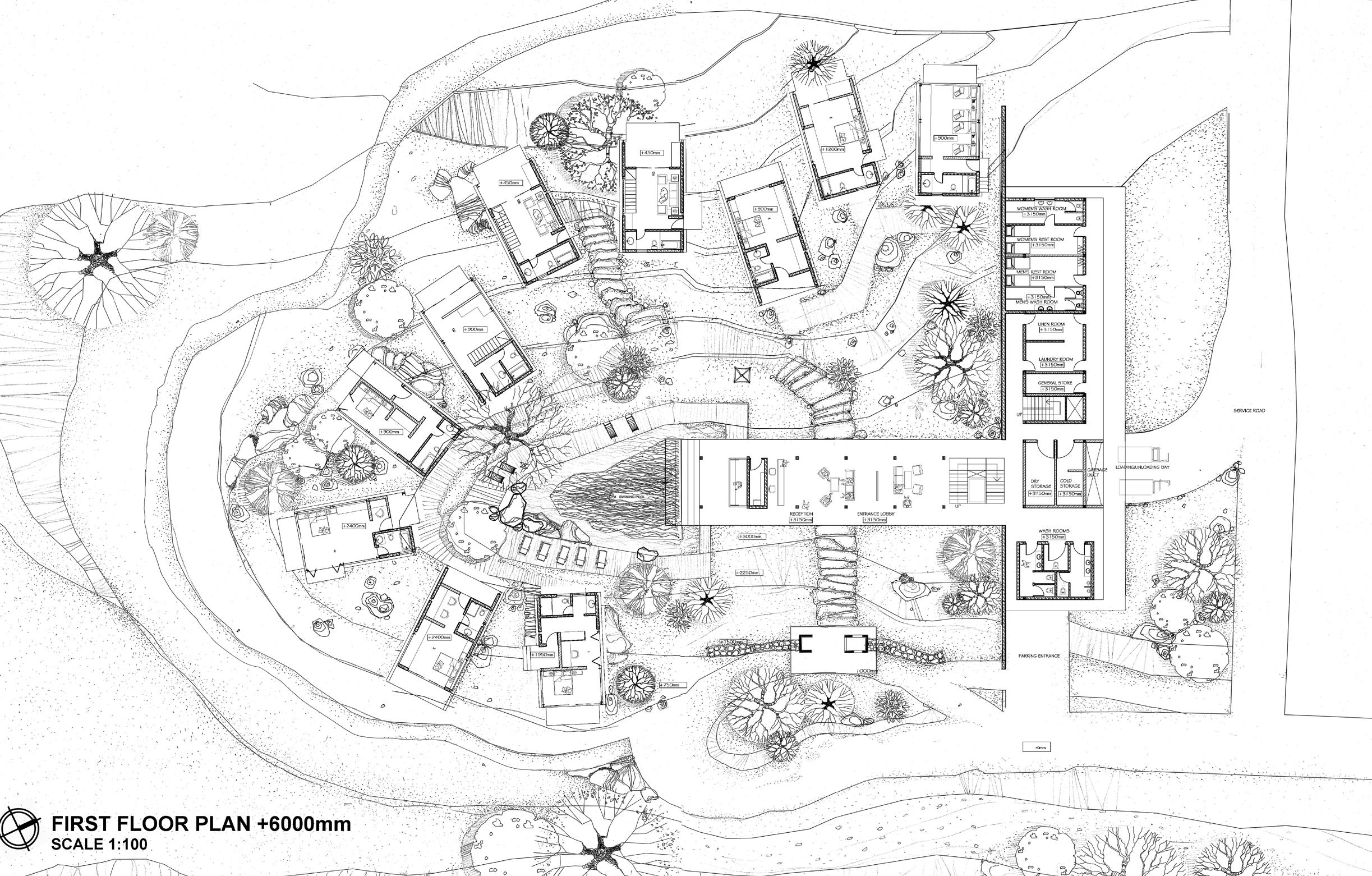

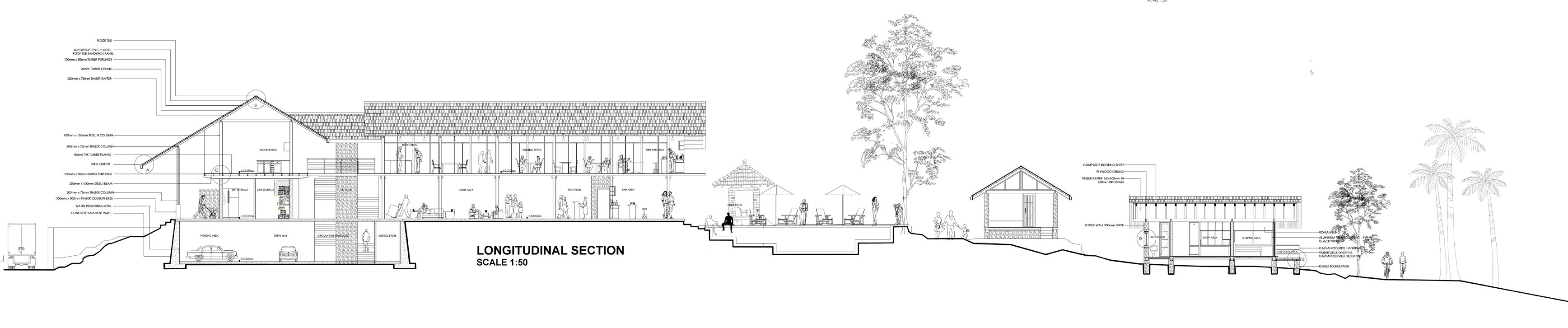

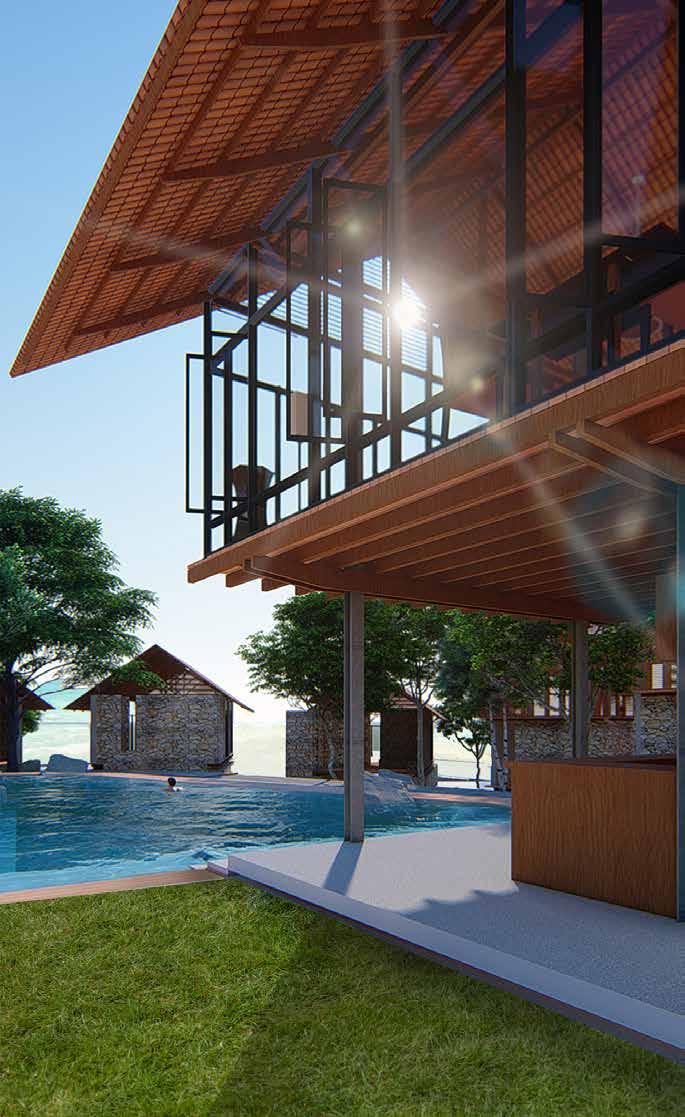

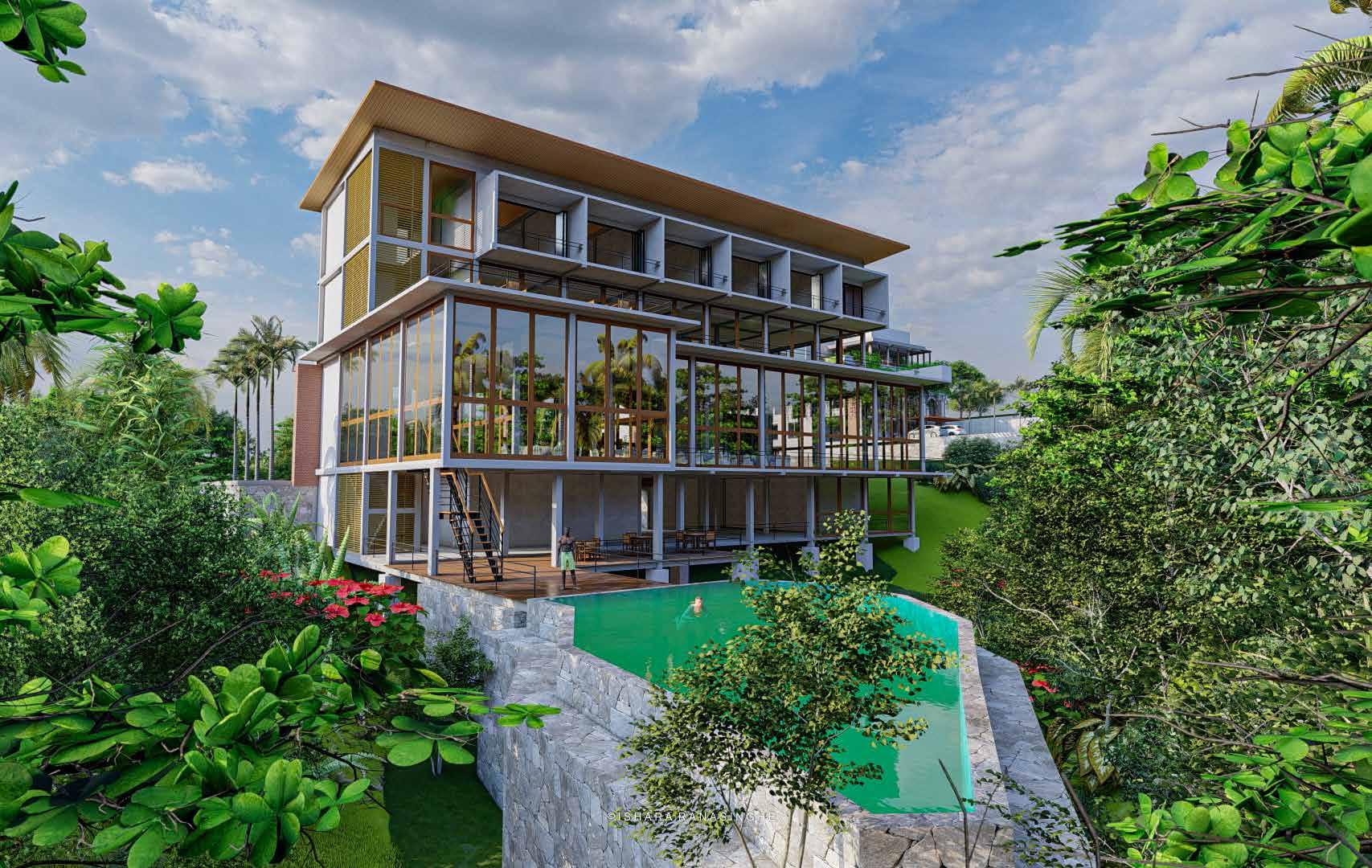

ESTUARY | RESORT AT KALUTARA MAJOR DESIGN PROJECT 2018 Location of the resort has a tremendous influence over the design since the project conveys the ‘entrance’ to the Southern quarter which is a major tourist destination in the country. The location of the site is ideal for a resort aimed to cater to tourists since it creates a bridge to the suburban ring from an urban center. Proper placement of the building in this contoured site allows the design to maximize views while becoming a view as a part of the natural reservation and beach, to those passing by.

Concept The main design idea of the resort is to render the quality of transition from the surrounding busy urban setting to the suburban natural scape around Calido beach as a prelude to the approaching soothing exposure in tourist destinations in the Southern coastal belt.

5

6



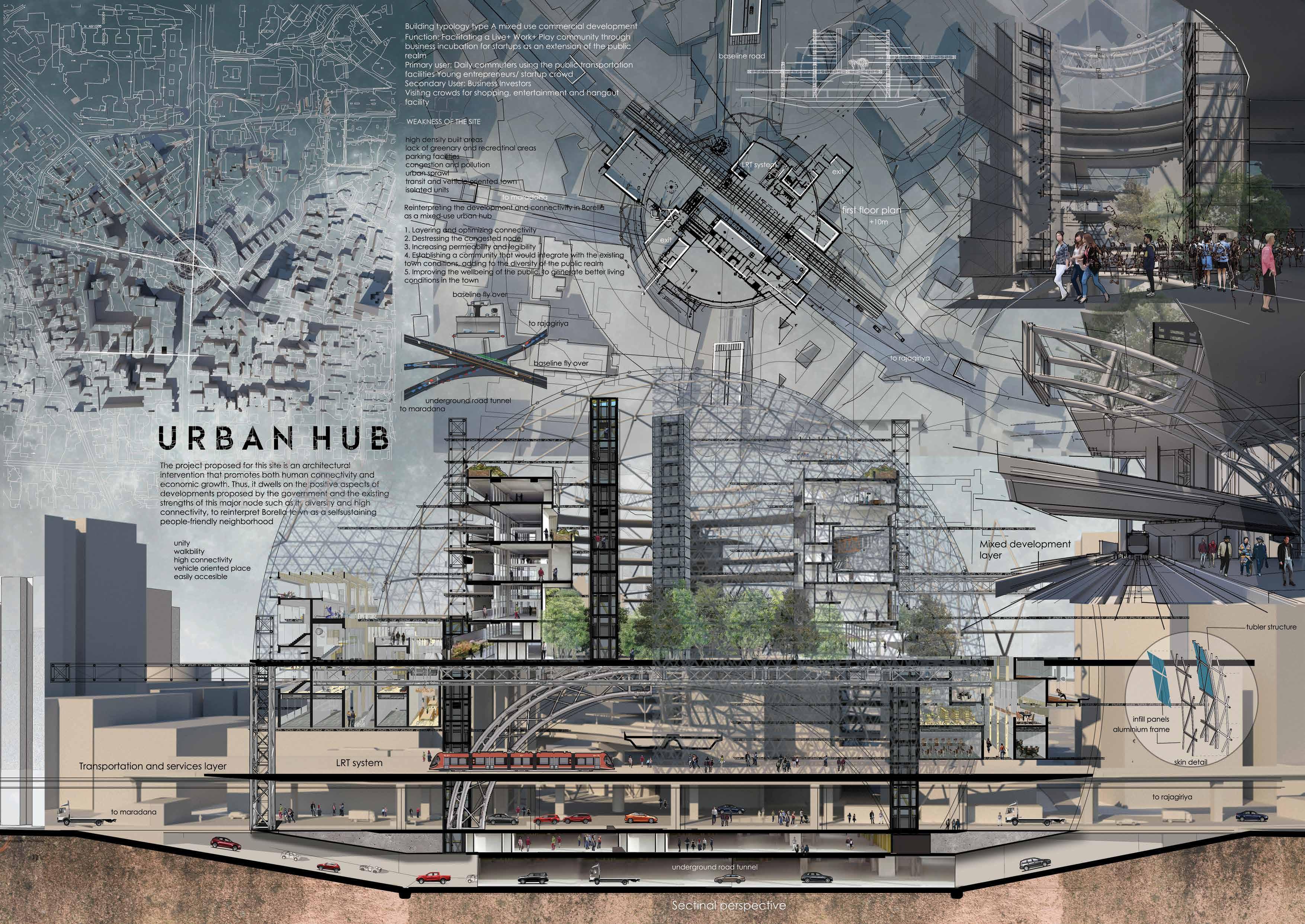

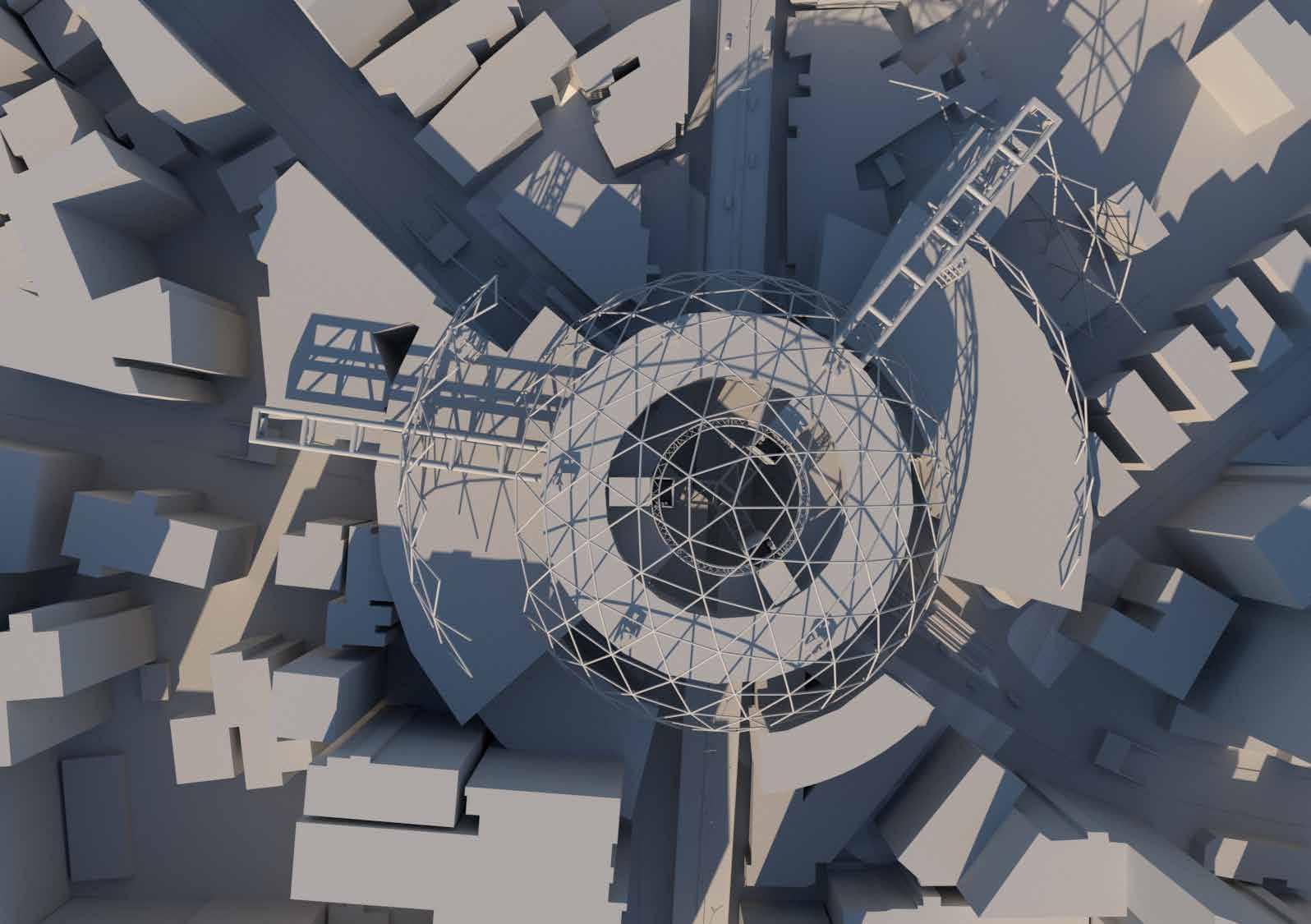

02.

7

8



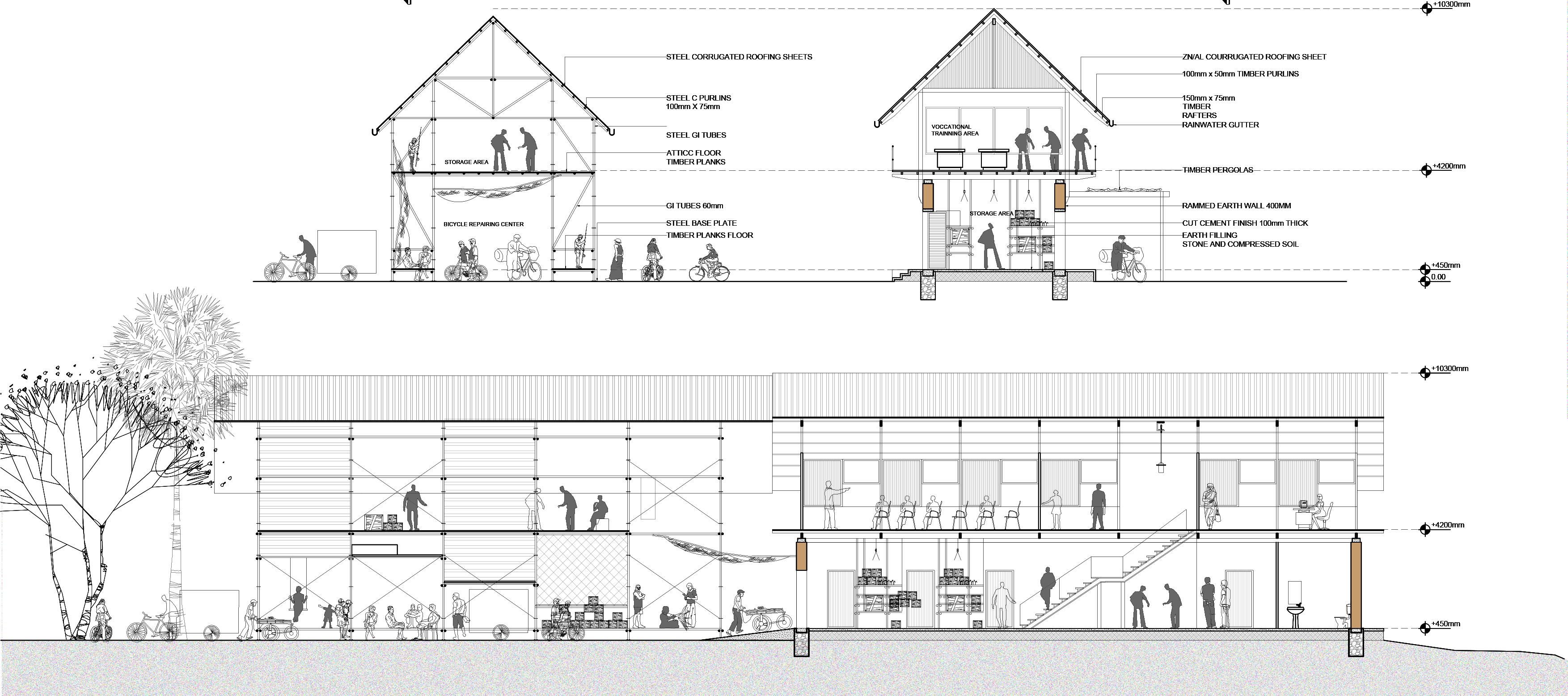

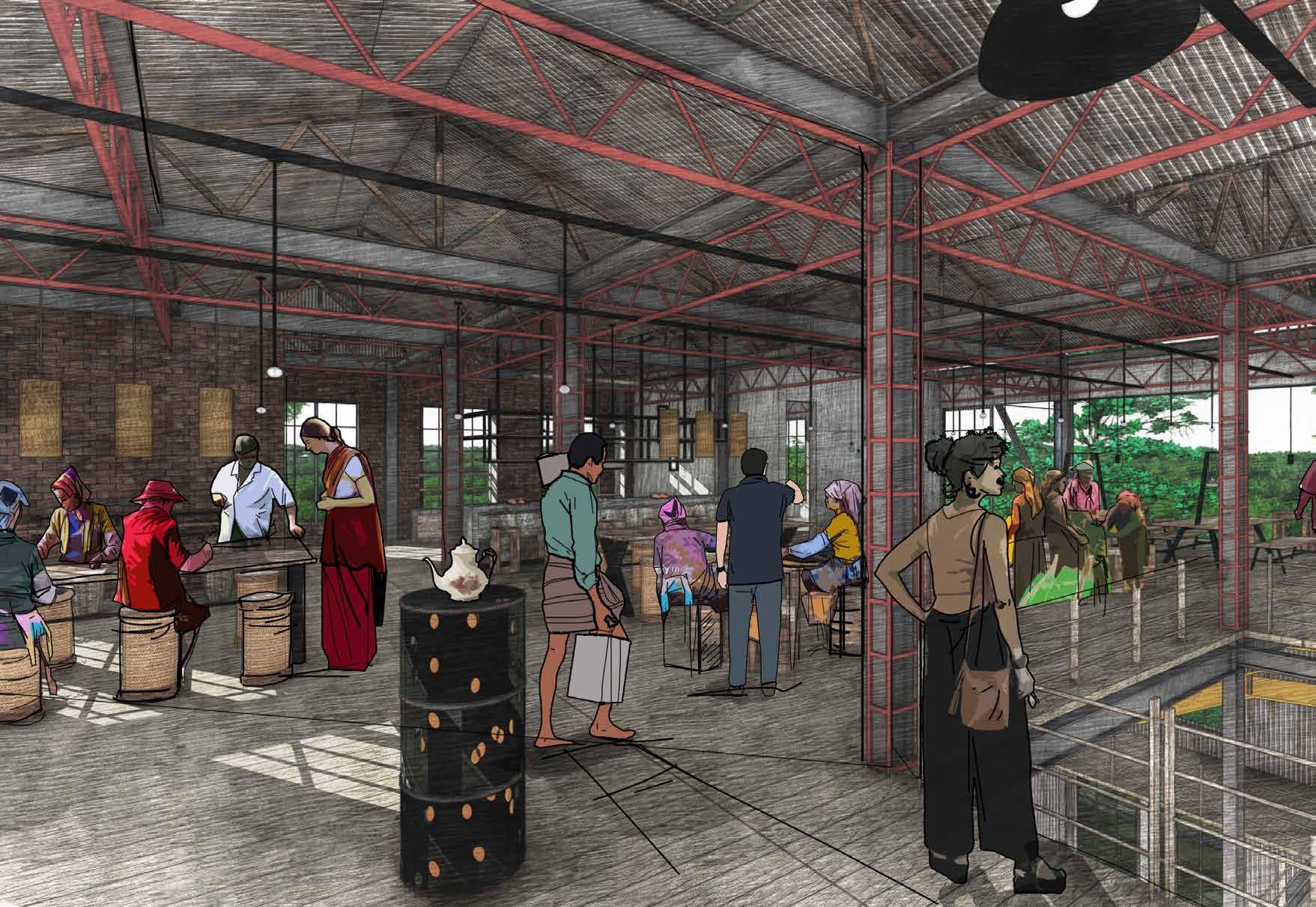

PROJEC T 03.

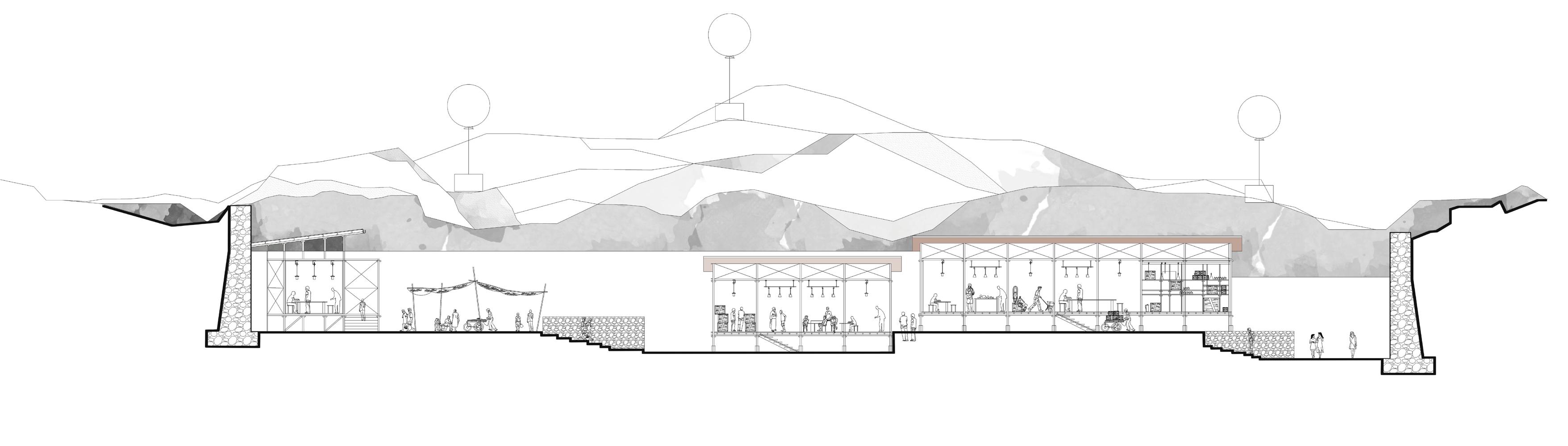

UPCYCLED

EMPOWERING THE LOCAL COMMUNITY

Design implementation strategy

@MEETHOTHAMULLA

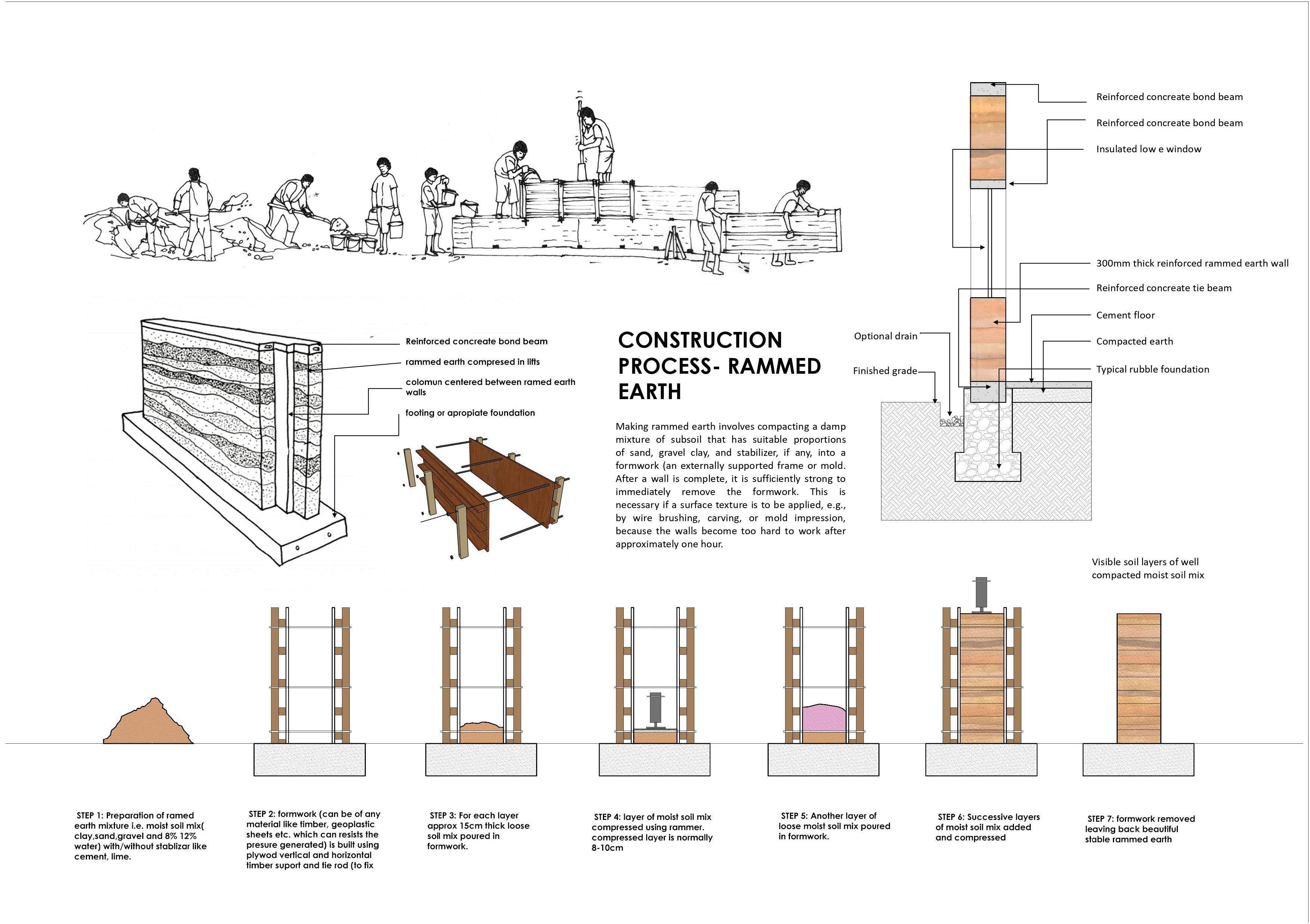

Phase 1 ( 06 months ) – on site treatments and constructing building materials.After closure of open dump system the final closure plan will proceed Phase 2 ( 10 years ) Waste recycle and product manufacture.During these 10 years the scheme upgrades the social, economic and environmental status of inhabitants.Rehabilitate human ecology across the site which disrupted due the heap of garbage.Create neighborhood scaled recreational facilities for local communities.Stimulate flexible growth with public participation.

Phase 3 ( after 30 years ) Expand the usable urban landscape and land area to the public to support new uses with the development of gray field to green field.

9

10



PROJEC T 0 4.

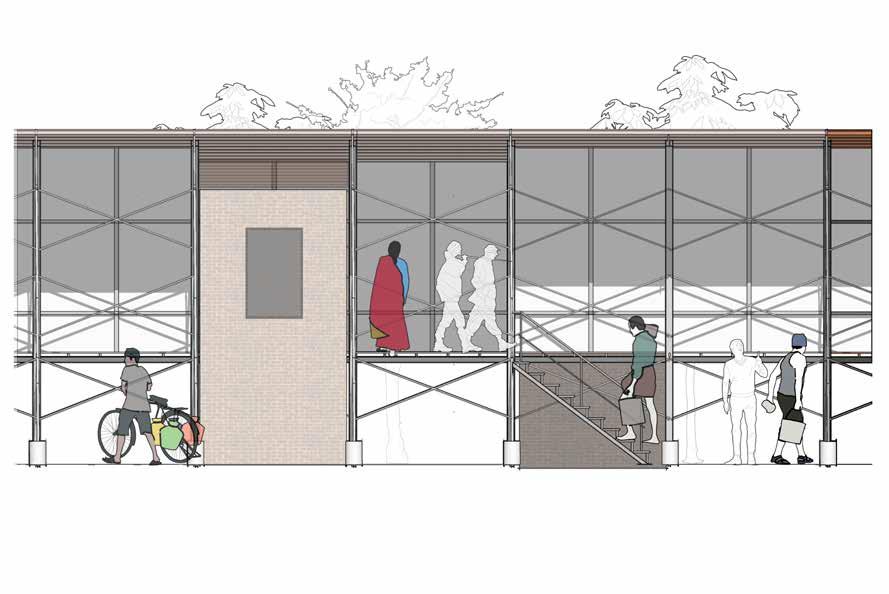

NOMAD

STORIES REVITALIZING THE GYPSY COMMUNITIES IN SRI LANKA

11



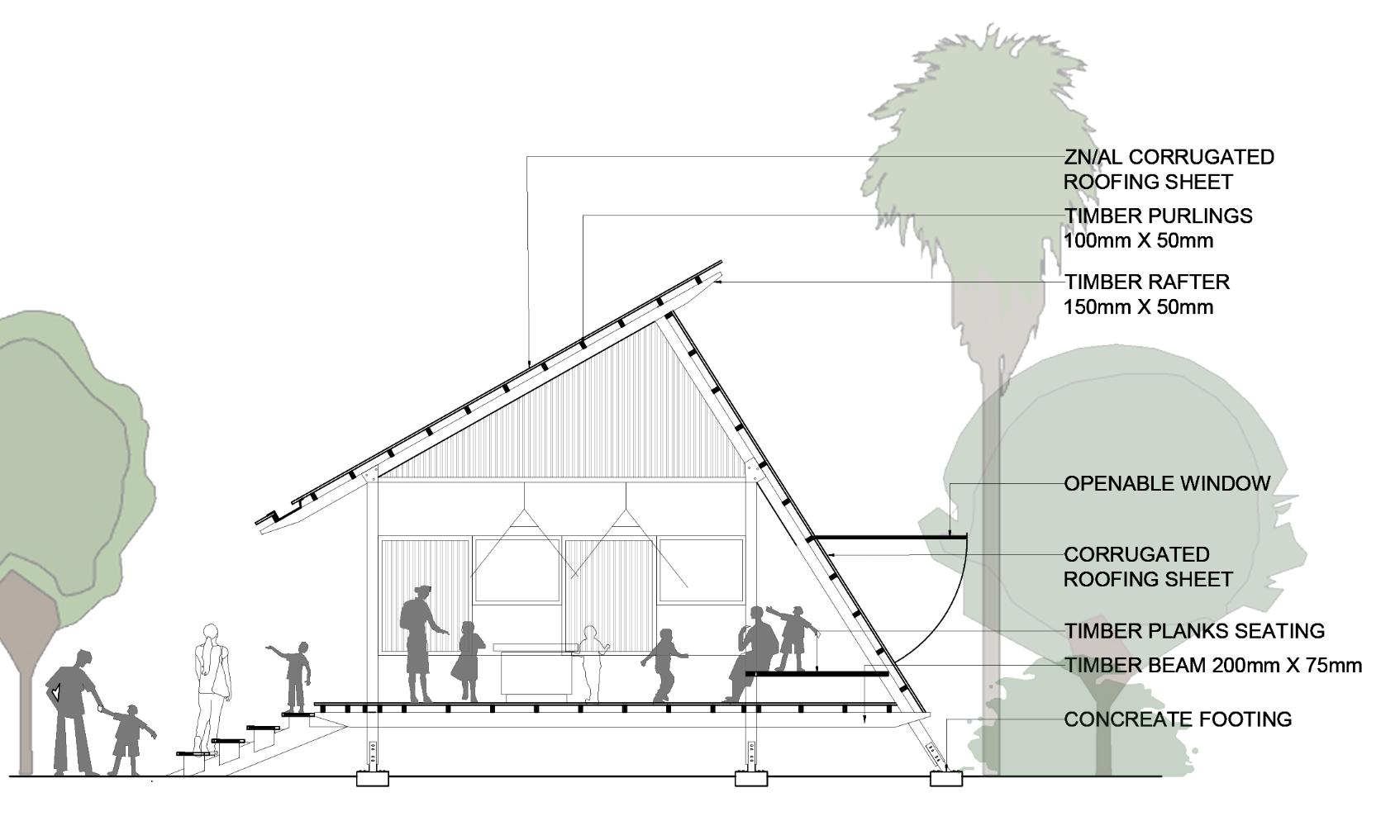

PROJECT BREAKDOWN

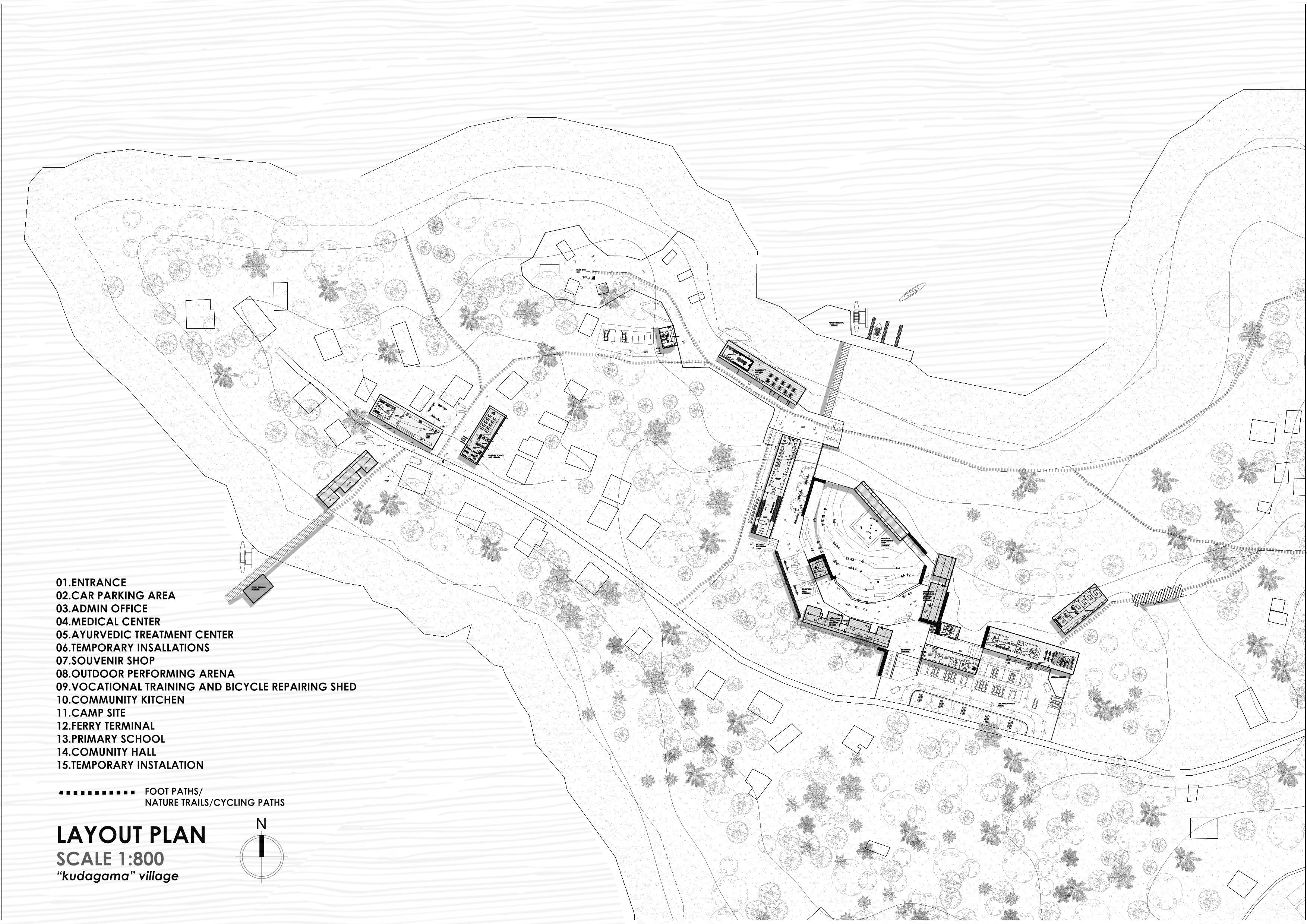

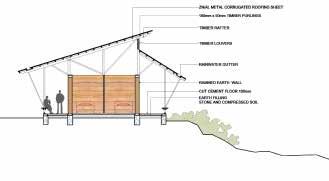

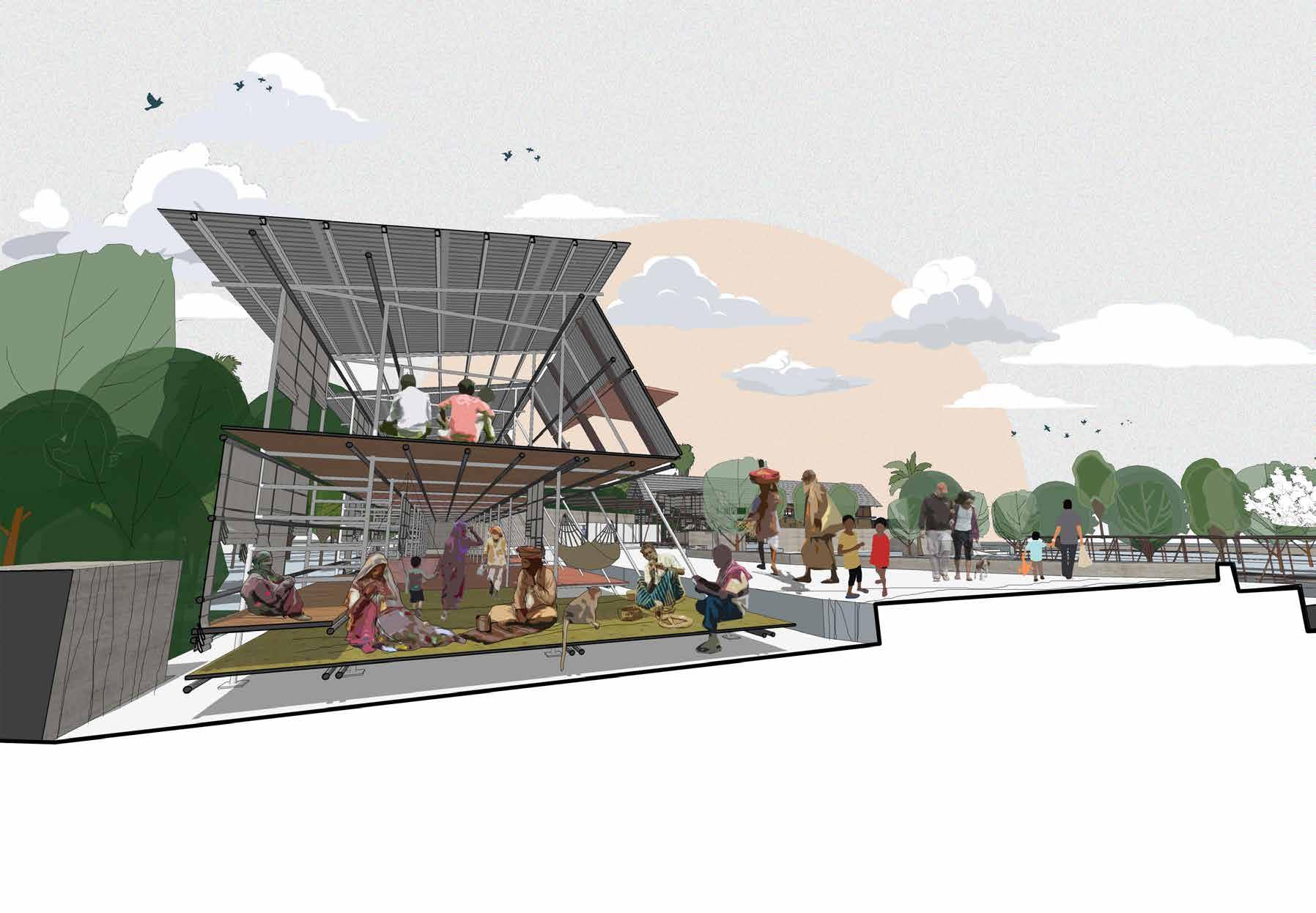

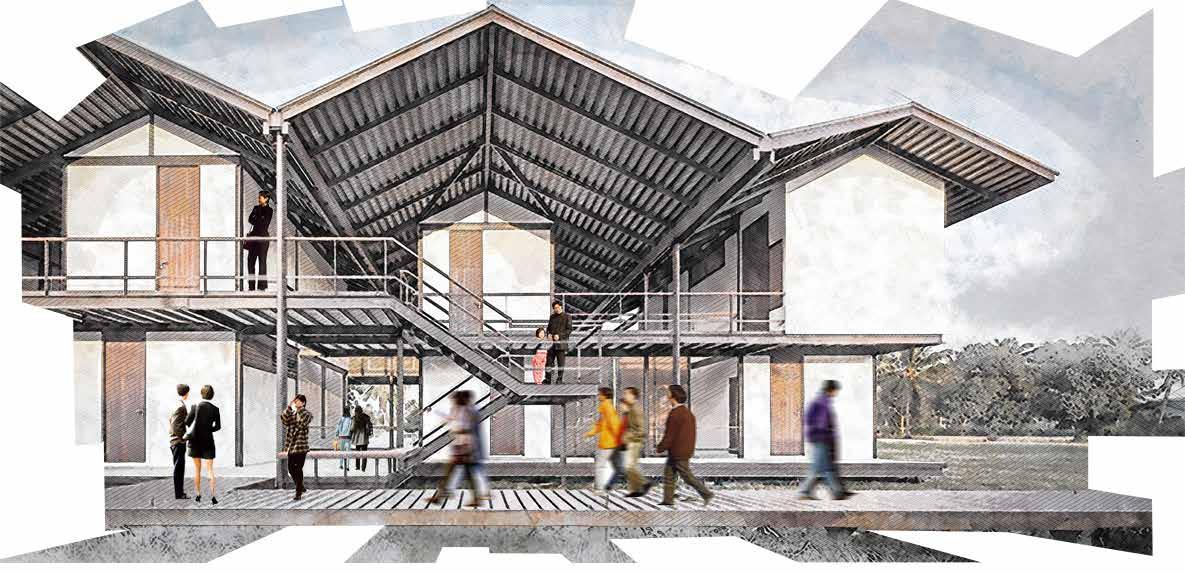

REVITALIZING “KUDAGAMA” GYPSY COMMUNITY

TRANSPORT Tourist trails Cycling pathways

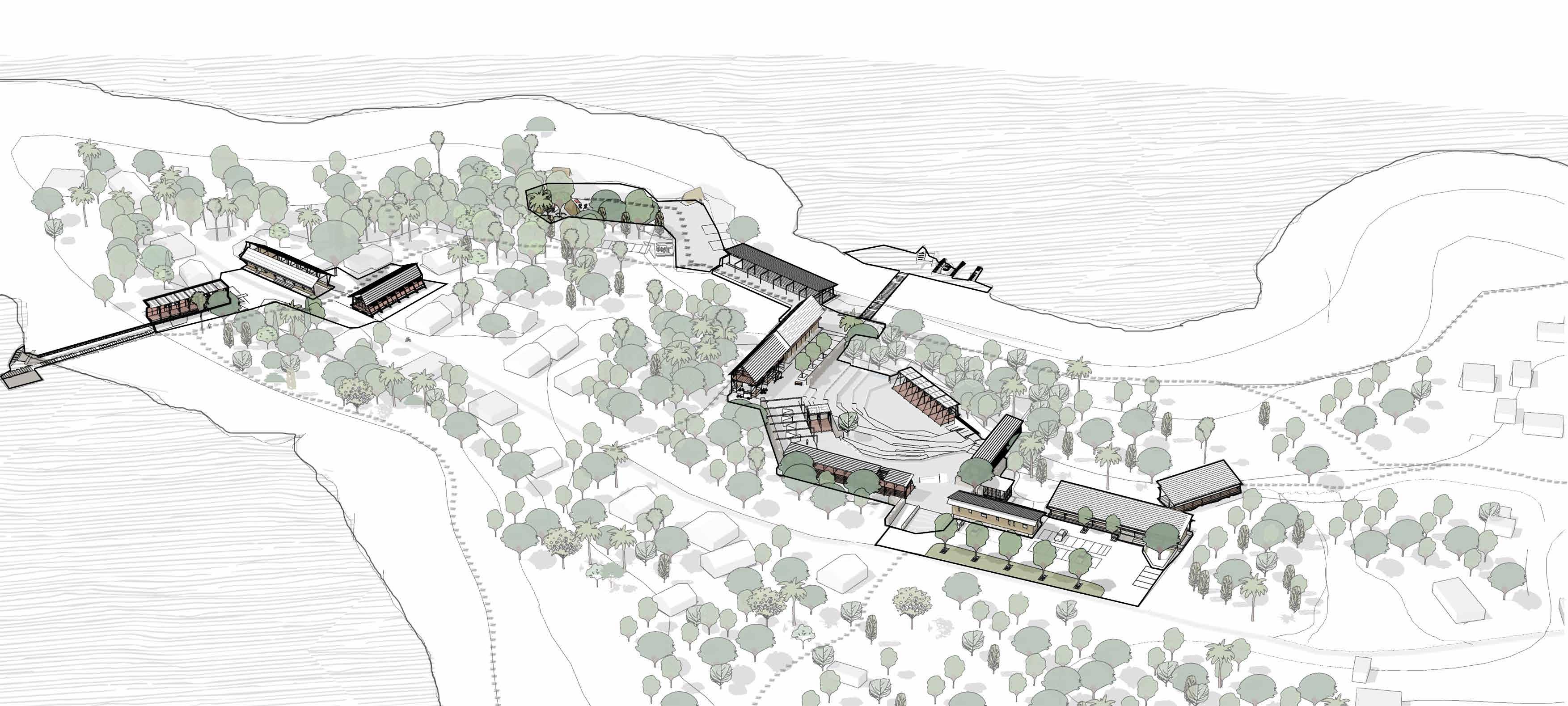

Proposed modular community Master plan | Social uplifting programme for kudagama

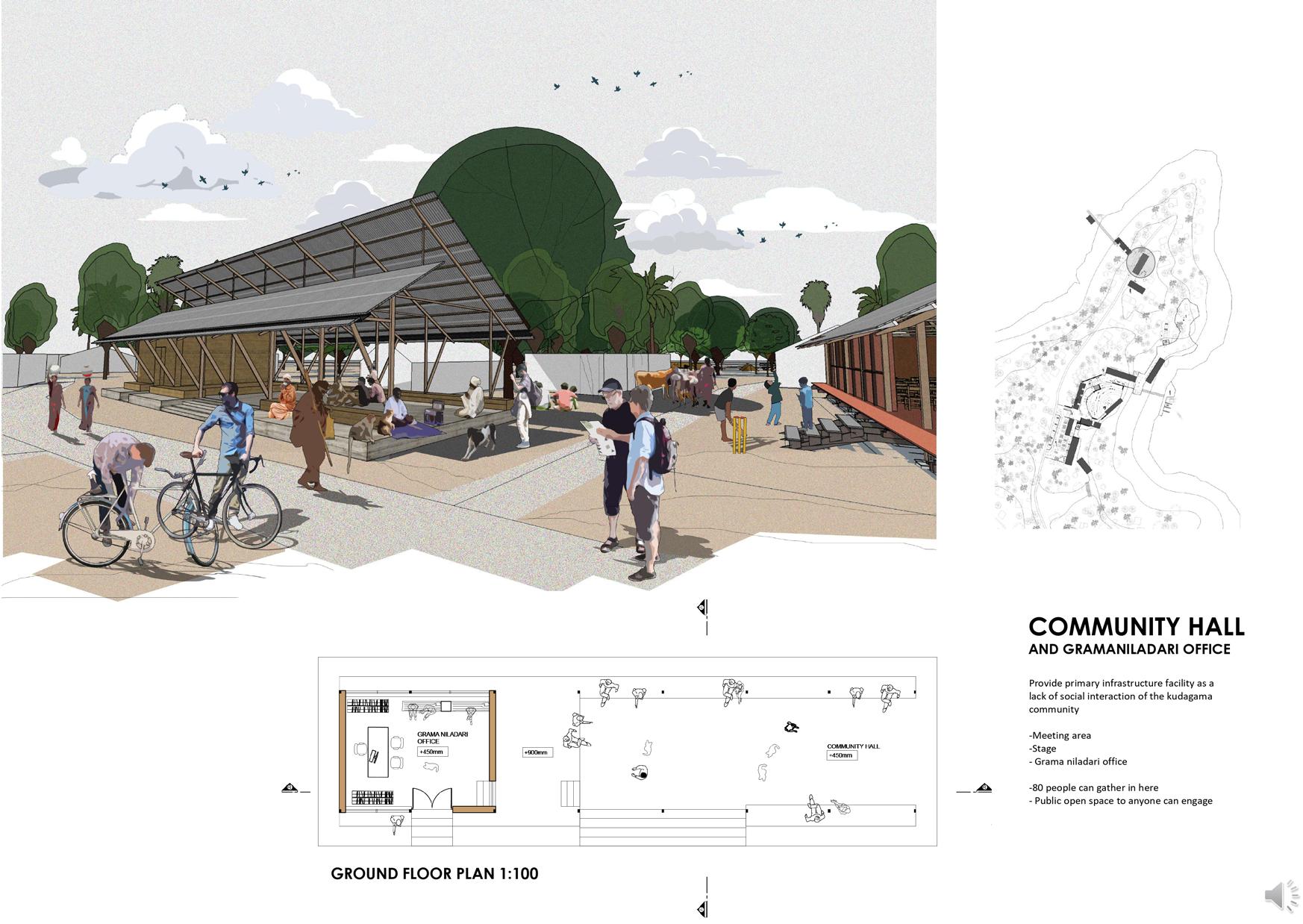

INFRASTRUCTURE Community hall Grama niladari office

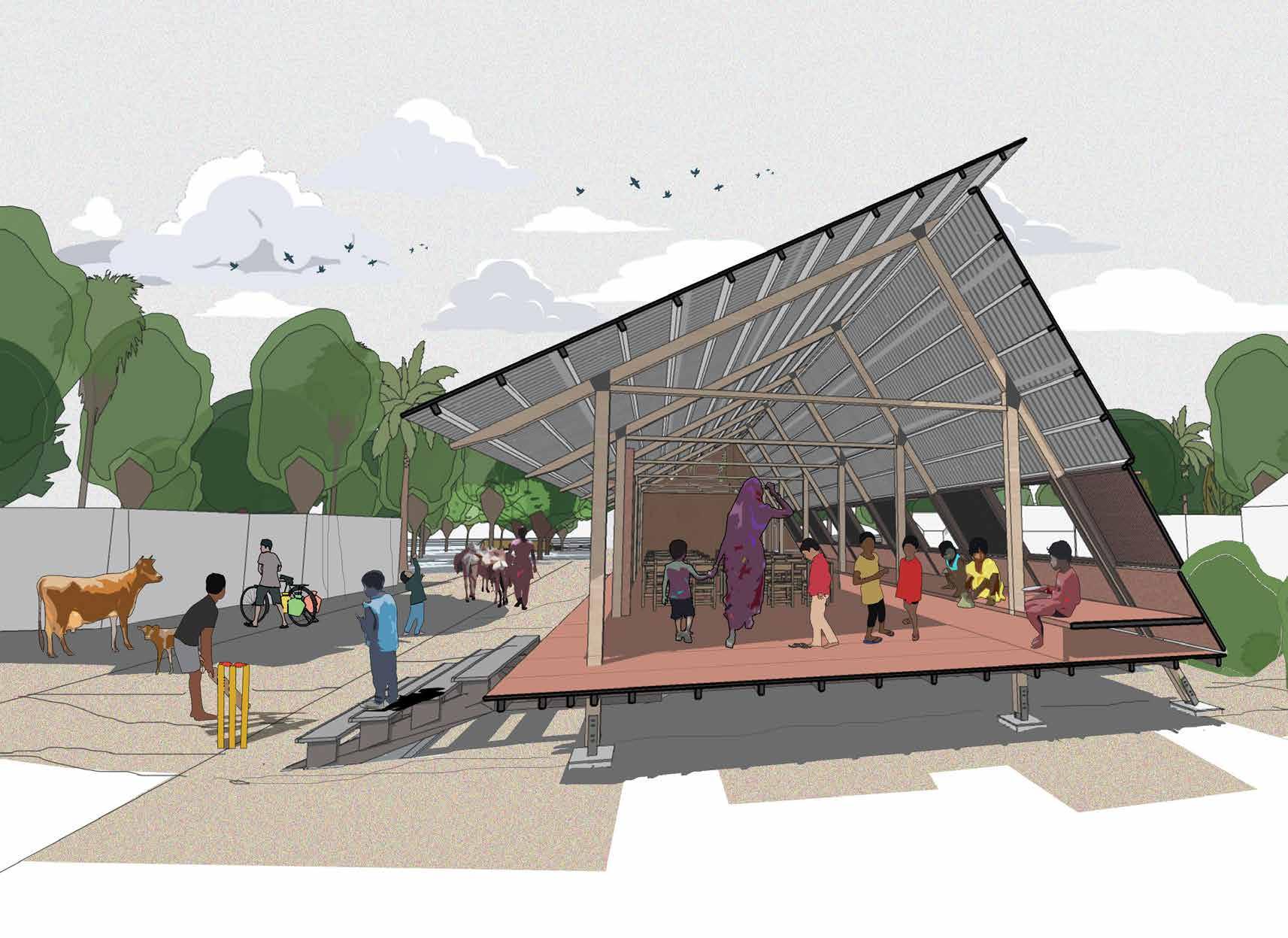

EDUCATION

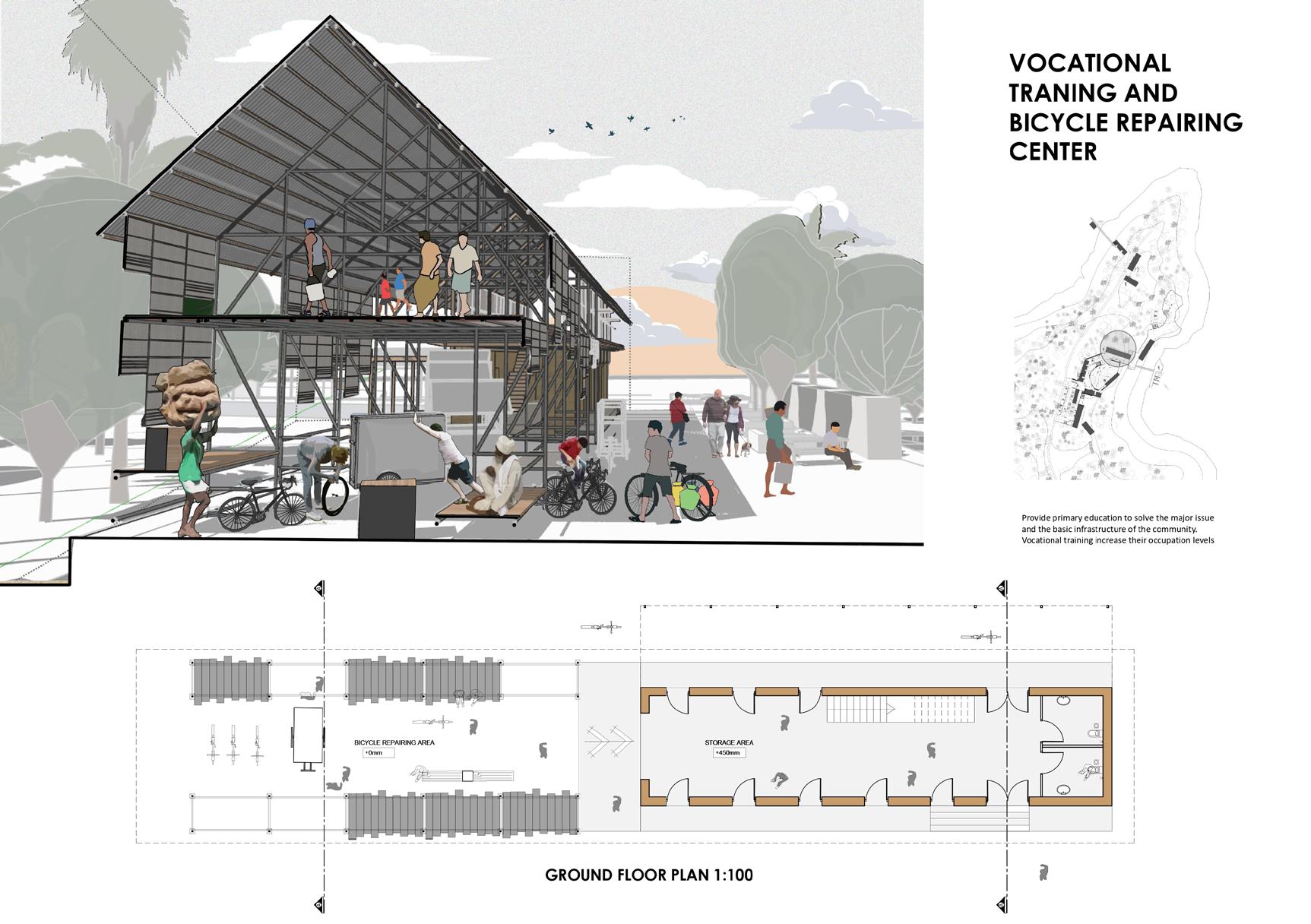

Vocational education Primary school /library

RECREATIONAL Camp site Visitor chalets

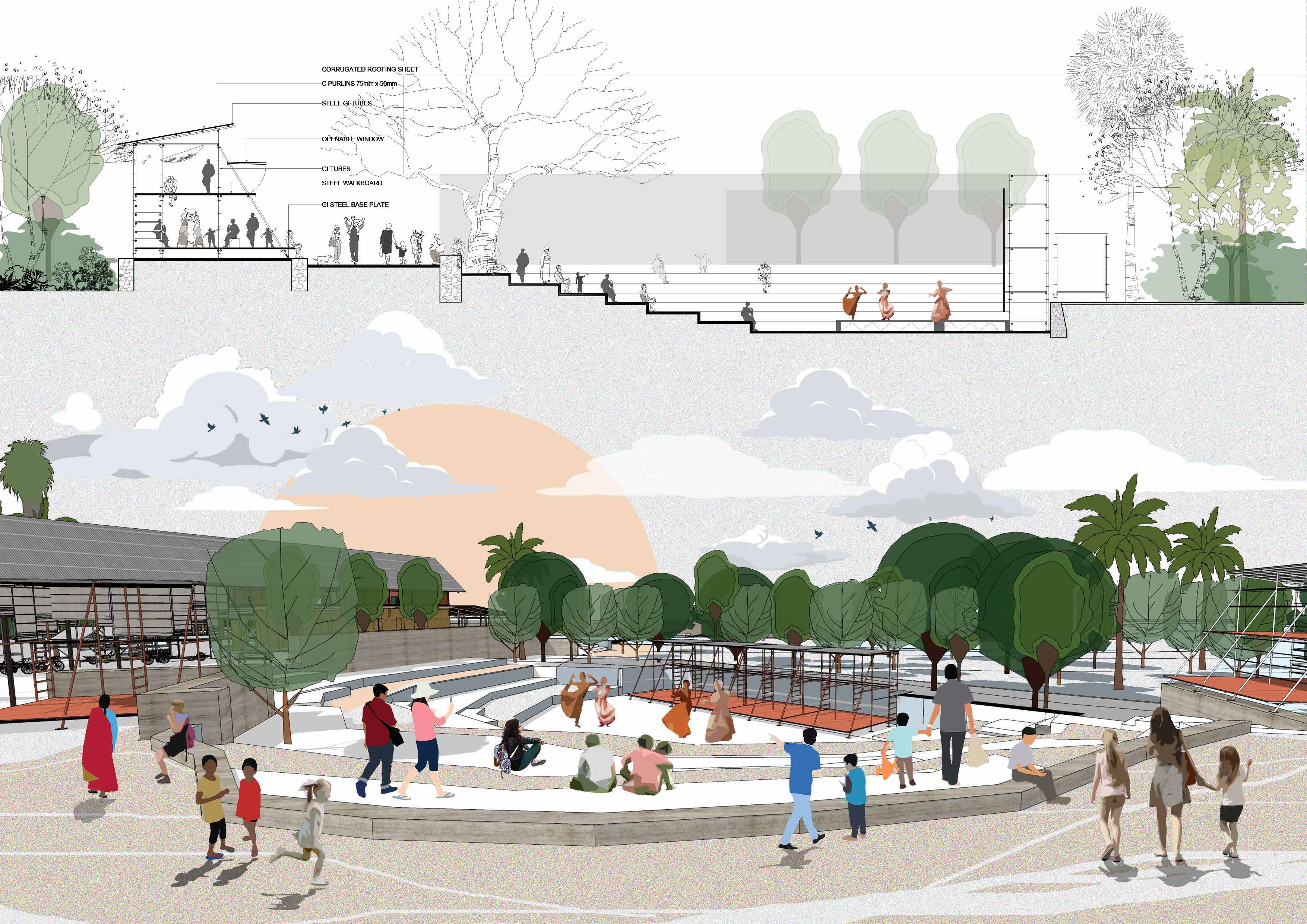

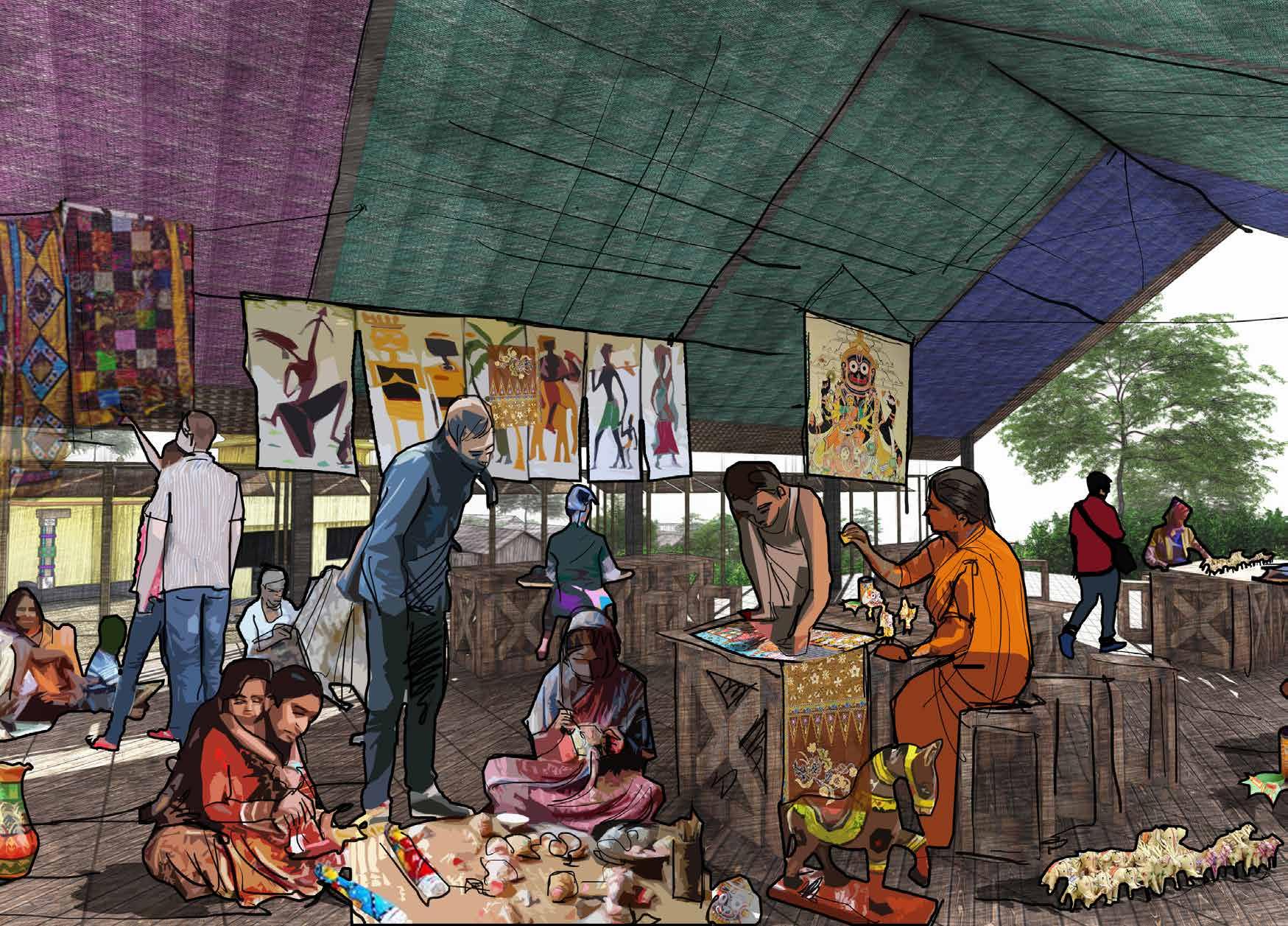

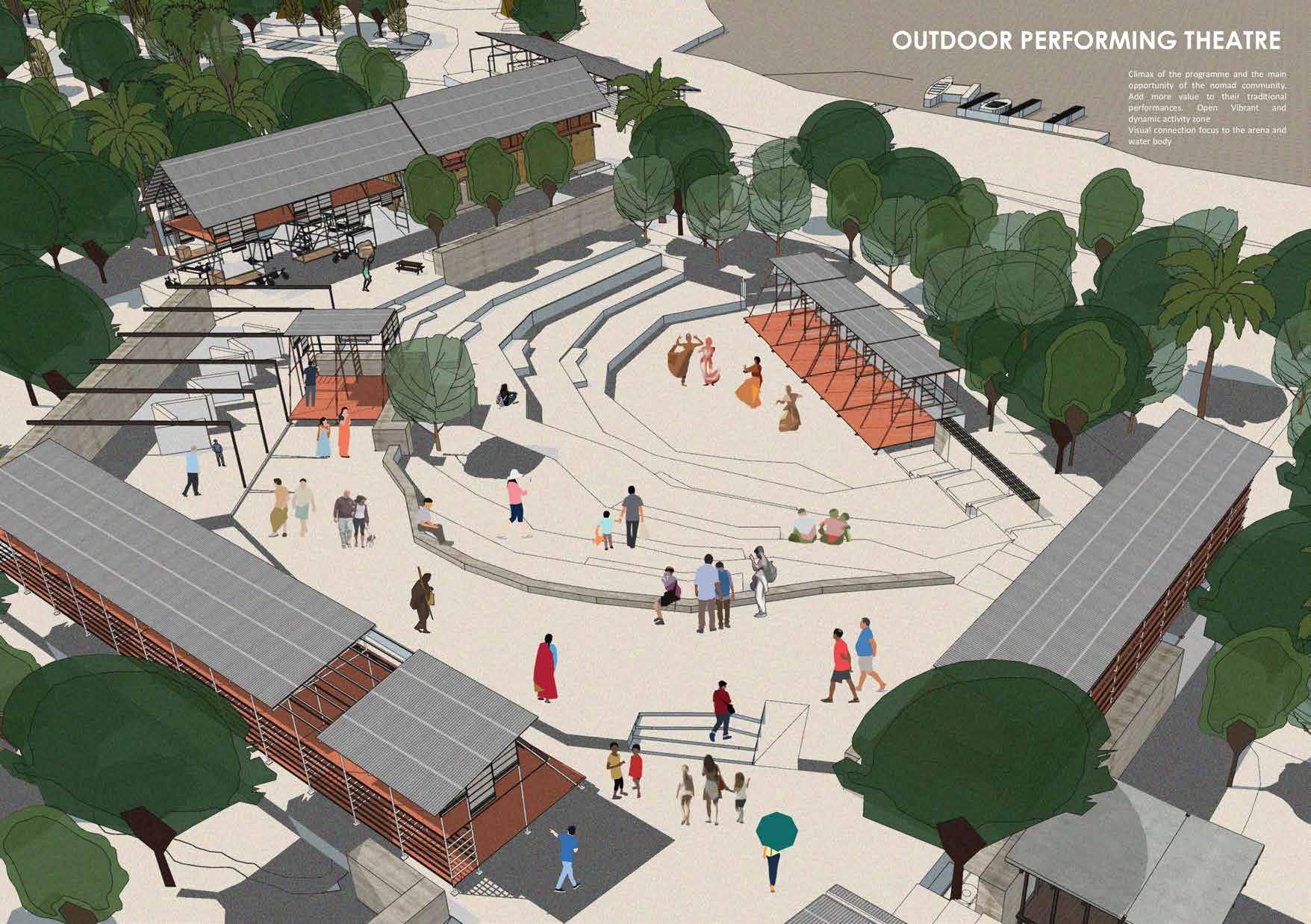

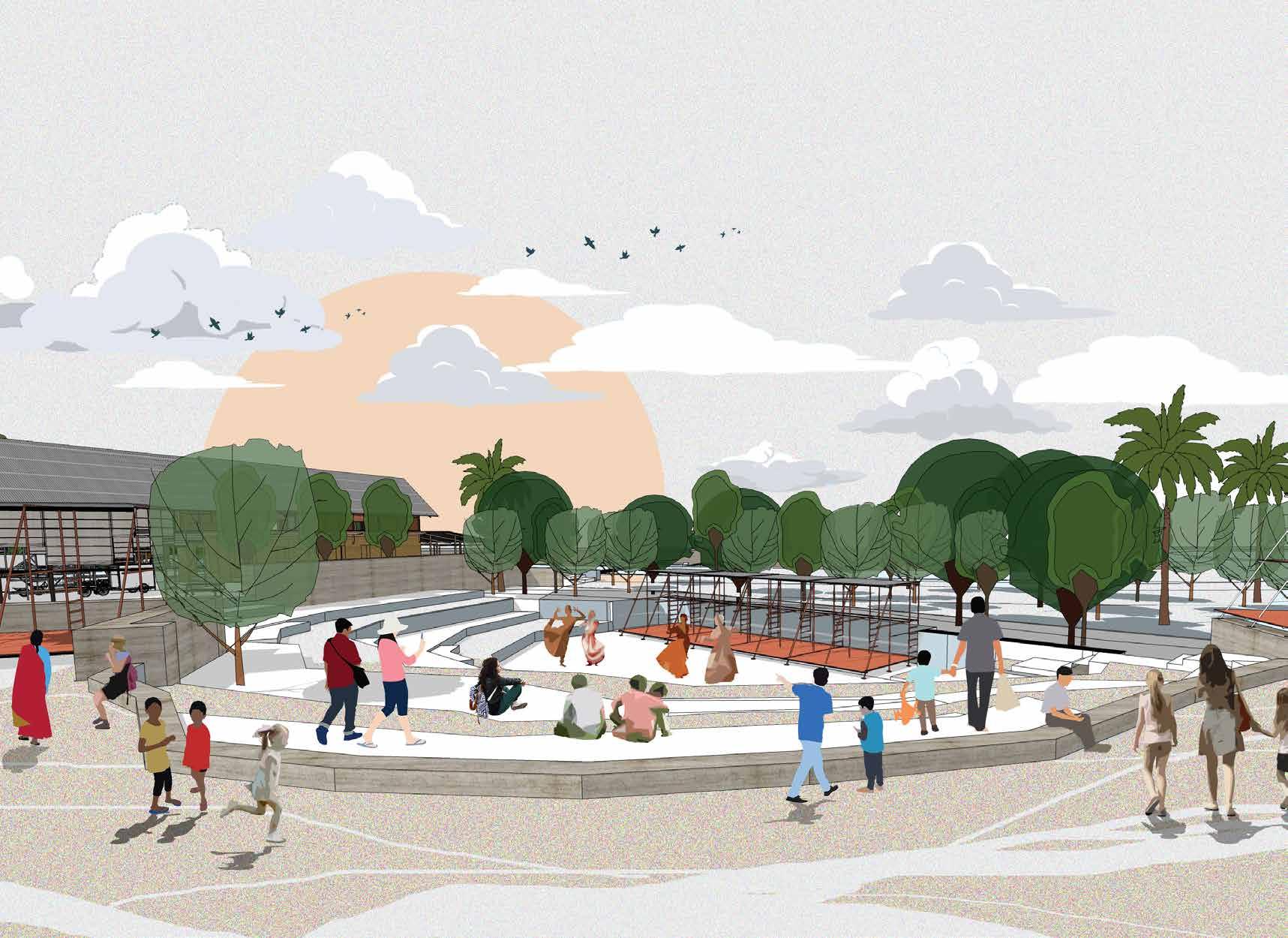

ART & CULTURE Performing theatre Community kitchen

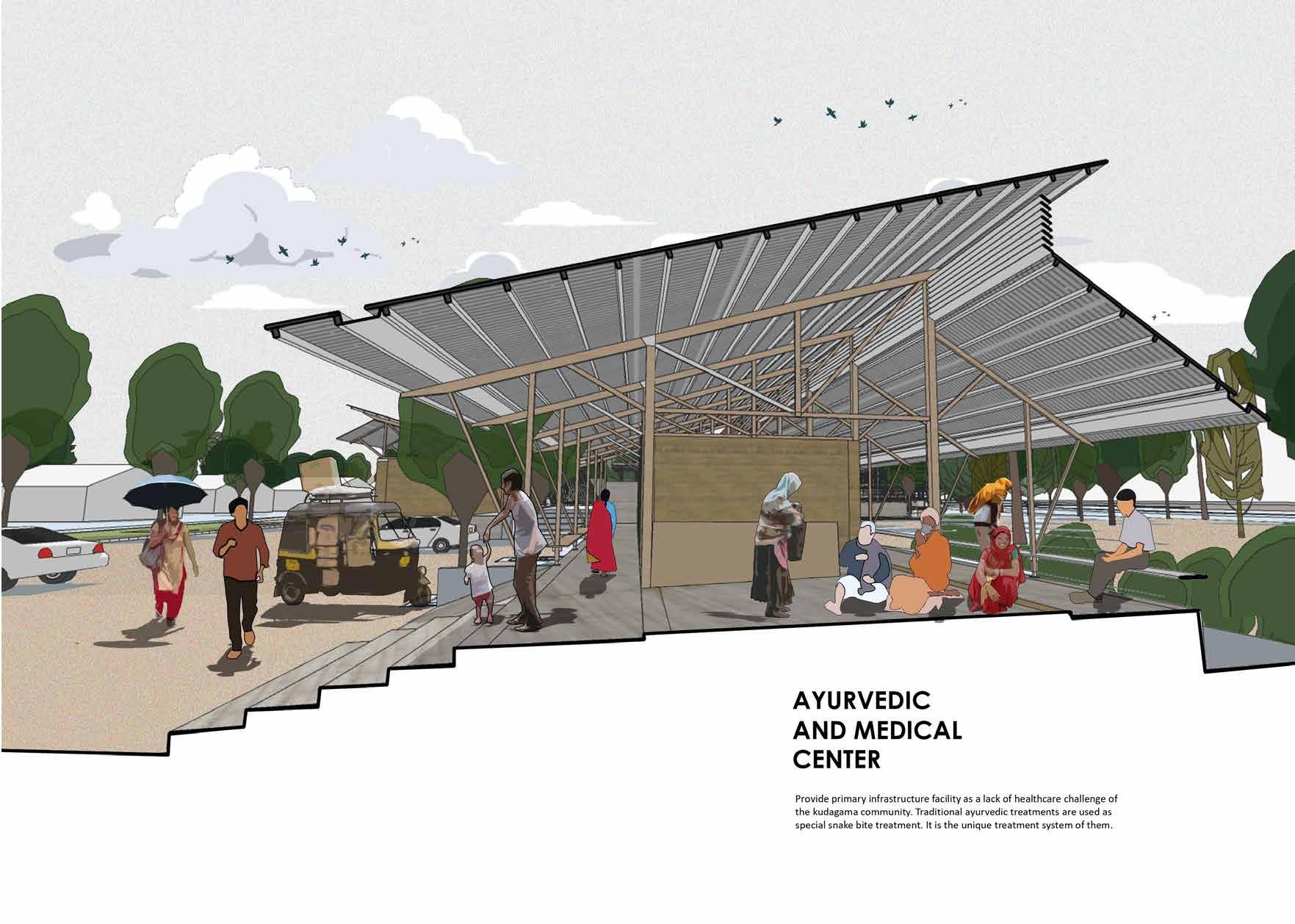

HEALTHCARE Ayurvedic center Medical center

12

13

14

15

16

17

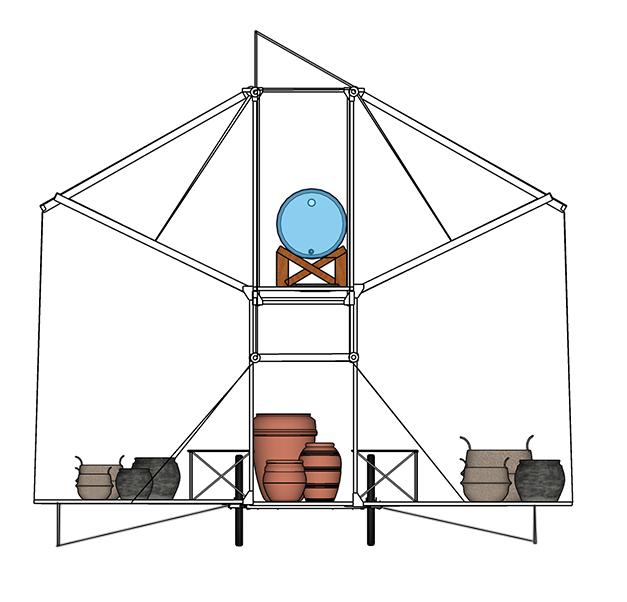

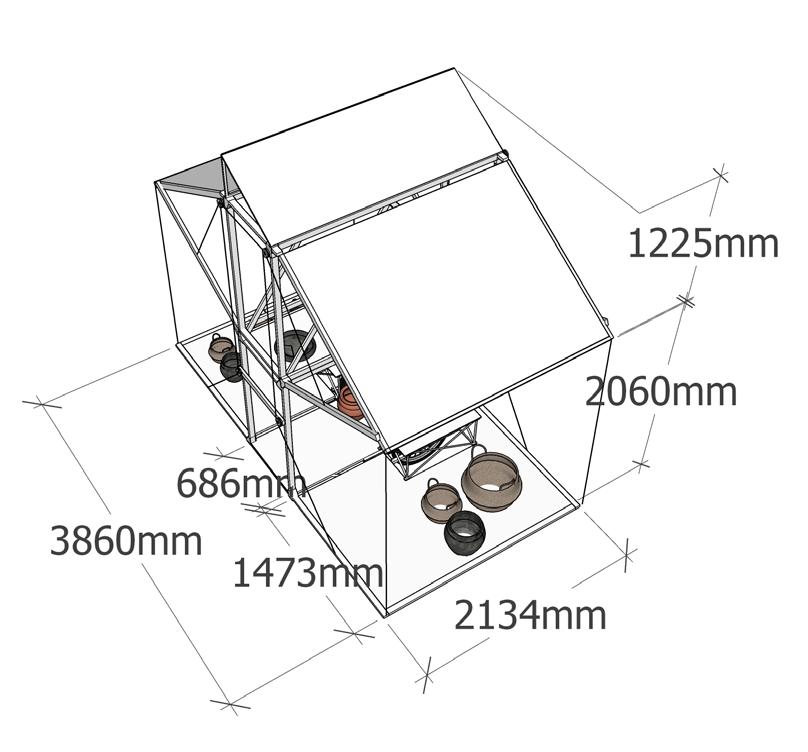

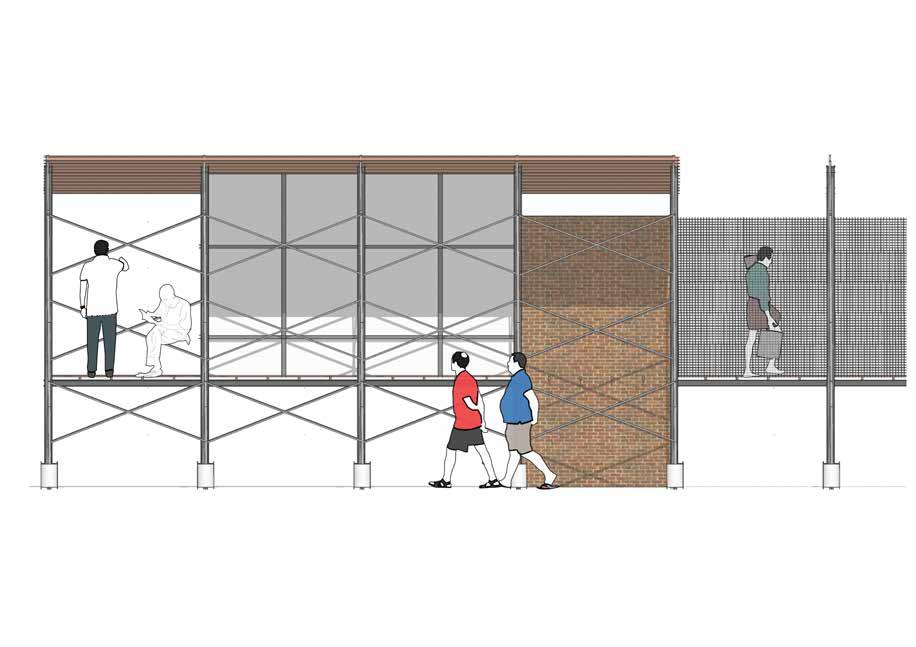

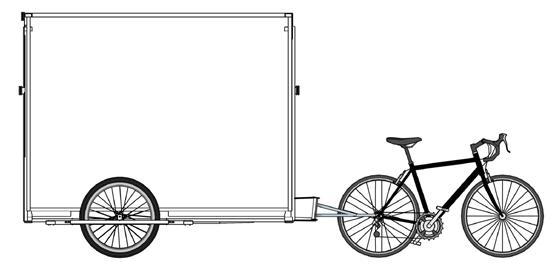

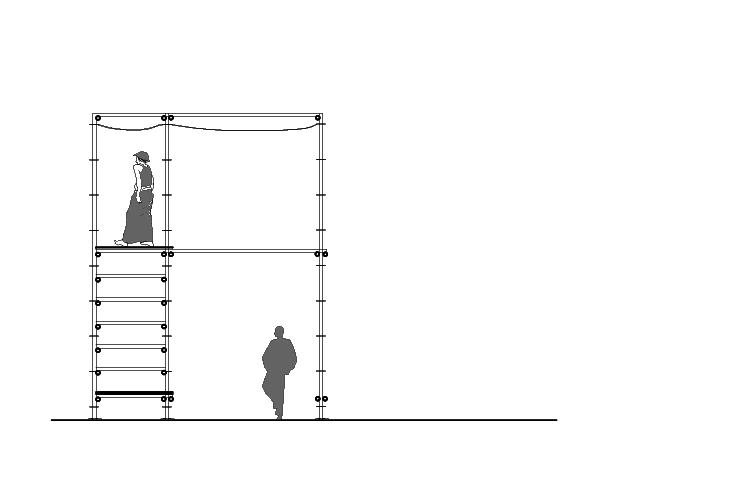

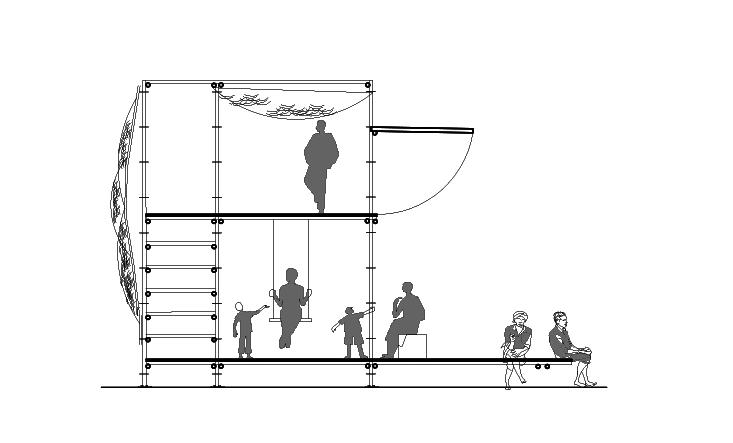

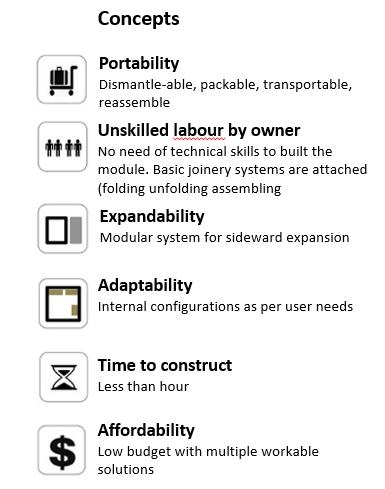

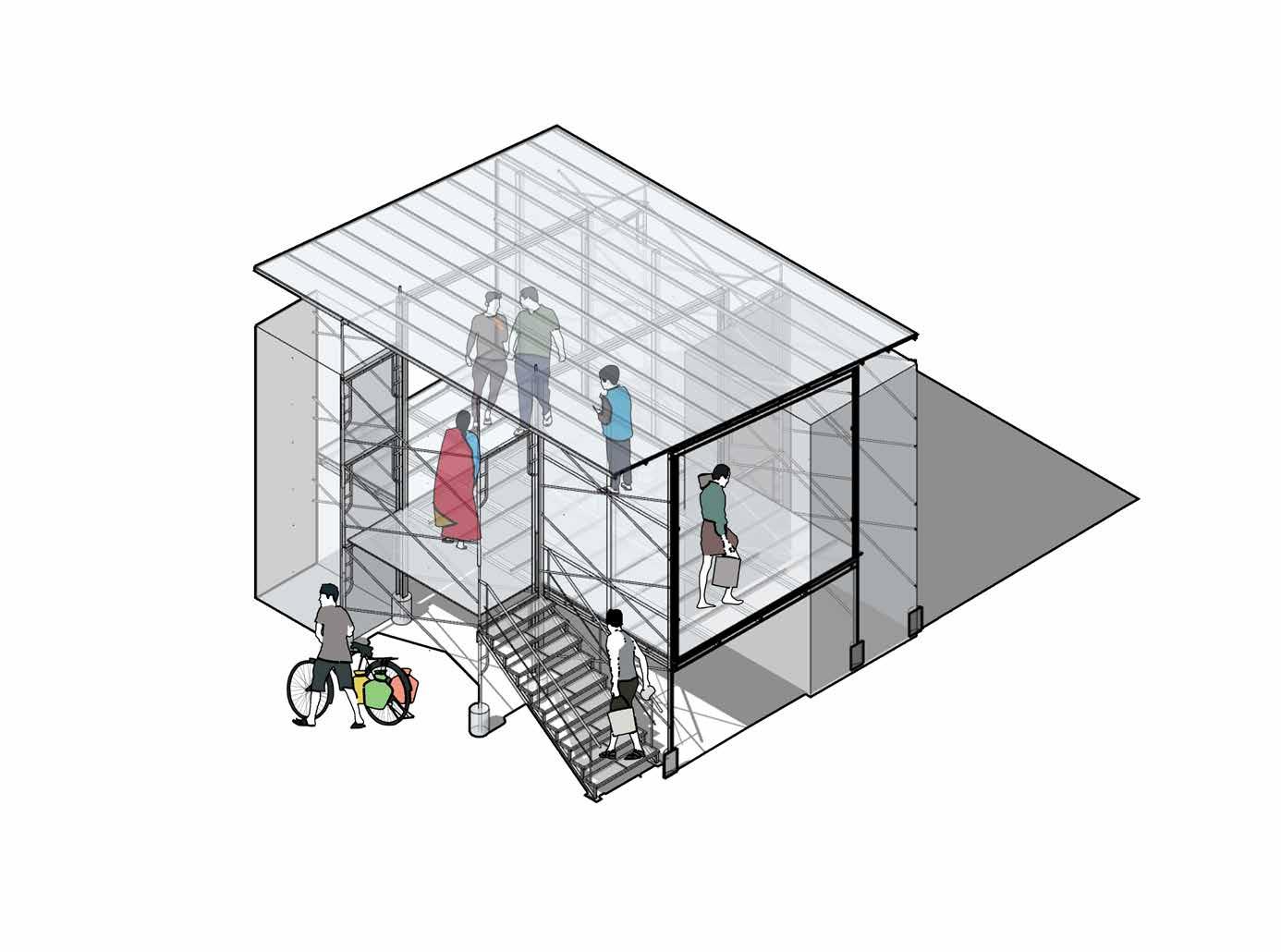

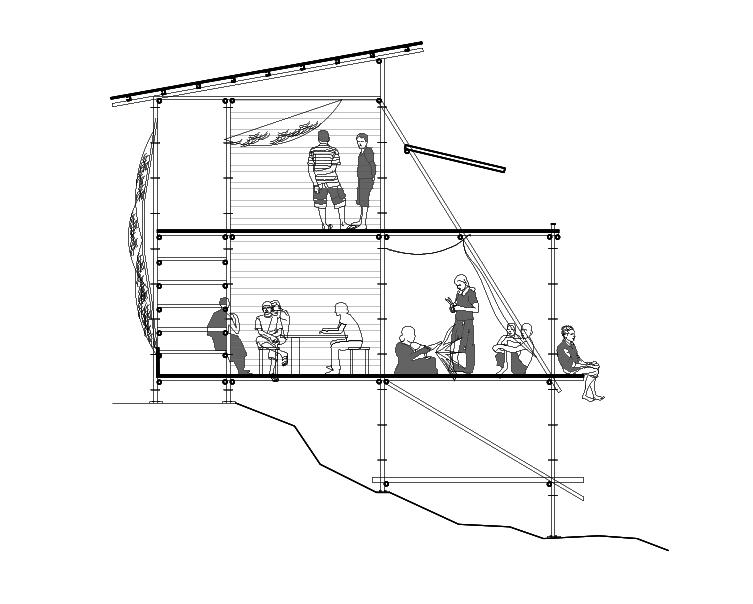

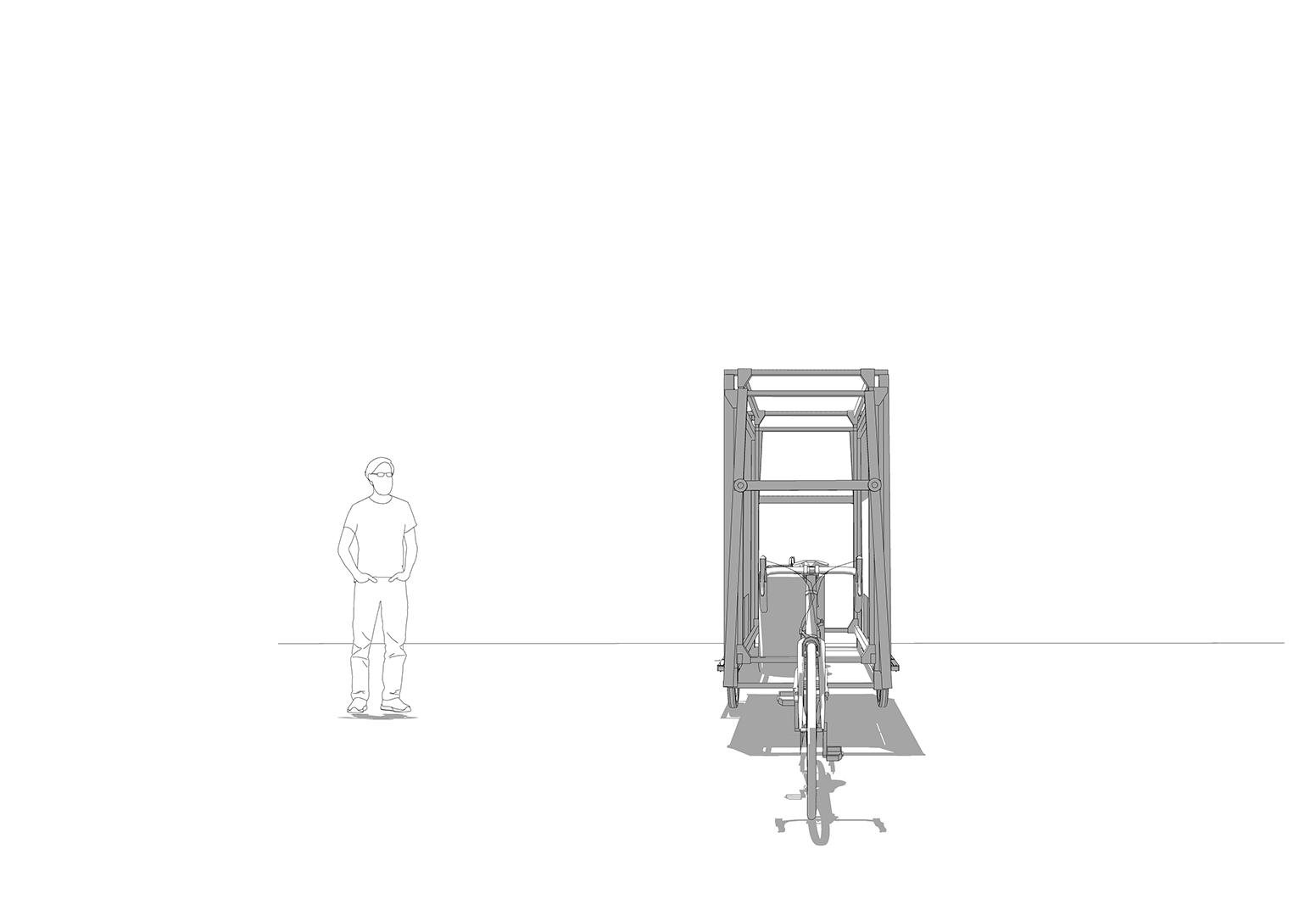

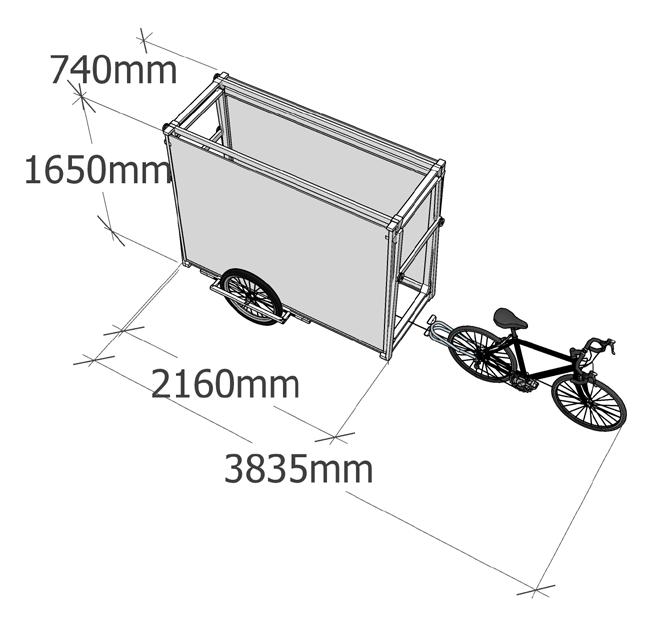

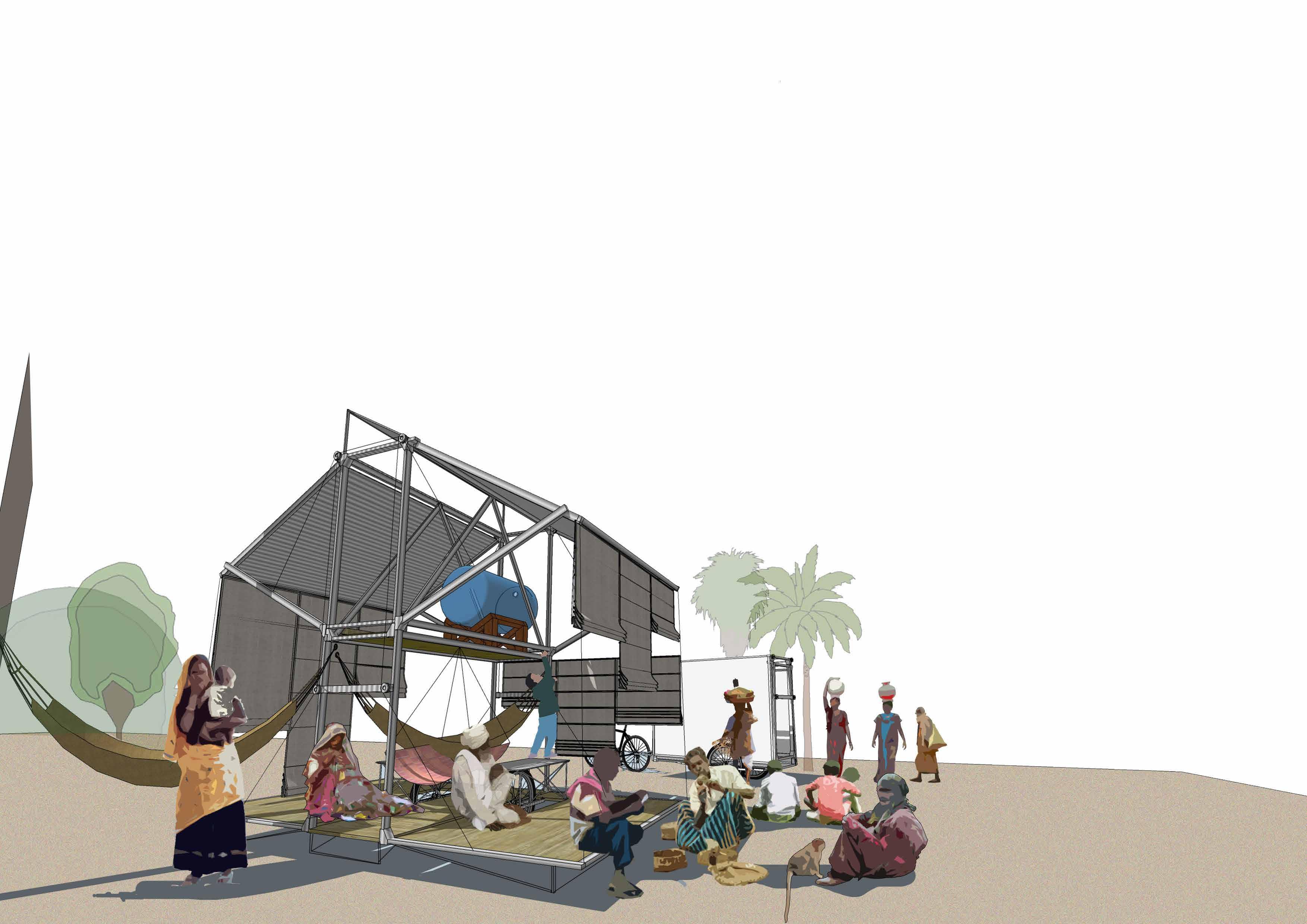

PROPOSED MOBILE UNIT PROTOTYPE

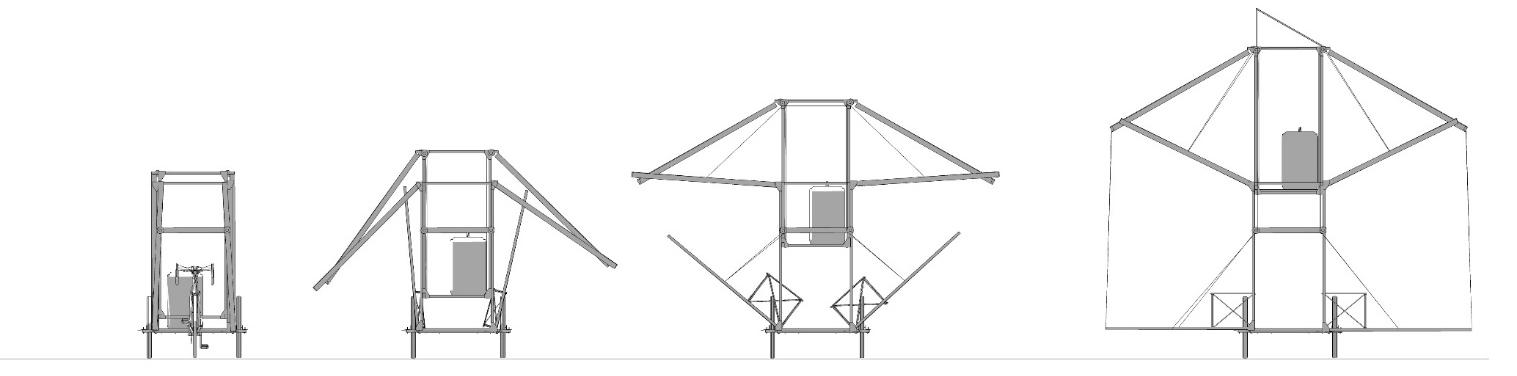

The module working process has a folding, unfolding and assemble system.

The single unit routine pattern show as their life style, adaptability, flexibility and work as a mobile housing unit.

The main function of this single unit is a mobile housing. If their community pattern will not function properly they can also use it as a house.

They seasonally came to the urban areas for their traditional occupation. Festival areas, tourist destinations are the locations which that they recently accommodate as temporary community.

FOLDBLE MEMBRANE TIMBER FLOOR STEEL STRUCTURE FOLDBLE JOINERIES STEEL CABLE SYSTEM FOR FOLDING AND UNFOLDING

18



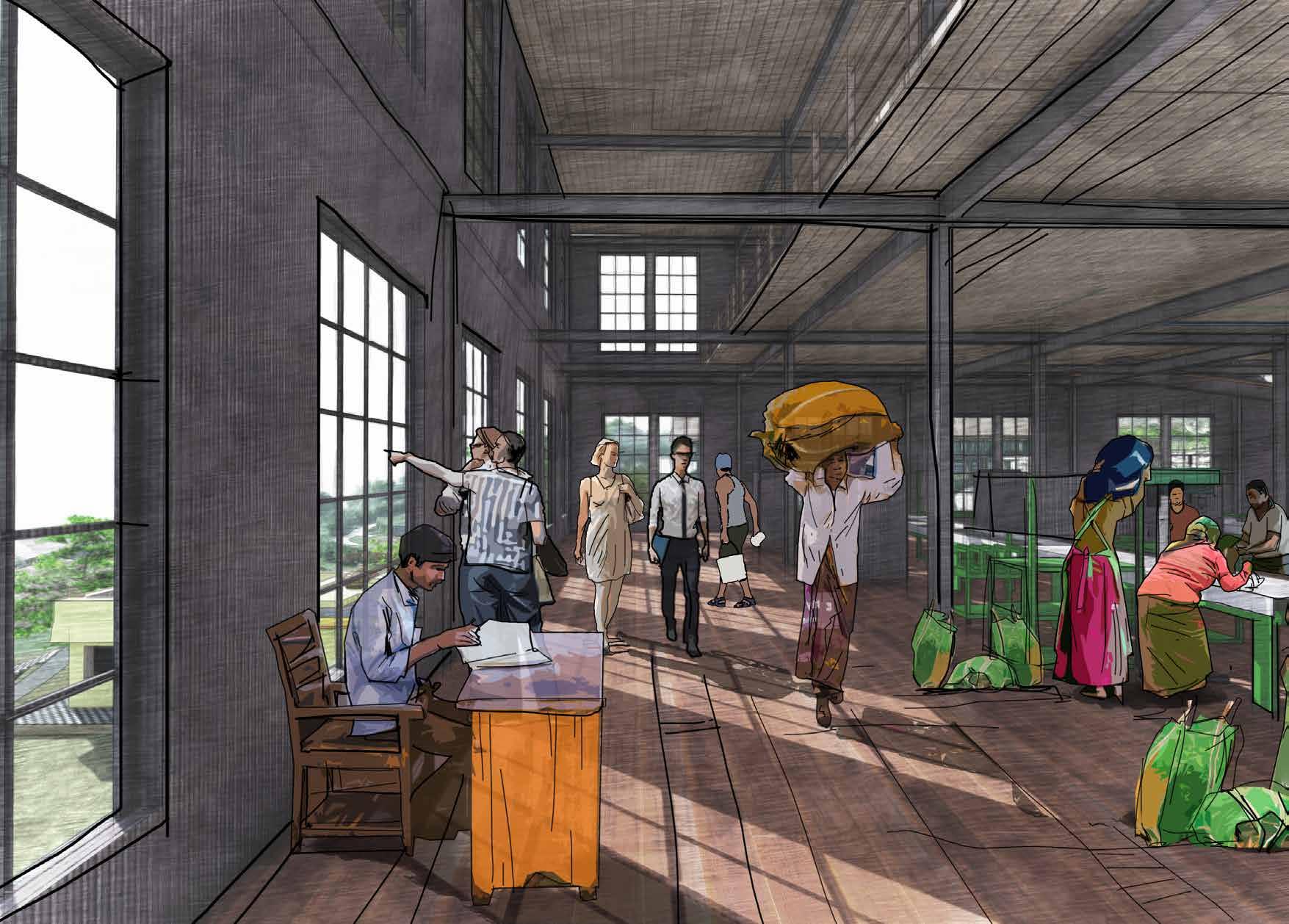

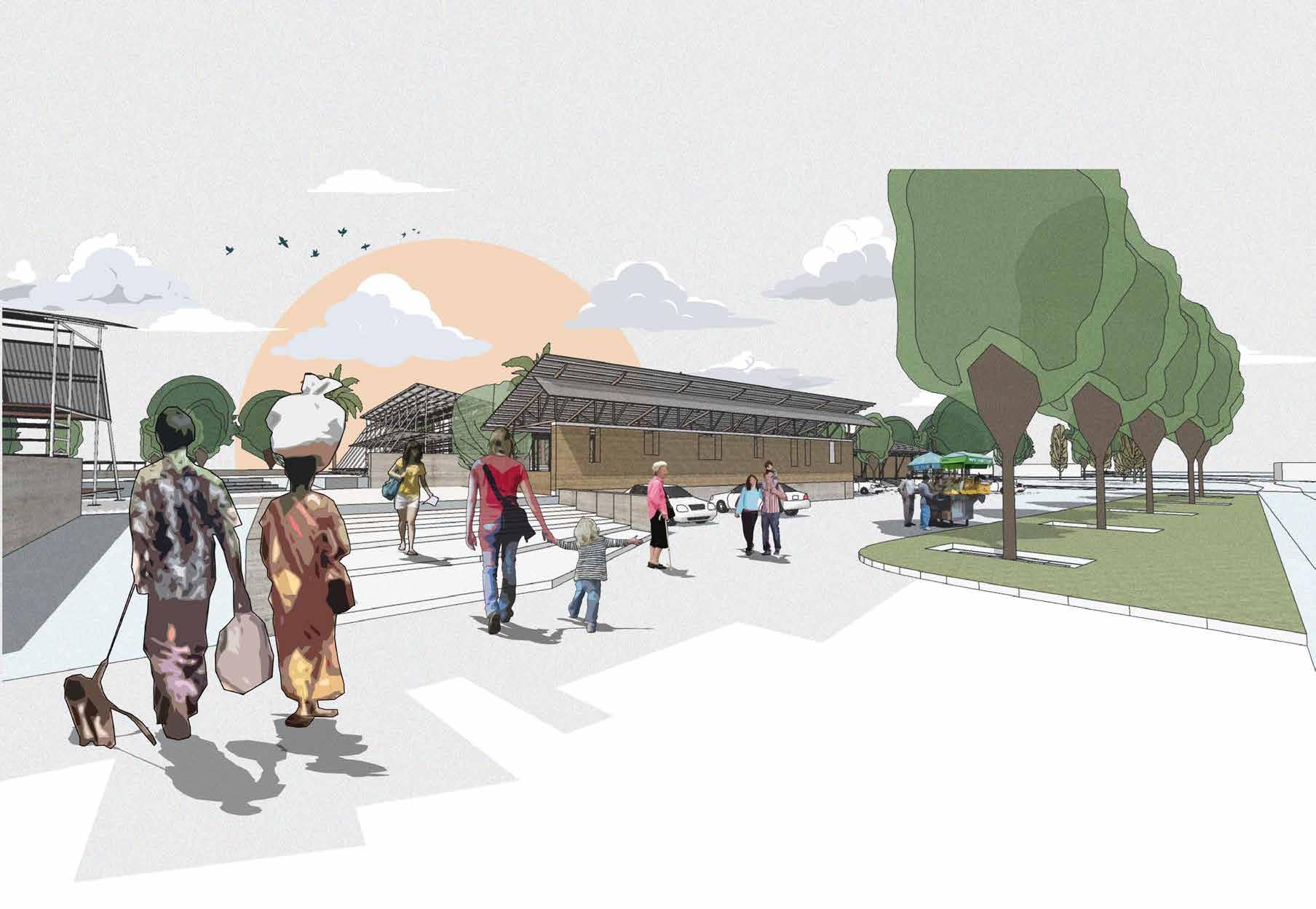

ARCHITEC TUR AL ILLUSTR ATIONS.

As a freelance artist...

i would prefer to sketch and illustrate using digital medias. Basically most of them are digital illustrations. Various art forms are born combining them. I used pen and pencil, Sketchbookpro, wacom stylus, and Adobe creative suite.

19

20

21

22



WORK EXPEREINCE

ARCHITEC TUR AL VISUALIZATIONS. As a 3d visualizer in Architectural profession...

3D visualization refers to the practice of representing a new structure in a way that can be easily digested.

Thought of as the language between the client and the designer. I used Sketchup, Lumion, Enscape, Vray and Adobe creative suite softwares.

23



SELECTED VIZUALISATION PROJECTS

R E S I D E N T I A L PR OJ E C T S

R E C R E AT I O N A L PR OJ E C T S

CO M M E R C I A L PR OJ E C T S

I N T E R I O R PR OJ E C T S

2 2 - 37

3 8 - 47

4 8 - 53

5 4 - 57

24



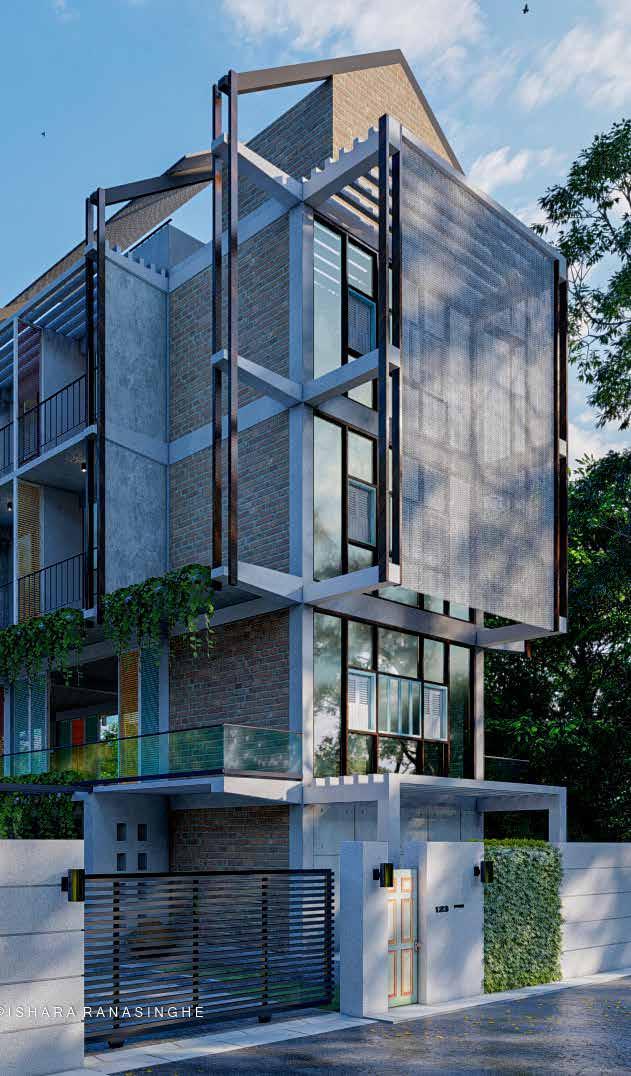

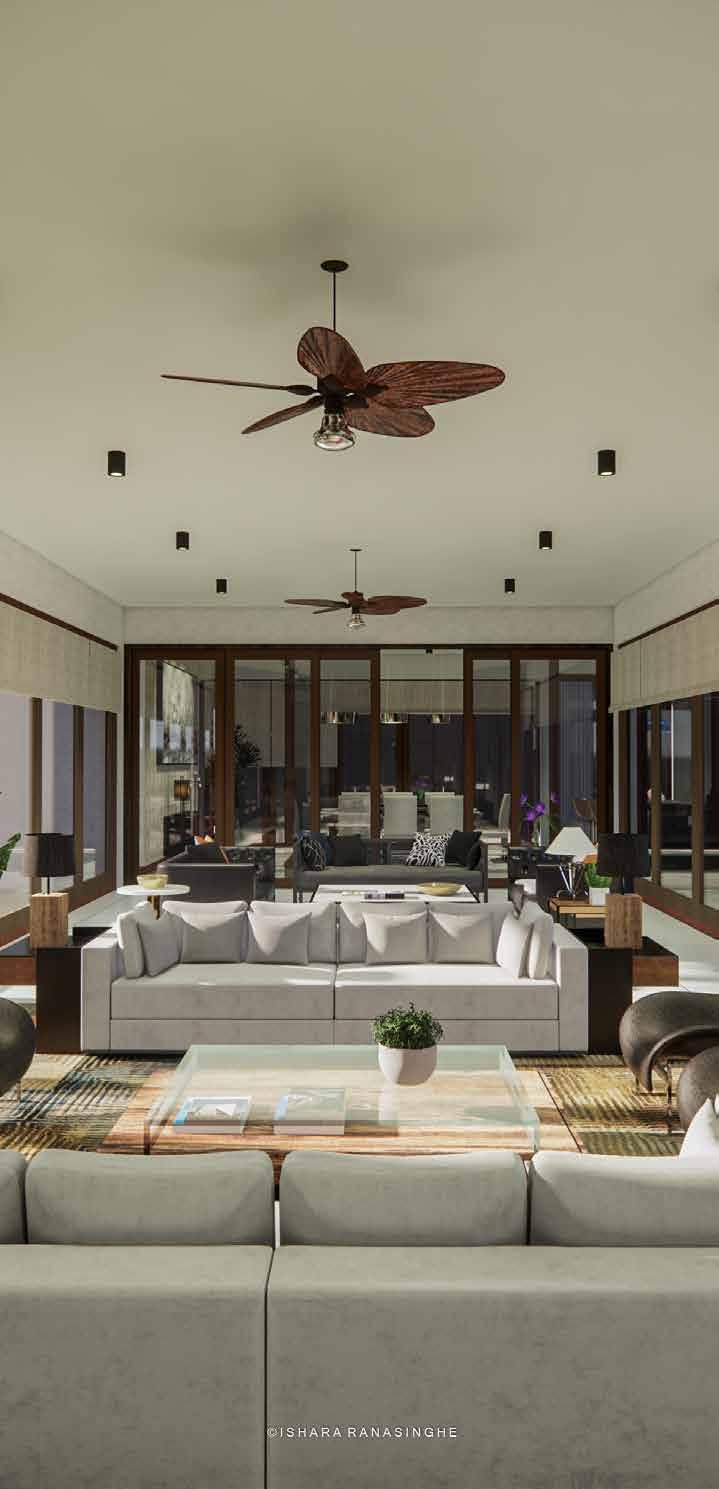

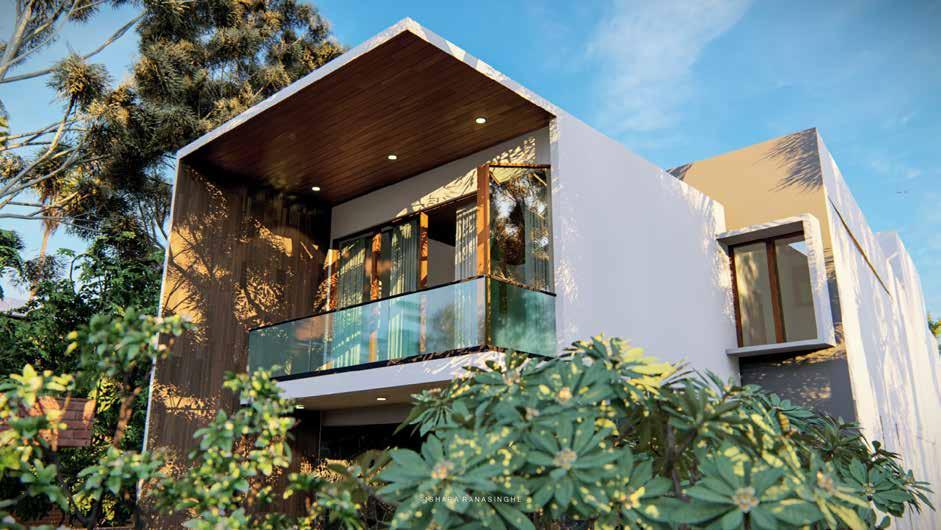

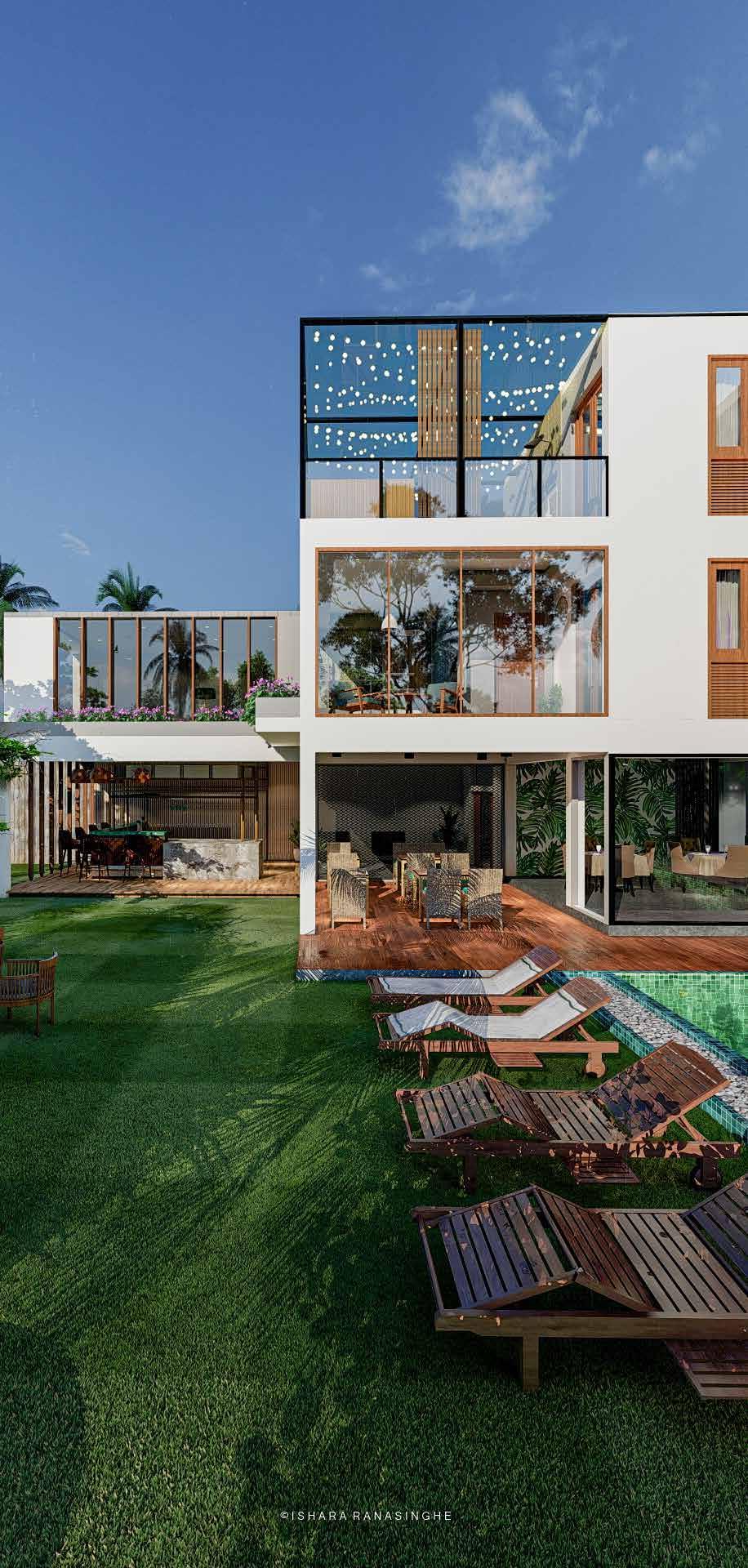

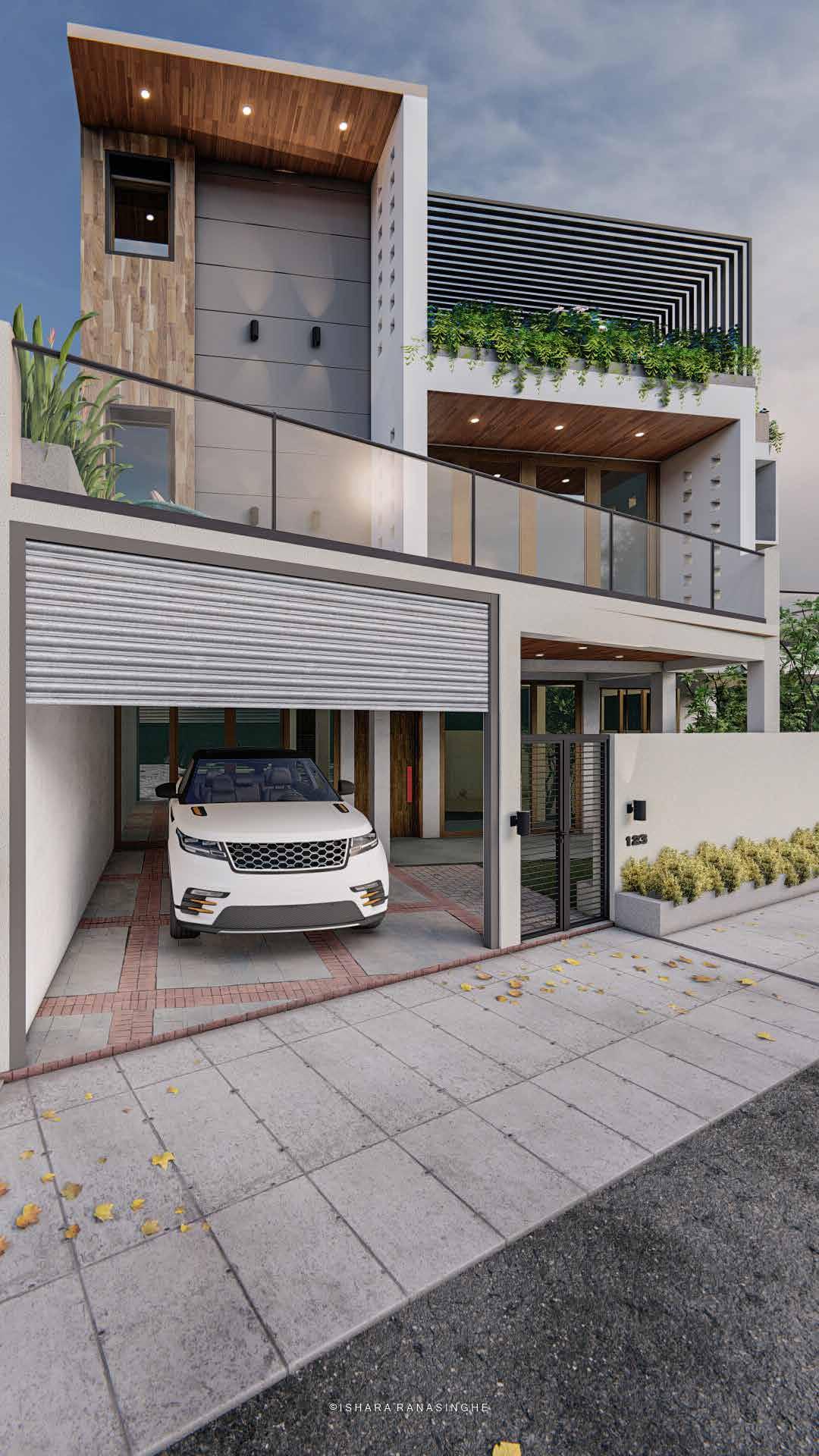

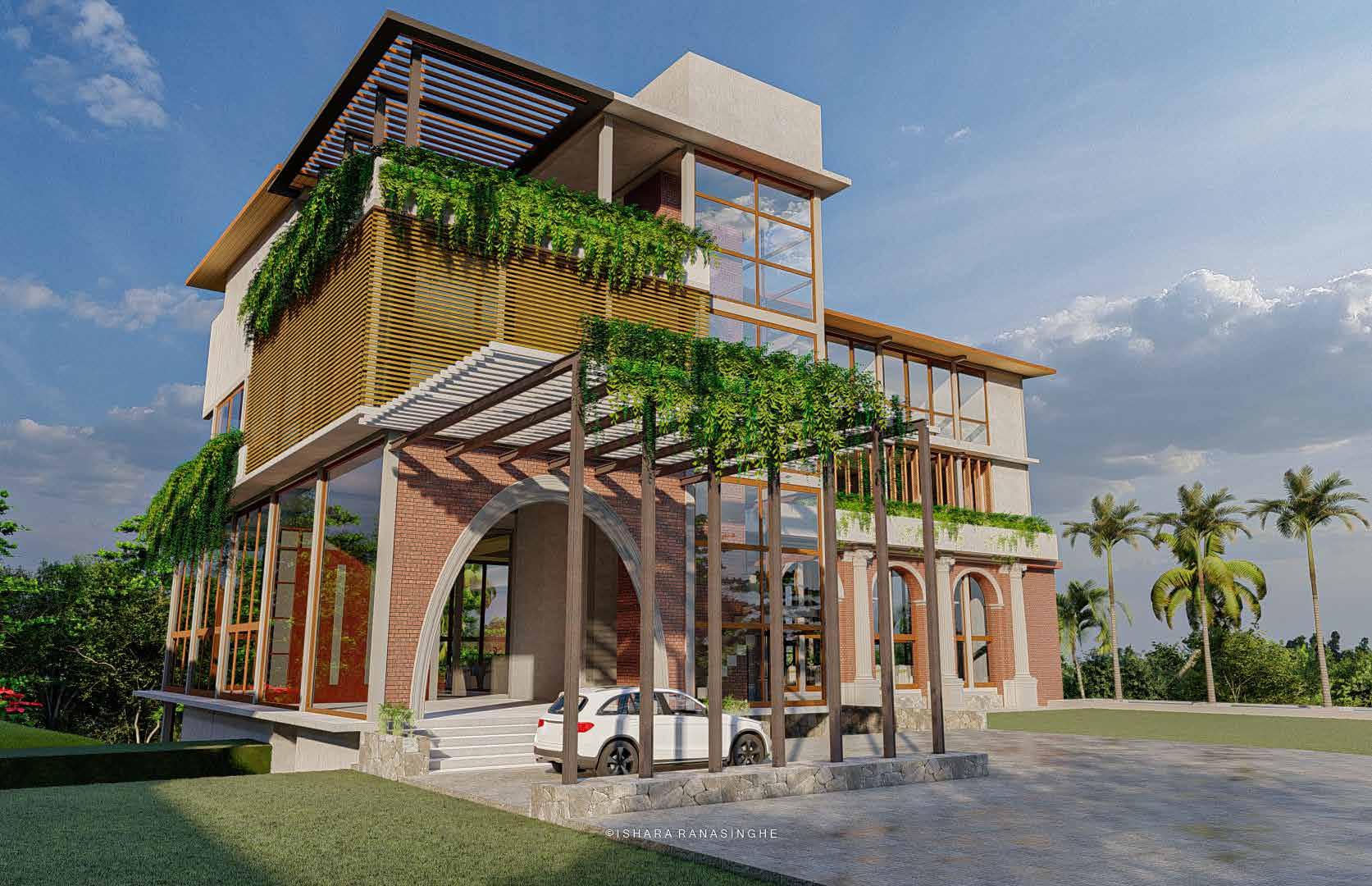

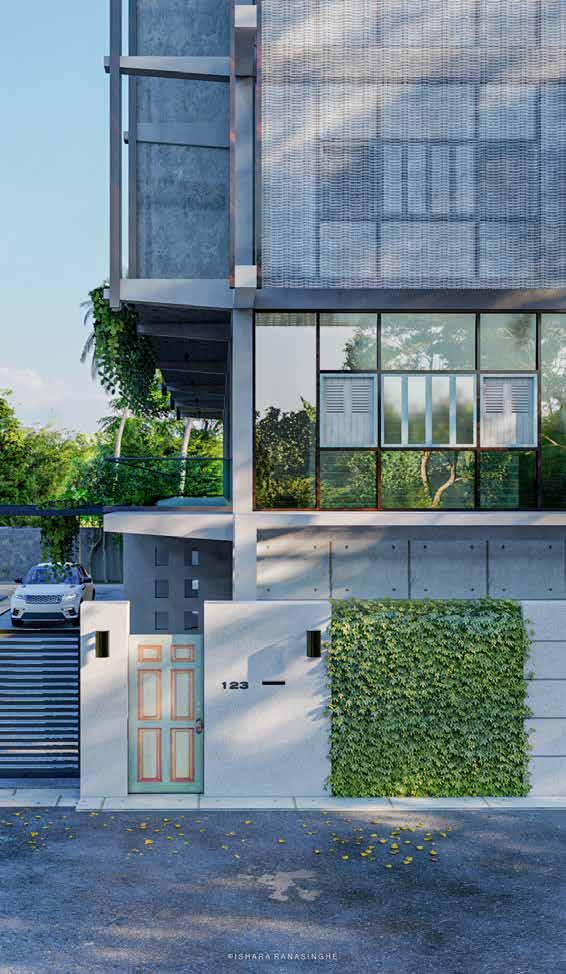

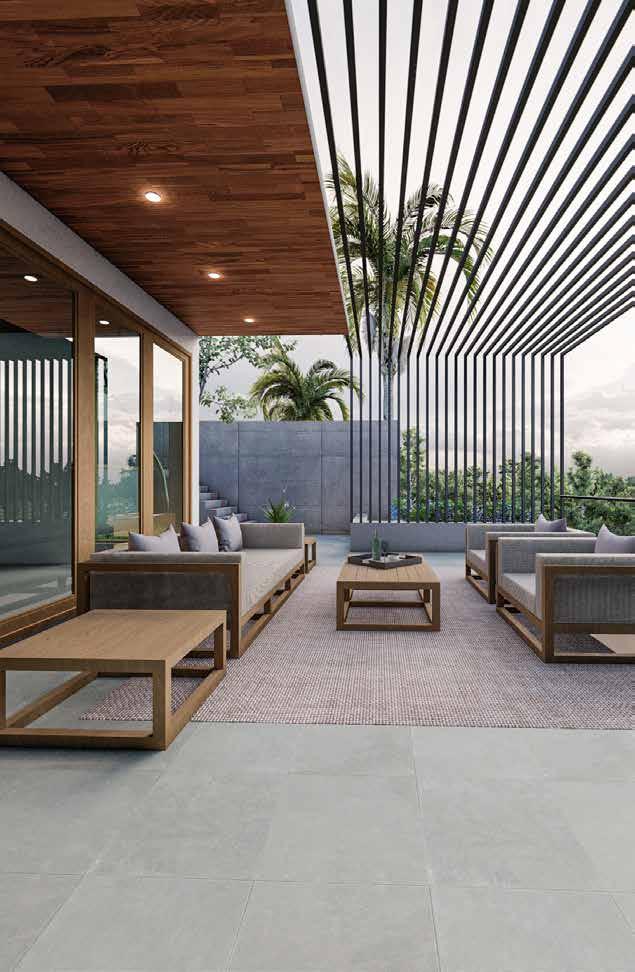

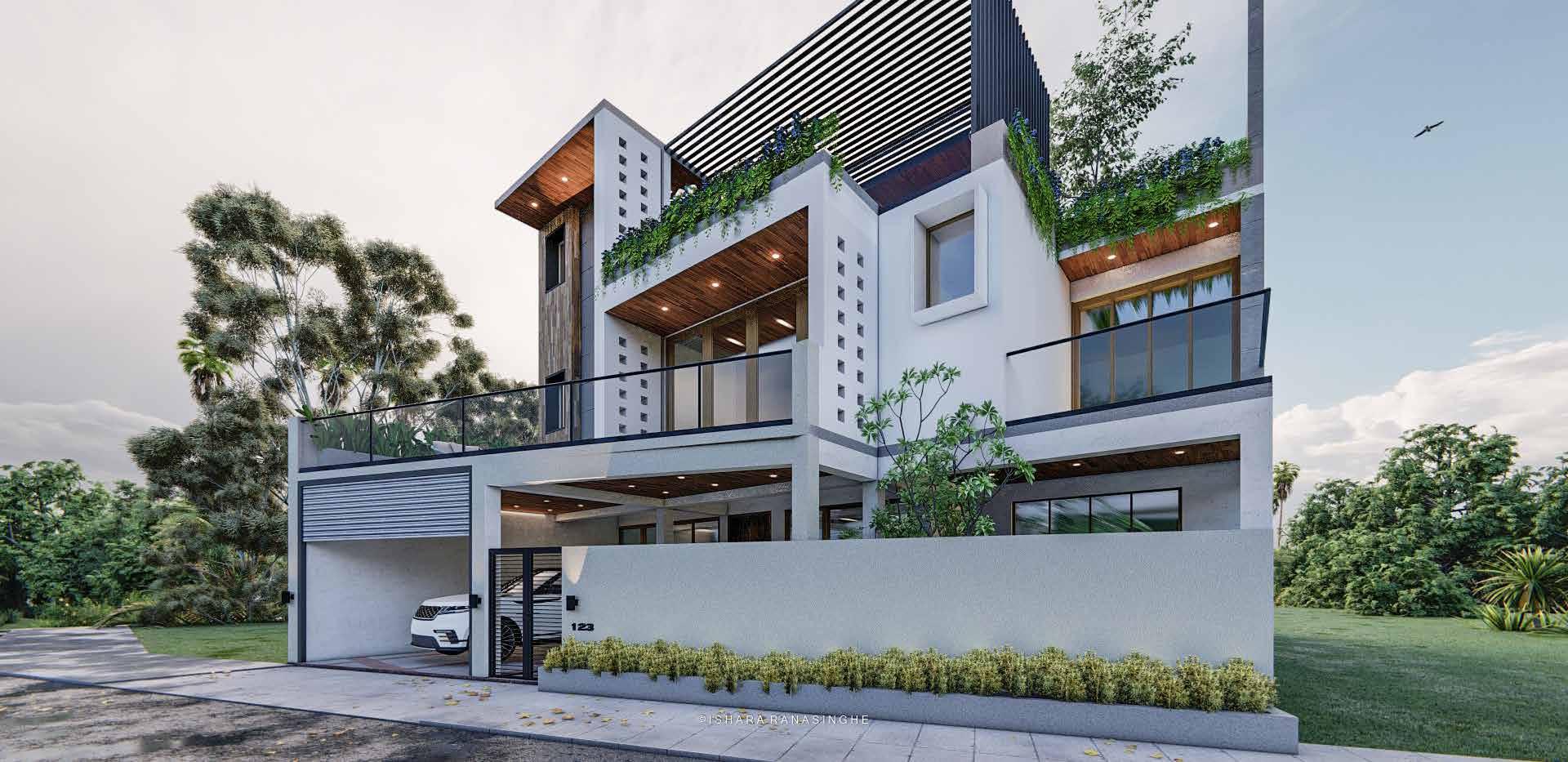

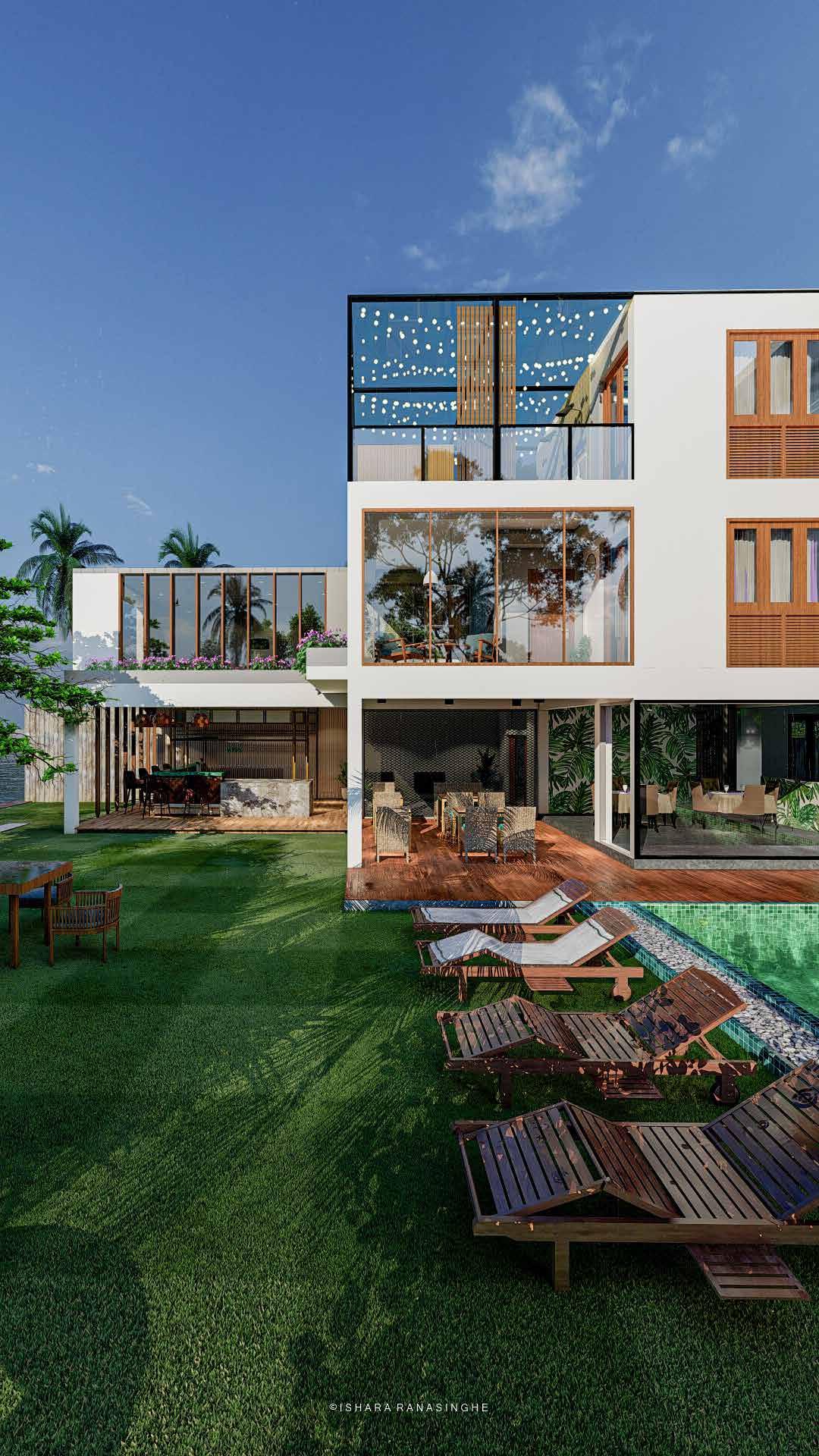

RESIDENCE FOR MR.AKEEB At Maharagama, Sri Lanka.

2021 - 2022 floor area 3200 sqft

3 storied house with rooftop garden and middle sized swimming pool. front facade gives maximum luxury look and feel to the enhanced the quality of house. varoius voids and spaces allocate the lighting and ventilation to the house. Located in the suburban area near maharagama.

25



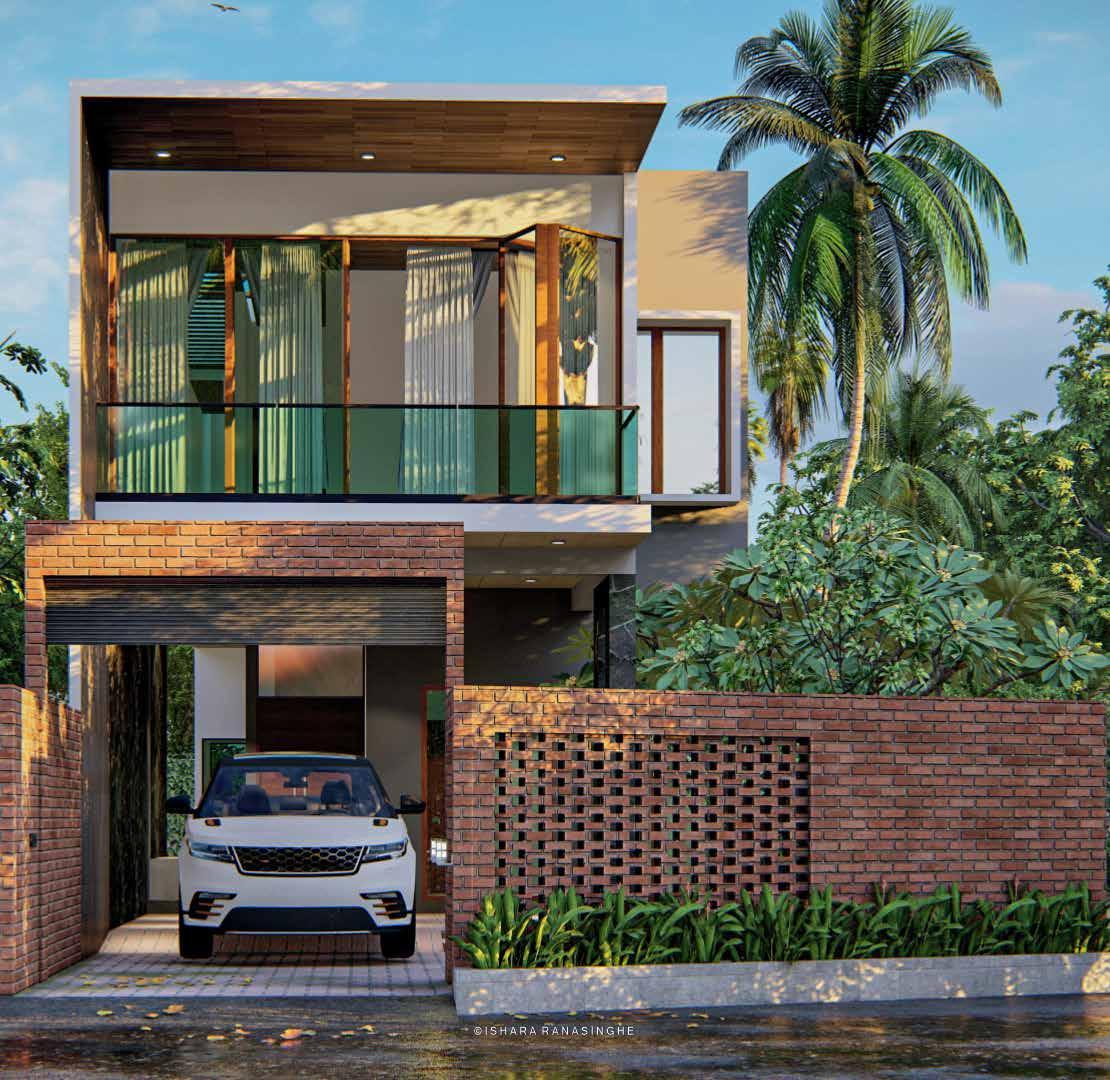

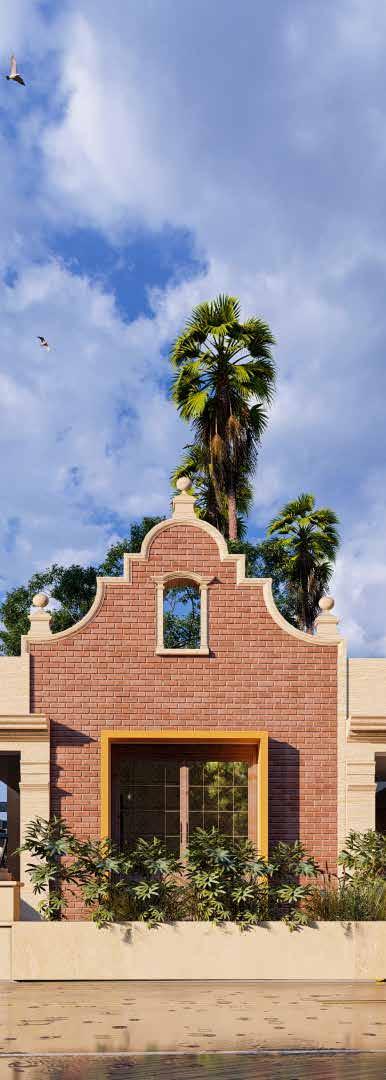

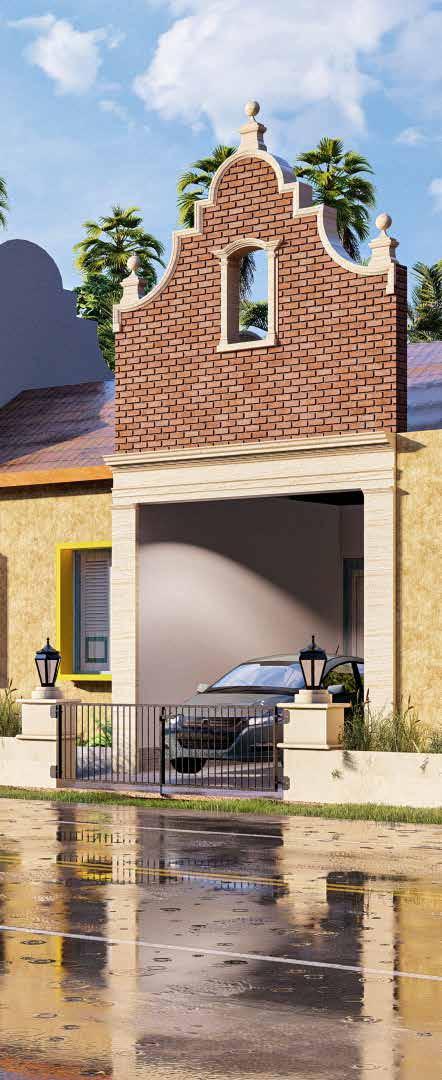

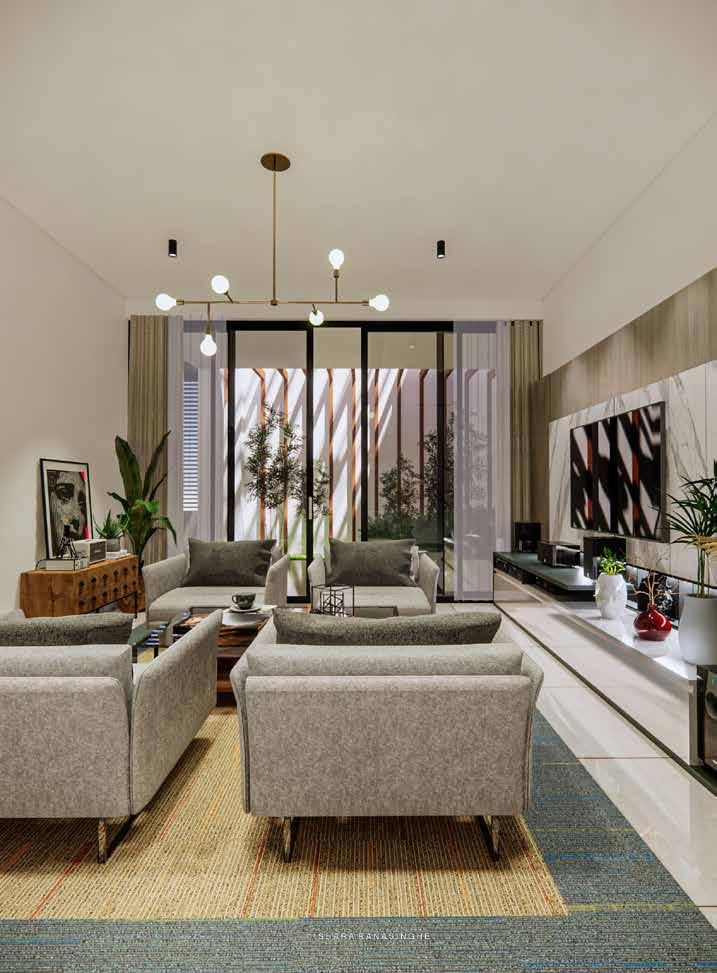

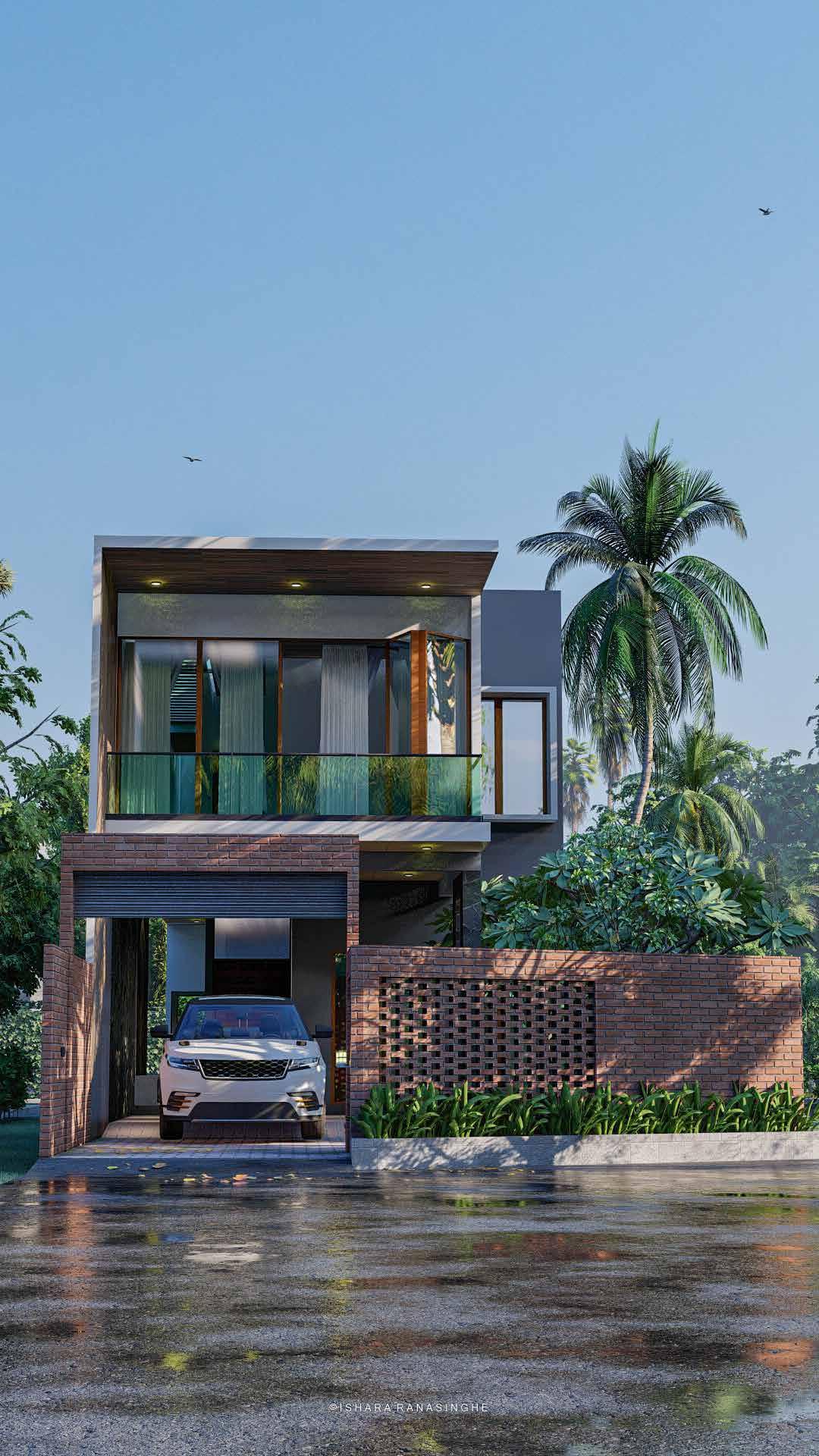

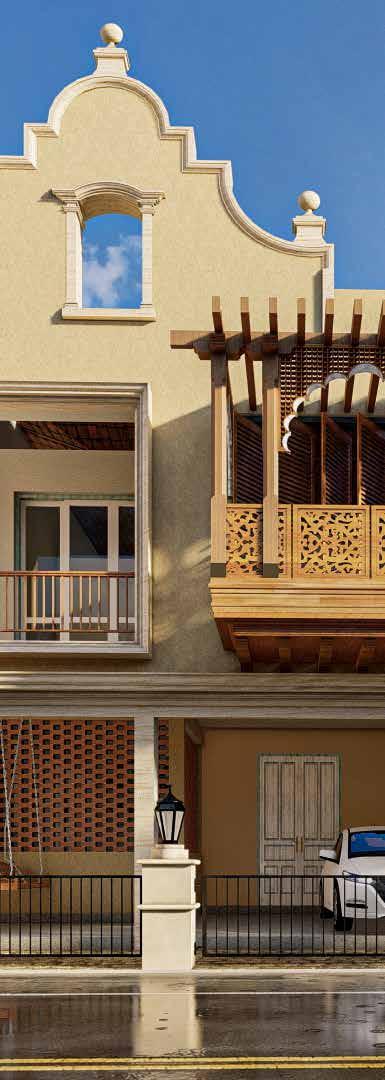

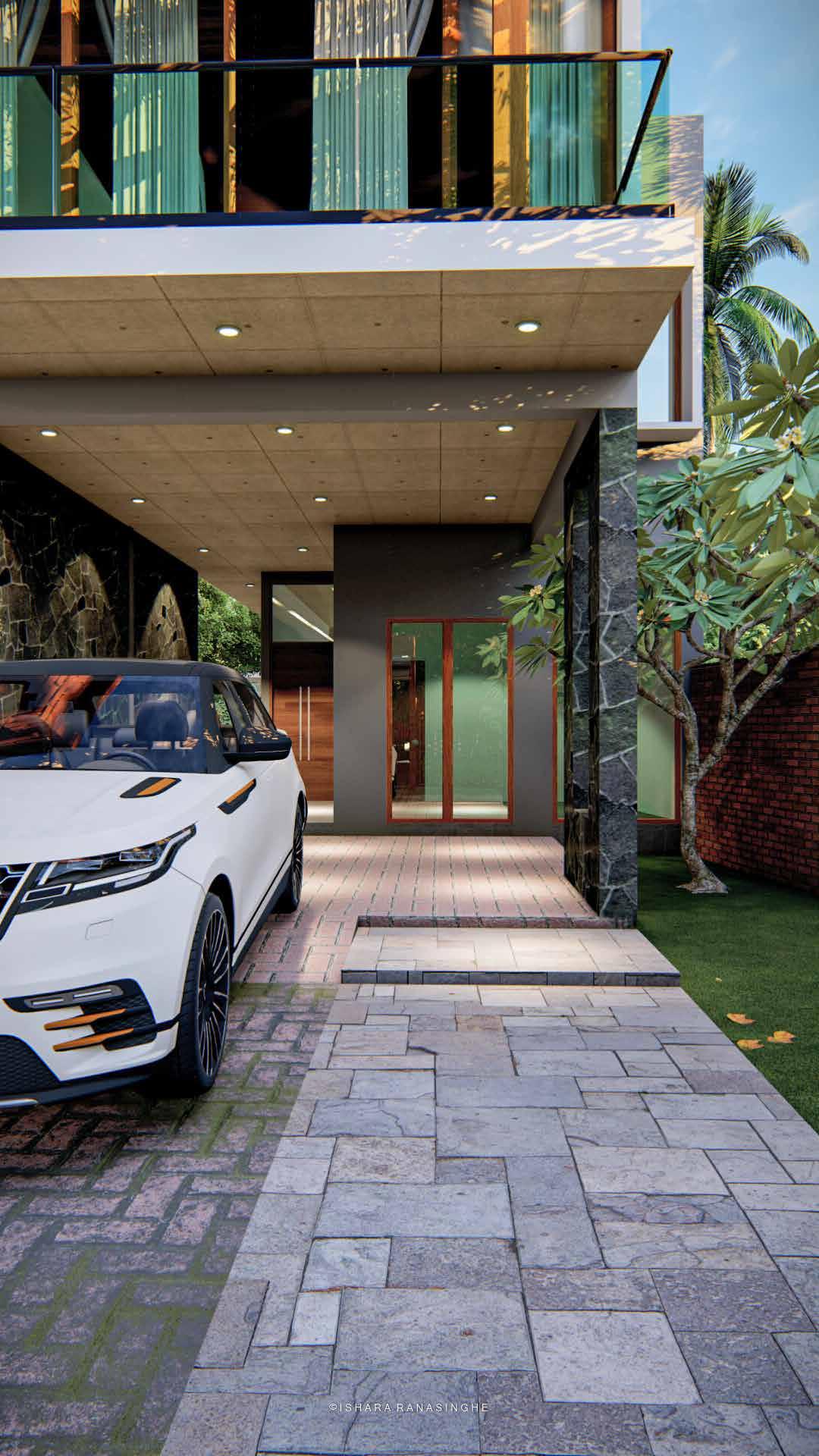

RESIDENCE FOR MR.HASITH PERERA At Maharagama, Sri Lanka.

2021 - 2022 floor area 2520 sqft

linear type residence with tiny spaces. Exhisting land has a linear type old fashioned house and this is renovated design. the objects of the design is how we manage all the requirements within these tiny spaces. Cretae eye cathing facade to the exhisting old house and renovate interior.

26

27

28



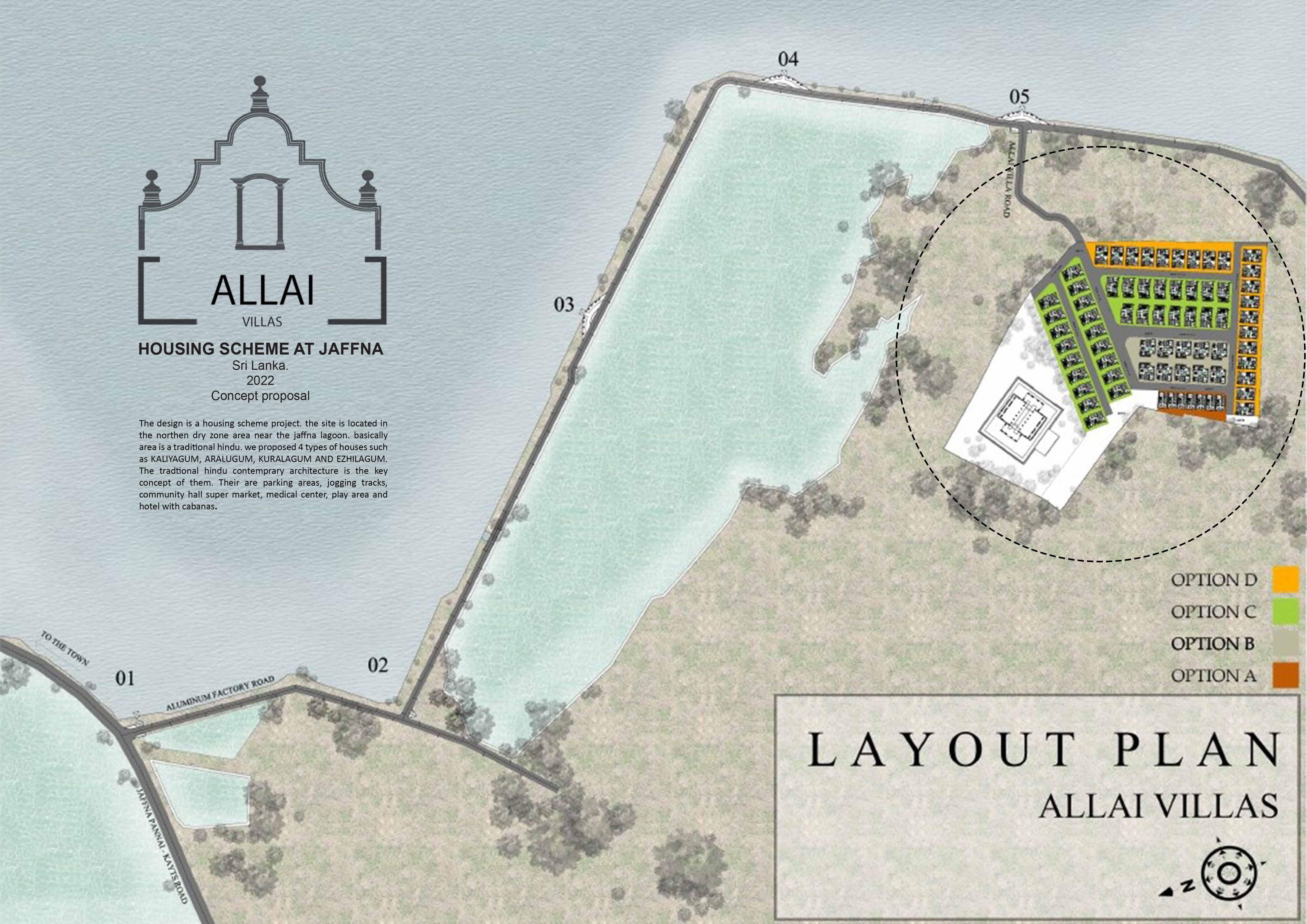

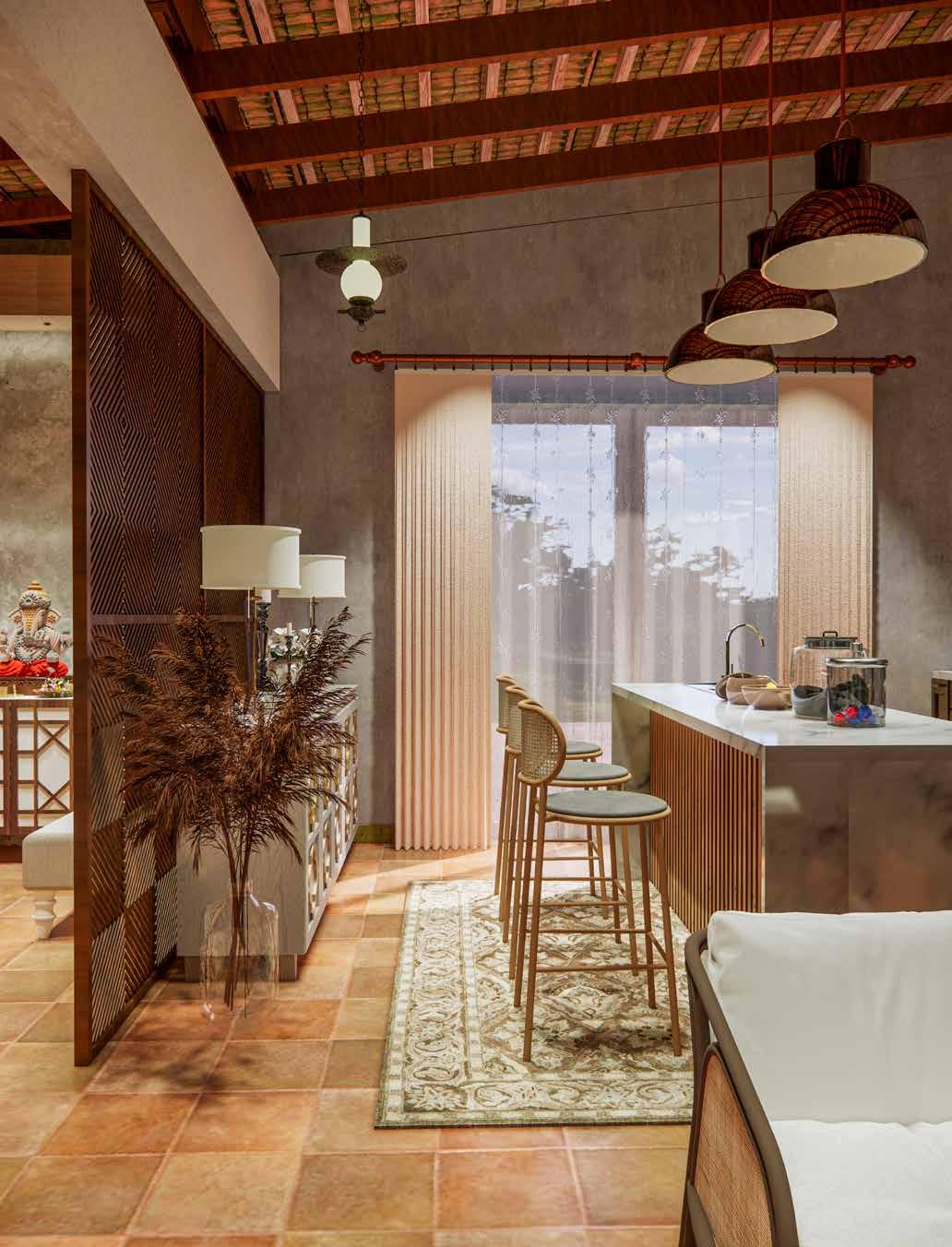

Y 2300

1

2

12075 3850

1200

3000

3650 PROPOSED (3000 X 2550)mm CLASS 1 (TEAK) SOLID TIMBER FRAMED SLIDING WINDOW AS PER THE DETAIL DRAWING

3625

+400mm

SL1

5

SL1

1600

05 BED ROOM 02

1625

3000

4a

PERFORATED BRICK WALL

1500

06 TOILET

225mm R.C.C BRICK WALL

04 LIVING AREA

+325mm

2300

4

1775

+400mm

D3

FL1

(150x150)mm TIMBER POST

4

03 POOJA ROOM

+400mm

D2

2737

1200

4575 500

3

+400mm

(150x150)mm TIMBER POST

4350 +300mm

900

1

+150mm

2

2336

10 WET KITCHEN +400mm

PARKING +100mm

01 BED ROOM 01

+400mm

+400mm

W1 W3

2422

3625

DRAFT KURALAGAM HOUSE TYPE 02

PROPOSED (750 X 2550)mm CLASS 1 (TEAK) SOLID TIMBER DOOR AS PER THE DETAIL DRAWING

PROPOSED (900 X 2550)mm CLASS 1 (TEAK) SOLID TIMBER DOOR AS PER THE DETAIL DRAWING PROPOSED (1200 X 2550)mm CLASS 1 (TEAK) SOLID TIMBER DOUBLE DOOR AS PER THE DETAIL DRAWING (MAIN DOOR)

W1

Molding Line Above

Y

HOUSE TYPE 01

1350

+325mm

1825

KALAIYAGAM

D2

D2

08 TOILET

09 SERVANT ROOM

D4

+325mm

3000

UP

W2

± 000

3425

1500

1737

+300mm

3800

1100

D5

02 TOILET

D3 W2

1025

D1 PANTRY +250mm

UP

X

FL2

+150mm

850

+400mm

4700

4661

12811

07 DINING AREA

+300mm

300

3

± 000

SL2

UP

4886

X

PROPOSED (550 X 1650)mm CLASS 1 (TEAK) SOLID TIMBER FRAMED FANLIGHT AS PER THE DETAIL DRAWING

COUART YARD

FLOOR PLAN

OPTION - B

SCALE 1:100 FLOOR AREA: 1240 Sqft TOTAL FLOOR AREA: 1545 Sqft

PROPOSED (1350 X 1650)mm CLASS 1 (TEAK) SOLID TIMBER FRAMED GLAZED WINDOW AS PER THE DETAIL DRAWING

29



A

1200

2100

1462 +3700mm

+3625mm

5282

PROPOSED (2775 X 2550)mm CLASS 1 (TEAK) SOLID TIMBER FRAMED GLAZED WINDOW AS PER THE DETAIL DRAWING

Y

DRAFT

1

GROUND FLOOR PLAN OPTION - C

SCALE 1:100 GROUND FLOOR AREA: 1106 Sqft GROUND FLOOR TOTAL AREA: 1490 Sqft TOTAL FLOOR AREA: 2221 Sqft TOTAL AREA (ALL INCLUDED) : 3115 Sqft

ARULAGAM HOUSE TYPE 03

1200

FW1

1433

DRAFT

3999

697

Y

3250

FIRST FLOOR PLAN

OPTION - C

EZHILAGAM HOUSE TYPE 04

4090

3300

3645

+ 3700 F.F.L

07 DINING & PANTRY

PROPOSED (400x350)mm DECORATIVE COLUMN POST

08 WET KITCHEN PARKING

PROPOSED SOLID TIMBER CORBEL PLATE 225mm R.C.C BRICK WALL +400 G.F.L ± 000

SCALE 1:100 FIRST FLOOR AREA: 996 Sqft FIRST FLOOR TOTAL AREA: 1380 Sqft TOTAL FLOOR AREA: 2221 Sqft TOTAL AREA (ALL INCLUDED) : 3115 Sqft

TERRACE

PROPOSED R.C.C STAIRCASE AS PER THE STRUCTURAL DRAWING

100

± 000

250

WATER TANK LEVEL

PROPOSED (150x150)mm DECORATIVE TIMBER POST

75 400

3450

Molding Line Above

900mm HEIGHT STEEL HANDRAIL

3450

W6

75

TERRACE

+3700mm

14 MULTI FUNCTIONAL AREA

3300

09 BED ROOM 02

D2

8953

4950

PROPOSED (150x150)mm TIMBER POST

D2

PROPOSED PARKING

PROPOSED (400x350)mm DECORATIVE COLUMN POST

1200

15000 1875

2400

3300

+3700mm

150

W1

1550

136

W6

+3625mm

+ 7000

400

3000

D1 10 TOILET D3

FL1

600

225mm R.C.C BRICK WALL

+400mm

1200

1

PROPOSED (900 X 2550)mm CLASS 1 (TEAK) SOLID TIMBER DOOR PANEL ABOVE AS PER THE DETAIL DRAWING

1650

+400mm

3000

4500

4725

D2

01 BED ROOM

14 MULTI FUNCTIONAL AREA

+3700mm

2

PROPOSED (600 X 1650)mm CLASS 1 (TEAK) SOLID TIMBER FRAMED LOUVERED WINDOW AS PER THE DETAIL DRAWING

+100mm

11 TV LOBBY

W5

(25x225)mm VALANCE BOARD

D2

2250

2400

W4

PARKING

(100x75)mm WALL PLATE

10790

D4 W4

+250mm

+325mm

5732

+3700mm

PROPOSED (900 X 2550)mm CLASS 1 (TEAK) SOLID TIMBER DOOR WITH FIXED TIMBER PANEL ABOVE AS PER THE DETAIL DRAWING

+400mm

D1

+325mm

02 TOILET D3

3

+3625mm

SL3

2196

03 TOILET

08 WET KITCHEN

BALCONY

OPEN TO SKY

1350

D5

3632

(50x150)mm RIDGE PLATE CALICUT TILE ROOF WITH (50x50)mm RAFTERS & (25x50)mm BATTONS @ 300mm (25° PITCH)

900mm HEIGHT STEEL HANDRAIL

DN

3332

1462

1500 1350

FL1

2350

3000

UP

PROPOSED (1200 X 2550)mm CLASS 1 (TEAK) SOLID TIMBER DOUBLE DOOR AS PER THE DETAIL DRAWING

RIDGE TILE

1200

D2

3000

4225

+400mm

Molding Line Above

2375

15000 1875

+400mm

4725

PROPOSED R.C.C STAIRCASE AS PER THE STRUCTURAL DRAWING

+3700mm

4

07 DINING & PANTRY

1950 04 SERVANT ROOM

2350

X

12 MASTER BED ROOM D3

5

PERFORATED BRICK WALL

± 000

W2

2

W3

1

2

15000 1875

PERFORATED BRICK WALL

X

2325

COURT YARD

D4

2350

1400

PROPOSED 1500 X 1650)mm CLASS 1 (TEAK) SOLID TIMBER FRAMED LOUVERED WINDOW AS PER THE DETAIL DRAWING

3

4 2325

FL1

2350

2100

2325

+400mm

UP

4425

4 3

4307

+400mm

5 3725

13 TOILET

225mm R.C.C BRICK WALL

05 LIVING AREA

5

1200

+3625mm

3725

+400mm

6

G

F 1800 2025

2175

X

05 POOJA ROOM

9182 1500

632 LINE1650 ROOF

FW1

6

3500

3500

3725

X

4082 1575 3250

E

2350

1200

PROPOSED R.C.C STAIRCASE AS PER THE STRUCTURAL DRAWING

D

C

PERFORATED BRICK WALL

+400mm

SL1 Molding Line Above SL2

B

4000

2025 1800

G

3675

F

3500

+400mm

632 4307 UP

Y

E

4725

1200

6

1575

9182 1650

2100

2100 1325

2300

D

C

4000

B

4250

3050

Y

A

FOUNDATION

DRAFT

SECTION Y-Y SCALE 1:100

DRY EARTH FILLING 75mm THICK R.C.C FLOORING

30

31

32



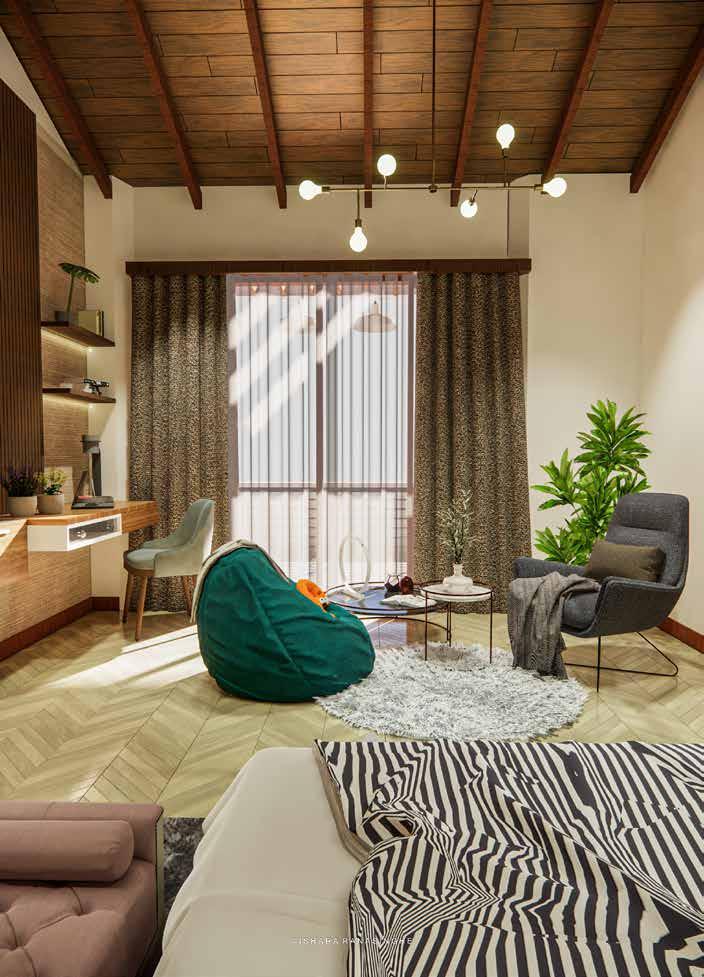

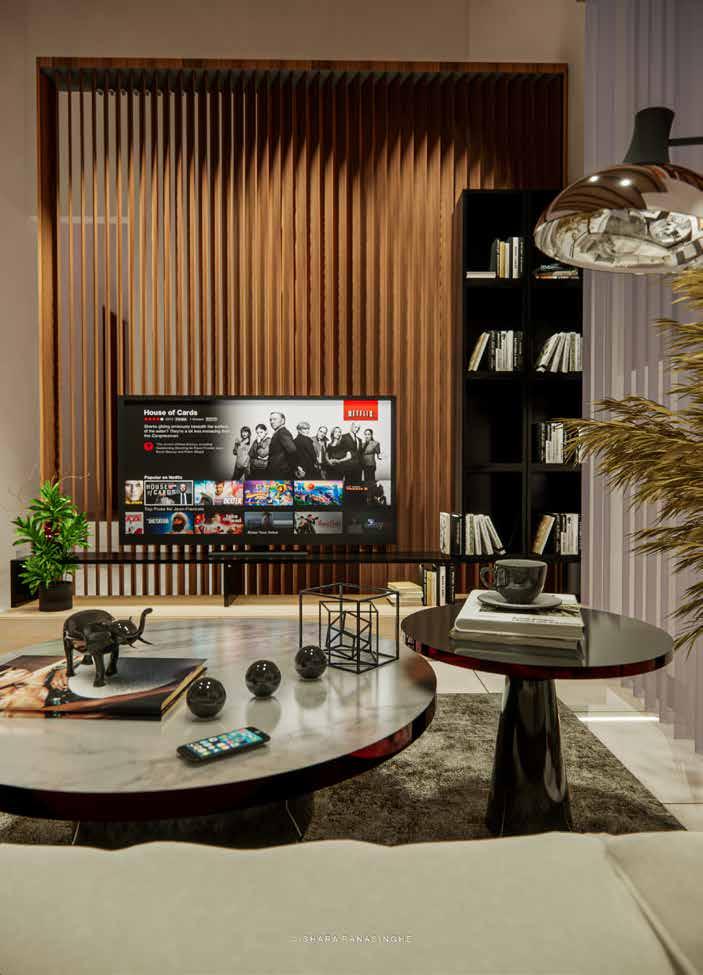

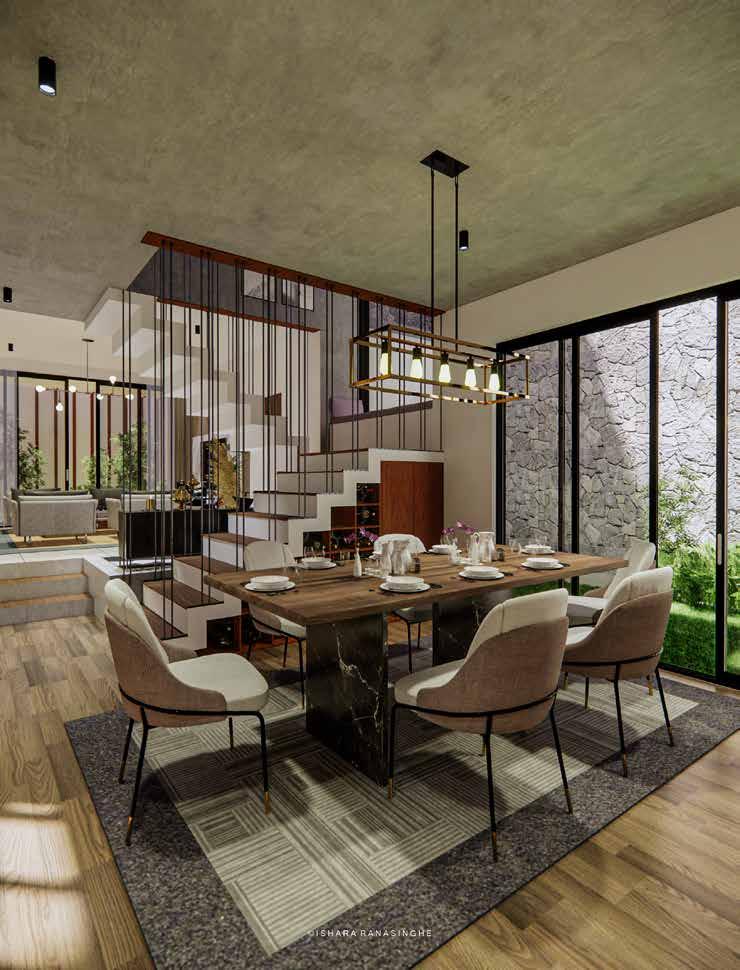

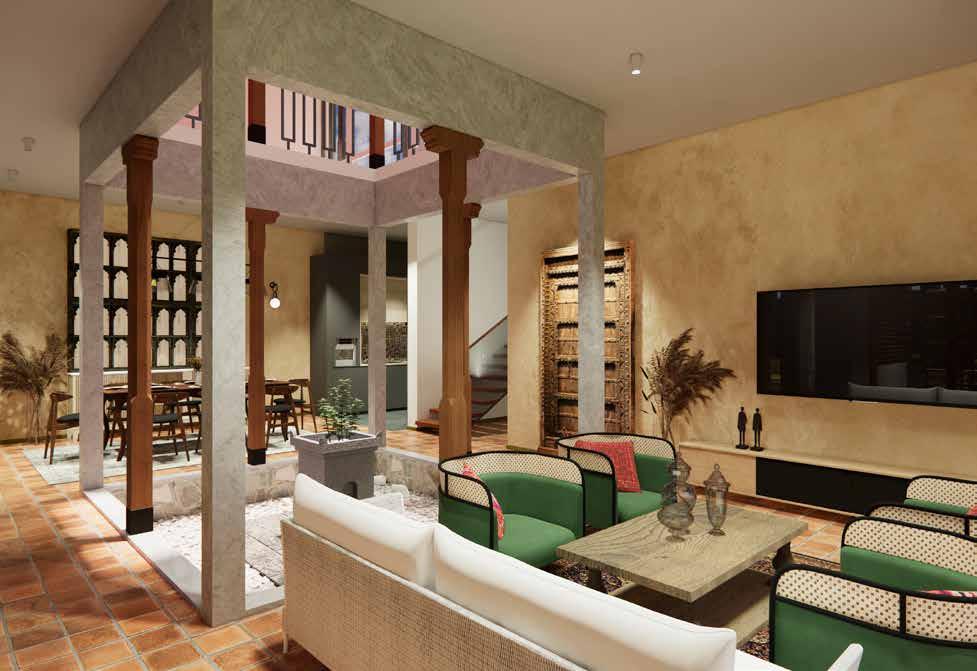

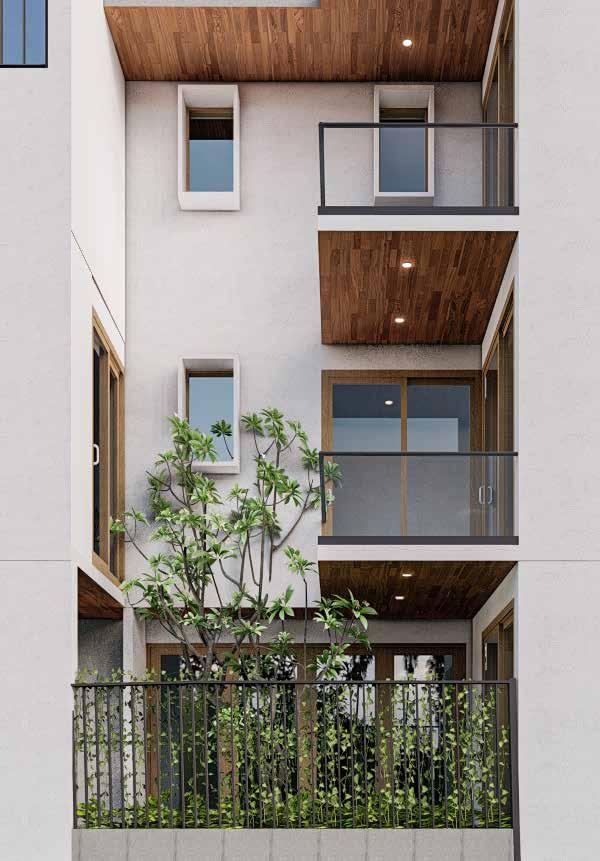

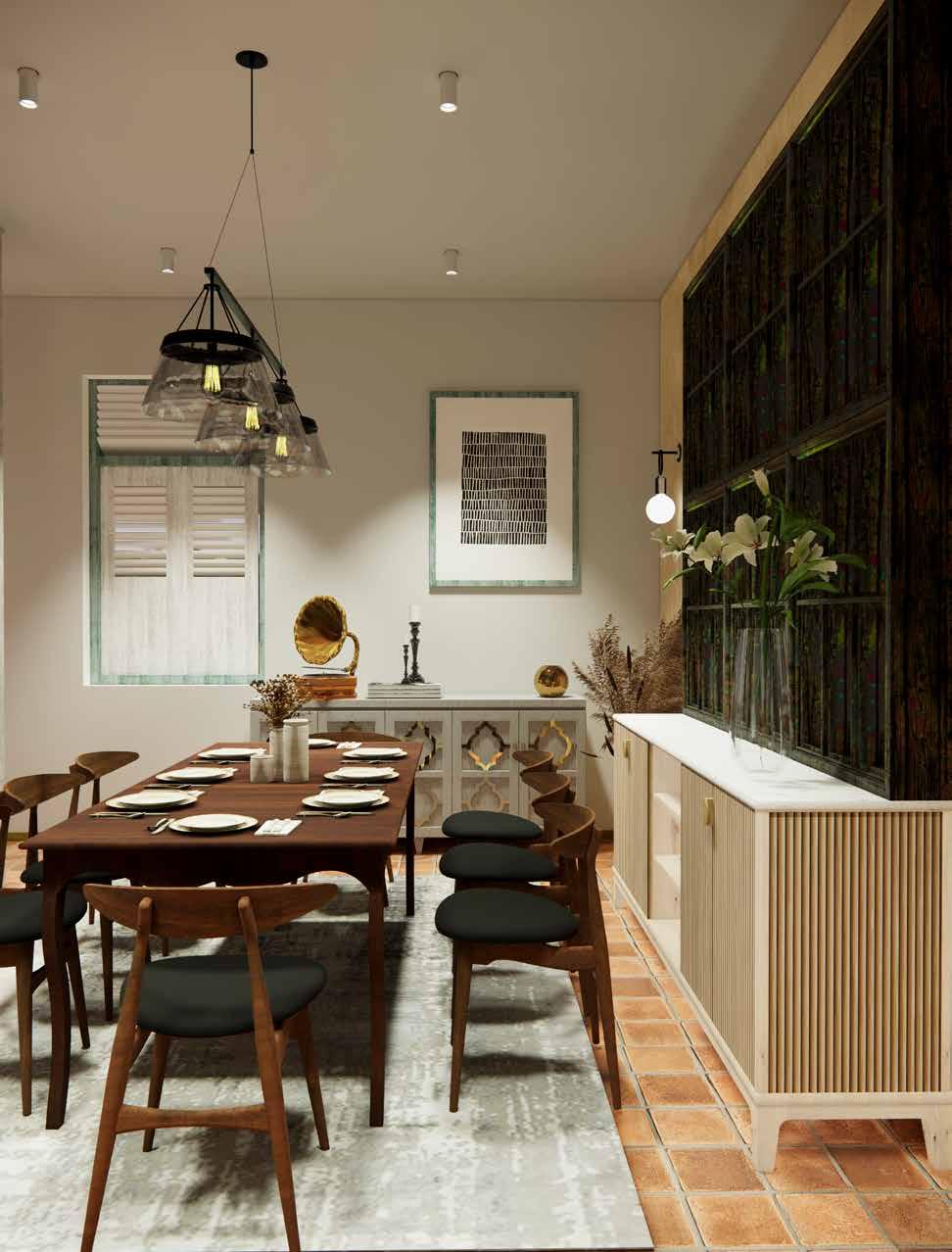

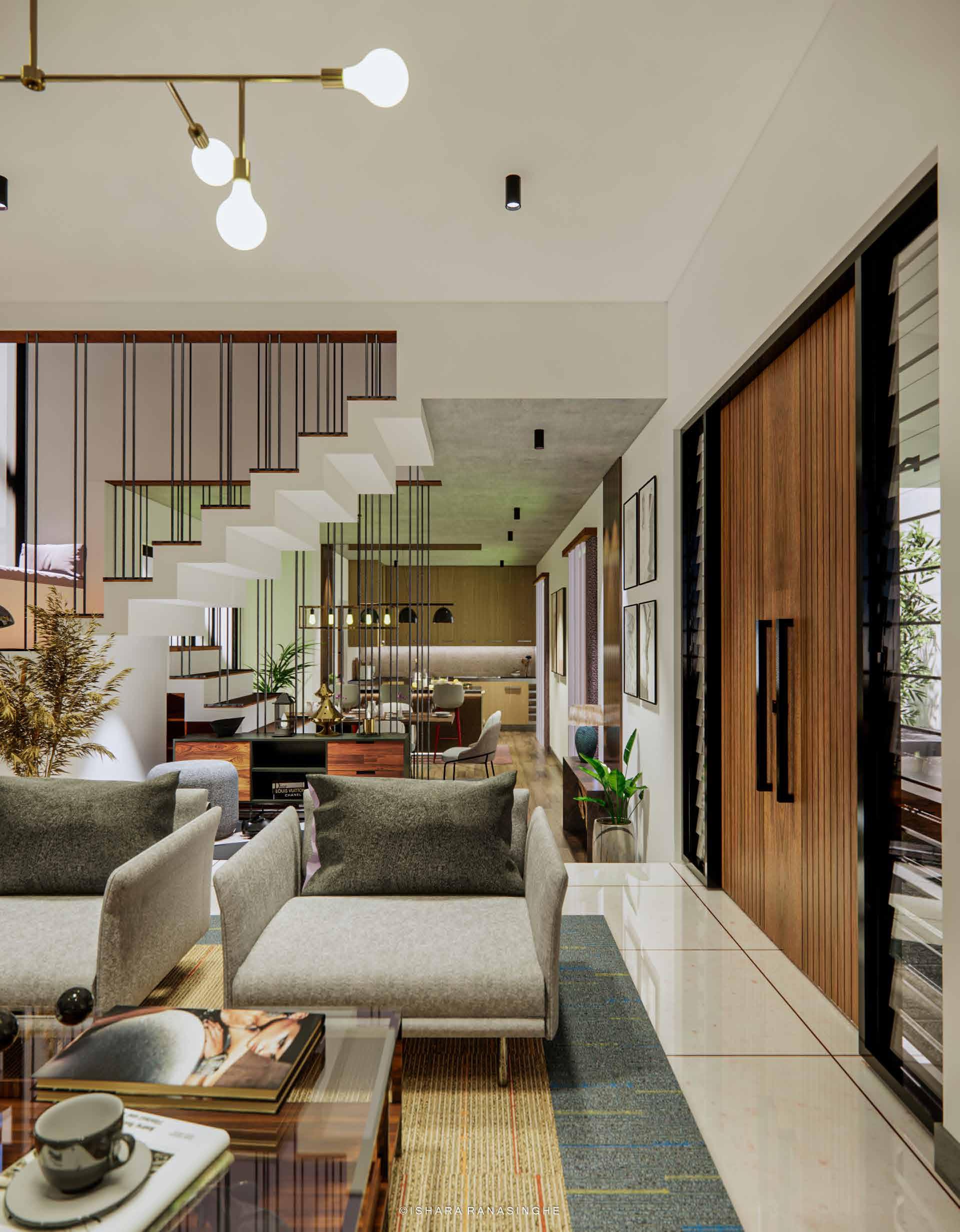

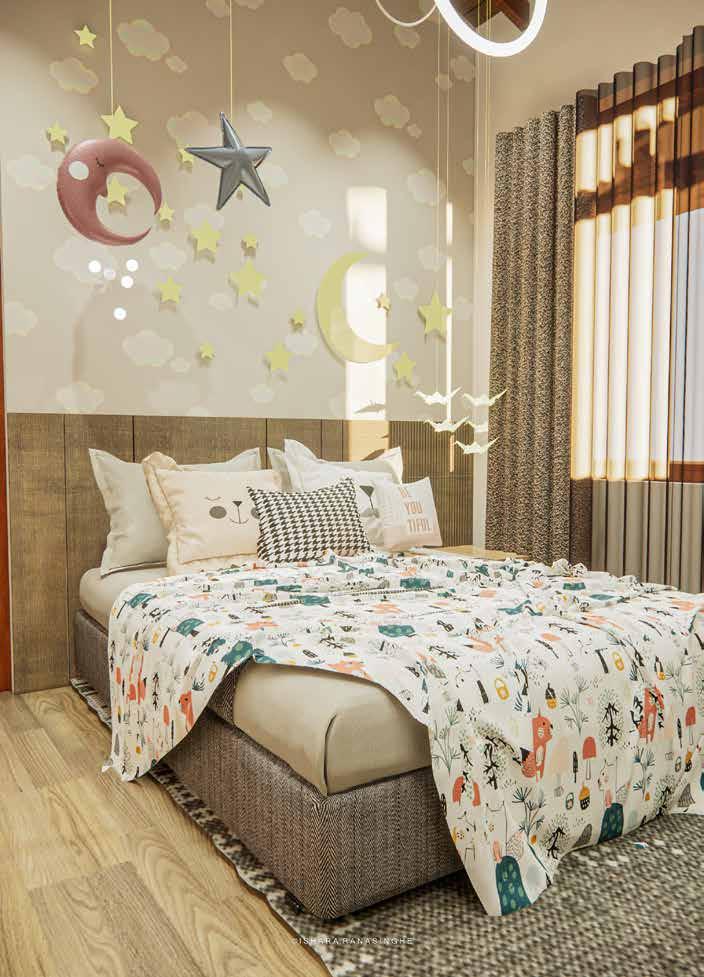

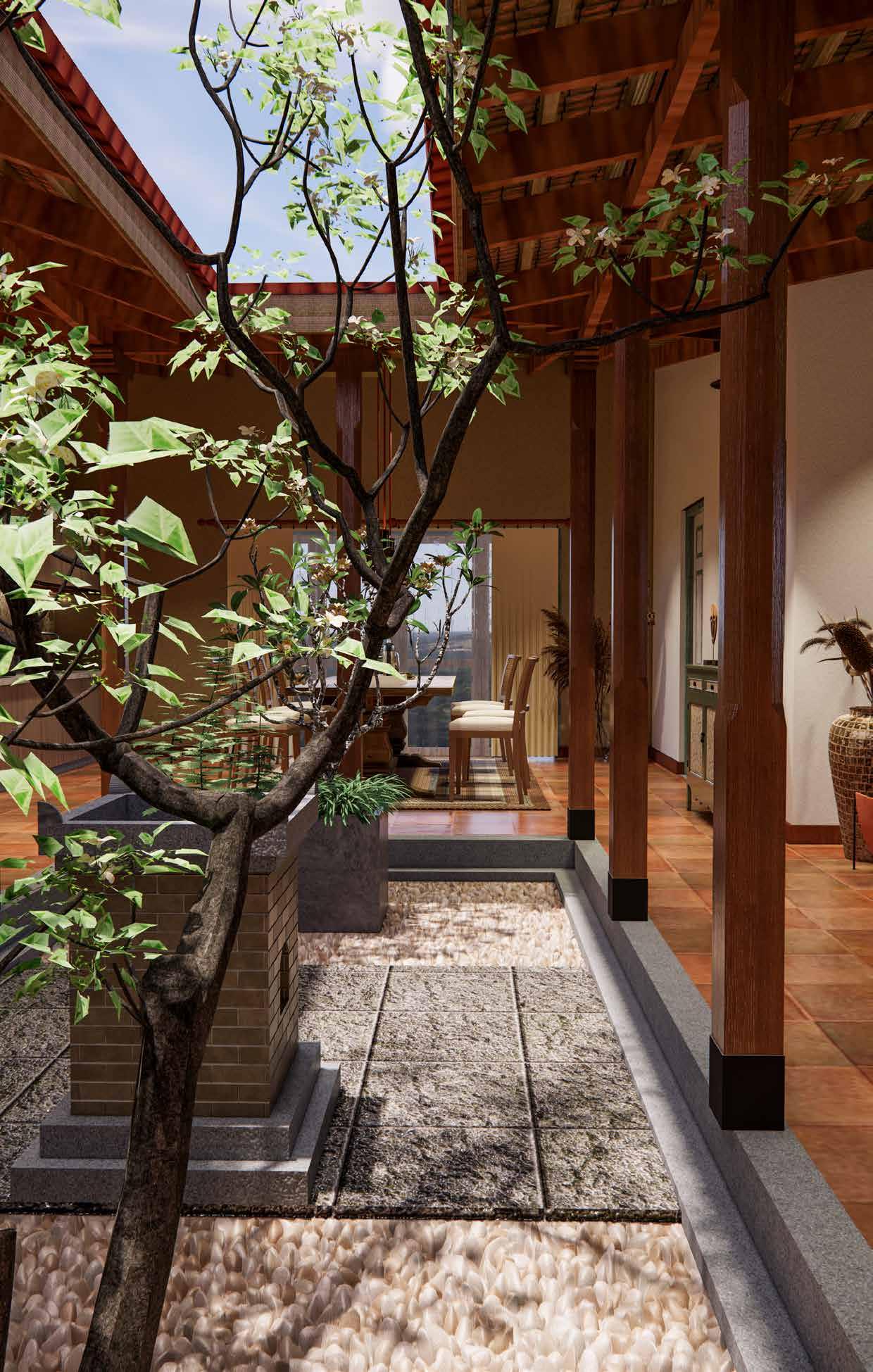

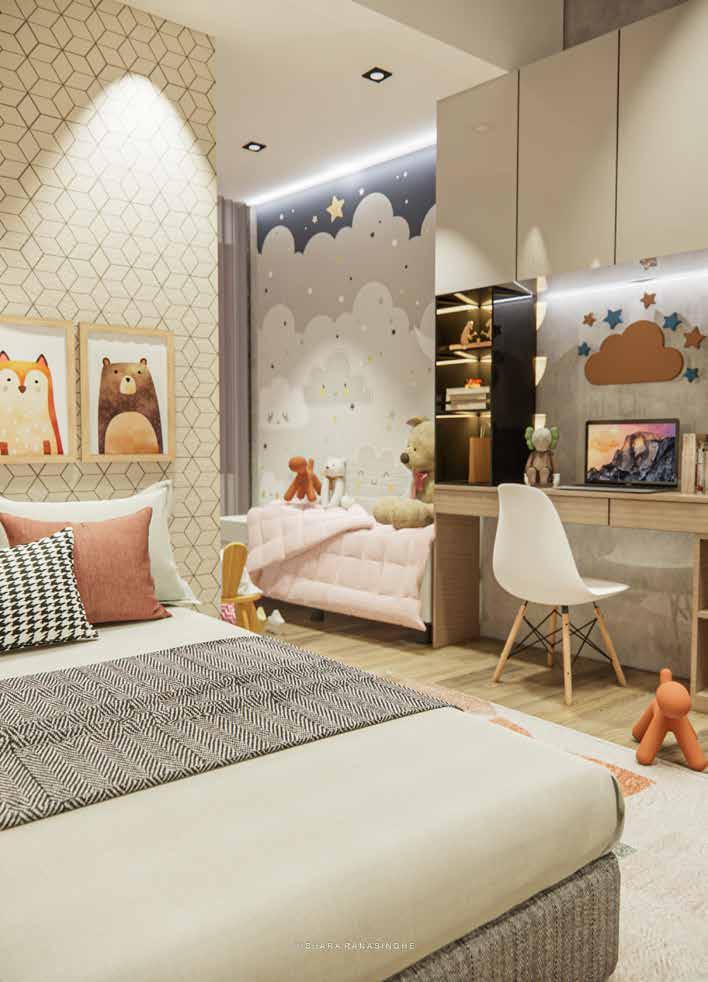

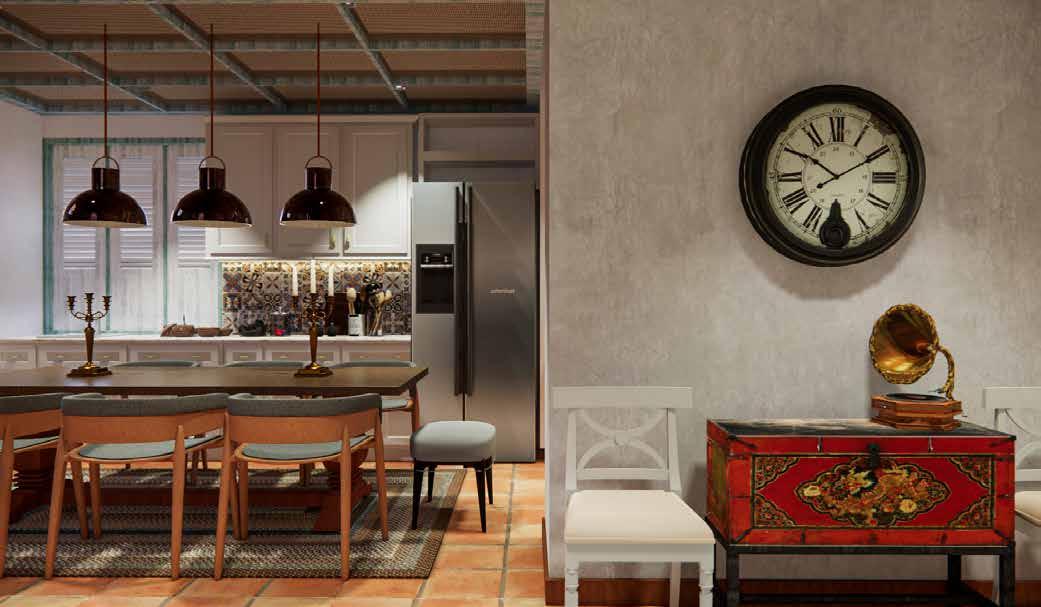

RESIDENCE FOR MR.TAMEERA At Maharagama, Sri Lanka.

2022 floor area 2800 sqft

the design is a renovation project. the site is narrow and old fashioned house with courtyard. there are no openings to outside. in the design we create more openings to the outside to get the light and ventilation. courtyard is very impornt for design detailing. basically ground floor has living tv lobby, rack under the stairaces. the dining room and kitchen is located below the living area. the first floor has master bedroom with attach bathroom, tv lobby and kids rooms. w add more specifications to the kids rooms to get more joyful and playful.

The floor finishes ,wall finifhes are basically changed as per the design.

33

34

35



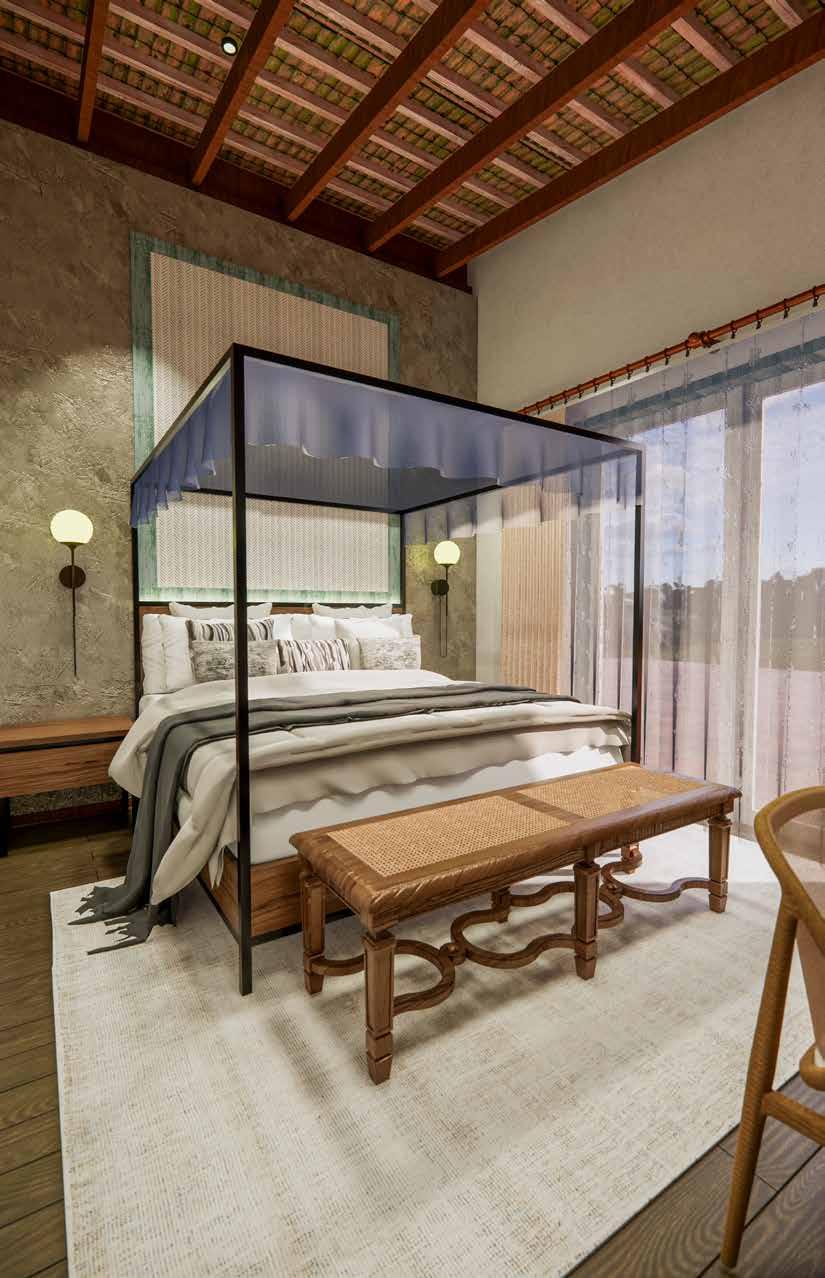

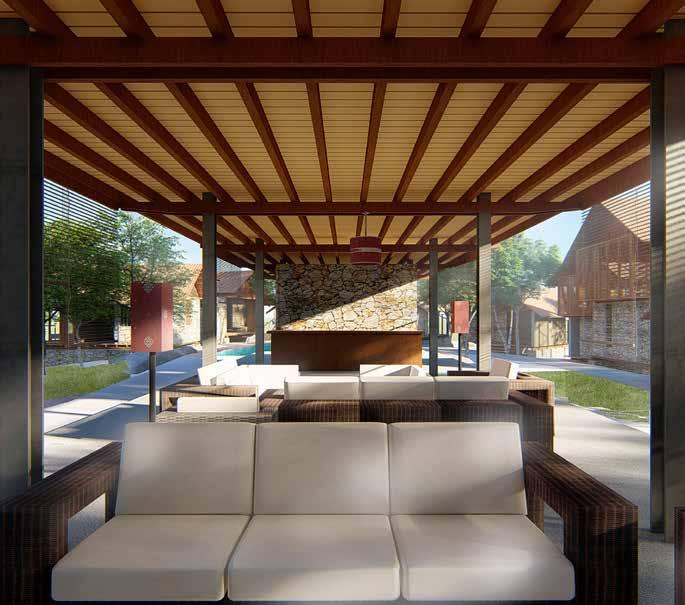

BREEZE HOTEL

At Mirissa, Sri Lanka.

2019 - 2021 floor area 10 520 sqft The location of the site is ideal for a resort aimed to cater to tourists. Proper placement of the building in this site allows the design to maximize views while becoming a view as a part of the natural reservation and beach. The project conveys the ‘entrance’ to the Southern quarter which is a major tourist destination in the country.

Concept The main design idea of the resort is to render the quality of transition from the surrounding busy urban setting to the suburban natural scape around mirissa beach as a prelude to the approaching soothing exposure in tourist destinations in the Southern coastal belt.

36

37



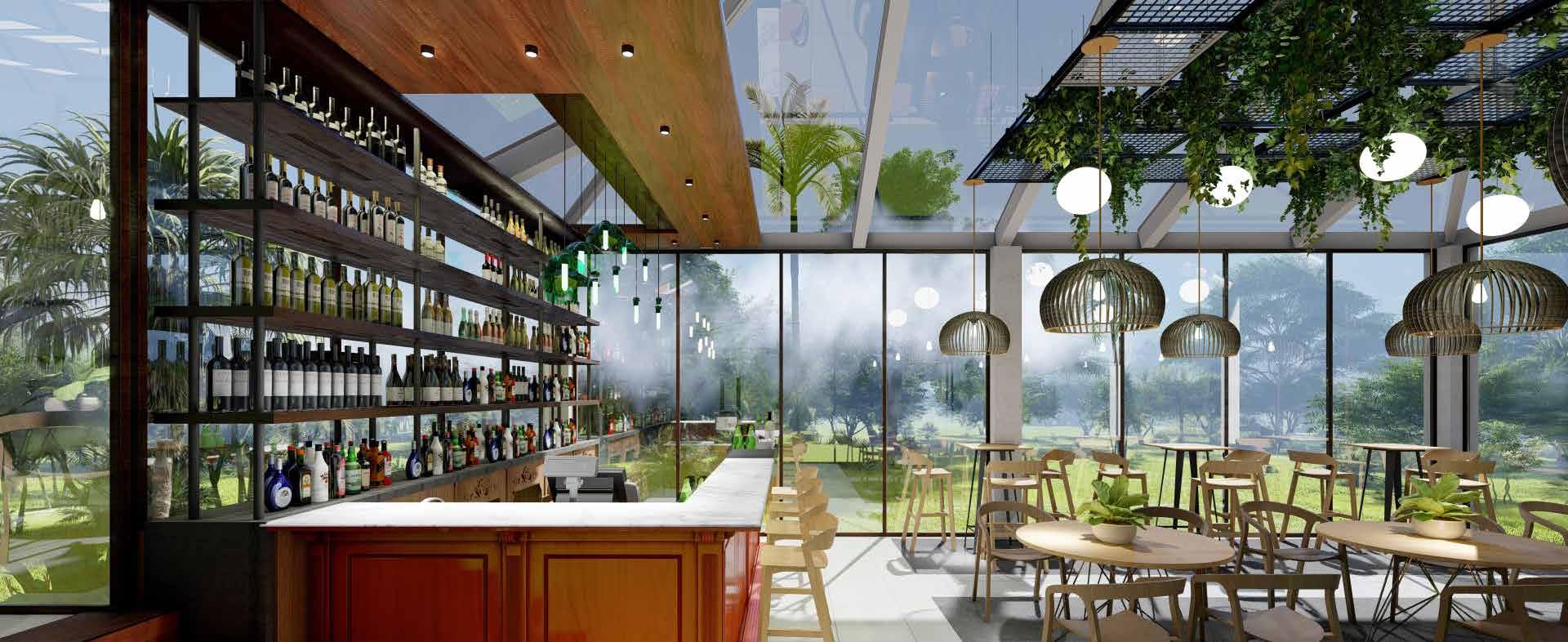

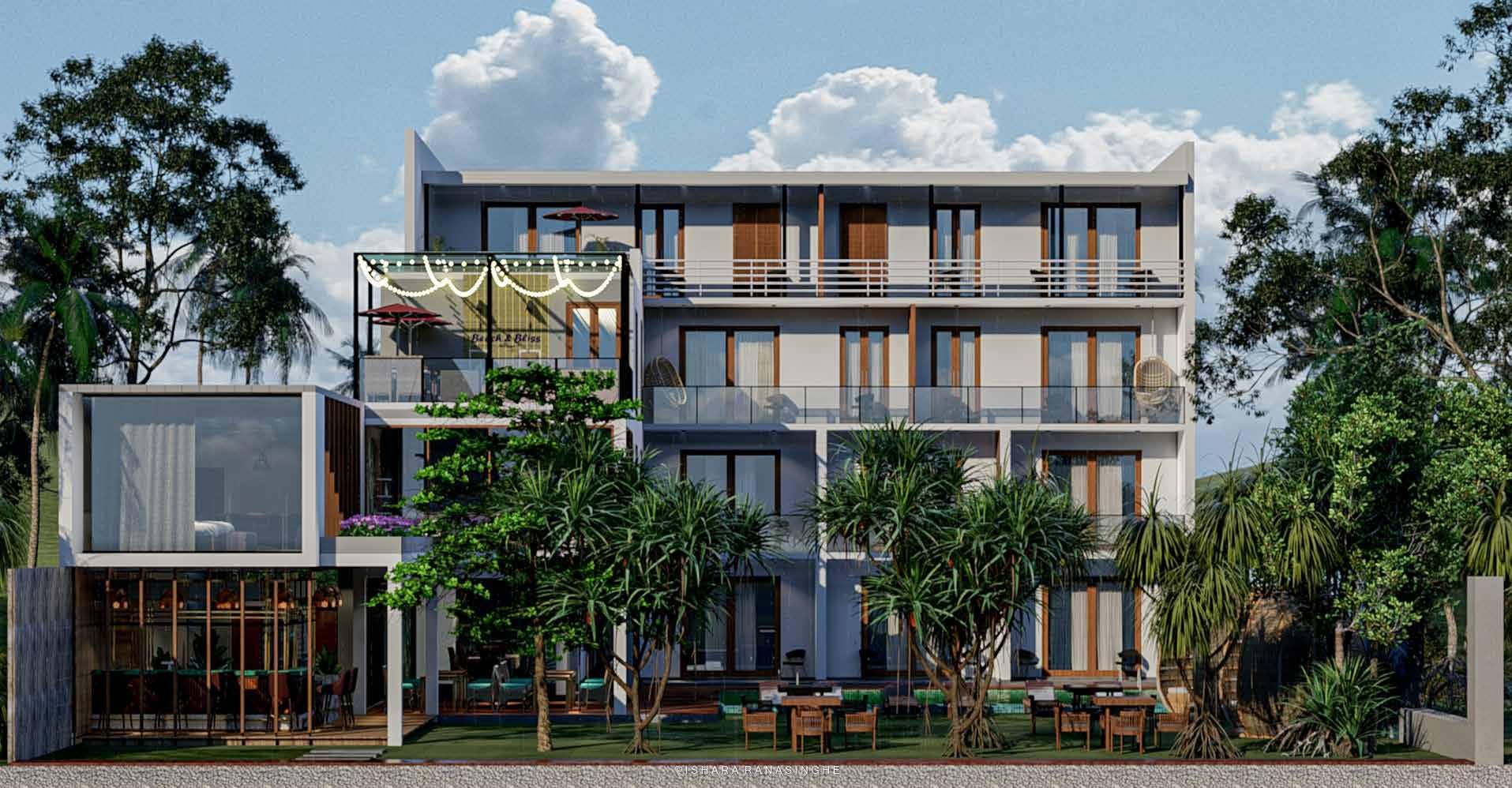

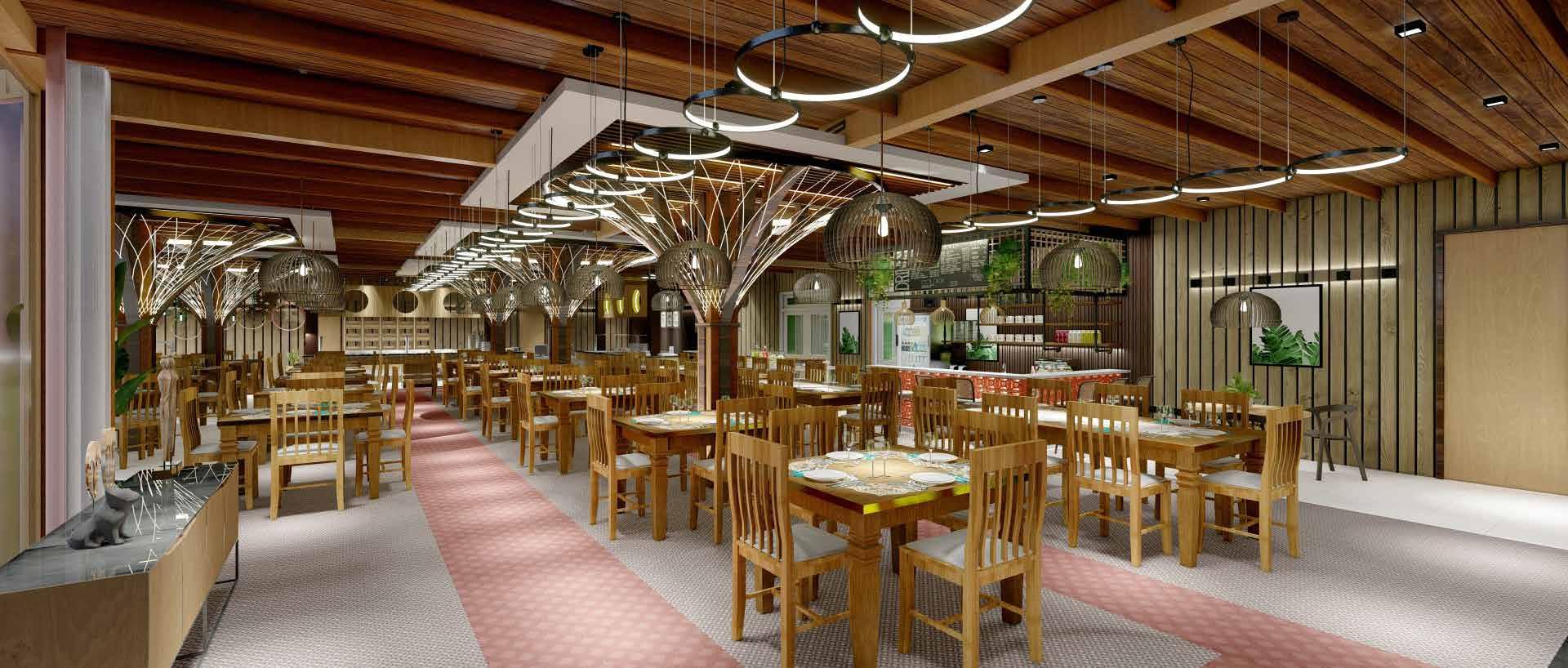

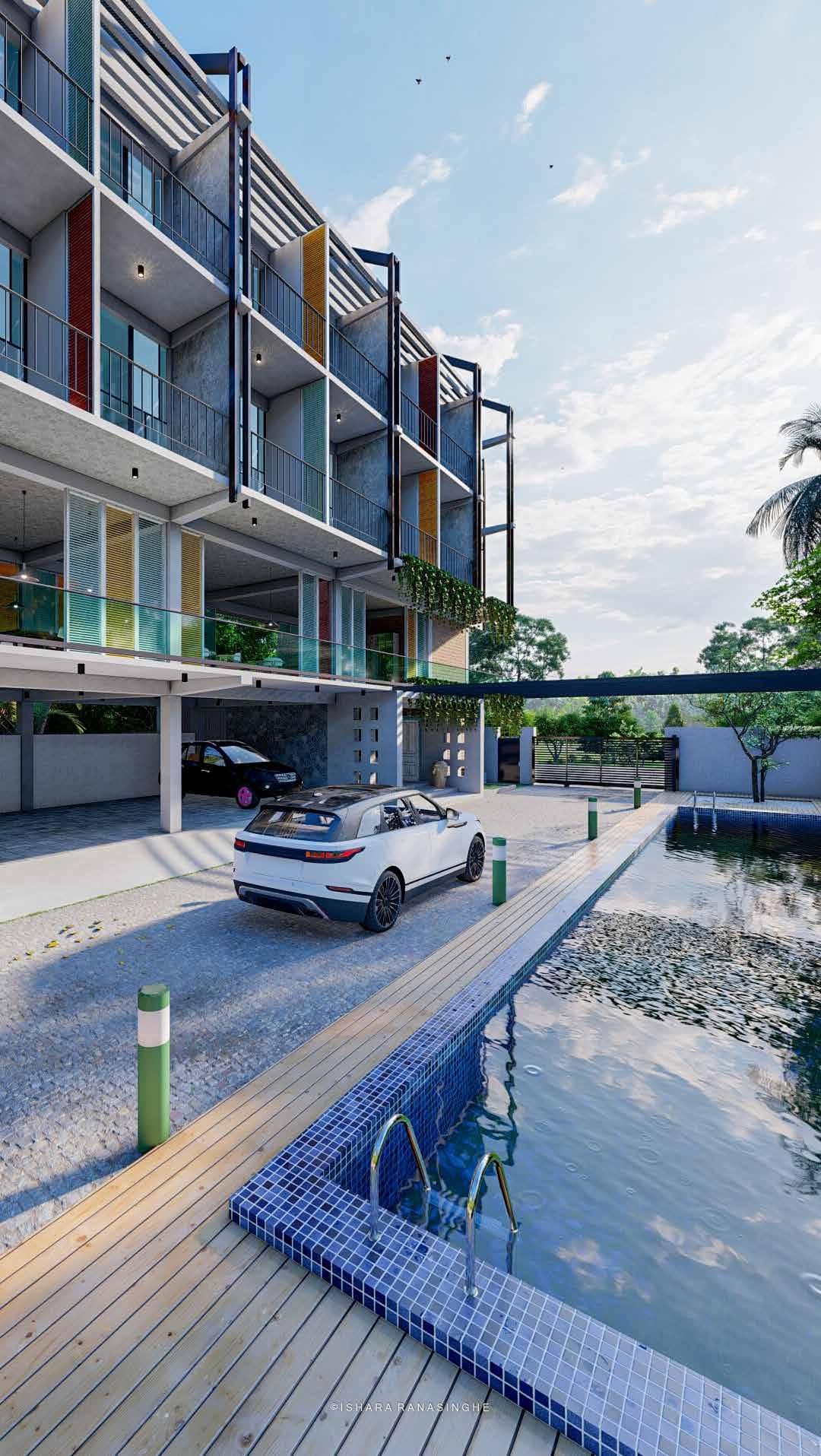

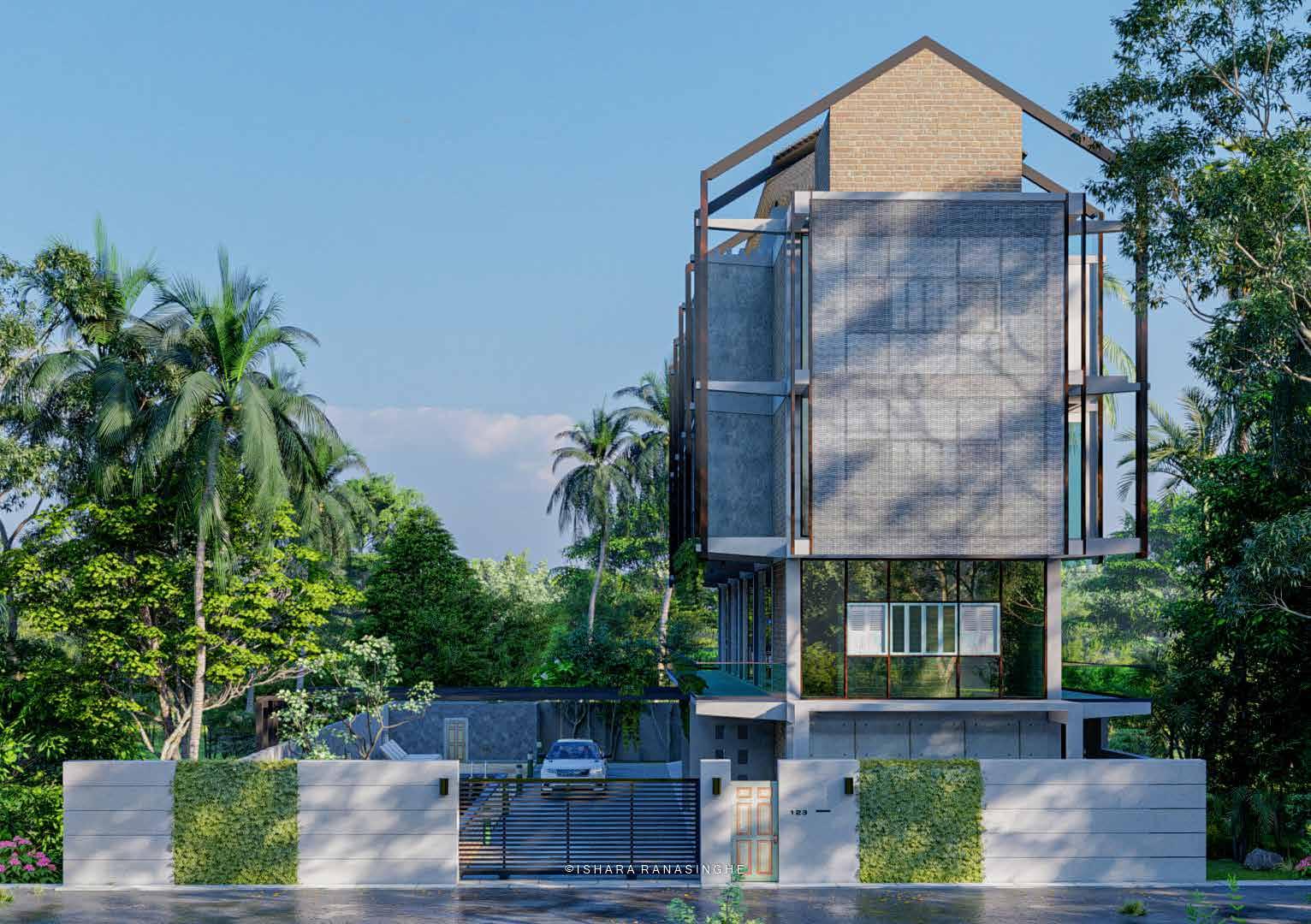

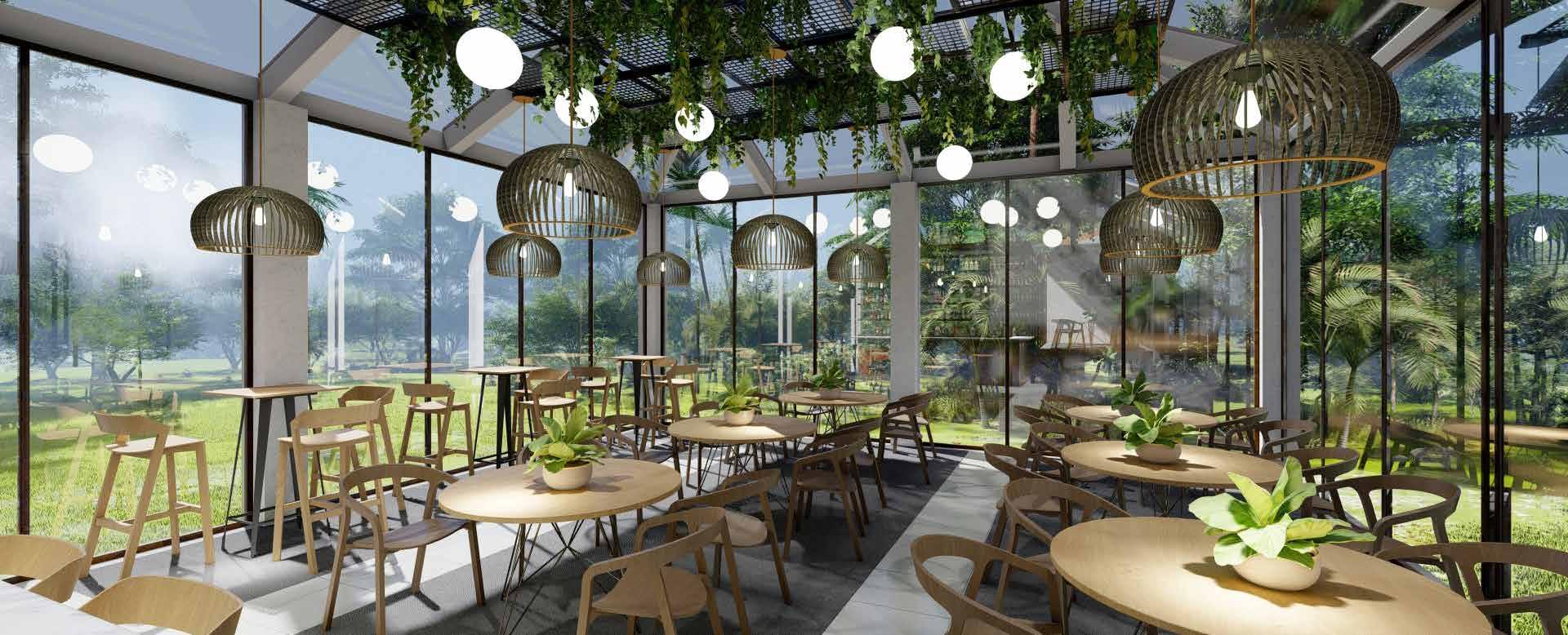

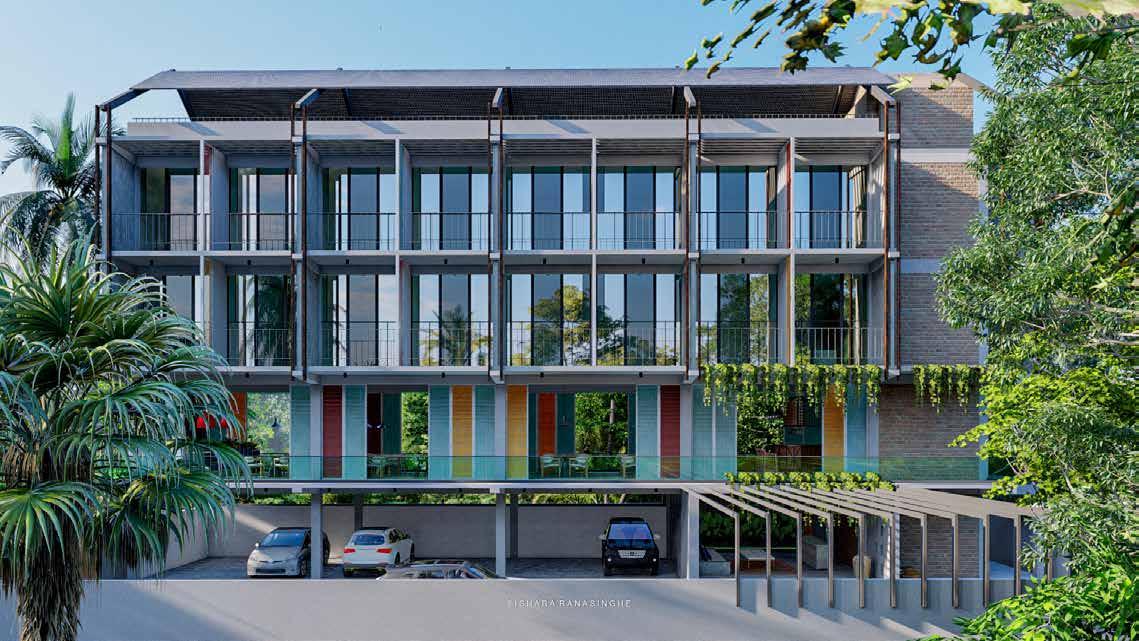

HOTEL AT MIRISSA, SRI LANKA 2022 floor area 2800 sqft

Location of the resort has a tremendous influence over the design since the project conveys the ‘entrance’ to the Southern quarter which is a major tourist destination in the country. short term stay resort hotel is the key idea of this design.ground floor has entrance lobby, parking and swimming pool. 1st floor is a fully opened restaurent area.second and third floor is bed rooms for visitors.

38

39



6522 [21'-9"]

2147 [7'-2"]

SWIMMING POOL

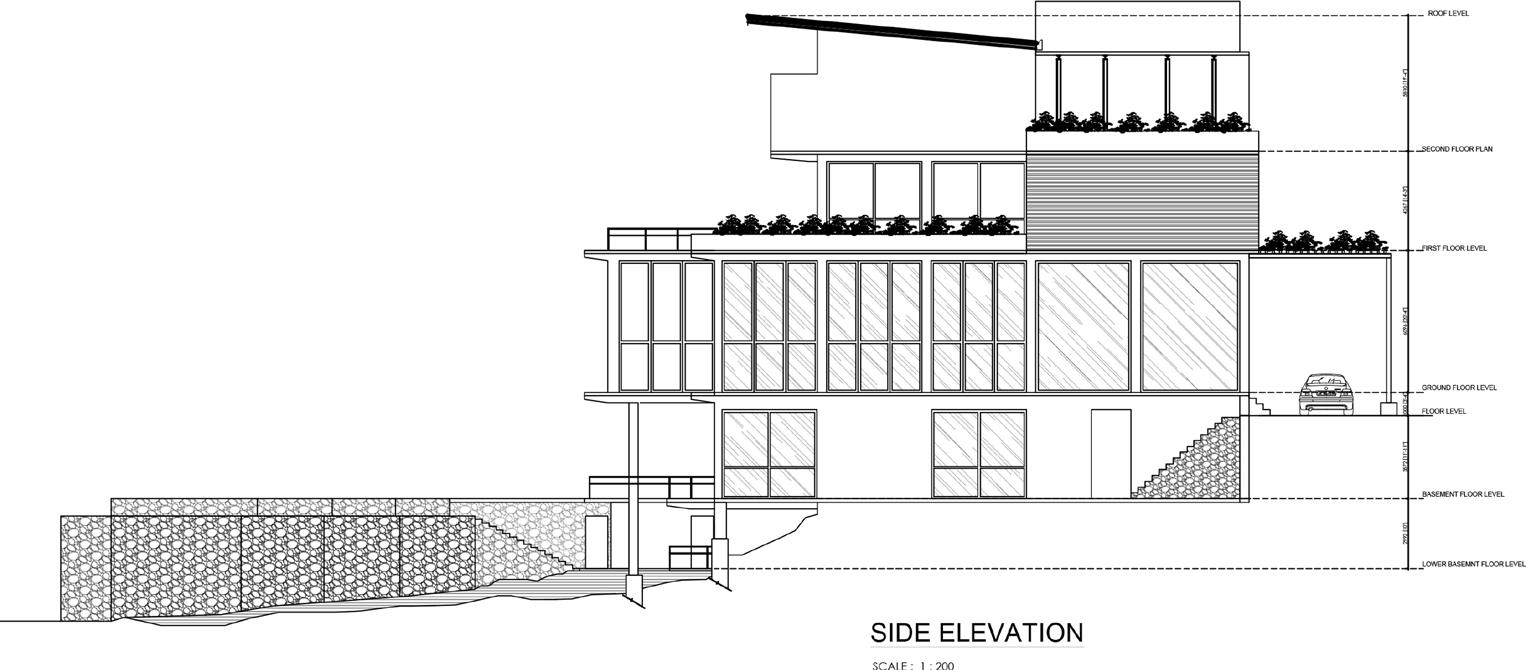

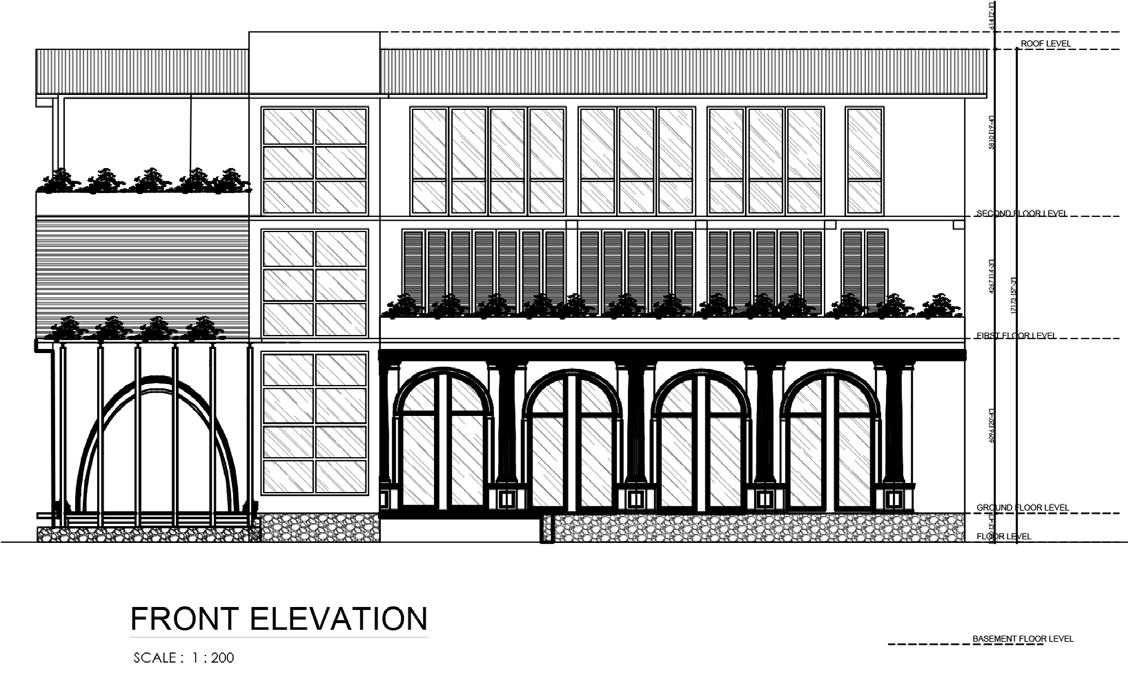

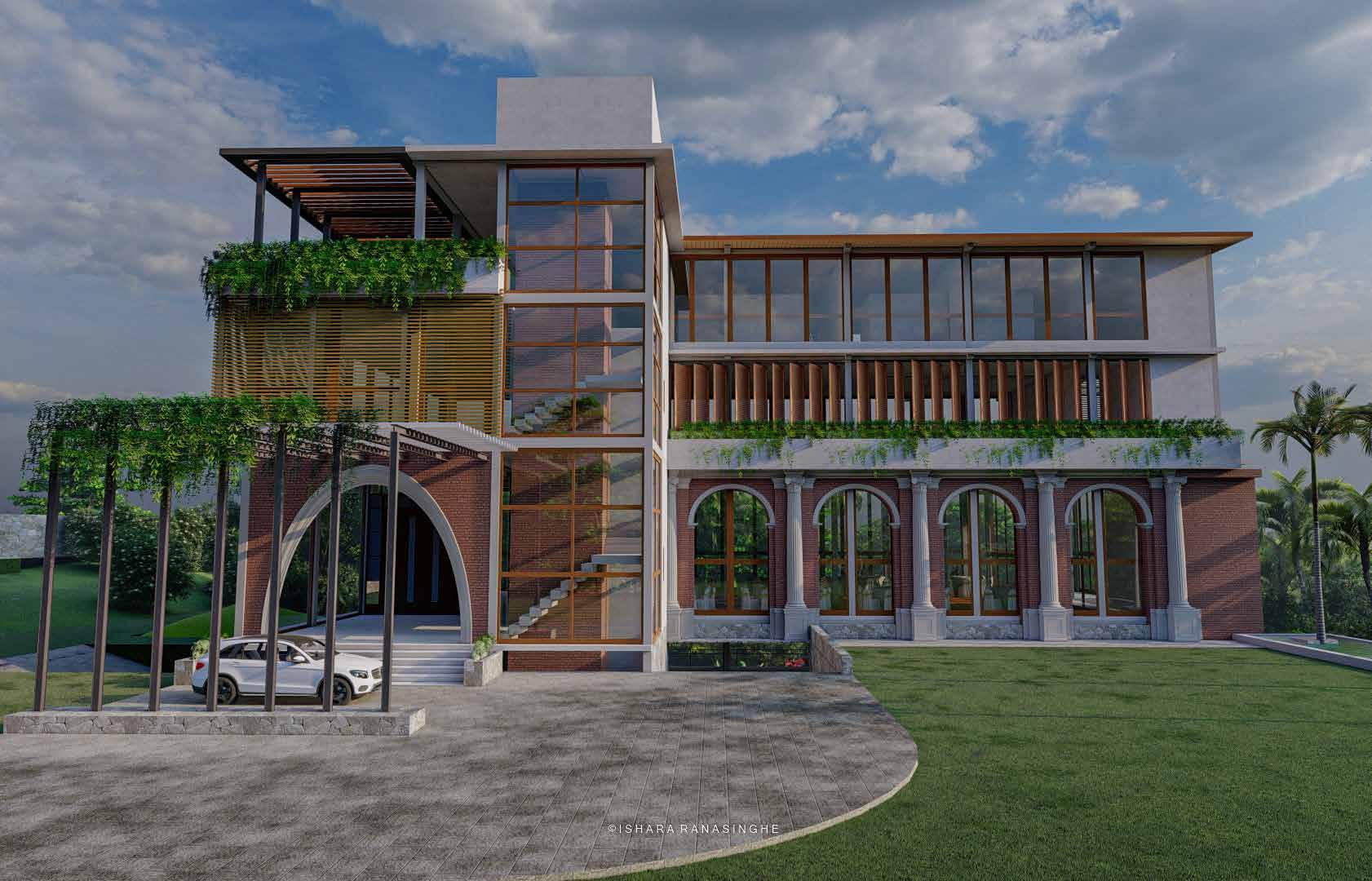

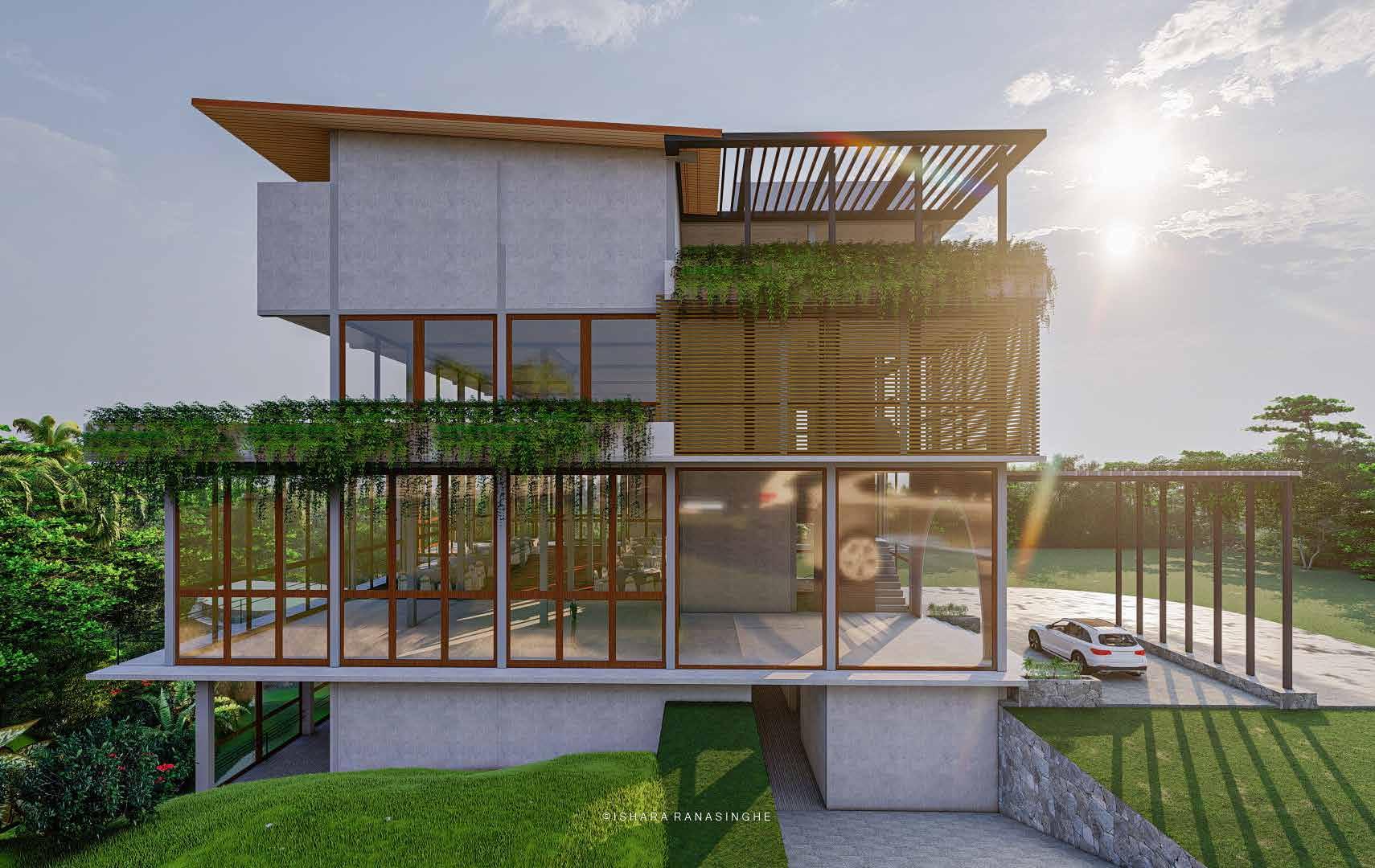

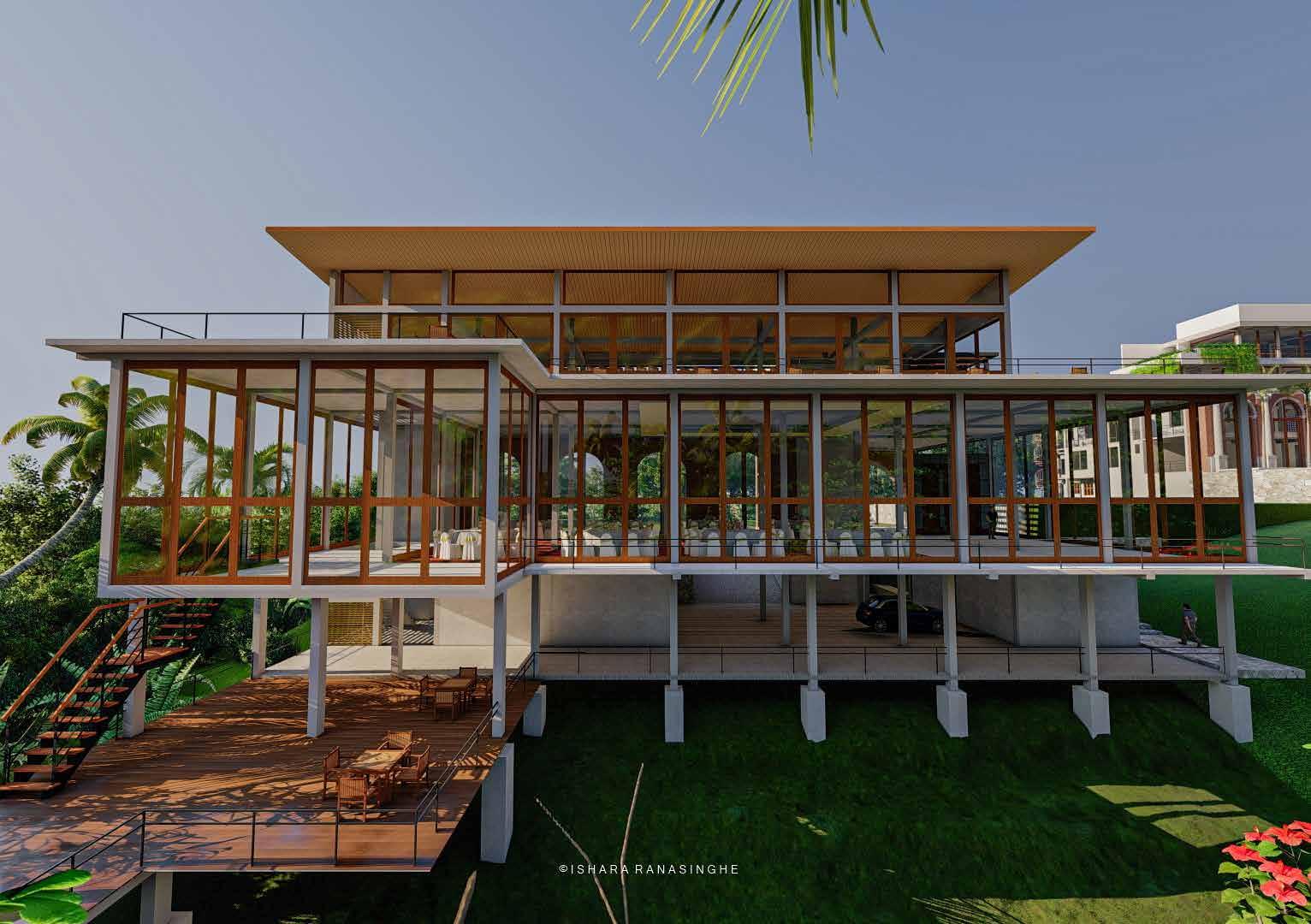

SAFFARE INN WEDDING HALL AND RESTAURENT

PUMP ROOM

6599 [22']

6599 [22']

BALANCE TANK

D3 DN 17

D3

16 15 14

17

13

16

12

1831 [6'-1"]

15

11

14

10

13

09

12

08

11

07

10

06

09

05

08

04

SAUNA ROOM

At Rathnapura, Sri Lanka.

2021 - 2022 floor area 15 000 sqft

D5

4901 [16'-4"]

10163 [33'-10"]

LV1 D4

SL3

OUTDOOR DECK

03

02 01

UP

02 01

6688 [22'-3"]

05 04 03

11311 [37'-8"]

07 06

2618 [8'-9"]

D5

11 10 09

4498 [15'] 2073 [6'-11"]

4259 [14'-2"]

1925 [6'-5"]

FL1 D5

3578 [11'-11"]

4500 [15']

GENERATOR ROOM

1350 [4'-6"]

2788 [9'-4"]

2000 [6'-8"]

D3

MAINTANCE ROOM

D2

13725 [45'-9"]

M/WASH ROOM

08

6385 [21'-3"]

POT WASH

6479 [21'-7"]

COLD STORE

STORE ROOM 4825 [16'-1"]

4261 [14'-2"]

4278 [14'-3"]

3088 [10'-3"]

FL1

1963 [6'-7"]

2888 [9'-7"]

2362 [7'-10"]

1350 [4'-6"]

2701 [9']

1380 [4'-7"]

8868 [29'-7"]

2038 [6'-10"]

2000 [6'-8"]

KITCHEN LIFT

3259 [10'-10"]

D3

WASH ROOM

D4

4448 [14'-10"]

D4

D4

SERVANTS ROOM

SERVANTS ROOM

D3

3113 [10'-5"]

CHEMICAL STORE

D3 D4

4474 [14'-11"]

2717 [9'-1"]

D3 D3

4490 [15']

LOBBY

D3

1350 [4'-6"]

4007 [13'-4"]

2000 [6'-8"]

KITCHEN LIFT

2735 [9'-1"]

FG16

FG15 GAS STORE

4300 [14'-4"]

D2

4664 [15'-7"]

4286 [14'-3"]

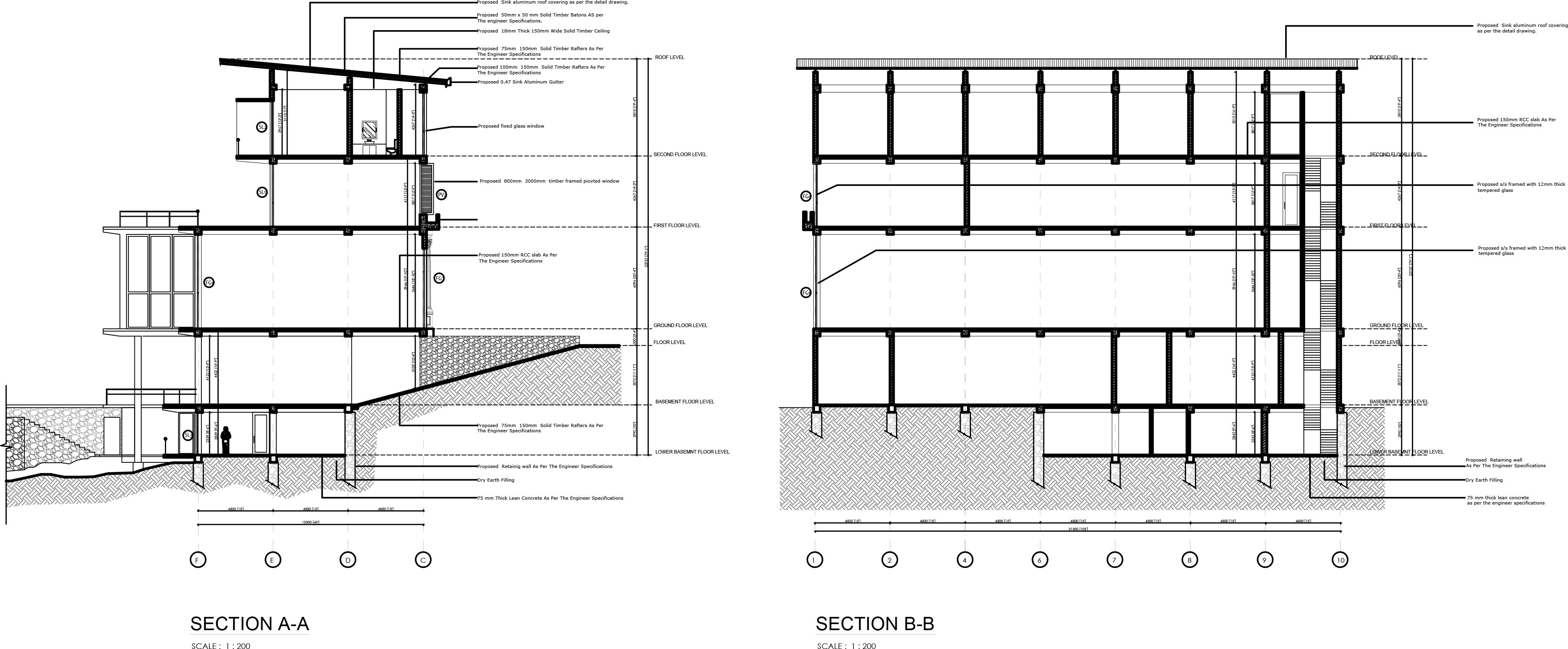

Loocated in the eye cathing rural area near the rathnapura city. the site is a slope and wetzone which are the dificulties that we are facing. basement services with kitchen area and car parking, ground floor opens to the wedding hall. first floor is a restaurent with spa and a gymnasium. second floor isa bed rooms. organic shape nature swimming pool located edge of the site which can access from the basement floor. total floor area is 15000 sqft.the design is caterd to the local visitors in rathnapura and foriegners who visit and stay in rathnapura.

FG15

SL2

FG16

D3 3120 [10'-5"]

EXCECATIVE ROOM 2

2976 [9'-11"]

1988 [6'-8"]

4439 [14'-10"]

FL1

SL3

13363 [44'-6"]

2967 [9'-11"]

13894 [46'-4"]

EXCECATIVE ROOM 1

HOT KITCHEN

D2 D3

07

DUCT

06

DN

05

UP

04

1950 [6'-6"]

4500 [15']

DRY STORE

WET GARBAGE

OUT 3109 [10'-4"]

2050 [6'-10"]

2075 [6'-11"]

1804 [6'] 1800 [6']

6663 [22'-2"]

2000 [6'-8"]

OFFICE ROOM

1800 [6']

1800 [6']

2150 [7'-2"]

DRY GARBAGE

1305 [4'-4"]

DUCT

D2

D4

F/WASH ROOM

D5

FL1 2801 [9'-4"]

14813 [49'-5"]

4450 [14'-10"]

2064 [6'-11"]

STORE ROOM

D3

FG9

4363 [14'-6"]

01

UP

4475 [14'-11"]

03 02

D4

2173 [7'-3"]

FL1

BASEMENT FLOOR PLAN

1200 [4']

AREA : 5785 Sq.ft ( Without Ramp) SCALE : 1 :200

1575 [5'-3"]

AREA : 4536 Sq.ft SCALE : 1 : 200

D5

5913 [19'-9"]

AREA : 6430 Sq.ft ( With Ramp) 2625 [8'-9"]

4450 [14'-10"]

LAUNDRY & IRONING

LOWER BASEMENT FLOOR PLAN

2801 [9'-4"]

M/WASH

ROOM 3925 [13'-1"]

D2

UP

2059 [6'-10"]

1800 [6']

LIFT

UP

2166 [7'-3"]

IN

FG1

FG1

4488 [14'-11"]

FG1

4500 [15']

BUFFET AREA

4275 [14'-3"]

8767 [29'-3"]

BUFFET AREA

FG1

FG1

2000 [6'-8"]

4275 [14'-3"]

GYM

3688 [12'-4"]

SL2 4275 [14'-3"]

BALCONY

1500 [5']

BALCONY

SL2 4275 [14'-3"]

1500 [5']

BALCONY

1500 [5']

SL2 4275 [14'-3"]

SL2 4275 [14'-3"]

D3 BED ROOM 1

4604 [15'-4"]

4500 [15']

13450 [44'-10"]

FG9

BALCONY

SL2

1950 [6'-6"]

2000

WEDDING HALL

BALCONY

4275 [14'-3"]

1500 [5']

SL2

SL1

BED ROOM 2

BED ROOM 3

BED ROOM 4

BED ROOM 5

BED ROOM 6

12200 [40'-8"]

SL1 17681 [58'-11"]

4341 [14'-6"]

SL1

4341 [14'-6"]

SL1

4341 [14'-6"]

SL1 8961 [29'-10"]

BALCONY

FG8

17779 [59'-3"]

SL1

KITCHEN LIFT

OUTDOOR DINNING AREA 1500 [5']

OUTDOOR YOGA AREA

OUTDOOR DINNING AREA BELOW

4341 [14'-6"]

18012 [60']

2000 [6'-8"]

KITCHEN LIFT

FG8

3776 [12'-7"]

PROVITION FOR SETTEE BACK

D3

13500 [45']

4341 [14'-6"]

FG1

FG1

8900 [29'-8"]

1500 [5']

KITCHEN LIFT

4500 [15']

1950 [6'-6"]

4341 [14'-6"]

2000 [6'-8"]

1350 [4'-6"]

FG1

4415 [14'-9"]

FG1 22700 [75'-8"]

1350 [4'-6"]

FG1

1350 [4'-6"]

FG14 FG1

2000 [6'-8"]

DUCT

D3

2400 [8']

WASH ROOM

DUCT

D3

D2

LIFT

FG5

2400 [8']

WASH ROOM

D4

DUCT

D3

1725 [5'-9"]

DN

D3

FG13

FG13

4275 [14'-3"]

FL1

SECOND FLOOR PLAN

DN

LOBBY

AREA : 5800 Sq.ft

UP

2400 [8']

WASH ROOM

STORE ROOM

2625 [8'-9"]

SCALE : 1 : 100 UP

4162 [13'-10"]

FG5 IN

D4

D3

FIRST FLOOR PLAN

6544 [21'-10"]

FG11 FG3

1725 [5'-9"]

FL1

FL1

FG6

D3

FG12

3900 [13']

1575 [5'-3"]

2625 [8'-9"]

FG10 4468 [14'-11"]

UP

D5

1725 [5'-9"]

FG6

AREA : 4050 Sq.ft SCALE : 1 : 100

UP

1997 [6'-8"]

D3

PV3

FL1

DN

AREA : 5800 Sq.ft SCALE : 1 : 100

FG4

M/WASH ROOM

PV1

2801 [9'-4"]

2801 [9'-4"]

3925 [13'-1"]

8775 [29'-3"]

GROUND FLOOR PLAN

D5

PV1

4275 [14'-3"]

1575 [5'-3"]

LIFT

D4

CONFERENCE ROOM

5625 [18'-9"] 2625 [8'-9"]

FG2

D2

2059 [6'-10"]

FL1

10000 [33'-4"]

8775 [29'-3"]

D5

F/WASH ROOM

8775 [29'-3"]

M/WASH

D4 FG9

DN

PV2

DUCT

FL1

2059 [6'-10"]

D4

FG7

2801 [9'-4"]

2801 [9'-4"]

ROOM 3925 [13'-1"]

FG7

2064 [6'-11"]

2064 [6'-11"]

D4 FG1

FG7

1575 [5'-3"]

FG7

DUCT

F/WASH ROOM D5

D4

2000 [6'-8"]

2400 [8']

WASH ROOM

2881 [9'-7"]

D4

2881 [9'-7"]

1725 [5'-9"]

1800 [6']

LIFT

D3

WALL SEATING

1725 [5'-9"]

D4

2881 [9'-7"]

WASH ROOM

2881 [9'-7"]

2400 [8']

1200 [4']

1800 [6']

1997 [6'-8"]

D2

D3

2400 [8']

WASH ROOM

DUCT

D1 6579 [21'-11"]

RECEPTION

4367 [14'-7"]

D4

D3

DUCT

REST ROOM

1997 [6'-8"] 29128 [97'-1"]

UP

FG9 1800 [6']

FG1

1725 [5'-9"]

D3 DN

D4

2881 [9'-7"]

WASH ROOM

UP 4500 [15']

D3 DN

8975 [29'-11"]

RESTAURANT AREA

FG14

FG8

40

41

42



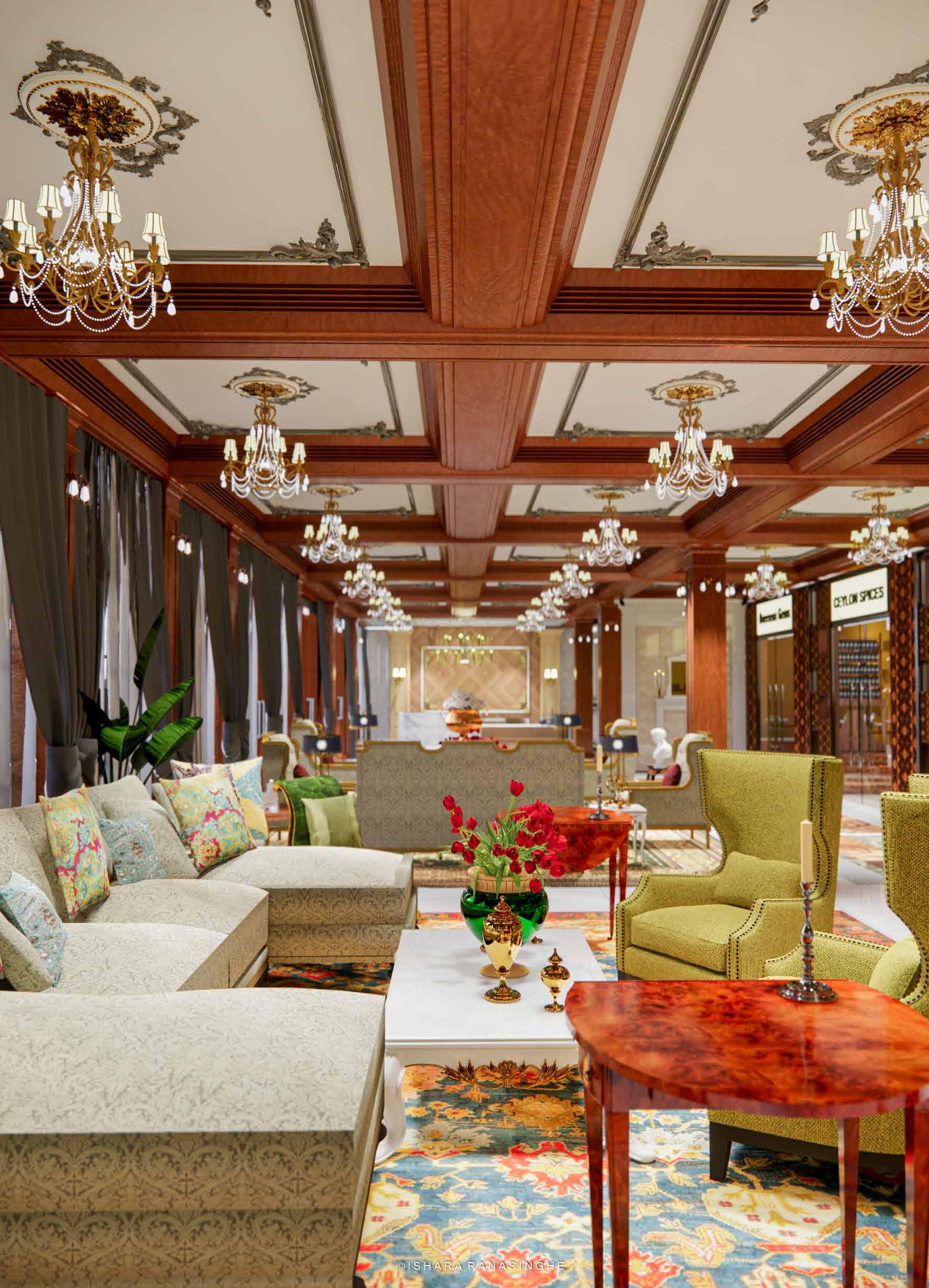

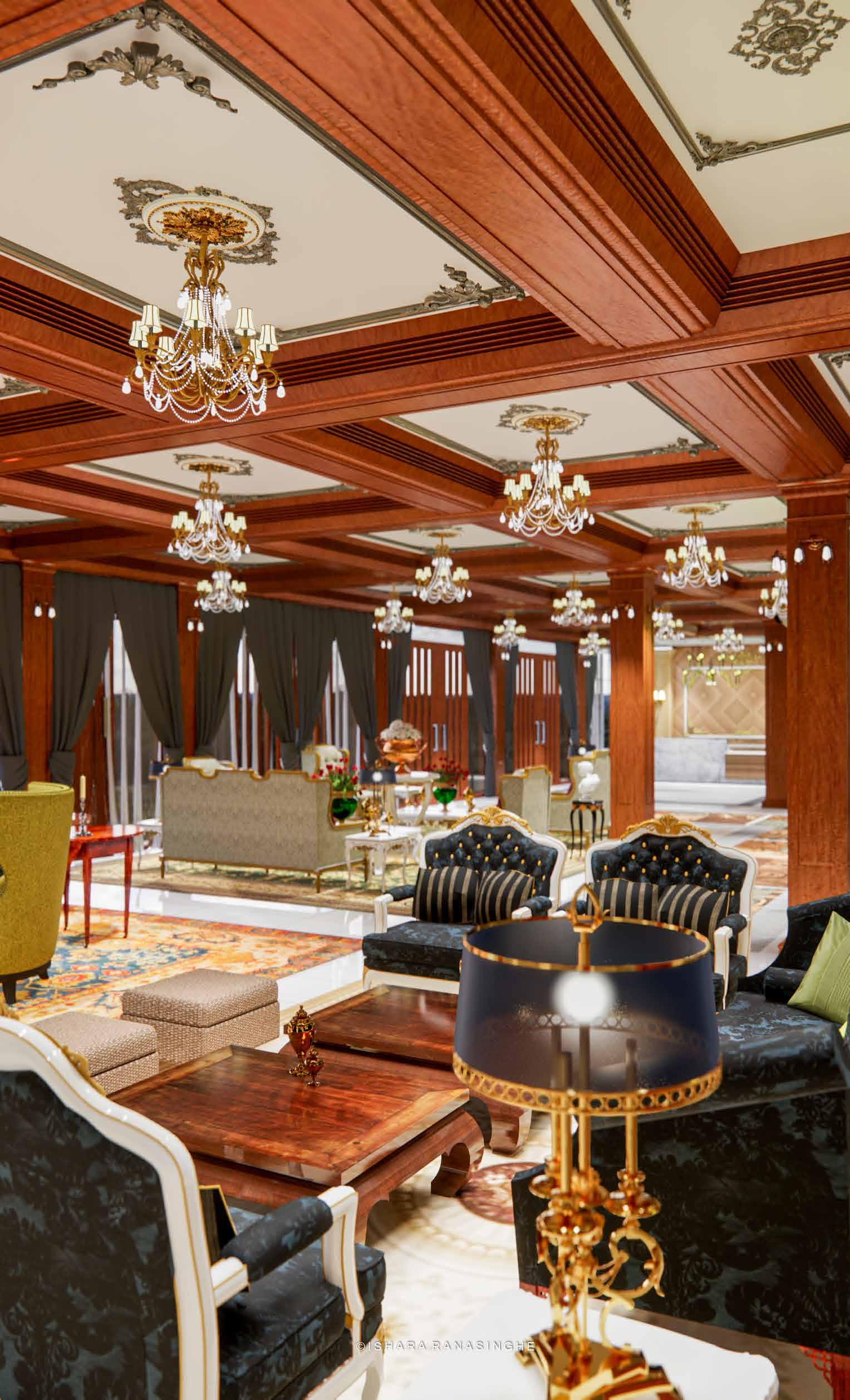

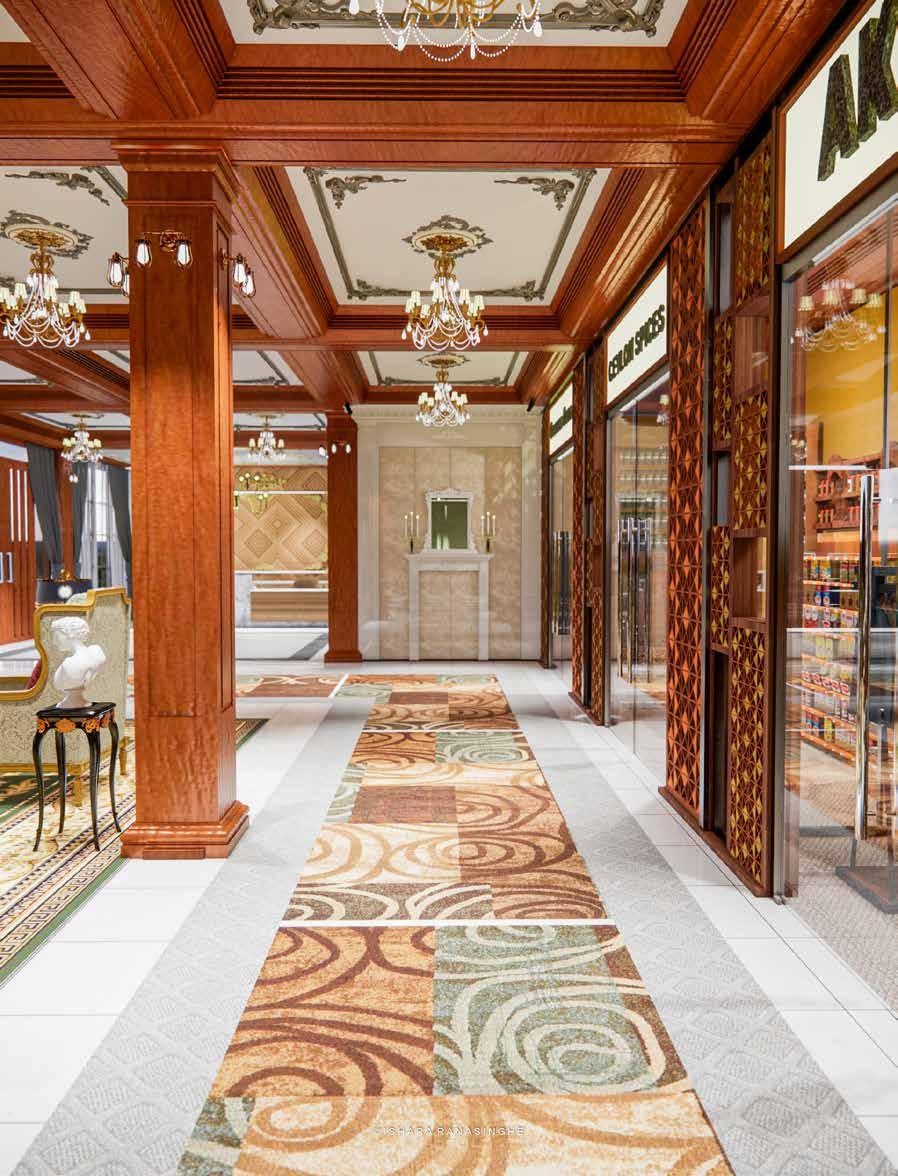

ASSPOD RESTAURENT AND GUEST At Nuwaraeliya, Sri Lanka.

2022 floor area 3200 sqft

The ass pod restaurent located in the tremnedous top of the hill in nuwaraeliya which is call little England in sri lanka. The design concept is to cretae royality look and feel to the entire design. there are entrance lobby with reception, restaurent area and pub. the classical roylity finishes and furnitures install to the design. roylity type arm chairs give elegant pride to the design, large chandeliar designs, classical wood finifh ceiling, wall finifh column finishes are the key aspects.

43

44



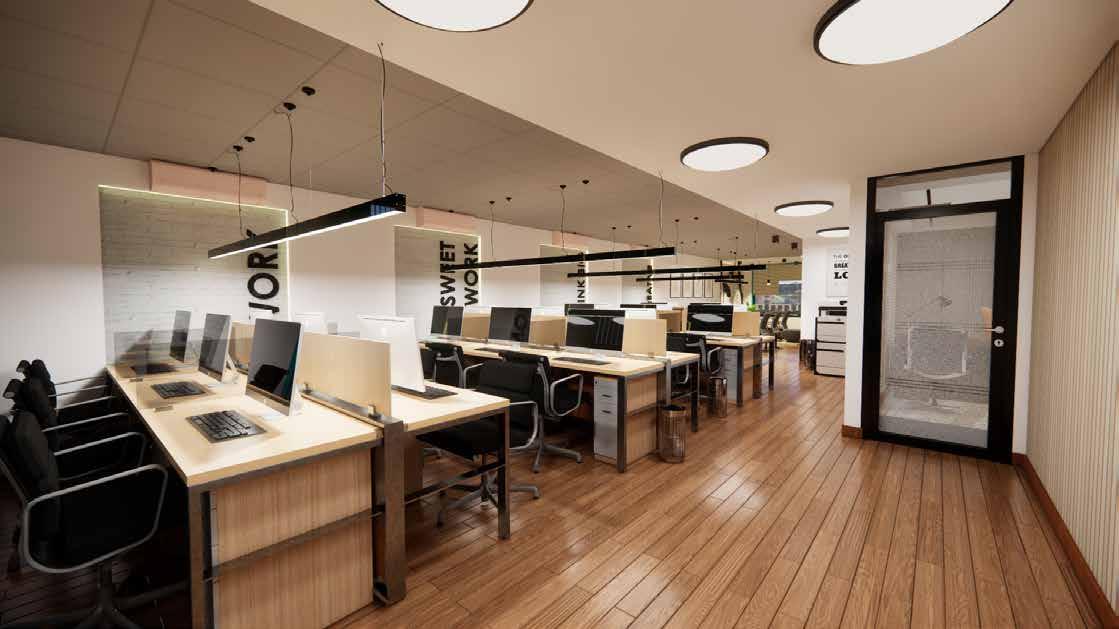

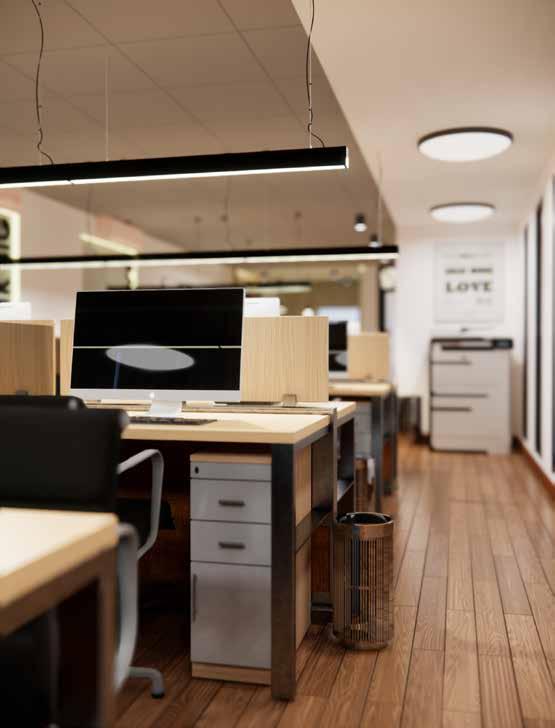

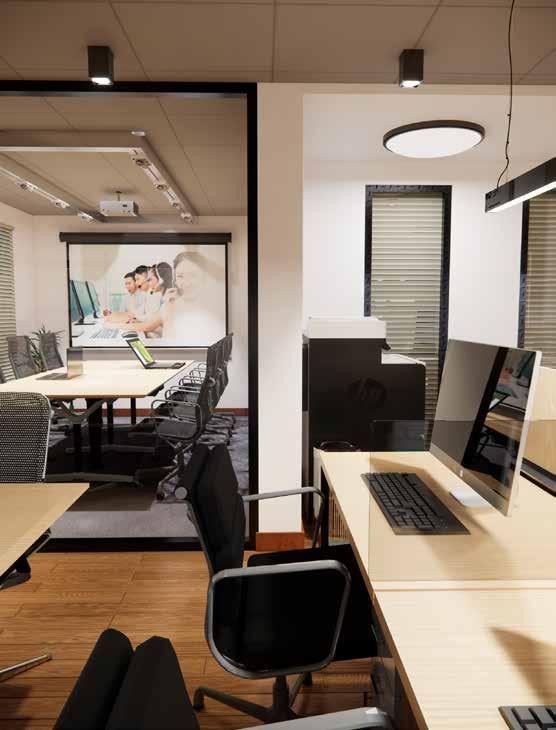

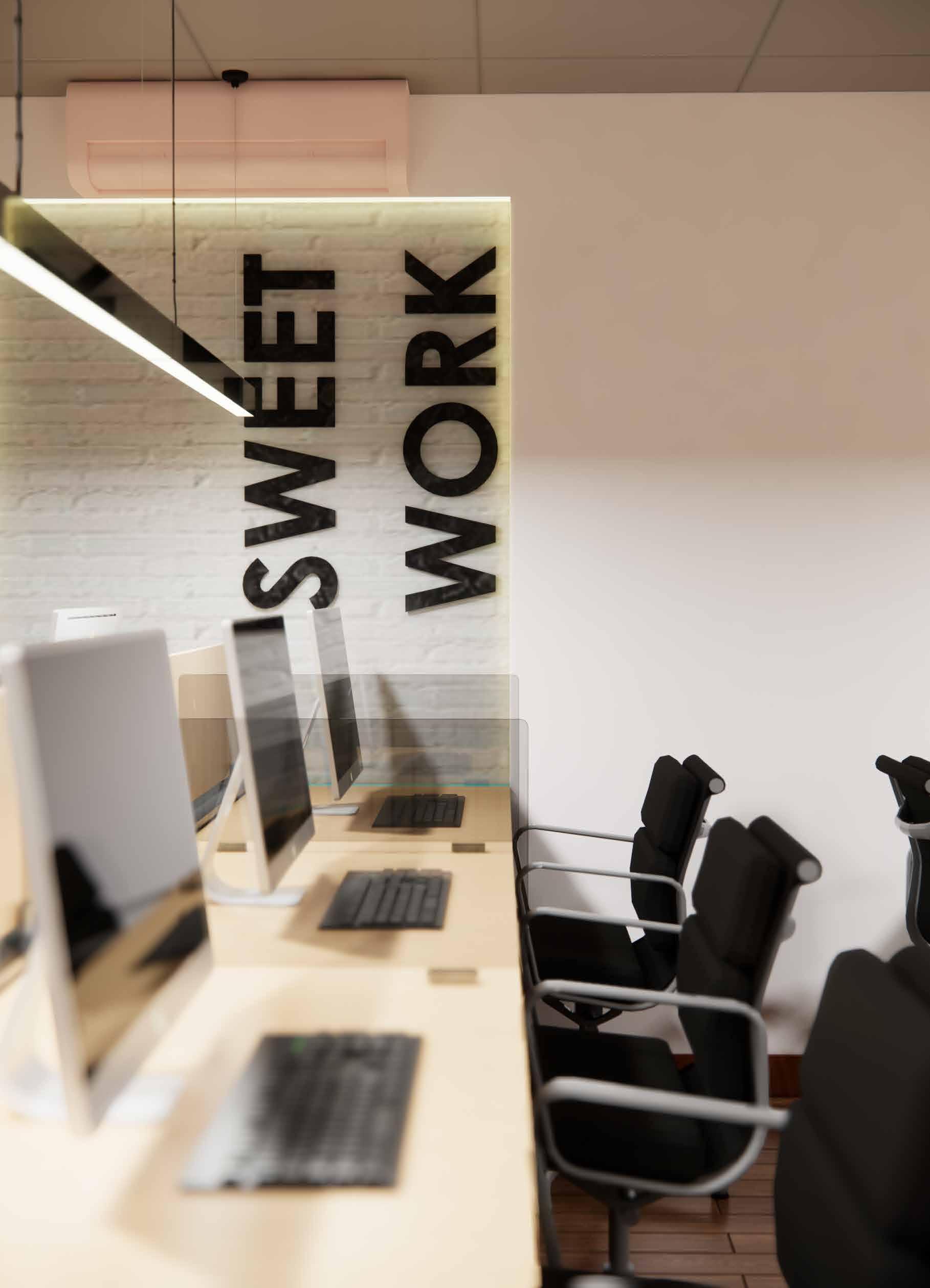

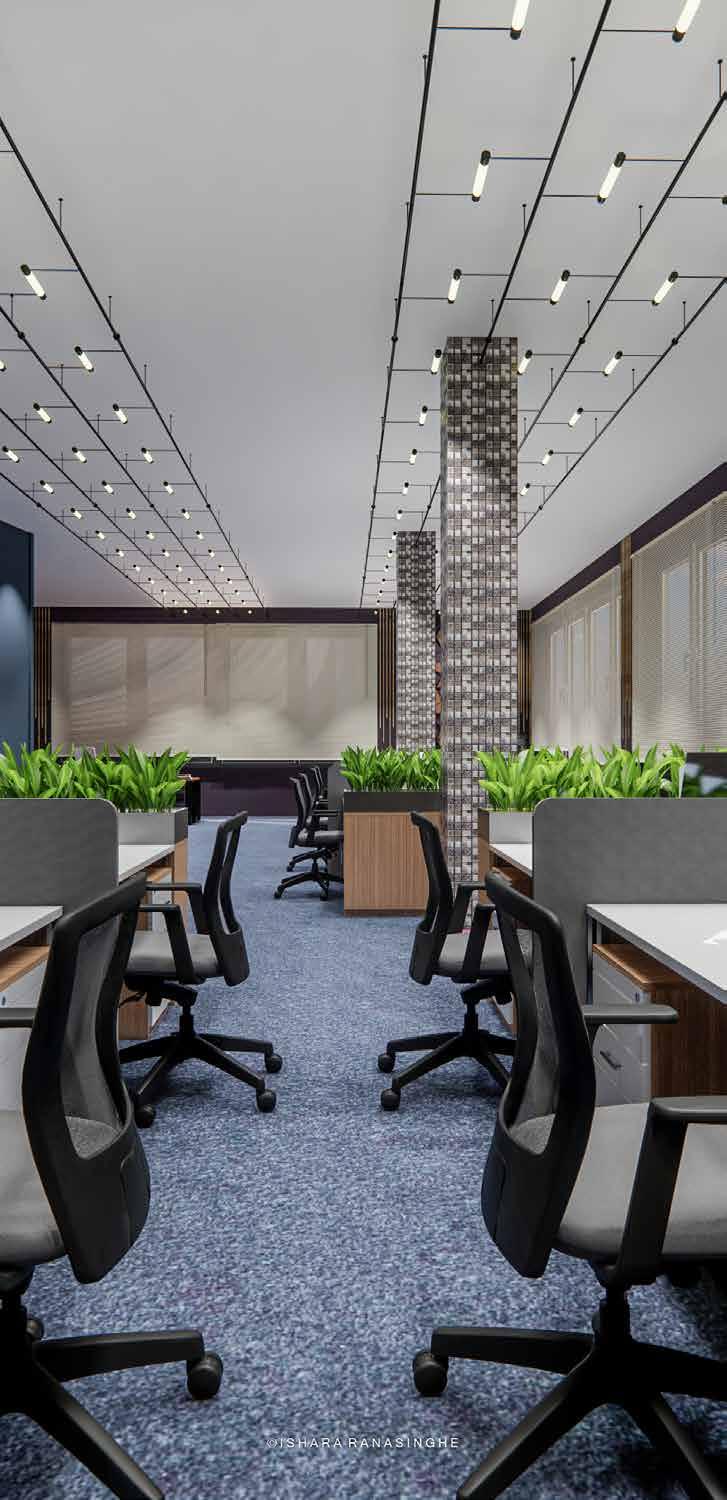

CALLING CENTER At Colombo

INTERIOR DESIGN COMMERCIAL

45



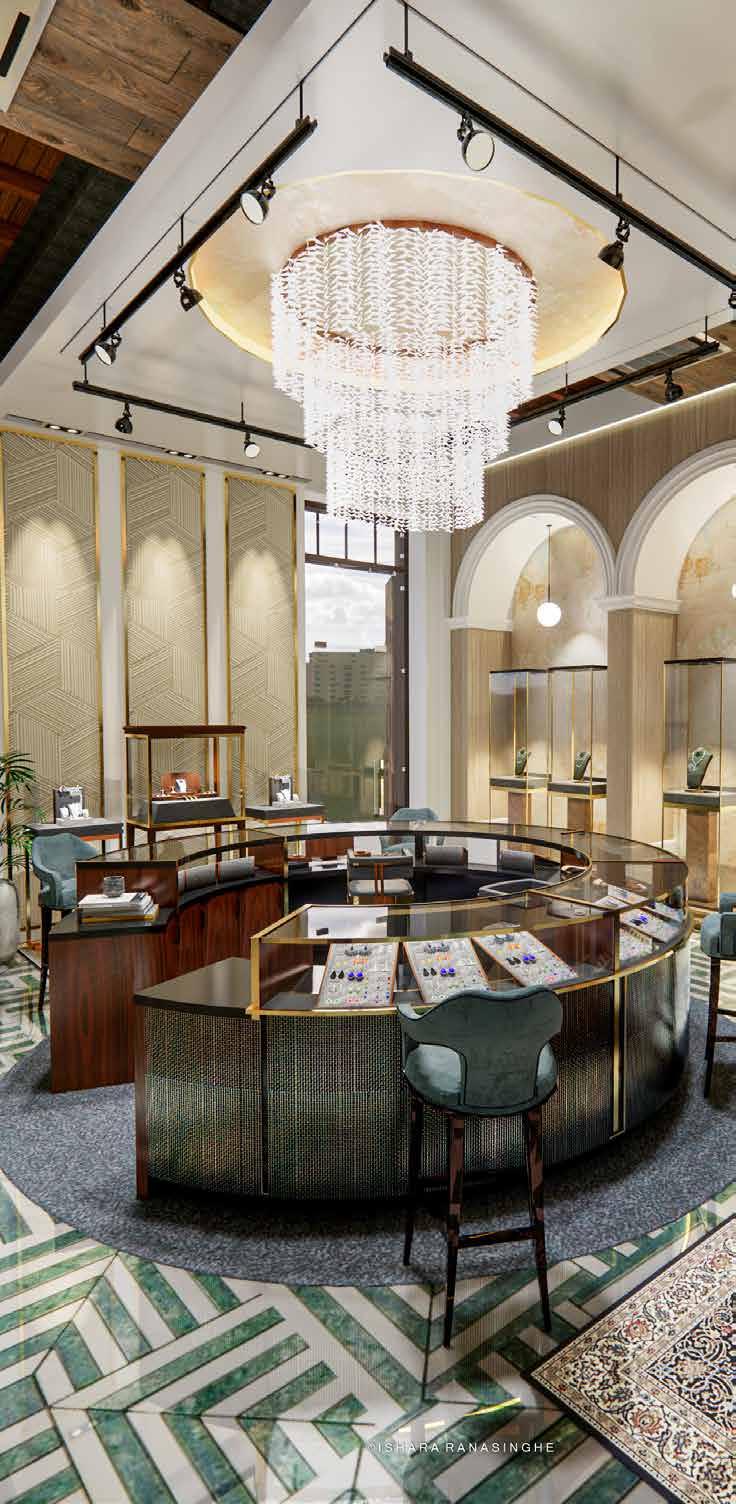

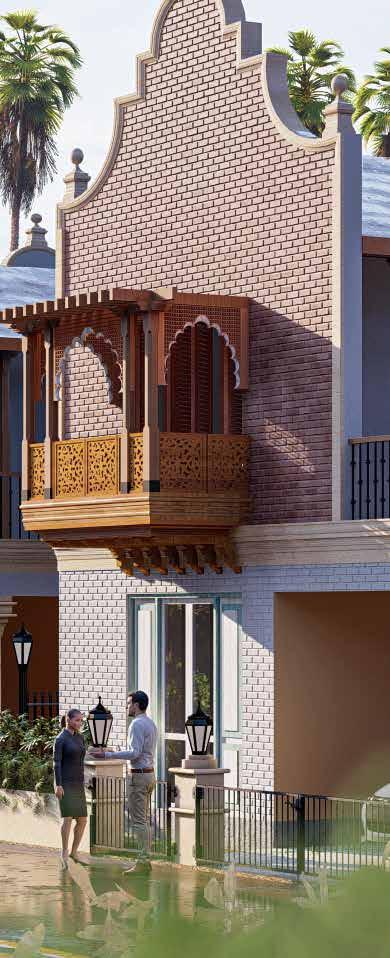

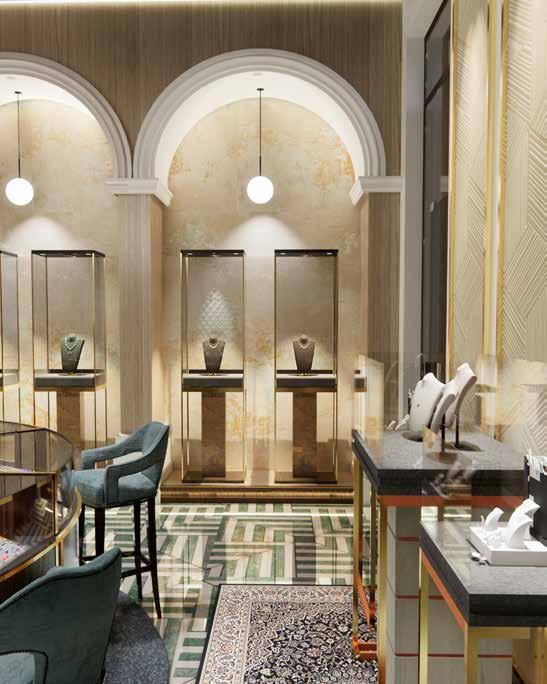

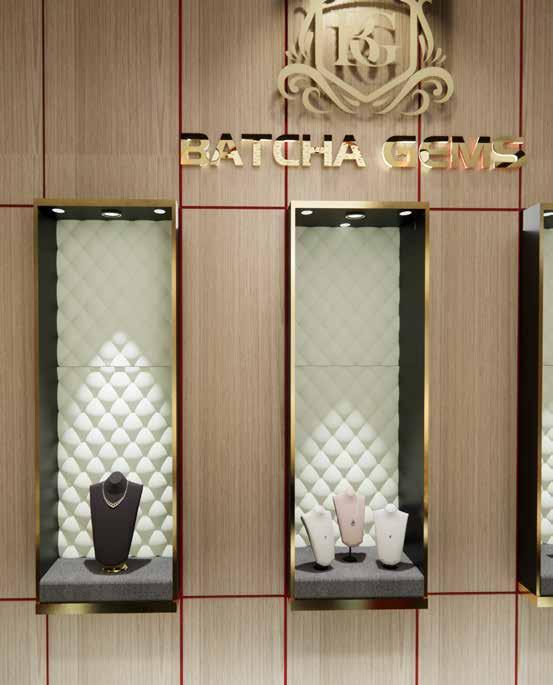

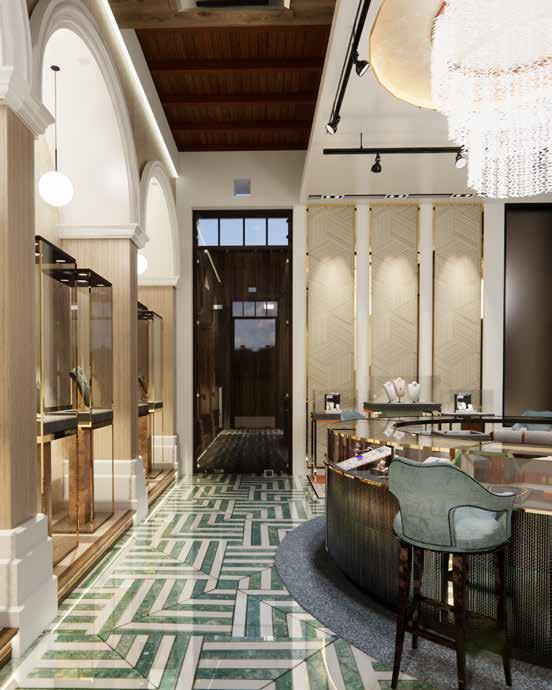

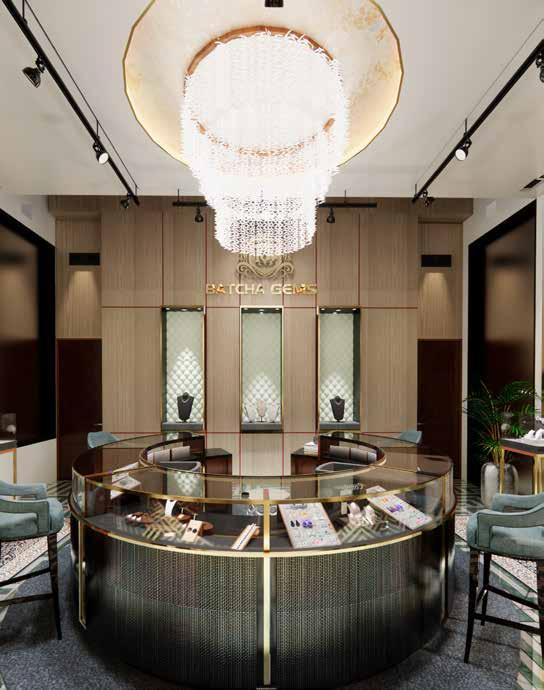

BATCHA GEMS & JEWELARY At Galle, Sri Lanka.

2022 floor area 688sqft

Location of the shop has a tremendous influence over the design since the project conveys the ‘entrance’ to the Southern quarter which is a major tourist destination in the country. The location of the site is cater for a gems aimed to tourists in galle. The shop is in the heritage site and highly valuble area in the country.

Concept The main design idea of the jewelary shop is elegance.we added dutch influces key ideas such as gothic arches, moulding columns and wall finishes.timber finished partioins and wall papers add more elegance the quality of the interior.golden color strips with metal plated furniture slightly elegant the overall look and feel of the design.

46



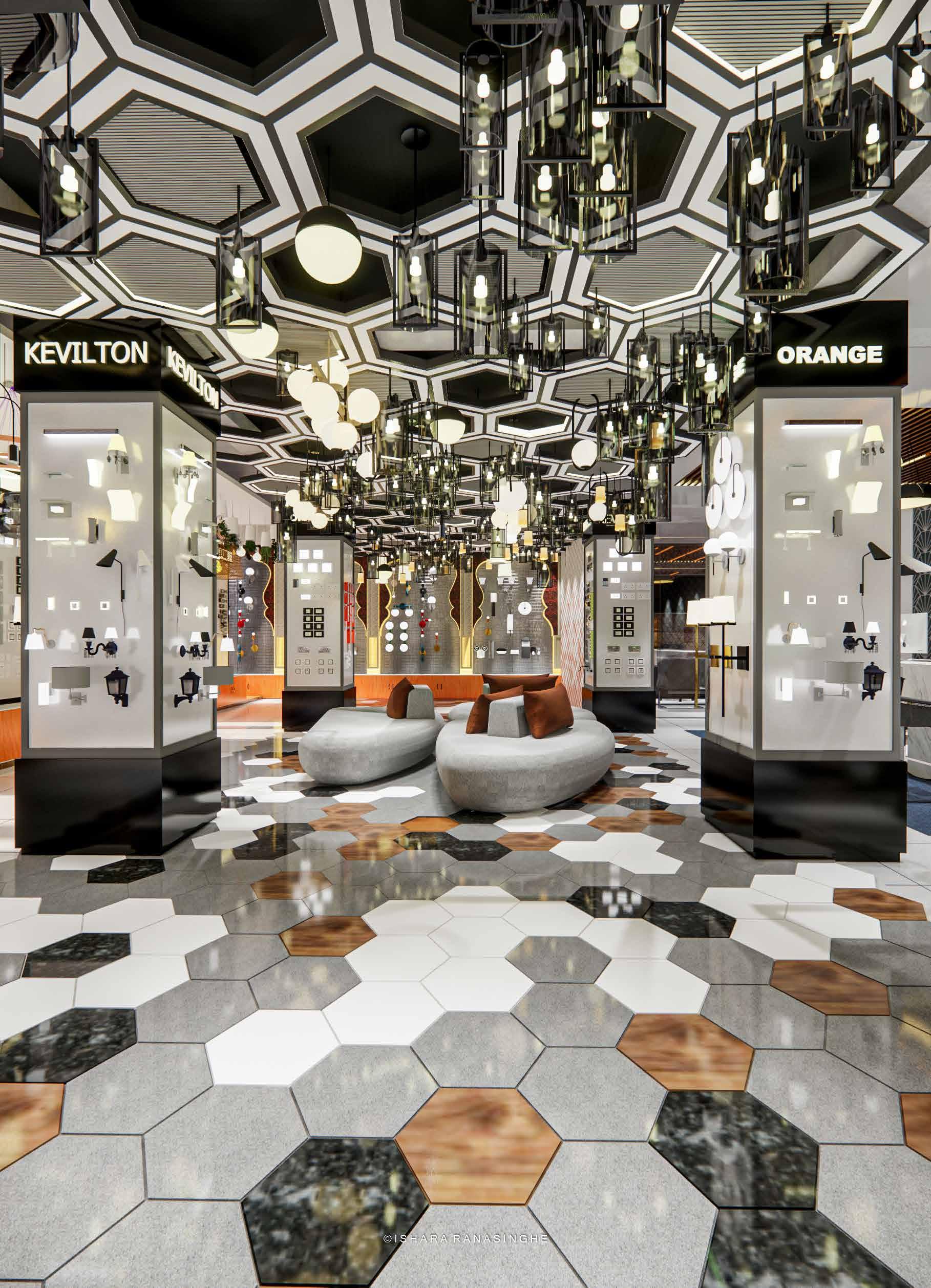

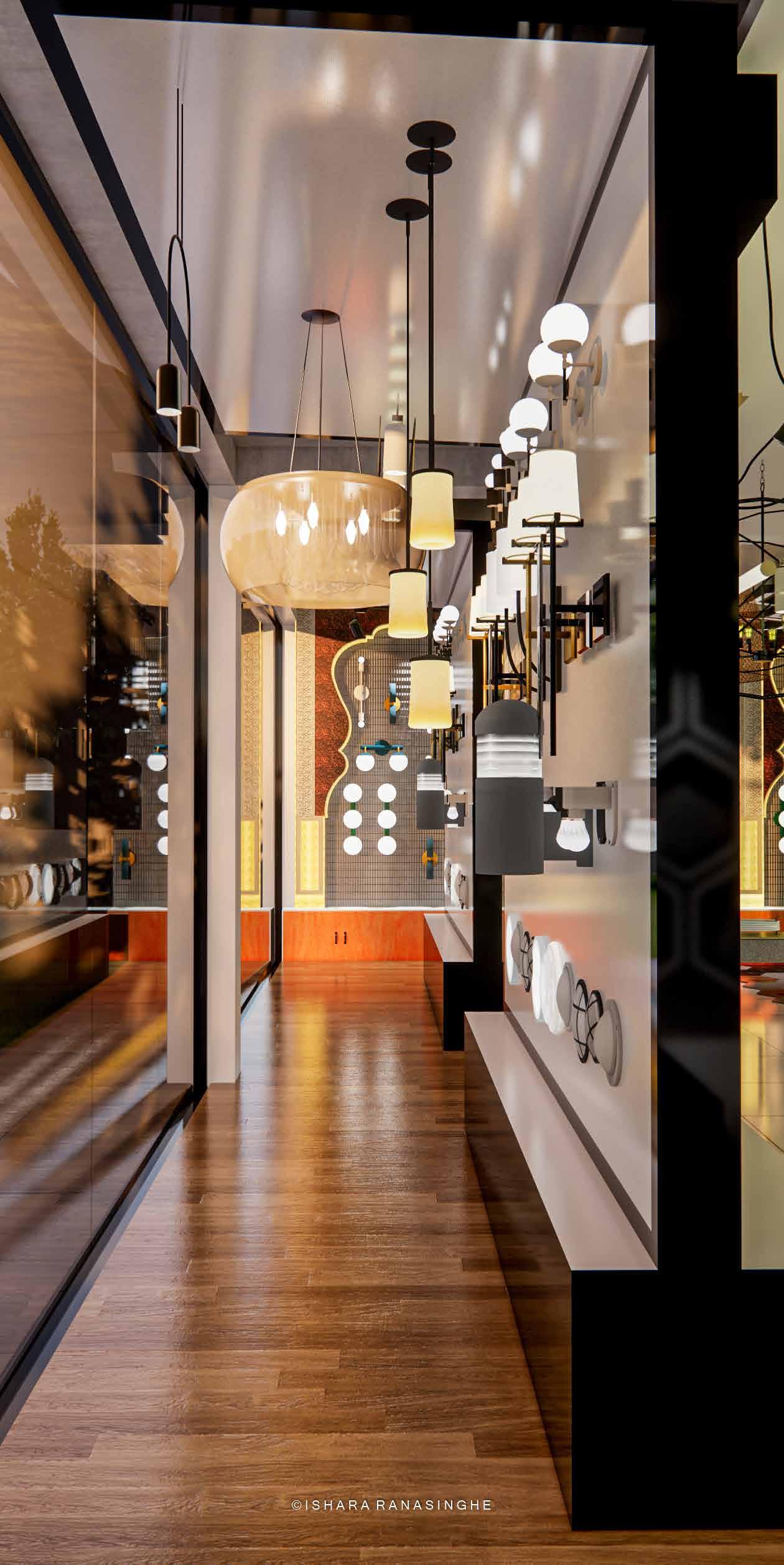

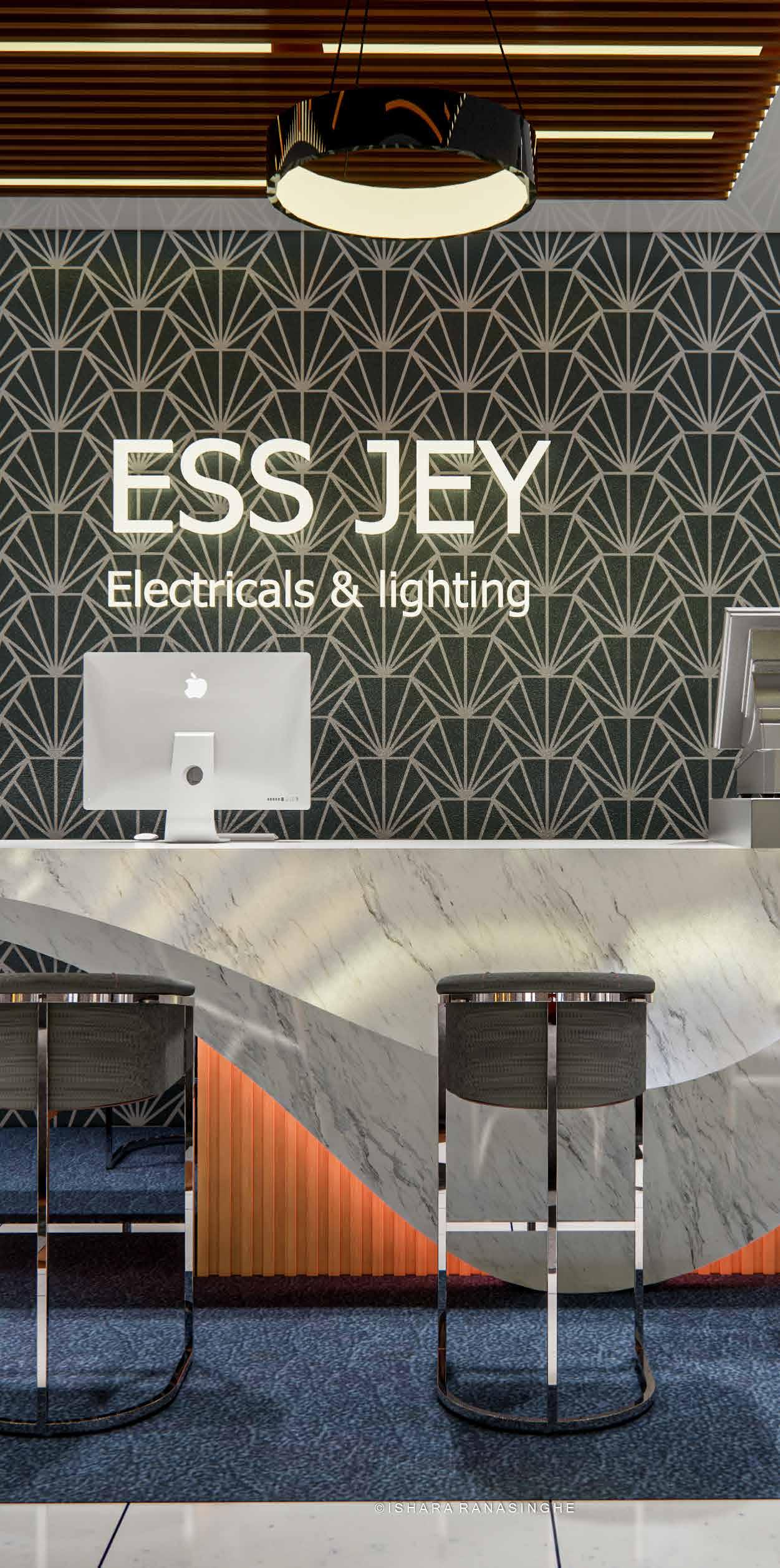

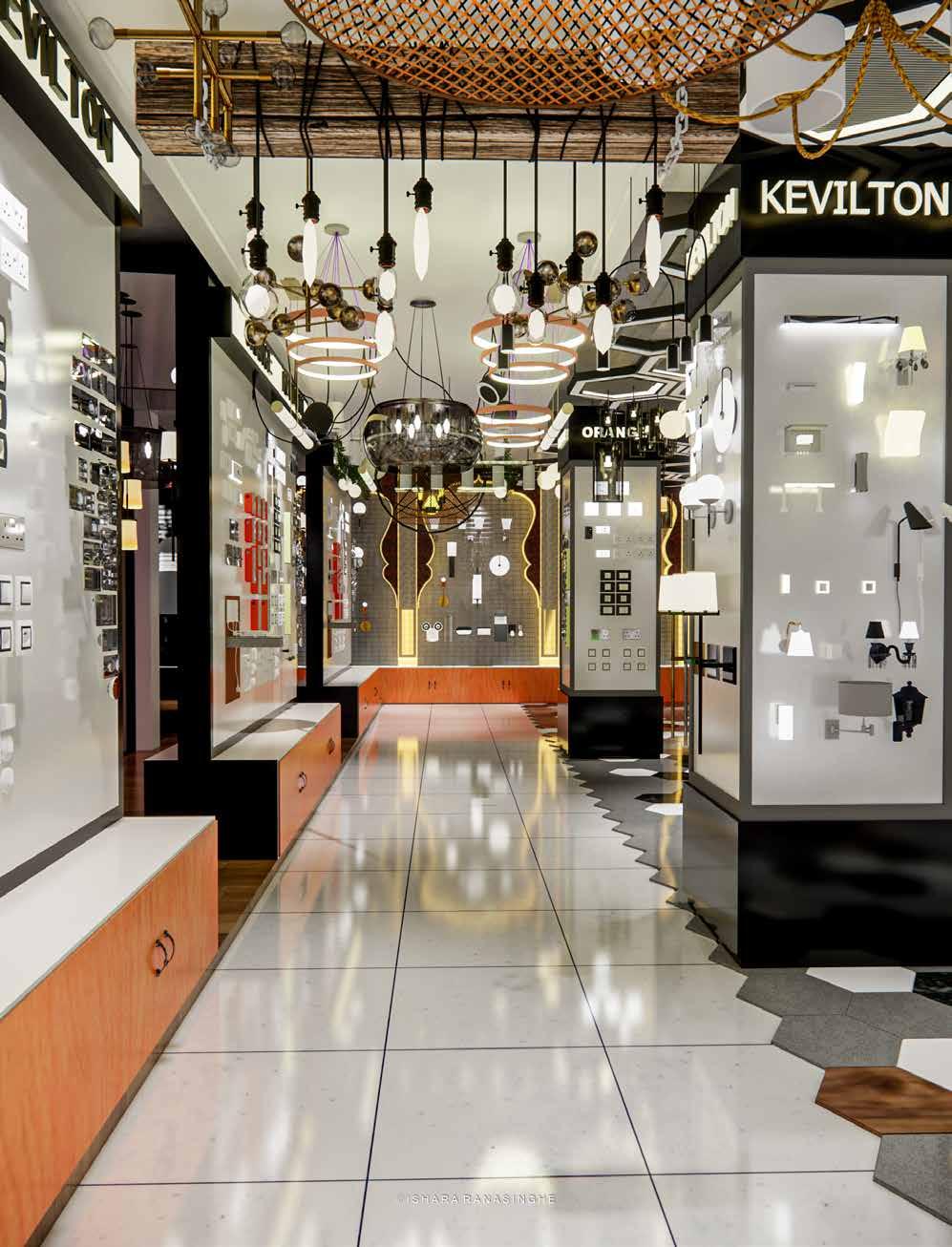

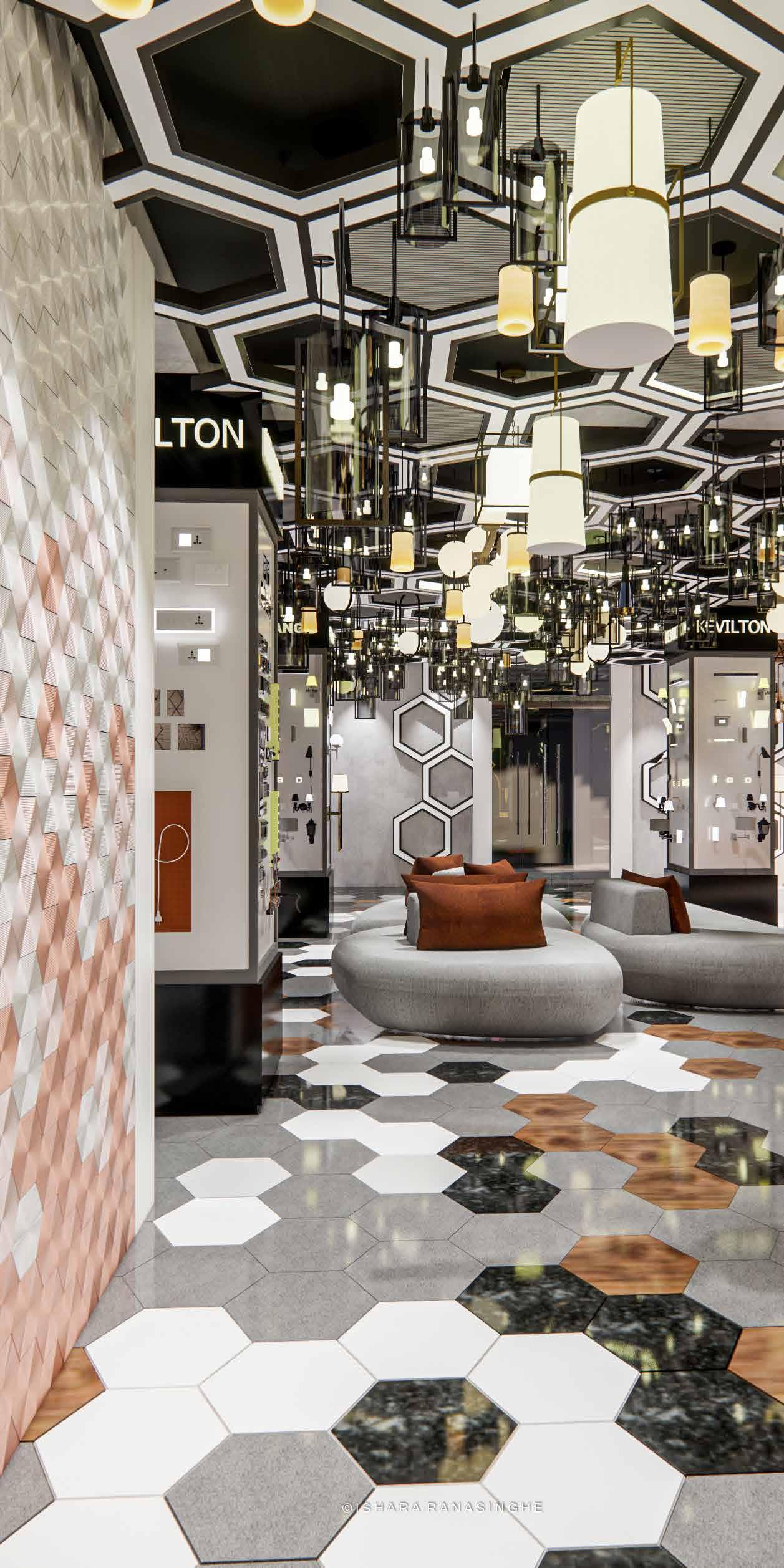

ESS JAY ELECTRICALS At Jaffna, Sri Lanka.

2021 - 2022 floor area 2000 sqft

This electrical shop is located in the northen part of sri lanka. the design idea of the electrical shop is how we change the interior look using light and shades. mainly we used hexagon shape steel ceiling with random hanging pendent lights. it gives vibrance to the design. floor area has used by textured carpet. customized column rack design to exhibit lights and swithes. custo mized furnitures are the key design aspects of the electrical shop.

47

48



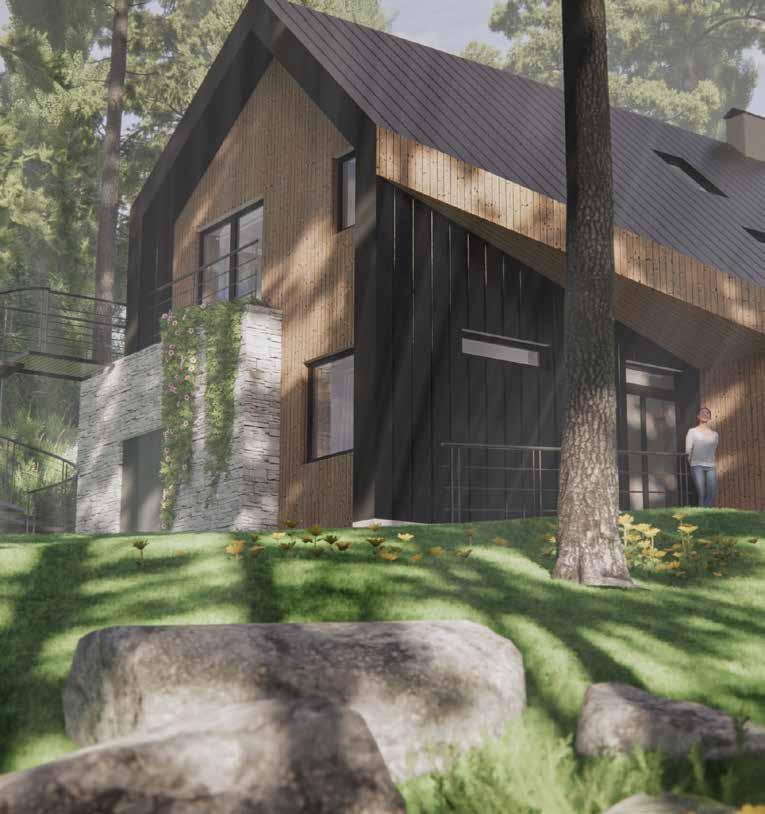

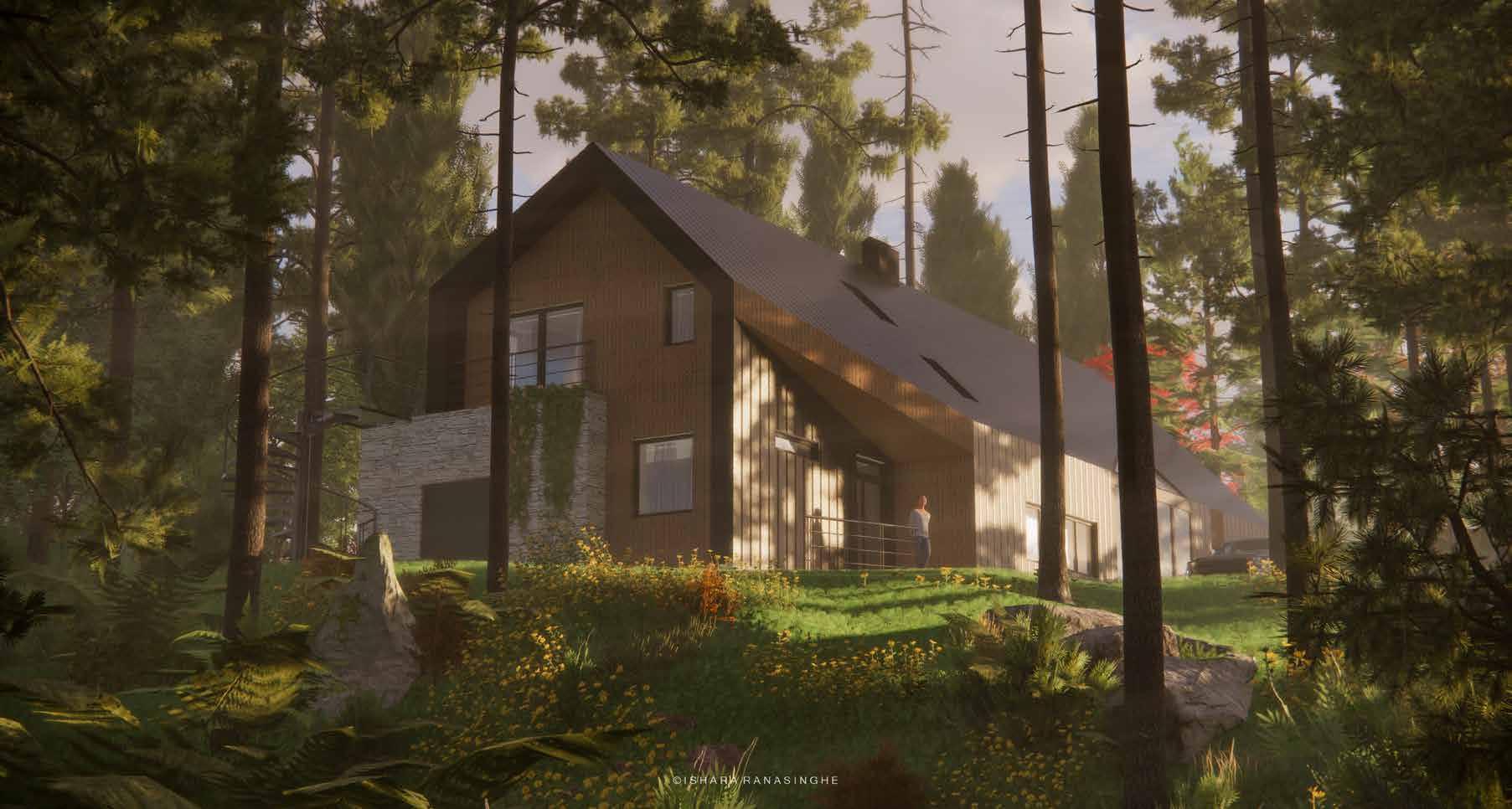

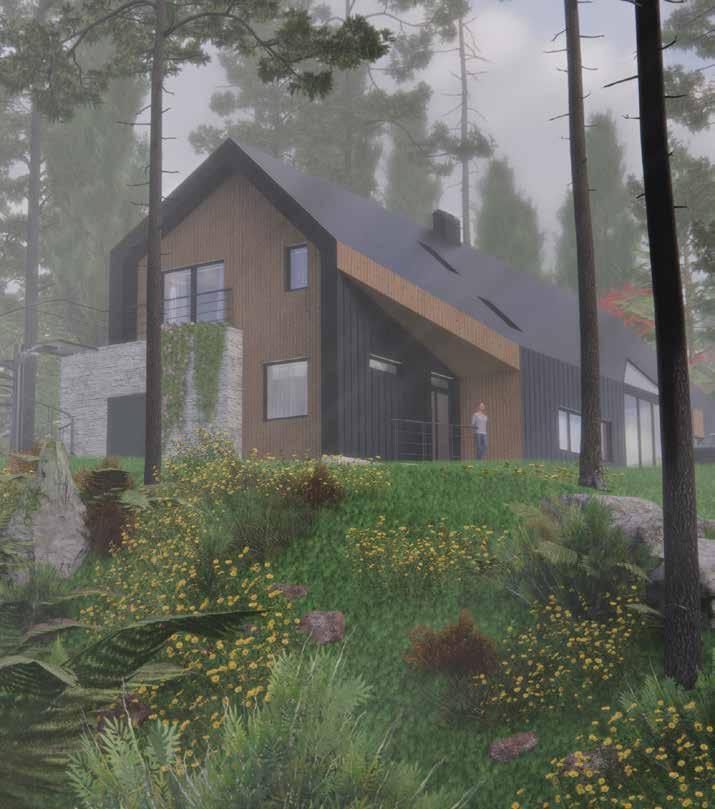

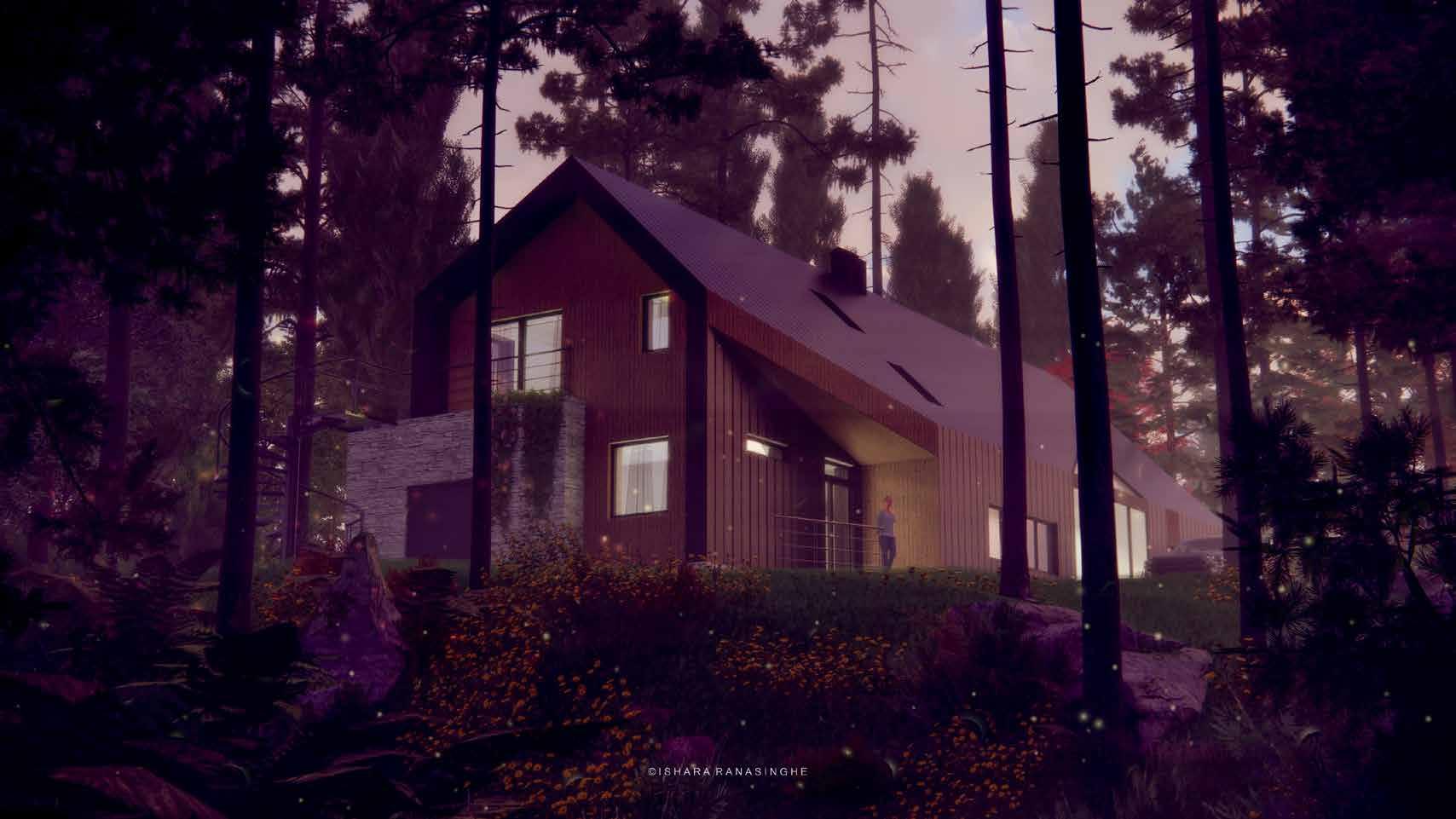

Scandinavian house is a private house situated in a small town on a hilly terrain. Its number of floors was determined by the urban NORDIC HOUSE The code of the local commune which allows a ground floor and the first floor with a gable roof, making it a traditional Slovenian house. The

Germany.

2022

house is visually not big, it fuses together with the surrounding nature and it is open to neighbors, meaning it is not fenced and it does not have a completely private interior. The floors blend into one big space in order to create vague transitions between the floors. The exterior of the house also has smooth transitions between different levels. This is how the interior and the exterior became one space for living.

49



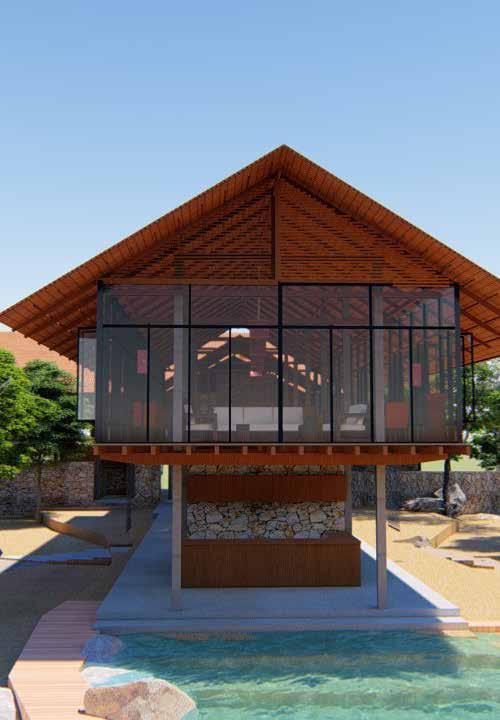

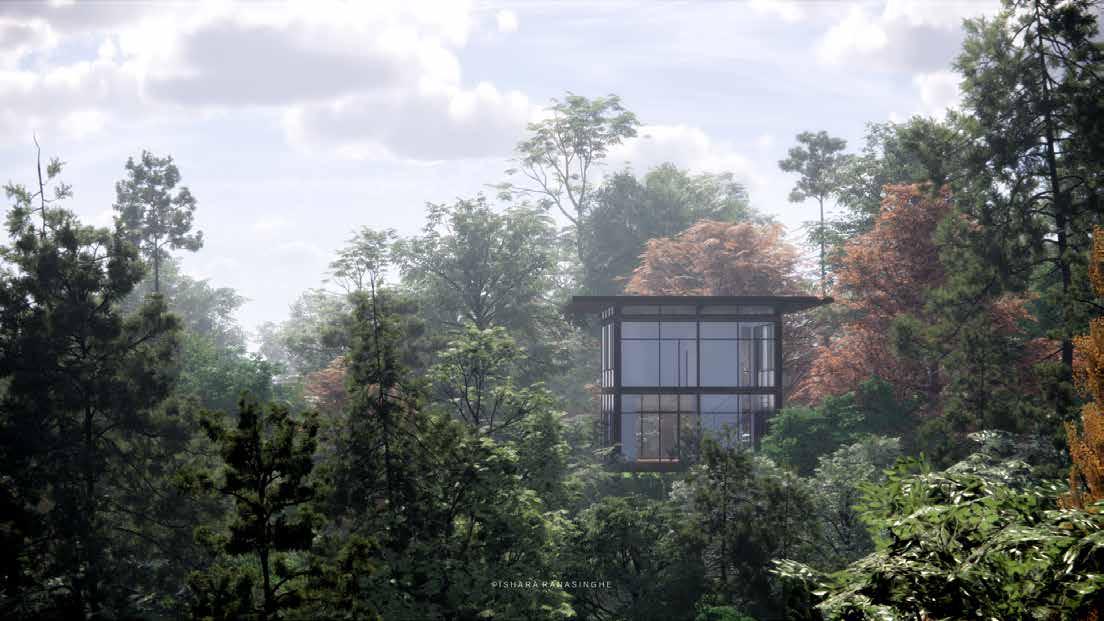

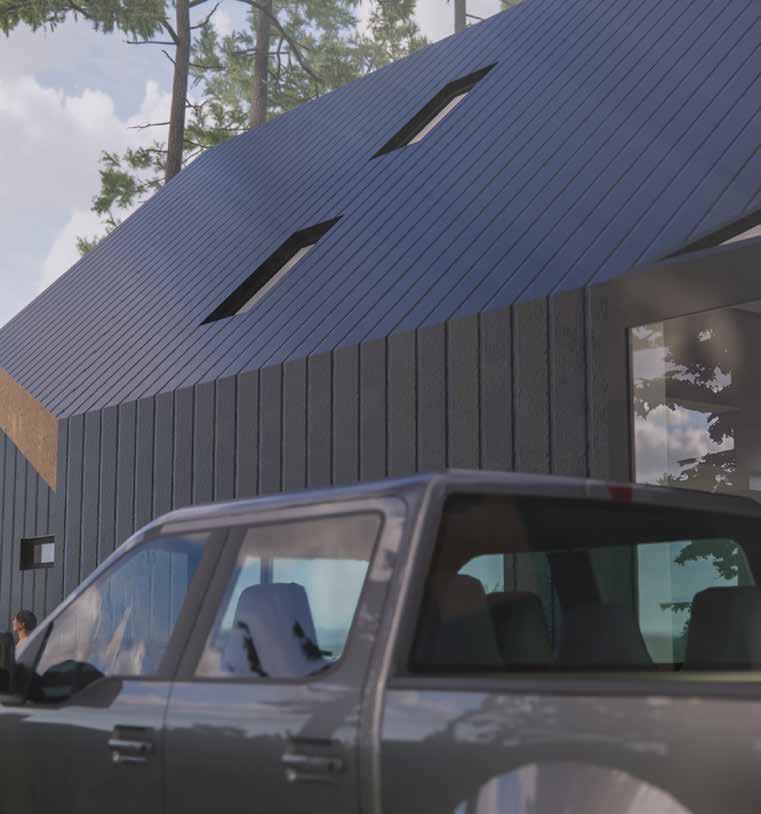

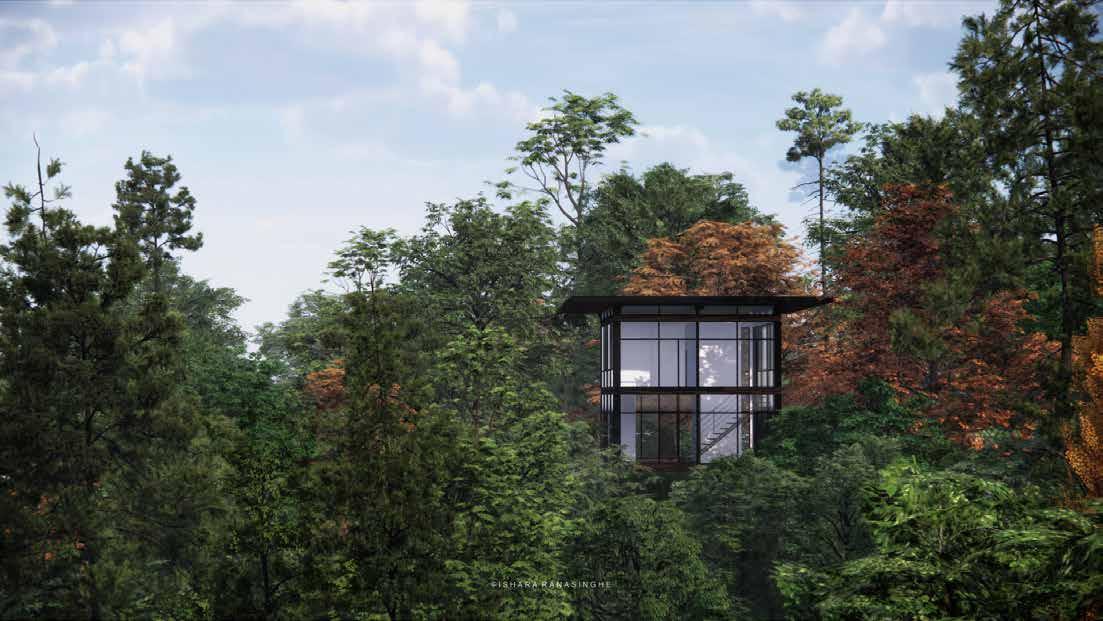

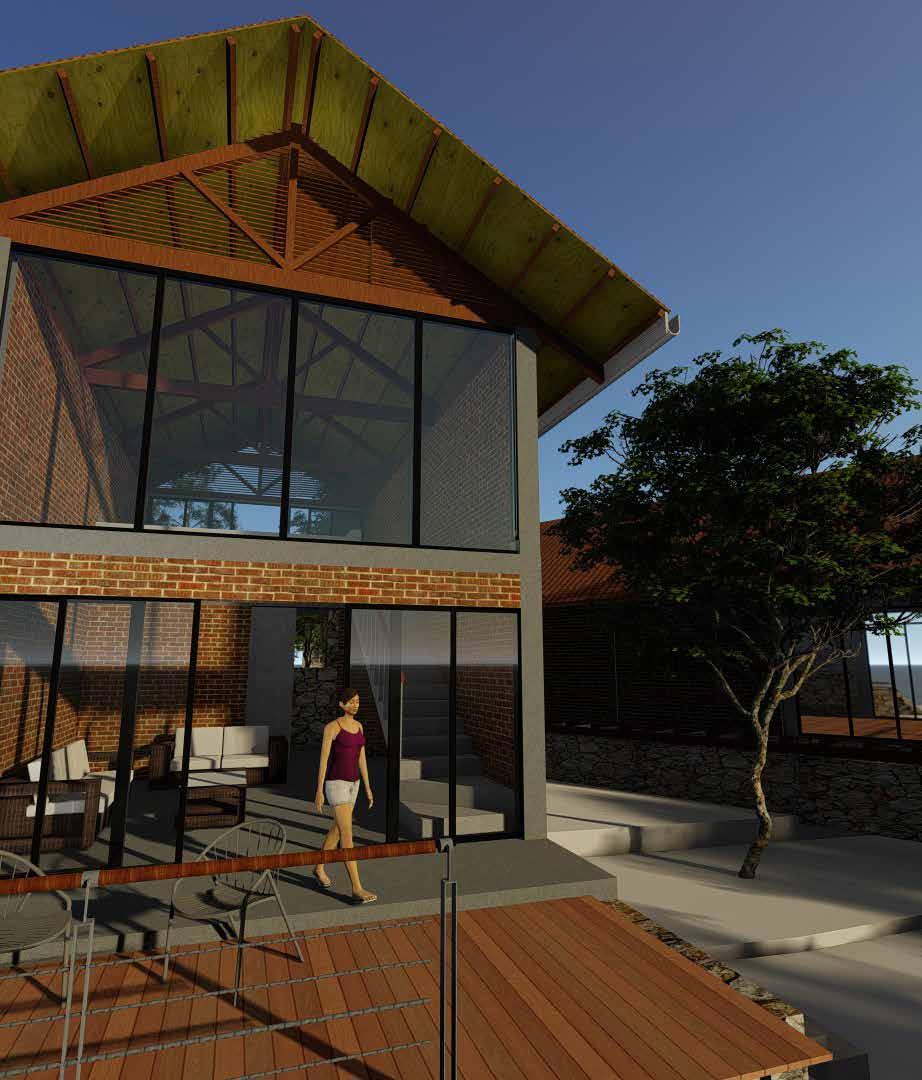

CABIN HOUSE

At Kithulgala, Sri Lanka.

2022

Although the designs vary, a common style features a sloping, single-gabled timbered roof and large windows.

The interior is usually simple, living with a kitchen, upper floor one room, perhaps partitioned,over which a loft is built.

50



Thank you !
