Design Considerations for Cold End Exhaust System in Flex Fuel Vehicles Hiren Sonaiya1, Shashwat Yadu2, Swapnil Shelke3 1Hiren Sonaiya, Project Manager, Tata Technologies,

2Shashwat Yadu, Sr. Technical lead, Tata Technologies, 3Swapnil Shelke, Team lead, Tata Technologies, ---------------------------------------------------------------------***---------------------------------------------------------------------

Abstract - The automotive industry is continually evolving

range of fuel compositions, including higher ethanol concentrations, which can significantly alter exhaust characteristics, including temperature, chemical composition, and corrosive tendencies.

to meet increasingly stringent regulatory standards and consumer demands for improved efficiency and performance.

The cold end exhaust system of a vehicle plays a crucial role in managing emissions, optimizing performance, and enhancing fuel efficiency. For flex fuel vehicles (FFVs), which can operate on a range of ethanol-blended fuels, unique challenges arise in the design of the cold end exhaust system due to the varying chemical properties and combustion characteristics of the different fuel types. This paper explores key design considerations for cold end exhaust systems in FFVs, focusing on factors such as material selection, corrosion resistance, and thermal management systems. The study highlights the importance of adapting the exhaust system to accommodate the increased ethanol content in the fuel, which can lead to higher exhaust temperatures and more aggressive chemical environments. By addressing these considerations, manufacturers can ensure that FFVs maintain optimal performance, durability, and environmental compliance over a wide range of operating conditions.

Designing a cold end exhaust system for FFVs requires careful consideration of several factors to ensure both optimal performance and long-term durability. Ethanolblended fuels tend to produce higher exhaust temperatures compared to conventional gasoline, which can impact the longevity and efficiency of the exhaust system components.

Furthermore, the higher oxygen content in ethanol fuels can result in more aggressive chemical reactions within the exhaust system, necessitating advanced materials and coatings to mitigate corrosion. Additionally, the cold end system must work in tandem with other vehicle components, such as the fuel management and after treatment systems, to effectively meet emission standards while accommodating the varying combustion characteristics of flex fuels.

Paper by S.T. Coelho, José Goldemberg, in Encyclopedia of Energy, 2004 Alternative Transportation Fuels: Contemporary Case Studies suggest Alternative transportation fuels are becoming increasingly important as the world seeks to reduce greenhouse gas emissions, improve air quality, and decrease dependence on fossil fuels.

Various innovative fuel options are currently being explored and deployed in real-world scenarios.

Key Words: Automotive, Exhaust System, flex fuel vehicles (FFVs)

1. INTRODUCTION The automotive industry has undergone a transformative shift in recent years, driven by a confluence of factors such as tightening emission regulations, increasing consumer demand for fuel efficiency, and advancements in materials and manufacturing technologies. As a result, automotive engineers and designers are facing the intricate challenge of developing innovative solutions that not only meet these demanding requirements but also enhance overall vehicle performance and driving experience.

Paper by Gurusamy A, B. Ashok - Critical review on recent progress of ethanol fuelled flex‐fuel engine characteristics suggests - Ethanol-fuelled flex-fuel engines (FFEs) have seen significant development and adoption in recent years, driven by the increasing need for alternative fuels to reduce greenhouse gas emissions, lower dependency on fossil fuels, and promote renewable energy. Flex-fuel engines are designed to run on a mixture of ethanol and gasoline (in varying proportions), offering flexibility in fuel choice depending on availability and cost

Flex fuel vehicles (FFVs) have become increasingly popular due to their ability to operate on a variety of ethanol-blended fuels, offering greater flexibility and reducing dependency on traditional gasoline. However, this adaptability introduces unique challenges in vehicle design, particularly when it comes to the exhaust system. The cold end exhaust system, which includes components such as the exhaust manifold, catalytic converter, and exhaust pipe, plays a pivotal role in managing emissions and maintaining engine performance. In FFVs, the cold end exhaust system must be able to handle a

© 2025, IRJET

|

Impact Factor value: 8.315

This paper aims to address the primary design considerations for cold end exhaust systems in flex fuel vehicles. It explores key challenges such as material selection, heat management, corrosion resistance, and integration with other vehicle systems. By understanding these factors, manufacturers can design more efficient,

|

ISO 9001:2008 Certified Journal

|

Page 508

International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395-0056

Volume: 10 Issue: 03 | Mar 2024

p-ISSN: 2395-0072

www.irjet.net

durable, and environmentally-friendly exhaust systems that are tailored to the specific needs of flex fuel vehicles.

Overall, an exhaust system tailored for flex fuel vehicles ensures that the vehicle operates efficiently and meets emissions standards, regardless of whether it is running on higher ethanol blends or regular gasoline.

M/s Tata Technologies suggests Design Considerations for Cold End Exhaust Systems in Flex Fuel Vehicles.

2. Exhaust System An exhaust system for flex fuel vehicles (FFVs) is designed to handle the unique characteristics of fuels like ethanol (E85), which is commonly blended with gasoline to create a more eco-friendly fuel mix. Flex fuel vehicles are built to run on a wide range of ethanol-gasoline blends, from pure gasoline to up to 85% ethanol, giving them flexibility in fuel choice depending on availability.

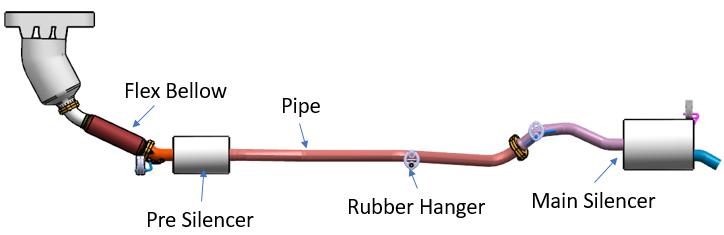

Fig -1: Exhaust System Layout

3. Material Selection

The key considerations for an exhaust system in a flex fuel vehicle include:

Material selection for an exhaust system in flex fuel vehicles (FFVs) is crucial because of the unique challenges posed by ethanol and other biofuels used in flex fuels. These fuels exhibit different combustion properties compared to traditional gasoline, such as higher corrosiveness, higher exhaust temperatures, and the potential for varying fuel blends. The exhaust system must be designed to withstand these challenges while ensuring durability, performance, and compliance with emissions standards.

2.1.Corrosion Resistance: Ethanol has higher corrosive properties compared to gasoline, so exhaust systems must be constructed from materials that resist rust and degradation. Stainless steel or other corrosion-resistant alloys are typically used.

2.2.Temperature Management: Ethanol burns at a

Key Material Selection Considerations:

higher temperature than gasoline, which can result in higher exhaust temperatures. The exhaust system must be designed to handle these elevated temperatures without degrading or causing damage to components like the catalytic converter.

3.1. Corrosion Resistance: Ethanol and other alcohol-based fuels can be more corrosive than gasoline, especially at higher concentrations, which is a key concern for the exhaust system. Materials used must be resistant to ethanol's hygroscopic nature (its ability to absorb moisture) and other corrosive by-products produced during combustion.

2.3.Emissions Control: Flex fuel vehicles are subject to the same emissions regulations as traditional gasoline-powered vehicles. Therefore, the exhaust system must integrate effective emissions control devices, including a catalytic converter, to ensure compliance with environmental standards. Ethanol generally produces fewer pollutants like carbon monoxide (CO) and hydrocarbons (HC), but the system still needs to optimize for emissions across different fuel mixtures.

3.2. Materials: Stainless Steel (304, 441, 316L): These are commonly used for exhaust systems due to their corrosion resistance and ability to withstand high temperatures. Stainless steel alloys, especially 316L, provide excellent resistance to corrosion from ethanol and moisture.

2.4.Compatibility with Different Fuels: The exhaust system must accommodate the varying combustion characteristics of different fuel blends.

This includes differences in exhaust gas volume, temperature, and the presence of combustion byproducts, all of which affect how the exhaust gases are processed.

Aluminized Steel: A less expensive alternative to stainless steel, aluminized steel is coated with a layer of aluminum to offer protection against corrosion, though it may not be as durable in very high-temperature environments or under extended exposure to corrosive fuels.

2.5.Fuel Efficiency: A well-designed exhaust system

Titanium: In some high-performance applications, titanium is chosen for its excellent resistance to corrosion and high temperatures, though it comes at a higher cost.

can help improve overall fuel efficiency by enabling better engine performance, reducing back pressure, and ensuring the efficient flow of exhaust gases.

© 2024, IRJET

|

Impact Factor value: 8.226

|

ISO 9001:2008 Certified Journal

|

Page 509

International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395-0056

Volume: 10 Issue: 03 | Mar 2024

p-ISSN: 2395-0072

www.irjet.net

3.3. Thermal Resistance:

Mild Steel with Coatings: Used in some non-critical areas or for budget-conscious applications.

Flex fuel vehicles may experience higher exhaust temperatures, especially when running on higher ethanol blends like E85. Materials must be able to withstand these elevated temperatures without degrading over time.

Emissions Control Compatibility: Flex fuel vehicles, especially those running on higher ethanol blends, need exhaust materials that are compatible with emissions control technologies, like catalytic converters.

These converters must be able to effectively treat different exhaust compositions to reduce pollutants such as hydrocarbons (HC), carbon monoxide (CO), and nitrogen oxides (NOx).

Materials: Stainless Steel Alloys (e.g., 441, 304): These alloys are particularly chosen for their high-temperature endurance.

441 stainless steel, for instance, is often used in exhaust manifolds due to its resistance to heat.

Compared to Conventional Petrol, flex fuel is hygroscopic due to presence of ethanol. Besides water, flex fuel also have Chloride, Aldehyde and Acid. An increasing percentage of ethanol blending in flex fuel is prone to causing corrosion and water accumulation in exhaust parts.

Strength and Durability: Exhaust systems need to be durable enough to endure the mechanical stresses, vibration, and thermal cycling (heating and cooling) encountered during operation.

Due to the low ethanol content in E20 fuel, it behaves similarly to conventional petrol; therefore, no special material changes are required in the exhaust system for E20.

Materials: Stainless Steel (e.g., 441, 304): These alloys are known for their strength, ductility, and ability to retain their integrity under varying operational conditions.

However, for ethanol blends higher than E20, higher-grade stainless steel materials are required compared to conventional materials.

Mild Steel: While less resistant to corrosion, mild steel is sometimes used in exhaust components where lower cost is a priority, though it would need to be coated to provide some protection against corrosion.

Fuel type

Exhaust Component

Material

Petrol & E20

Pipes & Sheets

SS441

End Plate Sheet & Tail pipe

SS439/SS441

All pipes & Sheets

SS439/SS441

Resistance to Oxidation and Sulfur Contamination: >E20, E100

Higher ethanol blends like E85 may lead to increased sulfur or other contaminant levels in the exhaust gases, which can accelerate oxidation in certain materials. This is important for components like catalytic converters and mufflers, which need to function properly under various fuel conditions.

Table -1:- Exhaust System Material Selection Provision

Materials:

In an exhaust system, especially at the cold end (the portion of the system farthest from the engine), water accumulation can be a common issue due to the condensation of water vapor in the exhaust gases. This water is a byproduct of combustion, particularly when ethanol or alcohol-based fuels (common in flex fuel vehicles) are used. It can accumulate and potentially cause corrosion or freezing during colder weather, leading to system damage or reduced efficiency. Therefore, effective drainage provisions are essential to prevent these issues and ensure the longevity of the exhaust system.

High-Grade Stainless Steel: Stainless steel is chosen for its ability to resist oxidation over long-term use, especially when exposed to sulfur compounds in the exhaust gases.

Inconel: This high-performance alloy is used in extreme applications because of its resistance to oxidation, especially in areas exposed to very high temperatures.

Cost-Effectiveness: While higher-end materials like titanium offer excellent performance, they are costly. For most flex fuel vehicles, a balance between performance and cost is essential.

Provision for Accumulated Water Drainage in the Cold-End Exhaust System:

Materials:

Drainage Holes/Ports:

Stainless Steel (304, 441): Offers a good balance of cost, corrosion resistance, and temperature endurance, making it the most commonly used material in FFV exhaust systems.

© 2024, IRJET

|

Impact Factor value: 8.226

E85,

One of the most common solutions is to include small drainage holes or ports at the lowest points of the cold-end

|

ISO 9001:2008 Certified Journal

|

Page 510

International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395-0056

Volume: 10 Issue: 03 | Mar 2024

p-ISSN: 2395-0072

www.irjet.net

exhaust system. These holes allow water to drain out naturally as it accumulates.

Periodic Maintenance: Some vehicles, particularly those operating in cold climates, may require periodic checks to ensure that drainage holes, vents, and other water management features are clear of debris. This ensures that water can flow out freely and the system doesn't get clogged.

Placement: The holes should be placed at the rear-most sections of the exhaust system, such as in the muffler or tailpipe, where water is most likely to collect due to gravity.

Size and Design: The holes should be small enough to prevent large debris (such as road salt or dirt) from entering but large enough to allow water to escape easily.

Benefits of Proper Water Drainage in Cold-End Exhaust Systems:

Tailpipe Design (Sloped Tailpipe):

Prevents Corrosion: By allowing accumulated water to drain, the system is less likely to rust or corrode over time, especially when using ethanol-rich fuels like E85, which may increase moisture levels.

The design of the tailpipe can be modified so that it slopes downward, encouraging water to flow out by gravity. This helps in preventing water from accumulating in low-lying sections of the exhaust system.

Improves Exhaust Performance: Proper drainage ensures that water doesn't pool and hinder the smooth flow of exhaust gases, potentially leading to back pressure or blockages.

Modified Exit Geometry: The tailpipe could also have a slight upward angle towards the vehicle’s rear bumper to direct moisture away from critical exhaust components and prevent the re-entry of rain or snow into the system.

Extends Exhaust System Lifespan: Minimizing the effects of water accumulation helps preserve the structural integrity of the exhaust system, reducing the risk of rust, holes, or other damage.

Condensate Traps: Some exhaust systems include condensate traps or reservoirs designed to collect and then drain away any accumulated water. These traps are typically located in sections like the muffler or resonator, where water accumulation is most likely.

Reduces Freezing Risks: In colder climates, efficient drainage reduces the risk of water freezing in the exhaust system, which could block the flow of exhaust gases or cause damage.

Drain Valve: A small valve can be installed in these condensate traps to manually or automatically release the water as needed.

Ethanol burns more cleanly than conventional gasoline, but it still produces water vapor as a byproduct. This vapor can condense in the exhaust system, especially under cooler conditions.

Ventilation and Moisture Release Valves: Incorporating small ventilation valves in the exhaust system, especially at the cold end, can allow for the release of moisture in a controlled manner.

Below are some provisions for water drainage from muffler: Drainage Holes & Sloped Design: Incorporate strategically placed drainage holes at the lowest points of the muffler to allow accumulated water to escape.

Automatic Release: Some systems are designed to automatically release moisture after the vehicle has been running for a short time and the exhaust has heated up, evaporating most of the condensation.

Design the muffler with a slight slope towards the drainage points to facilitate the natural flow of water.

Preventing Freeze-ups: In regions where freezing temperatures are common, these valves can prevent water from freezing in the exhaust system, reducing the risk of damage.

Capillary Tube: The capillary tube takes advantage of capillary action, which helps draw water out of the muffler even if the water level is low. This is particularly useful in maintaining a dry exhaust system.

Corrosion-Resistant Materials in Water Collection Areas: To mitigate the potential damage caused by long-term water accumulation, parts of the cold-end exhaust system, such as the muffler and tailpipe, should be made from corrosionresistant materials like stainless steel or aluminized steel.

Drainage Paths with Protective Coatings: Areas where water tends to accumulate should have additional protective coatings to reduce the risk of corrosion.

© 2024, IRJET

|

Impact Factor value: 8.226

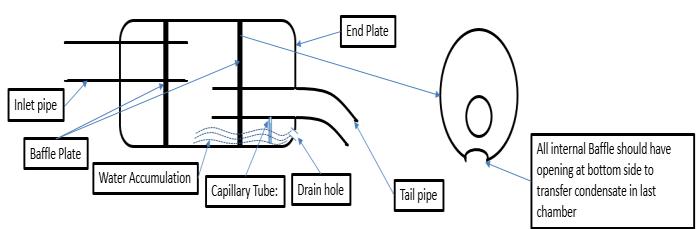

Fig -2: Exhaust System Capillary Tube Scheme

|

ISO 9001:2008 Certified Journal

|

Page 511

International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395-0056

Volume: 10 Issue: 03 | Mar 2024

p-ISSN: 2395-0072

www.irjet.net

4. CONCLUSIONS Provisions for accumulated water drainage in the cold-end exhaust system are essential for maintaining the system's efficiency, preventing corrosion, and extending its lifespan.

Methods such as drainage holes, sloped tailpipes, condensate traps, and moisture release valves help manage the water produced by combustion gases, particularly in flex fuel vehicles using ethanol-based fuels. Proper drainage is critical not only for functionality but also for ensuring the vehicle complies with emissions standards and operates safely in various environmental conditions.

The materials selected for a flex fuel vehicle exhaust system must balance corrosion resistance, strength, temperature endurance, and cost. Stainless steel is the preferred material due to its well-rounded properties, while high-performance alloys such as titanium may be used in more demanding applications. Additionally, ceramic coatings and the careful integration of emissions control technologies help optimize the performance and longevity of the exhaust system.

REFERENCES [1]

S.T. Coelho, José Goldemberg, in Encyclopedia of Energy, 2004 Alternative Transportation Fuels: Contemporary Case Studies.

[2]

Gurusamy A, B. Ashok - Critical review on recent progress of ethanol fueled flex‐fuel engine characteristics - International Journal of Energy Research , January 2022 46(110) - DOI:10.1002/er.7610
