Comparative Study of Different Controllers for Solar Water Pumping Systems Snehal Kailas Borde1, Priyanka Manohar Ingle2, Sayli Chandrakant Lande3, Yogesh Kakasaheb Shejwal4 Chaitanya Kadadas 5, Jayaraj U. Kidav6 1, 2,3,4,5,6 National Institute of Electronics & Information Technology, Aurangabad

---------------------------------------------------------------------***---------------------------------------------------------------------

Abstract -Water supply in remote and agricultural areas

remote areas where conventional water supply infrastructure is scarce. To minimize energy costs, a photovoltaic (PV) system must consistently operate at its Maximum PowerPoint (MPP). However, achieving this goal is challenging due to the non-linearity of the power-voltage (PV) curve, which is influenced by intrinsic system factors and environmental conditions. Fossil fuel reserves are finite, with estimates suggesting that coal could be depleted within 100 years, and petroleum in 50 years, leading to both resource depletion and environmental degradation due to their extensive use. In contrast, renewable energy sources provide significant advantages over conventional sources, including a positive environmental impact, zero fuel costs, and sustainability. Maximum Power Point Tracking (MPPT)is a crucial technique for optimizing the efficiency of solar PV systems, systems, with MPPT algorithm that ensure that ensure maximum power extraction from solar panels under varying conditions. As a result, PV energy is becoming an increasingly promising alternative for meeting growing energy demands in a sustainable and cost-effective manner.

A critical component of solar water pumping systems is the controller, which regulates the power and operation of the pump by managing the flow of electricity from the solar panels. The controller ensures that the pump operates efficiently, adapting to changing levels of solar irradiance through out the day [1]. The choice of controller has a significant impact on the performance, cost, and reliability of the system. Common types of controllers include DC- DC converters, PWM (Pulse Width Modulation) controllers, MPPT (Maximum Power Point Tracking) controllers, Variable Frequency Drives (VFDs), On/Off switch controllers, and Hybrid controllers. This election of an appropriate controller is paramount for optimizing energy output and ensuring reliable water supply, especially in regions with highly variable solar radiation. As the solar water pumping market grows, under- standing the strengths and weaknesses of different controllers is vital for both manufacturers and end-users seeking cost effective, long lasting, and high-performance systems. This paper aims to provide a comprehensive comparative study of the various controllers available for solar water pumping systems.

depends on solar water pumping systems (SWPS), and controllers are critical to optimizing energy conversion and ensuring steady pump performance. Although they are less expensive, traditional controllers like pulse-width modulation and on/off are less effective. Fuzzy logic, MPPT, artificial neural networks, and hybrid controllers are examples of advanced control technologies that provide enhanced energy economy and adaptability, making them more useful for maximizing system performance in a variety of environmental circumstances. These controllers' performance and dependability can be enhanced by new technologies like AI and the Internet of Things.

Key Words: MPPT, Solar Water Pump, Fuzzy Logic, SWPS, ANN etc

1. INTRODUCTION The increasing demand for clean energy solutions has led to the widespread adoption of solar water pumping systems (SWPS) in agriculture and other water supply applications.

These systems are attractive for their ability to operate without fuel dependency, providing a cost-effective alternative in regions with abundant solar resources.

Controllers play a pivotal role in ensuring that solar energy is efficiently converted and utilized. By regulating the power flow from photovoltaic panels to the water pump, controllers enhance system efficiency, safeguard components, and adapt to varying solar irradiation levels. This study delves into the evolution of controllers for SWPS, categorizing them into traditional and advanced types and analyzing their merits, demerits, and suitability for different scenarios. Water scarcity is one of the most pressing global challenges, affecting millions of people worldwide. According to the United Nations (UN),by 2025, nearly 1.8 billion people will be living in areas with absolute water scarcity, while twothirds of the global population could be facing water stress [1]. This is compounded by the fact that global water use has increased by over twice the rate of population growth over the past century. Agriculture, which accounts for around 70 percentage of global freshwater use, is particularly vulnerable to water shortages, threatening food security in many regions. In light of these challenges, sustainable and renewable solutions, such as solar-powered water pumping systems, have emerged as viable alternatives to traditional grid-powered or diesel-driven pumps, especially in rural and

© 2025, IRJET

|

Impact Factor value: 8.315

|

ISO 9001:2008 Certified Journal

|

Page 1530

International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395-0056

Volume: 12 Issue: 04 | Apr 2025

p-ISSN: 2395-0072

www.irjet.net

2. CONTROLLER FOR SOLAR WATER PUMPS

2.1.3

2.1 Traditional Controllers 2.1.1

The PID (Proportional-Integral-Derivative) controller augments the precision and stability of a system through the dynamic modulation of the P, I, and D components, thereby minimizing the deviation between the desired and actual outputs. The P term rectifies instantaneous discrepancies, the I term addresses long-term steady-state errors, and the D term prognosticates potential future errors, collectively yielding enhanced accuracy, expedited response, and superior stability over time . Furthermore, the PID controller demonstrates a remarkable capacity for adaptation to evolving system conditions, continuously recalibrating these terms to ensure sustained performance and mitigate tracking errors, even amidst fluctuating operational environments [5].

Perturb and Observe

The Perturb and Observe method for Maximum Power Point Tracking (MPPT) demonstrates high effectiveness in photovoltaic (PV) systems due to its simplicity and computational efficiency. In terms of ease of implementation, Perturb and Observe requires minimal complexity as it avoids sophisticated modeling and intensive calculations. The method operates on an iterative process, where perturbations are applied to either the operating voltage or current, and the resulting changes in power are analyzed to adjust the system accordingly. Statistically, this approach provides flexibility by adapting across a variety of PV module types and system configurations, as it does not require extensive recalibration. The method maximizes energy extraction efficiency by continuously adjusting the operating point to ensure optimal power output [1]. The core operations involved are basic arithmetic functions, primarily multiplication for power calculation and subtraction for evaluating the differences in voltage and power, making the process computationally efficient. The low computational demand is a key advantage of the Perturb and Observe method, allowing it to be executed in real-time on microcontrollers with limited processing power.

2.1.2

2.1.4 PWM(Pulse Width Modulation)Controllers Pulse Width Modulation (PWM) controllers are recognized for their superior efficiency in power management, primarily due to their capability to minimize energy loss. In contrast to linear regulators, which dissipate excess energy in the form of heat, PWM controllers employ rapid switching between on and off states, there by significantly reducing power dissipation [1]. The ability to adjust the duty cycle enables PWM controllers to provide highly precise control over critical parameters such as voltage, current, and motor speed. The system exhibits a moderate performance in regulating voltage and current, maintaining a balance between preventing overloading and ensuring adequate power delivery to components. It optimizes energy efficiency by operating with in defined energy usage parameters, there by minimizing waste and enhancing overall system performance without introducing unnecessary complexity.

While it demonstrates superior energy efficiency compared to basic on/off controllers, its adaptability to rapidly fluctuating solar conditions is constrained. Under stable conditions, the system operates effectively, yet its response to sudden changes in solar intensity, such as during cloud cover or abrupt sunlight exposure, is comparatively slower, resulting in temporary in efficiencies during such transitional environmental changes.

Constant voltage(CV)

The MPPT (Maximum Power Point Tracking) system is designed to optimize the operational efficiency of a photovoltaic (PV) system by maintaining its performance in proximity to the Maximum Power Point (MPP) through precise voltage regulation and comparison with a fixed reference voltage (RV). However, the Constant Voltage (CV) methodology employed in this context is most effective under conditions of uniform irradiation, yet it fails to adequately account for fluctuations in temperature and insolation. This results in a marginal discrepancy between the estimated and actual MPP, causing the system’s operating point to diverge from the true MPP. Consequently, adjustments that factor in geographical variations are essential to refine the reference voltage and minimize the associated errors in voltage estimation. Furthermore, the maintenance of a constant voltage is paramount for optimizing battery longevity, as it mitigates risks such as overcharging and deep discharge [1]. This practice enhances energy storage efficiency, prolongs battery lifespan, and curtails maintenance expenses. The system also guarantees efficient battery utilization by stabilizing the output voltage, thus averting both over- draining and under-charging, which in turn safeguards battery health, improves overall system efficiency and promotes the extended durability of the power storage infrastructure.

© 2025, IRJET

|

Impact Factor value: 8.315

Proportional integral derivative(PID)

2.2 Advanced Controllers 2.2.1 Fuzzy logic controller Conventional tracking techniques employed in photovoltaic (PV) systems often encounter significant limitations, particularly in hardware implementation, when operating under Partial Shading Conditions (PSC). This necessitates the development of more advanced controller designs to achieve optimal tracking performance. While traditional controller designs benefit from mathematical modeling under uniform irradiation conditions, their complexity escalates significantly under PSC, highlighting the need for alternative,

|

ISO 9001:2008 Certified Journal

|

Page 1531

International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395-0056

Volume: 12 Issue: 04 | Apr 2025

p-ISSN: 2395-0072

www.irjet.net

efficiency, particularly under varying weather conditions, as the system is capable of responding to changes in sunlight intensity, temperature, and other environmental factors such as cloud cover or rain [3]. This adaptive behaviour maximizes the conversion of incoming solar energy into usable output, resulting in improved performance and increased energy generation. Consequently, such systems have gained widespread adoption in modern Solar Water Pumping Systems (SWPS), becoming a highly favoured solution due to their cost-effectiveness, environmental sustainability, and reliability, making the man ideal

more efficient approaches [2]. A promising solution is the application of Fuzzy Logic controllers, which do not rely on precise mathematical models of the PV system. Fuzzy algorithms are particularly effective in addressing system nonlinearities and uncertainties, making them well-suited for managing complex, dynamic systems where conventional linear methods are insufficient. These controllers offer smoother and more adaptable control, ensuring stable system performance even in the face of fluctuating environmental conditions, load variations, or

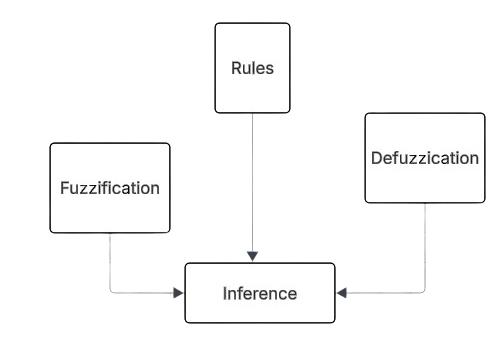

Fig -1: Block Diagram of Fuzzy Logic Controller [2] operational changes. The increased complexity inherent in fuzzy logic systems renders them particularly suitable for high-end applications, where they provide enhanced precision, greater control, and the ability to handle more intricate tasks with higher efficiency. The process of FLC can be classified into three stages, fuzzification, rule evaluation and defuzzification The fuzzification step involves taking a crisp input, such as the change in the voltage reading, and combining it with stored membership function to produce fuzzy inputs. To transform the crisp inputs into fuzzy inputs, membership function must be first assigned for each input. Once the membership functions are assigned, fuzzification take a real time inputs and compares it with the stored membership function information to produce fuzzy input values. The second step of fuzzy logic processing is the rule evaluation in which the fuzzy processor uses linguistic rules to determine what control action should occur in response to a give set of input values. the result of rule evaluation is a fuzzy output for each type of consequent action. The last step in fuzzy logic processing in which the expected value of an output variable is derived by isolating a crisp value in the universe of discourse of the output fuzzy sets. In this process, all of the fuzzy output values effectively modify their respective output membership function. One of the most commonly used defuzzification techniques is called Center of Gravity (COG) or centroid method.

2.2.2

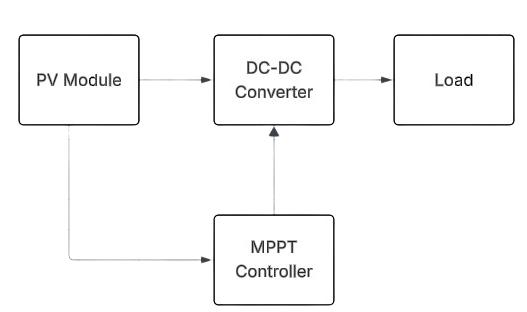

Fig -2: Block Diagram of MPPT Controller [3] Choice for both developed and developing regions in meeting water supply and irrigation needs The basic block diagram for general description of PV system it consists of Photo Voltaic module, DC-DC Converter, load and the MPPT controller. Multiple Photo Voltaic cells interconnected together forms the PV module. Energy generation by PV array is primarily dependent on environmental factors (solar in solutions and the temperature) and the impedance matching. To have proper impedance matching, a DC/DC converter is used whose duty cycle is modulated by the MPPT controller for achieving this goal. Due to generation of electrical energy at lower voltage level, boost converter is generally used. The current and voltage of PV array is fed to the MPPT algorithm. The output of converter is directly supplied to the load if it is a dc load.

2.2.3 Incremental conductance A solar power system equipped with high-accuracy Maximum Power Point (MPP) tracking significantly enhances energy production by continuously ensuring that the solar panels operate at their optimal voltage and current levels [1]. This capability allows the system to extract the maximum possible power from the available sunlight, there by optimizing overall system efficiency. Furthermore, such systems demonstrate robust performance in the face of rapid fluctuations in solar irradiance, which may arise from environmental factors such as cloud cover, weather patterns, or time-of- day variations. The ability to maintain stable and efficient energy output under these dynamic conditions is

MPPT (Maximum Power Point Tracking) Controllers

The system is engineered to continuously track the Maximum Power Point (MPP) of solar panels, dynamically adjusting the voltage and current to ensure that the panels consistently operate at their peak power output, regardless of fluctuations in sunlight. This capability enhances system

© 2025, IRJET

|

Impact Factor value: 8.315

|

ISO 9001:2008 Certified Journal

|

Page 1532

International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395-0056

Volume: 12 Issue: 04 | Apr 2025

p-ISSN: 2395-0072

www.irjet.net

vital for sustaining high performance. Additionally, advanced solar systems designed to effectively manage partial shading conditions—commonly encountered due to obstructions or varying sunlight angles—minimize the adverse impacts of shading, thereby reducing energy losses. These systems ensure continuous optimization of energy production, even in the presence of real-world challenges, thus proving to be highly adaptable and efficient across a range of environmental contexts.

practical applications, where system models may be incomplete or inaccurate, thereby bolstering the reliability and adaptability of the PV system in real-world operating environments.

2.2.6 Hybrid Controllers Integrating multiple strategies, such as combining Maximum Power Point Tracking (MPPT) with fuzzy logic, provides a superior control mechanism for solar power systems. MPPT ensures that the system operates at its optimal power point under varying environmental conditions, while fuzzy logic enhances the system’s adaptability and flexibility. This energy enables the system to effectively manage uncertainties, nonlinearities, and dynamic fluctuations, thereby improving the over- all responsiveness and performance [4]. This integrated approach achieves an optimal balance between efficiency and reliability, though it introduces increased complexity and associated costs. The system’s capability to adjust in real-time to fluctuations in solar irradiance and temperature ensures sustained peak performance, whether maximizing energy production or minimizing consumption.

2.2.4 Adaptive reference voltage(ARV) The system efficiently optimizes power consumption through dynamic adjustments that align with the real-time energy requirements of the system, thereby ensuring energy- efficient operation. By closely matching power usage to the actual demands of the system, it minimizes unnecessary energy consumption, which results in significant reductions in overall energy costs and enhanced energy management Moreover, the system enhances power conversion efficiency by continuously fine-tuning the reference voltage in response to changing real-time conditions. This adaptive approach ensures that the system operates at peak efficiency, effectively minimizing energy loss during conversion while maximizing output.

Consequently, the system not only improves its overall performance but also contributes to higher energy efficiency, demonstrating a significant advancement in energy optimization [1].

3. PERFORMANCE METRICS FOR CONTROLLER EVALUATION. 3.1 Efficiency The ratio of utilized energy to the total solar energy available. the efficiency with which a solar energy system converts available sunlight into usable energy. It is expressed as a ratio or percentage, where the numerator represents the amount of solar energy that is successfully captured, converted, and utilized by the system (such as a solar water pumping system or photovoltaic panels), while the denominator represents the total amount of solar energy incident on the system, including both the energy that is successfully used and the energy that is lost or wasted A higher ratio indicates a more efficient system, as it means a greater proportion of the available solar energy is being effectively utilized.

2.2.5 Sliding mode controller(SMC) The sliding-mode controller (SMC) represents a sophisticated, non-linear tracking approach that facilitates rapid and precise Maximum Power Point (MPP) tracking in grid- connected photovoltaic (PV) systems through a unified control structure [1]. The controller operates by regulating the DC–DC converter based on real-time capacitor current measurements, employing a three-mode frame work encompassing Travers stability, reachability, and equivalent control. One of the principal benefits of this methodology is its versatility, as it operates effectively independent of the specific characteristics or con- figuration size of the PV array, ensuring both robust performance and swift MPP tracking .Additionally, the SMC is adept at minimizing converter ripple, particularly in grid-integrated applications; further enhancing system stability and efficiency. A distinctive feature of the sliding-mode controller is its resilience in the face of model inaccuracies and unforeseen fluctuations in system dynamics. By continuously adjusting its control input in real-time, the SMC maintains consistent performance, safeguarding against performance degradation even when subjected to uncertainties or dynamic disturbances.

Moreover, the SMC’s minimal sensitivity to model errors is a significant advantage, as it operates efficiently without requiring an exact mathematical model of the system. This inherent flexibility makes the SMC especially suitable for

© 2025, IRJET

|

Impact Factor value: 8.315

3.2 Reliability Perturb and Observe and Incremental Conductance controllers are generally reliable, though they may struggle with fast changes in irradiance or partial shading. MPPT controllers are known for their high reliability in ensuring optimal energy extraction, particularly under fluctuating environmental conditions. PWM (Pulse Width Modulation) controllers provide reliable operation with minimal energy loss, maintaining stable performance. PID controllers offer good reliability in steady- state conditions but may experience limitations in handling dynamic changes, while Fuzzy Logic Controllers are highly reliable in dealing with uncertainties and system nonlinearities. Constant Voltage (CV) controllers, while simple and cost- effective, are less

|

ISO 9001:2008 Certified Journal

|

Page 1533

International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395-0056

Volume: 12 Issue: 04 | Apr 2025

p-ISSN: 2395-0072

www.irjet.net

reliable in dynamic environments due to their limited adaptability to varying conditions. Adaptive Reference Voltage (ARV) controllers are reliable, adapting well to changing irradiance and temperature. Hybrid Controllers, which integrate multiple strategies, are known for their high reliability, ensuring stable performance in a variety of conditions. Sliding Mode Controllers (SMC) are highly reliable, capable of maintaining performance even in the presence of system disturbances and environmental fluctuations.

design, though their adaptability in fluctuating conditions is limited, affecting performance in dynamic environments.

MPPT controllers, though marginally more complex, remain widely implemented, benefiting from modern hardware that facilitates their relatively straight forward integration for optimized energy extraction. Fuzzy Logic Controllers demand higher computational power and advanced system modeling expertise, increasing their implementation difficulty but offering high adaptability to uncertainties and nonlinearities.

Adaptive Reference Voltage (ARV) controllers are easier to implement in systems with variable irradiance, requiring only simple modifications to the reference voltage. Hybrid Controllers, combining diverse strategies, introduce added complexity due to integration demands but provide superior flexibility and adaptability to varying conditions. Sliding Mode Controllers (SMC) are the most complex to implement, due to their nonlinear control approach, real-time adjustments, and need for advanced computational resources and system modeling, positioning them as the highest in implementation difficulty among the listed controllers.

3.3 Cost-effectiveness Perturb and Observe and Incremental Conductance controllers are relatively cost-effective, with lower initial costs compared to more complex controllers, but may require more maintenance in dynamic conditions, making them less cost- efficient in the long run. MPPT controllers, though generally more expensive, offer optimal energy extraction, providing long-term cost savings through higher energy output. PWM (Pulse Width Modulation) controllers are costeffective, offering good efficiency with minimal power loss, and are widely used due to their affordability and performance balance. PID controllers are moderately priced and offer good cost- efficiency in steady conditions, but their performance may degrade in dynamic environments, increasing maintenance costs. . Fuzzy Logic Controllers offer a higher upfront cost but provide significant cost savings in the long term by improving system efficiency, particularly in systems with high uncertainties. Constant Voltage (CV) controllers are among the least expensive but are less costeffective in dynamic conditions due to lower energy output.

Adaptive Reference Voltage (ARV) controllers offer a good balance of cost and performance, typically being costeffective in systems with varying irradiance. Hybrid Controllers combine strategies and, while more expensive, offer high cost-effectiveness by ensuring stable performance across a variety of conditions, making them ideal for demanding applications. Sliding Mode Controllers (SMC), although costly in terms of initial investment, are highly costeffective in the long term due to their ability to handle disturbances and rapidly track the maximum power point, ensuring optimal energy production.

3.4 Scalability PWM (Pulse Width Modulation) controllers are highly scalable, efficiently handling a wide range of system sizes, from small to large installations, with minimal changes to design. Fuzzy Logic Controllers are also scalable, offering flexibility and adaptability for large, complex systems, though they require more computational resources as the system size increases. MPPT controllers, being specifically designed to optimize energy extraction, are scalable and perform well across different system sizes. Incremental Conductance controllers are similarly scalable, performing effectively in systems of varying sizes but requiring accurate sensor measurements for optimal performance. Adaptive Reference Voltage (ARV) controllers can be scaled across various system configurations, making them suitable for systems with changing irradiance. Hybrid Controllers, which combine different strategies, offer excellent scalability, as they can be tailored to different system sizes and conditions for enhanced performance. Sliding Mode Controllers (SMC) are scalable but may require increased computational power and fine-tuning for larger systems. Perturb and Observe and Constant Voltage (CV) controllers are relatively less scalable, with Perturb and Observe scaling well in medium-sized systems and CV controllers being more limited due to their simplicity. PID controllers, while scalable, tend to be less efficient for larger systems with dynamic conditions.

3.4 Ease of Implementation Perturb and Observe and Incremental Conductance controllers exhibit low implementation complexity, requiring basic sensor integration and minimal computational demands, making them highly suitable for simpler systems.

PWM (Pulse Width Modulation) controllers also demonstrate moderate implementation ease, offering good energy efficiency with minimal design intricacies. PID controllers present a moderate level of implementation complexity, necessitating careful tuning of proportional, integral, and derivative gains, though they are manageable in steady-state systems. Constant Voltage (CV) controllers are among the least complex to implement due to their straightforward

© 2025, IRJET

|

Impact Factor value: 8.315

4. CHALLENGES AND FUTURE DIRECTIONS 4.1 Integration of AI and IOT Integration of AI and IOT The incorporation of Artificial Intelligence (AI) and the Internet of Things (IOT) into Maximum Power Point Tracking (MPPT) systems presents substantial opportunities for enhancing performance and operational efficiency. Machine learning algorithms, a subset

|

ISO 9001:2008 Certified Journal

|

Page 1534

International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395-0056

Volume: 12 Issue: 04 | Apr 2025

p-ISSN: 2395-0072

www.irjet.net

4.3

of AI, can be utilized to anticipate and adapt to fluctuations in environmental variables, such as changes in solar irradiance and temperature, there by optimizing the power extraction process. Additionally, IOT technologies facilitate real-time monitoring and remote control of solar water pumping systems, which can yield valuable insights for predictive maintenance, fault detection, and overall system optimization. The synergy between AI and IOT has the potential to create intelligent, self-regulating systems capable of maximizing energy output while minimizing operational down time and maintenance costs. However, challenges persist, particularly in the integration of these technologies, the management of vast amounts of data, and ensuring seamless communication between decentralized devices in real-world applications.

4.2

Field Validation

Field Validation Field validation plays a pivotal role in confirming the real-world performance of MPPT systems.

While laboratory tests and simulation models provide valuable insights, the unpredictable nature of real-world environments characterized by fluctuating solar irradiance, temperature variations, and environmental disturbances poses additional challenges. Field validation ensures that MPPT controllers maintain consistent and reliable operation across diverse environmental conditions. However, this validation process is often labor-intensive and costly, requiring comprehensive testing in varied geographical locations and climates. To address this, future advancements should aim to improve the accuracy of simulation models, reducing the need for extensive field validation, and to develop more robust MPPT controllers capable of delivering reliable performance across wider array of real-world scenarios.

Cost Optimization

Cost Optimization a critical challenge in the development and deployment of MPPT systems is cost optimization. While advanced MPPT controllers, particularly those incorporating AI and IOT, offer superior performance metrics, they often come at a higher price point compared to traditional approaches. The increased cost of high-performance components, advanced algorithms, and the infrastructure required for AI and IOT integration can escalate the total investment in the system. To make MPPT systems more accessible, especially for small-scale farmers or regions with limited resources, future research must focus on reducing costs without com- promising performance. This can be achieved through the enhancement of algorithmic efficiency, the utilization of cost- effective hardware, and the optimization of overall system designs, ensuring the economic feasibility of MPPT systems for a broader range of applications.

4.4 Environmental Variability Environmental variability introduces stochastic fluctuations in solar irradiance and temperature, leading to non-linear variations in photovoltaic output and pump performance.

Adaptive control strategies such as real-time MPPT algorithms, PID tuning, and fuzzy logic systems are essential for dynamic system optimization. Emerging trends leverage predictive modeling via AI/ML to forecast environmental parameters and optimize system response. IOT integration enables real-time data acquisition and cloud based analytics for enhanced decision-making. Future research should focus on developing robust, low-latency, and computationally efficient control systems to ensure operational stability under diverse environmental condition

Table -1: Efficiency Controller Type

Efficiency Range

Voltage Regulation

Power Output

Noise Mitigation

Tracking MPP

Perturb and Observe(P&O)

90%-98%

Moderate

Moderate

Moderate

Moderate to Fast

Incremental Conductance(IC)

90%-98%

Moderate

Moderate

Moderate

Fast

MPPT Controllers

90%-98%

High

High

Moderate

Fast

Pulse Width Modulation(PWM)

95%-98%

High

High

High

Moderate

Proportional-Integral-Derivative(PID)

90%-98%

High

Moderate

Low

Moderate

Fuzzy Logic Controllers(FL)

90%-98%

High

Moderate

High

Fast

Constant Voltage(CV)

80%-90%

Low

Low

Low

Slow

Adaptive Reference Voltage (ARV)

90%-95%

High

Moderate

Moderate

Moderate to Fast

Hybrid Controllers

95%-98%

High

High

High

Fast

Sliding Mode Controllers(SMC)

95%-99%

High

High

Very High

Very Fast

© 2025, IRJET

|

Impact Factor value: 8.315

|

ISO 9001:2008 Certified Journal

|

Page 1535

International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395-0056

Volume: 12 Issue: 04 | Apr 2025

p-ISSN: 2395-0072

www.irjet.net Table -3: literature review

Controller Type

Key Findings

Advantages

Limitations

Perturb and Observe (P&O) [1]

Demonstrates moderate accuracy, but oscillates around steady state.

Cost-effective, easily implementable.

Oscillations lead to reduced efficiency under dynamic conditions.

Incremental Conductance (IC) [1]

Provides higher accuracy, effectively eliminates steadystate oscillations.

More precise tracking under rapid irradiance variations.

Higher computational demand, complexity increases.

MPPT (Maximum Power Point Tracking) [3]

Optimizes power extraction under varying environmental conditions.

Maximizes energy output with adaptive tracking.

Increased computational complexity for real-time processing.

Pulse Width Modulation (PWM) [1]

Offers stable regulation but might lead to suboptimal performance in fluctuating conditions.

High efficiency, smooth voltage control.

High-frequency switching causes power losses in low power systems.

Quick implementation and simple to use.

Limited performance in dynamic, nonlinear systems.

Highly adaptable to nonlinear, uncertain systems.

Effective under uncertainty, high adaptability.

Requires extensive tuning and manual adjustments of fuzzy rules.

Less efficient in non-steady conditions compared to MPPT.

Simple and low-cost implementation.

Inefficient under changing irradiance, low adaptability.

Adapts voltage according to environmental changes.

Highly adaptable to environmental variations.

Requires precise environmental data for effective operation.

Hybrid Controllers [4]

Combines MPPT with other techniques, providing optimal performance.

Higher efficiency reduces oscillations, broad applicability.

High computational burden due to integration of multiple techniques.

Sliding Mode Controllers (SMC) [1]

Offers high robustness, but prone to chattering under certain conditions.

Highly robust, effective in uncertain environments.

Chattering effect, requires complex control strategies.

PID (Proportional-IntegralDerivative) [5]

[1]

Fuzzy Logic (FL) [2]

Constant Voltage (CV) [1] Adaptive Reference Voltage (ARV) [1]

Fast response, but poor tracking in highly variable environments.

5. CONCLUSIONS Controllers are fundamental to the operation of solar water pumping systems (SWPS), influencing key factors such as operational efficiency, reliability, and economic feasibility.

While traditional controllers are cost-effective, they typically exhibit limitations in terms of adaptability to dynamic environmental conditions. On the other hand, advanced controllers, such as Maximum Power Point Tracking (MPPT), fuzzy logic, and hybrid models, offer superior performance, but at the cost of increased complexity. Among these, hybrid controllers demonstrate considerable potential for highperformance SWPS, particularly in more demanding scenarios where enhanced adaptability and efficiency are required. Future developments in MPPT systems must focus on integrating Artificial Intelligence (AI)-driven methodologies and the Internet of Things (IOT) to create smarter, more resilient controllers capable of efficiently

© 2025, IRJET

|

Impact Factor value: 8.315

managing real-time variations in environmental conditions.

Furthermore, addressing the challenges of cost reduction and promoting eco-friendly designs will be essential to facilitate the widespread adoption of SWPS globally. This research paper presents a comprehensive classification of existing MPPT techniques, based on factors such as the number of control variables involved, control strategies employed, circuitry, and cost implications. Such a classification provides valuable guidance for selecting an appropriate MPPT technique for specific applications. The study explores several MPPT algorithms, including Perturb and Observe, Incremental Conductance(IC), and Fuzzy Logic (FL). The results demonstrate that all the studied MPPT controllers are capable of effectively extracting the maximum power from solar systems, even under fluctuating environmental conditions. However, the selection of an

|

ISO 9001:2008 Certified Journal

|

Page 1536

International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395-0056

Volume: 12 Issue: 04 | Apr 2025

p-ISSN: 2395-0072

www.irjet.net

optimal controller for a solar water pumping system should be made based on a thorough assessment of specific requirements, including factor such has the type of pump, the characteristics of the water source, budget constraints, and the desired system features.

controllers for advance microwave biodiesel reactor,” pp.

346–351, Mar. 2011, doi: https://doi.org/10.1109/isci.2011.5958939.

[10] M. Yaghoubi, M. Eslami, M. Noroozi, H. Mohammadi, O.

Kamari, and S. Palani, “Modified salp swarm optimization for Parameter estimation of solar PV models,” IEEE Access, pp. 1–1, 2022, doi: https://doi.org/10.1109/access.2022.3213746.

REFERENCES [1]

[2]

R. B. Bollipo, S. Mikkili, and P. K. Bonthagorla, “Critical Review on PV MPPT Techniques: Classical, Intelligent and Optimisation,” IET Renewable Power Generation, vol. 14, no. 9, pp. 1433–1452, Jun. 2020, doi: https://doi.org/10.1049/iet-rpg.2019.1163.

[11] C. Dieu, W. Shuting, and Z. Bolin, “Comparative Study of

MPPT and PWM Charge Controllers: Designing an Efficient Solution for Small-Scale Solar Installations with Budget Constraints,” Saudi Journal of Engineering and Technology, vol. 9, no. 08, pp. 367–376, Aug. 2024, doi: https://doi.org/10.36348/sjet.2024.v09i08.001.

A fuzzy logic control method for MPPT of PV systems,” www.researchgate.net. https://www.researchgate.net/publication/235761777 _A_fuzzy_logic_control_method_for_MPPT_of_PV_system s

[12] E.

Koutroulis, K. Kalaitzakis, and N. C. Voulgaris, “Development of a microcontroller-based, photovoltaic maximum power point tracking control system,” IEEE Transactions on Power Electronics, vol. 16, no. 1, pp. 46– 54, Jan. 2001, doi: https://doi.org/10.1109/63.903988.

[3]

J. Dadkhah and M. Niroomand, “Optimization Methods of MPPT Parameters for PV Systems: Review, Classification, and Comparison,” Journal of Modern Power Systems and Clean Energy, vol. 9, no. 2, pp. 225– 236, 2021, doi: https://doi.org/10.35833/mpce.2019.000379.

[4]

“Hybrid, optimization, intelligent and classical PV MPPT techniques: Review,” CSEE Journal of Power and Energy Systems, 2020, doi: https://doi.org/10.17775/cseejpes.2019.02720.

[5]

W. A. Wali, J. D. Cullen, K. H. Hassan, A. Mason, and A. I. Al-Shamma’a, “Comparison between PID and Fuzzy logic controllers for advance microwave biodiesel reactor,” pp.

346–351, Mar. 2011, doi: https://doi.org/10.1109/isci.2011.5958939.

[6]

A. Badis, M. N. Mansouri, and M. H. Boujmil, “A genetic algorithm optimized MPPT controller for a PV system with DC-DC boost converter,” 2017 International Conference on Engineering & MIS (ICEMIS), May 2017, doi: https://doi.org/10.1109/icemis.2017.8273010.

[7]

B. Patra, P. Nema, M. Z. Khan, and O. Khan, “Optimization of solar energy using MPPT techniques and industry 4.0 modelling,” Sustainable Operations and Computers, vol.

4, pp.

22–28, 2023, doi: https://doi.org/10.1016/j.susoc.2022.10.001.

[8]

W. Xiao and W. G. Dunford, “A modified adaptive hill climbing MPPT method for photovoltaic power systems,” IEEE Xplore, Jun. 01, 2004. https://ieeexplore.ieee.org/abstract/document/135541 7 (accessed Apr. 12, 2023).

[9]

W. A. Wali, J. D. Cullen, K. H. Hassan, A. Mason, and A. I. Al-Shamma’a, “Comparison between PID and Fuzzy logic
