TECHNICAL BULLETIN

AMMONIA REFRIGERATION This technical bulletin is aimed at persons conducting a business or undertaking (PCBU’s) who design, install, commission, own, operate or maintain ammonia refrigeration plant.

PURPOSE It is designed to help PCBUs understand their responsibilities under the Health and Safety at Work Act 2015 (‘HSWA’), the Health and Safety at Work (Hazardous Substances) Regulations 2017 (‘the Regulations’) and the Health and Safety in Employment (Pressure Equipment, Cranes, and Passenger Ropeways) Regulations 1999 (‘PECPR’). It also provides advice on what PCBUs using ammonia can do to fulfil their duties.

BACKGROUND The uncontrolled release of ammonia from refrigeration plant is a critical work health and safety risk. It has the potential to cause death, a severe permanent disability or life shortening illnesses. Critical risks must be managed effectively to minimise the risk of harm to workers, emergency services and the public.

In the last year, approximately 20 ammonia releases were notified to Work Safe New Zealand. Some workers were taken to hospital, some treated at the scene, and others were at risk but unharmed.

At a recent incident, a pressure safety valve opened (and failed to close) causing three workers to be seriously harmed. The workers required decontamination and medical treatment.

These incidents highlight the importance of risk assessments and implementing appropriate control measures including training, and having a written preventive maintenance plan and a compliant emergency response plan.

WHAT IS ANHYDROUS AMMONIA? Anhydrous ammonia is a toxic and corrosive substance that is supplied in cylinders as a liquefied gas. The gas is pungent, and very irritating to the eyes, nose, and respiratory system. It is flammable in high concentrations.

On release to the atmosphere, one litre of liquid expands to 850 litres of gas, which therefore makes the release of the anhydrous ammonia liquid a much greater risk than a release of the gas. Low level exposure through inhalation can cause coughing and breathing difficulties, where high level exposure through inhalation can cause lung damage, leading to death. Contact of liquid with the body must be prevented.

Symptoms to looks for when exposure to ammonia is a risk: – difficulty breathing – irritation of the eyes, nose or throat, and – burns or blisters.

7

WHAT ARE THE CAUSES OF AMMONIA RELEASE? The two main causes of ammonia releases are:

EQUIPMENT FAILURE

HUMAN FACTORS

– Corroded pipework

– Failing to establish and follow a written preventive

– Leaks from rotating shafts (and valve glands) – Failure of high level and pressure cut out switches, and safety valves.

maintenance programme – Missing procedures: Failing to establish or follow safety processes or procedures – Not identifying hazards correctly – Missing critical control measures (such as those identified in recognised New Zealand Standards) – Ineffectively managing change and safety critical control measures – Not having an effective emergency response plan – The PCBU and refrigeration contractor not consulting with each other to manage their overlapping duties.

PRIMARY DUTY OF CARE Under the Health and Safety at Work Act PCBUs with ammonia-based refrigeration systems at their workplaces have a duty to ensure, so far as is reasonably practicable, that the health and safety of their workers, and others (e.g. members of the public) is not put at risk from the release of ammonia. Risks must be eliminated so far as is reasonably practicable. If a risk from an uncontrolled release of ammonia can’t be eliminated, it must be minimised so far as is reasonably practicable. Some of the steps workplaces can take to manage the risks from ammonia release are: – regular maintenance of plant, with emphasis on safety-critical devices – ensure all warning and ventilation systems are fully operational – review of control measures to ensure they are in line with industry standards – provide workers with personal protective equipment (PPE) such as respiratory, eye and skin protection to minimise exposure.

– high-risk tasks (such as adding or removing ammonia or compressor oil) should have a written operating procedure.

Good communication between the service provider PCBU (that services or maintains the plant) and the owner/operator PCBU (with management or control of the workplace and/or plant) can help manage the risk of an uncontrolled ammonia release.

Should any escape, leakage or spillage of ammonia occur, PCBUs are required to notify WorkSafe as such leaks are notifiable events.

irhace.org.nz

MAY 2022

HAZARDOUS SUBSTANCE CONTROLS There are a number of controls that workplaces must follow under the Health and Safety at Work (Hazardous Substances) Regulations. PCBUs must: – Establish and maintain an inventory, which includes a safety data sheet (SDS), or a condensed version of the SDS, for each substance.

– Ensure the ammonia is secured from access by unauthorised persons.

– For 100 kg or more of ammonia contained within the plant, the PCBU with management or control of the workplace must have an emergency response plan (ERP). The plan must: -- address all reasonably foreseeable emergencies that could happen if controls fail or are breached -- state any special training needed to deal with an emergency involving ammonia -- include the inventory and a site plan showing where the ammonia is located in the workplace.

– In addition, the PCBU has duties to ensure the plan, and the equipment, facilities, and people described in it, are available, including to emergency service providers. The PCBU must also ensure that the emergency response plan is tested every 12 months to demonstrate whether it is workable and effective, and is implemented in the event of an emergency.

PECPR CONTROLS The Health and Safety in Employment (Pressure Equipment, Cranes and Passenger Ropeways) Regulations also contain controls that apply.

These regulations establish controls on pressure equipment, including inspection and certification by third party equipment inspectors. Requirements include the need to ensure equipment is safe, is operated safely, is operated within design limits, and is maintained in safe condition. All such equipment requires a current certificate of inspection.

EFFECT OF OTHER LEGISLATION We accept that most facilities that utilise ammonia in refrigeration systems are beneath the thresholds for designation under the Health and Safety at Work (Major Hazard Facilities (MHF) Regulations. However, the information, process requirements and processes used by MHF’s contain good guidance that could be utilised in many installations that have such systems.

RESOURCES

Industry Standards AS/NZS 5149.1-2016 Refrigerating systems and heat pumps – Safety and environmental requirements – Definitions, classification and selection criteria https://shop.standards.govt.nz/catalog/5149.1%3A2016%28AS%7CNZS%29/view AS/NZS 5149.2-2016 Refrigerating systems and heat pumps – Safety and environmental requirements – Design, construction, testing, marking and documentation https://shop.standards.govt.nz/catalog/5149.2%3A2016%28AS%7CNZS%29/view AS/NZS 5149.3-2016 Refrigerating systems and heat pumps – Safety and environmental requirements – Installation site https://shop.standards.govt.nz/catalog/5149.3%3A2016%28AS%7CNZS%29/view AS/NZS 5149.4-2016 Refrigerating systems and heatpumps – Safety and environmental requirements – Operation, maintenance, repair and recovery https://shop.standards.govt.nz/catalog/5149.4%3A2016%28AS%7CNZS%29/view AS 3788:2006 – Pressure Equipment – In-service Inspection https://infostore.saiglobal.com/en-au/standards/as-nzs-3788-2006-r2017--374650 Our website worksafe.govt.nz has further guidance on overlapping duties, risk management and major hazard facilities.

The Hazardous Substances Toolbox has information on how to comply with the key controls under the Regulations. The hazardous substances calculator can also help you work out which key controls you need in your workplace for the amount of ammonia you hold.

Approved Code of Practice for Pressure Equipment (excluding boilers) 2001 worksafe.govt.nz Victorian Code of Practice – Ammonia Refrigeration AIRAH 2010 www.airah.org.au Ammonia in Refrigeration Systems WorkSafe BC 2018 www.worksafebc.com Safe Operation of Cold Storage Facilities WorkSafe Victoria 2017 www.worksafe.vic.gov.au

9

MEMBER BENEFITS CCCANZ Members have greater access to resources and information, readily available through their individual access to the CCCANZ Standards NZ Online Library.

The standards referred to in the article on Ammonia Refrigeration from WorkSafe New Zealand are available to CCCA members as well as several other standards.

The CCCANZ Board regularly reviews the standards in the library, which takes away your administration so this is the most up-to-date information for our industry.

CCCA membership starts from as little as $500.00 annually for a company with a turnover of under $600k. Why pay $500 to purchase three standards when you could have access to many?

SIGN UP irhace.org.nz

MAY 2022

and start enjoying the member benefits today!

Chillers & Heat Pumps Boilers & Flues Calorifiers Fan Coil Units

Clima Solutions Ltd. | www.clima.co.nz | 0274 593 363 | rob@clima.co.nz

We are proud to be a trade association member of Site Safe and as a member of ours you qualify for a 10% discount off your annual Site Safe standard membership fee.

Be recognised by the industry as showing commitment to health and safety and sign up with a standard corporate membership. Benefits include:

Discounts on a wide range of services including training courses, site reviews, consultancy, H&S management tools and more.

Use of membership logos, yearly certificates and stickers for promotional use.

Receive greater discounts on the cost of Site Safe training services with each passing year of loyalty.

Receive quarterly newsletters and exclusive resources.

Access to our exclusive resources including our library of posters, toolbox safety talks, guidelines and research.

Networking and knowledge sharing opportunities at member events hosted around the country.

Inclusion in our online Site Safe Member Directory.

Exclusive access for you and your staff to a huge range of discounts from well-known suppliers.

11

DANFOSS TO BUILD ENERGY-EFFICIENT “SMART” SUPERMARKET DENMARK: Danfoss has begun construction of a fully functioning 1,500m2 supermarket to incorporate the latest and most energy-efficient refrigeration and heating technologies.

The Smart Store supermarket will be situated right next to Danfoss’ headquarters in Nordborg and is designed to be an example of how supermarket chains around the world can build climate-friendly and sustainable stores with the technologies that already exist today.

Danfoss has previously promoted the “smart store” concept of next generation food retail solutions at exhibitions like Euroshop, now the Danish manufacturer is bringing that vision to reality.

Scheduled for completion in the summer of 2023, the store will employ CO2 refrigeration, with the system’s waste heat being recovered and reused to provide heating for the supermarket and the local community through district energy.

Brugsen for Als and Sundeved, Denmark’s largest independent supermarket association, will rent the building from Danfoss and will install a COOP 365 discount supermarket.

Additionally, the site will serve as an Application Development Centre where Danfoss will work together with partners to co-develop new technologies and explore interfaces in the energy system surrounding energy storage.

irhace.org.nz

MAY 2022

Lars G Andersen, MD of Brugsen for Als and Sundeved (left) breaks ground with Danfoss’ Kristian Strand

“The origins of this project go back a long time, but the new energy-efficient Smart Store supermarket that we are starting to build today has only grown in relevance. The goal of the project is to show how easy and profitable it is to decarbonize our economy and ensure reliable and sustainable energy use,” explained Kristian Strand, president, refrigeration & A/C controls, Danfoss Climate Solutions. “The solutions we are building here today represent the core of Danfoss solutions and will showcase how we can approach zero energy use in food retail together.”

“The supermarket will be the focal point for a new part of our campus, where all buildings will be energy-efficient and meet special sustainability requirements. Our aim is to boost the green transition with concrete evidence of how far we can go with energy efficiency,” added Danfoss Climate Solutions president Jürgen Fischer. “We want to demonstrate to customers and partners how energy saving solutions work in real life.”

The service part of the building will be handled by Ohmia Retail, a Norwegian partner responsible for the operation and monitoring of all installations. The supermarket will be able to supply surplus heat to the local Nordals Fjernvarmeværk district heating plant.

The 1,500m2 COOP 365 store will occupy a 14,000m2 site that will include an OK gas station and a car wash. Danfoss will own all installations in the store, allowing continuous monitoring and optimisation of systems. It will enable Danfoss to continuously test applications, new products and include a showroom and training facility for visitors and customers.

“Our new Smart Store shows what is possible with today’s technology, such as our Alsense software. The integration of hardware and software tools into this store underscores the growing importance digitalisation has for the green transition,” said Tuuli Sarvilinna, Danfoss’ senior vice president electronic controllers and services.

Brugsen for Als and Sundeved works together with COOP, and already has a total of 13 stores in the area around Sønderborg in Denmark. Since 2015 it has consistently reduced the consumption of energy, achieving a 44% reduction in total CO2 emissions.

“Our 13 supermarkets have been modernised and we have nearly no cost for heating in the stores because the heat comes from our freon-free refrigeration systems, solar cells, and heat pumps,” said the group’s MD Lars G Andersen.

13

THE IIR PUBLISHES TWO NEW IIR INFORMATORY NOTES ON

ENERGY RECOVERY! The thermal loads of buildings, apart from internal gains, can be classified into two main categories: losses or gains through the envelope and ventilation loads.

Ventilation loads are becoming more important as air purity standards and thus fresh air supply rates are increasing. Heat recovery from the exhaust air can strongly reduce these loads by pre-heating or pre-cooling the fresh inlet air. Heat recovery in a ventilation system allows significant energy savings, particularly when outdoor conditions differ greatly from the indoor ones. Moreover, when a recovery system is provided, the installed capacity for heating and cooling can be strongly reduced.

The IIR Informatory Note on Energy Recovery in Mechanical Ventilation Systems analyses the possible energy, environmental and economic benefits of this technology according the climate in which the building is located.

It concludes that heat recovery in mechanical ventilation systems may reduce the usage of fossil fuel with payback periods of one or two years.

The IIR Informatory Note on Air-to-Air Energy Recovery Equipment describes the performance, characteristics and operating modes of the great variety of appliances available for use in building ventilation heat recovery or in process-to-process industrial heat recovery. The energy benefits of heat recovery can allow energy cost reductions that can easily exceed 70%.

Summaries for policymakers outline the main conclusions and recommendations of these new Informatory Notes and are free to access.

irhace.org.nz

MAY 2022

ASHRAE POSITION DOCUMENT ON

INFECTIOUS AEROSOLS

The pathogens that cause infectious diseases are spread from a primary host to secondary hosts via several different routes. Some diseases are known to spread by infectious aerosols; for other diseases, the route of transmission is uncertain. The risk of pathogen spread, and therefore the number of people exposed, can be affected both positively and negatively by the airflow patterns in a space and by heating, ventilating, and air-conditioning (HVAC) and local exhaust ventilation (LEV) systems. ASHRAE is the global leader and foremost source of technical and educational information on the design, installation, operation, and maintenance of these systems. Although the principles discussed in this position document apply primarily to buildings, they may also be applicable to other occupancies, such as planes, trains, and automobiles.

ASHRAE will continue to support research that advances the knowledge base of indoor airmanagement strategies aimed to reduce occupant exposure to infectious aerosols. Chief among these ventilation-related strategies are dilution, airflow patterns, pressurization, temperature and humidity distribution and control, filtration, and other strategies such as ultraviolet germicidal irradiation (UVGI). While the exact level of ventilation effectiveness varies with local conditions and the pathogens involved, ASHRAE believes that these techniques, when properly applied, can reduce the risk of transmission of infectious diseases through aerosols.

To better specify the levels of certainty behind ASHRAE’s policy positions stated herein, we have chosen to adopt the Agency for Healthcare Research and Quality (AHRQ) rubric for expressing the scientific certainty behind our recommendations (Burns et al. 2011). These levels of certainty, as adapted for this position document, are as follows:

Evidence Level

Description

A

Strongly recommend; good evidence

B

Recommend; at least fair evidence

C

No recommendation for or against; balance of benefits and harms too close to justify a recommendation

D

Recommend against; fair evidence is ineffective or the harm outweighs the benefit

E

Evidence is insufficient to recommend for or against routinely; evidence is lacking or of poor quality; benefits and harms cannot be determined

ASHRAE’s position is that facilities of all types should follow, as a minimum, the latest published standards and guidelines and good engineering practice. ANSI/ASHRAE Standards 62.1 and 62.2 (ASHRAE 2019a, 2019b) include requirements for outdoor air ventilation in most residential and nonresidential spaces, and ANSI/ASHRAE/ASHE Standard 170 (ASHRAE 2017a) covers both outdoor and total air ventilation in healthcare facilities. Based on risk assessments or owner project requirements, designers of new and existing facilities could go beyond the minimum requirements of these standards, using techniques covered in various ASHRAE publications, including the ASHRAE Handbook volumes, Research Project final reports, papers and articles, and design guides, to be even better prepared to control the dissemination of infectious aerosols.

15

RETAIL SOLUTIONS (SUPERMARKETS & C-STORES) CAREL Electronic Expansion Valves Precision and Energy Savings

CAREL Electronic Expansion Valves (EEVs) are designed to meet any cooling capacity requirements up to 2000 kW in air conditioning and refrigeration applications, and stand out above all for their excellent flow control, even at lower flow-rates.

ENERGY SAVINGS

Energy savings are achieved due to the improved efficiency of the refrigeration cycle

CAREL EEVs have been RELIABLE lifetime tested in the OVER TIME most critical operating conditions

Talk to the Eurotec Team about how CAREL Electronic Expansion Valves can maximise the efficiency of your plant and reduce operating costs.

www.eurotec.co.nz

09 579 1990

irhace.org.nz

sales@eurotec.co.nz

MAY 2022

The Refrigeration Business Unit provides engineered commercial refrigeration solutions for supermarket and cold store refrigeration systems. These solutions incorporate standard and custom application of our controls, systems and supervisory products.

The range of CAREL retail solutions includes a variety of supervisors, controllers, electronic expansion valves, energy meters, gas leak sensors, personnel alarms and condensing units.

The Challenge for Food Retailers: • • • • • •

Time consuming temperature compliance process for staff.

No warning system to prevent stock losses.

Troublesome paperwork and process to collate information.

Reliance on a few key staff to mitigate risk.

Maximized Efficiency reducing carbon footprint.

Customized system is usually cost prohibitive.

The Solution: Carel Boss Supervisory System Intuitive Carel Boss Supervisory system with fully customisable floor plans that are end user focused.

• Flexibility: the system can connect direct to commonly used Carel Refrigeration controls and 3rd party devices.

• Fully automated and scheduled reports.

• Management of all critical alarms.

• Multi-level access for a wide range and ability of users in the business.

• Safe and secure access and browsing and data protection.

• Solution can cater for small, medium and large applications and size doesn’t dictate performance.

The following images illustrate a recent project for a food retailer in a remote (island) location. They ticked the sustainability box with a natural refrigerant CO2 system for their cooling system, paired with a full Carel supervisory and control system.

With alarm and temperature reporting secure, scheduled and automated it is now much easier for the owner and staff to live with on a daily basis, giving more time to spend on customer related activities and experience in-store.

READ MORE

Everything at a glance. In your hand.

TESTO DIGITAL MANIFOLDS AND REFRIGERATION MANIFOLDS The next generation of digital manifolds!

The new generation of digital manifolds from Testo are faster, more reliable and more flexible than ever before. Testo have also introduced the first fully digital manifold onto the market, the Testo 550i, which allows you to display and evaluate all results in real time in the Testo Smart App via your smartphone.

When it comes to the installation and servicing of refrigeration systems, the next generation of digital manifolds from Testo are faster, more reliable and more flexible than ever before.

Fast measurement & easy operation via large graphic display and Testo Smart App on your smartphone.

What was already good, we’ve made even better: > larger display with clearer arrangement > increased durability and convenience of handling > wireless networking with Bluetooth® 5.0 Thanks to Bluetooth® 5.0, the new digital manifolds are also suitable for wireless measurement. You save valuable time and avoid stress in the installation, maintenance and servicing of refrigeration systems and heat pumps. All important measurement programs are already stored in the system, as well as the right refrigerants for different plants. With the Testo Smart App, documentation is fast and uncomplicated on site. And thanks to wireless data transfer, you even have both hands free.

Compact, reliable & robust thanks to extremely rugged design and easy-to-handle housing with IP54.

Wireless measurement & simple documentation with Bluetooth® 5.0 and Testo Smart App. Contact Eurotec today for more information www.eurotec.co.nz

09 579 1990

sales@eurotec.co.nz

17

MIT RECEIVES FAN SIMULATORS

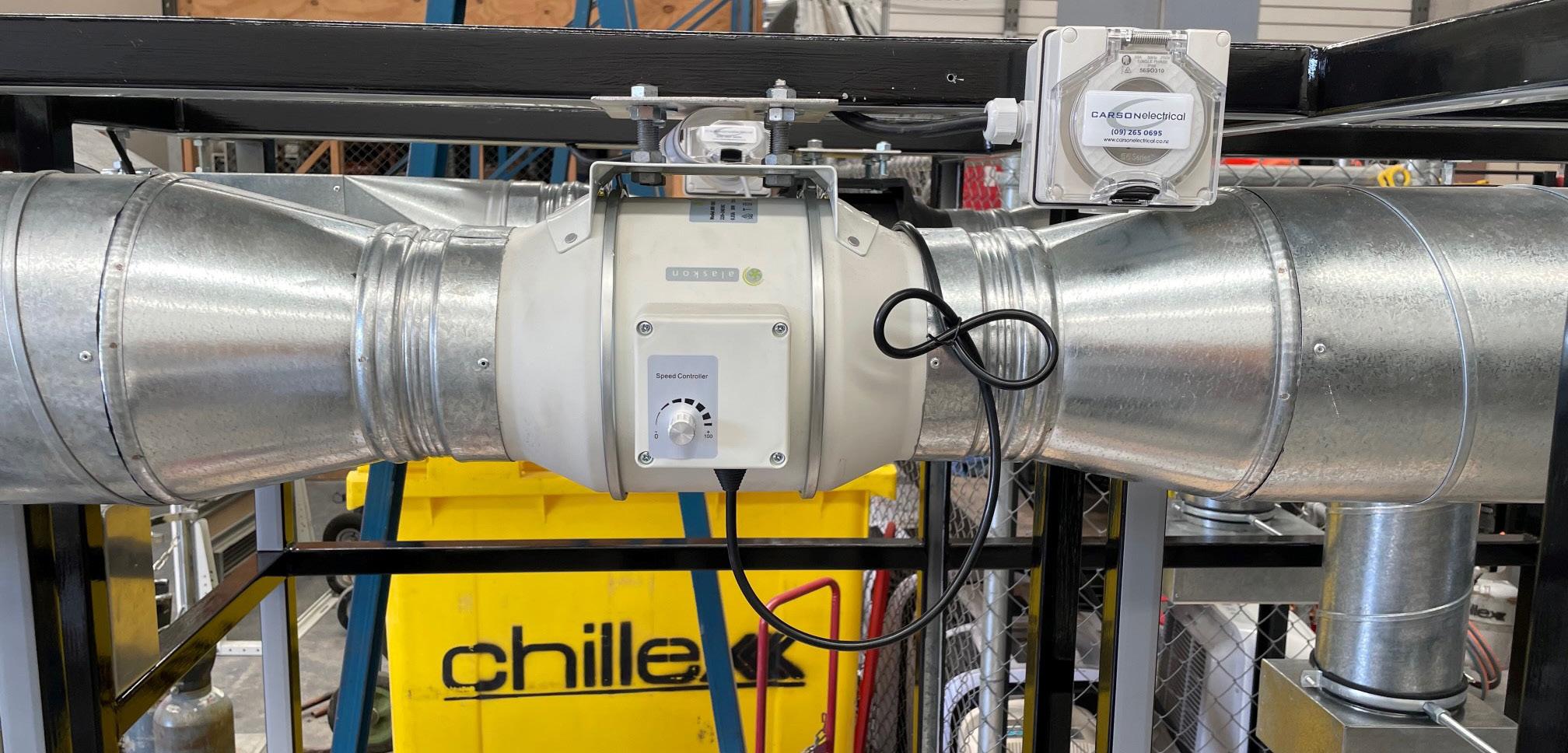

MIT is pleased to advise the industry of the generous support of the following companies in providing us two fan simulators. These are a welcome addition to our existing equipment at MIT and are already being used by our students.

It has always been important to understand air, ventilation and the fundamentals of air systems more than ever with the building regulations and compliance becoming more and more critical .

Student feedback has been well received.

A big thank you to Chillex Group, Kemp, SFP, Fantech, Carson Electrical, Holyoake, Eurotec, Simx, Aircon Flange Ltd, Gordon & Ryan.

Peter Murphy, Program Lead Refrigeration and Air Conditioning

irhace.org.nz

MAY 2022

EDUCATION MONTH FOR SMALL BUSINESS Xero Education Month! Immerse yourself in educational content, covering the wide spectrum of the Xero platform and beyond. You can pick and choose the right topics for you.

Do as many or as few as you like.

GET PAID FASTER WITH ONLINE INVOICES Live webinar | 45 mins | 9 May 2022 REGISTER HERE

GET STARTED IN XERO THE RIGHT WAY Live webinar | 45 mins | 10 May 2022 REGISTER HERE

CHOOSE THE RIGHT XERO PLAN FOR YOUR BUSINESS Live webinar | 30 mins | 11 May 2022 REGISTER HERE

APPLY FOR FINANCE FASTER WITH XERO Live webinar | 45 mins | 11 May 2022 REGISTER HERE

FOR MORE WEBINARS CLICK HERE 19

irhace.org.nz

MAY 2022

RLNZ STRATEGIC REVIEW RLTB Board trading as RLNZ has been strategically reviewing the way that it has been operating and as part of this are reviewing its delivery of training and technical education. As a charitable trust, our main purpose is to promote, educate, and train people in the refrigeration, heating and air conditioning industries, as well as engage with our third-party training providers and other key stakeholders, maintain vocational training standards through a robust quality assurance process, deliver on strategic industry driven training initiatives and encourage our people to further their professional development through a range of technical and specialist courses.

Recently a meeting was held between interested parties representing our industry, representatives from Worksafe, Competenz, IRHACE, CCCANZ, RLNZ, RPGNZ and current and previous members of the SAG committees were present. RLNZ was recognized by all as the training body to liaison with Worksafe for the HVAC+R industries.

The RLNZ board is made up of four councilors, Matt Birch Chair 2022, Brendon Clarkson Deputy Chair 2022 and councilors Dave Nicolls and Paddy Durham.

We have been working on several areas: • In the technical education area, RLNZ have been working closely with their corporate trustees and IRHACE has released their CPD programme. This is a first for our industry and both IRHACE, CCCA and RLNZ are in full support of enhancing this programme.

• As part of this, IRHACE are also releasing their webinar series which is now giving both RLNZ and CCCA the opportunity to further enhance technical education via this platform.

• The Approved Fillers Course covering A1 refrigerants is completed and is being released early May with a A2/ A2L course being released early June.

• Both courses are theory only and include practical guidance material to assist your company to receive practical, hands-on training from your own qualified trainers, independent marketplace trainers or from trainers listed on the RLNZ website.

• RLNZ’s fillers courses have been peered reviewed by a group of independent HVAC+R industry specialist and have been given the title of competent industry approved training.

• Our aim is to also help your company source quality training courses (from other suppliers) which are RLNZ and Industry recognized as competent industry approved training.

Part of this strategic review has identified a couple of areas where RLNZ are short on depth including HVAC&R subject matter experts with practical on-job vocational training experience as well as industry professionals who are still currently actively involved within the industry and have proven technical skills.

• RLNZ are looking to establishing an independent team of subject specialist who will be able to peer review training material and courses offered by other training providers.

• We RLNZ will also offer other training providers an independent peer, industry review service of their training materials. Once this material meets recognised industry standards RLNZ will promote these courses on the RLNZ website.

21

NEW COURSE ANNOUNCEMENT MEMBER BENEFITS irhace.org.nz

MAY 2022

RLNZ COURSE UPDATE TYPE OF COURSE

PROVIDED BY RLNZ

PROVIDED BY YOUR WORKPLACE NOT RLNZ

Approved Filler A1 Course Theory only $129 + GST

Approved Filler A2L Course Theory only* $79 + GST

Practical competence test using the RLNZ practical assessment guideline by in-house verifiers either in your workplace or through a qualified independent contractor.

*This course has a pre-requisite that you must have passed an A1 course.

The RLNZ courses are ideal for companies who have their own in-house verifiers; or utilise a qualified independent contractor; and suitable for all CCCANZ member companies.

Benefits for companies include: • No downtime for staff having to attend offsite courses; • Use your own in-house verifiers; • Option to use a qualified independent contractor; and • Cost effective and efficient industry level training.

The industry training levy has funded the development of these courses and RLNZ wishes to thank these companies that continue to provide this funding.

Reece Ltd, Cooling Supplies, RefSpecs, RealCold, Patton Ltd

23

SEEKING APPLICATIONS FOR RLNZ TRUSTEE RLNZ is seeking expressions of interest for a Trustee for the Refrigerant License Trust Board.

As a charitable trust, our main purpose is to promote, educate and train people in the refrigeration, heating and air conditioning industries and encourage people to further their professional development through a range of technical and specialist courses.

We are seeking a Trustee to work with our current team of Matt Birch RLNZ Chair, Brendan Clarkson Deputy Chair and Paddy Durham in assisting in our strategic direction.

If this is an area you would like to be involved in please advise us on admin@rlnz.org.nz or talk to Matt Birch on 021 197 8673.

THANKS DAVE NICHOLLS RLNZ Trustee IRHACE Representative Dave Nicholls is standing down in his position from June 2022, as he feels it is time for him to step aside to allow younger blood to take up the mantel.

Dave has been on the RLNZ Board from September 2019, and his knowledge and skills will be missed. A huge thank you for all your efforts and advice over the years.

Matt Birch, RLNZ Chair 2022 irhace.org.nz

MAY 2022

EXPRESSIONS OF INTEREST HVAC&R SUBJECT MATTER EXPERTS We are seeking expressions of interest from our HVAC+R industry, if you are a specialist in your field and would like to help RLNZ provide the best training possible to our industry then please advise us on admin@rlnz.org.nz or ask for a call back to discuss any questions you may have.

The affordable, easy-to-use ‘cloud’ business tool from SmartTrade

SmartTrade specialises in software for field service providers, with a strong emphasis on the HVAC&R industry.

We are working with the CCCANZ to develop cutting edge solutions that work!

Grow your business, increase profits and free-up time with SmartBiz Online: ✓Manage your business more effectively, in or out of the office. ✓Complete job management- quoting, invoicing, timekeeping, accounting integration, all the features you need to slash paperwork and reduce costs. ✓Plus advanced features like; asset management, inventory, project management, GPS vehicle tracking and excellent reporting. ✓Increase office and field staff productivity using the mobile app. ✓Stand out from your competitors, impress customers, and win new business. ✓Strengthen cash flow. ✓Improve compliance by using SmartForms.

Click here for more information.

Free phone: New Zealand 0800 327 943 Australia 1800 350 495 sbosales@smarttrade.biz www.smartbizonline.com Level 2, 8 Virginia Ave East, Eden Terrace, Auckland, 1021, New Zealand

25

CONTINUOUS COMMISSIONING SPECIALIST ONLINE TRAINING Optimise the running of your building!

The 2-day Continuous Commissioning Specialist Training Course is for those responsible for commissioning commercial and keeping them running efficiently. The course is delivered by industry leading trainers with deep expertise in continuous commissioning.

Who will benefit most from this training?

The Continuous Commissioning Specialist Training Course is designed for those involved in the commissioning and operation of commercial buildings such as: • HVAC Engineers; • Installation, Maintenance and Service Technicians; • BMS and Controls Specialists; • Energy Auditors and Consultants; and • Hands-on Facilities Managers.

Energy Master Accreditation

Attendee Feedback "CCx is central to NZ’s goals of energy efficiency and low emissions, and the course was an excellent source of information and expertise in this area.

I would recommend this course to anyone responsible for the management and control of HVAC systems, or who engages contractors." ────

"The course was great!

In particular I found Lance and Mark’s “war” storeys most beneficial.

Gaining learnings directly from their experience is invaluable."

Energy Master Accreditation is suitable for professionals who want to demonstrate superior competence in building systems optimisation.

To achieve Accreditation as an Energy Master Continuous Commissioning Specialist, candidates are required to: 1. Attend and complete the CEP Continuous Commissioning Specialist Training Course (2 days online).

2. Complete and pass the 3 hour CCx Exam.

The Online Exam is ‘open book’ with the use of the CCx Training Course materials. The pass mark required is 70% of the total marks possible.

3. Meet the Energy Master CCx eligibility requirements for qualifications and experience.

CARBON AND ENERGY PROFESSIONALS NEW ZEALAND Level 4, Hope Gibbons Building 7-11 Dixon Street PO Box 11508, Manners Street Wellington 6142

04 385 2839 https://cep.org.nz/

irhace.org.nz

MAY 2022

COURSE CONTENT This face-to-face presentation and workshop-style course will cover the following topics as they relate to the practice of commissioning in commercial buildings: • • • • • •

• •

Fundamentals of HVAC Building Management Systems Fundamentals of Commissioning Measurement Technology Common HVAC Problems Continuous Commissioning (CCx)

• •

CCx Implementation Control Strategies and Functional Descriptions Measurement and Verification CCx as a long term approach

ONLINE TRAINING Dates: 17 & 18 May 2022 (Tue & Wed) Trainers: Lance Jimmieson & Mark Crawford CEP/CIBSE Member

Non-member

Training Course Only (2 days)

$1,400

$1,560

Exam & Accreditation (3 hours) 1 attempt

$ 300

$ 300

Investment (NZD, excludes GST, price per person)

An additional 5% discount applies for multiple bookings from within the same business for this training course

For full course details and registration links click here

https://cep.org.nz/details/continuous-commissioning-training/ Copyright © Carbon and Energy Professionals New Zealand 2022.

The Source of all HVAC&R industry training 27

WOMEN IN COOLING INTERNATIONAL NETWORK

The cooling sector delivers a tremendous number of benefits ranging from public health to food security to productive and comfortable workplaces and homes. It is a truly vital, dynamic, and rapidly growing field that represents a significant source of high-quality employment worldwide. However, this sector has the potential to contribute even more by increasing the number of women in its ranks at all levels and types of jobs, which include diverse professions ranging from CEOs to professors, from engineers to servicing technicians, just to name a few.

To help accelerate this process, a new initiative called the International Network for Women in Cooling (INWIC) has been launched to advance the engagement of women, promote career opportunities, and increase their overall participation in the sector, which includes refrigeration, air-conditioning, and heat pumps (RACHP). INWIC is led by the World Refrigeration Day (WRD) Secretariat and the United Nations Environment Programme (UNEP) OzonAction in cooperation with a highly-reputed group of founding partners, all of whom are active in this area – AIRAH (Australia), AREA (Europe), ASHRAE (Global), CAR (China), FAIAR (Latin America), IIR (Global), IOR (UK), ISHRAE (India), JSRAE (Japan), U-3ARC (Africa), and Women in HVAC&R (North America).

Although women make up half of the world’s population, they are significantly and visibly under-represented in the RACHP sector in all roles. INWIC seeks to reverse that trend. It is doing so while recognising that there are many excellent initiatives and structures established by different partners that are promoting women’s engagement in the RACHP field. However, more cooperation and information exchange at the global level is needed to link these individual efforts and make them even more meaningful and impactful, especially in developing countries.

There are over 300 national, regional, and international associations, organisations, and institutions in the RACHP sector, however initial research indicates that fewer than 20 (5%) of these have sections specifically for women. Corresponding data indicates that where these women’s sections do exist, there is a greater number of women who are actively involved in the committees and structures of these bodies, which in turn increases the opportunities to raise the visibility of women in the sector. “’You can’t be what you can’t see!’ There are not enough visible ‘women in cooling’ role models. We want to change that,” said Stephen Gill – Head of WRD Secretariat. “We will create a resource for girls and young women to see bitesize videos and read real-life stories from a diverse range of women in different roles within the cooling sector. This will also serve to connect and inspire women currently working in the cooling sector.”

In the next few months, INWIC founding partners will introduce several programs that directly support individual women and young girls to further engage and find opportunities that can support the advancement of their careers, the attraction to cooling education disciplines, and active engagement with the cooling community.

Join the LinkedIn group, https://www.linkedin.com/groups/9044144/ and support this great initiative.

irhace.org.nz

MAY 2022

WHANGAREI

TRADE NIGHT Thursday 9th June 5.30pm - 8.30pm Guest Speakers with Food & Refreshments available

SEMENOFF STADIUM

- Venues and Events Whangarei Northland Events Centre 51 Okara Drive Whangarei 0110

PRESENTED BY

REGISTER NOW PREFERRED ACCOMODATION Quest Whangarei Promo Code: IHRACE Discovery Hotel Promo Code: IHRACE2022

29

INCORPORATED SOCIETIES ACT UPDATED FOR FIRST TIME SINCE 1908 The Incorporated Societies Act 2022 was signed into law on 5 April 2022 but societies won’t need to do anything immediately. There is a transition period of several years to allow societies time to become familiar with, and prepare for, the new regime.

Both IRHACE and CCCANZ are incorporated societies and we will be following a governance process to be prepared for these changes.

HON DR DAVID CLARK

Commerce and Consumer Affairs

• Listing the matters that must be included in a society’s constitution (including internal dispute resolution procedures) • Clearly setting out officers’ duties (derived from case law) • Prescribing External Reporting Board (XRB) accounting standards for larger societies’ financial reporting • Sets out other dispute resolution and judicial review mechanisms available to members of societies and creates sector-specific offences The rules which govern New Zealand’s incorporated societies will be refreshed for the first time in 114 years.

The Incorporated Societies Bill passed its third reading in Parliament today, which modernises the way societies deal with internal disputes, clarifies officers’ duties and prescribes accounting standards for larger entities.

“New Zealand’s incorporated societies play a vital and often long-standing role in our communities - speaking up for workers, teaching our children sports, and raising money for good causes. It’s important that the law governing them reflects best-practice,” Commerce and Consumer Affairs Minister, David Clark said.

This is the first time the Incorporated Societies Act has had its legal, governance and accountability settings updated since 1908.

“The Bill keeps the best of the 1908 Act, while also collating useful case law in one place and filling in gaps where the rules are unclear.

“Today marks the conclusion of 12 years hard work by officials and successive governments to modernise this Act. I also want to acknowledge the input of the sector and the members of the public during the various stages of consultation,” David Clark said.

The Bill provides for a period of up to 18 months for the necessary regulations to be prepared and consulted on, before the new regime will enter into force. More information will be available on the Incorporated Societies Register website in due course.

irhace.org.nz

MAY 2022

IHRACE MEMBER BENEFIT Membership is the lifeblood of our existence. The greater the representation of our industry we can gain, the stronger our Institute will be. Each month we showcase the various benefits for a M.IRHACE. Check out our Member Kit for full details With our MOU with AIRAH our members can gain access to knowledge and information to build your industry skills.

IRHACE members are able to receive AIRAH member pricing on training courses and publications.

Email AIRAH and supply them with your current membership certificate: Enrol in industry training, training@airah.org.au Order technical resources, airah@airah.org.au

IRHACE is a member of the AASA ASHRAE Associate Society Alliance.

As an IRHACE member you can order through their bookstore and receive special pricing, www.techstreet.com/ashrae/ashraegate.html We recommend you download the ASHRAE APP, https://www.ashrae.org/about/ashrae-365-app

MEMBER BENEFITS 31

IRHACE MEMBERSHIP

MILESTONES Mark Ryan Joanne Holden Sheik Ali

Jorge Villazon-Leon Warren Jackson

20 YEARS

Patrick Kilduff Lewis Barrack

1982

1992

30 YEARS

2002

2012

10 YEARS

40 YEARS

Paul De Bernardo

Congratulations to Joanne Holden on her 10-year anniversary with IRHACE. I worked for Refrigerated Freight Lines (RFL) we were in the same building as Watties Export and General Foods Refrigeration all part of the same group Thermo Tech Auckland came to be when General Foods Refrigeration was liquidated.

I was asked by one of the Directors, Bob Smith if I would like a part time job when my daughter was 3, she is 32 this year.

That was my introduction to the HVAC Industry 1993-2007 Thermo Tech Auckland Limited – Office Manager/Service Manager 2007 to 2011 Patton Refrigeration – Sales Ref / Customer Service 2011 to 2021 Chillex Maintenance – Customer Service Manager August 2021 to present at Apex Air -Client Services Manager

irhace.org.nz

MAY 2022

33

TEMPERZONE’S ECONEX OPA

ENABLES MCDONALDS TO REDUCE THEIR ENERGY COSTS AND CARBON FOOTPRINT. McDonald’s Ti Rakau Drive and Manurewa restaurants were some of the first to take advantage of the energy savings and lower Global Warming Potential (GWP) that Temperzone’s Econex OPA has to offer.

Each restaurant required the replacement of existing HVAC equipment which consisted of two 50kW DX Air Handling systems using refrigerant R407C, these systems had been operating from between 16 to 20 years.

Kevin, the system designer from HVAC Design and Build, wanted to standardise the installation with Temperzone units with a view to future proof the HVAC solution.

After the specifications were shared with Temperzone, a discussion followed about a new product which was in the final stages of design and well suited to the requirements of this project, the 55.6kW Econex OPA 560 R32 Inverter rooftop packaged unit.

Econex OPA was the perfect solution for future proofing these restaurants. As entirely variable capacity systems with inverter compressors, EC plug and condenser fans, and dual electronic expansion valves, OPA Econex would enable a significant reduction in energy consumption when operating at part load outside of the peak seasons.

Assisting McDonalds in their ongoing efforts to reduce their carbon footprint, Econex OPA units utilise R32 refrigerant which would result in a significant reduction in refrigerant related GWP from 1774 (R407C) to 675 (R32). Also, with increasing costs due to levies and the ongoing phase out of higher GWP refrigerants, utilising lower GWP refrigerants is an increasingly important factor in achieving lower total lifetime cost of ownership of HVAC equipment.

Initially considered for this project were two OPA 550 R410a units on each site. The opportunity to utilise two OPA 560 R32 models enabled a total reduction in refrigerant related GWP, across both sites, from 160 CO2 equivalent tonnes down to 46 CO2 equivalent tonnes.

The design was finalised using Econex OPA units across both restaurants and installed in 2021.

irhace.org.nz

MAY 2022

Econex R32 Inverter Rooftop Packaged Nominal cooling capacity range between 25.5kW and 55.6kW

Unit footprint reduced by up to 20% when compared with current models

Up to 79% reduction in refrigerant related Global Warming Potential compared with current R410A models

Wide ambient operation range with cooling up to +52°C and heating down to -15°C

Up to 77% increase in season energy efficiency (TCSPF) when compared with comparative non-inverter models

EC Plug Fan and EC condenser fans for efficiency and precise fan speed control Dual Electronic Expansion Valves

www.temper zone.com 35

LIVE EVENTS irhace.org.nz

www.irhace.org.nz

MAY 2022

IRHACE

TECHNICAL EDUCATION 2022 Brought to by IRHACE our Webinar series for the HVAC&R industry. IRHACE members* receive access to webinar library as part of their membership. *exclusions apply.

THE APPLICATION OF REINFORCEMENT FOR VAPOUR COMPRESSION CYCLE CONTROL 12TH MAY, 12.30PM

The application of Reinforcement for Vapour Compression Cycle Control

The application of Reinforcement for Vapour Compression Cycle Control. This webinar’s topics include: Overview of basic VCC control Machine learning (ML) and reinforcement learning controllers.

Summary of findings in the literature Discussion on benefits and changes.

Presented by Tech Logg Ding, University of Auckland REGISTER

COMPLIANCE WITH NZS 5149 26TH MAY, 12.30PM

Compliance with NZS 5149 The NZS 5149 standard “dealing with refrigerant concentration in confined spaces” has been around since 2016.

It’s important as it affects every new or altered DX system installed in New Zealand, but it is largely overlooked.

If you are designing or installing DX HVAC systems YOU NEED TO KNOW ABOUT NZS 5149.

Presented by: Dave Nicholls, F.IRHACE from RealCold REGISTER

IRHACE ONLINE LIBRARY SIGN UP

Recorded webinars are available to IRHACE Members as part of their membership. If you have missed a previous Live webinar, go to the library to view.

37

The IRHACE Council are calling for expressions of interest for co-opt Council positions. This is part of their governance process for continuity of the Council going into the 34th AGM elections in 2023.

If you are interested in joining the IRHACE Council, please email us at admin@irhace.org.nz or talk to Mark Meyer, President 021 319 170 or Pat Kilduff, President Elect 021 837 566.

AGM

Annual General Meeting

11th Annual General Meeting The CCCANZ Board have a policy of board member renewal and refreshment. As part of this policy, the current board look for a range of skills and experience to complement both the existing board now and into the future.

This year’s 11th AGM three board positions are available. Available for re-election are current board members Malcolm Miller, Garry Ko and Greg McCarthy.

The official nomination form for Election of CCCANZ Board Members is available from https://www.cccanz.org.nz/about-us/annual-report/ Climate Control Companies Association of New Zealand Inc PO Box 217184 Botany, Auckland 2013 www.cccanz.org.nz

irhace.org.nz

MAY 2022

S

39
