IRHACE Industry Journal - July 2023

JULY 2023

The Industry Journal for the New Zealand Refrigeration, Heating, Ventilation & Air Conditioning Industries

INSIDE THIS ISSUE

AN UPDATE TO AOTEAROA/NEW ZEALAND DESIGN TEMPERATURES CCCANZ FINALIST IN RAC COOLING AWARDS PATTON IMPRESSES WITH INNOVATIVE SOLUTIONS DAIKIN WINS BEST EFFECTIVE COMMERCIAL CAMPAIGN irhace.org.nz 1

A3 REFRIGERANT AWARENESS A3 REFRIGERANT AWARENESS

irhace.org.nz

JULY 2023

www.rlnz.org.nz

PUBLISHER IRHACE/CCCANZ/RLNZ IRHACE: www.irhace.org.nz CCCANZ: www.cccanz.org.nz RLNZ: www.rlnz.org.nz

4

EDITOR HVAC&R Centre admin@irhace.org.nz MEMBERSHIP admin@irhace.org.nz admin@cccanz.org.nz

8

REFRIGERANT LICENSING & COURSES admin@rlnz.org.nz ADVERTISING admin@irhace.org.nz DESIGN Bellacreative Ltd HVAC&R CENTRE PO Box 217184 Botany Junction 2164 Auckland, New Zealand e: admin@irhace.org.nz e: admin@cccanz.org.nz e: admin@rlnz.org.nz No part of this journal may be printed in other publications without prior written permission of the Managing Editor.

Disclaimer: Statements expressed in this publication do not necessarily reflect the policies or views of the associations, and members of IRHACE or CCCANZ. The IRHACE Journal publishes both local and international articles. Standards and or practices may differ from current New Zealand standards and or practices used. No responsibility is accepted by the associations and editor for the accuracy of information or for errors or omissions. The IRHACE Journal is distributed to all the IRHACE and CCCANZ financial members.

ISSN 01148257

16

FEATURES

4 6 8 16

NIWA An update to Aotearoa/New Zealand Design Temperatures.

RAC COOLING AWARDS HVAC&R F-Gas Collaboration Project.

HVAC&R Hub was a success A buzzing and vibrant atmosphere.

APPROVED FILLER LICENSE Are there circumstances where a technician doesn’t need a license?

ASSOCIATIONS

16

18

20 1

A month of innovation, collaboration, and successes Our flagship event the HVAC&R Hub gave us the largest gathering of industry leaders in the country. With 5,000+ visitors this proved a fantastic platform to gather and showcase the HVAC&R industry in New Zealand.

It is an exciting time to be in the HVAC&R industry and it was great catching up with people from across New Zealand and continuing existing relationships with suppliers, exhibitors and members. We are already in discussions with XPO for 2024, so save the date - Tuesday 25th and Wednesday 26th June 2024, Auckland Showgrounds.

Congratulations to CCCANZ for being a finalist in the prestigious RAC Cooling Awards in the category Environmental Collaboration of the Year. The HVAC&R F-Gas Collaboration Project is an important initiative that recognises the significance of partnerships and collaborations in achieving environmental goals and driving innovation in the refrigeration and air conditioning sector. It is a remarkable achievement for the New Zealand HVAC&R industry and it highlights the potential of the solution to mitigate F-gas greenhouse gas emissions throughout the supply chain.

Overall, the HVAC&R industry in New Zealand seems to be thriving, fostering collaboration, innovation, and skill development while working towards environmental goals and future growth.

The shortage of staff in the HVAC&R industry is indeed a major challenge. It is great to know that both IRHACE and CCCANZ are actively working on projects to address this issue. International research projects on employment and career development in New Zealand, as well as assistance to employment agencies, can make a significant difference in overcoming this shortage.

Congratulations to Chris Arvidson from Canterbury for joining the IRHACE Council as a new board member. Chris will be joining esteemed members Phil Mohan, Mark Meyer, Trent McDonald, Paddy Durham and David Everitt. A special thanks to Mark Meyer for his service as President, and a heartfelt appreciation to Paul Shaw for his dedicated 8-year tenure on the Council.

The Wallie Askew Memorial Workskills Competition is also an important event, and it is great to see the regional challenges taking place in July, starting with Auckland on 1st July. Realcold deserves recognition as the main sponsor for this event, and it’s wonderful to know that CCCANZ is also providing funding to support this significant apprentice event.

P hil PHIL MOHAN IRHACE PRESIDENT 2023-2025

irhace.org.nz

JULY 2023

SAVE THE DATE 25-26th JUNE 2024

HVAC&R HUB

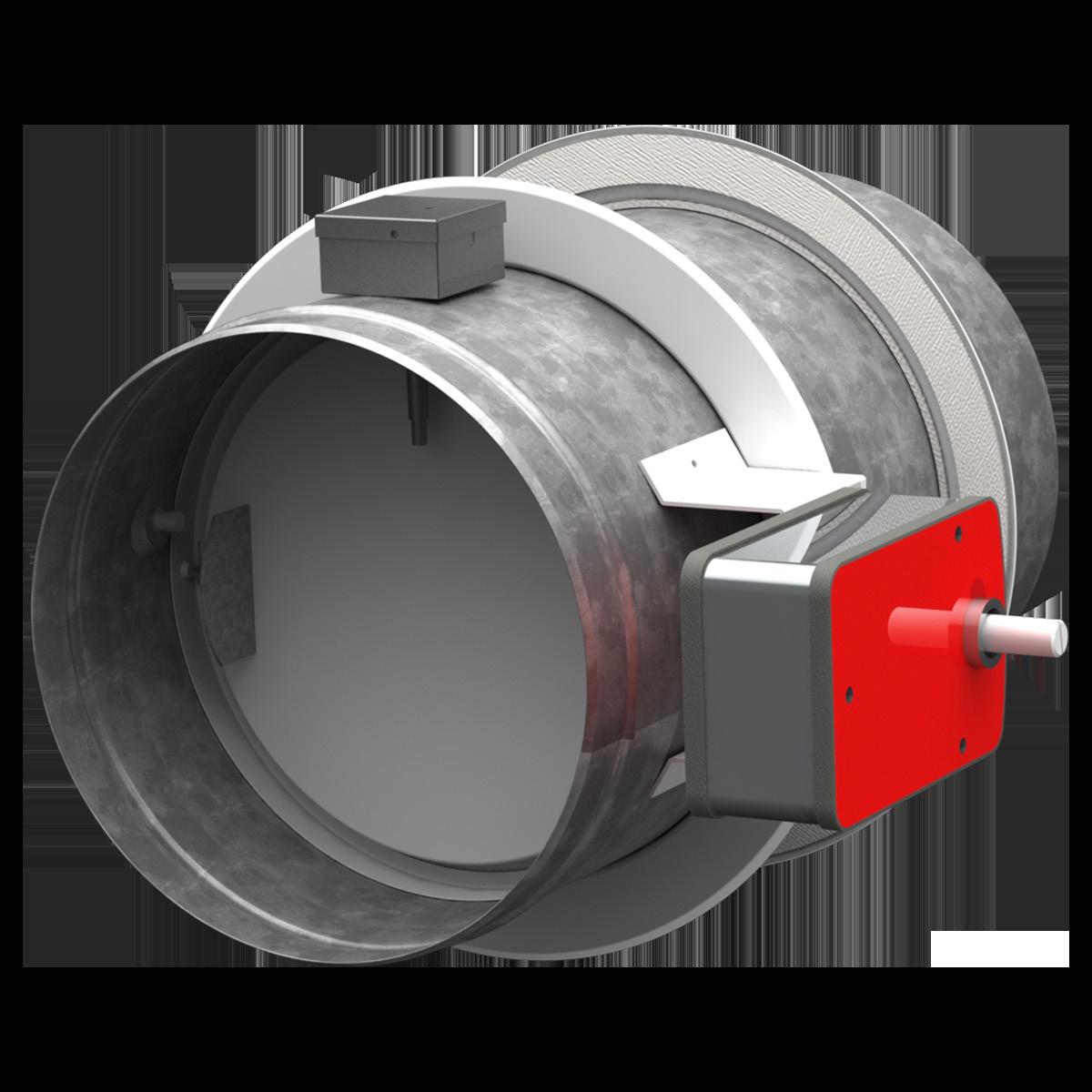

Fire Dampers you can rely on.

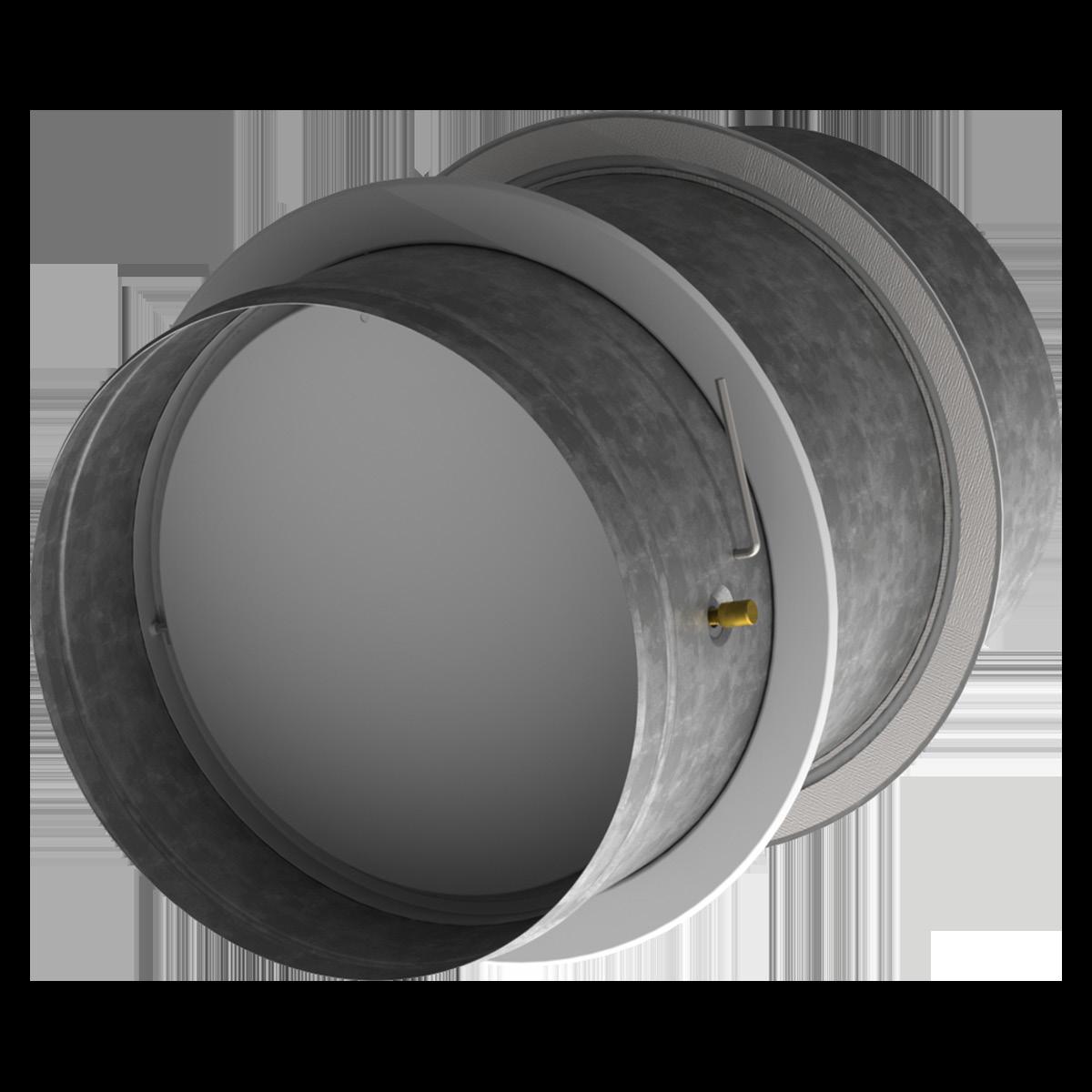

LR DAMPERS Fully compliant with the latest testing standards AS 1530.4 - 2014 and AS 1530.7 - 2007, LR Fire, Fire-Smoke, Smoke (Exhaust) and Balancing Dampers are easy to install, with a swift turnaround time to meet market demand.

Available in seven diameters: 100 | 125 | 150 | 200 | 250 | 300 | 350 mm

CONTACT YOUR LOCAL HOLYOAKE BRANCH TO LEARN MORE ABOUT THE LR DAMPER SERIES AUCKLAND

WELLINGTON

CHRISTCHURCH

auckland@holyoake.com

wellington@holyoake.com

christchurch@holyoake.com

+ 64 9 274-4144

+ 64 4 232-2722

+ 64 3 366-6545

3

AN UPDATE TO AOTEAROA/NEW ZEALAND DESIGN TEMPERATURES With marine heatwaves, La Nina’s, and the general warming temperatures from climate change in the news NIWA has recently received several enquiries around what changes would be appropriate to design dry-bulb and wet-bulb temperatures for heating, cooling and ventilation systems across the Nation. In this short note we provide an update to previous tables calculated nearly 30 years ago as well as providing some aid to interpretation.

Aotearoa/New Zealand is a long skinny country with several different climate zones, where Foehn Nor’wester conditions can cause blistering hot summer conditions in eastern parts, contrasting with cold damp alpine conditions at high inland locations to the warm and humid climes of the far north, so it is important to have the correct settings for specific locations to ensure the optimal operation of heating and cooling systems and the comfort of inhabitants.

Richard Turner Meteorologist at NIWA; richard.turner@niwa.co.nz Research subjects – Climate change, Rainfall, Wind Ph.D.

Note that for the previous 1986-1995 table values were provided to the nearest degree, but the updated table has values rounded to 0.1 degree °C.

Additionally, some observing stations used in 1986-1995 no longer exist, so either data from a new nearby station was used or if no suitable nearby records were available the location was removed, those locations were Ponsonby, Te Teko and Lower Hutt.

However, some new locations have been added, i.e., Hicks Bay, Waiouru, and Lincoln Road, Auckland.

The ASHRAE website (http:// ashrae-meteo.info/v2.0/help.php#annual_cooling) is a useful resource.

It does have some information for some Aotearoa/New Zealand locations, but uses slightly different periods and thresholds to the NIWA derived tables (e.g., instead of 1%, 2.5%, and 5% for Nov-May, it specifies 0.4% for the whole year, etc.).

Often times HVAC engineers require more detailed information about the temperature and humidity climate for a location and tin these instances psychrometric charts for an appropriate observing site can be generated upon request (see Figure 1)

READ IT HERE

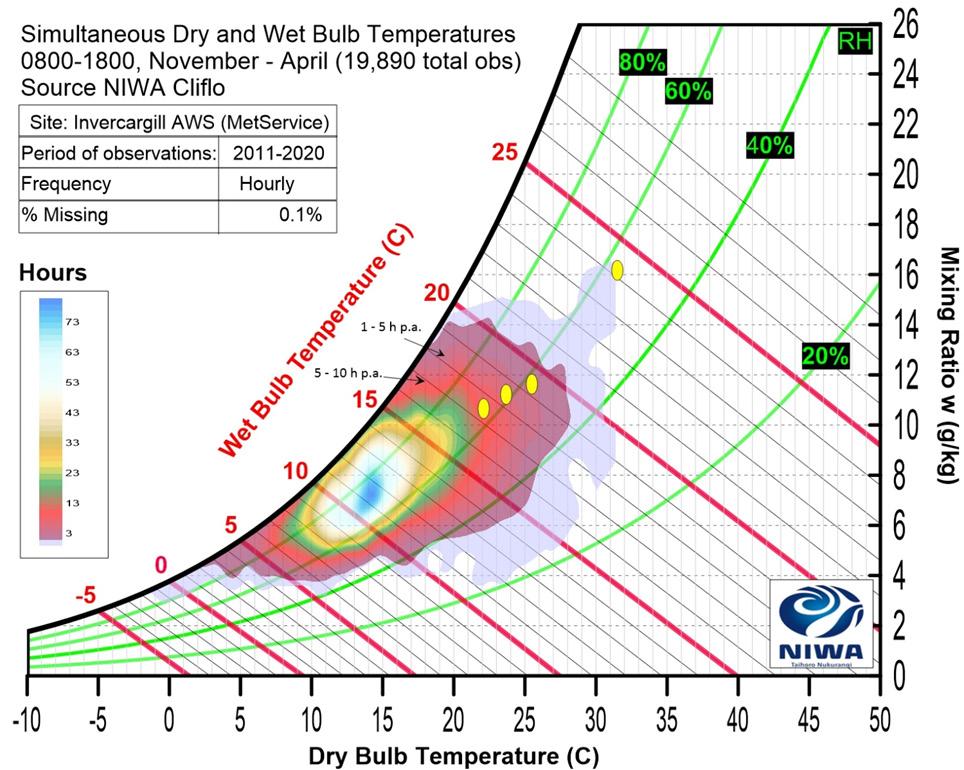

Figure 1: Pyschrometric chart for Invercargill for the daytime period of the warmest half of the year. The yellow dots mark the maximum, 1%, 2.5%, and 5% percentile values of the dry-bulb and wet-bulb temperatures as in the Table.

irhace.org.nz

JULY 2023

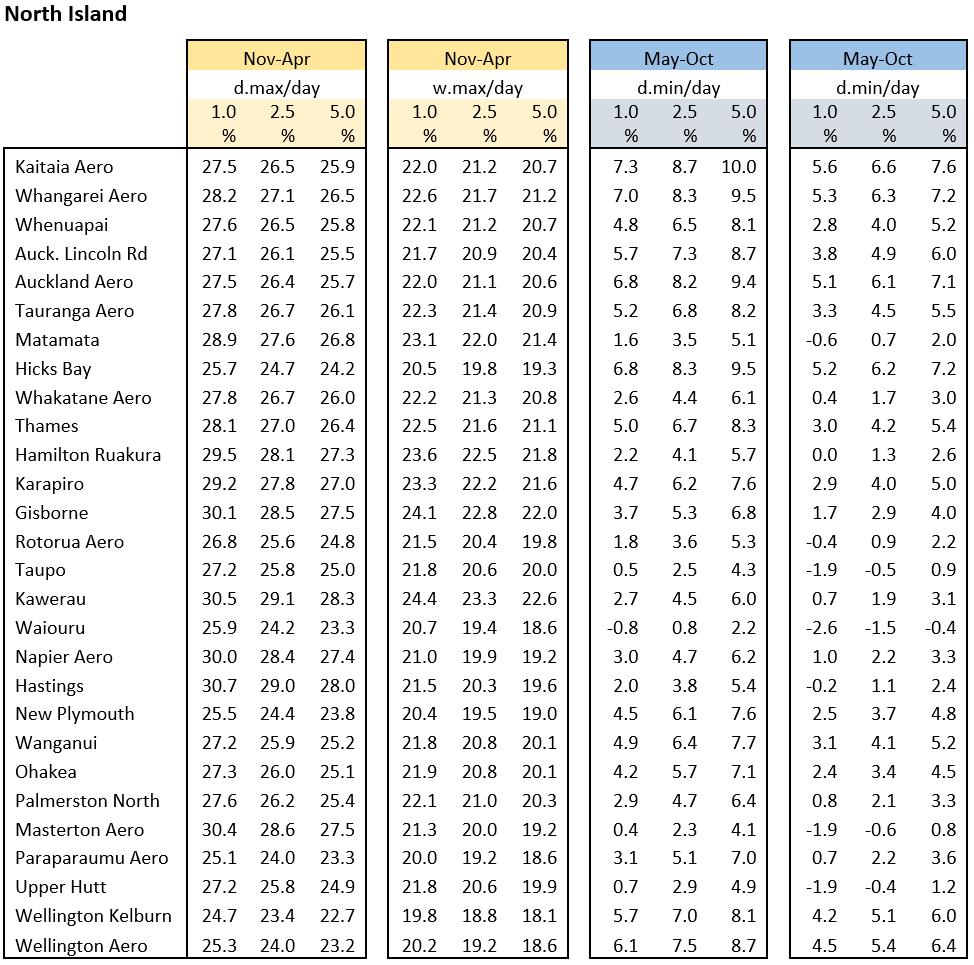

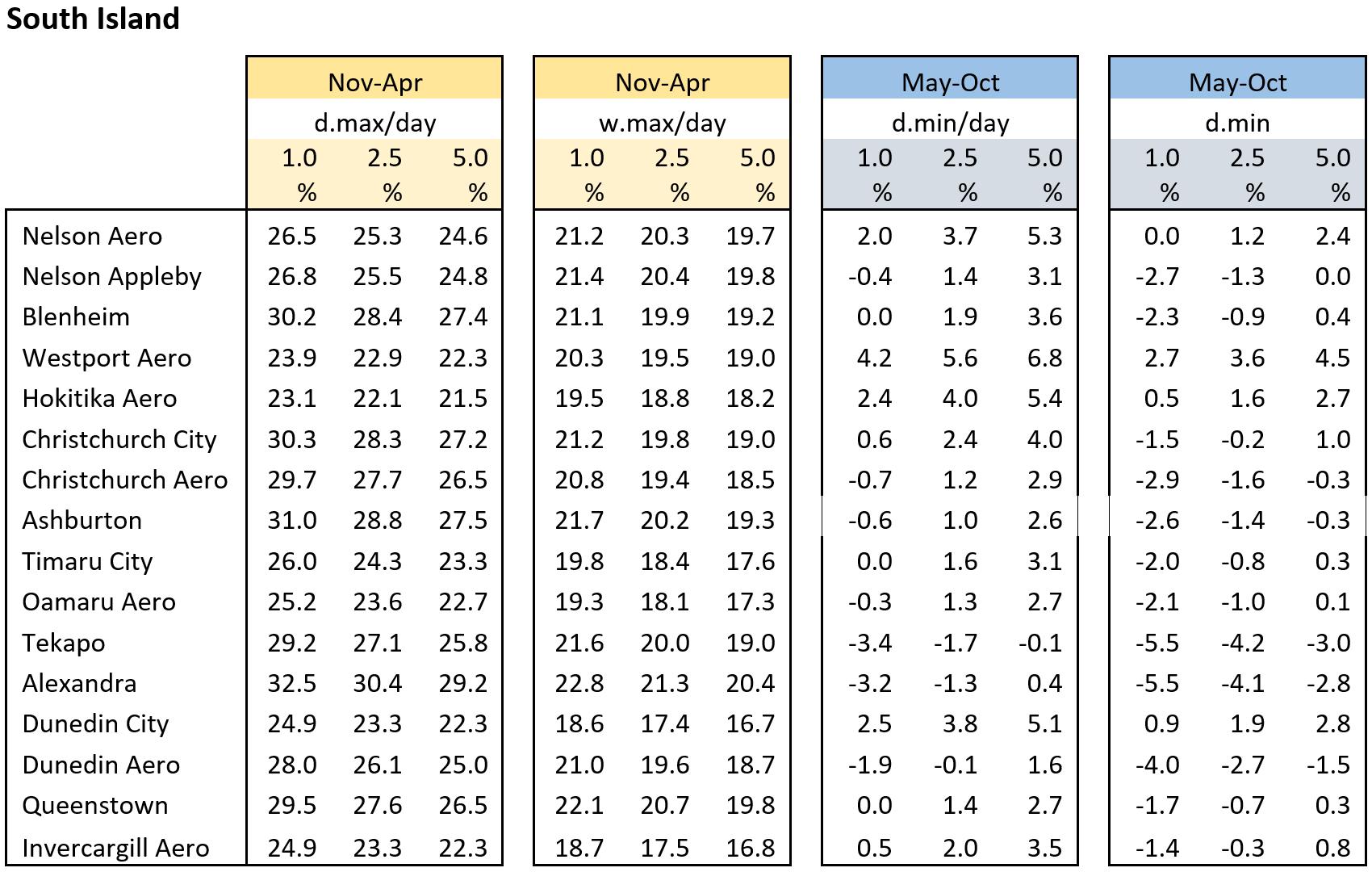

Below are the new tables for Te Waipounamu / South Island and Te Ika-a-Māui / North Island respectively.

Design Temperatures for Air Conditioning (°C) Data Period: 2011-2020

d.max/day: Maximum dry-bulb temperature (°C) which will not be exceeded more than 1.0%, 2.5%, or 5.0%

of the time (as specified) between 0800 to 1800 NZ Local Time from 1st November to 30th April. w.max/day:

Similarly, for wet-bulb temperature (°C) for the same thresholds and period as d.max/day.

d.min/day:

Minimum dry-bulb temperature (°C) which will not be subceeded more than 1.0%, 2.5%, or 5.0% of the time (as specified) between 0800 to 1800 NZ Local Time from 1st May to 30th October.

d.min: Similar to d.min/day except the period is for the whole 24-hour period and from 1st May to 30th October.

5

We are pleased to announce that CCCANZ has been shortlisted in the category “Environmental Collaboration of the Year” for their HVAC&R F-Gas Collaboration Project. This category recognizes the importance of partnerships and collaborations in the refrigeration and air conditioning sector to achieve environmental goals and drive innovation.

The HVAC&R industry faces a major environmental challenge in reducing the global warming impact of high Global Warming Potential (GWP) F-gases, particularly hydrofluorocarbons (HFCs). CCCANZ, along with other HVAC&R industry organizations in New Zealand operating under the HVAC&R Centre umbrella, has partnered with the sofware industry to develop a holistic blockchain-centric solution. This solution has the potential to mitigate F-gas greenhouse gas emissions throughout the supply chain.

The RAC Cooling Industry Awards, taking place on 21 September 2023 at the Grosvenor Ballroom in London, is a prestigious event that celebrates the achievements of the refrigeration and air conditioning industry. It recognizes innovation, environmental progress, best practices, and personal development. The awards highlight outstanding projects and collaborations that have made a real impact in the industry.

For more information on the awards, please visit https://coolingawards.racplus.com/cia2023/en/page/2023-shortlist.

Find out more on this project here, https://www.youtube.com/watch?v=15DHIPqOnhY&t=3s Media enquiries, email Executive Officer CCCANZ, Gina McMaster eo@irhace.org.nz Climate Control Companies Association of New Zealand (CCCANZ) is the industry conduct for companies engaged in the climate-controlled environment industry.

irhace.org.nz

JULY 2023

7

HVAC&R HUB

Phil Mohan and Mark Meyer, Passing of the President’s duties

Rod Dickson, Worksafe

irhace.org.nz

JULY 2023

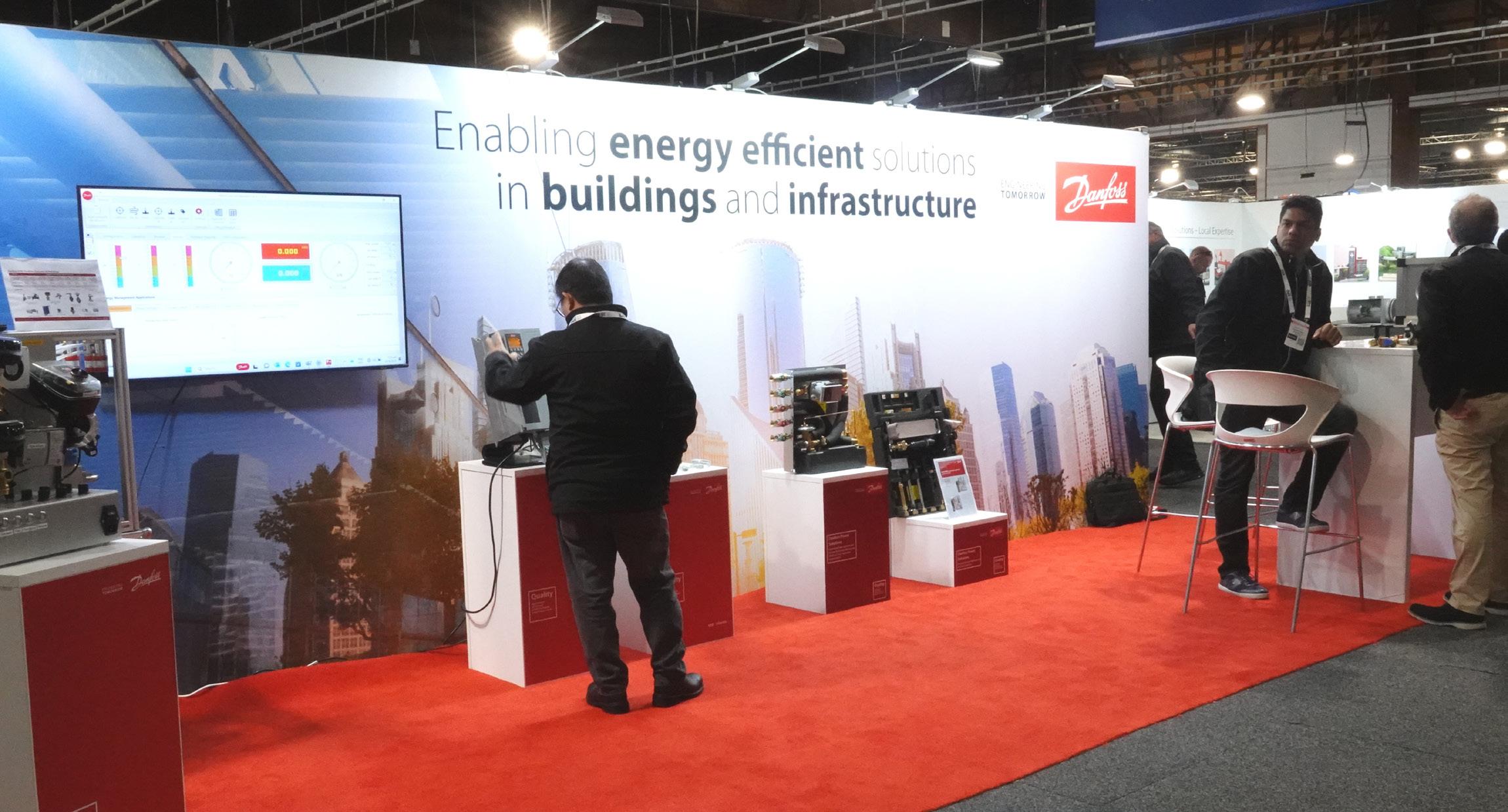

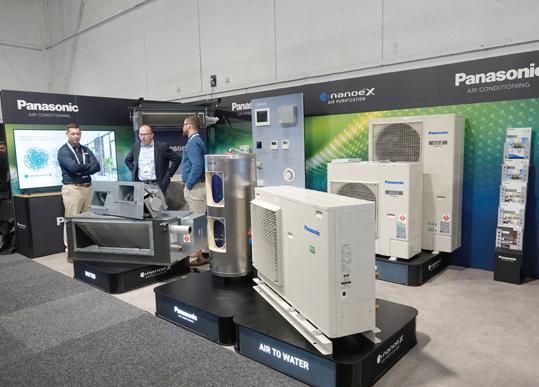

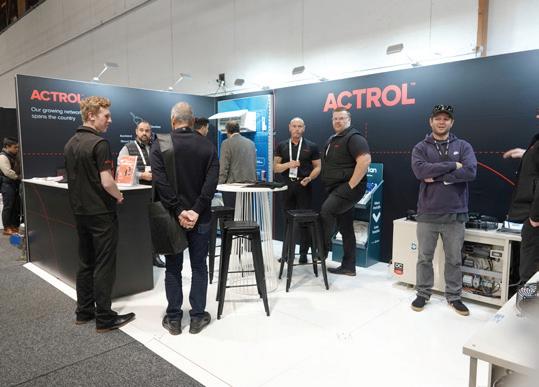

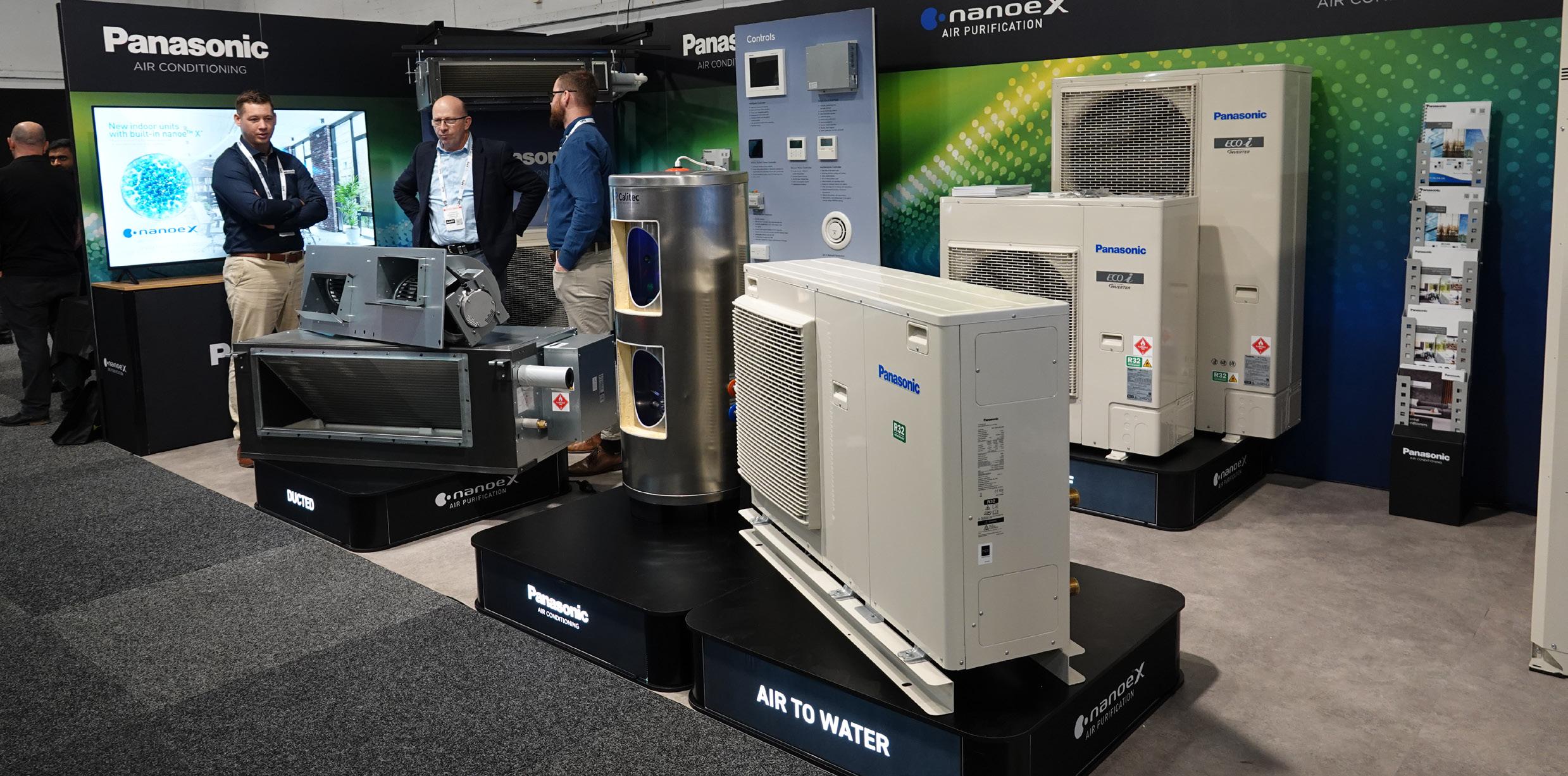

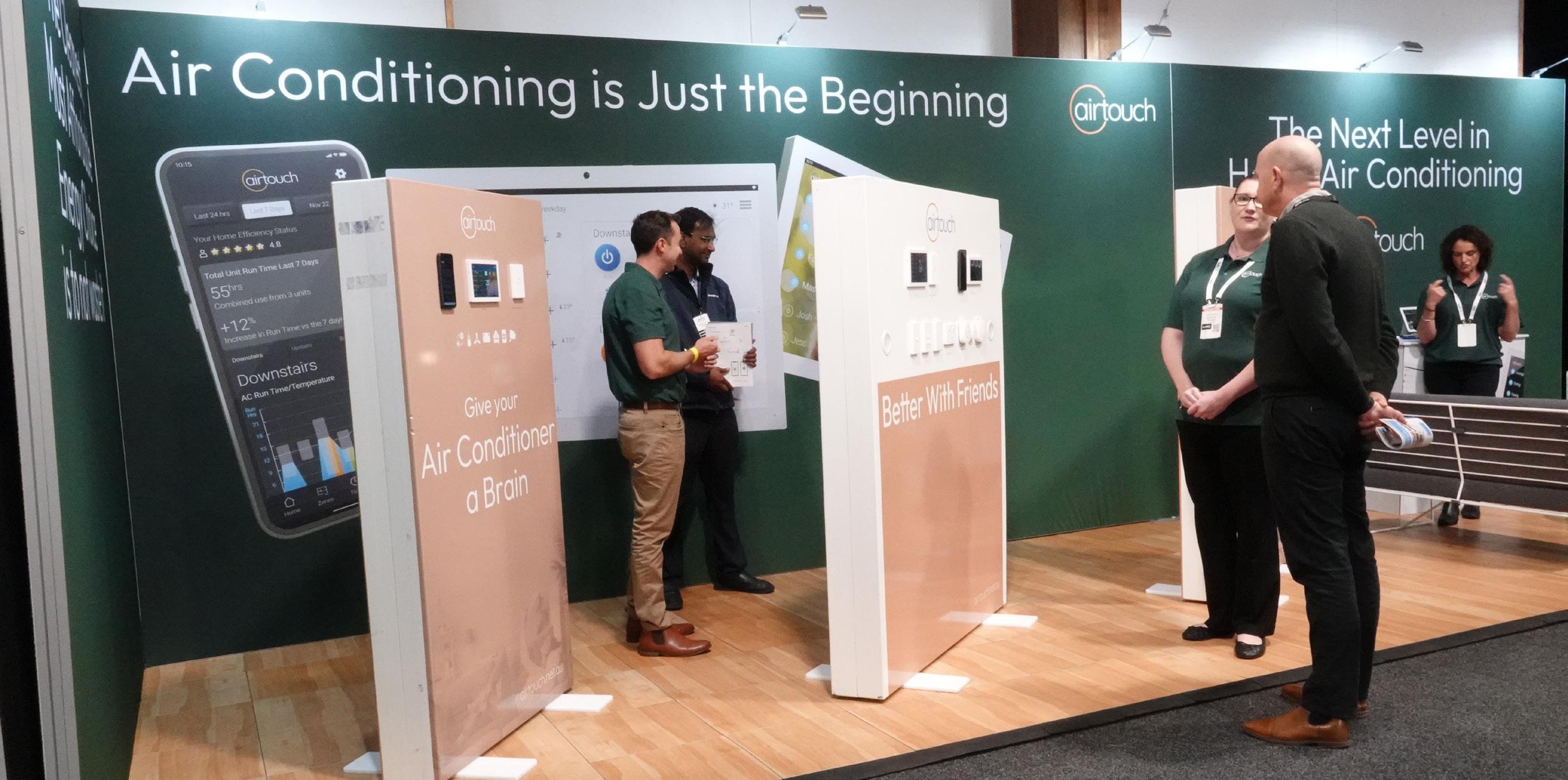

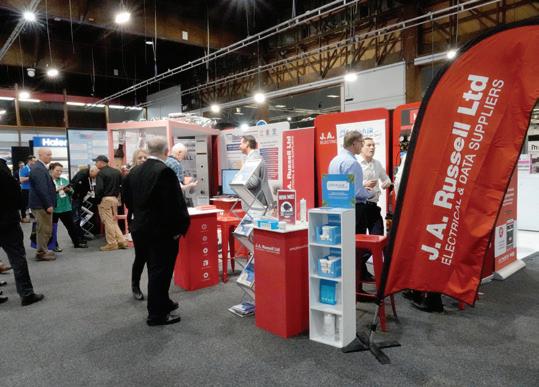

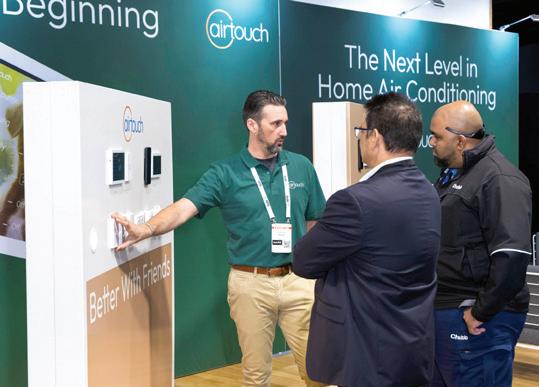

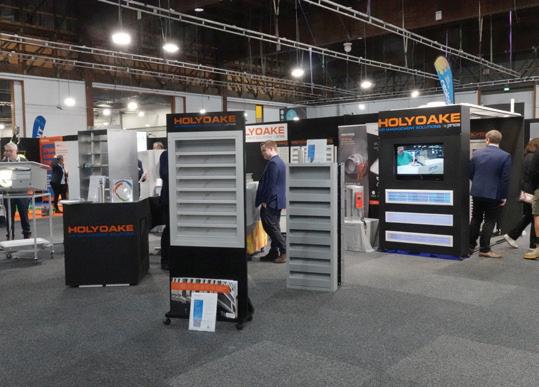

5,000+ VISITORS THE HVAC&R HUB WAS A SUCCESS By: Gina McMaster, Executive Officer IRHACE, CCCANZ, RLNZ

It was popular right from the beginning, and we took extra space to fit in our exhibitors.

The inclusion of free seminars and workshops in building, infrastructure, health, and safety, as well as the specific topic of HVAC&R and flammable refrigerants, showed a strong focus on industry-related issues and current trends. The networking event on Tuesday night, involving exhibitors and VIPs, provided an excellent opportunity for attendees to connect, exchange ideas, and foster potential business relationships.

It certainly added to the overall excitement and energy of the trade show. A buzzing and vibrant atmosphere is how I would describe the event, and our goal of creating a HVAC&R Hub was achieved I hope it leads to even greater opportunities and accomplishments in the future!

2023 saw IRHACE and CCCANZ create an HVAC&R Hub for our flagship trade event in New Zealand. Our partnership with XPO gave us the largest gathering of industry leaders in the country.

9

irhace.org.nz

JULY 2023

11

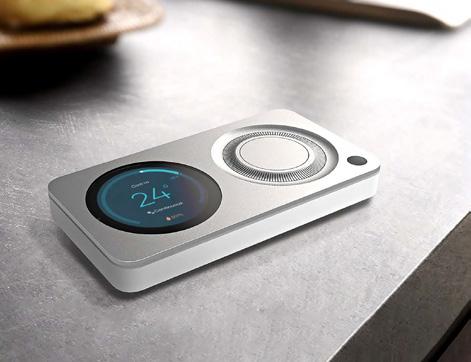

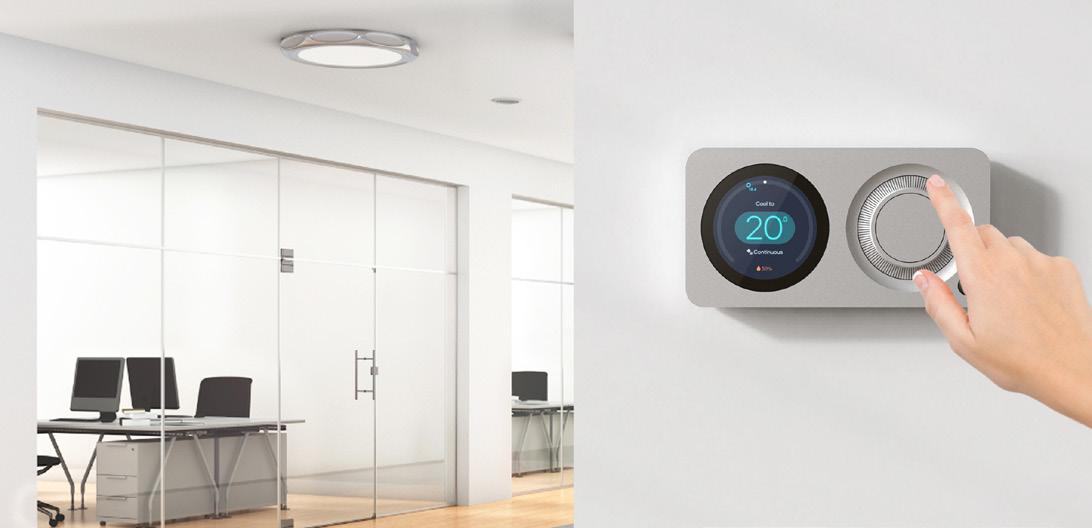

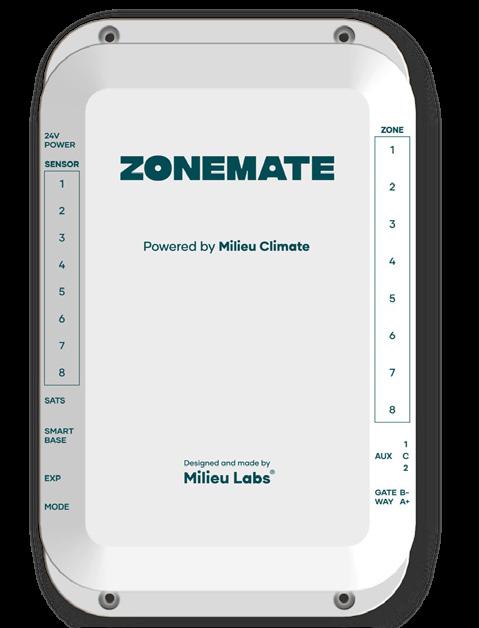

ZONEMATE

THE FUTURE OF AIR CON

Milieu Climate allows you to design your environment by controlling your air conditioning system whilst monitoring everything from air quality and temperature to lighting levels, sound, humidity, pressure, and motion.

ZoneMate allows you to control up to 8 zones with thread radio for future proofed technology and cloud monitoring for industry leading support.

ASHRAE Standard to Reduce the Risk of Indoor Disease Transmission

ASHRAE announced the approval for publication of its highly anticipated airborne infection risk mitigation standard for buildings, bringing numerous benefits to occupants and promoting healthier environments. ASHRAE Standard 241, Control of Infectious Aerosols establishes minimum requirements to reduce the risk of disease transmission by exposure to infectious aerosols in new buildings, existing buildings and major renovations.

FEATURES • 7 built-in sensors –Temp., Humidity, Air Quality, Motion & more • Portable Hub with Inbuilt wi-fi module and mobile app • Easy to use setup wizard to guide through configuration • On/Off Timer & 7 Day scheduler with advanced functionality • Google and Alexa smart home integration and voice control • Thread radio technology for future integration with IoT devices

ZoneMate and MilileuClimate are compatible with most brands of air conditioners.

Ph: 09 579 1990

sales@eurotec.co.nz

irhace.org.nz

www.eurotec.co.nz

JULY 2023

Explore the full potential of FRIDOC Explore quality content from scientific and technical publications covering all sectors of the field. FRIDOC is your go-to platform for articles, reports, training materials, and more.

The database is fully accessible online and is recognised as the leading platform for seminal informative documentation on refrigeration, and includes scientific papers from IIR conferences, review articles, technical guides, reports, training material and much more.

Brave in Business

Do you want to work smarter, run your business more effectively and improve your mental and physical wellbeing?

The micro courses will help you learn to focus on what matters most to you and your business so that you can make the most of your time and energy.

How to handle inflation as a sole trader Sole traders have had an especially difficult few years as inflation surged.

As inflation began surging in early 2022, sole traders were initially able to offset the effects by changing their clients more. But their ability to keep up was limited: as of March, this year, we appear to have hit a pricing ceiling. Only 28% of sole traders have recently raised their rates, as opposed to the 56% who did last June.

Research from October 2022 shows that sole traders are only spending around half of their week (55%) on actual work the rest gets taken up with things like admin and taxes, finding work and travel.

Freeing up some of this time could mean taking on more projects, or working bigger contracts, resulting in a boost to your bottom line.

Three tips to help lighten the load: 1. Automate everything you can.

2. Claim all the deductions you’re entitled to 3. Take care of your mental health.

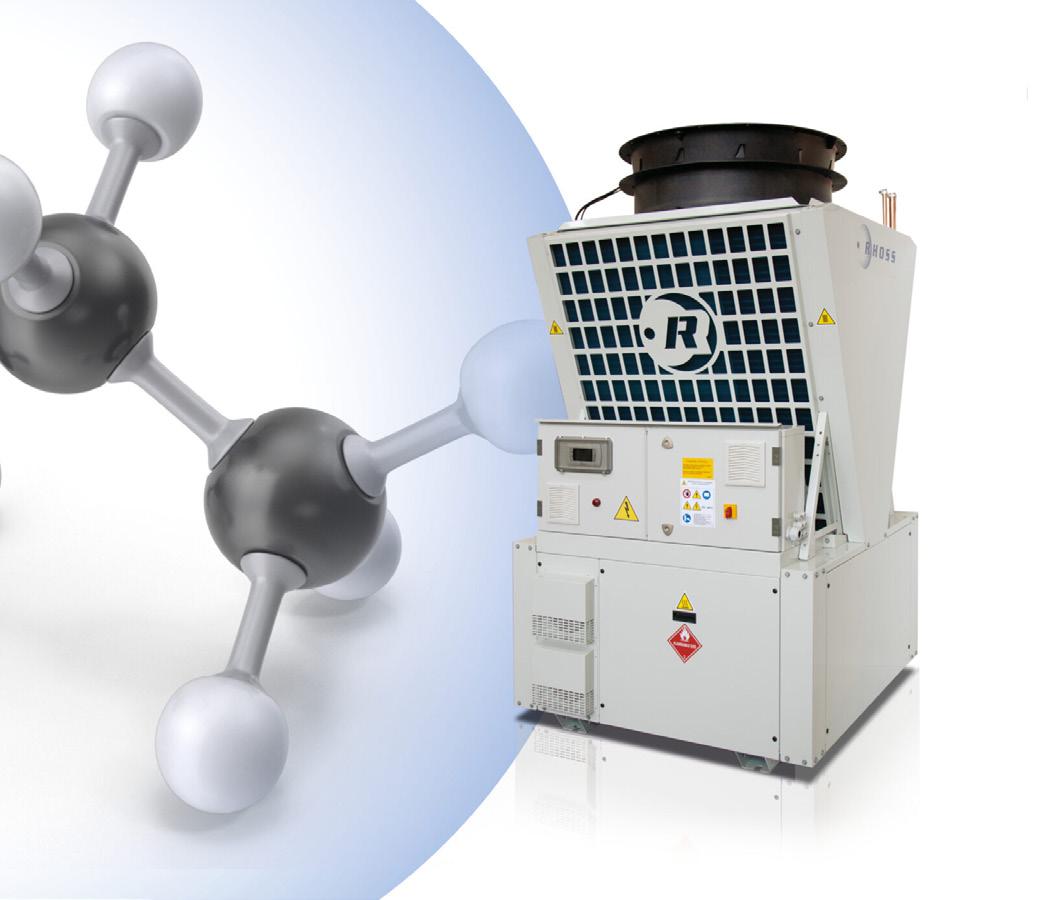

RHOSS POKER290 from 48 TO 190kW Heating water up to 75°C

GY LO

N

For more info, contact Clima Solutions

TECHNO

NEW

GREE

Clima Solutions Ltd. | www.clima.co.nz | 021 863 588 | clima@clima.co.nz

MATES HELPING MATES

Need a chat? 0800 111 315 or free text 5353 / www.mates.net.nz 13

THAT’S A WRAP FOR 2023!

THANK YOU TO EVERYONE WHO ATTENDED AND EXHIBITED

HVAC&R HUB

BROUGHT TO YOU BY

Save the date and register your interest early

25-26 June 2024 I Auckland Showgrounds Visit our websites

Exhibiting For exhibiting enquiries please contact us:

buildnz.com facilitiesintegrate.nz safetyshow.co.nz

irhace.org.nz

JULY 2023

Carmel Jones XPO Exhibitions carmel@xpo.co.nz | 09 976 8366 | 027 494 0699 Events Coordinator IRHACE admin@irhace.org.nz

BROUGHT TO YOU BY

15

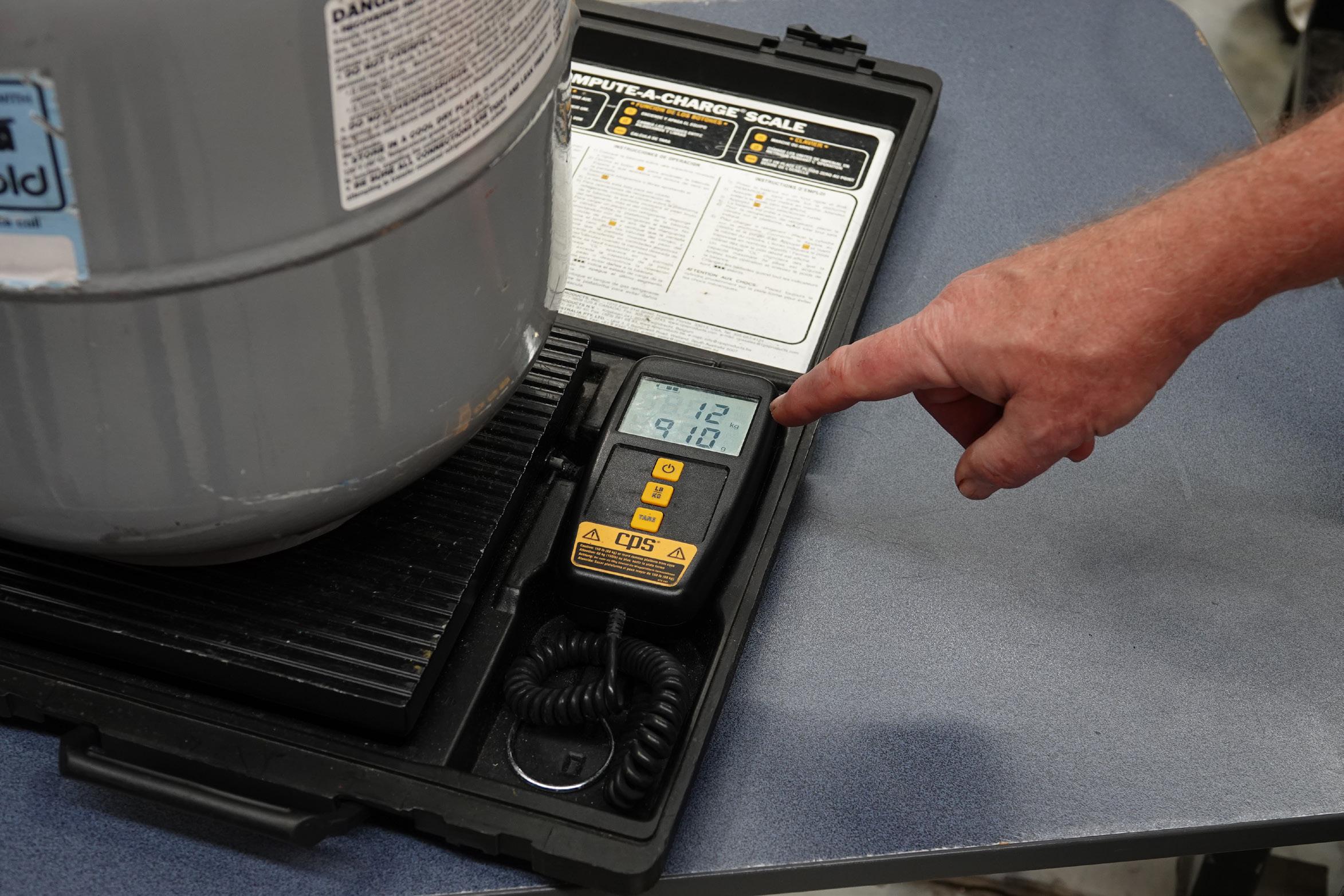

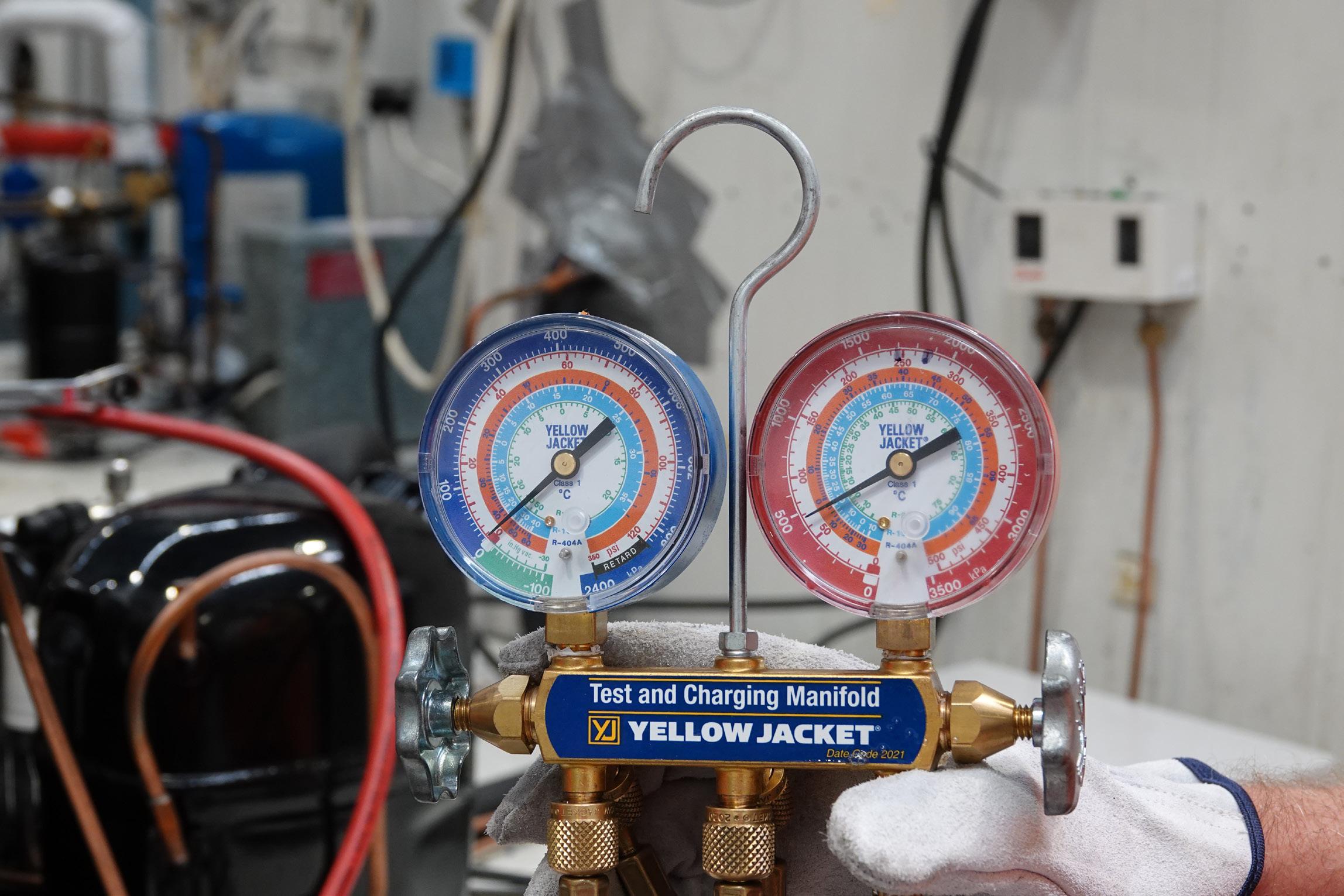

Who needs an Approved Filler?

ARE THERE CIRCUMSTANCES WHERE A TECHNICIAN DOESN’T NEED AN APPROVED FILLER LICENSE? RLNZ have an answer from Worksafe’s legal team

irhace.org.nz

JULY 2023

RLNZ has been fielding enquiries (generally from the automotive industry) asking if there are circumstances where a technician doesn’t need an Approved Filler License.

“Regulation 15.64 of the Health and Safety at Work (Hazardous Substances) Regulations 2017 places restrictions on persons who may charge a gas container. It is quite clear that a person directly filling a gas cylinder is required to be an Approved Filler.

Also, a person may fill a cylinder if they are undertaking a course of instruction or other training to become an Approved Filler and they are supervised at all times by an Approved Filler”.

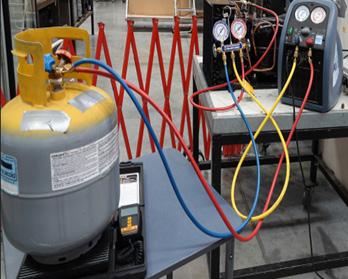

Refrigerant Recovery Units

Refrigerant recovery units are of two general types: Refrigerant Recovery Unit

Worksafe

Units that decant refrigerant gas into a recovery cylinder that is placed on electronic scales, to weighin the refrigerant, and ensure the cylinder is not over filled. The operator needs to know the maximum filled weight for that refrigerant/cylinder combination.

WorkSafe considers that where the recovery cylinder is independent of the recovery unit, the technician is required to be an Approved Filler.

RLNZ recommends sitting the A1 and A2/A2L Approved Filler courses

ASSESSMENT

Refrigerant Recovery Unit

Worksafe

Units that decant refrigerant gas into a recovery cylinder that is located inside the unit. The cylinder sits on a load cell, and there are safety mechanisms to prevent an overfill.

WorkSafe considers that where the recovery cylinder is contained within the recovery unit, the technician is not required to be an Approved Filler.

An A1 approved filler license is recommended for R134a refrigerants (non-flammable) and an A2L approved filler license is recommended for the R1234 family of refrigerants (flammables)

A1 ONLINE THEORY

A1 PRACTICAL ASSESSMENT

A refrigerant recovery unit with a built-in cylinder fits the definition of a compression plant which is excluded from the definition of a gas container, in the above Regulations.

17

irhace.org.nz

JULY 2023

BuildNZ | National Safety Show | Facilities Integrate

HVAC&R HUB Leading the Way: Patton Impresses at HVAC&R Hub 2023 with Innovative Solutions Patton, a trailblazer in the HVAC&R industry, left a lasting impression at the highly anticipated HVAC&R Hub 2023, a two-day event that brought together industry professionals from around New Zealand. Co-located with the Institute of Refrigeration Heating & Air Conditioning Engineers of New Zealand (IRHACE) conference, this event proved to be a game-changer for the building and facilities industry.

Patton’s booth at the HVAC&R Hub 2023 was a sight to behold, showcasing a range of exceptional products designed to revolutionise the HVAC&R sector. Among the highlights were the CPS HVAC&R Tools, renowned for their reliability and precision, and the VIPER line of safe, user-friendly, non-toxic HVAC&R Chemicals.

The display also featured Patton’s Industrial Refrigeration solutions, including the highly sought-after Danfoss Valves, known for their exceptional performance and efficiency. Visitors were captivated by the Embraco BIOMA Silent Units Range, a compact and low-noise condensing unit line ideal for urban applications with restricted space.

Patton’s presence at the HVAC&R Hub 2023 demonstrated their dedication to pushing the boundaries of excellence and innovation in the industry. The event not only allowed professionals to witness firsthand the latest advancements but also provided a platform for networking and collaboration with industry leaders.

Patton’s commitment to sustainability was evident through their SCM REF NZ CO2Pak, a transcritical CO2 condensing unit that offers a greener alternative for refrigeration needs.

Additionally, the Inaba Denko Slimduct Black caught the attention of attendees with its premium duct cover, providing an aesthetic touch to various applications.

As the curtains closed on the HVAC&R Hub 2023, Patton left an indelible mark on the attendees, showcasing their unwavering commitment to delivering cutting-edge solutions that shape the future of the HVAC&R sector. Their participation in this premier trade event reinforced their position as a trusted leader in the industry, dedicated to meeting the evolving needs of professionals in New Zealand’s HVAC&R sector.

19

RLNZ www.rlnz.org.nz

Designing with Ventilation Louvres

Flammable refrigerants in an airconditioning application

1pt CCCANZ www.cccanz.org.nz

1pt

HVAC&R HUB

HVAC&R Hub https://www.buildnz. com/visitor-information/ hvac-and-r-hub/

1pt

Expansion work recovery

The application of reinforcement for vapour compression cycle control

1pt

1pt

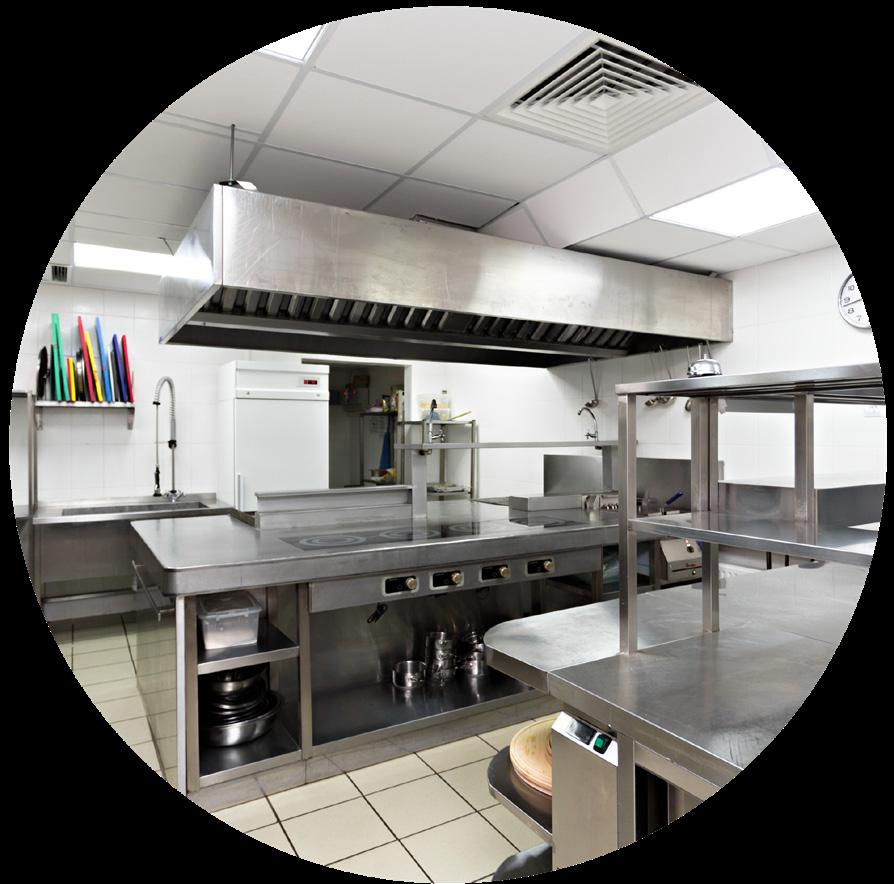

Commercial Kitchen Exhaust Systems

4pts

D P C Earn ! s t n i o P WEBINARS

TECHNICAL TALKS

1pt Air Quality ventilation and Covid 19

EVENTS

COURSES

*To earn CPD points you must be an IRHACE member

irhace.org.nz

JULY 2023

Alan Jaffe, IRHACE Life Member, Garrett Glynn RLNZ, David Everitt IRHACE

July 2023 New Members Daniel Platts Justin Willis Richard Gillaly Navin Paul Nileshkumar Raj Bhawesh Singh Member Milestones

There are four membership categories that cover HVAC&R professional, industry experienced, training in HVAC&R and supportive of the industry.

Member by Qualification JOIN IRHACE “I am a qualified HVAC&R Professional wanting to join a professional industry association”.

4pts

10 Years Keith Turner 30 Years Andrew Kidd Richard Smith 40 Years Peter Roper 50 Years Alan Skinner Charles Dempsey 60 Years Owen Burgess

FEATURED

CPD

21

10 YEAR SERVICE AWARDS During the NZIRACE Jubilee conference in Wellington in 1983 RACCA was born. A committee of 12 people were appointed and RACCA is part of NZIRACE as company membership. In 2011, RACCA merged with HVAC Contractors Association and CCCANZ was born.

In 2023, the CCCANZ Board has made a decision to establish membership milestones for their members, beginning with a 10-year service award. This means that members who have been with CCCANZ for a continuous period of 10 years will be recognized and honoured for their longstanding commitment and contributions to the organization.

The purpose of these milestones is to acknowledge and appreciate the dedication and loyalty of members who have been actively involved in the organization for a significant period of time.CCCANZ congratulates these members for their 10-year service award.

WHY USE A CCCANZ MEMBER COMPANY As a CCCANZ member, you become part of a community of companies in New Zealand that prioritize responsibility towards customers and strive for the respectability of their trade. The member companies cover various sectors related to HVAC&R, including refrigeration, ventilation, HVAC mechanical services, heat pumps, suppliers, and manufacturers. Additionally, CCCANZ has affiliate members representing training, government, and other business activities.

By joining CCCANZ, you gain several benefits. Firstly, you have greater access to resources and information related to the HVAC&R industry. This can include updates on industry trends, best practices, technological advancements, and regulatory changes. Staying informed allows you to stay ahead in your field and make well-informed decisions for your business.

Furthermore, being a member of CCCANZ provides you with opportunities to connect and network with other industry professionals. This can be through events, conferences, workshops, or online platforms where you can exchange ideas, share experiences, and learn from one another. Building relationships within the community can lead to potential business collaborations and partnerships.

Lastly, as a CCCANZ member, you benefit from the collective strength of the organization. CCCANZ promotes guarantees and warranties to back quality products and workmanship, which enhances your reputation as a responsible and reliable business in the HVAC&R industry. This commitment to quality and customer satisfaction sets you apart from others in the market.

Overall, being a CCCANZ member offers you a platform to enhance your professional development, expand your industry knowledge, and establish valuable connections within the HVAC&R community in New Zealand.

irhace.org.nz

JULY 2023

Member company listing covering New Zealand from Northland to Southland and in between.

FROM THE CHAIR Greetings

Well, it’s been another big year for the board of directors, with the year starting off with Covid-19 still hanging over how we operate our businesses. The lack of staff is affecting all of our businesses due to the closed border and our struggle to get recognition at MBIE that we should be on the green list for critical services. We must thank Grant Price for trying to get us recognized with his position on the Specialist Trade Contractors Federation (STCF).

We all were struggling with supply issues which was plaguing New Zealand and seriously effecting our businesses. The price increases were never ending, causing fixed price contracts to be less profitable. As we started to manage ourselves around Covid and the border restrictions starting to ease there was some light at the end of the tunnel. Meantime our board meet every two months and had some progress with governance and projects.

Development of the cradle to grave management of refrigerants, mainly F-gases using a business Ethereum Blockchain which incorporates all stages of refrigerant use. A big thanks to SmartTrade business solutions for leading the development of this exciting world leading project.

SmartTrade has developed our CCCANZ Safety Master system into a SmartForm which is being trialed now with the intention of this being available to our members in 2023. We are now looking at a standardised maintenance schedule in a SmartForm with the hope of it being adopted as a minimum standard to help in the mitigation of refrigerant leaks and higher running costs of air conditioning and refrigeration equipment. We are doing all this work due to the government requirements for the Product Stewardship Scheme for F-gases. As an association we need to be applying to run the scheme or be part of a team with the best interests of the industry and our staff at the forefront. We wrote to the Ministers Parker and Shaw to have a meeting to raise our concerns on the implications to our members if we don’t have a democratic voice in this scheme.

READ MORE

MEMBER HIGHLIGHT

We welcome a new member to CCCANZ. A-Gas joined in May 2023 as an affiliate company and has quickly taken up the benefits of being a member. A-Gas is the world leader in the supply and lifecycle management of refrigerants and associated products and services. Their unique capability in the recovery, reclamation and repurposing of refrigerants will play a vital role in helping the New Zealand HVACR sector to transition to a lower carbon future.

Contact Mitch Williamson, mitch.williamson@agas.com or phone 021 0878 0838.

23

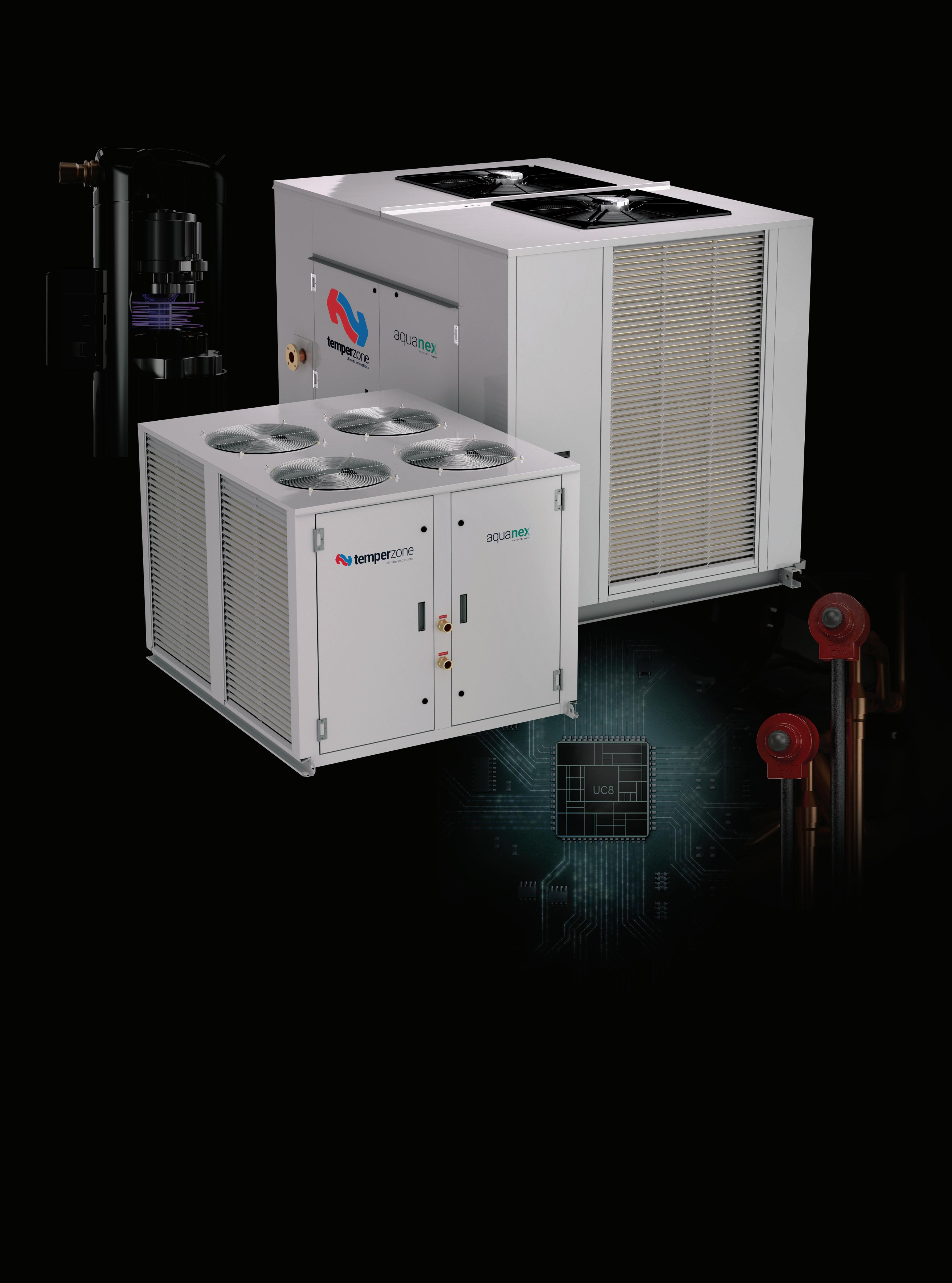

Aquanex In-line design, a revolution in heat pump water heater application.

Aquanex Heat Pump Water Heaters (77.5kW - 200kW)

Aquanex in-line design is revolutionising the way heat pump water heaters are applied.

Through adapting an integrated whole system design ethos Temperzone solutions deliver comfort and convenience that is more cost effective, efficient and reliable.

For product information, visit www.temperzone.com

irhace.org.nz

JULY 2023

IRHACE Industry Journal is a premium magazine for the refrigeration, heating and air conditioning industry with unique quality content that reaches a desirable audience and is free to download.

Contact us at admin@irhace.org.nz and be a part of our next issue now.

CONNECT WITH US HVAC&R INDUSTRY NEWS ALL IN ONE PLACE

25
