TABLE OF CONTENT 04 Social Space 12 Reimagining the Monticello 18 Greenhouse

My work often focuses on the harmony of lines and curvatures that creates rhythm and balance in everyday life. Though my journey to become an architect has just begun, I take great pride and love for what I study, for which I wish to absorb every possible chance to improve and learn.

22 Thinking Space

As an international student, who has lived in multiple cities including Seoul, NJ, and Philly, I have a better understanding of urban construction and its relationship to the suburban and rural areas as well as the different impacts they pose over our society and architecture.

28 Row House Project

These presented are a compilation of my studies since 2017 to 2022, from high school to my final year of study in college and my professional work from 2022 to 2023.

24 Rittenhouse Project

30 Covington London 36 Internship Work

Page 2

|

Arch itec ture Por tfol io

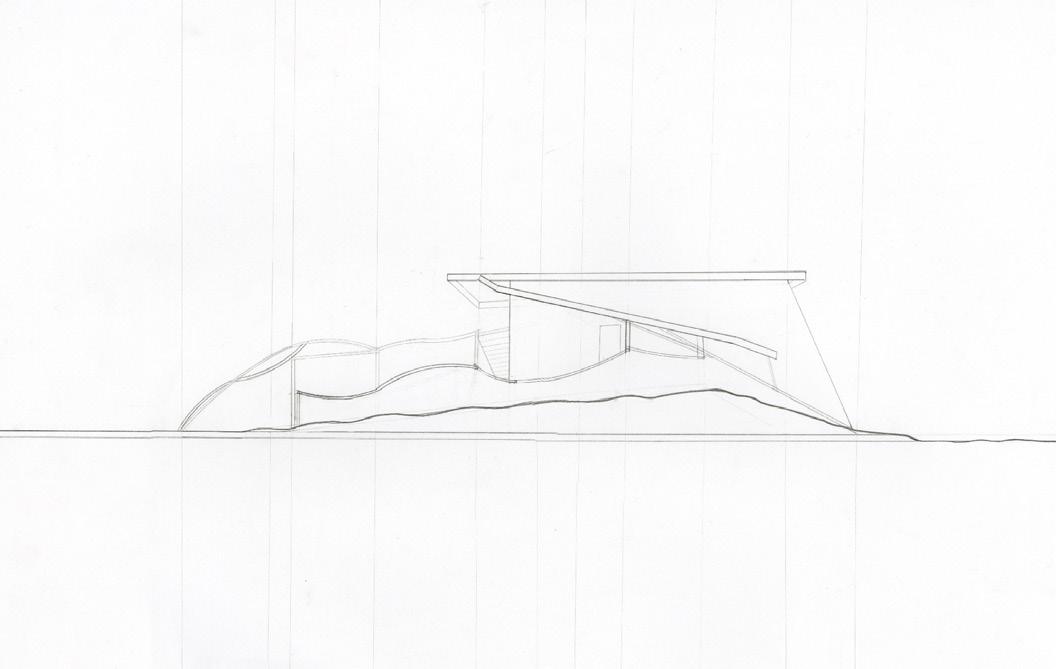

RAPHIC ELEVATION DRAWING

ACADEMIC

WORK

Page 3

|

Arch itec ture Por tfol io

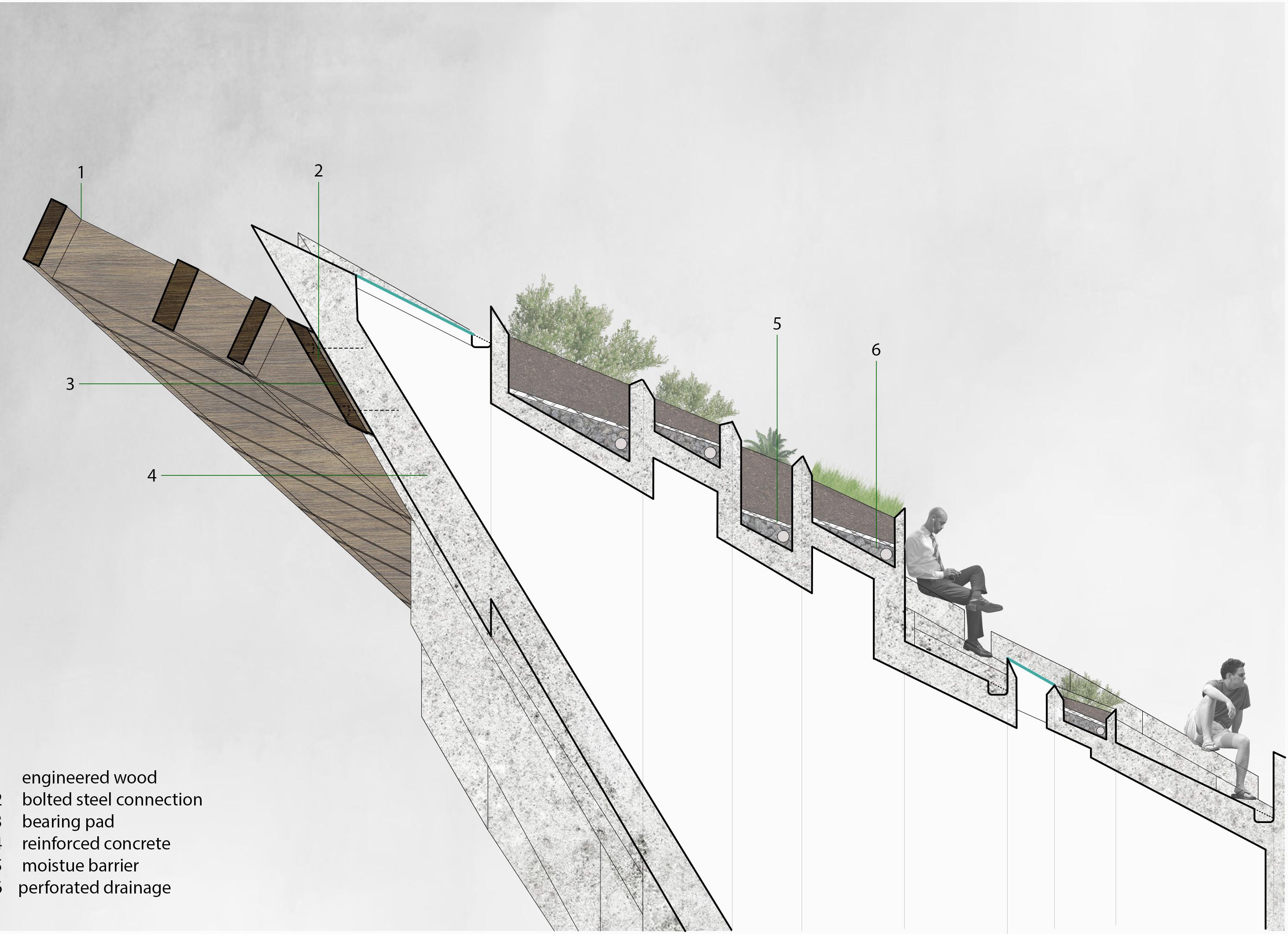

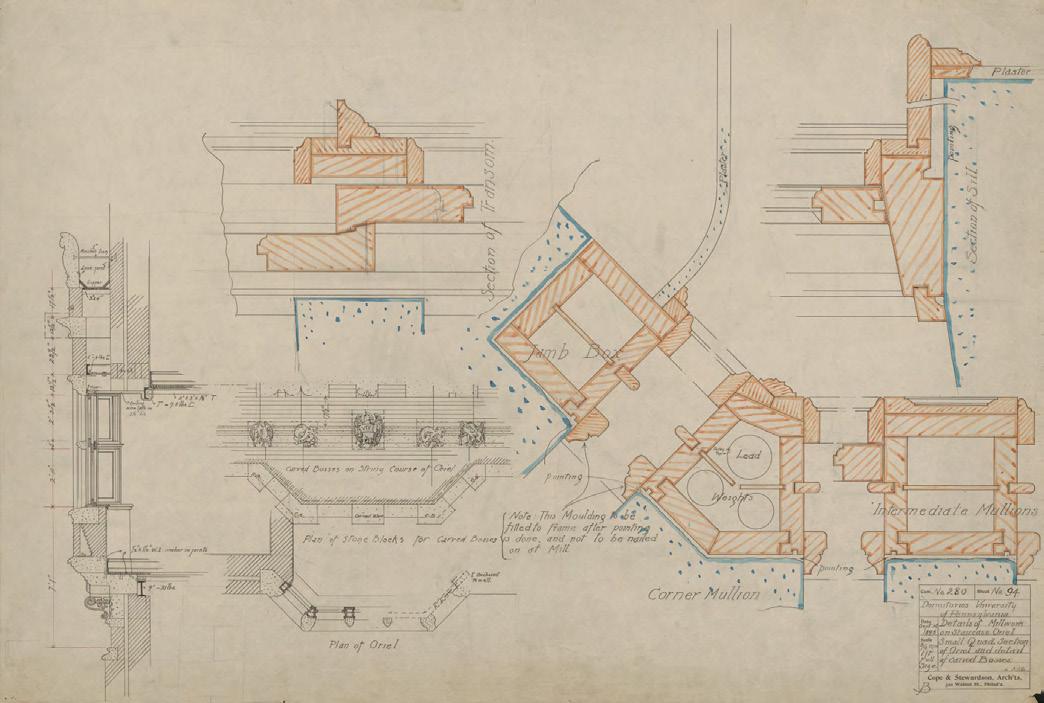

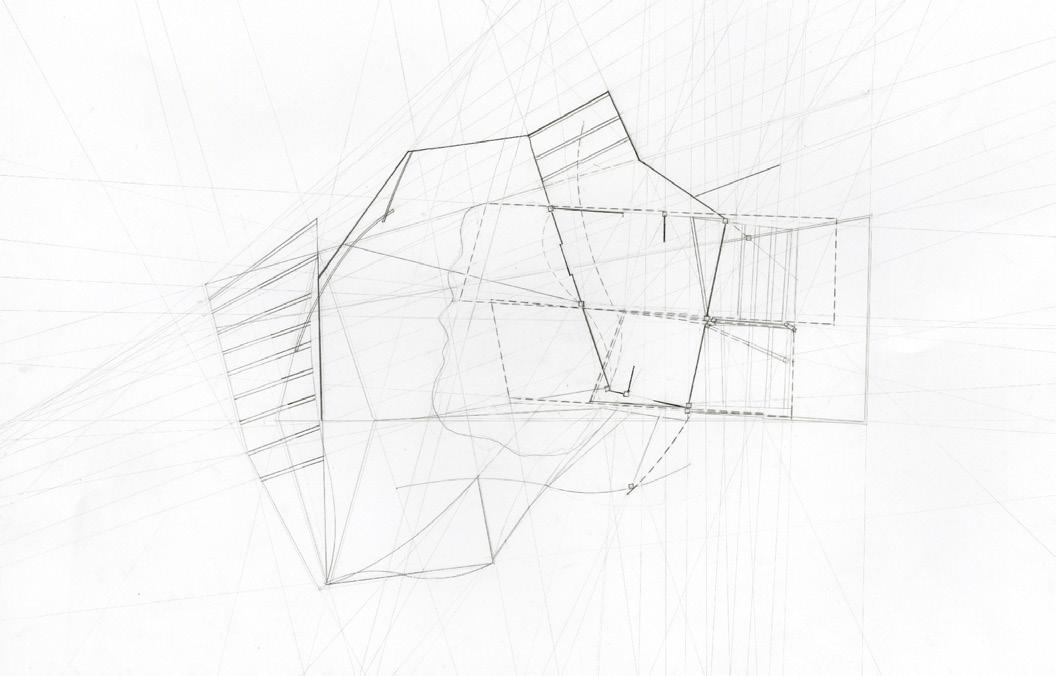

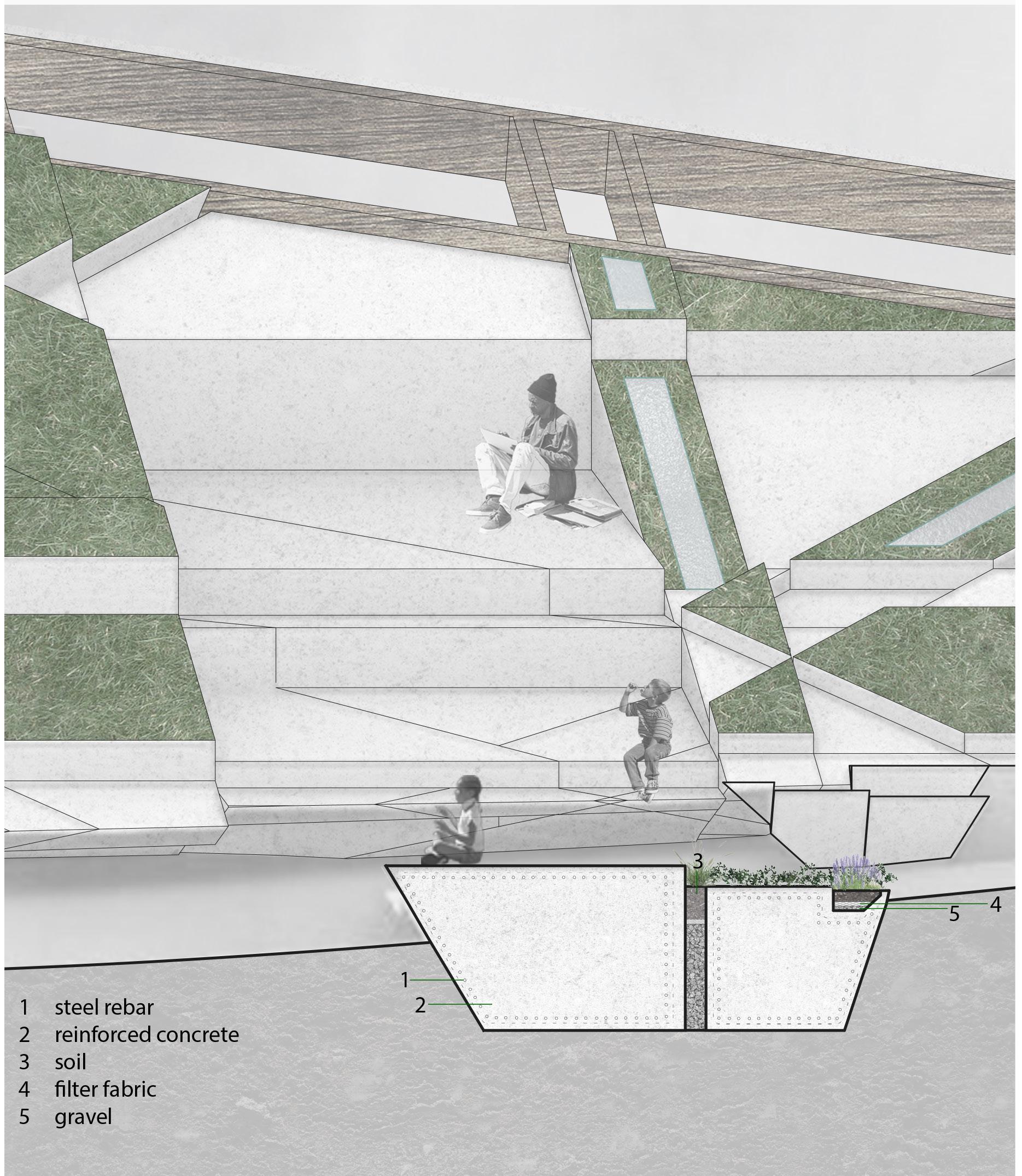

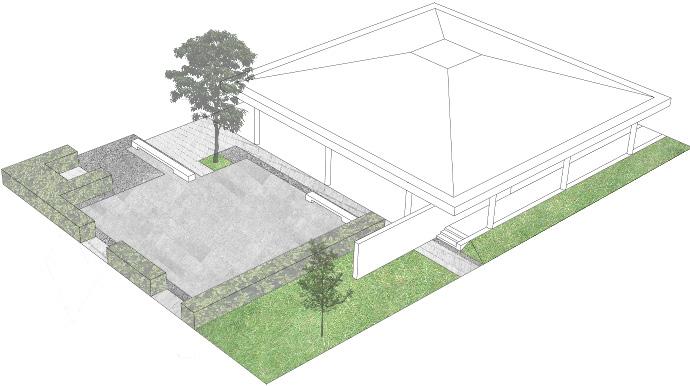

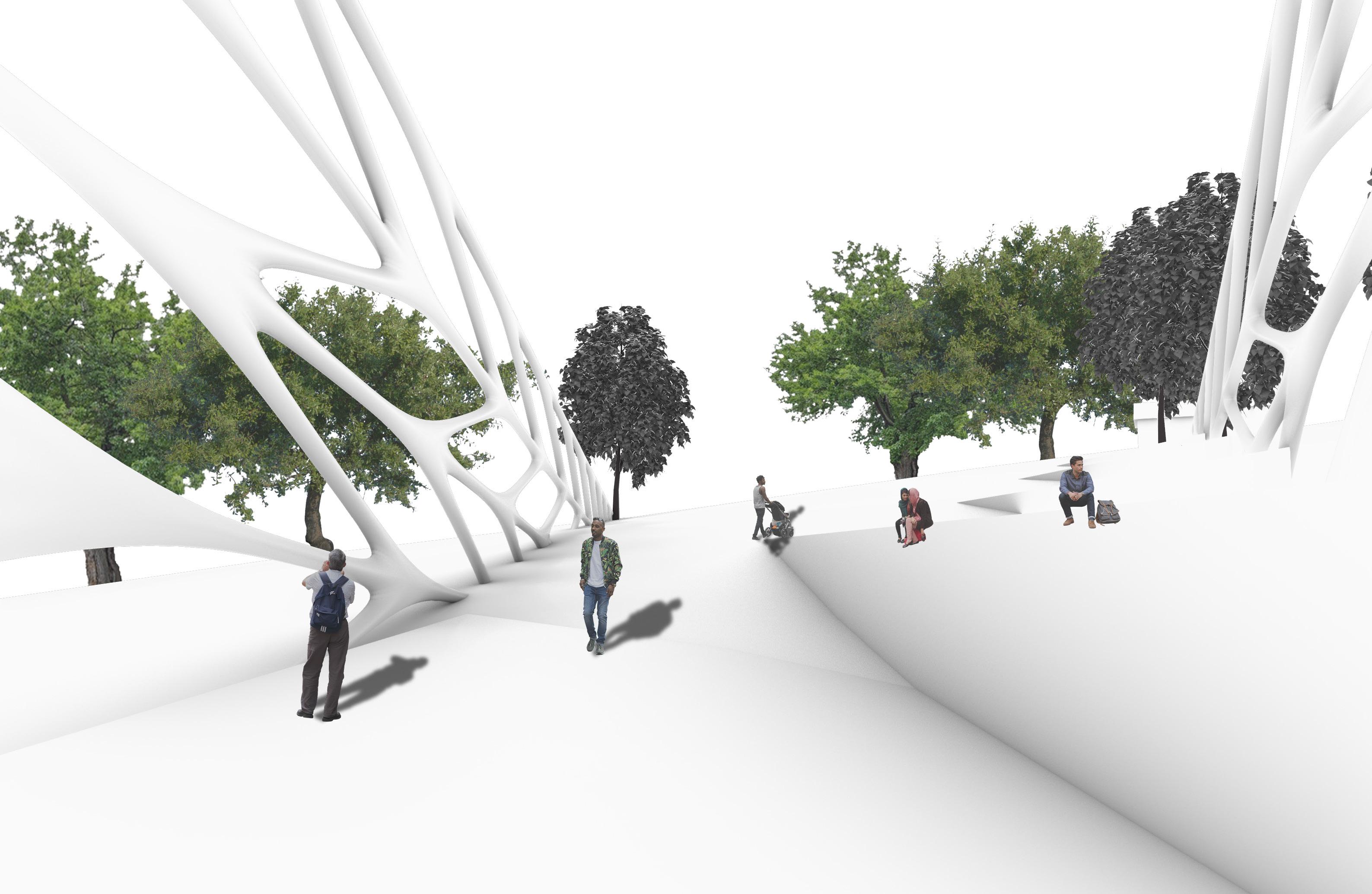

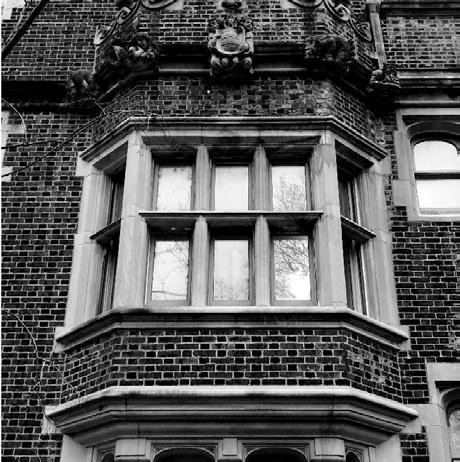

SOCIAL SPACE UNIVERSIT Y OF PENNSYLVANIA SPRING 2021 - THIRD YEAR Analyzing the oriel of Fisher College House in the Quadrangle located at University of Pennslyvania, this project explores the relationships between constructive geometries and techniques that are applied to create a public space for interaction between people and nature in the local park located in Philadelphia.

Page 4

|

Arch itec ture Por tfol io

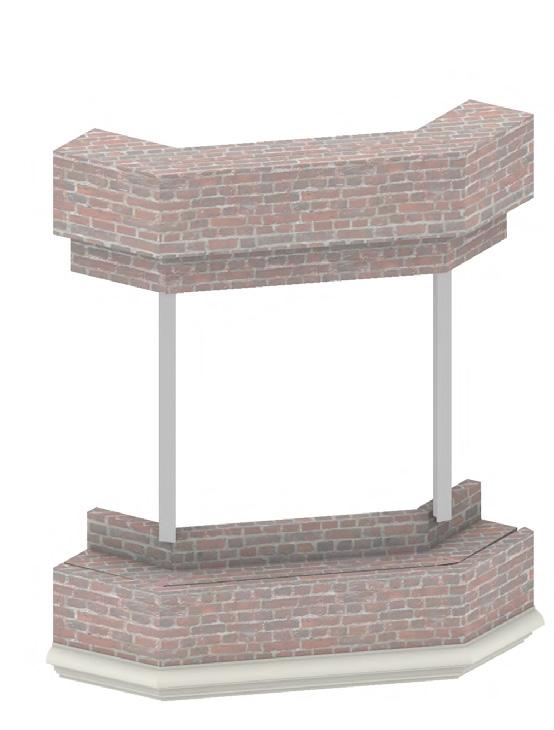

C1

A6O1 Brick

Limestone

Glass

Wood

Iron

B

A

C

B

A A1

A2

A3

C

A4

Iron

Wood

Glass

A5

A6

A7

A8

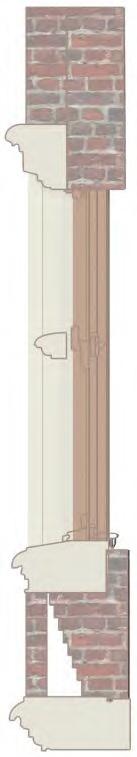

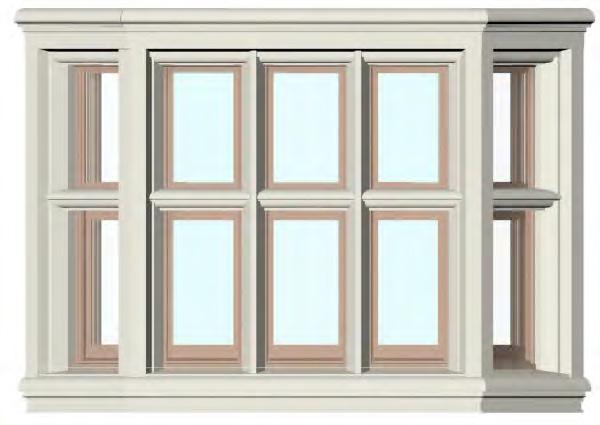

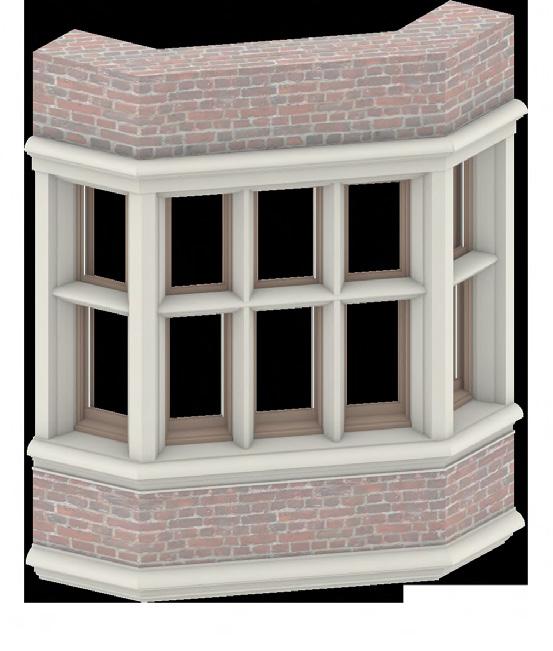

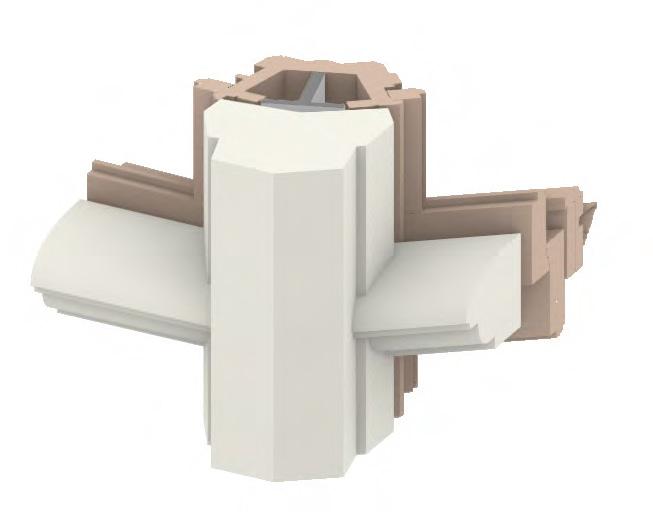

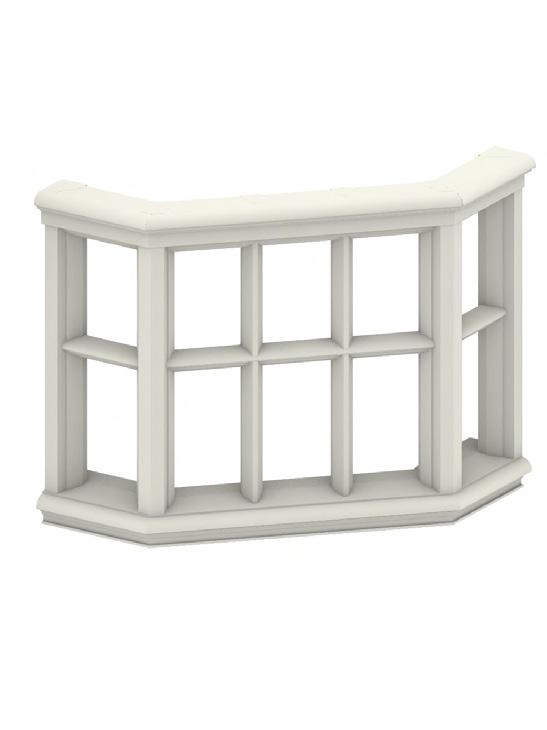

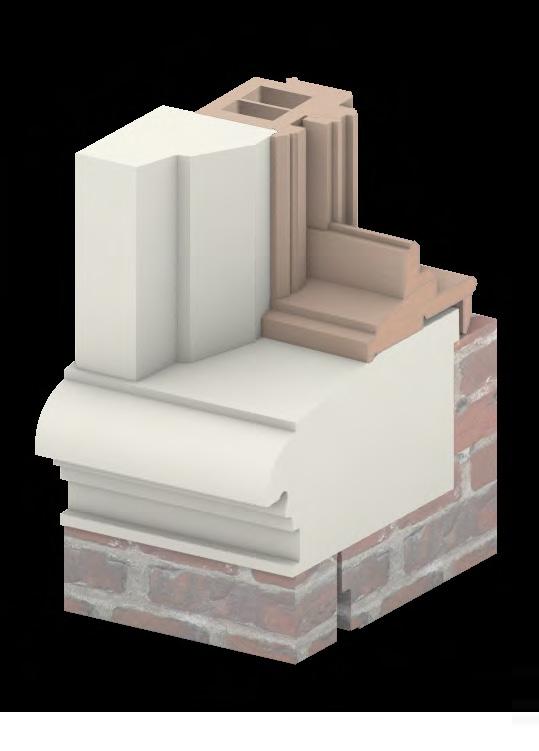

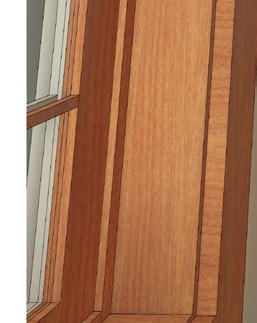

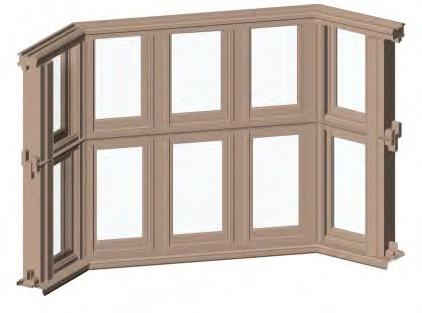

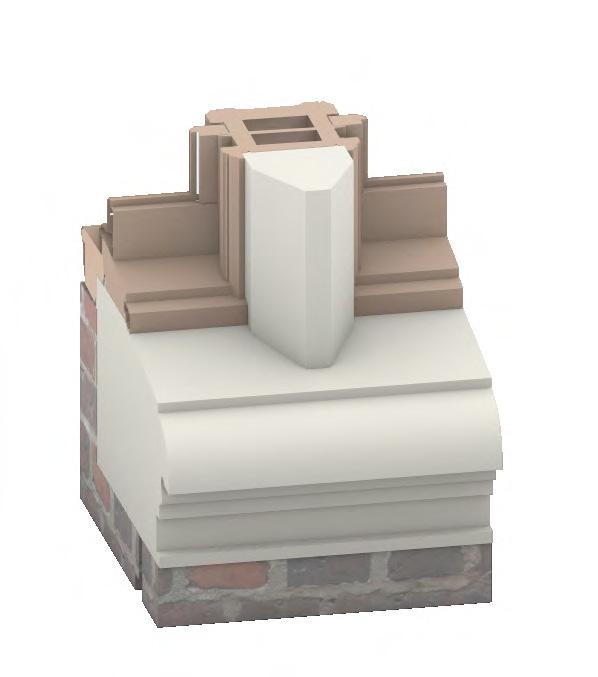

C2O3 Double-hung window

Limestone

AA1

AA2

AA3

AA4

AAB1

AAB2

AAB3

AAB4

C1

C2

C3

C4

Vertical window sash

Horizontal window sash

Brick

60°

60°

A6O1

A6O2

A6O3

C2O3

Brick

Limestone

Glass

Iron

B

Wood

A

C

Triangularity & Orthogonality

Triangularity & Orthogonality

C

B

A

Shift & Interlock

Iron

Wood

Glass

Page 5 C2O3 Limestone

|

Arch itec ture Por tfol io

Page 6

|

Arch itec ture Por tfol io

Page 7

|

Arch itec ture Por tfol io

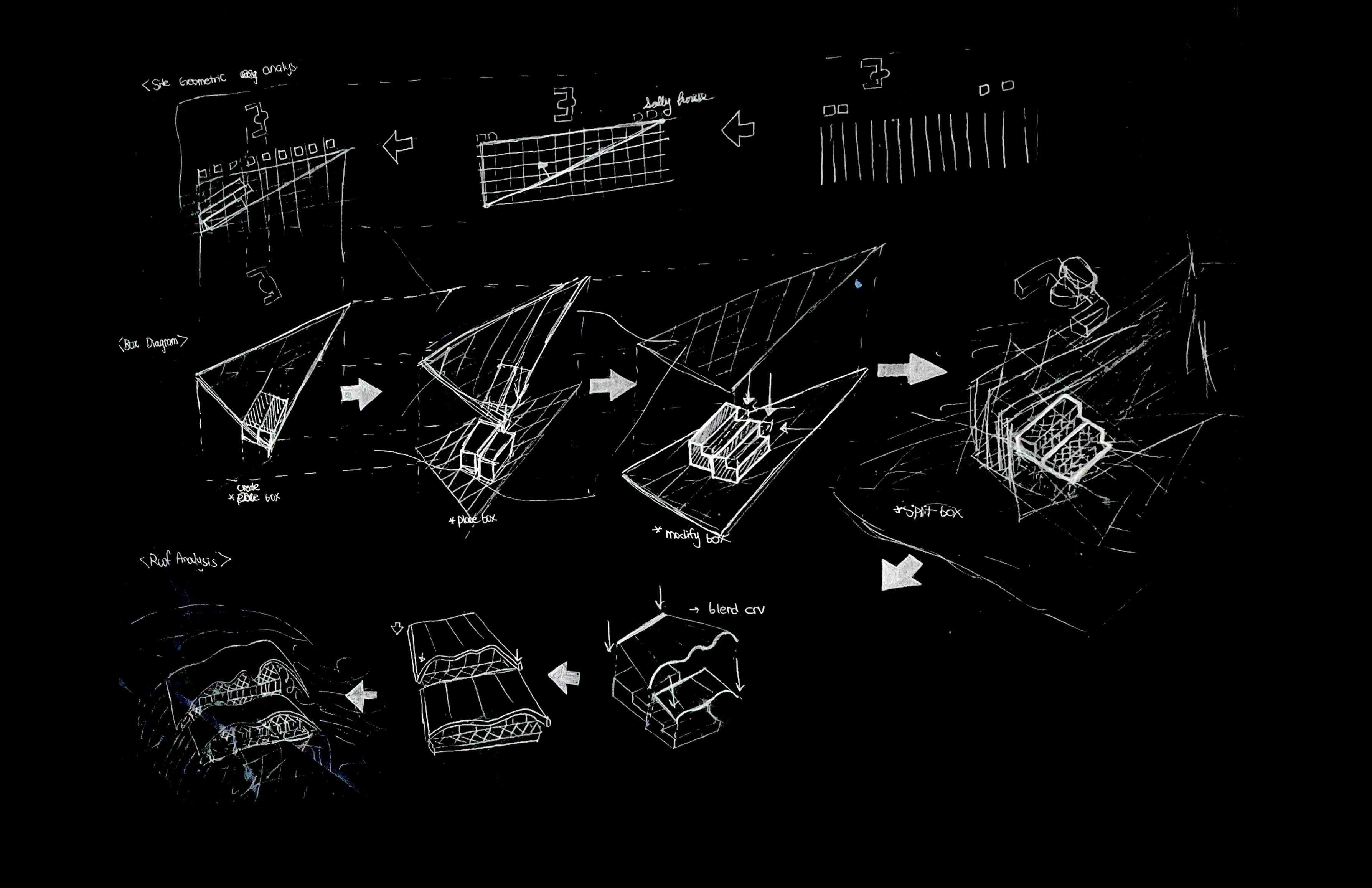

A1

B1

22º

C1

22º

D1

x1

x2

117º

x1

125º x2 x2

y2

x1

x2

x1 y1 y1

y2

22º

22º y1

y2

y2

y1

x1 125º

A2

B2

55º

C2

D2 x2

117º

y2

y1 x1 y1

x2

x1

x2

55º

x2

y2 x1 55º

y1

A3

55º

y2

B3

60º

C3

y2

D3

y1

90º 125º

x1 45º x2 x1

60º

x2

y1

A

y2 x2

y1

y2

x1 y2

y1

x1

A4

y2

B4

90º

x2

60º

60º

C4

y1

D4 90º 45º

x1

125º

x2

x1

45º

x2

90º y2 x2

y1

x2 y2

x1

y1

y1 90º

y2

90º

x1

y2

A5

B5

C5

y1

D5

125º

90º

x1 y2

x2

x2

x2

125º

y2

x1

90º y1 x1 y1

x1

125º

x2

125º

B3

A4

D5

C2

B

D5

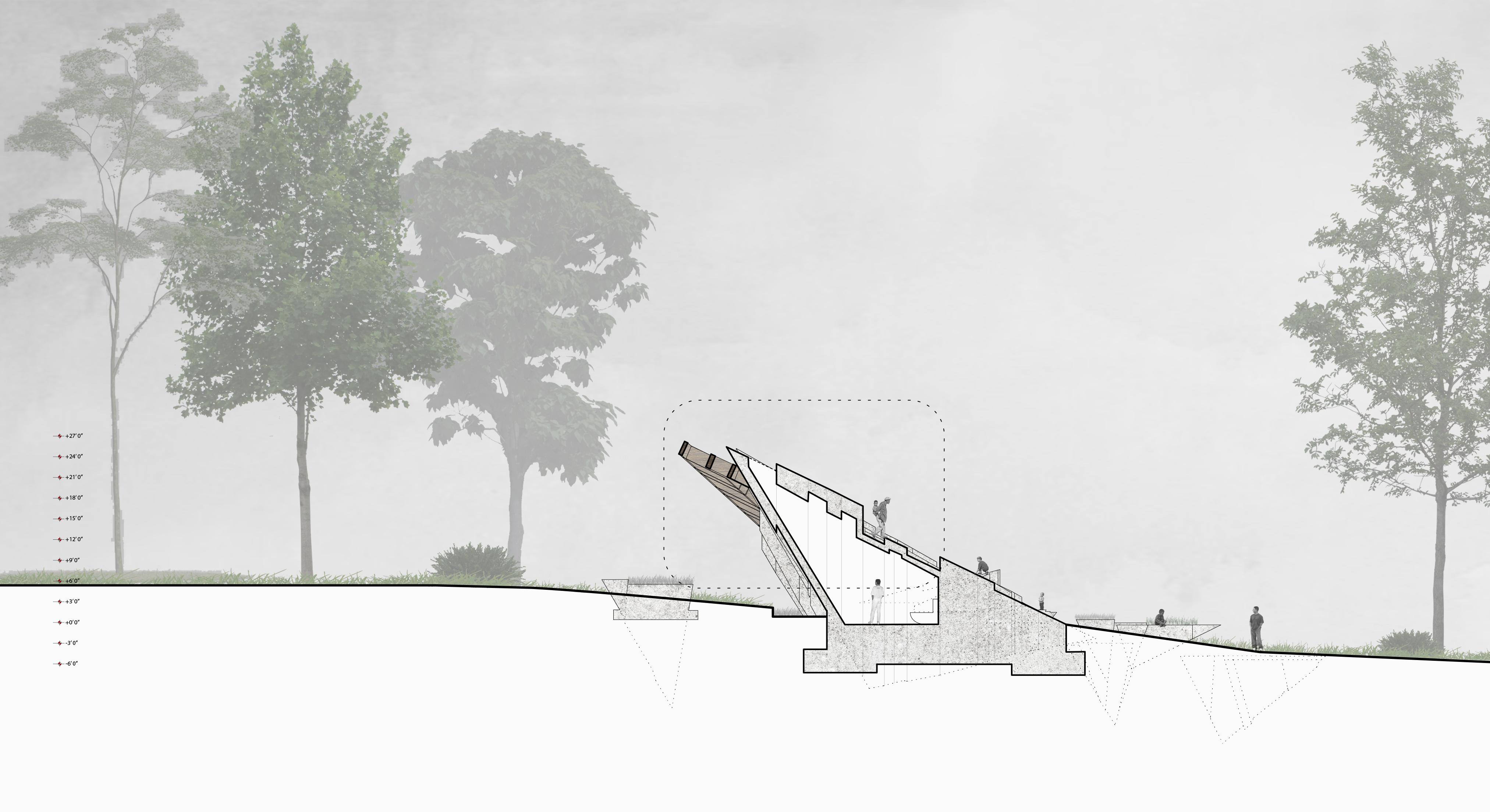

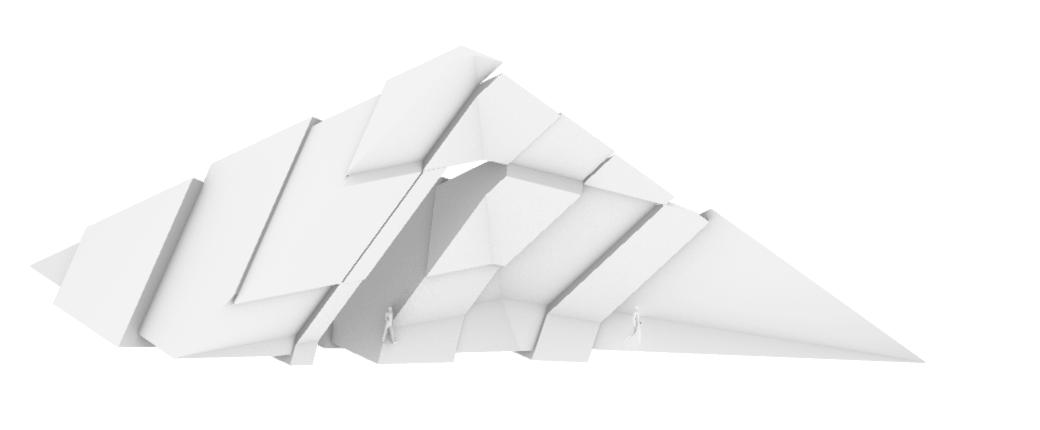

Wissahickon Valley Park

Page 8

|

Arch itec ture Por tfol io

Page 9

|

Arch itec ture Por tfol io

A

Page 1 0

|

Arch itec ture Por tfol io

A

Wissahickon Valley Park

B

Page 1 1

|

Arch itec ture Por tfol io

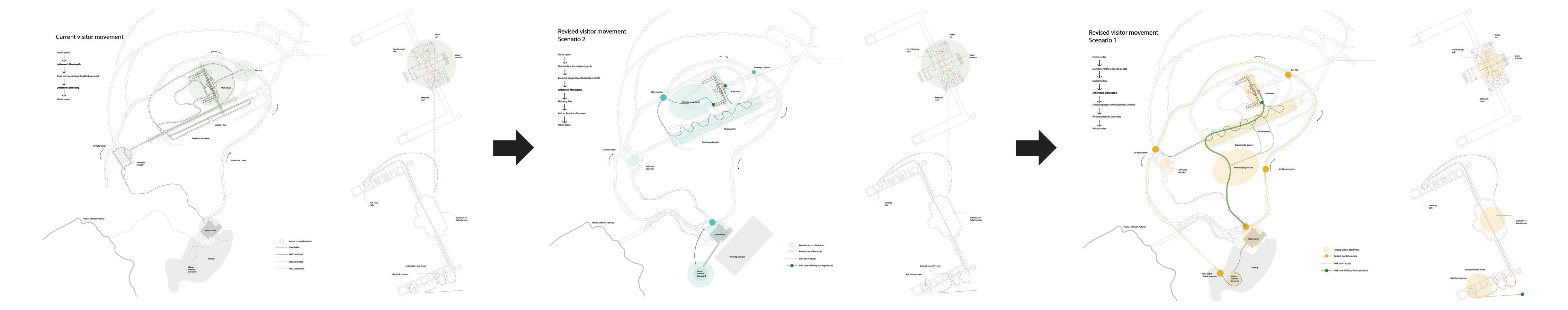

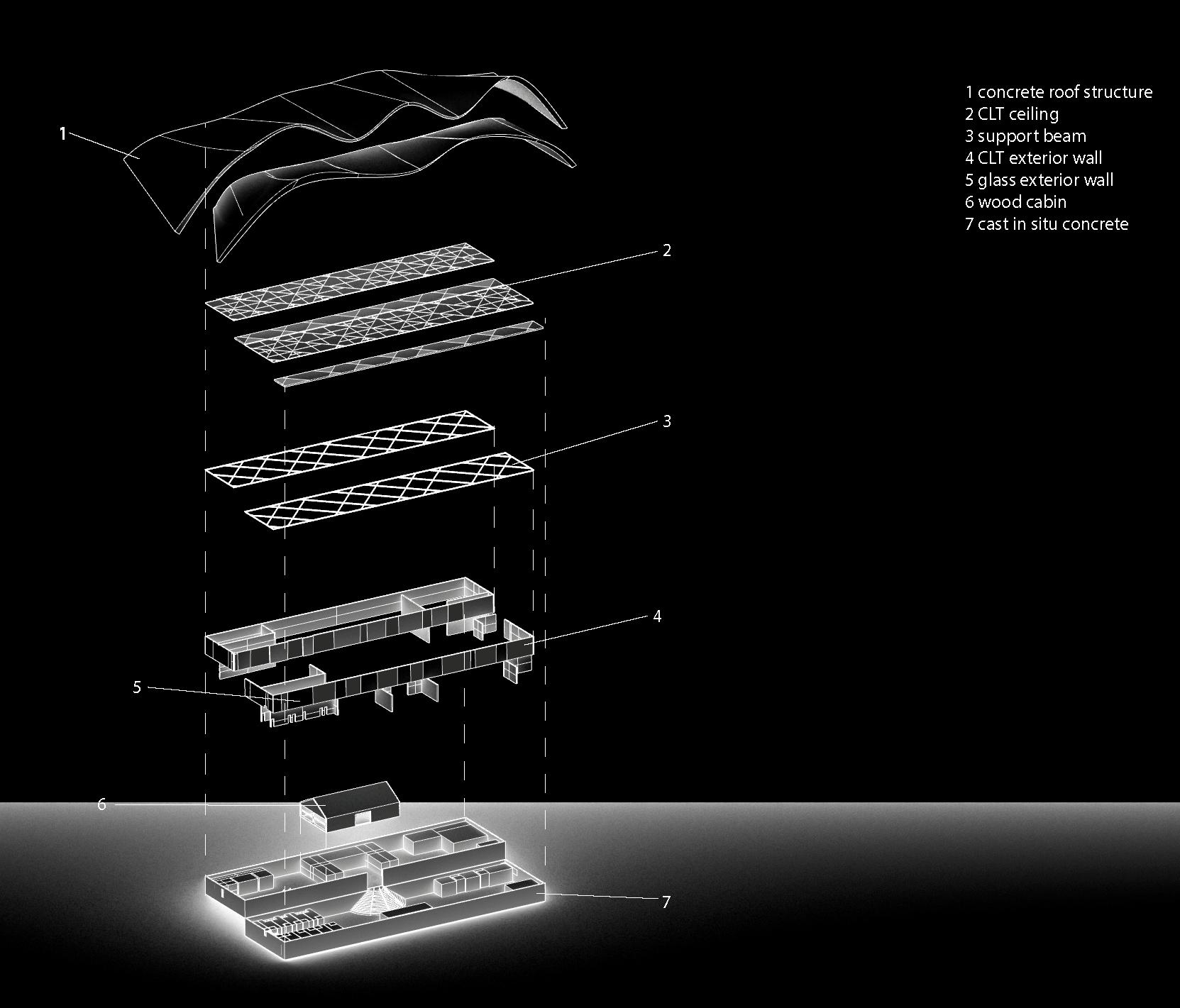

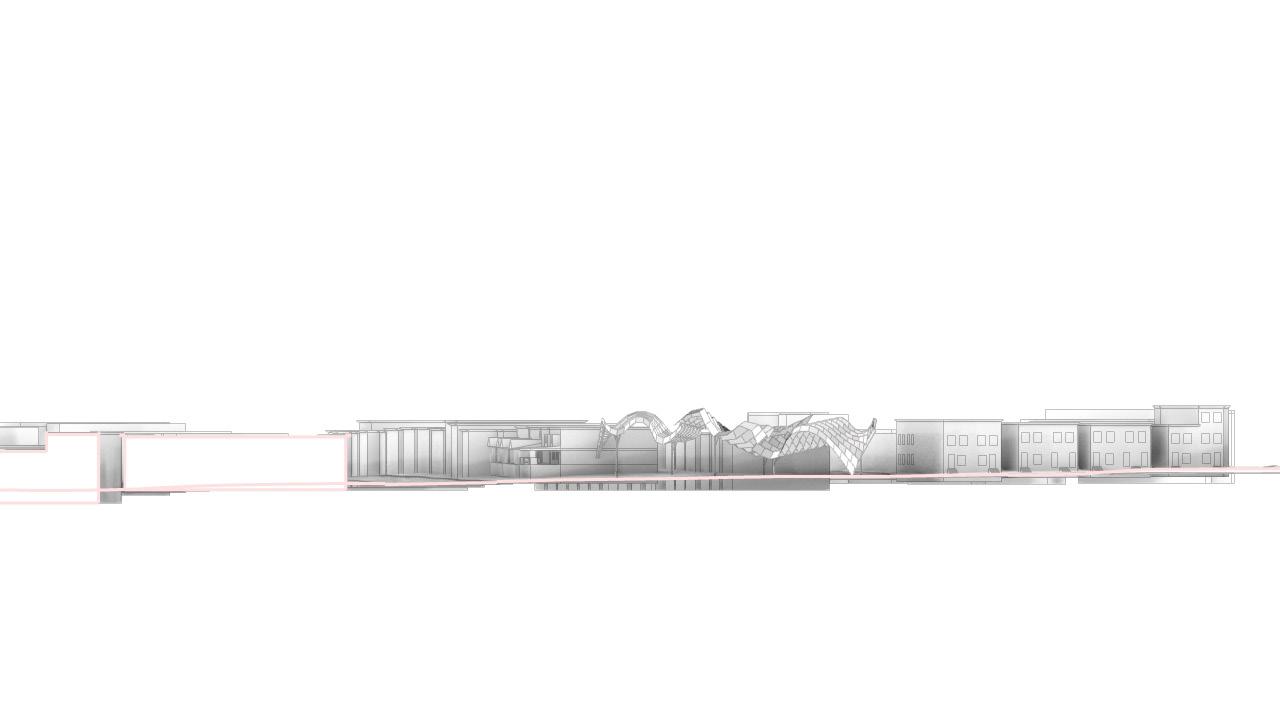

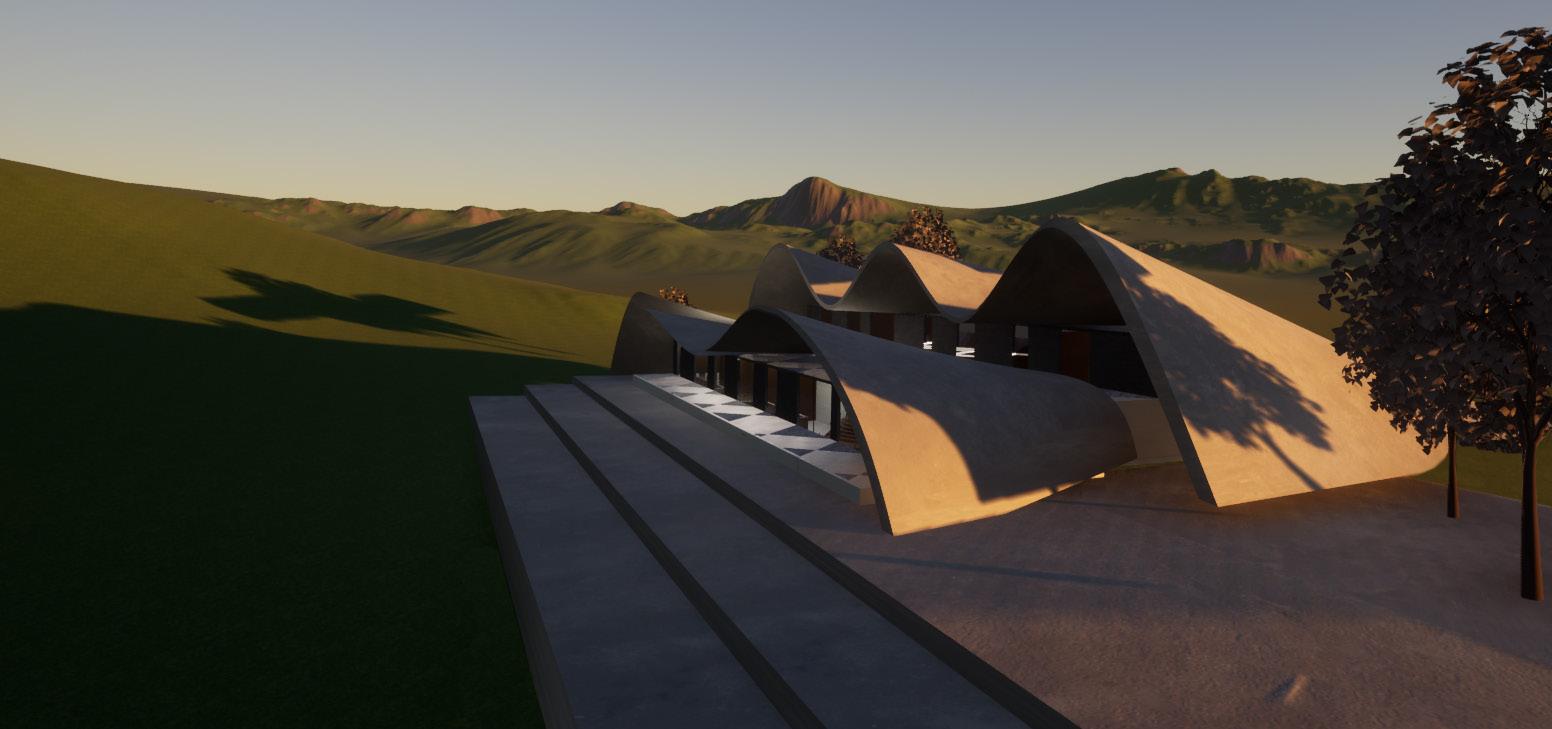

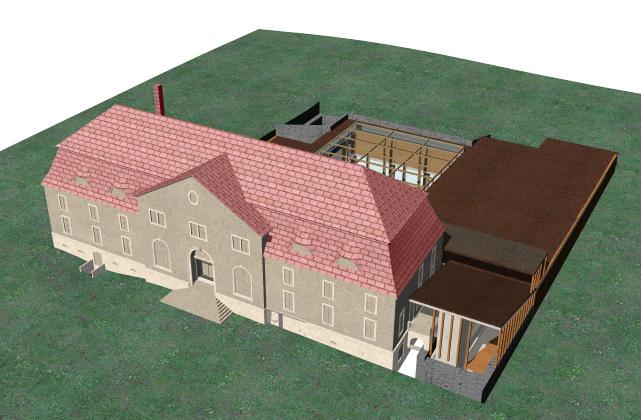

REIMAGINING TH

UNIVERSIT Y OF PENNSYLVANIA FALL 2021 - FOURTH YEAR

This semester long design course focused on th thers. Specifically studying Thomas Jefferson’s Mo site at Monticello and speaking with the descen plored the designing of a retreat center and a me at the site. Cross-examining the existing topogra of the program was divided into two parts: a 25,0 uity inclusion) and a memorial to slavery at Mon

Page 1 2

|

Arch itec ture Por tfol io

HE MONTICELLO

he American history of Slavery and Founding Faonticello, Virginia, and after a thorough visit to the nts of the enslaved people, our studio carefully exemorial to slavery that will hypothetically be placed aphic conditions and visitor experience, the design 000 square foot retreat center for DEI (diversity eqnticello in remembrance to those enslaved people.

Page 1 3

|

Arch itec ture Por tfol io

Page 1 4

|

Arch itec ture Por tfol io

Page 1 5

|

Arch itec ture Por tfol io

Page 1 6

|

Arch itec ture Por tfol io

Page 1 7

|

Arch itec ture Por tfol io

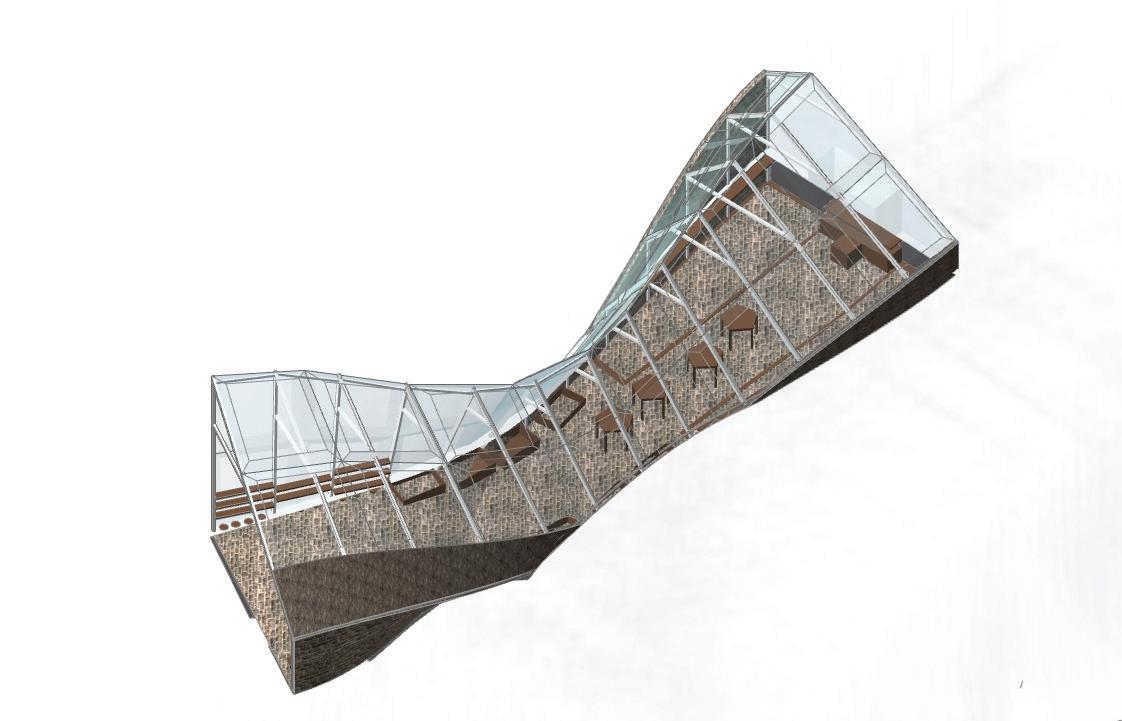

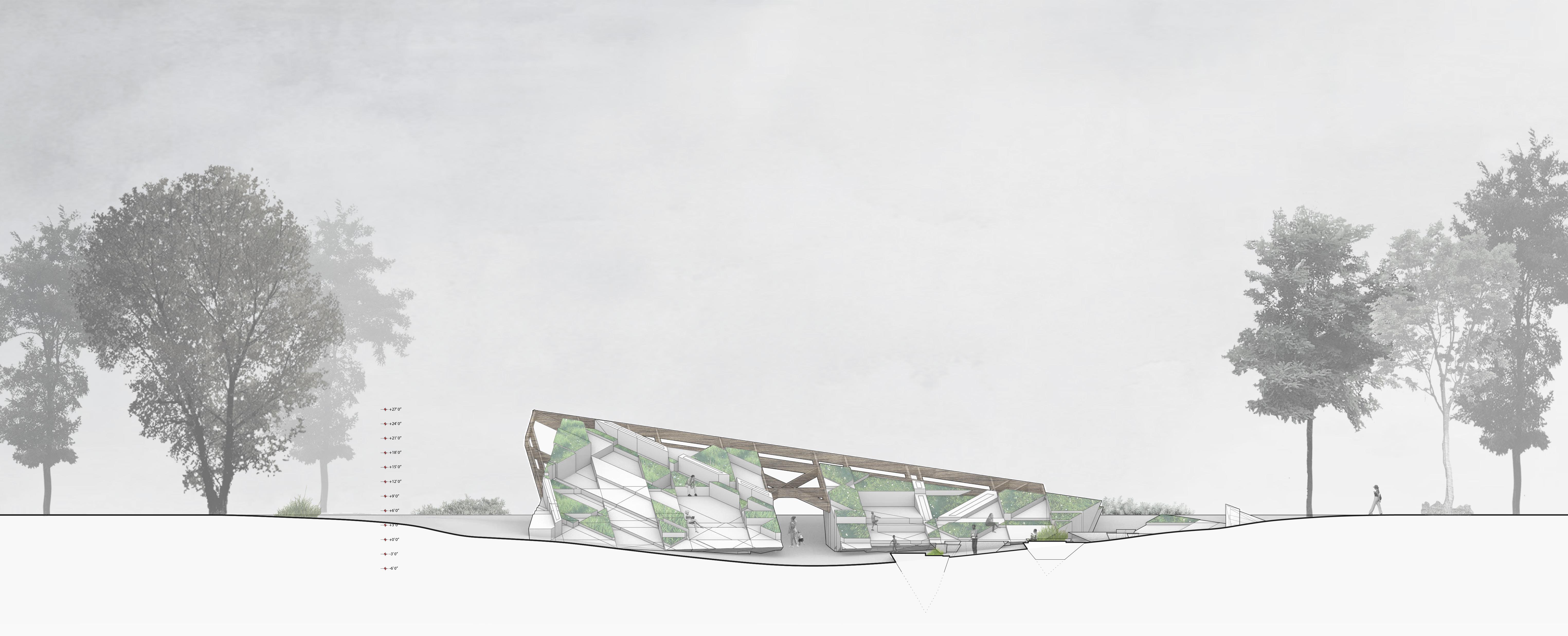

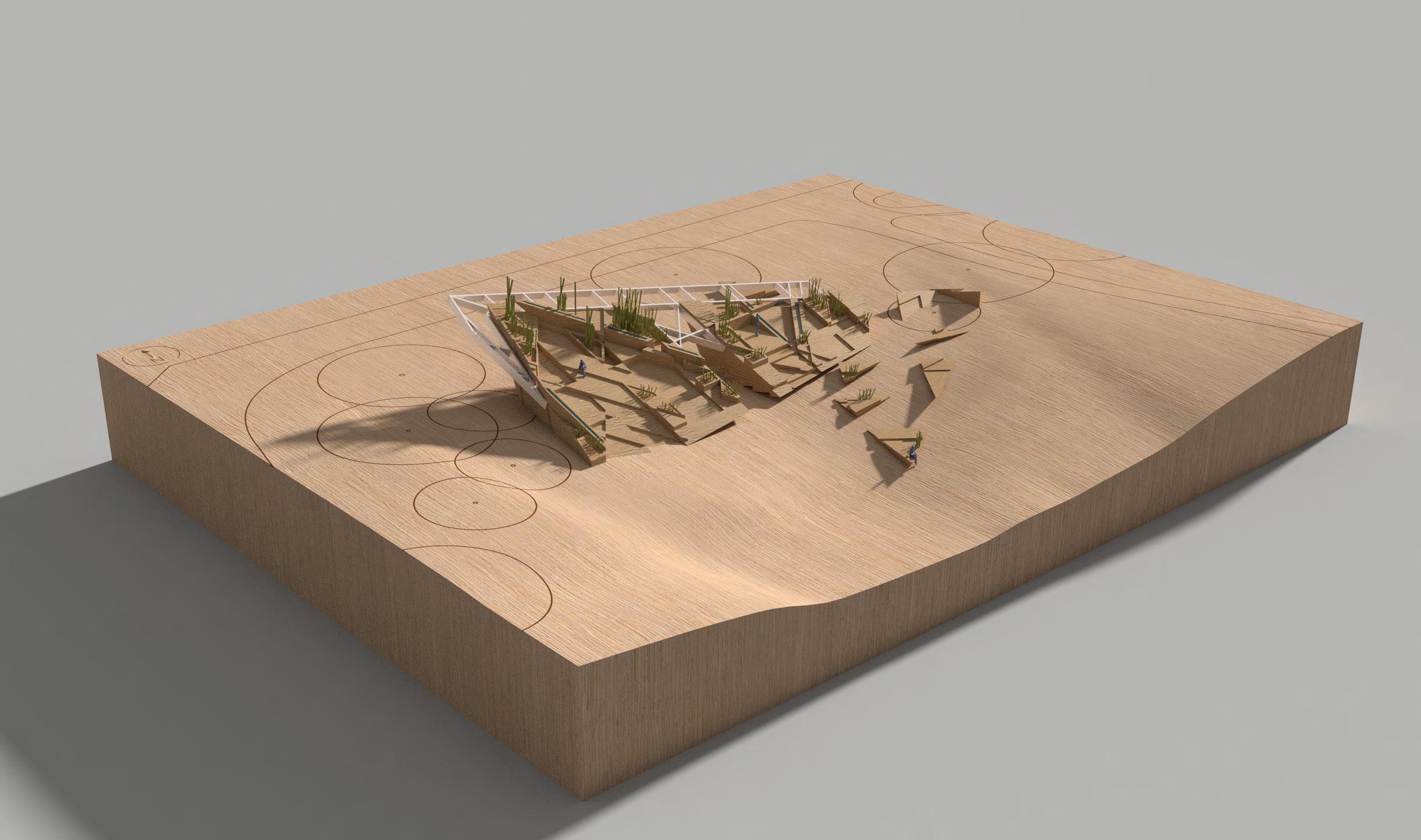

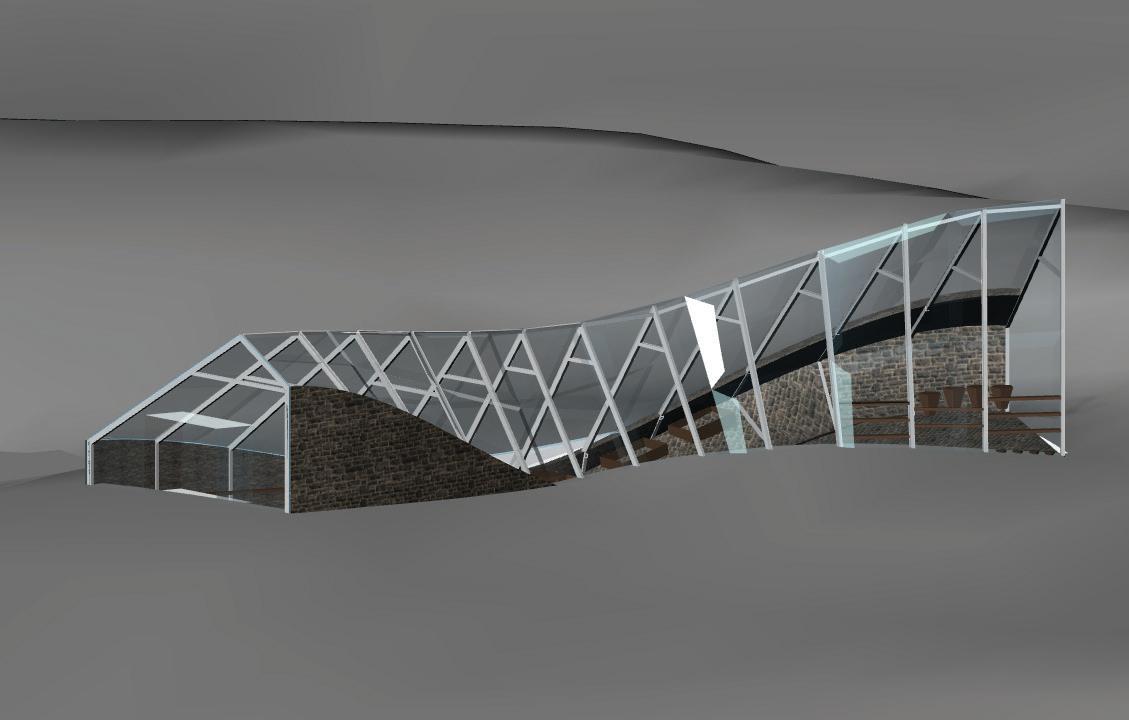

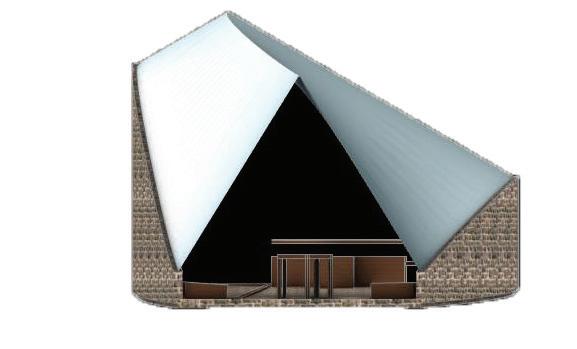

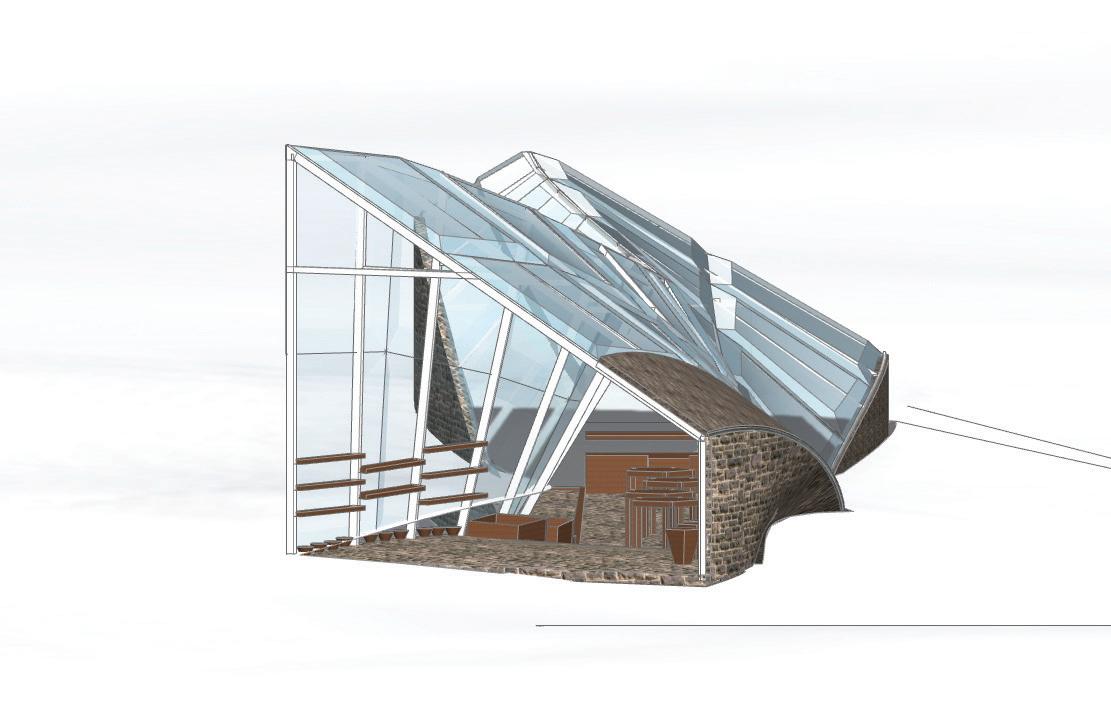

GREENHOUSE UNIVERSIT Y OF PENNSYLVANIA FALL 2020 - THIRD YEAR This semester course focused on engaging with modern problems concering urban food source and food stability in the Philadelphia area. We debated what would be best way to architecturally benefit our city and fight against food insecurity. Adapting the Food Trust’s main strategies, we were able to learn how innovative design could inspire, enhance, and promote healthy urban societies.

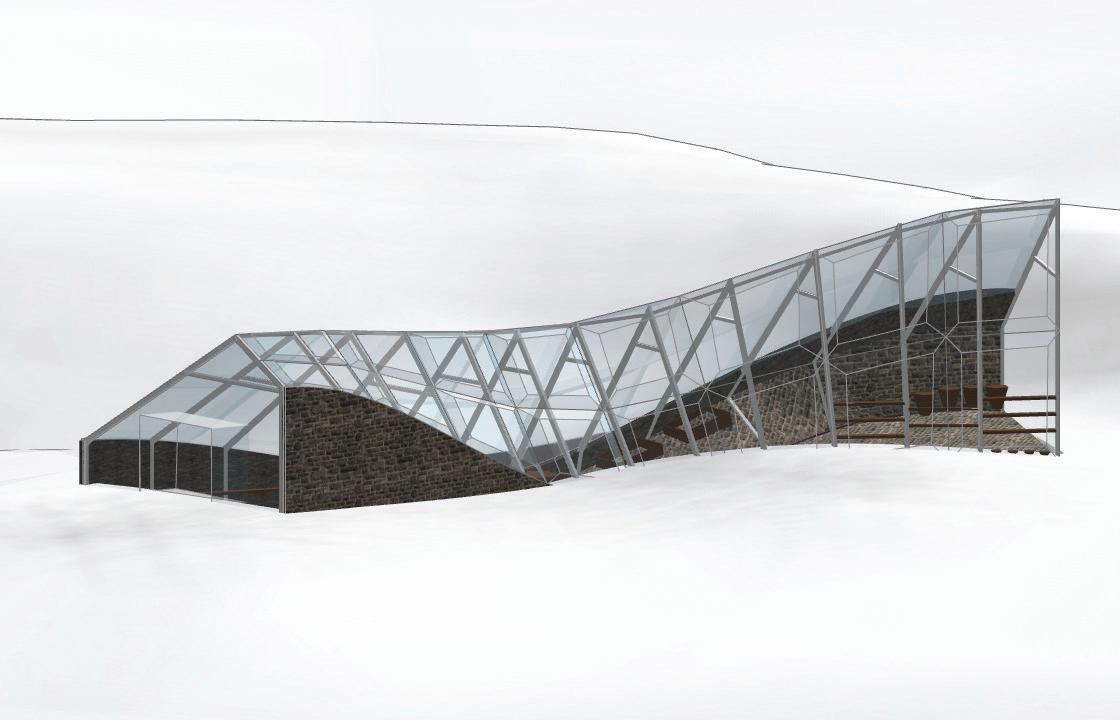

PERSPECTIVE VIEW Page 1 8

|

Arch itec ture Por tfol io



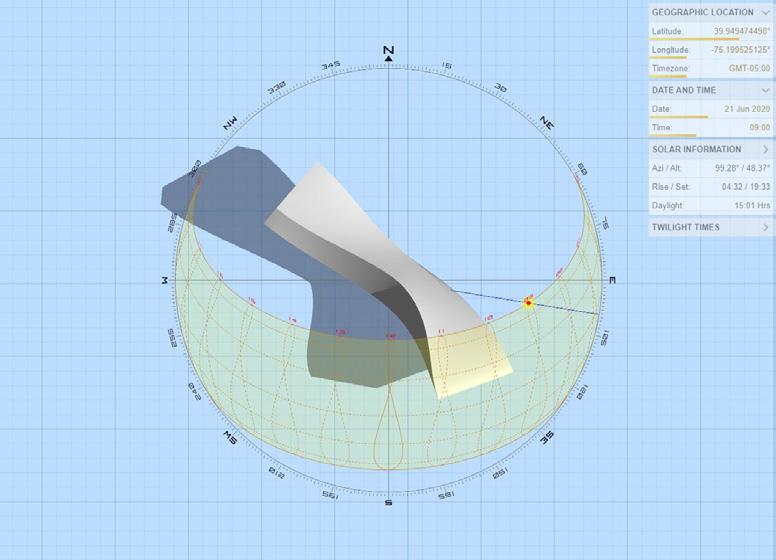

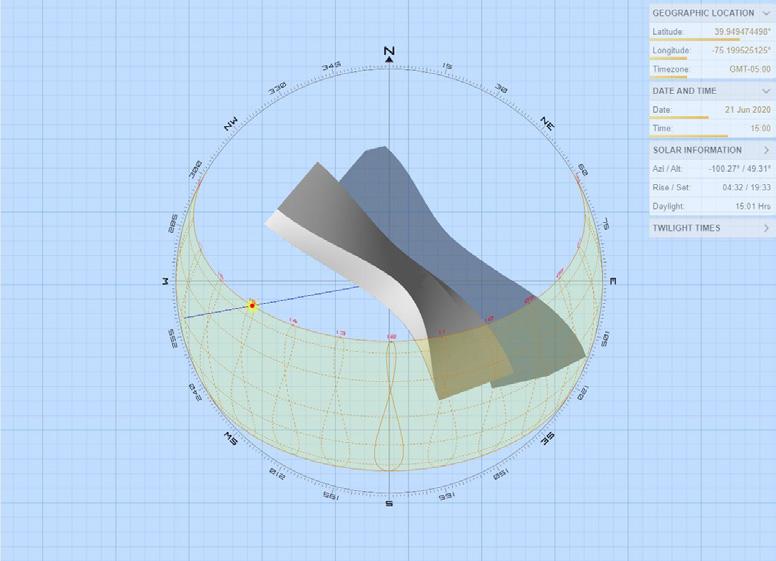

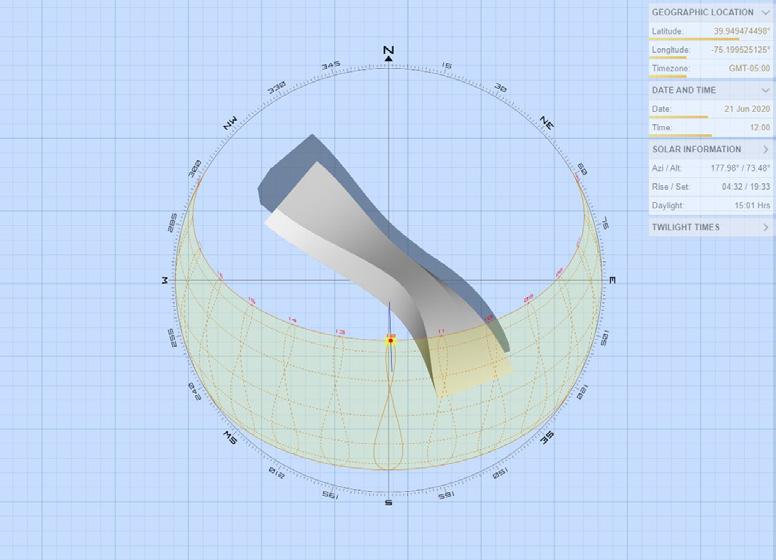

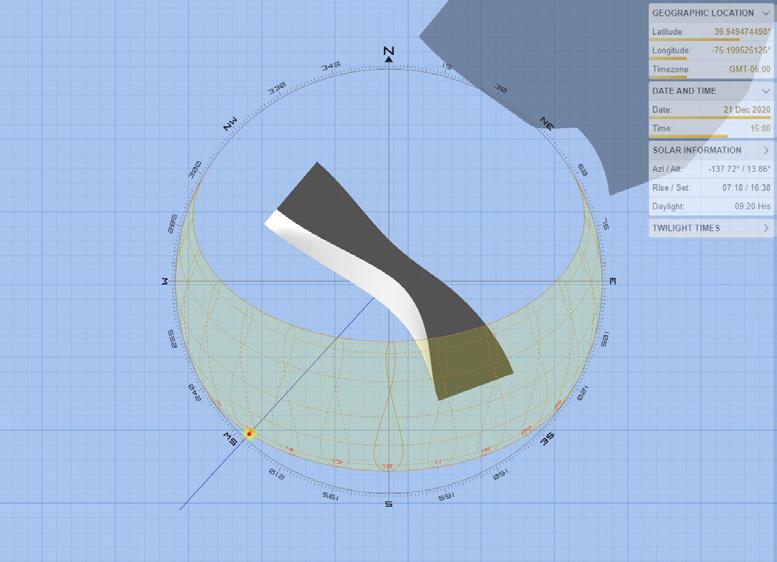

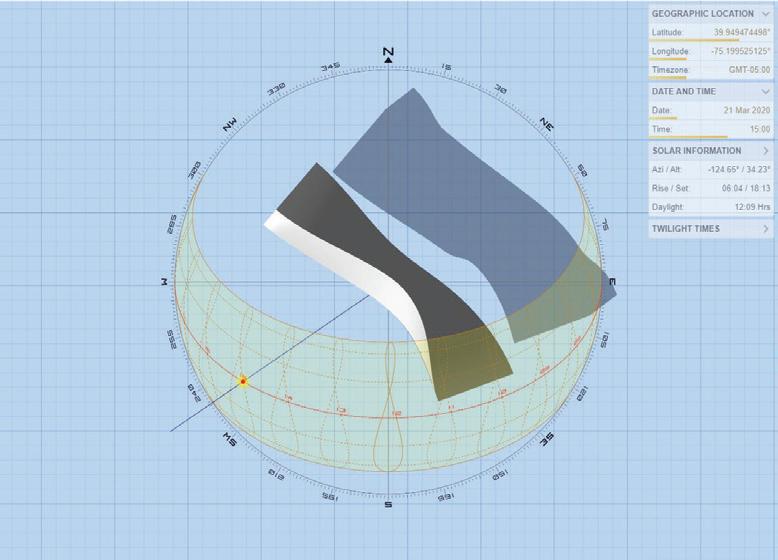

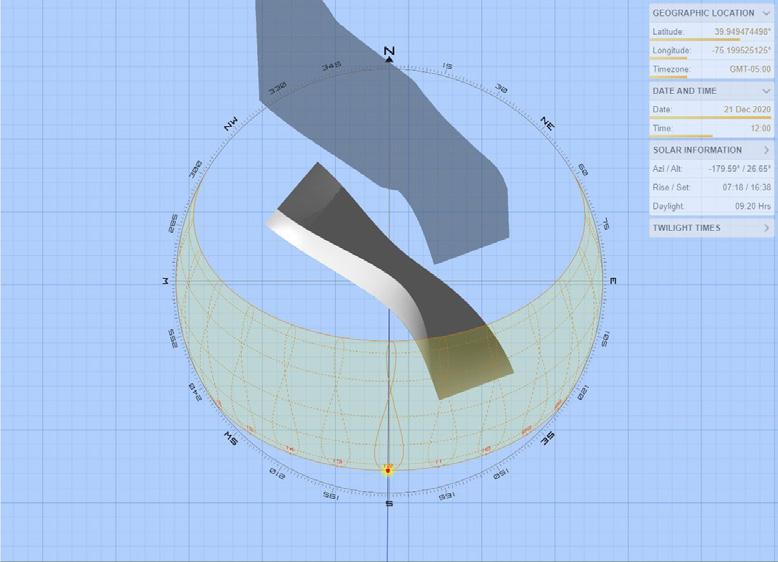

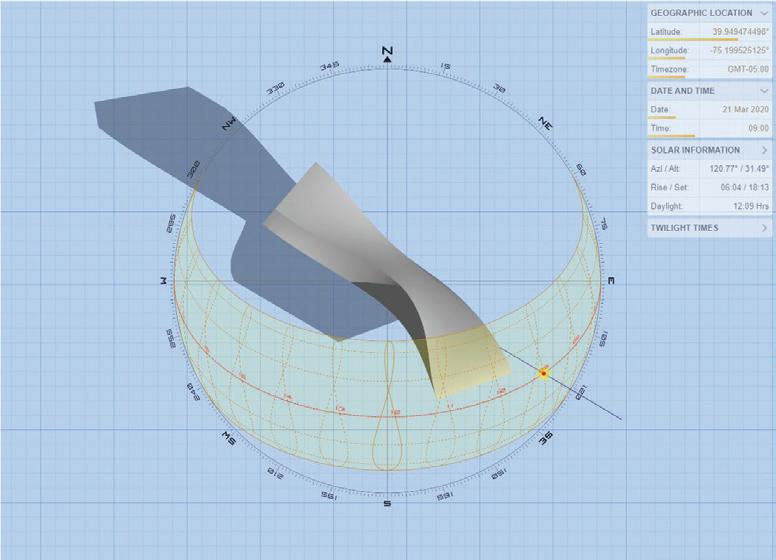

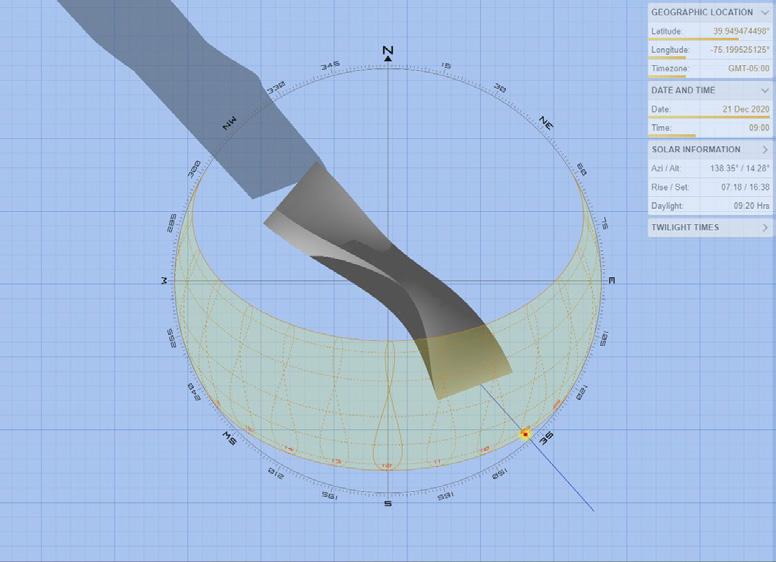

MAXIMUM MORNING SUNLIGHT Walk in view area

Storage

Underground planting area

Shelves

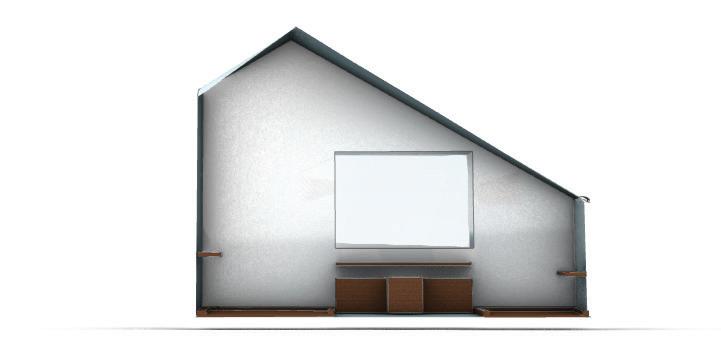

ELEVATION A 1/4” = 1-0’

Table

3/4 gable (5 sided)

STED SECTIONS

Gardening sections

Planting area along wall inclinations

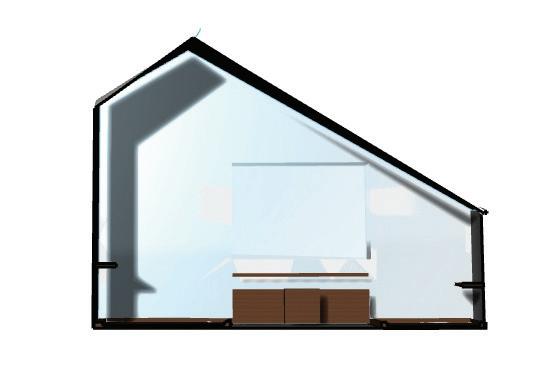

SECTION B 1/4” = 1-0’

Flower pots

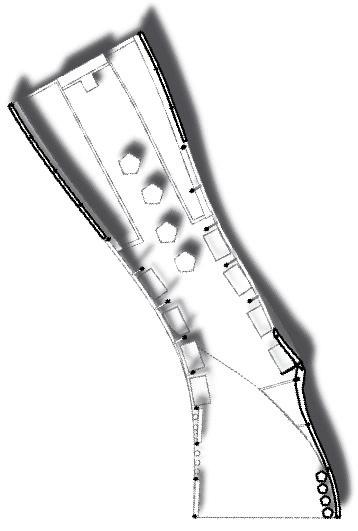

PLAN 1/4” = 1’-0”

SECTION C 1/4” = 1-0’

Page 1 9

RULING LINES

RULING LINES

|

Arch itec ture Por tfol io



















CHOSEN 100’ PATH



MAXIMUM MORNING SUNLIGHT

C

B

ELEVATION A 1/4” = 1-0’

A

 lean-to (4 sided)

a frame (5 sided)

3/4 gable (5 sided)

MASSING DRIVEN FROM ADJUSTED SECTIONS

SECTION B 1/4” = 1-0’



GREENHOUSE LOCATION ON SITE

SECTION C 1/4” = 1-0’

MAXIMUM MORNING SUNLIGHT RULING LINES

RULING LINES

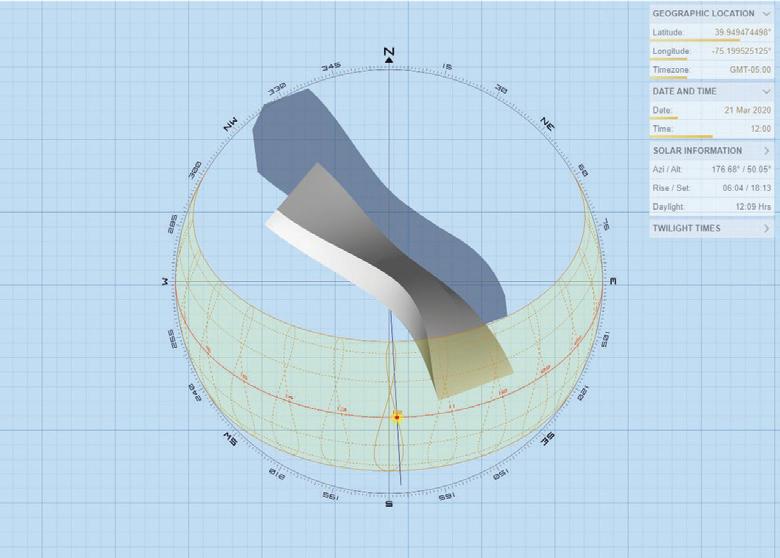

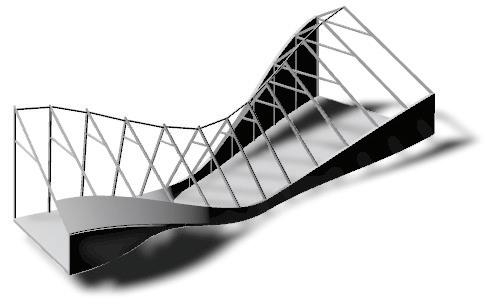

DEVELOPABLE RULED SURFACE SINGLE CURVATURE

RULED SURFACE DOUBLE CURVATURE, POSITIVE AND NEGATIVE GAUSS

SURFACES TO RECEIVE GLAZED PANELS

C Page 2 0

|

Arch itec ture Por tfol io

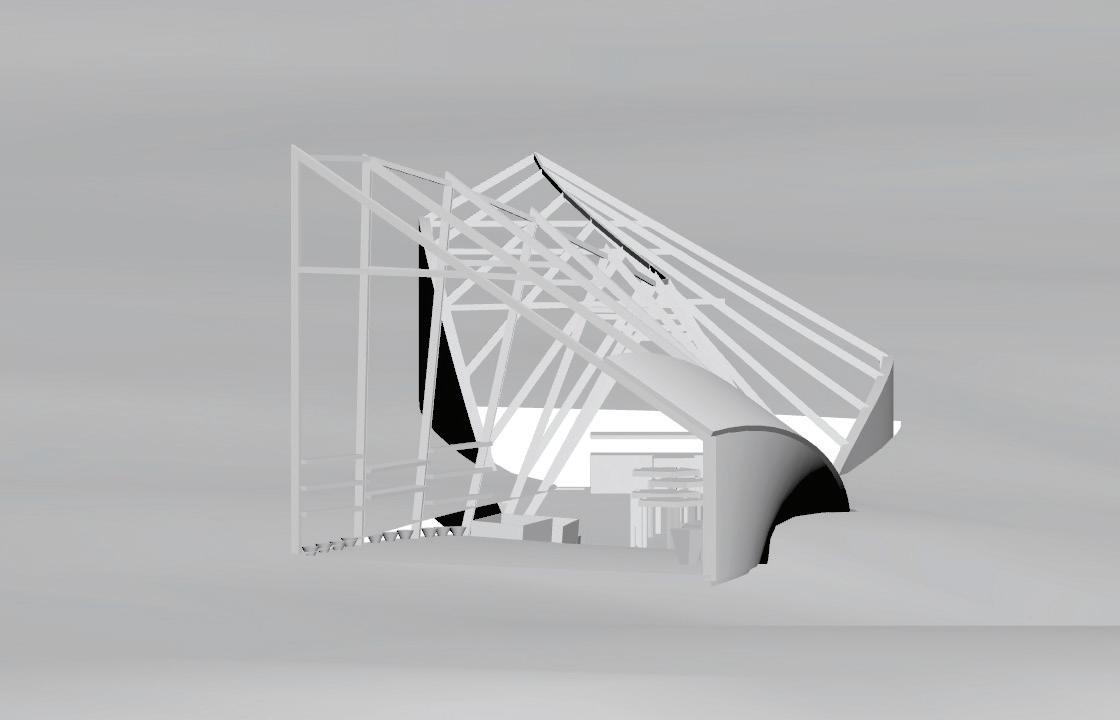

PERSPECTIVE VIEW

TRIM PYRAMID INTERSECTIONS

PYRAMID PANELIZATION METHOD

EXTRACT INTERSECTIONS

6”



PERSPECTIVE VIEW METHODS OF SUBDIVISIONS FOR PANELIZATION

EXTRUDE PYRAMIDS

2’

OFFSET PANELING SURFACE

STRUCTRUAL FRAME

SUBDIVIDE SURFACE

PLANAR SUBDIVISIONS FOR STRUCTURAL FRAME

PERSPECTIVE VIEW

Page 2 1

|

Arch itec ture Por tfol io

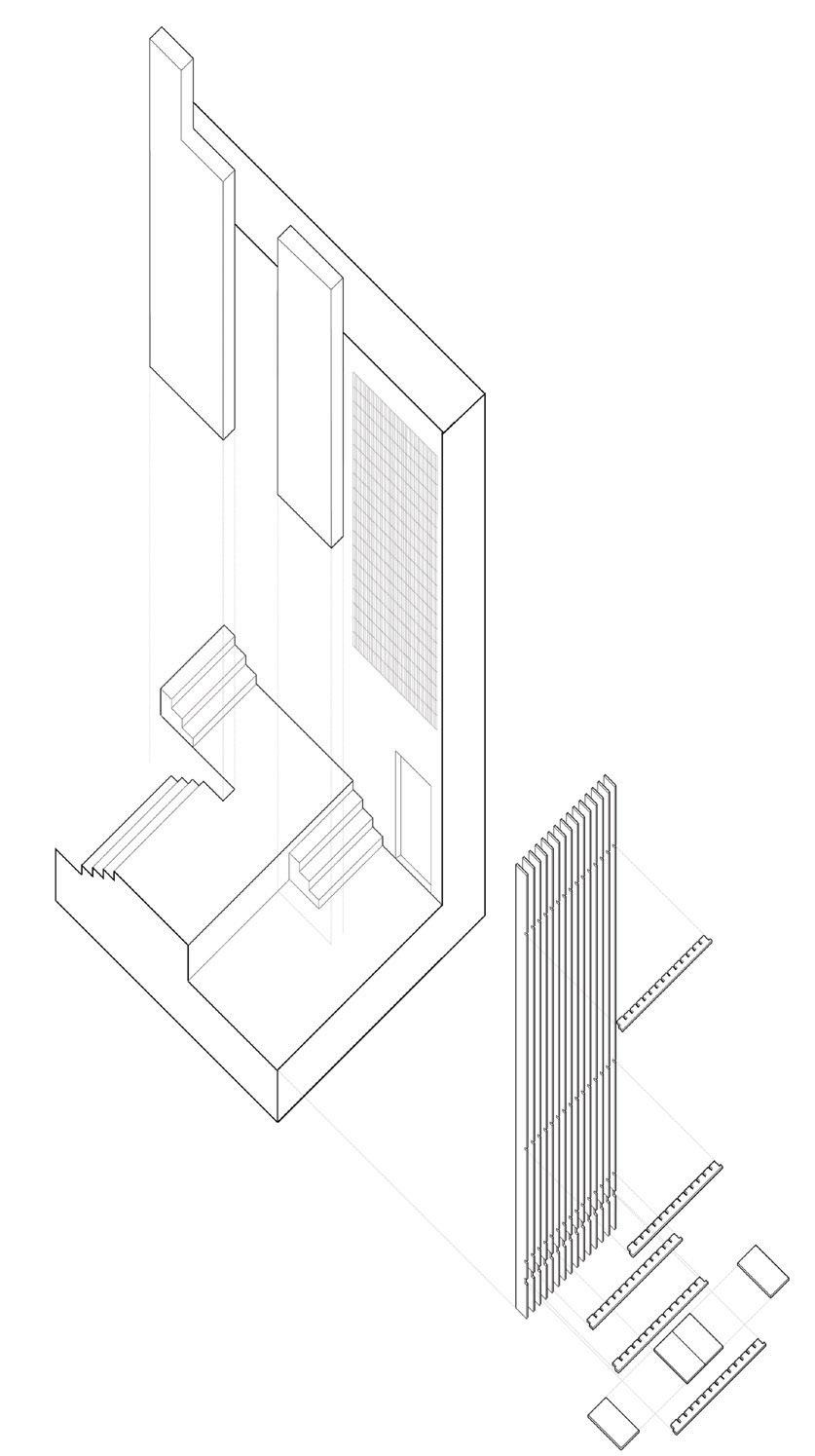

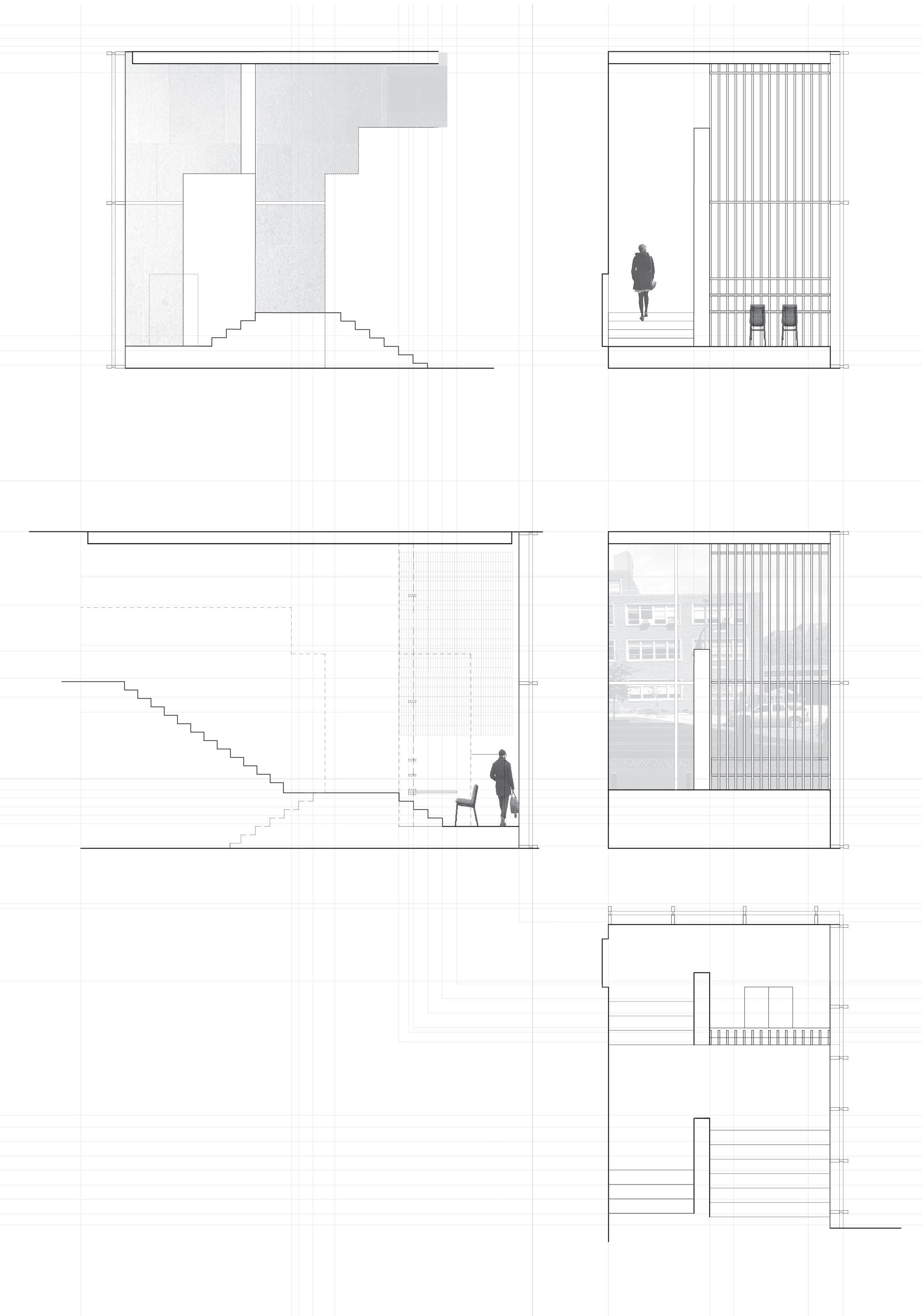

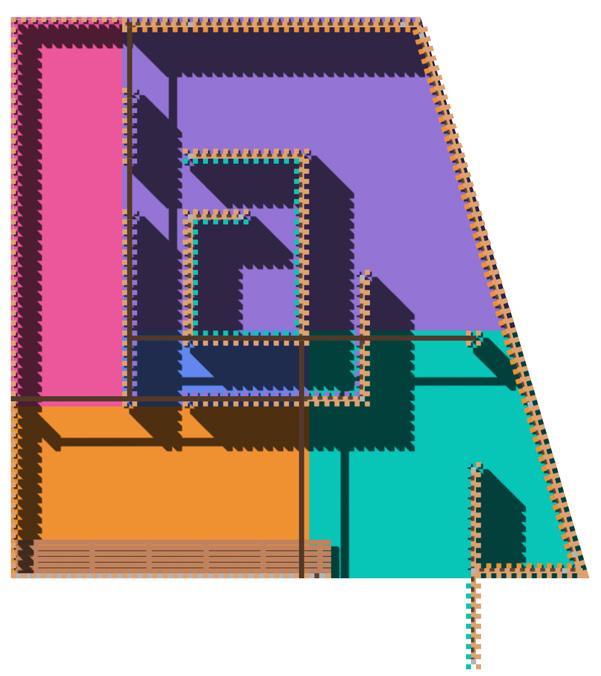

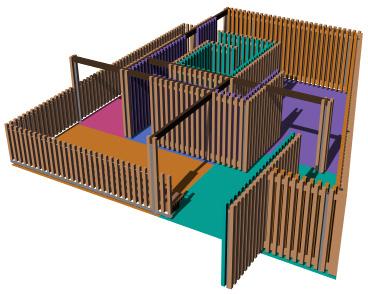

THINKING SPACE WASHINGTON UNIVERSIT Y IN ST. LOUIS, SAM FOX SCHOOL JULY 2017 This project was intended to design a ‘thinking space’ inspired by two single paper cubes. This design explores the idea of underground space the leads upstairs for the landscape view to efficiently minimize the heat received during the hot days in Missouri.

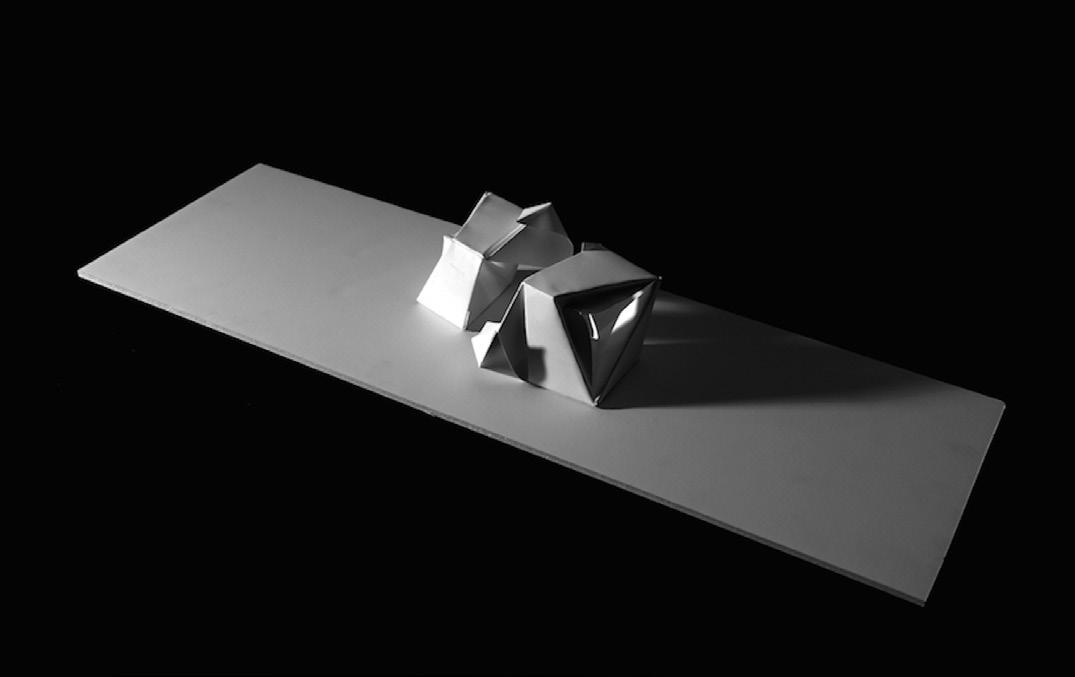

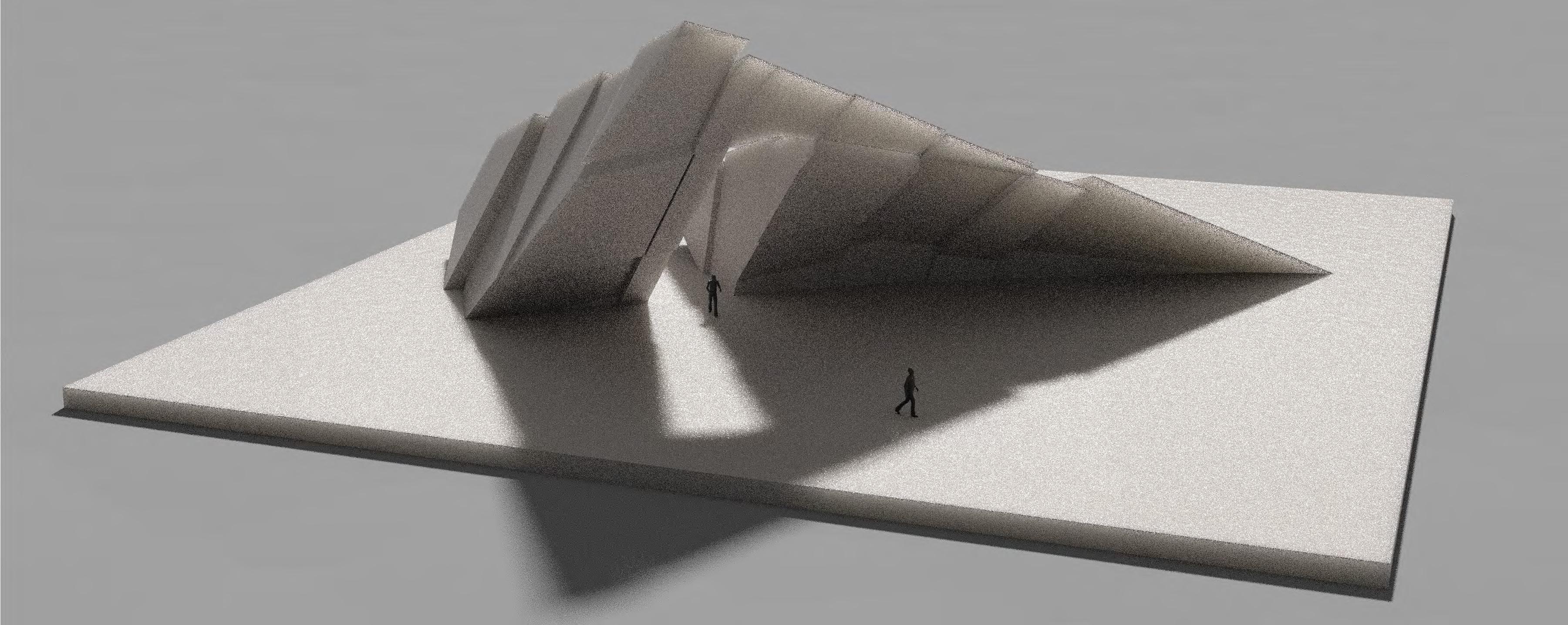

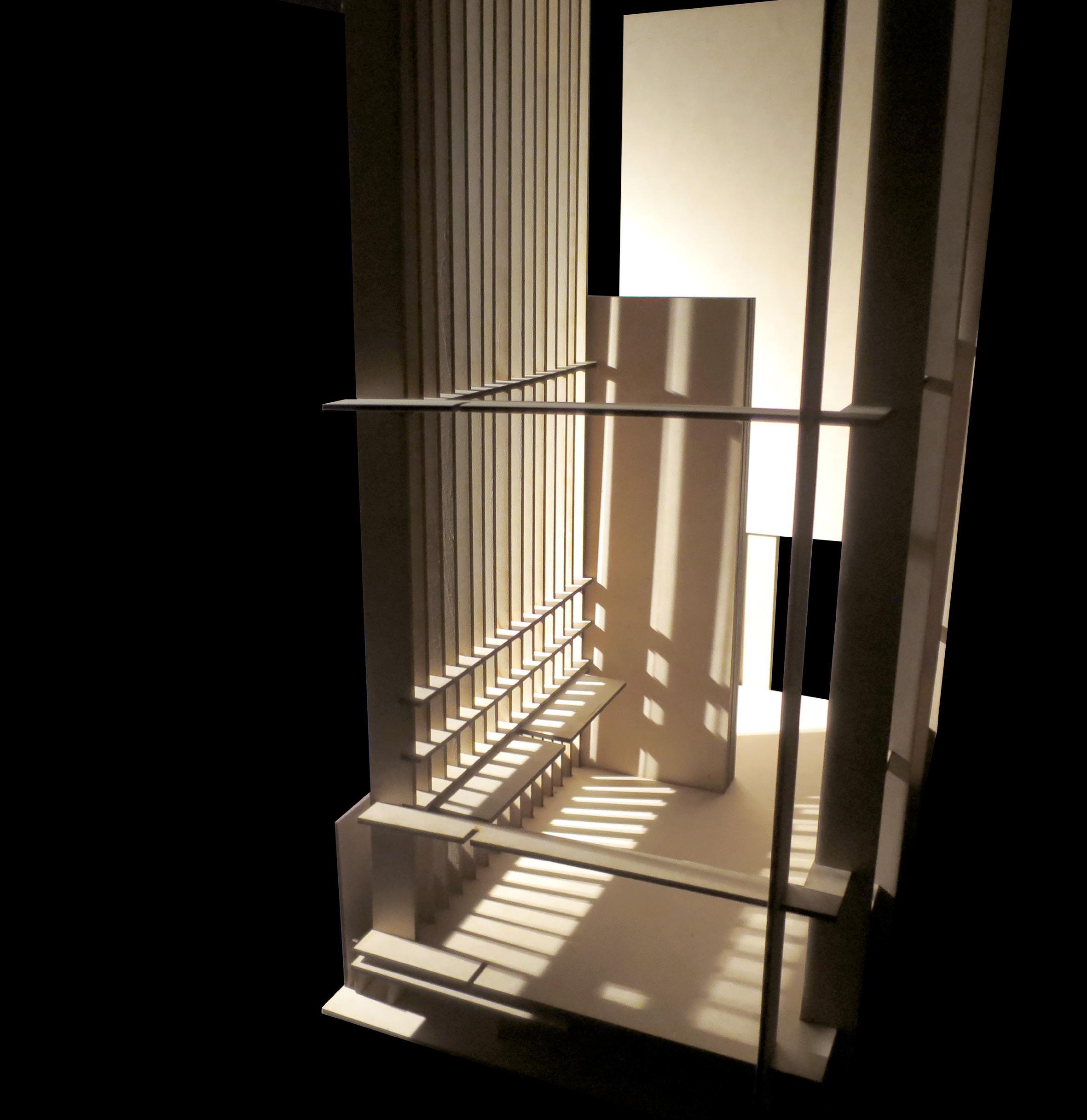

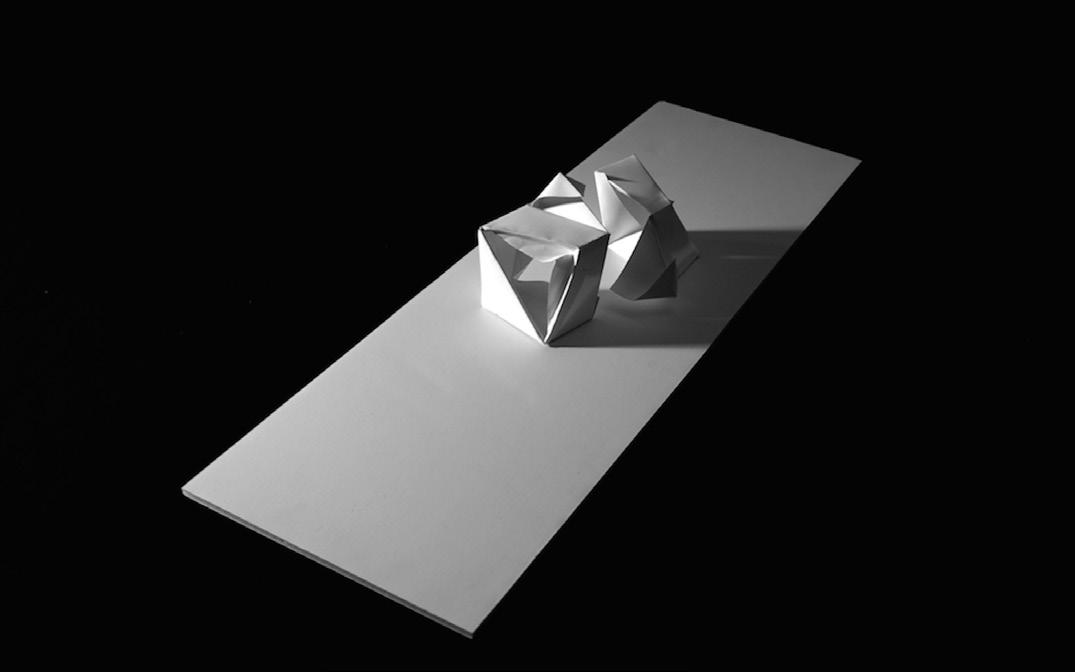

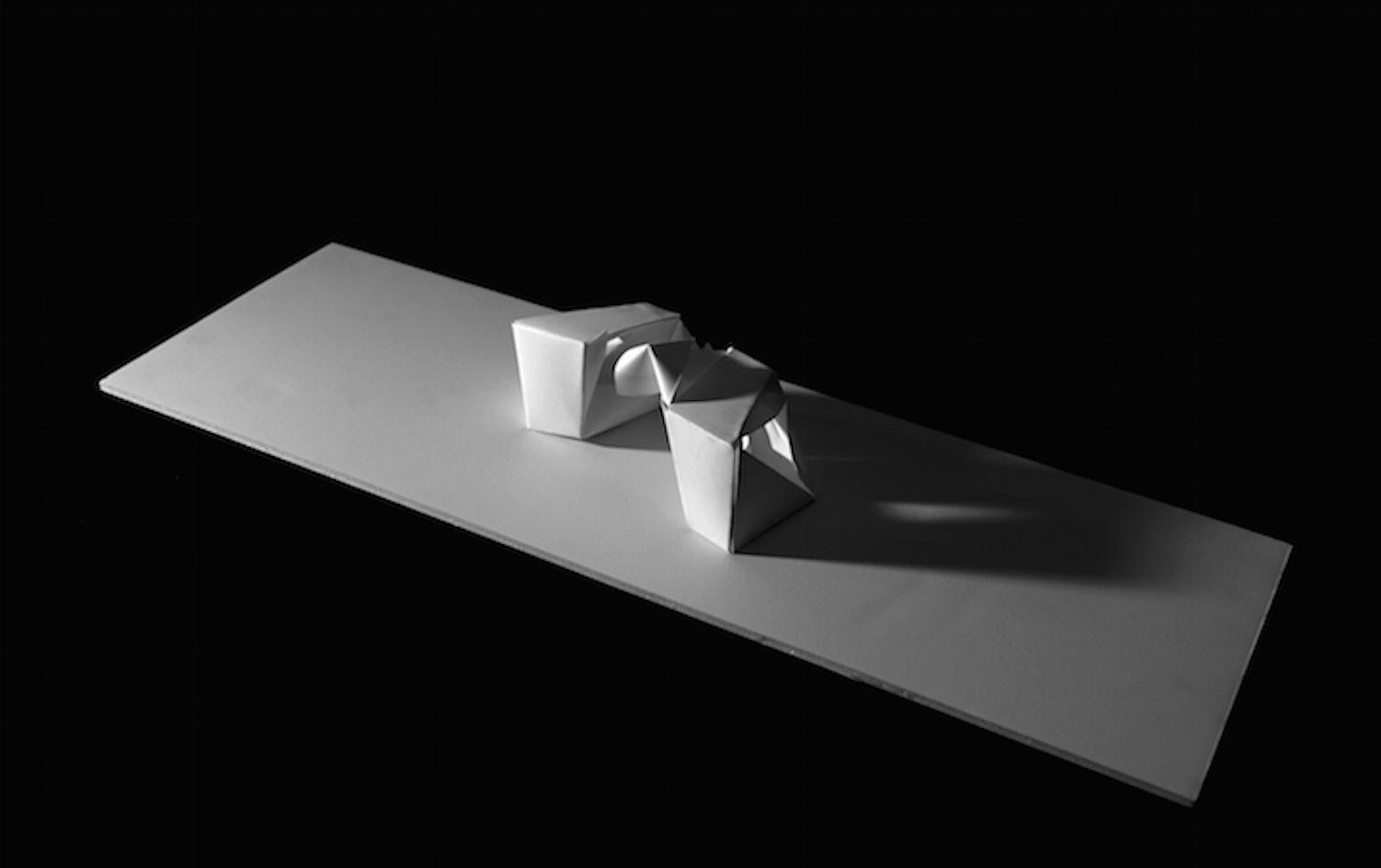

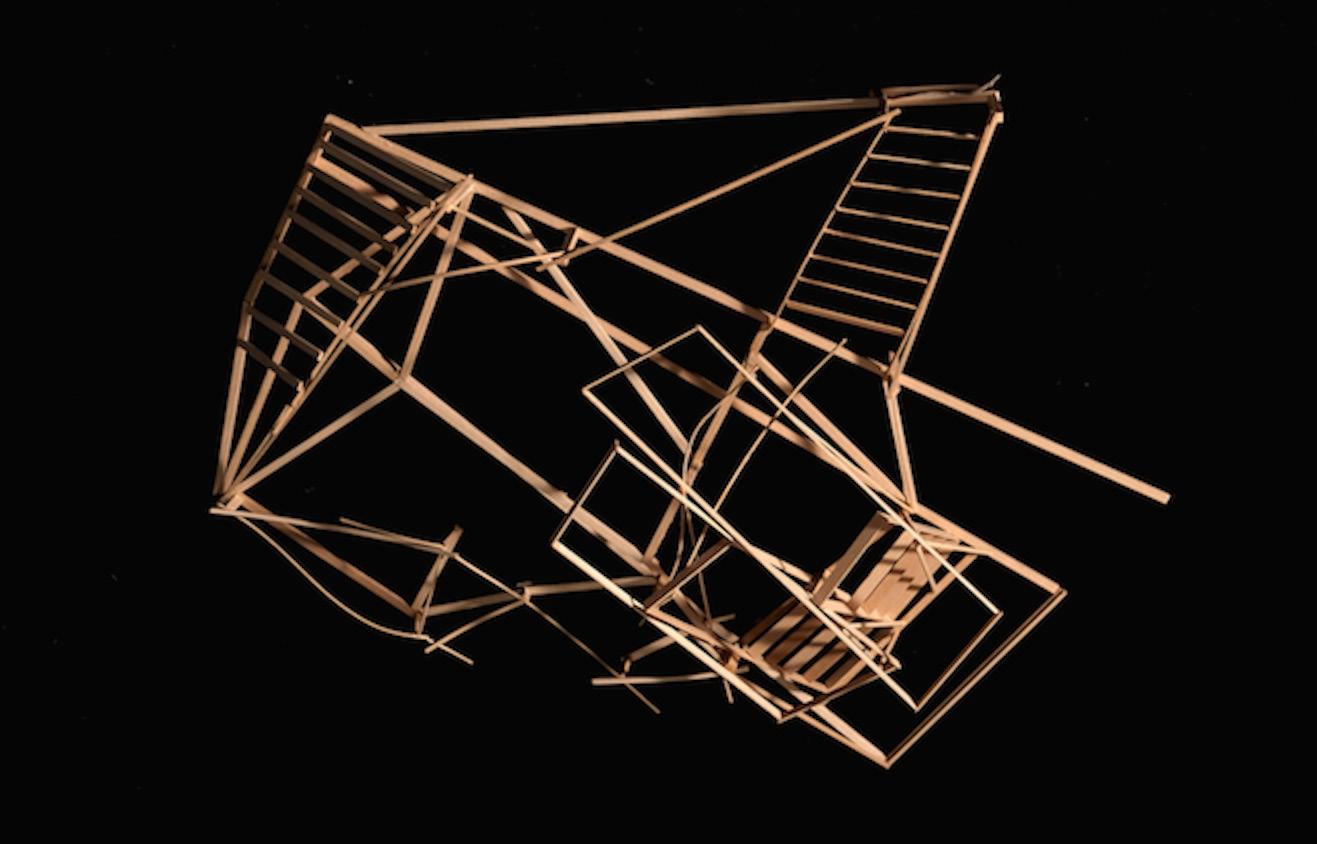

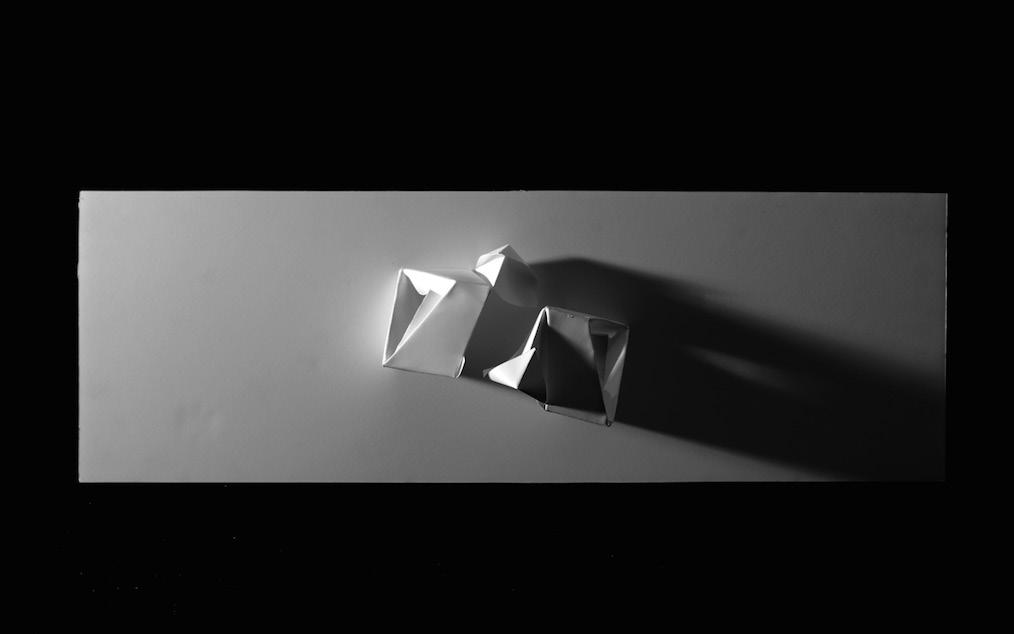

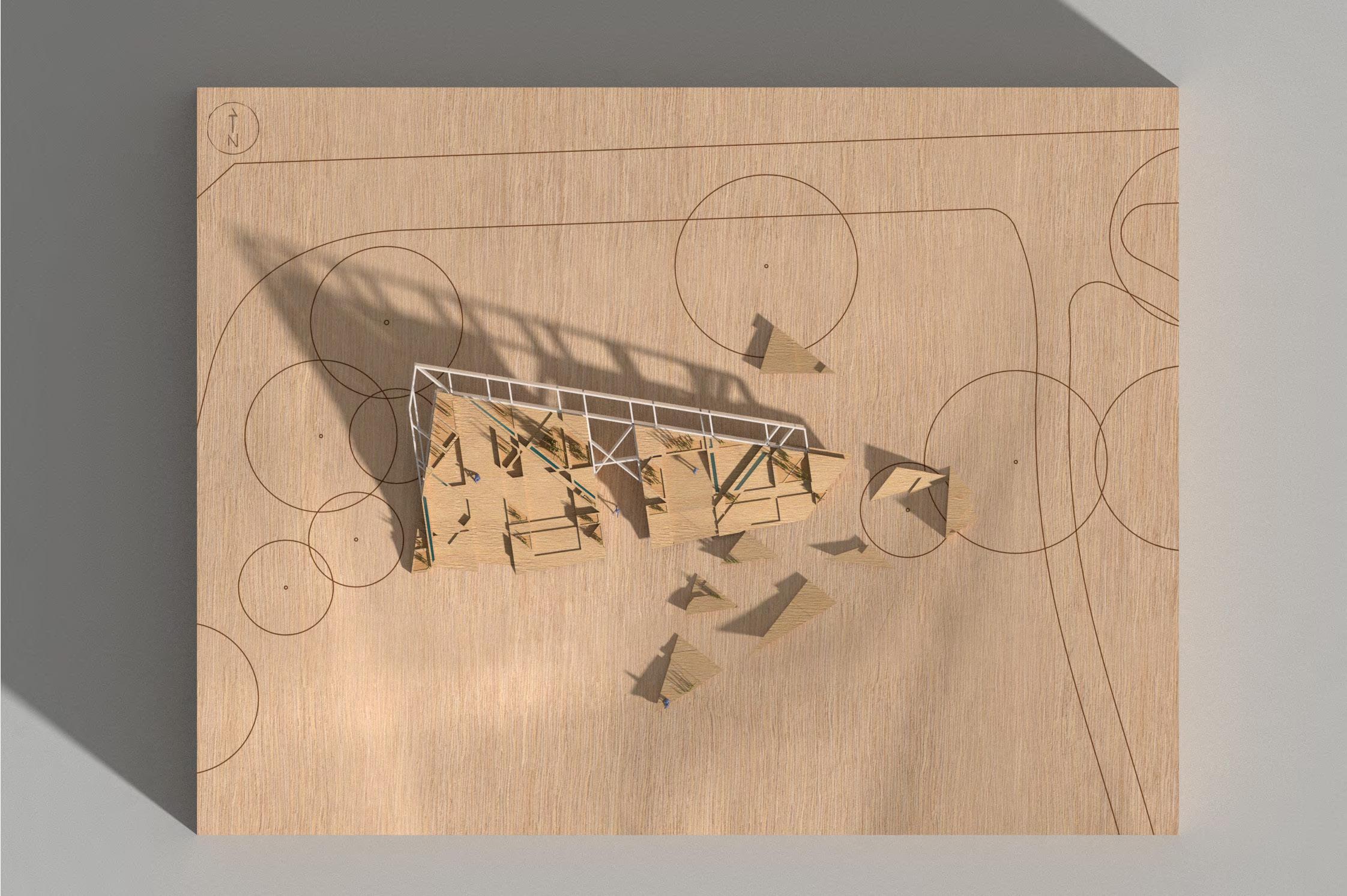

MODEL PHOTOS

MODEL PHOTOS

SPACE

SPACE

southeast perspective view

northwest persepctive view

plan view

elevation view

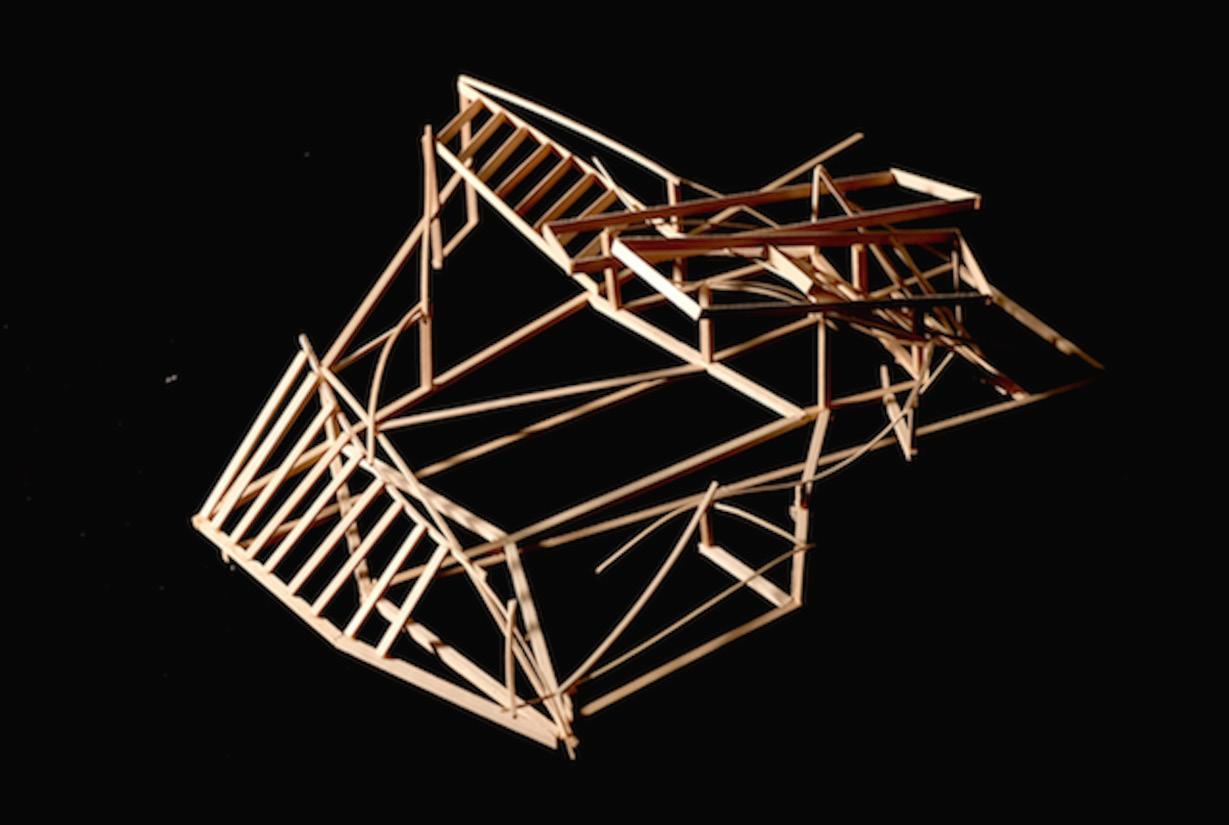

MODEL PHOTOS

MODEL PHOTOS

plan view

southwest view

Page 2 2

|

Arch itec ture Por tfol io

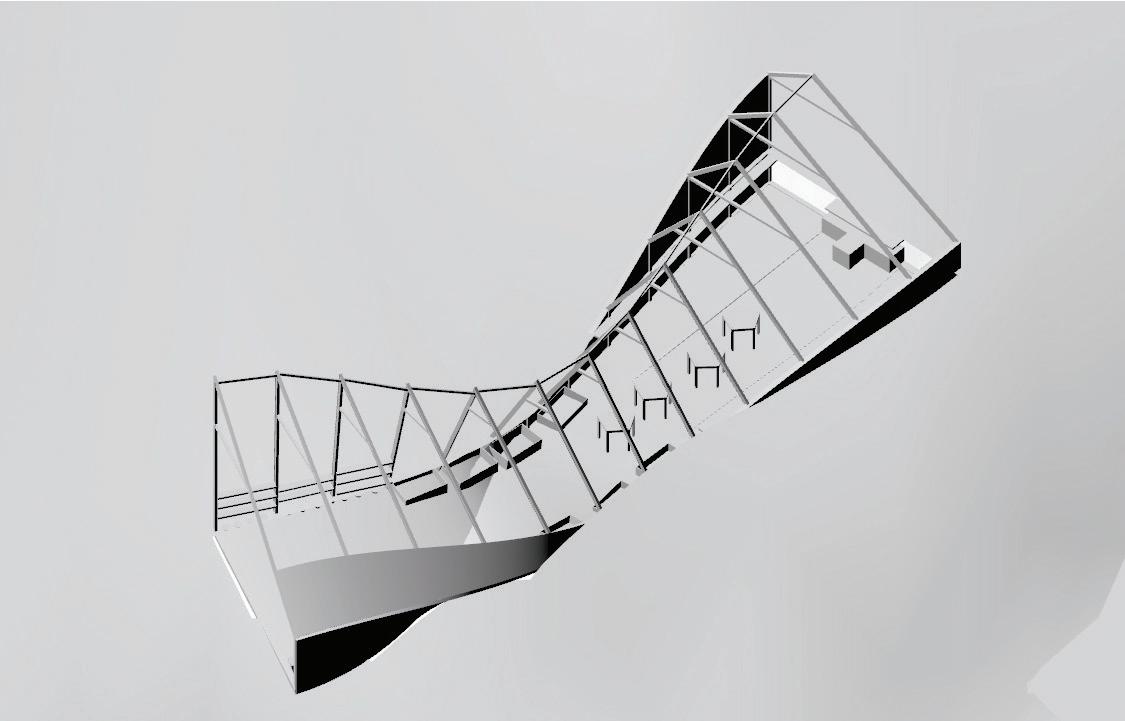

STUDY CARREL UNIVERSIT Y OF PENNSYLVANIA SPRING 2019 - FIRST YEAR The first project at Penn was designing a study carrel. The provided location was the Skirkanich Hall which is mostly composed with glass and stoned walls. The nature of this building receives a lot of sunglight during the day, as for which this design of study carrel adapted to employ. The wooden vertical walls act as a division fom the hallway to the study carrel for both privacy and publicity, book shevles, and a means to let the natural light to shine through.

The tables connected to the horizontal rail are held solely by the rails which can be moved along horizontally for either individual or collaborative work.

Page 2 3

|

Arch itec ture Por tfol io

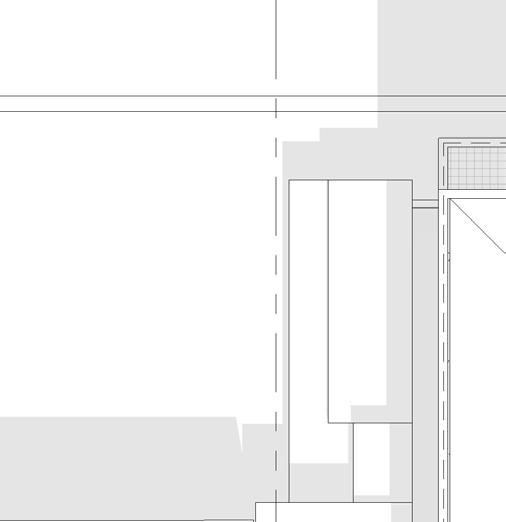

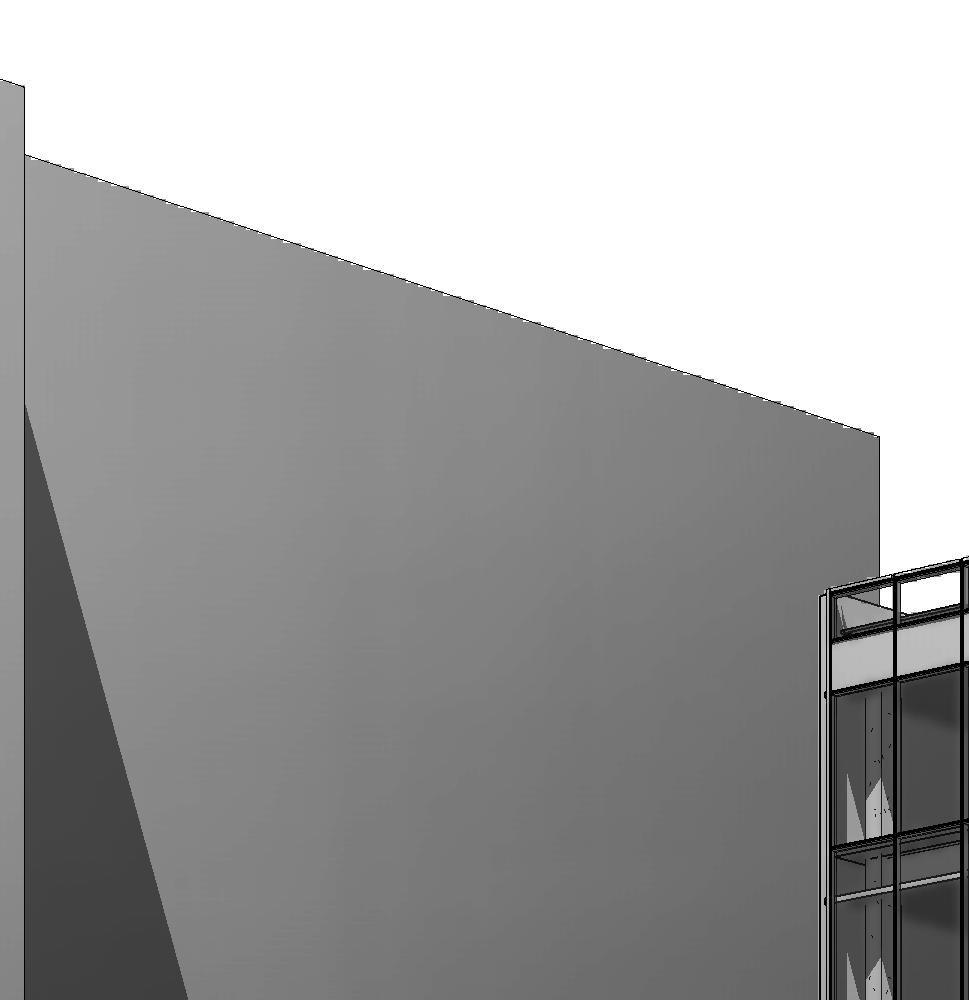

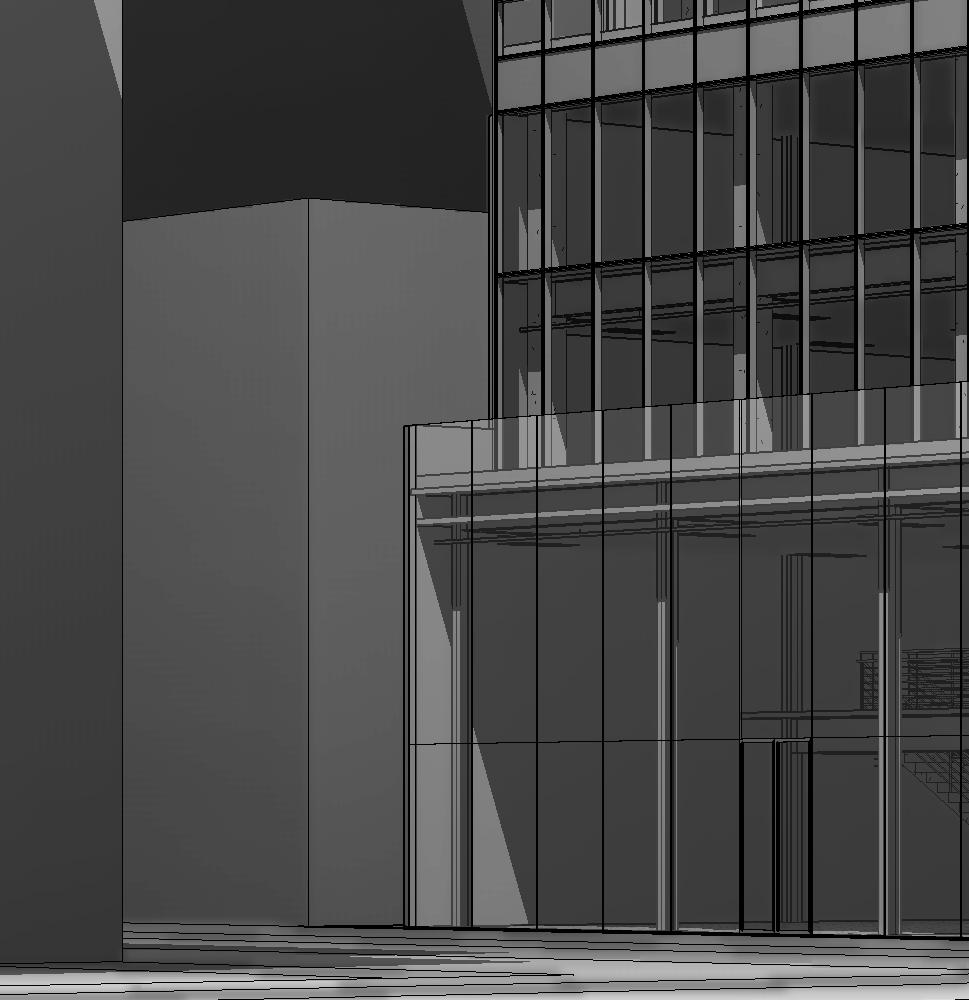

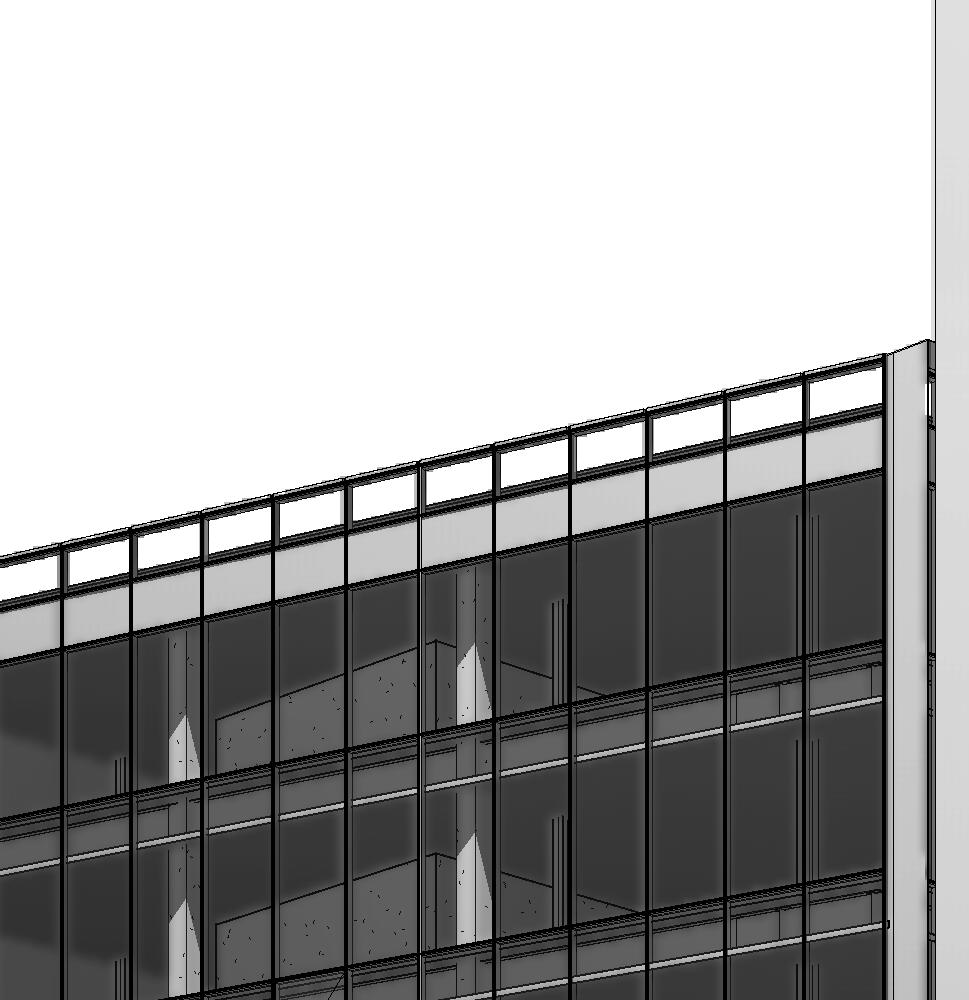

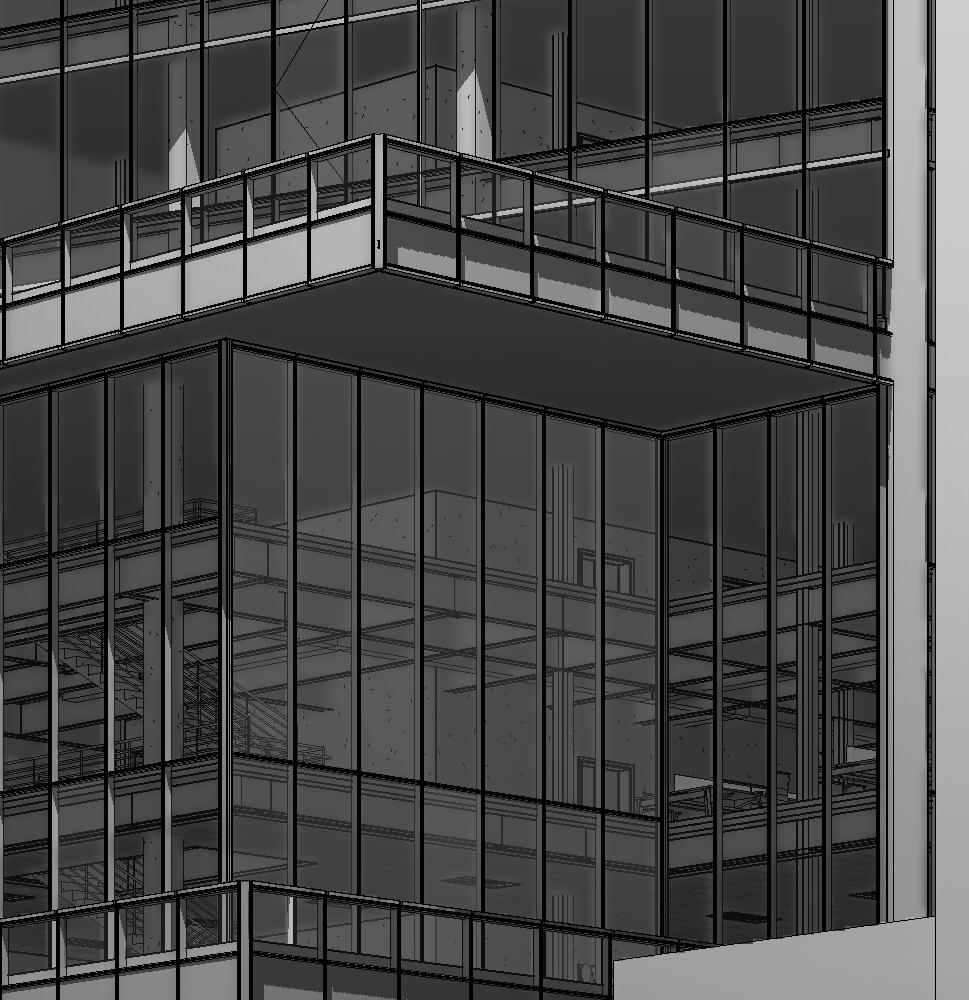

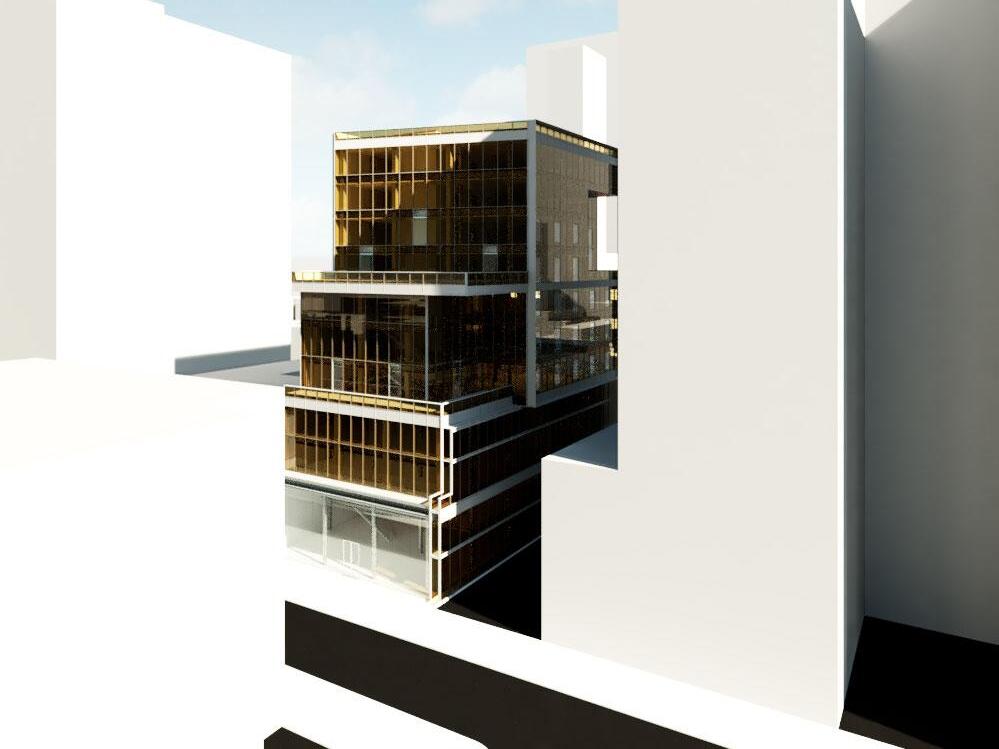

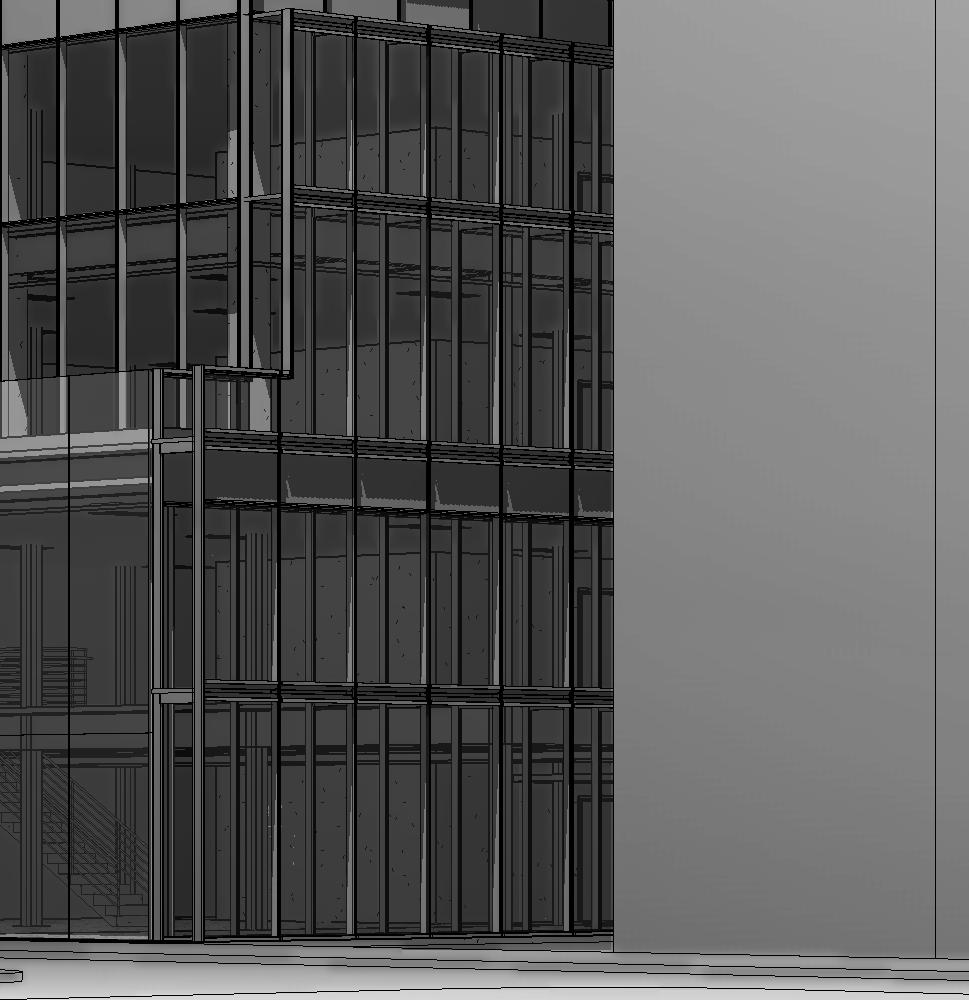

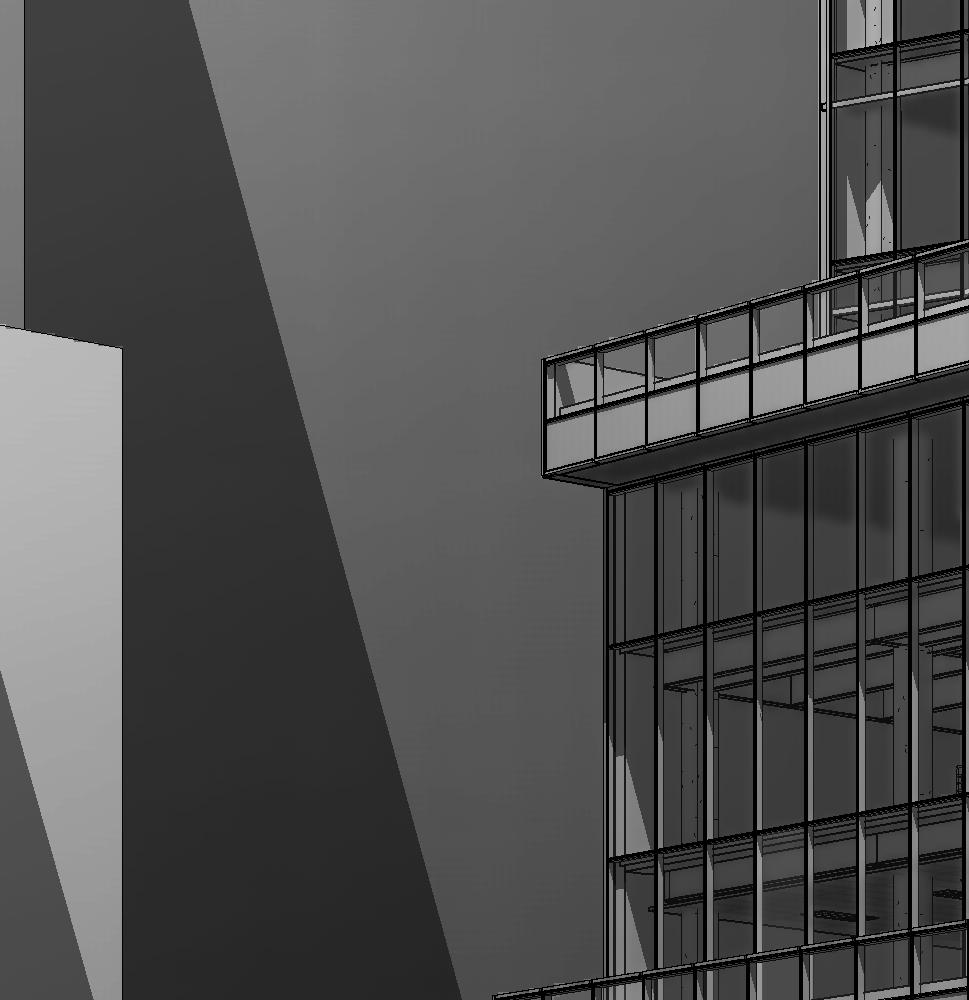

REVIT MODEL SAMPLE - RIT TENHOUSE PROJECT SENIOR FALL INTENSIVE GRADUATE COURSE As part of our senior intensive design concentration, selected senior students have the privilege to take Penn Graduate courses with the graduate students during their final year. During this specific course where we learned to use Revit, we were assigned to design an innovative building at an existing site in Rittenhouse Square, Philadelphia, after visiting their ongoing construction site. For the interior study, considering that the space will be occupied by repetitive open offices, we focused on three specific levels where we learned to place and render furniture, stairs, and terraces. For the exterior study, we focused on balconies, curtain walls, mullions, cavity walls, roof assemblies, 9 1 2 3 4 5 6 and etc.

1

2

A302

A302

Level Roof 132' - 0"

Level 10 120' - 0"

Level 9 108' - 0"

RCP - Level 8 96' - 0"

Level 7 84' - 0"

Level 6 72' - 0"

168' - 0"

Level 5 60' - 0"

Level 4 48' - 0"

4 A310

9' - 6 1/4"

Level 3 36' - 0"

RCP - Level B1 -12' - 0"

Building Section

Level B2 -24' - 0"

7 A401

1

Building Section - North South 1/8" = 1'-0"

RCP - Level B3 -36' - 0"

Date Drawn By

4/30/2022 3:25:07 PM Irene Seung Choi

A301 Scale

1/8" = 1'-0"

C:\Users\Irene Seung Jin Choi\Desktop\LAB\ARCH 532_2022 Base Site File.rvt

Level 1 0' - 0"

1901 WALNUT STREET PHILADELPHIA, PA 19103

Level Mezzanine 12' - 0"

Rittenhouse Project

9' - 2 1/4"

Level 2 24' - 0"

Page 2 4

|

Arch itec ture Por tfol io

B

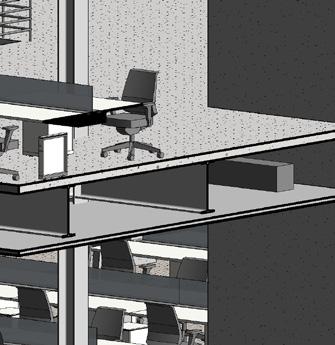

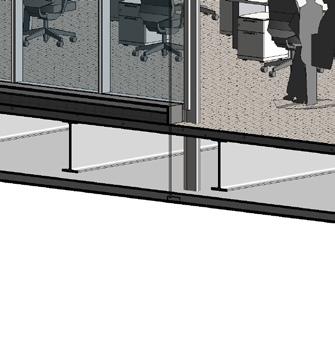

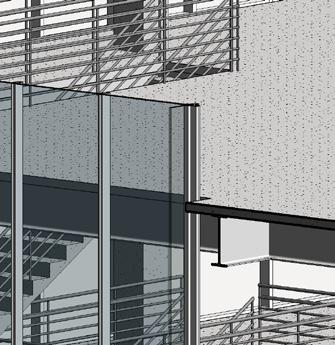

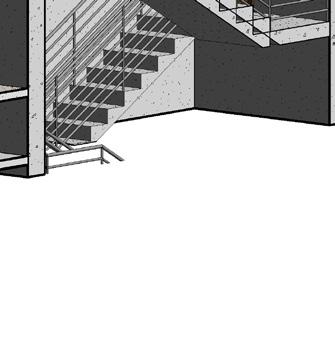

3D view

3' - 6"

5

C

Level 6 72' - 0"

STAINLESS STEEL GUARDRAIL

C B

12' - 0"

0' - 4"

Level 5 60' - 0"

0' - 11 1/4"

0' - 6 3/4"

Level 5 60' - 0" 2 A403

3 A403

21' - 2 3/4"

5

4 A403

1

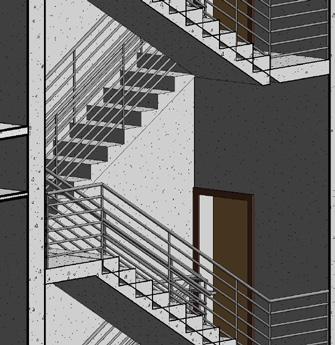

Enlarged Plan - Office Stair 1/2" = 1'-0"

3' - 3"

1' - 0"

CLR

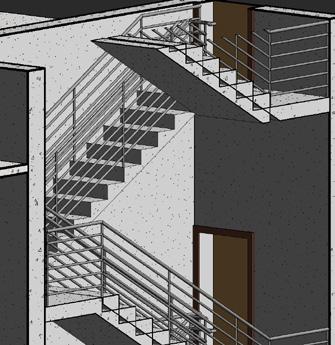

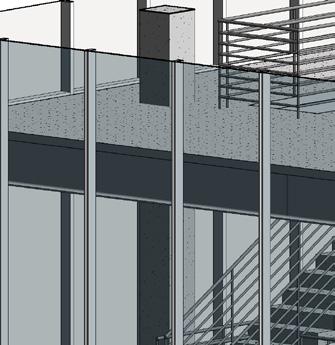

3D View 4

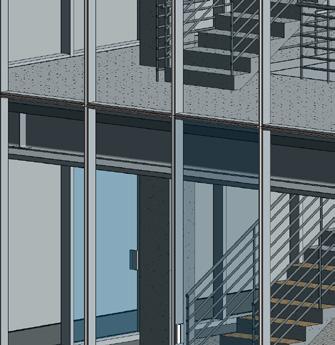

Enlarged Section - Office Stair 1/2" = 1'-0"

Date Drawn By

4/30/2022 3:25:58 PM Irene Seung Choi

A411

sers\Irene Seung Jin Choi\Desktop\LAB\ARCH 532_2022 Base Site File.rvt

12' - 0"

5' - 2"

5' - 7 3/4"

18' - 1 1/2"

1901 WALNUT STREET PHILADELPHIA, PA 19103

C

Rittenhouse Project

B

Level 5 60' - 0"

Rittenhouse Project

ALUMINUM J TRIM

Section Detail - Stair at Top 3 1 1/2" = 1'-0"

Section Detail - Stair at Bottom 2 1 1/2" = 1'-0"

In

Level 4 48' - 0"

Date Drawn By

Scale

Page 2 5

|

Arch itec ture Por tfol io

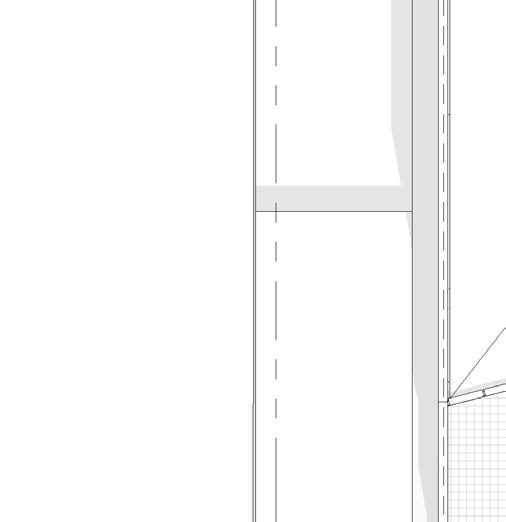

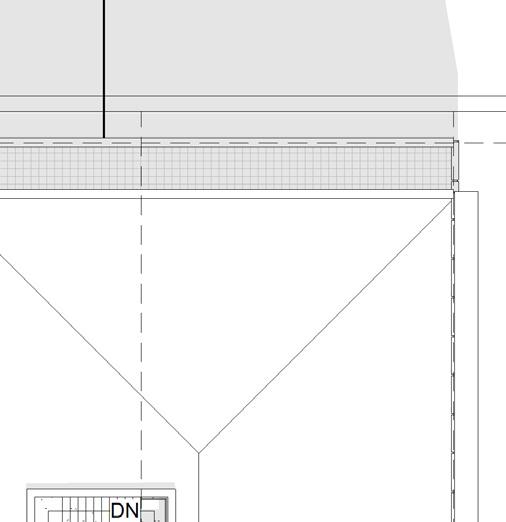

MORAVIAN STREET

20' - 2"

CURTAINWALL

DOUBLE SKIN WALLS

MULLION

MULLION PRECAST CONCRETE PANEL

AIR AND VAPOR BARRIER RIGID INSULATIO N BATT INSULATION

METAL BEAM

TYPICAL CAVITY WALL

4

136' - 5"

CAVITY WALL+DOUBLE SKIN INTERSECTION 1 1/2" = 1'-0"

SOUTH 20TH STREET

1

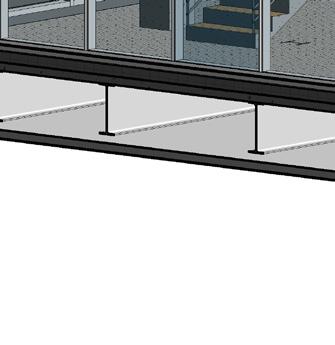

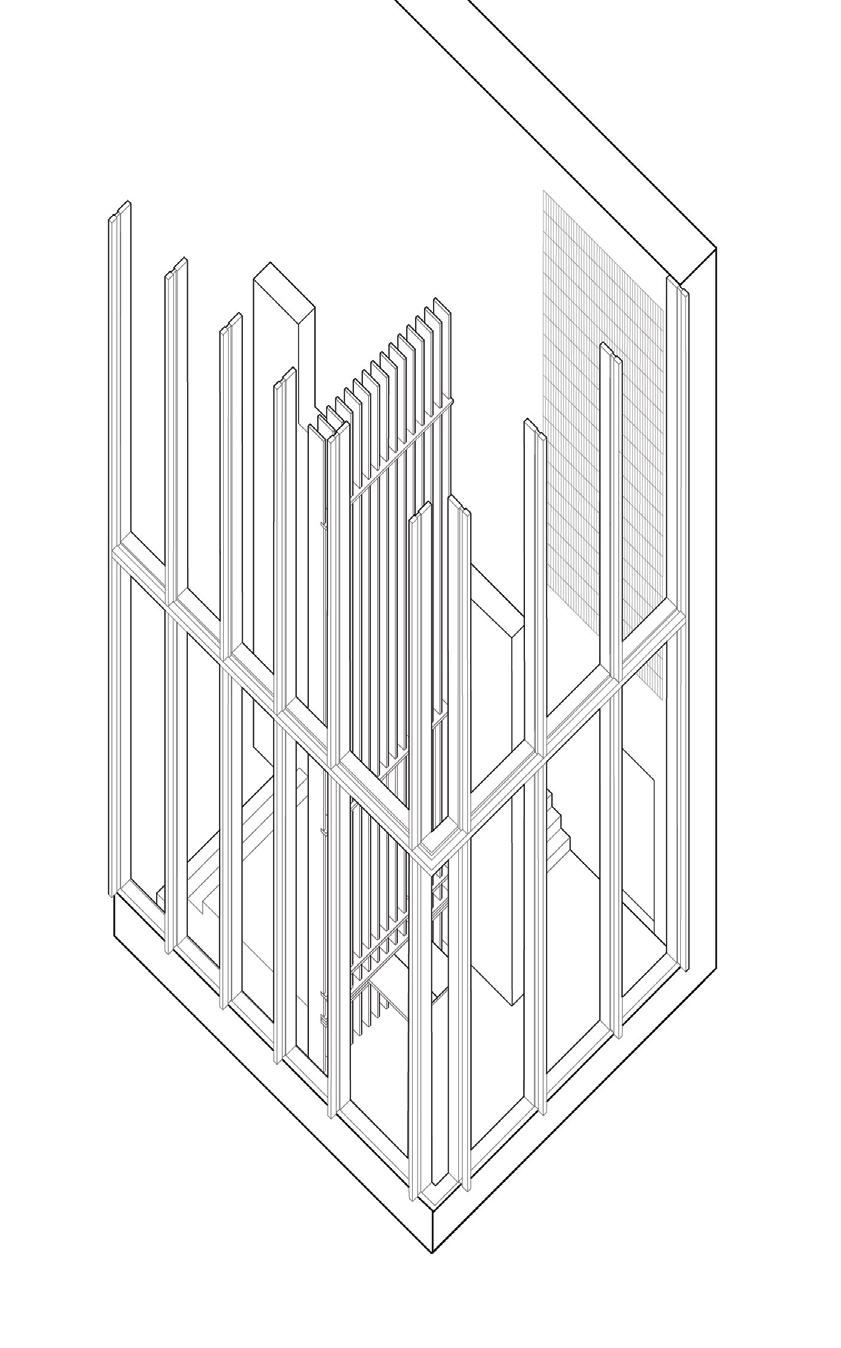

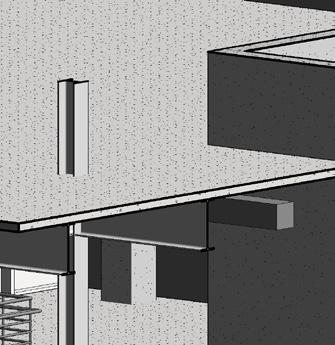

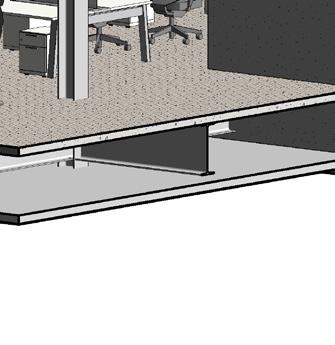

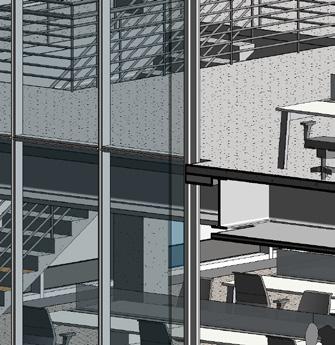

3D Detail

AIR AND VAPOR BARRIER

PLYWOOD SHEATHING

ALUMINUM CURTAINWALL MULLION

CURTAINWALL MULLION TYPICAL TERRACE

1" INSULATED GLAZING UNIT ALUMINUM REVEAL

TERRACE+CURTAINWALL 1 1/2" = 1'-0"

Exterior Details -Plan

A A

Date

METAL COPING

Drawn By PRECAST CONCRETE PANEL

RIGID INSULATION AIR AND VAPOR BARRIER

A410

0' - 2 1/4"

PRECAST PANEL

4/30/2022 3:25:57 PM Irene Seung Choi

STEEL BEAM OPERABLE WINDOW

1 1/2" = 1'-0"

Scale PLYWOOD SHEATING

0' - 7 3/4"

TAPERED INSULATION

0' - 2 1/4"

DRAINAGE BOARD

0' - 5 1/2"

MASONRY ANCHOR

EPDM MEMBRANE 1/4" / 1'-0"

CONCRETE AND METAL DECK

AIR AND VAPOR BARRIER

WALNUT STREET

1

A

B

A301

C

D

B

A301

C

D

1

A

1' - 11 1/4"

COLD FORMED METAL FRAMING

B

A301

D A201

1

1

9

1

1

1

14/965A

A302

14/965A

14/965A

14/965A

BF

BF

CLAY SLAB

CURTAINWALL MULLION OPERABLE WINDOW

GRAVEL FILL

0' - 4 1/4"

0' - 2 1/2"

PARAPET DETAIL AT CURTAINWALL 1 1/2" = 1'-0"

PERIMETER DRAIN

0' - 2 3/4" 0' - 4 3/4"

7

Drawn By

SITE PLAN 1" = 20'-0"

13' - 1 1/2"

49' - 9 3/4"

BF BF 14/725A

16' - 4"

BF BF

BF

W24X68

W24X68

W24X68

W24X68

W24X68

BF BF

BF 14/725A BF

BF BF 14/725A BF

2

W24X68

W24X68

60' - 11"

5

10' - 6 1/2" 5' - 5 1/4"

5

34' - 0 3/4"

BF 14/725A

21' - 8"

BF

14/725A

BF

BF

5

11' - 4 3/4"

17' - 7 1/2"

1 A403 UP

2 A410

6

6 6

W24X68

W24X68

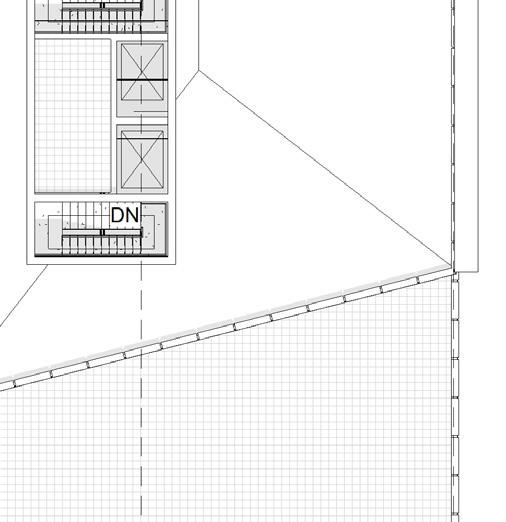

Floor Plans 2 A201

2 A201

2 A201

Date Drawn By

E

Level 4 1/8" = 1'-0"

4

A302

2

E 1

A202

14/725A BF

BF

BF 14/725A

BF

35' - 9 1/2"

W24X68

A302

W24X68

14/725A

BF

14/725A

BF

BF BF

1 1/2" = 1'-0"

Scale

14/725A

BF 14/725A

BF

BF

14/725A BF

14/725A

4/30/2022 3:25:36 PM Irene Seung Choi

A401

FOUNDATION DETAIL 1 1/2" = 1'-0"

1

BF

Exterior Details Section 6 Date

0' - 10"

6

UP

4

1

BF

BF

1

BF

VAPOR BARRIER

FLOOR DETAIL AT CURTAINWALL 1 1/2" = 1'-0"

W24X68

14/725A

2' - 4" 0' - 1"

0' - 9"

5

13' - 5"

1' - 11"

BATT INSULATION

49' - 9 3/4"

8' - 4 1/2"

MAT SLAB 2' - 8"

2 A302

EQ

BF

0' - 2 1/4"

BATT INSULATION

EQ

14/725A

RCP - Level B3 -36' - 0"

METAL PANEL

5

W24X68

4 2

BF

Level Roof 132' - 0" CURTAINWALL ANCHOR

PLYWOOD SHEATHING

1

A202

A302

C:\Users\Irene Seung Jin Choi\Desktop\LAB\ARCH 532_2022 Base Site File.rvt

CURTAIN WALL MULLION

METAL STUDS

4

1901 WALNUT STREET PHILADELPHIA, PA 19103

PLYWOOF SHEATHING 0' - 5 1/2" 0' - 1"

CURTAINWALL ANCHOR

Rittenhouse Project

1' - 11 1/4"

CONCREWTE AND METAL DECK

IGU

0' - 11 1/2"

0' - 8 1/2" 0' - 5"

Level 7 84' - 0"

16' - 5 1/2"

UP

METAL PANEL

1' - 3"

1' - 11 1/4"

1

FOUNDATION WALL

BATT INSULATION

TAPERED INSULATION

PLYWOOD SUBSTRATE

0' - 4"

CONCRETE AND METAL DECK

EPDM MEMBRANE

METAL PANEL

0' - 4 1/4"

A203

3' - 4"

Level 5 60' - 0"

0' - 6 1/2"

1

A203 A202

14/725A

A203

0' - 9"

EPDM MEMBRANE

3

BF

3

WATERPROOF MEMBRANE

3

1

14/725A

DRAINAGE BOARD

9

PLYWOOD SHEATHING

W24X68

BF

TYPICAL TERRACE

W24X68

123' - 2"

TAPERED INSULATION

1

116' - 3 3/4"

A203

BACKFILL

BF

WOOD LAGGING

14/725A

H-PILES METAL COPING

14/725A

BF BF

3

METAL PANEL

SHEATHING CONCRETE METAL DECK

W24X68

BF

8' - 6"

14/725A

UP

UP

0' - 5 1/2"

W24X68

83' - 6" BF

W24X68

BF

METAL STUDS

2

14/965A

BF

83' - 6"

W24X68

14/725A

5' - 8 3/4"

2

14/965A

BF

14/965A

BF

14/965A

W24X68

BF

14/965A

BF

14/965A

BF

BF

BF

2

14/965A

BF

BF

14/965A

BF

14/965A

BF

BF

BF

14/965A

BF

14/965A

BF

14/965A

BF

BF

BF

SOFFIT DETAIL AT CURTAINWALL 1 1/2" = 1'-0"

BF

3

BF

FLOOR DETAIL AT CAVITY WALL 1 1/2" = 1'-0"

66' - 3 1/4"

BF

2' - 9 3/4"

2

TERRACE DETAIL AT CURTAINWALL 1 1/2" = 1'-0"

W24X68

PLYWOOD SHEATHING WOOD SOFFIT PANELS

4

W24X68

BF

BF

BF

14/965A

W24X68

BF

BF

BF

BF

BF

BF

BF

A302

BF

BF

14/965A

1

BF

1

14/965A

BF

14/965A

BF

BF

BF

14/965A

BF

14/965A

1

W24X68

BF

14/965A

BF

BF

BF

14/965A

A302

9

BF

0' - 4 1/4"

BF

1

COLD FORMED METAL FRAMING

1

A302

9

0' - 4"

D

1

C

9

2

C A201

A201

1' - 11"

BATT INSULATION

66' - 3 1/4"

PARAPET DETAIL AT CAVITY WALL 1 1/2" = 1'-0"

B

1 1

A

METAL PANEL

1' - 6"

1

A301

PLWOOD SHEATHING

BATT INSULATION

COLD FORMED METAL FRAMING HEADER W/ RIGID INSULATION

1

A

A201

CURTAIN WALL ANCHOR

PLYWOOD SHEATING

MASONRY ANCHOR

COLF FOAM METAL FRAMING

12' - 7 1/4"

Level 4 48' - 0"

RIGID INSULATION

Level Roof 132' - 0"

CONCRETE AND METAL DECK

13' - 4 3/4" 47' - 4 3/4"

6" MIN SOIL FILL 0' - 2 1/2"

1" IGU

21' - 4 3/4"

E RCP - LEVEL 1 1 1/8" = 1'-0" 2

Level 5 1/8" = 1'-0"

RCP - Level Mezzanine 2 1/8" = 1'-0" Scale

4/30/2022 3:22:17 PM Irene Seung Choi

A104 1/8" = 1'-0"

C:\Users\Irene Seung Jin Choi\Desktop\LAB\ARCH 532_2022 Base Site File.rvt

BATT INSULATION

PRECAST CONCRETE PANEL

99' - 11"

WEST RITTENHOUSE SQUARE

3

1901 WALNUT STREET PHILADELPHIA, PA 19103

CURTAINWALL+CAVITYWALL 1 1/2" = 1'-0"

Rittenhouse Project

2

12' - 2"

COLD FORMED METAL FRAMING

C:\Users\Irene Seung Jin Choi\Desktop\LAB\ARCH 532_2022 Base Site File.rvt

1" INSULATED GLAZING UNIT ALUMINUM CAP, PAINT TO MATCH

1901 WALNUT STREET PHILADELPHIA, PA 19103

Rittenhouse Project

RIGID INSULATION

PRECAST CONCRETE PANEL

2 A201

E

Page 2 6

|

Arch itec ture Por tfol io

A

ALUMINUM ENCLOSURE

2' - 0 3/4"

1 A401

ED

TYPICAL ROOF ASSEMBLY EPDM MEMBRANE TAPERED RIGID INSULATION CONRETE AND METAL DECK STEEL STRUCTURE

Level Roof 132' - 0"

17' - 7"

12' - 0"

A401

12' - 0"

TYPICAL CAVITY WALL 4" PRECAST CONCRETE PANEL 1" AIR GAP 2" RIGID INSULATION AIR INFILTRATION BARR 3/4" PLYWOOD SHEATING 6" METAL STUD VAPOR RETARDER GYPSUM WALL BOARD

Level 7 84' - 0"

Level Roof 132' -60"

Level 6 72' - 0"

Level 10 120' - 0"

12' - 0"

12' - 0"

Level 10 120' - 0"

Level 9 108' - 0"

Level 5 60' - 0"

Level 9 108' - 0"

STEEL BEAM

2" CONCRETE ON 2" METAL DECK

RCP - Level 8 96' - 0"

RCP - Level 8 96' - 0"

SPANDREL PANEL 12' - 0"

3' - 7 1/2"

1' - 11"

Level 7 84' - 0"

2' - 5 1/2"

CLR 0' - 7 1/2"

0' - 6"

4 A401

TYPICAL TERRACE ROOF 3/4" STONE PAVERS 2" THERMAL/AIR LAYER 1/2" SUBSTRATE LAYER 1/4" EPDM MEMBRANE 5" RIGID INSULATION CONCRETE AND METAL DECK STEEL STRUCTURE 0' - 8 1/2"

12' - 0"

STEEL COLUMN

Level 7 84' - 0"

12' - 0"

TYPICAL DOUBLE SKIN CURTAIN WALL

12' - 0"

4' - 5"

12' - 0"

Level 3 36' - 0"

TYPICAL VENTED MULLION

MECHANICAL DUCT GYPSUM BOARD CEILING

OPERABLE WINDOW

Level 4 48' - 0"

METAL GRATE FLOOR STRUCTURE

2' - 3"

Level 6 72' - 0"

Level 6 72' - 0"

0' - 6 1/2"

Level 2 24' - 0"

STEEL SUPPORT STRUCTURE

12' - 0"

3' - 0"

12' - 0"

4' - 5"

12' - 0"

OPERABLE WINDOW

GLAZING MULLION

Level 5 60' - 0"

Level Mezzanine 12' - 0"

Level 5 60' - 0"

12' - 0"

5 PANEL SPANDREL A401

15' - 0"

12' - 0"

2' - 9 3/4"

Level 4 48' - 0"

3 A401

Level 4 48' - 0"

0' - 0"

STEEL BEAM

2' - 4 3/4"

1

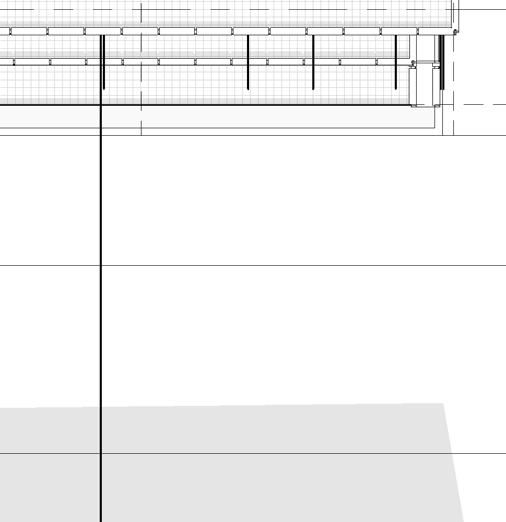

Wall Section - TYPICAL CAVITY WALL 1/4" = 1'-0"

2

Wall Section - TYPICAL CURTAIN WALL 1/4" = 1'-0"

3

Level 1 0' - 0"

1901 WALNUT STREET PHILADELPHIA, PA 19103

1' - 6"

Rittenhouse Project

32' - 3 1/2"

12' - 0"

12' - 0"

OPERABLE WINDOW

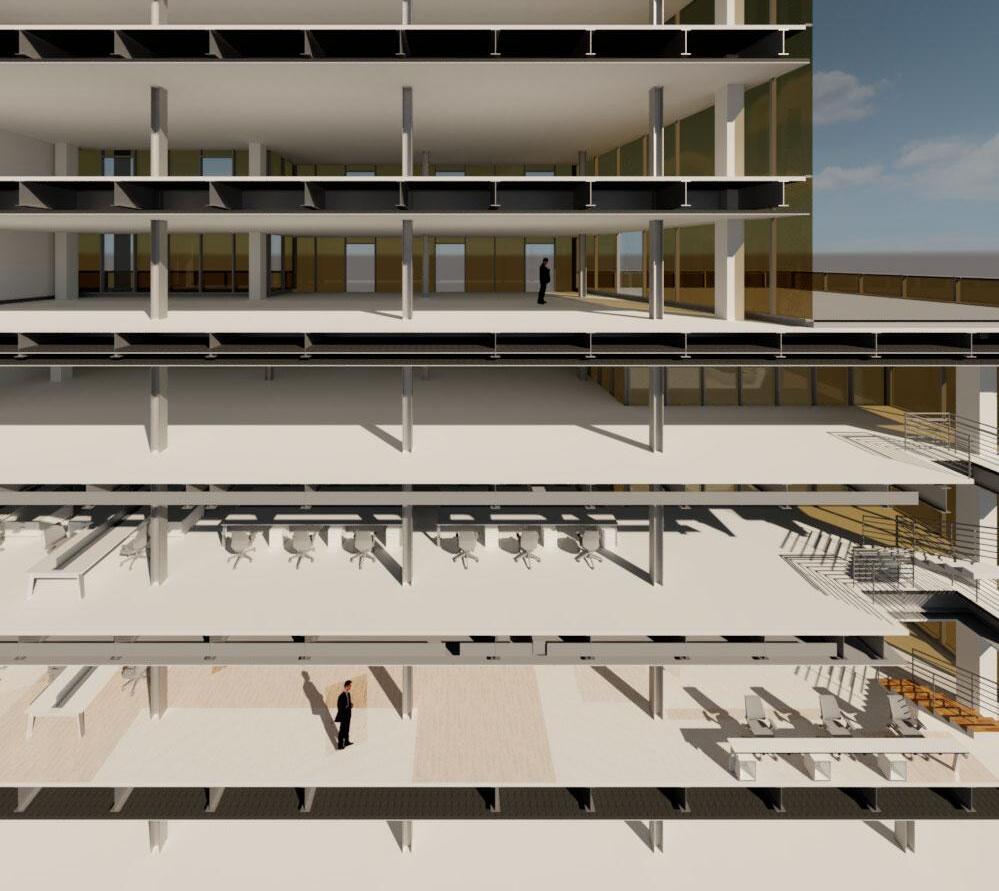

3D Vie

Wall Section - TYPICAL DOUBLE SKIN WALL 1/4" = 1'-0"

4

Page 2 7

|

Wall Section - TYPICAL FOUNDATION 1/4" = 1'-0"

Arch itec ture Por tfol io

N

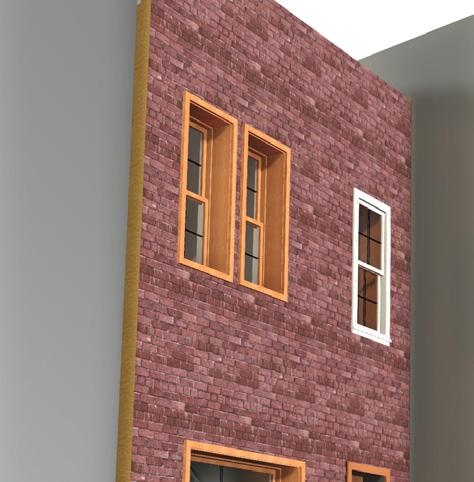

REVIT MODEL SAMPLE II - ROW HOUSE PROJECT

O R R IS R ST T EE

SENIOR SPRING INTENSIVE GRADUATE COURSE

www.autodesk.com/revit

Consultant Address Address Phone Fax e-mail

As part of our senior intensive design concentration, selected senior students have the privilege to take Penn Graduate courses with the graduate students during their final year. During this specific course where we learned to use Revit, we were assigned to design a creative, petite house at an existing residential area in Philadelphia.

1

A301

'16

Consultant Address Address Phone Fax e-mail

0"

Consultant Address Address Phone Fax e-mail '67

Consultant Address Address Phone Fax e-mail

" 11

1

A302

2

A302 '54

Consultant Address Address Phone Fax e-mail

8

2" 1/

8' 3 1/ 4"

No.

Description

Date

BELG

RAD

REE E ST

T

www.autodesk.com/revit

Consultant Address Address Phone Fax e-mail

Irene Choi

1 A301

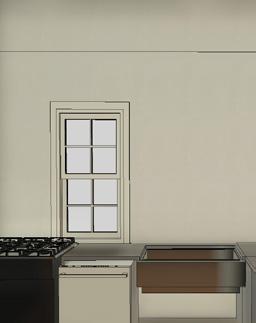

Assignment 1.0 3D View-Interior

Consultant Address Project number Address PhoneDate Fax Drawn by e-mail Checked by Consultant Address Scale Address Phone Fax e-mail

1 A301

1

1

A301

A301

A201

Project Number Issue Date Author Checker

A002

A201

LEVEL ROOF 20' - 5"

1

LEVEL ROOF 20' - 5"

1

2

2

A310

A310

DN

12' - 8 3/4"

1

1

A302

A302 UP

UP

living room

Consultant Address Address Phone Fax e-mail

LEVEL 2 FRONT 10' - 5" LEVEL 2 REAR 9' - 2"

LEVEL 2 FRONT 10' - 5" LEVEL 2 REAR 9' - 2"

9' - 5 3/8"

12' - 8 3/4"

LEVEL 1 0' - 0"

A202

1

8' - 8 1/2"

9' - 10 3/4"

office

GRADE -2' - 8"

LEVEL 1 0' - 0"

2

A202

A202

GRADE -2' - 8"

1

2

A202

4' - 1 3/8"

kitchen

No.

Description

1

Date

LEVEL BASEMENT -7' - 0"

BUILDING ELEVATION - NORTH 1/4" = 1'-0"

LEVEL BASEMENT -7' - 0"

3' - 7"

2

BUILDING ELEVATION - SOUTH 1/4" = 1'-0"

8' - 1 3/8"

Page 2 8

laundry

2

A302

10' - 1"

3D View 4

7' - 11 1/2"

2

9' - 11 1/4"

3D View 1

12/8/2021 10:45:29 PM

1

Consultant Address Address Phone Fax SITE PLAN 1 e-mail 1/8" = 1'-0"

5' - 3 5/8"

2

A302

|

Arch itec ture Por tfol io

Project Number Issue Date Author Checker

Project number Date Drawn by Checked by

A100

SITE PLAN 1 1/8" = 1'-0" Scale

1/8" = 1'-0"

12/8/2021 10:45:36 PM

Assignment 1.0 SITE PLAN

1

1

1

A301

A301

A301

A201

A201

A201

1

1

1

2

2

2

A310

A310

A310

study

DN

12' - 8 3/4"

www.autodesk.com/revit

Consultant Address Address Phone Fax e-mail

living room

Consultant Address Address Phone Fax e-mail

12' - 6 7/8"

Consultant Address Address Phone Fax e-mail

2' - 7 1/8"

bedroom

DN

Consultant Address Address Phone Fax e-mail 8' - 8 1/2"

9' - 10 3/4"

7' - 11 1/2"

7' - 10 3/4"

office

2

A202

A202

1

2

A202

A202

1

6' - 1 1/4"

Consultant Address Address Phone Fax e-mail

7' - 10 3/4"

2

A202

A202

1

2' - 6"

4' - 1 3/8"

bathroom 7' - 0"

12' - 8 3/4"

1

bathroom 0' - 6"

9' - 5 3/8"

3' - 1"

UP

A202

1 A302

12' - 0"

1

A302

UP

6' - 3 1/8" 7' - 8 7/8"

1

A302

kitchen

bedroom

9' - 11 1/4"

7' - 11 7/8"

6' - 0 1/8"

bedroom

3' - 7"

Description

Date

22' - 6 1/4"

No.

8' - 1 3/8"

2' - 10 1/4"

10' - 1"

laundry

2

A302

5' - 3 5/8"

2

2

A302

A302

closet

2 A302

Irene Choi

Project number Date 2

2

LEVEL 1 1/4" = 1'-0"

A201

Drawn by

2

1

LEVEL BASEMENT 1/4" = 1'-0"

Checked by

A201

1

LEVEL 2 FRONT 1/4" = 1'-0"

Project Number Issue Date Author 2 Checker

A101 Scale

A201

1/4" = 1'-0"

12/8/2021 10:45:37 PM

Assignment 1.0 FLOOR PLANS

2

Page 2 9

|

LEVEL ROOF 1/4" = 1'-0"

Arch itec ture Por tfol io

PROFESSIONAL

WORK

Page 3 0

|

Arch itec ture Por tfol io

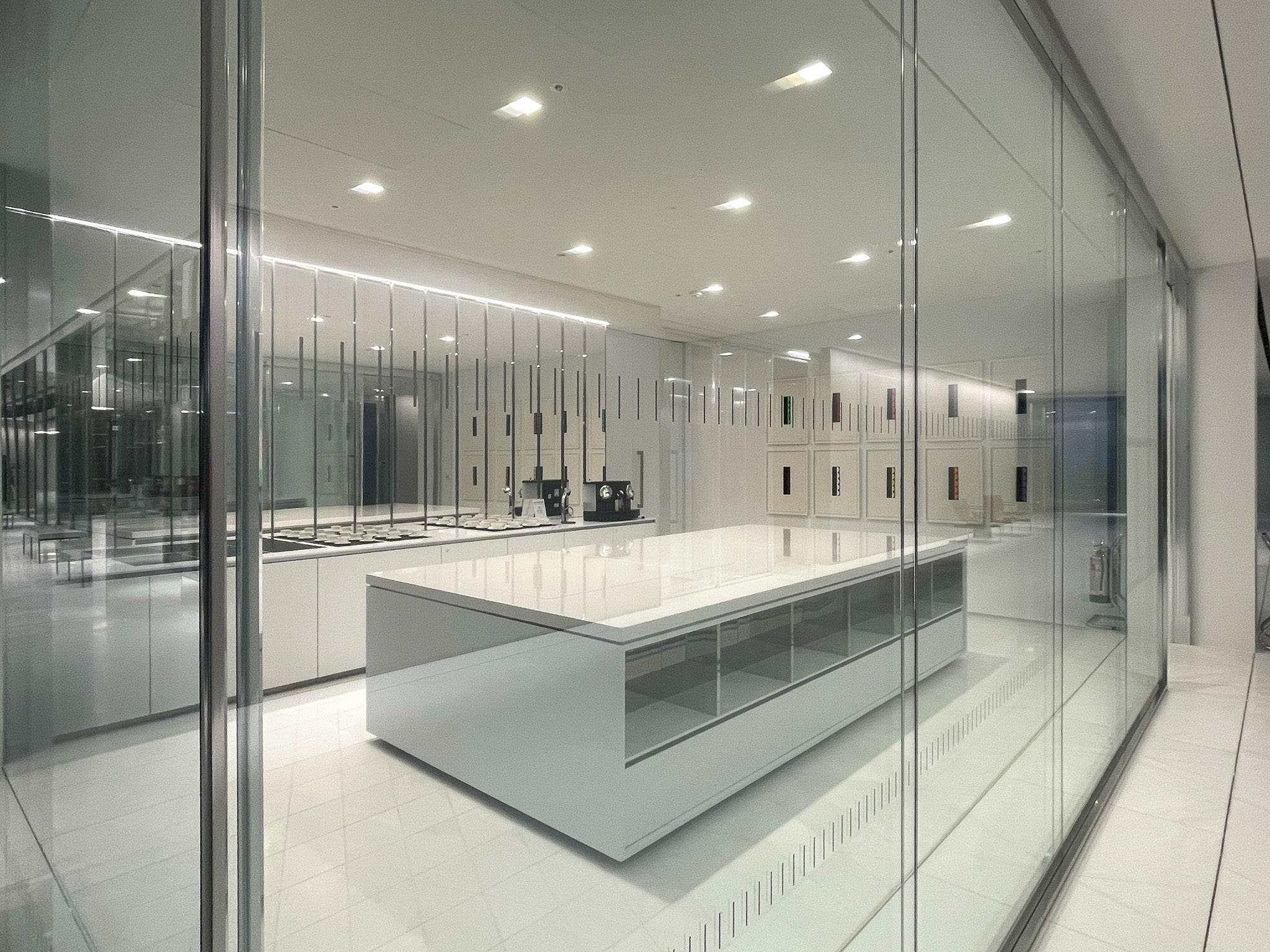

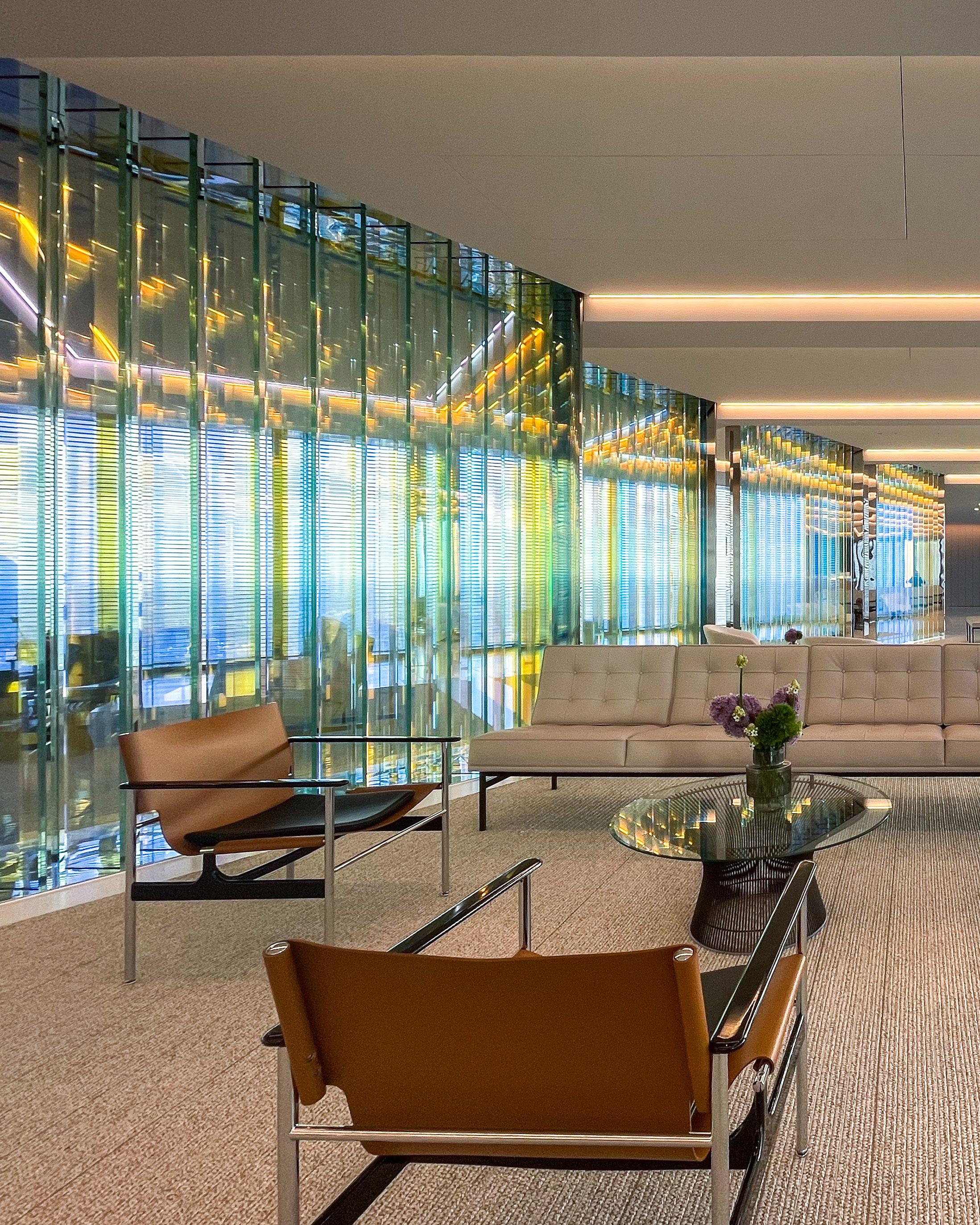

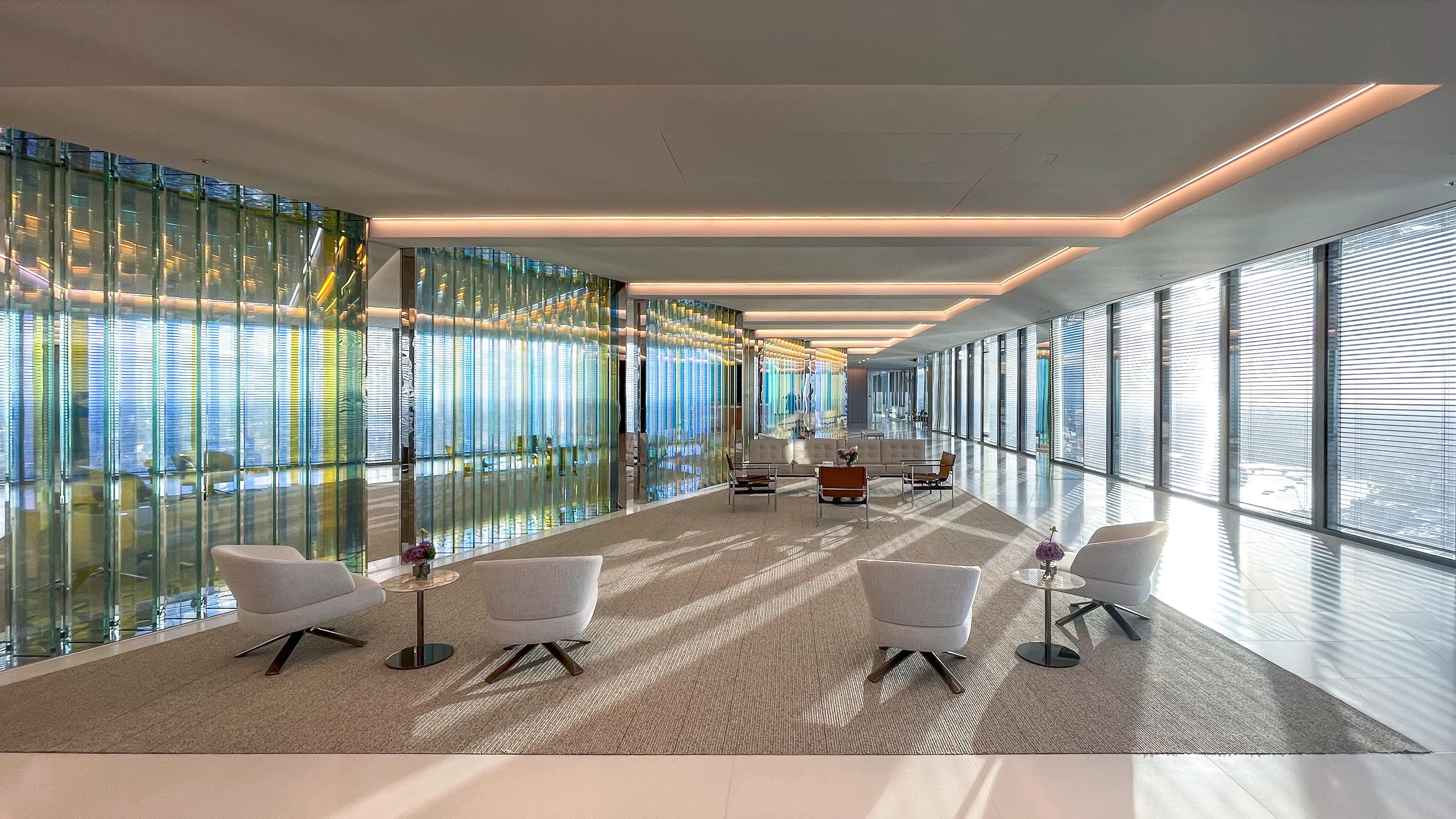

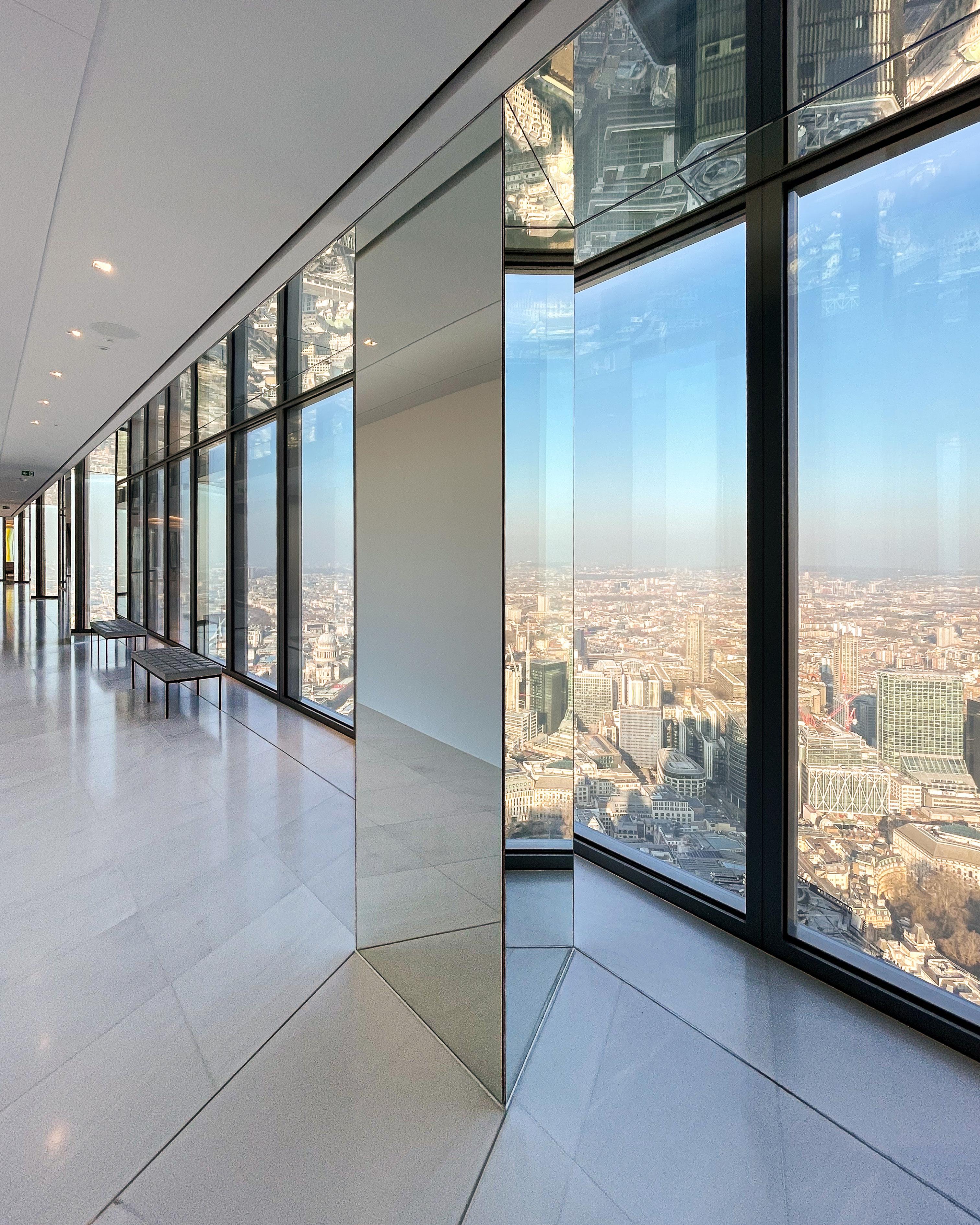

PREVIOUS WORK SAMPLES ARCHITECT: LSM / CLIENT: COVINGTON LONDON

Page 3 1

|

Arch itec ture Por tfol io

METAL SHAPE

GC TO ENGINEER PARTITION TO SUPPORT AV EQUIPMENT

C.L. EACH OUTLET EACH SIDE OF STUD

REF ELEV

METAL STUD

75

"INSULATED #68" BY DOTTIE COMPANY TYP. @ ALL SOUND A & E PARTITIONS (AROUND OUTLETS) OR SIMILAR

SCHEDULED PARTITION

OFFICE 5172

OFFICE 5162

75

HEAD

OFFICE 5168

OFFICE 5166

VESTIBULE 5144

OFFICE 5159

OFFICE 5158

OFFICE 5155

OFFICE 5170

OFFICE 5167

CORRIDOR 5186

GENDER NEUTRAL RESTROOM 5145

CORRIDOR 5188

OFFICE 5156

OFFICE 5153

OFFICE

OFFICE 5160

OFFICE 5157

OFFICE 5154

OFFICE 5165

TYPICAL PLAN DETAIL @ OUTLETS 1 : 10

TYPICAL GYP. BOARD CORNER 5164 1:2

11

07 A2-E22

150

E

a.1

5174

a.1 a.1

10

SCHEDULED. GLASS PARTITION SYSTEM BY UNIFOR

MULLION PARTITION

5162

J J

E

2

E

E

J

5161

J

E

J J

5160

E

J

5159

E

J

J

B

5158

E J

J

5157

500 E

J

5156

J

J

E

E J

5154 A

09 A5-E01 A5-E01

5188X

5188N

a.1

E

J

A3-E20

5188M

J

a.1

a.1

5155

J J

5188T 5188S 5188R 5188Q 5188P 04

5145

J

a.1

J

GYP. BOARD OUTSIDE CORNER 1:2

12

J

SCHEDULED BASE 5153

SCHEDULED FLOORING

07

SECTION @ GYP. BOARD PARTITION 1:5

02

DE 1:

03

SE 1:

REF 5176

E

PARTITION

E E K

a.2

E

a.8

E

05 A5-E02

5189

C1

E

1

5146

C1 E

5185

5102

NEST PLYWOOD BLOCKING BETWEEN STUDS

E C1

MULLION PARTITION

SCHEDULED CEILING 16 A3-E50

MULLION PARTITION

ADDITIONAL LAYER GYP. BD.

REF ELEV

SCHEDULED PARTITION

PACK INSULATION BEHIND PLYWOOD

B 23

PLAN

A3-E20

C1

04 A5-E02 MULLION PARTITION

09 A2-E22

E

5164

J

MULLION PARTITION

a.1 a.1

A3-E20

5188U

a.1

3,733

C.1 C

380 a.1 a.1

C.2

a.1 a.1

a.1

ELEV

E

E

550

10

C.3

J

5184

5,748

SCHEDULED. PARTITION

986 380

380 E

a.1

E

J

421

D

5175

550

5MM MTL#1 PLATE BY GC.

E

J

5150

E J

J 5183

a.1

a.1

J

F J

5165

2,983

4,7 81

D.1

J

J

E

2,997

a.1

03 A5-E02

1

J

a.1

a.1

a.1

A3-E20

5182

E

ALIGN

E

a.1

TYPICAL PLAN DETAIL @ WALL UNIT SUPPORT 2,997 1 : 10 E J

a.1

63

17 E

380

PLASTER BOARD DETAIL @ AV SCREEN 1:5

5166

SCHEDULED PARTITION

E

E.1 22

5173

a.1

E.2

a.1 a.1

a.1 SCHEDULED PARTITION

E

4,9 11

a.1

E.3 SCHEDULED PARTITION

380

J

a.1 a.1

a.1

a.1

J

a.1 a.1

J

0.09mm. SHEET MTL BLOCKING J J ATTACHED TO STUDS W/ #6 FLAT HEAD SHT. MTL SCREWS @ 150mm O.C., INCLUDING 2 @ 75mm 08 5172 O.C. J A2-E23 AT TOP (5 SCREWS PER STUD)

J

a.1

a.1

5167

J

D

5171

MULLION PARTITION

J

4,754

J E

a.1

a.1

5 A5-E01

4,755

J

F

J

A3-E20

380

A3-E20

a.1 a.1

E

J

02 MULLION PARTITION A5-E02

MULLION PARTITION

J

550

550

5168

J

C

MULLION PARTITION

J

4,120

5169

E

MULLION PARTITION

J

J

J

4,121

J

J

J

J

1,6 99

5170

J

ALIGN

E

METAL STUD MULLION MULLION PARTITION PARTITION

MULLION PARTITION

MULLION PARTITION

J

WALL UNIT (BY OWNER) 5,335

J

E

380

REF. ELEVATION MOUNTING HEIGHT

G

MULLION PARTITION

02 A5-E02

J

a.1 a.1

a.1

a.1

14 A2-E20

12 A2-E20

a.1 a.1

380

a.1

METAL SHAPE

03

380

MULLION PARTITION

G.C. TO COORDINATE A5-E02 ANDJ VERIFY DIMENSIONS MULLION J W/ FURNITURE MANUFACTURER

J

75

H

J

08 WALL CONNECTION POINT A5-E02

380

500

ELECTRICAL BACK BOX REF. A/V DRAWINGS FOR DETAILS

02 A5-E02

500

TYP. 5 A5-E01 MULLION PARTITION

MULLION PARTITION

3,762

SCHEDULED EQUIPMENT (BY OTHERS)

380

REF. AV DWGS

SCHEDULED PARTITION OR EXISTING CONDITION

ALIGN

16

OFFICE 5161

OFFICE FACE OF SCHEDULED PARTITION MOTHER'S ROOM 5171 5150

OFFICE 5169

550

OPEN OFFICE 5181

PLYWOOD SUBSTRATE TO BE MOUNTED SECURELY TO PTN

OFFICE 5173

380

REF. PLAN

50

ALL BLOCKING TO BE FIRE TREATED MATERIAL

SCHEDULED CEILING REF. CEILING PLANS FOR ADDITIONAL INFORMATION AT PANEL/CEILING TRANSITIONS

08 03 A5-E01 A5-E01

C.L. STUD

13 A2-E02

DETAIL @ PLASTER BOARD AV WALL 1:5

13

VERTICAL SECTION @ PLYWOOD BLOCKING 1:2

08

SECTION DETAIL @ DOUBLE GYP. BOARD PANEL 1:2

AV WALL SYSTEM

A

PARTITION GYP. BD.

OFFICE 5184 OFFICE 5174

OFFICE 5183

5MM MTL#1 PLATE BY GC. 10

10

OFFICE 5182

CONFERENCE 5185

5MM MTL#1 PLATE BY GC. CORRIDOR 5148

SCHEDULED. PARTITION

OFFICE 5175

SCHEDULED. PARTITION

SUPPORT 5189

TEA POINT 5102

IT WORKROOM 5176

SCHEDULED. PARTITION

10

1

2

SCHEDULED. GLASS PARTITION SYSTEM BY UNIFOR

2.1

3

3.2

3.6

4

4.8

5

5.5

6

6.5

7

SCHEDULED. GLASS PARTITION SYSTEM BY UNIFOR

7.6

8

L51 EXPANSION_LEVEL 51 PARTITION PLAN 1 : 100

C:\Users\ichoi\Documents\19400_Covington London_ichoiB9L49.rvt

24 DETAIL @ PLASTER BOARD WALL END 1:5

C:\Users\yduan\Documents\19400_Covington London_yduanCYGG7.rvt

10

1

SCHEDULED FLOORING, KEEP TIGHT TO WALL.

19 DETAIL @ UNIFOR AV WALL 1:5

09

NO BASE SKIRTING @ DOUBLE GYP. BOARD 1:2

04

NO 1:

5

TY 1:

SCHEDULED PARTITION PARTITION

PARTITION

WOOD SKIRTING TO MATCH BASE BUILDING CORE SKIRTING, PAINT P#1

VINYL SKIRTING

SCHEDULED FLOORING, KEEP TIGHT TO WALL.

SCHEDULED FLOORING, KEEP TIGHT TO WALL.

SPECIFIED MANUFACTURED WALL SYSTEM. PROVIDE BLOCKING AND FRAMING PER MANUFACTURER'S SPECIFICATIONS

SILICONE SEAL MANUFACTURED WALL TO PARTITION

15MM NEOPRENE COMPRESSED TO 50%

WHERE OCCURS, G.C. TO FILL IN SCHEDULED BASE REVEAL AT MANUFACTURED PARTITION WITH PTD WOOD, CAULK JOINT FOR ACOUSTIC SEPARATION.

20

GLASS WALL SYSTEM @ GYP PARTITION 1:2

15

TYPICAL WOOD SKIRTING DETAIL 1:2

10

TYPICAL VINYL SKIRTING DETAIL 1:2

Page 3 2

|

Arch itec ture Por tfol io

MASTIC SEAL AT HEAD, WITH ADDITIONAL INSERTS INTO HOLORIBS FOR FULL WIDTH OF BEAM FLANGE CONTIGUOUS NON HARDENING ACOUSTIC MASTIC SEALANT

CONSULTANTS:

METAL FRAMING

EXP. PARTITION KEYNOTES

PARTITION NOTES

FISHER MARANTZ STONE LIGHTING CONSULTANT 22 W 19TH ST. NEW YORK, NY 10011 (212) 691-3020

1. G.C. TO COMPLY WITH LANDLORDS RULES AND REGULATIONS. WSP 2. COMPLY AND COORDINATE ALL WORK STRUCTURAL, FIRE CONSULTANT WITH BUILDING OWNER REGARDING 70 CHANCERY LANE HEAT, WATER, ELECTRICITY, DELIVERIES, LONDON WC2A 1AF 60 60 a.2 PROVIDE CONCEALED FIRE TREATED WOOD ACCESS, AVAILABILITY, NOISE +44 20 7314 5000 BLOCKING IN WALL. REFER TO AV DRAWINGS CONTROL,TRASH AND DEBRIS REMOVAL, FOR ADDITIONAL INFORMATION. HOISTING, AND ANYOTHER UTILITIES OR MIX CONSULTANCY 1 X 60 ROCKWOOL TO EACH OWNER’S RULES AND REGULATIONS a.8 PROVIDE ADDITIONAL LAYER OF IT CONSULTANT SIDE OF THE BEAM WITH CONCERNING THE PROJECT SITE. PLASTERBOARD FOR ARCHITECTURAL DETAIL. ST CLEMENTS HOUSE, 27 CLEMENTS LANE STAGGERED JOINTS 3. CONTRACTOR TO EXAMINE FIELD LONDON WC4N 7AE CONDITIONS TO VERIFY SCOPE OF WORK. +44 20 3319 1600 4. G.C. TO VERIFY EXTENT OF EXISTING CONSTRUCTION IN FIELD. G.C. SHALL NON HARDENING MASTIC CMS AUDIO VISUAL IMMEDIATELY NOTIFY THE ARCHITECT AV CONSULTANT SEALANT OF ANY AS-BUILT CONDITIONS CONTRARY TO 5 CASTLE ROW, HORTICULTURAL PLACE THOSE SHOWN OR INFERRED FROM THESE CHRISWICK, LONDON, W4 4JQ DRAWINGS. +44 20 8987 9222 5. MANUFACTURERS’ NAMEPLATES, TRADEMARKS, LOGOS, OR OTHER GARDINER & THEOBALD IDENTIFICATION SHALL NOT BE VISIBLE TO PROJECT MANAGER / QUANTITY SURVEYOR THE TENANT. STRUCTURAL BEAM 10 SOUTH CRESCENT 6. REFER TO SHEET A0.02 FOR PROJECT 25 25 LONDON WC1E 7BD SYMBOLS, INFORMATION AND +44 (0)20 7209 3000 ABBREVIATIONS. ALLOW 25MM AROUND BEAM FOR 7. REFER TO SHEET A4.01 FOR PARTITION INTUMESCENT PAINT EXPANSION TYPES. 8. DOOR NUMBERS ARE THE SAME AS THE PER MANUFACTURER'S DESIGNATED ROOM NUMBERS, U.N.O. AT RECOMMENDATION. ROOMS WITH MULTIPLE DOORS. 9. ALL WALL DIMENSIONS ARE TO FACE 22MM FURRING CHANNEL OF FINISH UNLESS NOTED OTHERWISE. METAL SHAPE 10. ALL DIMENSIONS SHALL BE VERIFIED IN THE FIELD PRIOR TO PROCEEDING WITH WORK. CONTIGUOUS NON THE G.C. SHALL INFORM THE ARCHITECT REF HARDENING ACOUSTIC BEFORE PROCEEDING WITH ANY MASTIC SEALANT METAL STUD ELEV DIMENSIONAL MODIFICATION. 11. IF NEW PARTITIONS ARE TO ALIGN WITH SCHEDULED CEILING REF. CEILING 08EXISTING 03 PARTITIONS OR COLUMNS, THE PLANS FOR ADDITIONAL ALIGNMENT A5-E01 A5-E01 SHALL BE CONSTRUCTED SO NOT INFORMATION AT PANEL/CEILING TO SHOW TRANSITION BETWEEN NEW AND EXISTING. TRANSITIONS SCHEDULED ACOUSTIC 12. PRIOR TO FINAL FINISHING, ALL EXISTING PARTITIONS SHALL BE PATCHED AND CEILING SYSTEM REPAIRED AS REQUIRED. 13. REFERENCE CUSTOM FURNITURE PLANS SCHEDULED PARTITION FOR ADDITIONAL MILLLWORK. 14. ADDITIONAL 0.9 MM METAL STUDS AND/ORHEAD 0.9 MM FLAT STOCK MAY BE REQUIRED FOR JOINERY ANCHORAGE. 15. G.C. TO COORDINATE WITH JOINERY REQUIREMENTS FOR PROPER BLOCKING AND SUPPORT. 16. DO NOT PENETRATE EXISTING WINDOW MULLIONS W/ FASTENERS. 17. ALL FIRE RESISTIVE PARTITIONS SHALL BE SCHEDULED PARTITION OR CONSTRUCTED IN COMPLIANCE WITH U.L.TESTING REQUIREMENTS AND THE EXISTING CONDITION MANUFACTURER’S RECOMMENDATIONS. 18. G.C. TO CONTINUOUSLY FIRESAFE AND CAULK ALL DUCT, PIPE AND CONDUIT SCHEDULED PARTITION PENETRATIONS THROUGH WALLS REQUIRING RATINGS FOR FIRE OR ACOUSTICAL SEPARATION AS DETERMINED BY THE ARCHITECTURAL FIRE AND ACOUSTICS DRAWINGS. TYPICAL GYP. BOARD CORNER ETAIL 19. NEW OR MODIFIED STRUCTURAL STEEL 11 @ TYP. CEILING VOID BARRIER - AT STRUCTURAL BEAM 1:2 SHAPES, INCLUDING BEAMS AND COLUMNS, :5 ARE TO BE FIREPROOFED WITH INTUMESCENT PAINT APPLIED FIREPROOFING TO ACHIEVE A PROTECTION VALUES CONSISTANT WITH EXISTING. 20. ANY EXISTING FIREPROOFING DAMAGED OR ALTERED DURING CONSTRUCTION IS TO BE RESTORED SUCH THAT THE REQUIRED FIRE METAL SHAPE PROTECTION IS MAINTAINED. 21. PROVIDE CONCEALED FIRE TREATED BLKG FOR WALL MOUNTED ACCESSORIES, TOILET COMPARTMENTS, WINDOW TREATMENTS,SEISMIC BRACING FOR SHELVES AND FILES, 22. HARDWARE, MILLWORK, AUDIOVISUAL METAL STUD EQUIPMENT, AND OTHER ITEMS AS REQ’D.COORDINATE BACKING REQUIREMENTS PRIOR TO GYPSUM BOARD INSTALLATION. 23. ALL CORRIDORS, SMOKESTOPS, HORIZONTAL EXITS, EXIT ENCLOSURES AND FIRE RATED PARTITIONS SHALL BE PERMANENTLY IDENTIFIED (I.E. SIGN OR SCHEDULED PARTITION STENCILING ABOVE FINISHED CEILINGS) IN ACCORDANCE PLANWITH THE REQUIREMENTS OF LOCAL AUTHORITIES HAVING JURISDICTION. 24. PROVIDE ADDITIONAL METAL STUDS REQ’D FOR SWITCHES, THERMOSTATS OR OUTLETS. REFER TO POWER & COMMUNICATIONS PLANS. 25. REFER TO M.E.P. AND STRUCTURAL SCHEDULED CEILING SPECIFICATIONS FOR SLAB PENETRATIONS AND FIRE-STOP REQUIREMENTS. 26. MAINTAIN THE EXISITNG FLOOR SLAB RATING AT ALL FLOOR SLAB PENTRATIONS. SCHEDULED BASE 27. FINAL INSTALLATION OF ALL SHELVING AND FILE UNITS SHALL COMPLY WITH ANTI-TIP REQUIREMENTS OF THE APPLICABLE CODES AND THE GOVERNING AUTHORITY. 09 EXISTING BASE BUILDING DOORS, 0428. AT ALL PAINT DOOR AND FRAME TO MATCH 2 2024-01-03 SCHEDULED Bulletin 008 FLOORING A5-E01 A5-E01 SCHEDULED PARTITION ADJACENT WALL FINISH. 1 2023-11-01 Bulletin 007 29. PROVIDE CONCEALED BLOCKING AT ALL OFFICE WALLS 2023.02.03 CONTRACT

a.1

PROVIDE 12MM HABITO GYPROC PLASTERBOARD IN WALL ALONG LENGTH OF FURNITURE SYSTEM. COORDINATE HEIGHTS

WITH FURNITURE PROVIDER. STRUCTURAL BEAM

25

No. Date

CONSULTANTS:

MASTIC SEAL AT HEAD, WITH ADDITIONAL INSERTS INTO HOLORIBS FOR FULL WIDTH OF BEAM FLANGE CONTIGUOUS NON HARDENING ACOUSTIC MASTIC SEALANT

METAL FRAMING

60

STRUCTURAL BEAM

60

1 X 60 ROCKWOOL TO EACH SIDE OF THE BEAM WITH STAGGERED JOINTS

25

25

NON HARDENING MASTIC SEALANT

STRUCTURAL BEAM

25

ALLOW 25MM AROUND BEAM FOR INTUMESCENT PAINT EXPANSION PER MANUFACTURER'S RECOMMENDATION.

22MM FURRING CHANNEL CONTIGUOUS NON HARDENING ACOUSTIC MASTIC SEALANT

SCHEDULED ACOUSTIC CEILING SYSTEM

SCHEDULED PARTITION

Description

Key Plan:

GYP. BOARD OUTSIDE CORNER ECTION 12 DETAIL @ SINGLE GYP. BOARD PANEL 1:2 :2

8

BEAM ENCASED REFER TO TRADE CONTRACTOR OPERATION & MAINTENANCE MANUAL

07

SECTION @ GYP. BOARD PARTITION 1:5

No. Date

02

Description

DETAIL @ TYP. CEILING VOID BARRIER - AT STRUCTURAL BEAM 1:5

Key Plan: PARTITION

REF

ELEV GYP. BD.

Client:

PARTITION

9

COVINGTON & BURLING

22 BISHOPSGATE, LONDON, EC2, UNITED KINGDOM Client:

10 BLOCKING BETWEEN NEST PLYWOOD STUDS SCHEDULED FLOORING, KEEP TIGHT TO WALL.

Design Architects: COVINGTON & BURLING

SCHEDULED CEILING

REF ELEV

PARTITION LEGEND

PACK INSULATION BEHIND PLYWOOD

VERTICAL SECTION @ PLYWOOD BLOCKING O BASE 13 SKIRTING @ SINGLE GYP. BOARD 1:2 :2

SCHEDULED CEILING

ADDITIONAL LAYER GYP. BD. 1212 BANK STREET, NW 22 BISHOPSGATE, LONDON, EC2, WASHINGTON, DC 20007

UNITED KINGDOM

SCHEDULED +1 202 295 4800 T PARTITION

SCHEDULED PARTITION

Design Architects:

EXISTING CONSTRUCTION TO BE REMOVED

08

FURNITURE END PANEL WHERE OCCURS

EXISTING CONSTRUCTION BE REMAIN SECTION TO DETAIL @ DOUBLE GYP. BOARD PANEL 1:2 NEW PARTITION

20395

1-HR FIRE RESISTIVE PARTITION (REF. PARTITION TYPE "F")

Date:

2-HR FIRE RESISTIVE PARTITION (REF. PARTITION TYPE "G")

BD. 4800 T +1 GYP. 202 295 Drawing Title:

PROVIDE VAPOR BARRIER IN PARTITION NEW MILLWORK (REF. ELEVATION)

BOARDS TO BE STOPPED WITH A 10MM SPACE BETWEEN ENDS

03

Project no:

GYP. BD.

Drawing Series:

Project no: A1-E51a Drawing Status: BULLETIN 008

Rev:

20395 2 12.02.2022

Client:

© COPYRIGHT LEHMAN SMITH McLEISH PLLC 2019

Scale: As indicated

Drawn by: Author

COVINGTON & BURLING

SCHEDULED FLOORING, KEEP TIGHT TO WALL.

PARTITION DETAILS

EXISTING COLUMN TO BE ENCASMENT TO BE LEFT AS CPNSTRUCTED ON SITE

Drawing Series:

METAL CORNER BEAD TO ALL SIDES WHERE CORNERS ARE EXPOSED

Drawing Number:

YPICAL COLUMN DETAIL AT PARTITION :5

SCHEDULED FLOORING, KEEP TIGHT TO WALL.

Drawing Title:

METALWORK FOR NEW LINING TO BE SET BACK FROM EXISTING COLUMN ENCASMENT

BY MINIMUM 5MM

22 BISHOPSGATE, LONDON, EC2, UNITED KINGDOM Design Architects:

09

NO BASE SKIRTING @ DOUBLE GYP. BOARD 1:2

Rev:

A5-E01 Drawing Status: STAGE 4 ISSUE © COPYRIGHT LEHMAN SMITH McLEISH PLLC 2019

PARTITION

Description

PARTITION

PARTITION PLAN

Date:

BASE BUILD COLUMN

No. Date

Key Plan:

01.04.2024 1212 BANK STREET, NW PARTITION 20007 Scale: 1 : WASHINGTON, 100 Drawn by:DC Author

Drawing Number: AREA N.I.C.

SECTION DETAIL @ SINGLE GYP. BOARD PANEL 1:2

04

NO BASE SKIRTING @ SINGLE GYP. BOARD 1:2

FURNITURE END PANEL WHERE OCCURS

PARTITION

1212 BANK STREET, NW WASHINGTON, DC 20007 +1 202 295 4800 T

Page 3 3

WOOD SKIRTING TO MATCH

VINYL SKIRTING

BOARDS TO BE STOPPED WITH A 10MM SPACE

|

Arch itec ture Por tfol io

SCHEDULED LACQUER FRAME

REF ELEVATION

SCHEDULED DRAWER FRONT

DARK OAK MELAMINE INTERIOR FINISH, TAFISA M2010 (Y) AFTER HOURS

SCHEDULED TOE KICK 80

SCHEDULED BACKSPLASH 01

DETAIL SECTION @DRAWERS 1 : 10

SCHEDULED FAUCET

EQ

GWB PARTITION

SCHEDULED GLASS BACKSPLASH

REF

12 A3-E61

ELEVATION

SCHEDULED BACKSPLASH

INTEGRATED SINK TO MEET ADA CLEARANCES. CUT DOWN AS REQUIRED SCHEDULED SSM COUNTERTOP

SCHEDULED DRAWER FRONT CLEARANCE FOR PUMP ACCESSIBILITY

100

DARK OAK MELAMINE INTERIOR FINISH, TAFISA M2010 (Y) AFTER HOURS

SCHEDULED TRASH

SCHEDULED TOE KICK DARK OAK MELAMINE INTERIOR FINISH, TAFISA M2010 (Y) AFTER HOURS

SCHEDULED TOE KICK

12

DETAIL @ SINK & BACK SPLASH 1:1

07

DETAIL SECTION @ SINK 1 : 10

02

DETAIL SECTION TRASH 1 : 10

SCHED 12MM THICK SSM COUNTERTOP WITH 2MM CHAMFER

SCHEDULED MILLWORK 13 A3-E61

25

REPLACE WRAPPER AT CLOSEST SQUARE JOINT

ALIGN

REF

SCHED 12MM THICK SSM COUNTERTOP VERTICAL RETURN WITH 2MM CHAMFER

SCHEDULED DOOR

RCP 770

05 A3-E61

_________________

SCHEDULED GLASS BACKSPLASH

DOOR PANEL WITH COVED PULL STYLMARK CONTINUOUS L ANGLE 110167 BUFFED BRITE PEWTER 117 FINISH. NO EXPOSED FASTENERS

25

SCHEDULED STOPSOL PANEL

12 A5-E02

DETAIL @ JOINERY PULL. 1:1

08

SCHEDULED TOE KICK

DOOR PANEL WITH COVED PULL

DETAIL @ JOINERY COUNTER VERTICAL RETURN. 1:1

SCHEDULED EQUIPMENT

DARK OAK MELAMINE INTERIOR FINISH, TAFISA M2010 (Y) AFTER HOURS

PEWTER 117 FINISH. NO EXPOSED FASTENERS

ALIGN

EXISTING MILLWORK 13

SCHEDULED TECH STYLMARK CONTINUOUS L PANEL ANGLE 110167 BUFFED BRITE

03

DETAIL SECTION @ EQUIPMENT 1 : 10

REF ELEVATION

EQ SCHEDULED PARTITION

MULLION PAVING TRANSITION SCHED 12MM THICK SSM COUNTERTOP

EQ

EQ Page 3 4

|

Arch itec ture Por tfol io MULLION PAVING

TRANSITION

CONSULTANTS: BASE BUILDING RISER DOORS WHERE OCCURS

BASE BUILDING PARTITION

BASE BUILDING PARTITION

SCHEDULED FURROUT PARTITION

SCHEDULED FABRIC PANEL ON SOLID CORE DOOR, MOUNTING CLIP AS SPECIFIED. PAINT ALL EXPOSED SURFACES TO MATCH SCHEDULED FABRIC.

SCHEDULED LIGHT FIXTURE WHERE OCCURS

SCHEDULED CENTER PIVOT

6 5 10

2

SELECTED CARPET FINISH

DIFFUSER WHERE OCCURS

SCHEDULED FABRIC PANEL ON SCHEDULED PARTITION, MOUNTING CLIP AS SPECIFIED.

ALIGN

2

SCHEDULED DOOR, WHERE OCCURS

REF

RAISED ACCESS FLOOR

RCP SCHEDULED CEILING CONTINUOUS METAL TRIM WHERE OCCURS, PAINTED WHITE WOOD PAINTED WHITE, CONTINUOUS IN COVE SCHEDULED PIVOT

EXISTING SLAB

SCHEDULED FABRIC PANEL ON SOLID CORE DOOR.

16

DOOR JAMB DETAIL AT FABRIC DOOR. 1:2

06

DOOR HEAD DETAIL AT FABRIC DOOR. 1:2

01

DOOR SILL - CARPET. 1:5

SCHEDULED FABRIC PANEL ON SOLID CORE DOOR.

SCHEDULED DOOR, WHERE OCCURS

VINYL FLOOR FINISH ON 6 mm MDF 6 mm WIDE STAINLESS STEEL SCHLUTER TRIM. REF: SCHIENE OR SIMILAR APPROVED CLASS '0', 10 mm RESILIENT JOINT CLOSED CELL FILLER

SCHEDULED FLOOR ALIGN

6

25

WOOD BLOCKING PAINTED WHITE, ALIGN WITH FUROUT PARTITION BEYOND

SELECTED CARPET FINISH

RAISED ACCESS FLOOR RAISED ACCESS FLOOR EXISTING SLAB

07

DOOR SILL DETAIL AT FABRIC DOOR. 1:2

02

DOOR SILL - RESILIENT FLOOR TO CARPET. 1:5

SCHEDULED DOOR TAPE & FLOAT TRIM SCHEDULED PARTITION

SCHEDULED DOOR, WHERE OCCURS

SCHEDULED PARTITION

ALIGN

6

VINYL FLOOR FINISH ON 6MM MDF

ALIGN

ALIGN

RAISED ACCESS FLOOR

TAPE & FLOAT TRIM SCHEDULED DOOR

EXISTING SLAB

18

JAMB DETAIL - EZY JAMB DOOR. 1:2

08

HEAD DETAIL - EZY JAMB DOOR. 1:2

03

DOOR SILL - RESILIENT FLOOR. 1:5

No. Date

Description

Key Plan: SCHEDULED DOOR TAPE & FLOAT TRIM SCHEDULED PARTITION

SCHEDULED DOOR, WHERE OCCURS

SCHEDULED PARTITION

SCHEDULED STONE ZINC STRIP

6

SCHEDULED CARPET RAISE ACCESS FLOOR

ALIGN

ALIGN

SHORING AS REQUIRED

ALIGN

TAPE & FLOAT TRIM

7000KN FOAMULAR RIGID INSULATION

SCHEDULED DOOR

EXISTING SLAB

Client: COVINGTON & BURLING

22 BISHOPSGATE, LONDON, EC2, UNITED KINGDOM Design Architects:

JAMB DETAIL - EZY JAMB INSWING DOOR. 1:2

09

HEAD DETAIL - EZY JAMB INSWING DOOR. 1:2

04

DOOR SILL - STONE AND CARPET. 1:5

1212 BANK STREET, NW WASHINGTON, DC 20007 +1 202 295 4800 T SCHEDULED DOOR, WHERE OCCURS

SCHEDULED STONE STRATA_MAT SET WITH 254 PLATINUM SUPPLY TOP & BOTTOM TROWELED

ZINC STRIP 6

19

CUT EDGES SEALED WITH ALUM. TAPE SCHEDULED VINYL FLOOR FINISH ON 6mm MDF

20mm X 9mm CLASS 'O' FOAM

Project no:

20395

Date:

12.02.2022

Scale: As indicated Drawing Title:

Drawn by: Author

Page 3 5

|

Arch itec ture Por tfol io

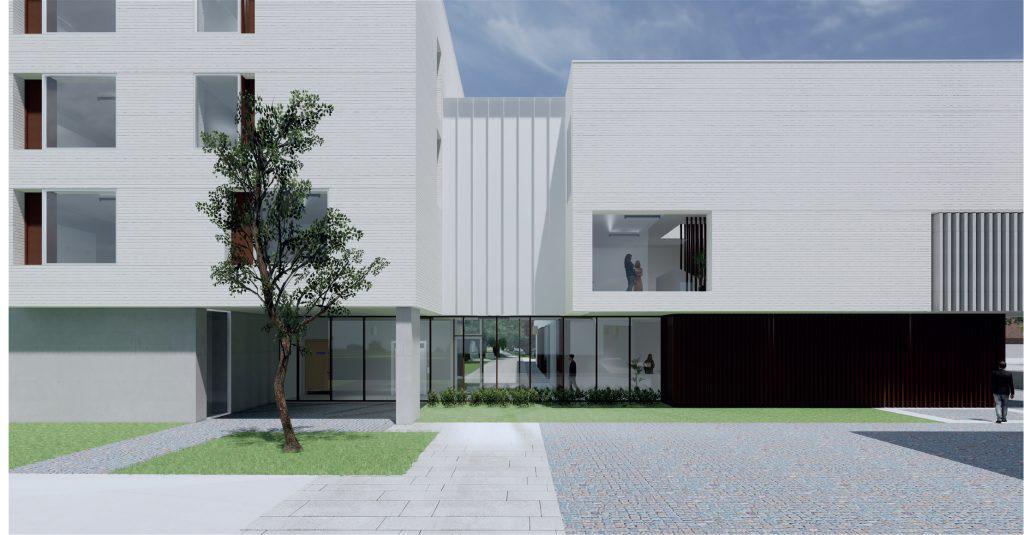

PREVIOUS INTERNSHIP WORK T T T - THIRTY THREE TREES, DUBLIN, IRELAND

55 Lad Lane

Alexandra College

St. Annes Park

Muskauer Park

*Final render image just for reference

*Final render image just for reference

Page 3 6

|

Arch itec ture Por tfol io
