CATÁLOGO MOBILIARIO MÉDICO
BClinicaled
High-DependencyBed
SMB-1001
Features
1) Instant CPR release, degree show function at bedside rail.
2) Bed High-Low, head (back rest) articulation, knee (foot rest) articulation
3) Auto contour (head & knee together moving function)
4) Trendelenburg and reverse trendelenburg with controls on both sides and the handset
5) Lateral Tilt Position
6)10" LED Screen for Nurse Control & Hand remote for patient
7) 4-position I.V pole mounts.
8)Abs Detachable Headboard and footboard
9)Zero transfer gap retracting side rails for easy patient transfer, long and short bedside rails.
10) One button control for trendelenburg, emergency service， be free from the bed, sitting position
Dimensions
Size: 2170*1180*700-1009mm
Angle of back section: 0 ~ 75°(±5°)
Angle of leg section: 0 ~ 45°(±5°)
Lateral Tilt : 0~ 16°
Trendelenburg and reverse Trendelenburg:0 ~ 13±2°
Adjustable height: 700-1090 mm"
Accessories
1) I.V. pole
2) X-RAY Backrest
3) Hand Remote
4) 10" LED Screen Control.
MultifunctionElectricBed MultifunctionElectricBed
SMB-1002
Features
1)Instant CPR release, degree show function at bedside rail.
2)Bed High-Low, head(back rest) articulation, knee (foot rest) articulation
3) Auto contour(head& knee together moving function)
4) Trendelenburg and reverse trendelenburg with controls on both sides and the handset
5)Lateral Tilt Position
6)7" LED Screen for Nurse Control & Hand remote for patient
7)4-position I.V pole mounts.
8) Abs Detachable Headboard and footboard
9) Zero transfer gap retracting side rails for easy patient transfer, long and short bedside rails.
10) One button control for Trendelenburg, emergency service,be free from the bed, sitting position
Dimensions
Size: 2170*1180*700-1009mm
Angle of back section: 0 ~ 75°(±5°)
Angle of leg section: 0 ~ 45°(±5°)
Lateral Tilt : 0~ 16°
Trendelenburg and reverse Trendelenburg:0 ~ 13±2°
Adjustable height: 700-1090 mm
Accessories
1)I.V pole
2) X-RAY Backrest
3) Hand Remote
4)7" LED Screen Control.
SMB-1003
Features
1) Instant CPR release,degree show funciton at
bedside rail.
2) Bed High-Low, head (back rest) articulation, knee (foot rest) articulation
3) Auto contour(head&knee together moving function)
4) Trendelenburg and reverse trendelenburg with controls on both sides and hand set
5) Battery back-up,Mobile 5" castors adopt central by system, which is table and reliable
6) Three control mode: Attendant control panel at both side rail, nurse controller and foot control
7) 4-position I.V pole mounts.
8) Head board and foot board with push handles.
9) Zero transfer gap retracting side rails for easy patient transfer,long and short bedside rail.
10) One button control for Trendelenburg， emergency service, be free from the bed, sitting position
Dimensions
Size: 2260*1020*500-800mm
Angle of back section: 0 ~ 70°(±5°)
Angle of leg section: 0 ~ 30°(±5°)
Trendelenburg and reverse Trendelenburg:0 ~ 13±2°
Adjustable height: 500-800mm
Accessories
1)I.V pole
2)Integrated bedside table*
3)6 pcs mattress holder*
4) X-RAY ready
5)Expand150mm
MultifunctionElectricBed MultifunctionElectricBed
SMB-1004
Features
1)Instant CPR release by remote & manual
2)Bed High-Low, head (back rest) articulation, knee (foot rest) articulation
3)Auto contour(head&knee together moving function)
4)Trendelenburg and reverse trendelenburg with controls on both sides and hand set
5)Lateral Tilt Position
6)10" LED Screen for Nurse Control & Hand remote for patient
7)4-position I.V pole mounts.
8)Abs Detachable Head board and foot board
9)Zero transfer gap retracting side rails for easy patient transfer,long and short bedside rail.
10)One button control for Trendelenburg，emergency service, be free from the bed, sitting position
Dimensions
Size: 2260*1060*430-720mm
Angle of back section: 0 ~ 70°(±5°)
Angle of leg section: 0 ~ 30°(±5°)
Trendelenburg and reverse Trendelenburg:0 ~ 13±2°
Adjustable height: 430-720mm
Accessories
1)I.V. pole
2)Centre Locking Wheel
3)6 pcs mattress holder
4)X-RAY ready
SMB-1005
Features
1)Instant CPR release,degree show funciton at bedside rail.
2)Bed High-Low, head(back rest) articulation, knee (foot rest) articulation
3)Auto contour(head&knee together moving function)
4)Trendelenburg and reverse trendelenburg with controls on both sides and hand set
5)Lateral Tilt Position
6)Side Turning position by remote control.
7)4-position I.V pole mounts.
8)Abs Detachable Head board and foot board
9)Zero transfer gap retracting side rails for easy patient transfer,long and short bedside rail.
Dimensions
Size: 2120*1100*590-840mm
Angle of back section: 0 ~ 70°(±5°)
Angle of leg section: 0 ~ 30°(±5°)
Trendelenburg and reverse Trendelenburg:0 ~ 13±2°
Adjustable height: 590-840mm
Accessories
1) I.V. pole
2) Integrated bedside table*
3) X-RAY ready
Fivefunctionelectricbed
SMB-1006
Features
1)Instant CPR release.
2)Bed High-Low, head(back rest) articulation, knee (foot rest) articulation
3) Auto contour(head&knee together moving function)
4) Trendelenburg and reverse trendelenburg with controls on both sides and hand set
5)PP Platform
6) ABS Railing with embeded control
7)4-position I.V pole mounts.
8) Abs Detachable Head board and foot board
9) Zero transfer gap retracting side rails for easy patient transfer.
Dimensions
Size: 2150*1060*550-850mm
Angle of back section: 0 ~ 75°(±5°)
Angle of leg section: 0 ~ 45°(±5°)
Lateral Tilt : 0~ 16°
Trendelenburg and reverse Trendelenburg:0 ~ 13±2°
Adjustable height: 550-850 mm
Accessories
1)I.V pole
2)Side railing
3)Hand Remote
4)Embeded touch pannel in railing
5)Centre ocking wheel
MultifunctionElectricBed
SMB-1007
Features
1)Instant CPR release.
2)Bed High-Low, head(back rest) articulation, knee( foot rest) articulation
3)Auto contour(head&knee together moving function)
4)Trendelenburg and reverse trendelenburg with Nurse Control and hand set
5)PP Platform
6)ABS Railing
7)4-position I.V pole mounts.
8)Abs Detachable Head board and foot board
9)Zero transfer gap retracting side rails for easy patient transfer.."
Dimensions
: 2240*1030*600-930mm
Angle of back section: 0 ~ 75°(±5°)
Angle of leg section: 0 ~ 45°(±5°)
Lateral Tilt : 0~ 16°
Trendelenburg and reverse Trendelenburg:0 ~ 13±2°
Adjustable height: 600-930 mm
Accessories
1)I.V pole
2)Side Railing
3)Hand Remote & Nurse Control
4)Centre locking wheel
Fivefunctionelectricbed
SMB-1008
Features
1)Electric CPR
2) Bed High-Low, head(back rest) articulation, knee
( foot rest) articulation
3) Auto contour(head&knee together moving function)
4) Trendelenburg and reverse trendelenburg with Nurse Control and hand set
5)Metal Platform
6) ABS Railing
7)Abs Detachable Head board and foot board
8) Zero transfer gap retracting side rails for easy pat ent transfer
Dimensions
Size: 2150*1060*550-800mm
Angle of back section: 0 ~ 75°(±5°)
Angle of leg section: 0 ~ 45°(±5°)
Lateral Tilt : 0~ 16°
Trendelenburg and reverse Trendelenburg: 0 ~ 13±2°
Adjustable height: 550-850 mm"
Accessories
1)I.V pole
2)Side Railing
3) Hand Remote
4) Centre locking wheel
Fivefunctionelectricbed
SMB-1009
Features
1)Removable ABS head & foot boards.
2)Bed High-Low, head(back rest) articulation, knee( foot rest) articulation
3)Auto contour(head&knee together moving function)
4)Trendelenburg and reverse trendelenburg with Nurse Control and hand set
5)Metal Platform
6)ABS Railing
7)Zero transfer gap retracting side rails for easy patient transfer.
Dimensions
Size: 2260*1060*430-720mm
Angle of back section: 0 ~ 75°(±5°)
Angle of leg section: 0 ~ 45°(±5°)
Lateral Tilt : 0~ 16°
Trendelenburg and reverse Trendelenburg: 0 ~ 13±2°
Adjustable height: 430-720 mm"
Accessories
1)I.V. pole
2)Side Railing
3)Hand Remote
4)Centre locking wheel
Fivefunctionelectricbed
SMB-1010
Features
1) Removable ABS head & foot boards..
2) Bed High-Low, head(back rest) articulation, knee
( foot rest) articulation
3) Auto contour(head&knee together moving function)
4) Trendelenburg and reverse trendelenburg with Touch Screen and hand set
5) Metal Platform
6) ABS Railing
7) 7" Touch screen at foot pannel."
Dimensions
Size:2110x1070x365-785mm
Angle of back section: 0 ~ 75°(±5°)
Angle of leg section: 0 ~ 45°(±5°)
Lateral Tilt : 0~ 16°
Trendelenburg and reverse Trendelenburg:0 ~ 13±2°
Adjustable height: 365-785 mm
Accessories
1) I.V pole
2) Side Railing
3) Hand Remote & Touch Screen
4) Centre locking wheel
Fivefunctionelectricbed
SMB-1011
Features
1)Removable ABS head & foot boards.
2)Bed High-Low, head(back rest) articulation.
3)Knee Rest
4)Trendelenburg and reverse trendelenburg with hand set
5)Metal Platform
6)ABS Railing
7)Angle Indicator
Dimensions
Size:2150*1070*460-830mm
Angle of back section: 0 ~ 75°(±5°)
Angle of leg section: 0 ~ 45°(±5°)
Lateral Tilt : 0~ 16°
Trendelenburg and reverse Trendelenburg:0 ~ 13±2°
Adjustable height: 460-830 mm"
Accessories
1)I.V. pole
2)Side Railing
3)Hand Remote
4)Centre locking wheel
Fivefunctionelectricbed Fivefunctionelectricbed
SMB-1012
Features
1)Removable ABS head & foot boards..
2) Bed High-Low, head(back rest) articulation.
3)Knee Rest
4)Trendelenburg and reverse trendelenburg with hand set
5)Metal Platform
6) ABS Railing
Dimensions
Size: L2260*W1080*H480-720mm
Angle of back sectionL: 0 ~ 60°(±5°)
Angle of leg section: 0 ~ 30°(±5°)
Adjustable height: 480-720mm
Trendelenburg and reverse trendelenburg: 0 ~ 13±2°
Accessories
1)I.V. pole
2)Side Railing
3)Hand Remote
4)Centre locking wheel
SMB-1013
Features
1)Removable ABS head & foot boards..
2)Bed High-Low, head(back rest) articulation.
3)Knee Rest
4)Trendelenburg and reverse trendelenburg with hand set
5)Metal Platform
6)ABS Railing
Dimensions
Size: L2160*W1080*H480-720mm
Angle of back section: 0 ~ 60°(±5°)
Angle of leg section: 0 ~ 30°(±5°)
Adjustable height: 480-720mm
Trendelenburg and reverse trendelenburg: 0 ~ 13±2°
Accessories
1)I.V. pole
2)Side Railing
3)Hand Remote
4)Centre locking wheel
Fivefunctionelectricbed
SMB-1014
Features
1) Removable ABS head & foot boards.
2) Bed High-Low, head(back rest) articulation.
3) Knee Rest
4)Trendelenburg and reverse trendelenburg with hand set
5)Metal Platform
6) Steel side rail (4 pcs)
Dimensions
Size:2020*1060*450-680mm
Angle of back section: 0 ~ 60°(±5°)
Angle of leg section: 0 ~ 30°(±5°)
Adjustable height: 450-680mm
Trendelenburg and reverse trendelenburg: 0 ~ 13±2°
Accessories
1) I.V pole
2)teel S Railing
3)Hand Remote
4) Double Side Castors
Fivefunctionelectricbed
SMB-1015
Features
1)Removable ABS head & foot boards..
2)Bed High-Low, head(back rest) articulation
3)Knee Rest
4)Trendelenburg and reverse trendelenburg with hand set
5)Metal Platform
6)Akuminium Side Rails.
Dimensions
Size:2110x1070x365-785mm
Angle of back section: 0 ~ 60°(±5°)
Angle of leg section: 0 ~ 30°(±5°)
Adjustable height; 365-785mm
Trendelenburg and reverse trendelenburg: 0 ~ 13±2°
Accessories
1)I.V.pole
2)SideRailing
3)HandRemote
4)Centrelockingwheel
Fivefunctionelectricbed
SMB-1016
Features
1)Removable ABS head & foot boards.
2)Bed High-Low, head(back rest) articulation.
3)Knee Rest
4)Trendelenburg and reverse trendelenburg with hand set
5)Metal Platform
6)Collapsible railing
Dimensions
Size: L2130*W980*H450-700mm
Angle of back section: 0 ~ 70°(±5°)
Angle of leg section: 0 ~ 30°(±5°)
Adjustable height: 450-700mm
Trendelenburg and reverse trendelenburg: 0 ~ 13±2°
Accessories
1) I.V pole
2) SteelRailing
3)HandRemote
ThreefunctionElectriclbed
SMB-1017
Features
1)Removable ABS head & foot boards..
2)Bed High-Low, head (back rest) articulation.
3)Knee Rest
4)Metal Platform
5)ABS Railing
6)Centre Locking wheel
Dimensions
Size: L2260*W1100*H480-720mm
Angle of back section: 0 ~ 60°(±5°)
Angle of leg section: 0 ~ 30°(±5°)
Adjustable height: 480-720mm"
Accessories
1)I.V.pole
2)SideRailing
3)HandRemote
ThreefunctionElectriclbed ThreefunctionElectriclbed
SMB-1018
Features
1)Removable ABS head & foot boards..
2)Bed High-Low, head(back rest) articulation.
3)Knee Rest
4)Metal Platform
5)Collapsible Railing
6) Double Castors
SMB-1019
Features
1)Removable ABS head & foot boards..
2)Bed High-Low, head(back rest) articulation.
3)Knee Rest
4)Metal Platform
5)Collapsible Railing
6) Double Castors
Size: 2150x980x(370-740)mm
Angle of back section: 0 ~ 60°(±5°)
Angle of leg section: 0 ~ 30°(±5°)
Adjustable height: 370-740mm"
Accessories
1) I.V. pole
2) SteelRailing
3)HandRemote
ze Si: L0 213 *W980*H480- 20 7mm
Angle of back section: 0 ~ 70°(±5°)
Angle of leg section: 0 ~ 40°(±5°)
Adjustable height: 480- 20 7mm
Accessories
1)I.V.pole
2)SideRailing
3)HandRemote
Twofunctionelectricbed
SMB-1020
Features
2)Back-rest Adjustment
3) Knee-rest Ad ustment
4)Metal Platform
5) Full surround guardrail(2 pcs)
6)Central locking Wheels
1)Removable ABS head & foot boards. Accessories
Twofunctionelectricbed
SMB-1021
Features
1)Removable ABS head & foot boards.
2)Back-rest Adjustment
3) Knee-rest Adjustment
4)Metal Platform
5)Collapsible Railing 6)PP castors
SMB-1022
Features
1)Removable ABS head & foot boards.
2)High Low & Back-rest Adjustment
3)Knee-rest Adjustment
4)Trendelenburg/Reverse trendelenburg
5)Collapsible Railing
6)ABS Crank - 4 pcs
SMB-1023
Features
1)Removable ABS head & foot boards.
2)High Low & Back-rest Adjustment
3)Knee-rest Adjustment
4)Metal Platform
5)ABS Railing
6)ABS Crank - 3 pcs
Size (LxWxH): 2150*980*450-720mm
Back-rest Adjustment: 0-75°(±5°)
Knee-rest Adjustment: 0-40°(±5°)
Hi-Low：450-720mm
Accessories
1)I.V. pole
2)Side Railing
3)4 pcs Castors
Size (LxWxH): 2150x1070x450-690
Back-rest Adjustment: 0-75°(±5°)
nee K-rest ment Adjust: 0-40°(±5°)
Hi-w:Lo450-690
Accessories
1)I.V. pole
2)Side Railing
3)4 pcs Castors
ThreeCrankManualBed ThreeCrankManualBed
SMB-1024
Features
1)Removable ABS head & foot boards.
2)High Low & Back-rest Adjustment
3)Knee-rest Adjustment
4)Metal Platform
5)ABS Railing
6)ABS Crank - 3 pcs
7)Inbuilt attached food table.
SMB-1025
Features
1)Removable ABS head & foot boards..
2)Bed High-Low, head(back rest) articulation.
3)Knee Rest
4)Trendelenburg and reverse trendelenburg with hand set
5)Metal Platform
6) Aluminium Side Rails.
Size (LxWxH): 2170*1060*450- 00 7mm
Back-rest ment Adjust: 0- 5 7°(±5°)
nee K-rest ment Adjust: 0-40°(±5°)
Hi-w:Lo450- 00 7mm
Accessories
ze (LxWxH): 50 12x9 0 8x450-690mm
Back-rest Adjustment: 0-75°(±5°)
Knee-rest Adjustment: 0-0 4 °(±5°) -w: 450-690mm
Accessories
1)I.V. po
2) Side Railing
3) 4 pcs Castors
4) Fd oo Tabel
SMB-1026
Features
1)Removable ABS head & foot boards.
2)Back-rest Adjustment
3)Knee-rest Adjustment
4)Metal Platform
5)Collapsible Railing
6)ABS Crank - 2 pcs Size (LxWxH):
Back-rest Adjustment: 0-75°(±5°)
Knee-rest Adjustment: 0-40°(±5°)
Accessories
1)Side Railing
2)Centre Locking Wheel
3)ABS crank- 2 pcs
TwoCrankManualBed
SMB-1027
Features
1)Removable ABS head & foot boards
2)Back-rest Adjustment
3) Knee-rest Adjustment
4)Metal Platform
5)Collapsible Railing
6)ABS Crank - 2 pcs
Accessories
SMB-1028
Features
2)Back-rest Adjustment
3)Metal Platform
4)Collapsible Railing
5)Metal Crank - 1 pcs
1)Removable ABS head & foot boards Accessories
1)Side Railing
2)Castor - 4 Pcs
3)Crank- 1 pcs
SMB-1029
Features
1)Removable ABS head & foot boards
2)Back-rest Adjustment
3)Metal Platform
4)Collapsible Railing
5)Metal Crank - 1 pcs
Adjustemnt: 0-75°(±5°)
1)ediS Rialnig
2)Ctsaor - 4 Psc
3)Cknar- 1 psc
Plain Bed
SMB-1030
Features
1)Removable ABS head & foot boards
2)Metal Platform
Features
1)Fixed SS head and foot pannel
2)Metal Platform
Thee r rCkans Manual Bed with traction frame
Features
1) ABS mnual Cranks: 3pcs.
2) 5" Covered Castors : 4pcs
3) Foldable ABS Side Rail: 1set
4) ABS Bed Ends with Safe Lock: 1set
5)Brake system : centrol locking wheels
6)IV Pole: 1set
7) Aluminium alloy traction frame : 1 set
SMB-1031
SMB-1032
ThreeFunctionElectricBed ThreeFunctionManualBed
Features
1)ABS Head And Foot Board.
2)5" Covered Castors : 4pcs
3)Foldable ABS Side Rail: 1set
4)ABS Bed Ends with Safe Lock: 1set
5)Brake system : centrol locking wheels
6)IV Pole: 1set
7)Traction frame : 1 set
SMB-1033 SMB-1034
Features
1) ABS Head And Foot Board
2) 5" Covered Castors : 4pcs
3) Foldable ABS Side Rail: 1set
4) ABS Bed Ends with Safe Lock: 1set
5) Brake system : centrol locking wheels
6) IV Pole: 1set
Two Cranks manual children bed Two Function Electric Children Bed
One Crank manual children bed Infant bed Infantbed Infantbed
Examination Tables
SMB-1040
SMB-1042
SMB-1043
SMB-1045
SMB-1044
SMB-1041
Cabinets
Over Bed Table
Stretchers
Features
Size (LxWxH): 2130*800*630-940mm
Mattress Platform: 1920x620mm
Safe Working Load: 250kg
Back-rest Adjustment: 0-75°(±5°)
Knee-rest Adjustment: 0-40°(±5°)
Bed left and right tilt angle: 15 °
Manual Crank: ABS crank*1pcs
6" Covered Castors : 4pcs
Foldable Side Rail: 1set
IV Pole: 1set
IV Pole Prevision: 2pcs
Drainage Hook: 2pcs
Pushing handle : 1 set
Fifth wheels : 1 pc
Oxygen holder : 1 pc
X-ray back : 1 set
SMS-1002
SMS-1003
SMS-1004
SMS-1005
SMS-1006
SMS-1009
SMS-1007
SMS-1010
SMS-1006
SMS-1008
SMT-1015
Chairs
SMMC-1001
SMMC-1002
SMMC-1003
SMMC-1004
Ward Furniture
SMBA-1010 SMBA-1011
SMBA-1001
SMBA-1003
SMBA-1005 SMBA-1006
SMBA-1008
Homecare
Mattresses
SMM-1003
SMM-1004 SMM-1005 SMM-1006
Accessories
SMA-1001 SMA-1002
SMA-1003 SMA-1004
SMA-1007
SMA-1008
SMA-1009
SMA-1010
SMA-1013
SMA-1014
SMA-1015
SMA-1016
SMA-1017
SMA-1018

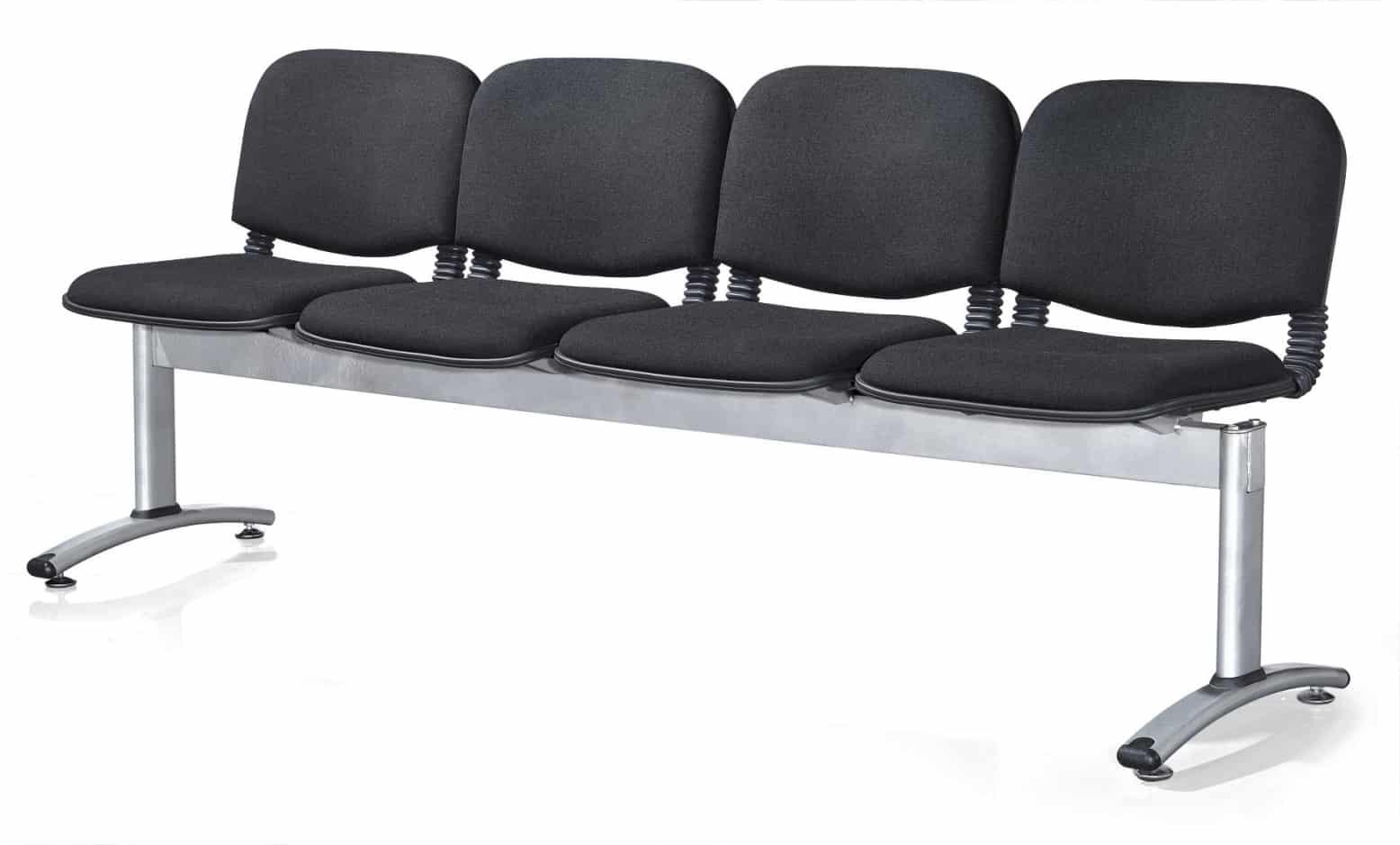

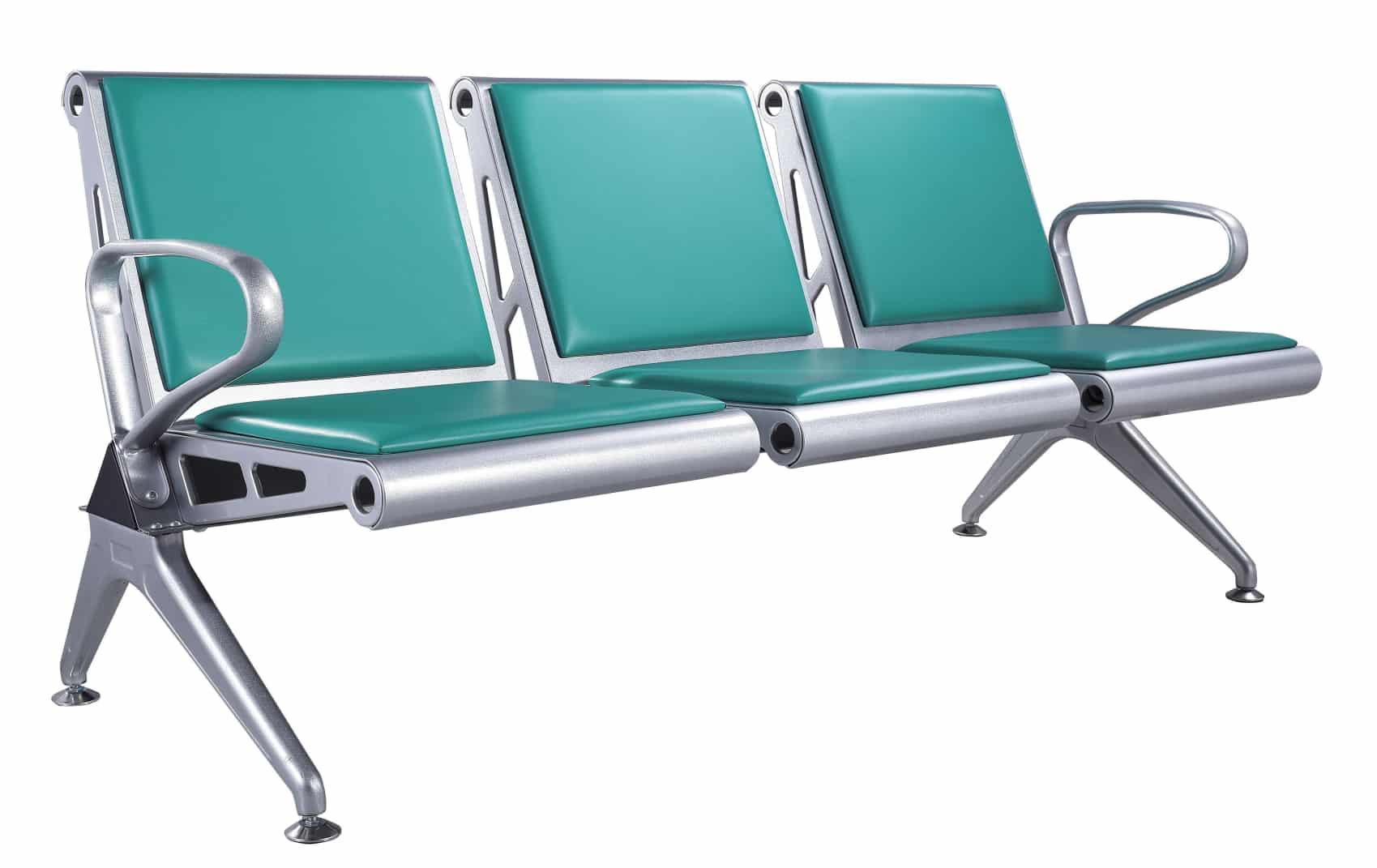

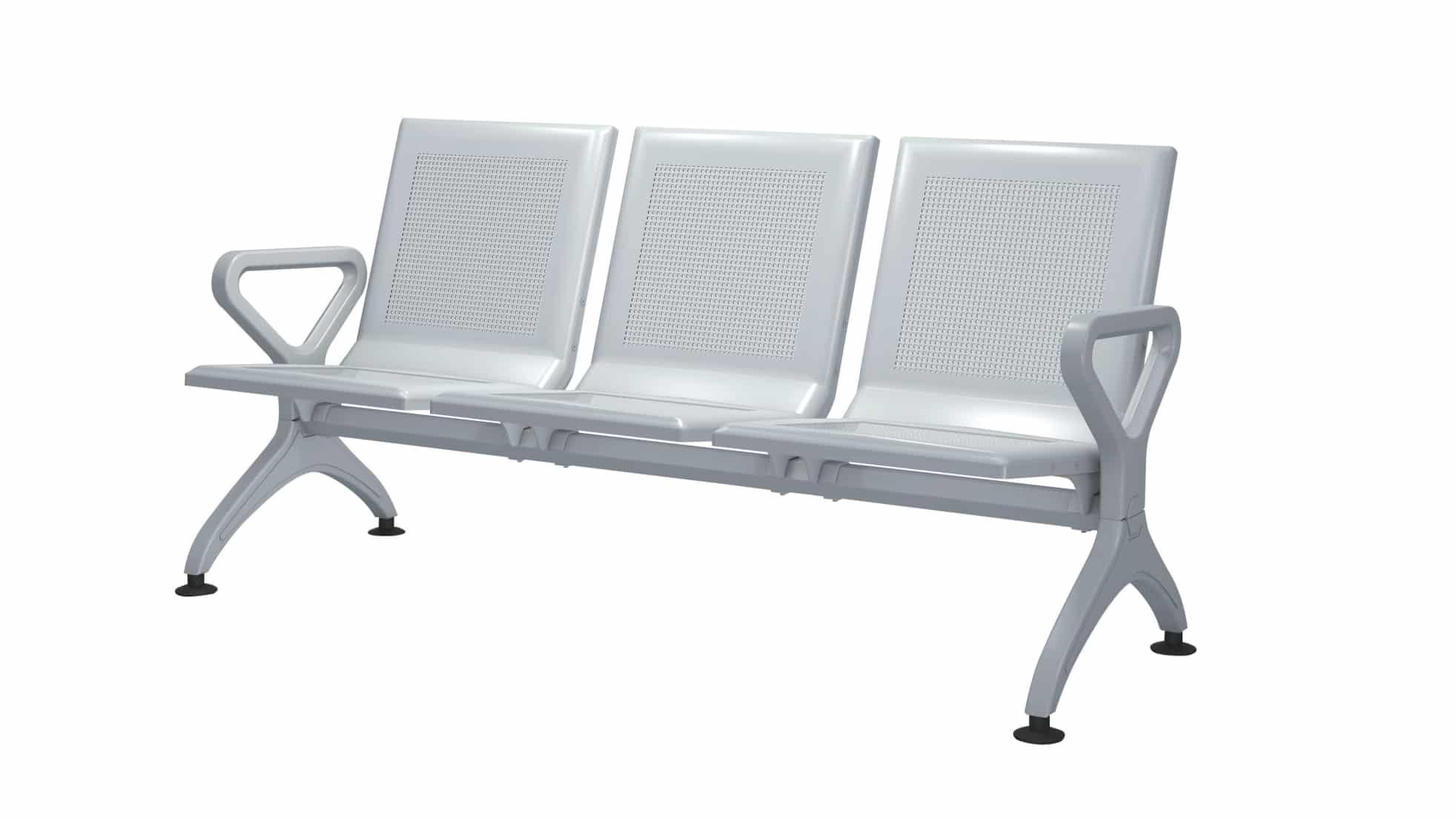

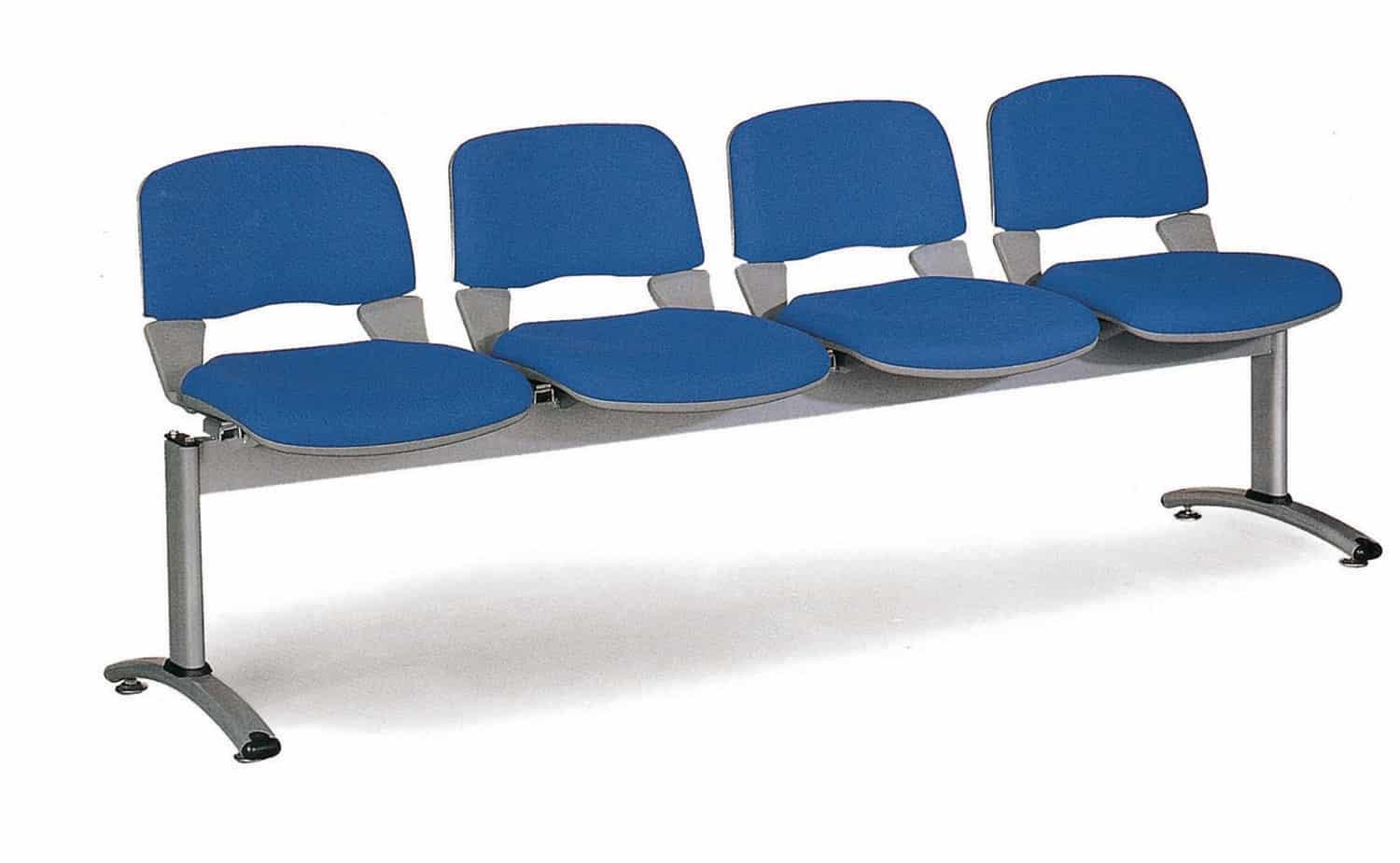

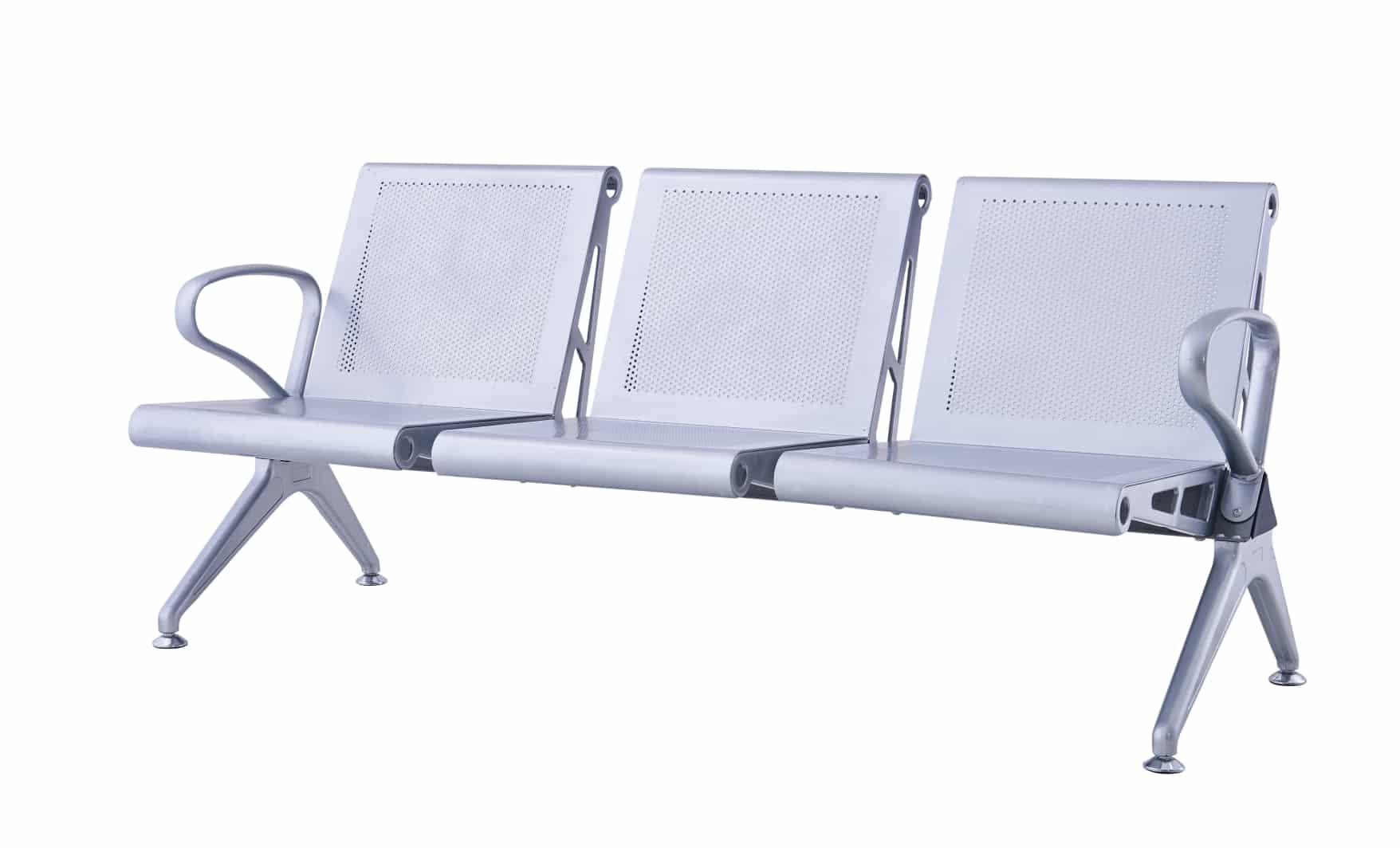

Waiting Chairs
WA56-TH
WA56-TH-PU
WA55-TH-CU
WA3-TH-CU
WA55-TH
WA-8TH
WA55-TH-PU
WA58-FR
WA57-FR

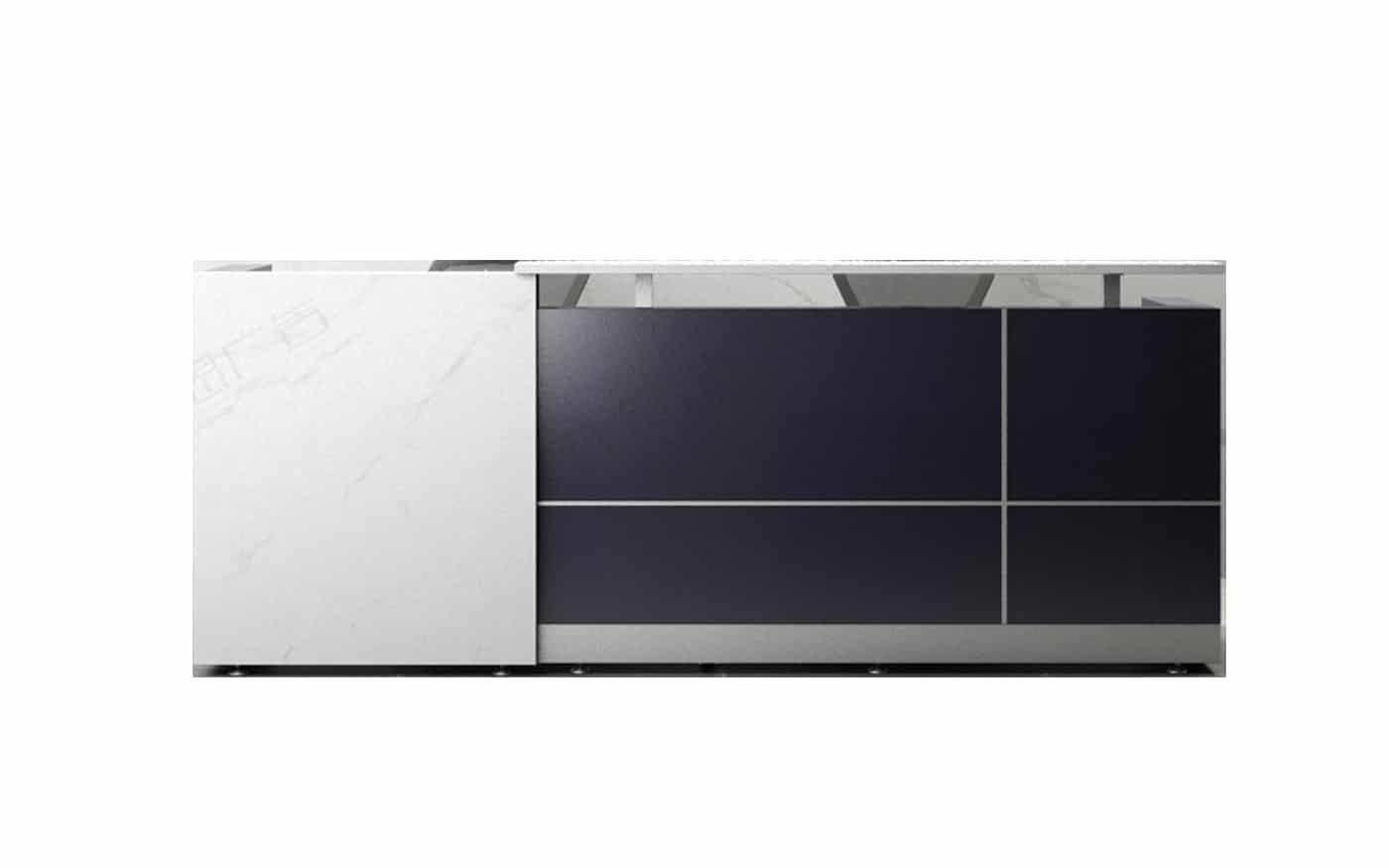

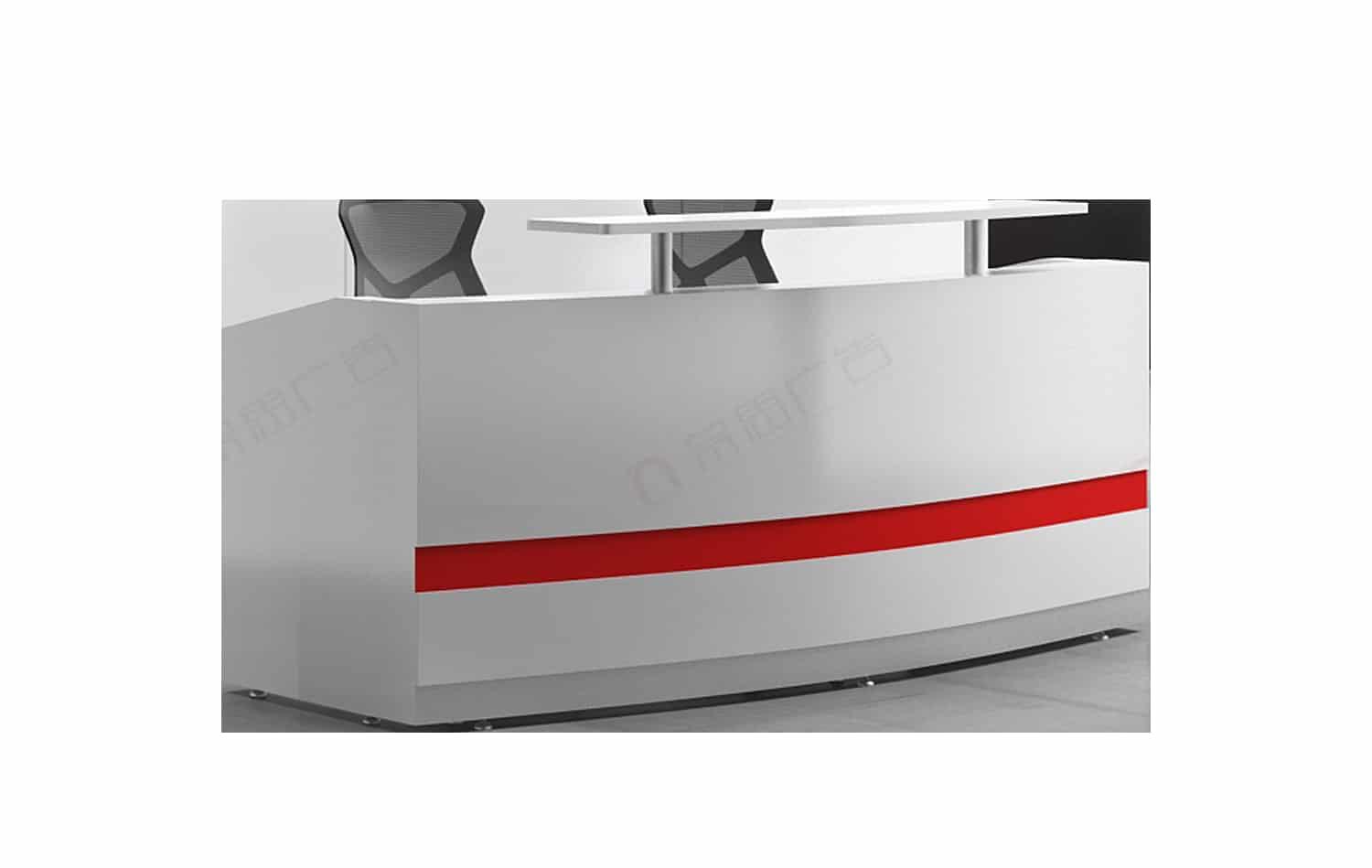

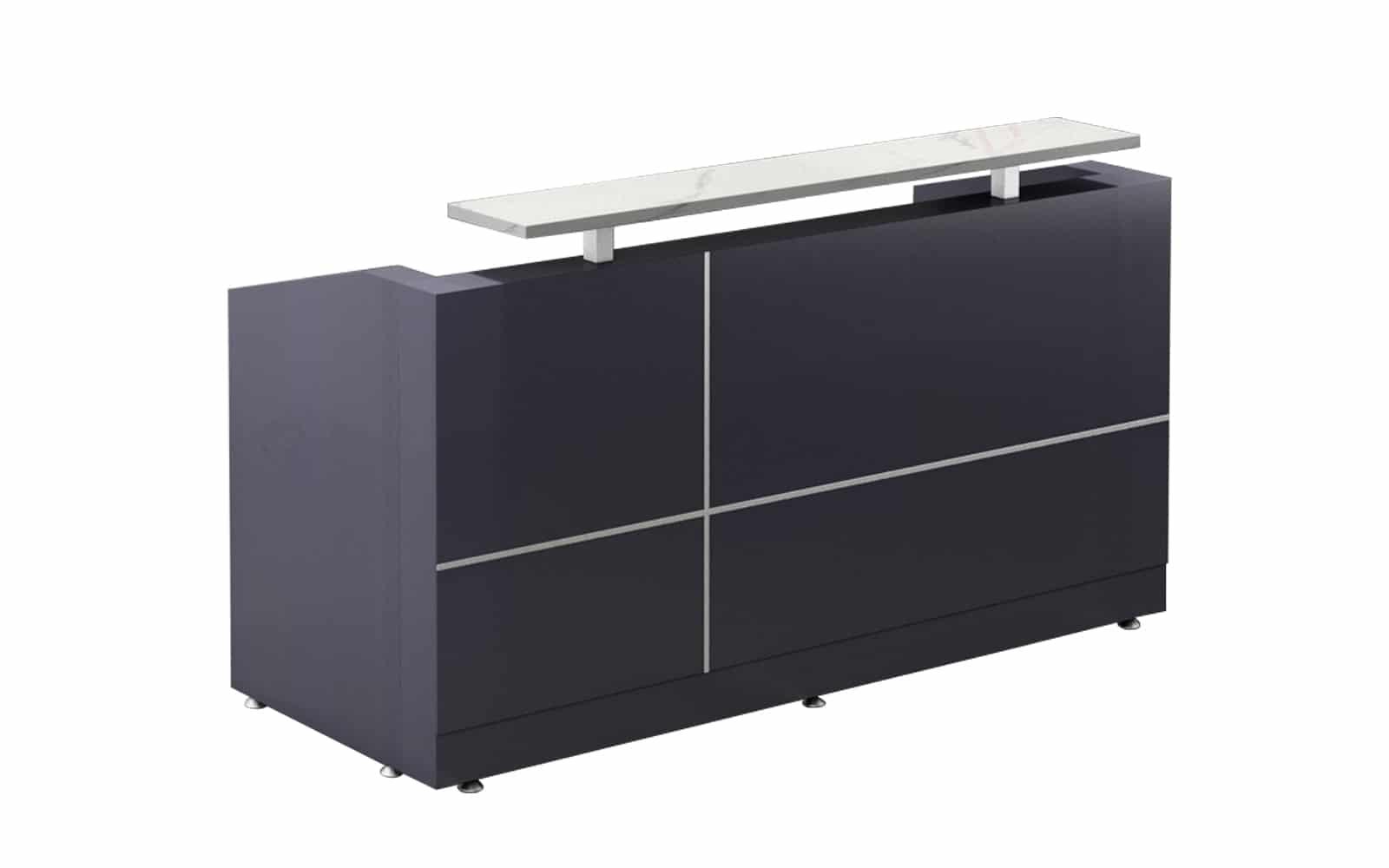

Reception Desk
Sofa
SF-109
SF-103
SF-102
SF-106
