EWM201SeriesModuleApplication:
DIYWalkie-Talkie
Walkie-talkiesenablecommunicationwithoutrelyingoncellularnetworksor incurringcallcharges,bringinggreatconveniencetoourdailylivesAtypical walkie-talkieconsistsofanantenna,mainunit,battery,andchargingdock,andis categorizedintothreetypes:analog,digital,andIP-based.Ifyouwanttobuilda digitalwalkie-talkieonyourown,hereisastraightforwardsolution.

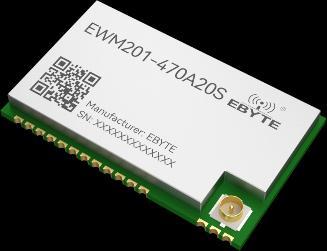

Ebyte'snewlylaunchedEWM201seriesmodulesprovideaquickandsimplewayto buildacustomwalkie-talkiewitha5kmcommunicationrangeYouonlyneedto connectexternalperipheralsincludingaMIC,audiopoweramplifier,speaker, antenna,andpowersupplytocompletetheassembly
Preparations
TocompletethisDIYproject,youneedbasicknowledgeofelectroniccircuitsandthe followingitems:

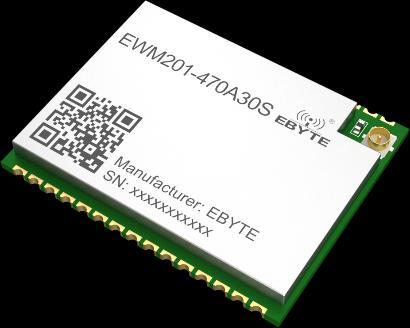

Components:EbyteEWM201-470A30Smodule,MIC,speaker,resistors,capacitors,and otherpassivecomponents
Tools:Solderingiron,solderwire,tweezers,etc
Documents:EWM201-470A30Smoduleusermanual,recommendedcircuitschematics
Software:EDA(ElectronicDesignAutomation)software
CircuitSchematicDesign
DesigntheperipheralcircuitsmatchingtheEWM201-470A30Smodulebasedonits pinfunctions,includingthemicrophoneamplifiercircuit,speakerdrivercircuit, powersupplycircuit,controlbuttoncircuit,andantennaoutputcircuit.Allthese
circuitscanbedesignedwithreferencetotherecommendedschematicsavailableon Ebyte'sofficialwebsite.

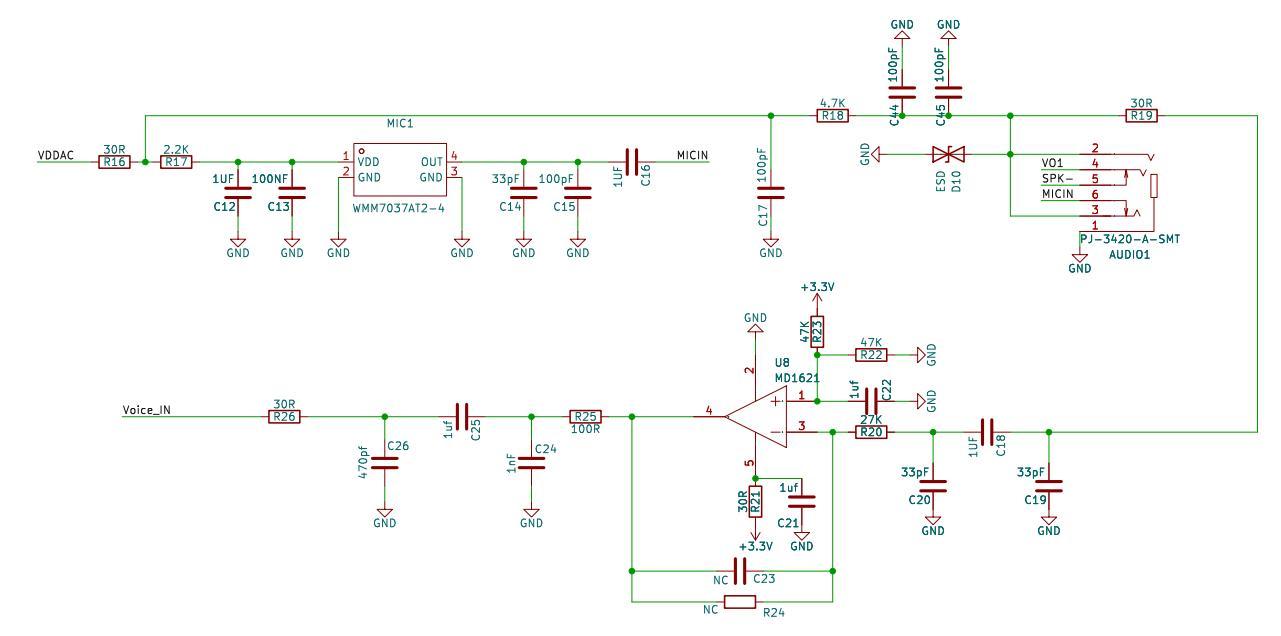

ThemicrophonecircuitamplifiestheanalogaudiosignalcollectedbytheMICandinputs ittotheaudioinputpinoftheEWM201-470A30Smodule.

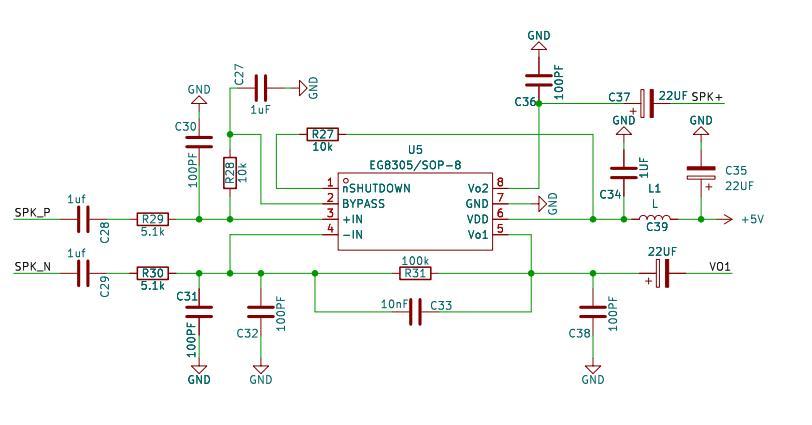

Thespeakercircuitusesanaudiopoweramplifierchiptoamplifytheaudiosignaloutput fromtheEWM201-470A30SmoduletodrivethespeakerThevolumeandsoundquality dependpartlyonthequalityoftheselectedspeaker
Determinetheparametersofallcomponents(e.g.,capacitance,resistance,inductance values)referringtorelevantchipdatasheetsandpreviousdesignexperience
DrawthePCBlayoutusingprofessionalPCBdesignsoftwaresuchasKiCador LichuangEDAbasedonthefinalizedcircuitschematic,thensolderallcomponents ontotheboard
DebuggingandOperation
Afterconfirmingthecircuitissafe,poweronthedevice.Useanoscilloscopeto observethesignalwaveformsatkeynodes(e.g.,powersupplyvoltage,audio input/outputsignals)toverifytheymeetdesignrequirements.
Testthefunctionalityofthemicrophoneandspeaker:speakintotheMICandcheck iftheaudioisplayedclearlythroughthespeakerIfthesoundistooloworhasnoise, checkiftheparametersoftheaudioamplifiercircuitandrelatedcomponentsare correct,andifthereareanycoldsolderjoints
Oncethesestepsarecompleted,youcanstartusingyourcustomwalkie-talkie
PerformanceOptimization
Foroptimalperformance,useaspectrumanalyzertoverifythatthe EWM201-470A30Smodule'stransmit/receivefrequency,transmitpower,and receivesensitivitymeetspecificationsIfthereisalargefrequencydeviation,adjust theparametersofrelevantinductorsandcapacitorstoachievethebestworking state.

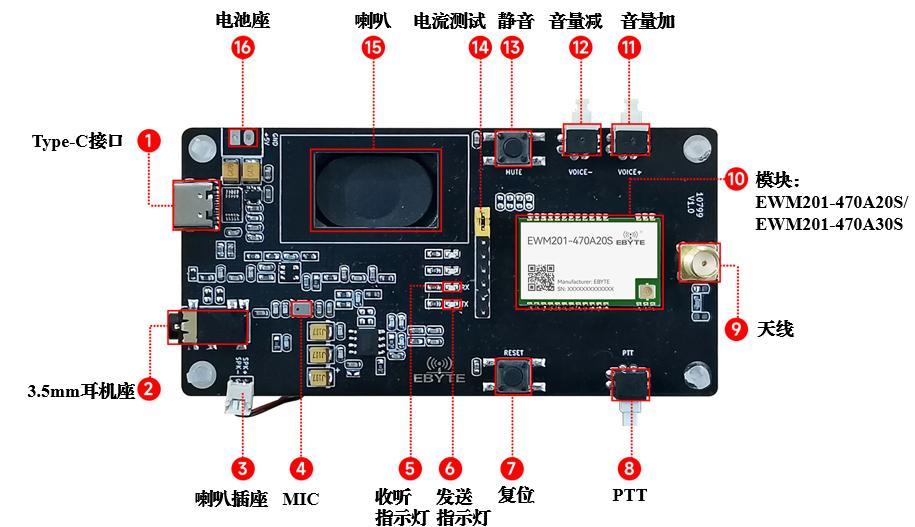

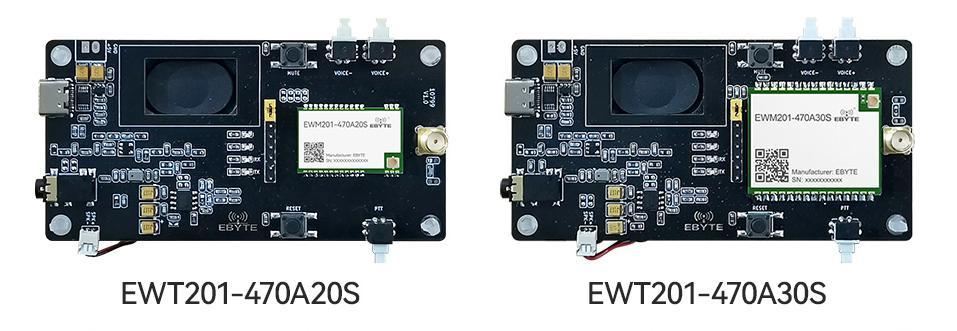

WealsoprovidetheEWT201-470A20S/30Stestkits,whicharepre-assembledsimple digitalwalkie-talkies.Thekitsareequippedwith20dBmand30dBmtransmitpower modulesrespectively,supportingvoicecommunicationtestsover35kmand5km
Tousethetestkit,simplyconnecttheantenna,poweritwithapowerbank,press thePTT(Push-to-Talk)button,andswitchthetransmitterandreceiverto correspondingworkingstatesYoucanalsoaddacustomenclosureforamore polishedlook.
FunctionIntroduction
TheDIYwalkie-talkiebasedontheEWM201-470A30Smodulesupportsthree transmissionmodes:unicast,multicast,andbroadcast:
1.Physicalisolation:Setthesamefrequencypointfordevicesthatneedtocommunicate witheachother.
2.Grouping:ConfigurethesamePANID(PersonalAreaNetworkID)toforma communicationgroup.
3.Unicast:SettheDESTID(DestinationID)toanon-zerovaluetoenablepoint-to-point communicationwithaspecificdevice.
Fordetailedconfigurationsteps,refertotheEWM201-470A30Smoduleuser manual.
Inadditiontothethreetransmissionmodes,thewalkie-talkiesupportsboth half-duplexandfull-duplexcommunication:
Half-duplexmode:Onlyonedevicecanspeakatatimeinthesamenetwork.
Full-duplexmode:Onedevicemustbesetasthehost,allowingonehostandoneslave devicetospeaksimultaneously.
Withthesefunctions,theapplicationscenariosarenotlimitedtotraditional walkie-talkies.Youcanalsobuildtargetedbuildingintercomsystems,wirelessvoice broadcastingsystems,andmorecustomsolutions
