646 Game King Brochure

Page 1

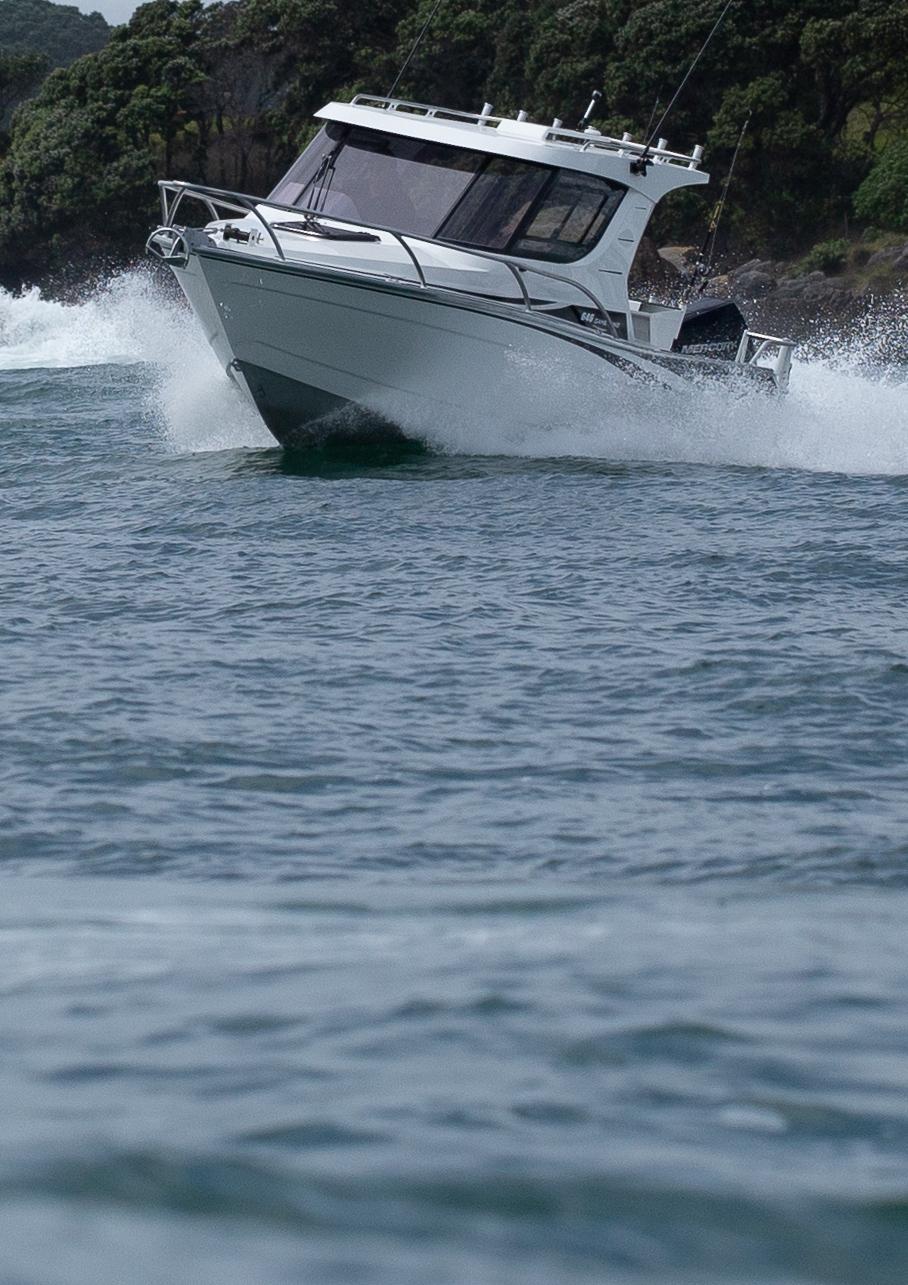

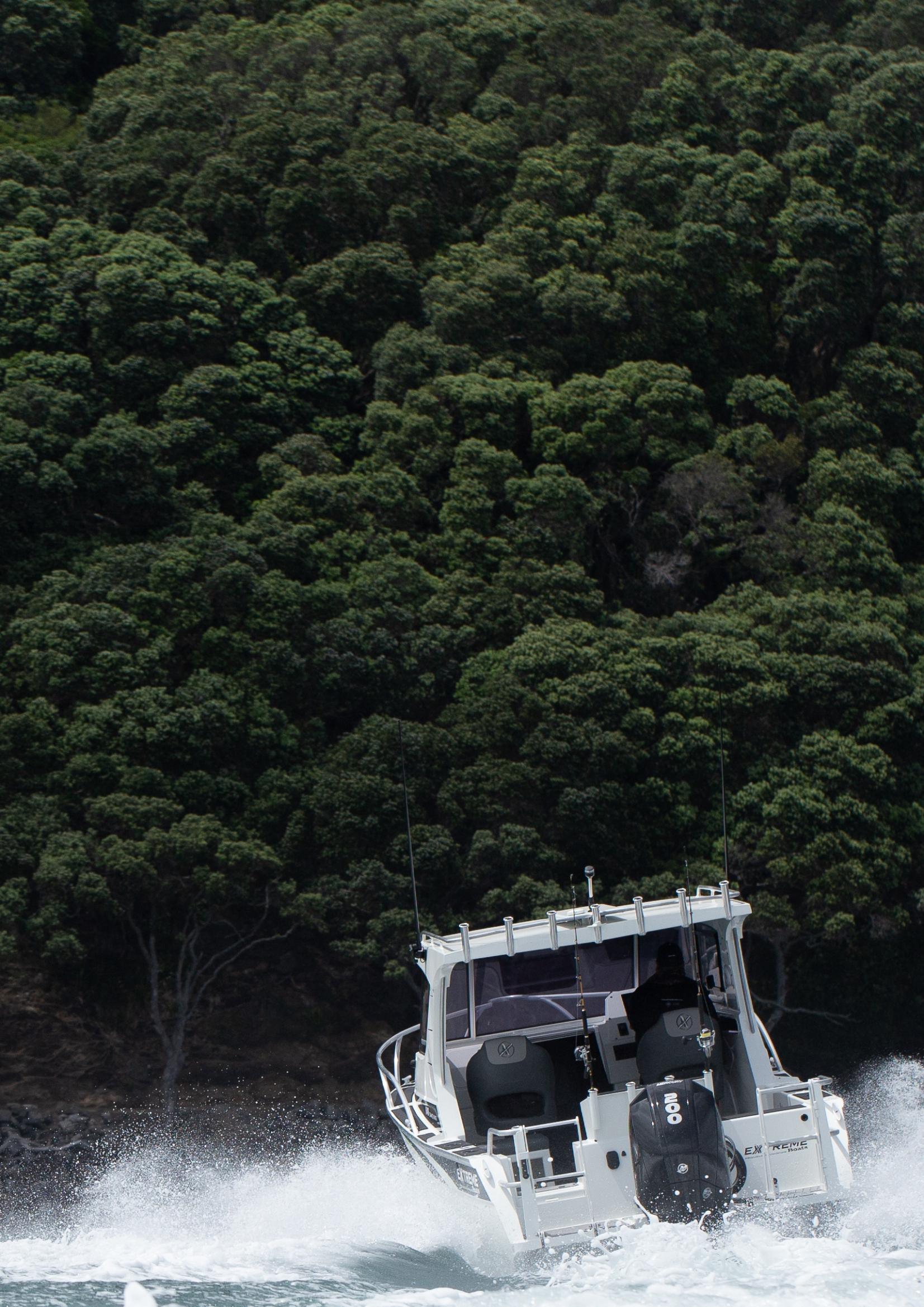

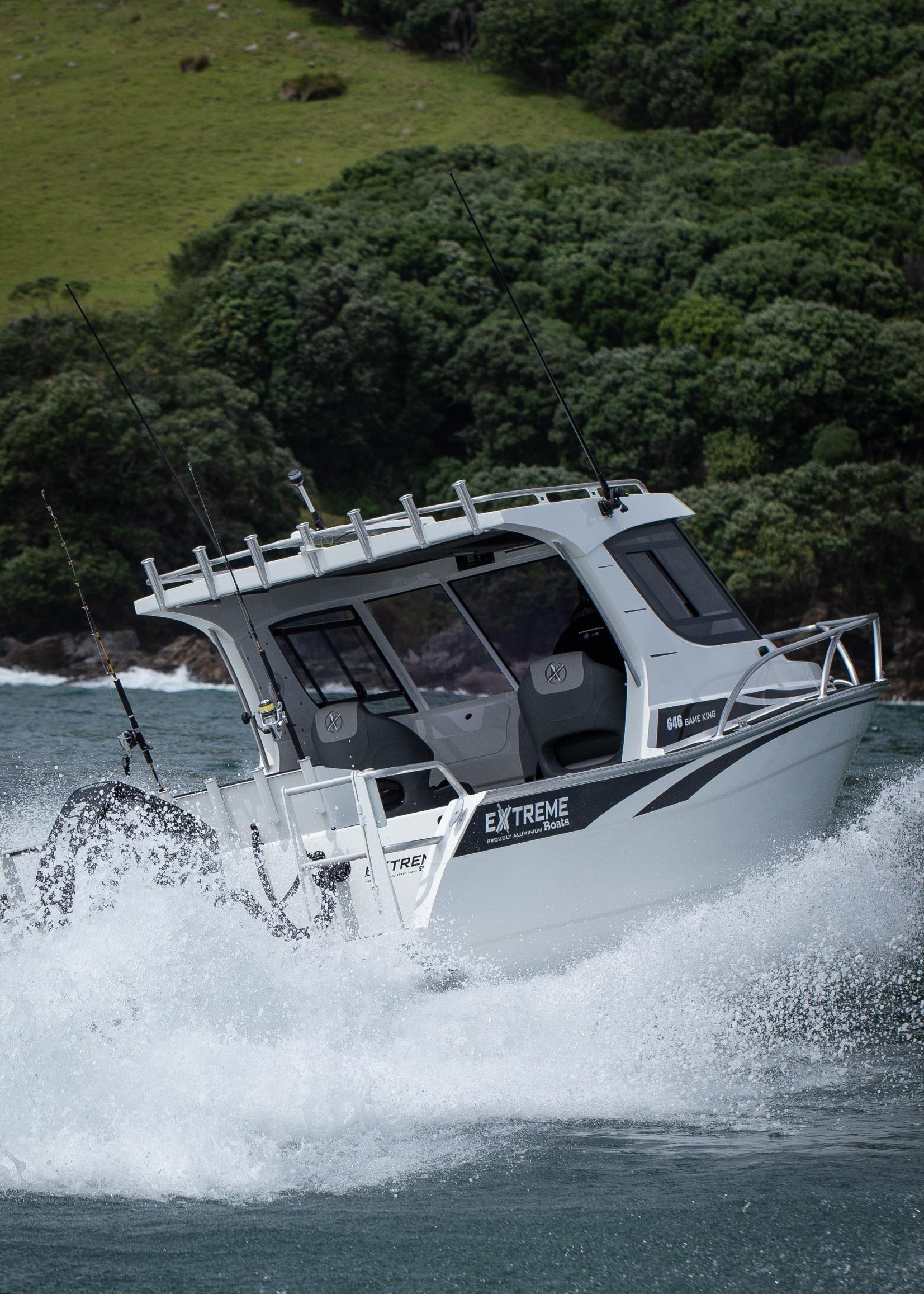

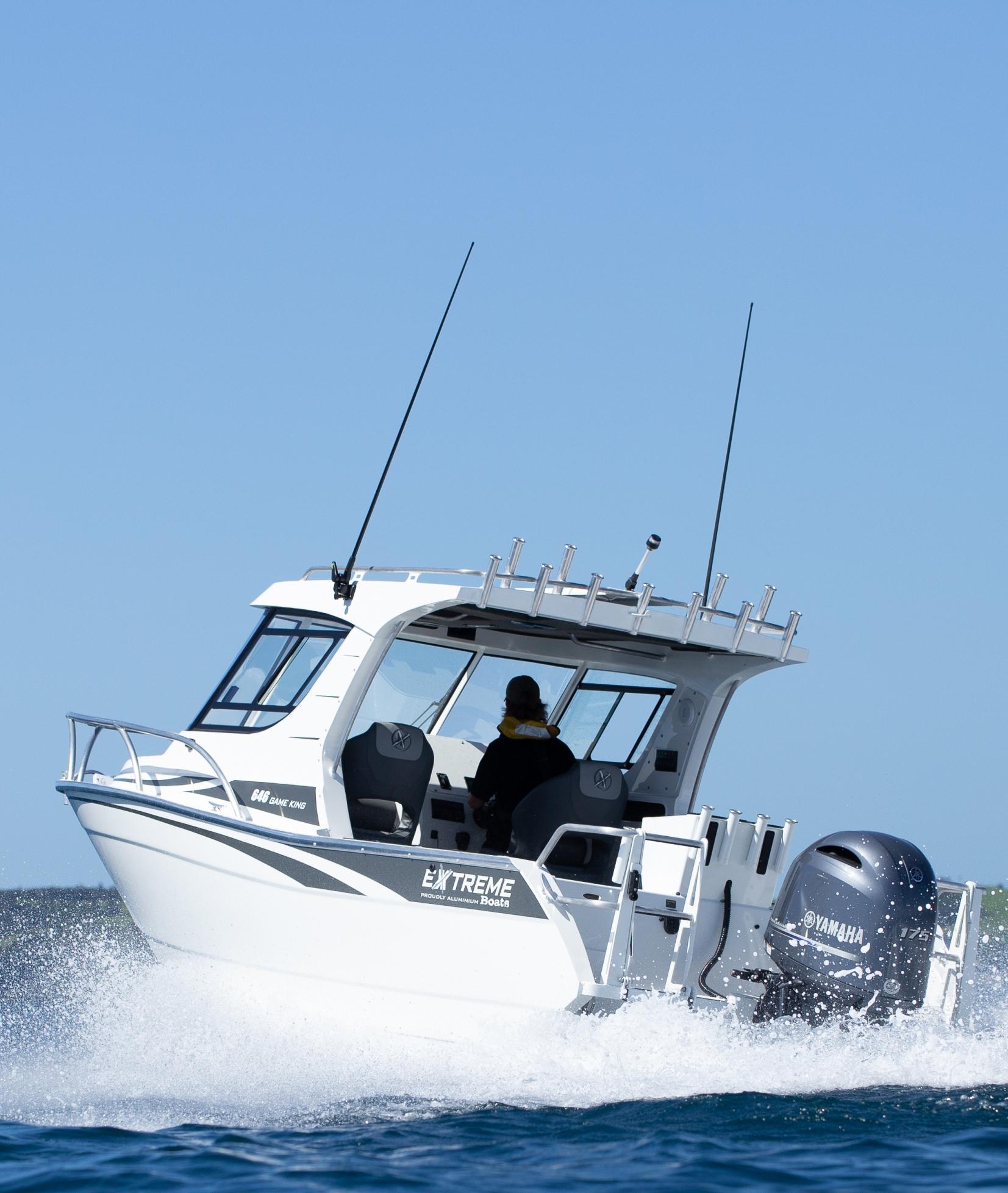

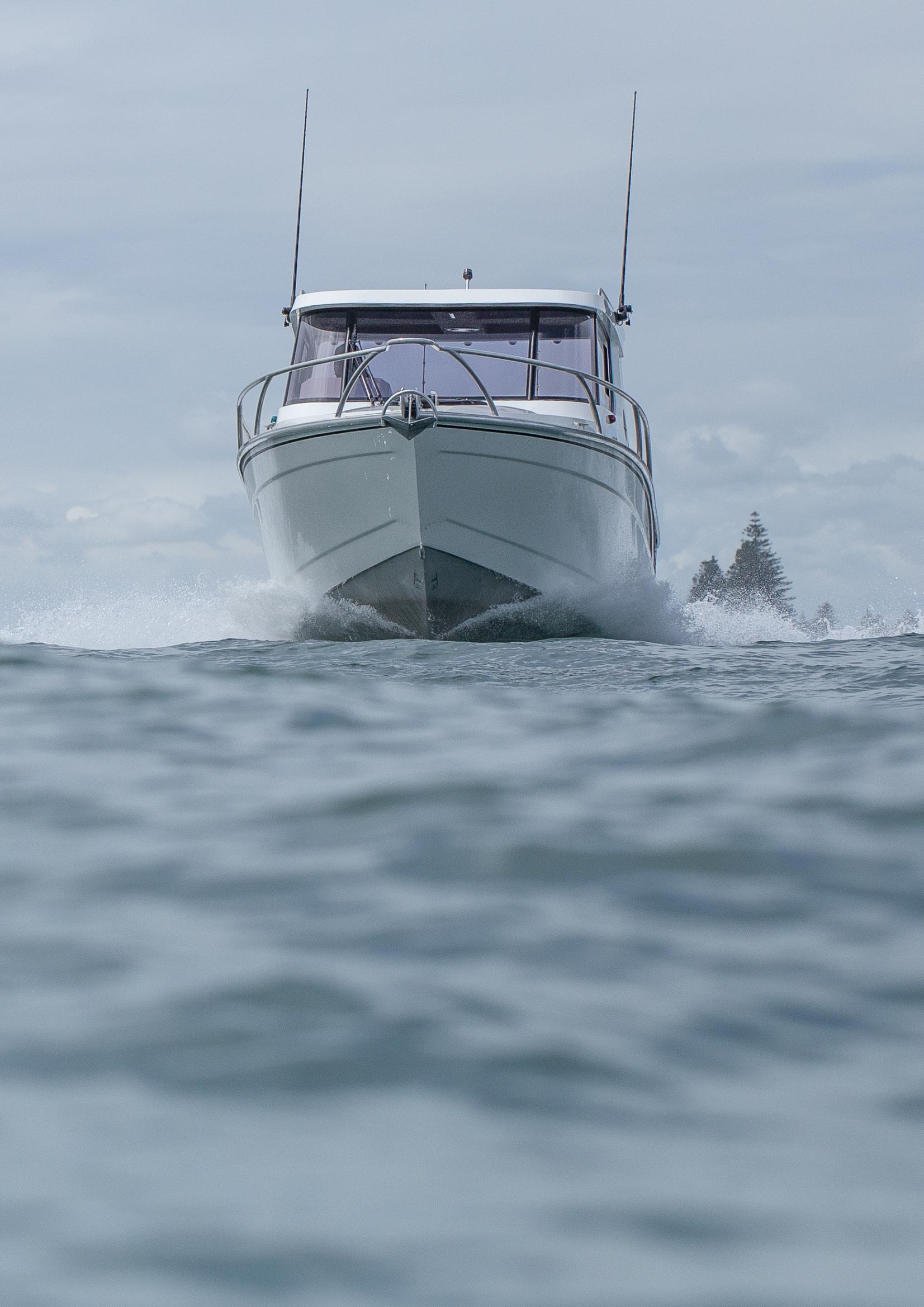

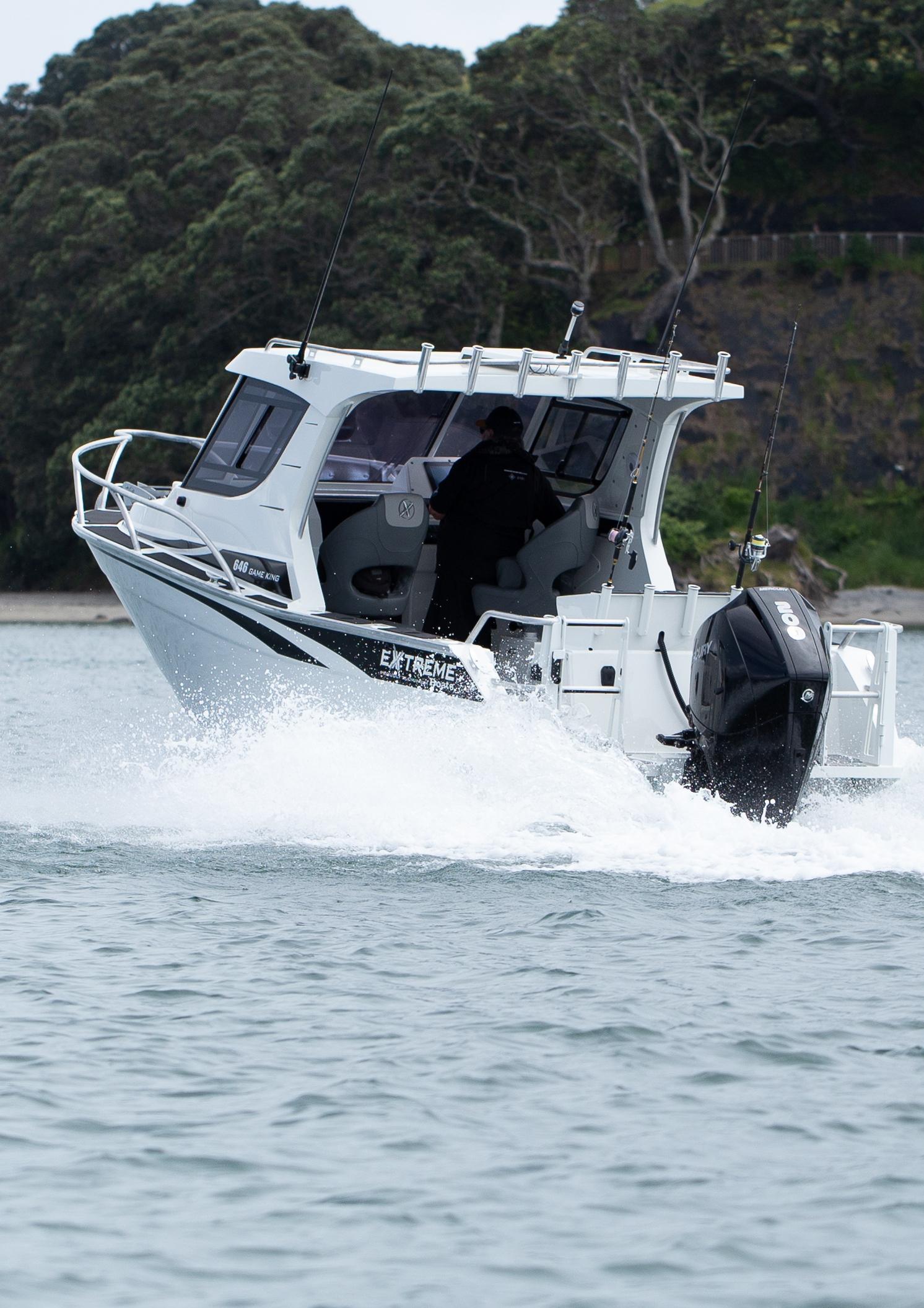

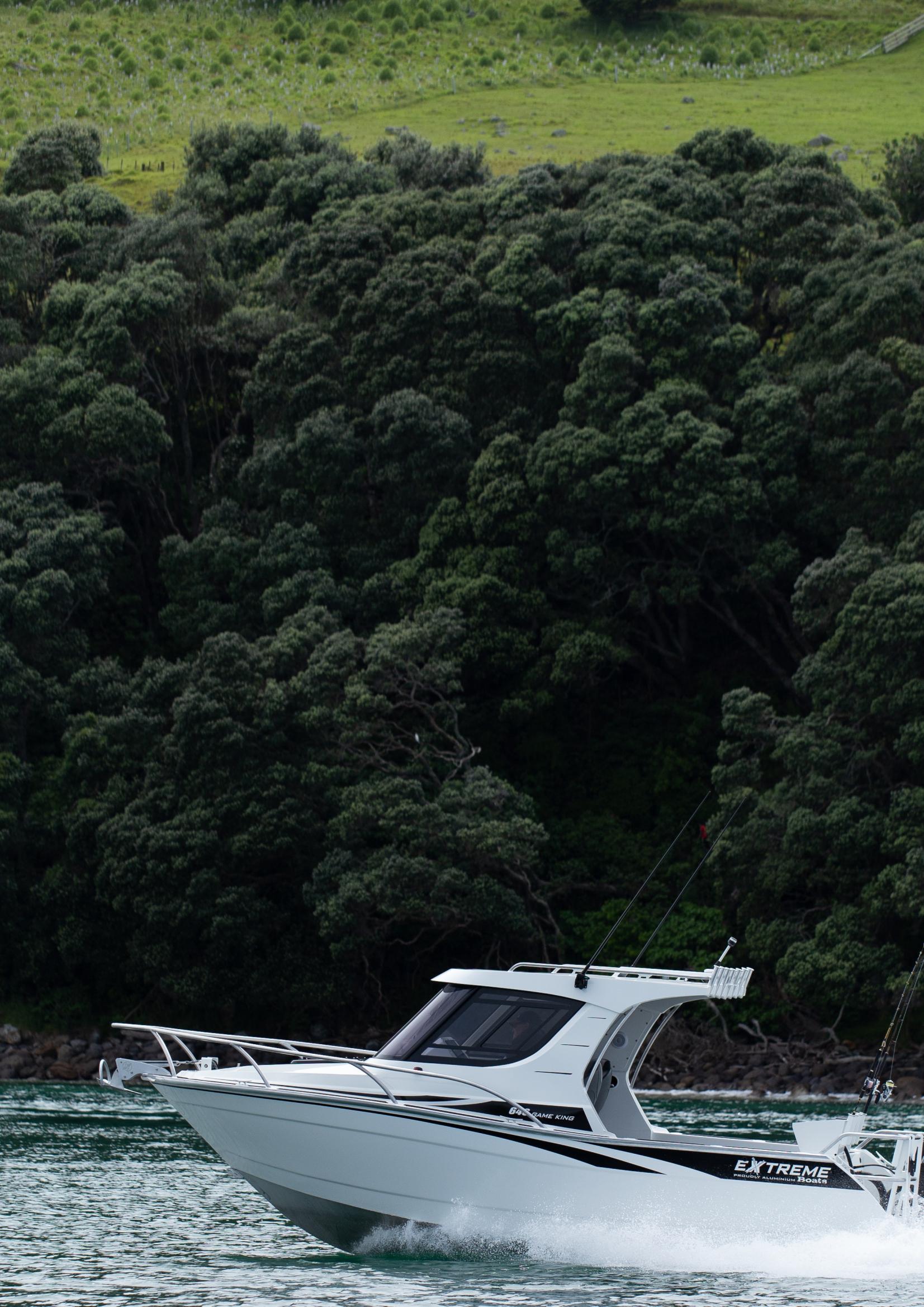

646 GAME KING

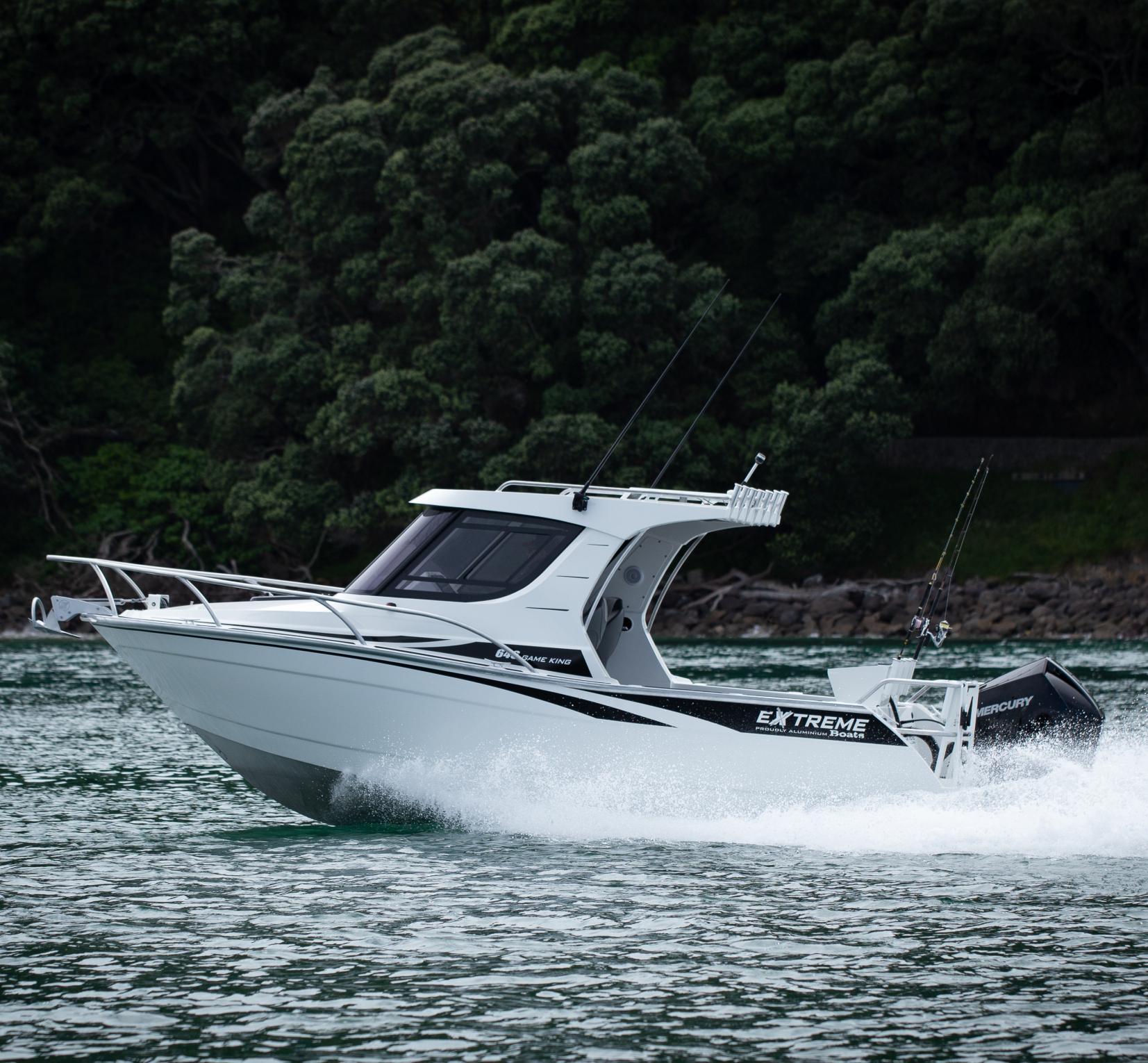

The 646 Game King is the boat that can do it all. Equally at home inshore with the family, or offshore chasing game fish - the 646 Game King will leave your options open!

Standard features

- 225Ltr fuel tank including sender unit

- VHF

- Aluminium bow sprit

- Aluminium rod holders

- Aluminium bump rail

- Bait tank with window

- Battery switch (two way)

- Bilge pump with bilge grate

- Boarding ladder

- Bonnet access hatch

- Bow rail

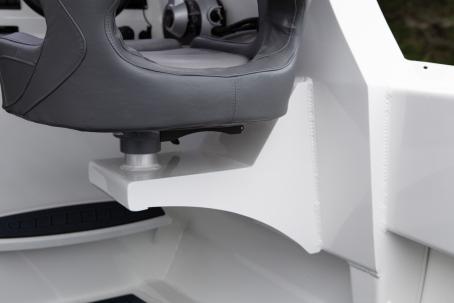

- Cantilever seat bases with covered seats (pair) - Cup holders x 4

- Dash handrail

- Deck wash

- Aft handrails

- Extreme graphics

- Flooding keel

- Fuel filter

- Full cabin squabs

- Hatch covers

- Navigation lights

- Passenger handrail

- Portifino transom

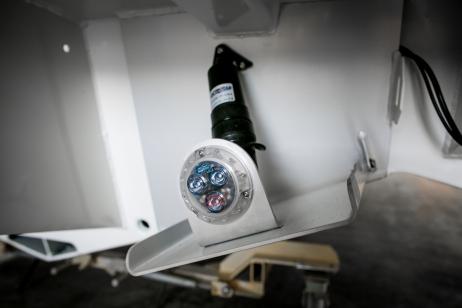

- SeaKeeper Ride automatic trim tabs

- Self draining anchor locker

- Ski lug on hard top

- Transducer bracket

- Transom storage compartments (incl hatch covers)

- Treadplate flooring

- Trailer tie down lugs

- Sea Keeper Ride auto trim tabs

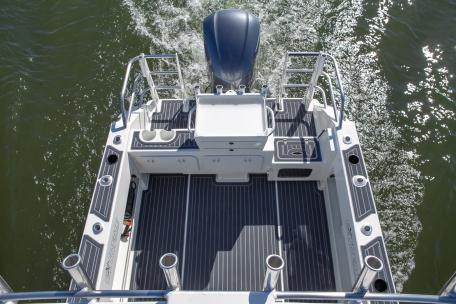

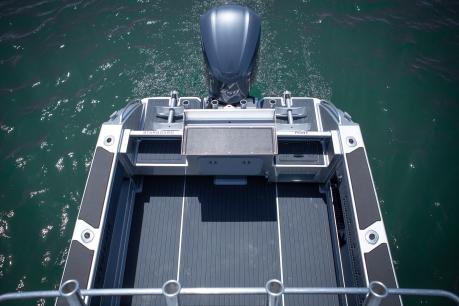

- Walk through transom with drop down door

- Wiring loom with 1 x 6 way switch

- Underfloor storage with hinged lid

- Fully welded underfloor construction

- Dash to house up to 16 inch screen

- Hydraulic steering kit

- Lined cabin

- Large buoyancy chambers

Specifications

- Overall length 6.46 mtr

- Beam 2.5 mtr

- Hull thickness 5mm

- Sides and deck thickness 4mm

- Deadrise 22.0 degrees

- Recommended 150 - 200 hp outboard

- Overall length on trailer 8.10 mtr

- Height on trailer 2.90 mtr (Including rod holders)

- Width on trailer 2.5 mtr

- Approximate towing weight dry 2000kg

(Based on standard specification including outboard and trailer)

- Rated for 6 people (based on New Zealand standards)

- Marine grade Aluminium

1380mm

OPTIONAL EXTRAS

Under

Large box style bait station
Small box style bait station

FLOORING

Mocha over Black straight lines
Mocha over Black King Plank
Storm grey over Black straight lines
Storm grey over Black King Plank
Dark grey over storm grey straight lines
Dark grey over black straight lines

Optional extras

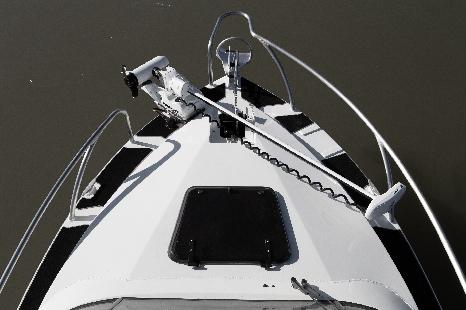

Auto winch pack (Capstan)

Auto winch pack (Drum winch)

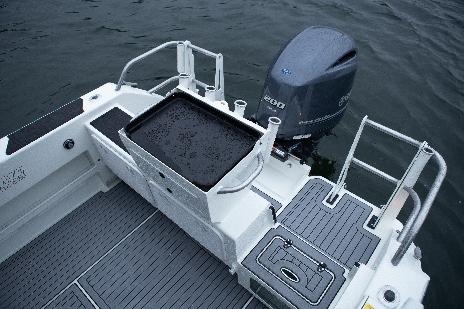

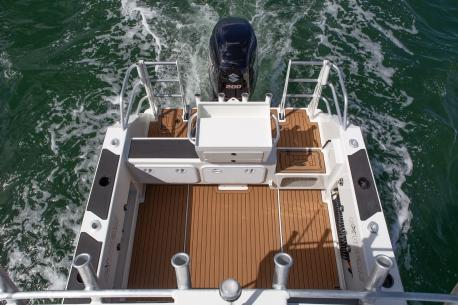

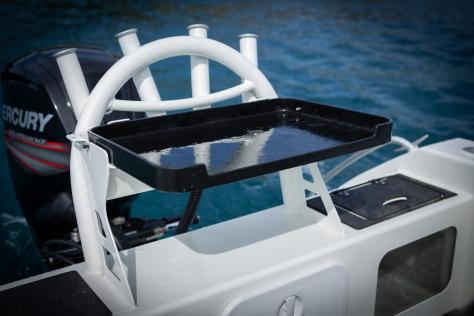

Bait station - Hoop style with 4 rod holders

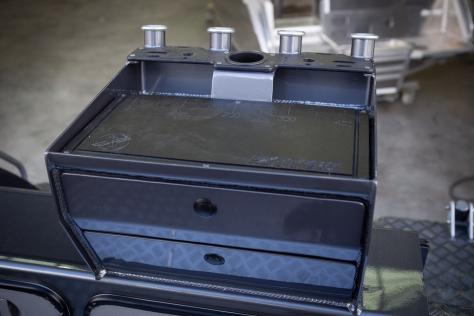

Bait station - 2 drawers with 4 rod holders

Bait station - Small box style with 4 rod holders

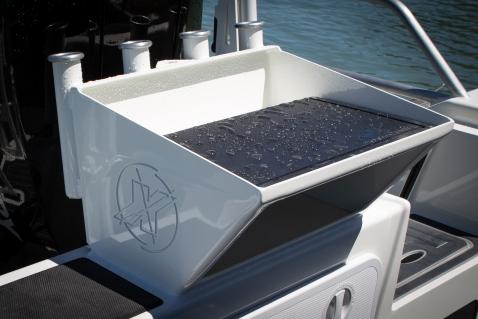

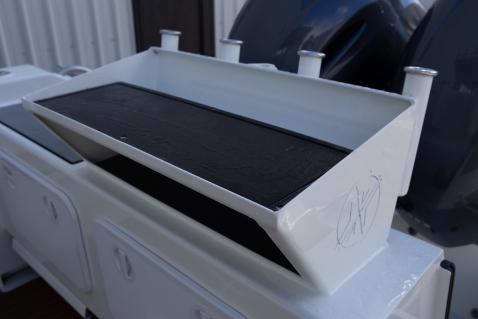

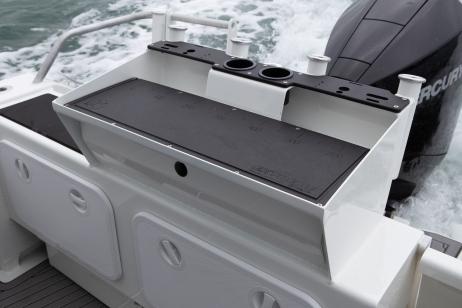

Bait station - Large box style with 4 rod holders

Bait station - Large single drawer with 4 rod holders

Bow rail modification and mounting bracket for MinnKota

Fusion stereo pack with 2 speakers

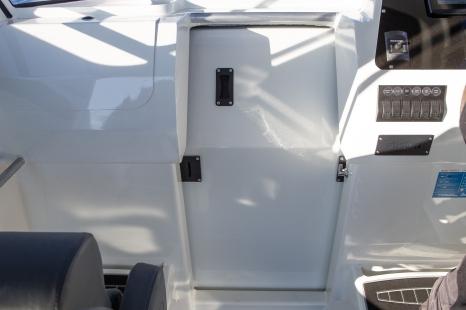

Lockable sliding cabin door

Outriggers

Rod racking in forward cabin

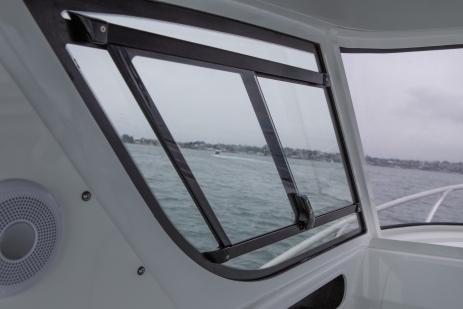

Sliding side windows

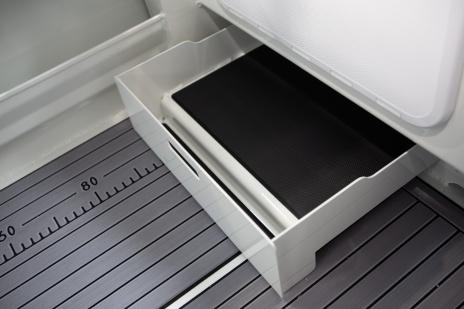

Storage drawer below transom

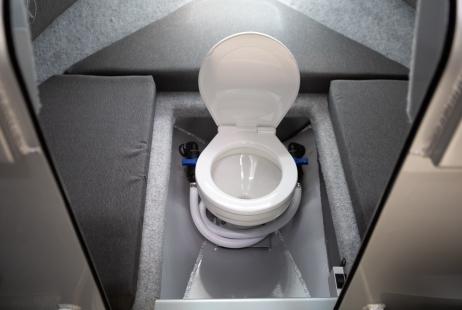

Toilet - electric flushing

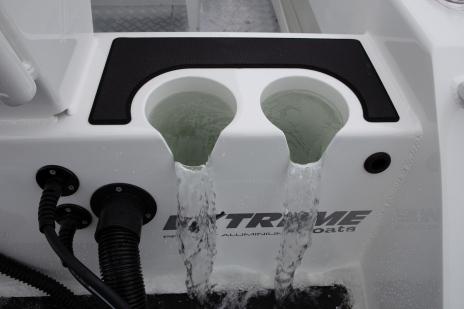

Tuna tubes

Underfloor moulded fish bin

Wiper

Paint

Paint 1 solid colour

Paint 2 solid colours

Paint metallic hull/solid top

Paint solid hull/Metallic top

Paint 1 Metallic colour

Seating/Upholstery

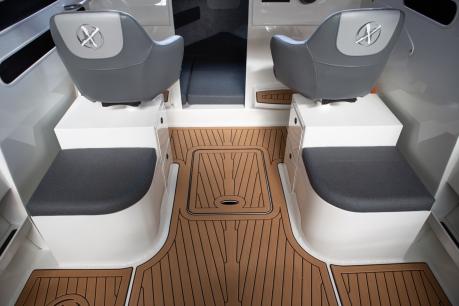

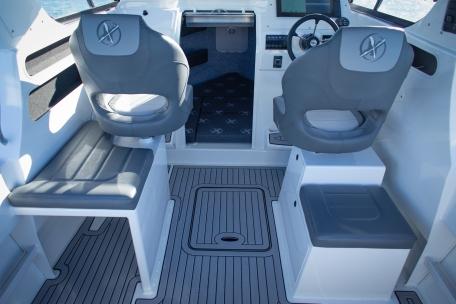

SeaDek flooring

Complete flooring incl footrests, toilet well and swimstep

Complete topsides incl footrests and transom (Black embossed)

Rear half topsides incl footrests and transom (Black embossed)

Storm Grey over Black

Mocha over Black

Dark Grey over Black

Dark Grey over Storm Grey

Black over Storm Grey

Style

Plain

Border King plank Colour

Straight lines

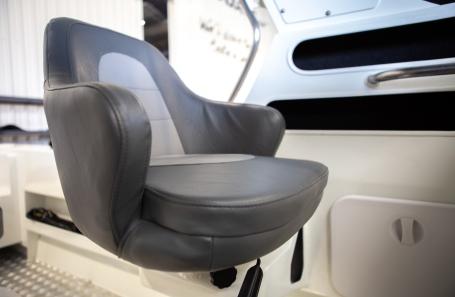

Bolstered seat upgrade including seat sliders (pair)

Chillybin module (built in)

Port Starboard

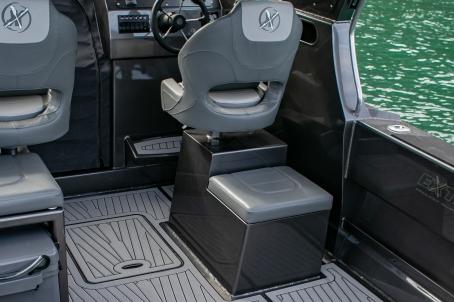

King/Queen module with top entry storage (stand alone)

Port Starboard

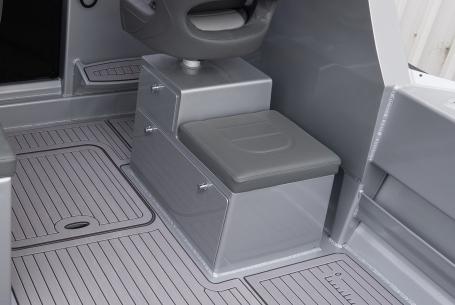

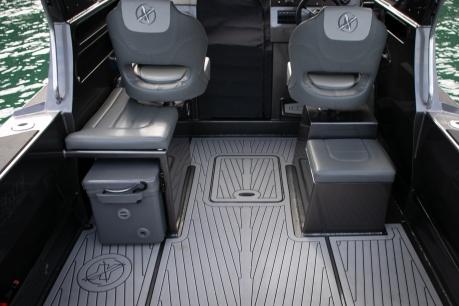

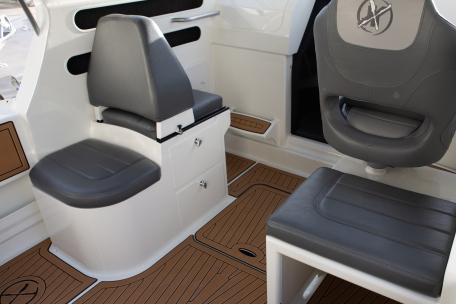

King/Queen module with 2 x drawers (stand alone)

Port Starboard

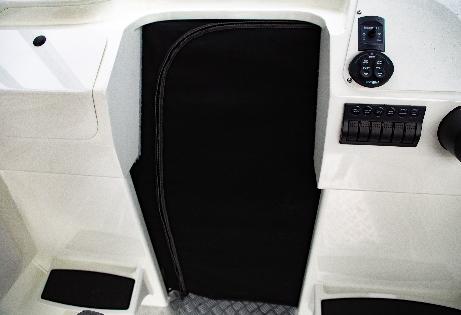

Privacy curtain with zip

Road cover (hard top to transom)

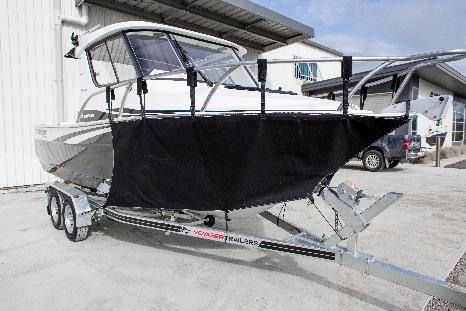

Removable stone chip cover

Trailer

Tandem axle galv trailer (braked)

Tandem axle alloy trailer (braked)

Guide poles

REPUTATION - NZ’s most awarded Aluminium Boat

BUILD INTEGRITY - CPC certified

SAFETY - Underfloor buoyancy chambers

STABLE - Self flooding keel

DRY - Large reverse chines

QUALITY - Built from start to finish on site
