616 Game King Brochure

Page 1

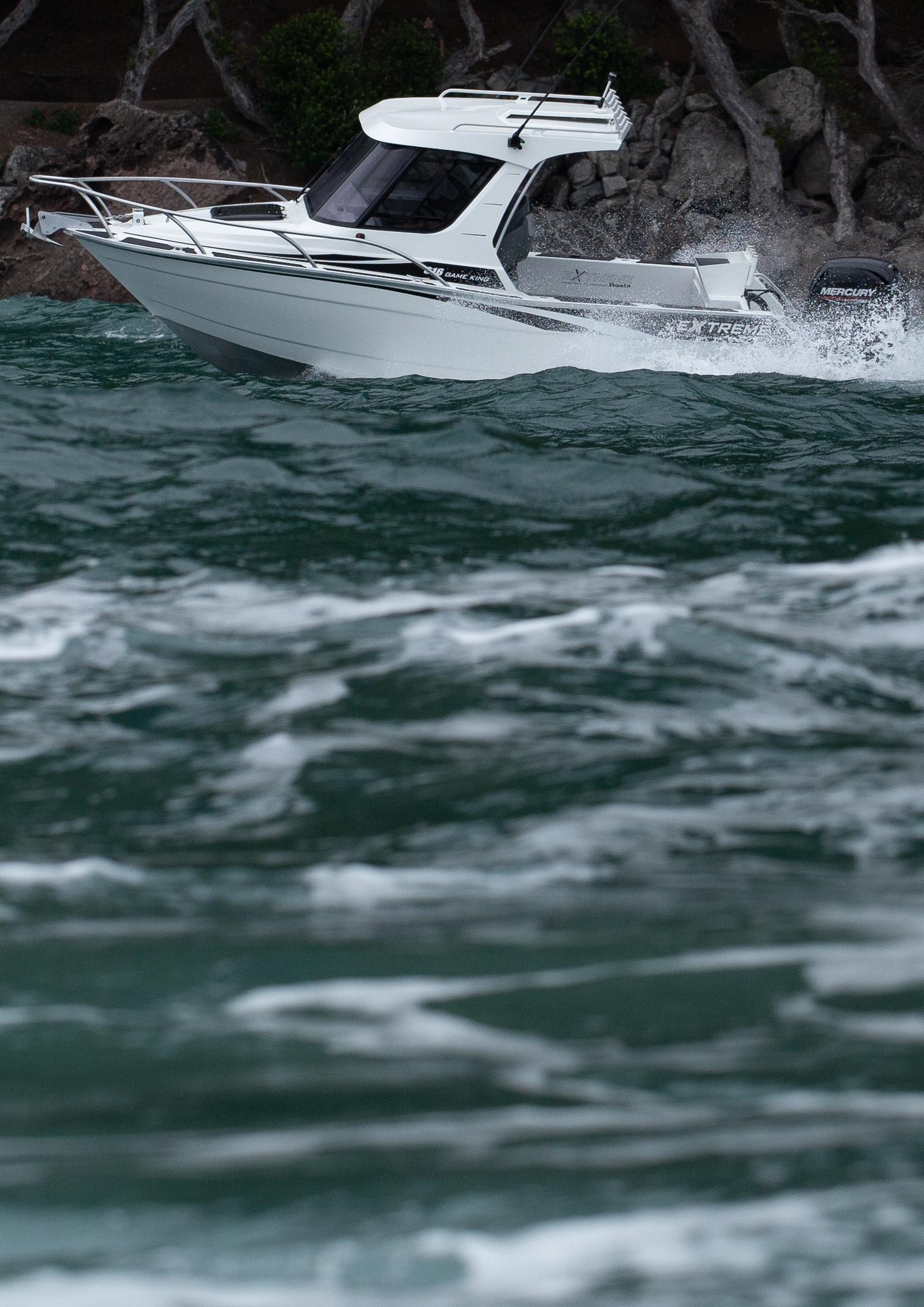

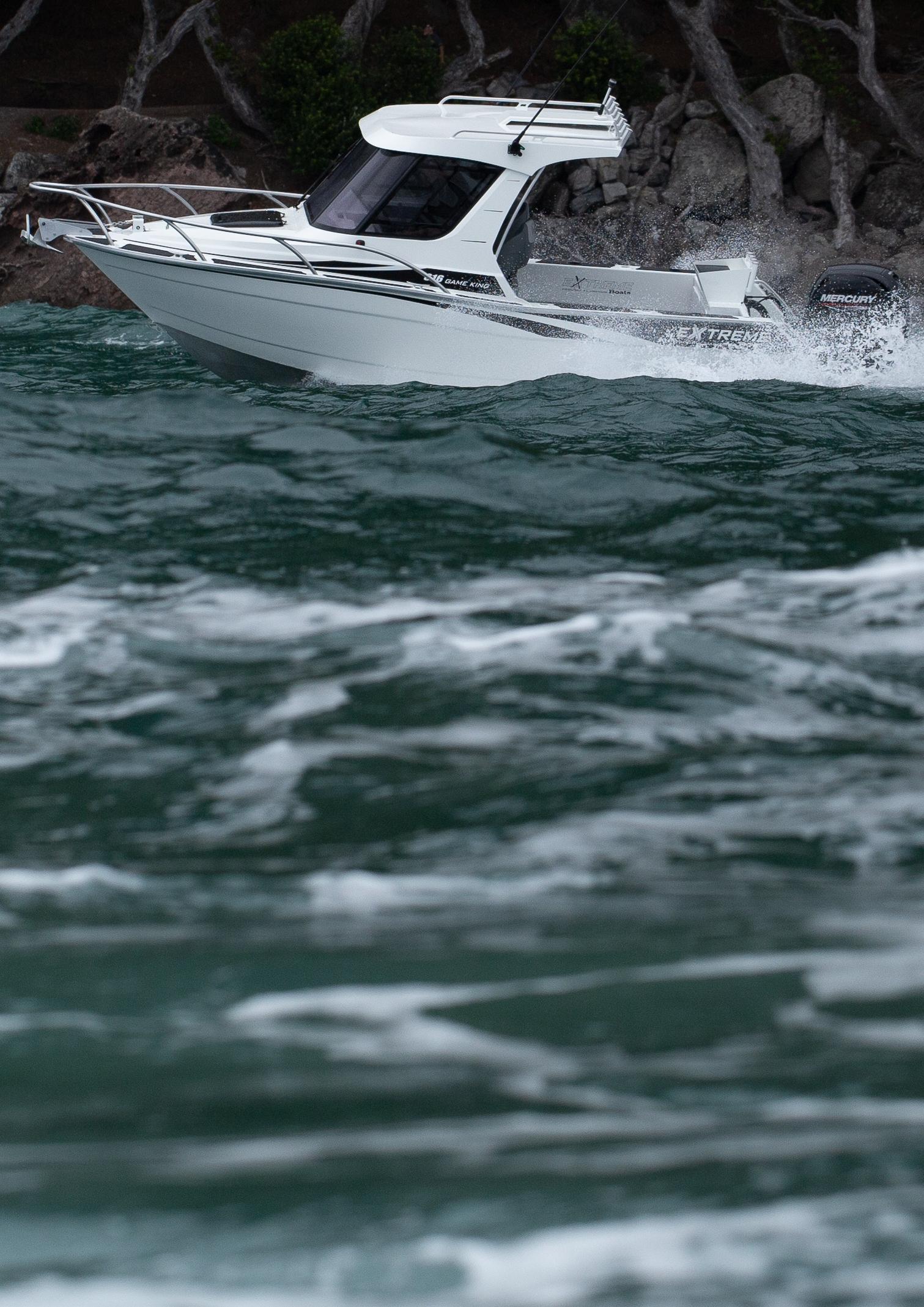

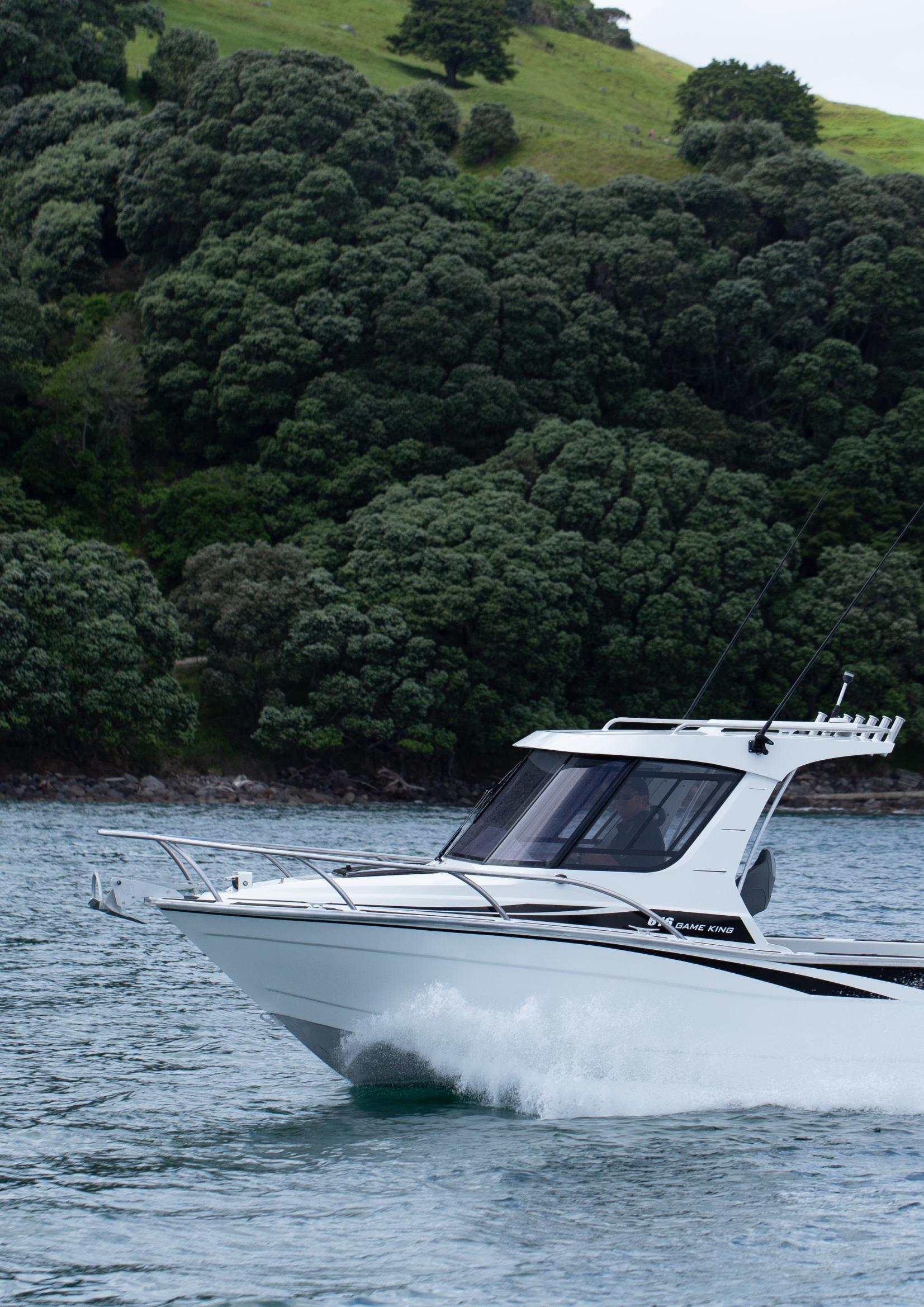

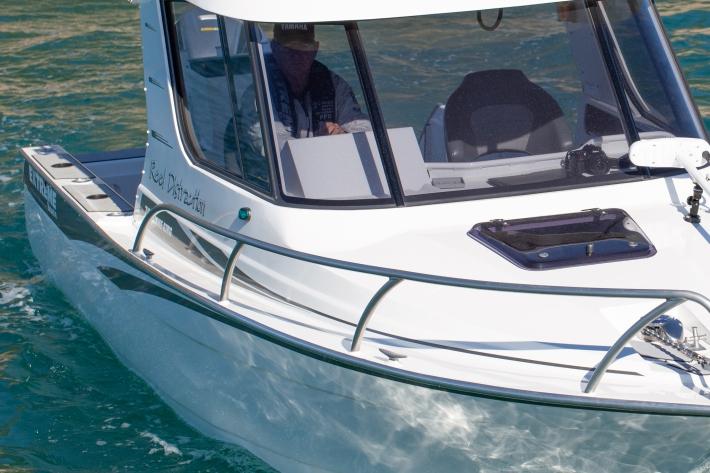

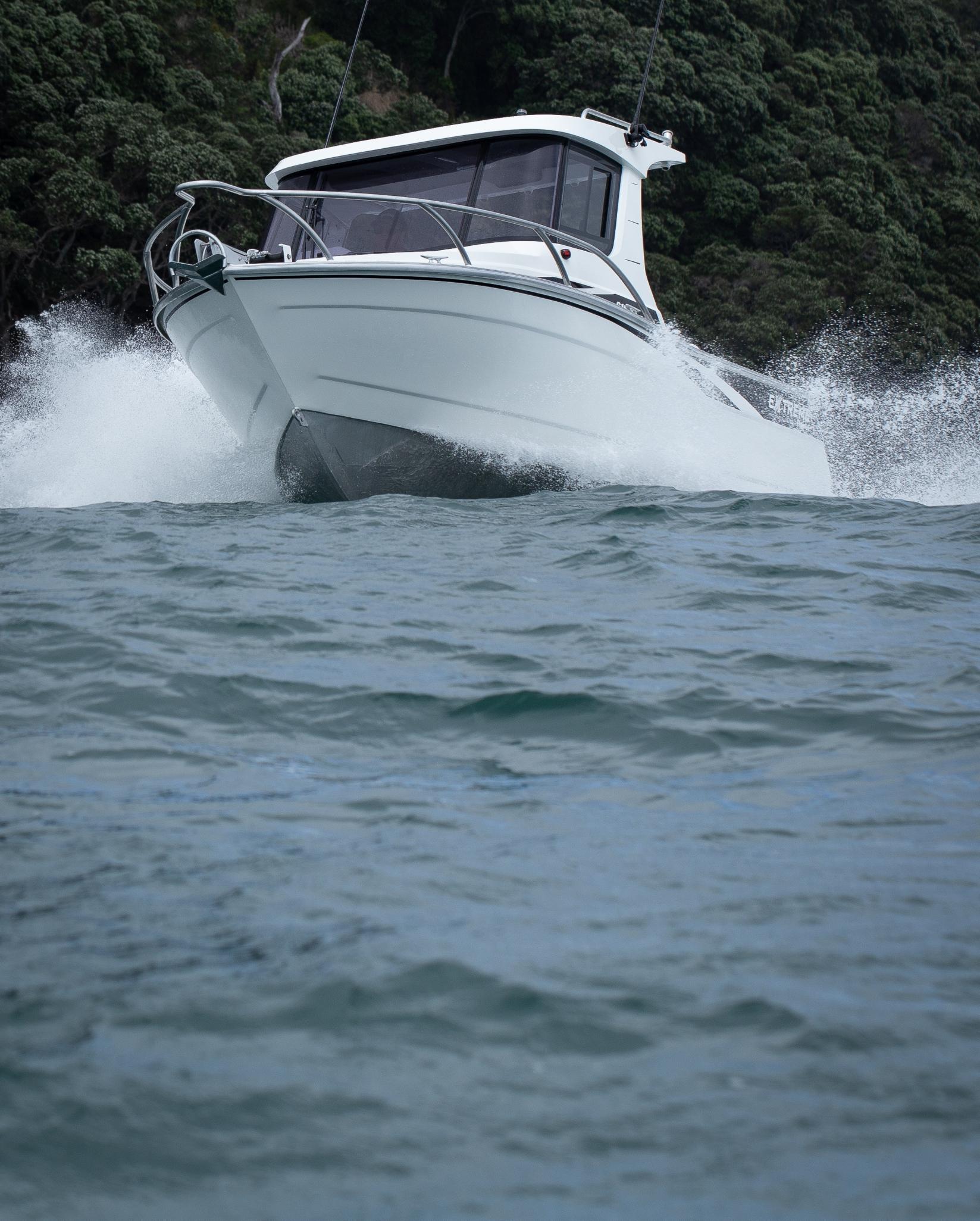

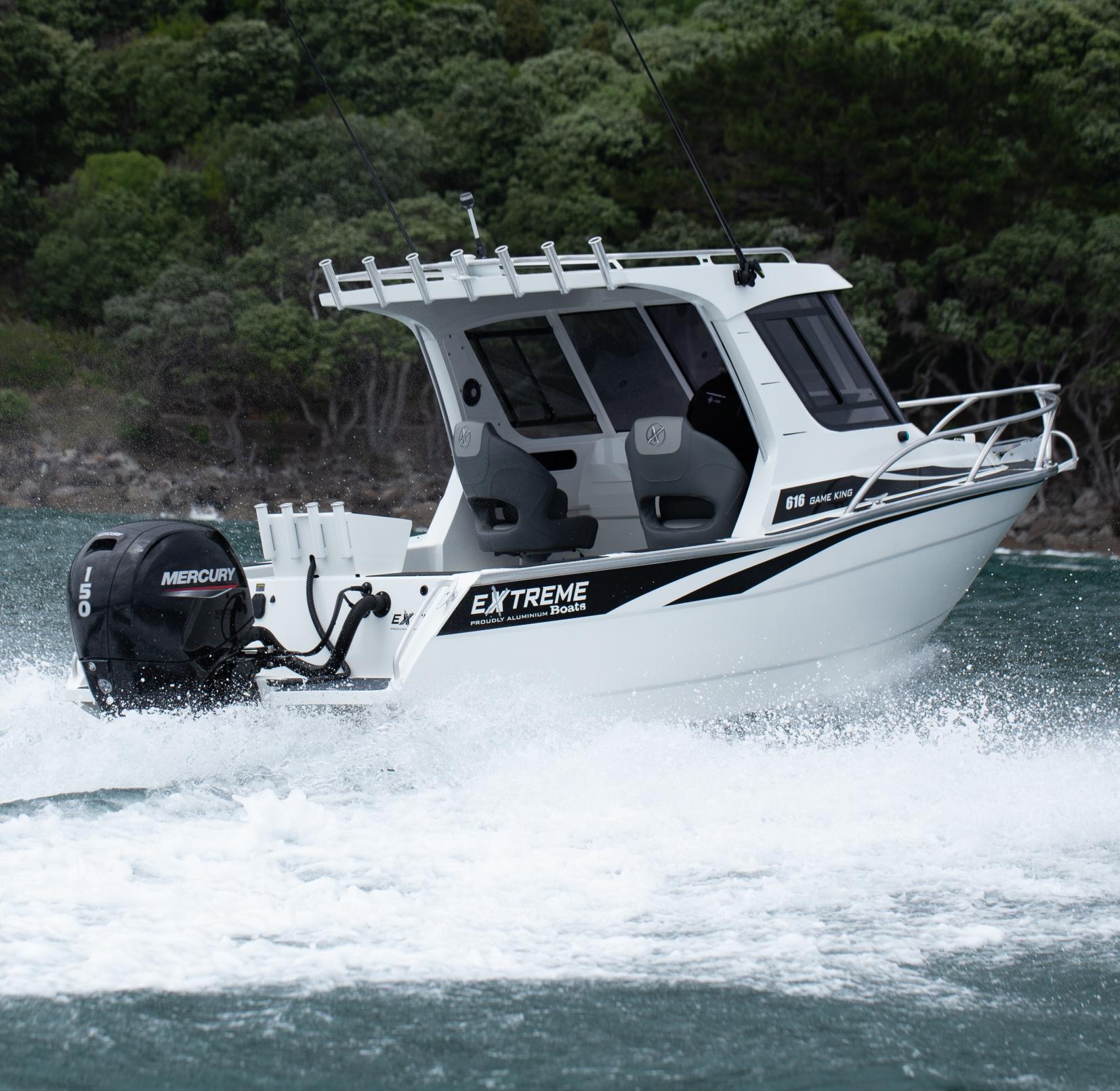

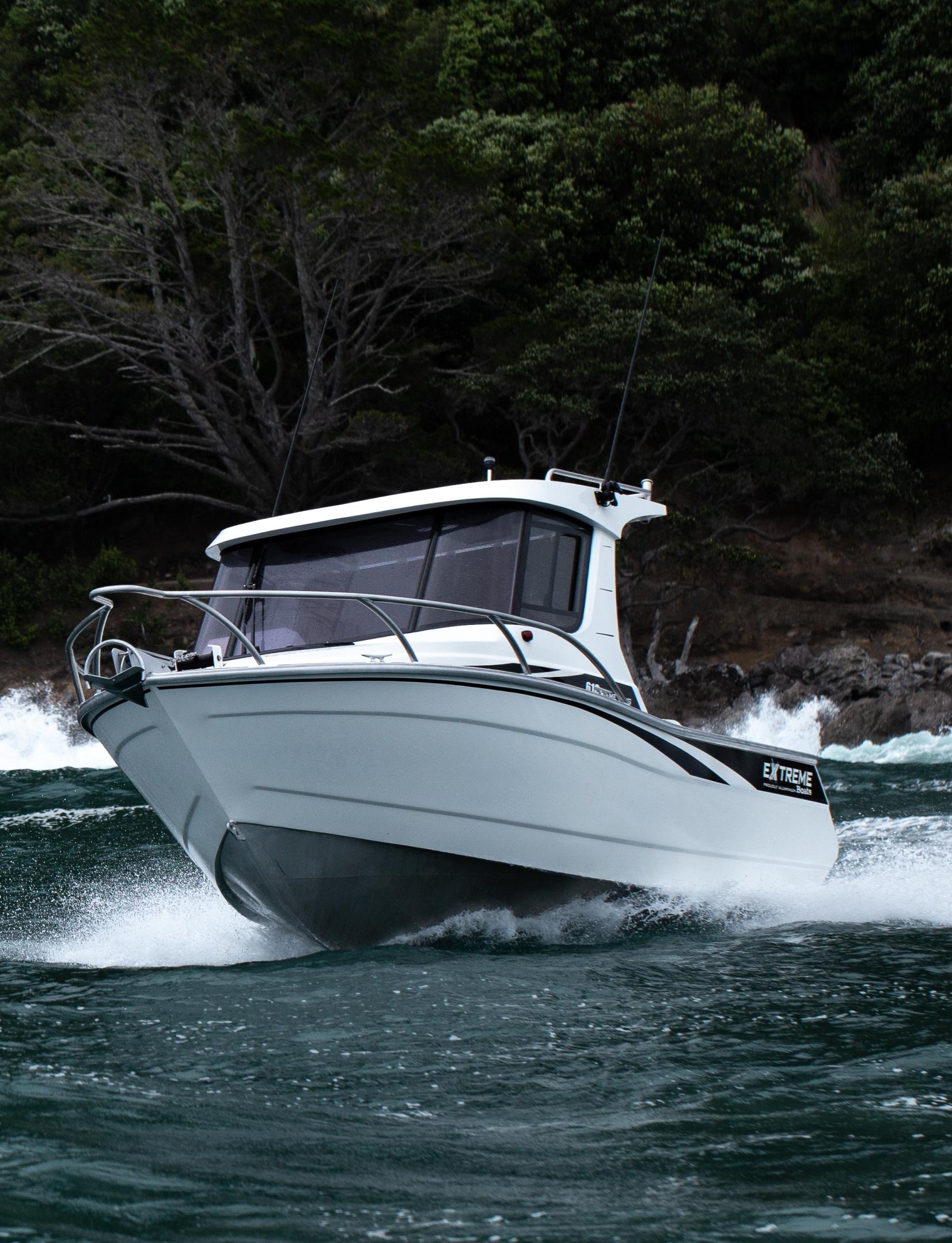

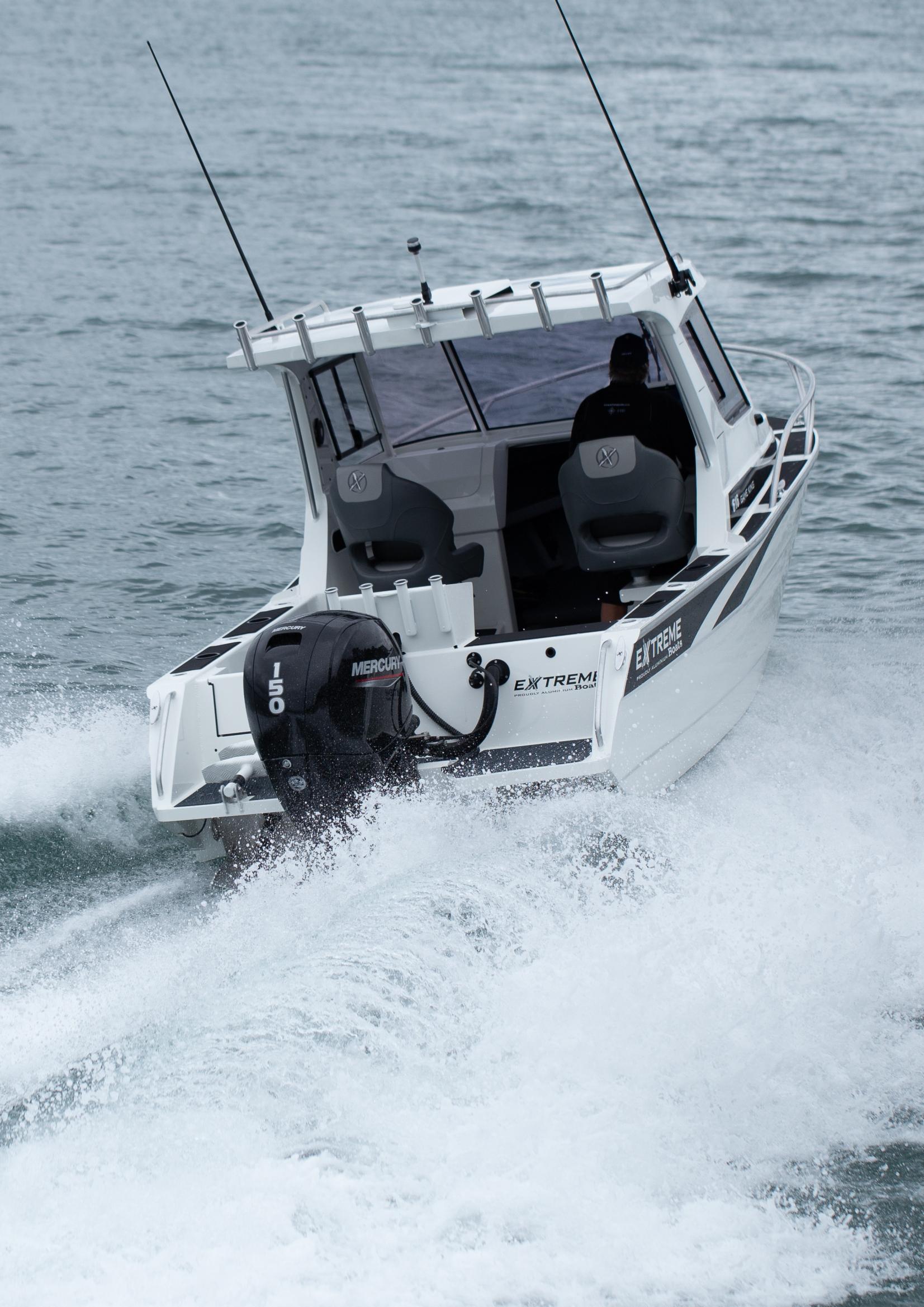

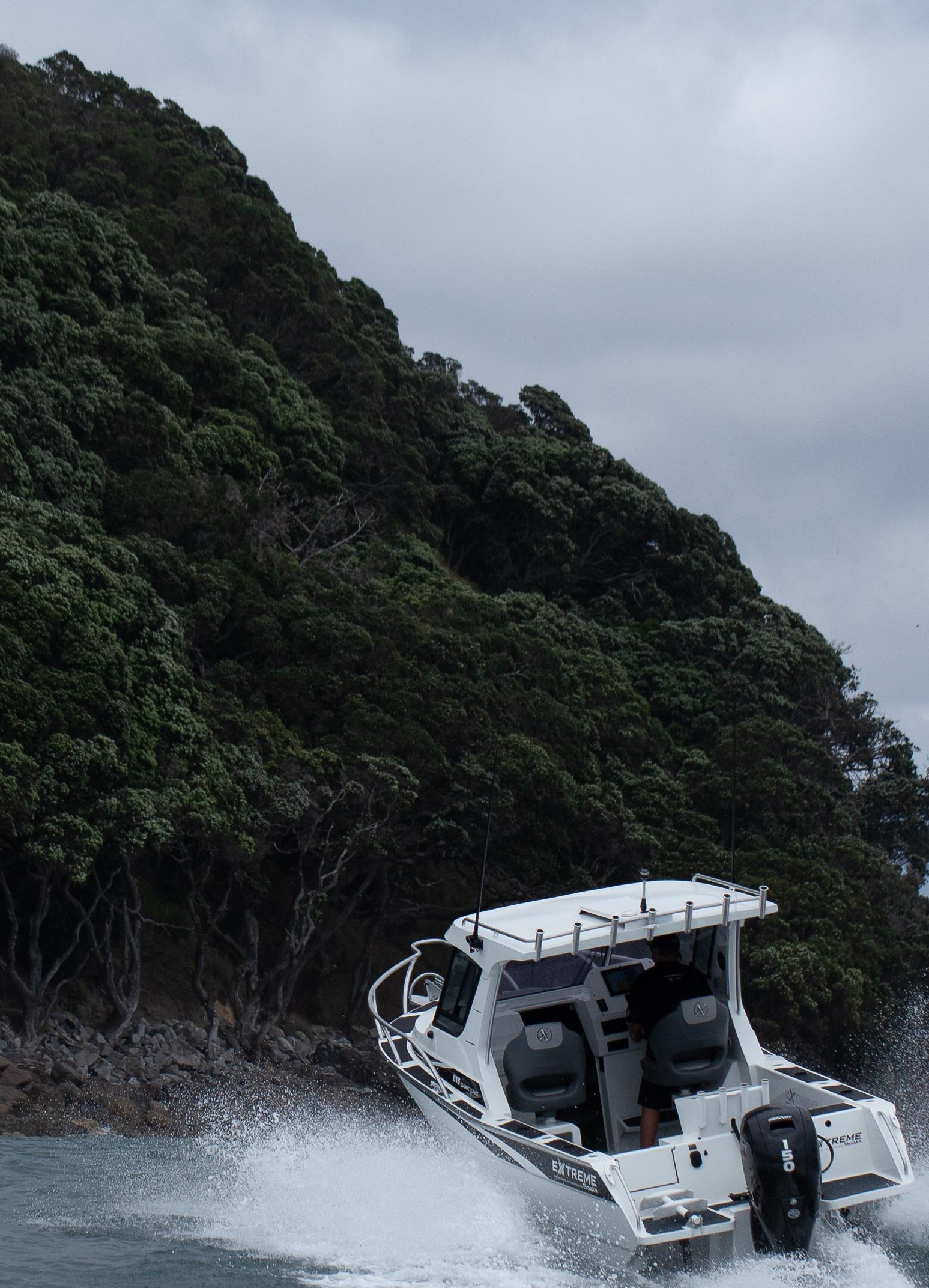

616 GAME KING

A versatile, capable and easy to manage member of the fleet that will leave your on water activities endless.

Standard features

- 180Ltr fuel tank including sender unit

- VHF

- Aluminium bow sprit

- Aluminium bump rail

- Aluminium cleats

- Aluminium rod holders

- Bait tank with window

- Battery switch (two way)

- Bilge pump with bilge grate

- Boarding ladder

- Bonnet access hatch

- Bow rail

- Cantilever seat bases with covered seats (pair)

- Cup holders x 4

- Dash handrail

- Deck wash

- Aft handrails

- Extreme graphics

- Flooding keel

- Fuel filter

- Full cabin squabs

- Hatch covers

- Navigation lights

- Passenger handrail

- Portifino transom

- Self draining anchor locker

- Ski lug on hard top

- Transducer bracket

- Transom storage compartments (incl hatch covers)

- Treadplate flooring

- Trailer tie down lugs

- Trim tabs

- Walk through transom with drop down door

- Wiring loom with 1 x 6 way switch panel

- Underfloor storage with hinged lid

- Fully welded underfloor construction

- Dash to house up to 16 inch screen

- Hydraulic steering kit

- Lined cabin

- Large buoyancy chambers

- Overall length 6.17 mtr

- Beam 2.34 mtr

- Transom and hull thickness 5mm

- Sides and deck thickness 4mm

- Deadrise 22 degrees

- Recommended 115 - 150 hp outboard

- Overall length on trailer 7.70 mtr

- Height on trailer 2.80 mtr (Including rod holders)

- Width on trailer 2.45 mtr

- Approximate towing weight dry 1700kg (Based on standard specification including engine and trailer)

- Rated for 5 people (New Zealand standards)

- Marine grade Aluminium

Your boat - your way!

Choose the seating that suits your boating needs, and compliment it with our wide range of optional extras

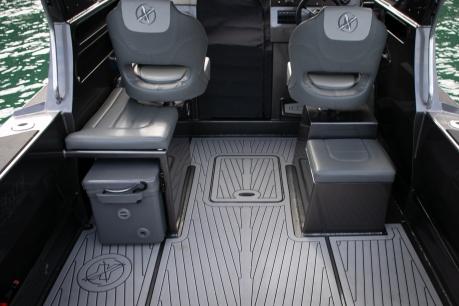

Chillybin module

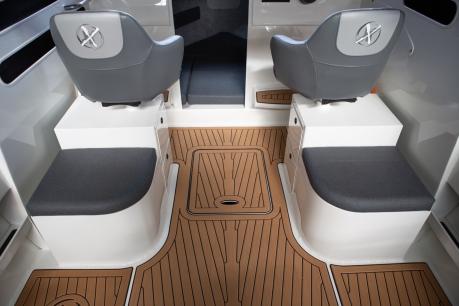

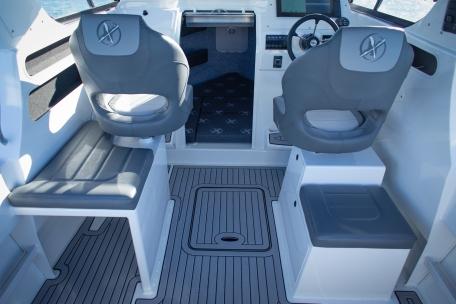

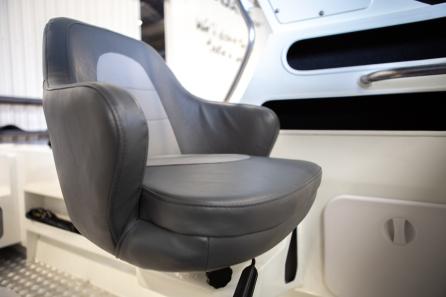

Counter lever base with Bolstered seat
Counter lever base with standard seat

OPTIONAL EXTRAS

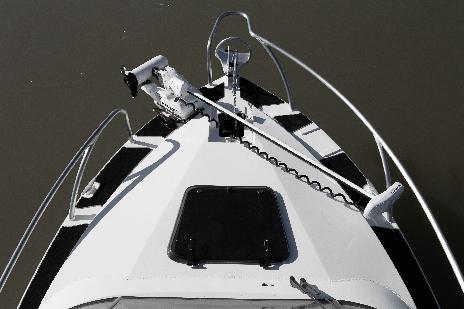

Bow rail modification for MinnKota

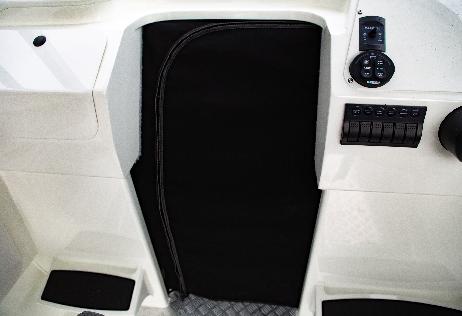

Upholstered privacy curtain

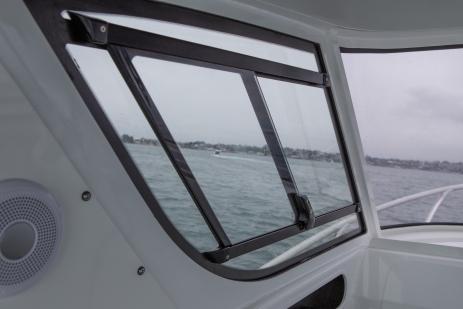

Sliding side windows

Under water LED’s Removable rod rack

Over the side knee/ hand wash kit

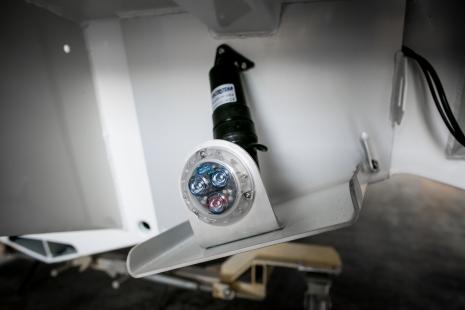

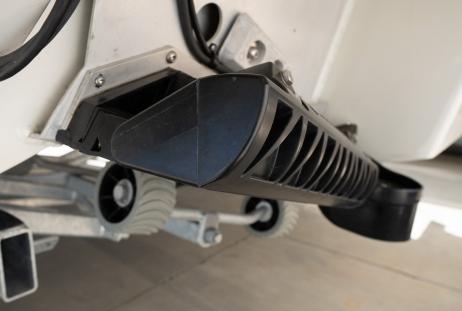

SeaKeeper Ride auto trim tabs

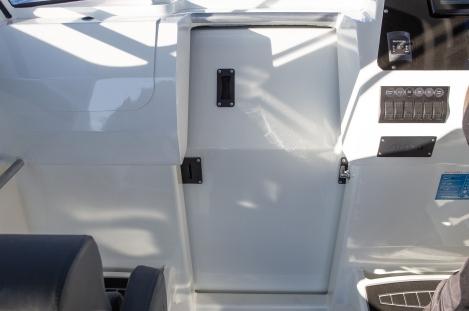

Lockable sliding cabin door

Upholstered stone cover

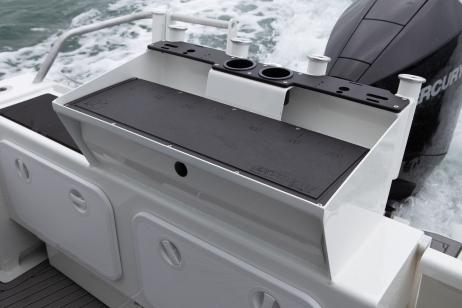

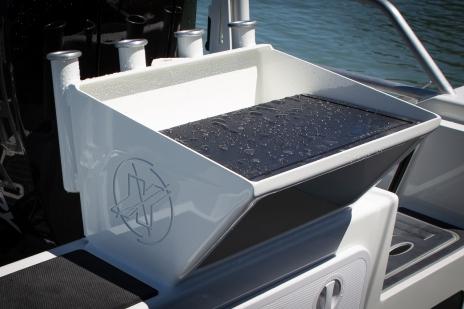

Large box style bait station

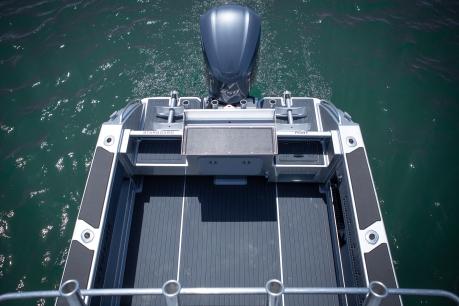

FLOORING

Mocha over Black straight lines
Mocha over Black King Plank
Storm grey over Black straight lines
Storm grey over Black King Plank
Dark grey over storm grey straight lines
Dark grey over black straight lines

Optional extras

Auto winch pack - Drumwinch

Auto winch pack - Capstan

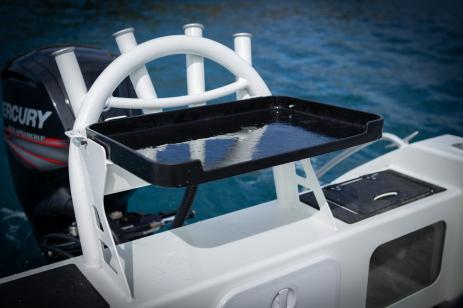

Bait station - Hoop style with 4 rod holders

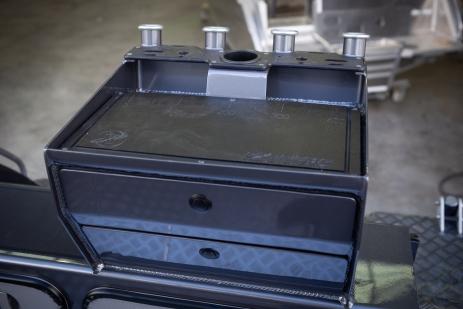

Bait station - 2 drawers with 4 rod holders

Bait station - Small box style with 4 rod holders

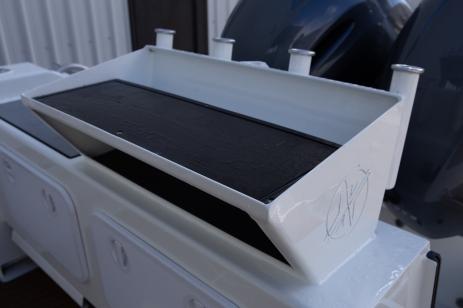

Bait station - Large box style with 4 rod holders

Bait station - Large single drawer with 4 rod holders

Bow rail modification and mounting bracket for MinnKota

Extra USB

Pull out storage drawer below transom

Fusion stereo pack with 2 speakers

Sea Keeper Ride auto trim tabs

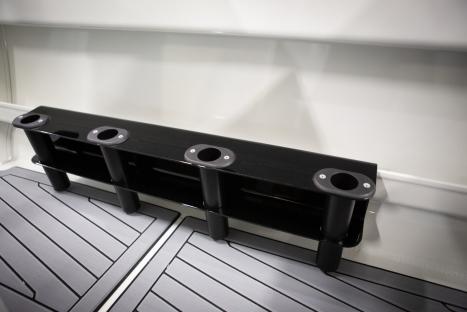

Forward cabin rod racking

Lockable sliding cabin door

Outriggers

Tuna tubes

Wiper

Paint

Paint 1 solid colour

Paint 2 solid colours

Paint 1 Metallic colour

Paint 2 Metallic colours

Paint metallic hull/solid top

Paint solid hull/Metallic top

Seating/Upholstery

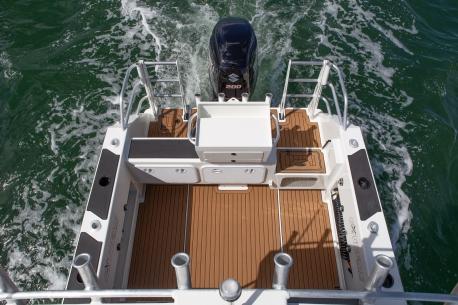

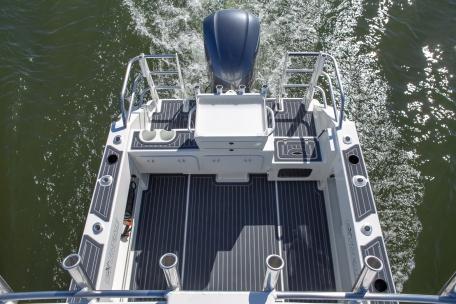

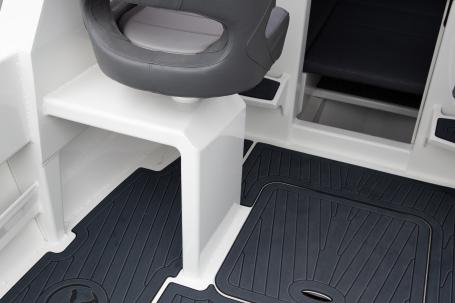

SeaDek flooring

Complete flooring with footrests, toilet well and swimstep

Complete topsides with footrests and transom (Black embossed)

Rear half topsides with footrests and transom (Black embossed)

COLOUR

Storm Grey over Black

Storm Grey over dark Grey

Mocha over Black

Dark Grey over Black

Dark Grey over Storm Grey

STLYE

Plain Straight lines Border King plank

Bolstered seat upgrade including seat sliders (pair)

Chillybin module (built in) Port Starboard

Privacy curtain with zip

Stone chip cover

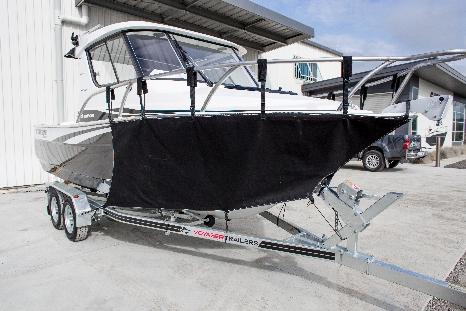

Road cover (hard top to transom

Trailer

Tandem axle (unbraked)

Tandem axle (braked)

Guide poles

REPUTATION - NZ’s most awarded Aluminium Boat

BUILD INTEGRITY - CPC certified

SAFETY - Underfloor buoyancy chambers

STABLE - Self flooding keel

DRY AND PREDICTABLE RIDE - Large reverse chines

QUALITY - Built from start to finish on site
