GRABS & CLAMSHELL BUCKETS
DEFINITELY A BEAST.
Key to symbols
Intermercato is not only grabs Explore our full range of products on www.intermercato.com or contact our highly skilled sales team by mail or phone
Nm Nm Nm kg
Oil
Weight Gripping force Recommended excavator weight–rigid mounting Max. load Volume Max. working pressure Forwarder Log craneRecommended lifting capacity Gripping area Recommended excavator weight –cardanic mounting
flow Loader craneRecommended lifting capacity

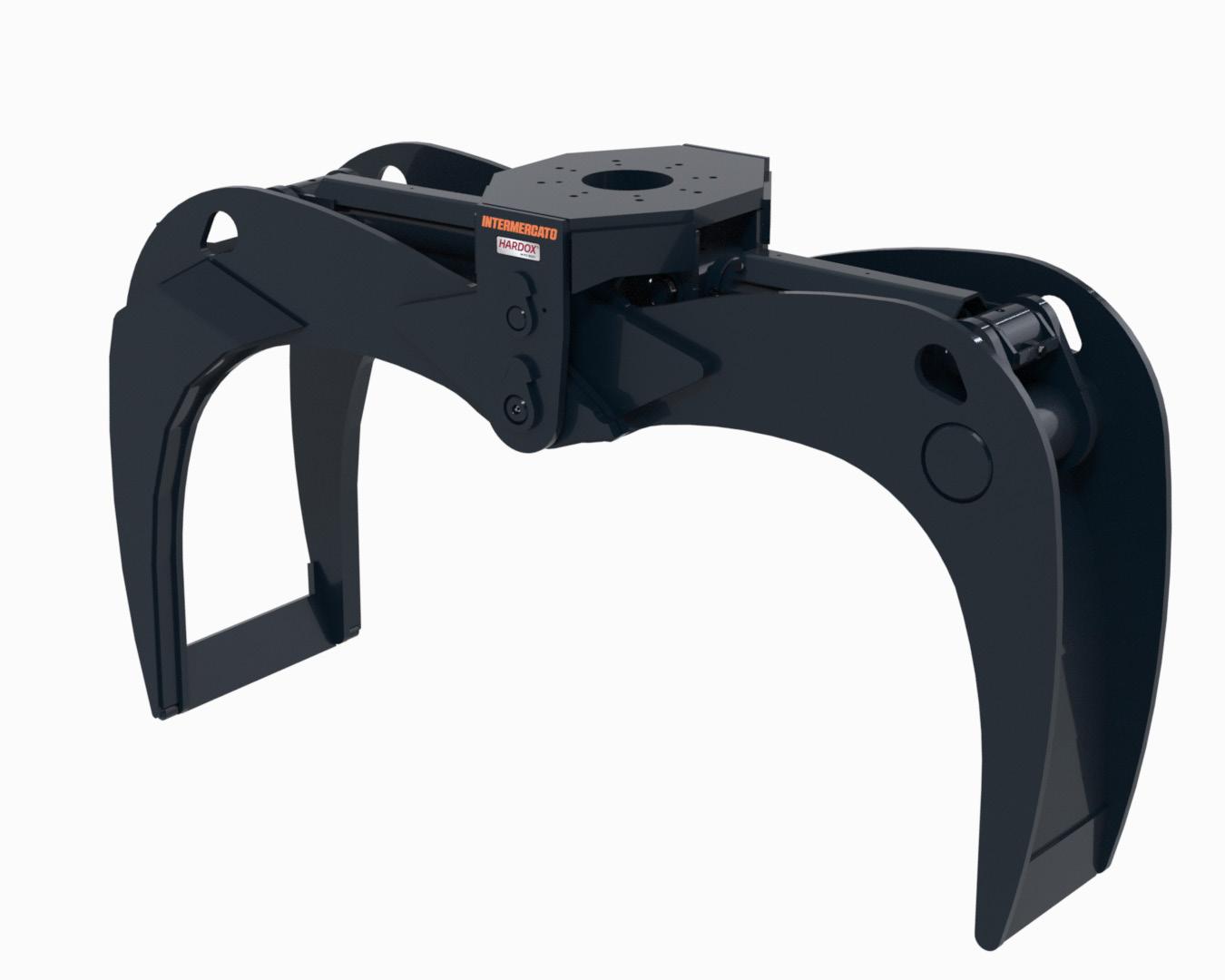

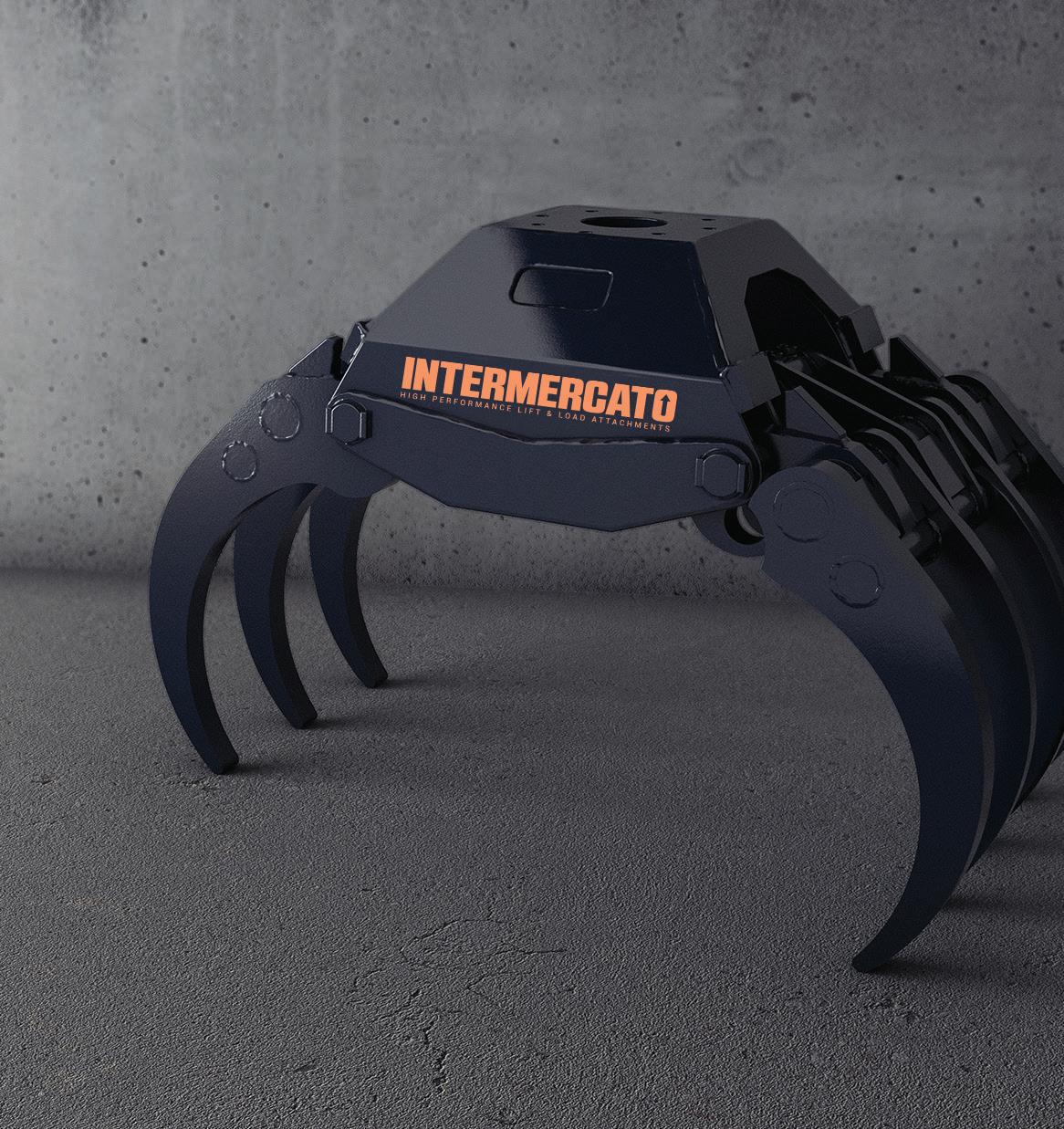

Log-Bite HD Log grabs
The allround working tool!
Very robust grapple for pulp wood as well as single logs. Optimal roll-in roll-out properties to guarantee full load in every grab.
KEY FEATURES
• Made entirely of Hardox®
• Induction hardened shafts and special heavy duty alubronze bushings
• 90 mm cylinder bore and 63 mm protected piston rod for high gripping force and fast opening

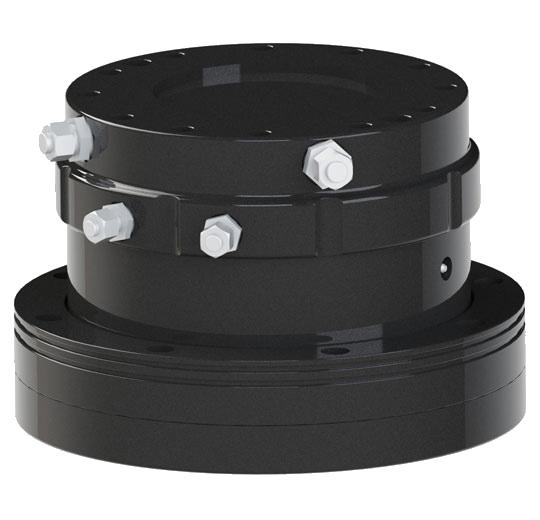

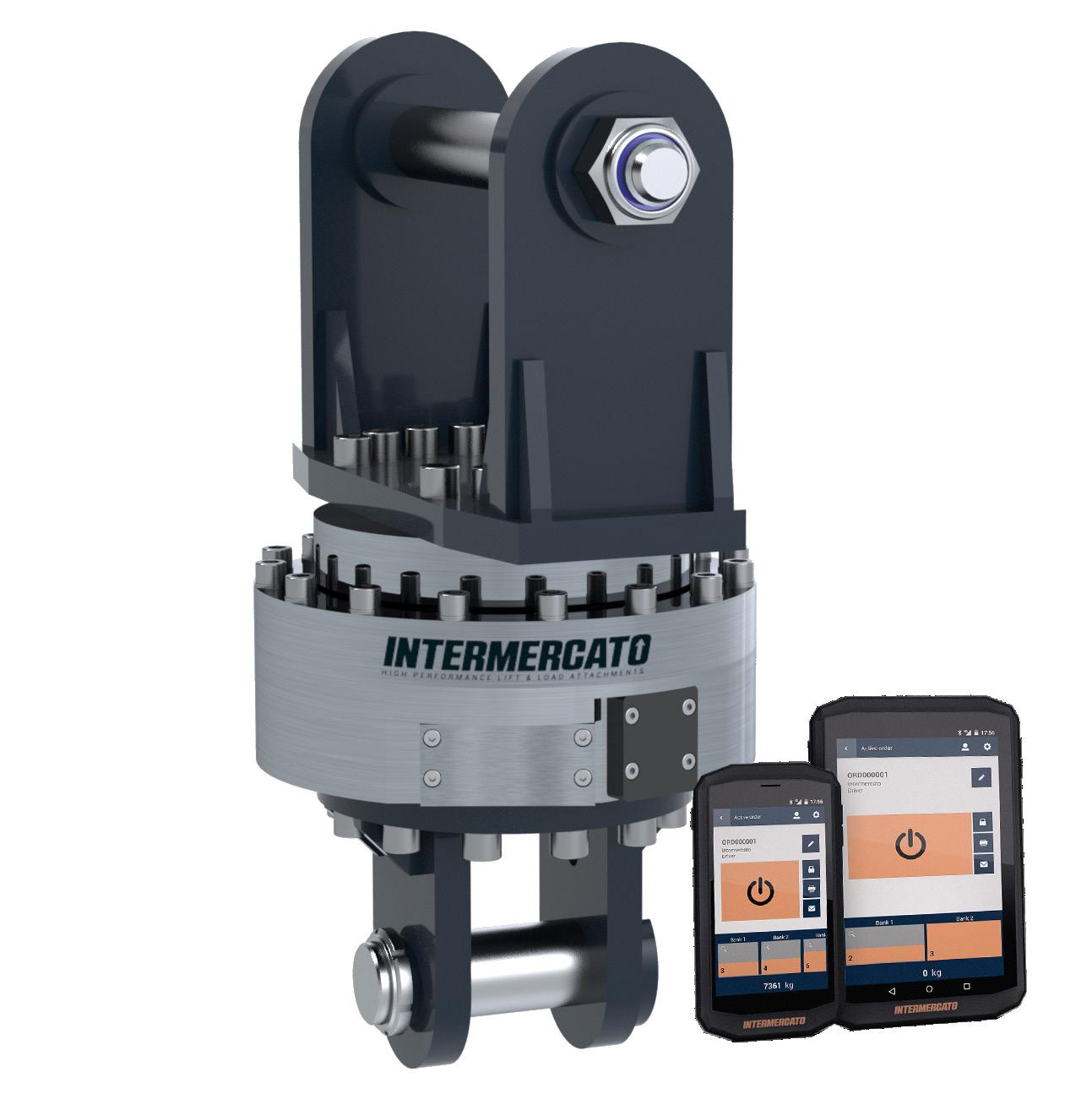

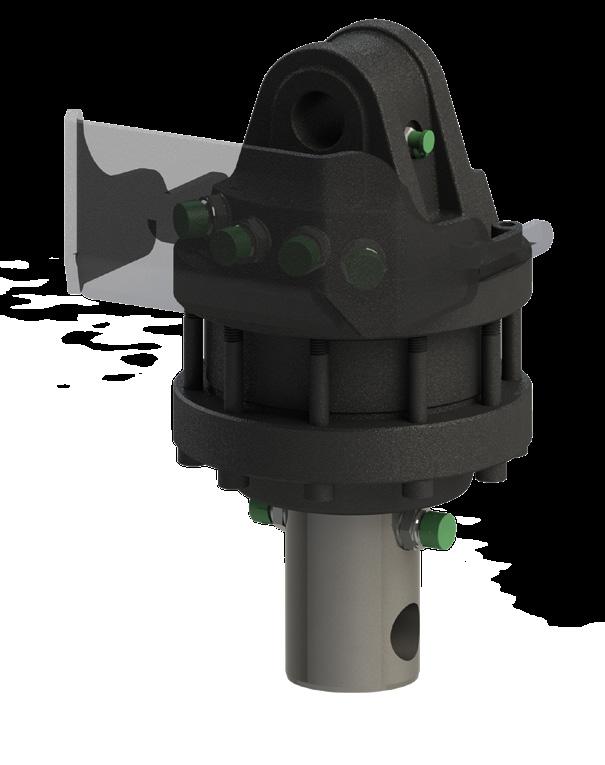

• Equipped with high torque market leading Indexator rotators

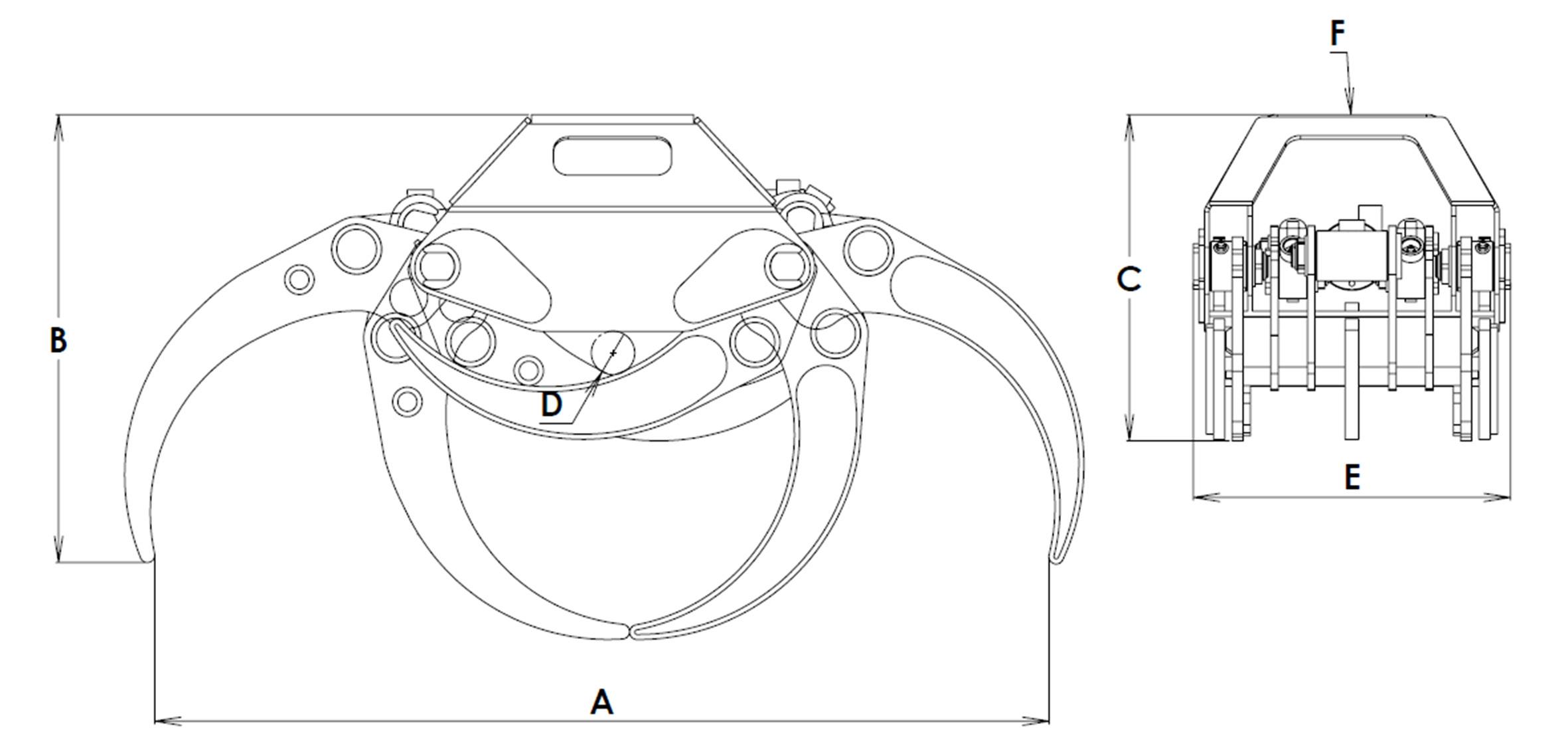

DEFINITELY A BEAST. www.intermercato.com Log-Bite 500HD Log-Bite 650HD Log-Bite 750HD A 191 161 175 B 1630 1864 2004 C 1854 2124 2292 D 1066 1258 1311 E 426 426 426 F 622 670 670 G 388 456 484 Nm MODEL SPECIFICATIONS Nm NmNm Log-Bite 500HD 686 0,52 250 80 80 - 30 - 20 -Log-Bite 650HD 900 0,65 250 90 80 - 35 - 24 -Log-Bite 750HD 976 0,75 250 100 80 - 40 - 28 -Recommended machine weight and crane size

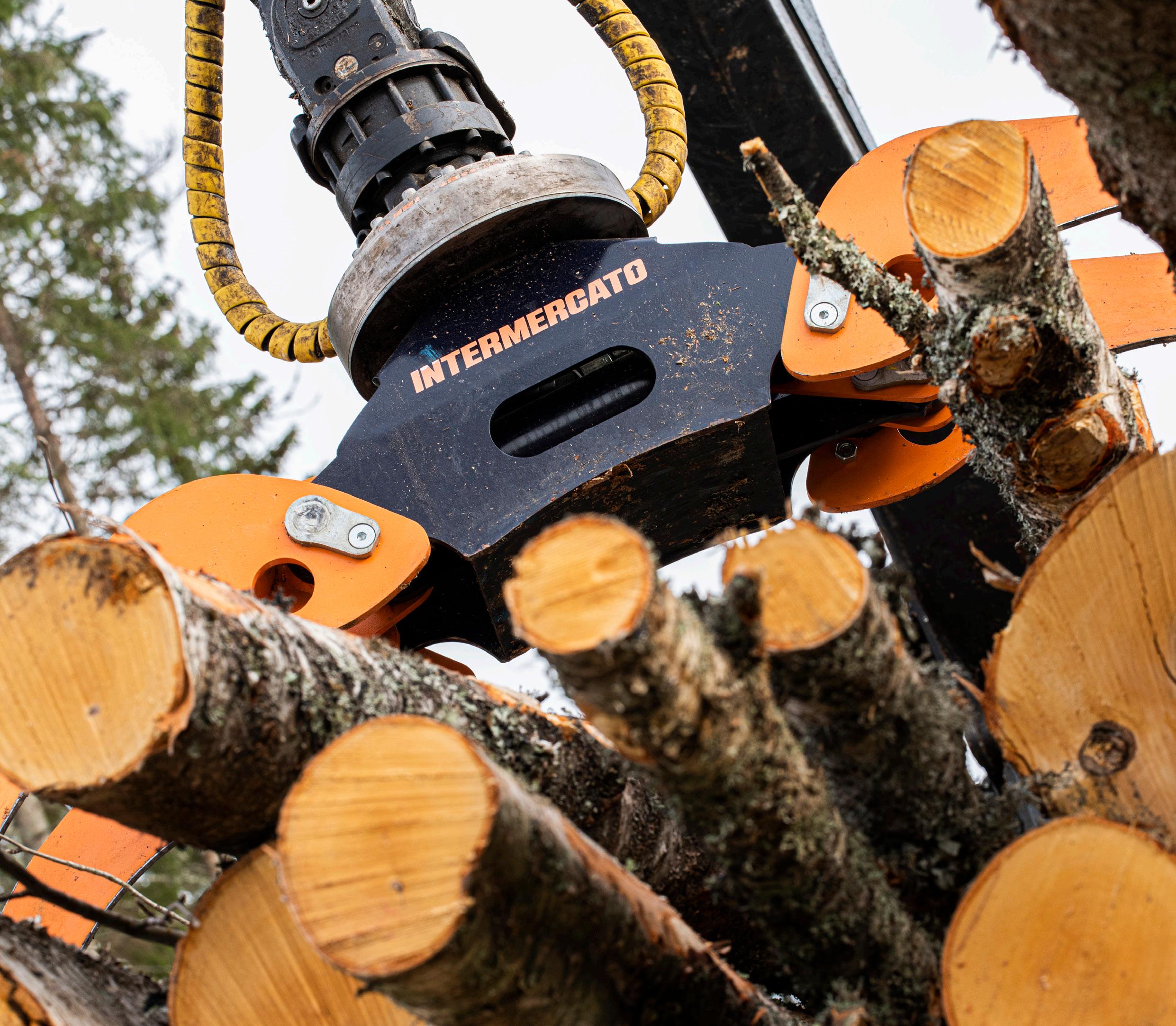

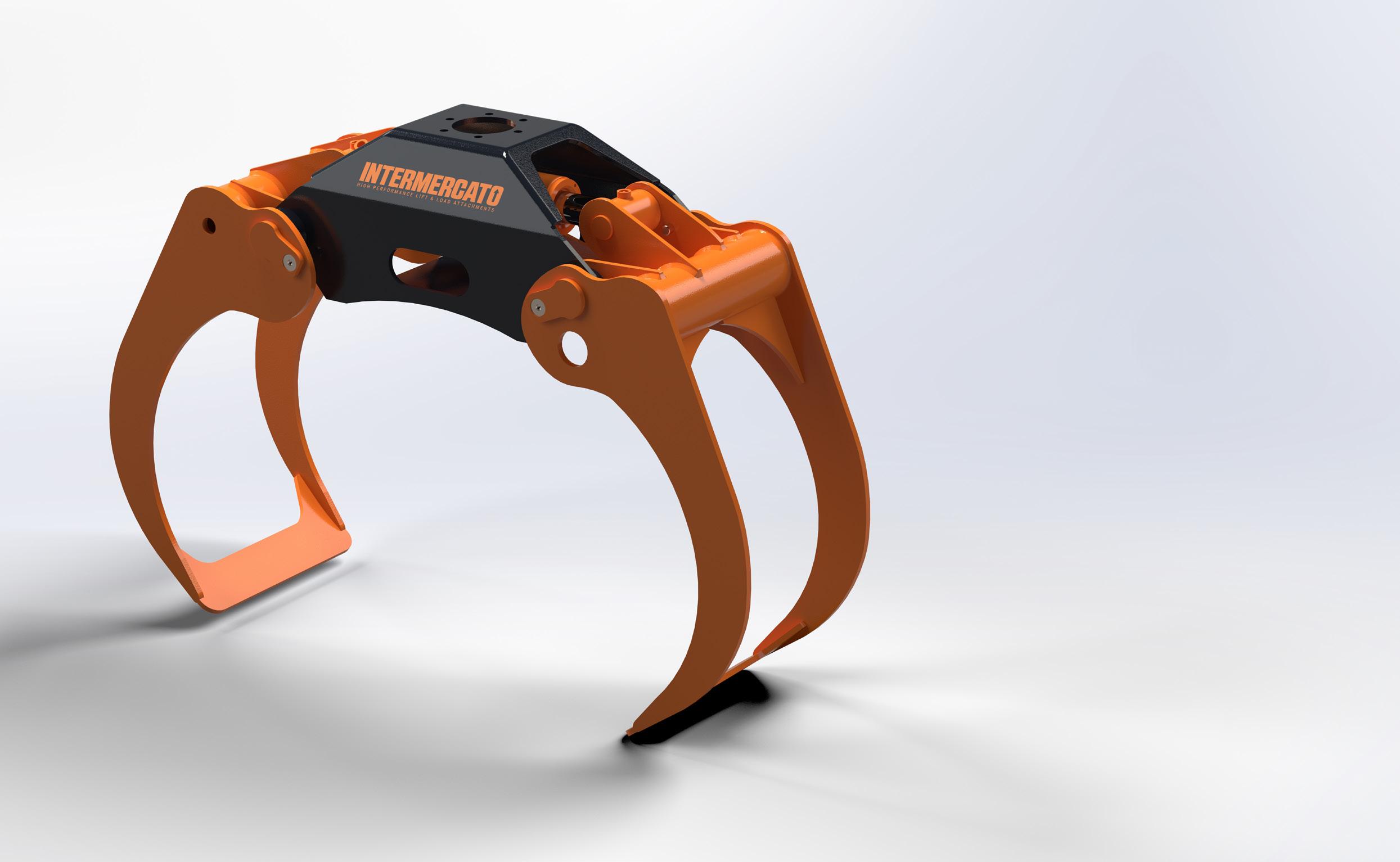

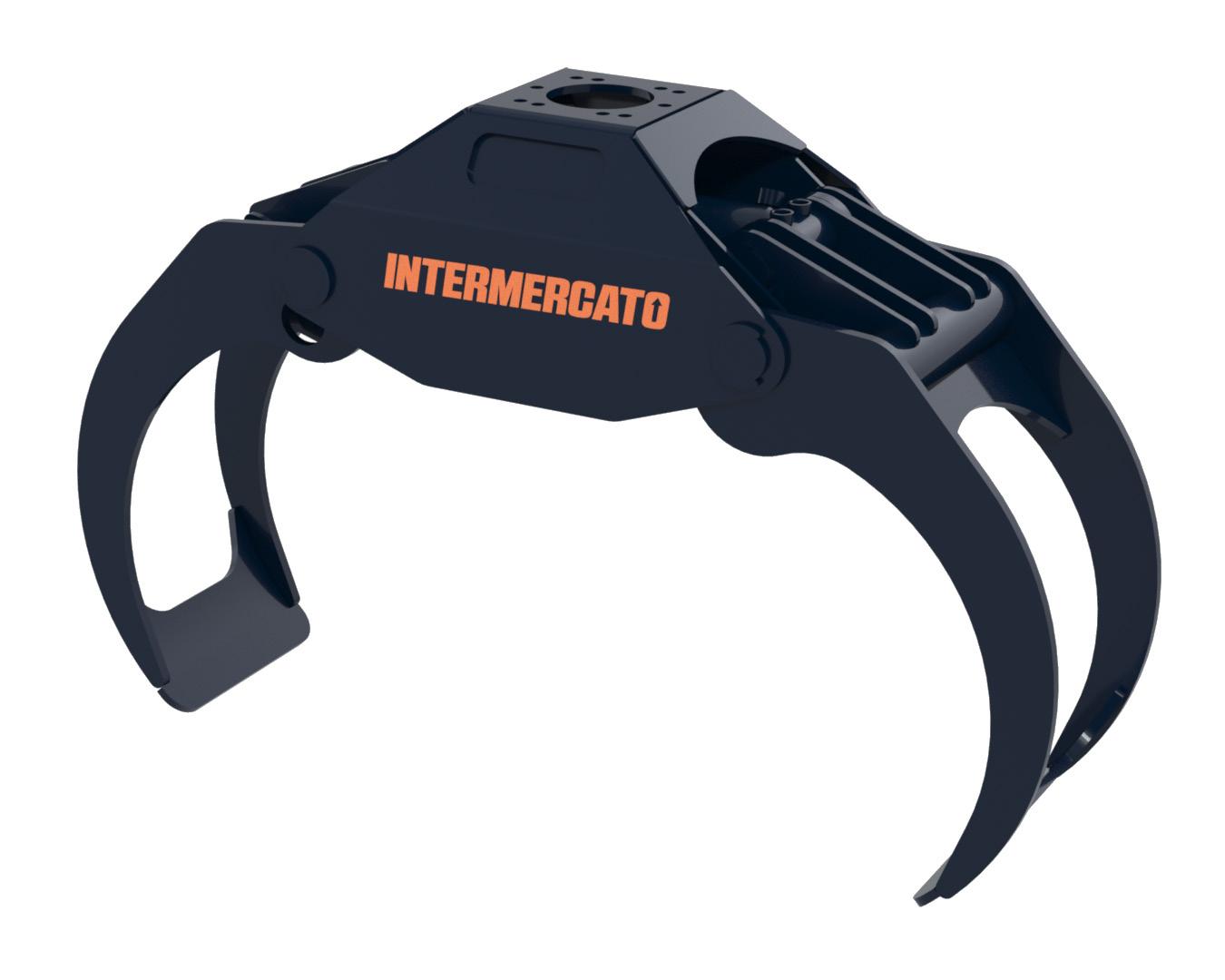

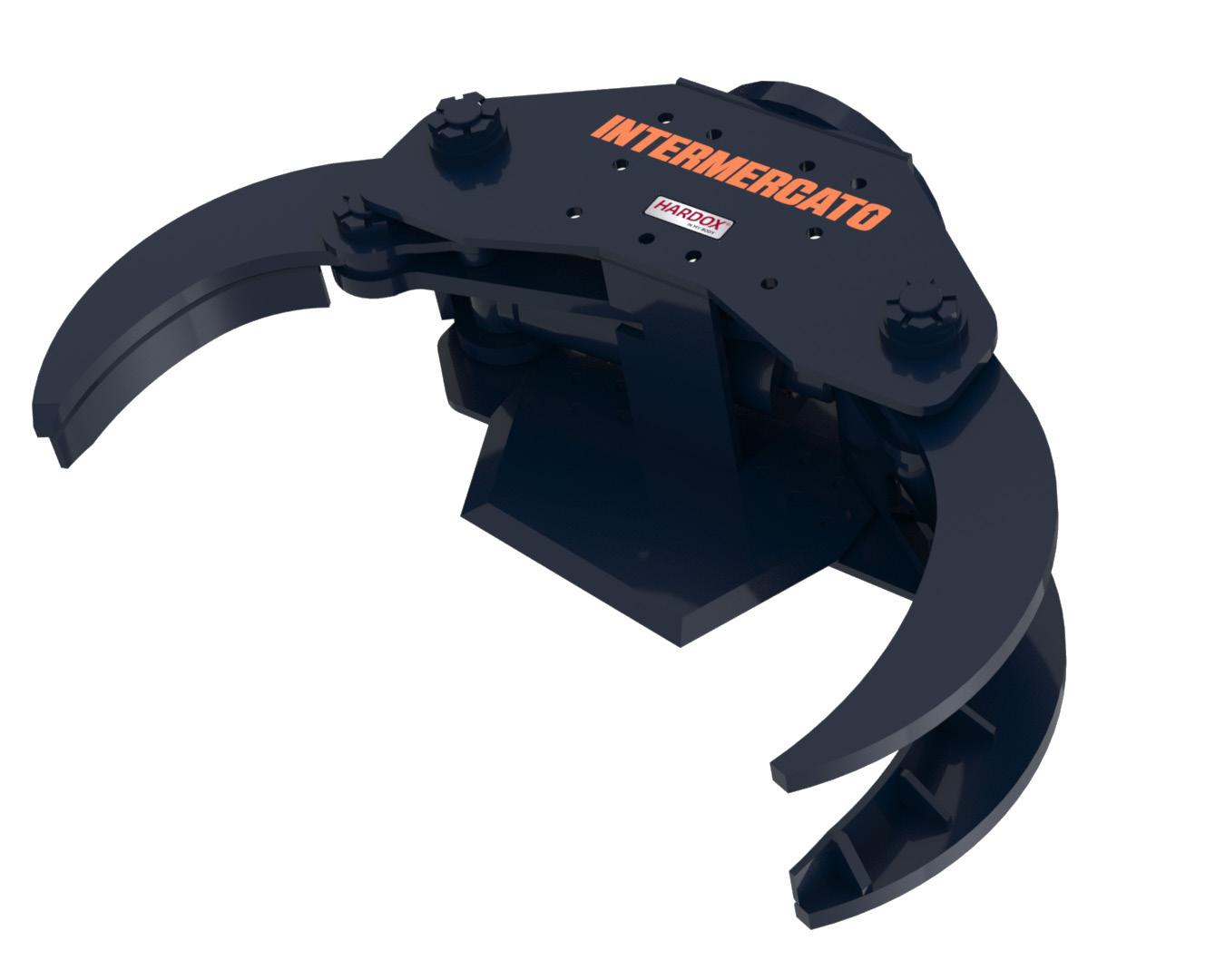

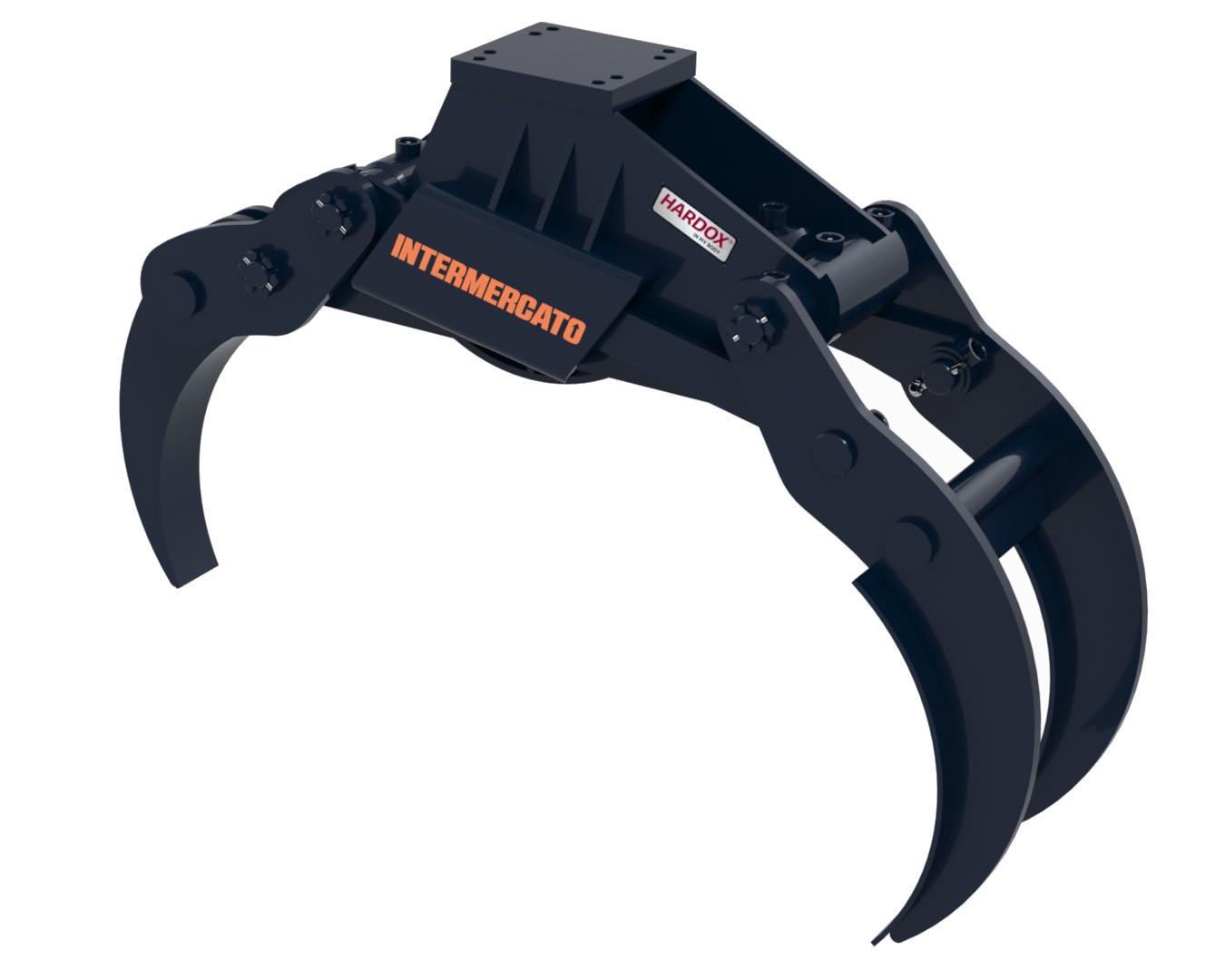

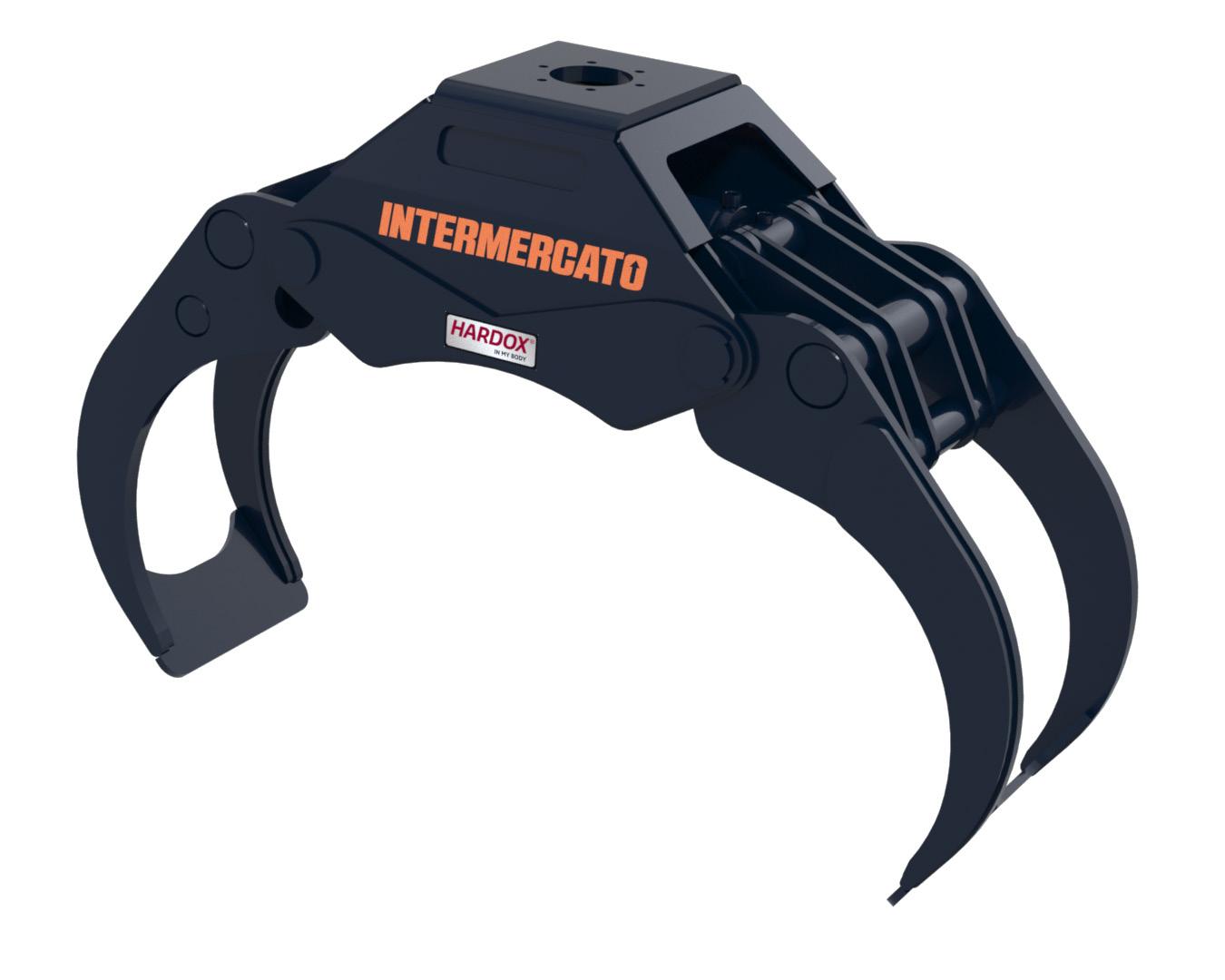

TG Ultra Log grabs
A log grapple for timber cranes in its own league
By using By using Strenx 900, the state of the art high tensile wear resistant steel from SSAB we have managed to combine low weight with unmatchable strength.
KEY FEATURES
• New steel quality Strenx 900, combines low weight with high performance
• Optimized roll-in roll-out properties
• High pressure cylinder with double piston rod seals
www.intermercato.com

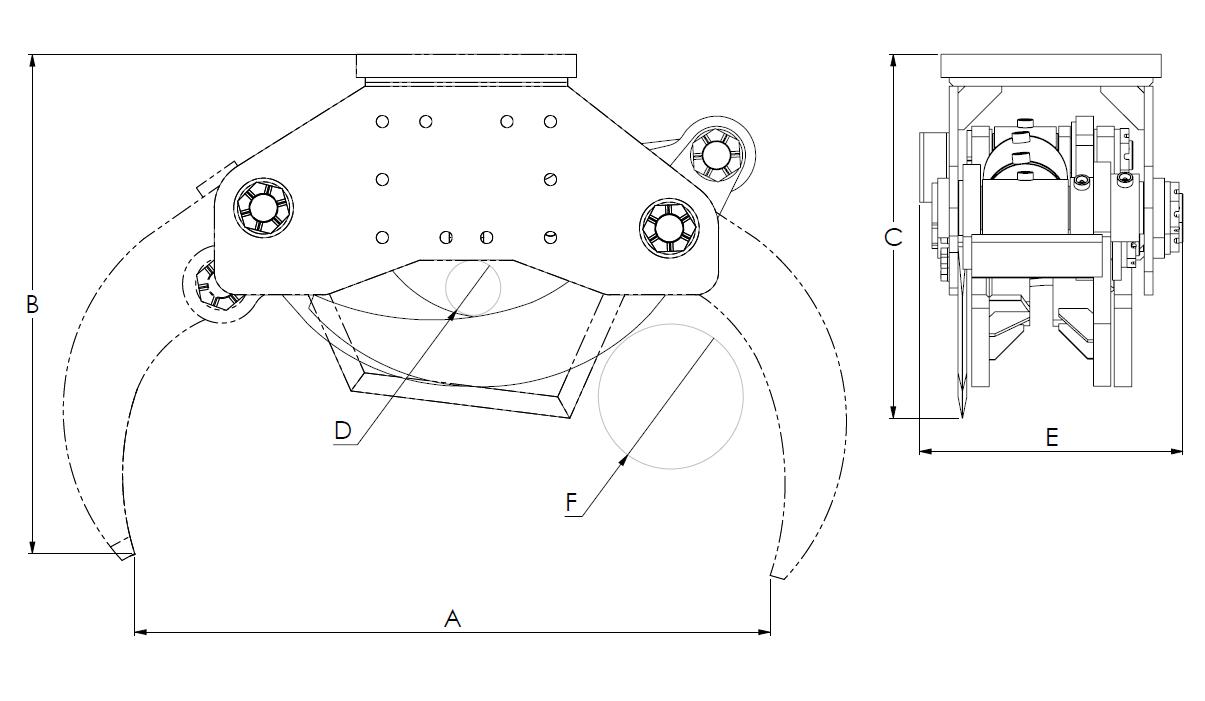

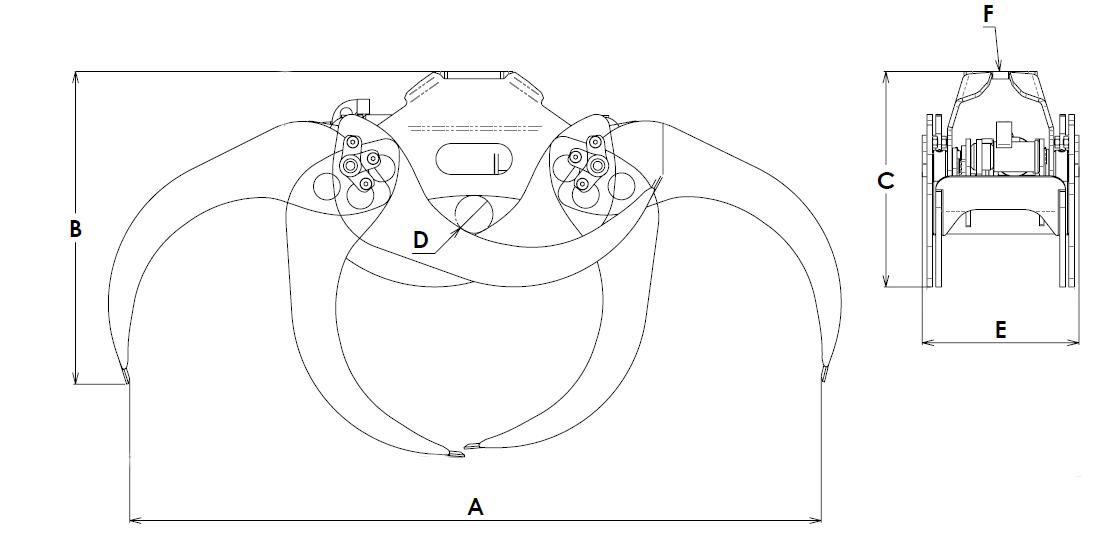

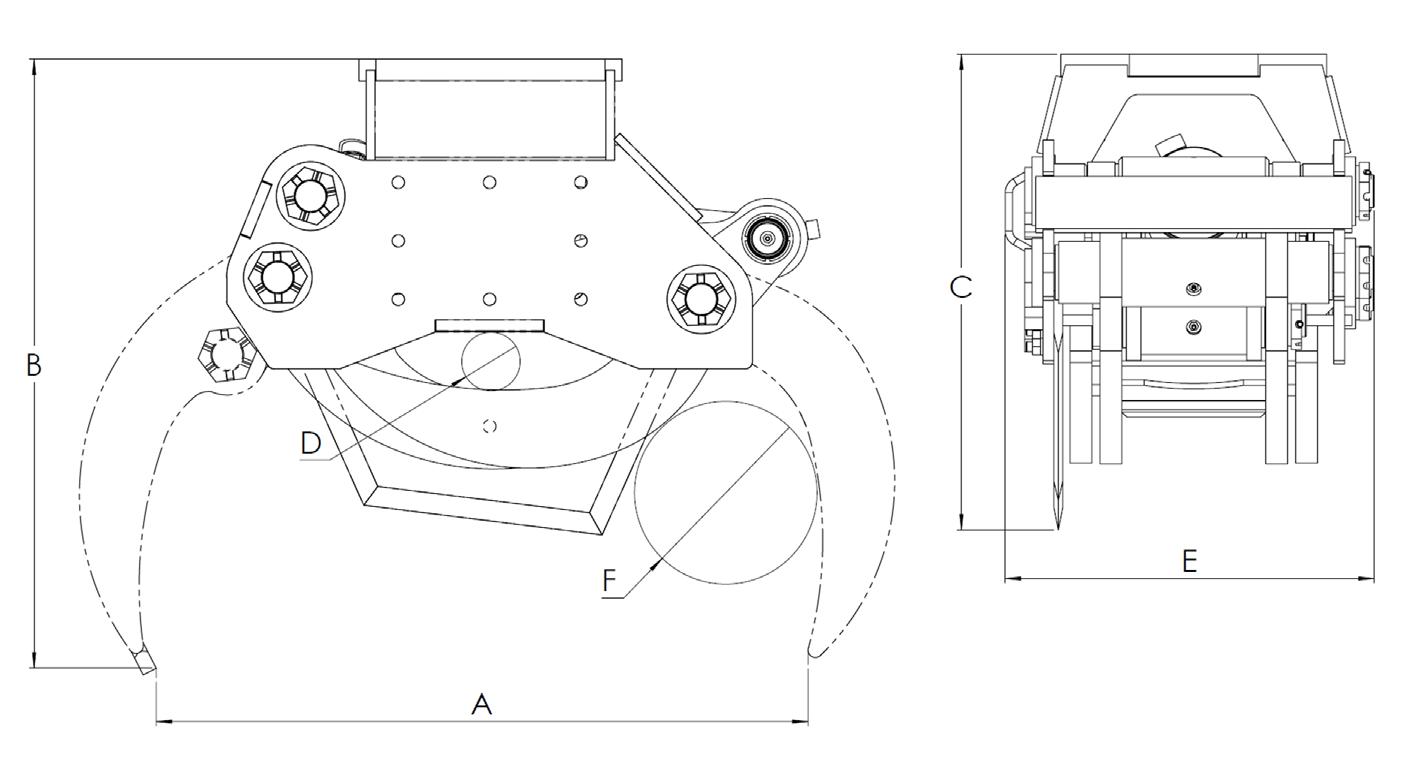

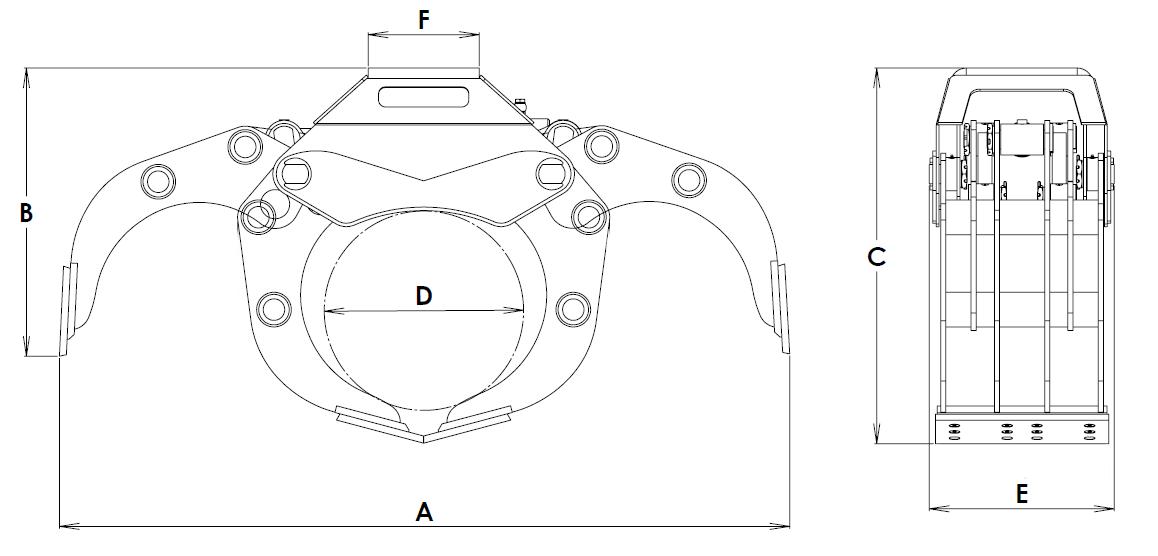

A 1550 1830 1920 2027 B 795 827 835 905 C 553 570 630 670 D 110 100 125 145 E 436 414 519 519 TG 28 Ultra TG 35 Ultra TG 40 Ultra TG 47 Ultra Nm MODEL SPECIFICATIONS Nm NmNm TG 28 Ultra 190 0,28 250 50 19,8 3 10-12 - - - Yes TG 35 Ultra 190 0,36 250 50 16,85 4 10-12 - - -TG 40 Ultra 236 0,40 250 60 19,9 4,5 10-15 - - -TG 47 Ultra 277 0,47 250 60 22,7 5 10-15 - - -Recommended machine weight and crane size
TG Standard Log grabs
The grab with optimal roll-in roll-out properties
The robust design allows heavy lifts and the double guide bars provide increased stability.
KEY FEATURES
• TG 22 PRO L up to TG 28 have claws made of Hardox®
• TG 28 has homogeneus guide bars made of Hardox®
• Optimal roll-in roll-out properties
• Cylinder with double piston rod seals for high pressure www.intermercato.com

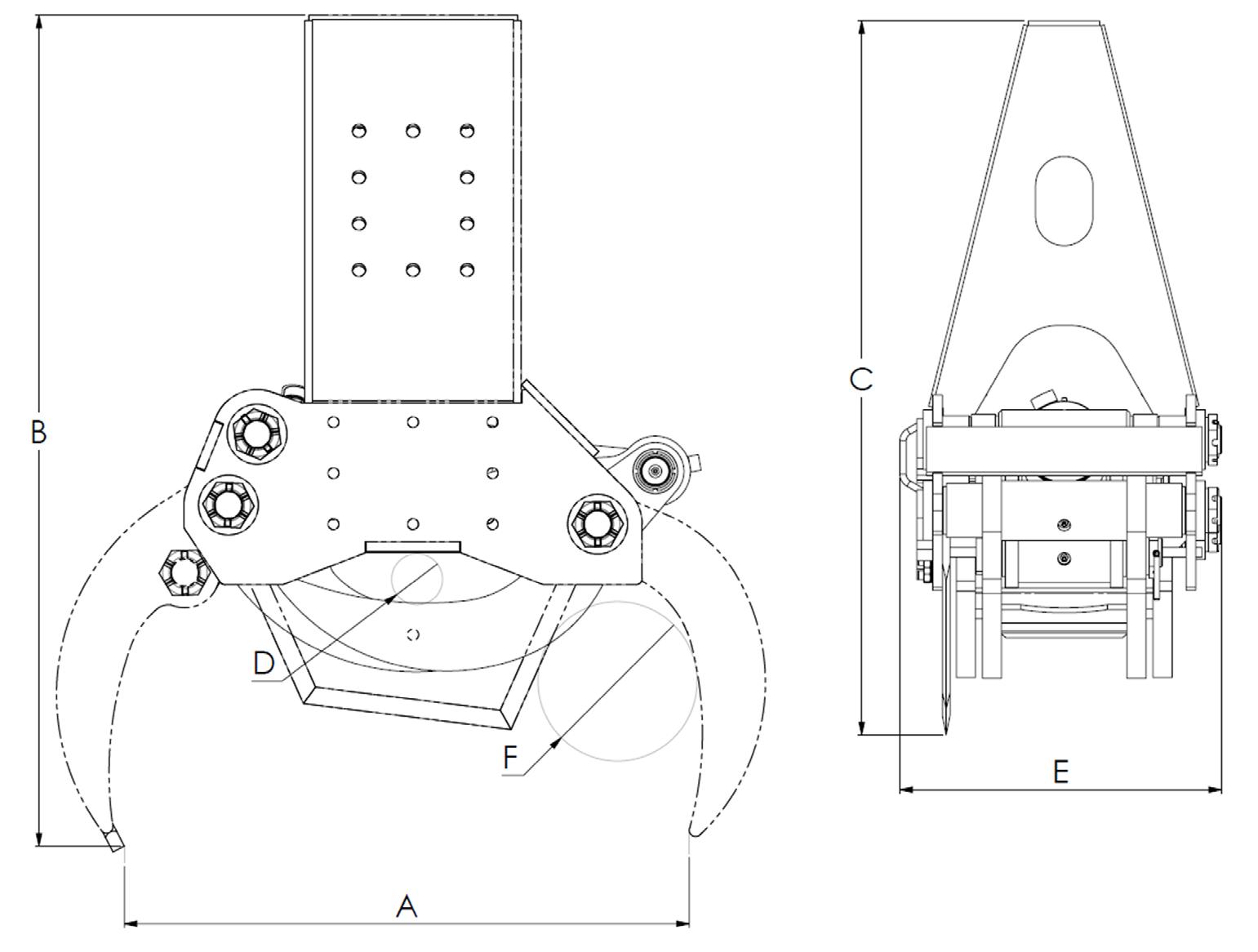

TG 08 TG 12-50 TG 16-50 TG 19-50 TG 22 TG 22-50 TG 22 PRO-L TG 23 TG 25 TG 28 A 690 765 933 1120 1287 1287 1200 1262 1450 1485 B 465 610 590 704 594 624 623 631 746 750 C 300 366 400 454 509 539 446 465 510 535 D 32 38 60 47 87 87 65 55 40 100 E 224 263 287 291 311 311 432 401 371 416
Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TG 08 25 0,08 160 15 4 0,3 0,5 1 0,5-1 -TG 12-50 44 0,12 200 30 8 0,6 2 3 1-3 -TG 16-50 50 0,16 200 35 9 0,8 2 3 1-3 -TG 19-50 67 0,18 200 40 10 1 2,5 4 1-4 -TG 22 98 0,22 200 40 13,5 1,5 3 8 2-6 -TG 22-50 98 0,22 200 40 13,5 1,5 3 8 2-6 -TG 22 PRO-L 128 0,20 250 40 14,5 2 5 10 3-10 2-5TG 23 120 0,23 200 50 13,5 1,5 3 8 2-6 -TG 25 138 0,25 200 50 11 2 3 10 3-6 -TG 28 185 0,30 250 60 16,6 3 8 14 4-8 - -

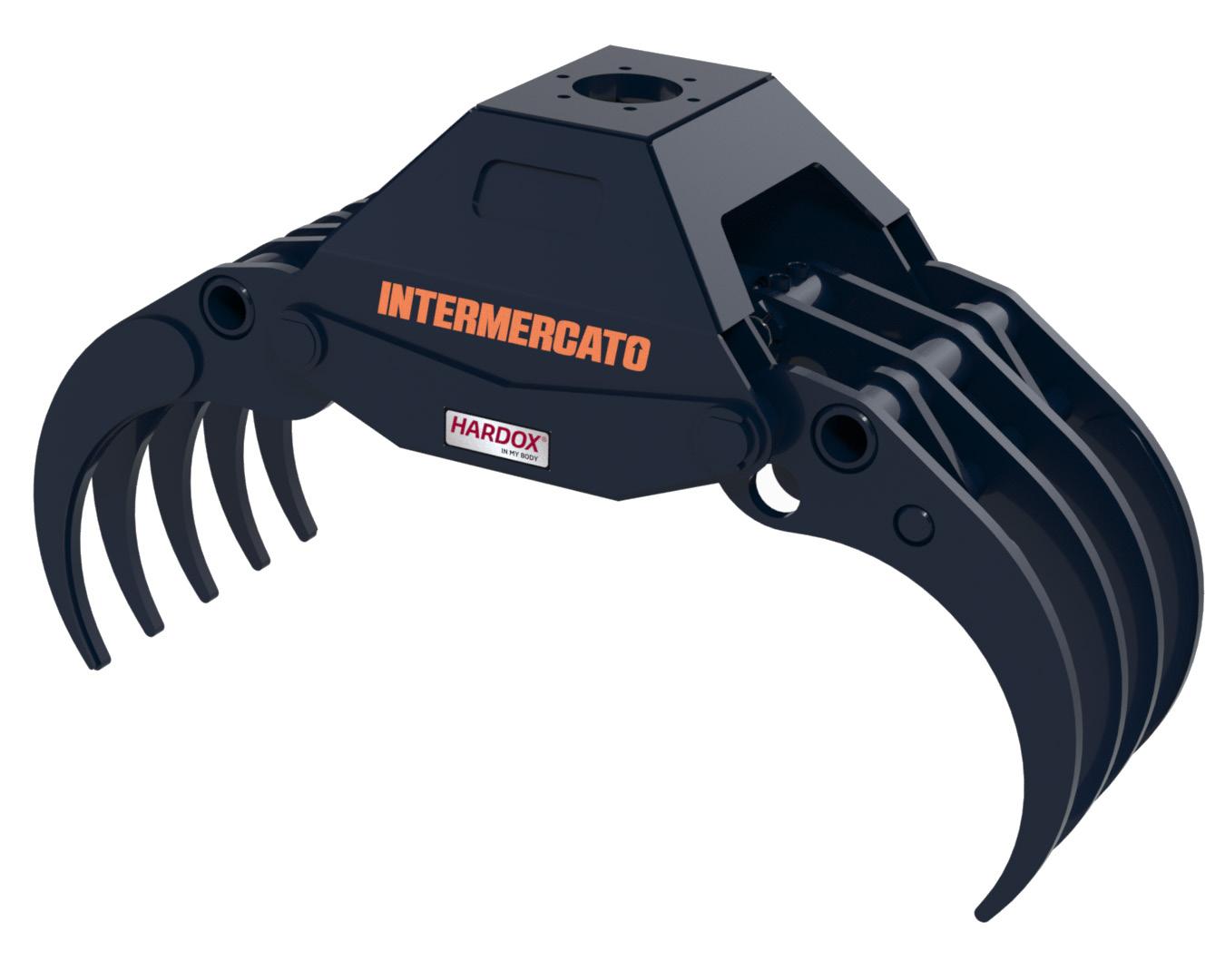

Forest residue grabs
TG SR
Forest residue grab, ideal for feeding chippers
Available with 3, 4 or 5 claws and is suitable for all types of wood waste. The larger models are so robust, they’re suitable for rigid mounting on excavator.
KEY FEATURES
• Made of Hardox®
• Reinforced body for rigid mounting
• TG 28 SR and higher + the entire PRO-series have homogeneus guide bars made of Hardox®
• Optimal roll-in roll-out properties
• Cylinder with double piston rod seals for high pressure
TG 16 SR4-50 TG 16 SR4 TG 16 PROSR4 TG 22 PROSR4 TG 25 SR3 TG 25 SR4-W TG 25 PROSR4 TG 28 SR3 TG 28 SR4 TG 35 SR4 TG 42 SR4 TG 55 SR4 A 950 950 950 1225 1493 1450 1370 1500 1500 1890 1895 2425 B 550 550 482 585 637 705 675 730 735 763 912 967 C 420 417 355 440 516 510 495 582 565 594 677 796 D 60 60 47 60 45 45 72 100 95 65 100 150 E 301 301 344 432 432 391 478 508 508 522 533 635
Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TG 16 SR4-50 67 0,16 200 35 16,7 1 3 5 1-3 -TG 16 SR4 68 0,16 200 35 16,7 1 3 5 1-3 -TG 16 PRO SR4 78 0,16 200 35 7,25 2 4 7 1-6 1-4 Yes TG 22 PRO SR4 150 0,20 250 40 14,5 3 5 10 4-10 4-6 Yes TG 25 SR3 210 0,20 250 50 28 3 8 15 6-12 6-8TG 25 SR4-W 200 0,25 250 50 12,6 3 8 15 6-12 6-8TG 25 PRO SR4 223 0,225 250 50 14,5 4 10 15 6-12 6-8 Yes TG 28 SR3 300 0,30 250 50 16,6 5 12 30 8-16 8-12 Yes TG 28 SR4 295 0,30 250 50 16,6 5 12 30 8-16 8-12 Yes TG 35 SR4 380 0,38 250 60 17,2 7 15 35 10-20 10-14 Yes TG 42 SR4 458 0,50 250 60 21,8 8 20 40 12-22 12-16 Yes TG 55 SR4 873 0,65 250 70 24,2 10 30 - 14-25 14-18 -

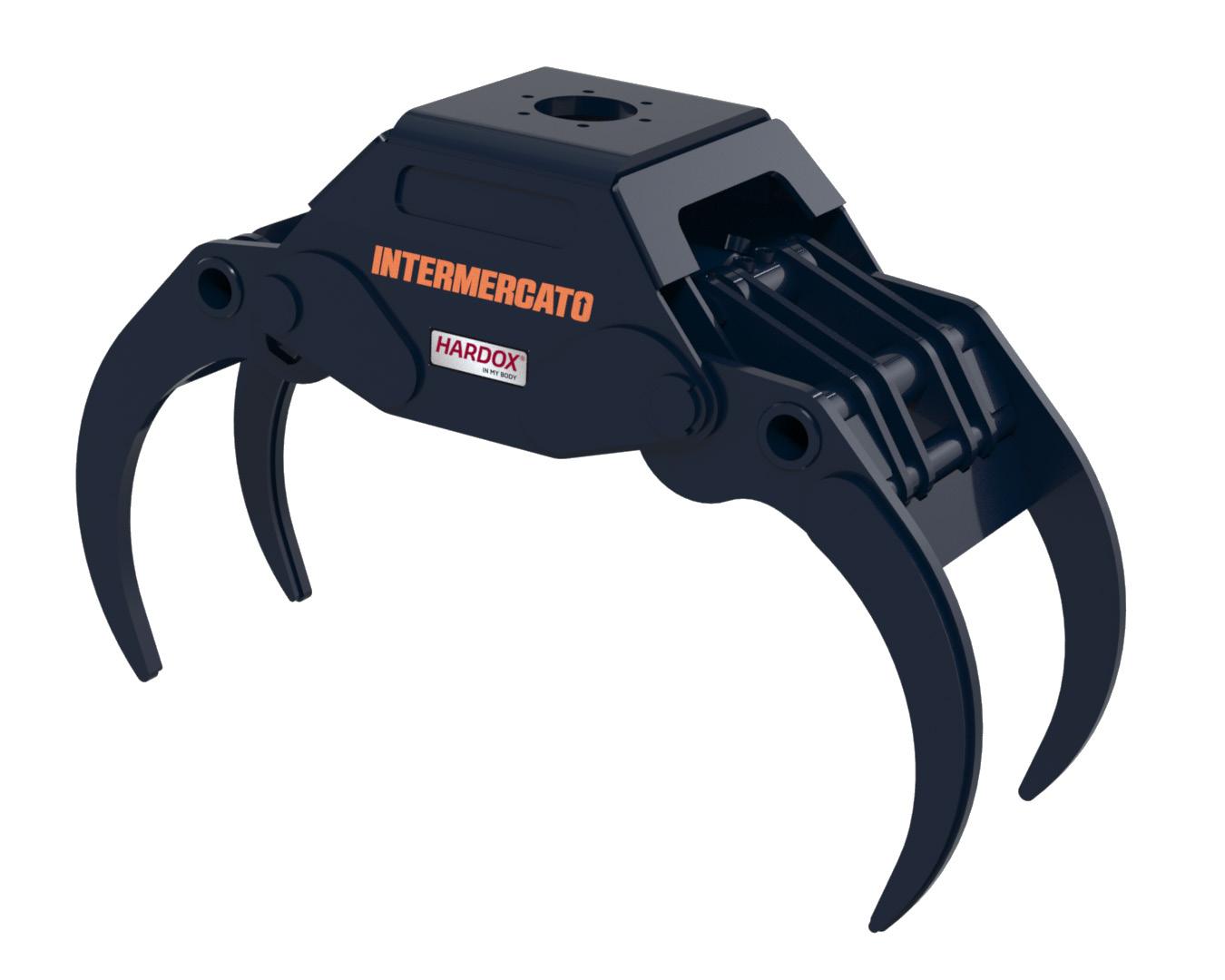

TG Heavy Duty Log grabs
Our most popular grab, designed for tough jobs Heavy Duty in its truest sense! The robust body designed for rigid mounting on excavators makes this grab a versatile tool for intense and heavy applications.
KEY FEATURES
• Made of Hardox®
• TG 28 S and higher + the entire PRO-series have homogeneus guide bars made of Hardox®
• Extra reinforced body for rigid mounting
• Optimal roll-in roll-out properties
• Cylinder with double piston rod seals for high pressure
www.intermercato.com
TG 22 S TG 22 PRO L TG 22 PRO S TG 23 S TG 25 S TG 25 PRO S TG 28 S TG 35 S TG 42 S TG 42 SM TG 55 S TG 55 SM TG 80 S TG 80 SM TG 100 SM TG 120 SM A 1287 1200 1200 1262 1450 1342 1490 1880 1831 1831 2438 2445 2780 2780 2948 3235 B 594 623 623 631 746 723 785 807 982 982 1025 1025 1176 1129 1432 1523 C 509 446 446 465 510 498 570 594 676 676 802 802 900 935 985 1047 D 87 65 65 55 40 72 100 65 100 100 150 150 170 175 175 195 E 321 432 432 411 391 482 508 522 533 533 633 633 633 632 702 891 TG 12 S TG 16 S TG 16 PRO S A 765 925 930 B 588 590 515 C 381 402 355 D 38 60 47 E 263 301 344
Nm MODEL SPECIFICATIONS Nm NmNm Recommended
TG 12 S 50 0,12 200 30 8 0,8 2 4 0,5-4 1-2TG 16 S 65 0,16 200 35 9 1 3 5 1-5 1-3TG 16 PRO S 76 0,16 200 35 7 1 4 7 1-6 1-4 Yes TG 22 S 112 0,22 200 40 13,5 2 4 7 2-6 2-4TG 22 PRO L 128 0,20 250 40 14,5 2 5 10 3-10 2-5TG 22 PRO S 144 0,20 250 40 14,5 3 5 10 4-12 4-8 Yes TG 23 S 130 0,23 200 50 13,5 2 5 7 2-8 2-5TG 25 S 171 0,25 250 50 12,6 3 8 10 4-10 3-6TG 25 PRO S 208 0,225 250 50 14,5 4 10 15 6-15 6-10 Yes TG 28 S 275 0,30 300 60 16,6 5 12 30 8-18 8-12 Yes TG 35 S 340 0,38 300 60 17,5 7 15 35 10-22 10-16 Yes TG 42 S 408 0,50 300 70 21,8 8 20 40 12-25 12-18 Yes TG 42 SM 500 0,50 300 70 21,8 10 25 - 15-30 15-25TG 55 S 760 0,65 300 90 25 10 30 - 16-30 16-20TG 55 SM 945 0,65 300 90 25 10 35 - 20-35 20-30TG 80 S 737 0,80 300 90 22 10 30 - 20-35 -TG 80 SM 1008 0,80 300 90 40 10 40 - 15-35 15-25TG 100 SM 1357 1 300 90 38 12 40 - 20-45 -TG 120 SM 2020 1,20 300 90 40 12 40 - 20-45 - -
machine weight and crane size

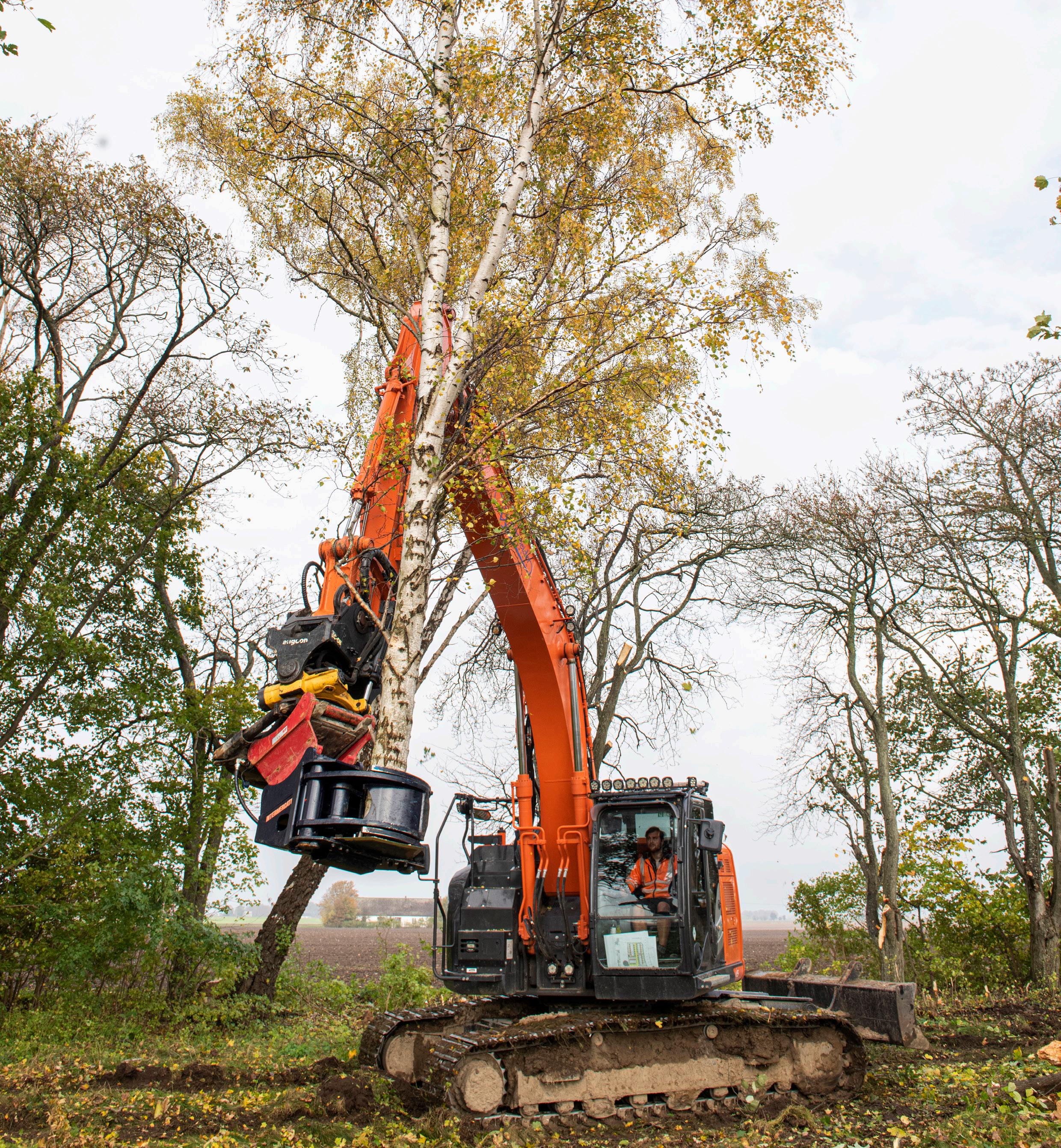

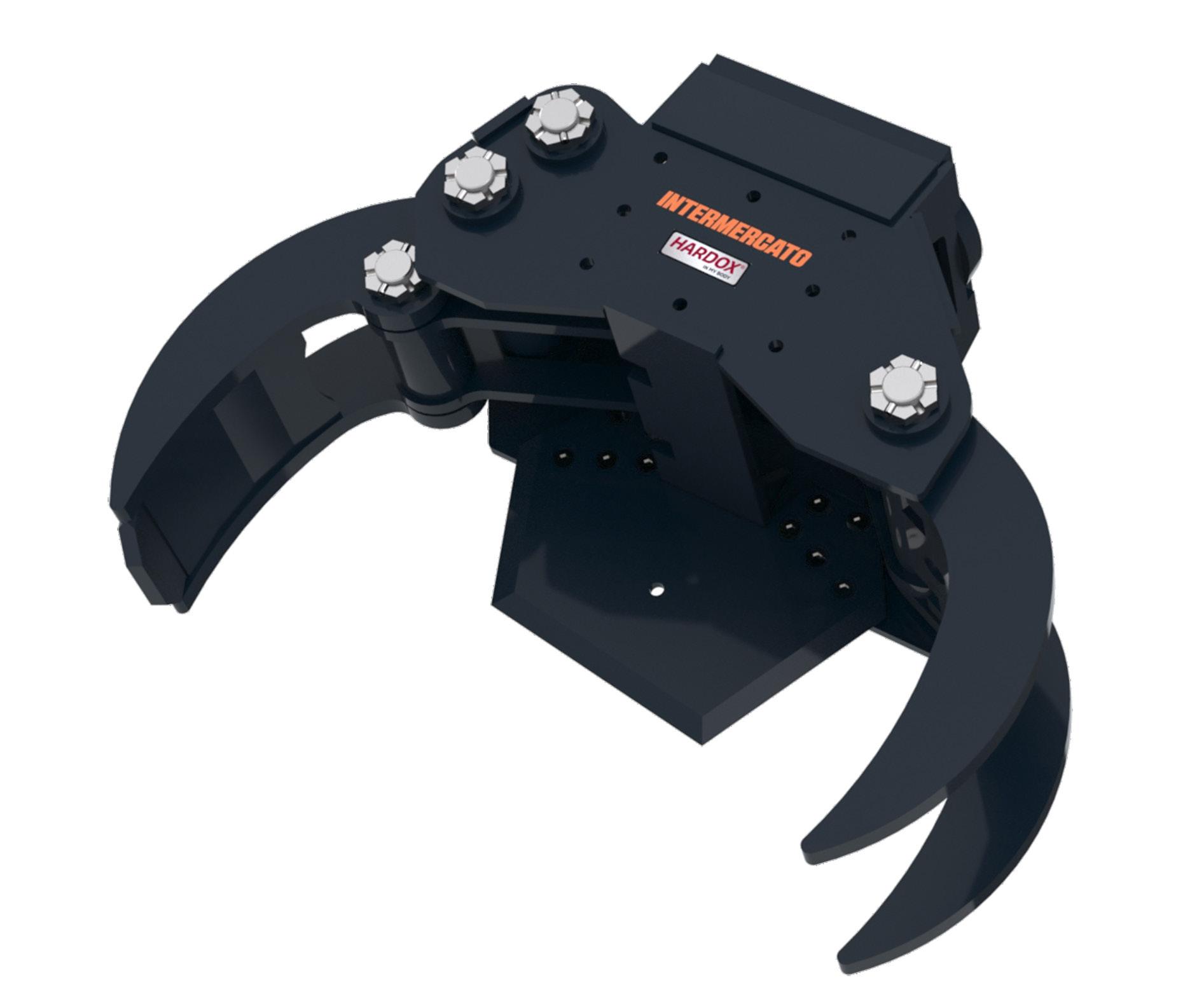

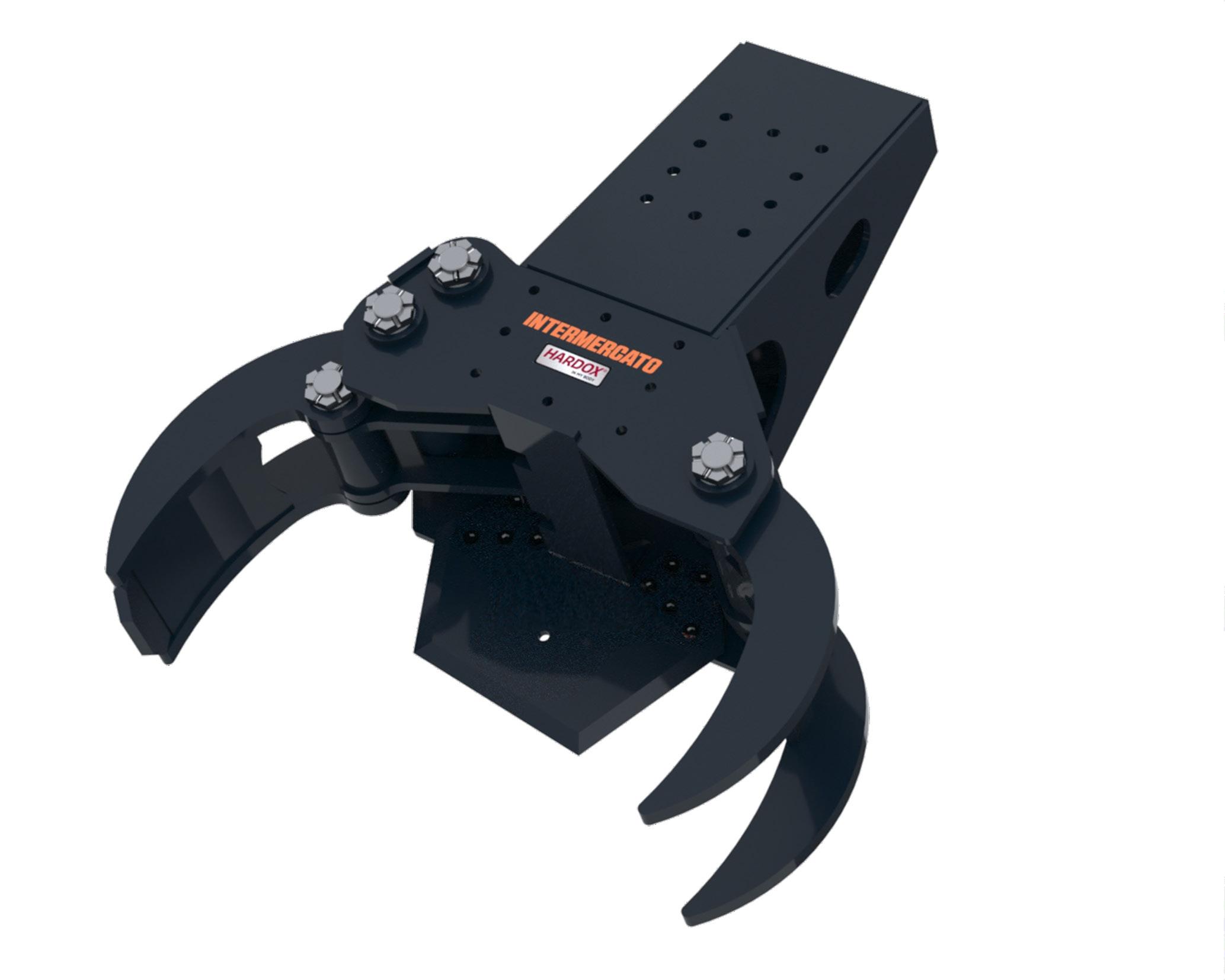

Tree shears
T-Cut for excavators
One of our most popular attachments
The Intermercato T-Cut tree shear is suitable for tough jobs thanks to its mechanically oversized construction. The cutting angle of the knife has been carefully tested to perfection.
KEY FEATURES
• Made entirely of Hardox®
• For excavator attachment and tilt rotator
• 4 claws, cuts from both angles
• Cylinder with double piston rod seals for high pressures
• Double guide bars
• BWG bushings with special alloy for extra durability
www.intermercato.com
T-Cut 18 T-Cut 25 T-Cut 30 T-Cut 40 A 660 892 1052 1375 B 1017 1303 1522 1790 C 858 1103 1285 1492 D 40 80 80 100 E 410 505 557 706 F 180 250 300 400
* Cuts up to
Accessorize your grab
The TC Collector makes your tree shear an even more efficient tool. Bolt-on. From 2021 we can also offer a tree support as an accessory for our tree shears.

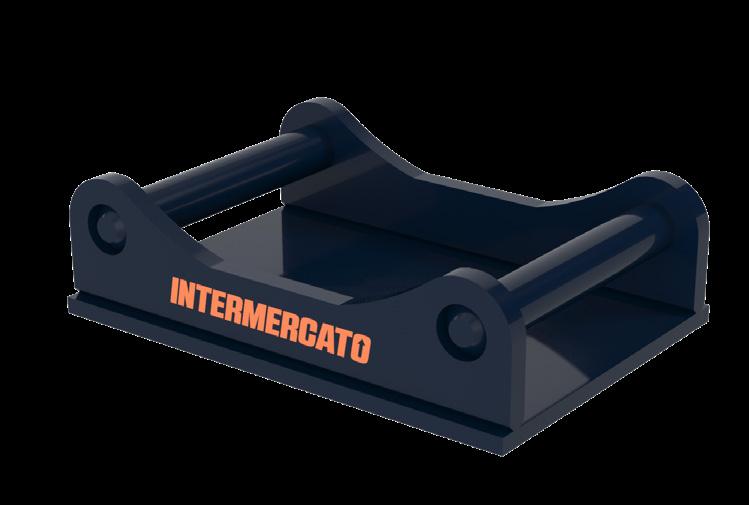

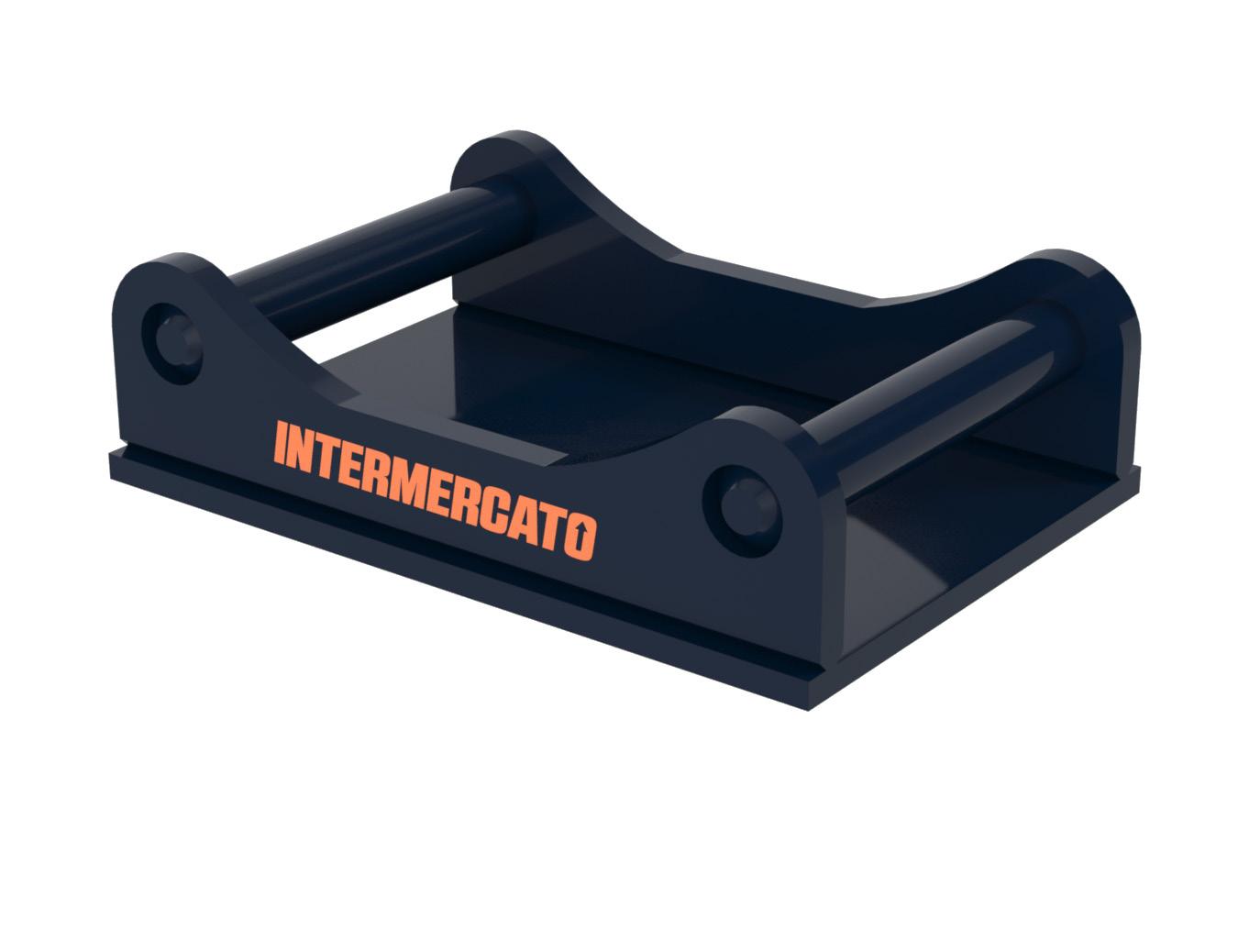

Excavator attachment
Accessorize your tree shear with an excavator attachment. We have suitable attachments for all types of excavators. We can also deliver all our grabs and clamshell buckets complete with hose kit!
Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size
Cutting diam.* Intermercato is not only grabs - Explore our complete range of products on www.intermercato.com, or contact our highly skilled sales team. T-Cut 18 170 180 250 30 43 - - - - 2-5T-Cut 25 334 250 250 60 58 - - - - 6-14T-Cut 30 513 300 250 70 88 - - - - 12-20T-Cut 40 1020 400 300 100 120 - - - - 18-36 -
TC Collector
“With Intermercato’s T-Cut 30 it’s now a piece of cake to clear areas of anything from small bush wood to larger vegetation. Perfect for cutting down trees safely. Intermercato tree shears are definitely a cut above!”
- Peter Göransson, Vallby Gräv & Schakt AB
Tree shears
TC for excavators
One of our most popular attachments
The Intermercato TC tree shear is suitable for tough jobs thanks to its mechanically oversized construction. The cutting angle of the knife has been carefully tested to perfection.
KEY FEATURES
• Made entirely of Hardox®
• For excavator attachment and tilt rotator
• Mechanically oversized construction
• Cylinder with double piston rod seals for high pressures
• Can be equipped with collector for increased productivity
www.intermercato.com
TC 210 E TC 210 E/250 TC 250 E TC 300 E A 937 937 1027 1413 B 1344 1344 1545 1956 C 1138 1138 1264 1513 D 75 75 95 85 E 360 360 433 584 F 210 250 250 300
Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TC 210 E 252 210 250 50 53 - - - - 4-10TC 210 E/250 252 250 250 50 53 - - - - 4-10TC 250 E 394 250 250 70 74 - - - - 8-18TC 300 E 904 300 300 70-100 120 - - - - 16-30Cutting diam.*
Cuts
to
*
up
Tree shears
T-Cut for rotator
One of our most popular attachments
The Intermercato T-Cut tree shear is suitable for tough jobs thanks to its mechanically oversized construction. The cutting angle of the knife has been carefully tested to perfection.
KEY FEATURES
• Made entirely of Hardox®
• For rigid mounted rotators
• 4 claws, cuts from both angles
• Cylinder with double piston rod seals for high pressures
• Double guide bars
• BWG bushings with special alloy for extra durability
T-Cut 18 R T-Cut 25 R T-Cut 30 R A 660 892 1052 B 652 828 1001 C 493 628 763 D 40 80 80 E 410 505 557 F 160 250 300
Nm MODELLSPEC. Nm NmNm Recommended machine weight and crane size Cutting diam.* T-Cut 18 R 160 180 250 30 43 - - - - 5T-Cut 25 R 280 250 250 60 58 - - - - 12T-Cut 30 R 465 300 250 70 88 - - - - 18* Cuts up to
MODEL SPECIFICATIONS

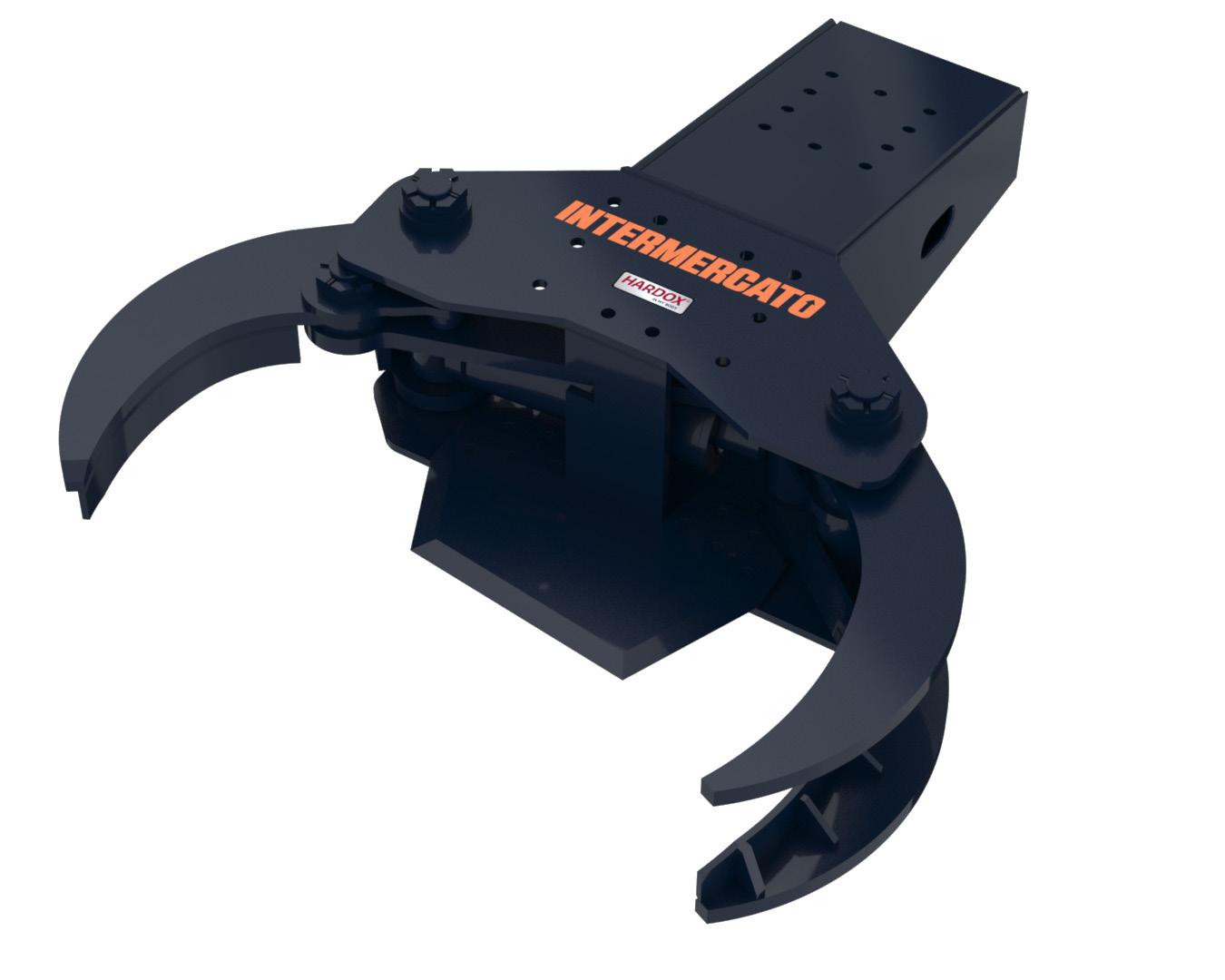

TC for rotator Tree shears
One of our most popular attachments
The Intermercato TC tree shear is suitable for tough jobs thanks to its mechanically oversized construction. The cutting angle of the knife has been carefully tested to perfection.
KEY FEATURES
• Made entirely of Hardox®
• For rigid mounted rotators
• Mechanically oversized construction
• Cylinder with double piston rod seals for high pressures
www.intermercato.com
TC 210 R TC 210 R/250 TC 250 R A 1140 1140 1096 B 780 780 899 C 572 572 635 D 75 75 95 E
F 210 250 250
375 375 434
Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size Cutting diam.* TC 210 R 208 210 250 50 53 - - - - 4-10TC 210 R/250 208 250 250 50 53 - - - - 4-10TC 250 R 335 250 250 70 74 - - - - 8-16* Cuts up to

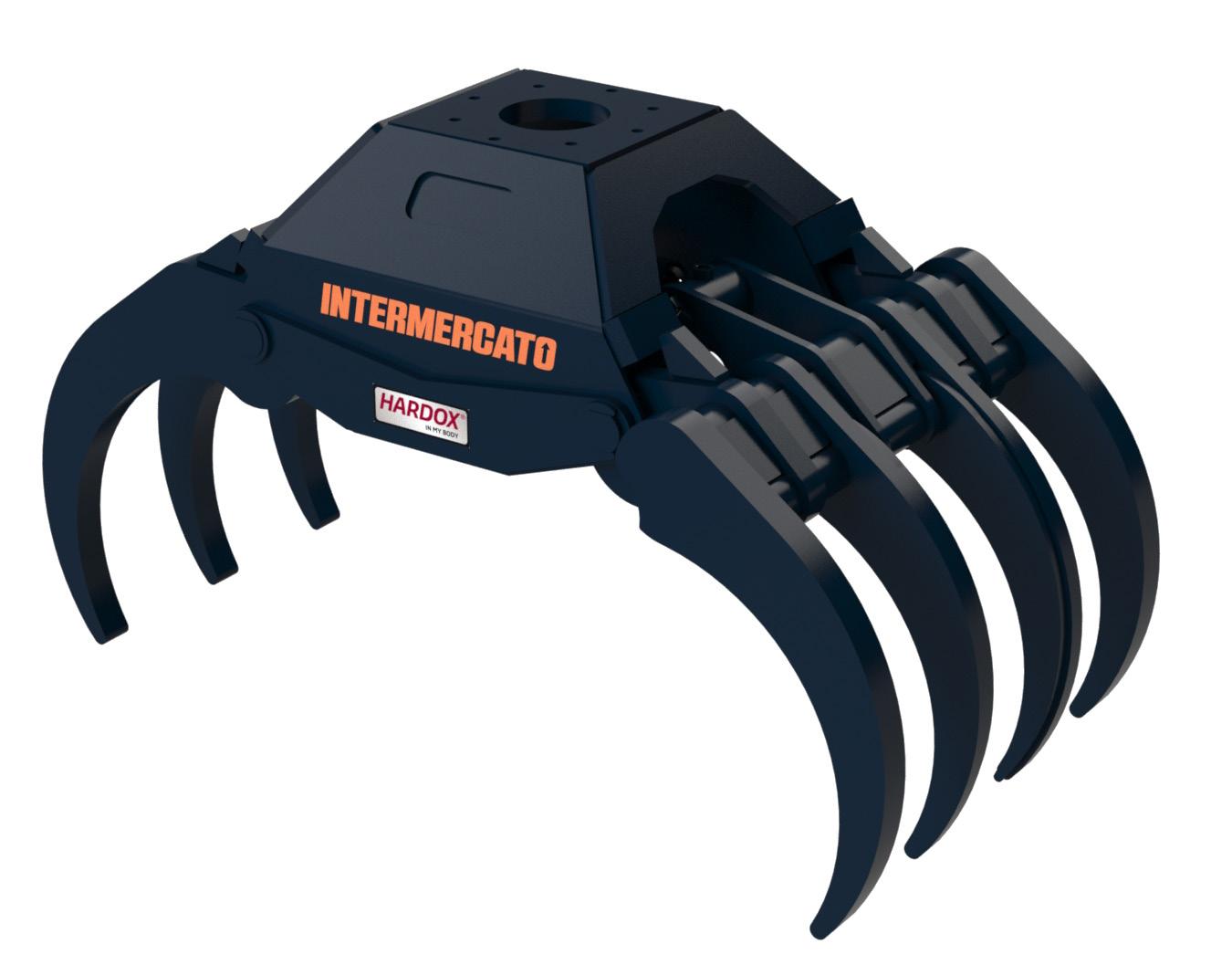

® Universal grabs

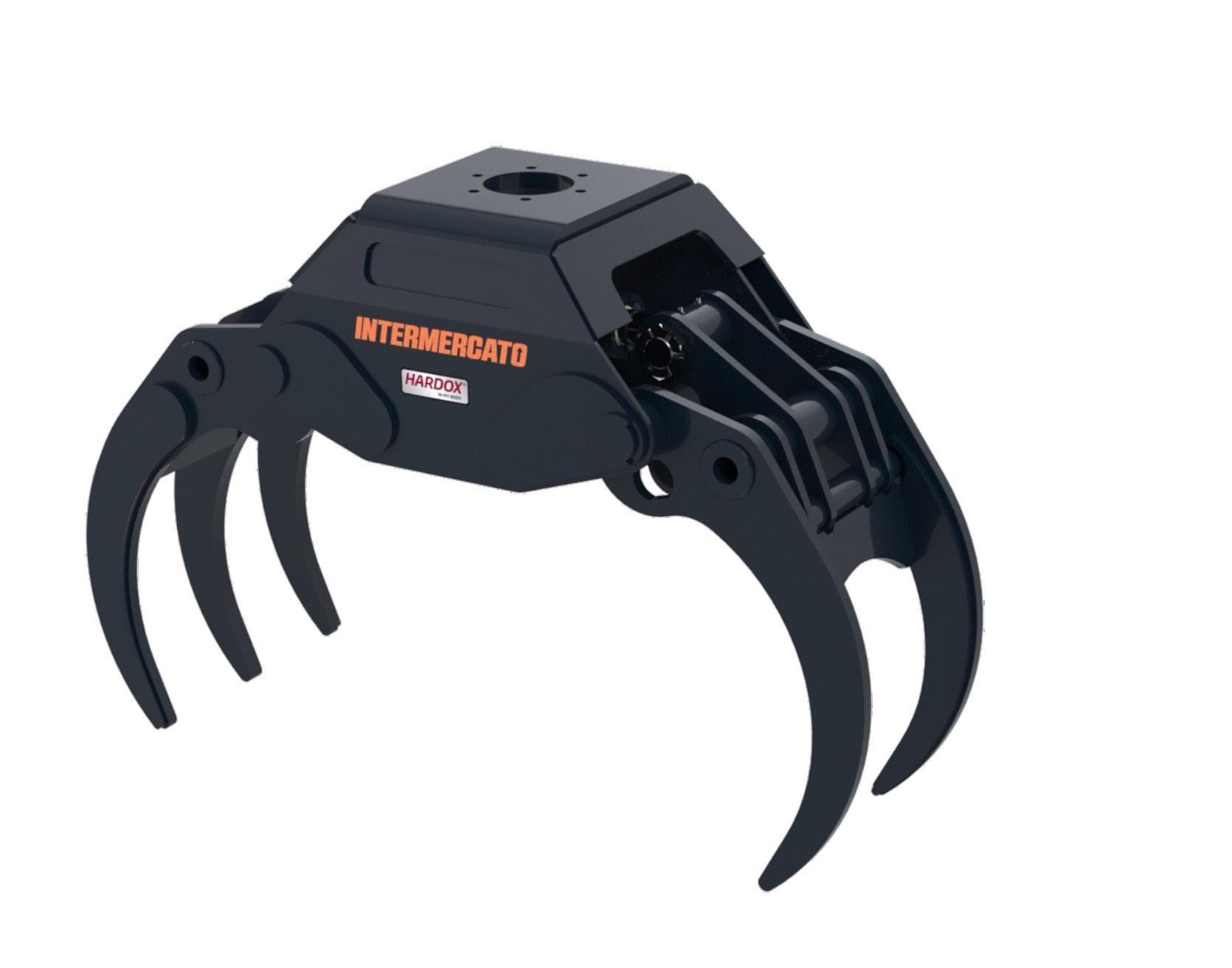

TG SR
The 5- or 7 claw all-round tool from Intermercato
Only your imagination sets the limits of this extremely versatile grab. It’s popularity speaks for itself. The TG SR is so robust, it’s suitable for rigid mounting on excavator.
KEY FEATURES
• Tillverkad i Hardox®
• Extra förstärkt ok för fast montage
• TG 28 SR och uppåt + hela PRO-serien har homogena parallellstag tillverkade i Hardox®
• Optimala in- och utrullningsegenskaper
• Cylinder med dubbla kolvstångstätningar för höga tryck
www.intermercato.com
TG 12 SR5 TG 16 SR5 TG 16 PROSR5 TG 16 PROSR7 TG 22 PROSR5 TG 25 PROSR5 TG 28 SR5 TG 35 SR5 TG 42 SR5 TG 55 SR5 A 810 933 950 950 1225 1370 1500 1890 1895 2425 B 550 590 482 482 585 675 735 763 912 967 C 350 400 355 355 440 495 565 594 677 796 D 38 60 47 50 60 72 95 65 100 150 E 273 287 344 344 432 478 508 522 533 635
Nm MODELLSPEC. Nm NmNm
TG 12 SR5 60 0,12 200 30 8 0,8 2,5 4 1-3 1-2TG 16 SR5 75 0,16 200 35 16,7 1 3 5 1-3 1-3TG 16 PRO SR5 81 0,16 200 35 7,25 2 4 7 1-6 1-4 Ja TG 16 PRO SR7 88 0,16 200 35 7,25 2 4 7 1-6 1-4 Ja TG 22 PRO SR5 156 0,20 250 40 14,5 3 5 10 4-10 4-6 Ja TG 25 PRO SR5 230 0,225 250 50 14,5 4 10 15 6-12 6-8 Ja TG 28 SR5 306 0,30 250 50 16,6 5 12 30 8-16 8-12 Ja TG 35 SR5 393 0,38 250 60 17,2 7 15 35 10-20 10-14 Ja TG 42 SR5 480 0,50 250 60 21,8 8 20 40 12-22 12-16 Ja TG 55 SR5 910 0,65 250 70 24,2 10 30 - 14-25 14-18 -
Rekommenderad
maskinvikt och kranstorlek

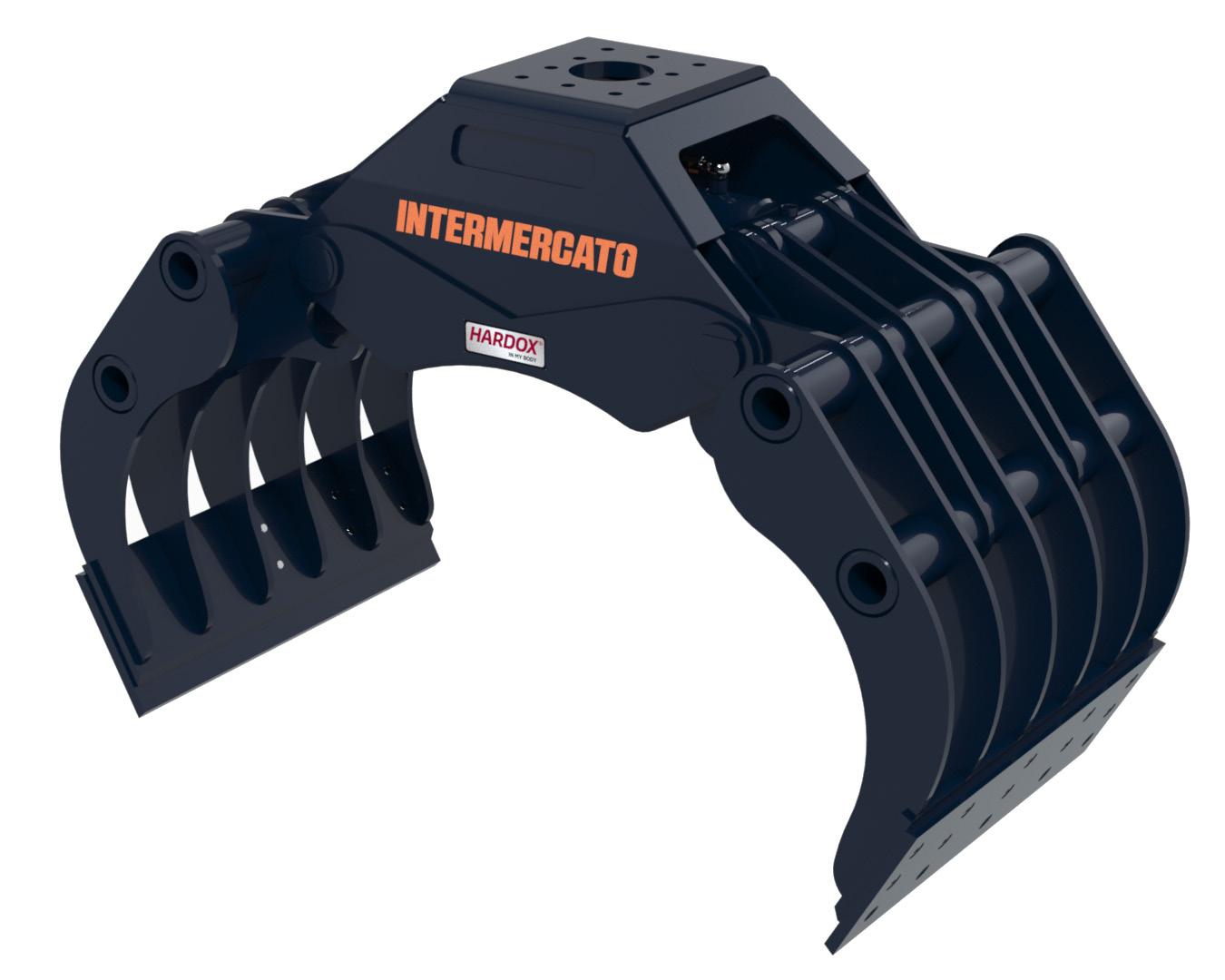

Universal grabs
GX
The original and bestseller from Intermercato
Our next to indestructible universal grab “cleaned up after the storm Gudrun” and has ever since been frequently copied. Intermercato GX is truly convincing with its extremely solid design and powerful claws. Perfect as grapple saw for rigid mounting.
KEY FEATURES
• Made of Hardox®
• Homogeneus guide bars made of Hardox®
• Extremely powerful claws
• Optimal roll-in roll-out properties
• Cylinder with double piston rod seals for high pressure
www.intermercato.com
GX 22-30/5 GX 22-50/5 GX 28-50/7 GX 28-50/5 GX 2850/1000 GX 36-50/7 GX 36-50/5 GX 55-50/7 GX 55-50/5 A 1056 1056 1471 1485 1471 1800 1800 2295 2295 B 870 870 783 783 783 910 910 1100 1100 C 613 613 622 658 622 720 720 828 828 D 100 100 100 130 100 135 135 145 145 E 658 658 760 632 1000 1000 658 1010 1010
DEFINITELY A BEAST.
Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size GX 22-30/5 405 0,22 250 60 17 4 - - 6-12 6-10GX 22-50/5 420 0,22 250 60 17 4 - - 6-14 7-12GX 28-50/7 557 0,28 300 60 20 8 - - 10-20 12-18GX 28-50/5 490 0,28 300 60 20 8 - - 10-20 12-18GX 28-50/1000 575 0,28 300 60 20 8 - - 10-20 12-18GX 36-50/7 860 0,36 300 60 20,5 10 - - 16-30 18-24GX 36-50/5 727 0,36 300 60 20,5 10 - - 16-30 18-24GX 55-50/7 1805 0,50 300 60 50 12 - - 22-45 22-32GX 55-50/5 1660 0,50 300 60 50 12 - - 22-45 22-32 -

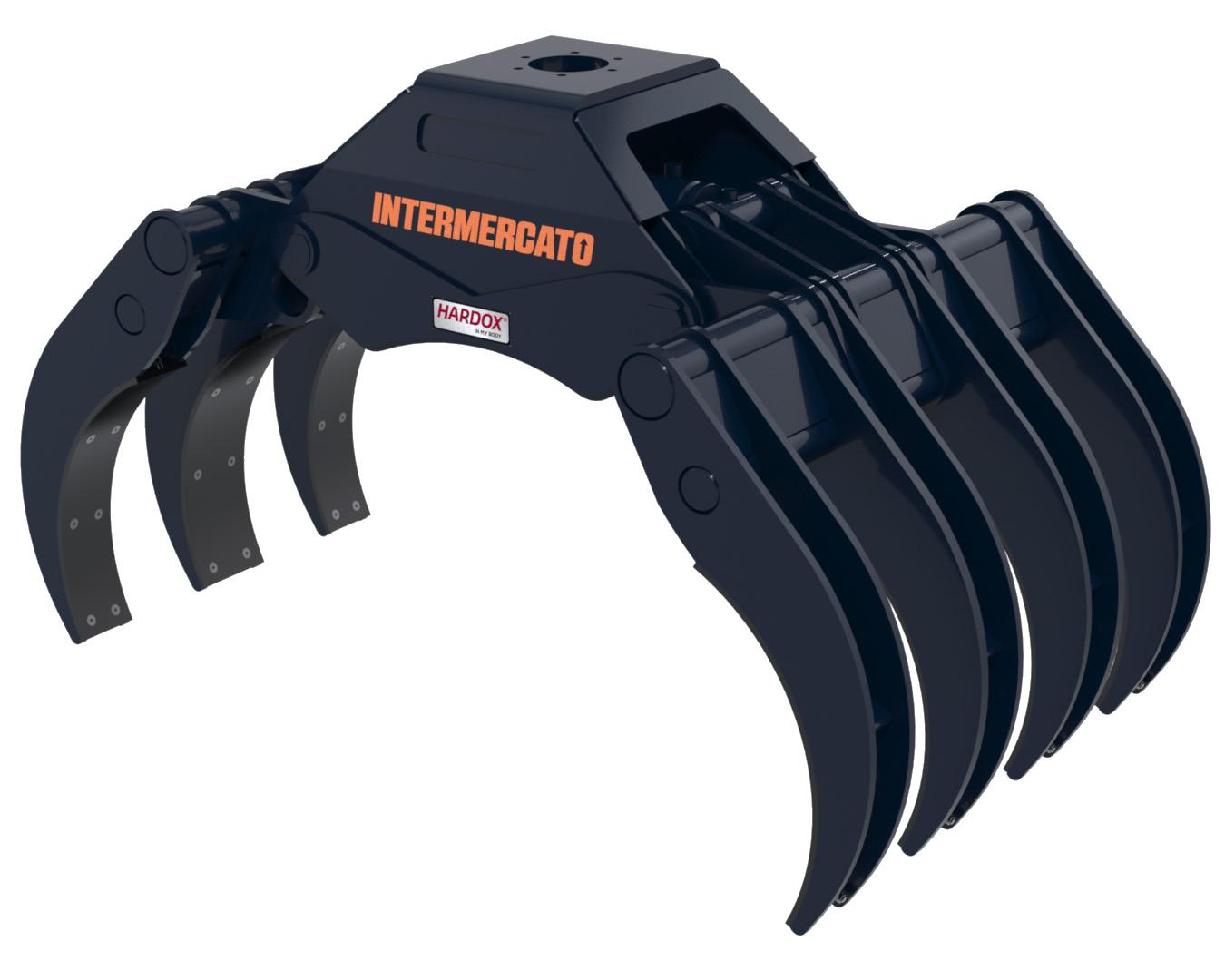

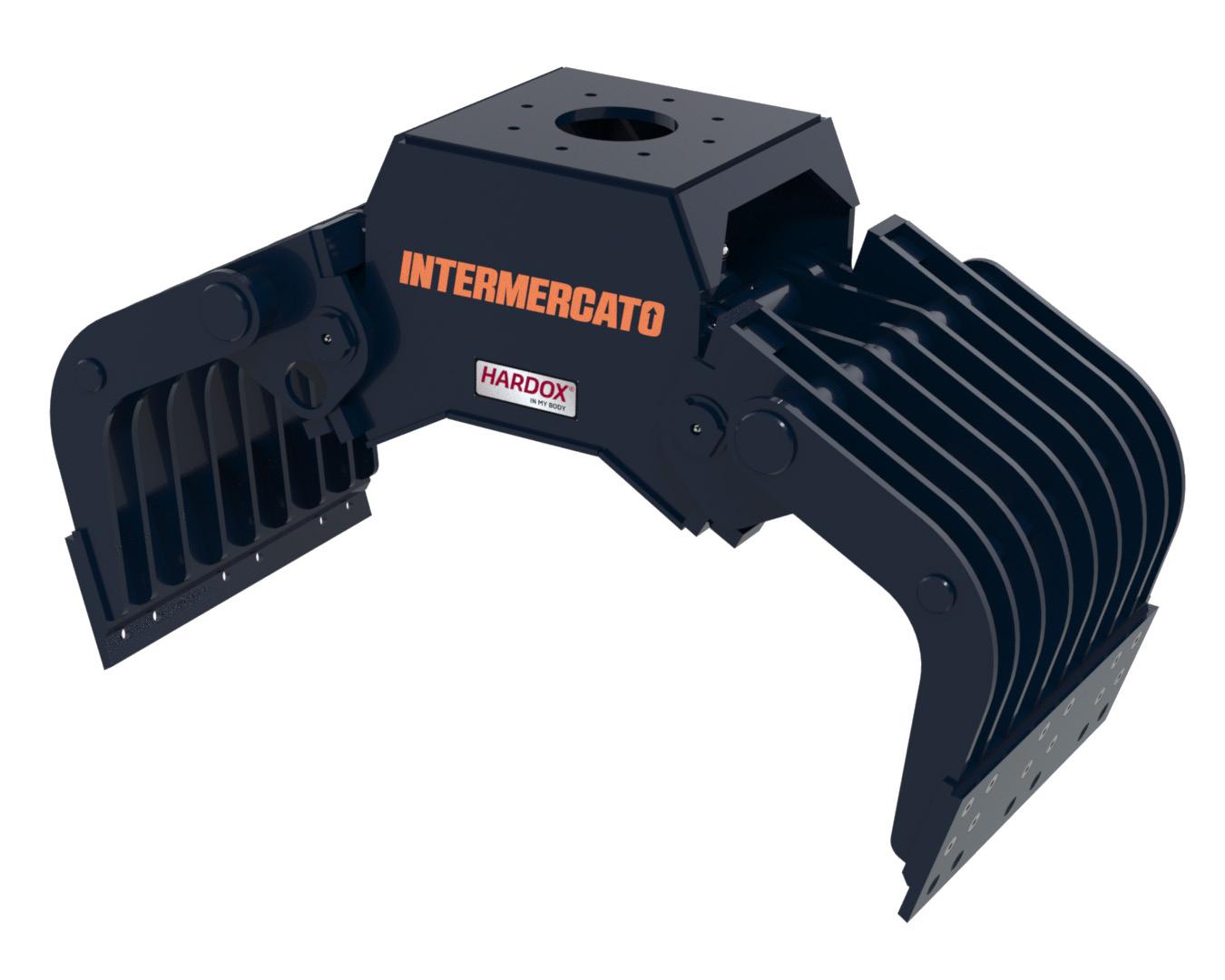

TG UG Universal grabs
Everything from log and stone handling to recycling Intermercato TG UG is a true all-round tool. It’s lighter and has a shorter distance between the claws than the GX. TG UG handles logs just as well as household and industrial waste.
KEY FEATURES
• Made of Hardox®
• TG 22 UG/9 and higher have homogeneus guide bars made of Hardox®
• Optimal roll-in roll-out properties
• Cylinder with double piston rod seals for high pressure
www.intermercato.com

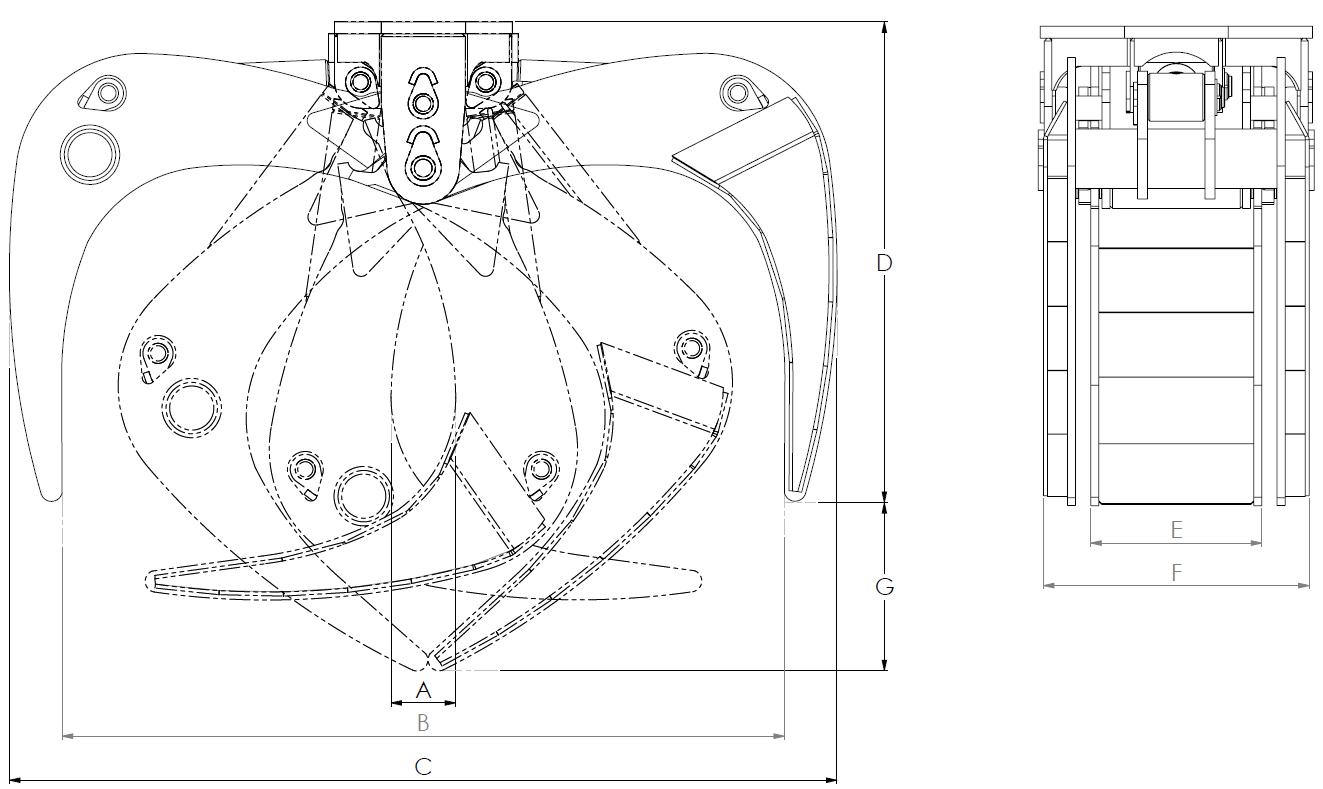

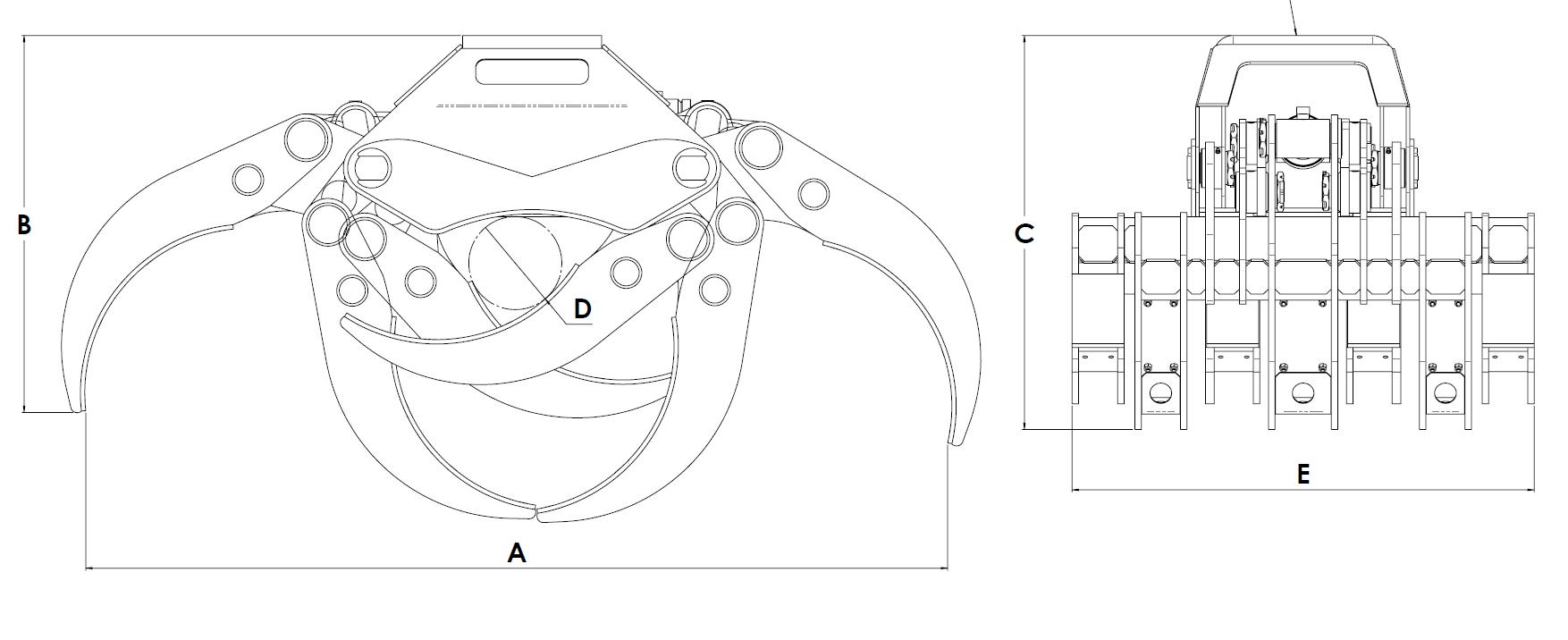

E C F A B D TG 12 UG/7 TG 22 UG/9 A 703 1085 B 590 853 C 342 582 D 40 135 E 287 568 Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TG 12 UG/7 56 0,12 200 30 8 0,6 2 - 0,5-2 1-5TG 22 UG/9 298 0,22 250 60 17 3 10 - 4-10 4-7 -
Multi grabs
TG MP
Sorting, digging, tearing - a true multi purpose tool! Extremely solid grab that combines the characteristics of a demolition/sorting grab and a clamshell bucket. The carefully tested geometry and oversized cylinder give it an outstanding gripping force.
KEY FEATURES
• Made entirely of Hardox®
• Very strong body
• Reversible teeth (TG 15 MPTG20 MP) and welded cutting edges
• Check valve as standard
• BWG bushings with special alloy for extra durablitiy
• Oversized cylinder with double piston rod seals for high pressure
www.intermercato.com
TG 05 MP TG 15 MP TG 18 MP TG 20 MP A 904 1160 1418 1560 B 457 600 686 802 C 500 698 772 925 E 300 392 476 532 Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TG 05 MP 86 0,02 250 20 12,4 - - - - 1-4TG 15 MP 170 0,14 250 40 17,5 - - - - 4-8TG 18 MP 295 0,18 250 50 18,5 - - - - 8-12TG 20 MP 400 0,20 300 60 33 - - - - 12-16 -
Light sorting grabs
TG EG
For sorting and lighter demolition work
For a light weight stone and sorting grab the Intermercato TG EG is very robust and offers great value for money. Size range to fit excavators from 1 up to 32 tm.
KEY FEATURES
• Made of Hardox®
• TG 22 EG and higher have homogeneus guide bars made of Hardox®
• Accumulator and check valve as standard
• Cylinder with double piston rod seals for high pressure
www.intermercato.com
TG 16 EG TG 22 EG TG 28 EG TG 35 EG-800 TG 42 EG TG 42 EG-800 TG 55 EG A 960 1278 1636 1925 2107 2107 2785 B 494 593 690 742 832 832 741 C 574 748 875 988 1084 1084 1248 D 285 337 420 500 572 572 710 E 344 432 518 800 533 800 1120
Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TG 16 EG 93 0,077 200 30 6,7 1 - - - 1-5TG 22 EG 185 0,12 250 40 14 2 - - - 4-10TG 28 EG 355 0,20 250 50 18,5 5 - - - 8-14TG 35 EG-800 580 0,26 250 60 24 6 - - - 10-18TG 42 EG 520 0,34 250 60 24 8 - - - 14-22TG 42 EG-800 670 0,34 250 60 24 8 - - - 14-22TG 55 EG 1125 0,47 300 70 34 10 - - - 22-32 -

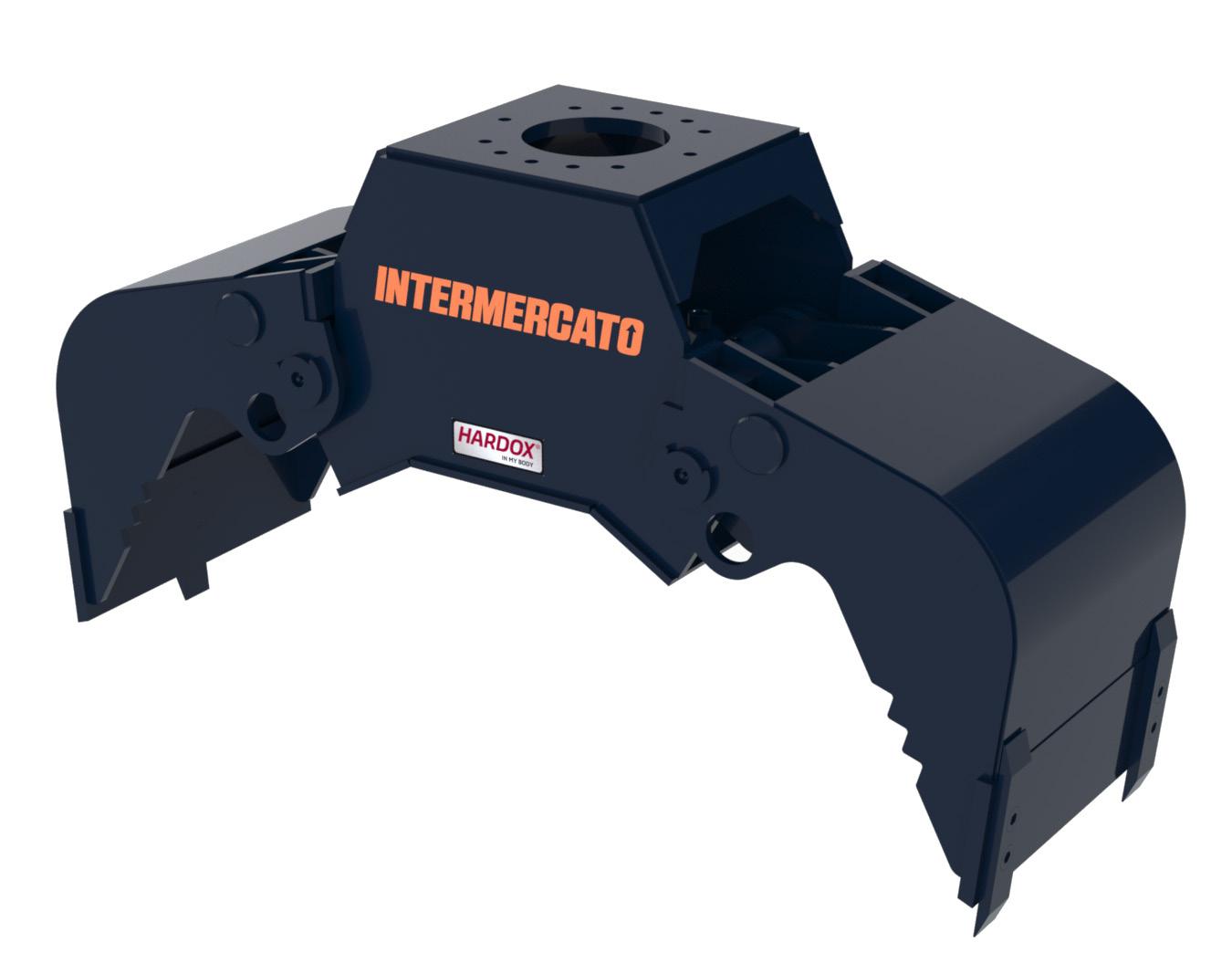

Demolition grabs
TG DG
LOTS of steel!
Intermercato’s heavy duty TG DG is an incredibly robust demolition grab, designed with many laths and lots of steel. This, in combination with a carefully tested geometry and oversized cylinder makes it almost indestructable.
KEY FEATURES
• Made entirely of Hardox®
• Torsionally rigid thanks to many steel laths
• Reversible cutting edges
• Check valve as standard
• BWG bushings with special alloy for extra durablitiy
• Oversized cylinder with double piston rod seals for high pressure
www.intermercato.com
TG 15 DG TG 18 DG TG 20 DG TG 20 DGW TG 25 DGL TG 25 DG TG 30 DG A 1154 1430 1556 1556 1936 1936 2347 B 535 632 737 737 893 893 1057 C 661 745 897 897 1095 1095 1297 D 315 370 430 430 530 530 650 E 390 532 532 700 800 800 1000
Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TG 15 DG 190 0,14 250 40 17,5 - - - - 4-8TG 18 DG 340 0,18 250 50 18,5 - - - - 8-12TG 20 DG 495 0,20 300 60 30 - - - - 10-16TG 20 DGW 575 0,20 300 60 30 - - - - 10-16TG 25 DGL 810 0,35 300 60 57 - - - - 16-24TG 25 DG 900 0,35 300 60 57 - - - - 18-28TG 30 DG 1465 0,50 300 60 69 - - - - 22-32 -
TG ST & SR Stone grabs
One of our oldest products - a faithful servant! Grapple for all sorts of paving work. 3 claws make handling natural stone a piece of cake!
KEY FEATURES
• Made of Hardox®
• Suitable for mounting on cranes or rigid mounting on excavators
• 3 claws - perfect for handling natural stone
• Cylinder with double piston rod seals for high pressure
www.intermercato.com
TG 16 ST TG 22 ST TG 25 SR3 TG 25 SR4 TG 28 SR3 A 785 1035 1203 1460 1500 B 620 780 637 637 730 C 382 518 516 516 582 D 65 85 45 45 100 E 330 350 423 423 508 Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TG 16 ST 65 0,16 200 40 9 1 3 2 1-3 1-2TG 22 ST 125 0,22 200 50 13,5 1,5 4 3 2-6 1-3TG 25 SR3 213 0,20 250 50 12,6 3 10 7 6-8 3-7TG 25 SR4-W 230 0,20 250 50 12,6 3 10 7 6-8 3-7TG 28 SR3 300 0,30 250 60 16,6 5 15 12 6-16 6-12 -
Pole grabs
TG PG
For safe handling of poles and pipes
Intermercato’s pole grab is extra wide and the inside of the claws have an interchangeable bolt-on surface layer made of PU for extra gentle handling. Perfectly suitable under worm drive or tilt rotator.
KEY FEATURES
• Made of Hardox®
• Homogeneous guide bars made of Hardox®
• Claws with bolt-on surface layer made of PU
• Suitable for mounting on cranes or rigid mounting on excavators
• Cylinder with double piston rod seals for high pressure
www.intermercato.com
TG 16 PG TG 25 PG TG 42 PG A 870 1255 1986 B 402 705 869 C 410 780 908 D 105 170 220 E 635 885 1065 Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TG 16 PG 92 - 200 40 6,7 1 - 6-28 1-5 1-4TG 25 PG 300 - 250 50 14,5 3 - 12-32 3-10 3-8TG 42 PG 693 - 250 60 23,6 5 - 25-50 10-22 10-20 -

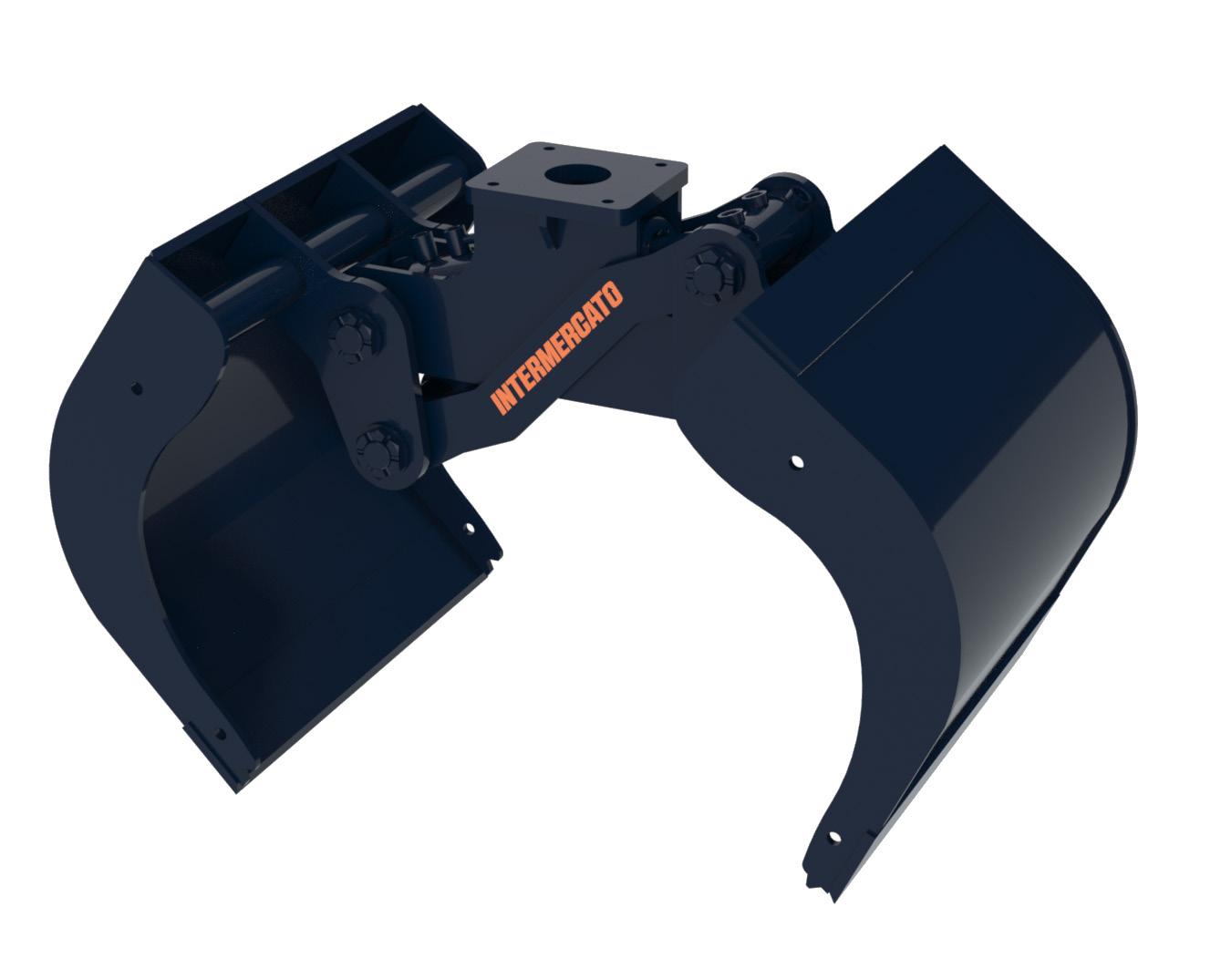

Universal grabs
TGO
The bestseller TGO - Lot of bucket for your money
Our open clamshell bucket with optional side plates is an all-round tool in its truest sense. The carefully tested, extremely robust design with shafts through the whole width of the body makes the TGO very durable and torsionally rigid.
KEY FEATURES
• Made of Hardox®
• Reversible cutting edges made of Hardox®
• 2 t lifting hooks
• Check valve as standard
• Double guide bars
• BWG bushings with special alloy for extra durability
• Cylinder with double piston rod seals www.intermercato.com
TGO 500-2/SM TGO 650-2/SM TGO 800-2/SM TGO 900-2/SM TGO 1000-2/SM TGO 1200-2/SM A 1739 1739 1739 1739 1739 1739 B 578 578 578 578 578 578 C 1095 1095 1095 1095 1095 1095 E 500 650 800 900 1000 1200
Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TGO 500-2/SM 315 200 300 60 25 3 - 12-32 - -TGO 650-2/SM 340 300 300 60 25 3 - 12-32 - -TGO 800-2/SM 370 400 300 60 25 3 - 12-32 - -TGO 900 390 450 300 60 25 3 - 12-32 - -TGO 1000 405 500 300 60 25 3 - 12-32 - -TGO 1200 440 600 300 60 25 3 - 12-32 - - -
Volume grabs
TVG
Extremely robust and torsionally rigid volume grab TVG volume grab for cargo cranes and recycling cranes is equipped with a powerful cylinder for very high gripping force. The body has the same width as the buckets which makes it extra torsionally rigid.
KEY FEATURES
• Reversible cutting edges made of Hardox®
• Extra torsionally rigid thanks to the wide body
• Welded lifting schackles
• Check valve as standard
• Very powerful cylinder with double piston rod seals for high pressure
www.intermercato.com TVG 650 TVG 800 TVG 1000 A 1862 1862 1862 B 837 837 837 C 1310 1310 1310 E 650 800 1000 Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TVG 650 410 350 250 60 28 3 - 12-32 10-15 -TVG 800 475 400 250 60 28 3 - 12-32 10-15 -TVG 1000 520 500 250 60 28 3 - 12-32 10-16 - -
TCB HD Volume grabs
Extremely strong volume grab for excavators
The heavy duty volume grab from Intermercato has the same body as our DG demolition grabs and is available in 560-1300 l. Oversized dimensions for heavy duty jobs. Special clamshell width on request.
KEY FEATURES
• Welded cutting edges made of Hardox®
• Body made of Hardox®
• Homogeneus guide bars made of Hardox®
• Torsionally rigid
• High gripping force
• BWG bushings with special alloy for extra durability
D TCB 20 HD 1000 TCB 20 HD 1250 TCB 25 HD 1000 TCB 25 HD 1500 A 1515 1944 2236 2245 B 790 790 902 924 C 1094 1094 1246 1247 E 1000 1250 1000 1500 Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TCB 20 HD 1000 520 560 300 60 16 30 - - 12-22 -TCB 20 HD 1250 560 700 300 60 16 30 - - 12-22 -TCB 25 HD 1000 920 1000 300 60 27,5 - - - 18-30 -TCB 25 HD 1500 1070 1300 300 60 32 - - - 18-32 - -

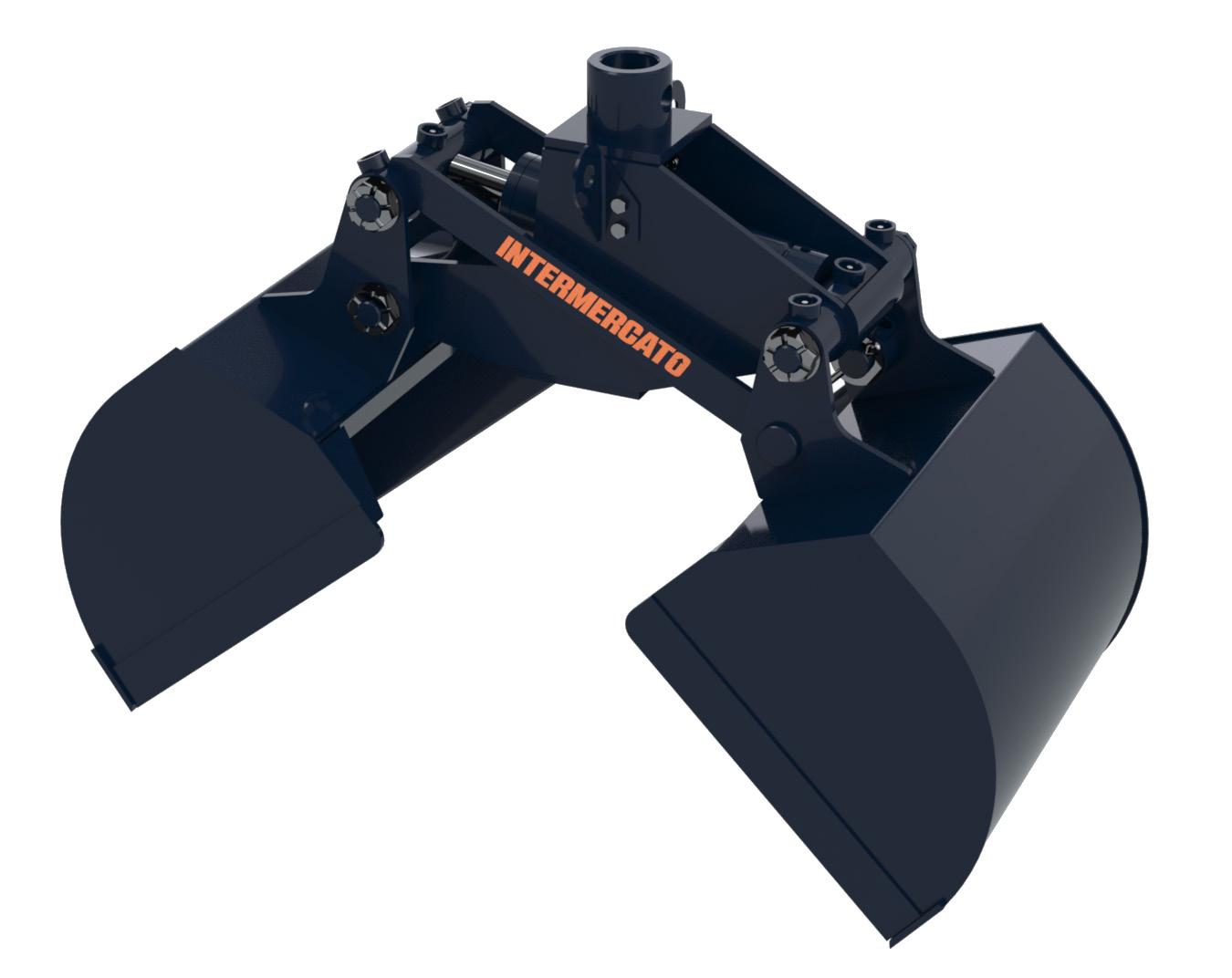

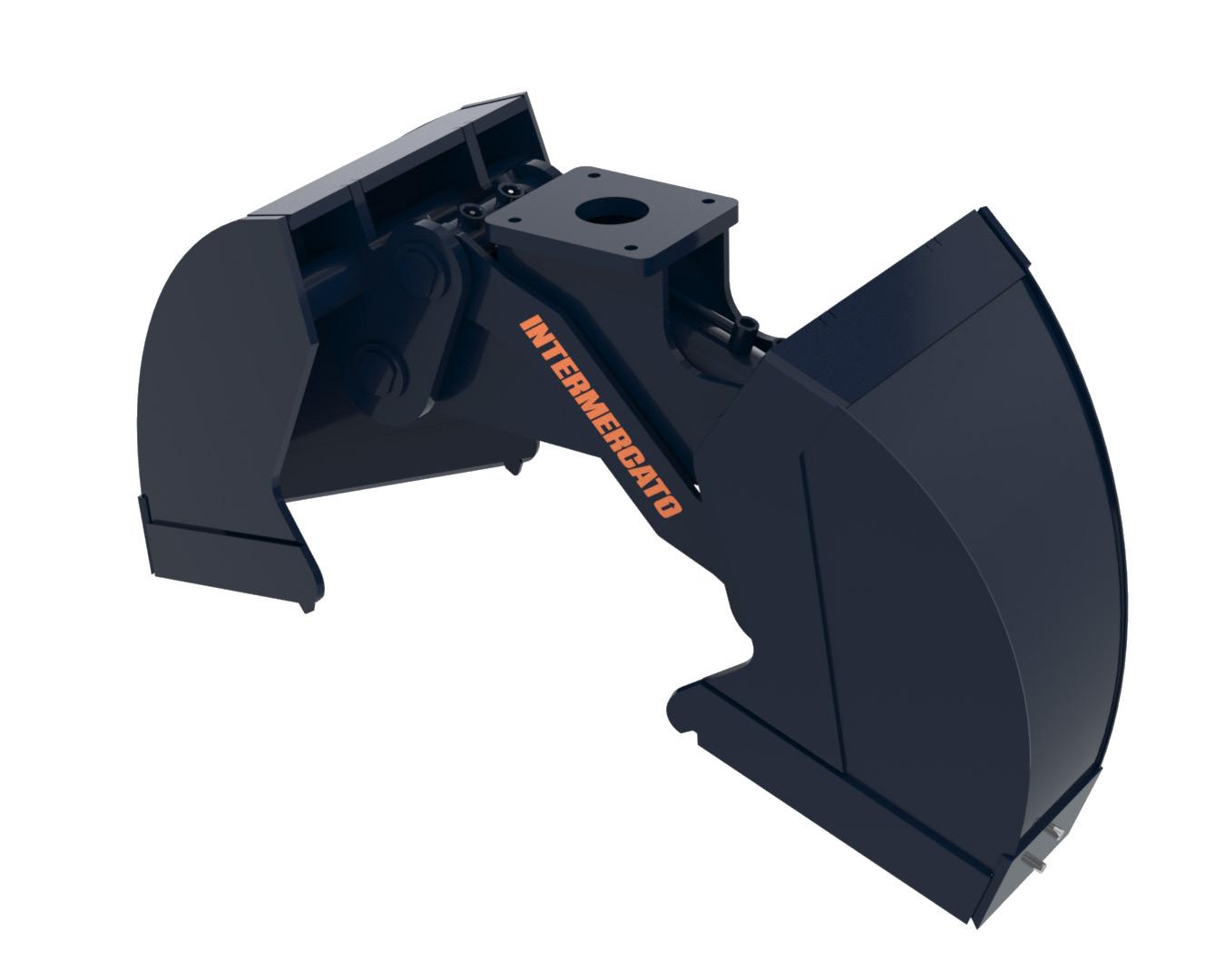

Clamshell buckets
TCB
Clamshell bucket for digging, loading and unloading
Very strong clamshell bucket for tough jobs using a cargo crane. It’s so robust that it can also be used for digging. Available in many sizes, also in a low-weight range for lighter applications.
KEY FEATURES
• Welded cutting edges made of Hardox®
• Torsionally rigid
• Welded lifting hooks
• Check valve as standard
• Double guide bars
• Powerful cylinder with double piston rod seals for high pressure
www.intermercato.com
TCB 500 TCB 650 TCB 800 TCB 1000 A 1340 1340 1340 1340 B 957 957 957 957 C 1398 1398 1398 1398 E 500 650 800 1000 Nm MODELLSPEC. Nm NmNm TCB 500 320 250 300 60 28 3 - 10-32 8-12 -TCB 650 344 350 300 60 28 3 - 10-32 8-12 -TCB 800 368 450 300 60 28 3 - 10-32 8-14 -TCB 1000 398 550 300 60 28 3 - 10-32 8-14 -Recommended machine weight and crane size
Clamshell buckets
TMC & TMC-O
The small clamshell bucket for big jobs! Intermercato TMC clamshell bucket for lifting and loading loose material is, despite its low weight, very robust. TMC is low built to fit even the smallest cranes.TMC-O is an open version and TMC-D is for digging ditches.
KEY FEATURES
• Welded cutting edges made of Hardox®
• Can be equipped with teeth
• Double guide bars
• The open version can be equipped with side plates
• TMC is available as ditching grab
• Cylinder with double piston rod seals for high pressure
www.intermercato.com
TMC 40 TMC 50 TMC 60 TMC 80 TMC-O 40 TMC-O 50 TMC-0 60 TMC-0 80 A 1270 1270 1270 1270 1270 1270 1270 1270 B 544 544 544 544 544 544 544 544 C 650 650 650 650 650 650 650 650 E 435 535 635 835 435 535 635 835
TMC-O* TMC D-40* Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size
TMC 40 142 125 200 40 12 1 - 6-26 2-6 -TMC 50 152 150 200 40 12 1 - 6-26 2-6 -TMC 60 162 175 200 40 12 1 - 6-26 2-8 -TMC 80 202 200 200 40 12 1 - 6-26 2-8 -TMC-0 40 127 125 200 40 12 1 - 6-26 2-6 -TMC-0 50 137 150 200 40 12 1 - 6-26 2-6 -TMC-0 60 147 175 200 40 12 1 - 6-26 2-8 -TMC-0 80 187 200 200 40 12 1 - 6-26 2-8 - -
*Ditching grab
*Open grab
Mini clamshell buckets
TGS
Light and agile mini clamshell bucket
Intermercato TGS lifts and loads loose material but can also be used for digging ditches. Low weight and high fill rate makes the TGS an optimal tool for ATV lorries, mini forwarders and mini cranes.
KEY FEATURES
• Welded cutting edges
• Double guide bars
• Low weight
• High fill rate
TGS 12-40 TGS 12-50 A 1232 1232 B 437 447 C 612 622 E 385 485 F 40/20 50/25 Nm MODEL SPECIFICATIONS Nm NmNm Recommended machine weight and crane size TGS 12-40 60 50 160 30 8 0,2 1-2 1-2 - - Mini TGS 12-50 65 60 160 30 8 0,2 -1-2 1-2 - - Mini
Accessorize your grab

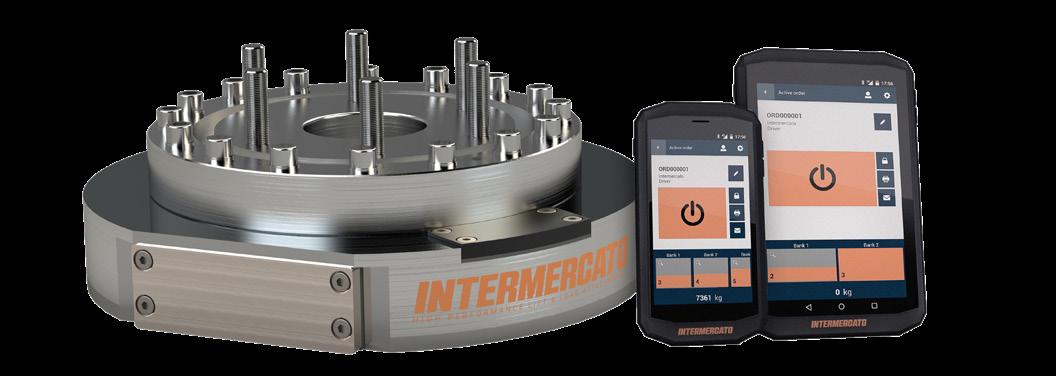

Crane scale
Intermercato is world leading in weighing of hanging load. Our crane scales are based on intelligent technology - an advanced algorithm calculates the weight. It’s the only RTT&E certified and legal for trade system in the world for hanging load in motion. Your success starts with Intermercato Intelligent Weighing Systems!

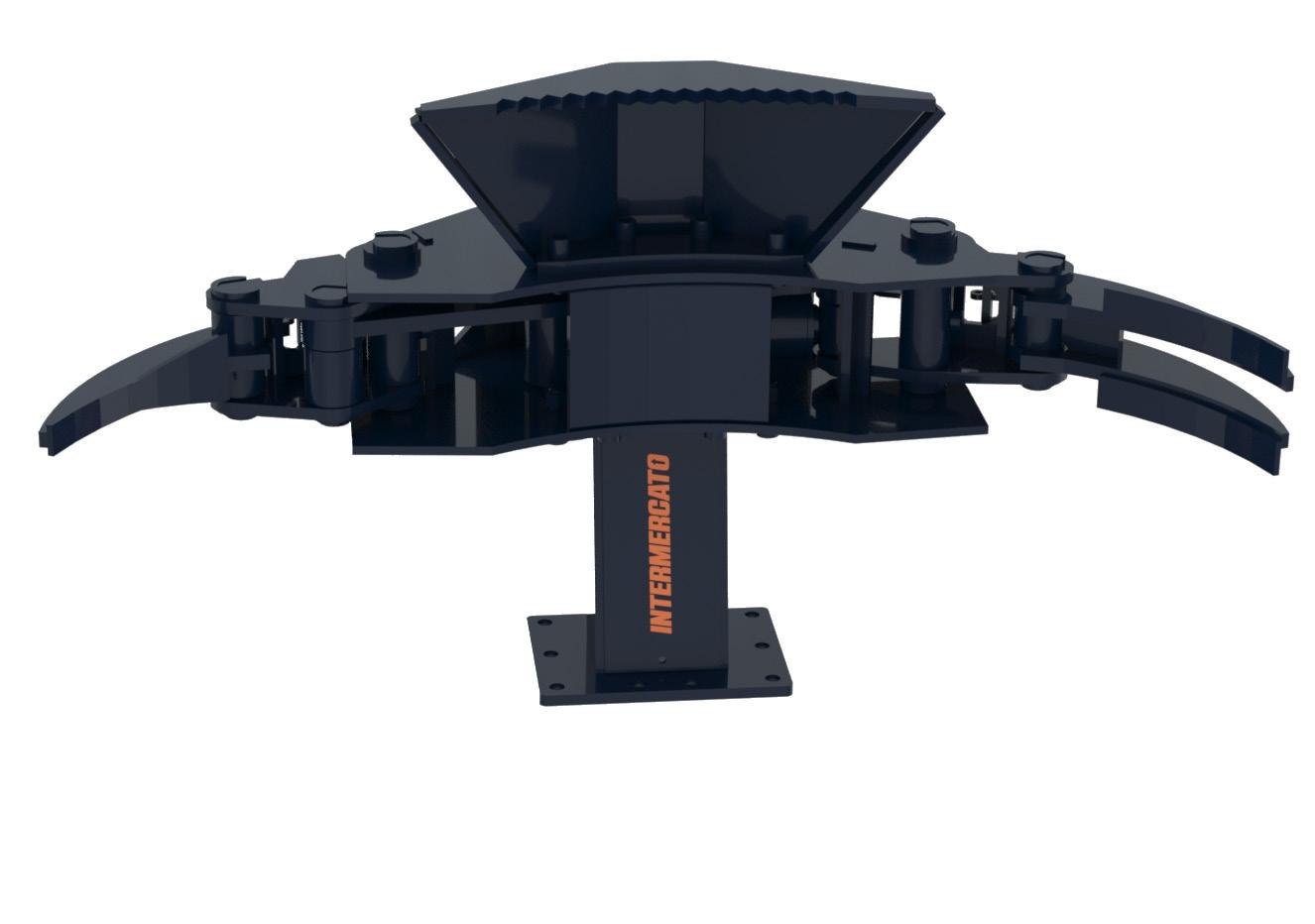

Excavator attachment
We have suitable attachments for all types of excavators. We can also deliver all our grabs and clamshell buckets complete with hose kit!
Rotator www.intermercato.com
Accessorize your grab with one of our rotators for cardanic or rigid mounting. We are also a certified dealer of Indexator Rotator Systems.
“I have had the honor to try out Intermercato’s new log grab, TG 47 Ultra, for a while now.
I am more than happy with it and it really shows its true potential especially now in the summer when the pulp wood is light (I can fit a little more in it, compared to my previous 053)”
- Christoffer Johansson, Johanssons Åkeri AB
Forestry Transport Construction Recycling WWW.INTERMERCATO.COM Your local dealer: Intermercato AB Bygatan 5 272 93 Tommarp Sweden info@intermercato.com Tel +46 414 20525
