EXPERTS IN BESPOKE LED LIGHTING SOLUTIONS At Integrity Lighting Solutions, quality is our mission. Our customers work with us because we produce high quality products, with superb customer service and a fast turnaround. The majority of our products carry 5 year warranty and we also only use class-leading components from trusted manufacturers.

We supply custom LED lighting solutions to a number of sectors including retail, POS, hospitality, architectural design, commercial and residential.

Our extensive knowledge of the LED lighting industry has enabled us to become the preferred supplier to a number of leading companies across the UK. Our vast range of products includes linear LED lighting, LED drivers & controllers, ceiling lighting and display lighting solutions.

We are proud to work as UK distributors for TOPMET and SELF. We offer an unrivaled complete LED lighting solution for your next project.

2

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

Why work with us?

We are specialist manufacturers of LED tape and linear lighting solutions. Our range of LED tapes offer excellent performance and reliability. Every product in this range has been designed and manufactured to meet the below key requirements: Certification & Compliance • UKCA, CE & ROHS Marked - Meets and exceeds all UK and EU safety & performance standards.

• TUV Approved - Rigorously tested and approved by German testing house TUV. • Recolight WEEE Member - Members of Recolight ensuring compliance with all recycling requirements and best practices.

WEEE Scheme

MEMBER

Quality & Performance • LM79 & LM80 - Tested to IESNA approved standards for LED performance over time. 50,000 hours for LED output to reduce to 80% of original light output. Reliability and quality guaranteed.

• SDCM3 - LED tape produced with tight binning controls to ensure no batch variation in colour of LEDs. • High CRI - All LED tapes meet a minimum 85+ CRI ensuring a high-quality light suitable for a wide variety of applications. Low CRI products can cause the colours in products or surfaces to appear washed out. CRI90, CRI95 and CRI98 products are also available to custom order.

SDCM3

CRI90+

CRI95+

CRI98+

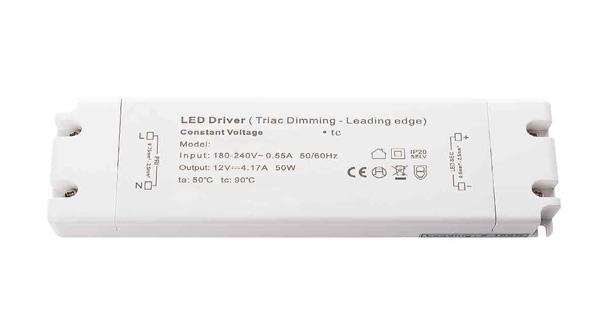

Warranty & Aftersales • Our LED tape and LED drivers are supplied with a 5 year warranty for a truly fit and forget solution.

• Full technical support available with all data sheets available to download from our website.

• Our experienced and knowledgeable staff are available to answer any technical queries before, during and after installation.

Bespoke Manufacturing • All of LED tapes are available to purchase by the reel or fully bespoke to suit your application.

• Whether you’re working on a domestic project, retail installation or a refurbishment of a hotel we can help by making the installation process as simple as possible.

• We offer a professional bespoke cutting service to all customers. We will cut your LED tape to length, professionally solder and seal all connections, comprehensively test and then package and label your product.

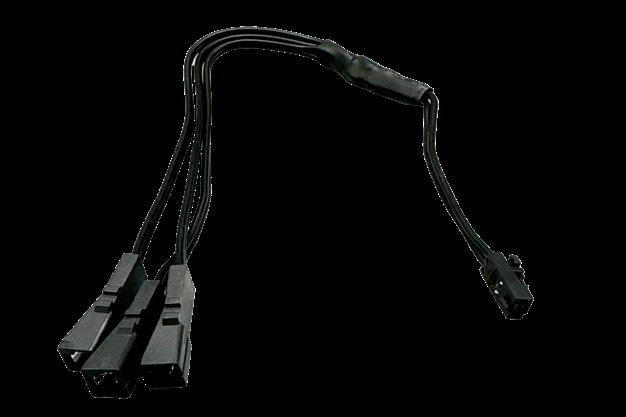

• We can supply complete assemblies with various plug-and-play connectors for simple and quick installation. See page 31 for examples of our available connectors and power track.

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

3

LED Tape Range

COB LED Tape

Pages 5-8

CB4W Standard Output COB Tape CB6W Ultra Slim COB Tape CB8W High Output COB Tape IPCB8W Waterproof High Output COB Tape CB11W Long Run COB Tape CB15W CCT Colour Tuneable COB Tape CBGRBW RGBW Colour Changing COB Tape

Page 5 Page 5 Page 6 Page 6 Page 7 Page 7 Page 8

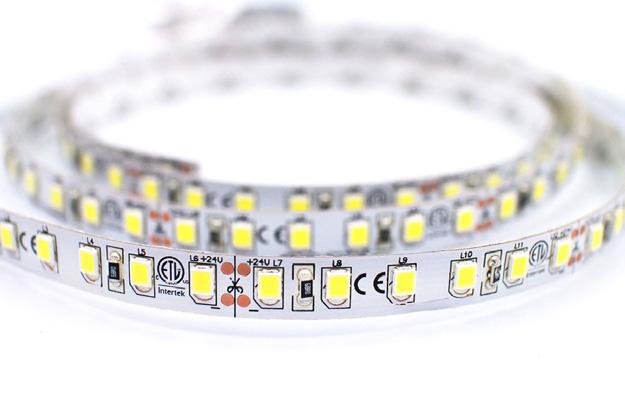

SMD LED Tape

Pages 9-14

LS5W Low Wattage 12v SMD Tape LS5W Low Wattage 24v SMD Tape IP5W IP65 Waterproof Low Wattage SMD Tape LS10W High Density 12v SMD Tape LS10W High Density 24v SMD Tape IP10W IP65 Waterproof High Output SMD Tape LS15W High Density 24v SMD Tape LS17W High Output 24v SMD Tape LSRGB RGB Colour Change 24v SMD Tape IPRGB RGB Colour Change 24v SMD Tape LSRGBW RGBW Colour Change 24v SMD Tape IPRGBW RGBW Colour Change 24v SMD Tape

Page 9 Page 9 Page 10 Page 10 Page 11 Page 11 Page 12 Page 12 Page 13 Page 13 Page 14 Page 14

High Efficiency LED Tape

Pages 15-16

HE2W Low Wattage High Efficiency LED Tape HE4W Low Wattage High Efficiency LED Tape HE15W Low Wattage High Efficiency LED Tape

Page 15 Page 15 Page 16

4

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

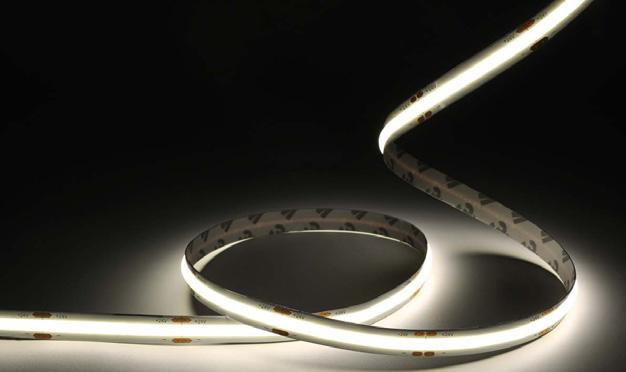

COB LED Tape

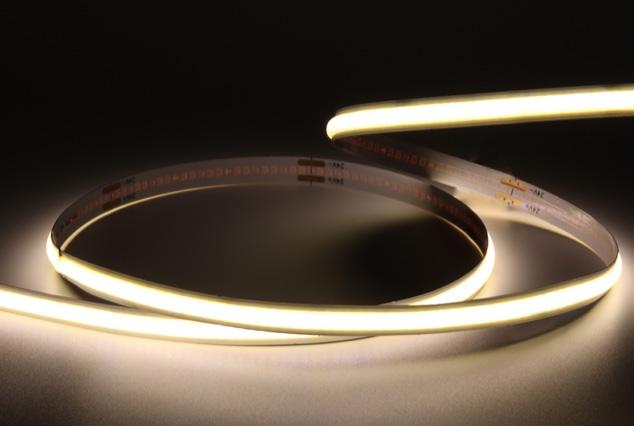

CB4W Standard Output COB Tape

Low-wattage 4w per metre COB LED tape ideal for dotless plinth lighting and effect lighting. Built using high-quality 2oz copper PCB and next-generation chip-on-board LEDs for optimum brightness, efficiency and a guaranteed dotless finish. Reel-to-reel technology with no manufactured solder joints across the whole reel. 90+ CRI. 5m maximum run length.

CB4W - 4W PER METRE LED STRIP - UP TO 400 LUMENS PER METRE - CRI90+ - SDCM3 - 480 LED/M PART CODE

CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

CB4W-24V-27K

4W/M

2700K

360 LM/M

CB4W-24V-3K

4W/M

3000K

380 LM/M

CB4W-24V-4K

4W/M

4000K

400 LM/M

CB4W-24V-6K

4W/M

6000K

400 LM/M

OTHER CUSTOM COLOURS AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

5M

10MM

2.2MM

50MM

Dotless COB

Reel-toReel Technology

IP20

CRI90+

100lm/w Efficacy

24v DC

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

NEW

CB6W Ultra Slim COB Tape

Ultra slim 6mm 6w per metre COB LED tape ideal for dotless joinery and detail lighting. Built using high-quality 2oz copper PCB and next-generation chip-on-board LEDs for optimum brightness, efficiency and a guaranteed dotless finish. Reel-to-reel technology with no manufactured solder joints across the whole reel. 90+ CRI. 5m maximum run length.

CB6W - 6W PER METRE LED STRIP - UP TO 600 LUMENS PER METRE - CRI90+ - SDCM3 - 480 LED/M PART CODE

CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

CB6W-24V-27K

6W/M

2700K

560 LM/M

CB6W-24V-3K

6W/M

3000K

580 LM/M

CB6W-24V-4K

6W/M

4000K

600 LM/M

CB6W-24V-6K

6W/M

6000K

600 LM/M

OTHER CUSTOM COLOURS AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

5M

6MM

2.2MM

50MM

Dotless COB

6mm Ultra Slim!

100lm/w Efficacy

IP20

CRI90+

24v DC

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

5

COB LED Tape

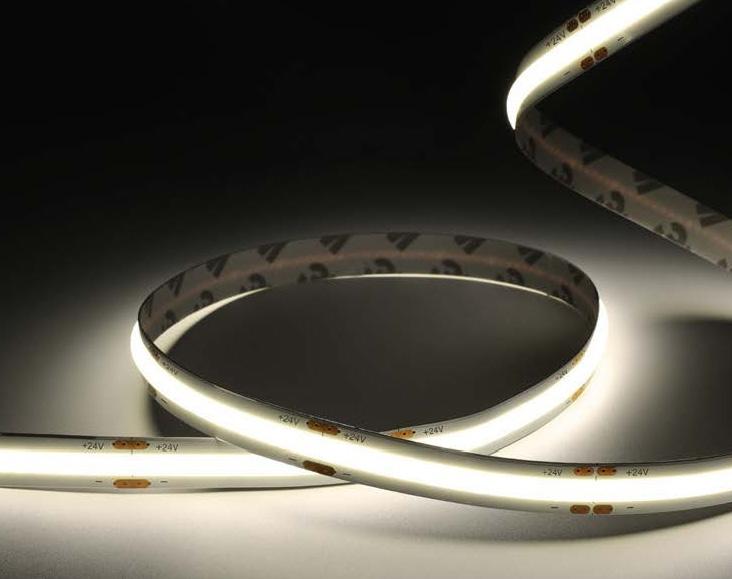

CB8W High Output COB Tape

High-output 8w per metre COB LED tape ideal for dotless kitchen and statement lighting. Built using high-quality 2oz copper PCB and next-generation chipon-board LEDs for optimum brightness, efficiency and a guaranteed dotless finish. Reel-to-reel technology with no manufactured solder joints across the whole reel. 90+ CRI. 5m maximum length.

CB8W - 8W PER METRE LED STRIP - UP TO 800 LUMENS PER METRE - CRI90+ - SDCM3 - 480 LED/M PART CODE

CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

CB8W-24V-27K

8W/M

2700K

720 LM/M

CB8W-24V-3K

8W/M

3000K

760 LM/M

CB8W-24V-4K

8W/M

4000K

800 LM/M

CB8W-24V-6K

8W/M

6000K

800 LM/M

OTHER CUSTOM COLOURS AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS. Dotless COB

Reel-toReel Technology

CRI90+

IP20

100lm/w Efficacy

PRODUCT DIMENSIONS 24v DC

REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

5M

10MM

2.2MM

50MM

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

NEW

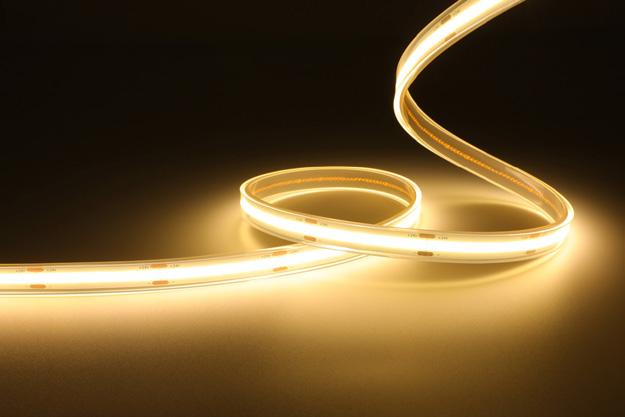

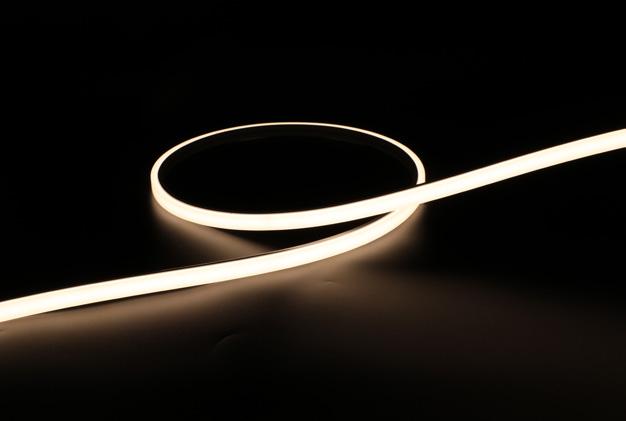

IPCB8W Waterproof High Output COB Tape

High-output 8w per metre fully encapsulated dotless COB LED tape. Waterproof IP65 rating makes this product suitable for kitchens, bathrooms and external applications. IP67 rating can be achieved subject to correct installation. 24v DC and 5m maximum run lengths. Tape width 12mm - 14mm width required for IP end capping.

IPCB8W - 8W PER METRE LED STRIP - UP TO 800 LUMENS PER METRE - CRI 90+ - SDCM3 - 480 LED/M CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IPCB8W-24V-27K

8W/M

2700K

720 LM/M

IPCB8W-24V-3K

8W/M

3000K

760 LM/M

IPCB8W-24V-4K

8W/M

4000K

800 LM/M

PART CODE

OTHER CUSTOM COLOURS AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

Dotless COB

Reel-toReel Technology

IP65

CRI90+

100lm/w Efficacy

PRODUCT DIMENSIONS REEL LENGTH

24v DC

5M

WIDTH

HEIGHT

CUTTING INCREMENT

12MM (14MM WITH END CAP)

4.5MM (6MM WITH END CAP)

50MM

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

6

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

COB LED Tape

CB11W Long Run COB Tape

Our 11w long run COB tape is ideal for ceiling coffers, plinths and areas where lengths of up to 10m of dotless tape are required. Built using an advanced PCB with current regulating IC technology, this product allows for 10m run lengths with a guaranteed consistency and brightness across all LEDs.

CB11W-IC - 11W PER METRE LED STRIP - UP TO 1300 LUMENS PER METRE - CRI90+ - SDCM3 - 504 LED/M CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

CB11W-24V-27K-IC

11W/M

2700K

1110 LM/M

CB11W-24V-3K-IC

11W/M

3000K

1140 LM/M

CB11W-24V-4K-IC

11W/M

4000K

1280 LM/M

CB11W-24V-6K-IC

11W/M

6000K

1300 LM/M

PART CODE

OTHER CUSTOM COLOURS AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

10M

10MM

2.2MM

41.7MM

Dotless COB

Long Run IC

IP20

CRI90+

105lm/w Efficacy

24v DC

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

NEW

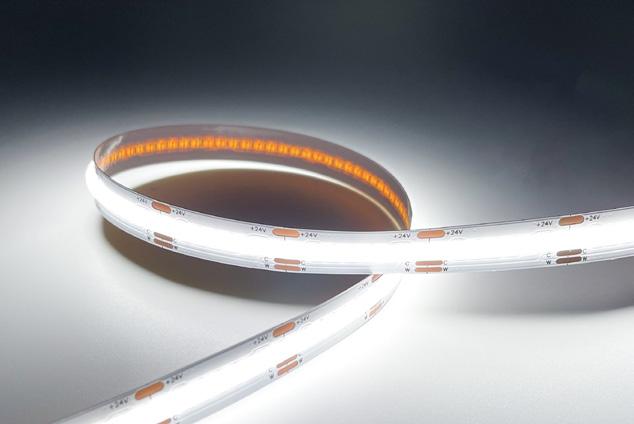

CB15W CCT Colour Tunable COB Tape

Our CCT COB tape is designed with flexibility in mind. When used in conjunction with CCT controllers this product can provide a full white colour spectrum from 2500k warm white to 6500k daylight. This can be used in conjunction with DALI power supplies and external control systems to provide circadian lighting to mimic the natural lighting cycle.

CB15W - 15W PER METRE LED STRIP - UP TO 570 LUMENS PER METRE - CRI 90+ - SDCM3 - 608 LED/M PART CODE CB15W-24V-TW

CONSUMPTION 15W/M

COLOUR TEMPERATURE 2500K - 6500K

LUMEN OUTPUT 570 LM/M

TUNEABLE WHITE COB LED TAPE ALLOWS FOR COLOUR CONTROL FROM 2500K - 6500K WHEN USED IN CONJUNCTION WITH APPROPRIATE LED CONTROLLERS

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

5M

10MM

2.2MM

26.32MM

Dotless COB

Reel-toReel Technology

CCT Colour Adjustable

IP20

CRI90+

Silicone Sleeving

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

7

COB LED Tape

NEW

CBRGBW RGBW Colour Changing COB Tape

Our groundbreaking RGBW COB tape allows a full colour spectrum to be produced with no visible spotting. The 672 COB LEDs produce a bright white and stunning bursts of colour. The design on this product is unique and ensures that each LED is individually powered and excellent thermal management ensures a long lifetime. Maximum run length 5m.

CBRGBW-24V - 18W PER METRE LED STRIP - UP TO 1000 LUMENS PER METRE - CRI 90+ - SDCM3 672 LED/M CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

CBRGBW-24V-3K

18W/M

RGB + 3000K

950 LM/M

CBRGBW-24V-4K

18W/M

RGB + 4000k

1000 LM/M

PART CODE

Dotless COB

RGBW Colour Changing

Dedicated White LEDs

IP20

CRI90+

24v DC

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

5M

12MM

2.2MM

83.3MM

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

8

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

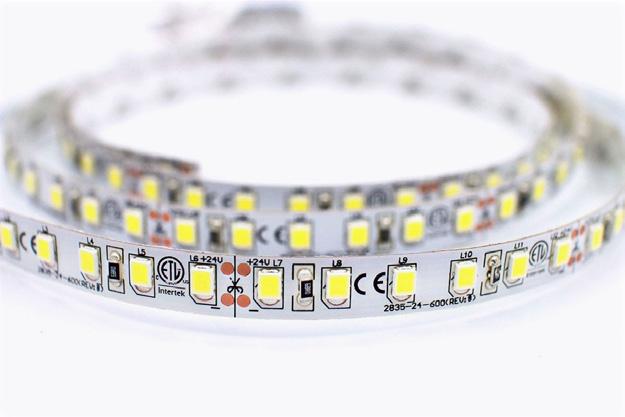

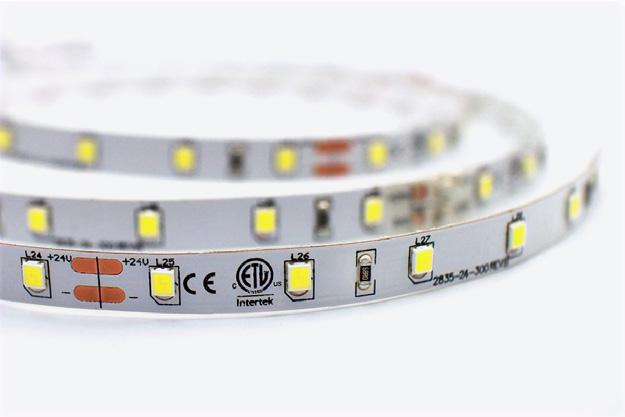

SMD LED Tape

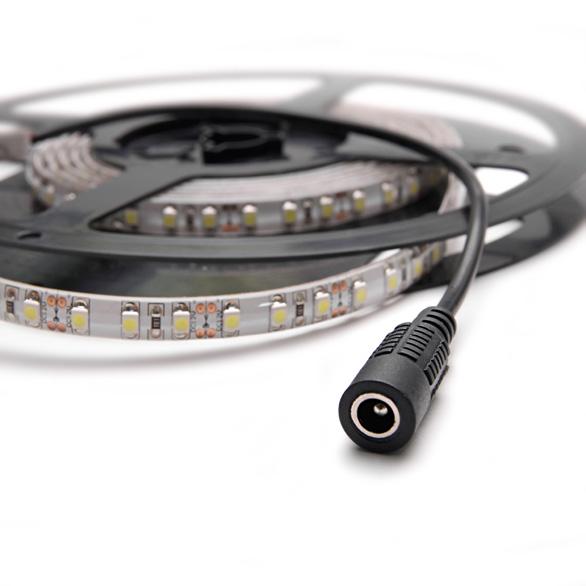

LS5W Low Wattage 12v SMD Tape

5w per metre low-wattage LED tape ideal for plinth lighting and effect lighting. Built using high-quality 2oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. 12v DC offers versatility with regular cutting increments. Maximum run length of 5m. 8mm width.

LS5W - 5W PER METRE LED STRIP - UP TO 530 LUMENS PER METRE - CRI 85+ - SDCM3 - 60 LED/M PART CODE

CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

LS5W-12V-27K

5W/M

2700K

490 LM/M

LS5W-12V-3K

5W/M

3000K

510 LM/M

LS5W-12V-4K

5W/M

4000K

530 LM/M

LS5W-12V-6K

5W/M

6000K

530 LM/M

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS. PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

5M

8MM

1.2MM

50MM

Low Wattage

12v DC

50mm Cut Points

IP20

CRI85+

2oz PCB

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

LS5W Low Wattage 24v SMD Tape

5w per metre low-wattage LED tape ideal for plinth lighting and effect lighting. Built using high -quality 2oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. 24v DC offers longer maximum run lengths of up to 10m. 8mm width.

LS5W - 5W PER METRE LED STRIP - UP TO 530 LUMENS PER METRE - CRI 85+ - SDCM3 - 60 LED/M PART CODE

CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

LS5W-24V-27K

5W/M

2700K

490 LM/M

LS5W-24V-3K

5W/M

3000K

510 LM/M

LS5W-24V-4K

5W/M

4000K

530 LM/M

LS5W-24V-6K

5W/M

6000K

530 LM/M

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS. PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

10M

8MM

1.2MM

100MM

Low Wattage

24v DC

100mm Cut Points

IP20

CRI85+

2oz PCB

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

9

SMD LED Tape

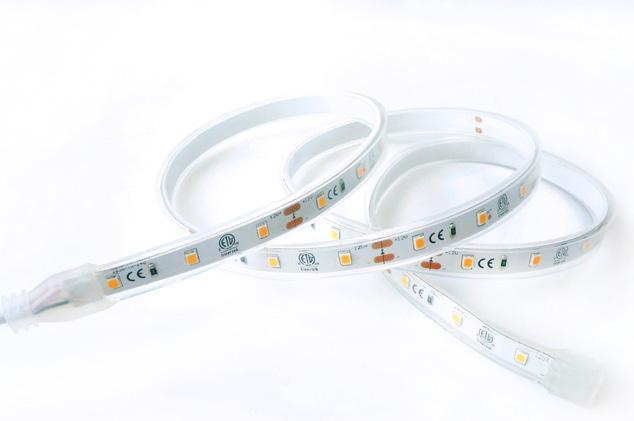

IP5W IP65 Waterproof Low Wattage SMD Tape

Low-output 5w per metre fully encapsulated LED tape. IP65 rating makes this product suitable for kitchens, bathrooms and external applications. IP67 rating can be achieved subject to correct installation. 24v DC for maximum 10m run lengths. Tape width 10mm - 12mm width required for IP end capping.

IP5W - 5W PER METRE LED STRIP - UP TO 505 LUMENS PER METRE - CRI 85+ - SDCM3 - 60 LED/M PART CODE

CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IP5W-24V-27K

5W/M

2700K

465 LM/M

IP5W-24V-3K

5W/M

3000K

485 LM/M

IP5W-24V-4K

5W/M

4000K

505 LM/M

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

24v DC

IP65 Waterproof

IP20

CRI85+

10m Long Run

PRODUCT DIMENSIONS REEL LENGTH

Silicone Sleeving

10M

WIDTH

HEIGHT

CUTTING INCREMENT

10MM (12MM WITH END CAP)

4MM (6MM WITH END CAP)

100MM

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

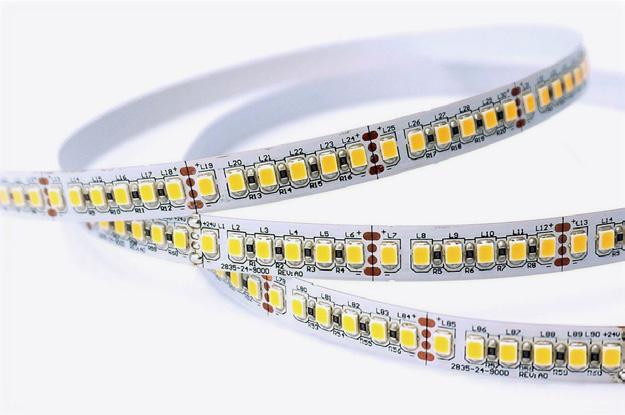

LS10W High Density 12v SMD Tape

10w per metre high-density LED tape ideal for under cabinet and display lighting. Built using high-quality 2oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. 12v DC enables this product to be cut every 25mm. Maximum run length of 5m. 8mm width.

LS10W - 10W PER METRE LED STRIP - UP TO 1060 LUMENS PER METRE - CRI 85+ - SDCM3 - 120 LED/M CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

LS10W-12V-27K

10W/M

2700K

980 LM/M

LS10W-12V-3K

10W/M

3000K

1020 LM/M

LS10W-12V-4K

10W/M

4000K

1060 LM/M

LS10W-12V-6K

10W/M

6000K

1060 LM/M

PART CODE

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

High Density

12v DC

25mm Cut Points

IP20

CRI85+

2oz PCB

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

5M

8MM

1.2MM

25MM

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

10

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

SMD LED Tape

LS10W High Density 24v SMD Tape

10w per metre high-density LED tape ideal for under cabinet and display lighting. Built using high-quality 2oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. 24v DC offers longer maximum run lengths of up to 10m. 8mm width.

LS10W - 10W PER METRE LED STRIP - UP TO 1060 LUMENS PER METRE - CRI 85+ - SDCM3 - 120 LED/M CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

LS10W-24V-27K

10W/M

2700K

980 LM/M

LS10W-24V-3K

10W/M

3000K

1020 LM/M

LS10W-24V-4K

10W/M

4000K

1060 LM/M

LS10W-24V-6K

10W/M

6000K

1060 LM/M

PART CODE

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

10M

8MM

1.2MM

50MM

High Density

24v DC

50mm Cut Points

IP20

CRI85+

2oz PCB

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

IP10W IP65 Waterproof High Output SMD Tape

High-output 10w per metre fully encapsulated LED tape. IP65 rating makes this product suitable for kitchens, bathrooms and external applications. IP67 rating can be achieved subject to correct installation. 24v DC for maximum 10m run lengths. Tape width 10mm - 12mm width required for IP end capping.

IP10W - 10W PER METRE LED STRIP - UP TO 1010 LUMENS PER METRE - CRI 85+ - SDCM3 - 60 LED/M CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IP10W-24V-27K

10W/M

2700K

930 LM/M

IP10W-24V-3K

10W/M

3000K

970 LM/M

IP10W-24V-4K

10W/M

4000K

1010 LM/M

PART CODE

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

PRODUCT DIMENSIONS REEL LENGTH

10M

WIDTH

HEIGHT

10MM (12MM WITH END CAP)

4MM (6MM WITH END CAP)

24v DC

IP65 Waterproof

IP20

CRI85+

10m Long Run

CUTTING INCREMENT Silicone Sleeving

50MM

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

11

SMD LED Tape

LS15W High Density 24v SMD Tape

15w per metre high-density LED tape ideal for applications requiring a higher lumen output. Built using high-quality 2oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. 24v DC offers longer maximum run lengths of up to 10m. 8mm width.

LS15W - 15W PER METRE LED STRIP - UP TO 1590 LUMENS PER METRE - CRI 85+ - SDCM3 - 120 LED/M CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

LS15W-24V-27K

15W/M

2700K

1470 LM/M

LS15W-24V-3K

15W/M

3000K

1530 LM/M

LS15W-24V-4K

15W/M

4000K

1590 LM/M

LS15W-24V-6K

15W/M

6000K

1590 LM/M

PART CODE

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

High Density

24v DC

50mm Cut Points

IP20

CRI85+

2oz PCB

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

10M

8MM

1.2MM

50MM

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

LS17W High Output 24v SMD Tape

High output 17w per metre LED tape ideal for demanding applications and can be used as primary lighting. Built using high-quality 3oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. The 240 LEDs per metre helps to diffuse any spotting and the high 90+ CRI ensures excellent colour representation. 24v DC offers longer maximum run lengths of up to 10m. 10mm width.

LS17W - 17W PER METRE LED STRIP - UP TO 1900 LUMENS PER METRE - CRI 90+ - SDCM3 - 240 LED/M CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

LS17W-24V-27K

17W/M

2700K

1650 LM/M

LS17W-24V-3K

17W/M

3000K

1800 LM/M

LS17W-24V-4K

17W/M

4000K

1900 LM/M

LS17W-24V-6K

17W/M

6000K

1900 LM/M

PART CODE

OTHER CUSTOM COLOURS AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

High Output

24v DC

25mm Cut Points

IP20

CRI90+

3oz PCB

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

10M

10MM

1.2MM

25MM

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

12

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

SMD LED Tape

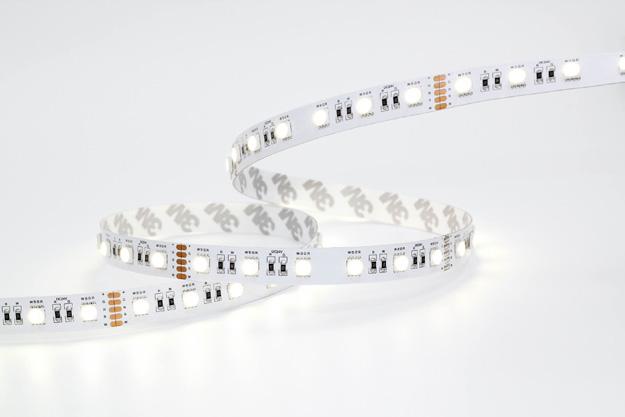

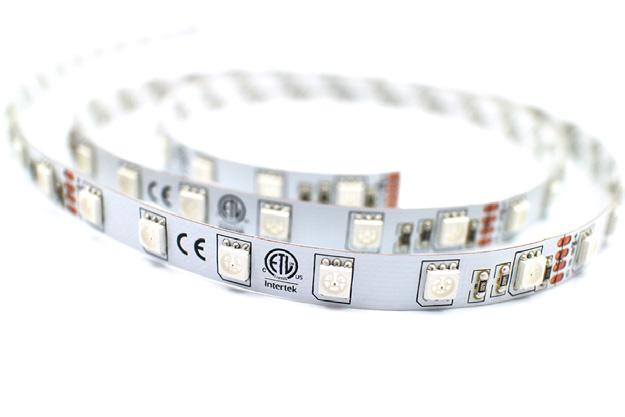

LSRGB RGB Colour Change 24v SMD Tape

High-output 15w per metre RGB LED tape ideal for applications requiring a bold burst of colour. Built using high-quality 2oz copper PCB and 5050 RGB LEDs. RGB LEDs create a smooth and colourful mixed effect when used with RGB controllers.

LSRGB15W - 15W PER METRE RGB STRIP - UP TO 625 LUMENS PER METRE - CRI 85+ - SDCM3 60 LED/M PART CODE LSRGB15W-24V

CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

15W/M

RGB

625 LM/M

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

5M

10MM

1.2MM

100MM

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

RGB Colour

24v DC

100mm Cut Points

IP20

CRI85+

2oz PCB

IPRGB RGB Colour Change 24v SMD Tape

High-output 15w per metre RGB LED tape ideal for applications requiring a bold burst of colour. Built using high-quality 2oz copper PCB and 5050 RGB LEDs. RGB LEDs create a smooth and colourful mixed effect when used with RGB controllers. IP65 rated for weatherproof applications.

IPRGB15W - 15W PER METRE RGB STRIP - UP TO 625 LUMENS PER METRE - CRI 85+ - SDCM3 60 LED/M PART CODE IPRGB15W-24V

CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

15W/M

RGB

625 LM/M

PRODUCT DIMENSIONS REEL LENGTH 5M

WIDTH

HEIGHT

12MM (14MM WITH END CAP)

4MM (6MM WITH END CAP)

CUTTING INCREMENT 100MM

RGB Colour

24v DC

100mm Cut Points

IP65

CRI85+

2oz PCB

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

13

SMD LED Tape

LSRGBW RGBW Colour Change 24v SMD Tape

High output 20w per metre RGBW LED tape with integrated white LED chip. Built using high-quality 2oz copper PCB and next-generation 5050 LEDs. Integrated RGBW LEDs and white LED allows for a flexible product which can create soft pastel hues, intense colour and pure white illumination.

LSRGBW - 20W PER METRE RGBW STRIP - UP TO 680 LUMENS PER METRE - CRI 85+ - SDCM3 60 LED/M PART CODE

RGBW

24v DC

100mm Cut Points

IP20

CRI85+

2oz PCB

CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

LSRGBW-24V-3K

20W/M

RGBW 3000K

570 LM/M

LSRGBW-24V-4K

20W/M

RGBW 4000K

680 LM/M

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

10M

12MM

1.2MM

100MM

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

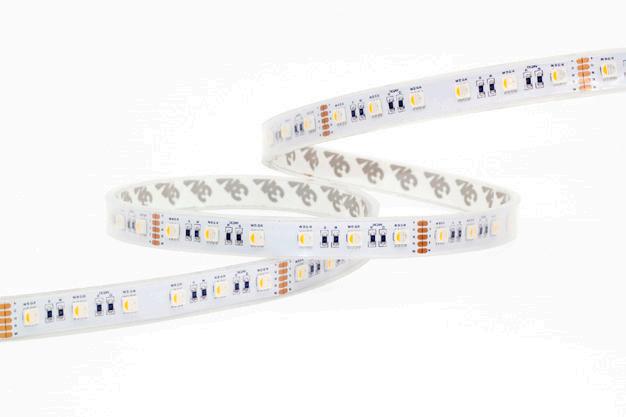

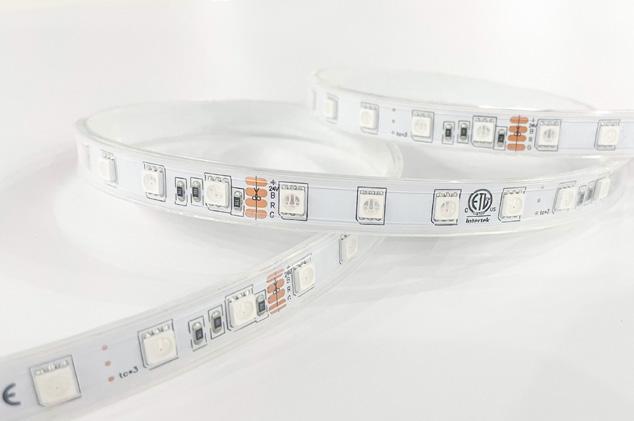

IPRGBW - RGBW Colour Change 24v SMD Tape

High output 20w per metre RGBW LED tape with integrated white LED chip. Built using high-quality 2oz copper PCB and next-generation 5050 LEDs. Integrated RGBW LEDs and white LED allows for a flexible product which can create soft pastel hues, intense colour and pure white illumination. IP65 rated for weatherproof applications.

IPRGBW - 20W PER METRE RGBW STRIP - UP TO 680 LUMENS PER METRE - CRI 80+ - SDCM3 60 LED/M PART CODE

RGBW

24v DC

100mm Cut Points

IP65

CRI85+

2oz PCB

COLOUR TEMPERATURE

LUMEN OUTPUT

IPRGBW-24V-3K

20W/M

RGBW 3000K

570 LM/M

IPRGBW-24V-4K

20W/M

RGBW 4000K

680 LM/M

PRODUCT DIMENSIONS REEL LENGTH 10M

14

CONSUMPTION

WIDTH

HEIGHT

CUTTING INCREMENT

14MM (16MM WITH END CAP)

4MM (6MM WITH END CAP)

100MM

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

High Efficiency LED Tape

HE2W - Eco Grade A Efficiency LED Tape

2w/m high efficiency LED tape. Eco grade A LED tape achieving 227 lm/w performance suitable for use in Boots/DC applications. 128 LED/m offers great uniformity within retail or POS units. Built using the latest technology 2835 LEDs and an advanced PCB to ensure low heat generation and high lm/w efficacy of 227 lm/w and over 455lm/m. 4mm width variant available to order from factory, please contact our sales team for more information.

HE2W - 2W PER METRE LED STRIP - UP TO 455 LUMENS PER METRE - CRI 80+ - SDCM3 - 128 LED/M PART CODE

CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

HE2W-24V-3K

2W/M

3000K

455 LM/M

HE2W-24V-4K

2W/M

4000K

455 LM/M

HE2W-24V-5K

2W/M

5000K

455 LM/M

HE2W-24V-6K

2W/M

6000K

455 LM/M

CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

5M

8MM

1.2MM

62.5MM

High Efficiency

24v DC

62.5mm Cut Points

IP20

CRI80+

227 lm/w

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

HE4W - Eco Grade A Efficiency LED Tape

4w/m high efficiency LED tape. Eco grade A LED tape achieving 227 lm/w performance suitable for use in Boots/DC applications. 128 LED/m offers great uniformity within retail or POS units. Built using the latest technology 2835 LEDs and an advanced PCB to ensure low heat generation and high lm/w efficacy of 227 lm/w and over 910lm/m. 4mm width variant available to order from factory, please contact our sales team for more information.

HE4W - 4W PER METRE LED STRIP - UP TO 910 LUMENS PER METRE - CRI 80+ - SDCM3 - 128 LED/M PART CODE

CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

HE4W-24V-3K

4W/M

3000K

910 LM/M

HE4W-24V-4K

4W/M

4000K

910 LM/M

HE4W-24V-5K

4W/M

5000K

910 LM/M

HE4W-24V-6K

4W/M

6000K

910 LM/M

CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

5M

8MM

1.2MM

62.5MM

High Efficiency

24v DC

62.5mm Cut Points

IP20

CRI80+

227 lm/w

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

15

High Efficiency LED Tape

HE15W - Eco Grade A Efficiency LED Tape

15w/m high efficiency LED tape. Eco grade B LED tape achieving 185 lm/w performance. 128 LED/m offers great uniformity within retail or POS units. Built using the latest technology 2835 LEDs and an advanced PCB to ensure low heat generation and high lm/w efficacy of 185 lm/w and over 2660lm/m.

HE15W - 15W PER METRE LED STRIP - UP TO 2660 LUMENS PER METRE - CRI 85+ - SDCM3 - 128 LED/M CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

HE15W-24V-27K

15W/M

2700K

2400 LM/M

HE15W-24V-3K

15W/M

3000K

2445 LM/M

HE15W-24V-4K

15W/M

4000K

2545 LM/M

HE15W-24V-6K

15W/M

6000K

2660 LM/M

PART CODE

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

High Efficiency

24v DC

62.5mm Cut Points

IP20

CRI85+

185 lm/w

PRODUCT DIMENSIONS REEL LENGTH

WIDTH

HEIGHT

CUTTING INCREMENT

10M

10MM

1.2MM

62.5MM

LENGTHS AVAILABLE BESPOKE. WE CUT, SOLDER AND TEST TO SAVE YOU VALUABLE TIME ON SITE. NEXT DAY AND TIMED DELIVERIES AVAILABLE TO YOUR OFFICE OR SITE.

16

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

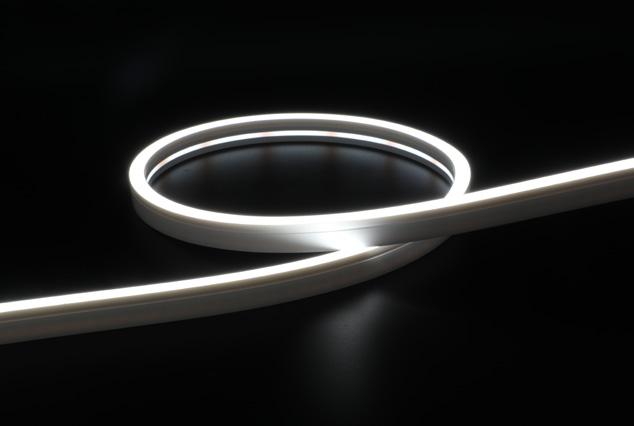

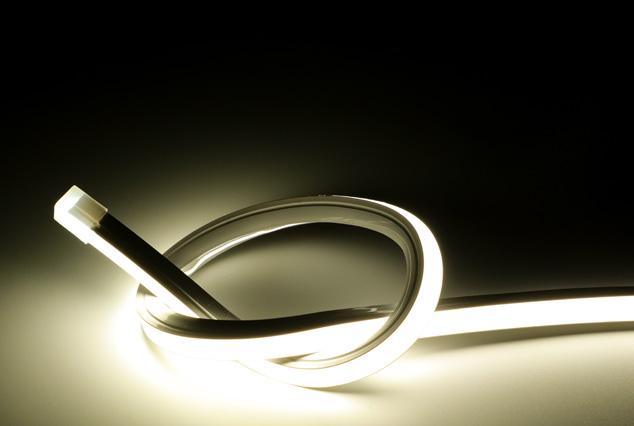

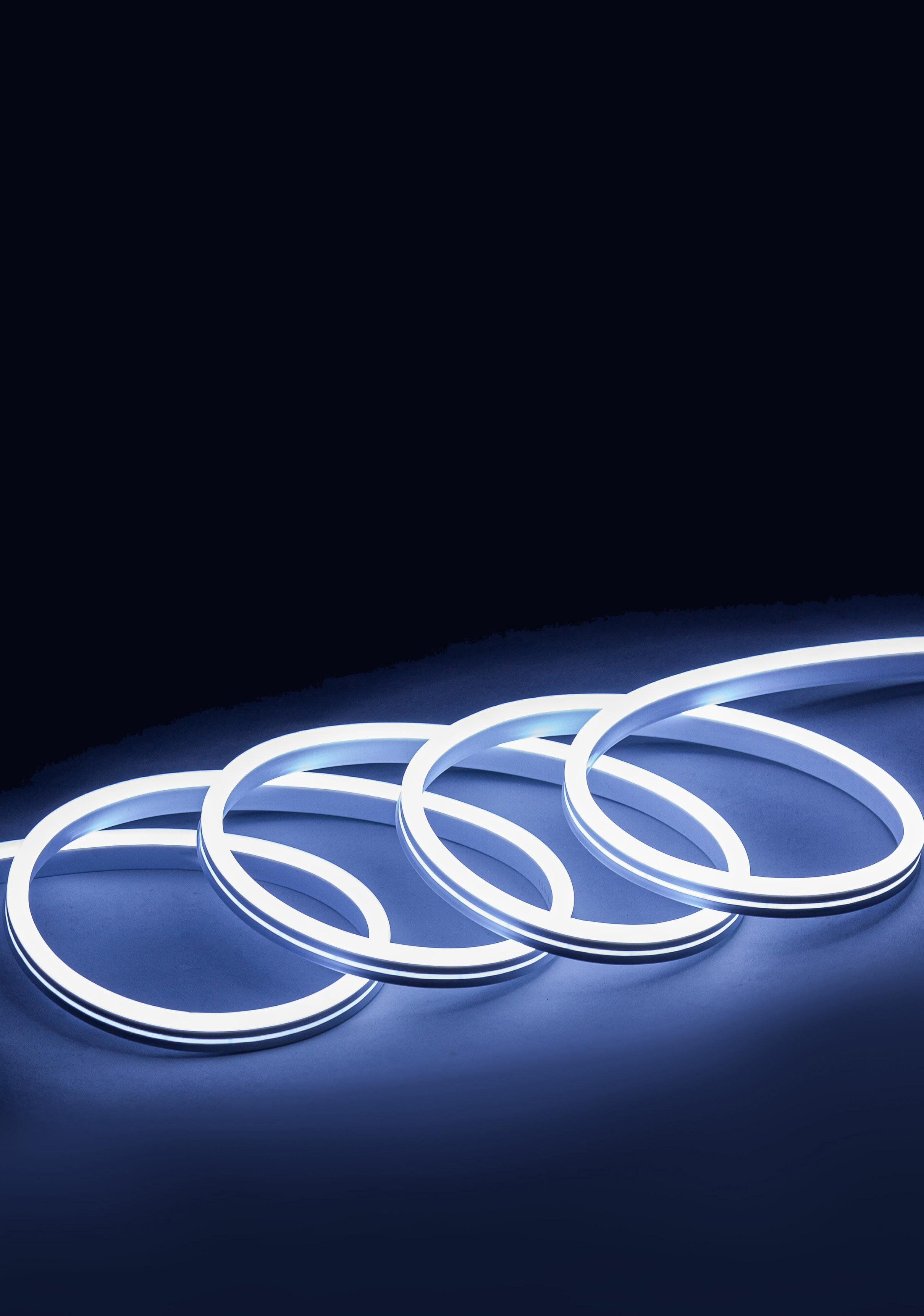

LED Neon Range

Neon Flex Range

projectLED are specialist manufacturers of LED tape and linear lighting solutions. Their range of LED tapes offer excellent performance and reliability. Every product in this range has been designed and manufactured to meet the below key requirements: LED NEON BLURB

Vertical Bend Neon Flex

Page 18

NF1010 10x10mm Vertical Bend Neon Flex NF1616 16x16mm Vertical Bend Neon Flex

Page 18 Page 18

Horizontal Bend Neon Flex

Pages 19-20

NF0410 4x10mm Horizontal Bend Neon Flex NF0816 8x16mm Horizontal Bend Neon Flex NF1018 10x18mm Long Run Horizontal Bend Neon Flex

Page 19 Page 20 Page 20

3D Bend Neon Flex

Page 21

NF0808 8x8mm 3D Bend Neon Flex NF1816 18x16mm 3D Bend Neon Flex

Page 21 Page 21

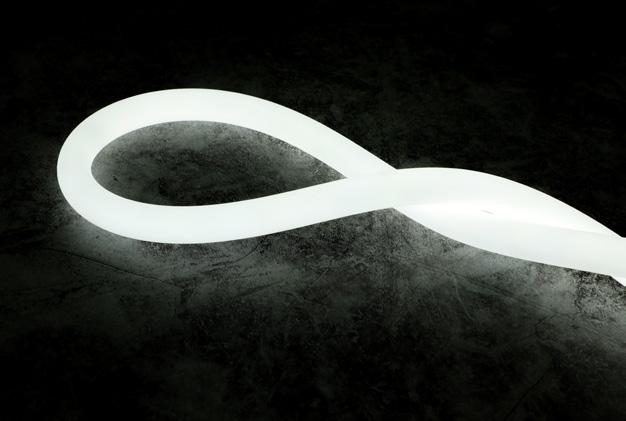

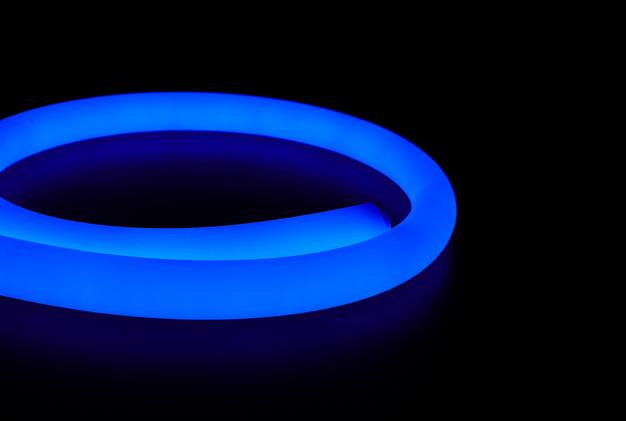

360 Degree Neon Flex

Page 22

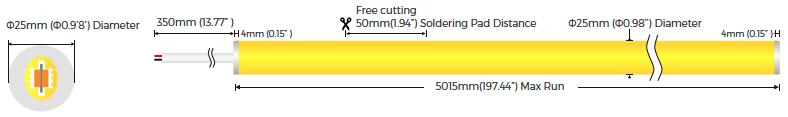

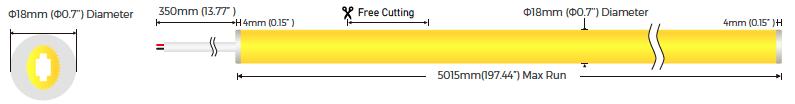

NF360R18 18mm Diameter 360 Illuminated Neon Flex NF360R25 25mm Diameter 360 Illuminated Neon Flex

Page 22 Page 22

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

17

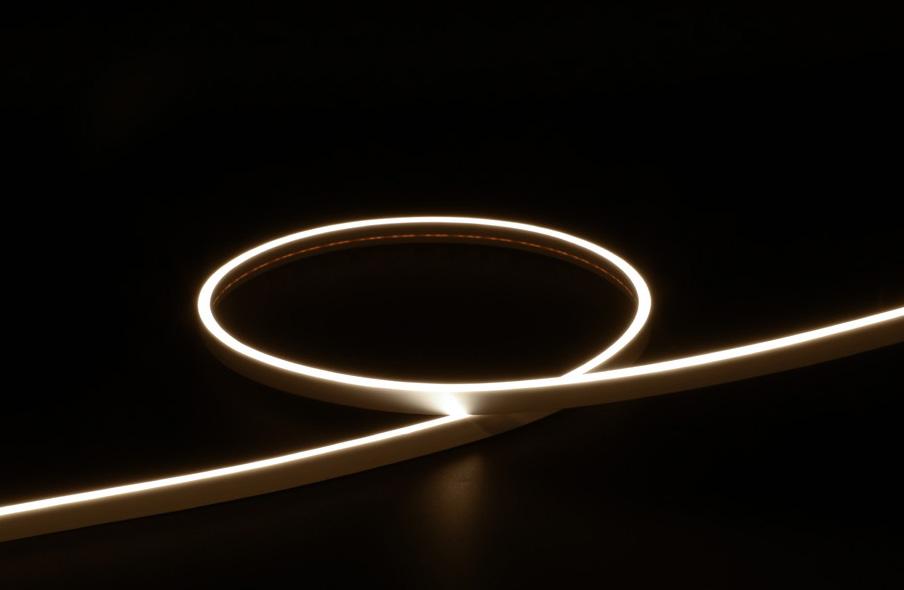

LED Neon Flex

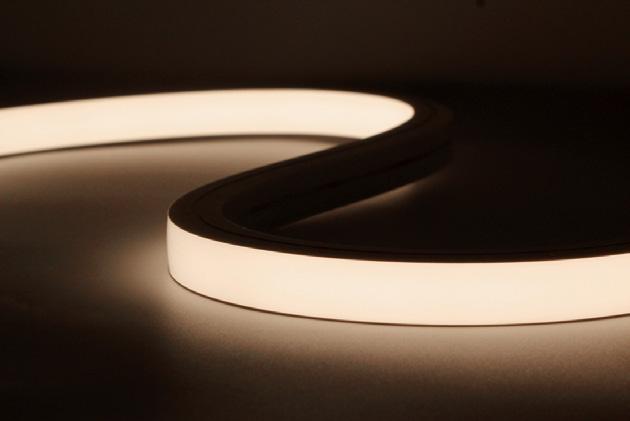

NF1010 - 10x10mm Vertical Bend Neon Flex 24v

The NF1010-VB series is a mini profile high-output LED neon flex which can be bent concave or convex across its length. The IP67 rating makes it suitable for both internal and external applications. This product is ideal for use in joinery, shelving or architectural applications. This product provides illumination from the face and side edges. NF1010-VB is dot-free and can be run in lengths of up to 5m. This product is fixed into position using aluminium fixing clips or 1m fixing channel.

NF1010-VB - 14W PER METRE NEON FLEX - UP TO 1050 LUMENS PER METRE - CRI 90+ - SDCM3 CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IP RATING

NF1010-VB-24V-27K

14W/M

2700K

950 LM/M

IP67

NF1010-VB-24V-3K

14W/M

3000K

1000 LM/M

IP67

NF1010-VB-24V-4K

14W/M

4000K

1025 LM/M

IP67

NF1010-VB-24V-6K

14W/M

6000K

1050 LM/M

IP67

NF1010-VB-24V-RGB

14W/M

RGB

450 LM/M

IP67

PART CODE

Vertical Bend

24v DC

33mm Cut Points

IP67

CRI90+

5m Max Run

Neon Only

Fitted In Fixing Clip

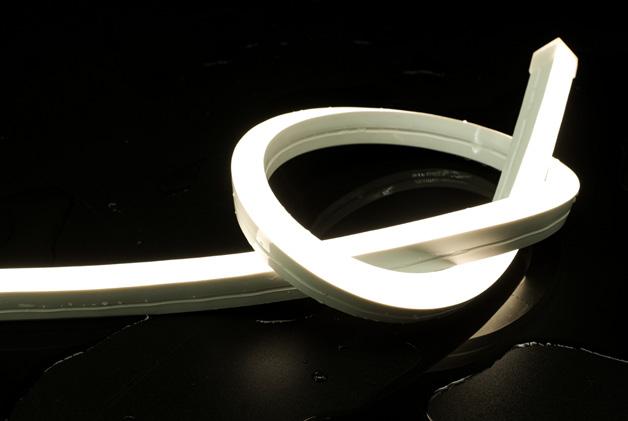

NF1616 - 16x16mm Vertical Bend Neon Flex 24v

The NF1616-VB series is a high-output LED neon flex which can be bent concave or convex across it’s length. The IP67 rating makes it suitable for both internal and external applications. This product is ideal for use in joinery, shelving or architectural applications. This product provides illumination from the face edge only. The NF1616-VB is dot-free and can be run in lengths of up to 5m. This product is fixed into position using aluminium fixing clips or 1m fixing channel.

NF1616-VB - 16W PER METRE NEON FLEX - UP TO 980 LUMENS PER METRE - CRI 90+ - SDCM3 CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IP RATING

NF1616-VB-24V-27K

16W/M

2700K

920 LM/M

IP67

NF1616-VB-24V-3K

16W/M

3000K

940 LM/M

IP67

NF1616-VB-24V-4K

16W/M

4000K

960 LM/M

IP67

NF1616-VB-24V-6K

16W/M

6000K

980 LM/M

IP67

NF1616-VB-24V-RGBW

16W/M

670 LM/M

IP67

PART CODE

Vertical Bend

24v DC

50mm Cut Points

IP67

CRI90+

5m Max Run

RGBW 4000K

Neon Only

18

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

Fitted In Fixing Clip

LED Neon Flex

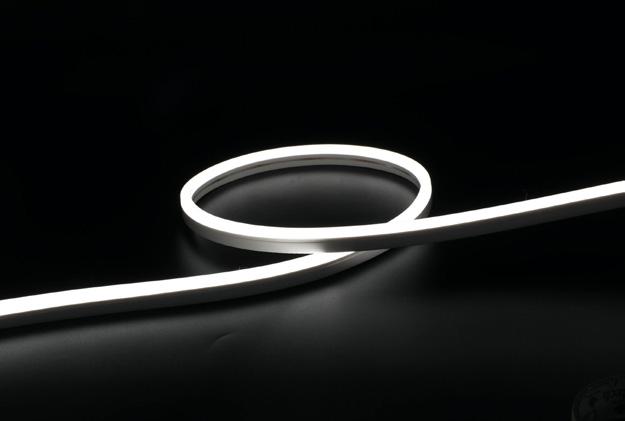

NF0410 - 4x10mm Horizontal Bend Neon Flex 24v

The NF0410-HB series is a micro profile LED neon flex which can be bent sideways across it’s length. The IP67 rating makes it suitable for both internal and external applications. This product is ideal for use in joinery, shelving or architectural applications. This product provides illumination from the narrow 4mm face which creates a stunning lighting effect. The NF0410-HB is dot-free and can be run in lengths of up to 5m. This product is fixed into position using aluminium fixing clips or 1m fixing channel.

NF0410-HB - 10W PER METRE NEON FLEX - UP TO 350 LUMENS PER METRE - CRI 90+ - SDCM3 CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IP RATING

NF0410-VB-24V-27K

10W/M

2700K

250 LM/M

IP67

NF0410-VB-24V-3K

10W/M

3000K

300 LM/M

IP67

NF0410-VB-24V-4K

10W/M

4000K

325 LM/M

IP67

NF0410-VB-24V-6K

10W/M

6000K

350 LM/M

IP67

PART CODE

Neon Only

Horizontal Bend

24v DC

41.6mm Cut Points

IP67

CRI90+

5m Max Run

Fitted In Fixing Clip

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

19

LED Neon Flex

NF0816 - 8x16mm Horizontal Bend Neon Flex 24v

The NF0816-HB series is a mini profile high-output LED neon flex which can be bent sideways across its length. The IP67 rating makes it suitable for both internal and external applications. This product is ideal for use in joinery, shelving or architectural applications. This product provides illumination from the face and side edges. NF0816-HB is dot-free and can be run in lengths of up to 5m. This product is fixed into position using aluminium fixing clips or 1m fixing channel.

NF0816-HB - 12W PER METRE NEON FLEX - UP TO 545 LUMENS PER METRE - CRI 90+ - SDCM3 CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IP RATING

NF0816-HB-24V-27K

12W/M

2700K

495 LM/M

IP67

NF0816-HB-24V-3K

12W/M

3000K

500 LM/M

IP67

NF0816-HB-24V-4K

12W/M

4000K

535 LM/M

IP67

NF0816-HB-24V-6K

12W/M

6000K

545 LM/M

IP67

NF0816-HB-24V-RGB

12W/M

200 LM/M

IP67

PART CODE

Horizontal Bend

24v DC

50mm Cut Points

IP67

CRI90+

5m Max Run

RGB

Neon Only

Fitted In Fixing Clip

NEW

NF1018 - 10x18mm Long Run Horizontal Bend Neon Flex 24v

The NF1018-HB series is a long-run horizontal bend LED neon flex which can be bent sideways across it’s length. The IP67 rating makes it suitable for both internal and external applications. This product is ideal for use externally in gardens, paving or around long length features. The NF1018-HB is dot-free and can be run in lengths of up to 20m from a single end feed. This product is fixed into position using aluminium fixing clips or 1m fixing channel.

NF1018-HB - 10W PER METRE LED STRIP - UP TO 290 LUMENS PER METRE - CRI90+ - SINGLE BIN CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IP RATING

NF1018-HB-24V-27K

10W/M

2700K

240 LM/M

IP67

NF1018-HB-24V-3K

10W/M

3000K

260 LM/M

IP67

NF1018-HB-24V-4K

10W/M

4000K

290 LM/M

IP67

NF1018-HB-24V-6K

10W/M

6000K

290 LM/M

IP67

PART CODE

OTHER CUSTOM COLOURS AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

Horizontal Bend

24v DC

50mm Cut Points

IP67

CRI90+

20m Max Run

Neon Only

20

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

Fitted In Fixing Clip

LED Neon Flex

NEW

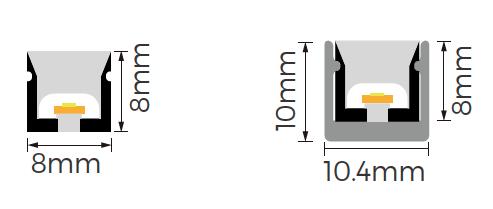

NF0808- 8x8mm 3D Bend Neon Flex 24v

The NF0808-3D series is a micro profile LED neon flex which can be bent vertically and horizontally. The IP67 rating makes it suitable for both internal and external applications. This premium product is designed to be used in any application which requires ultimate versatility. This product provides illumination from the top face. The NF0808-3D is dot-free and can be run in lengths of up to 10m. This product is fixed into position using aluminium fixing clips or 1m fixing channel.

NF0808-3D - 6W PER METRE NEON FLEX - UP TO 390 LUMENS PER METRE - CRI 90+ - SDCM3 CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IP RATING

NF0808-3D-24V-27K

6W/M

2700K

360 LM/M

IP67

NF0808-3D-24V-3K

6W/M

3000K

380 LM/M

IP67

NF0808-3D-24V-4K

6W/M

4000K

390 LM/M

IP67

NF0808-3D-24V-6K

6W/M

6000K

390 LM/M

IP67

PART CODE

Neon Only

3D Bend

24v DC

29.4mm Cut Points

IP67

CRI90+

10m Max Run Length

Fitted In Fixing Clip

NEW

NF1816- 18x16mm 3D Bend Neon Flex 24v

The NF1816-3D series is a larger profile LED neon flex which can be bent vertically and horizontally. The IP67 rating makes it suitable for both internal and external applications. This premium product is designed to be used in any application which requires ultimate versatility. This product provides illumination from the top face. The NF1816-3D is dot-free and can be run in lengths of up to 10m. It also offers a higher lumen output than the smaller NF1816-3D product. This product is fixed into position using aluminium fixing clips or 1m fixing channel.

NF1816-3D - 14W PER METRE NEON FLEX - UP TO 760 LUMENS PER METRE - CRI 90+ - SDCM3 CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IP RATING

NF1816-3D-24V-27K

14W/M

2700K

700 LM/M

IP67

NF1816-3D-24V-3K

14W/M

3000K

740 LM/M

IP67

NF1816-3D-24V-4K

14W/M

4000K

760 LM/M

IP67

NF1816-3D-24V-6K

14W/M

6000K

760 LM/M

IP67

PART CODE

Neon Only

3D Bend

24v DC

25mm Cut Points

IP67

CRI90+

10m Max Run Length

Fitted In Fixing Clip

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

21

LED Neon Flex

NEW

NF360R18- 18mm Diameter 360 Illuminated Neon Flex

Our new 360 range is designed for complete versatility. This product is free to bend in any direction and provides full 360 degree illumination. The NF360R18 is an 18mm diameter tube and is not limited by cut points. This product can be cut anywhere across its length. This product is water-resistant IP65 rated and can be supplied with a full range of accessories to suit any application. This product can be run in a maximum length of 5m.

NF360R18 - 11W PER METRE 360 NEON FLEX - UP TO 780 LUMENS PER METRE - CRI 90+ - SDCM3 CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IP RATING

NF360R18-24V-27K

11W/M

2700K

740 LM/M

IP65

NF360R18-24V-3K

11W/M

3000K

760 LM/M

IP65

NF360R18-24V-4K

11W/M

4000K

780 LM/M

IP65

NF360R18-24V-6K

11W/M

6000K

780 LM/M

IP65

PART CODE

360 Light

24v DC

Cut Anywhere!

IP65

CRI90+

Fully Flexible

NEW

NF360R25- 25mm Diameter 360 Illuminated Neon Flex

Our new 360 range is designed for complete versatility. This product is free to bend in any direction and provides full 360 degree illumination. The NF360R25 is a 25mm diameter tube and is not limited by cut points. This product can be cut anywhere across its length (62mm for RGBW). This product is water resistant IP65 rated and can be supplied with a full range of accessories to suit any application. This product can be run in a maximum length of 5m.

NF360R25 - 14W PER METRE 360 NEON FLEX - UP TO 925 LUMENS PER METRE - CRI 90+ - SDCM3 CONSUMPTION

COLOUR TEMPERATURE

LUMEN OUTPUT

IP RATING

NF360R25-24V-27K

14W/M

2700K

855 LM/M

IP65

NF360R25-24V-3K

14W/M

3000K

900 LM/M

IP65

NF360R25-24V-4K

14W/M

4000K

925 LM/M

IP65

NF360R25-24V-6K

14W/M

6000K

925 LM/M

IP65

NF360R25-24V-RGBW

18W/M

300 LM/M

IP65

PART CODE

360 Light

RGBW Cut Every 62mm

White Cut Anywhere!

IP65

CRI90+

Fully Flexible

RGBW (4000K)

24v DC

22

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

LED Neon Range

LED Drivers, Controllers & Accessories

projectLED are specialist manufacturers of LED tape and linear lighting solutions. Their range of LED tapes offer excellent performance and reliability. Every product in this range has been designed and manufactured to meet the below key requirements: LED NEON BLURB

Non-dimmable drivers PS LED Driver Range 12v DC PS LED Driver Range 24v DC Slimline LED Driver Range 12v/24v DC IP Rated Waterproof LED Driver Range 12v/24v DC

Dimmable drivers 0-10v LED Driver Range 12v/24v DC DALI LED Driver Range 12v/24v DC PSDIM TRIAC LED Driver Range 24v DC TRIAC LED Driver Range 12v/24v DC

Controllers

Pages 24-25 Page 24 Page 24 Page 25 Page 25

Pages 26-27 Page 26 Page 26 Page 27 Page 27

Page 28-29

Wireless Receiver Range Wireless RF Wall Plates Wireless RF Remote Controls DMX Receiver Interface

Page 28 Page 28 Page 29 Page 29

Accessories

SR4 Door/Hand Sensor Unit LED Tape Connectors Plug-and-Play JST Connectors Low voltage power track

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

Pages 30-31 Page 30 Page 30 Page 31 Page 31

23

LED Drivers, Controllers & Accessories

PS Non-Dimmable LED Driver Range IP20 - 12v DC

Our PS range of non-dimmable LED drivers are the quality choice to power your LED tape, neon or other 12v DC LED lighting products. Our drivers have a low-profile design with convenient screw terminal connections and inbuilt cable restraint. Our energy-efficient design ensures a power factor of <0.9. This range features short-circuit, overload and over voltage protection and a 5-year warranty.

NON-DIMMABLE 12V CONSTANT VOLTAGE LED DRIVER RANGE - 5 YEAR WARRANTY PART CODE

MAX. LOAD

OUTPUT VOLTAGE

IP RATING

DIMENSIONS

PS-15-12

15W (1.25A)

12V DC

IP20

103 * 33.5 * 16.5MM

PS-30-12

30W (2.5A)

12V DC

IP20

160 * 50 * 14MM

PS-50-12

50W (4.15A)

12V DC

IP20

160 * 50 * 14MM

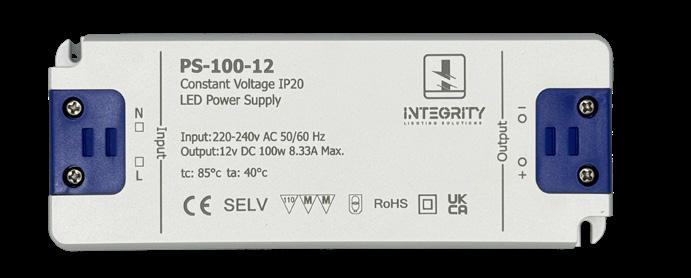

PS-100-12

100W (8.3A)

12V DC

IP20

160 * 50 * 14MM

PS-180-12

180W (15A)

12V DC

IP20

195 * 67 * 31.2MM

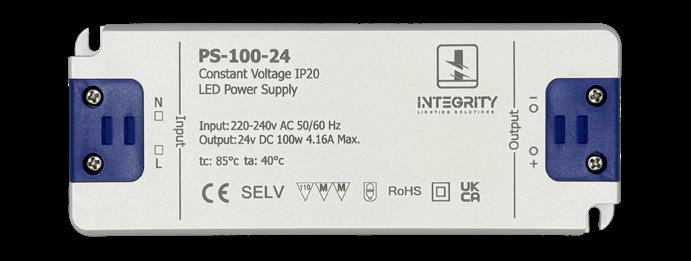

PS Non-Dimmable LED Driver Range IP20 - 24v DC

Our PS range of non-dimmable LED drivers are the quality choice to power your LED tape, neon or other 24v DC LED lighting products. Our drivers have a low-profile design with convenient screw terminal connections and inbuilt cable restraint. Our energy-efficient design ensures a power factor of <0.9. This range features short-circuit, overload and over voltage protection and a 5-year warranty.

NON-DIMMABLE 24V CONSTANT VOLTAGE LED DRIVER RANGE - 5 YEAR WARRANTY

24

PART CODE

MAX. LOAD

OUTPUT VOLTAGE

IP RATING

DIMENSIONS

PS-15-24

15W (0.625A)

24V DC

IP20

103 * 33.5 * 16.5MM

PS-30-24

30W (1.25A)

24V DC

IP20

160 * 50 * 14MM

PS-50-24

50W (2.08A)

24V DC

IP20

160 * 50 * 14MM

PS-100-24

100W (4.15A)

24V DC

IP20

160 * 50 * 14MM

PS-200-24

200W (8.3A)

24V DC

IP20

195 * 67 * 31.2MM

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

LED Drivers, Controllers & Accessories

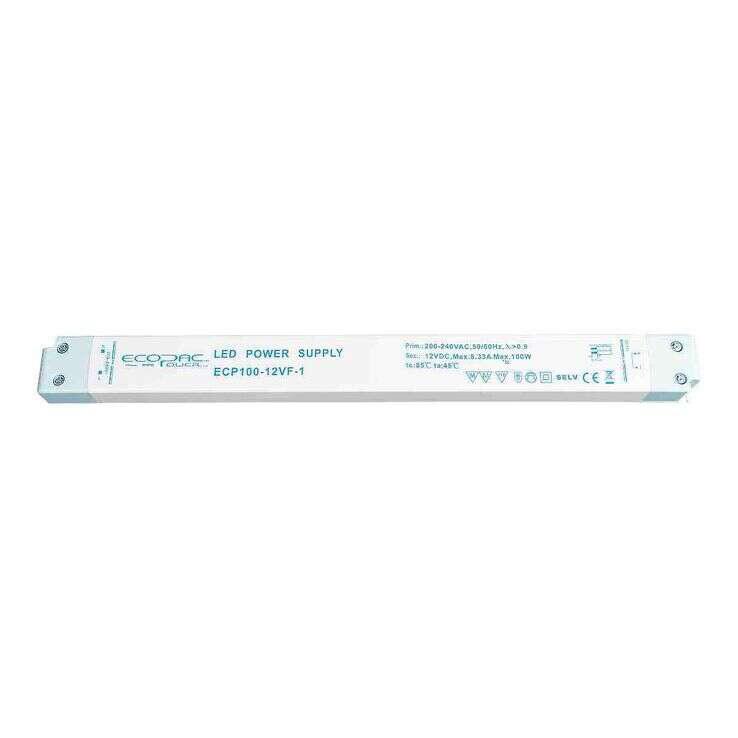

Slimline LED Driver Range

Our PSSLIM range of non-dimmable LED drivers are designed for to be as compact as possible. Ideal for retail POS units, light boxes and other applications which require large output LED drivers which are slim and very narrow in depth. This range features short-circuit, overload and over voltage protection and a 3-year warranty.

ULTRA SLIM LED DRIVERS (NON-DIMMABLE) PART CODE

DESCRIPTION

PSSLIM-30-12/24

30W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC

PSSLIM-45-12/24

45W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC

PSSLIM-60-12/24

60W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC

PSSLIM-100-12/24

100W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC

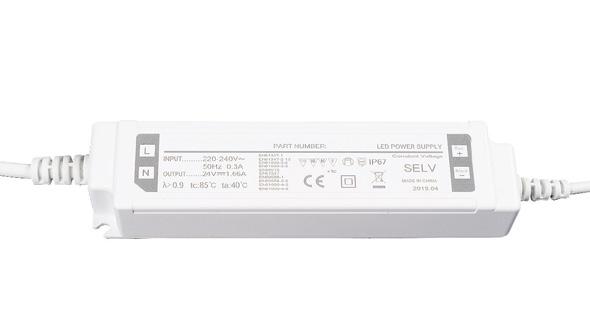

IP Rated Waterproof LED Driver Range

Our weatherproof LED driver range are suitable for use in damp or wet conditions. Offering IP ratings up to IP67, making them suitable for internal or external applications. Their fully encapsulated design makes them incredibly durable. The PSIP range is backed up by a 3-year warranty with the HLG range offering a 5-year or 7-year warranty.

IP RATED WEATHERPROOF LED DRIVERS (NON-DIMMABLE) PART CODE

DESCRIPTION

PSIP-40-12/24

40W CONSTANT VOLTAGE DRIVER IP65 12V DC / 24V DC

PSIP-60-12/24

60W CONSTANT VOLTAGE DRIVER IP65 12V DC / 24V DC

PSIP-100-12/24

100W CONSTANT VOLTAGE DRIVER IP65 12V DC / 24V DC

HLG-240-12/24

240W CONSTANT VOLTAGE DRIVER IP67 12V DC / 24V DC

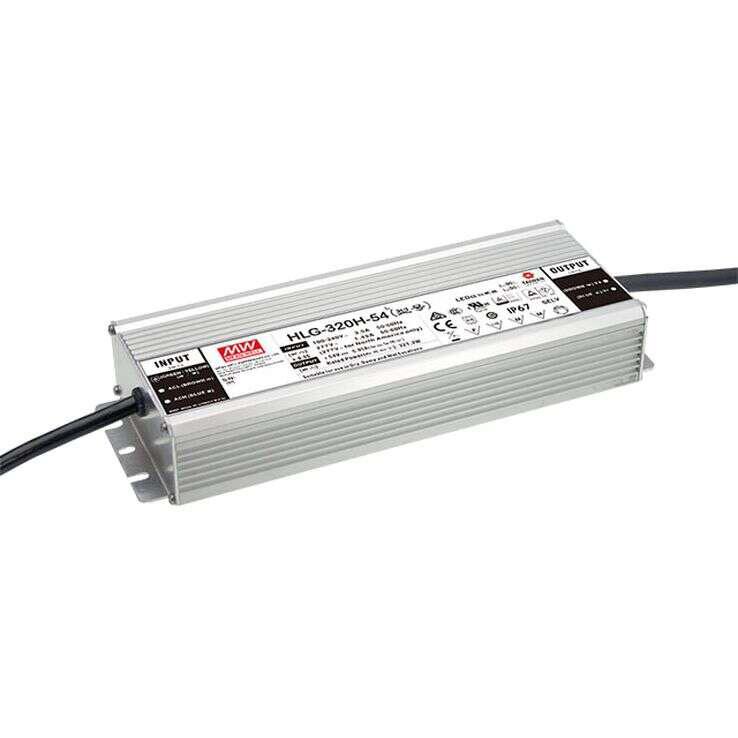

HLG-320-12/24

320W CONSTANT VOLTAGE DRIVER IP67 12V DC / 24V DC

HLG-480-12/24

480W CONSTANT VOLTAGE DRIVER IP67 12V DC / 24V DC

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

25

LED Drivers, Controllers & Accessories

0-10v Dimmable Driver Range

Our range of 0-10v dimmable drivers are compatible with a range of analogue dimming systems. These offer PWM dimming for your 12v/24 DC constant voltage LED products. This range features short-circuit, overload and over voltage protection and a 3-year warranty.

0-10V ANALOGUE DIMMABLE LED DRIVERS PART CODE

DESCRIPTION

ELED-45V-12/24

45W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC 0-10V ANOLOGUE DIMMABLE

ELED-60V-12/24

60W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC 0-10V ANOLOGUE DIMMABLE

ELED-100V-12/24

100W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC 0-10V ANOLOGUE DIMMABLE

ELED-200V-12/24

200W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC 0-10V ANOLOGUE DIMMABLE

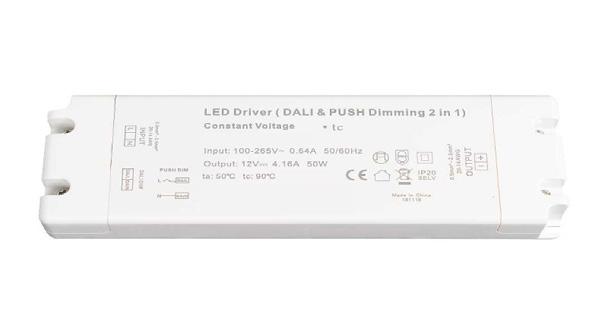

DALI Dimmable Driver Range

Our range of DALI drivers are compatible with a range of dimming and BMS systems. These offer PWM dimming for your 12v/24 DC constant voltage LED products. This range features short-circuit, overload and over voltage protection and a 3-year warranty.

DALI DP2 LED drivers also available on request. Please contact our sales team for more information.

DALI DIMMABLE LED DRIVERS PART CODE

26

DESCRIPTION

PSDALI-30-12/24

30W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC DALI DIMMABLE

PSDALI-60-12/24

60W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC DALI DIMMABLE

PSDALI-100-12/24

100W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC DALI DIMMABLE

PSDALI-200-12/24

200W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC DALI DIMMABLE

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

LED Drivers, Controllers & Accessories

PSDIM TRIAC Dimmable LED Driver Range - 24v DC

Our PSDIM range of TRIAC dimmable LED drivers are the quality choice to dim your 24v DC LED lighting products. Our drivers are TRIAC leading & trailing edge dimmable with convenient screw terminal connections and inbuilt cable restraint. Our design uses reliable PWM dimming and is flicker-free with the capability to dim from 100 - 0%. This range of products is avaible in 24v DC only and is compatible with many brands of dimmer modules as well as intelligent lighting systems. This range features short-circuit, overload and over voltage protection and a 5-year warranty.

TRIAC LEADING/TRAILING EDGE DIMMABLE LED DRIVER RANGE - 5 YEAR WARRANTY PART CODE

MAX. LOAD

OUTPUT VOLTAGE

IP RATING

DIMENSIONS

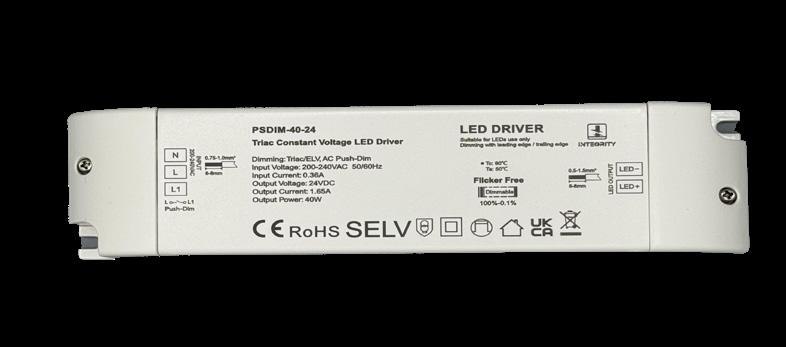

PSDIM-40-24

40W (1.66A)

24V DC

IP20

168.5 * 44 * 30MM

PSDIM-75-24

75W (3.12A)

24V DC

IP20

179 * 56 * 30MM

PSDIM-150-24

150W (6.25A)

24V DC

IP20

310 * 45 * 30MM

Premium TRIAC LED Driver Range - 12/24v DC

Our PSTRIAC range of LED drivers are a premium range of TRIAC leading and trailing edge dimming LED drivers. These are available in both 12v and 24v DC and are a solution for more demanding dimming scenarios, for example integration with complex automation or dimming systems. These LED drivers offer a great level of control and dimming performance, even with low loads.

TRIAC MAINS DIMMABLE LED DRIVERS PART CODE

DESCRIPTION

PSTRIAC-30P-12/24

30W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC TRIAC MAINS DIMMABLE

PSTRIAC-60P-12/24

60W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC TRIAC MAINS DIMMABLE

PSTRIAC-100P-12/24

100W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC TRIAC MAINS DIMMABLE

PSTRIAC-200P-12/24

200W CONSTANT VOLTAGE DRIVER IP20 12V DC / 24V DC TRIAC MAINS DIMMABLE

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

27

LED Drivers, Controllers & Accessories

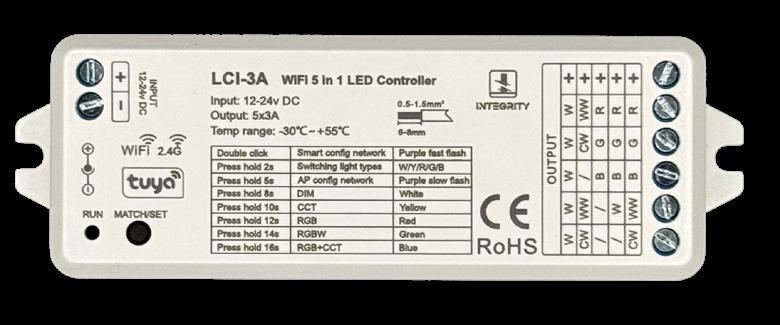

Wireless Controller Range - Receivers

Our wireless controller range is designed with ease of use and installation firmly in mind. The LCI-3A unit is our universal receiver unit which combines RF and WiFi control as standard. It provides flicker-free PWM dimming and colour control.

Out of the box the LCI-3A can be configured to control fixed colour, CCT, RGB, RGBW and RGBCCT LED products. It can be used on its own via the dedicated app which also integrates with Amazon Alexa. Installation is simple and full installation instructions are supplied with each unit.

It can also be paired with our range of handy remotes and wall plates to provide dual RF and WiFi control for ultimate convenience. You can set scenes, integrate sound-to-light, or set schedules using the Tuya SmartLife app. The LCI-3A can be paired as master & slave via RF, further aiding simplicity by allowing multiple runs of LED to be controlled from one single WiFi enable device.

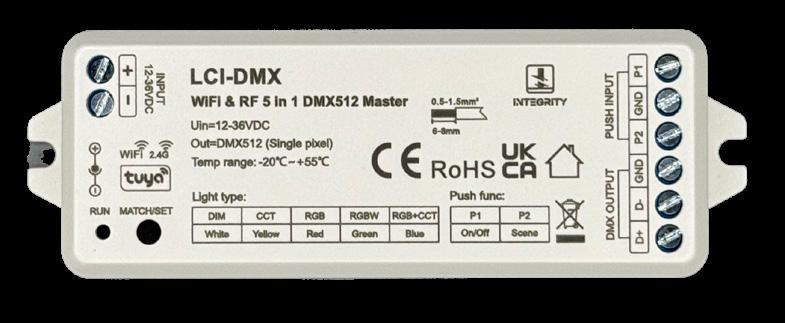

In more complex installations a wired signal can be preferable, the LCI-DMX enables the user to take advantage of all of the above capability whilst using a wired system. The LCI-DMX allows for app/remote/wall plate control and outputs a DMX signal which can be used with our DMX-4A DMX receivers.

LIGHTING CONTROL INTERFACE - RF & WIFI ENABLED - 5 YEAR WARRANTY PART CODE

MAX. LOAD

OUTPUT

IP RATING

DIMENSIONS

LCI-3A

15A (5X 3A)

12V/24V DC

IP20

114 * 38 * 20MM

LCI-DMX

N/A

DMX SIGNAL ONLY

IP20

114 * 38 * 20MM

COMPATIBLE WITH FIXED COLOUR, CCT, RGB, RGBW & RGBCCT LED PRODUCTS SEE PAGE 29 FOR COMPATIBLE DMX RECEIVER FOR LCI-DMX

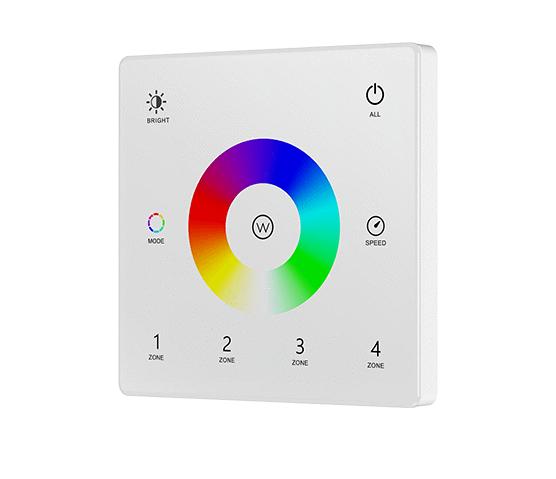

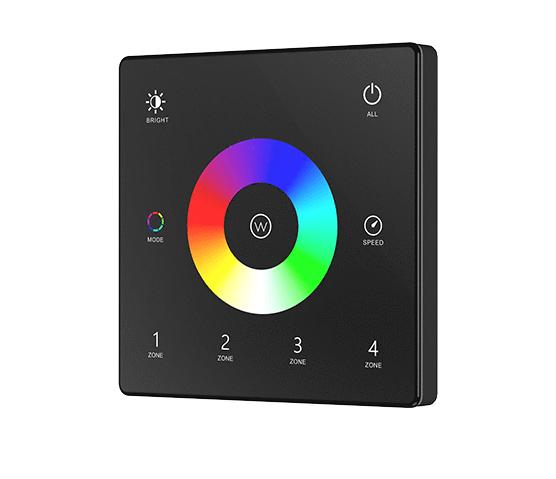

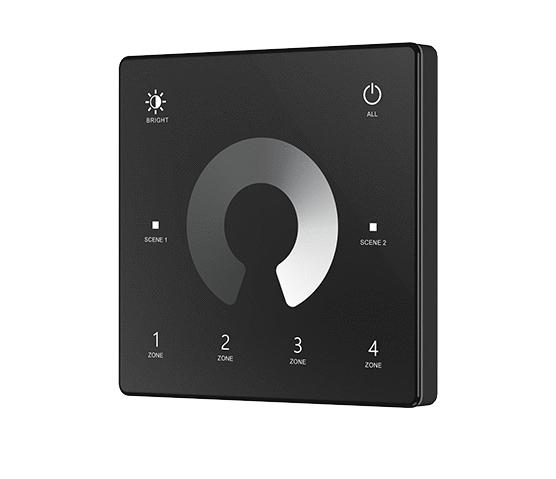

Wireless Controller Range - RF Wall Plates

Our RF wall plate controllers are 4-zone control plates for use with the LCI-3A or LCI-DMX interface. Each wall plate is manufactured using an ultra-sensitive glass panel which is powered by a CR2032 battery. This product can be fitted into a standard single back box or fixed using the supplied self-adhesive pad.

Each controller allows for a scene to be saved for a custom brightness or colour selection. The WP1 allows for dimming of static colour LED tapes and the WP4 allows for control of RGB and RGBW lighting.

DIMMING RF WALL PLATE CONTROLLER - 5 YEAR WARRANTY PART CODE

FINISH

CONTROL TYPE

IP RATING

DIMENSIONS

WP1-B

BLACK

DIMMING

IP20

86 * 86 * 9.5MM

WP1-W

WHITE

DIMMING

IP20

86 * 86 * 9.5MM

RGB/RGBW RF WALL PLATE CONTROLLER - 5 YEAR WARRANTY

28

PART CODE

FINISH

CONTROL TYPE

IP RATING

DIMENSIONS

WP4-B

BLACK

RGB/RGBW DIMMING & COLOUR

IP20

86 * 86 * 9.5MM

WP4-W

WHITE

RGB/RGBW DIMMING & COLOUR

IP20

86 * 86 * 9.5MM

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

LED Drivers, Controllers & Accessories

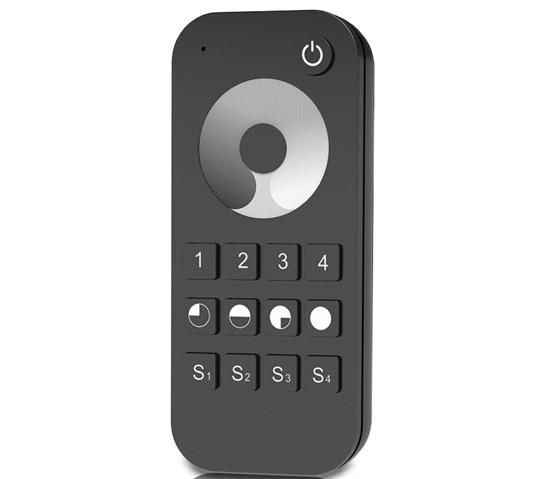

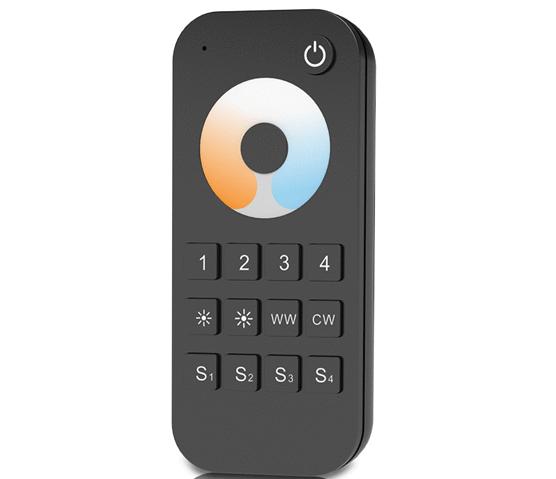

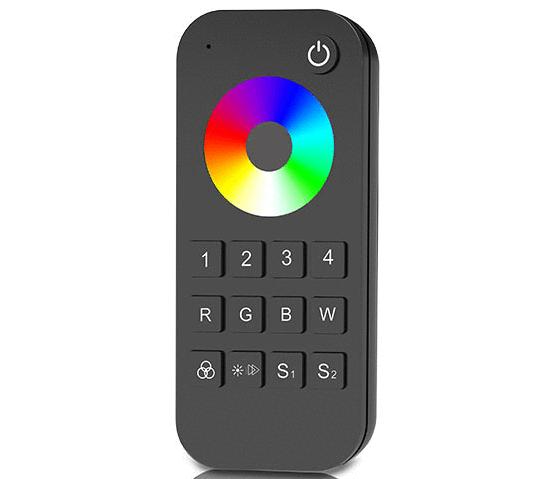

Wireless Controller Range - RF Remotes

Our RF remotes are 4-zone remote controllers for use with the LCI-3A or LCI-DMX interface. Each remote is powered by 2x AAA batteries and have a premium touch black finish. They also come with a wall mount for convenience. Each controller allows for a scene to be saved for a custom brightness or colour selection. The RM6 allows for dimming of static colour LED tapes, the RM7 is for CCT LED and the RM9 allows for control of RGB and RGBW lighting.

DIMMING RF HAND REMOTE CONTROLLER - 5 YEAR WARRANTY PART CODE

FINISH

CONTROL TYPE

IP RATING

DIMENSIONS

RM6

BLACK

DIMMING

IP20

122 * 53 * 75MM

RM7

BLACK

CCT DIMMING & COLOUR

IP20

122 * 53 * 75MM

RM9

BLACK

RGB/RGBW DIMMING & COLOUR

IP20

122 * 53 * 75MM

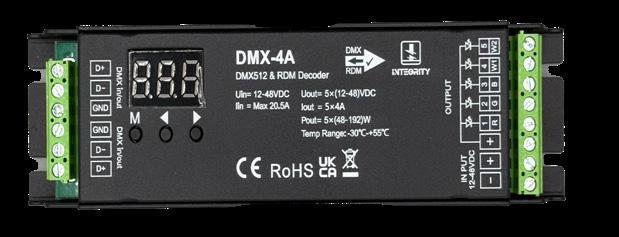

Wireless Controller Range - DMX Interface

The DMX-4A is a DMX receiver interface which accepts a DMX signal and outputs to static colour, CCT, RGB or RGBW LED lighting. This is designed for use with our LCI-DMX unit, however could also be integrated with any other DMX based system for complete wired lighting control.

DMX RECEIVER UNIT - 5 YEAR WARRANTY PART CODE

MAX. LOAD

OUTPUT VOLTAGE

IP RATING

DIMENSIONS

DMX-4A

20A MAX. (4X 5A)

12V / 24V DC

IP20

122 * 53 * 75MM

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

29

LED Drivers, Controllers & Accessories

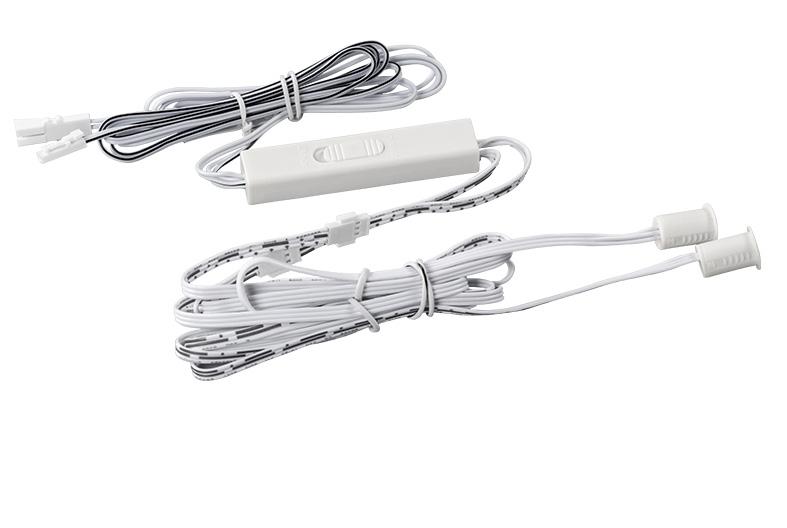

Integrity Door/Hand Sensor Unit

The SR4 is a sensor unit for door/hand control. The control type can be selected during the setup process and each kit comes with 2x sensors making it perfect for use in wardrobes. The input and output leads have our JST connector leads on making them simple to integrate into a plug-and-play system.

INTEGRITY RECESSED HAND/DOOR CONTROL UNIT WITH 2X SENSORS - 3 YEAR WARRANTY PART CODE SR4-R

MAX. LOAD

OUTPUT VOLTAGE

IP RATING

CONTROL TYPE

4A

12V / 24V DC

IP20

DOOR & HAND SENSOR

INTEGRITY SURFACE HAND/DOOR CONTROL UNIT WITH 2X SENSORS - 3 YEAR WARRANTY PART CODE SR4-S

MAX. LOAD

OUTPUT VOLTAGE

IP RATING

CONTROL TYPE

4A

12V / 24V DC

IP20

DOOR & HAND SENSOR

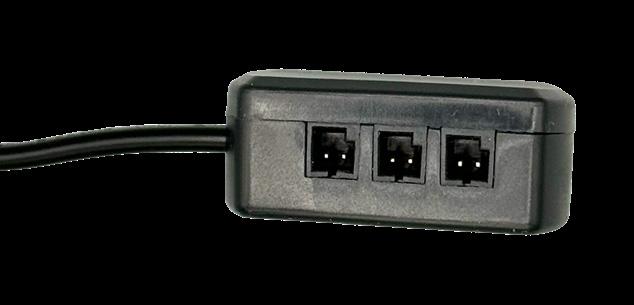

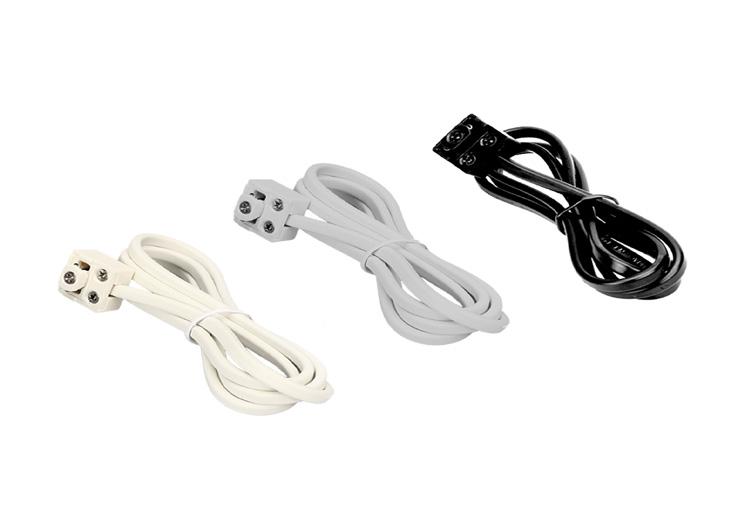

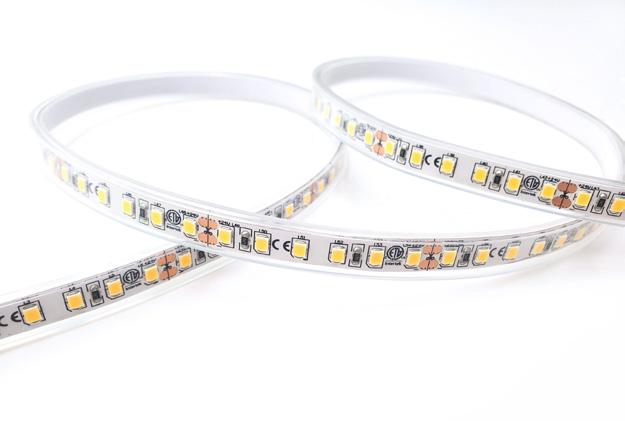

Integrity LED Tape Connectors

Integrity hippo LED tape connectors are designed for convenience and quick-fitting. There’s no doubt that a soldered mechanical joint is always the most secure way of connecting your LED tape, however sometimes due to speed or challenges on site this may not be possible. Our hippo connectors offer a quick and practical way of connecting up 8mm or 10mm LED tapes.

INTEGRITY LED TAPE CONNECTORS FOR 8MM & 10MM LED TAPE - 3 YEAR WARRANTY PART CODE

30

MAX. LOAD

OUTPUT VOLTAGE

IP RATING

DESCRIPTION

HIPPO-8MM-IC

2.5A

12V / 24V DC

IP20

INPUT CONNECTOR FOR 8MM LED TAPE

HIPPO-10MM-IC

2.5.A

12V / 24V DC

IP20

INPUT CONNECTOR FOR 10MM LED TAPE

HIPPO-8MM-JC

2.5A

12V / 24V DC

IP20

TAPE-TO-TAPE JOINT CONNECTOR FOR 8MM LED TAPE

HIPPO-10MM-JC

2.5A

12V / 24V DC

IP20

TAPE-TO-TAPE JOINT CONNECTOR FOR 10MM LED TAPE

HIPPO-8MM-LC

2.5A

12V / 24V DC

IP20

TAPE-TO-TAPE LINK CONNECTOR FOR 8MM LED TAPE

HIPPO-10MM-LC

2.5A

12V / 24V DC

IP20

TAPE-TO-TAPE LINK CONNECTOR FOR 10MM LED TAPE

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

LED Drivers, Controllers & Accessories

Integrity Plug-And-Play JST Connectors

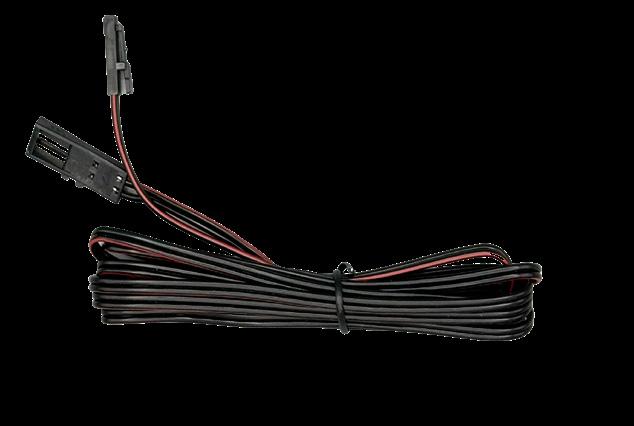

Integrity JST connectors are the ideal solution to provide plug-and-play connectivity for your LED strip assemblies. Ideal for use on retail point-of-sale units, wardrobes and kitchens, and many other applications. The JST connector leads are compatible with our SR4 sensors and can be built as bespoke kits by our experienced technical team. Please contact our sales team for further information

INTEGRITY JST CONNECTOR LEADS - 3 YEAR WARRANTY PART CODE

DESCRIPTION

MAX. LOAD

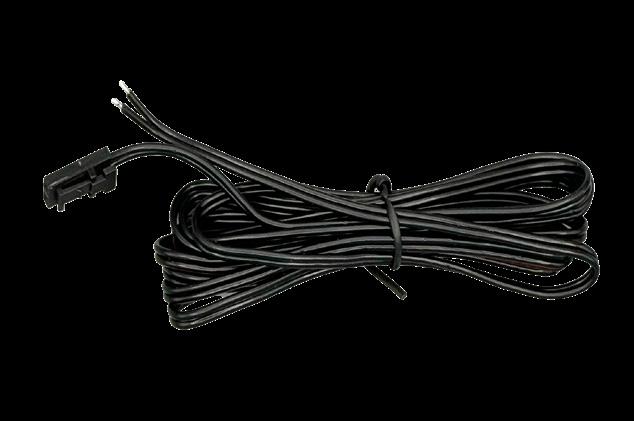

JST-1800MM

1800MM MALE JST TO STRIPPED ENDS LEAD

3A

1800MM MALE / FEMALE JST LEAD

3A

JST-3WAY

3X FEMALE JST SOCKET TO STRIPPED END

3A

JST-6WAY

6-WAY JST CONNECTOR BLOCK TO STRIPPED ENDS

3A

JST-EXTENSION

Integrity Low Voltage Power Track

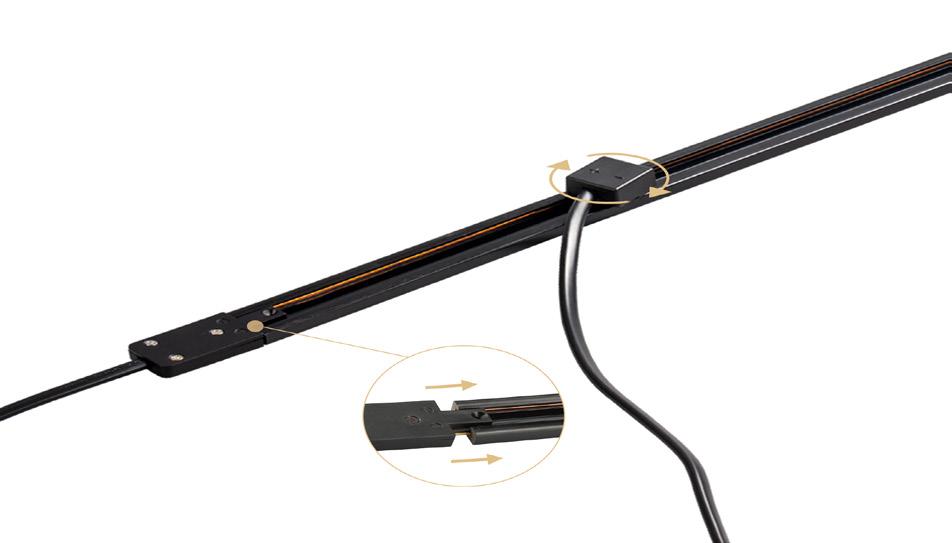

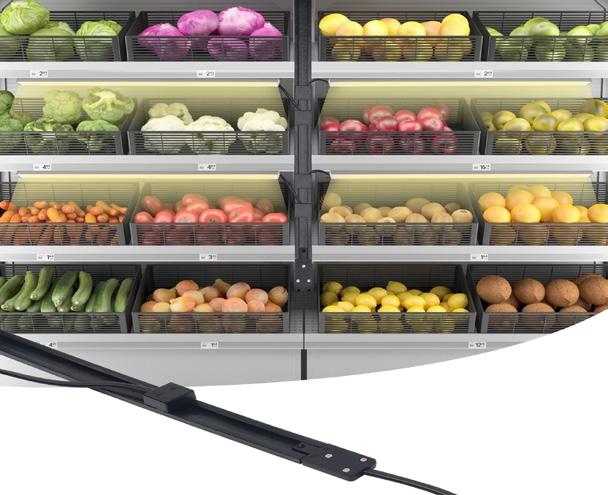

Integrity low voltage power track is a retail POS connection solution. This power track is available in white and black and allows for easy plug-play-connection for shelving units. This flexible system allows for shelf heights to be adjusted easily by store staff without having to alter the wiring configuration. Simply rotate the track adapter to remove it from the track, move the shelves, push the adapter back into the track and rotate again to power the LEDs.

INTEGRITY LOW VOLTAGE POWER TRACK - 3 YEAR WARRANTY PART CODE

DESCRIPTION

MAX. LOAD

SLVT01-2M-W SLVT01-2M-B SLVT01-2M-G

SURFACE LOW VOLTAGE TRACK 2M WHITE/BLACK/GREY

25A

SLVT01-TA-W SLVT01-TA-B SLVT01-TA-G

SURFACE LOW VOLTAGE TRACK ADAPTER WHITE/BLACK/GREY

4A

SLVT01-IL-W SLVT01-IL-B SLVT01-IL-G

SURFACE LOW VOLTAGE TRACK INPUT CONNECTOR WHITE/BLACK/GREY

8A

SLVT01-EC-W SLVT01-EC-B SLVT01-EC-G

SURFACE LOW VOLTAGE TRACK END CAP WHITE/BLACK/GREY

N/A

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

31

M 18 Highmeres Road, Thurmaston, Leicester, LE4 9LZ

32

+44 (0) 116 436 2450 - sales@integritylighting.co.uk - www.integritylighting.co.uk

(+44) 0116 436 2450 www.integritylighting.co.uk sales@integritylighting.co.uk
