Integrity Lighting Solutions Product Guide v2

EXPERTS IN LED LIGHTING SOLUTIONS

At Integrity Lighting Solutions, quality is our mission. Our customers work with us because we produce high quality products, with superb customer service and a fast turnaround. All of our products carry a minimum 3 year warranty and we also only use class-leading components from trusted manufacturers.

We supply custom LED lighting solutions to a number of sectors including retail, POS, hospitality, architectural design, commercial and residential.

Our extensive knowledge of the LED lighting industry has enabled us to become the preferred supplier to a number of leading companies across the UK. Our vast range of products includes linear LED lighting, LED drivers & controllers, ceiling lighting and display lighting solutions.

We are proud to work as UK distributors for TOPMET, projectLED and SELF. Together we offer an unrivaled complete solution for your next LED lighting project.

19

20

Triac Mains Dimmable

22

22 0-10v Analogue Dimmable

Dali Dimmable Page 22

Standard LED Drivers Page 23

IP Rated LED Drivers Page 23

Ultra Slim LED Drivers Page 23

LED Controllers

Single Colour Page 24

CCT Colour Adjustable Page 24

RGBW/RGBW Colour Change Page 24 Introducing...

Self Lighting Page 25 Topmet Page 26

LED Tapes & Linear LED Lighting

projectLED are specialist manufacturers of LED tape and linear lighting solutions. Their range of LED tapes offer excellent performance and reliability. Every product in this range has been designed and manufactured to meet the below key requirements:

Certification & Approval -

• UKCA, CE & ROHS Marked - Meets and exceeds all UK and EU safety & performance standards.

• TUV Approved - Rigorously tested and approved by German testing house TUV.

• UL Intertek Approved - UL listed LED tape meets all requirements for use within the USA.

Quality & Performance -

• LM79 & LM80 - Tested to IESNA approved standards for LED performance over time. 50,000 hours for LED output to reduce to 80% of original light output. Reliability and quality guaranteed.

• SDCM3 - LED tape produced with tight binning controls to ensure no batch variation in colour of LEDs.

• High CRI - All LED tapes meet a minimum 80+ CRI ensuring a high-quality light suitable for a wide variety of applications. Low CRI products can cause the colours in products or surfaces to appear washed out. CRI90, CRI95 and CRI98 products are also available to custom order.

Warranty & Aftersales -

• projectLED products are exclusively distributed by Integrity Lighting Solutions and are supplied with a minimum 3 year warranty, with many products sold with a 5 year warranty for a truly fit and forget solution.

• Full technical support available with all data sheets available to download from our website.

• Our experienced and knowledgeable staff are available to answer any technical queries before, during and after installation.

Bespoke Manufacturing -

• All projectLED LED tapes are available to purchase by the reel or fully bespoke to suit your application.

• Whether you’re working on a domestic project, retail installation or a refurbishment of a hotel we can help by making the installation process as simple as possible.

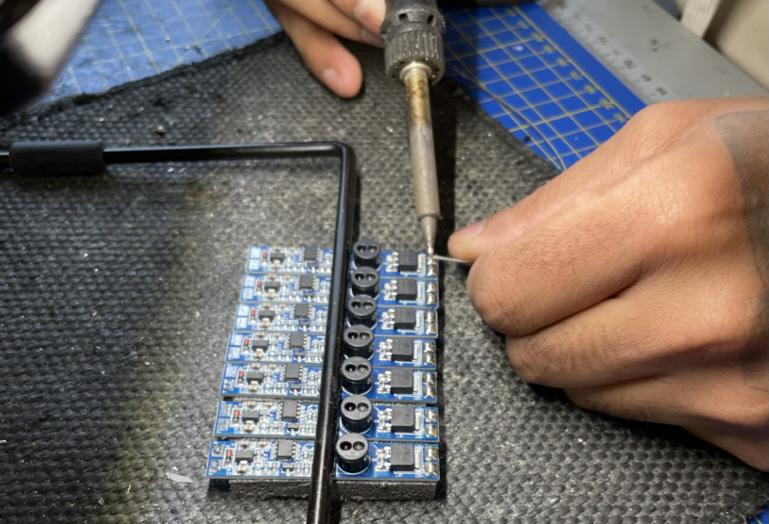

• We offer a professional bespoke cutting service to all customers. We will cut your LED tape to length, professionally solder and seal all connections, comprehensively test and then package and label your product.

• We can supply complete assemblies with various plug-and-play connectors for simple and quick installation.

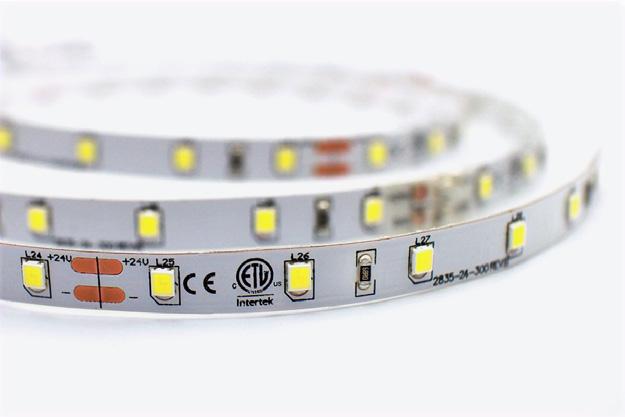

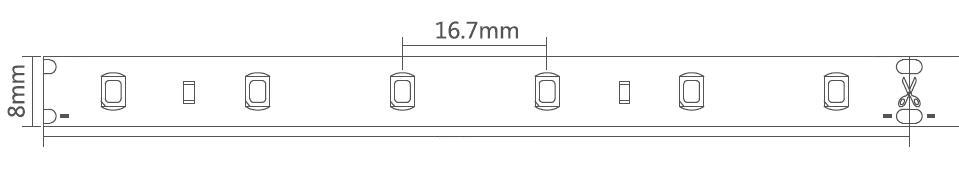

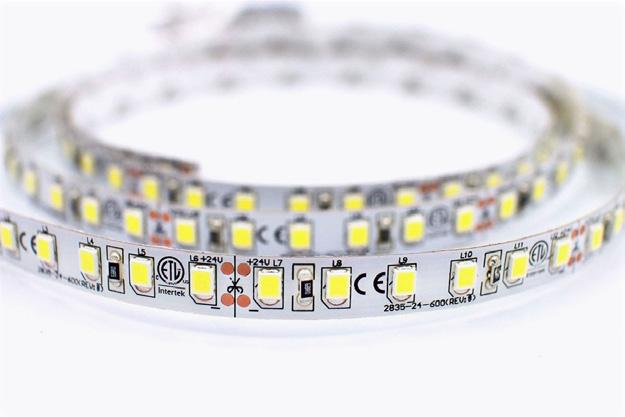

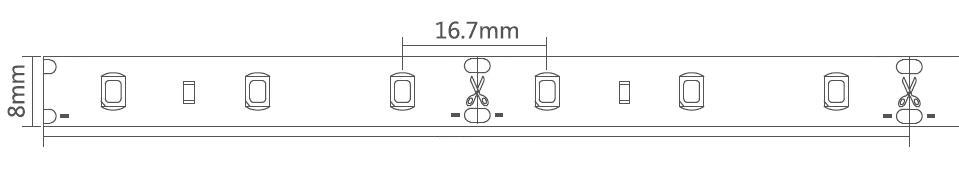

INDOOR LED TAPE - LS5W RANGE

LS5W - 5W PER METRE LED STRIP - UP TO 470 LUMENS PER METRE - CRI 80+ - SDCM3 - 60 LED/M

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

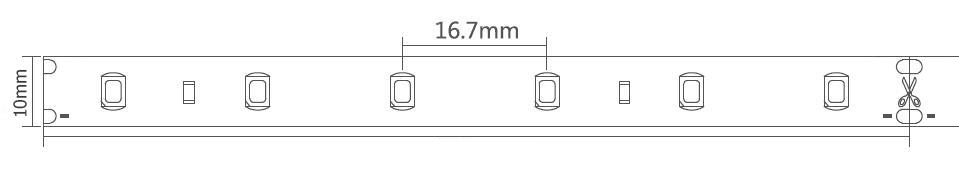

Low-wattage 5w per metre LED tape ideal for plinth lighting and effect lighting. Built using high-quality 2oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. 12v DC offers versatility with regular cutting increments. Maximum run length of 5m. 50mm cutting increments

LS5W - 5W PER METRE LED STRIP - UP TO 470 LUMENS PER METRE - CRI 80+ - SDCM3 - 60 LED/M

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

Low-wattage 5w per metre LED tape ideal for plinth lighting and effect lighting. Built using high -quality 2oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. 24v DC offers longer maximum run lengths of up to 10m. 100mm cutting increments

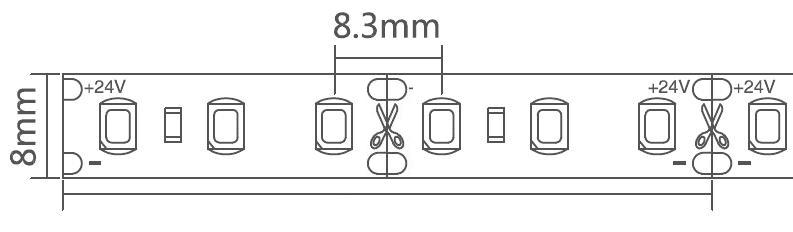

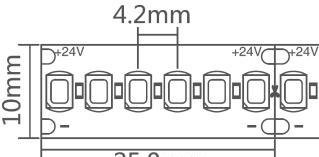

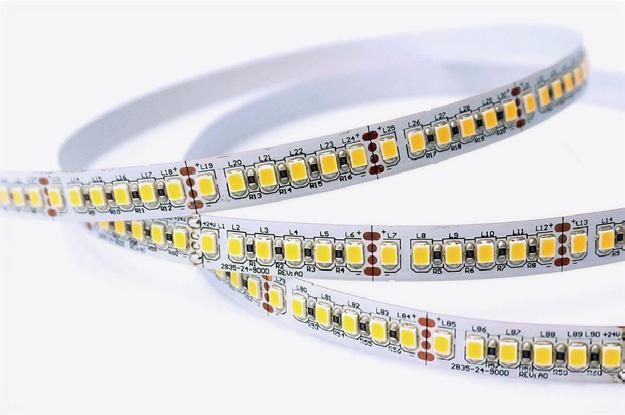

INDOOR LED TAPE - LS10W RANGE

High-density 10w per metre LED tape ideal for under cabinet and display lighting. Built using high-quality 2oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. 12v DC enables this product to be cut every 25mm. Maximum run length of 5m.

LS10W - 10W PER METRE LED STRIP - UP TO 960 LUMENS PER METRE - CRI 80+ - SDCM3 -

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

High-density 10w per metre LED tape ideal for under cabinet and display lighting. Built using high-quality 2oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. 24v DC offers longer maximum run lengths of up to 10m.

LS10W - 10W PER METRE LED STRIP - UP TO 960 LUMENS PER METRE - CRI 80+

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

INDOOR LED TAPE - LS15W RANGE

High-density 15w per metre LED tape ideal for applications requiring a higher lumen output. Built using high-quality 2oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. 24v DC offers longer maximum run lengths of up to 10m.

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

INDOOR LED TAPE - LS17W RANGE

High output 17w per metre LED tape ideal for demanding applications and can be used as primary lighting. Built using high-quality 3oz copper PCB and next-generation 2835 LEDs for optimum brightness and efficiency. 24v DC offers longer maximum run lengths of up to 10m.

LS17W - 17W PER METRE LED STRIP - UP TO 2000 LUMENS PER METRE - CRI 80+ - SDCM3 - 240 LED/M

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

“The Beautiful North” - AO Arena Manchester - Bespoke LED lighting for executive lounges

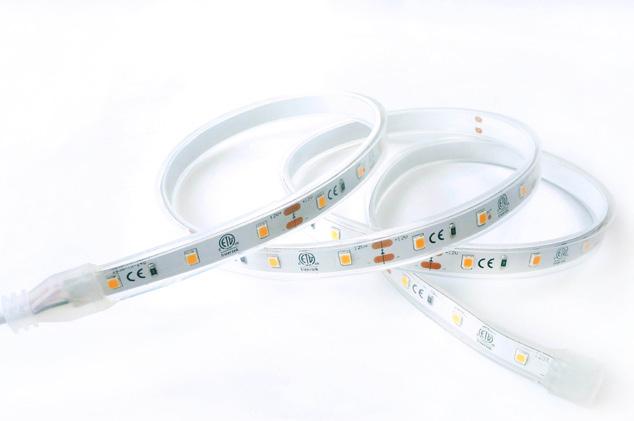

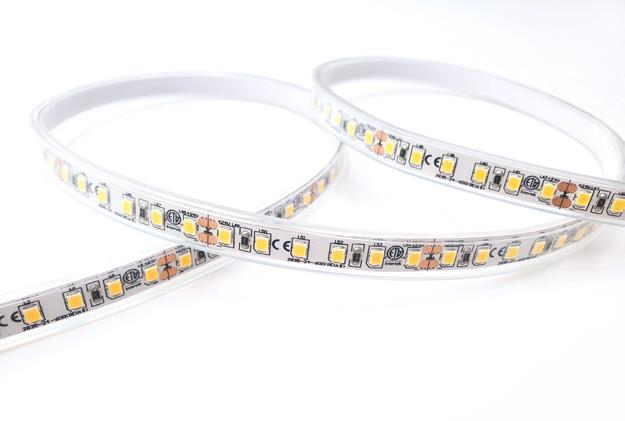

OUTDOOR LED TAPE - IP5W RANGE

Low-output 5w per metre fully encapsulated LED tape. IP65 rating makes this product suitable for kitchens, bathrooms and external applications. IP67 rating can be achieved subject to correct installation. 24v DC for maximum 10m run lengths.

OTHER CUSTOM COLOURS AND CRI90 + OPTION AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

OUTDOOR LED TAPE - IP10W RANGE

High-output 10w per metre fully encapsulated LED tape. IP65 rating makes this product suitable for kitchens, bathrooms and external applications. IP67 rating can be achieved subject to correct installation. 24v DC for maximum 10m run lengths.

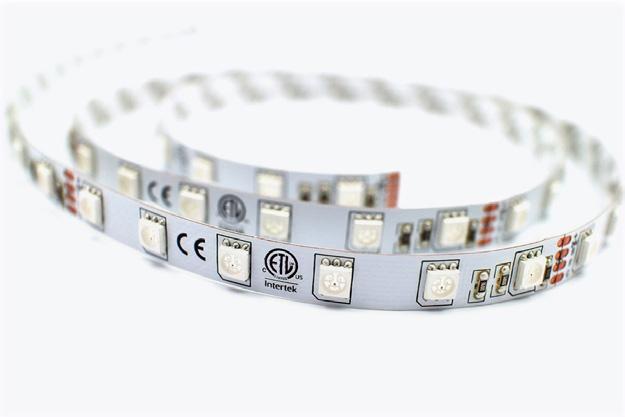

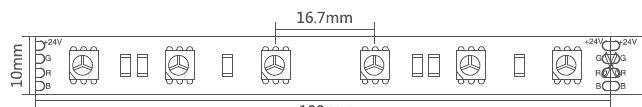

INDOOR COLOUR CHANGE LED TAPE - LSRGB15W RANGE

24v DC

High-output 15w per metre RGB LED tape ideal for applications requiring a bold burst of colour. Built using high-quality 2oz copper PCB and 5050 RGB LEDs. RGB LEDs create a smooth and colourful mixed effect when used with RGB controllers.

LSRGB15W - 15W PER METRE RGB STRIP - UP TO 570 LUMENS PER METRE - CRI 80+ - SDCM360 LED/M

INDOOR COLOUR CHANGE LED TAPE - LSRGB20W RANGE

High-density 20w per metre RGB LED tape ideal for projects requiring a brighter burst of colour. Built using high-quality 2oz copper PCB and 5050 RGB LEDs. RGB LEDs create a smooth and colourful mixed effect when used with RGB controllers. The higher density of LEDs allows for a more homogenous effect.

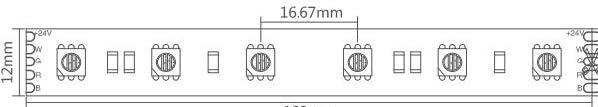

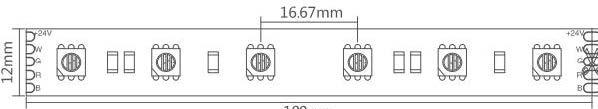

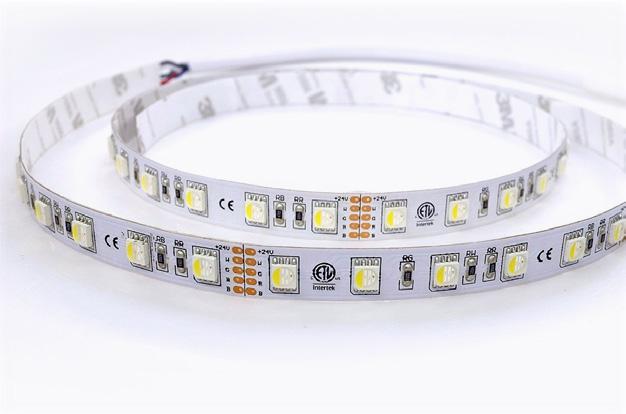

INDOOR COLOUR CHANGE LED TAPE - LSRGBW RANGE

High output 20w per metre RGBW LED tape with integrated white LED chip. Built using high-quality 2oz copper PCB and next-generation 5050 LEDs. Integrated RGBW LEDs and white LED allows for a flexible product which can create soft pastel hues, intense colour and pure white illumination.

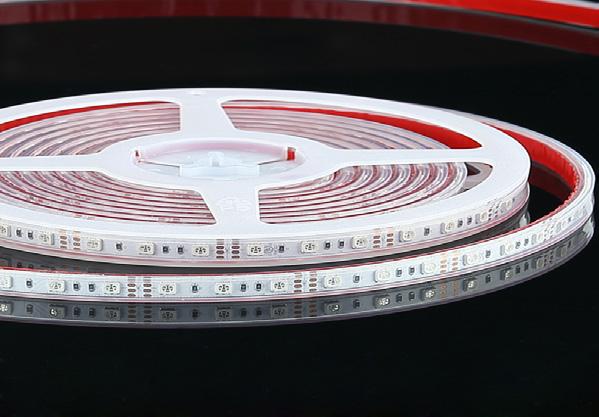

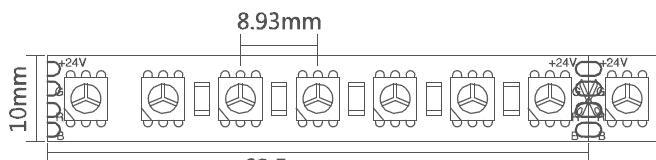

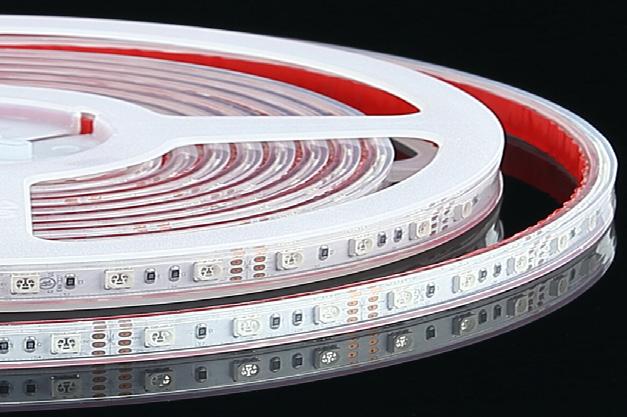

OUTDOOR COLOUR CHANGE LED TAPE - IPRGB15W RANGE

High-output 15w per metre RGB LED tape ideal for applications requiring a bold burst of colour. Built using high-quality 2oz copper PCB and 5050 RGB LEDs. RGB LEDs create a smooth and colourful mixed effect when used with RGB controllers. IP67 rating can be achieved subject to correct installation. 24v DC for maximum 10m run lengths. 100mm cutting increments

IPRGB15W - 15W PER METRE RGB STRIP - UP TO 570 LUMENS PER METRE - CRI 80+ - SDCM360 LED/M

OUTDOOR COLOUR CHANGE LED TAPE - IPRGBW20W RANGE

High output 20w per metre RGBW LED tape with integrated white LED chip. Built using high-quality 2oz copper PCB and next-generation 5050 LEDs. Integrated RGBW LEDs and white LED allows for a flexible product which can create soft pastel hues, intense colour and pure white illumination. IP67 rating can be achieved subject to correct installation. 24v DC for maximum 10m run lengths. 100mm cutting increments

IPRGB20W - 20W PER METRE RGB STRIP - UP TO 680 LUMENS PER METRE - CRI 80+ - SDCM360 LED/M

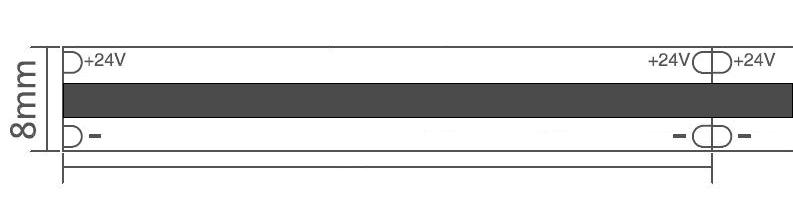

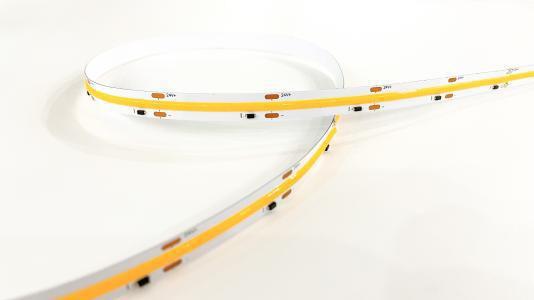

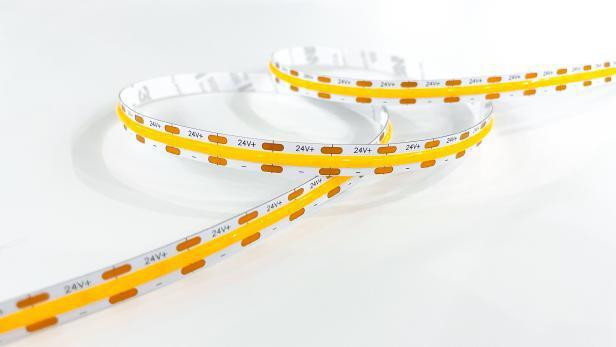

SPOTLESS COB LED TAPE - CB5W RANGE

Low-output 5w per metre COB LED tape ideal for plinth lighting and effect lighting. Built using high-quality 2oz copper PCB and next-generation chip-on-board LEDs for optimum brightness, efficiency and a guaranteed dotless finish. 90+ CRI. 5m maximum run length.

OTHER CUSTOM COLOURS AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

SPOTLESS COB LED TAPE - CB11W RANGE

High-output 11w per metre COB LED tape ideal for kitchen and statement lighting. Built using high-quality 2oz copper PCB and next-generation chip-on-board LEDs for optimum brightness, efficiency and a guaranteed dotless finish. 90+ CRI. 5m maximum length. 41.7mm

OTHER CUSTOM COLOURS AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

LONG RUN SPOTLESS COB LED TAPE - CB11W-IC RANGE

High-output 11w per metre COB LED tape ideal for kitchen and statement lighting. Built using high-quality 2oz copper PCB and next-generation chip-on-board LEDs for optimum brightness, efficiency and a guaranteed dotless finish. 90+ CRI. Current regulated IC technology allows for a 10m maximum length when powered from one end.

OTHER CUSTOM COLOURS AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

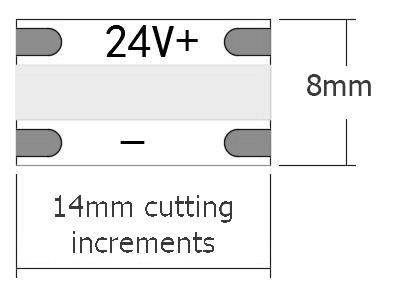

SHORT CUT SPOTLESS COB LED TAPE - CB8W RANGE

This innovative new product is a game-changer for LED tape. With cut points of only 14mm this is by far our closest cut increment of any product. 504 COB LEDs per metre ensures a completely dot free effect and the short cutting increments make this product ideal for furniture, shelving or and many more applications. 5m maximum run length.

OTHER CUSTOM COLOURS AVAILABLE ON REQUEST. PLEASE CONTACT US WITH YOUR REQUIREMENTS.

SPOTLESS COB CCT TAPE - CB15W RANGE

Our CCT COB tape is designed with flexibility in mind. When used in conjunction with CCT controllers this product can provide a full white colour spectrum from 2500k warm white to 6500k daylight. This can be used in conjunction with DALI power supplies and external control systems to provide circadian lighting to mimic the natural lighting cycle.

CB15W - 15W PER METRE LED STRIP - UP TO 570 LUMENS PER METRE - CRI 90+ - SDCM3 - 608 LED/M

CB15W-24V-TW

TUNEABLE WHITE COB LED TAPE ALLOWS FOR COLOUR CONTROL FROM 2500K - 6500K WHEN USED IN CONJUNCTION WITH APPROPRIATE LED CONTROLLERS

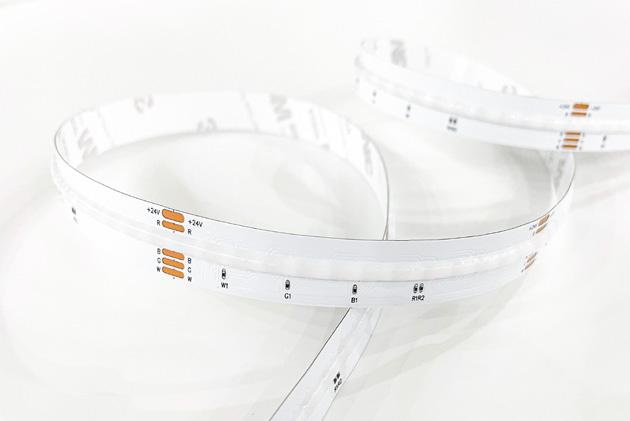

SPOTLESS COB RGBW LED TAPE - CBRGBW RANGE

Our groundbreaking RGBW COB tape allows a full colour spectrum to be produced with no visible spotting. The 672 COB LEDs produce a bright white and stunning bursts of colour. The design on this product is unique and ensures that each LED is individually powered and excellent thermal management ensures a long lifetime. Maximum run length 5m.

CBRGBW-24V - 18W PER METRE LED STRIP - UP TO 1000 LUMENS PER METRE - CRI 90+ - SDCM3672 LED/M

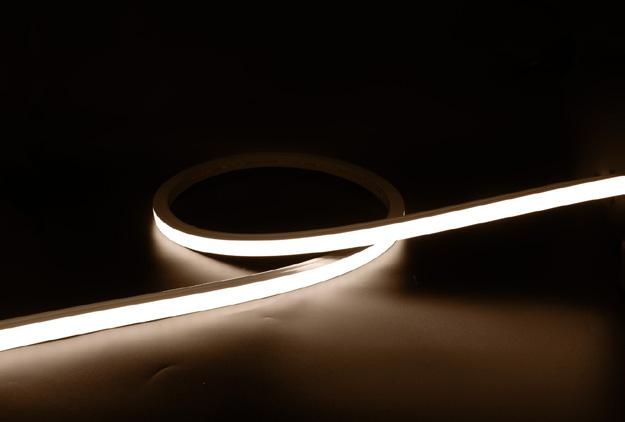

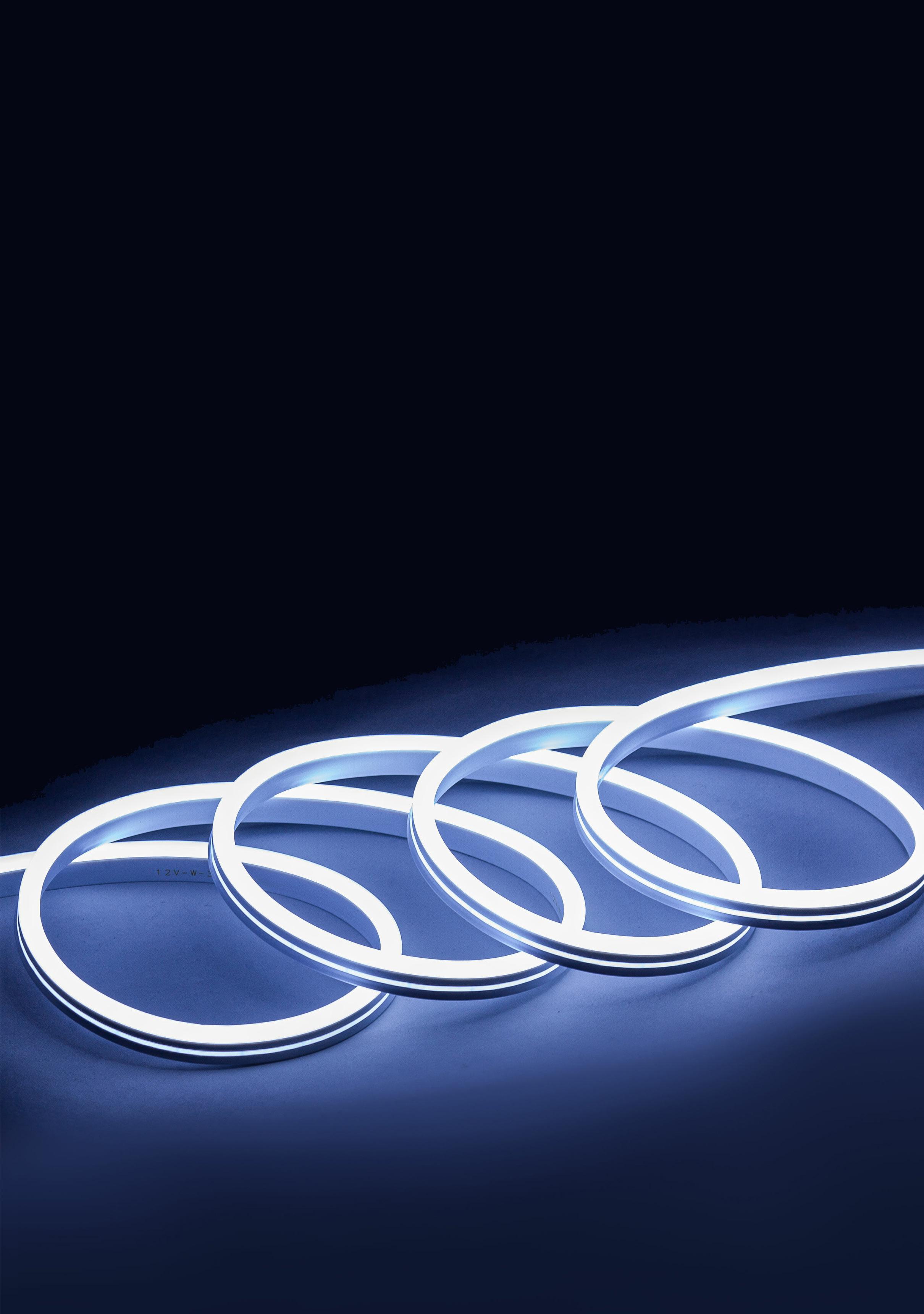

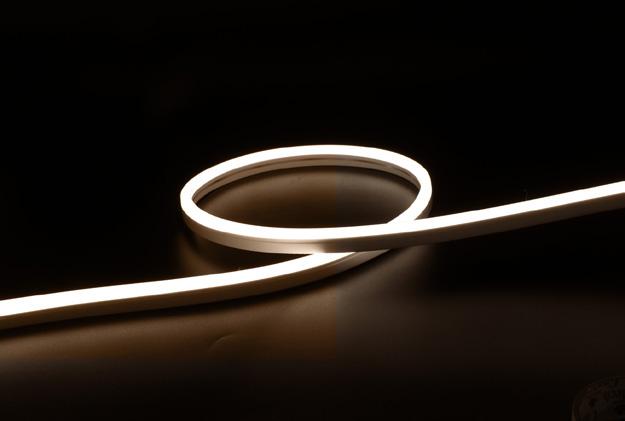

LED Neon Flex Range

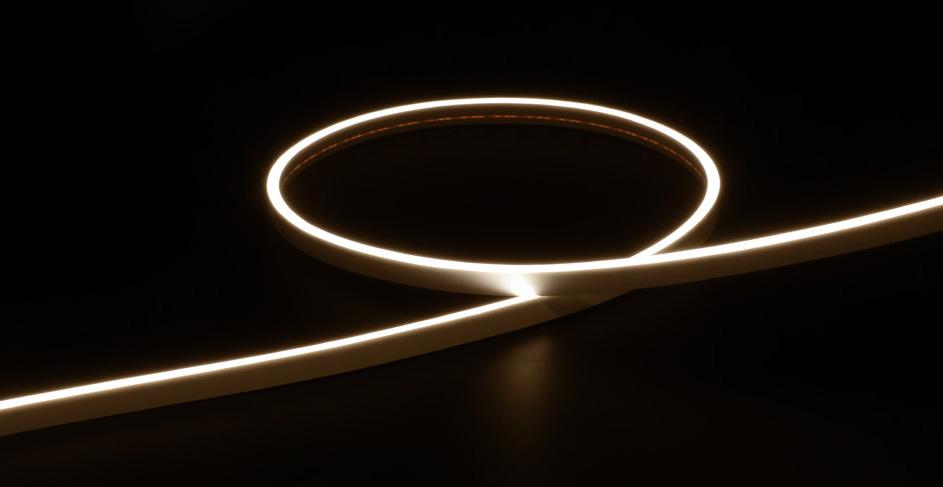

VERTICAL BEND LED NEON FLEX - NF1010-VB RANGE

The NF1010-VB series is a micro high-output LED neon flex which can be bent concave or convex across it’s length. The IP67 rating makes it suitable for both internal and external applications. This product is ideal for use in joinery, shelving or architectural applications.The NF1010-VB is dot-free and can be run in lengths of up to 5m.

VERTICAL BEND RGB NEON FLEX - NF1010-VB RANGE

The NF1010-VB series is a micro high-output LED neon flex which can be bent concave or convex across it’s length. The IP67 rating makes it suitable for both internal and external applications. The NF1010-VB is dot-free and can be run in lengths of up to 5m. This product can be used with a variety of controllers for complete RGB colour control.

VERTICAL BEND LED NEON FLEX - NF1616-VB RANGE

The NF1616-VB series is a high-output LED neon flex which can be bent concave or convex across it’s length. The IP67 rating makes it suitable for both internal and external applications. This product is ideal for use in joinery, shelving or architectural applications. The NF1616-VB is dot-free and can be run in lengths of up to 5m.

VERTICAL BEND RGBW NEON FLEX - NF1616-VB RANGE

The NF1616-VB series is a high-output LED neon flex which can be bent concave or convex across it’s length. The IP67 rating makes it suitable for both internal and external applications.The NF1616-VB is dot-free and can be run in lengths of up to 5m. The dedicated RGBW and 4000k white LEDs create a seamless light effect from soft pastel hues to full bursts of colour.

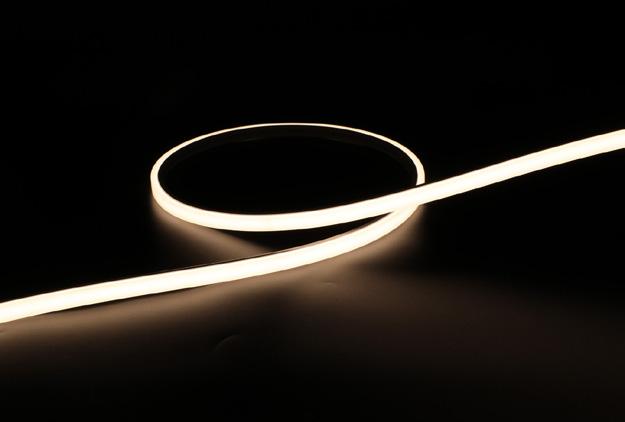

HORIZONTAL BEND LED NEON FLEX - NF0410-HB RANGE

The NF0410-HB series is a micro profile LED neon flex which can be bent sideways across it’s legth. The IP67 rating makes it suitable for both internal and external applications. This product is ideal for use in joinery, shelving or architectural applications. The NF0410-HB is dot-free and can be run in lengths of up to 5m.

Colour with a punch - create this look using NF0816 horizontal bend LED neon flex

HORIZONTAL BEND LED NEON FLEX - NF0816-HB RANGE

The NF0816-HB series is a high-output LED neon flex which can be bent sideways across it’s legth. The IP67 rating makes it suitable for both internal and external applications. This product is ideal for use in joinery, shelving or architectural applications. The NF0816-HB is dot-free and can be run in lengths of up to 5m.

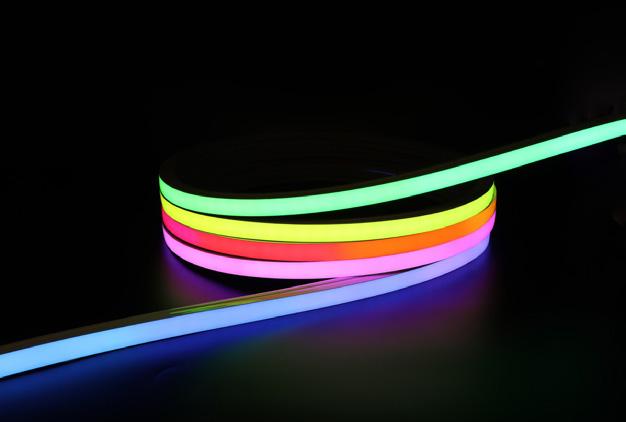

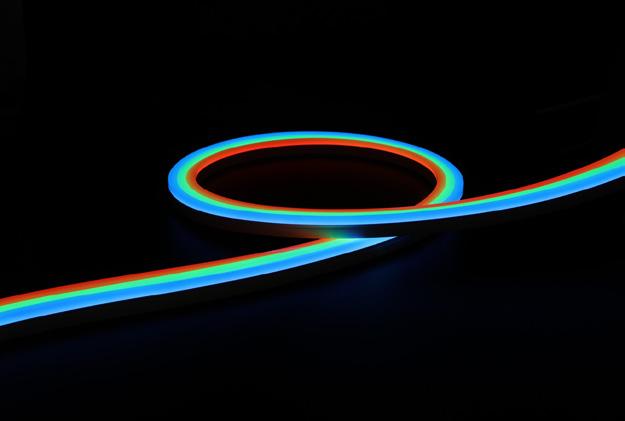

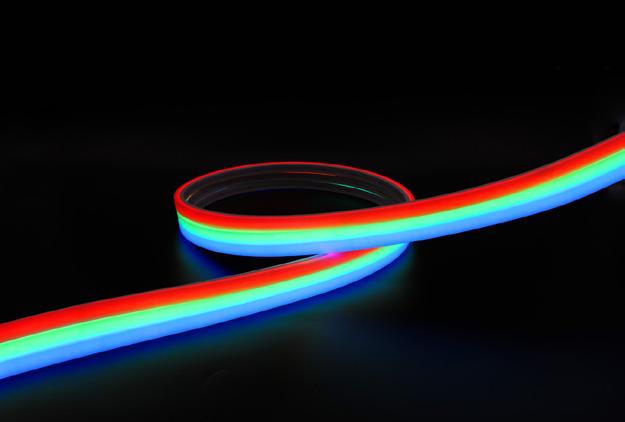

HORIZONTAL BEND RGB NEON FLEX - NF0816-HB RANGE

The NF0816-HB series is a colour changing RGB neon flex which can be bent sideways across it’s legth. The IP67 rating makes it suitable for both internal and external applications. This product is ideal for use in joinery, shelving or architectural applications. The NF0816-HB is dot-free and can be run in lengths of up to 5m.

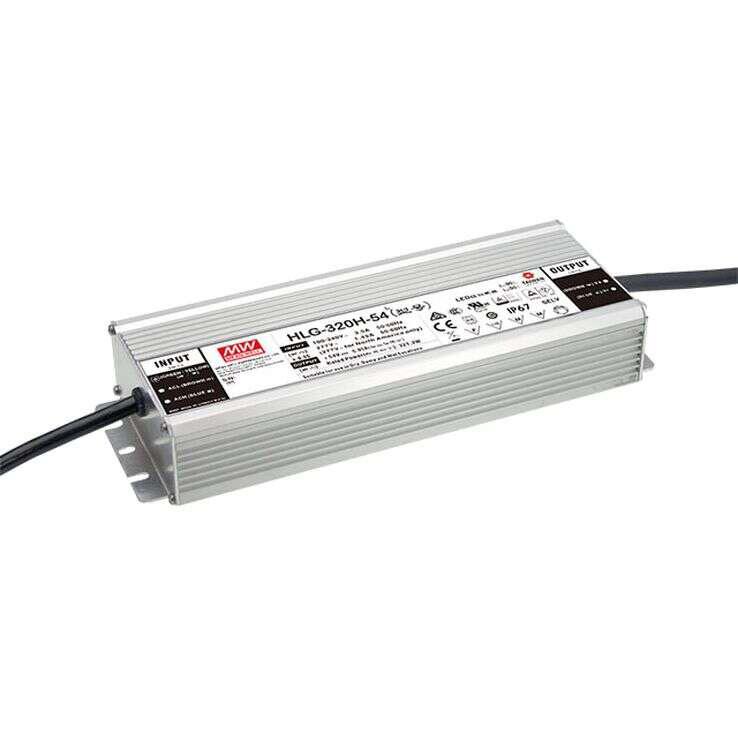

TRIAC MAINS DIMMABLE LED DRIVERS

LED DRIVERS

0-10V DIMMABLE LED DRIVERS

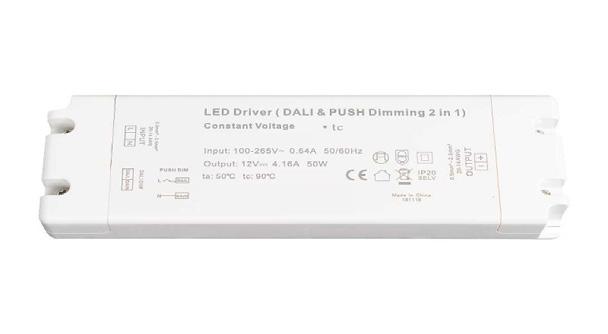

DALI DIMMABLE LED DRIVERS

LED DRIVERS

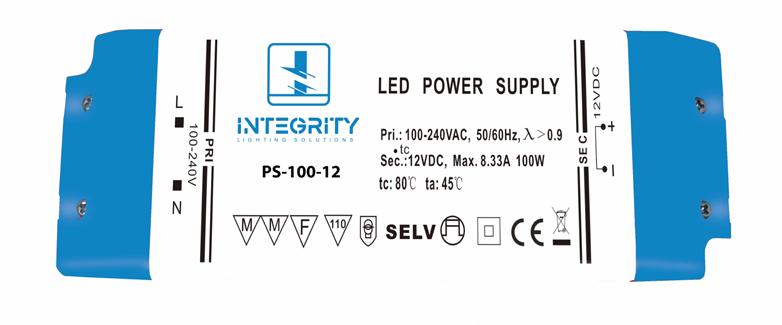

STANDARD LED DRIVERS (NON-DIMMABLE)

IP RATED LED DRIVERS (NON-DIMMABLE)

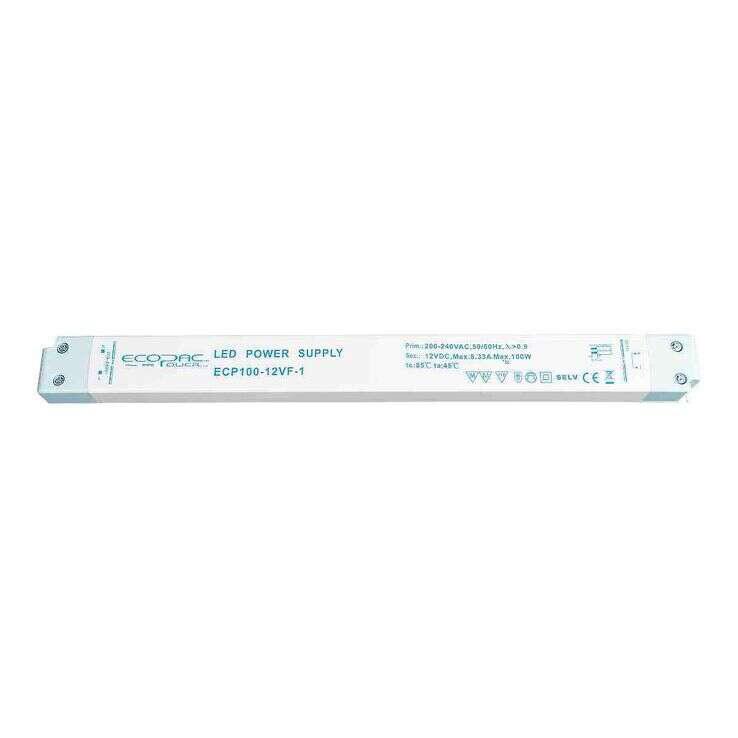

ULTRA SLIM LED DRIVERS (NON-DIMMABLE)

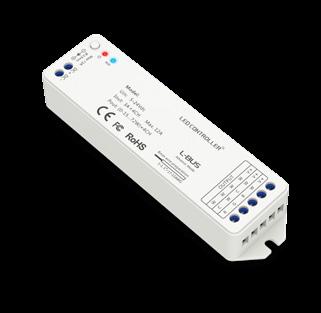

LED CONTROLLERS

WALL PLATE CONTROL

PART CODE

EX4S EX8S

DESCRIPTION

EX4S RGB & RGBW SINGLE ZONE CONTROLLER (DMX & RF)

EX8S RGB & RGBW FOUR ZONE CONTROLLER (DMX & RF)

RD1 WIRED DMX RECEIVER FOR EX4S & EX8S WALL PLATE CONTROL (20A MAX.)

F4-3A

WIRELESS RF RECEIVER FOR Q4, EX4S & EX8S (12A MAX.)

F4-5A WIRELESS RF RECEIVER FOR Q4, EX4S & EX8S (20A MAX.)

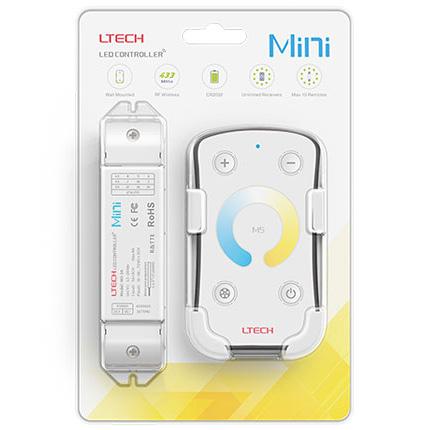

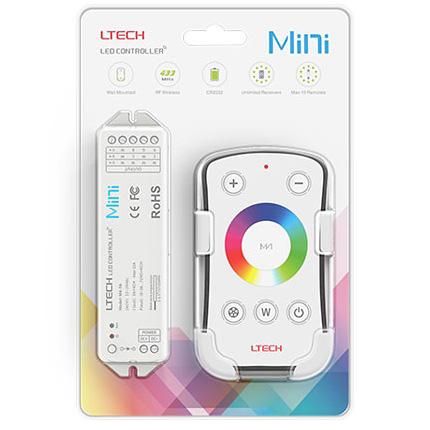

REMOTE CONTROL

PART CODE

M1+M3-3A

M5+M3-3A

M4+M4-3A

DESCRIPTION

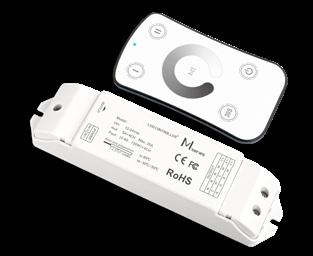

SINGLE ZONE STATIC COLOUR DIMMER REMOTE WITH RECEIVER (12A MAX.)

SINGLE ZONE CCT COLOUR CHANGE REMOTE WITH RECEIVER (12A MAX.)

SINGLE ZONE RGBW COLOUR CHANGE REMOTE WITH RECEIVER (12A MAX.)

Q1 FOUR ZONE STATIC COLOUR RF REMOTE CONTROL

Q2

Q4

FOUR ZONE CCT COLOUR CHANGE RF REMOTE CONTROL

FOUR ZONE RGBW COLOUR CHANGE RF REMOTE CONTROL

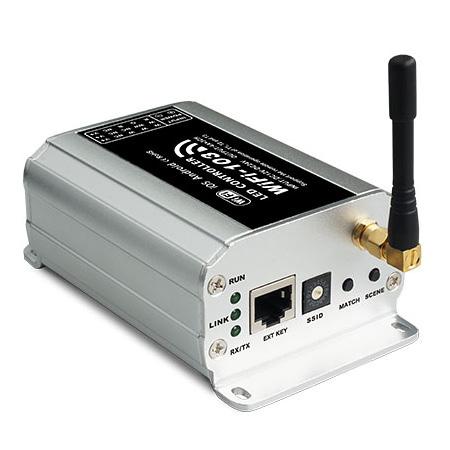

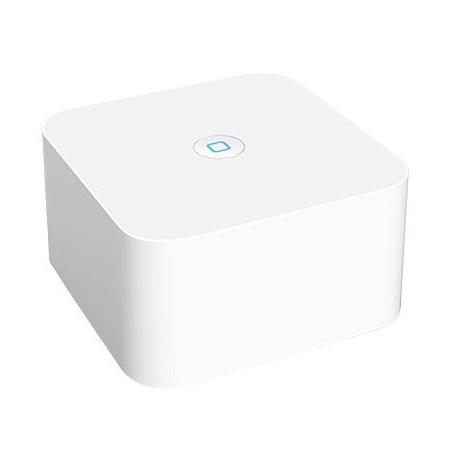

WIFI & APP CONTROL

PART CODE

WIFI-104

WIFI-108

DESCRIPTION

STANDALONE WIFI CONTROLLER. CAN CONTROL STATIC TAPE, CCT & RGBW (12A MAX.) WORKS WITH LTECH APP

16 ZONE WIFI CONTROLLER. CAN CONTROL STATIC TAPE, CCT & RGBW. COMPATIBLE WITH LTECH APP, GOOGLE HOME AND AMAZON ALEXA. EXPANDABLE WITH F4 RECEIVERS FOR MULTIPLE ZONES AND WHOLE HOME CONTROL

RD1 F4-3A / F4-5A

QUALITY

SELF are a manufacturer of quality LED lighting products which are designed and engineered with quality light and durability in mind.

All SELF products carry a 5 year warranty and their products were the first in China to be awarded TUV, VDE and UL's CTDP certification. They have also been awarded international design awards for their products in 2014, 2019 and 2020.

SELF have head offices now in China, UAE, Germany and USA. Integrity are proud to be partnering with SELF lighting in the UK and exclusively distributing their products.

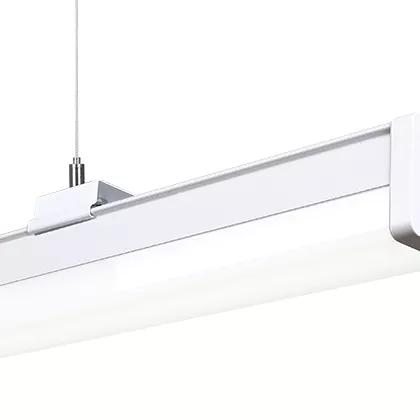

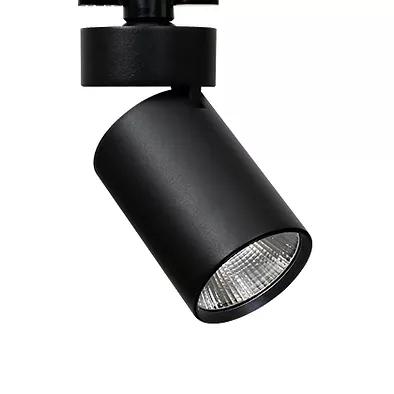

SELF's product range spans refrigeration, ceiling, showcase and furniture lighting. SELF are also one of the largest exporters of LED drivers in China and have a comprehensive range of LED drivers for all applications.

Introducing...

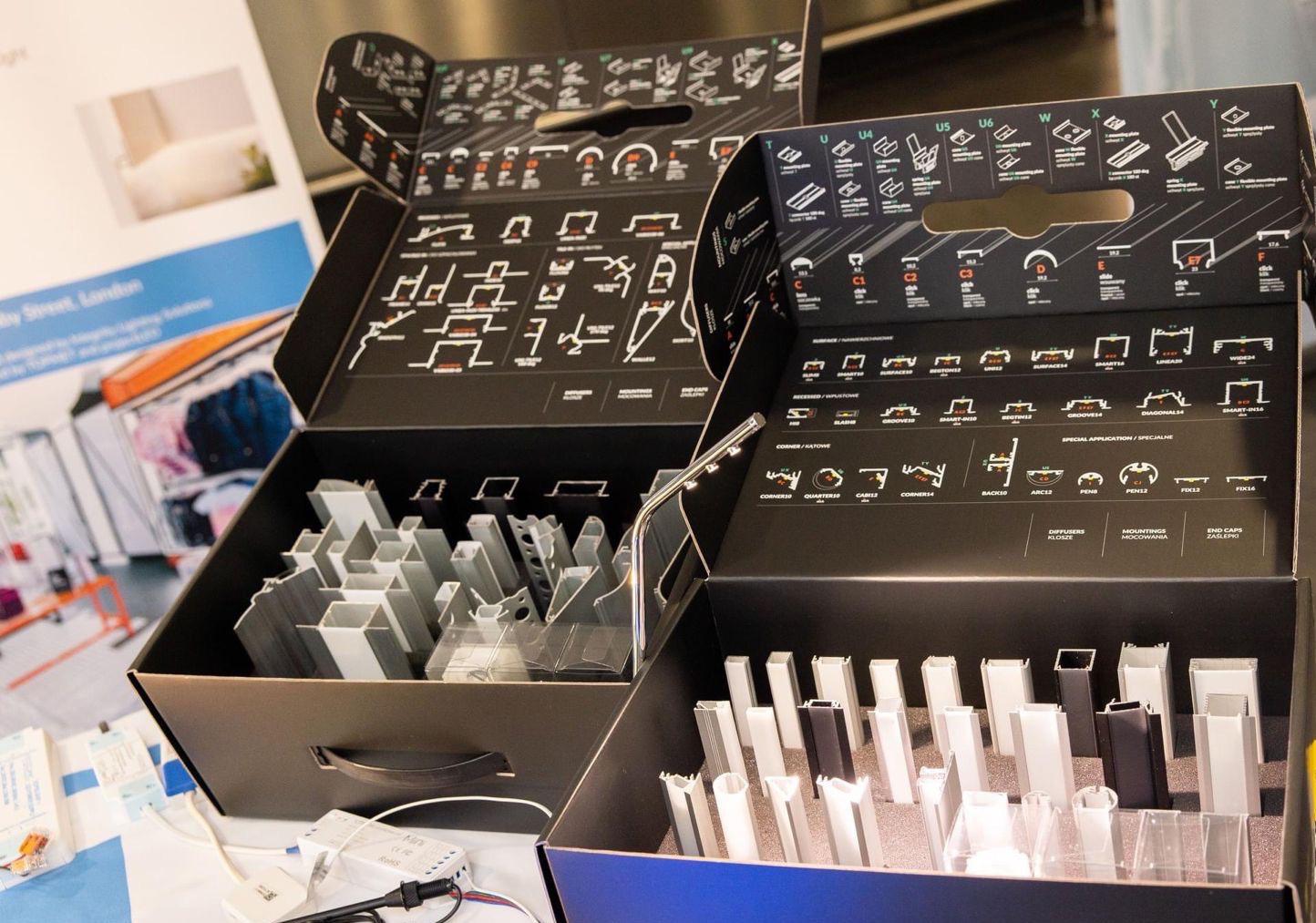

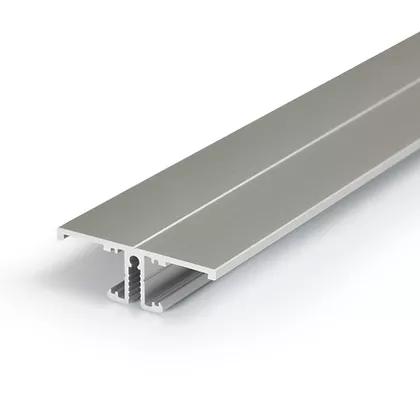

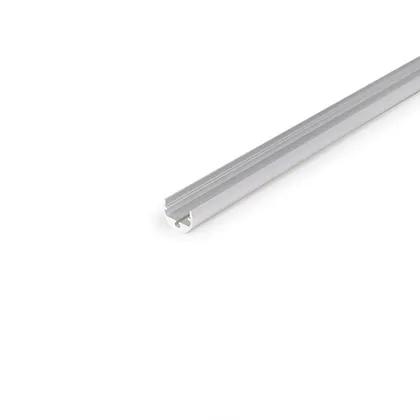

Topmet are the leading brand of aluminium extrusion profiles for LED tape. Topmet products are designed and manufactured in the EU and are available from stock for delivery next-day.

Topmet offer a full range of extrusion profiles to suit all applications including; Surface, Recessed, Corner, Plaster-in, Tile-in & Specialist.

Alternatively explore the range on our website: www.integritylighting.co.uk

Integrity Lighting Solutions are proud to be the exclusive UK distributor and business partner of Topmet in the UK.

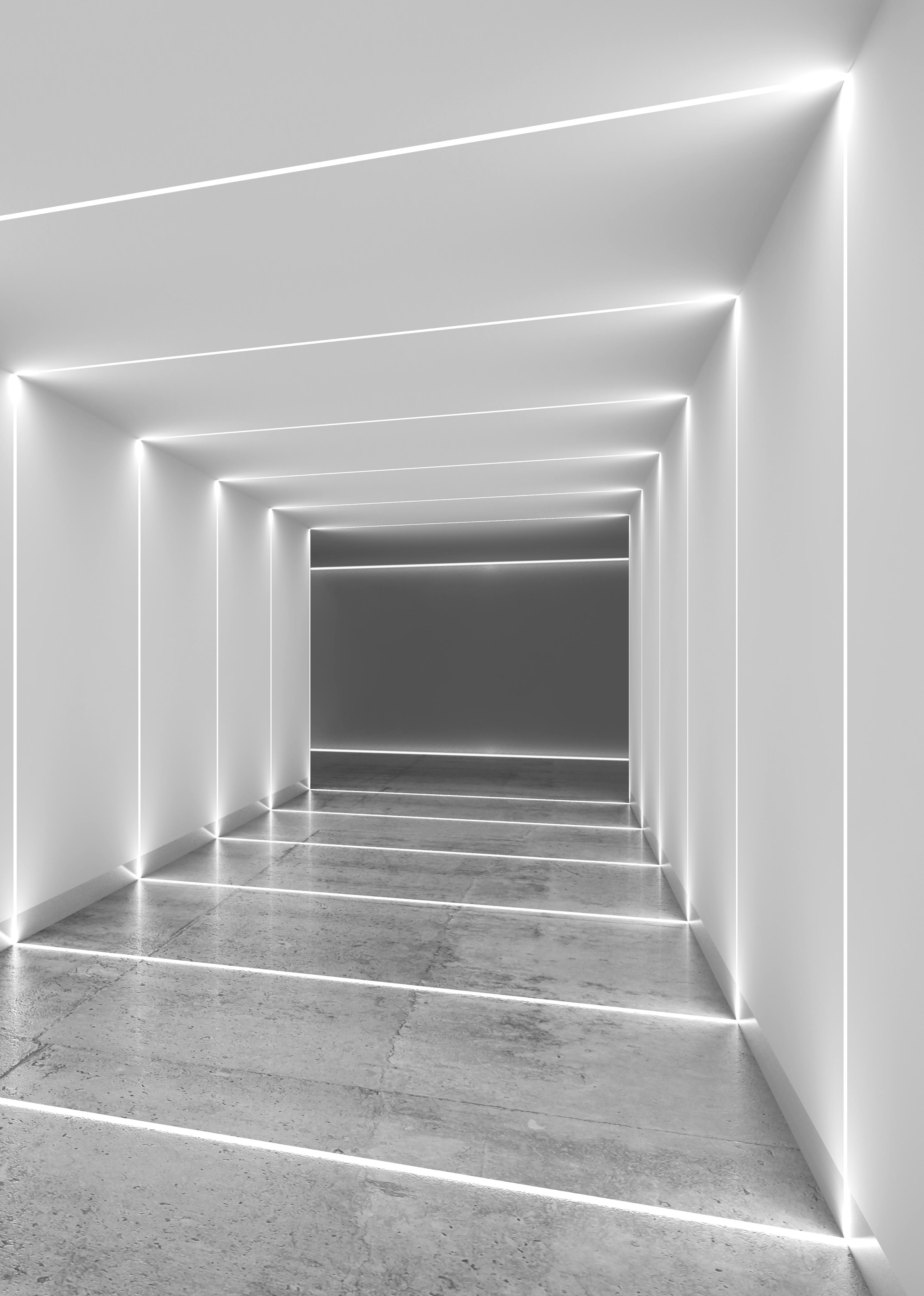

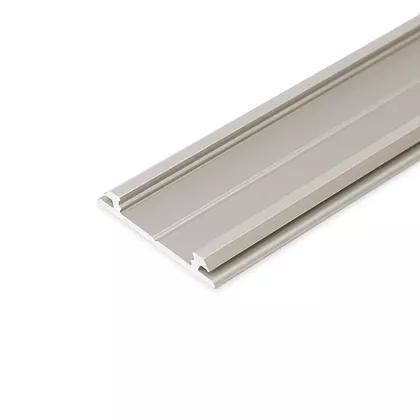

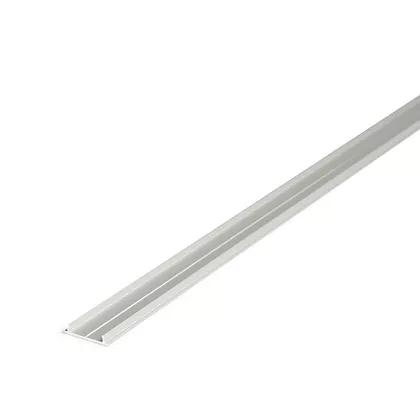

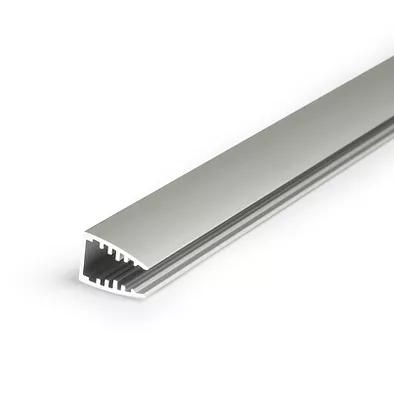

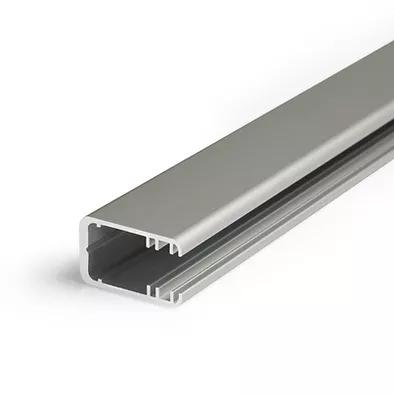

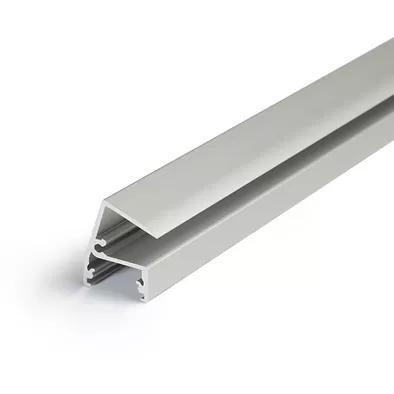

GLASS EXTRUSION PROFILES

Aluminium extrusion profiles designed to achieve minimalistic edge lighting of glass or shelving whilst effectively managing heat dissipation

About Us

POLISH EXTRUSION MANUFACTURER DESIGNING, MANUFACTURING AND SUPPLYING QUALITY LED PROFILES SINCE 1989

TOPMET are an EU manufacturer of quality extrusion and lighting profiles. All profiles are designed, manufactured and shipped from their headquarters in Poznan, western Poland.

TOPMET profiles are registered and protected by EU design law and are produced to exacting standards. Their reputation has been built on quality service, quality products and holding great stock levels allowing for quick turnaround on projects.

The product range covers everything from small furniture profiles to large architectural profiles which can be used in commercial or retail applications.

The TOPMET range of profiles is ever-growing and Integrity Lighting Solutions are proud to be the official UK distributor for TOPMET.

We hold extensive stock in our warehouse in Leicester with next day delivery available.

For further product information or pricing please contact us

Find all of these products and many more in the 2023 Topmet catalogue For full hard copy catalogues please contact our sales team on 0116 436 2450 and we will gladly post out copies to you
