CATALOG

Focus on users ROTHENBERGER was founded as a trading house in 1949. As early as 1967 ROTHENBERGER had developed the first system solution, the R-System. It consisted of tools for expanding, extracting and bending pipes – revolutionary equipment enabling installers to connect pipes without fittings, significantly speeding up the installation process.

Today, ROTHENBERGER serves installers and ACR technicians worldwide with products which have been co-developed, tested and improved by professional users.

Solutions for professionals: systems that fit.

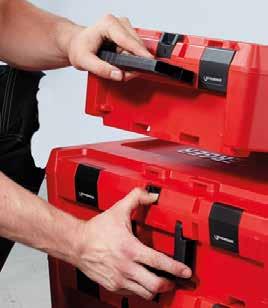

Our system solutions extend beyond tools: Transport and store equipment and machines in the ROCASE system. Re-use our ROBOX packaging as containers for consumables in the ROCASE. Use our CAS batteries to operate more than 140 compatible machines.

TABLE OF CONTENTS Section Cutting Tools Hand Tools Expanding, Extracting, Flaring Tools Bending Tools Internal / External Deburrer Press Fitting Tools Pipe Threading Precision Die Heads Precision Threading Dies Portable Power Threaders Ratchet Pipe Deburrer 1/4" - 2" Vices Pipe Threading Supertronic Pipe Threading Machines Pipe Threading Machines COLLINS® CLASSIC 22A RHINO® 1/2" to 4" COLLINS® 44-66A Pipe Threading and Grooving ROGROOVER® 6" Die Heads & Dies Threading Machine Accessories Production Cutting Machines COLLINS® E-Z CUTTER® Rotary Burr and Hole Saw Kits Tool Bags / Belt Bag / Shoulder Straps ROCASE® Storage Solutions Gas & Water Testing Pipe Freezing Pipe & Drain Cleaning Inspection & Locating Powerjet System Torches Soldering & Welding Air-conditioning & Refrigeration LED Torches Numerical Index Alphabetical Index Authorized Service Centers Warranty Notes

Page 6 10 14 17 18 19 23 23 23 23 23 23 24 24 25 26 27 28 29 34 36 37 38 39 40 44 45 52 54 56 57 58 62 63 67 72 74 75

5

Cutting Tools

Copper Tube Cutters Pipeslice™ The pipeslice™ range of tube cutters offer tradesmen accurate single handed cutting of copper tube. The automatic self-clamping action of the cutter ensures a smooth cutting action with no deformation of the tube. The compact design allows the cutter to rotate within its own radius so is ideal for use in confined spaces.

Product

Part No.

Size

PIPESLICE 1 PIPESLICE 3 PIPESLICE 4 PIPESLICE 5 Cutter wheel for 1/3 Cutter wheel for 4/5

⁄8" - 1⁄2" ⁄8" - 3⁄4" 3 ⁄4" - 7⁄8" 1" - 11⁄8" 3 5

No. 35 & 42 Tube Cutters Heavy duty telescopic action precision tube cutting

No. 35 Tube Cutter No. 42 Tube Cutter

70027 70029

1

70108 70109

1

⁄4" - 13⁄8" ⁄4" - 15⁄8"

1

Cutter Wheels for No. 35 & 42

Tube Cutters for multi layer composite pipe

A

No. 35 “MSR” Tube Cutter No. 42 “MSR” Tube Cutter Cutter Wheels for No.35 & No.42 “MSR”

B

⁄4" - 13⁄8" ⁄4" - 15⁄8"

1

70188

Mini Copper Tube Cutters

C

D

E

Fully adjustable precision tube cutting in limited space

MINI CUT No. 1 Pro A MINI CUT No. 2 Pro A

Heavy duty compact tube cutters with larger adjusting wheel

MINI CUT 2000 Tube Cutter B MINI MAX Tube Cutter C

Traditional design with spare wheel and fold-out reamer

No. 30 Pro Tube Cutter D

Traditional design for larger size tube inc spare wheel

No. 50 Tube Cutter E

Pencil Deburrer

Pencil Deburrer

⁄8" - 5⁄8" ⁄4" - 7⁄8"

1

1

⁄4" - 7⁄8" ⁄8" - 11⁄8"

1 1

1

⁄8" - 13⁄8" ⁄2" - 2"

1

21660

Gratfix Hss Deburrer Gratfix with No.1 Blade No. 1 Universal replacement blade (1 pc) No. 1 Universal replacement blade (10 pack)

21655 21652 R10021652B

Internal External Reamer

/8" - 13/8"

1

Accurate 3 blade head is ideal for internal and external deburring of copper, aluminum and soft steel tubing from 1⁄8" - 15⁄8".

Manual Tube Deburrer Suitable for quick and easy removal of all internal and external burrs on stainless steel pipes. Deburrer for copper, aluminum, plastics, steel and INOX (stainless steel)

6

11006X 70075

1

/4" - 13/8" 1/ " - 2" 2

Cutting Tools

CSST Pipe Cutter

Easy-turn adjustment knob

Specially designed tube cutter for accurate and clean cutting of Corrugated Stainless Steel Tubing (CSST) 6–42mm 5/8" - 15/8". The two hardened rubber guide rollers position the hardened steel cutter wheel in the optimum position for cutting the corrugated profile.

The lightweight alloy body has a long-life DURAMAG coating and the easy-turn adjustment knob delivers smooth cutting action and contains a spare replacement cutter wheel.

Hardened steel cutter wheel for thin walled corrugated Inox Pipes Spare Cutter Wheel supplied in handle

Wide roller surface for even pressure distribution

Two wide guide rollers hold pipe in correct position for cutting

Part No.

CSST Pipe Cutter Replacement Cutter Wheel

Product G

Size

1000001747 1000002077

5

Part No.

/8" - 11/8"

Size

Copper Tube Cutters (Cont.)

Extremely smooth action. Precision cutting in restricted space

H

Rotrac 28 G Rotrac 42 H Cutter Wheel, (2 pcs) Cutter Wheel, (10 pcs) Rotrac 28 Plus I Rotrac 42 Plus J Rotrac 20 PL for plastic pipe Rotrac 32 PL for plastic pipe Replacement pin, clip

I

REPLACEMENT WHEELS ROTHENBERGER Cutter Wheel Part No. 70007B, (2 pcs) Fits Rothenberger cutters 70010, 70011, 70020, 70021

J

70017B, (2 pcs) Fits Rothenberger cutters 70401, 70402, 70105, 70019, 70065, 70027, 70030

Product

/8" - 11/8" /4" - 15/8"

1 1

70007B 70007X /8" - 11/8" /4" - 15/8" 1/ " - 3/ " 8 4 3/ " - 11/ " 16 4 1

1

99016

Fits Cutters from RIGID* 101, 118, 150, 151, 152, 153, 205 Replaces #33185 10, 15,20 Replaces #33160

Part No.

Size

Tube Cutter 42 XL Pipe cutter for the precise cutting of metal pipes Ø 1/4" - 15⁄8". For copper, brass, aluminum, stainless steel and thin-walled steel pipes with a wall thickness of up to 1.2mm.

Tube Cutter 42 XL

Replacement cutter wheel (5 pcs)

1000001748 70056D

1

/4" - 15/8"

7

Cutting Tools Product

Part No.

Size

Chain Pipe Cutter For pipes 1 - 4” For copper, brass, aluminum, thin-walled steel pipes as well as plastic-coated pipes.

Ideal for working in confined spaces, e.g. parallel-running pipes. Robust chain with 15 mini cutter wheels, two-step adjustment, chrome-plated with plastic covered handles.

1" - 4"

Chain Pipe Cutter Replacement cutter wheel chain

70286

Steel Pipe Cutters Precision drop forged steel construction for easy burr-free cutting Super 11/4" Super 2" Enorm 4"

/8" - 11/4" 1/ " - 2" 8 2" - 4" 1/ " - 11/ " 8 4 1/ " - 2" 8 2" - 4" 1/ " - 23/ " 4 8 1

70046D 70051D 70061D Automatic “INOX” Pipe Cutter 70341 No.30 “INOX” Tube Cutter No.35 “INOX” Tube Cutter No.42 “INOX” Tube Cutter Super 11/4" “INOX” Pipe Cutter Super 2" “INOX” Pipe Cutter

/8" - 11/8" /4" - 13/8" 1/ " - 15/ " 4 8 1/ " - 11/ " 8 4 1/ " - 2" 8 1/ " - 11/ " 8 8 1/ " - 11/ " 8 4 1/ " - 2" 8 1 1

70056D 70088D 70089D

PLASTICUT PEX & CPVC Cutter Pipe cutter ideal for use in confined spaces. No force required to operate.

Lightweight and simple to use. Cuts PEX and CPVC 1/2” to 1”.

PLASTICUT, 1/2" PLASTICUT, 1" PLASTICUT, 3/4", 1" Replacement Blade, (3 pcs) Replacement Blade, 1”, (3 pcs)

/2" 1" 3/ " - 1" 4 1/ ", 3/ " 2 4 1" 1

59000 59001

Automatic Plastic Tube Cutter Ratchet Telescopic Cutter For Plastic Pipe

Automatic PL size 1 70031

/4" - 25/8"

1

Replacement cutter wheel, size 1, (3 pcs)

70028D

Automatic PL size 2 Replacement cutter wheel, size 2, (3 pcs)

S16055054D

2" - 5"

Automatic Tube Cutter Ratchet Telescopic Cutter

For copper, brass, aluminum, thin-walled steel, and plastic coated tubes. Ratchet telescopic guide with automatic spring-driven withdrawal: Quick adjustment, fast opening. Retractable internal deburring tool and spare cutter wheel in handle: Always within reach.

Automatic size 1 Replacement cutter wheel size 1, (2 pcs) Replacement cutter wheel, size 1, (5 pcs) Automatic size 2 Automatic size 3 Replacement cutter wheel sizes 2/3, (2 pcs) Deburring blade sizes 1/2/3, (10 pcs)

Axle, screw 8

/8" - 25/8"

1

70017B 70017D S16071042R 70057D R10021652B S16070149R

2" - 5" 4" - 65/8"

Cutting Tools

Professional Pipe Shears Product

Part No.

Max. O.D.

52040 52041

11⁄4"

New light and sturdy cutter for PE, PEX, PP, CPVC, and ­ multi-layer pipe. Blade is flat to “turn and cut.”

ROCUT® 32TC Replacement stainless steel blade

irect cut action shear with a stainless steel blade for fast D and accurate cuts on all types of plastic pipes from 0–1" ROCUT® 26TC

1"

I nstant release mechanism designed to cut almost every type of plastic without deforming or crushing the wall – ideal for professional use on all multi-layer pipes ROCUT® 42TC Replacement stainless steel blade

15⁄8" 52042

Ratchet assisted cutting action enables cutting of almost all types of plastic and multi-layer pipe up to 2" diameter ROCUT® 50TC Replacement stainless steel blade

2" 52011

P lastic Shear specially designed for cutting PE, PP, PB, PVDF, PEX and PVC pipe to a maximum capacity of 21⁄2".

The V-Shaped, Teflon coated blade will cut 21⁄2" PVC pipe up to a wall thickness of 1⁄8" ROCUT® 63TC Replacement stainless steel blade

21⁄2" 52031

The ultimate in plastic pipe shears. Extended ergonomic rubber coated handles, combined with a positive ratchet action cuts a variety of plastic and multi-layer pipe including PE, PB and PEX up to a diameter of 3".

ROCUT® 75TC

3"

Replacement stainless steel blade

52016

Product

Part No.

Max. O.D.

55089

13⁄8”

Direct Cut Shears

Direct cut (non-ratchet) for a fast and easy square cut in all types of plastic pipe including MDPE, PE, PP, HEP2O and PEX ROCUT® 38 Economy Ratchet Pipe Shears

atchet action cutters provide a fast, clean square cut in all R types of plastic pipe including MDPE, PE, PP, HEP20, waste pipe and PEX ROCUT® 32 ROCUT® 42 ROCUT® 63 Replacement stainless steel blade ROCUT® 32 Replacement stainless steel blade ROCUT® 42 Replacement stainless steel blade ROCUT® 63

55090E 55091E 55095E 50032 50042 50063

11⁄8” 15⁄8” 23⁄8”

9

Hand Tools

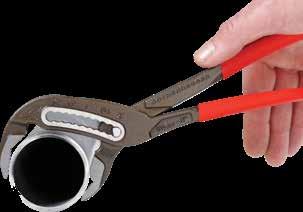

ROGRIP® Fast adjustment Water Pump Pliers • 30% more capacity – 2" grip with 10" pliers • Constant 3 point grip to the maximum pipe diameter • Ergonomic design with wide, comfortable soft-grip handles • Positive multi-point locking size adjustments • Chrome Vanadium drop forged steel with tempered jaws

Product

Part No.

Size

ROGRIP® M

ew rapid adjustment water pump plier has 30% more N grip, and the 10" plier has a 2" capacity. The new ergonomic jaw design offers more comfort for the user and prevents trapped fingers. The 10 point adjustment points are size calibrated to allow more accurate working.

ROGRIP® M 7" ROGRIP® M 10"

10215 10216

11⁄4" 2"

ROGRIP® F

ew rapid adjustment water pump plier has the addition N of a secure safety lock system to prevent unintentional opening when locked into any of the 18 lock positions.

This quick release feature allows a 50% quicker adjustment time. The narrow jaw profile opens in parallel giving a 3 point grip on pipe up to 2"Ø.

ROGRIP® F 7" ROGRIP® F 10"

10213 10214

Product

11⁄4" 2"

Part No.

Size

Pliers Water Pump Pliers with plastic covered handles

7" Water pump pliers 10" Water pump pliers 12" Water pump pliers

70521 70522

1" 11⁄4" 11⁄2"

10" SANIGRIP Waste pliers

10" SANIGRIP Waste Pliers

70416 70417

23⁄8"

Replacement Plastic Jaws (pair)

Special Chrome Vanadium Seel, drop forged, chrome-plated, 4 adjustable sizes at joint.

With teethed grip jaws, SANIGRIP PL features plastic jaws to protect fittings.

• Ideal for plastic screw joints up to dia. 23⁄8" (62mm): Optimum grip

• Secure and gentle grip on precious fittings: No damage to polished surfaces

10

Hand Tools

Wide Jaw Wrenches Range of 4 extra wide opening jaw wrenches with slim line angled jaw profile are ideal for use when working in confined spaces. Hot forged from Chrome Vanadium Steel to industrial standard specifications the wrenches have a smooth, accurate adjustment thumbturn and the polished jaws are laser etched in mm for accurate size adjustment. Non-slip ergonomic softgrip handles deliver a positive grip during use. Wrenches are supplied with removable soft-grip jaw protectors which prevent damaging chromed or polished surfaces (not available on the 4" wrench). *Replacement jaw protectors available.

Product

Part No.

Size

Wide Jaw Wrench

70465R 70459 70460R 70461

4" x 5⁄8" max opening 6" x 15⁄16" max opening 8" x 11⁄2" max opening 10" x 2" max opening

Replacement jaw protectors Pair of protectors Pair of protectors Pair of protectors Product

Part No.

19766 19767 19768 Size

Max O.D.

8" 10" 12" 14" 18"

6" 8" 10" Part No.

Size

Max O.D.

1" 11⁄2" 2" 2" 21⁄2"

24" 36" 48" 60"

3" 5" 6" 8"

10" 14" 18" 24"

11⁄2" 2" 21⁄2" 3"

36" 48" 60"

5" 6" 8"

10"

11⁄2"

14"

2"

18"

21⁄2"

Pipe Wrenches Heavy Duty Pipe Wrench High strength “one piece” construction with large capacity jaws and induction hardened teeth (Replaceable hook and heel jaws available) Aluminum Pipe Wrench Features similar to Heavy Duty Pipe Wrench but 40% lighter due to aluminum alloy handle construction Hawk Wrench

70168R

70169R

Heavy duty, automatic clamping action on the pipe. The tighter the grip the higher the force generated. Single hand usage with the automatic adjusting jaws.

Aluminum Offset Pipe Wrench

2"

Exceptionally strong yet ultra light. Ideal for use in confined spaces One-Handed Pipe Wrench — Offset Pattern Heavy Duty • Offset wrench head is ideal for working in confined spaces (e.g. near to the wall).

• One-handed ratchet-like use, self-clamping, spring-supported hook.

• Quick preset of pipe diameter using scale on hook.

• Wearing parts replaceable: hook and heel jaw can be purchased separately

11

Hand Tools Product

Part No.

Max. O.D.

Part No.

Max. O.D.

Pipe Wrenches (cont.)

Strap Wrench

3"

8"

High strength aluminum alloy construction with replaceable nylon strap for positive grip without marking surfaces

Easy Grip Strap Wrench Automatic strap wrench with quick release ratchet grips pipe tightly in V block without distortion

55075

Reversible Chain Wrench High strength positive grip for tightening and loosening without removal of chain Heavy Duty Tongue Chain Wrench

/4" - 6"

3

4"

70242

11/2" 21/2" 4"

Traditional One Hand Pipe Wrench With screw pin jaw size adjustment

88909M 88910 88911

7" 9" 12"

Footprint One Hand Pipe Wrench

88913M 88914

7" 9"

Designed for the most demanding jobs with double sided head and quick-release action

With easy thumbturn adjustment Adjustable Pipe Wrench

Chrome plated Chrome Vanadium Steel with instant self-locking action and reversing jaws

88915

6" 8" 10"

In Chrome Vanadium Steel with Chrome Plated Finish. Positive location and precision manufactured for ease of use and long working life One Hand Speed Wrench

6" 8" 12"

70220 70221

6" 8"

12"

12" 15"

70222 70223

10" 12"

Manhole Cover Lifting Keys Heavy Duty “T” Pattern Manhole Key (Pack of 2) Heavy Duty “D” Pattern Manhole Key Heavy Duty “D” Pattern Manhole key with extended handle for increased leverage.

67027 67028 67080

20"

67057 67058 67040 67047

36" 42" 34" 42"

Stop Cock Keys Universal 4-in-1 Stop Cock Key Universal 4-in-1 Stop Cock Key Universal 5-in-1 Stop Cock Key Universal 5-in-1 Stop Cock Key

12

Hand Tools Product A

Part No.

Size

Basin Wrenches Crowfoot Pattern A In cast steel machined to fit most types of tap

B

C

D

E F

80162

/2" - 3/4"

1

/8" - 11/4" /4" - 17/8"

Telescopic Spring Loaded Wrench B With features of standard type plus 4 length adjustments

3

Standard Basin nut Wrench C Chrome-plated with pivoted reversible jaw

3

3

/8" - 11/4"

Water Tap Valve Seat Cutter D Complete with cutters for 3/8", 1/2" & 3/4"

70951

Set

Monoblock Tap Spanner Set E fits almost all available monoblock securing bolts. Brushed chrome finish

80000

Set

Tap Backnut Spanner F Fits most 1/2" & 3/4" backnuts. Zinc plated steel with holes for tommy bar if required

80001R

1

Compression Nut Spanner G to fit 5/8" to 7/8" compression nuts

80005

5

/2" - 3/4"

/8" - 7/8"

G

Concreter's Nippers Standard Action Nippers with long handles for easy use

70118 70119

9" 10"

Automatic Action Nippers

70128

9"

73570

Set

323126

Set

73575

Set

80006

Set of 2

Screwdriver Sets 6 pc Euroline Screwdriver Set 5.5 x 4.9" Slotted; 3.5 x 2.9" Electricians; No.1 Phillips x 3.9" (PH1);

6.5 x 5.9" Slotted; 4.0 x 3.9" Electricians; No.2 Phillips x 4.9" (PH2)

7 pc VDE Insulated Screwdriver Set (1000 volt rated) 2.5 x 2.9" Slotted; 5.5 x 4.9" Slotted; No.1 Phillips x 3.1" (PH1); 3.0 x 5.5" Mains Tester

4.0 x 3.9" Slotted; 6.5 x 5.9" Slotted; No.2 Phillips x 3.1" (PH2);

5 pc Euroline Impact Screwdriver Set with shatterproof blade (doubles as chisel) 5.5 x 3.9" Slotted; 6.5 x 5.9" Slotted; No.2 Phillips x 3.9" (PH2)

6.5 x 4.9" Slotted; No.1 Phillips x 3.1" (PH1);

Long Reach Screwdrivers Set of 2 Long reach screwdrivers ideal for boiler panel screws.

Chrome Vanadium 12" steel blades with dual grip color coded handles.

Hardened slotted and pozidrive tips and shafts.

Mains Tester Screwdriver Pocket sized neon mains tester for clear and safe indication of mains power

80018

13

Hand Tools/Expanding Product

Part No.

Size

19764

c/w 4AAA batteries

Auto Tape Automatic powered steel tape. Metric and imperial calibrated blade winds out and returns in 10-12 seconds and has a horizontal reach of 8 ft. The tape has a built in LED light and is powered by 4AAA batteries supplied.

Trimming Knives Die-Cast Retractable Knife (with fitted blade) Pack of 10 Blades (also fits most other brands)

88876 88877

Hacksaws And Blades Quicky Hacksaw

71203

Junior Hacksaw

80035

Adjustable Hacksaw

71206

12"

Junior Hacksaw Blade

80036

Pack of 10

Bi-Metal Hacksaw Blade Bi-Metal Hacksaw Blade Bi-Metal Hacksaw Blade

1500001565 71213 1500001566

12"x18Tpi 12"x24Tpi 12"x32Tpi

Hardpoint Saws Standard 22" Hardpoint Saw (8ppi)

88880

ROBOLT Bolt Cutters High quality compound action bolt cutters with Manganese Vanadium cutting edges ROBOLT 14" (Centre Cut) ROBOLT 18" (Centre Cut) ROBOLT 24" (Centre Cut) ROBOLT 30" (Centre Cut) ROBOLT 36" (Centre Cut) ROBOLT 42" (Centre Cut)

75011 75012 75013 75014 75015 75016

Tube Expander Tools Precision capillary socket forming tools for the production of end feed soldered joints in copper tube without fittings. Joints conform to international standards and can be produced in seconds reducing both labor and material costs. All sets are complete with steel case and a deburring tool ROLOCK Expander Set 3/8", 1/2",3/4", 1" O.D. ROLOCK Expander Set 1/2", 5/8", 7/8", 11/8" O.D. ROLOCK Expander Set 3/8", 1/2", 5/8", 3/4", 7/8", 11/8" O.D.

14

12517 12524 12536

Set Set Set

Hand Tools/Expanding, Extracting Product

Part No.

Size

12400

13⁄4"

ROLOCK Expander Power Torque Tool ROLOCK Expander Tool Only 1/4" - 13⁄4" capacity

Tube Expander Heads Long life riveted heads produce an even expansion for precision capillary joints in copper tube.

ROLOCK Expander Heads 12408 12453 12455 12457 12459 12462

/16" O.D. 1/ " O.D 2 3/ " O.D. 4 1" O.D. 11/4" O.D. 15/8" O.D. 5

Standard Expander Heads 12452 12454 12456 12458 12435

/8" O.D. 5/ " O.D. 8 7/ " O.D. 8 11/8" O.D. 13/8" O.D.

/16" O.D. /2" O.D 3/ " O.D. 4 1" O.D. 13/8" O.D.

3

5

/8" O.D. /8" O.D. 7/ " O.D. 8 11/8" O.D. 15/8" O.D. 3

1

5

11056

Tube Expander Tool For precision capillary joints in larger size copper tube odel A1 excl. ratchet handle for all sizes M between 13/8", 15/8", 21/8", 25/8", 31/8", 41/8" Ratchet Handle

Set 27181

Tube Extractor Set Precision capillary tee forming tool for the production of end feed solder joints in copper tube in almost any position without fittings. Joints conform to international standards when used with lead free hard solders. All sets are complete with a ratchet handle (27180), adaptor (1500002894), cam pincer (22080) and special conical drill, UNIDRILL Automatic 42 (21575), steel carry case Tube Extractor Set for 1/2", 5/8", 7/8", 11/8" O.D. Carry Case

Tube Extractor Heads Long life extractor heads (Hook & Bell) for precision capillary joints in copper tube.

Imperial Sizes

Set 24022 22016 22061 22065 22068 22050

22062 22063 22035 22069 22054

/8" O.D. /2" O.D. 11/8" O.D. 15/8" O.D. 2" O.D. 5

1

/4" O.D. /8" O.D. 13/8" O.D. 13/4" O.D. 21/8" O.D. 3

7

Tee-extractor Ratchet Chrome Vanadium Steel, fine toothed and right / left reversible Tee-extractor Ratchet Handle Tee-extractor Ratchet Handle Adaptor for the use with extractor

27180 27181 1500002894

/8" - 13⁄4" 2" - 21⁄8"

3

Extractor Cam Pincer I dentification point marks insertion depth exactly and prevents over-insertion.

Cam depth adjustment wheel with scale.

Extractor cam pincer 21575

21583

22080

1

/2" - 15⁄8"

UNIDRILL Automatic 28/42 HSS special conical drill Fast, burr-free drilling, Precise location without need for center punch special drill tip.

Calibrated drill Ø automatically corresponds to the correct extractor hook and branch size.

Drill stop prevents damage to pipe walls UNIDRILL 28 UNIDRILL 42

21583 21575

/8" - 11⁄8" /8" - 15⁄8"

3 3

15

Flaring Tools

ROFLARE® Compact Flaring Tool

• S pecial screw thread: Allows smooth, efficient deformation of material

For producing precision 45° single flares on copper, brass, ­aluminum and precision steel tubes up to 0.04” (1 mm) in wall thickness. Ideal for mobile applications and for pipes in ­refrigeration and ­automotive (brakes) industries.

Double and 180° flares are also possible with the ROFLARE® double flare attachment.

• M ade from high quality steel: Long-lasting

• H ardened and polished flare cone: High quality flare sealing surface • “ Multiblock” multi-clamping calipers: Firm, quick, off-center clamping of the tube and automatic self-centering; tubes don’t slip • M old available in metric and English measurements:

26036

ROFLARE®

Includes: ROFLARE® basic tool with multiblock Description

O.D.

Single Single 37° Single Single/Double

6 - 8 - 10 - 12 - 14 - 16 mm 3/ ", 1/ ", 5/ ", 3/ ", 1/ ", 5/ " 16 4 16 8 2 8 3/ ", 1/ ", 5/ ", 3/ ", 1/ ", 5/ " 16 4 16 8 2 8 3/ ", 1/ ", 5/ ", 3/ ", 1/ ", 5/ " 16 4 16 8 2 8 *requires 26034 to create double flares

180° adapter

lb

No.

3.0 3.0 3.0 3.0

26038 26036 26032 26033

ROFLARE® / ROFORM® Accessories Double flare attachment/180° Adapter fits in ROFLARE® flaring tool as well as in ROFORM® socket and flare tools.

Description

O.D.

3/ ", 1/ ", 5/ ", 3/ ", 1/ " Double 16 4 16 8 2 Adapter for 180° flares

lb

No.

5.0 5.0

26034 26039

• Double flare attachment with tube depth stop for clamping

ROFORM® Set For producing precision 45° single flares and precision sockets on soft and hard tubes.

Set includes: Basic tool, 45° cone, expander pin, internal and external deburrer dia. 1/8" - 11/2" (11006), ROTRAC® Tube Cutter 28 dia. 1/8" - 11/8" (70010), plastic case (026089P).

Description

ROFORM Set ROFORM® Set ROFORM® Set Carry Case ®

16

O.D.

lb

No.

6 - 8 - 10 - 12 - 14 - 16 mm 6 - 8 - 10 - 12 - 15 - 16 mm 3/ ", 1/ ", 5/ ", 3/ ", 1/ ", 5/ " 16 4 16 8 2 8

5.0 5.0 5.0 5.0

26711 26710 26715 026089P

Bending Tools Product

O.D.

lb

Part No.

Hand Tube Bender Compact high quality one handed ratchet tube bender, ideal for producing 90° bends in microbore copper and aluminum. Set includes: Basic tool, bending formers, and case.

Combined sets available to suit plumbing, air conditioning, automobile and hydraulic industries.

Tube Bender Set for 1/4" - 5/16" - 3/8" - 1/2" 7.8 24134 Ratchet Handle Only 1.0 24130 3/ " Bending Former 1.0 24001 16 1/ " Bending Former 1.0 24002 4 5/ " Bending Former 1.0 24003 16 3/ " Bending Former 1.0 24006 8 1/ " Bending Former 1.0 24008 2

MINIBEND Compact precision bender for microbore bending to 180° Plumbing & Heating Sizes Refrigeration sizes Product

25150 25151

6-8-10mm 1/ ", 5/ ", 3/ " O.D. 4 16 8 O.D.

Radius

Max. in.

lb

Part No.

Maxi Tube Bender Ratchet action tube bender for precision 90° bends in soft rolled copper and combi (VPE/aluminum) tube & PEX. Set Includes: Basic tool, bending support, bending formers, and case MAXI BENDER Set for 3/8", 1/2", 5/8", 3/4", 7/8" MAXI BENDER Support with R/L Formers 3/ " Former for copper/aluminum 8 1/ " Former for copper/aluminum 2 5/ " Former for copper/aluminum 8 3/ " Former for copper/aluminum 4 7/ " Former for copper/aluminum 8

1.38" 1.38" 1.93" 2.91" 3.43"

0.04 0.04 0.04 0.04 0.04

Product

Re-Form Microbore Pipe Straightener

23022X 23047 23010 23011 23012 23013 230014

8.5 1.2 0.2 0.2 0.3 0.3 0.4 Part No.

Size

/8"

3

80455

Innovative designed straightening tool for the simple removal of bends in 3/8" microbore copper tube. Simply feed the copper tube through the RE-FORM tool and pass along the length of the tube. The size, position of the 16 critically positioned guide rollers realign the tube producing straightened, ready to use tube. In straightening the tube the tool also forms a longitudinal twist in the tube which improves flow through the tube increasing system efficiency.

Universal Tube Benders

/4" O.D. /16" O.D 1/ " O.D. 2 5/ " O.D. 8 1 5

Individual precision benders for microbore bending to 180°

Copper Tube Bending Springs For free-handed bending of soft copper pipes (1/4" - 5/8"). Coiled cone for ideal handling even with longer pipes. Tough and long lasting with the cadmium-plated spring steel. Optimal spring form prevents buckling in bending radius area.

25181 25190 25086

/16" O.D /2" O.D. 5/ " O.D. 8 5 1

ROBEND® H & W PLUS Individual precision tight radius 180° benders for soft copper and many other tube materials including thin wall stainless steel. Each bender is a single size with no interchangeable components and is supplied with one handle allowing use with a vice. A second (optional) handle is required for two handed on site bending which is only recommended up to 7/8" tube. Set includes: benders corresponding to various tube dimensions, bending spray 5.03 oz., and steel case.

ROBEND® H+W PLUS Set 1/2", 5/8", 3/4", 7/8"

/2" O.D. /8" O.D. 3/ " O.D. 4 7/ " O.D. 8 1 5

24519 24522

/2" - 7/8"

3

17

Bending Tools Product

Part No.

Size

For bending copper and steel pipes. Combination of slide and bending oil. The special viscosity of the bending spray allows copper and steel pipes to be easily bent.

25120

5.3 oz

Internal / External Deburrer

70075

Bending Spray

Multibender The industrial standard portable tube bender for copper and light grade stainless steel tube. Easy to use, lightweight, portable and robust with options for the most common plumbing, heating and refrigeration tube sizes to 90°. Each bender is complete with appropriate guides Refrigeration Sizes Replacement Former Replacement Former Replacement Guide Replacement Guide Replacement Guide Replacement Guide Tube Stop Hook Stop Hook Bolt

/2", 5/8", 3/4", 7/8" O.D. 1/ ", 5/ " O.D. 2 8 3/ ", 7/ " O.D. 4 8 1/ " O.D. 2 5/ " O.D. 8 3/ " O.D. 4 7/ " O.D. 8

1

90615 90616 81015 90617 90618 90619 80330 80344

ROBEND® 4000 Electric Tube Bender For site use or pre-fabrication of pre-set angle bends in copper, steel, stainless steel and plastic coated steel pipes. Simple to use with an easy angle setting mechanism which will produce repeat bends from 0–180° quickly and precisely Product

Part No.

Size

Set for bending 1000001558 Set 110 volts Bends Copper, Stainless Steel, and 1/2", 5/8", 3/4" 7/8", 11/8" Steel Pipes.Set includes Basic ROBEND unit, guide shoe axle, bending formers and guide shoes for corresponding tube diameters, adaptor for tri-pod base, and plastic case Additional Former & Guides

762955700

Tripod Stand Bending Spray

18

/8" O.D. /2" O.D. 5/ " O.D. 8 3/ " O.D. 4 7/ " O.D. 8 1" O.D. 11/8" O.D. 11/4" O.D. 13/8" O.D. 3

25652 762955300

1000001561 1000001563 58182 25120

1

Press Fitting Tools

WHY PRESS FIT? SAFER… Health and safety at work is paramount and for an installation company to undertake any soldering or brazing work they have to obtain a NITC permit when working on-site. When press fitting, such permits are not required. The risk of fire, carbon deposits or flux as a by-product are no longer a concern for the installer or the client.

PEACE OF MIND… With traditional methods there is a risk that the fitting could be left incomplete, and subsequently fail. Press fitting offers installers peace of mind, safe in the knowledge that the fitting has been correctly sealed and will cope with pressure up to 580 psi.

QUICKER… Press fitting can make the completion of a job up to 3 times faster than traditional soldering or brazing with simple preparation and no re-working.

LOWER COSTS… With reduced installation times, cost savings can be achieved, no expenditure on solder, flux or gas, and a reduction in the time needed to be spent on-site are clear benefits.

SPECIFIED… Architects and Project Managers are increasingly specifying press fitting on many new or renovation projects, closing their doors to contractors not equipped to offer press fitting as an option.

Press fitting is the future and it is happening now. Is your future in your hands?

DURA LAZRTEC Press Jaws ROTHENBERGER has become the first and only manufacturer to use the laser hardening process DURA LAZRTEC on the stressed and contact surfaces of pressing jaws. The intermittent hardening process increases the profile hardness by 15% extending the life of the jaws to an impressive 20,000 cycles.

This new surface treatment for both Standard and Compact jaws can reduce wear of the jaw profile by up to 62% and by laser hardening the plate and pivot pins durability is increased by 42%.

Overall this process can increase the lifetime of the jaws by 100%, a clear benefit for tradesmen and installers.

19

Press Fitting Tools

ROMAX® Compact TT (Twin Turbo) 1/2" - 11/4" QUICK CHANGE JAWS

Simple to change – The all new ROMAX® Compact TT is 3.15" smaller secure locking system and weighs 5.3 lbs without jaws, 14 oz lighter than COMPACT its predecessor making it the smallest 18v pressing Twin Cylinder design locates the motor & piston in parallel. Reducing length machine on the market. Powered by the new to 34cm. The smallest machine on the market powerful 18v Li-ion 4ALL battery platform the Compact TT piston can deliver an impressive ERGONOMIC Single handed operation, force capable of powering pressing jaws soft grip handle 1/ " - 11/ " Ø (system dependent).

2 4

Head can be rotated through 270°, ideal for use in confined spaces

PERFECT BALANCE Center of gravity in middle of machine reduces fatigue when in use SHOULDER STRAP HOOK Can be hung from shoulder using optional hanging strap to reduce user fatigue

LED LIGHT Illuminates work space when in use SERVICE INDICATOR Gives visual service warning of 40,000 press cycles

CFT® Constant Force Technology guarantees constant pressing force of 19kN throughout pressing cycle

FAST 3 Second pressing cycle

EMERGENCY STOP Instant interruption of pressing cycle and piston withdraws to start position

BATTERY STATUS INDICATOR Gives visual warning of battery charge level (will not press if insufficient charge)

HIGH PERFORMANCE 18v Li-ion battery platform, 2.0Ah or 4.0Ah available

OPTIONAL SHOULDER STRAP To reduce fatigue

Product

ROMAX® TT Set incl. 1/2", 3/4", 1", 11/4" jaws, 2 x 2.0 Ah batteries and charger, with ROCASE®.

ROMAX® TT Twin Turbo Jaw ROMAX® TT Twin Turbo Jaw ROMAX® TT Twin Turbo Jaw ROMAX® TT Twin Turbo Jaw Battery 2.0 Ah Battery 4.0 Ah Charger ROCASE® 4414 Shoulder strap

20

Part No.

1000002492 1000002493 1000002494 1000002495 1000001652 1000001653 1000001656 1000001898 1500002239

Size

Set /2" 3/ " 4 1" 11/4" 1

Press Fitting Tools

ROMAX® 4000 The all new ROMAX® 4000 is the new generation of lightweight pressing tool (7.9 lbs without jaws) which has quickly established a strong position in the pressfitting market. Powered by the newest interchangeable Li-ion 4ALL 18v battery platform the ROMAX® delivers up to 100% more cycles than standard battery technology.

A comprehensive range of SAFETY LOCK Prevents unintentional opening ROTHENBERGER jaws for all as 180° rotation is required the major press fit system manufacturers is available SERVICE INDICATOR in sizes 1/2" - 2" and larger Gives visual service warning of 40,000 press cycles sizes up to 4" can be achieved with alternative manufacturers jaws.

QUICK CHANGE JAWS Simple to change – secure locking system

LED LIGHT Illuminates work space when in use Head can be rotated through 270°, ideal for use in confined spaces

FAST 3 Second pressing cycle

CFT® Constant Force Technology guarantees constant pressing force of 19kN throughout pressing cycle

HIGH POWER 240 presses per battery charge on 28mm fittings

LIGHTWEIGHT Machine weighs only 3.6kg without jaws, up to 0.9kg lighter than competitor’s machines

HIGH PERFORMANCE 18v Li-ion 4All battery platform, 2.0Ah or 4Ah available

EMERGENCY STOP Instant interruption of pressing cycle and piston withdraws to start position

BATTERY STATUS INDICATOR Gives visual warning of battery charge level

SUPPLIED IN ROCASE CLICK & CARRY CASE

Product

Part No.

ROMAX 4000 Set incl. /2", /4", 1", 1 /4", 1 /2", 2" jaws, 2 X 4.0 Ah batteries, charger, and ROCASE®.

ROMAX® 4000 Jaw ROMAX® 4000 Jaw ROMAX® 4000 Jaw ROMAX® 4000 Jaw ROMAX® 4000 Jaw ROMAX® 4000 Jaw Battery Battery Charger ROCASE® 4414 Shoulder strap ®

1

3

1

Size

1

Set /2" 3/ " 4 1" 11⁄4" 11⁄2" 2" 2.0 Ah 4.0 Ah 1

15224X 15225X 15226X 15227X

21

Press Fitting Tools

SUPER CUT Hand Ratcheting Threaders Power optimization with the offset hand lever

Quick Change Die Heads • Positive octagonal universal drive: Secure hold • Long pipe guide Perfect centering

Quick Adjustment • Lockable reversal of ratchet

Offset lever • High leverage

Set includes ratchet handle, die heads, plastic case

Precision Dies • High-quality tempered steel: Extremely long life • Optimized cutting geometry: Easy to start cut, excellent chip discharge

FEATURES

• Convenient, lockable ratchet direction reversal • Secure hold with locking retainer: Simple insertion and removal of die heads Slim, compact shape with excellent overall size; angle requirements of 22.5°: For difficult to reach positions • Offset lever: High leverage • Fits all ROTHENBERGER manual and power threaders TECHNICAL DATA

Precision thread cutting to approved standards dia. 1/4" - 2" NPT

22

1-1/2"

2"

Adapter

1/4" 3/8" 1/2" 3/4"

Product SUPER CUT Set ⁄2", ⁄4", 1" NPT 1 SUPER CUT Set ⁄2", 3⁄4", 1", 11⁄4" NPT 1 SUPER CUT Set ⁄2", 3⁄4", 1", 11⁄4", 11⁄2", 2" NPT 1 Ratchet handle No. 1 ⁄4" - 11⁄4" Ratchet handle No. 2 11⁄2" - 2" Die Head Adapter for die heads up to 11⁄4" RONOL® Cutting Fluid, 6.7 oz (200 ml) Bucket Oiler 1

3

1" 1-1/4"

lb

Part No.

9.3 15.0 20.0 4.0 4.0 2.0 0.8 20.0

70903 70901 70905 70840 71272 71273 65013 70753

Pipe Threading Product

lb

Precision Die Heads

1.3 1.5 1.5 2.0 2.3 5.5 6.0

For SUPERTRONIC 1250, 2000 and SUPER CUT models.

Feature enlarged shaving discharge chambers for faster threading, strengthened locking plate and precise die seating.

Precision Threading Dies Precision Dies Gentle first cut, extreme long life, 4 pieces/pack.

Achieve optimal results with Original ROTHENBERGER threading fluid!

Part No.

Size

70914 70915 70849 70850

/8" /2" 3/ " 4 1" 11⁄4" 11⁄2" 2" 3

1

0.3 0.3 0.3 0.3 0.3 0.3 0.4

/8" NPT /2" NPT 3/ " NPT 4 1" NPT 11⁄4" NPT 11⁄2" NPT 2" NPT 3 1

Portable Power Threaders High performance power threading with versatile applications without a separate pipe vice. 15–25 rpm threading with 60 rpm geared reverse. All sets fully equipped with pipe clamp within a robust carrying case SUPERTRONIC 2000 Set 1⁄2" - 2" Set includes SUPERTRONIC 2000, forged pipe clamp (71280), ROFIX Adapter (71271), Precision Die Heads (70912, 70913, 70914, 70915, 70849, 70850), plastic case

Description

lb

No.

S UPERTRONIC 2000 Set 1/2", 3/4", 1", 11⁄4", 11⁄2", 2" NPT Forged Pipe Clamp, max. 2" Steel Pipe Cutter, 2" Bucket Oiler Tri Bench with Chain Vice ROFIX Adapter with locking ring RONOL® cutting fluid, 6.7 oz (200 ml)

42.1 3.8 5.5 20.0 48.9 2.3

71259L 71280 70045 70753 70752 71271 65013

SUPERTRONIC 1250 Set 1⁄2" - 11⁄4" Set includes SUPERTRONIC 1250, forged pipe clamp (71280), precision die heads (70912, 70913, 70914, 70915), plastic case

Description

lb

No.

SUPERTRONIC 1250, 1/2", 3/4", 1", 11⁄4" NPT Forged Pipe Clamp, max. 11⁄4" Steel Pipe Cutter, 11⁄4" Bucket Oiler Tribench with Chain Vice RONOL® cutting fluid, 6.7 oz (200 ml)

9.4 3.5 2.5 20.0 48.9

71453 71279

70040

70753 70752 65013

Ratchet Pipe Deburrer 1/4" - 2" Quick and clean deburring for steel pipes, with smooth-running ratchet, cutting bit made of tempered steel

Description

No.

70289 70296

Internal deburrer with ratchet Replacement reamer blade

Vices Hinged Yoke Vice with easy opening and closing action and positive grip Quick Release Chain Vice with lever action to tighten or release the chain

Part No.

S16270710R

Size

/8" - 2" 1/ " - 3" 8 1/ " - 4" 8 1

21/2" 4" 6"

23

Pipe Threading

Supertronic Pipe Threading Machines A new generation of compact powerful pipe cutting reaming and threading machines with; pumped oiling, easy-change die heads and dies and low maintenance requirements. All machines supplied fully equipped including threading oil and safety footswitch.

ROPOWER® 50R / SUPERTRONIC® 2SE All the features and benefits of the SUPERTRONIC® 2SE with addition of a sturdy, spring-loaded, folding transporter stand, and automatic die head. Single Speed, 1/2" - 2" NPT, Automatic Oil Feed, Automatic Die Head, Two Sets of “Ridgid” Type Dies, Pipe Cutter and Reamer, Set of 4 Legs, Folding Transporter Stand (00230) 63004, Set includes: 2SE machine with automatic die head /2-2" (52500), alloy dies (1/2-3/4" NPT 89101 and 1-2" NPT 89102), safety foot switch, set of 4 legs, 1 gallon ROCOOL oil (01922) 1

63005, Set includes: ROPOWER® 50R machine with automatic die head 1/2-2" (56265), alloy dies (1/2-3/4" NPT 89162 and 1-2" NPT 89163), safety foot switch, set of 4 legs, 1 gallon ROCOOL oil (01922)

* Optional, wheeled folding stand

Description SUPERTRONIC® 2SE with Automatic die head with NPT Alloy dies 1/2" - 2" ROPOWER® 50R with Automatic die head with NPT Alloy dies 1/2" - 2" Wheeled Stand Mounting Kit for ROGROOVER® Cutter Wheel

lb

No.

97.0

63004

97.0 70.0 4.0 0.5

63005 R04200230R 56510 04510

Supertronic 4SE Dual Speed (22/50 rpm), 1/2" - 4" NPT, Automatic Oil Feed, Complete with Two Automatic Die Heads (52500 & 64401) Three Sets of Dies (89101, 89102 & 59912), Pipe Cutter and Reamer, Set of four legs.

24

Description SUPERTRONIC 4SE 1/2" - 4" Automatic die head 1/2" - 2" Automatic die head 21/2" - 4" Alloy Die Set 1/2" - 3/4" NPT Alloy Die Set 1" - 2" NPT

lb 232.0 18.0 18.0 2.0 2.0

ROCOOL Thread Cutting Oil 1 gallon SUPERJACK® Pipe Stand for 1/2" - 8" pipe ROGROOVER® Mounting Kit for 4SE Cutter wheel Enclosed, wheeled cabinet Open wheeled stand (with tool tray)

8.0 25.0 9.0 0.5 16.5 56.0

No. 63006 52500 64401 89101 89102 59912 01922 10640 56512 04510 E-239-4SE 00548A

Pipe Threading

COLLINS® High Performance Threading Machines COLLINS® CLASSIC 22A This top-of-the-range production style threading machine is suitable for the most demanding pipework applications, on-site threading, prefabrication work, or even production applications. Completely versatile – handles even difficult make-on or breakdown of fittings. High performance output in every way, the result from over 45 years producing the tried and tested Collins® pipe threaders.

Drive Motor

Die Heads

• Heavy duty, 115 V, universal AC/ DC, 50/60 Hz. Develops up to 23/4" HP • 6 brush motor for higher torque • Easy to service • Left and right hand optional • 84db on A scale noise level

• Snap-O-Matic® die heads (2) are standard • Simple, quick change of dies without time consuming adjustments • All controls are clearly marked.

• Automatically adjusted thread length • Adjustable thread depth • Threading range: • Pipe or conduit 1/8" to 2" • Bolt or rod 1/4" to 21/4" • Uniquad® head optional

Pipe Cutter and Reamer • Precision pipe cutter with dual guide for ­accurate pipe cutting • 5-Blade conical reamer • 1/2 HP

No-Load Spindle Speed • 72 rpm • Optional 54 and 100 rpm

HSS Precision Dies • Long operating life • Optimum cutting geometry and excellent chip discharge • Can be resharpened

Pipe Chuck • COLLINS® SUPER GRIP chucking system • R/L chucking • 4 heavy duty jaws at both front and rear of machine ensure that pipe is ­automatically gripped and centered.

• Easy to replace jaws (01623) for both metal and plastic-coated pipe • Optional jaws for plastic-coated pipe. (20533) 00579 on 00045 stand

Oiling and Lubrication • Rugged and proven oil pump • Automatic oil feed for optimum cooling • Large, easy-to-empty, chip tray • 1 gallon oil reservoir • Use ROCOOL® cutting oil, (01922) a special blend of sulfachlorinated mineral oil to ensure superior quality threads and long die life.

Safety • All units come with a safety foot switch.

Dimensions • 371/2" x 131/8" x 181/2" (L x W x H) • Carriage travel 11"

Optional Stands • Open wheeled stand with tool tray • Closed wheeled stand with locking tool cabinet

Standard Supply: Threading machine (00579) with built-in pipe cutter and reamer, foot-operated safety switch (00161), 2 snap-o-matic die heads (00063, 00066), 2 sets of HSS dies (00028, 00031), 1 gallon oil. (01922)

Description OLLINS® CLASSIC 22A with Snap-O-Matic® C die heads/dies, 72 rpm, 115V Snap-O-Matic® die heads/dies, 230V RIDGID® compatible automatic die heads/dies Basic 22A unit without die head/dies Replacement jaws (set 8) Low indent jaws for plastic-coated pipe (set 8) Spare cutter wheel (1 pc) Spare cutter wheel (6 pcs) Open wheeled stand with tool tray Threader storage cabinet with wheels Waterproof cover Mounting Kit for ROGROOVER

lb

No.

240 240 240 220 5.5 5.5 0.3 1.0 54.0 165.0 5.0 7.0

00579 00592 00575 00585 01623 20533 00157 00158 00045 E-239 00154 45001

E-239

25

Pipe Threading

COLLINS® High Performance Threading Machines RHINO® 1/2" to 4" Threading Machine This is a top-quality threading machine for standard use by plumbing and electrical contractors. So versatile, it cuts, threads, grooves, reams or bevels with near automatic operation: automatic chucking, automatic oil flow through the die head, and fast threading speeds.

Drive Motor

Automatic Die Heads

Safety

• Heavy Duty, 115 V, AC/DC 50/60 Hz. Develops up to 3 HP • 6-Brush motor for higher torque • High speed threading – 25 rpm • Easy to maintain and service • 85db max. noise level

• Automatic 21/2" to 4" • Optional 1/2" to 2" automatic die head, small die head adapter and reamer • Automatically adjusted thread length • Threading range with optional package: Pipe or conduit 1/2" to 4" Bolt or rod 5/8" to 21/4"

All units come with safety foot switch.

Cut-off switch to limit carriage travel

No Load Spindle Speed • 25 rpm

Pipe Cutter and Reamer • Precision pipe cutter with dual guide for ­accurate pipe cutting and control for exact length required • 5-Blade conical reamer for 1/8" to 2" • Optional blade reamer for 21/2" to 4"

Pipe Chuck • COLLINS® SUPER GRIP chucking system • R/L chucking • 4 heavy duty jaws at both front and rear of machine ensure that pipe is automatically gripped and centered

Optional Stands • Open wheeled stand with tool tray • Closed wheeled stand with locking tool cabinet • Superjack Pipe Stand with adjustable height and 2000 lb. capacity

Alloy Precision Dies • Long operating life • Optimum cutting geometry and excellent chip discharge

Oiling and Lubrication • "Quick Shot" lubricating system • 2-gallon oil reservoir • Use ROCOOL® Cutting Oil, (01922) a special blend of sulfachlorinated mineral oil assures long die life and superior quality threads.

Description

lb

No.

340.0

00550

340.0

P00551C

27.0

00561

RHINO® complete machine with 21/2" - 4" automatic die heads & dies RHINO® complete machine with 21/2" - 4" automatic die heads & dies for plastic-coated pipe RHINO® optional 1/2" - 2" package with

Standard supply: Threading machine (00550), automatic die head (64401), 21/2" - 4" Dies (59912), 1 gallon oil (01922)

/2" - 2" automatic die heads and dies with

1

/2" - 2" conical reamer

1

Reamer 1/8" to 2" conical, 5-blade reamer assembly

5.5

00097

1

/8" to 2" reamer cone only

5.5

01894

21/2" to 4" twin-edged blade

5.0

00107

21/2" to 4" reamer assembly

5.0

R04200551R

Cutter assembly

40.0

00106

Spare cutter wheel (1 pc)

1.0

00104

Spare Cutter Wheel (3 pcs)

1.0

00105

Open wheel stand with tool tray

56.0

00548R

Threader storage cabinet with wheels

165.0

E-239

Mounting kit for ROGROOVER

14.0

45004

26

E-239

Pipe Threading

COLLINS® High Performance Threading Machines 44A 4" Thread-O-Matic® Top of the line high production units includes Die heads ⁄2" - 3⁄4" (00063), 1" - 2" (00066), 21⁄2" - 3" (00055) & 31⁄2" - 4" (00057), small die head adapter (R04200096R), cone reamer assembly (00097) and NPT High Speed Dies.

1

The 44A’s heavy duty construction includes welded steel plate frame and base.

Range • Pipe or conduit 1⁄2" - 4"Bolt or rod 19-76 mm, 5⁄8" - 3"

Dimensions • 60" x 30" x 441⁄2" (L x W x H) Height to center line of spindle 351⁄2" Carriage travel 13"

Motor • 5 H.P, 230/460V 3 phase, 50-60 Hz 1170 rpm (instant reversing) Optional 5 H.P, 230/460V 1 phase, 50-60 Hz 1170 rpm Optional 10 HP, 230/460V, 3 phase, 50-60 Hz, 1800 rpm

Spindle Speed while Threading • 1⁄2" - 1" 48 rpm • 11⁄4" - 2" 26 rpm • 21⁄2" - 3" 16 rpm • 31⁄2" - 4" 12 rpm

Switches • Three-station push button switch (forward-stop-release) Optional toggle type (right hand-left hand)

Starter • Magnetic with thermal overload

Oil Reservoir • 5 gallon capacity

Description 44A Thread-O-Matic® Replacement cutter wheel Replacement reamer blade Replacement set of 8 jaws 44A Machine only (no die head or dies) Set of 8 plastic jaws 44A Plastic Option

lb 1212.0 1.0

No. 00039 00104 R04200108R R04201476R 00038 PR04201476RC P00039C

66A 6" Thread-O-Matic® Standard unit includes: Die Heads 1" - 2" (00066) 21⁄2" 3" (00056), 31⁄2" - 4" (00058), 5" - 6" (00060) & NPT high Speed Dies, small die head adapter (R04200179R) and cone reamer assembly (00097).

Range

Spindle Speed while Threading

• Pipe or conduit 1" - 6"Bolt or rod 32-90 mm, 11⁄4" - 4"

Engineered with the same heavy duty construction as the 44A, the 66A features a welded steel plate frame and base.

• 1⁄2" - 2" 62 rpm • 21⁄2" - 3" 32 rpm • 31⁄2" - 4" 16 rpm • 5" - 6" 11 rpm

• 483⁄8" x 30" x 453⁄4" (L x W x H) Height to center line of spindle 36-3/4" Carriage travel 10"

Dimensions

Switches

Motor

• Three-station push button switch (forward-stop-release) Optional toggle type (right hand-left hand)

• 5 H.P, 230/460V 3 phase, 50-60 Hz 1170 rpm (instant reversing)

Starter • Magnetic with thermal overload

Oil Reservoir • 5 gallon capacity

Description 66A Thread-O-Matic® Replacement Cutter wheel Replacement set of 8 jaws

lb 1700.0

1.0

No. 00174 00104 R04201585R

27

Pipe Threading and Grooving

ROGROOVER® 6" Portable rolling groover for standard and thin-walled steel pipes 11/2" - 6".

Particularly suitable for installations, sprinkler systems, larger heating units, and in industrial use, as well as for quick connection of pipes anywhere welding is not allowed. Lightweight and compact design.

• Ratchet drive R/L for adjusting the depth of standard-conforming groove: Convenient, easy and fast

• Allen key mount: Always on hand

• Lightweight aluminum casing: Easy to transport

• Spacer for standard groove depths: Adjustable and finely-controlled arrester for consistent groove depth

• Easy assembly/dismantling of the case-hardened and knurled pressure and drive rollers: Long life

For Model

lb

No.

ROGROOVER® 6", machine ONLY

27.9

S16087922R

ROPOWER® 50R and SUPERTRONIC® 2SE

8.5

56510

COLLINS® CLASSIC 22A

8.5

45001

RIDGID®* 300

8.5

45002

Please select correct mounting kit below:

RHINO

8.5

45004

SUPERTRONIC® 4SE

9.0

56512

®

*RIDGID® is a registered trademark of Ridge Tool Co.

28

Die Heads & Dies COLLINS® Classic 22A Snap-O-Matic Die Heads and Dies

Snap-O-Matic® Die Head Available in two-position or four-position settings up to 2".

See following pages for the right part number for use with your machine.

®

00063

Description Die Head, NPT (National are Thread Tapered) Dies, NPT Dies, NPT Stainless Die Head, NPSM (National Pipe Thread Straight) Dies, NPSM Dies, Plastic

/8" 00061 00029 00225

/4" - 3/8"

1

1

00201 00304 –

00303 –

Dies for Automatic Opening Pipe Die Heads and Dies

/8"

Description Die Head Dies, UNC Dies, UNF Description Die Head Dies, UNC Dies, UNF

/4"

1

00300

00301

–

–

/16"

/8"

3

lb 10.0 1.0 1.0 10.0 1.0 1.0

lb 10.0 1.0 1.0

Uniquad® Die Head: Fully adjustable, truly versatile die head for up to 2" pipe and 2-1/4" bolt. Sizing is manual, but still a simple operation.

For threading pipe Uniquad® heads use four sets of interchangeable high-speed steel dies: 1/ ", 1/ " - 3/ ", 1/ " - 3/ ", or 1" - 2".

8 4 8 2 4

1

00026 00051 – 02582

00222 5

00301

1" - 2" 00221

– 02581

Uniquad® Bolt Die Heads and Dies

– – –

00054 – – –

–

00200 00302 02265

11/2" - 2" 00221

/4" - 3/8"

1

1" - 2"

1" - 11/4" 00221

00222

Description Die Head Dies, NPT Dies, NPT Stainless Dies, NPSM Dies, Plastic

11/2" - 2"

/2" - 3/4" 00221

1

Uniquad® Pipe Die Heads and Dies

1" - 11/4"

Special die head cuts pipe thread lengths the same, time after time — a hardened steel trip trigger automatically opens at the desired or standard thread length. Single-lever motion sizes and closes the die head. The trigger can be swiveled out of position for long-running threads. Available for die sizes 1/2" - 3/4" or 1" - 2".

00221

Description Die Head Dies, NPT Dies, NPSM

/2" - 3/4"

1

/16"

7

/2" - 3/4"

1" - 11/4"

11/2" - 2"

1" - 2"

00300 02583

– –

00054 – –

– 00301 –

1

lb 10.0 1.0 1.0 1.0 1.0

Uniquad® Die Head: Fully adjustable, truly versatile die head for up to 2" pipe and 21/4" bolt. Sizing is manual, but still a simple operation.

For threading bolt Uses either left-hand or right-hand dies to 21/4".

1

/2"

/16"

9

5

/8"

3

/4"

7

/8"

1"

00349

00004 00340

00005 00341

00006 00342

00007 00343

00344

00009 00345

00010 00346

00347

00012 00348

11/8"

11/4"

11/2"

15/8"

13/4"

17/8"

2"

21/4"

00014 00350

00015 00351

13/8" 00222 00016 00352

00017 00353

00018 00354

00019 00355

00020 00356

00357

00022 –

lb 10.0 1.0 1.0

lb 10.0 1.0 1.0

29

Die Heads & Dies RHINO®, 4SE, 2SE, 1SE, and 22A (00575) Automatic Opening Pipe Die Heads and Dies Manual NPSM Pipe Die Heads and Dies.

Manual die heads for parallel NPSM pipe threads from 1/2" - 3".

52500

Description Die Head, NPT, Manual Dies, NPT, Alloy Die Head, NPT Die Head, NPT Dies, NPT, Alloy Die Head, NPT Dies, NPT, Alloy

1/ " Use on 4 2SE RO4220165R 1SE 89100 1SE – 2SE, 4SE, RHINO® – 2SE, 4SE, RHINO® – 4SE, RHINO® – 4SE, RHINO® –

Die Head, NPSM, Manual

2SE, 4SE, RHINO®

–

Dies, NPSM, Alloy

2SE, 4SE, RHINO®

–

High Performance Automatic die heads with quick Snap-O-Matic® type size selection open automatically at the desired or standard thread length. Depth of thread can be adjusted for individual sizes and moves the die head position for long-running threads.

3/ " 1/ " 3/ " 1" 11/4" 11/2" 2" 21/2" 3" 4" 8 2 4 RO4220165R – – – – – – – – – 89100 89120 89120 89121 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – R04720171R RO420171R R04720172R RO420171R – –

RO420171R R04720171R R04720172R RO420171R – 89148 89148 89149 89149 89150 89150 89151 89151 –

lb 11.0 1.0 18.0 18.3 1.0 20.8 3.0 20.0 3.0

Note: alloy dies are not resharpenable.

RIDGID®* Style Universal "R" Series Dies ROPOWER® 50R Description

/2" - 3/4" Alloy Dies NPT 1-2" Alloy Dies NPT 1/ " - 3/ " H.S Steel Dies NPT 4 8 1/ " - 3/ " H.S. Steel Dies NPT 4 2 1-2" H.S. Steel Dies NPT 1/ " - 3/ " Stainless Steel Dies NPT 4 8 1/ " - 3/ " Stainless Steel Dies NPT 4 2 1-2" Stainless Steel Dies NPT 1

30

Universal "R" Series Die Head ROTHENBERGER

RIGID®

Part Number

Part Number

47745 47750 47760 47765 47770 47780 47785 47790

Will accept "R" - style dies from 1/8" - 2" NPT for the ROPOWER® 50R Description

Die Head 50R Automatic 1/2" - 2"

*Ridgid® is a registered trademark of Ridge Tool Co.

ROTHENBERGER Part Number

56265

Die Heads & Dies 2SE and 50R for Bolt Threads, RHINO® & 22A (00575)

Manual Die Head for bolt threading up to 1" on 2SE and ROPOWER® 50R machines

Manual Opening Die Head and Dies Description

Die Head Dies, UNC, Alloy

1/ " 2 20160 89016

5/ " 8 20160 89017

3/ " 4 20160 89018

7/ " 8 20160 89019

1"

11/8" - 11/4"

13/8" - 11/2"

lb

20160 89020

63090 89197

63090 R04789198R

8.5 1.0

44A Thred-O-Matic® Large Snap-O-Matic® Die Head Available in two-position in 21/2" - 4" for 33A and 44A.

Snap-O-Matic® Pipe Die Heads and Dies Description

Die Head, NPT Dies, NPT Dies, NPT Stainless Die Head, NPSM Dies, NPSM Dies, Plastic

/2" - 3/4"

00066

1" - 11/4"

1

00200 00302 02265

11/2" - 2"

00054 – – –

– – –

Uniquad® & Snap-O-Matic® Bolt Die Heads & Dies Description

/8"

5

Die Head Dies, UNC Dies, UNF

00010 00346

Description

15/8"

Die Head Dies, UNC Dies, UNF Dies, UNC RH only

00018 00354 –

21/2" - 3"

1" - 2"

00047 00205 00305 02364

– 00301

31/2" - 4"

lb

00057

00306 06676

35.0 5.0 5.0 35.0 5.0 5.0

00222

/4"

3

7

/8"

1"

11/8"

11/4"

13/8"

11/2"

lb

00014

00015

00016 00352

00017 00353

10.0 1.0 1.0

00347

00012 00348

00349

13/4"

17/8"

2"

21/4"

21/2"

23/4"

3"

lb

00357 –

00222 00022 – –

– – – 00330

– – – 00331

– – – 00332

10.0 1.0 1.0 1.0

00019 00355 –

00020 00356 –

31

Die Heads & Dies 66A Thred-O-Matic® Snap-O-Matic® Pipe Die Heads and Dies

Large Snap-O-Matic® Die Head Available in two-position up to 4" and single position for 5" and 6".

00059

Description

Die Head, NPT Dies, NPT Dies, NPT Stainless Die Head, NPT Dies, NPT Dies, NPT Stainless Die Head, NPT Dies, NPT Dies, NPT Stainless Die Head, NPSM Dies, NPSM Die Head, NPSM Dies, NPSM Die Head, NPSM Dies, NPSM

1" - 11/4"

– – – – – – – – – – – –

11/2" - 2"

1" - 2"

21/2" - 3"

31/2" - 4"

5"

6"

lb

00054 – – – – – – – – – – – –

00066 00028 – – – – – – – 00203 00301 – – – –

– – –

– – – 00058 00042 00048 – – – – – 00208 00306 – –

– – – – – – 00060 00043 00049 – – – – 00204 00307

– – – – – – 00060

10.0 1.0 1.0 35.0 5.

5.0 54.0 6.0 6.0 10.0 1.0 35.0 5.

54.0 6.0

– – – – – 00206 00305 – –

Uniquad® Pipe Die Heads and Dies

Uniquad® Die Head: Fully adjustable, truly versatile die head for up to 2" pipe and 21/4" bolt. Sizing is manual, but still a simple operation.

For threading pipe Uniquad® head uses four sets of interchangeable high-speed steel dies: 1/8", 1/4" - 3/8", 1/2" - 3/4", 1" - 2".

00222

Description

– – – – – 00209 00307

1" - 11/4"

Die Head Dies, NPT Dies, NPT Stainless Dies, NPSM

11/2" - 2"

00054 –

–

Uniquad® Bolt Die Heads and Dies

1" - 2"

lb

– 00301

10.0 1.0 1.0 1.0

Uniquad® Die Head: Fully adjustable, truly versatile die head for up to 2" pipe and 21/4" bolt. Sizing is manual, but still a simple operation.

For threading bolt Uses either left-hand or right-hand dies to 21/4".

00222

Description

11/4"

13/8"

11/2"

15/8"

13/4"

17/8"

Die Head Dies, UNC Dies, UNF

00015 –

00016 00352

00017 –

00018 –

00019 –

00020 –

32

2"

21/4"

lb

–

00022 –

10.0 1.0 1.0

Die Heads & Dies Grooving and Beveling Die Heads & Tools Size

Head

Centering Dies

Grooving & Cutting Bit 00477 (Sch. 40 & 80)

Cutting Only —

Double Bevel 45 00480 (Sch. 40 & 80)

Double Bevel 37-1/2" 00479 (Sch. 40 & 80)

Saran Tools —

00470

00488

00477 (Sch. 40 & 80)

—

00480 (Sch. 40 & 80)

00479 (Sch. 40 & 80)

—

00482 (Sch. 40 & 80)

00483 (Sch. 40, 80, 160)

00486 (Sch. 40)

00484 + 00485 00487 (Sch. 40) (Sch. 40 - 160) (Sch. 40)

00482 (Sch. 40 & 80)

00483 (Sch. 40, 80, 160)

00486 (Sch. 40)

00484 + 00485 00487 (Sch. 40) (Sch. 40 - 160) (Sch. 40)

00482 (Sch. 40 & 80)

00483 (Sch. 40, 80, 160)

00486 (Sch. 40)

00484 + 00485 00487 (Sch. 40) (Sch. 40 - 160) (Sch. 40)

/4" - 2" 22A, 33A, 44A

3

1" - 2" All Units 21/2" - 3" 33A, 44A 21/2" - 3" 66A

RO4200475R

51/2" - 4" 33A, 44A 51/2" - 4" 66A

R04200476R

00482 (Sch. 40 & 80)

00483 (Sch. 40, 80, 160)

00486 (Sch. 40)

00484 + 00485 00487 (Sch. 40) (Sch. 40 - 160) (Sch. 40)

5" - 6" 66A

00474

00482 (Sch. 40 & 80)

00483 (Sch. 40, 80, 160)

00486 (Sch. 40)

00484 + 00485 00487 (Sch. 40) (Sch. 40 - 160) (Sch. 40)

00482 (Sch. 40 & 80)

00483 (Sch. 40, 80, 160)

00486 (Sch. 40)

00484 + 00485 00487 (Sch. 40) (Sch. 40 - 160) (Sch. 40)

00482 (Sch. 40 & 80)

00483 (Sch. 40, 80, 160)

00486 (Sch. 40)

00484 + 00485 00487 (Sch. 40) (Sch. 40 - 160) (Sch. 40)

21/2" - 3" RHINO® 31/2"" - 4" RHINO® Small Die Head Adaptor RHINO® (cut grooving)

00575R RO4200558R

33

Threading Machine Accessories Nipple Chucks

Description

lb

Part No.

Nipple Chuck, 1⁄2"

0.9

00184

Nipple Chuck, 3⁄4"

1.2

Nipple Chuck, 1"

1.6

00185 00186

Nipple Chuck, 11⁄4"

2.2

00187

For 1/2" - 2" pipe — up to schedule 40 (00089)

Nipple Chuck, 11⁄2"

2.6

Faster and more economical to use than nipple chuck adapter systems

Nipple Chuck, 2"

4.3

00188 00189

15.0

01850

Nipple Chuck, 1⁄2"

0.9

00190

Nipple Chuck, 3⁄4"

1.2

For use with 2SE, 50R, 4SE and other

/2" - 2"

manufacturer’s hammer chuck machines

Check out this product on YouTube!

Rothenberger USA Channel

1

Nipple chucks convert unthreaded or short pipe lengths into useful close-threaded nipples

21/2" to 4" and 5" to 6" Patented mechanism expands and self-locks pipe from inside for work on short pipe lengths 21/2" - 4" pipe nipple chuck assembly (00072, 00098) 5" - 6" nipple chuck assembly can be used on both conduit and pipe (00073)

00073

00072

External Nipple Chuck, 1⁄2" - 2" Sch. 80 pipe For use with RHINO®, 22A, 44A, 66A:

Nipple Chuck, 1"

1.6

00191 00192

Nipple Chuck, 11⁄4"

2.2

00193

Nipple Chuck, 11⁄2"

2.6

Nipple Chuck, 2"

4.3

00194 00195

NIPPLE MAX Set, 1⁄2" - 2", extension bar* 4.0

00199

NIPPLE MAX Set, 1⁄2" - 2"*

16.0

00089

43.0

00072

Nipple Chuck Assembly for 2 ⁄2"- 4" conduit50.0

00098

For use with 44A, 66A: Nipple Chuck Assembly for 21⁄2"- 4" pipe 1

For use with COLLINS® 66A only: 50.0

Nipple Chuck Assembly for 5" - 6"

00073

*No case included with sets

Cutter Wheels and Footswitch Description

Part No.

04510

Cutter Wheels to suit SUPERTRONIC® Machines Cutter wheels to suit COLLINS 22A

00157

Footswitch for threading Machines

00161

®

SUPERJACK Pipe Stands Supports full lengths of pipe, 1/2" - 16", when using pipe threading machines Height capacity: 27" - 50" Weight capacity: 2,500 lb. max Folding stand includes carrying handle 10644

34

10645

Model

lb

Part No.

SUPERJACK with V-Head, 8"

25.0

10640

SUPERJACK with Ball Transfer Head, 8"

29.0

00101

Folding SUPERJACK with V-Head, 8"

26.0

10641

Folding SUPERJACK with Ball Transfer Head, 8"

30.0

10642

SUPERJACK with V-Head, 16"

27.0

10643

Folding SUPERJACK with V-Head, 16"

27.0

10644

SUPERJACK with Roller Head, 16"

27.0

10645

Folding SUPERJACK with Roller Head, 16"

27.0

10646

One set of Ball Transfer Head

2.45

00100

Threading Machine Accessories Product

Size/Lb

Part No.

Threading Spray ( mineral – non-soluble)

20.3oz. (600ml)

65008

Threading Spray (synthetic – soluble)

20.3oz. (600ml)

65013

ROCOOL® Cutting Oil (1 gallon)

8.0 lbs

01922

ROCOOL® Cutting Oil (six 1 gallon containers)

48.0 lbs

00001

ROCOOL® Cutting Oil (5 gallons)

40.0 lbs

00002

ROCOOL Cutting Oil (55 gallons)

480.0 lbs

Threading Sprays

Threading Oil

®

00003 00001P

ROCOOL® Cutting Oil - Pallet of 1 gallon containers

Pipe Threading Oiler

Part No.

Traditional hand oiler for pumping threading oil directly onto the work.

Can be used with all hand held portable threaders and power-drives such as Supertronic 2000 and 1250 ranges and freestanding threading machines. Features include anti-slip handle with hanging hook, double filters and heavy duty rust proof reservoir.

70753

Size

Portable work stand Tripod Vice Stand Professional pipe-fitter work stand with built-in 6" quick release Chain Vice, has lever action to tighten and release the chain. Wide angle folding legs for exceptional stability, ceiling brace, and bending holes for 3/ ", 1/ ", 3/ " steel pipe 8 2 4

70752

Fitters Work Bench Sturdy, lightweight and easily transportable folding tubular frame, solid beechwood top. Dimensions: 47 x 21.5 x 1.2" Overall bench height: 31.5" Weight: 66 lbs

70690X

Pencil Deburrer Handy pencil size deburrer with pocket clip. Can be used one-handed on steel, copper, aluminum, 83 tubes and plate (Blade not replaceable)

21660

Gratfix Hss Deburrer For quick deburring of tubular and sheet material. Replaceable blade and plastic handle Gratfix with No.1 Blade No. 1 Universal replacement blade (1 pc) No. 1 Universal replacement blade (10 pack)

21655 21652 R10021652B

Internal External Reamer /8" - 13/8"

Accurate 3 blade head is ideal for internal and external deburring of copper, aluminum and soft steel tubing from 1⁄8" - 15⁄8".

1

Manual Tube Deburrer Suitable for quick and easy removal of all internal and external burrs on stainless steel pipes Deburrer for copper, aluminum, plastics, steel and INOX (stainless steel)

11006X 70075

/4" - 13/8" 1/ " - 2" 2

1

35

Production Cutting Machines

COLLINS® E-Z CUTTER® The fastest 100 pound machine you can buy!

This fast, high-volume, production cutter makes quick work of 1/4" ® - 4" pipe and 5/8" - 41/2" tubing. The E-Z Cutter is built to withstand everyday knocks and abuses yet light enough to set up anywhere.

Features • Universal AC/DC motor provides a full 1/2 HP for all-day production needs • Gear-driven rollers turn the work for true perpendicular cutting • Ball-bearing assembled cutter wheel revolves freely for even wear • High-speed tool-steel cutter wheels provide thousands of cuts with no external burr – so clean that no further finishing is needed before applying fittings • Foot switch provides operator safety while freeing both hands for high-volume production demands

Range

Motor

• Pipe 1/4" - 4" I.D. • Tubing 5/8" - 41/2" O.D.

• 1/2 HP Universal AC/DC, 50-60 Hz Optional 230V motor

Drive Type

Cutter Wheel

• Gear-driven rollers

• Heat-treated, high-speed tool steel

Dimensions • 19" x 10" x 19" (L x W x H)

Cutting Speeds (factory rating) Pipe

Tubing

1 ⁄2" 1/2 sec.

3/ " 4 1/2 sec.

1" 2 sec.

1" 2 sec.

11⁄2" 4 sec.

2" 4 sec.

2" 6 sec.

3" 6 sec.

Model C on optional stand (00037)

Cuts sch 80 All models include a heavy-duty footswitch and one pipe cutter wheel.

Description E-Z CUTTER® Model A, 115V

lb Part No. 121.0 00032

E-Z CUTTER® Model A, 230V

121.0

00533

E-Z CUTTER® Model C, 115V

125.0

00033

E-Z CUTTER® Model C, 230V

125.0

00534

* C versions include two heavy-duty rollers and two stationary supports Steel pipe cutter wheel (For galvanized, black, and stainless steel)

1.0

00034

Copper tube cutter wheel

1.0

00035

Soil pipe cutter wheel

1.0

00535

Stationary support

3.0

00036

E-Z CUTTER® stand

40.0

00037

Roller bearing support

3.0

00069

Pipe support fitting

1.0

00071

Foot switch, 115V

8.0

00079

Foot switch, 230V

8.0

02350

36

® into a complete production Turn your E-Zthese CUTTER system with timesaving accessories: FOR BENCH MOUNTING: Stationary Support (00036) mounts your 11/4" support pipe to the workbench surface Roller Bearing Support (00069) slides onto the support pipe and provides easy travel and rotation of work.

FOR FLOOR MOUNTING: E-Z CUTTER® Stand (00037) bolts to the floor for stationary support Pipe Support fitting (00071) (with 1" pipe legs) mounts onto 11/4" pipe also using the Roller Bearing Support on support pipe Pipe Jack with Ball-Bearing Transport Head (00101) replaces system of support pipe and fittings, providing a handy alternative for supporting the work.

Important: In ordering, specify type of material to be cut (pipe, tubing, soil pipe) so that we may supply the proper cutter wheel.

Rotary Burr and Hole Saw Kits

RUKO® Sets

Description

Part No.

Sets of tungsten carbide rotary burrs in plastic case 116003US

10 - piece set of tungsten carbide rotary burrs TC 2 x Ø D1 3/8" / 1/2" cylinder shape SA - no end cut 2 x Ø D1 3/8" / 1/2" cylinder shape SC - radius end 2 x Ø D1 3/8" / 1/2" cylinder shape SG - pointed tree shape 2 x Ø D1 3/8" / 1/2" cylinder shape SF - tree shape radius cylinder shape SM - pointed cone shape 1 x Ø D1 1/2" cylinder shape SD - ball shape 1 x Ø D1 1/2" 10 - piece set of tungsten carbide rotary burrs Alu 2 x Ø D1 3/8" / 1/2" cylinder shape SA - no end cut 2 x Ø D1 3/8" / 1/2" cylinder shape SC - radius end 2 x Ø D1 3/8" / 1/2" cylinder shape SG - pointed tree shape 2 x Ø D1 3/8" / 1/2" cylinder shape SF - tree shape radius cylinder shape SD - ball shape 2 x Ø D1 1/2"

116103US

Sets of tungsten carbide rotary burrs in mini-box 116001US

3- piece set of tungsten carbide rotary burrs TC in mini-box cylinder shape SA - no end cut 1 x Ø D1 3/8" cylinder shape SC - radius end 1 x Ø D1 3/8" cylinder shape SD - ball shape 1 x Ø D1 3/8" 10 - piece set of tungsten carbide rotary burrs TC in mini-box 2 x Ø D1 1/4" / 1/2" cylinder shape SA - no end cut 2 x Ø D1 1/4" / 1/2" cylinder shape SC - radius end 2 x Ø D1 1/4" / 1/2" cylinder shape SG - pointed tree shape 2 x Ø D1 1/4" / 1/2" cylinder shape SF - tree shape radius 2 x Ø D1 1/4" / 1/2" cylinder shape SD - ball shape

116002US

Set of tungsten carbide hole saws, shallow cut in plastic case

105300

106306

8- piece set of tungsten carbide hole saws 5 tungsten carbide hole saws, shallow cut, Ø 25/32", 7/8", 1", 11⁄4", 13⁄8" + 1 cutting spray, 50 ml (101 010) + 1 extra pilot drill 16/64" H.S.S. Co 5 (105 170) + 1 allen key 5- piece set of tungsten carbide hole saws 3 tungsten carbide hole saws, shallow cut, Ø 7/8", 11⁄8", 13⁄8" + 1 extra pilot drill 16/64" H.S.S. Co 5 (105 170) + 1 allen key 7- piece set of tungsten carbide hole saws 4 tungsten carbide hole saws, shallow cut, Ø 21/32", 13/16", 1", 9/32" + 1 cutting spray, 50 ml (101 010) + 1 extra pilot drill 16/64" H.S.S. Co 5 (105 170) + 1 allen key

105301US

105302US

Kits of bi-metal hole saws H.H.S. / H.H.S. Co 8 in plastic cases Description

126306

105300US

Part No.: H.H.S.

PK 1 For Plumbers 8- piece kit of bi-metal hole saws 6 bi-metal hole saws: Ø 3⁄4", 7/8", 11⁄8", 11⁄2", 13⁄4", 21⁄4" + 2 arbor holers A2 and A4 PK 2 For Plumbers 11- piece kit of bi-metal hole saws 9 bi-metal hole saws: Ø 3⁄4", 7/8", 11⁄8", 13⁄8", 11⁄2", 13⁄4", 21⁄4", 21⁄2" + 2 arbor holers A2 and A4 Universal 12- piece kit of bi-metal hole saws 10 bi-metal hole saws: Ø 3⁄4", 7/8", 1", 11⁄8", 13⁄8", 11⁄2", 13⁄4", 2", 21⁄4", 21⁄2" + 2 arbor holers A2 and A4 Super 11- piece kit of bi-metal hole saws 10 bi-metal hole saws: Ø 7/8", 1", 11⁄4", 13⁄8", 15⁄8", 13⁄4", 2", 21⁄8", 21⁄2" + 2 arbor holers A2 and A4

CUSTOMER SERVICE – 800-545-7698 FAX – 815-633-0879 | www.rothenberger.com/us-en | www.ruko.de

H.H.S. Co 8

126301

126306

126303

126304

37

Tool Bags Product

Part No.

Trendy Tool Bag Lots of storage room for all your tools

402311

(15 x 11.8 x 14.5") Volume: ca. 11 gallons

Tool Bag Offers a lot of pockets and tool holders with a waterproof plastic bottom (17.7 x 11.2 x 13")

Volume: ca. 8 gallons

1500001320

Tool Bag, Small Volume: ca. 4 gallons

Offers a lot of pockets and tool holders with a waterproof plastic bottom (11 x 14 x 9")

1500002182

Tool Bag, HEAVY DUTY Especially stable with the stable plastic bottom (24.4 x 9.8 x 13.7")

Volume: ca. 8 gallons

402317

Toolbox Apprentice Lots of storage room for all your tools

402312

Belt Bag

Volume: ca. 0.7 gallons

Very light, handy bag for the most important tools. Keeps the tools organized and easy to grab when needed. (9.8 x 4.7 x 12.2")

Belt Bag Belt for Belt Bag

1500001460 1500001461

Trendy Shoulder Toolbox Volume: ca. 2.9 gallons

Very light, handy bag for the most important tools (9.8 x 8.6 x 5.")

402308

Tool Bag Universal I deal for hand tools with straps and flaps inside the roll cover (8.6 x 17.3 x 9")

38

1500002230

ROCASE

ROCASE® Storage Solutions The all new ROCASE® modular storage and transportation system has been designed with the individual requirements of tradesmen in mind. A range of 4 robust, stacking and interlocking cases offers the perfect solution for carrying and protecting valuable tools both on the way to and on-site.

A patented CLICK system allows all cases to be locked together enabling multiple cases to be carried as one by the folding handle or shoulder strap, and with the addition of the optional folding transporter several cases can simply be wheeled.

The tough ABS construction can support 220 lbs and bespoke inlays are included to support and protect specific tools.

All powertools are supplied in anthracite ROCASES

ROCASES are without inlay Product

ROCASE® 4212 red, w/out inlay ROCASE® 4414 red, w/out inlay ROCASE® 6414 red, w/out inlay ROCASE® 6427 red, w/out inlay

Part No.

Weight

1300003334 1300003541 1300003542 1300003337

0.63kg 1.30kg 1.89kg 2.64kg

ROBOX® Storage System The ROCASE® storage cases have been designed as the perfect storage solution for tools, fittings, spare parts etc.

A large modular tray which can hold up to 6 of the individual ROBOX® units. The trays can then be stacked in pairs and fitted neatly into the standard ROCASE® giving up to 12 individual storage compartments.

ROBOXES are supplied with clip on transparent lids preventing the contents spilling during transportation. In the future many ROTHENBERGER products including press jaws will be suppled in a ROBOX®, replacing conventional packaging.

Product

ROCASE® 4414 ROBOX® Tray ROBOX® B2650 Large ROBOX® B2350 Small (black) ROBOX® B2350 Small (red)

Part No.

Weight

1300004618 1500002763 1500002641 1500002779

345 x 345mm 364 x 114mm 192 x 114mm 192 x 114mm

39

Gas & Water Testing

Pressure Testing Pumps (Hydrostatic) Product

Part No.

RP30 Pressure Testing Pump

61130

Compact pump ideally suited to domestic pipework testing including underfloor heating systems. Maximum Pressure 420 psi.

Tank Capacity: 1.2 gallons. Connection: R1/2" 60250

TP25 Pressure Testing Pump Up to 362 psi testing makes this robust TP25 ideal for all domestic pressure testing operations. The epoxy coated galvanized steel tank has a 1.85 gallons capacity. The pump has a 4 foot hose with a R1/2" connection and testing can be monitored on the in-built gauge.

60200

RP50 Pressure Testing Pump Pressure Testing Pump for conducting hydrostatic pressure tests on water or oil carrying pipework systems. Maximum Pressure: 870 psi.

Tank Capacity: 3 gallons. Connection: R1/2" Replacement Hose (870 psi)

(for RP50 only)

R6112500

Replacement Gauge (870 psi)

61315

Seal Kit

61309

Product

Part No.

Size

47" Continuity Bond with Crocodile Clips

67001R

max 1"

315" Continuity Bond with 39" Chains

67002

max 12"

Heavy Duty Continuity Bond

67094

Continuity Bonds Conforming to BS6231 type CK

47" Heady Duty Continuity Bond with insulated 1" Ø opening jaws.

Flexible 3/8" multi-strand cable rated at 150A conforms to current Gas Safety Regulations

U-Flow Water Flow Cup

67055

This NEW innovative design flow cup is simple and easy to use. The cup is calibrated in both gallons/minute and liters/minute. The clear to read calibrated scales show flow rates of 1–5 gallons and 4–22 liters/minute. The cup can also be used in conjunction with a (Digital Thermometer) for measuring flow and water temperature

40

Gas & Water Testing

Standard “U” Gauge Manometers Made from durable plastics the standard U-gauge manometer is a popular tool for tightness testing of gas pipework and also for checking and setting domestic and commercial appliances to the correct gas pressure. New improved design and features include: • Velcro strip for hanging option, keeps U-gauge at eye level for ease of reading • Magnetic strip allows U-gauge to be attached to boiler cabinet casing during use • Scratch resistant clear facing • To be used in conjunction with rubber hoses (67017 and 67018) and a gas pressure testing kit (67015) Should only be used with ROTHENBERGER manometer fluid: Part No 67074 Product

Part No.

Size

30mb Standard U-Gauge Manometer

67060

12"

60mb Standard U-Gauge Manometer

67064

24"

Part No.

Size

Product

Kibosh Professional Emergency Pipe Repair

/2"

1

The quick, easy and professional way to temporarily repair a burst or perforated 1/2" or 3/4" water pipe. Easy closing single handed action requires no tools. Simple and safe to use KIBOSH will work on hot water pipes and has been tested by BSI to 145 psi so is capable of containing mains water pressure.

U-Gauge Manometer Fluid

/4"

3

67074

2 oz.

Colored fluid to give easy and accurate readings

Gas Pressure Testing Kit

67015

Gas Pressure Testing Kit Including three-way test tee, hand pump and hose

Pressure Test Nipples BSP (pack of 3)

67016

/8"

1

Re-usable test nipples for pressure testing and routine maintenance

41

Gas & Water Testing

Gauges Gas & Water Testing remains one of our most important product offerings, covering many aspects of advisory and mandatory testing.

As part of our continuous improvement program we worked closely with our factories to improve both products and packaging. The resulting features and benefits of this development are featured in this catalogue and examples of individual improvements are shown here.

Protective rubber boot Dual calibration in bar and PSI

Drag pointer

Pre-set pointer Large diameter gauge Schrader valve

WRAS approved braided hose

Dry Pressure Test Kit (67105)

5/8" push fit connector

Product

Dry Pressure Test Kit

5/8" male stem and female push fit connector

Part No.

67105

Size

0-87 psi

Rapid joint testing kit for checking for leaks, prior to filling a system with water. Gauge has rubber boot for protection during use and transportation.

Economy Pressure Gauge

67025

Gauge has rubber boot for protection during use and transportation.

0–10 bar, 0–50 psi 3/4" BSP tap connector

Wet Pressure Test Kit

67071

c/w reducer

Accurate water pressure reading from any 1/2" or 3/4" tap. Gauge has rubber boot for protection during use and transportation.

67019 67020 67021

0-87 psi 0-145 psi 0-362 psi

Professional Wet & Dry Test Kit

67068

Set complete

Professional water pressure tester with large steel cased gauge with protective rubber boot. Braided hose is WRAS approved and is supplied with 3/4" - 1/2"reducer for increased applications.

Water Pressure Gauges

Comprehensive kit for both wet and dry pressure testing of 5/8" & 7/8" tube plus 1/2"& 3/4" BSP threads on both copper and plastic tubing.

Kit Contains: 2 x 21/2" rubber protected steel gauges, 1 x universal tap connector, 1 x brass test body with tyre valve, 5/8" & 7/8" brass male fitting, 2 x WRAS approved flexible hoses, 1 x brass reducing bush 3/4" BSPT male x 1/2" BSPT female, 6 x O rings for gauge connections. Set supplied in robust carrying case.

42

Gas & Water Testing Product

Part No.

Professional Air Lock Kit

67069

Size

Easy to use custom made kit designed to remove airlocks from domestic water and heating pipework installations.

Kit Contains: 20 ft. of 3/8" reinforced hose, 2 x rubber tap connectors to 3/8" tail, 2 x finger tightening jubilee clips, 1 x 1/2"male union adaptor, 1 x 1/2" brass double check valve (hose tail x female) for mandatory use with potable water. Set supplied in handy carrying bag.

Smoke Matches For testing chimneys, flues, gas appliances, smoke alarms and spillage tests Economy Smoke Matches (Box of 12) Longer Burning Smoke Matches (Tub of 25)

67046 67006

Smoke Pellets For mandatory testing of flues, chimneys, pipework, boilers and drains Hand-held Smoke Pellets (Tube of 10)

67007

0.1 oz.

Mini Smoke Pellets (Tube of 6) Mini Smoke Pellets (Tub of 50) Mini Smoke Pellets (Tub of 100)

67041 67110 67042

0.18 oz.

0.18 oz.

0.18 oz.

Standard Smoke Pellets (Tube of 6) Standard Smoke Pellets (Tub of 50) Standard Smoke Pellets (Tub of 100)

67043 67111 67112

0.46 oz.

0.46 oz.

0.46 oz.

Encapsulated Smoke Pellets (Tub of 10) Encapsulated Smoke Pellets (Tub of 50) Encapsulated Smoke Pellets (Tub of 100) Encapsulated Smoke Pellets (Tub of 10) Encapsulated Smoke Pellets (Tub of 50) Encapsulated Smoke Pellets (Tub of 100)

67113 67114 67115 67044 67116 67045

0.18 oz.

0.18 oz.

0.18 oz.

0.28 oz 0.28 oz 0.28 oz

67066 67117

0.32 oz.

0.28 oz

67005

50 matches

67052

5.07 oz. /12*

Colored Smoke Pellets Orange Colored Smoke Pellets (Tube of 10) Red Encapsulated Smoke Pellets (Tube of 10)

Smoke Plume Kit For directional smoke testing and spillage testing, includes 50 longer burning smoke matches

Dusting Spray Invertible Dusting Spray (5.07 oz.) for removing dust and debris from boilers and confined spaces

ROTEST® Leak Detection Fluid And Spray Reliable detection of leaks in joints, appliance connections and gas cylinders

A

B

C

D

ROTEST® Leak Detection Fluid (1 x 4.0 oz. Bottle) C ROTEST® Leak Detection Fluid (50 x 4.0 oz. Bottles) C ROTEST® Leak Detection Fluid (8.4 oz. Atomizer) B ROTEST® Leak Detection Spray (13.5 oz. Aerosol) A ROTEST® Contract Leak Detection Spray D

67003 67004 67048 65000 65001

1 x 4.0 oz.

50 x 4.0 oz.

8.4 oz.

13.5 oz./12* 12*

43

Gas & Water Testing / Pipe Freezing Product

Part No.

ROTEST® Electronic 3 Gas Leak Detector

66080

Exceptionally sensitive to any traces of combustible gas. Optical and audible warning indicator. Flexible 16.5" goose-neck with illuminated head, battery state indicator, splash proof housing. Complete with carrying case and full instructions

Carbon Monoxide Detector

66090R

Hand held carbon monoxide meter with integral sensor and digital display.

Measures 0–999 ppm. Data hold, max recording and alarm. Supplied with rubber sleeve and pouch. RO-CARBON Carbon monoxide detector

Ro-Press Differential Pressure Meter Set

66081R

High accuracy differential pressure meter with logging facility and infra-red output to optional printer. Will display readings in 7 different pressure units.

Supplied with hose and protective pouch. Range +/–1 psi.

Ro 425 Flue Gas Analyzer Kit

66082

Compact boiler analyzer with high accuracy pressure readings. Four line display controlled by 9 position rotary switch. Measures O2, CO (0–2,000ppm), differential pressure and differential temperature. Calculates CO2, CO/CO2 ratio, excess air and efficiency for multi-fuel, gaseous fuels and light oils (28/35 sec). Infra-red output to printer. Prints reports for combustion, pressure, let-by/tightness, temperature and room CO build up. Fitted with protective rubber sleeve with integral magnet.

Kit comprises: flue probe, infra-red printer, 4 x NiMH rechargeable batteries, charger, 2 x pressure fittings, carry case and instructions

Digital Thermometer

67039

Versatile battery powered thermometer with a wide measuring range from –58°F to +392°F. Incorporates a maximum and minimum alarm facility whereby the unit will “beep” when a value set by the operator is exceeded. Includes a stainless steel temperature probe on a 31.5" cord, pocket clip and fold away stand, and protective cover for function keys.

FREEZE-PAK

Instant pipe freezing kit

The FREEZE-PAK is the ideal way to make quick repairs without draining or interruption of water supply. Quick Freeze spray produces a temporary ice plug in plumbing and heating systems that will last up to 30 minutes.

Product Profile

Check out this product on YouTube! under ROTHENBERGERFreeze-Pak

Foam sleeves wrap pipe and are fastened with plastic ties.

Repair is made between 2 Quick Freeze is sprayed into center of foam wraps until frost appears on outside, indicating pipe section is frozen. frozen pipe sections.

FEATURES • Produces an ice plug in 10 minutes • Works on copper, iron, lead or plastic pipes • No need to drain system • Works vertically and horizontally • Safe to use - CFC free TECHNICAL DATA Size range: 1/4” - 1” O.D.

Kit includes 1 can Quick Freeze spray (64001), 2 foam pipe jackets, 4 plastic ties Product

FREEZE-PAK kit Quick Freeze Spray replacement, 17.5 oz. (1.1 lbs)

44

Part No.

Wt. 1.7 1.1

Pipe & Drain Cleaning Product

Part No.

Force Pump Sets Powerful, durable and effective blockage removal using water pressure ROPUMP® Mini for sinks, baths and shower trays

71991

ROPUMP Super Plus with two adaptor for sinks, baths, shower trays and toilet pans

72070X

®

Pipe And Drain Cleaning Coil Simple but effective tool for unblocking and cleaning kitchen sinks, wash basins, baths and shower waste pipes. Simply feed the vinyl coated cable into the waste pipe and feed through to the obstruction and rotate clockwise. Once clear retract the cable, re-attach the brush and insert into the pipe. Simply flush with clean water while rotating the brush in a clockwise direction.

72091R

Rospi 8 Manual Drain Snake 72095

Fast and effective pipe cleaning for basins, sinks, baths and showers. For use by hand or with a variable speed electric drill.

Rospi 8 H & E Plus c/w Spiral 5/8" x 25' ft long Please note: Rospi units are not designed for use in cleaning toilet pans, or pipe work above 3"ø

ROSPIMATIC CL New generation automatic feed, hand held pipe and drain cleaning machine, powered by the operator’s own cordless drill. The machine is suitable for the cleaning of basins sinks and pipes up to 3"Ø. Standard 5/8" x 25 ft. club head spiral is fed by a patented auto-feed mechanism which enables the operator to switch from forward to reverse without stopping the machine and can be locked using the torque limiter preventing damage to the spiral.

A professional cordless drill is connected to the rear of the drum via a hexagonal drive and power is transferred though a free-wheel clutch delivering a smooth run-out of the spiral and preventing the harsh stop and start which can cause wrist damage.

Product

Part No.

ROSPIMATIC CL with 3/8" x 25' ft Club Drill Spiral standard accessories and ROWONAL® rust preventer. Complete set

1000002298

Spiral 3/8" x 25' ft with inner core suitable for ROSPIMATIC

72413

Pipe And Drain Cleaning Coil Spiral 5/8" x 25' ft with Club Drill Head

72412

Size

45

Pipe & Drain Cleaning Product

Part No.

Size

Steel Drain Test Plugs

130091

4"

Used for sealing or blocking off drain pipes, prior to air testing.

Manufactured in steel with a protective plastic thread cap

130092

6"

130094

9"

Inflatable rubber lining with a protective canvas case. Used for blocking off pipes during maintenance and other similar situations.

Ideal for use in pipes with minimal or difficult access. Each canvas test bag is supplied with a 6’ hose and 1/4" brass tap

130121

4"

130122

6"

130124

9"

Inflator Pump for Canvas Test Bags

140141

Brass Adaptor for Inflator Pump

140142

Drain Testing Dyes

130111 7.05 oz. Green

Canvas Drain Test Bag

Used to locate the direction of the flow of pipes and drains – soluble in water

Drain Testing Set

130112

7.05 oz. Red

130114 7.05 oz. Violet 130115 7.05 oz. Yellow

130100

Set

72003

Set

For accurate air testing of all pipes and drains up to 100mm water gauge pressure Drain Air Test Kit comprising of U-Gauge (up to 100mm Water Gauge Pressure), Hand Bellows Pump, 3-Way Tee Piece, 3 Lengths of Rubber Hose, 1/2" and 1" BSP Nipple Caps to fit almost all Drain Test Plugs

Manual Drain Cleaning Equipment Fast and effective drain cleaning for 4"Ø drains and soil pipes incorporating a 1/2" diameter 49 ft. long spiral which is far more flexible than conventional drain rods and over 50% longer reach than a standard 30’ drain rod set Type 3S Drain Cleaner with 1/2" spiral and cleaning head

R600 Electric Drain Cleaning Machine Extremely powerful compact drain cleaning machine needing only one man operation. Cleaning Capacity up to 6".

Drives 5/8" or 7/8"ø Spirals to a maximum cleaning distance of 197 ft.

The R600 is the all around workhorse machine. 110 Volts R600 Machine Drain Cleaning Machine and Guide Hose only R600 Drain Cleaning set with Guide hose and Accessory pack comprising of: 5 x Cables ø 7/8" (72441) 1 x Spiral Basket (72112) 1 x Guide Glove (1500000439) 1 x Straight Drill (72221) 1 x Funnel Drill (72222) 1 x Fork Cutter (72250) 1 x Steel Guide Hose (72541)

46

Set

Pipe & Drain Cleaning

With lockring Product

Part No.

Size

R600 Drain Cleaning Machine Accessories 7

/8" x 7.55 feet Standard Spiral /8" x 14.76 feet Standard Spiral 11/4" x 14.76 feet Standard Spiral

2" - 4" 4" - 6" 6" - 10"

/8" x 7.55 feet Plastic Core Spiral /8" x 14.76 feet Plastic Core Spiral 11/4" x 14.76 feet Plastic Core Spiral

R11372452R

2" - 4" 4" - 6" 6" - 10"

/8" x 7.55 feet Ro-Power® Profile Spiral

R11372490R

2" - 4"

72321

1" - 3" 2" - 4" 3" - 10"

72363

11/2" - 3" 2" - 4" 3" - 10"

R11072325R

2" - 3" 3" - 6" 3" - 10"

72322

2" - 4" 4" - 6" 6" - 10"

5

5 7

5

/8" Straight Drill /8" Straight Drill 11/4" Straight Drill

5 7

/8" Club Drill /8" Club Drill 11/4" Club Drill

5 7

/8" Retriever Drill /8" Retriever Drill 11/4" Retriever Drill

5 7

/8" Funnel Drill /8" Funnel Drill 11/4" Funnel Drill

5 7

/8" Blade Drill /8" Blade Drill

5

11/2" - 3" 21/2" - 5"

7

/8" Shovel Drill 11/4" Shovel Drill

7

/8" Crossblade Drill /8" Crossblade Drill 11/4" Crossblade Drill

5

72361 72175

7

72375

/8" Double Fork Blade Cutter

5

4" - 6" 6" - 8" 2" - 3" 3" - 4" 4" - 6" 2" - 4"

/8" Shark Tooth Cutter 11/4" Shark Tooth Cutter

72350

4" - 6" 6" - 8"

/8" Two Way Root Cutter 11/4" Two Way Root Cutter

72366

3" - 4" 6" - 8"

72120 72121

Left Right

7

7

/8" Spiral Separating Key /8" & 11/4" Spiral Separating Key

5 7

Studded Guide Gloves

Spiral Basket for 5/8" Spirals Spiral Basket for 7/8" Spirals Spiral Basket for 11/4" Spirals

R11072110R 72112 R11072111R

47

Pipe & Drain Cleaning

With lockring

Tool set L

Tool set S

Ø 5/8", 10 pieces

Ø 5/8", 5 pieces

Set (72936) includes: ROCASE® (1300003334) with inlay (1300003372), separating key 5/8" (72100), retrieving auger 5/8" (72162), bulb auger 5/ " (72163), serrated forked cutter 5/ " (72164), blade cutter 8 8 5/ " (72169), cross-blade cutter 5/ " (72177), chain-spinning head 5/ " 8 8 8 with 2 smooth chains (72185), guide gloves, left/right (1500000439), ROWONAL® spiral spray (72142) Product

Part No.

Set (72937) includes: separating pin 5/8" (72100), straight auger 5/8" (72161), bulb auger 5/8" (72163), 5 cross-blade cutter 5/8" (72175) blade cutter /8" (72169), Product Part No.

Tool Set L (R 600)

72936

Tool Set S (R 600)

72937

Tool set L

Tool set S

Ø 7/8", 11 pieces

Ø 7/8", 6 pieces

Set (72938) includes: ROCASE® (1300003334) with inlay (1300003372), separating key 7/8" (72101), retrieving auger 7/8" (72203), serrated forked cutter 7/8" (72250), spade head cutter 7/8" (72261), bulb auger 7/ " (72263), two-way root cutter 7/ " (72265), cross-blade cutter 8 8 7/ " (72276), chain-spinning head 7/ "with 2 smooth chains (72284), guide 8 8 gloves, left/right (1500000439), ROWONAL® spiral spray (72142)

Set (No. 72939) includes: separating pin 7/8" (No. 72101), straight auger 7/8" (No. 72221), serrated forked cutter 7/8" (No. 72250), spade head cutter 7/8" (No. 72261), bulb auger 7/8" (No. 72263), crossblade cutter 7/8" (No. 72276)

Product

Part No.

Product

Part No.

Tool Set L (R 600)

72938

Tool Set S (R 600)

72939

48

Pipe & Drain Cleaning

With lockring

Spiral and tool sets Standard Ø 5/8"

Set (72945X) includes: spiral basket 5/8" (72110), 5 x 5/8" standard spirals (72431), straight auger 5/8" (72161), bulb auger 5/8" (72163), blade cutter 5/ " (72169), separating pin 5/ " (72100), guide gloves, left/right 8 8 ® ® (1500000439), ROWONAL spiral spray (72142), ROCASE (1300003334) with inlay (130000372)

Product

Part No.

Standard /8" with standard spirals 5

72945X

Spiral and tool sets Standard Ø 5/8" / 7/8"

Set (72956X) includes: spiral basket 5/8" (72110), 5 x 5/8" standard spirals (72431), straight auger 5/8" (72161), bulb auger 5/8" (72163), blade cutter 5/8" (72169), separating pin 5/ " (72100), spiral basket 7/ " (72112), 5 x 7/ " standard spiral 8 8 8 (72441), straight auger 7/8" (72221), bulb auger 7/8" (72263), funnel auger 7/ " (72222), spade head cutter 7/ " (72261), serrated forked cutter 7/ " (72250), 8 8 8 separating pin 7/ " (72101), guide gloves, left/right (1500000439), ROWONAL® spiral spray (72142), 8 ROCASE® (1300003334) with inlay (1300003372)

Product

Part No.

Standard 5/8" with standard spirals SMK 5/8" - 7/8" with SMK-spirals

72956X 72967X

Spiral and tool sets Standard Ø 7/8"

Set (72955) includes: spiral basket 7/8" (72112), 5 x 7/8" standard spirals (72441), straight auger 7/8" (72221), bulb auger 7/8" (72263), funnel auger 7/ " (No. 72222), spade head cutter 7/ " (72261), serrated forked cutter 8 8 7/ " (72250), separating pin 8 7/ " (72101), guide gloves, left/right (1500000439), ROWONAL® spiral spray 8 ® (72142), ROCASE (1300003334) with inlay (1300003372)

Product

Standard /8" with standard spirals 7

Part No.

72955

Spiral and tool sets Standard Ø 11/4"

Set (R11372962R) includes: spiral basket 11/4" (72111), 5 x 11/4" standard spirals (72451), straight auger 11/4" (72321), retrieving auger 11/4" (72325), funnel auger 11/4" (72322), spade head cutter 11/4" (72360), spiral sawtooth cutter 11/4" (72329), separating pin 11/4" (72101), guide gloves, left/right (1500000439), ROWONAL® spiral spray (72142), ROCASE® (1300003334) with inlay (1300003372)

Product

Standard 11/4" with standard spirals

Part No.

R11372962R

49

Pipe & Drain Cleaning

RODRUM S

Compact and portable electro-mechanical drain cleaning machine with automatic spiral feed suitable for drains and pipes 11/2" - 4" Ø. The interchangeable drum will accept both 3/8" and 1/2" spirals and with working ranges of 32 and 49 feet respectively the RODRUM S is perfectly suited for use in domestic an commercial buildings.

• Simple and safe to use

• Automatic cable feed and return

• Interchangeable quick change drums

• Dead man’s handle operation prevents damage to spirals

Product

Part No.

RoDrum S 10 w/Spiral /8"/ 32 feet RoDrum S 13 w/Spiral 1/2"/ 49 feet RoDrum S 10 Replacement drum RoDrum S 13 Replacement drum 3

Size

/8"/ 32' spiral /2"/ 49' spiral Spare drum Spare drum

3 1

1000001275 1000001276

RODRUM M & L Loading roller The RODRUM M & L are the all new, versatile and practical drain cleaning machines with automatic spiral feed for pipes and drains of 3" - 10" making it ideal for domestic, public and small commercial pipework. Versatility is achieved by utilization of two interchangeable spiral drums which can be loaded with 3/8" - 1/2" or 3/4" spirals and quickly changed on site without tools, to optimize the cleaning Built in tool kit power of the spirals and tools.

The RODRUM features a powerful 400w motor and a patented spiral auto-feed mechanism with built in tension release lever which prevents damage to the motor or spiral should the spiral ”bite” during use. The robust machine weighs 99–150 lbs. depending on which drum and spiral combination is fitted, but has been fitted with solid rubber transportation wheels and a handle mounted roller which helps with the loading of the machine and allows the machine to lay on its back when being used on Transportation wheels vertical runs, e.g. chimneys and soil stacks.

Maximum working range on horizontal pipe runs: 98 feet with 1/2" spirals, 147 feet with 5/8" spirals, Cleaning slots for quick and easy cleaning of 3 196 feet with /4" spirals. the spirals

Product

50

Part No.

Telescopic towing handle

Interchangeable drums 33/ " - 5/ " spirals 64 8

Safety footswitch

3-in-1 spiral feed control 33/ " - 5/ " spirals 64 8

Size

RODRUM M 13 110V RODRUM M 16 110V RODRUM L 16 110V RODRUM L 20 110V

1000001719 1000001720 1000001721 1000001722

1

RODRUM DRUM M 13 RODRUM DRUM M 16 RODRUM DRUM L 16 RODRUM DRUM L 20

1000001727 1000001728 1000001729 1000001730

Incl. 33/64" x 49 feet Spirals Incl. 5/8" x 49 feet Spirals Incl. 2 x 5/8" x 49 feet Spirals Incl. 3/4" x 66 feet Spirals

/2" x 49 feet, incl. 5/8" Toolkit /8" x 49 feet, incl. 5/8" Toolkit 5/ " x 49 feet, incl. 5/ " Toolkit 8 8 3/ " x 66 feet, incl. 3/ " Toolkit 4 4 5

Pipe & Drain Cleaning ACCESSORIES HD 13/100 – 17/190 – 19/180

HD 19/180 B 180 bar high-pressure cleaner with petrol engine

Ø 23/4" W ith petrol engine

No. 76067

No. 76066

Product

Part No.

Flexible, high-pressure hose with R /4" coupling Length 32 feet, NW 6 (HD 13/100, HD 17/190) Length 65 feet, NW 6 (HD 13/100, HD 17/190) Length 131 feet, NW 8 (HD 17/190, HD 19/180 B) Pipe cleaning nozzles R 1/4", stainless steel excl. forward jet spray, 4 holes, Ø 1 x 7/8" incl. forward jet spray, 5 holes, Ø 1 x 7/8" Rotary nozzle 45°, 4 holes, Ø 5/8" x 11/4" Cleaning lance with wide-angle nozzle for surface cleaning 1

KEY FEATURES • Works with fuel, no voltage needed, self-priming up to 6.56 feet • Air-filled transport wheels, easy to navigate stairs TECHNICAL DATA Max. operating pressure: 2610 psi Rating: 8.1 kW Pump delivery: 5 gallons/min Speed: 1,800 rpm Petrol engine: Honda Max. working length: 131 feet Tank capacity: 1.71 gallons Consumption: 0.85gallons/h

Scope of delivery: HD 19 / 180B (No. 76090), hose reel with 40 m special highpres-sure hose DN 8 with couplings (No. 72820) and pipe cleaning nozzle (No. 76053)

Product

Part No.

High-pressure pipe cleaning unit HD 19 / 180 B

76090

72810 72812 72820 76089 76065 77506 76068 76088

Spare wide-angle nozzle

Injector suction pipe for cleaning agent 76067

only for use with cleaning lance, length 4 feet Water suction hose, length 10 feet for intake from containers

76066

Drain Cleaning Equipment and Cables ROCAM Camera Sonde Locator ®

For use with Rothenberger ROCAM® Cameras Whether locating water lines, sewer lines, inspection cameras or sondes, this is an economical and dependable locator for companies of all sizes.

Multi-functional capability allows user to locate live power lines without the use of a transmitter.

• Frequency indicator

• On/Off Button • Measures depth

• Adjusts gain up or KEY FEATURES down or sets • Active frequencies of 512 Hz and 33 kHz allow accurate tracing of sondes, • optimum gain when pipe cameras with transmitters signal is off: Bargraph scale • 50/60 Hz frequency locates live utilities without the use of a transmitter • Backlit digital display for low-light reading • Push-button depth accurate up to 15 feet • Locate sondes up to 10 feet in cast iron • Weather proof membrane buttons • Made in the U.S.A. TECHNICAL DATA Input Frequency: 512 Hz, 33 kHz, 50/60 Hz, RF RF RF Frequency Range: 14 kHz to 30 kHz Antenna Mode: Peak, pin-point peak, and null Display Indicators battery, function: Backlit LCD bar graph, low signal strength, mode and indicators Audio Indication: Variable pitch response Current Measurement: Display indicates relative current Power Source: 6 Disposable, “C” batteries Battery Life: Continuous: 40 hours; Intermittent: 82 hours

• Displays absolute signal • strength or depth • Relative signal • strength bargraph: Single bar shows gain setting • Selects frequency

Signal Strength: LCD bar graph, absolute signal strength readout Gain Control Centering: Up/down for automatic and manual Dynamic Range: 126 dB Depth Depth Measurement or method: Push-button readout to 15 ft manual triangulation Operating Temperature: -4º F to +133º F (-20ºC to +55º C) Product Size: 30.3” x 9.4” (77 cm x 24 cm) ROCAM® Camera Sonde Locator Weight: 3 lbs (1.36 kg)

Part No.

69001

51

Inspection & Locating

ROSCOPE® i2000 The hand held pipe inspection camera system is ideally suited to use in the plumbing, heating, building, construction, air conditioning, mechanical and automotive industries. A self-levelling system will always keep the image upright on the user-friendly touch screen and will auto-focus from 11/2" to infinity. Wide angle and digital zoom features maximize the still or video and record them to an SD memory card and replay them directly on the ROSCOPE® or transfer them to a laptop or PC via the USB connector. The ergonomic design allows the operator to control all the main functions with one hand. Inbuilt LED lights in both the camera head and handset allow the unit to be used under any lighting conditions and the camera head is water resistant to 10 feet. Integrated microphone and speaker give on-site audio recording and playback without further equipment.

The ROSCOPE® has been designed to be adapted for other applications and a range of accessories is available to suit a range of inspection and locating tasks.

Product

Part No.

i2000 Camera Only

69608

Includes

ROSCOPE® i2000 App Once downloaded to an iOS device the i2000 App will allow the transferring of live or recorded images from the camera directly to the device giving greater flexibility while in use and allowing the operator to transmit recorded data for further processing. Integrated editing function can be used to tag specific pipeline damage for future use.

DOWNLOAD From iTunes or www.rothenberger.com/us-en

Module 25/16 High-performance camera for the inspection of pipes from Ø 2-4" and has a reach of 52 feet. The self-levelling, waterproof camera head is Ø 1", has 4 LED lights (125 LUX) and is fitted with an integrated transmitter for the precise locating of the camera head. The sonde has an independent power supply housed in the push-rod carrier.

69609 74629

Pipe Reel Set only ROSCOPE i2000 + Pipe Reel ® Guide Ball

ROLOC PLUS LOCATOR Accurate, easy to use pipe and sonde locating system for the pinpointing of the camera head when underground.

Precise depth measurement is possible at the push of a button. Different frequencies can be selected for use with other manufacturers equipment and simple and clear step-by-step menus guide the operator through the locating process. The complete system which includes the ROSCOPE® i2000 weighs only 3.3 lbs. and has a telescopic action to ease transportation. Sonde Frequencies: 512 and 650 Hz, 33 kHz active/passive, 50/60 Hz passive.

Weight 3.3 lbs supplied in robust carrying case.

69610

ROLOC Locator only ROSCOPE i2000 + ROLOC Locator

ROSCAN 150 Innovative infra red detection unit which connects directly to the i2000 camera and uses image overlay technology for precise detection and recording of heat loss or cold spots in pipe-work, heating systems and a whole range of construction situations within the range of -4º F to 428º F . Simple to use, images are recorded on an SD card for transfer to PC or transmitted to mobile devices.

52

69612

ROSCAN 150 module only ROSCOPE i2000 + ROSCAN 150

CUSTOMER SERVICE – 800-545-7698 FAX – 815-633-0879 | www.rothenberger.com/us-en

Inspection & Locating

ROCAM® 4 PLUS WiFi Compact, self-contained pipe and drain camera system ideally suited for drainage and pipe work contractors, plumbers and emergency maintenance companies.

The ROCAM 4 is suitable for pipework 11/2" - 113/4" Ø and is supplied with a 11/8" x 1/4" pushrod as standard which can be extended by 8m with the addition of the optional mini module. There are 2 camera head options: 11/8" Ø selflevelling, waterproof with 25 LEDs, and 11/2" Ø self leveling with 36 LEDs, which all capture both video and still images which can be viewed on the 10.4 removable touchscreen monitor. The system is housed in a tough ABD body and is powered by a Li-ion 18v 3Ah rechargeable battery and an optional 110v, 50Hz mains pack is also available.

• Direct recording of both still and video images with in-built editing options • On-Screen keyboard and menus for marking, naming and highlighting damage • W iFi transmission of both Picture and video to external WiFi enabled devices

• M ini-USB connection and SD-Card for data storage • S elf-Levelling capability dditional cable reels can be fitted • A to suit working ranges • T ransmitter frequency 33hz for use with the ROLOC PLUS locator or other receivers

Product

Part No.

Includes

OCAM 4 with touchscreen R and 11/8"Ø camera head

1500001558

Complete System

ROCAM 4 with touchscreen and 11/2"Ø camera head

1500001559

Complete System

ROSCOPE® Mini Inspection Camera The ROSCOPE® mini has been designed as a handy permanent addition to any installers toolbag. The compact hand-held camera system is housed in a shockproof, high-density rubber and ABS body and features a 2.5" color screen, 5 large soft-touch control buttons for easy operation, even when wearing gloves. A retractable belt hook on the back secures the ROSCOPE® to a belt or pocket and can be used to suspend the camera when in use, freeing up both hands for hands free working.

The 4 feet long ultra-flexible gooseneck is fitted with a 1/4"Ø waterproof camera head with built in LED which can be adjusted to 7 light levels for the achieving best lighting conditions. The unit is supplied with a magnetic retrieval tool and a 90° view reflector mirror which clip to the camera head, and are stowed in the battery compartment when not in use. The gooseneck can be wound round the body when not in use, helping to protect the camera body and the camera cable.

Still images are captured and stored in the internal memory and can be replayed, reviewed and deleted by following the simple on screen menu.

The ROSCOPE mini is supplied in a protective ROBOX® which is compatible with the "ROBOX® Storage System" on page 39.

Product

ROSCOPE® Mini Inspection Camera

Part No.

1000002268

Includes

2 x AA batteries incl.

53

Powerjet System

Powerjet 2535 • The most powerful and efficient torch system in the market • The ergonomic handle is both long lasting and reliable • Reliable Automatic Piezo ignition (up to 30000 ignitions) • Trigger on/off function helps preventing LPG wastage • Anti-Flare enables the torch to operate in all positions (360º) • Full range of 6 easily interchangeable burners • Easy exchange of nozzles • Designed for use with MAPP® but also suitable for use with Propane New ergonomic comfort grip • Trigger on/off function helps preventing LPG wastage • No gas emission unless burner fitted New trigger lock, provides continuous flame for hands-free use • New drop protection forhighest safety New precise flame adjustment valve, turns only 270° • New (orange) Piezo ignition chock protection cover

Part No.

Powerjet 2535

253557

Powerjet Kit W/4

Powerjet Basic Kit

Powerjet Kit W/4 includes 870701 burner and 1504WS 4 Ft. Hose/Reg Assy.

Powerjet Basic Kit includes 870801, 871001 burners, 716941 flat nozzle and Canvas torch bag

Part No.

253540

Powerjet with Case & Fuel

54

Product

Part No.

253549

Powerjet Master Kit

Powerjet with Case & Fuel includes Powercase, Powerjet, 870701 nozzle, Propane cylinder, and Map-Pro cylinder.

Powerjet Master Kit includes 870701, 870201, 870401, 870601, 870801, 871001 burners, 716941 Flat nozzle, and Canvas Torch Bag

Part No.

Part No.

253560

253548

CUSTOMER SERVICE – 800-545-7698 | FAX – 815-633-0879 www.rothenberger.com/us-en | www.sievert.se

Powerjet System

Powerjet System Application Guide Pin-point burner 870201

Standard burner 870401

Cyclone burner 870601

Cyclone burner 870701

Hot-air burner 870801

Soft flame burner 871001

• For small soft soldering jobs • Gives a precise and stable flame

• For soft soldering and other small heating jobs

• For brazing and soft soldering • Intensive and effective short flame that reaches around the pipe

• For brazing and soft soldering • Highly efficient cyclone burner with increased tip diameter

• For shrinking and paint stripping • Powerful and wind stable hot-air stream

• For shrinking and heating jobs • Powerful and wind stable soft flame

.59 .39 -

.63 .71 -

.55 1.57 .71

.63 1.97 .79

870801 1.50 -

871001 .94 .87 -

Precision

Soft soldering

Heating

Brazing

Paint stripping

Shrinking

Technical Data

Burner diameter Ø, inches Soldering max pipe Ø, inches Brazing max pipe Ø, inches

CUSTOMER SERVICE – 800-545-7698 | FAX – 815-633-0879 www.rothenberger.com/us-en | www.sievert.se

55

Soldering & Welding Product

Part No.

Size

130000 130001 130002 130003

180 grit 400 grit 180 grit 400 grit

Mini-Strip & Maxi-Strip Webbed Abrasives The ‘flexible file’ used to rough up and deburr plastic and copper tubing and to remove paint and oxides from pipes and fittings before soldering. Longer lasting than steel wool, will not clog, waterproof and double sided use

Mini Strips x 10 (medium grade) Mini Strips x 10 (fine grade) Maxi Strip 5 meter Roll (medium grade) Maxi Strip 5 meter Roll (fine grade)

Textured Abrasive Pads Textured ‘non-metal’ cleaning/finishing pads. Non-woven nylon fibers impregnated with aluminum oxide abrasive particles make these pads ideal for polishing and cleaning all metal surfaces. Also can be used for blending and preparing wood surfaces, rust removal and scrubbing. Will not break up, rust or splinter.

Longer lasting than steel wool and washable.

Mini Pads x 5 (medium grade)

130011

2 x 10"

Completely metal free for reduced risk of corrosion. Can be used wet or dry and not affected by solvents

45268

Pack of 10

854184

13/8"

Rovlies Cleaning Pads

Cleaning Brushes For Fast and Effective Cleaning of Copper Tube and Fittings Internal Brushes

854179 854180 854181

/16" /8" 1/ " 2 5 3

854183 854186 854187

/8" /8" 11/8"

5 7

Flux Brush Set of 3 Flux Brushes specially shaped for applying flux or glue onto joints and threads.

45268

Set of 3

Flame Reflector • Protects surrounding materials or walls when soldering pipes.

• Mounts onto most burner tips: • Nothing separate to hold or attach to pipe: Evenly heats pipe • Saves energy and time: Durable stainless steel, 21/2 " wide • Mounting Diameter: 5/8" - 7/8"

31043

Plumbers Soldering Mat Protection for all surfaces when soldering up to temperatures of 1832 F. Completely asbestos-free.

67022

7.8" x 10.2"

67023

11.8 x 7.8"

67024

10 x 10"

Supermat High temperature soldering pad. Vermiculite coating on the face will help protect surfaces from temperatures up to 2300 F. Wipe clean back panel, Ecomab® class ‘0’ infill contains no asbestos.

Professional Carbon Fiber Soldering Mat Thermocarb high temperature soldering mat designed to protect surfaces from deflected heat surrounding a soldering operation. Contains no asbestos or ceramic material. Wipe clean red silicone coated back panel. Wire reinforced kevlar flame proof thread.

Maximum operating temperature 2552 F.

57

Air-conditioning & Refrigeration

MANIFOLDS 2 and 4 way Aluminum valve body incorporates glass sight refrigerant flow indicator, 3.15" Ø gauges with pulse dampening class 1.6. Easy to read, high precision multi-color displays with shockproof rubber protectors. Large color coded hand valves allow precise opening and closing of the maintenance free diaphragm valves.

Product

Part No.

2 way Manifold Set (with rubber boots) for R22-R134A-R407C-R404A

170501

4 way Manifold Set (with rubber boots) for R22-R134A-R407C-R404A

170502

4 way Manifold Set c/w Plus Hoses Suitable for R22-R134A-R407C-R404A 2 x 3.15" gauges, 3 color hoses 4.9 ft. long, Working Pressure 800psi – Burst Pressure 4000psi, Supplied in robust carrying case

170602

4 way Manifold Set c/w Plus Hoses Suitable for R410A/R32 2 x 3.15" gauges, 3 color hoses 4.9 ft. long, Working Pressure 800psi-Burst Pressure 4000psi, Supplied in robust carrying case

170608

2 way Manifold Set Suitable for R22-R134A-R407C-R404A 2 x 3.15" gauge, 3 color standard series hoses, 4.9 ft. long standard series hoses only. Supplied in robust carrying case

170600

2 way Manifold Set Suitable for – R410A/R32 2 x 3.15" gauge, 3 color standard series hoses, 4.9 ft. long standard series hoses only. Supplied in robust carrying case hoses only. Supplied in robust carrying case

170607

4 way Manifold Set Suitable for R22-R134A-R407C-R404A 2 x 3.15"gauge, 3 color standard series hoses, 4.9 ft. long standard series hoses only. Supplied in robust carrying case

170601

4 way Manifold Set Suitable for – R410A/R32 2 x 3.15" gauge, 3 color standard series hoses, 4.9 ft. long standard series hoses only. Supplied in robust carrying case

170606

2 way Manifold Set Suitable for – R32/A410A 3.15" easy to read precision gauges with protective rubber boots.

Sightglass for monitoring refrigerant flow. 5/16" SAE connections.

4 way Manifold Set Suitable for – R32/A410A

58

1000001426

1000001427

CUSTOMER SERVICE – 800-545-7698 FAX – 815-633-0879 | www.rothenberger.com/us-en

Air-conditioning & Refrigeration

ROCOOL 600 Digital Manifold suitable for commissioning, maintenance and documentation of refrigeration systems of all kinds.

Modular System – the basic device can be connected to the optional Red Box data storage device and data can then be transferred to a PC and displayed using the supplied Data Viewer software and printed out as a report. More than 70 refrigerants including R744 (sub critical) are stored in the device with the option to add new refrigerants using the update function.

The ROCOOL 600 carries out simultaneous calculations of superheat and subcool and an external Pirani vacuum probe allows accurate measurement of the vacuum directly from the refrigeration system and displays all data on a large easy to read LCD screen. The device is enclosed in a durable ABS case, reinforced with a non-slip rubber coating.

Made in Spain.

A

Product

B

C

Part No.

Size

ROCOOL 600 Set c/w 1 Temp Sensor (00569)

1000000569

ROCOOL 600 Set

ROCOOL 600 Set c/w 2 Temp Sensors, (00572) Red Box and Data Viewer software in carrying case

1000000572

ROCOOL 600 Set

Redbox, software, connection cable and external power supply A (00539)

1000000539

Set

Temperature Sensor Clamp B (00540)

1000000540

Each

ROCOOL Vac Probe C (00541)

1000000541

Each

Carrycase for ROCOOL 600 (000784)

1000000784

Each

Product

Part No.

Pressure Hoses High pressure, heavy duty hoses with high burst pressure rating (4000psi). Brass connectors with neoprene seals, the hoses are color coded to avoid confusion.

Standard series hoses – set of 3 (2.9' x 1/4"SAE) for R22-R134A-R407C-R404A working pressure 800psi – burst pressure 4000psi

171511

Standard series hoses – set of 3 (4.9' x 1/4"SAE) for R22-R134A-R407C-R404A

1500000024

Standard series hoses – set of 3 (4.9' x 5/16"SAE) for R410A

1500000026

Plus series hoses – set of 3 (4.9' x 1/4"SAE) for R22-R134A-R407C R404A hose provided as standard with hand operated in-line ball valve, for increased safety at workR404A hose provided as standard with hand operated in-line ball valve, for increased safety

1500000028

Plus series hoses – set of 3 (4.9' x 5/16"SAE) for R410A Hose provided as standard with hand operated in-line ball valve, for increased safety at work

1500000030

59

Air-conditioning & Refrigeration Product

Part No.

Size

259040

Each

259007 170016

1

170061

110v

170062

110v

170063

110v

170064

110v

169200

1 Liter

168605

110v

168606

110v

R17300416

Set

Nitrogen Pressure Gauge Safe and accurate metering of Nitrogen from regulator to system. Gauge displays the following pressures, soldering, flushing and Max testing pressures for R134A/R404A/R407C/ R507/R22/R410A. 0.50bar Max pressure – 1/4"SAE Connections.

Supplied in carrying case NOTE: Gauge must be used with suitable regulator

Hose Adaptor For use with connecting new refrigerant bottles onto existing equipment.

/4"SAE M–5/16"SAE F /4"SAE F–5/16"SAE M

1

ROAIRVAC Vacuum Pump Two stage high vacuum dual voltage pump for the evacuation and removal of all moisture and residue in refrigeration systems during installation in accordance with DIN 8975 Complete with vacuum and solenoid valves.

Roairvac 1.5 1/4Hp 1720r/m, 1/4" connections – 11gpm 2 stage 25micron Roairvac 3.0 1/3Hp 1720r/m, 1/4" connections – 22gpm 2 stage 25micron Roairvac 6.0 1/2Hp 3440r/m, 1/4" connections – 45gpm 2 stage 25 micron Roairvac 9.0 1Hp 3440r/m, 1/4" connections – 65gpm 2 stage 25micron

Vacuum Pump Oil Premium mineral lubricant blended for the specific lubrication of vacuum pumps.

ROREC/ROREC PRO Compact, portable recovery unit for the safe recycling of all types of refrigerants. Light, compact and simple to use the ROREC has maintenance free, oilless compressor, integrated purge function and high pressure shut off.

ROREC Refrigeration Recovery Unit All refrigerants CFC-HCFC-HFC, Capacity 822lbs/hr push-pull ROREC Pro Refrigeration Recovery Unit Capacity 961lbs/hr push-pull

ROSCALE 120 Electronic Refrigerant Scale Precise, easy to handle refrigerant scale for filling and evacuation processes with a maximal weight capacity of 264lbs, with 0.17 oz. increments for very precise filling.

Includes 9V battery and carrying case.

RO-LEAK Pro Leak Detector Perfect for refrigeration HCFCs and HCFs. The unit uses a newly developed semi-conductor which is extremely sensitive to a variety of commonly used refrigerants including R32, R-134a, R-410a, R-407c and R22. It features a high-low leak sensitivity selector (3 levels), bright LED display,153/4" bendable tube ideal for confined spaces, and auto power off. Supplied in a robust carrying case complete with 4 x AAA alkaline batteries.

60

1500002241

Air-conditioning & Refrigeration Product

Part No.

Size

R08730516

Set

RO-LEAK Electronic Leak Detector For locating leaks in refrigeration systems. 7 different sensitivity levels 3g/yr. Audible warnings, LED battery status and refrigerant level indicators, 350m long sensor probe.

Set includes robust carrying case and battery charger.

Maxibender Ratchet action tube bender for precision 90° bends in soft rolled copper. Maxibender Set for 3/8",1/2", 5/8", 3/4",7/8" O.D.

Set

Grip Lock Plier Ideal plier for gripping and pinching off copper tube 0–1/4"Ø.

Fully adjustable with positive “click” locking action.

70250

0–1/4"

Ratchet Wrench Reversible wrench for compressor valves etc. Reversible ratchet wrench in forged steel. Ideal for compressor valves, Square fits 1/4", 3/8", 3/16", 5/16"

114801

Fin Comb Straightener Handy tool for aligning condenser and evaporator fins

224500

ROFLARE REVOLVER Versatile flaring tool with off-center flaring head for fast and accurate production of standard single 45° flares in accordance with EN 14726-2 and JIS B8607:2008 in copper tubes, 1/4" - 3/4"Ø. One handed tube clamping system and automatic tube stop ensures perfect alignment of the tube with the flaring head guaranteeing leek free joints.

1000000223

/4" - 3/4"

1

Deluxe Flaring Tool For R410a Heavy duty handle and spindle with concentric flaring cone and roller bearings for smooth and easy flaring of heavy gauge and high pressure lines. With 3/4" ratchet drive allows use with wrench or drill. Produces 45° Flares and is ideal for R410A Deluxe Flaring Tool Set in Case

/8" - 3/4"

1

Grabber Flaring Tool Versatile, adjustable flaring tool, produces 45° flares suitable for many applications and materials. Compact design is ideal for work in confined spaces.

Grabber Type Flaring Tool – 45° Flare

/16" - 5/8"

3

61

LED Torches

Professional Led Torches Technologically advanced range of high quality LED Torches use state-of-the-art components and a patent pending reflector system to create the brightest, most energy-efficient lights available, delivering up to 200 hours of light from one set of batteries.

Product

Part No.

P4 Professional Pen Torch Ideal for engineers and technicians. The torch weighs only 2.1 oz. and the slim design and pen clip allows it to be clipped to a pocket or overalls. The super bright beam can be focused from a flood beam to a spot and the 2 AAA batteries should give a burn time of up to 50 hours. 4 x AAA Batteries incl.

88922

Led Head Torch High output 175 lumens 6 x LED headtorch has a 184 feet beam which can be angled to put the light source in the best position. The comfortable adjustable headband , tough, water resistant construction and long battery life make this an ideal torch for all professionals and leisure activities. 3 x AAA Batteries incl.

88926

Flexit Flexible Flashlight Bend the FLEXIT into any shape and aim the light exactly where you need it.

Projects light as powerful spot light or flood light. Fold, wrap, hook, or attach using built-in magnets to give hands-free use and perfect lighting conditions.

The 16 ultra-bright LEDs have 4 light functions, Low-Medium-High-and Rapid Hazard (flashing) making FLEXIT ideal for maintenance, emergency repair work, motoring, camping and leisure. 3 x AAA Batteries incl.

62

88939
