Miller: Welding Safety & Health Solutions, Grainger

Head and Face - Helmets

Miller® welding helmets provide serious dependability and maximum visibility, performing in the most demanding welding, grinding and cutting applications. Featuring:

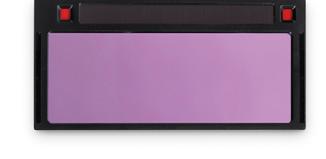

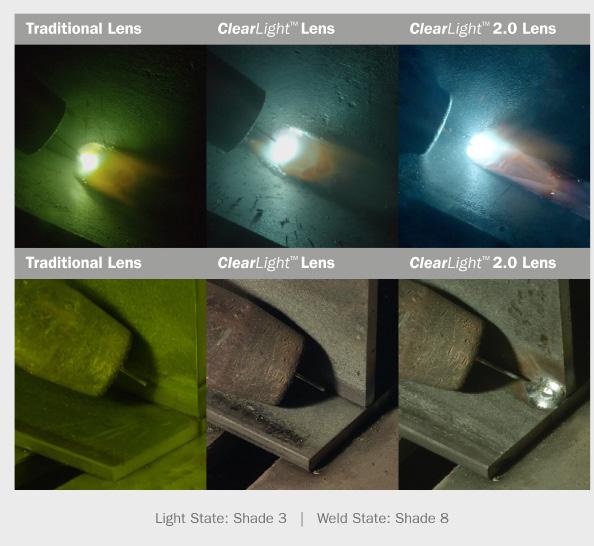

ClearLight ™ 2.0 Lens Technology

Provides advanced high-definition optics for the most realistic view that’s clearer and brighter—before, during and after every weld.

(Available on T94™, Digital Performance™, Digital Infinity™ and Digital Elite™)

X-Mod

Electromagnetically senses the weld to eliminate sunlight interference and continuously detects the arc even if sensors are blocked.

(Available on T94™, Digital Performance™, Digital Infinity™, Classic and Digital Elite™) Backed by a 3 year warranty on select models to include Digital Performance™, Digital Elite™, Digitial Infinity™ and T94™ Series Helmets. Classic Series helmets include a 2 year warranty

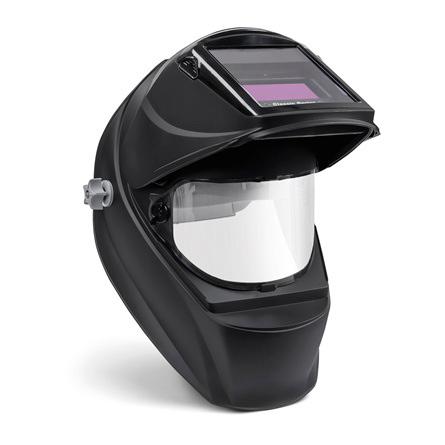

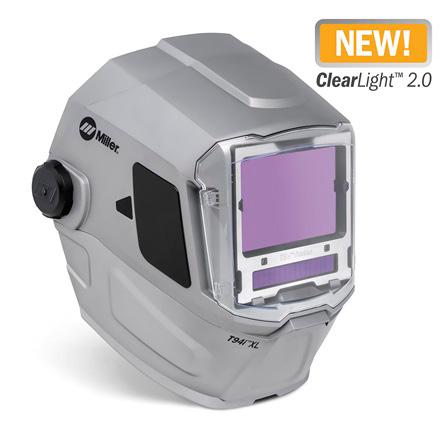

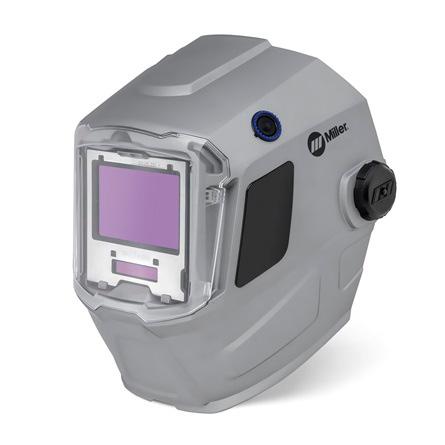

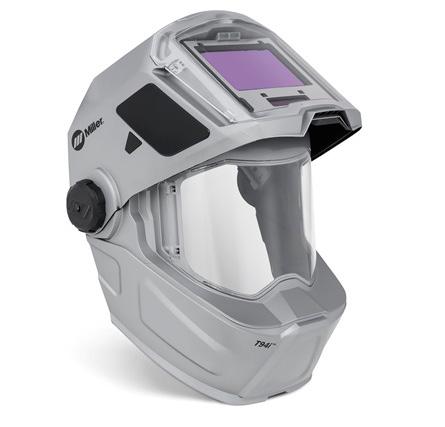

T94™ Series

Maximized Comfort, Visibility and Productivity for the Professional Welder

„ Engineered for all-day wear in industrial welding environments

„ Lightweight, well-balanced design eliminates neck strain

„ ClearLight™ Lens Technology

„ Exclusive InfoTrack™ arc tracking technology

„ Large integrated grind shield with HDV (T94i and T94iXL)

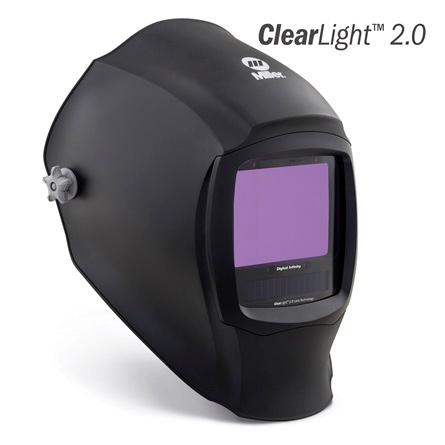

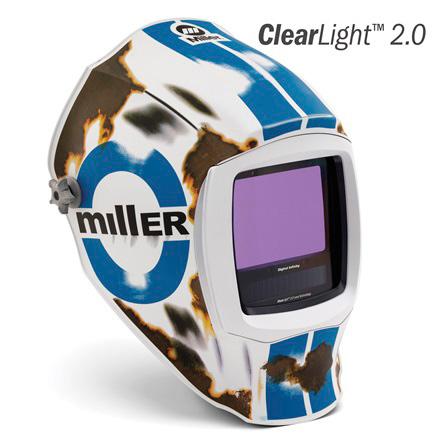

Digital Infinity™ Series

Industry’s Largest Viewing Area

Maximizes Visibility

„ Industrial grade helmet

„ 13.4 sq. in. viewing area

„ Gen. 3.5 headgear with comfort cushion

„ 4 arc sensors & 4 modes

„ ClearLight™ 2.0 Lens Technology

„ Exclusive InfoTrack™ arc tracking technology

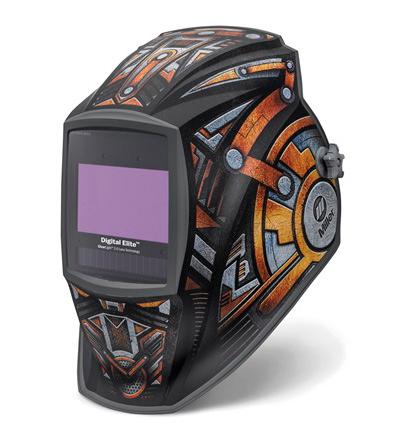

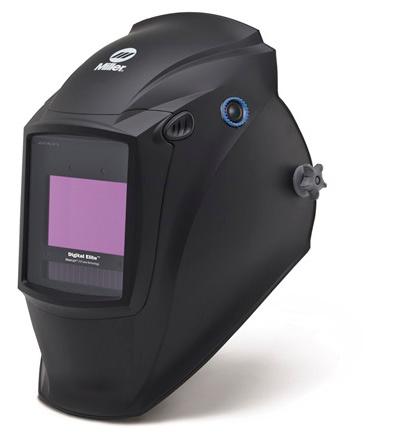

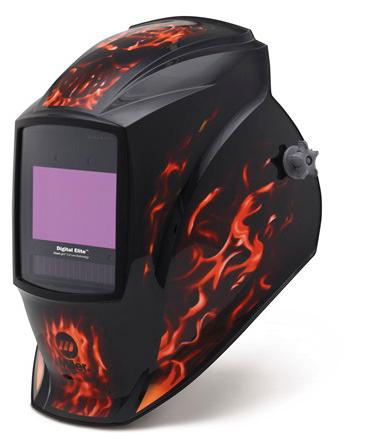

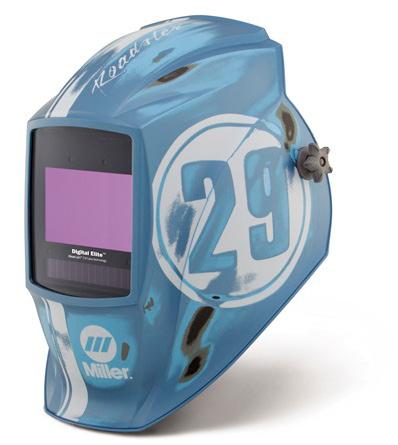

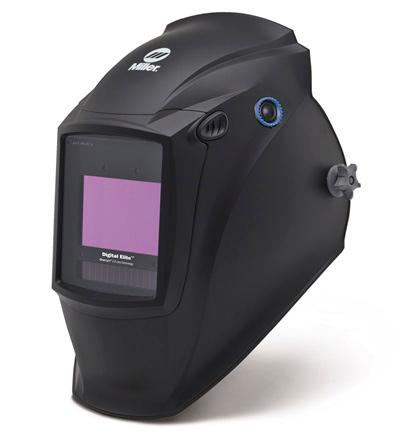

Digital Elite™ Series

Industry-Leading Helmet

Provides High Performance Versatility

„ Industrial grade helmet

„ 9.22 sq. in. viewing area

„ Gen. 3.5 headgear with comfort cushion

„ 4 arc sensors & 4 modes

„ ClearLight™ 2.0 Lens Technology

#794C89

#794C90 Black #794C87 Imperial

#794C92

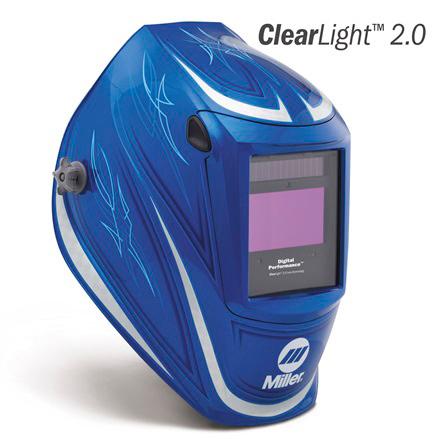

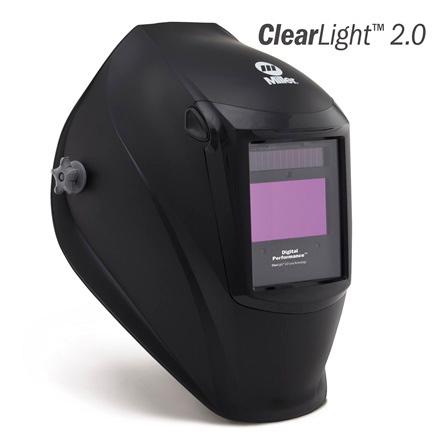

Digital Performance™ Series

Lightweight Helmet with Superior Headgear for Increased Efficiency

„ 7.22 sq. in. viewing area

„ ClearLight™ 2.0 Lens Technology

„ Gen. 3.5 headgear with Comfort cushion

„ 3 arc sensors 3 modes

„ Weld, Cut and Grind Mode

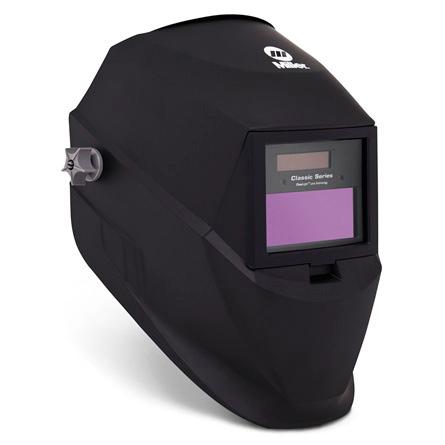

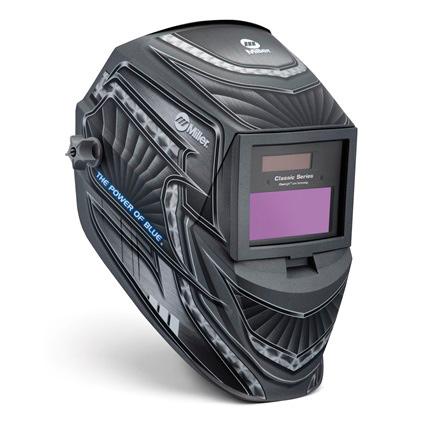

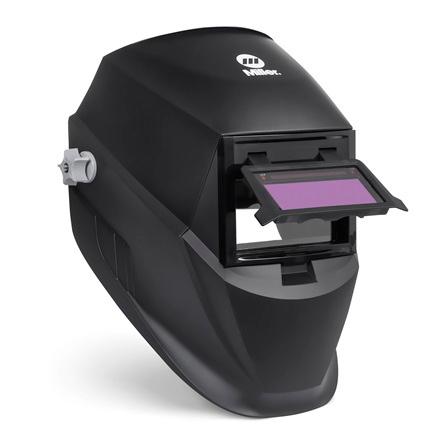

Classic Series

Trusted, Entry-Level Helmet for the Beginners, education and DIY Welder

„ Hobby level helmet

„ 5.15 sq. in. viewing area

„ Two arc sensors

„ VSi features three arc sensors and X-Mode

„ ClearLight™ Lens Technology

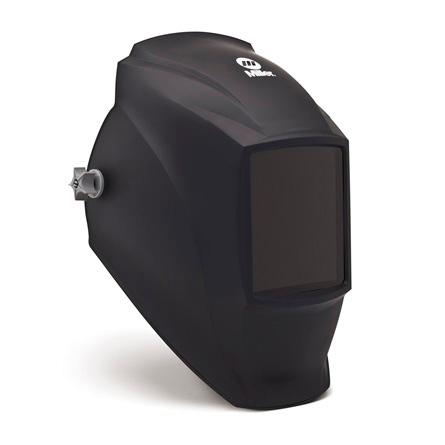

MP-10

„ Hobby level helmet

„ 5.15 sq. in. viewing area

„ Two arc sensors

„ VSi features three arc sensors and X-Mode

„ ClearLight™ Lens Technology

Hand and Body - Jackets and Apparel

From light-duty to heavy-duty, Miller® welding jackets and apparel are constructed from quality materials in order to perform in a variety of welding, cutting and grinding applications.

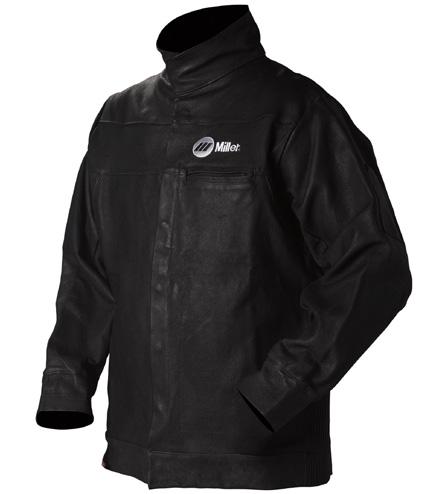

Leather Jacket

- Heavy-Duty

- Withstands sparks and spatter for long term industrial use

- Premium top grain pigskin leather

#34C301 - Large

#34C302 - X-Large

#34C303 - 2X-Large

INDURA® Cloth Jacket

- Light-Duty

- INDURA® FR cotton will selfextinguish and will not ignite. but it can burn

#34C283 - Medium

#34C284 - Large

#34C285 - X-Large

#34C286 - 2X-Large

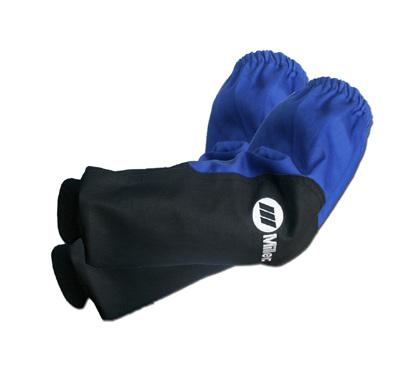

Combo Sleeves

- INDURA® Cotton, flame-resistant gauranteed for the life of the garment

- Top grain leather is lightweight and can be positioned for more protection where needed

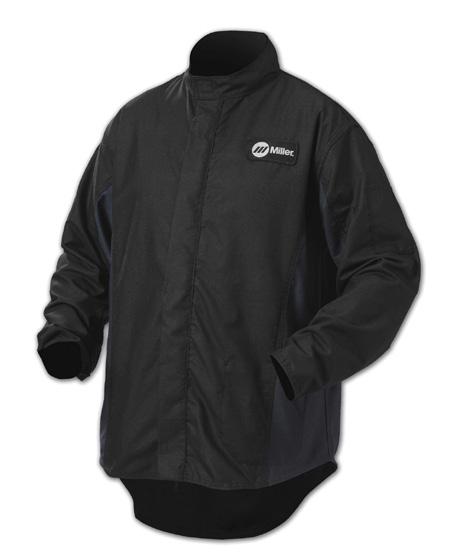

WeldX™ Jacket

- Medium-Duty

- Proprietary coating blendprovides enhanced protection while maintaining comfortability

- 7 oz. WeldX fabric - a lighter weight alternative to leather

- Machine washable

#10N009 - Large

#10N010 - X-Large

#10N011 - 2X-Large

Classic Cloth Jacket

- Light-Duty

- Ideal for everyday use

- 9 oz. Flame-resistant preshrunk fabric

#34C272 - Medium 30 in.

#34C273 - Large 30 in.

#34C274 - X-Large 30 in.

#34C275 - 2X-Large 30 in.

Classic Cloth Sleeves

- 18 inch length - Fold-in sleeve snaps

- Upper arm elastic band #34C319

Heat Stress

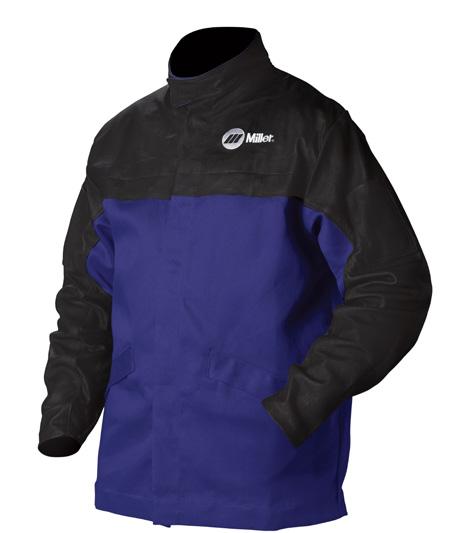

Combo Jacket

- Medium-Duty

- Perfect mix of top-grain leather and INDURA® FR cotton, providing additional protection in high-exposure areas

- Flame-resistant INDURA® 100% cotton

#34C291 - Medium

#34C292 - Large

#34C293 - X-Large

#34C294 - 2X-Large

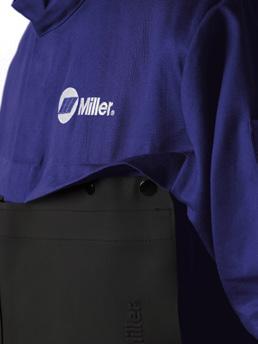

Combo Apron/Bib

- Premium grain leather withstands sparks and spatter

- Attached at snaps across the chest as a bib or along the bottom as an apron

- Attaches to both INDURA c Cloth or the Combo Jacket

Excessive heat exposure can effect a worker’s performance. Heat stress equipment by Miller® will keep your employees cool under the hood so they can perform at their very best.

CoolBelth™

- Up to 17° cooler under the hood

- Multiple airflow speeds remove stagnate air and reduce lens fog

- Compatible with most Miller helmets

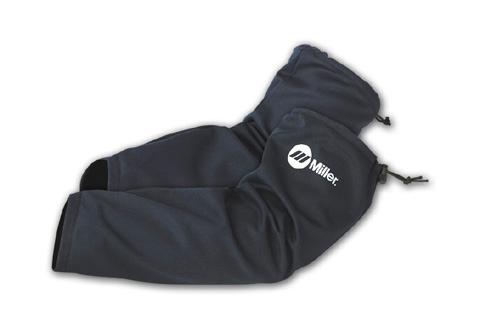

Combo Sleeves - 9 oz. Flame-resistant Navy cotton

- 35” length

- Accessable front pcoket

#34C307

#34C316

#34C318

#6CXF3

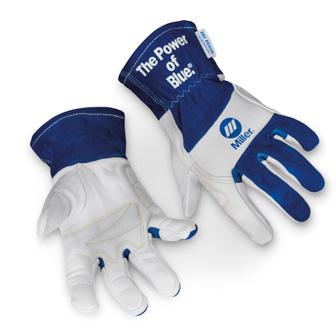

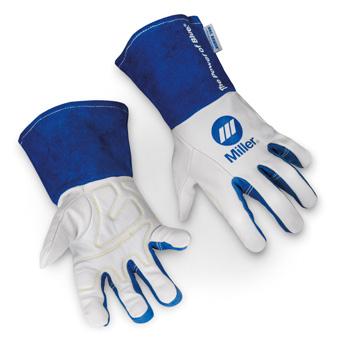

Hand and Body - Gloves

The Performance line of welding gloves by Miller® provides unprecedented comfort and performance with exceptional dexterity and flexibility, perfect for the most extreme welding, cutting and grinding applications.

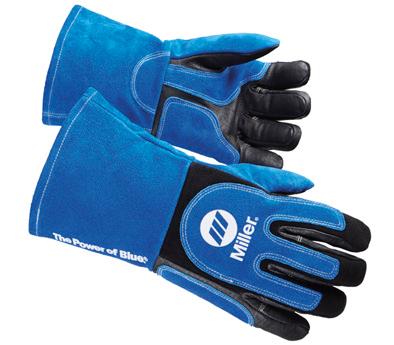

Heavy Duty MIG/Stick

Premium pig grain leather palm provides extreme durability and protection. Double layered insulated palm and back

#33RN06 - Large

#33RN07 - X-Large

MIG - Lined

Dual-padded palm. Fleece-insulated palm, foaminsulated back. Cow grain palm, pig split back and goat grain inner fingers provide exceptional dexterity and comfort.

#33RN10 - Medium

#33RN11 - Large

#33RN12 - X-Large

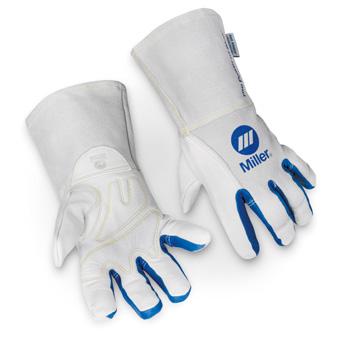

TIG/Multitask

Premium goat grain leather offers superior flexibility and dexterity. Wool back provides ultimate insulation

#33RN19 - Small

#33RN20 - Medium

#33RN21 - Large

#33RN22 - X-Large

TIG

Completely unlined for heightened feel and dexterity Triple-padded palm for added comfort. Goat grain leather offers superior flexibility and dexterity.

#20XD79 - Small

#33RN16 - Medium

#33RN17 - Large

#33RN18 - X-Large

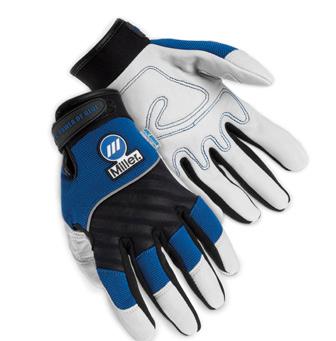

Metal Worker

Durable top grain leather and spandex back provides enhanced durability and dexterity

#33RN23 - Medium

#33RN24 - Large

#33RN25 - X-Large

Classic - Traditional design for the value-minded welder

Heavy Duty MIG/Stick

- Reflective insulation on back reduces heat impact

- Moisture wicking fleece and foam insulation

- Pig grain palm, pig split back and cuff

#33RN06 - Large

#33RN07 - X-Large

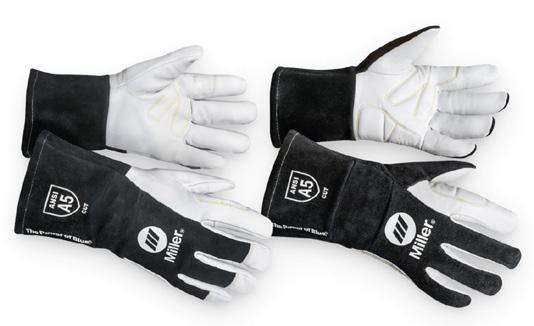

Cut Resistant Gloves

Unprecedented comfort, performance and protection.

- ANSI A5 cut rating, level 4 puncture and abrasionrating, and level 3 heat rating

- Premium-grade leather heightens dexterity and extends wear

- Durable goat grain leather palm allows formaximum precision and amplifies dexterity

- Cow split cuff and back provides abrasion,puncture and moisture resistance

- Ergonomic wrist design for additional comfort

- Three-dimensional patterns and pre-curved fingers provide an excellent fit, resulting in unmatched comfort

- Kevlar® flame-resistant thread for maximum seamstrength, durability and protection

- 2-millimeter foam lining and mylar back foradditional protection (MIG)

- Additional padding on palm and sides for enhanced protection and durability (TIG)

MIG TIG

Small #383AJ5 #802GP6

Medium #383AJ6 #802GP5

Large #383AJ7 #802GP4

X-Large #383AJ8 #802GP3

2X Large #383AJ9 #802GP7

MIG (Pigskin)

- Reinforcement patches enchance durability

- Moisture wicking fleece and foam insulation

- Pig split leather palm, back and cuff

#240R53 - Large

#240R54 - X-Large

MIG (Cowhide)

- Reinforcement patches enchance durability

- Moisture wicking fleece and foam insulation

- Cow split palm, pig split back and cuf

#48VF72 - Large

#48VF73 - X-Large TIG

- Thin internal padding for added comfort

- Unlined palm for precise dexterity

- Sheep grain palm, cow split back and cuff

#240R55 - Medium

#240R56 - Large

#240R57 - X-Large

Environmental Solutions

OSHA puts a weld fume exposure limit or PEL (Permissible Exposure Limit) in place in order to provide a clean, comfortable and compliant welding environment. If the air quality in your welding environment exceeds the PEL (determined by an air sample taken by an industrial hygienist), certain control measures need to be taken to ensure compliance. The OSHA Hierarchy of Controls provides a step by step process for implementing control measures, ensuring workers’ comfort and compliance.

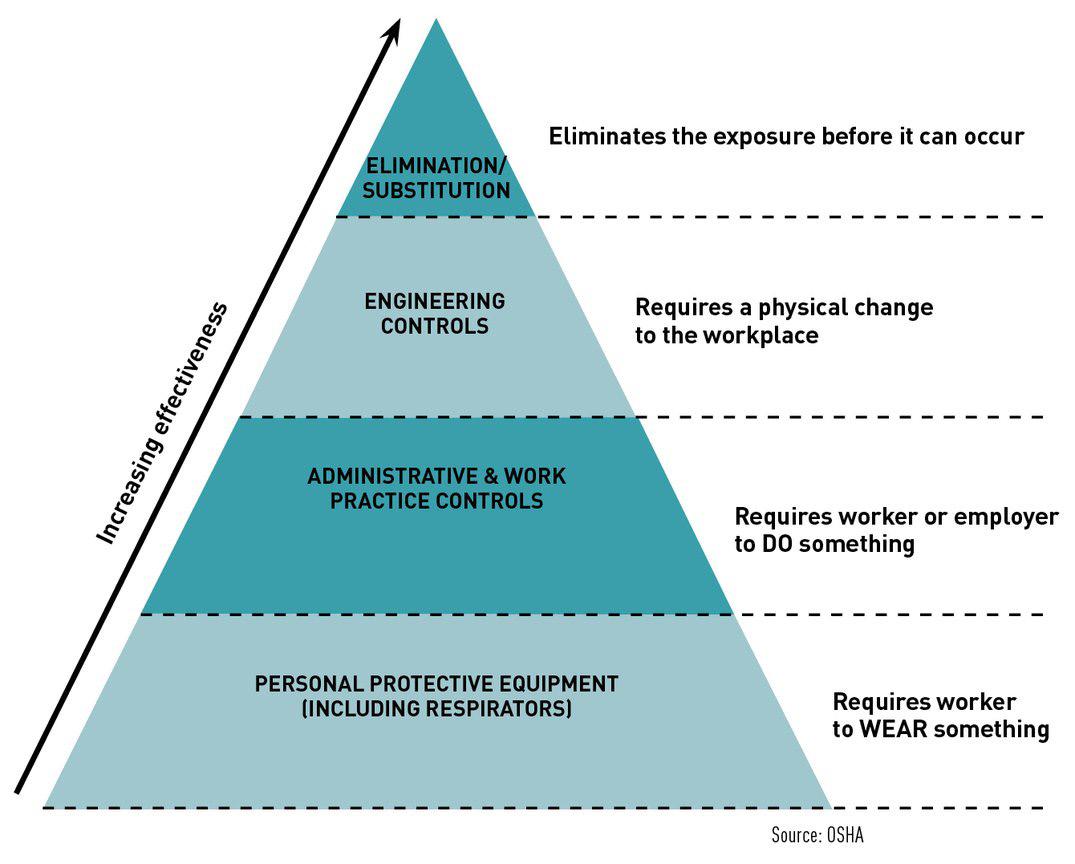

Put an action plan in place with Miller® safety equipment, which provides solutions at each level of the Hierarchy.

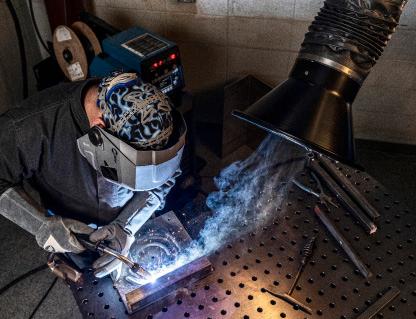

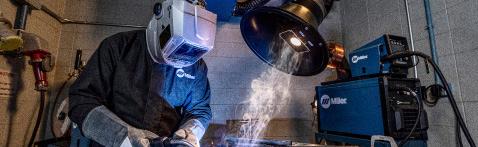

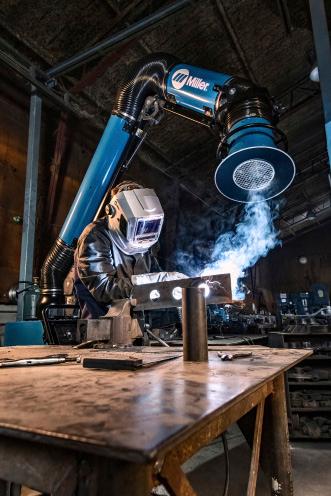

Fume Extraction

The second most effective level of control for air quality that OSHA recommends is engineering controls, or making a physical change to the workplace environment such as increased ventilation. Fume extraction equipment by Miller® draws weld fume away from a weld operator’s breathing zone, while keeping the weld environment clean. Different models are available including portable, mobile, stationary, and centralized.

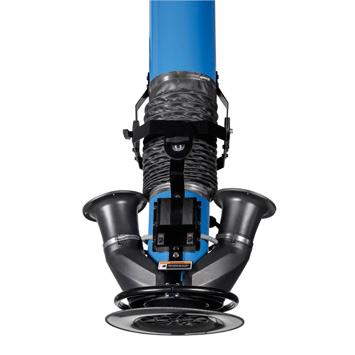

Exclusive ZoneFlow™ Technology by Miller®

Traditional fume extraction units use onventional technology creating a maximum capture distance of 18 inches. Exclusive ZoneFlow™ technology by Miller® increases this capture distance to 5 feet, minimizing arm interactions and increasing productivity. Portable

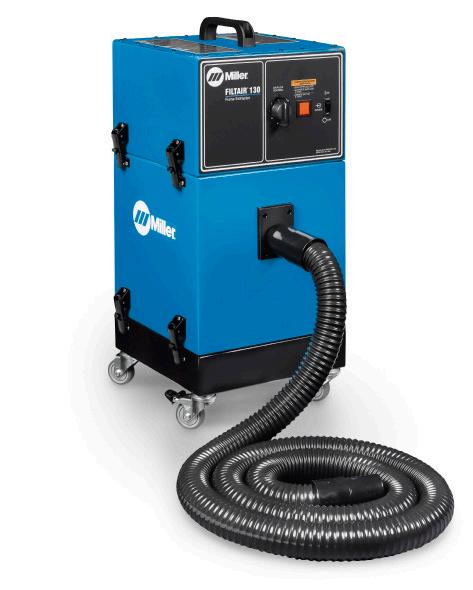

The powerful high vacuum system with a MERV 15 FilTek XL, cleanable filter is ideal for contractors, maintenance and repair, and light fabrication. #5FYE9

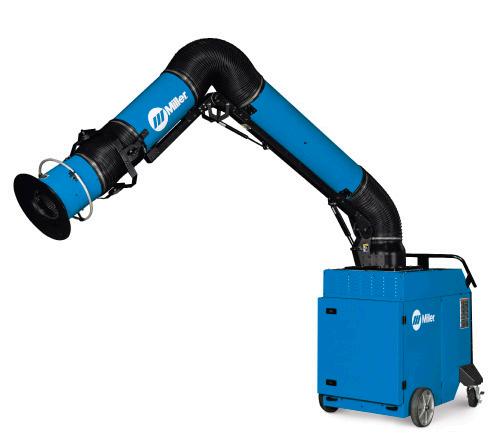

FILTAIR® MWX Portable Weld Fume Extractors

The powerful high volume system with a MERV 15 FilTek XL filter is ideal for fabrication shops, manufacturing, repair work and training centers where mobility is needed.

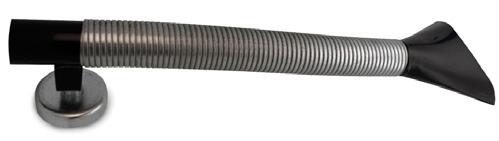

Flexible Funnel Magnetic Nozzle #5FYF3

FILTAIR® Capture 5 Slotted Magnetic Nozzle 11.8 inch #60MF87

Zoneflow™ technology increases capture distance up to 5 feet, compared to traditional 18 inches, providing better protection and

Environmental Solutions

Fume Extraction - Stationary

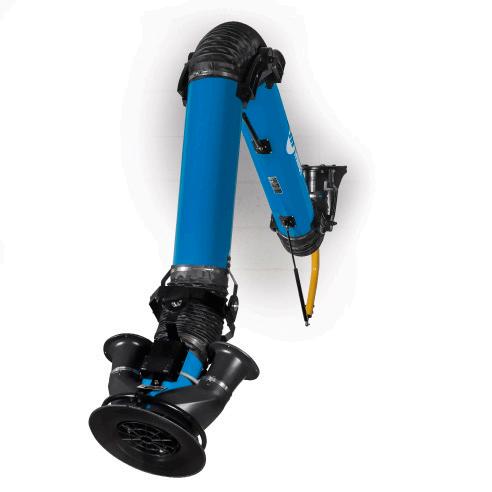

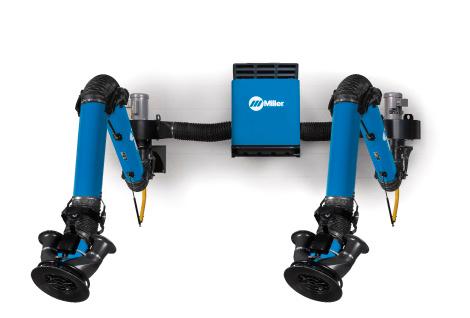

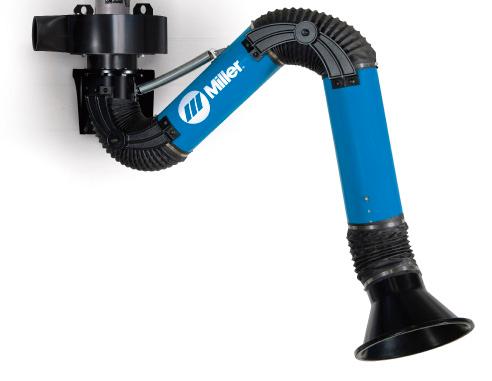

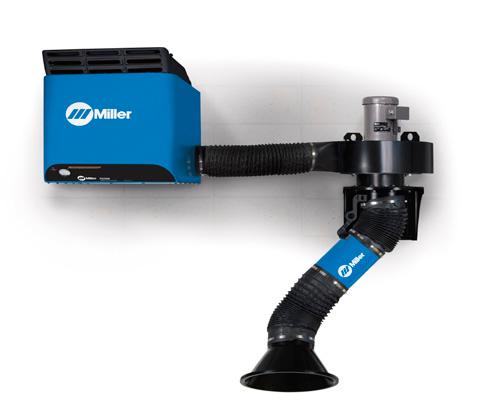

FILTAIR® SWX Series

Self Cleaing Option

Includes a self-cleaning filter which is Ideal for environments with higher arc on times and light or heavy fume emitting weld processes. It can be

#484X77 7 ft. arm

#484X78 10 ft. arm

#49WM46 12 ft. arm

#484X76 3 ft. telescoping arm

Disposable Filter

Includes a disposable filter which is Ideal for light manufacturing environments with lower arc on times. It can be mounted to a wall or column.

#484X73 7 ft. arm

#484X74 10 ft. arm

#484X75 12 ft. arm

#484X72 3 ft. telescoping arm

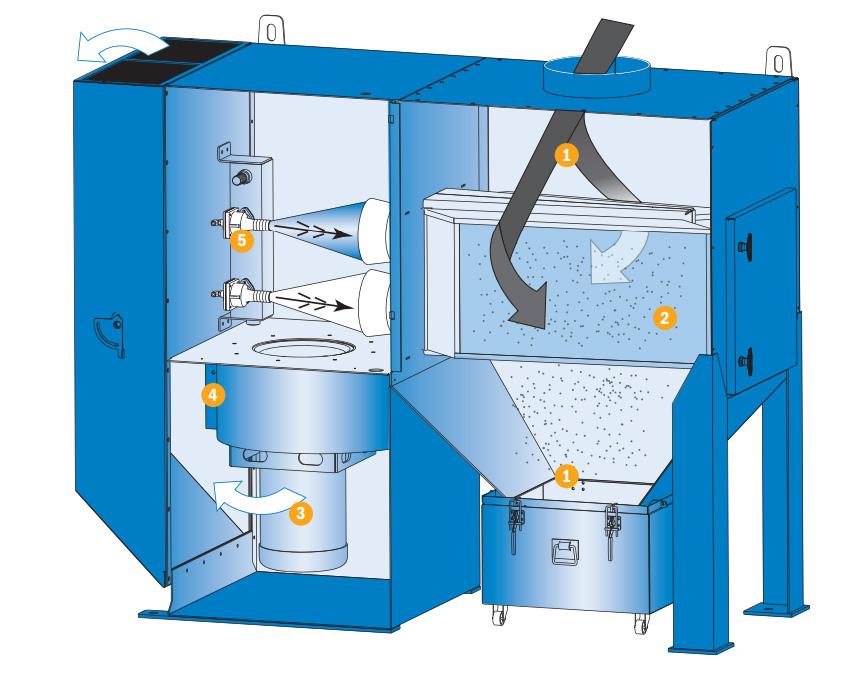

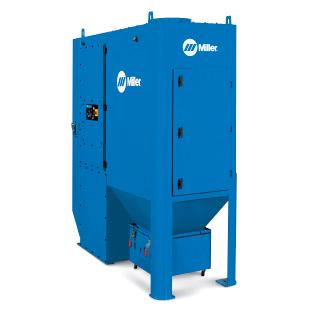

Fume Extraction - Centralized

Weld fume extractors designed for manufacturing handheld and automation, fabrication shops, and training facilities. These models are part of an engineered system and offer the best filter and cleaning technologies to effectively manage weld fume.

Environmental Solutions

Respiratory

Respiratory products by Miller® protect your operators by filtering weld fume and particles from the air, while offering all day wearability and comfort.

#408M95 With T94i-R™ w/integrated clear grinding shield

#408M96 With T94-R™ w/external grind control

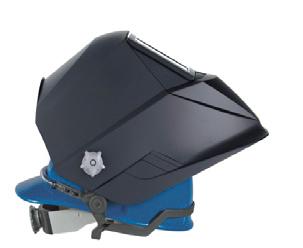

#795TG9 Hard Hat PAPR With T94i-R™ w/ lift to talk assembly

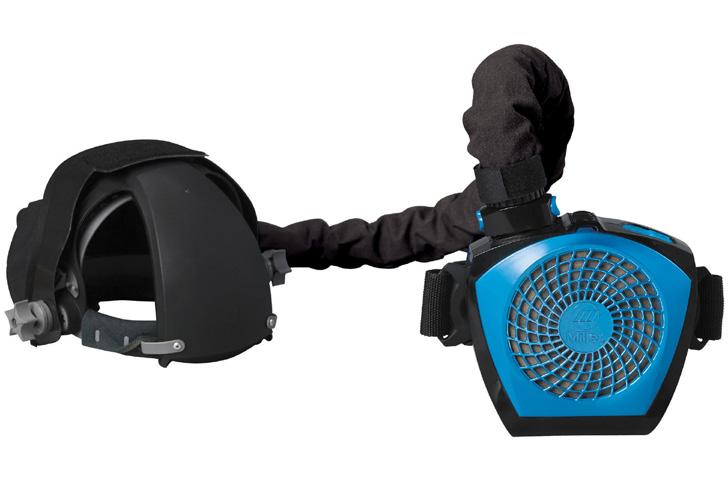

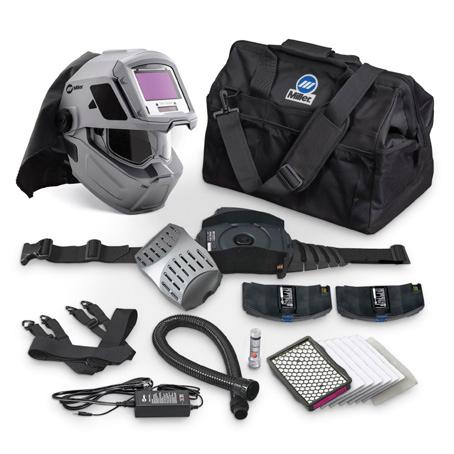

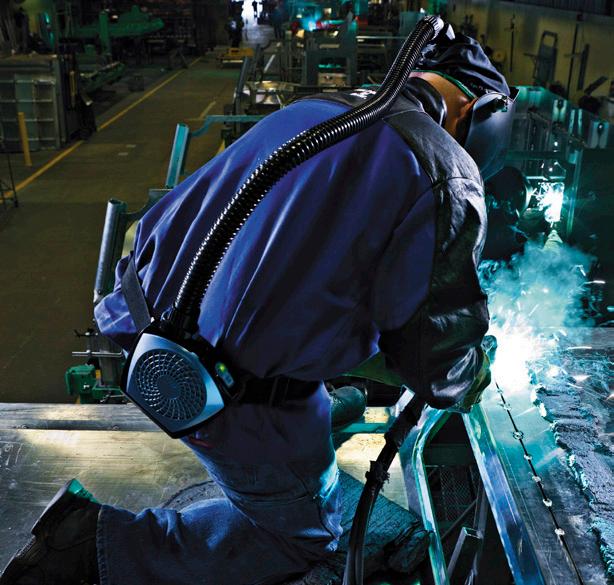

PAPR Powered Air Purifying Respirator - APF 25

- HEPA Filter that filters 99.97% of welding fume

- ClearLight™ Lens Technology provides high definition optics for precision arc recognition

- Well-balanced design reduces torque on neck, increasing all-day wear

- Lightweight low-profile blower assembly with integrated shoulder straps reduces lower back strain and fatigue

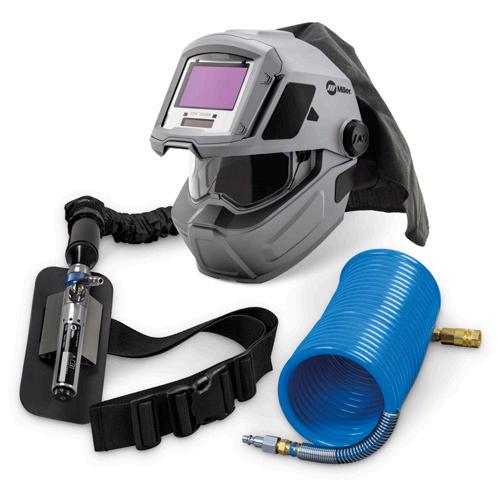

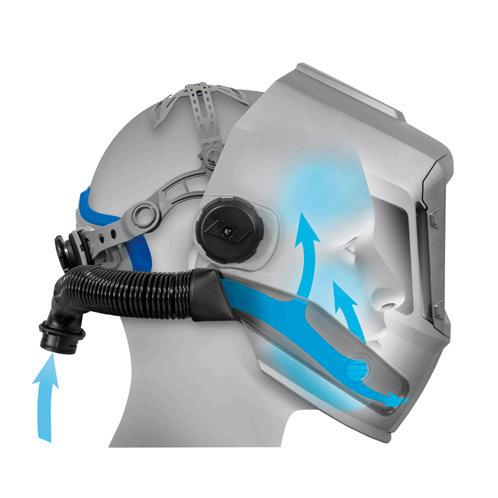

SAR Supplied Air Respirator

- APF 25

- HEPA Filter filters up to 99.97% of welding fume

- ClearLight™ Lens Technology provides high-definition optics for precision arc recognition

- Well-balanced design reduces torque on neck, increasing all-day wear

- C50 air regulator can cool air entering the helmet up to 50 degrees Fahrenheit (28°C), heightening productivity and relieving heat stress. 360-degree swivel air hose connection alleviates hose coiling, reducing potential trip hazards.

#55JF42 SAR w/T94i-R™ helmet complete system w/25 ft. straight air hose

#55JF40 SAR w/T94i-R™ helmet complete system w/100 ft. straight air hose

#55JF41 SAR w/T94i-R™ helmet complete system w/25 ft. coiled air hose

#55JF42 SAR w/T94i-R™ helmet complete system w/100 ft. coiled air hose

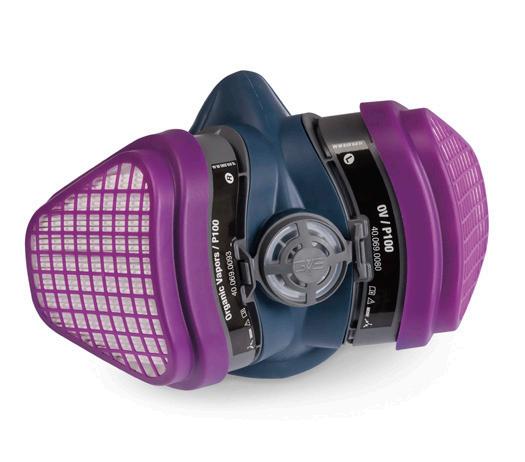

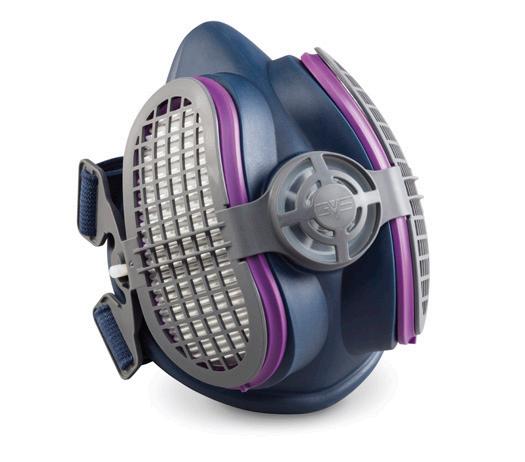

LPR-100™ OV Half Mask Respirator

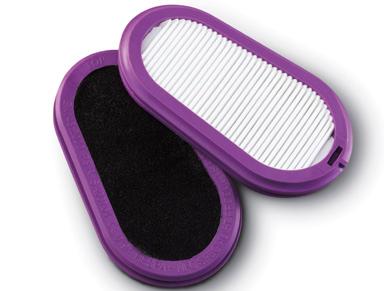

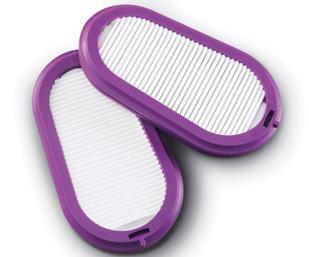

- P100/OV Filter provides filtration of specific organic vapors and

- airborne particulates, both oil-based and non-oil-based

low-profile design comfortably fits under welding

#55JF36 Respirator with P100 organic vapor filters S/M

#36RC61 Respirator with P100 organic vapor filters S/M
