Miller Welding Safety & Health

Grainger National Accounts Benefits with XYZ

Head and Face - Helmets Miller® welding helmets provide serious dependability and maximum visibility, performing in the most demanding welding, grinding and cutting applications. Featuring:

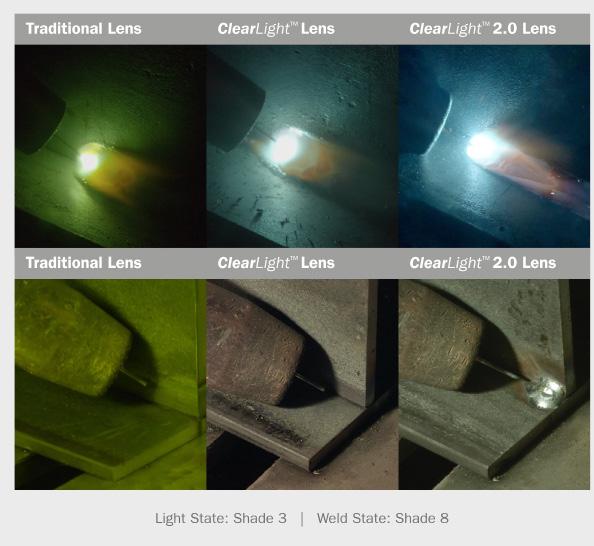

ClearLight ™ 2.0 Lens Technology

Provides advanced high-definition optics for the most realistic view that’s clearer and brighter—before, during and after every weld.

(Available on T94™, Digital Performance™, Digital Infinity™ and Digital Elite™)

X-Mod

Electromagnetically senses the weld to eliminate sunlight interference and continuously detects the arc even if sensors are blocked.

(Available on T94™, Digital Performance™, Digital Infinity™, Classic and Digital Elite™) Backed by a 3 year warranty on select models to include Digital Performance™, Digital Elite™, Digitial Infinity™ and T94™ Series Helmets. Classic Series helmets include a 2 year warranty

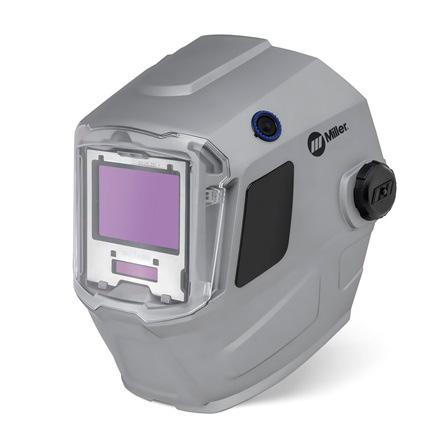

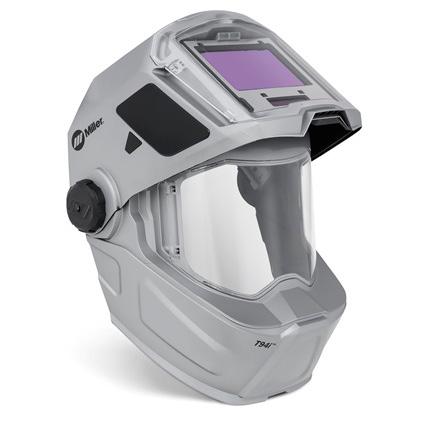

T94™ Series

Maximized Comfort, Visibility and Productivity for the Professional Welder

Engineered for all-day wear in industrial welding environments Lightweight, well-balanced design eliminates neck strain ClearLight™ Lens Technology Exclusive InfoTrack™ arc tracking technology Large integrated grind shield with HDV (T94i and T94iXL)

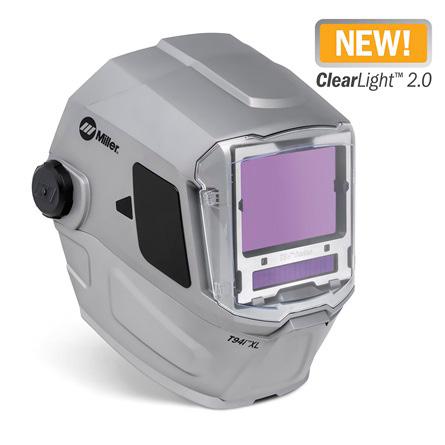

T94i™XL #799Z89

T94i™ #794C94

T94™ #794C93

Digital Infinity™ Series

Industry’s Largest Viewing Area Maximizes Visibility

Industrial grade helmet 13.4 sq. in. viewing area Gen. 3.5 headgear with comfort cushion 4 arc sensors & 4 modes ClearLight™ 2.0 Lens Technology Exclusive InfoTrack™ arc tracking technology

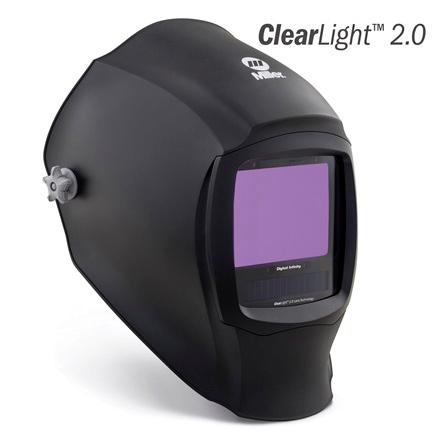

Black #794C87

Imperial™ #794C92

Departed™ #794C89

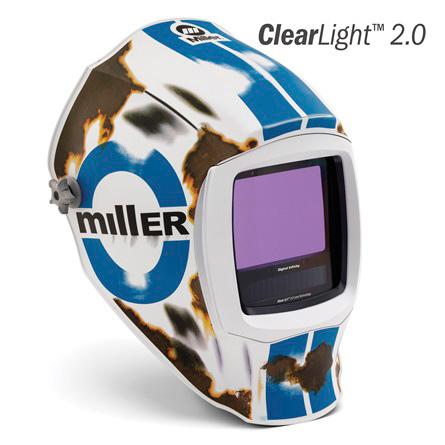

Relic™ #794C91

Black Ops™ #794C90

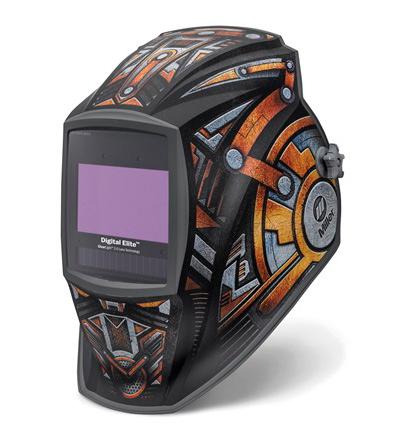

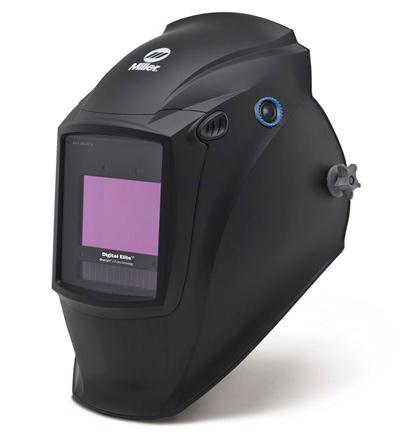

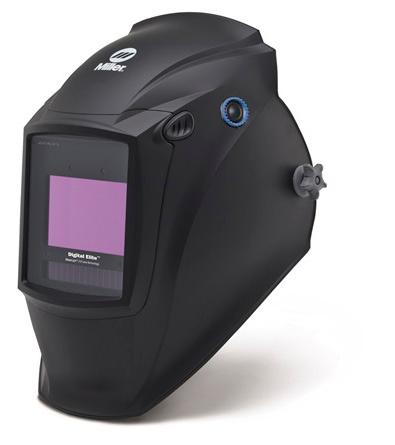

Digital Elite™ Series

Industry-Leading Helmet Provides High Performance Versatility

Industrial grade helmet 9.22 sq. in. viewing area Gen. 3.5 headgear with comfort cushion Black 4 arc sensors & 4 modes #794C79 ClearLight™ 2.0 Lens Technology

Raptor™ #794C85

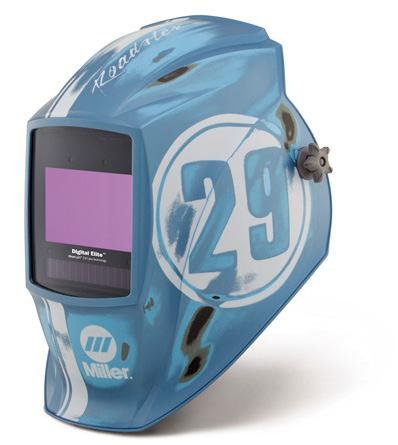

Vintage Roadster™ #794C83

Lucky’s Speed Shop™ #794C81

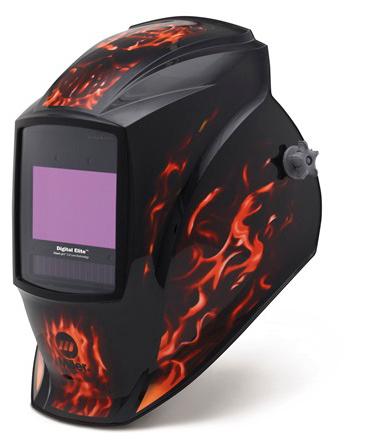

Inferno™ #194C82

Gear Box™ #794C86

Elite External Grind #799Z84

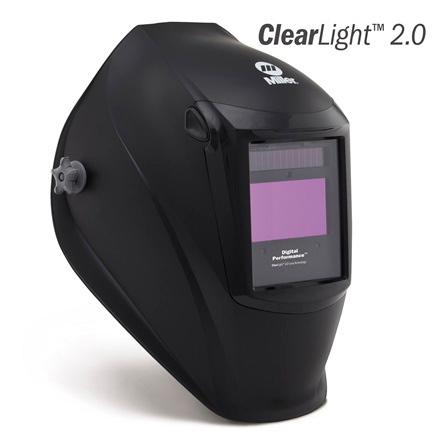

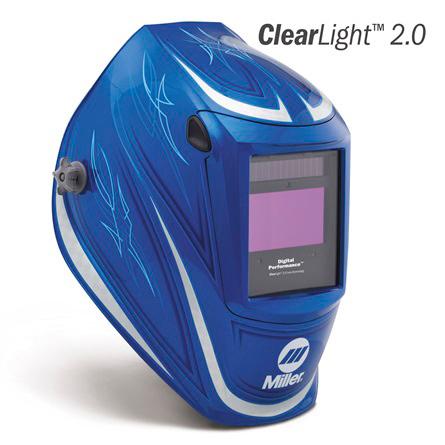

Head and Face - Helmets Digital Performance™ Series

Helmet Accessories

Lightweight Helmet with Superior Headgear for Increased Efficiency

Magnifying Lenses

7.22 sq. in. viewing area ClearLight™ 2.0 Lens Technology Gen. 3.5 headgear with Comfort cushion Black 3 arc sensors 3 modes #794C76 Weld, Cut and Grind Mode

Unity™ #799Z81

64 Custom™ #794C78

Crusher™ #794C80

#2AVJ5 - Dioptrie 0,75 #2AAU5 - Dioptrie 1,00 #2AAU6 - Dioptrie 1,25 #2AAU7 - Dioptrie 1,50

Lithium Replacement Battery #13Z867 - CR2450

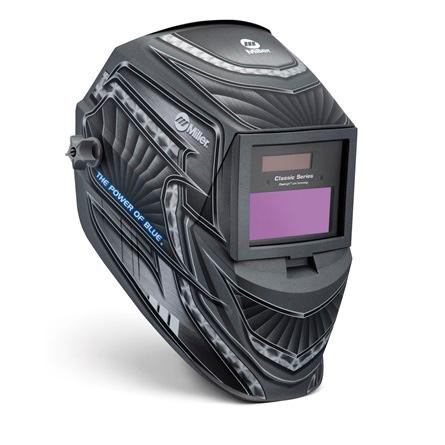

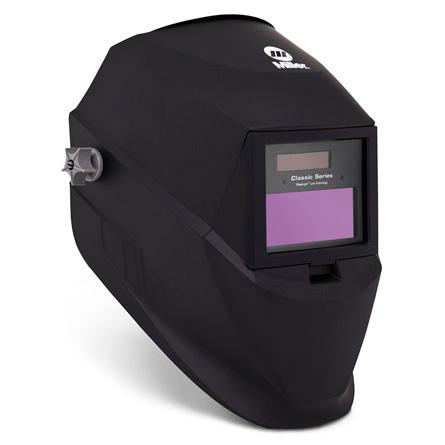

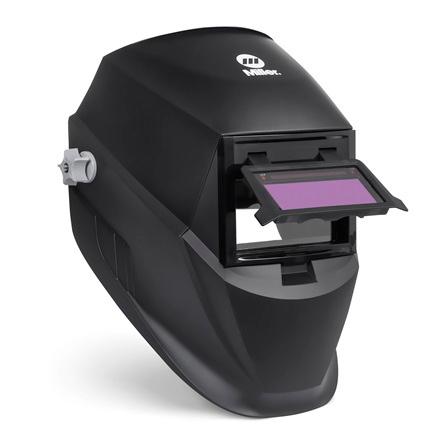

Classic Series

Trusted, Entry-Level Helmet for the Beginners, education and DIY Welder Hobby level helmet 5.15 sq. in. viewing area Two arc sensors VSi features three arc sensors and X-Mode ClearLight™ Lens Technology

#2AAU8 - Dioptrie 1,75 #2AAU9 - Dioptrie 2,00 #2AAV1 - Dioptrie 2,25 #2AAV2 - Dioptrie 2,50

Slotted Hard Hat Adapter

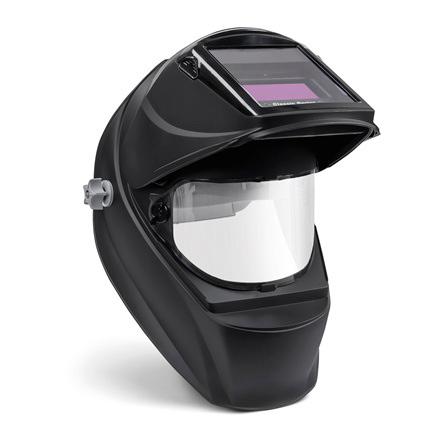

FS#10 2x4 Flip Up #38VU59

Black #785WR5

VSi Black #784WH0

Compatible with most slotted hard hats.

Helmet not included #49WM71

Hard Hat Adpater Titanium, Infinity™, Elite™, Performance™, Classic Series, and MP-10™

Compatible with most Fibre Metal and MSA hats. Other brands may fit depending on size and shape. Helmet and hat not included. #137865

Metal Matrix™ #60JH61

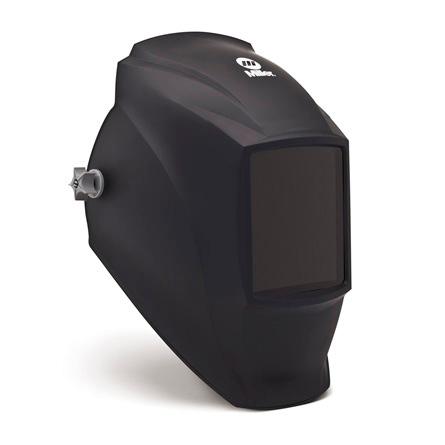

MP-10

Metalworks™ #785WR7

Rise™ #785WR6

Liberty™ #785WR8

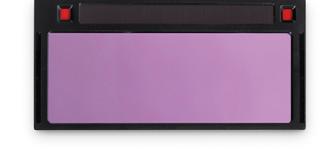

Auto-Darkening Lenses

Hobby level helmet 5.15 sq. in. viewing area Two arc sensors VSi features three arc sensors and X-Mode ClearLight™ Lens Technology #34C365

#34C401 - Auto Darkening (FS-8) 2x4

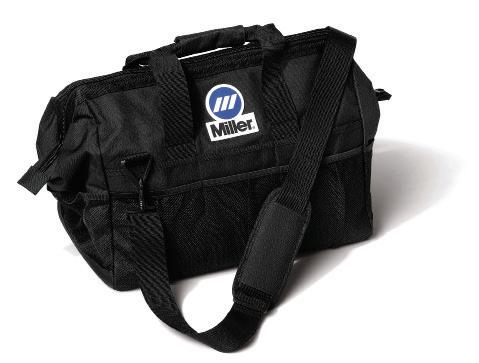

Job Site Tool Bag

Features a comfortable and wellpadded shoulder strap with over 20 separate pockets to store avariety of items #34C270

Hand and Body - Jackets and Apparel From light-duty to heavy-duty, Miller® welding jackets and apparel are constructed from quality materials in order to perform in a variety of welding, cutting and grinding applications.

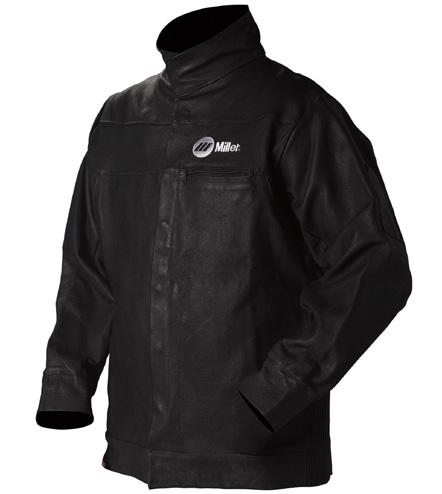

Leather Jacket

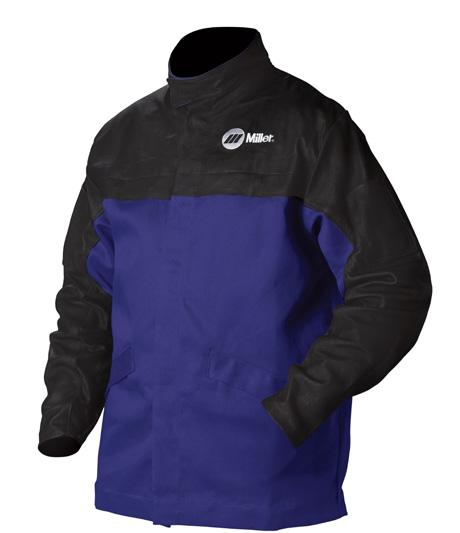

Combo Jacket

- Medium-Duty - Perfect mix of top-grain

WeldX™ Jacket

- Heavy-Duty - Withstands sparks and spatter for

- Medium-Duty - Proprietary coating

long term industrial use - Premium top grain pigskin leather #34C301 - Large #34C302 - X-Large

-

#34C303 - 2X-Large

-

blendprovides enhanced protection while maintaining comfortability 7 oz. WeldX fabric - a lighter weight alternative to leather Machine washable

-

#34C291 - Medium #34C292 - Large #34C293 - X-Large #34C294 - 2X-Large

#10N009 - Large #10N010 - X-Large #10N011 - 2X-Large

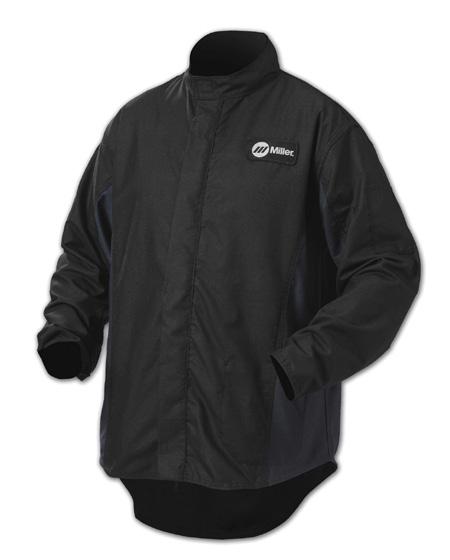

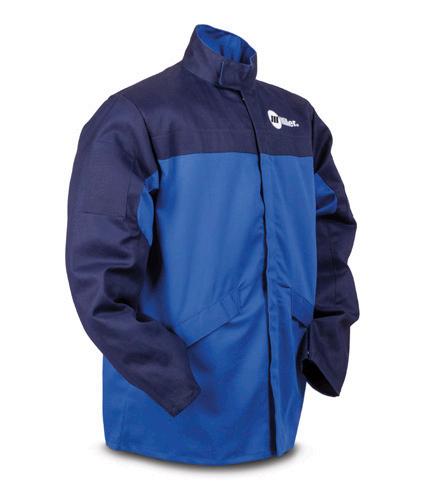

INDURA® Cloth Jacket

leather and INDURA® FR cotton, providing additional protection in high-exposure areas Flame-resistant INDURA® 100% cotton

Classic Cloth Jacket

- Light-Duty - INDURA® FR cotton will self-

- Light-Duty - Ideal for everyday use - 9 oz. Flame-resistant pre-

#34C283 - Medium #34C284 - Large

#34C272 - Medium 30 in. #34C273 - Large 30 in. #34C274 - X-Large 30 in. #34C275 - 2X-Large 30 in.

extinguish and will not ingite. but it can burn

shrunk fabric

#34C285 - X-Large #34C286 - 2X-Large

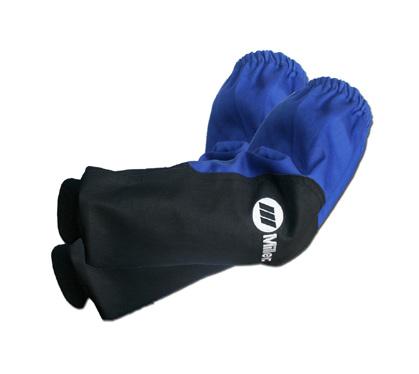

Combo Sleeves

- INDURA Cotton, flame-resistant ®

gauranteed for the life of the garment - Top grain leather is lightweight and can be positioned for more protection where needed

Classic Cloth Sleeves

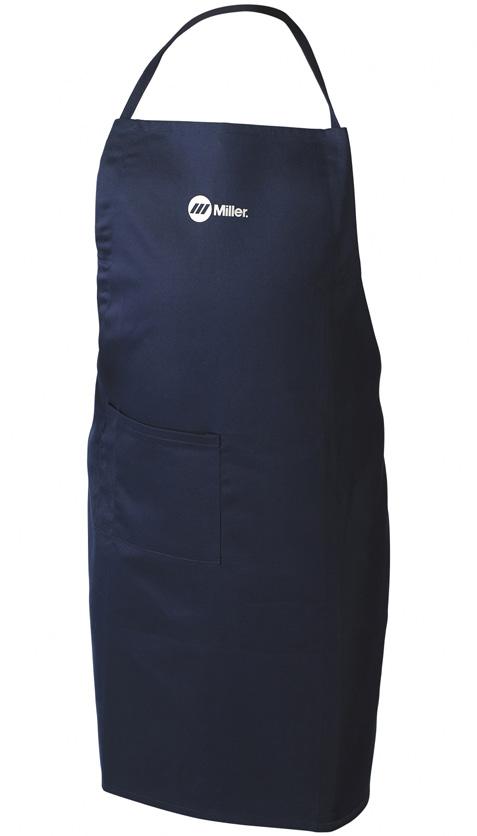

Combo Apron/Bib

#34C319

and spatter - Attached at snaps across the chest as a bib or along the bottom as an apron - Attaches to both INDURA c Cloth or the Combo Jacket

- 18 inch length - Fold-in sleeve snaps - Upper arm eleastic band

#34C307

- Premium grain leather withstands sparks

#34C316

Heat Stress Excessive heat exposure can effect a worker’s performance. Heat stress equipment by Miller® will keep your employees cool under the hood so they can perform at their very best.

CoolBelth™

- Up to 17° cooler under the hood

- Multiple airflow speeds remove stagnate air and reduce lens fog - Compatiable with most Miller helmets

#6CXF3

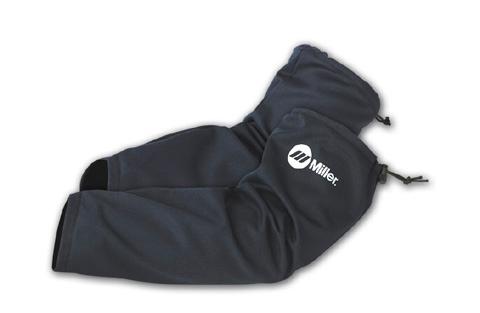

Combo Sleeves

- 9 oz. Flame-resistant Navy cotton

- 35” length - Accessable front pcoket #34C318

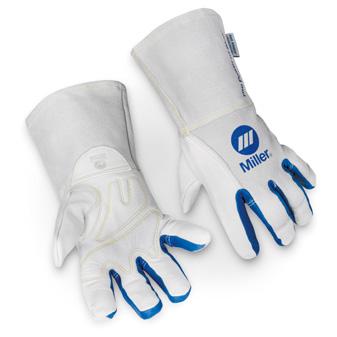

Hand and Body - Gloves The Performance line of welding gloves by Miller® provides unprecedented comfort and performance with exceptional dexterity and flexibility, perfect for the most extreme welding, cutting and grinding applications.

Heavy Duty MIG/Stick

Premium pig grain leather palm provides extreme durability and protection. Double layered insulated palm and back #33RN06 - Large #33RN07 - X-Large

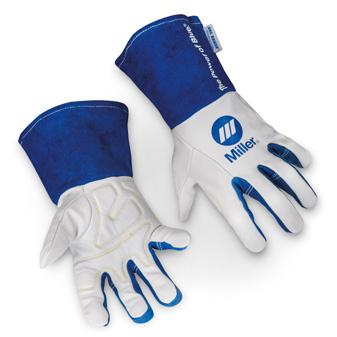

TIG

MIG - Lined

Completely unlined for heightened feel and dexterity. Triple-padded palm for added comfort.

Goat grain leather offers superior flexibility and dexterity.

Dual-padded palm. Fleece-insulated palm, foaminsulated back. Cow grain palm, pig split back and goat grain inner fingers provide exceptional dexterity and comfort.

#20XD79 - Small #33RN16 - Medium #33RN17 - Large #33RN18 - X-Large

#33RN10 - Medium #33RN11 - Large #33RN12 - X-Large

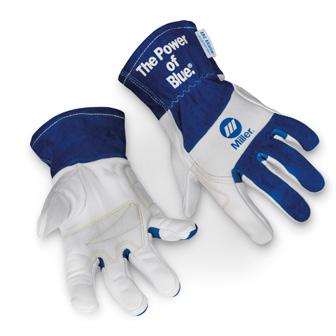

TIG/Multitask

Premium goat grain leather offers superior flexibility and dexterity. Wool back provides ultimate insulation #33RN19 - Small #33RN20 - Medium #33RN21 - Large #33RN22 - X-Large

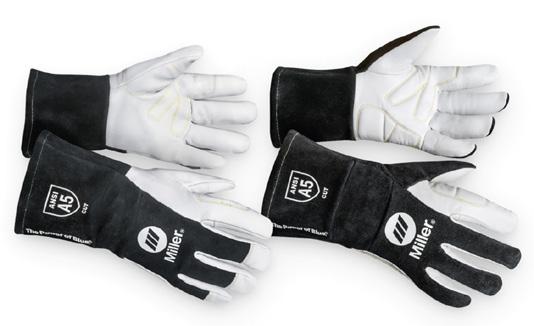

Cut Resistant Gloves Unprecedented comfort, performance and protection.

- ANSI A5 cut rating, level 4 puncture and abrasionrating, and level 3 heat rating - Premium-grade leather heightens dexterity and extends wear - Durable goat grain leather palm allows formaximum precision and amplifies dexterity - Cow split cuff and back provides abrasion,puncture and moisture resistance - Ergonomic wrist design for additional comfort - Three-dimensional patterns and pre-curved fingers provide an excellent fit, resulting in unmatched comfort - Kevlar® flame-resistant thread for maximum seamstrength, durability and protection - 2-millimeter foam lining and mylar back foradditional protection (MIG) - Additional padding on palm and sides for enhanced protection and durability (TIG)

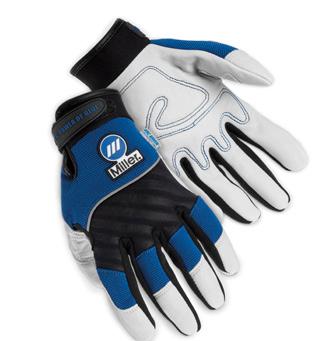

Metal Worker

Durable top grain leather and spandex back provides enhanced durability and dexterity #33RN23 - Medium #33RN24 - Large #33RN25 - X-Large

Click Here for Glove Selection Overivew

Small Medium Large X-Large 2X Large

MIG

#383AJ5 #383AJ6 #383AJ7 #383AJ8 #383AJ9

TIG

#802GP6 #802GP5 #802GP4 #802GP3 #802GP7

Classic - Traditional design for the value-minded welder

Heavy Duty MIG/Stick

- Reflective insulation on back reduces -

heat impact Moisture wicking fleece and foam insulation Pig grain palm, pig split back and cuff

#33RN06 - Large #33RN07 - X-Large

MIG (Pigskin)

- Reinforcement patches enchance -

durability Moisture wicking fleece and foam insulation Pig split leather palm, back and cuff

#240R53 - Large #240R54 - X-Large

MIG (Cowhide)

- Reinforcement patches enchance -

durability Moisture wicking fleece and foam insulation Cow split palm, pig split back and cuf

#48VF72 - Large #48VF73 - X-Large

TIG

- Thin internal padding for added comfort

- Unlined palm for precise dexterity - Sheep grain palm, cow split back and cuff

#240R55 - Medium #240R56 - Large #240R57 - X-Large

Environmental Solutions OSHA puts a weld fume exposure limit or PEL (Permissible Exposure Limit) in place in order to provide a clean, comfortable and compliant welding environment. If the air quality in your welding environment exceeds the PEL (determined by an air sample taken by an industrial hygienist), certain control measures need to be taken to ensure compliance. The OSHA Hierarchy of Controls provides a step by step process for implementing control measures, ensuring workers’ comfort and compliance.

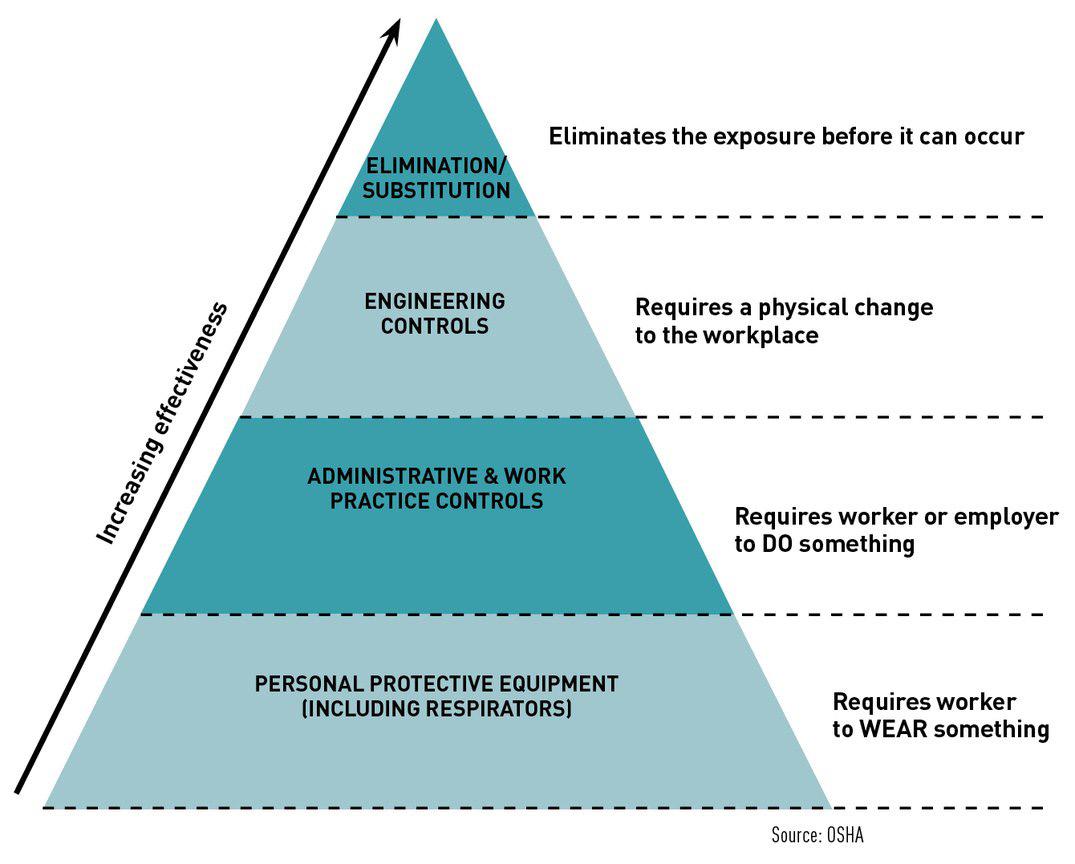

Put an action plan in place with Miller® safety equipment, which provides solutions at each level of the Hierarchy.

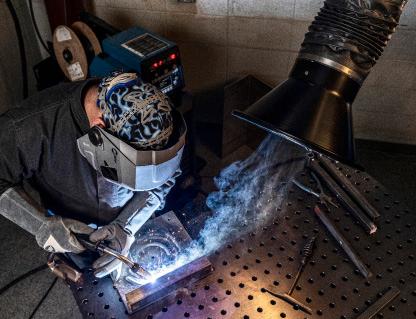

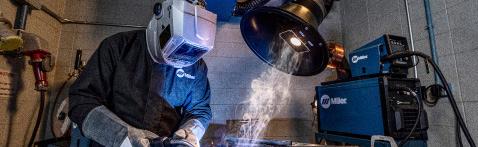

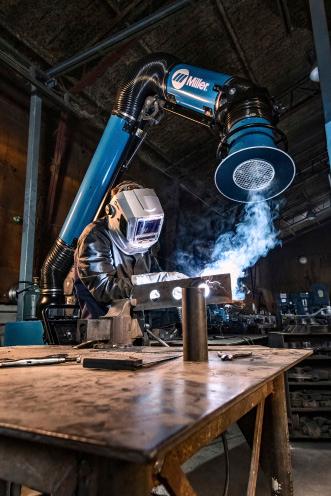

Fume Extraction The second most effective level of control for air quality that Exclusive ZoneFlow™ Technology OSHA recommends is engineering controls, or making

by Miller® Traditional fume extraction units use a physical change to the workplace environment such as onventional technology creating a increased ventilation. Fume extraction equipment by Miller® maximum capture distance of 18 draws weld fume away from a weld operator’s breathing zone, inches. Exclusive ZoneFlow™ technology while keeping the weld environment clean. Different

by Miller® increases this capture models are available including portable, mobile, stationary, distance to 5 feet, minimizing arm and centralized. interactions and increasing productivity.

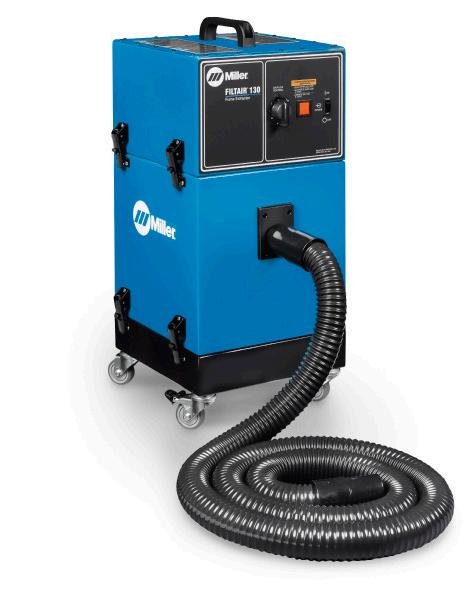

Portable FILTAIR® 130 Portable Weld Fume Extractor The powerful high vacuum system with a MERV 15 FilTek XL, cleanable filter is ideal for contractors, maintenance and repair, and light fabrication. #5FYE9

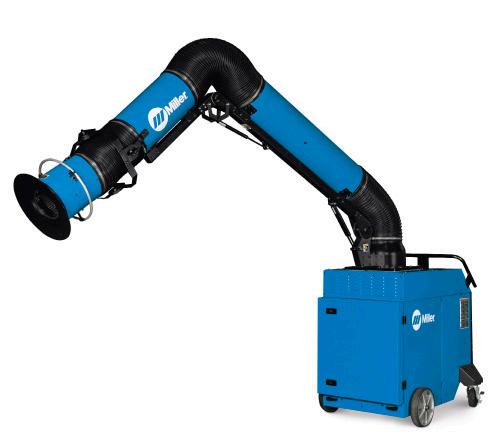

FILTAIR® MWX Portable Weld Fume Extractors

The powerful high volume system with a MERV 15 FilTek XL filter is ideal for fabrication shops, manufacturing, repair work and training centers where mobility is needed.

MWX-S Self Cleaning Fliter #36XR10 - 7 ft. arm #36XR11 - 10 ft. arm #36XR12 - 12 ft. arm MWX-D Disposable Fliter #36XR13 - 7 ft. arm #36XR14 - 10 ft. arm #36XR15 - 12 ft. arm

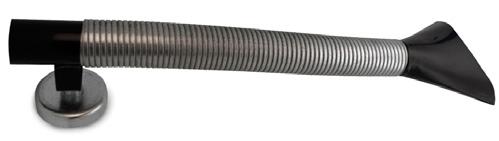

Flexible Funnel Magnetic Nozzle #5FYF3

Slotted Magnetic Nozzle 11.8 inch

#5FYE4

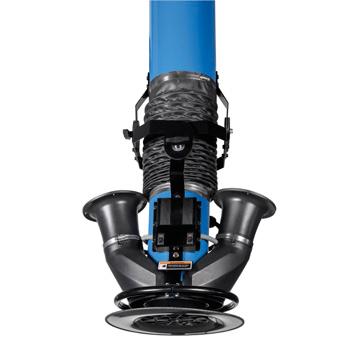

FILTAIR® Capture 5

Zoneflow™ technology increases capture distance up to 5 feet, compared to traditional 18 inches, providing better protection and

#20VE88 - Capture 5 (460V) with 10 ft. arm #20VE89 - Capture 5 (460V) with 12 ft. arm #494D79 - Capture 5 (230V) with 10 ft. arm #494D80 - Capture 5 (230V) with 12 ft. arm

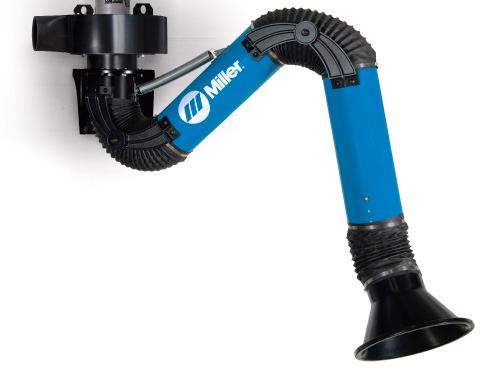

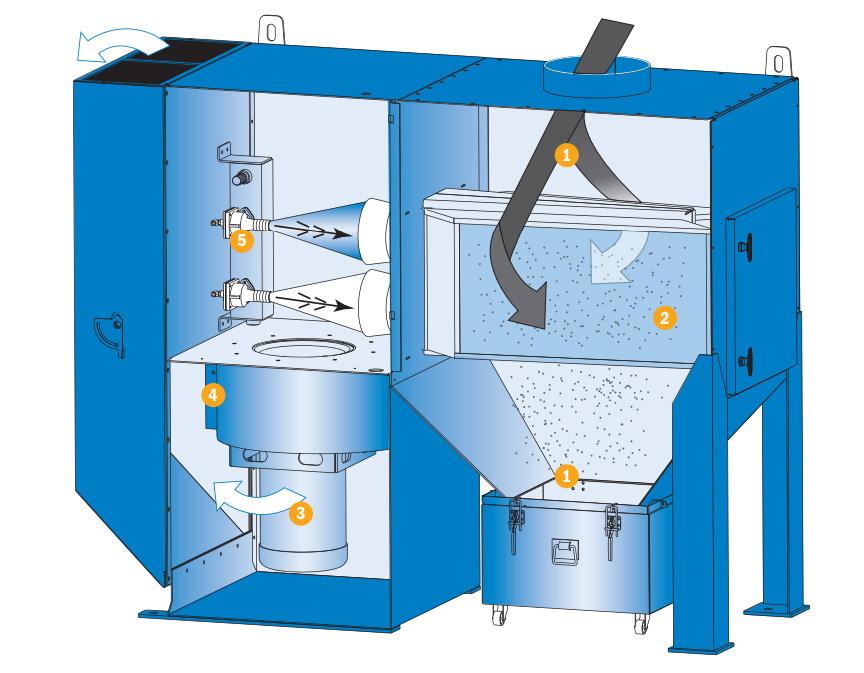

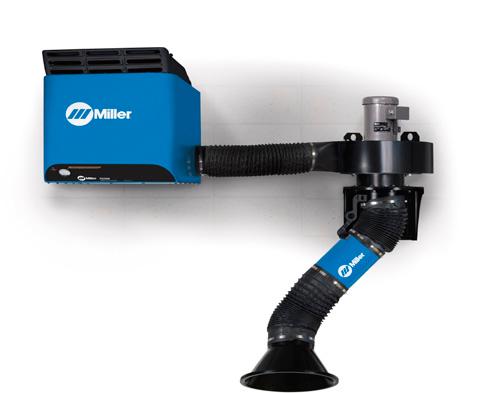

Environmental Solutions Fume Extraction - Stationary FILTAIR® SWX Series Self Cleaing Option Includes a self-cleaning filter which is Ideal for environments with higher arc on times and light or heavy fume emitting weld processes. It can be #484X77 7 ft. arm #484X78 10 ft. arm #49WM46 12 ft. arm #484X76 3 ft. telescoping arm

Disposable Filter Includes a disposable filter which is Ideal for light manufacturing environments with lower arc on times. It can be mounted to a wall or column. #484X73 7 ft. arm #484X74 10 ft. arm #484X75 12 ft. arm #484X72 3 ft. telescoping arm

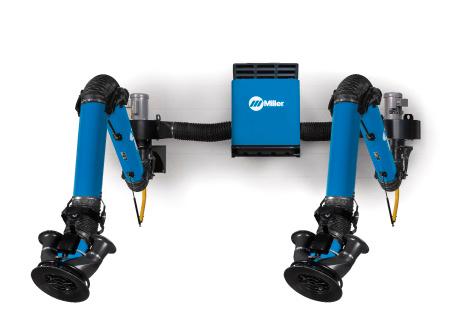

FILTAIR® SWX Series

Self Cleaning Option with Zone Flow Ideal for environments with higher arc on times and light or heavy fume emitting weld processes. Features ZoneFlow™ technology which increases the capture distance up to 5 feet.mounted to a wall or column. #494D83 10 ft. arm #494D84 12 ft. arm

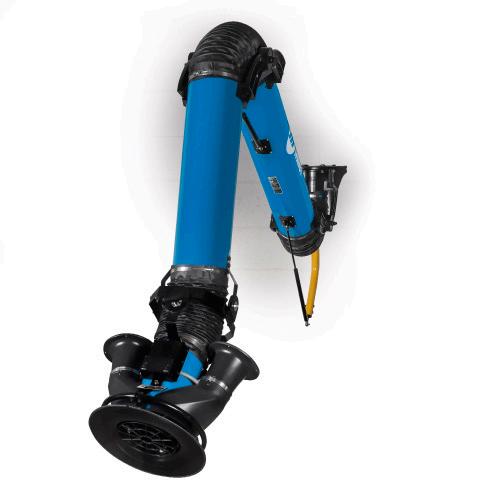

Accessories 10 ft. arm, Zone Flow™ Technology #494D81 10 ft. arm, Zone Flow™ Technology #494D82

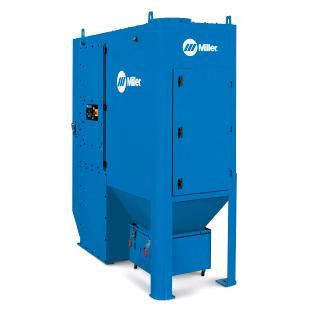

Fume Extraction - Centralized Weld fume extractors designed for manufacturing handheld and automation, fabrication shops, and training facilities.

These models are part of an engineered system and offer the best filter and cleaning technologies to effectively manage weld fume.

Environmental Solutions Respiratory Respiratory products by Miller® protect your operators by filtering weld fume and particles from the air, while offering all day wearability and comfort.

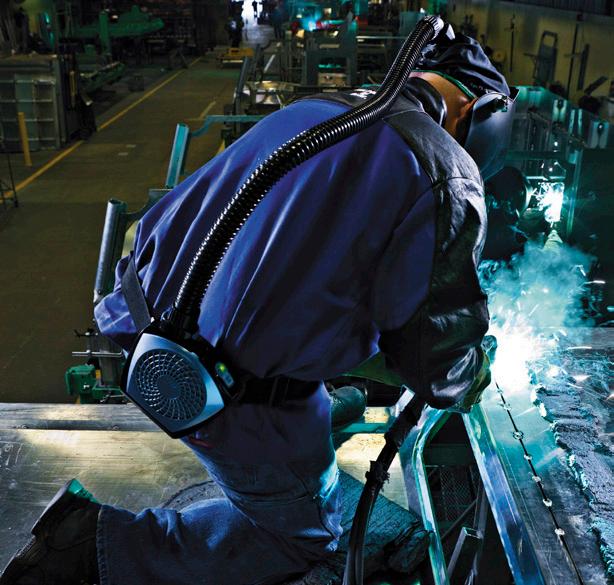

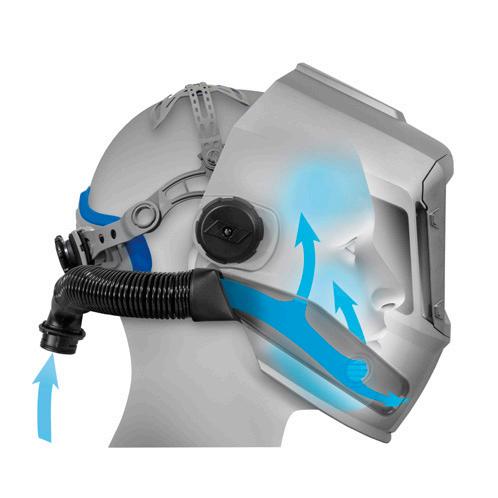

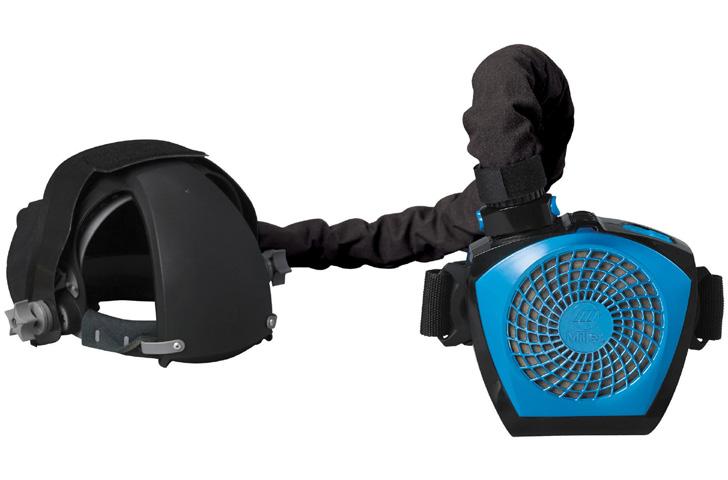

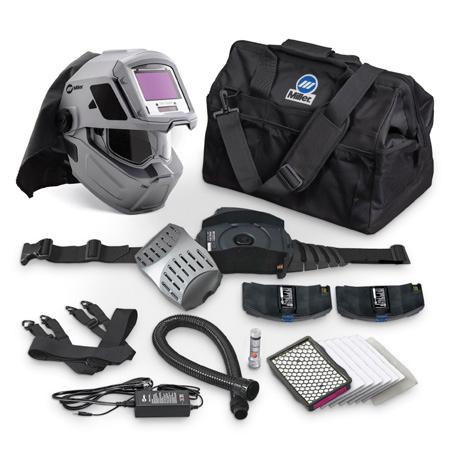

PAPR Powered Air Purifying Respirator - APF 25

- HEPA Filter that filters 99.97% of welding fume - ClearLight™ Lens Technology provides high definition optics for precision arc recognition - Well-balanced design reduces torque on neck, increasing all-day wear - Lightweight low-profile blower assembly with integrated shoulder straps reduces lower back strain and fatigue #408M95 With T94i-R™ w/integrated clear grinding sheild #408M96 With T94-R™ w/external grind control #795TG9 Hard Hat PAPR With T94i-R™ w/ lift to talk assembly

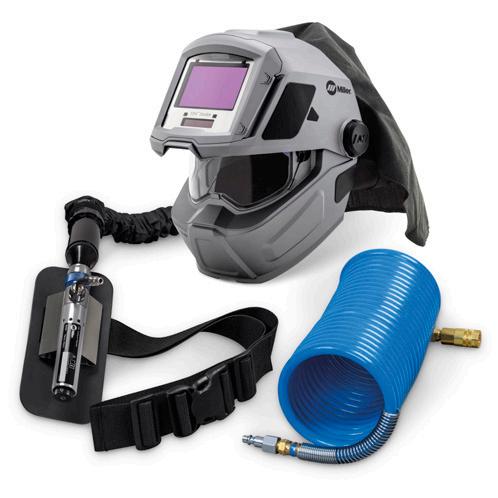

SAR Supplied Air Respirator

- APF 25

- HEPA Filter filters up to 99.97% of welding fume - ClearLight™ Lens Technology provides high-definition optics for precision arc recognition Coiled air hose - Well-balanced design reduces torque on neck, increasing all-day wear Straight air hose - C50 air regulator can cool air entering the helmet up to 50 degrees #55JF42 SAR w/T94i-R™ helmet complete Fahrenheit (28°C), heightening system w/25 ft. straight air hose productivity and relieving heat #55JF40 SAR w/T94i-R™ helmet complete system w/100 ft. straight air hose stress. 360-degree swivel air hose #55JF41 SAR w/T94i-R™ helmet complete connection alleviates hose coiling, system w/25 ft. coiled air hose #55JF42 SAR w/T94i-R™ helmet complete reducing potential trip hazards. system w/100 ft. coiled air hose

LPR-100™ /OV Reusable Respirator

Ideal for welding, paint, weldment cleaning and general metal working clean-up. Features OV (organic vapor) cartridges to provide relief and help keep operators compliant where contaminants are above OSHA’s permissible exposure limits (PEL). Fits comfortably under Miller® T94™ and Elite™ Series Welding Helmets and Weld-Mask™ 2.

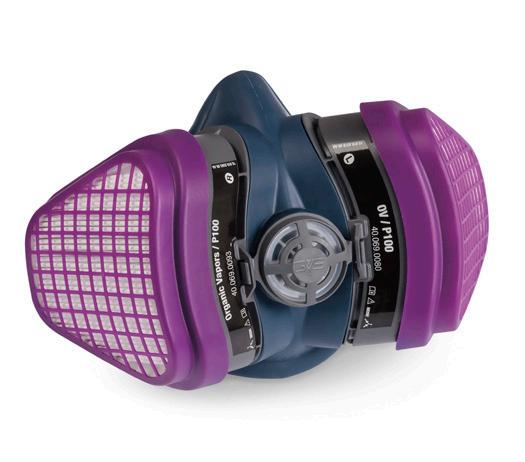

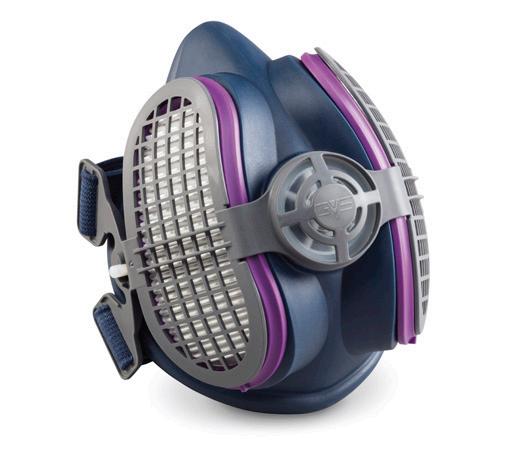

LPR-100™ OV Half Mask Respirator

LPR-100™ Half Mask Respirator

- Patented low-profile design comfortably fits under

- P100/OV Filter provides filtration of specific organic #55JF36 Respirator with P100 organic vapor filters S/M #36RC61 Respirator with P100 organic vapor filters S/M

-

vapors and airborne particulates, both oil-based and non-oil-based Patented low-profile design comfortably fits under welding helmets Large non-return exhaust valve eases breathing and reduces user fatigue 4 point head strap adjustments provide a customized comfortable fit Assigned protection factor of 10 NIOSH 42 CFR 84 Certified

welding helmets

- Large non-return exhaust valve eases breathing and reduces user fatigue

- 4 point head strap adjustments provide a customized comfortable fit

- Assigned protection factor of 10 - NIOSH 42 CFR 84 Certified #34C395 S/M w/P100 filters #36RC58 M/L w/P100 filters #36RC59 S/M w/P100 Nuisance Level OV Relief filters #36RC60 S/M w/P100 Nuisance Level OV Relief filters M/L

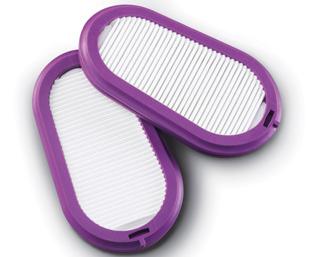

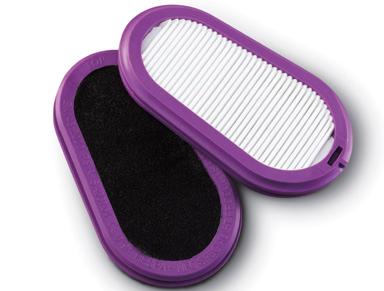

P100 Filters

Set of two replacement P100 filters. #34C396
