MIG WELDING

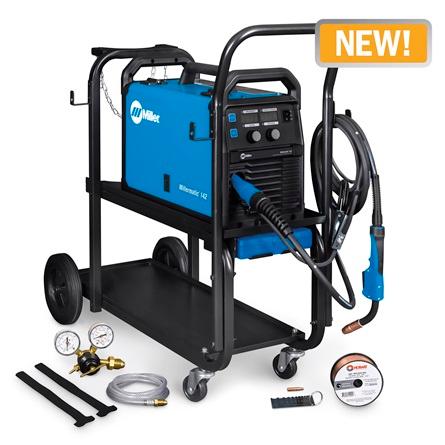

Millermatic® 142
951000072 Grainger #812FK6
Lightweight, portable, easy to use and dependable. A great choice when a 120 volt machine will meet all your maintenance shop’s needs. Optional spool gun available for welding aluminum.
WELDTYPES
AUTO-SET™ TECHNOLOGY
SMOOTH-START™ TECHNOLOGY
Butt joints, splices, lap joints, t-joints and plug/spot welding. Welds material up to 3/16-inch (4.8 mm) thick.
No hassles finding the right parameters: Just set the wire diameter and material thickness, and you’re ready to weld.
The best-starting machine in the 120-volt MIG category.

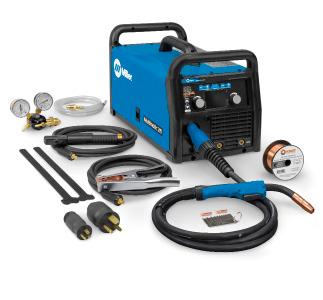

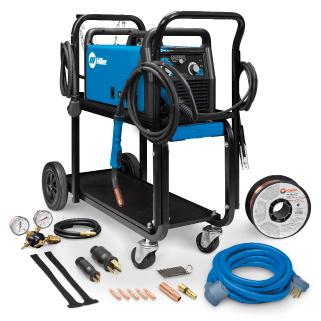

Millermatic® 211
951603 Grainger #40JC22
A complete 120/240 volt single-phase MIG welding package, specifically designed for today’s facility maintenance shops. Everything you need, including an MDX™ 100 MIG gun, cart, power cord extension, consumables kit, spool of .030 steel wire, regulator and welder cover.
WELD TYPES
ADVANCED AUTO-SET™ TECHNOLOGY
SMOOTH-START™ TECHNOLOGY
MULTI-VOLTAGE PLUS (MVP™)
Butt joints, splices, lap joints, t-joints and plug/spot welding. Welds material up to 3/8-inch (9.5 mm) thick.
No guesswork when setting weld parameters. Includes five different wire/gas combinations and .024 in./.6 mm to .035 in./.9 mm wire capabilities.
For smooth, spatter-free starts.
No tools needed to switch between 120-volt and 240-volt power receptacles.

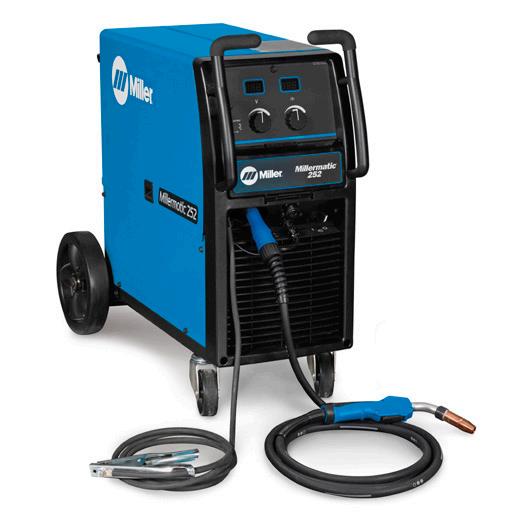

Millermatic® 252
MIG WELDING
907321 Grainger #2GPJ9
This complete MIG welding unit is the most powerful machine in its class. Includes infinite voltage control for a broad operating range and convenient EZAccess™ consumables compartment with parameter chart. Optional spool gun available for welding aluminum. (Grainger# 5GWK9)
WELD TYPES
AUTO-GUN™ DETECT
ACTIVE ARC STABILZER
LINE VOLTAGE COMPENSATION

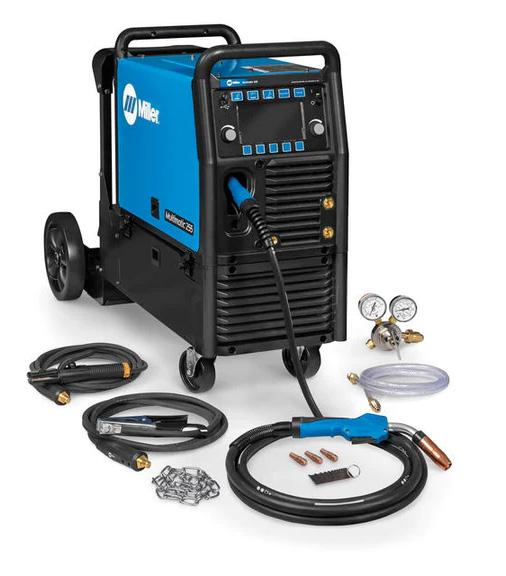

Millermatic® 255
Butt joints, splices, lap joints, t-joints and plug/spot welding. Welds material up to 1/2inch (13 mm) thick.
Allows operator to simply pull trigger on MIG gun, spool gun or push/pull gun. Automatically detects and recalls the voltage, wire feed speed and timer of the
For smooth, spatter-free starts.
Keeps welding output constant even if power input varies by +/- 10%.
951766 Grainger #494D88
The Miller® Millermatic® 255 MIG welder is a complete 250 amp welding package that comes standard with pulsed MIG welding capability. The inverter design means that the Millermatic 255 is less than half the weight of its popular predecessor, the Millermatic 252.Auto-Set™ Elite technology allows you to use preset welding parameters based on metal thickness, shielding gas and welding wire type to achieve optimum welds. You can also set your voltage and wire feed speed manually, for a custom welding arc.
WELD TYPES
AUTO-SET™ ELITE TECHNOLOGY
7-INCH COLOR LCD DISPLAY
Includes pulsed MIG to lower heat input on base materials — plus basic MIG to handle butt joints, splices, lap joints, t-joints and plug/spot welding. Welds material up to 1/2inch (13 mm) thick.
Easy weld start by just setting the wire and gas type, wire diameter (.023 in./.6 mm to .047 in./1.2 mm), and material thickness to increase productivity.
Easy-to-understand interface ensures proper machine setup, reducing setup time and increasing weld time.
MULTIPROCESS WELDING

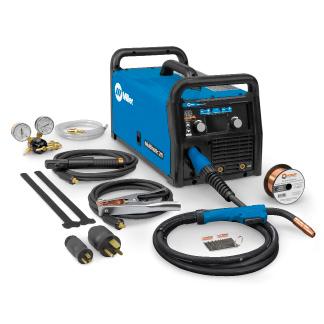

MULTIMATIC® 215
907693 Grainger #49KA66
Easy to use, with the flexibility to handle multiple weld processes so your shop can take on more jobs with less equipment. Connects to 120 or 240 volt input power.
MULTIPROCESS VERSATILITY
MIG, DC stick and DC TIG. Welds material up to 3/8-inch (9.5 mm) thick.
AUTO-SET™ ELITE
COLOR LCD DISPLAY
MULTI-VOLTAGE PLUG (MVP™)

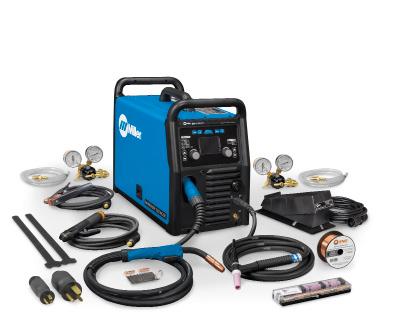

MULTIMATIC® 220
907757 Grainger #494D92
Just set the wire and gas type, wire diameter and material thickness, and you’re ready to weld.
Easy-to-understand interface reduces setup time and increases weld time.
No tools needed to switch between 120volt and 240-volt power receptacles.
Gives you the freedom to weld any process that comes up in your maintenance shop. Excellent quality arc using either 120 or 240 volt input power. Complete and ready to use.
MULTIPROCESS VERSATILITY
MIG, DC stick and DC TIG. Welds material up to 3/8-inch (9.5 mm) thick.
INDUSTRY EXCLUSIVE QUICKTECH™ FEATURE
AUTO-SET™ ELITE
COLOR LCD DISPLAY
MIG gun and TIG torch can both stay connected to the machine. Just hit the MIG trigger or the TIG foot control to change peocesses.
Just set the wire and gas type, wire diameter and material thickness, and you’re ready to weld.
Easy-to-understand interface reduces setup time and increases weld time.
MULTI-VOLTAGE PLUG (MVP™)
No tools needed to switch between 120-volt and 240-volt power receptacles.
MAXSTAR® 161 STH 120-240
907710001 Grainger #53AY44
Easy to use, with the flexibility to handle multiple weld processes so your shop can take on more jobs with less equipment. Connects to 120 or 240 volt input power.
EASY-TO-USE
PRO-SET™
COMPACT DESIGN ALLOWS FOR GREAT PORTABILITY
1. Turn power on.
2. Select process: High-Frequency TIG, Lift-Arc™ TIG, Stick, or 6010 Stick.
3. Set amperage. Then weld! It’s as easy as 1, 2, 3
Easy-to-understand interface reduces setup time and increases weld time.
Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based TIG/Stick machine can be taken from location to location.

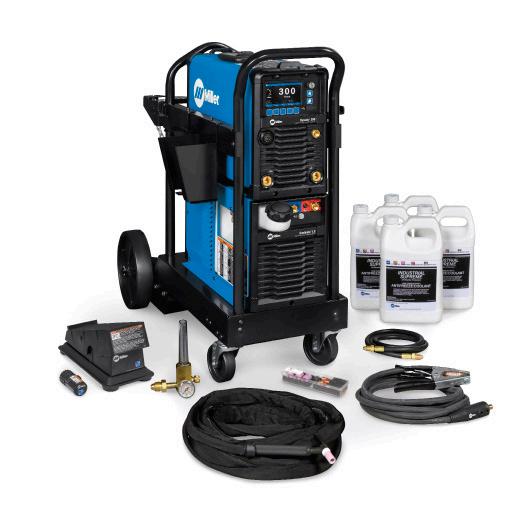

DYNASTY® 300 WIRELESS FOOT CONTROL COMPLETE
951937 Grainger #796U02
Experience unfailing precision arc performance paired with a state-of-the-art, user-friendly interface that puts advanced capabilities at your fingertips. Dynasty TIG power sources help minimize error and achieve high-precision welds every time, making the best welders even better.
AUTO-LINE™ TECHNOLOGY
PRO-SET™
PROGRAM MEMORY
LOCKS AND LIMITS
For portability and reliability allowing for any single-phase input voltage hookup (208–600V) with no manual linking. Ideal solution for dirty or unreliable power.
Easy-to-understand interface reduces setup time and increases weld time.
Allows easy naming, saving and recalling of favorite weld settings
Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
TIG WELDING
STICK WELDING

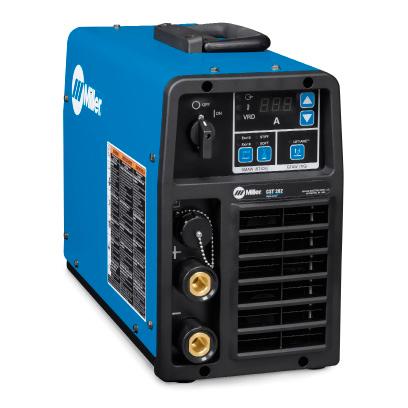

CST 282
907810 GRAINGER #61CZ83
907770 GRAINGER #61CZ84
This compact, 35 pound, goes-anywhere welder delivers 280 amps of superior Stick and TIG performance with Auto-Line™ Technology to utilize nearly any source of primary power.
AUTO-LINE™ TECHNOLOGY
PORTABLE CST MODEL
SIMPLE & ACCURTAE
907579001 Grainger #49X316
Works in more places with Auto-Line™ Technology which automatically calibrates the power source to operate properly when connected to any primary input voltage ranging from 208-575 volts, single- or threephase, 50 or 60 Hz - with no manual linking required.
Weighing only 34.6 pounds, easily move around a jobsite for increased operator comfort and safety. It is 7 pounds (20%)
Digital meter and push-button controls for more precise setting when presetting or monitoring welding amperage. SPECTRUM

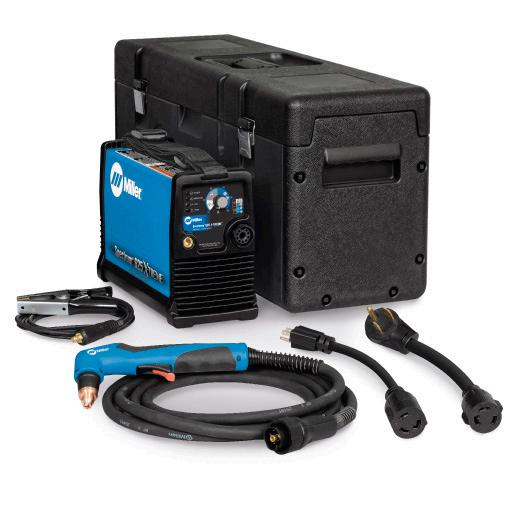

This compact, 23 pound, goes-anywhere plasma cutter delivers powerful 40 amps cuts up to 5/8" mild steel. Plus, versatility with Auto-Line™ and X-Treme protection with X-case.
XT40 TORCH INLCUDED

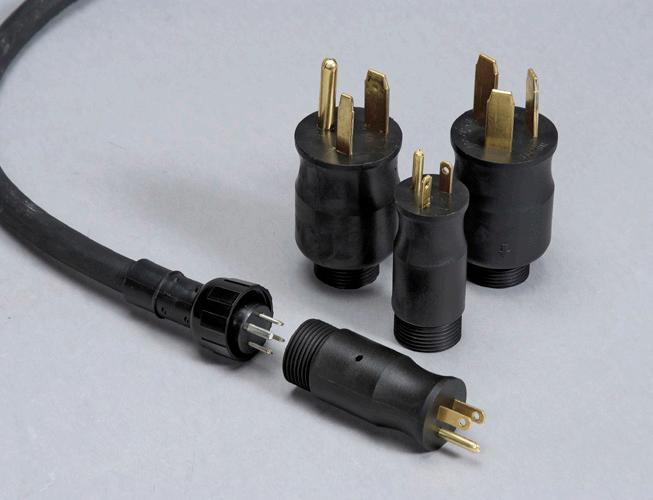

MULTI-VOLTAGE PLUG (MVP™)
AUTOMATIC AIR REGULATION
AUTO-LINE™
Big power: Cuts up to 5/8-inch mild steel. Lightweight and portable. Requires 6 cfm of airflow at 90 psi.
No tools needed to switch between 120-volt and 240-volt power receptacles.
Compensates for input pressure variation. Provides constant recommended torch pressure for optimum cutting performance
Allows for any input voltage hookup (208-575 V, single- or three-phase) with no manual linking, providing convenience in any job setting.
625 X-TREME PLASMA
CUTTING
Click Here for Plasma Cutting Selection Chart
INDUSTRIAL WELDING

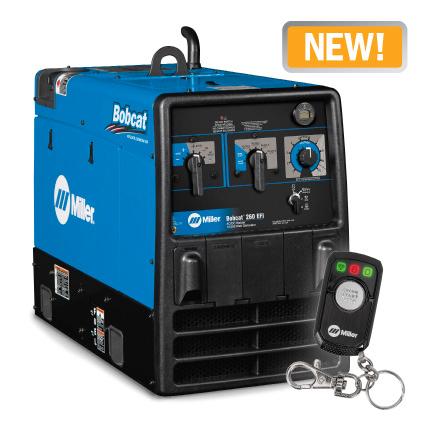

Rugged welder/generators great for stick and flux-cored welding. Designed for maintenance/repair operations, construction, farm, ranch and generator use.
REMOTE START /STOP
LESS NOISE
HANDS FREE STARTING
Easily turn your Bobcat machine on and off remotely, so it only runs when you need it. Saves yo to $1,500 per year on fuel & maintenance by shutting the machine off
The noise of a welder/generator running all day is irritating — and can even keep you from hearing sounds that warn you of potential hazards.
eChoke™ technology automatically sets the proper air/fuel mixture and eliminates the need to manually engage the choke, so coldstarting is now hands free.

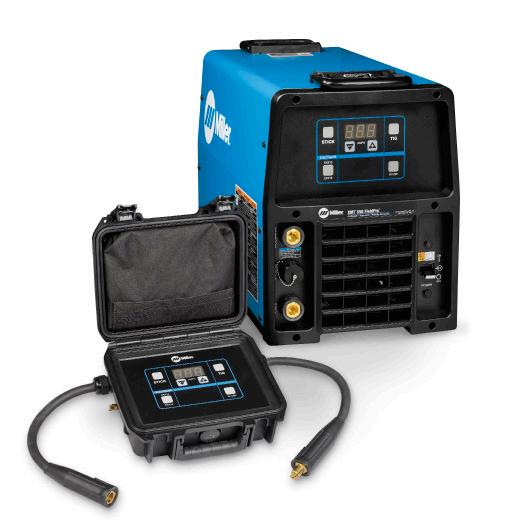

Every year, outdated welding equipment can cost you thousands of dollars and hundreds of hours of productive time. Step up to Miller XMT 350 FieldPro systems with ArcReach® technology — and improve your bottom line!
Game-changing welding technologies can stop you from wasting hours every day.
ArcReach welding technology minimizes the nonvalue-added time spent walking to and from the power source — and maximizes arc-on time, weld quality and jobsite safety.
Remote control of the power source without a cord. ArcReach technology uses the existing weld cable to communicate welding control information between the feeder or remote and power source. This technology eliminates the need for control cords, and their associated problems and costs.
For portability and reliability, Auto-Line allows for any input voltage hookup (208–575 V, single- or three-phase) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable input power.
BOBCAT 265 907826 GRAINGER #811AZ6 907826001 GRAINGER #812FJ8

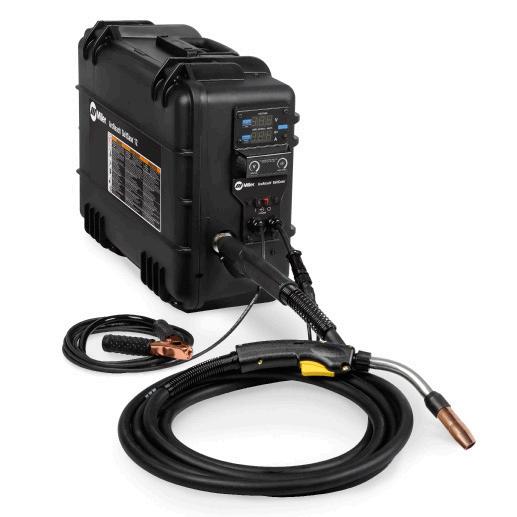

eChoke is a trademark of Kohler Co. XMT 350 FIELDPRO XMT 350 FieldPro w/ArcReach Stick TIG Remote #423P58 951736 ArcReach® SuitCase® 12, Bernard™ BTB 300 A Gun Pkg #494D97 951729 ArcReach® SuitCase® 12, Bernard™ S-Gun™ 250 A Pkg #61TC67 951731 Available through Grainger Sourcing XMT 350 FieldPro Machine Only Tweeco® 907730 XMT 350 FieldPro Machine Only Dinse® 907730002 XMT® 350 FieldPro™, Tweco®, ArcReach® 951734 SuitCase® 12, Bernard™ BTB 300 A Gun Pkg Click Here for documented Value
289807
GRAINGER #794C78
DIGITAL PERFORMANCE™
282006
GRAINGER #799Z81
DIGITAL PERFORMANCE™
GRAINGER #794C91

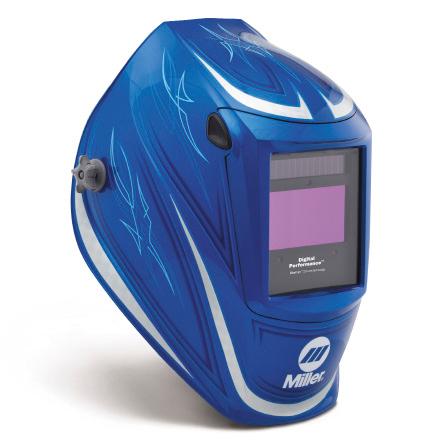

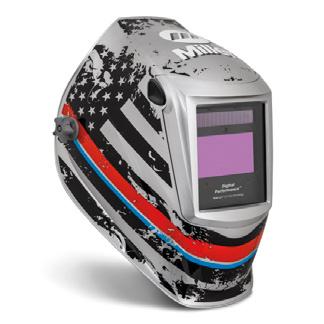

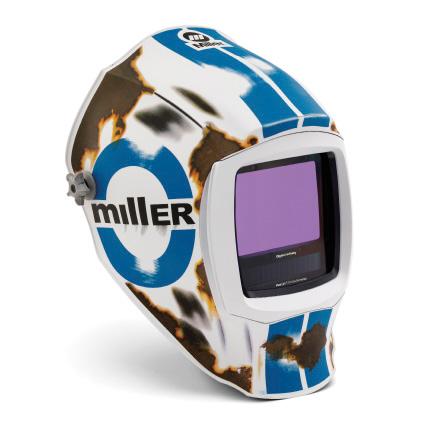

SERIES: ’64 CUSTOM™ 289768
SERIES: UNITY
DIGITAL INFINITY™
SERIES: RAPTOR™ 288722
GRAINGER #794C85
DIGITAL ELITE™
SERIES: RELIC™
Also available Classic Series Black 785WR5 and Digital Ininity Black 794C87

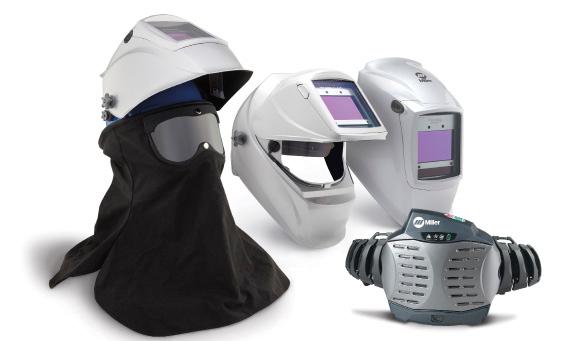

HELMETS

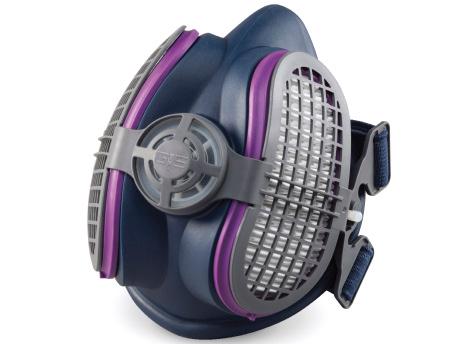

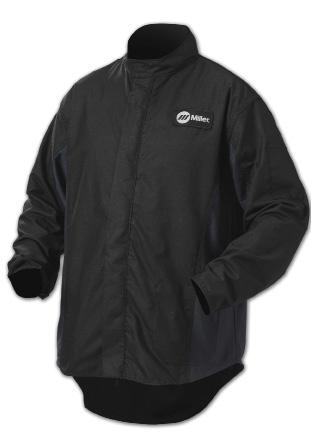

MASK RESPIRATORS REGULAR S/M REGULAR M/L REGULAR FILTERS #34C395 ML00895 #36RC58 ML00895 #36RC61 SA00818 NUISANCE O/V S/M #36RC59 ML00994 NUISANCE O/V M/L #36RC60 ML00995 NUISANCE OV FILTERS #34C396 SA00819 WELDX™ JACKET Miller® Exclusive Material Exceeds Standard FR Cotton Protection Without the Weight of Leather MEDIUM #43EN24 247115 LARGE #10N009 247116 X-LARGE #10N010 247117 2X-LARGE #10N011 247118 SAFETY GEAR *Small, 3XL, 4XL and 5XL available through Grainger Sourcing.
JACKETS HALF

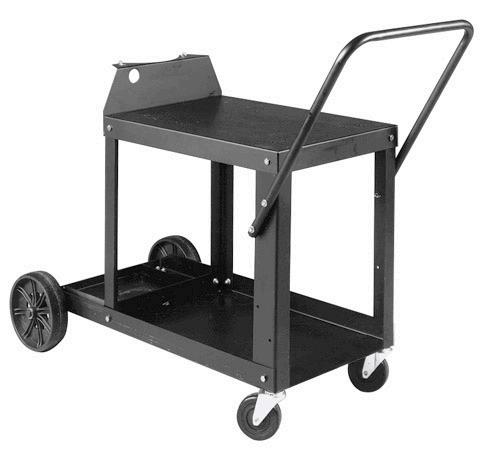

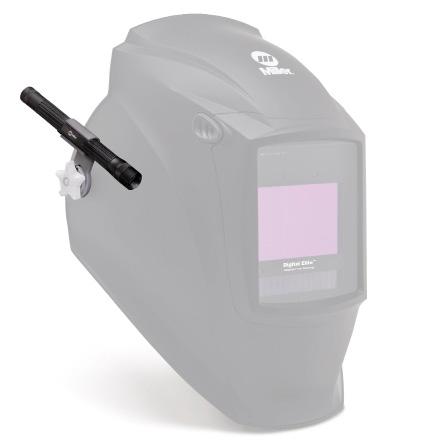

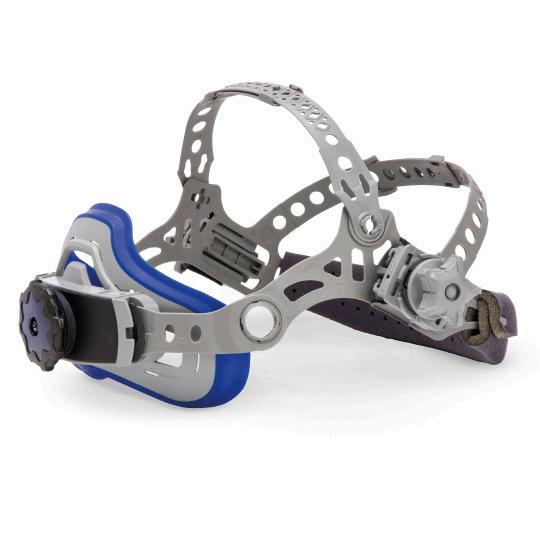

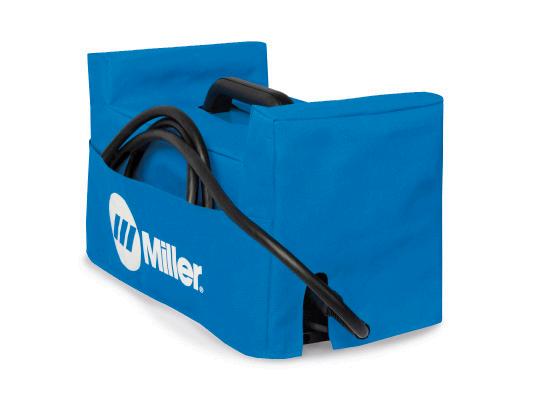

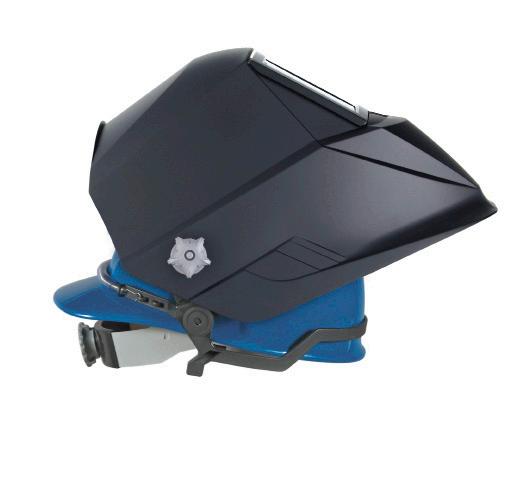

HELMET ACCESSORIES 284218 GRAINGER #60UP42 Gen 3.5 Headgear 222003 GRAINGER #13Z865 Hard Hat Adapter: MP-10, Classic, Performance, Infinity & Titanium helmets. Compatible with most Fibre 282013 GRAINGER #484X71 Welding Helmet Light Accessory Kit MACHINE ACCESSORIES ACCESSORIES 301262 GRAINGER #800VR9 Millermatic 141/190/211 & Multimatic 215 Protective Cover Available through Grainger Sourcing ENVIRONMENTAL SOLUTIONS FILTAIR MWX SELF CLEANING FUME EXTRACTOR 7 FT ARM #36XR10 951510 10 FT ARM #36XR11 951511 12 FT ARM #36XR12 951512 PAPR with T94 Industrial respiratory protection for welding applications. T94-R #408M96 264575 T94i-R #408M95 264573 HARD HAT #795TG9 287510 T94iH-R 042934 GRAINGER #1Z572 UNIVERSAL CART AND CYLINDER RACK Click Here for fume extraction comparison
MRO WELDING PRODUCT GUIDE Weld Input Weld Processes Weld Processes Weld Voltage Input Material Thickness RANGE 951000072 #812FK6 Millermatic ® 142 951603 #40JC22 Millermatic ® 211 907693 #49KA66 Multimatic ® 215 907757 #494D92 Multimatic ® 220 907321 #2GPJ9 Millermatic ® 252 951766 #494D88 Millermatic ® 255 907710001 #53AY44 Maxstar ® 161 STH 951937 #796U02 Dynasty ® 300 907770 #61CZ84 CST™ 282 907579001 #49X316 Spectrum ® 625 X-TREME ™ 907792001 #55XC38 Bobcat ™ 265 951736 #423P58 XMT ® 350 Fieldpro ™ Single Phase Three Phase 208V 220240V 208575V MIG Pulse MIG DC TIG AC TIG FluxCored 110120V Plasma Cutting Stick Carbon Arc Gauging Steel Aluminium Silicon Bronze Generator Output Rated 11,000 watts peak, 9,500 watts continuous 24 ga. (0.6 mm) to 3/16 in. (4.8 mm) 24 ga. (0.6 mm) to 3/8 in. (9.5 mm) 24 ga. (0.6 mm) to 3/8 in. (9.5 mm) 24 ga. (0.6 mm) to 3/8 in. (9.5 mm) 22 ga. (0.9 mm) to 1/2 in. (13 mm) 24 ga. (0.6 mm) to 1/2 in. (13 mm) 24 ga. (0.6 mm) to 3/16 in. (4.8 mm) Up to 3/16 in (4.8 mm) Up to 5/8 in (15.9 mm) Up to 3/8 in (9.5 mm)
