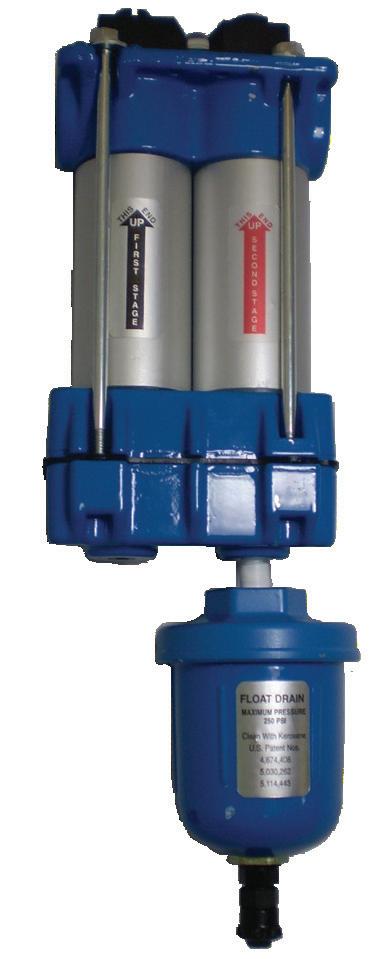

5 Micron Compressed Air Filter

Walmec North America’s 5 Micron Compressed Air Filter is a twostage filter designed to operate most effectively when placed near the point of use. It has a 5 micron rating and is available in sizes with flow ranges of 15 SCFM to 250 SCFM, and pressure ratings of up to 250 PSI. The 5 Micron Compressed Air Filter is ideal for a large variety of applications including surface preparation, paint spraying, powder coating, air powered tools, and pneumatically operated equipment.

The first stage filter knocks out all liq uids, and particles of dirt, dust, rust, and scale. The second stage filter removes remaining mois ture, contaminants, and particles down to 5 microns. An automatic float drain under the second stage filter opens and expels all collected liquids when an ounce or more is present. It is fully automatic with no continuous air loss.

The 5 Micron Compressed Air Filter has a permanently mounted differential pressure gauge and comes with mounting brackets. The differential pressure gauge provides a visual indication of required maintenance which is easily done by installing the appropriate service kit. No need to remove the unit from the compressed air system. An optional pressure regulator with gauge is available. www.walmecna.com helping HVAC systems run efficiently and reduce energy consumption, when changed regularly.

“Filtrete Brand has been dedicated to providing cleaner air for over 30 years,” said Cindy Timmerman, vice president of Consumer Safety and Wellbeing at 3M. “Our new refillable air filters offer a solution that saves costs, space and reduces waste, while ensuring reliable airflow and cleaner air. A small change with a big impact.”

The kit includes Filtrete™ MPR 1550 (MERV 12) Refillable Air Filters, which capture 42 percent more microparticles (0.3-1 microns) than the industry standard, effectively removing more allergens, bacteria and viruses for cleaner indoor air. These filters are also certified Asthma & Allergy Friendly ® by the

Asthma and Allergy Foundation of America. For added convenience, the new refillable air filters are compatible with the Filtrete Smart App, allowing consumers to store filter details, receive change reminders and find replacements easily.

Filtrete Refillable Air Filters are available in MPR 1550 (MERV 12) and MPR 1000 (MERV 11) at Amazon, Walmart and Lowes. www.filtrete.com
