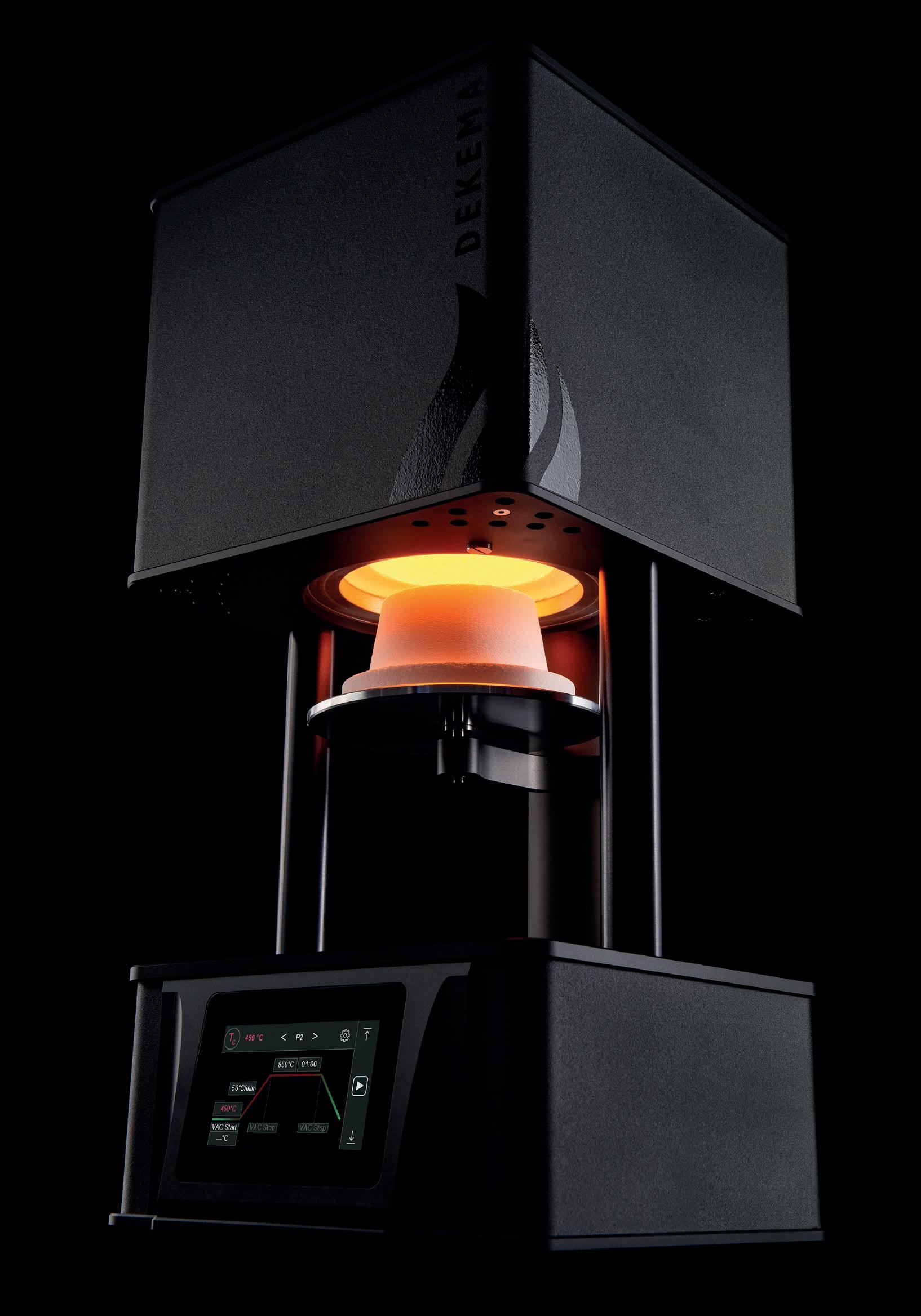

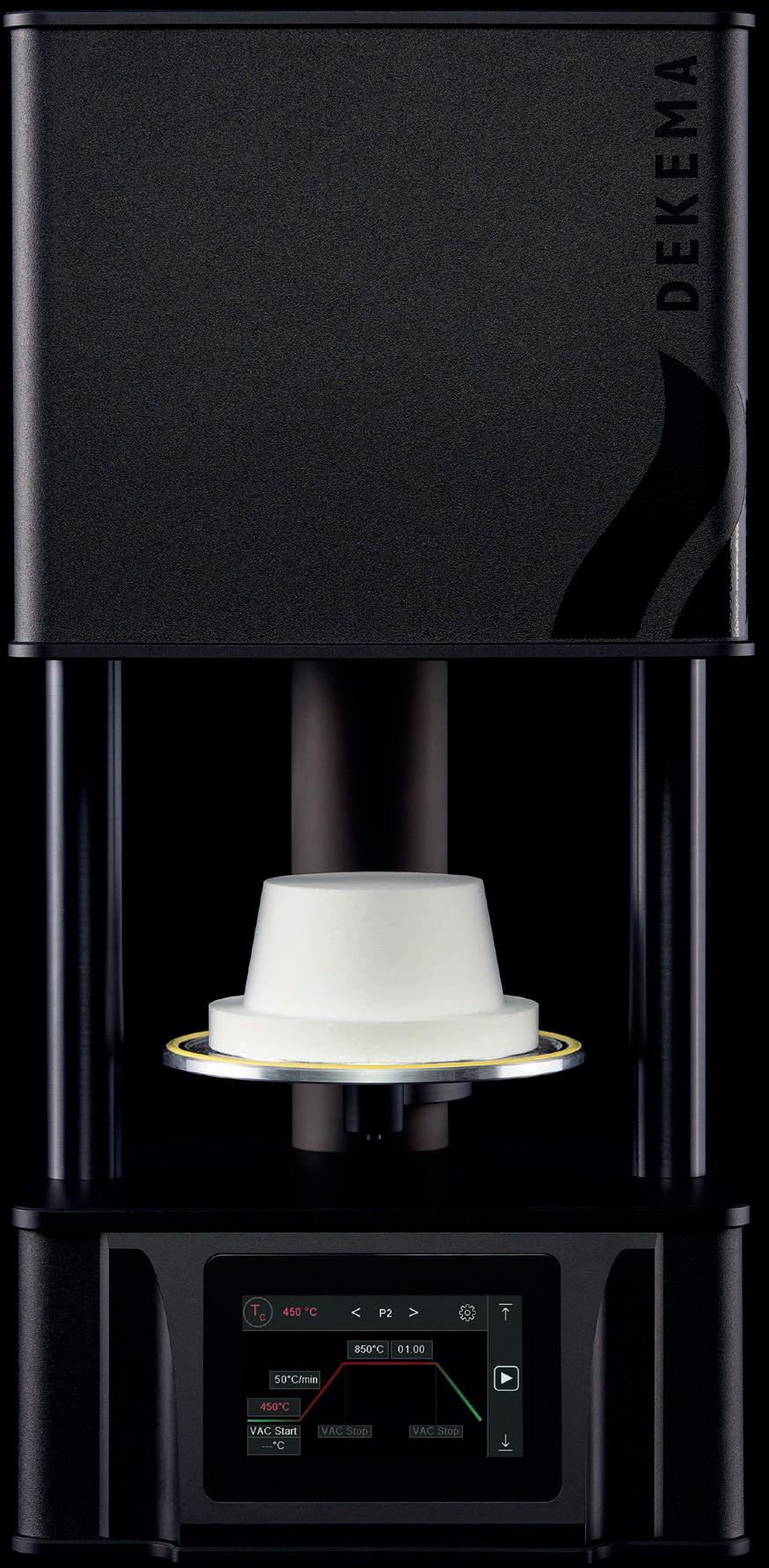

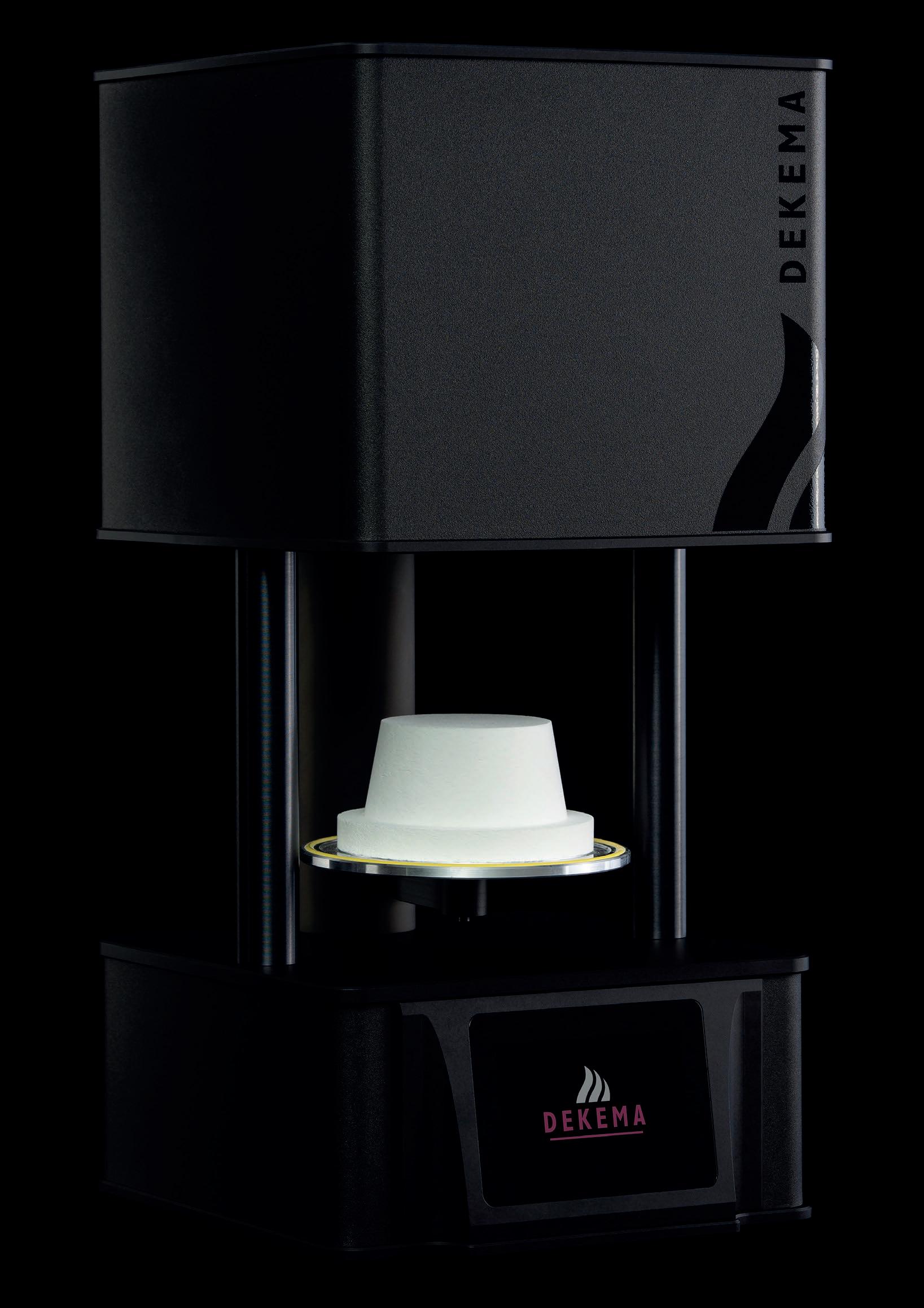

The DEKEMA for starters. No compromise on results.
Stand-alone furnace with optional vacuum pump
13 kg stable
long lasting quality, using noble, light materials
Firing, glazing, crystallization and infiltration with and without vacuum
Place – power – perform compact – precise – full-featured

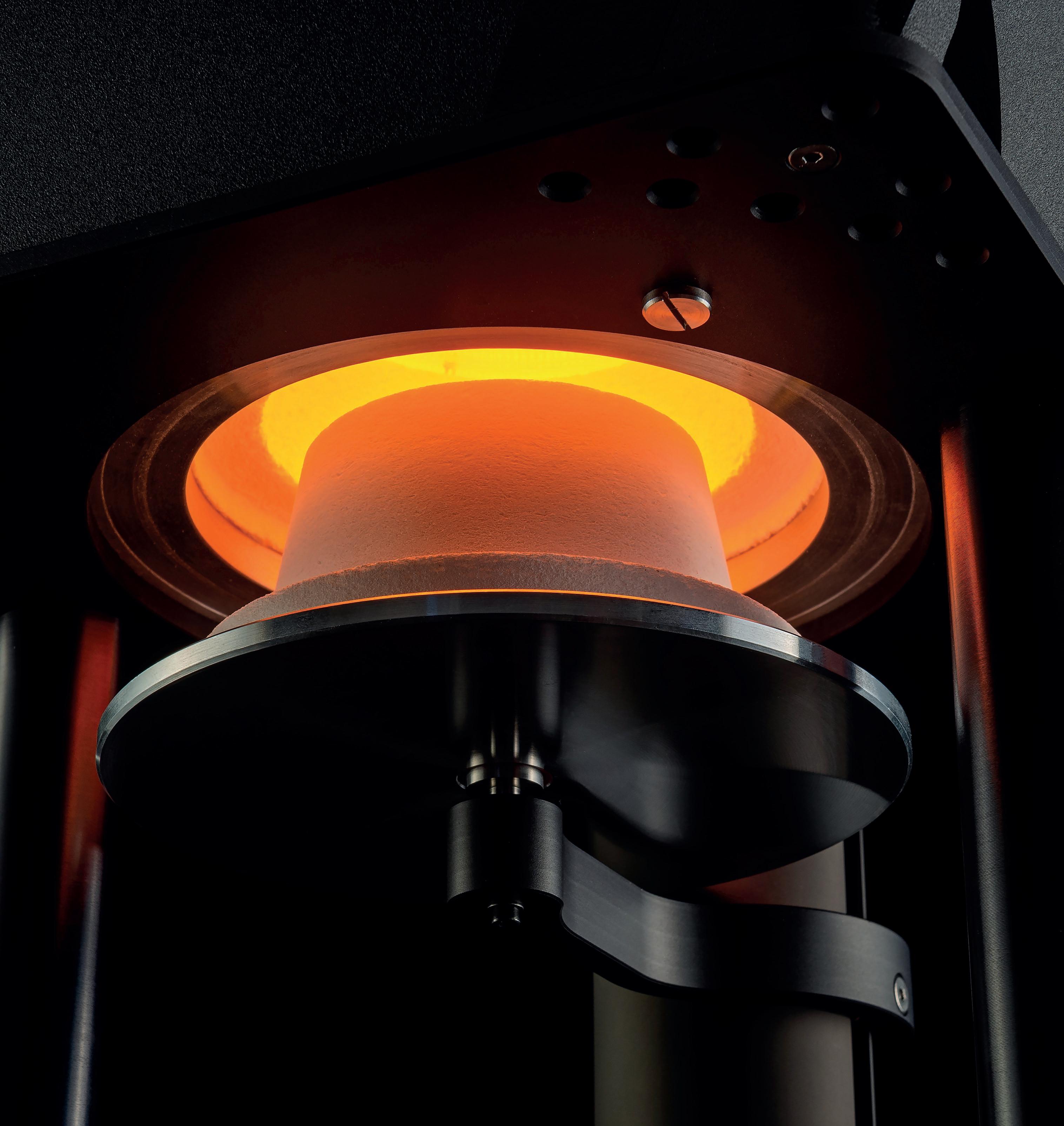

DEKEMA. Chamber.
Well known from the high quality AUSTROMAT TM Series 6 Firing Furnace
Designed decades ago, operated for decades, optimized over decades
Unique, homogeneous energy distribution
Fiber insulation of purest quality in highest precision design
Unsurpassed durability and longevity DEKEMA. Heating.
Well known from the high quality AUSTROMAT TM Series 6 Firing Furnace
Manufactured in house by DEKEMA
Usable with common firing trays DEKEMA. Firing table.
Well known from the high quality AUSTROMAT TM Series 6 Firing Furnace
Physically defined fiber insulation table of outstanding purity
Kept in matt black DEKEMA. Casing.
Fan free, integrated convection cooling
Corrosion free, lightweight aluminum housing
DEKEMA. Thermocouple & Control.
Well known from the high quality AUSTROMAT TM Series 6 Firing Furnace
Platinum/platinum-rhodium thermocouple of the purest quality and a controlled accuracy far below 1° C
Temperature calibration at only one measuring point through the DEKEMA calibration set, unmatched in precision
DEKEMA. Lift system.
Smooth lift movement
Durable stainless steel design
Freely selectable drying position
DEKEMA. User Interface.
Language independent icon surface
Touch operation with 100 programs
Independent vacuum start
Optional. For maximum flexibility.

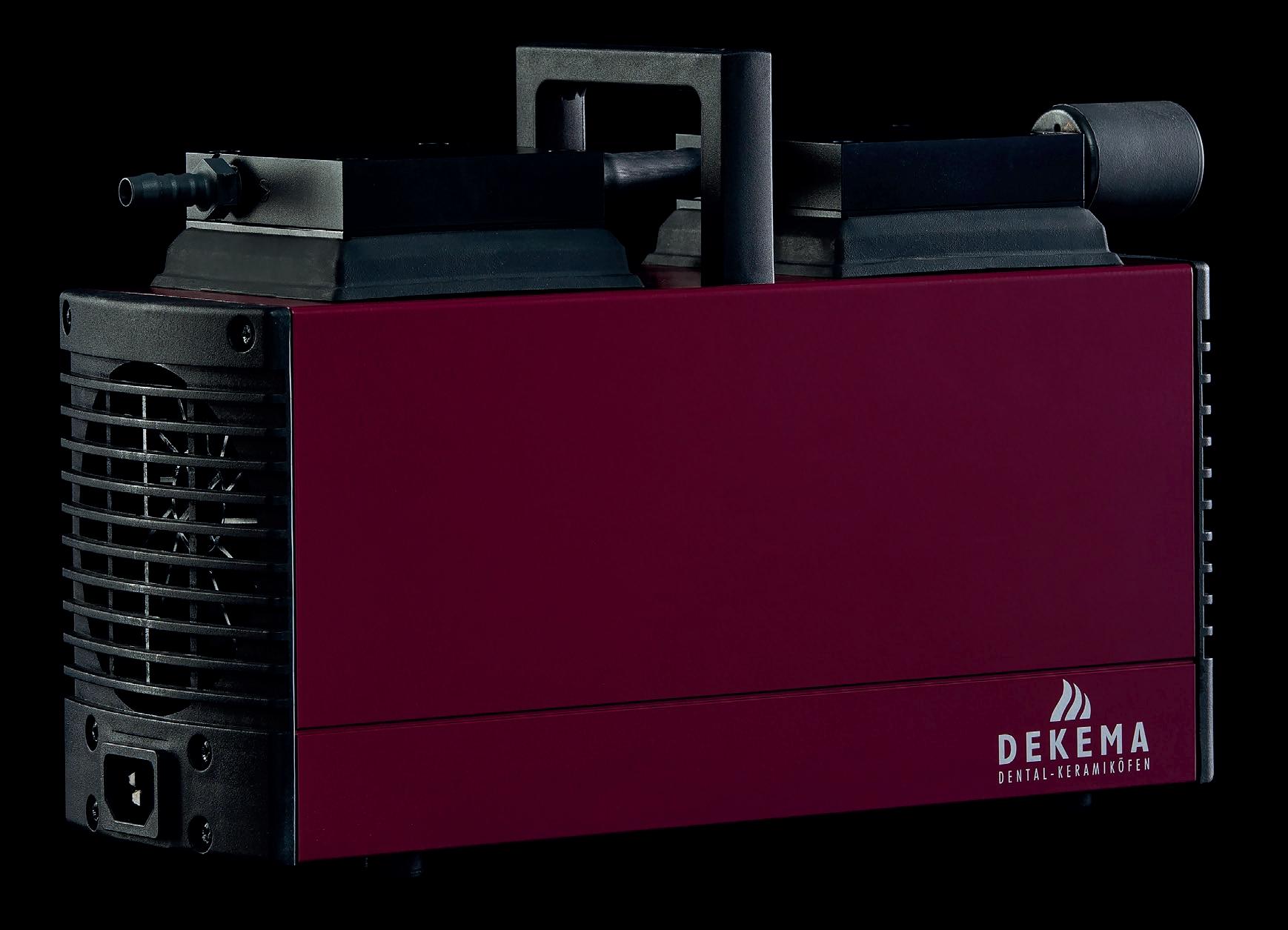

Specific shell DEKEMA. Vacuum pump.
Self-cooling aluminum heads
Low contamination Trenn Coat™ coating
Straight air flow
Low maintenance design
Self-cleaning feature

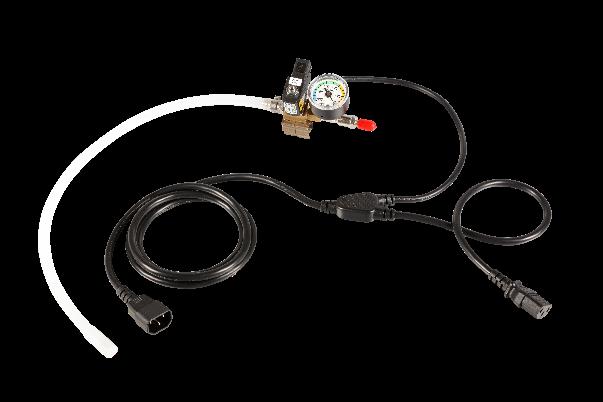

Ventilation Unit for AUSTROMAT™ 220

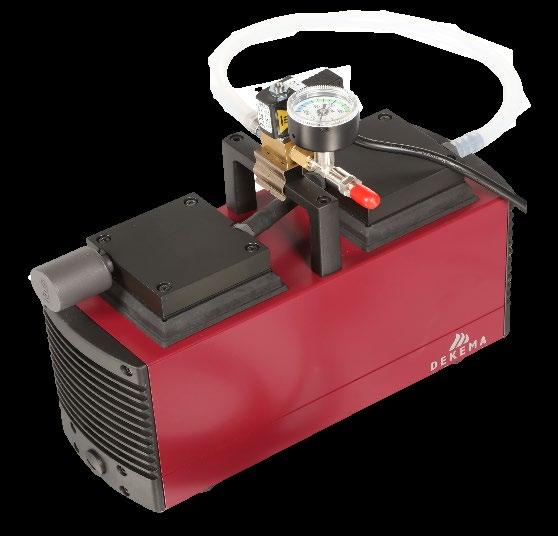

The AUSTROMAT™ 220 is equipped with a vacuum firing chamber. A ventilation unit is required to operate the furnace with an optional vacuum pump. This ventilation unit has been redesigned. From July 1st, 2023, it will be additionally equipped with a pressure gauge. The pressure gauge is connected to the vacuum chamber. The analogue display of the manometer allows a permanent reading of the actual vacuum inside the firing chamber.
Despite the increased functionality, we have managed to keep the price of the ventilation unit stable.
Article number Description MSRP (net)
106499-01
106500-01
Ventilation unit AUSTROMAT 220 100V / 115V € 200
Ventilation unit AUSTROMAT 220 230V € 200
Every AUSTROMAT™ 220 can be retrofitted for vacuum operation. All you need is the ventilation unit and a vacuum pump. Please comply to our technical specifications for a suitable vacuum pump. Unfortunately, DEKEMA cannot provide any technical or application support if the furnace is operated with a vacuum pump from another manufacturer.
Orders of AUSTROMAT™ 220 which include a DEKEMA vacuum pump, receive the associated ventilation unit free of charge
AUSTROMAT™ 220 UPGRADE
Even more functionality
FromJanuary 1, 2023, all AUSTROMAT™ 220units willbedelivered with an extended range of functions, recognizable by the new software version c001.003.000, or c01.03 for short.

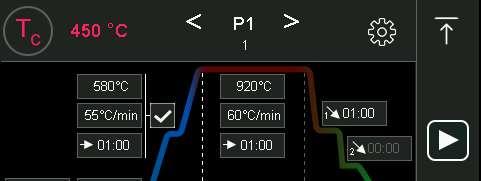

The furnace has been extended by an additional heating ramp and a holding time during the heating phase. A delayed vacuum switch-on point with an upstream holdingtime without vacuum can also be programmed through this intermediate stage, which, according to the manufacturer, significantly simplifies the processing of structural compounds in particular.
The additional temperature level canbe activated by selecting the checkbox
In addition, the clarity of the graphical display after program startup has been optimized.
Only parameters that are processed are displayed.
DEKEMA. Software Features.
DEKEMA Internet database access for registered users
DEKEMA Internet database furnace connectivity
Internet program streaming
Cloud: Data management in the DEKEMA Circle
IoT (Internet of Things: If the DEKEMA furnace is registered in the DEKEMA online portal, the user benefits from a secure backup of the process data and a fast service to minimize downtime.)
iDREAM: VNC-Viewer for remote control
X-DREAM: Computer program for querying the furnace state and emailing QM data
QM (quality management): Record of process files
USB: Transferring firing programs (dds)
USB: Transferring fotos (jpeg)
USB: Storage of QM files (dfl)
USB: Storage of Printouts
USB: Backup / Update
