ARTICULATORS
Baumann Dental GmbH

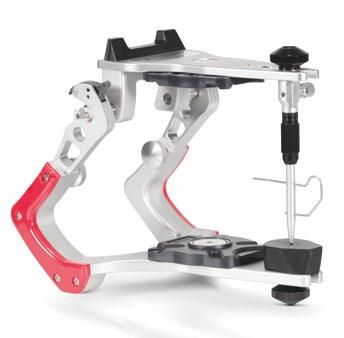

Arto XP
Baumann Dental presents the Arto XP non-arcon articulator series with four different models in different expansion levels: with adjustable bennett angle, with fixed or adjustable condylar path inclination and optionally with a sideshift module, which was designed to save space and to unblock the user's view.
The well thought-over and attractive design of the Arto® XP series allows a very pleasant positioning angle of the mounted models when the articulator is tilted and is also stable when mounted overhead. A world first in articulator construction is the standard use of condyle balls made of a high-tech polymer, which is often used in aerospace technology. The self-lubricating material is extremely low-wear and protects the axes and condylar tracks.
Arto XP 2
The basic model of the Arto XP series:
> pleasant handling thanks to ergonomic design
> stable and durable all-aluminum construction
> three tilt-proof working positions
> practical centric quick-release fasteners
> micro-adjustable guide pin
> many accessories available
> Artex* compatible
Compatible with the following articulators: Amann Girrbach Artex* (corresponds to model CN)
Suitable for mounting the following magnetic plate systems:
> Adesso Split Set - Artex* – Arto
> Adesso Multisplit Set - Artex* – Arto
> Splitex with compatible magnet plates- Artex* / Arto
> Quicksplit Set - Artex* / Arto
Arto XP 2s Sideshift
The basic model of the Arto XP series: with immediate sideshift function
> pleasant handling thanks to ergonomic design
> stable and durable all-aluminum construction
> three tilt-proof working positions
> practical centric quick-release fasteners
> micro-adjustable guide pin
> many accessories available
> Artex* compatible
Compatible with the following articulators:
Amann Girrbach Artex*
(corresponds to model CN with immediate side shift function )
Suitable for mounting the following magnetic plate systems:
> Adesso Split Set - Artex* – Arto
> Adesso Multisplit Set - Artex* – Arto
> Splitex with compatible magnet plates- Artex* / Arto
> Quicksplit Set - Artex* / Arto partnumber BA11000412
Setup Non-Arcon
Artex*-compatibility Modell CN
Zentricclosure yes
Condyle Balls Polymer
Changeable Bennet-Angle 0° to 20°
Fix Condyle-Angle + 35°
Anterior guide shifter 0° mounted)
Basic equipment: Adesso Multisplit Junior magnetic plate system - screw version, is not suitable for synchronization
Anterior guide pin adjustable
Micro-adjustable anterior guide pin ± 6 mm
45° - Integrated table support
Partnumber
Artex*-compatibility Zentric closure
Changeable Bennet-Angle
Anterior guide shifter
Basic equipment: Adesso Multisplit Junior magnetic plate system - screw version, is not suitable for synchronization
Anterior guide pin
- Integrated table support
Arto XP 3
The partially adjustable model of the the new Arto XP articulator series:
> pleasant handling thanks to ergonomic design
> stable and durable all-aluminum construction
> three tilt-proof working positions
> practical centric quick-release fasteners
> micro-adjustable guide pin
> many accessories available
> Artex* compatible
Compatible with the following articulators: Amann Girrbach Artex* (corresponds to model CT)
Suitable for mounting the following magnetic plate systems:
> Adesso Split Set - Artex* – Arto
> Adesso Multisplit Set - Artex* – Arto
> Splitex with compatible magnet plates- Artex* / Arto
> Quicksplit Set - Artex* / Arto
Partnumber Setup
Artex*-compatibility
Zentric closure
Condyle Balls
Changeable Bennet-Angle
Fix Condyle-Angle
Anterior guide shifter 0° (mounted)
Basic equipment: Adesso Multisplit
Junior magnetic plate system - screw version, is not suitable for synchronization
Anterior guide pin adjustable
Micro-adjustable anterior guide pin
Arbitrary pins
Arto XP 3s Sideshift
The partially adjustable model from the new Arto XP articulator series with immediate sideshift function:
> pleasant handling thanks to ergonomic design
> stable and durable all-aluminum construction
> three tilt-proof working positions
> practical centric quick-release fasteners
> micro-adjustable guide pin
> many accessories available
> Artex* compatible
Compatible with the following articulators:
Amann Girrbach Artex*
(corresponds to model CN with immediate side shift function )
Suitable for mounting the following magnetic plate systems:
> Adesso Split Set - Artex* – Arto
> Adesso Multisplit Set - Artex* – Arto
> Splitex with compatible magnet plates- Artex* / Arto
> Quicksplit Set - Artex* / Arto
Partnumber
Setup
Artex*-compatibility
Zentric closure
Condyle Balls
Changeable Bennet-Angle
Fix Condyle-Angle
Anterior guide shifter 0° (mounted)
Basic equipment: Adesso Multisplit
Junior magnetic plate system - screw version, is not suitable for synchronization
Anterior guide pin adjustable
Micro-adjustable anterior guide pin
Arbitrary pins
Modell
ISS ( mmediate Sideshift) 2 x 1,0 mm
CN Sideshift
Modell CT
ISS
2
1,0 mm yes yes yes yes
(Immediate Sideshift)
x
Setup Non-Arcon
yes
Polymer
Condyle Balls
0°
20° Fix
to
Condyle-Angle + 35°
adjustable
± 6 mm 45°
yes yes yes yes
Micro-adjustable anterior guide pin
0° (mounted) BA11000413
yes Polymer 0° to 20° + 35° ± 6 mm yes yes yes BA11000414
support yes yes Modell CT - Sydeshift
Non-Arcon
45° - Integrated table
Non-Arcon yes Polymer 0° to 20° + 35° ± 6 mm yes yes yes BA11000415
- Integrated table support yes yes
45°

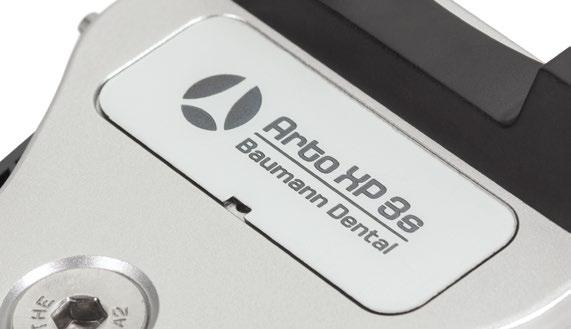

Your personal Arto XP
The nameplates of the XP articulators are interchangeable. We would be happy to supply you with laser-marked signs, designed according to your wishes, for example with your company logo - ask us!

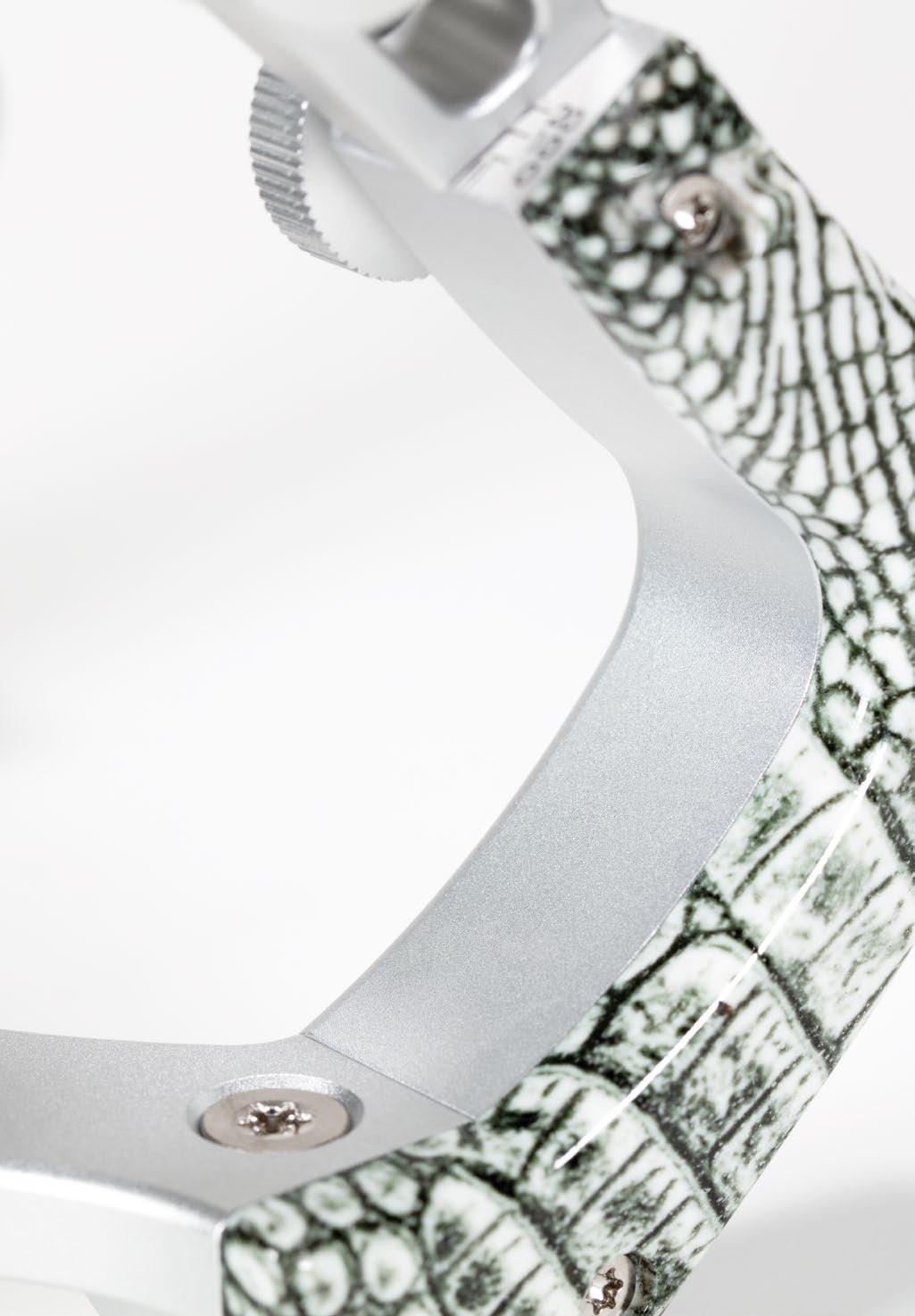

Individual side shells
Let your imagination run wild and customize your Arto XP articulators: Replace the pre-assembled ones with your desired handles! We offer you a large selection of different decors.
The decors are extremely resistant; they survived our tests with various monomers without any damage. Unfortunately, we cannot guarantee that they will withstand all chemicals used in the dental laboratory.
You can ask for spare parts for the Arto XP or individual side shells any time!

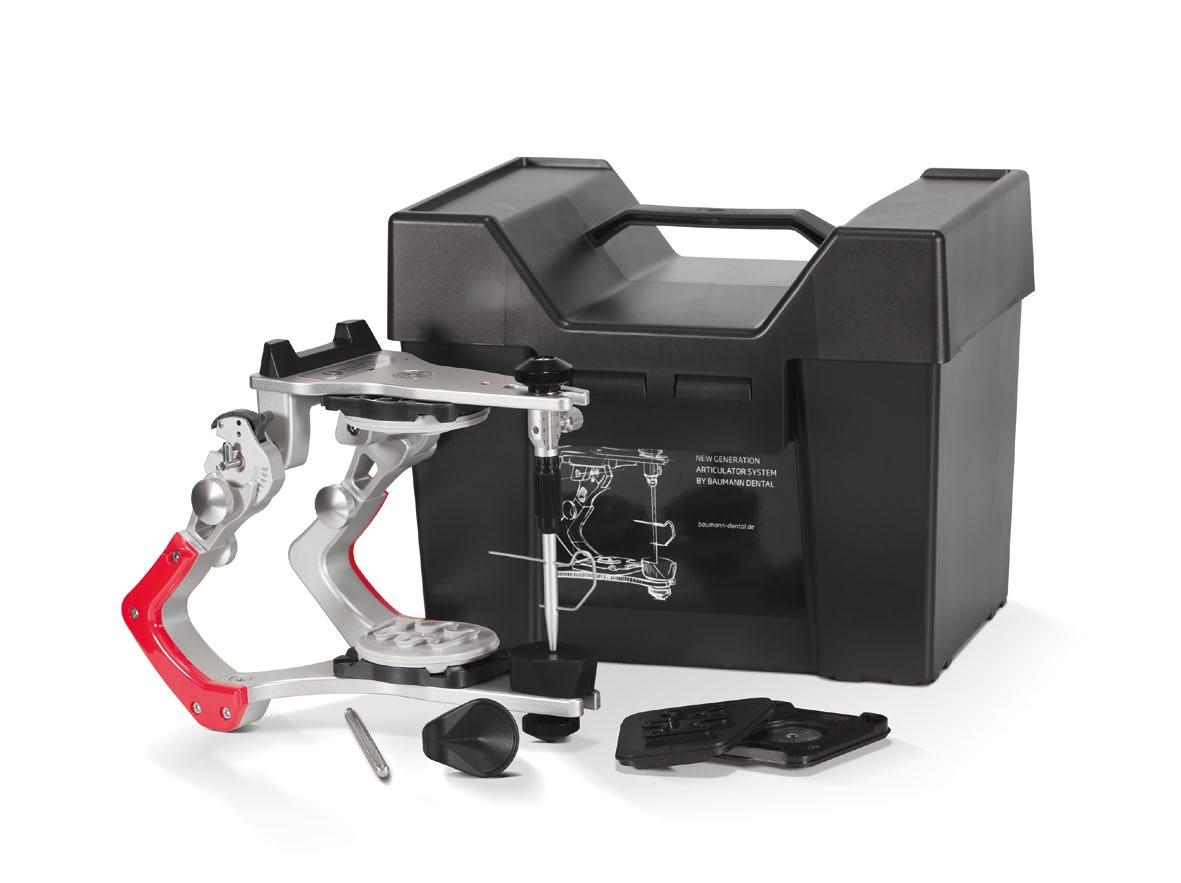

Arto XP full delivery Kit
