Quality Specifications My White Resort

MEMORIA DE CALIDADES QUALITY SPECIFICATIONS

DECK

AEROTHERMAL ENERGY

Non-trafficable terrace with waterproofing and insulation, finished with artificial grass.

System for the production of domestic hot water.

ORIENTATION

EXTERNAL JOINERY

The orientation of the dwellings and their interior spaces is planned to enhance energy efficiency in terms of heating and cooling.

Black lacquered aluminium joinery with thermal break. Double glazing. Shading system in bedrooms with blinds in the same colour as the aluminium frames, featuring an insulated shutter box.

FACADE Brick facade with thermal insulation, coated with monocapa render and combined with other materials.

THERMAL INSULATION Thermal insulation in walls.

LED lighting throughout the dwelling Lighting of the dwelling with LED light fixtures.

ELEVATORS Low-energy elevators, with frequency converters for energy savings during starts and stops.

LED LIGHTING IN COMMON AREAS Lighting of common areas with LED light fixtures and presence detectors.

BUILDING ENVELOPE

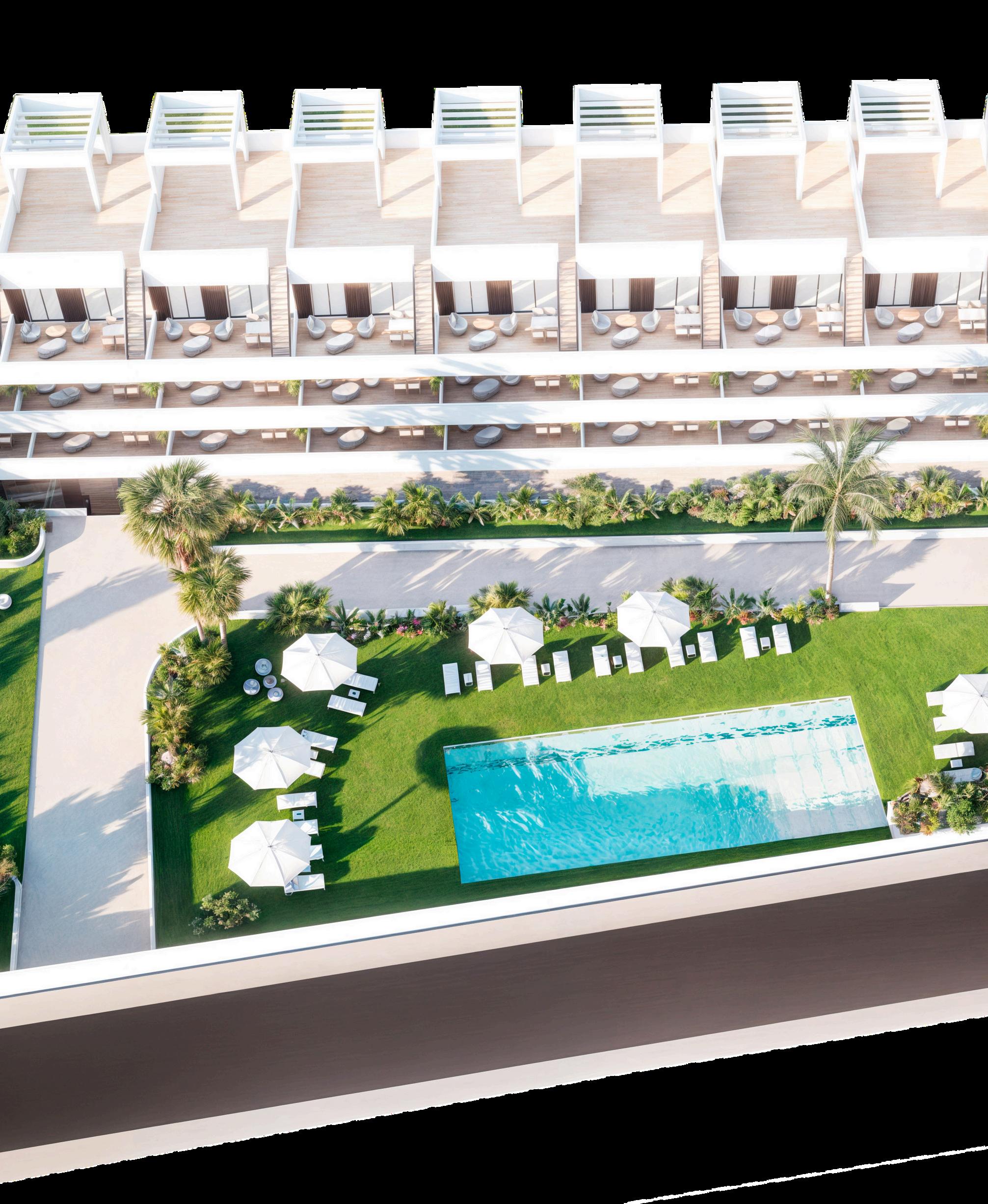

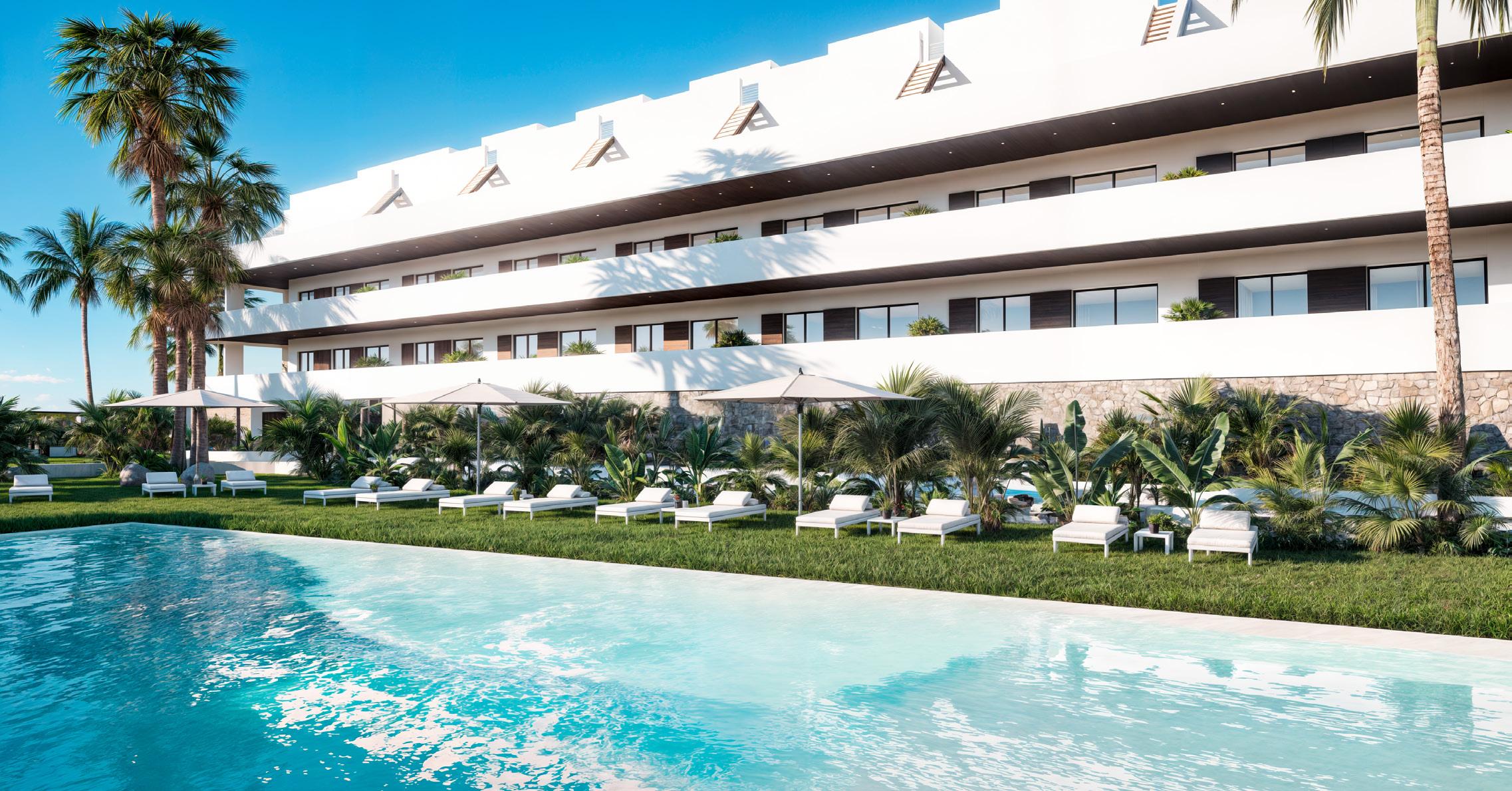

Enjoy peace and tranquility with its three landscaped communal swimming pools, surrounded by a wide variety of vegetation.

Biomechanics and calisthenics area.

Communal paddle tennis court.

Electric vehicle charging points.

The resort's playground features a play area for young children.

Security and CCTV.

CEILING, WALLS AND FLOORING

CEILING Plasterboard panel with PLADUR system. Finished with white plastic paint.

WALLS White plastic paint finish.

FLOORING Bolzano Natural porcelain tiles. The same model with a non-slip finish for the terrace.

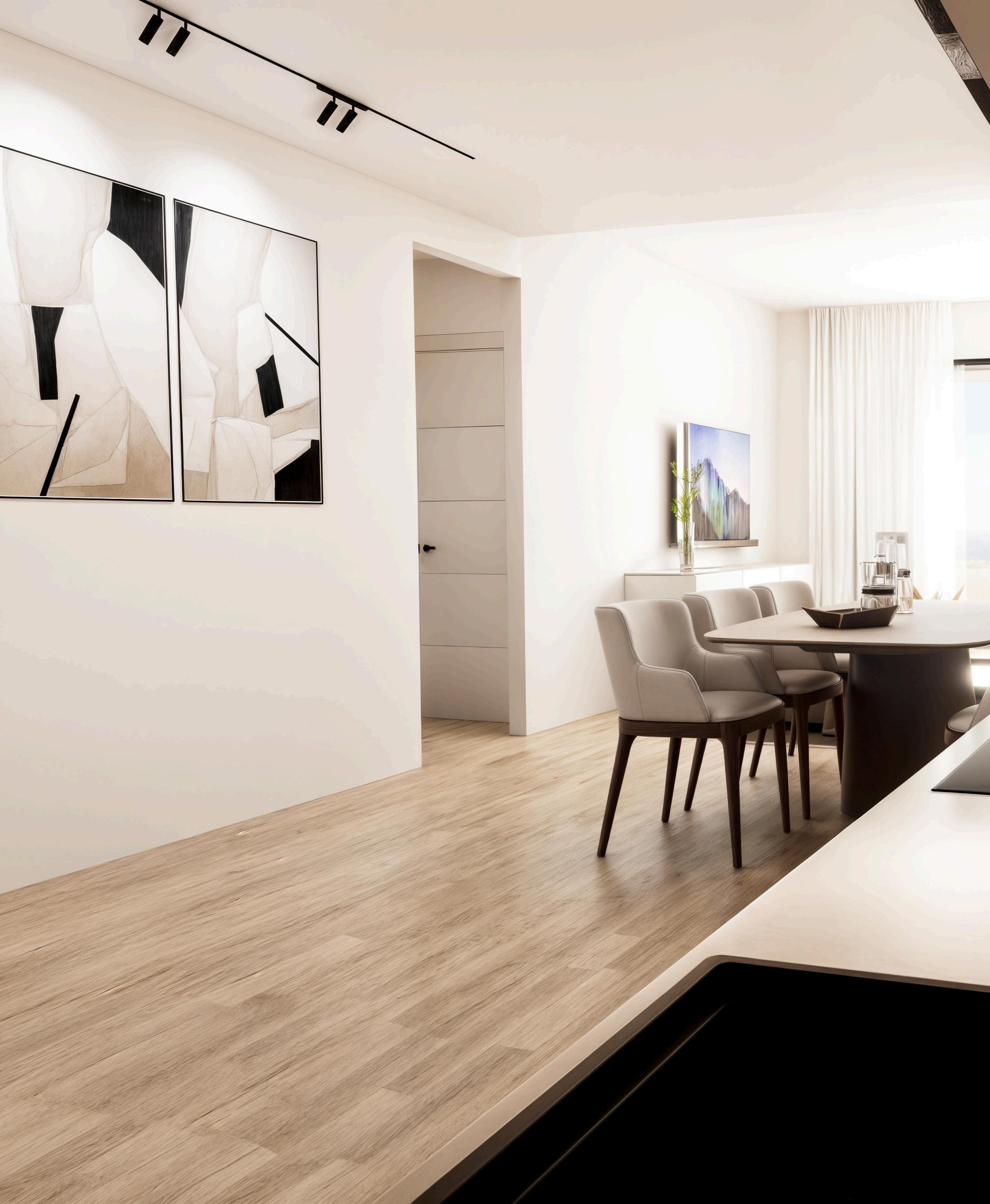

INTERIOR OF THE DWELLING

MASTER BATHROOM

SECONDARY BATHROOM

Tiling: Suite Abbey Oak 30x90.2 cm matte, rectified finish.

Tiling: Le Blanc 40x120 cm gloss, rectified finish.

Tiling: Weekend White 30x90.2 cm matte, rectified finish.

Flooring: Bolzano Natural porcelain tiles. The same model with a non-slip finish for the terrace.

Flooring: Bolzano Natural porcelain tiles. The same model in a non-slip finish for the terrace.

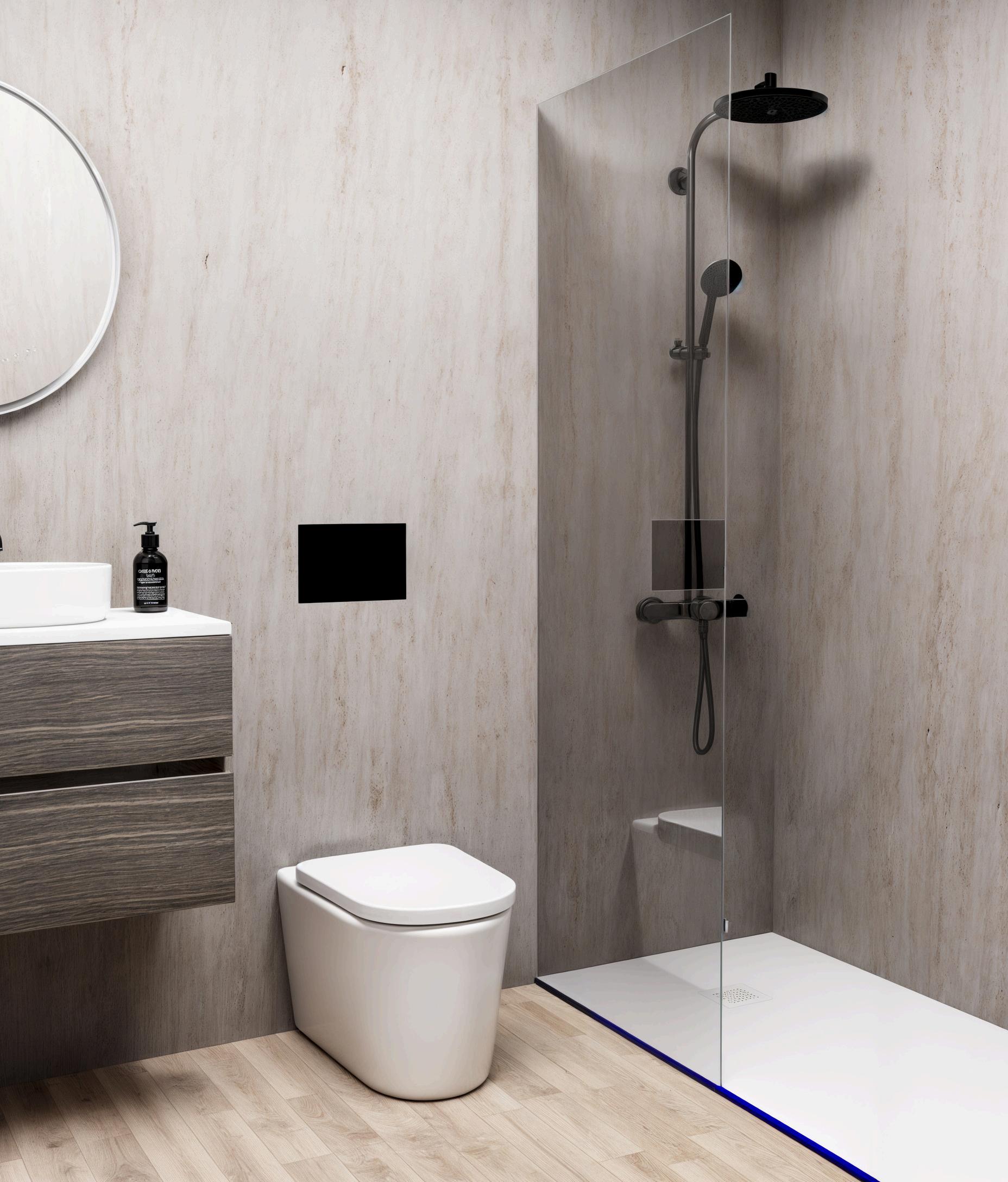

BATHROOMS

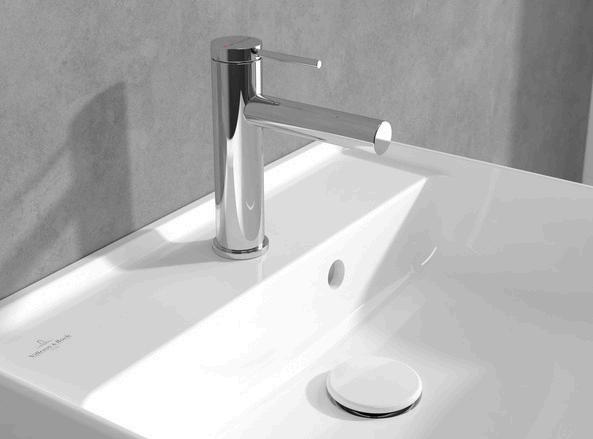

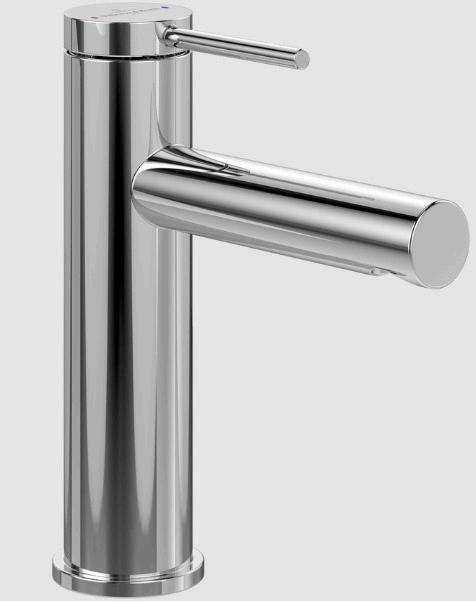

TAPS Loop series, chrome finish

CEILING OR WALLMOUNTED TAPS Loop series, chrome finish

WALL-HUNG TOILET Architectura deep bowl rimless toilet

TAPS AND SANITARY FIXTURES

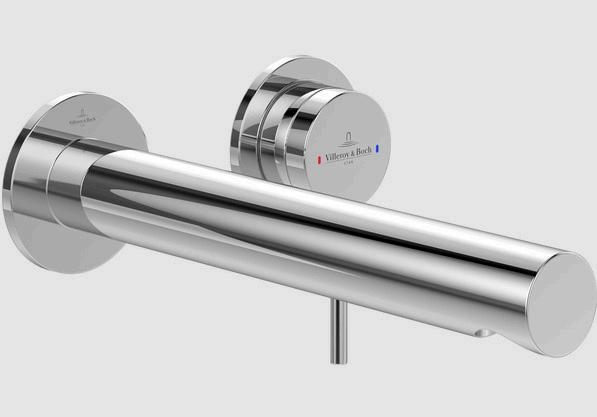

RECESSED CEILING OR WALL TAPS Loop series, chrome finish

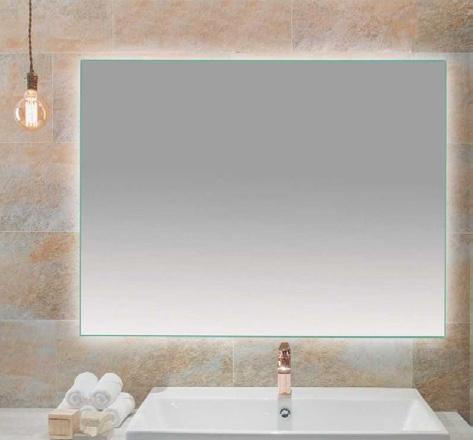

Backlit mirror

DAKOTA 80X45 CABINET Cabinet with dark Dakota front and matte white sides. Ducatti rails in drawers and built-in ceramic countertop

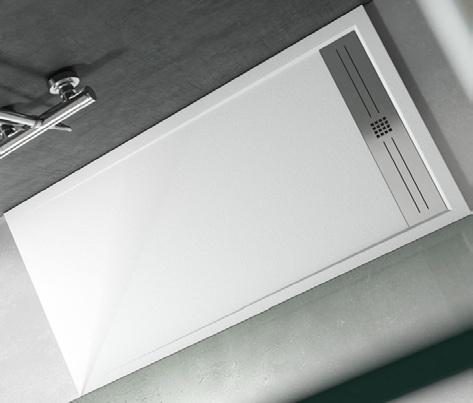

SHOWER TRAYS 160x80 shower tray, Élite model, white color with slate texture and chromecolored grate

CEILING, WALLS AND FLOORING

CEILING Plasterboard panel with PLADUR system. Finished with white plastic paint.

WALLS Tiling with Le Blanc 40x120 cm gloss tiles, rectified finish.

FLOORING Bolzano Natural porcelain tiles. The same model with a non-slip finish for the terrace.

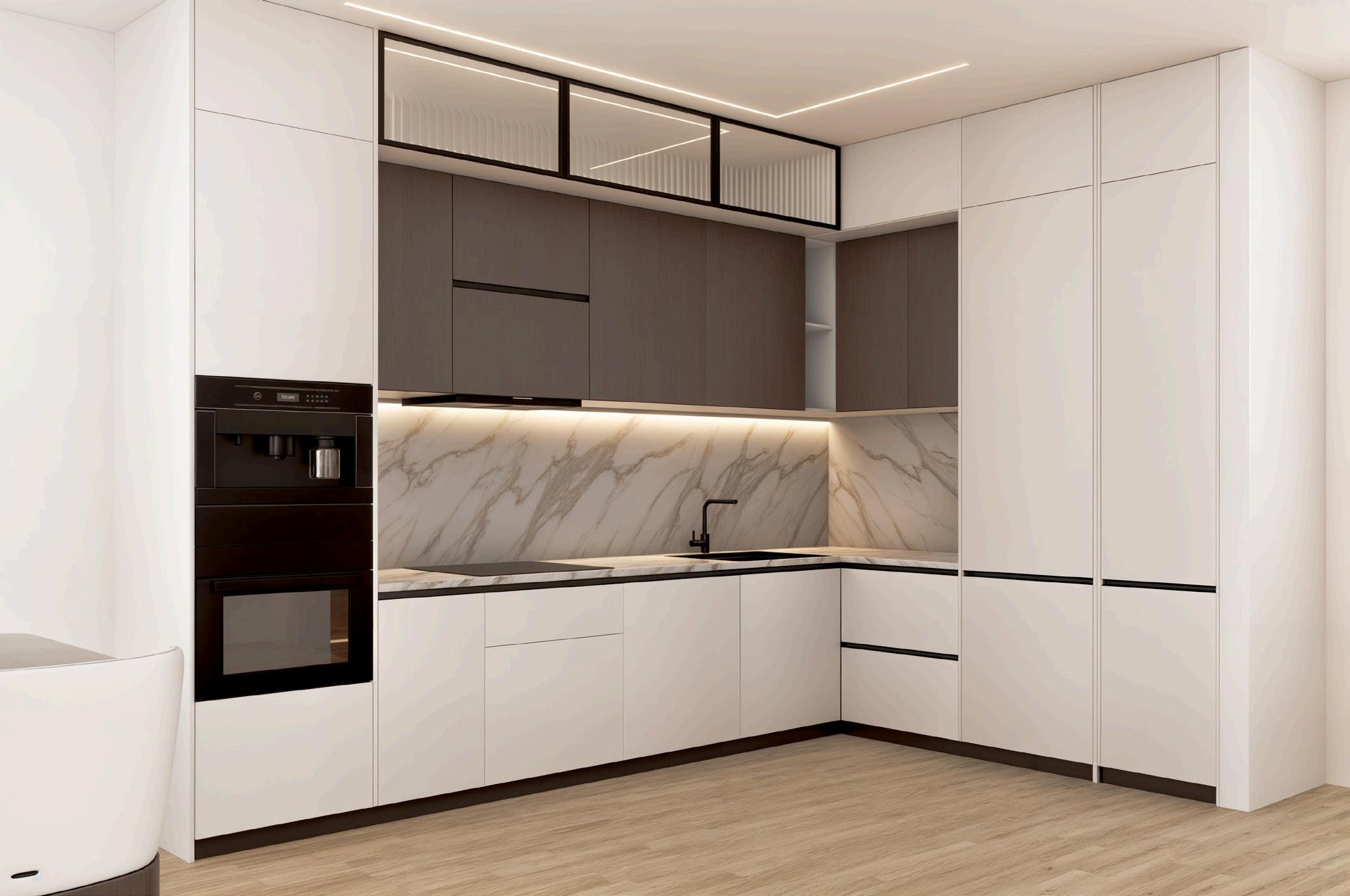

KITCHEN

ENTRANCE DOOR Modern design, lacquered in white, reinforced, single leaf, with 3-point locking system. Fitted with a security lock and anti-drill shield on the exterior.

Equipped with a handle, lever, and peephole.

INTERNAL DOORS Hinged doors lacquered in white with a lever handle. A lock will be installed on the bathroom doors.

JOINERY

WARDROBES In the bedrooms, a wardrobe front will be installed with flat, hinged doors, lacquered in white, and internally lined with white melamine finish, including a luggage shelf and hanging rail.

PLUMBING The interior water supply system for cold and hot water will be made with crosslinked polyethylene pipes, with insulation on the hot water pipes and a shut-off valve in each wet room.

SANITATION The waste and drainage system for the dwellings will be made with PVC. All fixtures will have individual traps or accessible siphonic traps.

VENTILATION Ventilation in the living areas will be carried out by mechanical means, with an extraction system for wet rooms. This system, through a network of ducts, will extract stale air from bathrooms and the kitchen, while providing fresh air to dry rooms through air vents or grilles located in the window frames. An independent duct will be provided for all kitchen extraction hoods, leading to the roof.

ELECTRICAL SYSTEM AND TELECOMMUNICATIONS The electrical installation will be designed with a high degree of electrification, to meet current demand and allow for future expansion of systems or technologies.

Video door entry system.

Telecommunications installation with RJ45 sockets and TV outlets in the living room and bedrooms, according to the telecommunications project.

INSTALLATIONS
