Quality specifications Las Villas

MEMORIA DE CALIDADES

QUALITY SPECIFICATIONS

ROOF Non-accessible terrace, waterproofed and insulated, finished with artificial grass.

EXTERNAL CARPENTRY Lacquered black aluminium carpentry with thermal break.

Double glazing.

ORIENTATION Orientation of the dwellings and their interior spaces, designed to optimize climate control needs.

Shading system in bedrooms with blinds of the same color as the aluminium profiles, with insulated blind box.

FACADE Brick facade with thermal insulation, coated with monocapa mortar combined with other materials.

THERMAL INSULATION Thermal insulation in walls.

LED LIGHTING ethorughout the house.

AEROTHERMAL ENERGY System for the production of domestic hot water.

BUILDING ENVELOPE

CELLING, WALLS AND FLOORING

ROOF Gypsum plasterboard with Pladur system and finished with white plasctic paint.

WALLS Plastic paint in white color.

FLOORING Porcelain flooring, Bolzano Natural model. On the terrace, the same model with non-slip finish.

INTERIOR OF THE HOUSE

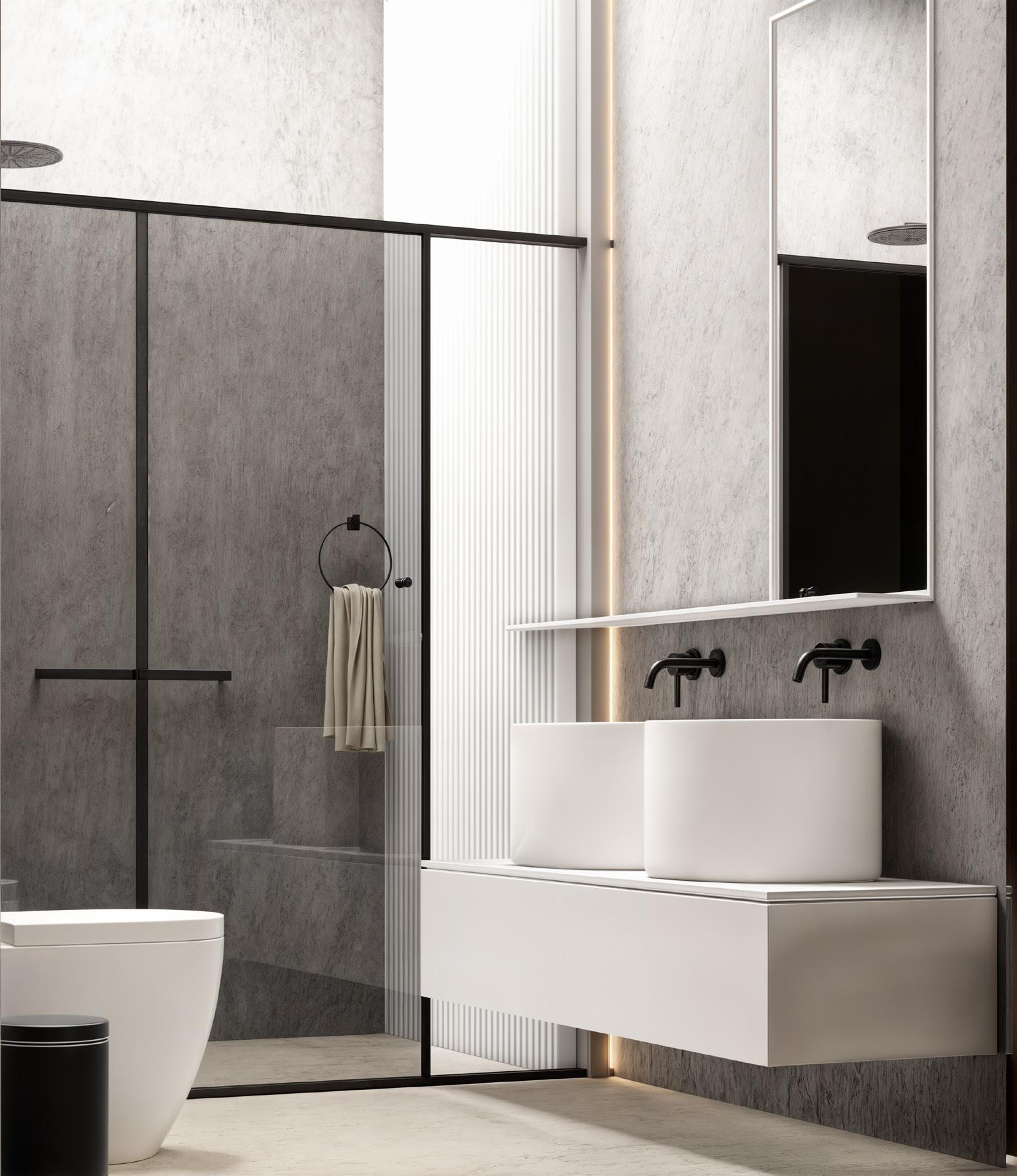

MASTER BATHROOM

SECONDARY BATHROOM

Suite Abbey Oak 30x90.2 cm matte, rectified finish

TILING Le Blanc 40x120 cm glossy, rectified finish

Tiling Weekend White 30x90.2 cm matte, rectified finish

FLOORING Porcelain flooring, Bolzano Natural model. On the terrace, the same model with non-slip finish

BATHROOMS

FLOORING Porcelain flooring, Bolzano Natural model. On the terrace, the same model with non-slip finish

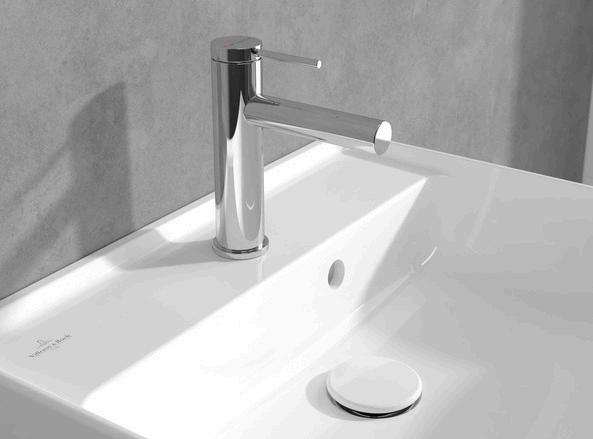

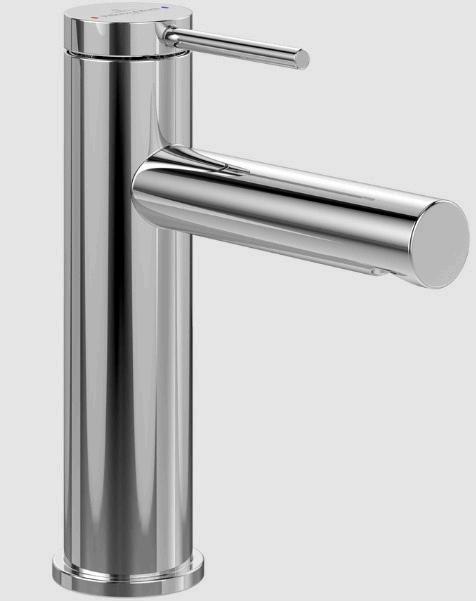

TAP AND FAUCETS Loop series, chrome finish

CEILING-MOUNTED Loop series, glossy chrome finish

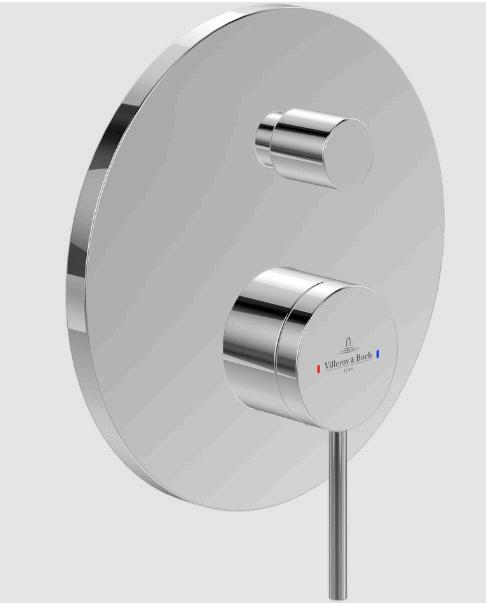

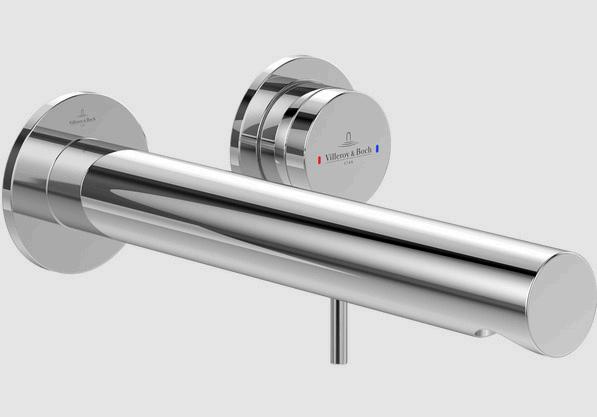

CEILING-MOUNTED OR WALLMOUNTED CONCEALED FAUCETS Loop series, glossy chrome finish

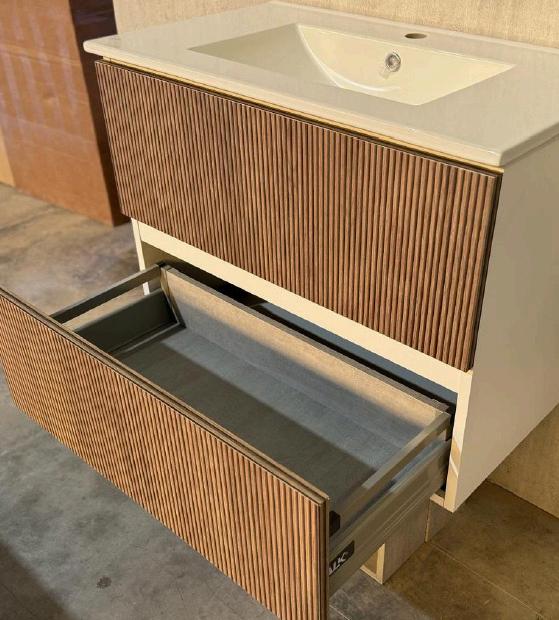

DAKOTA 80X45 CABINET Cabinet with dark Dakota front and matte white sides. Ducati rails in drawers and integrated ceramic countertop. integrated ceramic countertop

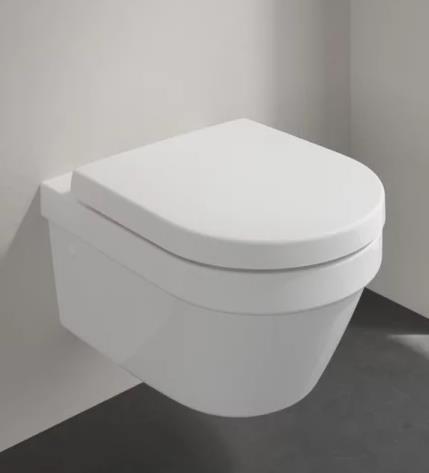

SUSPENDED TOILET Architectura deep-flush rimless toilet

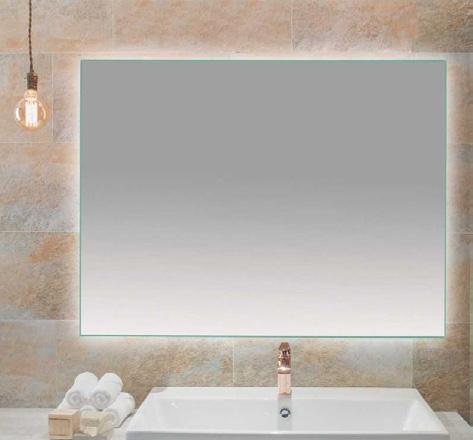

BACKLIT MIRROR

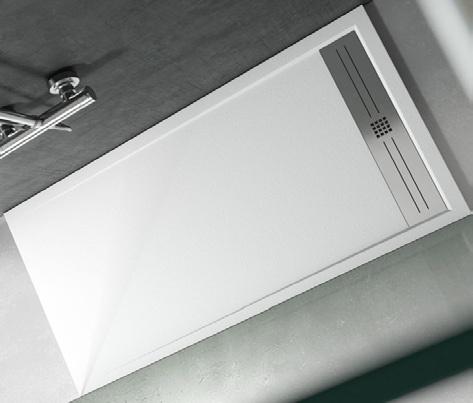

SHOWER TRAY 160X80 Elite model, white color with slate texture and chromecolored drain cover

FAUCETS AND SANITARY WARE

CELLING, WALLS AND FLOORING

CEILING Gypsum plasterboard with PLADUR system. Finished with white plastic paint.

WALLS Tiling of walls with Le Blanc model 40x120 cm glossy, rectified finish.

PORCELAIN FLOORING Bolzano Natural model.

On the terrace, the same model with non-slip finish.

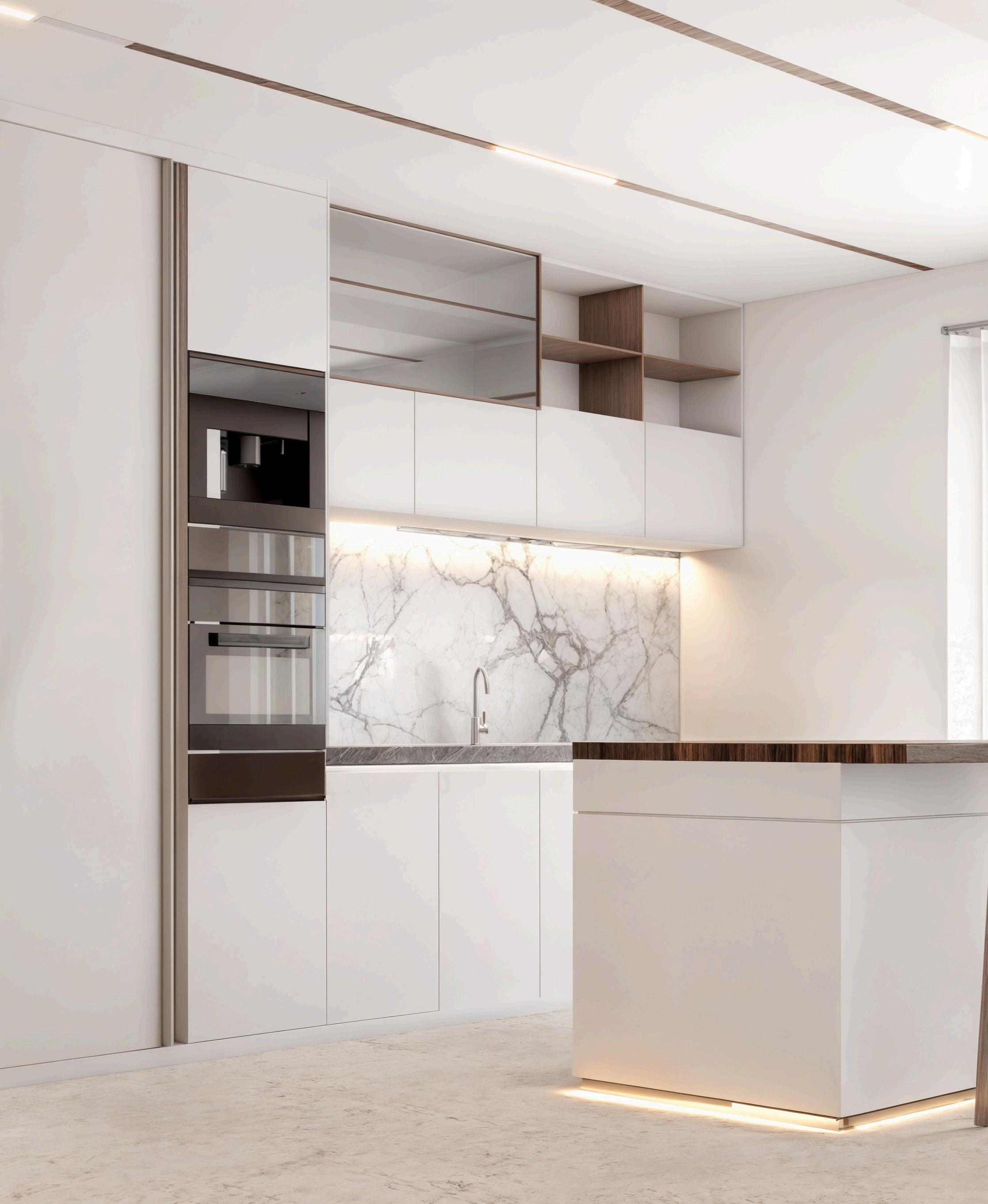

KITCHEN

ENTRANCE DOOR Modern design, lacquered in white, armored, single leaf, with 3-point locking system. Fitted with a security lock with anti-drill shield on the outside. Includes knob, handle, and peephole.

PASS DOORS Swing doors lacquered in white with handles. A lock will be installed on the bathroom doors.

WARDROBES In the bedrooms, a wardrobe front will be created with smooth, hinged doors, lacquered in white and internally covered with melamine in white finish, with a luggage shelf and hanging rod.

CARPENTRY

PLUMBING The interior plumbing installation for cold and hot water will use cross-linked polyethylene piping with insulation on the hot water pipes and shut-off valves in each wet room.

SEWAGE The downspout and drainage network for the houses will be made with PVC. All fixtures will be equipped with individual traps or accessible siphon bottles.

VENTILATION The ventilation of the rooms in the houses will be carried out through mechanical means, with a system of extraction from wet rooms.

A network of ducts will extract stale air from bathrooms and kitchens, with air supply to dry rooms via ventilators or grilles placed in window frames.

Separate duct for all kitchen extractor hoods leading to the roof.

ELECTRICITY AND TELECOMUNICATIONS The electrical installation will be designed with a high degree of electrification, ensuring current demand needs and future expansion for systems or technology.

Video door phone system.

Telecommunications installation with RJ45 sockets and TV connections in the living room and bedrooms as per the telecommunications project.

INSTALLATIONS
