Breakthrough engineering for a better world
We create solutions for our customers which enable smarter, safer, more productive and sustainable factories, production lines and warehouse operations. Our pneumatic and electric motion systems help machine builders and end users around the world automate and optimise manufacturing and warehousing processes.
We have partnered with customers in industrial automation for over a century, applying our experience and innovation to create lasting value for their businesses. Our solutions support critical industries such as automotive, food and beverage, pharmaceuticals and even the space industry. We support the automation of precision manufacturing, product assembly, testing and packaging.
We use the latest digital technologies in our automation products and constantly innovate in close partnership with our customers. By applying our deep expertise, we can solve their toughest automation challenges, today and tomorrow. Through increased productivity, efficiency and safety, our customers can serve their own customers better, creating sustainable competitive advantage and delivering growth.
Our world-class product portfolio includes IMI Norgren, IMI Bimba, IMI Bahr and IMI Buschjost.
Abattoir Technologies
IMI has dedicated over 25 years to meeting the unique needs of the global food and beverage industry, delivering pioneering products and bespoke solutions. Close collaboration with customers, and a search for innovation that offers real Engineering Advantage, has resulted in millions of hours of reliable service from our equipment used in the abattoir industry.
• Robust, rugged and reliable products
• Extensive product portfolio
• Engineering advantage
• Many years of proven field experience
• Fully local technical support
• Added protection for wet and humid environments
• Customised kits and control systems available by application
Protein Processing Overview
Cylinders: PRA, IVAC, RA8000, RM930
1. Stunning and Slaughtering
2. Transfer
3. Dehiding
Hygiene and Cleaning Equipment
Super X series Manual Valves
Air Preparation
Fluid Valves
V60 Solenoid Valves
Valve Islands
4. Carcass Splitting
5. Sorting, Chilling and Storage
Control Cabinet
SS & Cleanline Products
Robust Cylinders
(Knocking Pen/ Meat Tensioning/ Transfer Chain/ Gates/ Sorting)

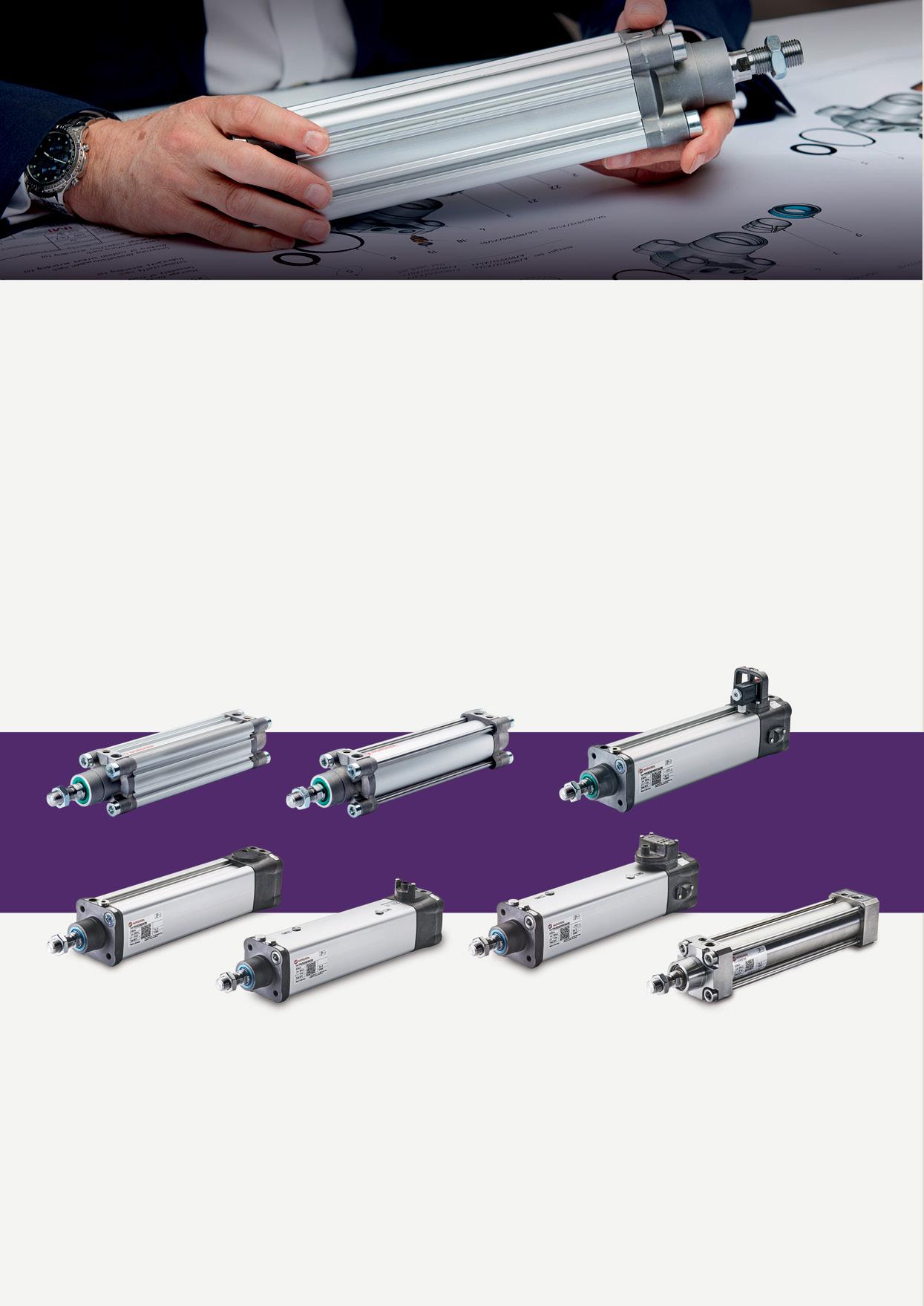

ISOLineTM P PRA/802000
This cylinder’s shaped profile barrel provides a clean appearance and enables direct assembly for flushmounted switches. Comes with Adaptive Cushioning System.
Smoothline PRA/822000
The anodised barrel and end covers, and option of single rear air connection, give this cylinder its smooth profile. Switches can be directly flushmounted to maintain its appearance.
Our full range of ISO standard cylinders offers a cylinder for any application in the abattoir industry be it for the pneumatic door or gate controls for the cattle runs, knocking pen, hyper tensioning the meat, transfer chains or sorting applications.
ISOLineTM R RA/802000
This cylinder is of robust tie-rod construction, ideal for industrial applications. Available in all bore sizes with a wide choice of variants, options, and mountings, it can be adapted to solve the most difficult actuation challenges. Comes with Adaptive Cushioning System.
IVAC Industrial PRA/862000
IVAC (Integrated Valve Actuator Control) incorporates proven valve and flow regulation technologies to reduce energy consumption, weight and installation space. Anodised end covers give additional environmental Protection, and ATEX/IECEx versions are available for hazardous environments.
Cleanline PRA/842000
This cylinder is hygienically designed according to EN1672-2 with an IP67 protection class for washdown in packaging and food applications.
IVAC Cleanline PRA/882000
The pilot valve module maintains the IP67 protection class of the cleanline variant. Customer installation is greatly simplified, with a single M12 connector for the pilot valves and switches, and single air and exhaust ports.
Stainless Steel KA/8000
The most rugged and reliable cylinder for applications in harsh environments and where contact with food requires heavy washdown. It is constructed from AISI303, 304 and 316 and complemented with a range of mountings.

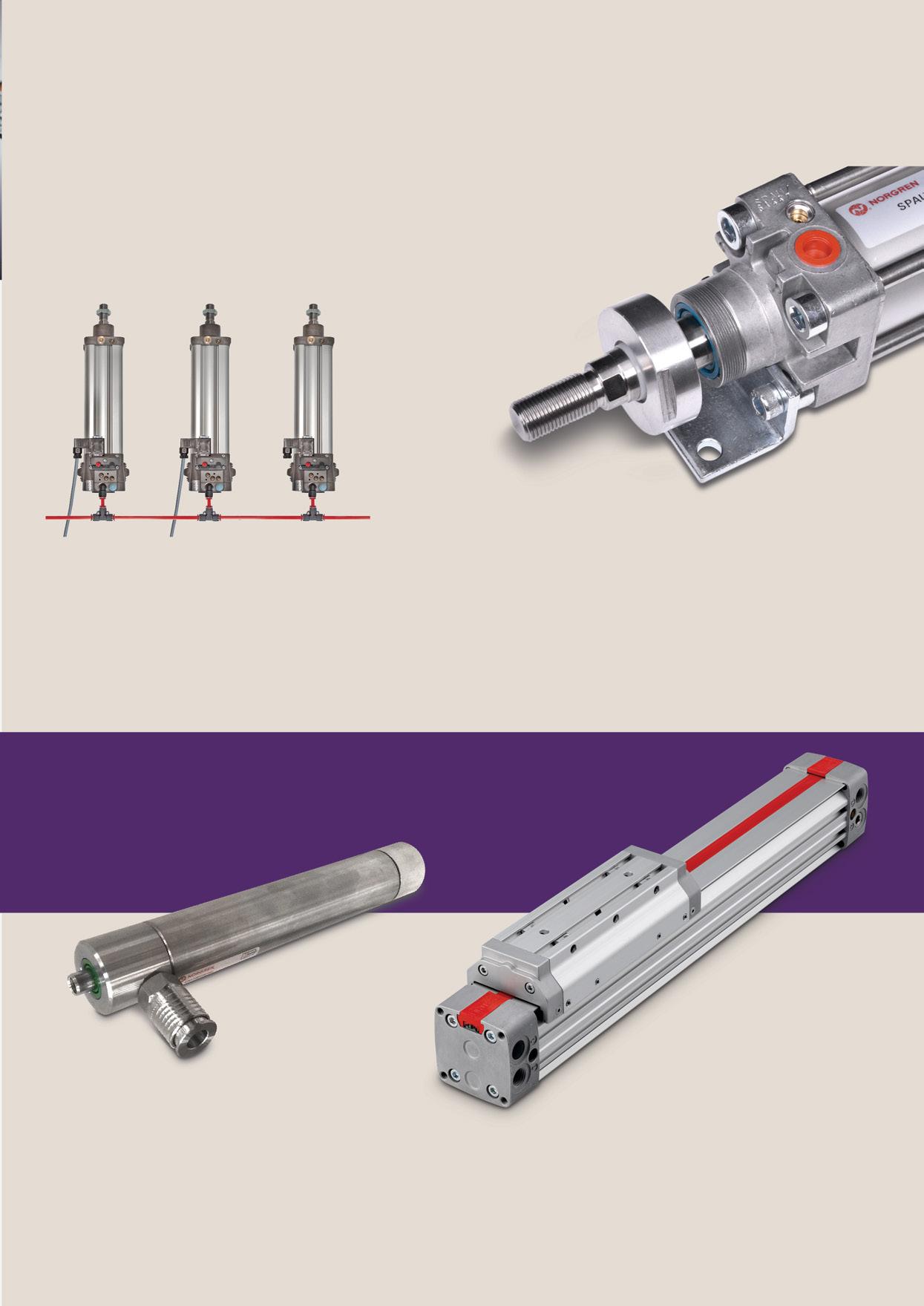

Application Examples
• Full range available for any application including humid and wet environments due to wash down activities
• Spare kits available
• Various mounting options available
Use of the IVAC cylinders means only one air line is required as a main supply line with a junction at each IVAC unit thus removing many metres of existing air lines and reduced installation time. Further advantage’s are a saving in air consumption as the control valve is located directly at the point of use within the IVAC and a decrease in cylinder reaction time. Ideal for sorting applications.
Optional sacrificial nose seal on standard cylinders to protect the primary seal resulting in a longer life of the cylinder.
Use of Pneumatic cylinder to hyper tension meat thereby increasing the quantity of tender high value cuts. The modified cylinder has been designed to eliminate bug traps and coupled with customised hooks to carry out the tensioning operation.

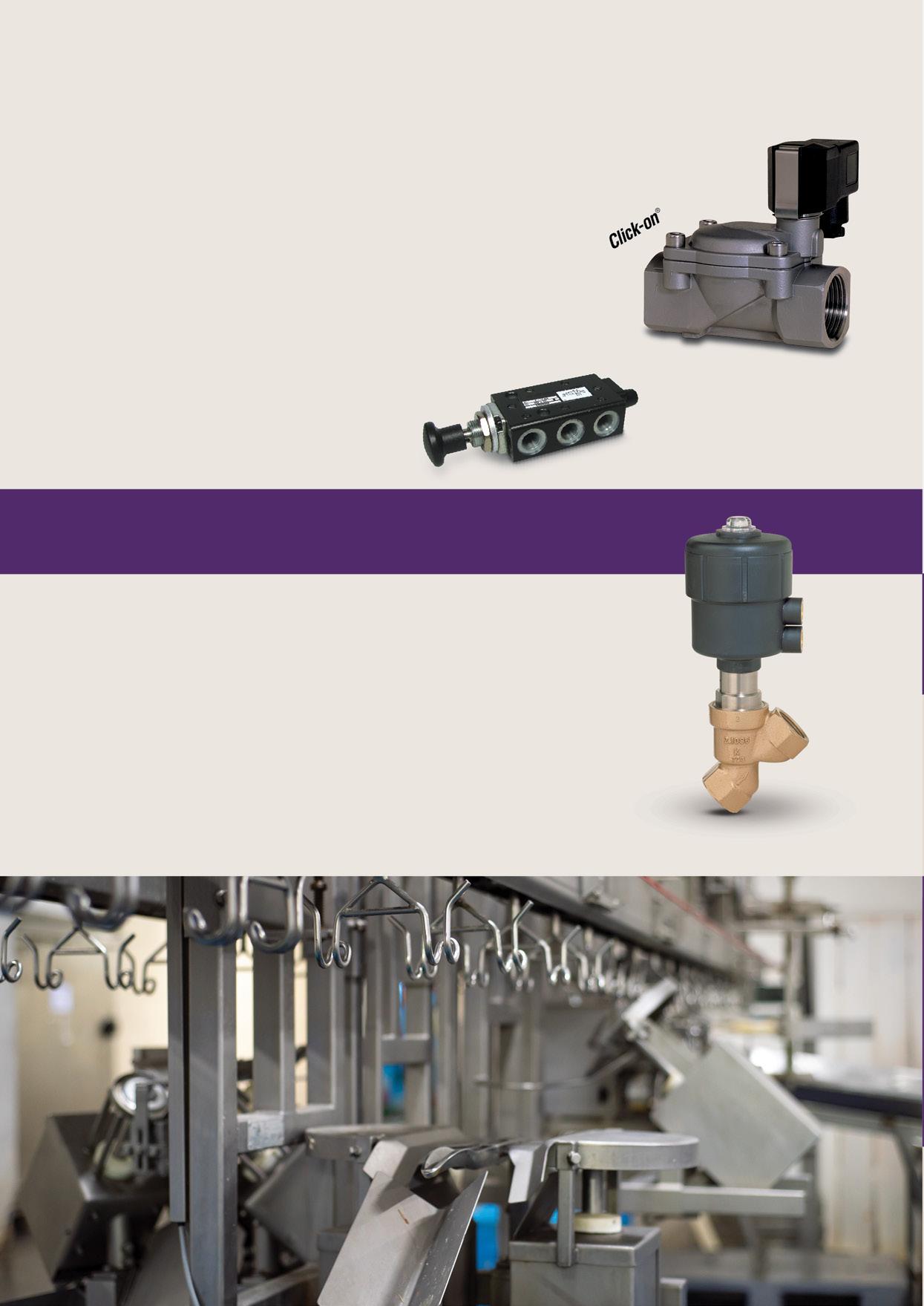

Valves (Blood Processing, Hand Wash Basin, Cleaning and Sterilisation)
A kit is available to replace the common knee wand that you see in most abattoirs. These units consist of a ½” stainless steel IMI Buschjost pilot valve with a Super X valve and fittings and silencers. This design is much better suited to avoid wastage of water as it is tamper proof.
We also have available valves used in the cleaning and sterilization unit and vertical water scalding process for cleaning equipment like hooks and tongs.
• Kits available
• Long life time
• Tamper proof design to avoid wastage
• Reliable product performance
• Range suited for high temperature applications for sterilisation applications
82730/82740 2/2-way Diaphragm Valves
Seat Valve

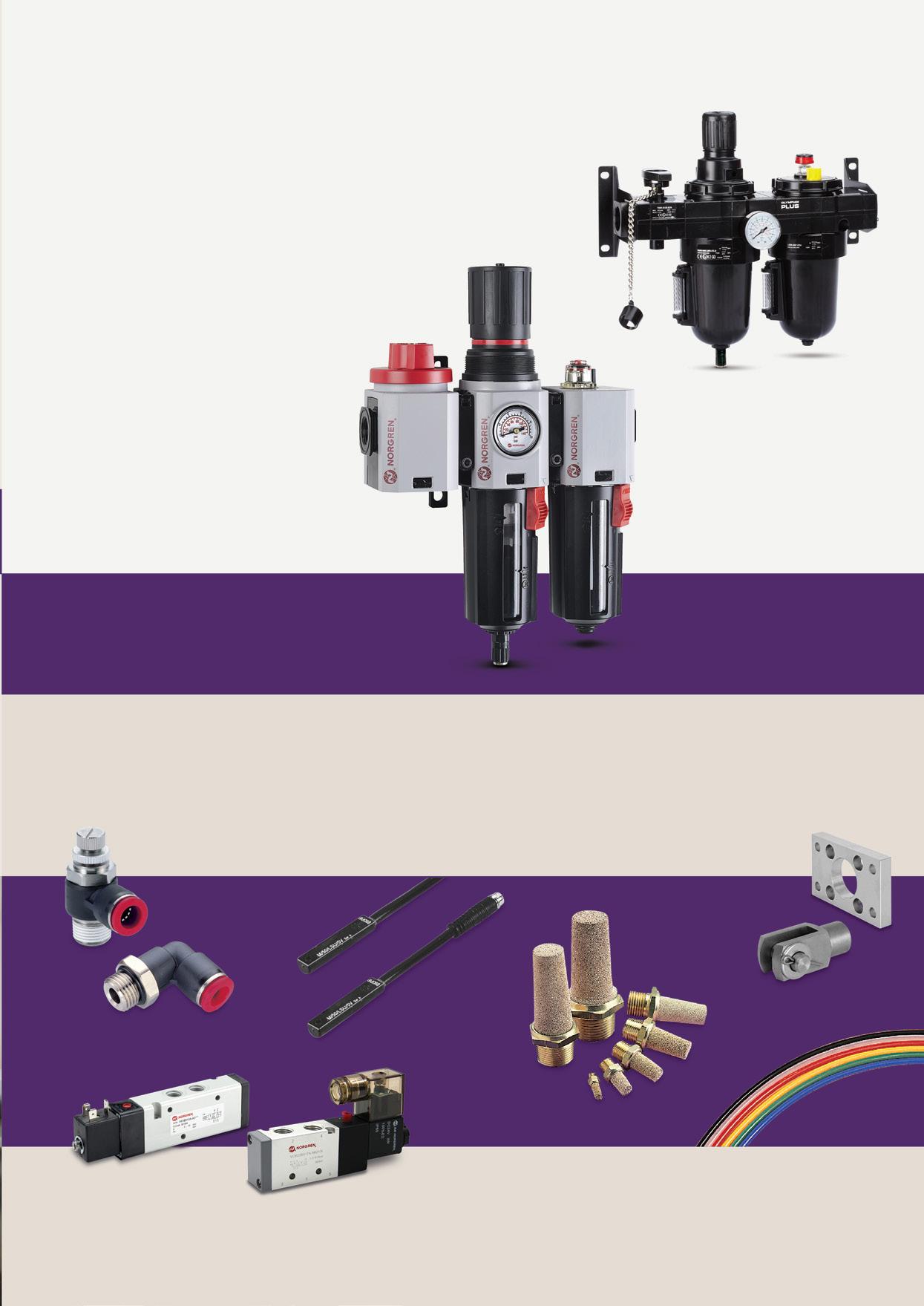

Air Preparation
In 1927, when Carl Norgren invented the automatic airline lubricator, he effectively began the practice of air preparationdelivering air of the right quality to a pneumatic device to enable that device to run at it’s optimum efficiency for the longest possible time, keeping life costs to a minimum. We have continued developing world class air preparation products ever since. Today, our air preparation products are used globally, and are founded on a best in class reputation based on quality, reliability & robustness.
Accessories
Fittings Series
Inline Solenoid Valves
Tubing PA2
Sintered Silencer
Switches
Mountings
Olympian Plus Series
Excelon® Plus Series

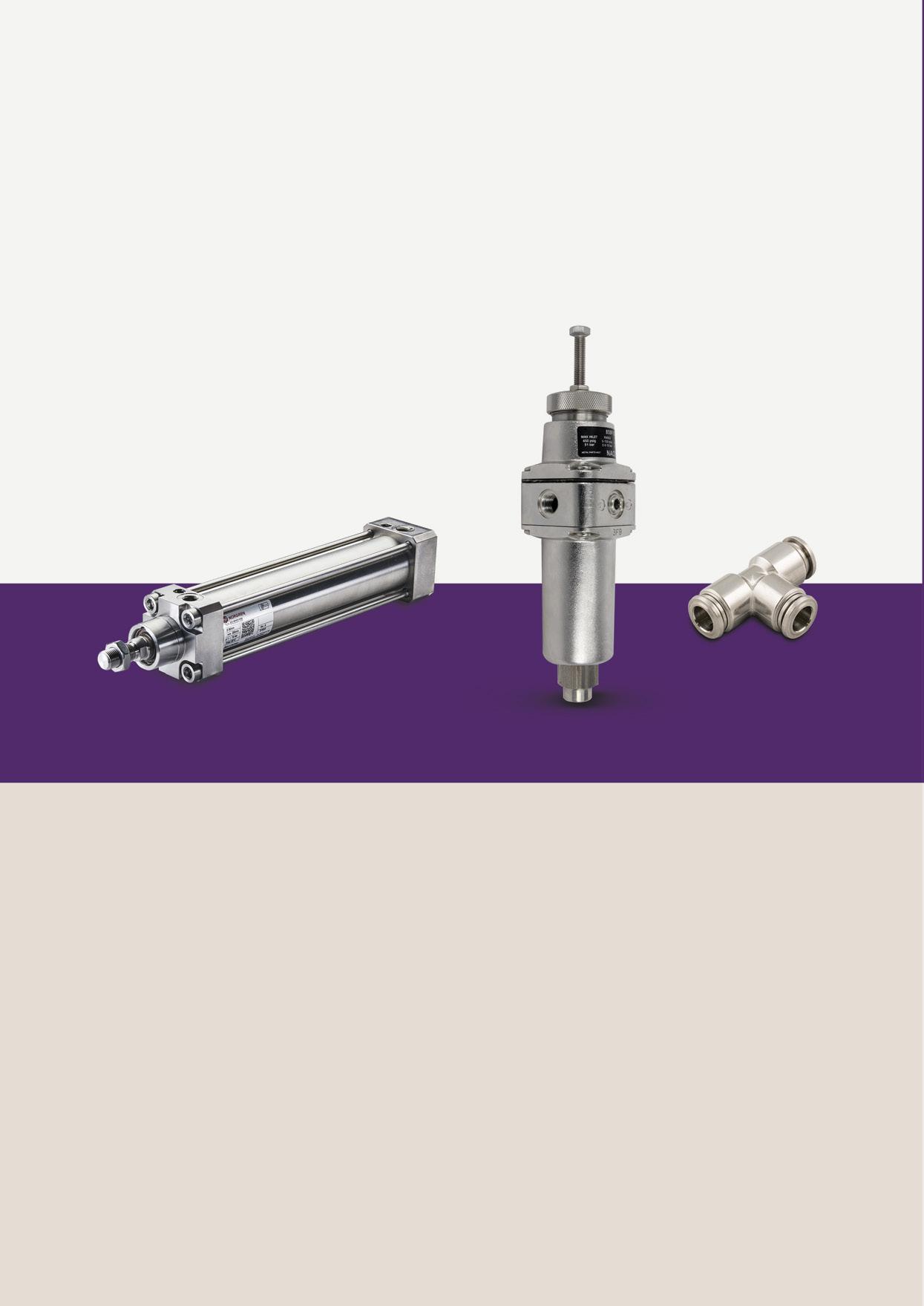

Stainless steel solutions
for corrosive and washdown applications
Operating in aggressive, wet and hygiene-critical environments requires equipment that delivers long-term reliability without compromise. Our stainless steel solutions are specifically designed for corrosive and heavy washdown applications found across the protein processing industry. From air preparation units and pneumatic cylinders to fittings and fluid control valves, this portfolio combines robust stainless steel construction with proven performance, helping to maintain hygiene standards, reduce downtime and ensure dependable operation in the most demanding conditions.
KA/8000 ISOLine tie-rod double acting

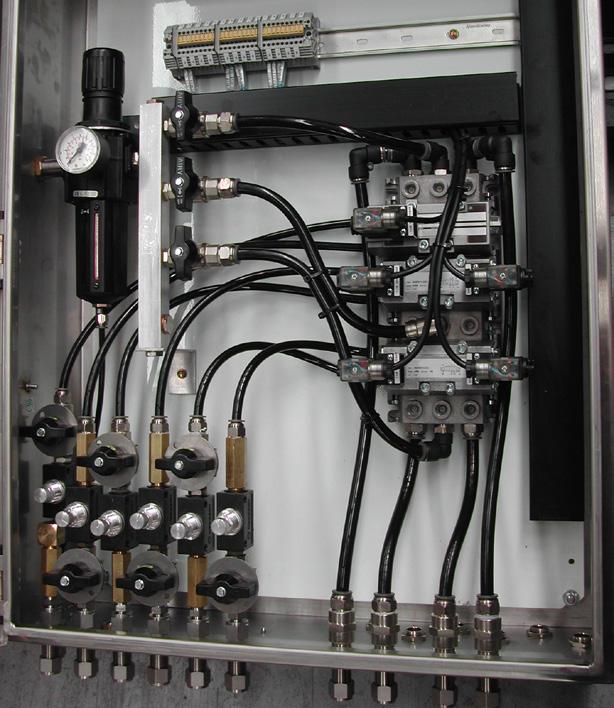

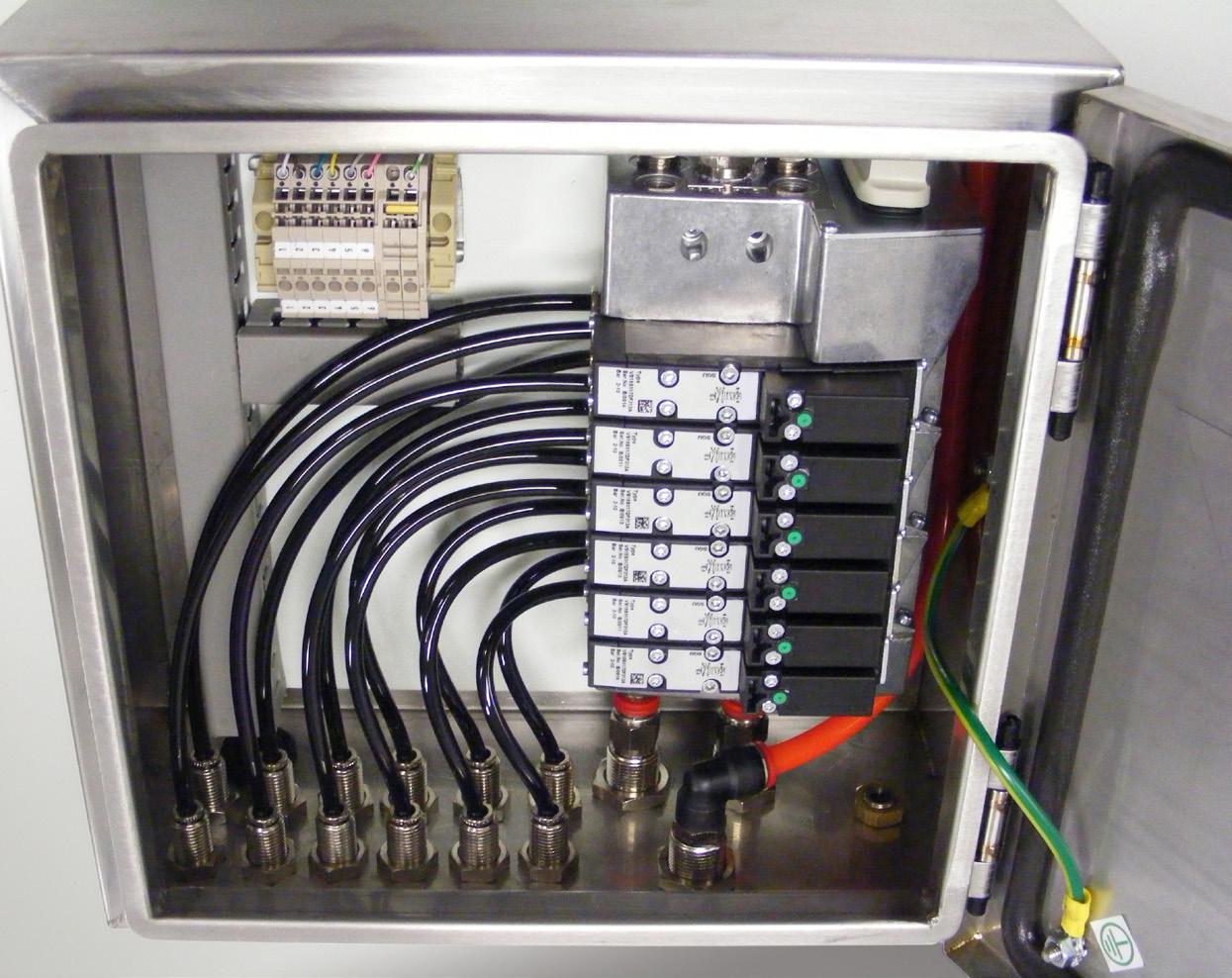

Control Panels
(Multistage Hide Puller, Door Controls)
Tailor made to your exact specification. We take complete responsibility for the packaged control system for your application.
• Engineering Advantage
• Available as a complete solution
• Single source supplier
Precision Filter/Regulator
Pneufit S Push-In Fittings

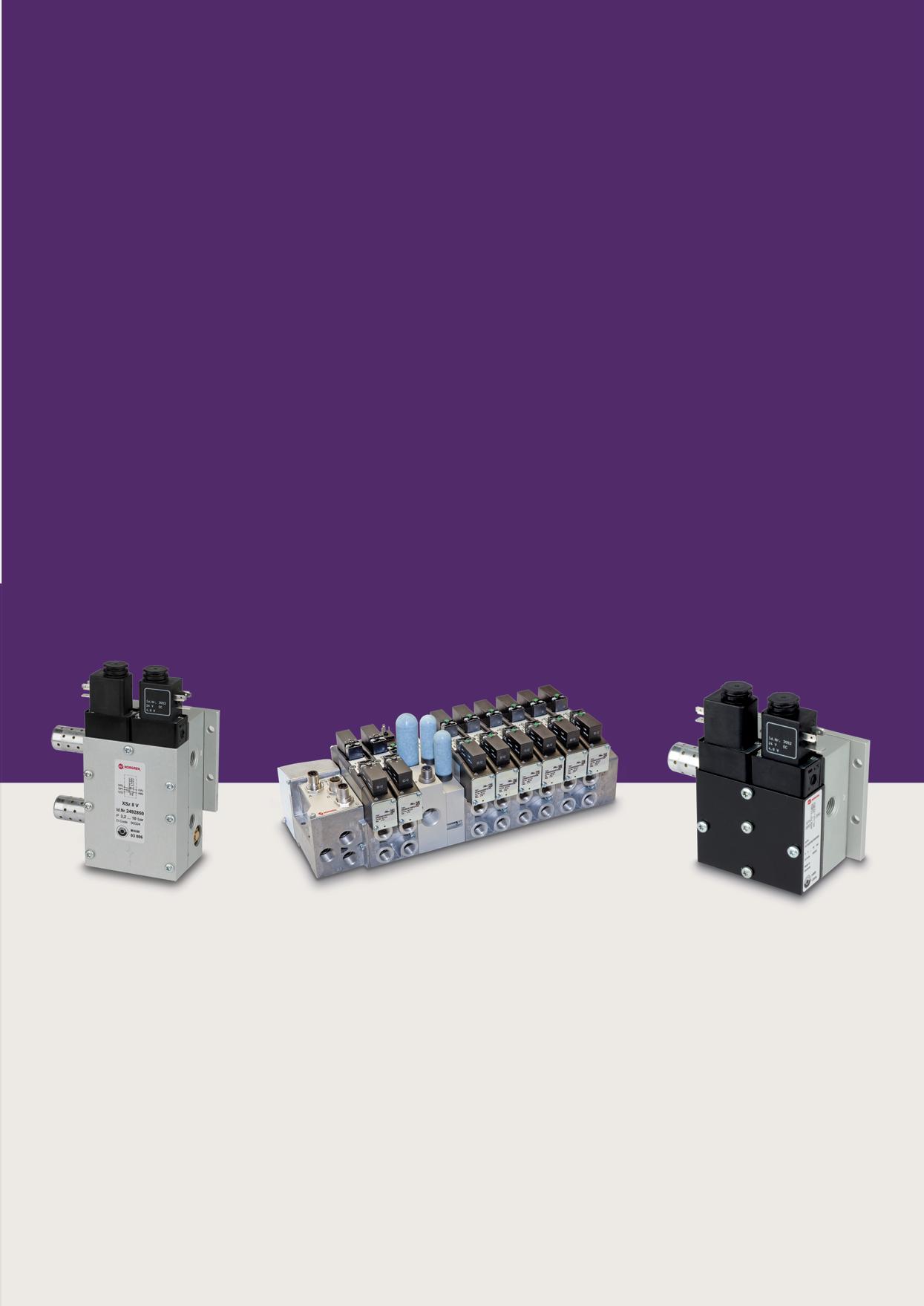

Functional Safety Solutions for Safety Technology
Machinery Directive 2006/42/EC and EN ISO 13849
Safety and risk assessment
A machine should be constructed to guarantee safety as much as possible. Any potential danger must have its risk reduced/ minimized by protections or measures e.g. a pneumatic safety control system. For unavoidable residual risk, the corresponding necessary documentation must be provided. A comprehensive and standardized risk assessment will take place at the beginning of the process for the evaluation of the machinery safety.
Identification of safety function
If in the risk analyses hazardous movements were detected then, in accordance with the danger, counteracting safety functions must be defined and provided. Only after more precise definition of the actual safety function can the corresponding subsystems of the safety control system be adequately executed and interpreted.
• Safe exhausting of a system
• Stop of a hazardous movement
• Stop and obstructing of a hazardous movement
• Reversing a hazardous movement
• Protection against accidental start-up and many others
Our Industrial Automation sector operates four global centres of technical excellence and a sales and service network in 50 countries, as well as manufacturing capability in Europe, Americas and Asia Pacific.
Supported by distributors worldwide.
For further information, scan this QR code or visit www.imiplc.com/industrial-automation
