ARC382 I Iman Akbar Ali I Final Binder

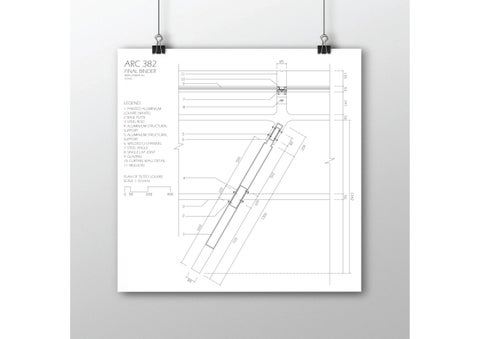

LEGEND:

1: PAINTED ALUMINIUM LOUVRE (WHITE)

2: BASE PLATE

3: STEEL ROD

4: ALUMINIUM STRUCTURAL SUPPORT

5: ALUMINIUM STRUCTURAL SUPPORT

6: WELDED U CHANNEL

7: STEEL ANGLE

8: SINGLE LAP JOINT

9: GLAZING

10: CURTAIN WALL DETAIL

11: MULLION

PLAN OF TILTED LOUVRE SCALE 1:10 (mm)

A1: Case study; Dubai Design District

A2: Louvre Proposal; Dubai Design District

A3: Japanese Joinery

FNL: Final Louvre Detail Drawing

A CASE STUDY ON LOUVRE DEVICES

DUBAI DESIGN DISTRICT

IMAN AKBAR ALI 92590

The architecture and facade design

ARCHITECTURE OF D3: Designed by Henn Architects, a firm based in Germany known for their innovative ideas, the construction of D3 was completed within the span of 2 years in 2015

OVERVIEW: Established in 2013, D3 is an organized urban development in Dubai, serving as an innovative hub combining talent and expertise from sectors such as design, fashion and art. It includes a variety of workspaces, retail areas, dining experiences in addition to community and event spaces

D3 UNDER CONSTRUCTION (2013-2015)

FACADE DESIGN: The design of the facade was commissioned to a company founded in Australia, Woods Bagot, that developed a triangular shading module creating a rhythmic patterned facade, in addition to providing sun protection inside the building from “both low-lying east west sun and the higher south sun”

AFTER COMPLETION

HENN ARCHITEKTEN: Comprised up of a group of architects and engineers with an experience of more than 75 years, Henn Architekten was founded in 1947 and has offices based in Berlin, Munich, Beijing and Shanghai. They are best known for their office buildings and industrial structures

2022: Innovation Center for High-Performance Medical Devices, located in China 2022: Baramundi Headquarters, located in Germany

WOODS BAGOT: Established in 1869, Woods Bagot is a firm specializing in architecture, interiors and masterplanning, They have 17 studios across 6 regions and are known for their innovative and sustainable design solutions in the context of their forward thinking projects

2019: Tribeca Rogue Building located in the United States

2014: SAHMRI located in Australia

Projects similar to the architecture of D3

Projects similar to the facade design in D3

PATTERNING:

When viewing the louvres closely, a rhythmic pattern created using triangular perforations in the material can be seen, which is likely created to allow wind to pass through the module allowing for more stability in the connection to the curtain wall

PLACEMENT:

The placement of the louvres is observed on the exterior facades of each building as they would be more exposed to sun rays. However, when the people working in these buildings were interviewed, a majority of them stated that the louvres provide minimal to no shading, affirming that they are for aesthetic purposes, rather than performative ones

Placement of louvres

CHARACTER OF D3 :

On the basis of triangular modules

The triangular motif or symbol serves as an inspiration and adds to the character in the D3 site as it can be seen to be repeated in many different areas and aspects such as in the louvre design, louvre perforation, waste disposal bins, shop fronts, and even in the landscaping

Preliminary

MATERIAL

Summary of the materials used on the facade

Glass

CURTAIN WALL :

LOUVRES:

Aluminium tubing used for

Steel plates

Powder coated aluminium

Steel screws

Sealing foam tape used adjacent to glass

Aluminium used for framing

Cap nuts

Steel washers

ELEVATION :

Building

0 1 2 4 5

ELEVATION:

A single louvre (Dimensions in mm)

Attachment of louvre to curtain wall

ZOOMED IN SECTION DETAIL OF SINGLE LAP JOINT

MULLION FRAME

STEEL LAP JOINT

GLASS

METAL FRAME

FOLDED ALUMINIUM POWDER COATED PLATE

DIFFERENCIATION IN PLACEMENT OF VERTICAL AND HORIZONTAL JOINTS

HORIZONTAL:

The joint attachments alongside the horizontal length follow a ABA rhythm where 2 joints are concentrated in the center and 2 on each side

VERTICAL:

In the case of attaching a louvre to the curtain wall along its vertical side, the four joint connections are spaced equally

SKETCHES:

Different instances of connection

INSTANCE:

Attachment of a single side of a one louvre to the curtain wall

INSTANCE:

Two sides of two louvres are attached to the curtain wall adjacent to eachother

AREEBAH SIDDIQUI 93175

LOUVRE DESIGN PROPOSAL DUBAI DESIGN DISTRICT

IMAN AKBAR ALI 92590

INSPIRATION:

Form and Connection

FORM OF LOUVRES CONNECTION

The use of vertical louvres on building facades that form apex points, creating a continuous and visually captivating pattern similar to our own louvre design concept. Though they maintain a fixed form, the varied shapes of these triangular elements evoke a sense of movement and dynamism in the design. Architects have utilized this approach to merge aesthetic appeal with practical functionality. By strategically arranging these louvres, the facades not only capture attention but also fulfill essential roles like solar shading and airflow regulation.

The use of U channels at specific intervals to support and hold the louvres independently ensure that each louvre maintains its distinct position while contributing to the overall aesthetic composition. A supplementary measure observed in these examples involves the use of connecting rods. These rods interlink the independent louvres, providing additional support and enhancing their stability against external forces like wind. Inspired by these strategies, our louvre design seeks to incorporate similar principles to create a visually dynamic yet robust architectural feature.

Versluys Arena Ostend, Belgium

Oscillation / Atelier Vecteur, France

Sports Hall, Obrenovac, Serbia

Lez Yeux Verts, France

SKETCHES:

Concept Development, Connection and Site Response

TRIANGULAR GEOMETRY

CONNECTION

SUN PROTECTION

The louvres respond to the site of D3 and are angled on facades that require greater sun protection such as the south and west ones, while being 90 degrees on the north and east facades.

Painted aluminium Steel angle bracket

Steel cap nuts

Steel threaded rod Steel nuts

Steel washers

Steel base plate (painted)

Painted steel tubes

Steel plate

Steel U Channel

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL DRAWING TITLE

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

NORTH/EAST ELEVATION, PLAN AND SECTION

DRAWING NO A2-02

SCALE/FORMAT

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA

AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

SOUTH/WEST ELEVATION, PLAN AND SECTION

DRAWING NO A2-03

SCALE/FORMAT

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

DRAWING NO

PLAN DETAIL (D1)

A2-04

SCALE/FORMAT 1:20/A3 IMAN AKBAR ALI AREEBAH SIDDIQUI

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI AREEBAH SIDDIQUI AS

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

PLAN DETAIL (D2)

DRAWING NO

A2-05

SCALE/FORMAT

1:20/A3

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

SECTION DETAIL (D3)

DRAWING NO

A2-06

SCALE/FORMAT 1:20/A3

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

PLAN DETAIL (D4)

DRAWING NO A2-07

SCALE/FORMAT

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI AREEBAH SIDDIQUI IAS

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

PLAN DETAIL (D5 AND D6)

DRAWING NO

A2-08

SCALE/FORMAT

1:2/A3

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE PLAN DETAIL (D7 AND D8)

DRAWING NO

SCALE/FORMAT

1:2/A3 IMAN AKBAR ALI AREEBAH SIDDIQUI IAS

A2-09

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI AREEBAH SIDDIQUI AS

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

SECTION DETAIL (D9)

DRAWING NO

A2-10

SCALE/FORMAT

1:2/A3

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

PHOTOMONTAGE

DRAWING NO

SCALE/FORMAT

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI AREEBAH SIDDIQUI AS

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

INTERIOR RENDER

DRAWING NO

SCALE/FORMAT

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

EXTERIOR RENDER

DRAWING NO

SCALE/FORMAT

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI AREEBAH SIDDIQUI AS

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

INTERIOR RENDER

DRAWING NO

SCALE/FORMAT

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI AREEBAH SIDDIQUI AS

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

DUBAI DESIGN DISTRICT LOUVRE PROPOSAL

DRAWING TITLE

EXTERIOR RENDER

DRAWING NO

SCALE/FORMAT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

IMAN AKBAR ALI 92590

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

DRAWING TITLE

MASS A SECTIONS

DRAWING NO

A3-01

SCALE/FORMAT

1:2/A3

PROJECT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

DRAWING TITLE

A ELEVATIONS

DRAWING NO

A3-02

SCALE/FORMAT

1:2/A3

MASS

FRONT ELEVATION LEFT ELEVATION RIGHT ELEVATION BACK ELEVATION

BOTTOM ELEVATION TOP ELEVATION

MASS A ISOMETRIC

PROJECT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH PROJECT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

DRAWING TITLE

MASS B SECTIONS

DRAWING NO A3-03

SCALE/FORMAT 1:2 / A3

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

DRAWING TITLE

MASS B,C AND D ELEVATIONS

DRAWING NO

A3-04

SCALE/FORMAT

1:2/A3

MASS B ISOMETRIC

PROJECT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

DRAWING TITLE

MASS E SECTIONS

DRAWING NO

A3-05

SCALE/FORMAT

1:2/A3

PROJECT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

DRAWING TITLE

MASS E ELEVATIONS

DRAWING NO

A3-06

SCALE/FORMAT

1:2/A3

TOP ELEVATION

BOTTOM ELEVATION

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

MASS E ISOMETRIC

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

DRAWING TITLE

JOINT ELEVATIONS

DRAWING NO

A3-07

SCALE/FORMAT

1:2/A3

FRONT ELEVATION LEFT ELEVATION

PROJECT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

DRAWING TITLE

JOINT SECTIONS

DRAWING NO

A3-08

SCALE/FORMAT

1:2/A3

PROJECT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI, SARVANI PAGADALA, AREEBAH SIDDIQUI

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

PROJECT

JOINT: YATOI HOZO SHASHI SHIKUCHI

DRAWING TITLE

PAVILION DIAGRAMS

DRAWING NO

SCALE/FORMAT

JAPANESE

ROOF PLAN

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

DRAWING TITLE

PAVILION DIAGRAMS

DRAWING NO

A3-10

SCALE/FORMAT -/A3

IMAN AKBAR ALI, SARVANI PAGADALA, AREEBAH SIDDIQUI

PROJECT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

IMAN AKBAR ALI

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

PROJECT

DRAWING TITLE

PAVILION RENDER

DRAWING NO

SCALE/FORMAT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA

AMERICAN UNIVERSITY OF SHARJAH

DRAWING TITLE

PROJECT A2 AND A3 PLACED IN D3

DRAWING NO

SCALE/FORMAT -/A3 IMAN AKBAR ALI

A3-12

PROJECT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

PROJECT

DRAWING TITLE

PAVILION RENDER

DRAWING NO

SCALE/FORMAT

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

THIS DRAWING IS THE PROPERTY OF THE DESIGN PROFESSIONAL AND MAY NOT BE REPRODUCED OR USED WITHOUT HIS OR HER WRITTEN PERMISSION.

THIS DRAWING INDICATES THE ARCHITECTURAL CONCEPT AND DESIGN INTENT ONLY. ALL STRUCTURE AND MEP SERVICES SHOWN ARE PURELY INDICATIVE AND MUST BE VERIFIED AND CO-ORDINATED BY QUALIFIED AGENCIES PRIOR TO THE COMMENCEMENT OF ANY WORK ON SITE.

CLIENT IGOR PERAZA AMERICAN UNIVERSITY OF SHARJAH

PROJECT

DRAWING TITLE

PAVILION RENDER

DRAWING NO

A3-14

SCALE/FORMAT -/A3

IMAN AKBAR ALI

JAPANESE JOINT: YATOI HOZO SHASHI SHIKUCHI

TILTED LOUVRE IN PLAN (A2)

DUBAI DESIGN DISTRICT

IMAN AKBAR ALI 92590

FINAL DETAIL DRAWING IMAN AKBAR ALI 92590

LEGEND:

1: PAINTED ALUMINIUM

LOUVRE (WHITE)

2: BASE PLATE

3: STEEL ROD

4: ALUMINIUM STRUCTURAL SUPPORT

5: ALUMINIUM STRUCTURAL SUPPORT

6: WELDED U CHANNEL

7: STEEL ANGLE

8: SINGLE LAP JOINT

9: GLAZING

10: CURTAIN WALL DETAIL

11: MULLION

PLAN OF TILTED LOUVRE SCALE 1:10 (mm)

Copyright © 2024 by Iman Akbar Ali. All rights reserved. This binder or any portion thereof may not be reproduced or used in any manner without the express written permission of the publisher.

American University of Sharjah, under the faculty Professor Igor Peraza.
