iGO Electric Bike Catalog

ROULER AUTREMENT RIDE THIS WAY

E L E C T R I C

B I K E S

W W W.iGOELECTRI C .C OM/ ROSEMONT

RIDE THIS WAY

URBAN

DISCOVERY

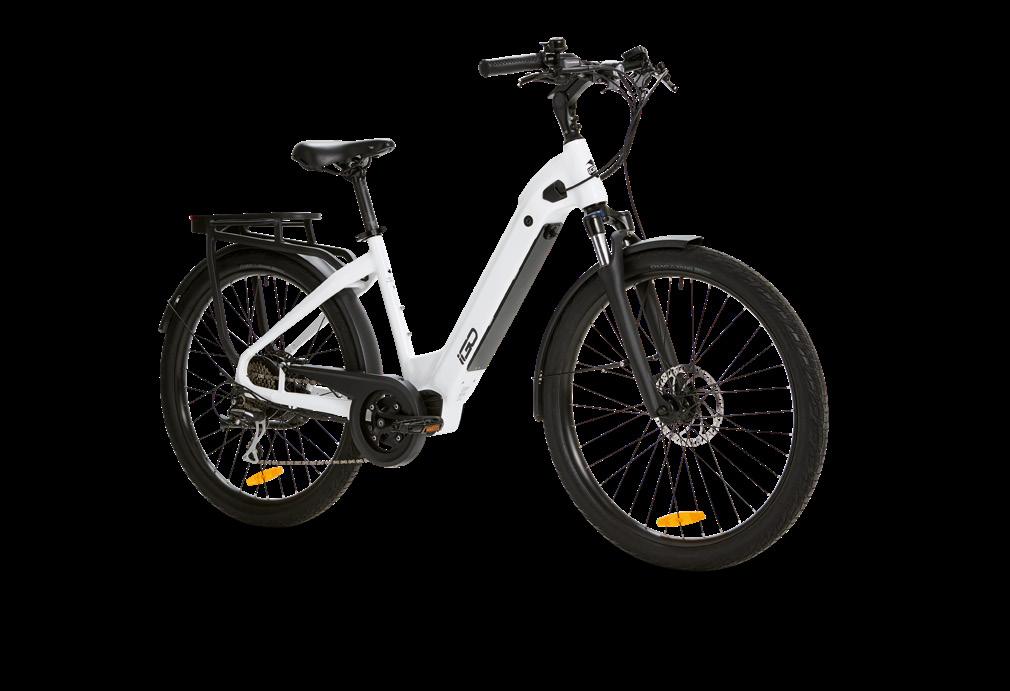

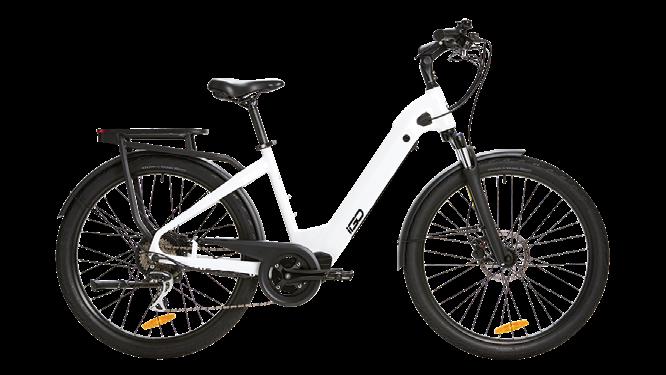

ROSEMONT URBAN STEP THROUGH eBIKES

POPULAR FEATURES

Thumb throttle (removable)

Cyclocomputer with diagnostic display Tooless adjustable stem

Front light (triple direction)

Rear rack (with thule adapter)

Integrated rear light (triple direction & brake indicator)

Suspension fork Hydraulic disc brakes

Hub motor

Electronics access port (EAP) In-frame battery with key lock

DISCOVERY ROSEMONT LE1

LE

SUNTOUR NEX suspension fork 63mm travel, lockout, quick release

RST VOLANT suspension fork 80mm travel, lockout, quick release

SHIMANO 8 speed

SHIMANO 8 speed

27.5” X 2.4” tires

27.5” X 2.4” tires

geared rear hub motor 500W, 48V 55Nm max. torque

geared rear hub motor 500W, 48V 55Nm max. torque

32 pulse cadence sensor

32 pulse cadence sensor

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

110km (69mi) range*

110km (69mi) range*

5 Level PAS

assist modes : eco/tour/sport/turbo/boost

POPULAR FEATURES

Thumb throttle (removable)

Cyclocomputer with diagnostic display

Front light (triple direction)

Rear rack (with thule adapter)

Suspension fork

Integrated rear light (triple direction & brake indicator)

Hydraulic disc brakes

Mid motor In-frame battery with key lock

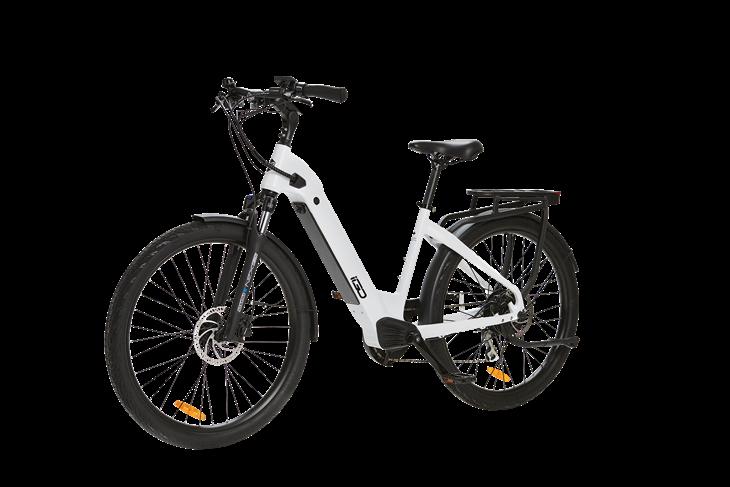

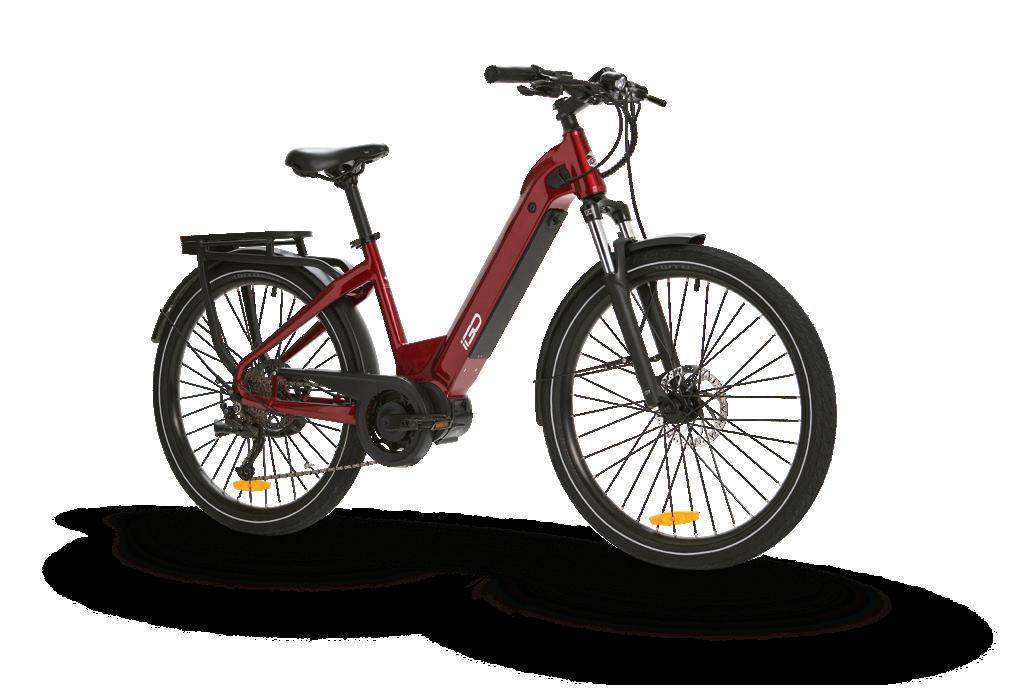

DISCOVERY ROSEMONT LS1

LS

WB suspension fork 100mm travel, lockout, quick release

RST BLAZE suspension fork 80mm travel, lockout, thru axle

SHIMANO 8 speed

SHIMANO 9 speed

WTB GROOV-E 2.4” tires

WTB GROOV-E 2.4” tires

mid motor 350W, 36V 80Nm max. torque

mid motor 350W, 48V 100Nm max. torque

torque / cadence / speed sensor

torque / cadence / speed sensor

SAMSUNG 21700 cell battery 36V, 15Ah, 540Wh

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

90km (56mi) range*

130km (81mi) range*

5 Level PAS

assist modes : eco/tour/sport/turbo/boost

E LE CT R I C

DISCOVERY

i G O

B I KES

LE1

URBAN

ROSEMONT

ST E P T H R OUGH

U R BA N/ LEI SU RE

DISCOVERY ROSEMONT LE1 FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Step Through ERGOFIT frame, internal cable routing head tube ported, fender mounts, Electronic Access Port, key lock secured internal downtube battery compartment (removable battery), accessory ready rear cargo rack Off White SUNTOUR NEX-DS-700C HLO, 63mm travel, lockout with quick release

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALTUS 8-speed 42T Narrow Wide KMC E8-S SHIMANO ACERA 8-speed SHIMANO ACERA 8-speed 11-32T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

630mm, 21mm rise, 31.8mm dia.

VELO, Ergonomic, 135mm Toolless adjustable threadless with 0 to 90 degree rise 31.6mm (350mm) SELLE ROYAL Rio TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

CHAOYANG 27.5″x2.4″ 27.5″, Dual Wall Alloy, black

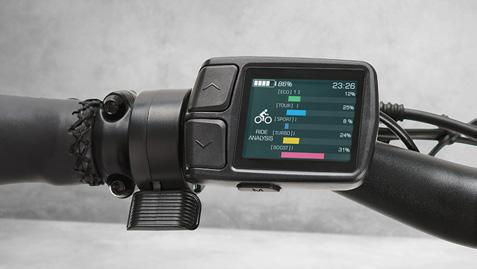

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ TFT Display LCD display, Main power on/off, Front & Rear lights on/off, Backlit for night viewing, Battery Level indicator, PAS Level, Current, Average, Maximum speed, Walk Mode, Total distance odometer, Trip odometer, Trip Timer, Error code diagnostics, parameters instantly reconfigured at the touch of a button to conform to Class 1 or 2.

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE LE : 500W geared rear hub motor, 48V 55Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 2A, DC, UL Certified 110km (69mi) * 5 Levels ** On-Demand, Removable Electronic 32 pulse Cadence Sensor integrated into the bottom bracket MULTI CLASS SWITCHABLE : Class 1 / Class 2 ***

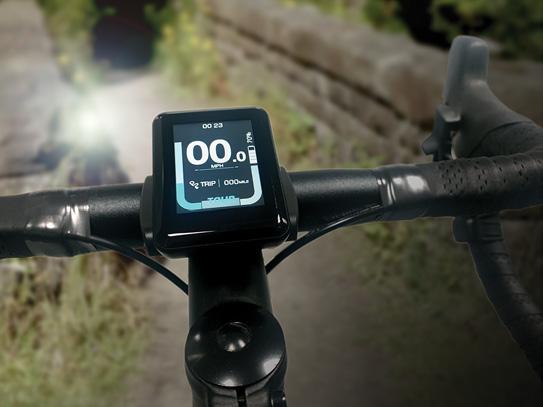

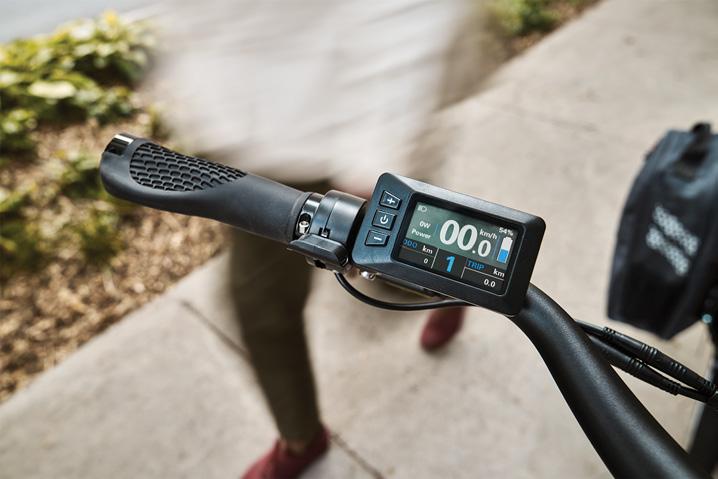

Discovery Rosemont LE1 display and throttle

i G O

E LE CT R I C

B I KES

URBAN

DISCOVERY

ROSEMONT LE

ST E P T H R OU G H

U R BA N/ LEI SU R E

DISCOVERY ROSEMONT LE FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Step Through ERGOFIT frame, internal cable routing head tube ported, fender mounts, Electronic Access Port, key lock secured internal downtube battery compartment (removable battery), accessory ready rear cargo rack Off White RST VOLANT 700C, 80mm travel, lockout, quick release

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALTUS 8-speed 42T Narrow Wide KMC E8-S SHIMANO ACERA 8-speed SHIMANO ACERA 8-speed 11-32T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

630mm, 21mm rise, 31.8mm dia.

VELO, Ergonomic, 135mm Toolless adjustable threadless with 0 to 90 degree rise 31.6mm (350mm) SELLE ROYAL Rio TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

CHAOYANG 27.5″x2.4″ 27.5″, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE LE : 500W geared rear hub motor, 48V 55Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 3A, 4 pin, UL Certified Discovery Rosemont LE display and throttle 110km (69mi) * Modes : Eco/Tour/Sport/Turbo/Boost (color coded) ** On-Demand, Removable Electronic 32 pulse Cadence Sensor integrated into the bottom bracket MULTI CLASS SWITCHABLE : Class 1 / Class 2 / Class 3 capable where permitted *** max speed 45km/h (28mph) Smart Battery Management System with increased safety features, additional diagnostic information, statistical usage analysis, simplified maintenance/care procedures. (Diagnostics and battery analysis information can be accessed through the display unit and when using the iGO Ride mobile app.)

iGO RIDE

mobile app

(Android and iOS) for more information : igoelectric.com/igoride

i G O

E LE CT R I C

B I KES

DISCOVERY

ROSEMON T

LE 1

&

“a stylish design, robust motor, long lasting battery, and smart features, it’s a great companion for city dwellers seeking to enhance their daily routines.”

Ron Johnson - MOMENTUM MAG

ACCESSORIES INCLUDED Front LED Light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with Brake Light Integrated into Rear Rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory Ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger (UL certified) NOTES BIKE WEIGHT (without battery) BATTERY WEIGHT

25.9kg (57.1 lbs) 3.5kg (7.7 lbs)

WEIGHT CAPACITY

125kg (275 lbs) 190 cm (6′2″) SUGGESTED MAX. RIDER HEIGHT

DISCOVERY ROSEMONT GEOMETRY

LE

FRAME SIZE

45.7cm (18″)

45.7cm (18″)

A

SEAT TUBE LENGTH

457

457

B

SEAT TUBE ANGLE

72.7º

72.7º

C

EFFECTIVE TOP TUBE LENGTH

604

610

D

STACK

644

655

E

REACH

461

464

F

HEAD TUBE LENGTH

150

150

G

HEAD TUBE ANGLE

70.3º

70.3º

H

BOTTOM BRACKET HEIGHT

282

282

I

BOTTOM BRACKET DROP

70

70

J

CHAINSTAY LENGTH

455

435.5

K

CRANK LENGTH

170

170

L

WHEELBASE

1164

1144

SADDLE HEIGHT (MIN)

76.7cm (30.2″)

76.7cm (30.2″)

SADDLE HEIGHT (MAX)

96.7cm (38.1″)

96.7cm (38.1″)

M

SUGGESTED MIN. RIDER HEIGHT 142cm (4′8″)

ergofit

46.5″ (118 cm)

LE1

(in mm unless stated)

73.6″ (187 cm)

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. **This bike is sold factory configured to CLASS 2 specifications. User configurable to CLASS 1 or CLASS 3. Always check the specific state/provincial laws when selecting the class of operation.

Specifications & pricing subject to change.

***Electric bike class regulation: Class 1 - Pedal assist motor with maximum assisted speed 32km/h (20mph) Class 2 - Pedal assist motor and throttle with maximum assisted speed 32km/h (20mph) Class 3 - Throttle and/or pedal assist motor with maximum assisted speed 45km/h (28mph) all classes allow a maximum motor power of 750W(US) or 500W(Canada)

LE

RIDE THIS WAY

WWW.i GOELECTR IC.COM/ ROSE M ON T

E LE CT R I C

B I KES

LS1

DISCOVERY

i G O

URBAN

ROSEMONT

ST E P T H R OUGH

U R BA N/ LEI SU RE

DISCOVERY ROSEMONT LS1 FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Step Through frame, internal cable routing head tube ported, fender mounts, key lock secured internal downtube battery compartment (removable battery), accessory ready rear cargo rack Burgundy WB suspension, 100mm travel, lockout, quick release

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALTUS 8-speed 42T Narrow Wide KMC E8-S SHIMANO ACERA 8-speed SHIMANO ACERA 8-speed 11-32 T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

640mm, 45mm rise, 31.8mm dia.

VELO, Ergonomic, 135mm 80mm with 7 degree rise 31.6mm (350mm) SELLE ROYAL Rio TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

WTB GROOV-E 27.5″x2.4″, 60tpi 27.5″, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ TFT Display LCD display, Main power on/off, Front & Rear lights on/off, Backlit for night viewing, Battery Level indicator, PAS Level, Current, Average, Maximum speed, Walk Mode, Total distance odometer, Trip odometer, Trip Timer, Error code diagnostics, parameters instantly reconfigured at the touch of a button to conform to Class 1 or 2.

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE LS 350W : mid motor, 36V 80Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (36V | 15Ah | 540Wh) 36V, 2A, DC, UL Certified 90km (56mi) * 5 Levels ** On-Demand, Removable Internal Torque, Cadence, Speed MULTI CLASS SWITCHABLE : Class 1 / Class 2 ***

Discovery Rosemont LS1 display and throttle

i G O

E LE CT R I C

B I KES

URBAN

DISCOVERY

ROSEMONT LS

ST E P T H R OU GH

U R BA N/ LEI SU R E

DISCOVERY ROSEMONT LS FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Step Through frame, internal cable routing head tube ported, fender mounts, key lock secured internal downtube battery compartment (removable battery), accessory ready rear cargo rack Burgundy RST BLAZE-27.5TNL-15, 80mm travel, lockout, Thru Axle

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALIVIO 9-speed Rapidfire Plus 42T Narrow Wide KMC E9-S SHIMANO ALIVIO 9-speed SHIMANO ALIVIO 9-speed 11-34T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

640mm, 45mm rise, 31.8mm dia.

VELO, Ergonomic, 135mm 80mm with 7 degree rise 31.6mm (350mm) SELLE ROYAL Rio TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

WTB GROOV-E 27.5″x2.4″, 60tpi 27.5″, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE LS : 350W mid motor, 48V 100Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 3A, 4 pin, UL Certified Discovery Rosemont LS display and throttle 130km (81mi) * Modes : Eco/Tour/Sport/Turbo/Boost (color coded) ** On-Demand, Removable Internal Torque, Cadence, Speed MULTI CLASS SWITCHABLE : Class 1 / Class 2 / Class 3 capable where permitted *** max speed 45km/h (28mph) Smart Battery Management System with increased safety features, additional diagnostic information, statistical usage analysis, simplified maintenance/care procedures. (Diagnostics and battery analysis information can be accessed through the display unit and when using the iGO Ride mobile app.)

iGO RIDE

mobile app

(Android and iOS) for more information : igoelectric.com/igoride

i G O

E LE CT R I C

B I KES

D ISCOVERY

ROSEMON T

LS1

&

“…a ride time of 7 hours and 5 minutes. Over 100 miles out of a 15 amp hour battery?

Yep, the Discovery Rosemont did it!”

Forrest Woolman - ELECTRIC BIKE REPORT

ACCESSORIES INCLUDED Front LED Light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with Brake Light Integrated into Rear Rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory Ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger (UL certified) NOTES BIKE WEIGHT (without battery) BATTERY WEIGHT

25.3kg (55.8 lbs) 3.5kg (7.7 lbs)

WEIGHT CAPACITY

125kg (275 lbs) 190 cm (6′2″) SUGGESTED MAX. RIDER HEIGHT

DISCOVERY ROSEMONT GEOMETRY

(in mm unless stated)

LS1

LS

45cm (17.7″)

45cm (17.7″)

SEAT TUBE LENGTH

450

450

B

SEAT TUBE ANGLE

72.7º

72.7º

C

EFFECTIVE TOP TUBE LENGTH

600

621

D

STACK

675

653

E

REACH

429

456

F

HEAD TUBE LENGTH

150

150

G

HEAD TUBE ANGLE

71º

71.3º

H

BOTTOM BRACKET HEIGHT

280

280

I

BOTTOM BRACKET DROP

69.5

69.5

J

CHAINSTAY LENGTH

470

470

K

CRANK LENGTH

170

170

L

WHEELBASE

1146

1159

SADDLE HEIGHT (MIN)

76cm (29.9″)

76cm (29.9″)

SADDLE HEIGHT (MAX)

96cm (37.8″)

96cm (37.8″)

M

45.3″ (115 cm)

FRAME SIZE A

SUGGESTED MIN. RIDER HEIGHT 142cm (4′8″)

73.6″ (187 cm)

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. **This bike is sold factory configured to CLASS 2 specifications. User configurable to CLASS 1 or CLASS 3. Always check the specific state/provincial laws when selecting the class of operation.

Specifications & pricing subject to change.

***Electric bike class regulation: Class 1 - Pedal assist motor with maximum assisted speed 32km/h (20mph) Class 2 - Pedal assist motor and throttle with maximum assisted speed 32km/h (20mph) Class 3 - Throttle and/or pedal assist motor with maximum assisted speed 45km/h (28mph) all classes allow a maximum motor power of 750W(US) or 500W(Canada)

LS

RIDE THIS WAY

WWW.i GOELECTR IC.COM/ ROSE M ON T

RIDE THIS WAY

W W W. iGO ELE CTR IC.COM/ YORKVILLE

URBAN

DISCOVERY

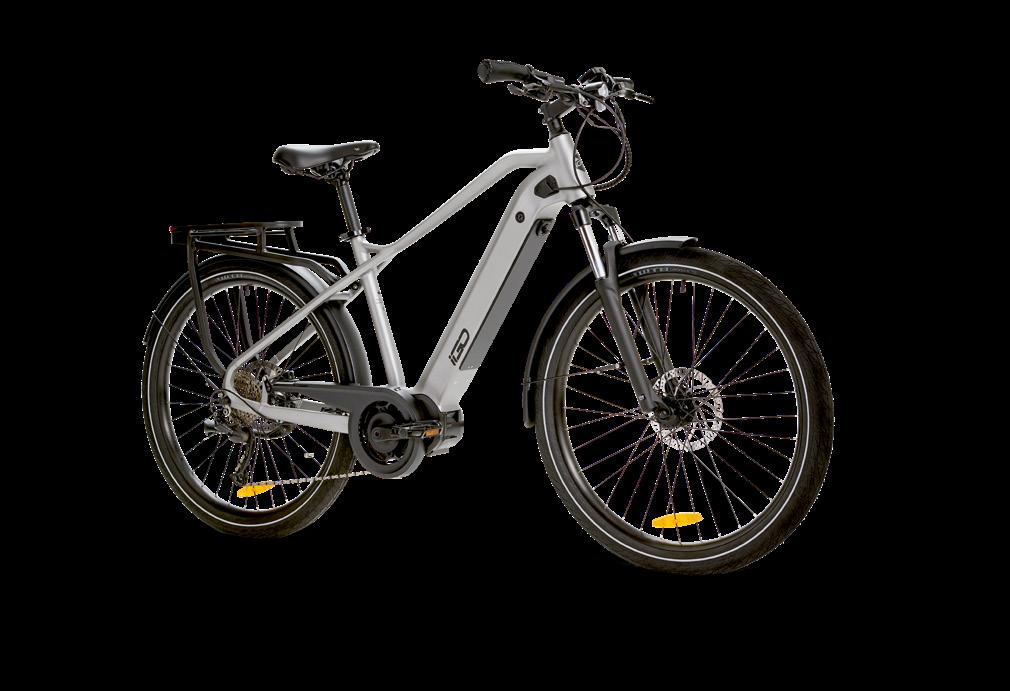

YORKVILLE URBAN HYBRID eBIKES

POPULAR FEATURES

Thumb throttle (removable)

Cyclocomputer with diagnostic display Tooless adjustable stem

Front light (triple direction)

Rear rack (with thule adapter)

Integrated rear light (triple direction & brake indicator)

Suspension fork

Hydraulic disc brakes Hub motor

Electronics access port (EAP) In-frame battery with key lock

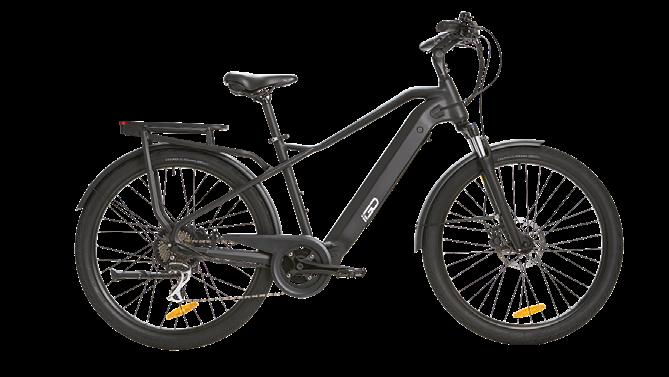

DISCOVERY YORKVILLE LE1

LE

SUNTOUR NEX suspension fork 63mm travel, lockout, quick release

RST VOLANT suspension fork 80mm travel, lockout, quick release

SHIMANO 8 speed

SHIMANO 8 speed

27.5” X 2.4” tires

27.5” X 2.4” tires

geared rear hub motor 500W, 48V 55Nm max. torque

geared rear hub motor 500W, 48V 55Nm max. torque

32 pulse cadence sensor

32 pulse cadence sensor

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

110km (69mi) range*

110km (69mi) range*

5 Level PAS

assist modes : eco/tour/sport/turbo/boost

POPULAR FEATURES Thumb throttle (removable)

Cyclocomputer with diagnostic display

Front light (triple direction)

Rear rack (with thule adapter)

Suspension fork Integrated rear light (triple direction & brake indicator)

Hydraulic disc brakes

Mid motor In-frame battery with key lock

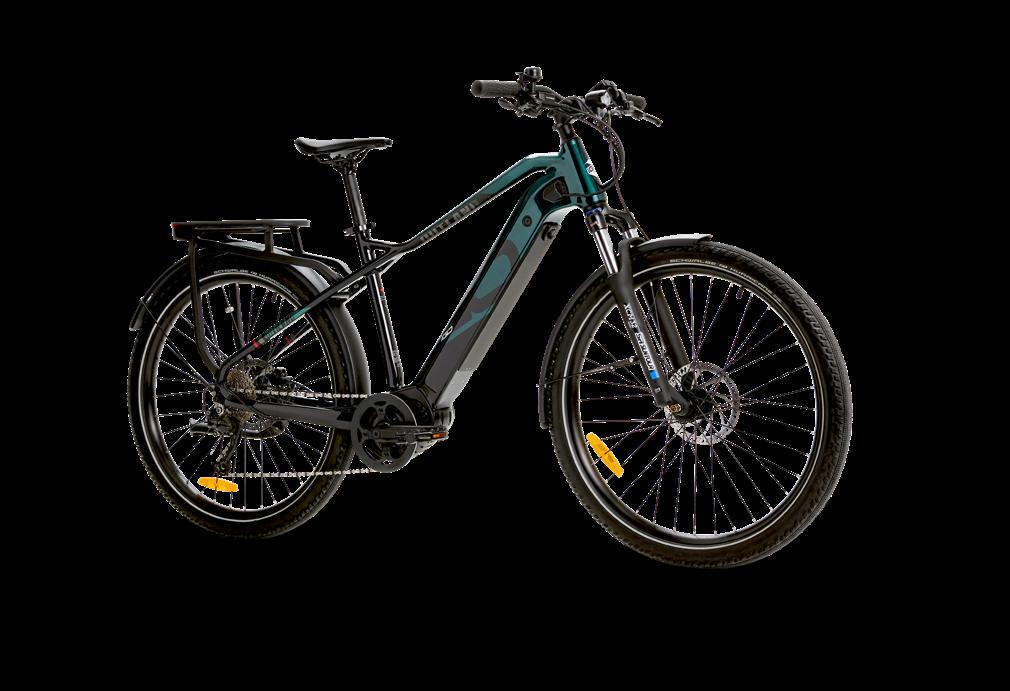

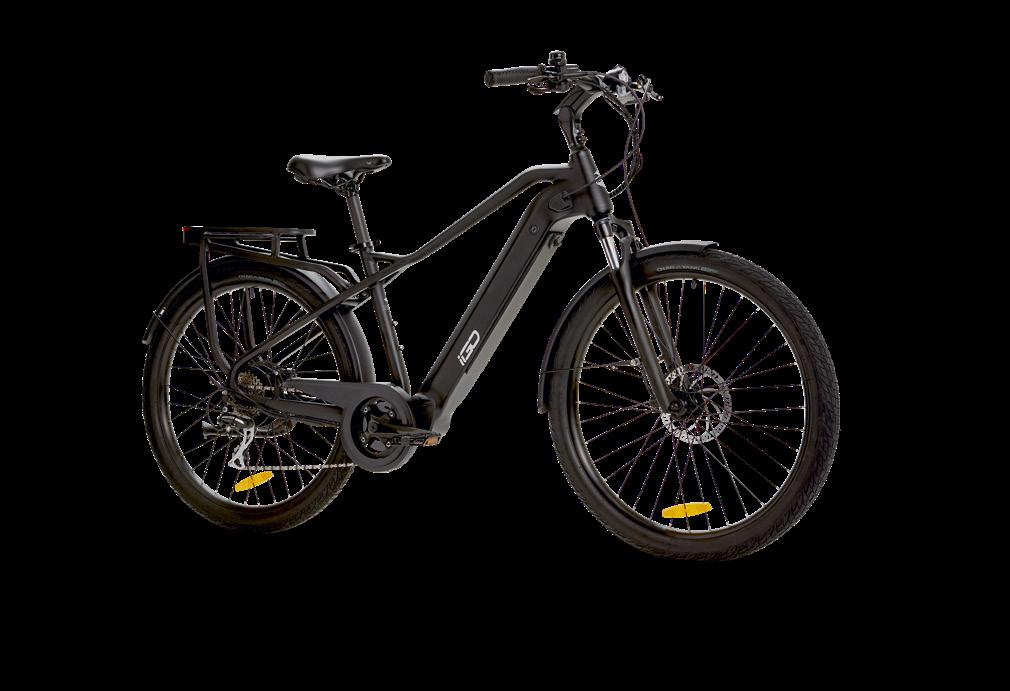

DISCOVERY YORKVILLE LS1

LS

WB suspension fork 100mm travel, lockout, quick release

RST BLAZE suspension fork 80mm travel, lockout, thru axle

SHIMANO 8 speed

SHIMANO 9 speed

WTB GROOV-E 2.4” tires

WTB GROOV-E 2.4” tires

mid motor 350W, 36V 80Nm max. torque

mid motor 350W, 48V 100Nm max. torque

torque / cadence / speed sensor

torque / cadence / speed sensor

SAMSUNG 21700 cell battery 36V, 15Ah, 540Wh

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

90km (56mi) range*

130km (81mi) range*

5 Level PAS

assist modes : eco/tour/sport/turbo/boost

E LE CT R I C

DISCOVERY

i G O

B I KES

LE1

URBAN

YORKVILLE

H Y B R ID U R BA N/ LEI SU R E

DISCOVERY YORKVILLE LE1 FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Hybrid ERGOFIT frame, internal cable routing head tube ported, fender mounts, Electronic Access Port, key lock secured internal downtube battery compartment (removable battery), accessory ready rear cargo rack Black SUNTOUR NEX-DS-700C HLO, 63mm travel, lockout, quick release

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALTUS 8-speed 42T Narrow Wide KMC E8-S SHIMANO ACERA 8-speed SHIMANO ACERA 8-speed 11-32T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

640mm, 16mm rise, 31.8mm dia.

VELO, Ergonomic, 135mm Toolless adjustable threadless with 0 to 90 degree rise 31.6mm (350mm) SELLE ROYAL Rio TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

CHAOYANG 27.5″x2.4″ 27.5″, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ TFT Display LCD display, Main power on/off, Front & Rear lights on/off, Backlit for night viewing, Battery Level indicator, PAS Level, Current, Average, Maximum speed, Walk Mode, Total distance odometer, Trip odometer, Trip Timer, Error code diagnostics, parameters instantly reconfigured at the touch of a button to conform to Class 1 or 2.

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE LE : 500W geared rear hub motor, 48V 55Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 2A, DC, UL Certified 110km (69mi) * 5 Levels ** On-Demand, Removable Electronic 32 pulse Cadence Sensor integrated into the bottom bracket MULTI CLASS SWITCHABLE : Class 1 / Class 2 ***

Discovery Yorkville LE1 display and throttle

i G O

E LE CT R I C

B I KES

URBAN

DISCOVERY

YORKVILLE LE HY B R ID U R BA N/ LEI SU R E

DISCOVERY YORKVILLE LE FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Hybrid ERGOFIT frame, internal cable routing head tube ported, fender mounts, Electronic Access Port, key lock secured internal downtube battery compartment (removable battery), accessory ready rear cargo rack Black RST VOLANT 700C, 80mm travel, lockout, quick release

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALTUS 8-speed 42T Narrow Wide KMC E8-S SHIMANO ACERA 8-speed SHIMANO ACERA 8-speed 11-32T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

640mm, 16mm rise, 31.8mm dia.

VELO, Ergonomic, 135mm Toolless adjustable threadless with 0 to 90 degree rise 31.6mm (350mm) SELLE ROYAL Rio TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

CHAOYANG 27.5″x2.4″ 27.5″, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE LE : 500W geared rear hub motor, 48V 55Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 3A, 4 pin, UL Certified Discovery Yorkville LE display and throttle 110km (69mi) * Modes : Eco/Tour/Sport/Turbo/Boost (color coded) ** On-Demand, Removable Electronic 32 pulse Cadence Sensor integrated into the bottom bracket MULTI CLASS SWITCHABLE : Class 1 / Class 2 / Class 3 capable where permitted *** max speed 45km/h (28mph) Smart Battery Management System with increased safety features, additional diagnostic information, statistical usage analysis, simplified maintenance/care procedures. (Diagnostics and battery analysis information can be accessed through the display unit and when using the iGO Ride mobile app.)

iGO RIDE

mobile app

(Android and iOS) for more information : igoelectric.com/igoride

i G O

E LE CT R I C

B I KES

D ISCOVERY

YOR KVI LLE

LE1

&

“Range is undoubtedly a key factor here ...

When comparing the Yorkville LE to similar bikes, it knocked our socks off!”

John S. Bozick - ELECTRIC BIKE REPORT

ACCESSORIES INCLUDED Front LED Light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with Brake Light Integrated into Rear Rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory Ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger (UL certified) NOTES BIKE WEIGHT (without battery) BATTERY WEIGHT

25.7kg (56.7 lbs) 3.5kg (7.7 lbs)

WEIGHT CAPACITY

125kg (275 lbs) 190 cm (6′2″) SUGGESTED MAX. RIDER HEIGHT

DISCOVERY YORKVILLE GEOMETRY

LE

FRAME SIZE

48cm (19″)

48cm (19″)

A

SEAT TUBE LENGTH

480

480

B

SEAT TUBE ANGLE

73.2º

73.2º

C

EFFECTIVE TOP TUBE LENGTH

610

610

D

STACK

647

656

E

REACH

472

469

F

HEAD TUBE LENGTH

150

150

G

HEAD TUBE ANGLE

70.3º

70.3º

H

BOTTOM BRACKET HEIGHT

282

282

I

BOTTOM BRACKET DROP

70

70

J

CHAINSTAY LENGTH

435.5

435.5

K

CRANK LENGTH

170

170

L

WHEELBASE

1156

1156

SADDLE HEIGHT (MIN)

79cm (31.1″)

79cm (31.1″)

SADDLE HEIGHT (MAX)

99cm (39″)

99cm (39″)

STAND OVER HEIGHT

73cm (28.7″)

73cm (28.7″)

M N

SUGGESTED MIN. RIDER HEIGHT 157cm (5′2″)

ergofit

47.2″ (120 cm)

LE1

(in mm unless stated)

74.6″ (190 cm)

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. **This bike is sold factory configured to CLASS 2 specifications. User configurable to CLASS 1 or CLASS 3. Always check the specific state/provincial laws when selecting the class of operation.

Specifications & pricing subject to change.

***Electric bike class regulation: Class 1 - Pedal assist motor with maximum assisted speed 32km/h (20mph) Class 2 - Pedal assist motor and throttle with maximum assisted speed 32km/h (20mph) Class 3 - Throttle and/or pedal assist motor with maximum assisted speed 45km/h (28mph) all classes allow a maximum motor power of 750W(US) or 500W(Canada)

LE

RIDE THIS WAY

WWW.i G OELECTR IC.COM / YORK VI LLE

E LE CT R I C

DISCOVERY

i G O

B I KES

LS1

URBAN

YORKVILLE

H Y B R ID U R BA N/ LEI SU R E

DISCOVERY YORKVILLE LS1 FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Hybrid frame, internal cable routing head tube ported, fender mounts, key lock secured internal downtube battery compartment (removable battery), accessory ready rear cargo rack Platinum WB suspension, 100mm travel, lockout, quick release

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALTUS 8-speed 42T Narrow Wide KMC E8-S SHIMANO ACERA 8-speed SHIMANO ACERA 8-speed 11-32T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

640mm, 45mm rise, 31.8mm dia.

VELO, Ergonomic, 135mm 80mm with 7 degree rise 31.6mm (350mm) SELLE ROYAL Rio TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

WTB GROOV-E 27.5″x2.4″, 60tpi 27.5″, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ TFT Display LCD display, Main power on/off, Front & Rear lights on/off, Backlit for night viewing, Battery Level indicator, PAS Level, Current, Average, Maximum speed, Walk Mode, Total distance odometer, Trip odometer, Trip Timer, Error code diagnostics, parameters instantly reconfigured at the touch of a button to conform to Class 1 or 2.

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE LS : 350W mid motor, 36V 80Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (36V | 15Ah | 540Wh) 36V, 2A, DC, UL Certified 90km (56mi) * 5 Levels ** On-Demand, Removable Internal Torque, Cadence, Speed MULTI CLASS SWITCHABLE : Class 1 / Class 2 ***

Discovery Yorkville LS1 display and throttle

i G O

E LE CT R I C

B I KES

URBAN

DISCOVERY

YORKVILLE LS HY B R ID U R BA N/ LEI SU R E

DISCOVERY YORKVILLE LS FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Hybrid frame, internal cable routing head tube ported, fender mounts, key lock secured internal downtube battery compartment (removable battery), accessory ready rear cargo rack Platinum RST BLAZE-27.5TNL-15, 80mm travel, lockout, Thru Axle

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALIVIO 9-speed Rapidfire Plus 42T Narrow Wide KMC E9-S SHIMANO ALIVIO 9-speed SHIMANO ALIVIO 9-speed 11-34T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

640mm, 45mm rise, 31.8mm dia.

VELO, Ergonomic, 135mm 80mm with 7 degree rise 31.6mm (350mm) SELLE ROYAL Rio TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

WTB GROOV-E 27.5″x2.4″, 60tpi 27.5″, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE LS : 350W mid motor, 48V 100Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 3A, 4 pin, UL Certified Discovery Yorkville LS display and throttle 130km (81mi) * Modes : Eco/Tour/Sport/Turbo/Boost (color coded) ** On-Demand, Removable Internal Torque, Cadence, Speed MULTI CLASS SWITCHABLE : Class 1 / Class 2 / Class 3 capable where permitted *** max speed 45km/h (28mph) Smart Battery Management System with increased safety features, additional diagnostic information, statistical usage analysis, simplified maintenance/care procedures. (Diagnostics and battery analysis information can be accessed through the display unit and when using the iGO Ride mobile app.)

iGO RIDE

mobile app

(Android and iOS) for more information : igoelectric.com/igoride

i G O

E LE CT R I C

B I KES

D ISCOVERY

YORKVILLE

LS1

&

“Whether you’re a seasoned cyclist or a newcomer to the world of e-bikes, the Yorkville LS is designed to enhance your daily commute and elevate your urban exploration.”

Ron Johnson - MOMENTUM MAG

ACCESSORIES INCLUDED Front LED Light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with Brake Light Integrated into Rear Rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory Ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger (UL certified) NOTES BIKE WEIGHT (without battery) BATTERY WEIGHT

25.5kg (56.2 lbs) 3.5kg (7.7 lbs)

WEIGHT CAPACITY

125kg (275 lbs) 190 cm (6′2″) SUGGESTED MAX. RIDER HEIGHT

DISCOVERY YORKVILLE GEOMETRY

(in mm unless stated)

LS1

LS

FRAME SIZE

48cm (19″)

48cm (19″)

A

SEAT TUBE LENGTH

480

480

B

SEAT TUBE ANGLE

73.4º

73.4º

C

EFFECTIVE TOP TUBE LENGTH

600

621

D

STACK

675

652

E

REACH

430

457

HEAD TUBE LENGTH

150

150

HEAD TUBE ANGLE

71º

71º

H

BOTTOM BRACKET HEIGHT

280

280

I

BOTTOM BRACKET DROP

72

72

J

CHAINSTAY LENGTH

470

470

K

CRANK LENGTH

170

170

L

WHEELBASE

1148

1168

SADDLE HEIGHT (MIN)

77cm (30.3″)

77cm (30.3″)

SADDLE HEIGHT (MAX)

97cm (38.2″)

97cm (38.2″)

STAND OVER HEIGHT

73cm (28.7″)

73cm (28.7″)

M N

45.3″ (115 cm)

F G

SUGGESTED MIN. RIDER HEIGHT 157cm (5′2″)

74.8″ (190 cm)

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. **This bike is sold factory configured to CLASS 2 specifications. User configurable to CLASS 1 or CLASS 3. Always check the specific state/provincial laws when selecting the class of operation.

Specifications & pricing subject to change.

***Electric bike class regulation: Class 1 - Pedal assist motor with maximum assisted speed 32km/h (20mph) Class 2 - Pedal assist motor and throttle with maximum assisted speed 32km/h (20mph) Class 3 - Throttle and/or pedal assist motor with maximum assisted speed 45km/h (28mph) all classes allow a maximum motor power of 750W(US) or 500W(Canada)

LS

W W W.iGOELECTRI C .C OM/ YORKVI LLE

RIDE THIS WAY

RIDE THIS WAY

WWW.i G OELECTR IC.C OM /CABOT

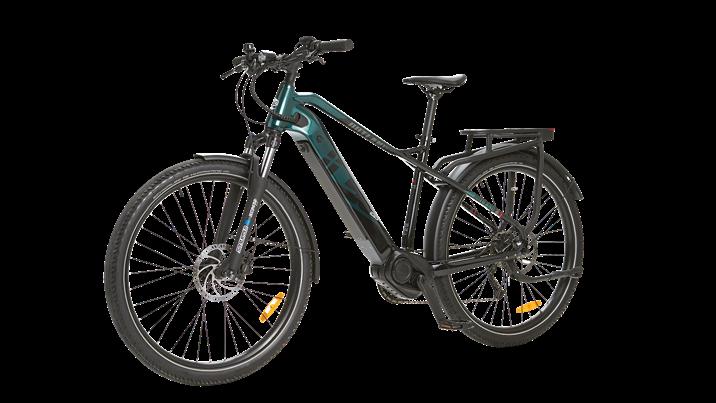

ALL ROAD

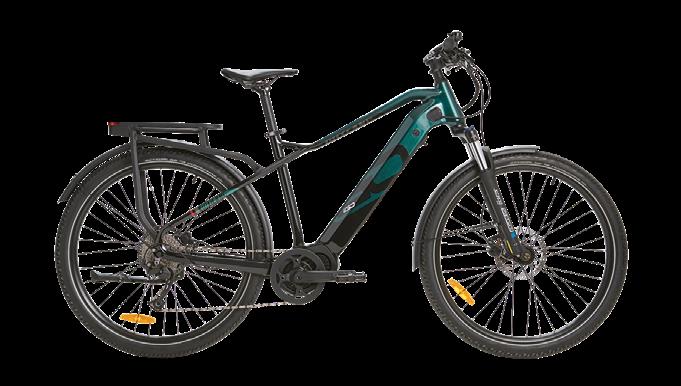

CABOT OUTLAND

TREKKING eBIKES

WWW.i G OE LECT RI C .CO M/CAB OT

RIDE THIS WAY

POPULAR FEATURES

Thumb throttle (removable)

Cyclocomputer with diagnostic display

Rear rack (with thule adapter)

Front light (triple direction) Suspension fork

Integrated rear light (triple direction & brake indicator)

Hydraulic disc brakes

Mid motor In-frame battery with key lock

OUTLAND CABOT RS1

RS

SUNTOUR XCM32 suspension fork 80mm travel, lockout, thru axle

SUNTOUR XCM32 suspension fork 80mm travel, lockout, thru axle

SHIMANO 8 speed

SHIMANO 9 speed

SCHWALBE HURRICANE 2.4” tires

SCHWALBE HURRICANE 2.4” tires

mid motor 500W, 48V 130Nm max. torque

mid motor 500W, 48V 130Nm max. torque

torque / cadence / speed sensor

torque / cadence / speed sensor

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

95km (60mi) range*

95km (60mi) range*

5 Level PAS

assist modes : eco/tour/sport/turbo/boost

E LE CT R I C

OUTLAND

i G O

B I KES

ALL ROAD

RS1 CA B OT

H Y B R ID e T R EKKI NG

OUTLAND CABOT RS1 FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Trekking frame, internal cable routing head tube ported, fender mounts, key lock secured internal downtube battery compartment (removable battery), accessory ready rear cargo rack Green and Black Suntour XCM32 HLO DS suspension, 80mm travel, lockout, Q-Loc Thru Axle

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALTUS 8-speed 42T Narrow Wide KMC E8-S SHIMANO ACERA 8-speed SHIMANO ACERA 8-speed 11-32T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

720mm, 28mm rise, 31.8mm dia.

VELO, Rubber palm rest, 140mm 45mm with 3 degree rise, 31.8mm clamp dia.

31.6mm (350mm) SELLE ROYAL Rio TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

SCHWALBE HURRICANE 27.5″x2.4″ 27.5″, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ TFT Display LCD display, Main power on/off, Front & Rear lights on/off, Backlit for night viewing, Battery Level indicator, PAS Level, Current, Average, Maximum speed, Walk Mode, Total distance odometer, Trip odometer, Trip Timer, Error code diagnostics, parameters instantly reconfigured at the touch of a button to conform to Class 1 or 2.

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE RS : 500W mid motor, 48V 130Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 2A, DC, UL Certified 95km (60mi) * 5 Levels ** On-Demand, Removable Internal Torque, Cadence, Speed MULTI CLASS SWITCHABLE : Class 1 / Class 2 ***

Outland Cabot RS1 display and throttle

i G O

E LE CT R I C

B I KES

ALL ROAD

OUTLAND

CABOT RS H Y B R ID e T R E KKI NG

OUTLAND CABOT RS FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Trekking frame, internal cable routing head tube ported, fender mounts, key lock secured internal downtube battery compartment (removable battery), accessory ready rear cargo rack Green and Black Suntour XCM32 HLO DS suspension, 80mm travel, lockout, Q-Loc Thru Axle

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALIVIO 9-speed Rapidfire Plus 42T Narrow Wide KMC E9-S SHIMANO ALIVIO 9-speed SHIMANO ALIVIO 9-speed 11-34T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

720mm, 28mm rise, 31.8mm dia.

VELO, Rubber palm rest, 140mm 45mm with 3 degree rise, 31.8mm clamp dia.

31.6mm (350mm) SELLE ROYAL Rio TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

SCHWALBE HURRICANE 27.5″x2.4″ 27.5″, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE RS : 500W mid motor, 48V 130Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 3A, 4 pin, UL Certified Outland Cabot RS display and throttle 95km (60mi) * Modes : Eco/Tour/Sport/Turbo/Boost (color coded) ** On-Demand, Removable Internal Torque, Cadence, Speed MULTI CLASS SWITCHABLE : Class 1 / Class 2 / Class 3 capable where permitted *** max speed 45km/h (28mph) Smart Battery Management System with increased safety features, additional diagnostic information, statistical usage analysis, simplified maintenance/care procedures. (Diagnostics and battery analysis information can be accessed through the display unit and when using the iGO Ride mobile app.)

iGO RIDE

mobile app

(Android and iOS) for more information : igoelectric.com/igoride

i G O

E LE CT R I C

B I KES

OUTLAND

CAB OT

RS1

&

“The bike has speed, uphill power, and a responsive feel that just felt awesome!”

John S. Bozick - ELECTRIC BIKE REPORT

ACCESSORIES INCLUDED Front LED Light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with Brake Light Integrated into Rear Rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory Ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, VP-501 Alloy MTB Pedals - Black, Bell, Tool Kit, Battery Charger (UL certified) NOTES BIKE WEIGHT (without battery) BATTERY WEIGHT

23.3kg (51.4 lbs) 3.5kg (7.7 lbs)

WEIGHT CAPACITY

125kg (275 lbs) 190 cm (6′2″) SUGGESTED MAX. RIDER HEIGHT

OUTLAND CABOT GEOMETRY

(in mm unless stated)

RS1

RS

49cm (19.3″)

48cm (19″)

SEAT TUBE LENGTH

490

480

B

SEAT TUBE ANGLE

72.7º

72.7º

C

EFFECTIVE TOP TUBE LENGTH

589

620

D

STACK

657

642

E

REACH

424

468

F

HEAD TUBE LENGTH

150

150

G

HEAD TUBE ANGLE

68.5º

68.5º

H

BOTTOM BRACKET HEIGHT

283

301

I

BOTTOM BRACKET DROP

69

51

J

CHAINSTAY LENGTH

455

460

K

CRANK LENGTH

170

170

L

WHEELBASE

1154

1205

SADDLE HEIGHT (MIN)

80cm (31.5″)

79cm (31.1″)

SADDLE HEIGHT (MAX)

100cm (39.4″)

99cm (39″)

STAND OVER HEIGHT

73cm (28.7″)

74cm (29.1″)

M N

43.3″ (110 cm)

FRAME SIZE A

SUGGESTED MIN. RIDER HEIGHT 152cm (5′0″)

75.6″ (192 cm)

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. **This bike is sold factory configured to CLASS 2 specifications. User configurable to CLASS 1 or CLASS 3. Always check the specific state/provincial laws when selecting the class of operation.

Specifications & pricing subject to change.

***Electric bike class regulation: Class 1 - Pedal assist motor with maximum assisted speed 32km/h (20mph) Class 2 - Pedal assist motor and throttle with maximum assisted speed 32km/h (20mph) Class 3 - Throttle and/or pedal assist motor with maximum assisted speed 45km/h (28mph) all classes allow a maximum motor power of 750W(US) or 500W(Canada)

RS

W WW. i GOELE CTR IC .C OM /CAB OT

RIDE THIS WAY

RIDE THIS WAY

WWW.i GOELECTR IC.CO M /SAW BAC K

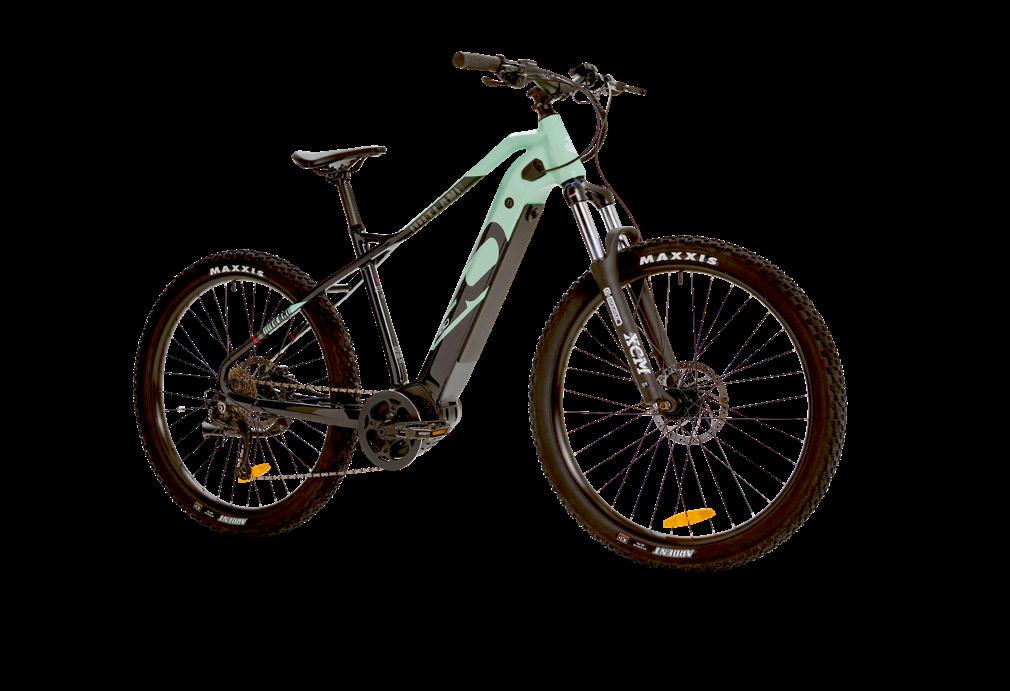

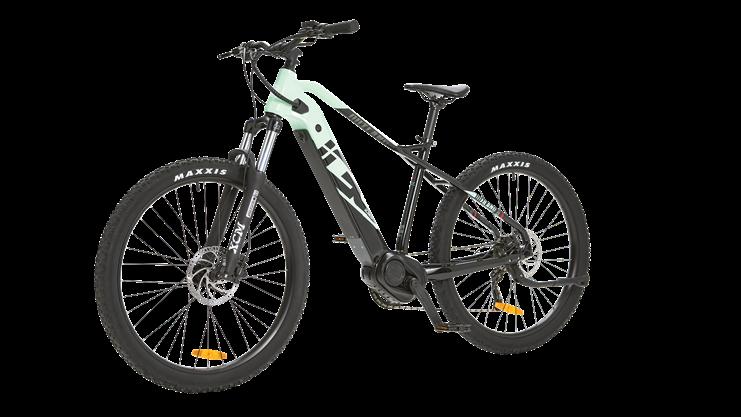

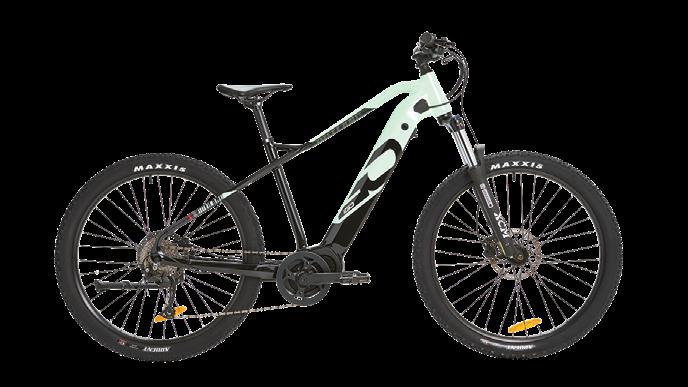

OFF ROAD

OUTLAND

SAWBACK H A R D TA I L 2 7. 5 e M T B

WW W. iG OE LECT RI C .C OM /SAW BAC K

RIDE THIS WAY

POPULAR FEATURES

Thumb throttle (removable)

Cyclocomputer with diagnostic display

Fast rolling trail tires (with sidewall protection) Suspension fork

Hydraulic disc brakes

Mid motor In-frame battery with key lock

OUTLAND SAWBACK RS1

RS dropper post with 150mm travel

SUNTOUR XCM34 BOOST suspension fork 120mm travel, lockout, thru axle

SUNTOUR XCM34 BOOST suspension fork 120mm travel, lockout, thru axle

SHIMANO 8 speed

SHIMANO 9 speed

MAXXIS M315 EXO 2.4” tires

MAXXIS M315 EXO 2.4” tires

mid motor 500W, 48V 130Nm max. torque

mid motor 500W, 48V 130Nm max. torque

torque / cadence / speed sensor

torque / cadence / speed sensor

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

70km (45mi) range*

70km (45mi) range*

5 Level PAS

assist modes : eco/tour/sport/turbo/boost

E LE CT R I C

OUTLAND

i G O

B I KES

OFF ROAD

RS1 SAWBACK

H AR DTAIL 27. 5 eM TB

OUTLAND SAWBACK RS1 FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Hardtail MTB frame, internal cable routing head tube ported, fender mounts, key lock secured internal downtube battery compartment (removable battery) Celeste and Black SUNTOUR SF-18 27.5″ XM34-DS-Boost-LO suspension, 120mm travel, lockout, Q-Loc Thru Axle

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALTUS 8-speed 34T Narrow Wide KMC E8-S SHIMANO ACERA 8-speed SHIMANO ACERA 8-speed 11-32T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

720mm, 28mm rise, 31.8mm dia.

VELO, Rubber with Microtech Texture, 132mm 45mm with 3 degree rise, 31.8mm clamp dia.

31.6mm (350mm) SELLE ROYAL TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

MAXXIS M315 EXO 27.5″x2.4″ 27.5″, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ TFT Display LCD display, Main power on/off, Front & Rear lights on/off, Backlit for night viewing, Battery Level indicator, PAS Level, Current, Average, Maximum speed, Walk Mode, Total distance odometer, Trip odometer, Trip Timer, Error code diagnostics, parameters instantly reconfigured at the touch of a button to conform to Class 1 or 2.

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE RS : 500W mid motor, 48V 130Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 2A, DC, UL Certified 70km (45mi) * 5 Levels ** On-Demand, Removable Internal Torque, Cadence, Speed MULTI CLASS SWITCHABLE : Class 1 / Class 2 ***

Outland Sawback RS1 display and throttle

i G O

E LE CT R I C

B I KES

OFF ROAD

OUTLAND

SAWBACK RS H A R DTA IL 27. 5 eM TB

OUTLAND SAWBACK RS FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 27.5 Hardtail MTB frame, internal cable routing head tube ported, fender mounts, key lock secured internal downtube battery compartment (removable battery) Celeste and Black SUNTOUR SF-18 27.5″ XM34-DS-Boost-LO suspension, 120mm travel, lockout, Q-Loc Thru Axle

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALIVIO 9-speed Rapidfire Plus 34T Narrow Wide KMC E9-S SHIMANO ALIVIO 9-speed SHIMANO ALIVIO 9-speed 11-36T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

720mm, 28mm rise, 31.8mm dia.

VELO, Rubber with Microtech Texture, 132mm 45mm with 3 degree rise, 31.8mm clamp dia.

EXA KSP900-1 Dropper Post, 150mm travel (445mm) SELLE ROYAL Viento TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

MAXXIS M315 EXO 27.5″x2.4″ 27.5″, Dual Wall Alloy, black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE RS : 500W mid motor, 48V 130Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 3A, 4 pin, UL Certified Outland Sawback RS display and throttle 70km (45mi) * Modes : Eco/Tour/Sport/Turbo/Boost (color coded) ** On-Demand, Removable Internal Torque, Cadence, Speed MULTI CLASS SWITCHABLE : Class 1 / Class 2 / Class 3 capable where permitted *** max speed 45km/h (28mph) Smart Battery Management System with increased safety features, additional diagnostic information, statistical usage analysis, simplified maintenance/care procedures. (Diagnostics and battery analysis information can be accessed through the display unit and when using the iGO Ride mobile app.)

iGO RIDE

mobile app

(Android and iOS) for more information : igoelectric.com/igoride

i G O

E LE CT R I C

B I KES

OUTLAND

SAWBAC K

RS1

&

“With 130 Newton-meters of maximum torque output, it flattens hills and makes riding at speed effortless and smooth.”

John S. Bozick - ELECTRIC BIKE REPORT

ACCESSORIES INCLUDED Water Bottle Bosses on Seat Tube, Kickstand, VP-501 Alloy MTB Pedals, Tool Kit, Battery Charger (UL certified) NOTES BIKE WEIGHT (without battery) BATTERY WEIGHT

27.4kg (60.4 lbs) 3.5kg (7.7 lbs)

WEIGHT CAPACITY

125kg (275 lbs) 190 cm (6′2″) SUGGESTED MAX. RIDER HEIGHT

OUTLAND SAWBACK GEOMETRY

(in mm unless stated)

RS1

RS

49cm (19.3″)

48cm (19″)

SEAT TUBE LENGTH

490

480

B

SEAT TUBE ANGLE

71º

71º

C

EFFECTIVE TOP TUBE LENGTH

612

621

D

STACK

693

655

E

REACH

413

435

F

HEAD TUBE LENGTH

150

150

G

HEAD TUBE ANGLE

68.5º

68.5º

H

BOTTOM BRACKET HEIGHT

285

325

I

BOTTOM BRACKET DROP

69

29

J

CHAINSTAY LENGTH

495

495

K

CRANK LENGTH

170

170

L

WHEELBASE

1198

1225

SADDLE HEIGHT (MIN)

90cm (35.4″)

89cm (35″)

SADDLE HEIGHT (MAX)

105cm (41.3″)

104cm (40.9″)

STAND OVER HEIGHT

75cm (29.5″)

77cm (30.3″)

M N

45.3″ (115 cm)

FRAME SIZE A

SUGGESTED MIN. RIDER HEIGHT 160cm (5′3″)

75.6″ (192 cm)

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. **This bike is sold factory configured to CLASS 2 specifications. User configurable to CLASS 1 or CLASS 3. Always check the specific state/provincial laws when selecting the class of operation.

Specifications & pricing subject to change.

***Electric bike class regulation: Class 1 - Pedal assist motor with maximum assisted speed 32km/h (20mph) Class 2 - Pedal assist motor and throttle with maximum assisted speed 32km/h (20mph) Class 3 - Throttle and/or pedal assist motor with maximum assisted speed 45km/h (28mph) all classes allow a maximum motor power of 750W(US) or 500W(Canada)

RS

RIDE THIS WAY

WWW.i GOELECTR IC.CO M /SAW BAC K

RIDE THIS WAY

WWW.i G OELECTR IC.CO M / TORN GAT

OFF ROAD

OUTLAND

TORNGAT e FAT B I K E

W WW. iGOE L E CTR IC .C OM / TORN G AT

RIDE THIS WAY

POPULAR FEATURES

Thumb throttle (removable)

Cyclocomputer with diagnostic display

Suspension fork

Rear specific 4.8” all terrain fatbike tire

Front specific 4.8” all terrain fatbike tire

Hydraulic disc brakes

Mid motor In-frame battery with key lock

OUTLAND TORNGAT RS1

RS dropper post with 150mm travel

RST RENEGADE suspension fork 120mm travel, lockout, thru axle

RST RENEGADE suspension fork 120mm travel, lockout, thru axle

SHIMANO 8 speed

SHIMANO 9 speed

MAXXIS MINION FBF + FBR 4.8” tires

MAXXIS MINION FBF + FBR 4.8” tires

mid motor 500W, 48V 130Nm max. torque

mid motor 500W, 48V 130Nm max. torque

torque / cadence / speed sensor

torque / cadence / speed sensor

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

SAMSUNG 21700 cell battery 48V, 15Ah, 720Wh

60km (37mi) range*

60km (37mi) range*

5 Level PAS

assist modes : eco/tour/sport/turbo/boost

E LE CT R I C

OUTLAND

i G O

B I KES

OFF ROAD

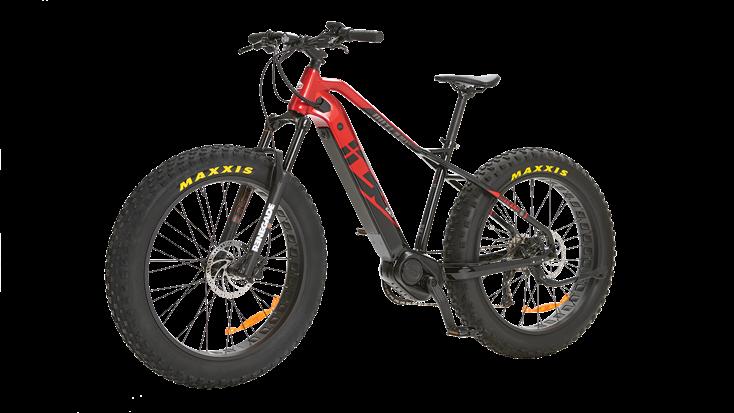

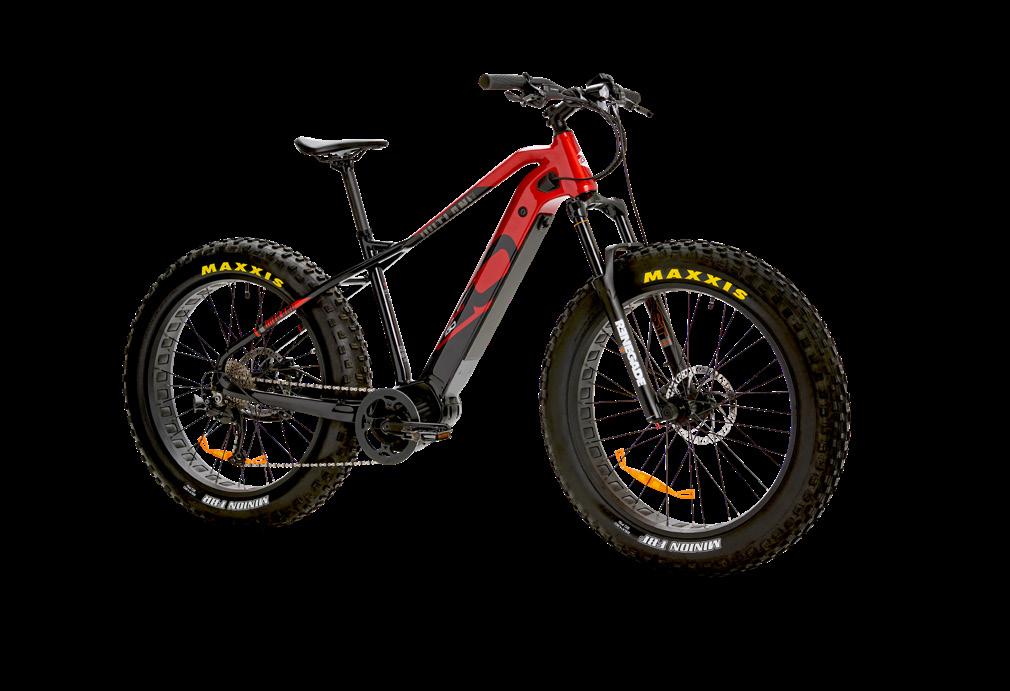

RS1 TO R N G AT

2 6 ” x 4 . 8” e FATB I KE

OUTLAND TORNGAT RS1 FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 26 Fatbike frame, internal cable routing head tube ported, fender mounts, key lock secured internal downtube battery compartment (removable battery) Red and Black RST RENEGADE 26″ air suspension, 120mm travel, lockout, Thru Axle

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALTUS 8-speed 34T Narrow Wide KMC E8-S SHIMANO ACERA 8-speed SHIMANO ACERA 8-speed 11-32T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

700mm, 28mm rise, 31.8mm dia.

VELO, Rubber with Microtech Texture, 132mm 75mm with 3 degree rise, 31.8mm clamp dia.

31.6mm (350mm) SELLE ROYAL TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

MAXXIS Minion M346(F) M347(R) 26″x4.8″ 26″x95mm, Fatbike Rim

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ TFT Display LCD display, Main power on/off, Front & Rear lights on/off, Backlit for night viewing, Battery Level indicator, PAS Level, Current, Average, Maximum speed, Walk Mode, Total distance odometer, Trip odometer, Trip Timer, Error code diagnostics, parameters instantly reconfigured at the touch of a button to conform to Class 1 or 2.

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE RS : 500W mid motor, 48V 130Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 2A, DC, UL Certified 60km (37mi) * 5 Levels ** On-Demand, Removable Internal Torque, Cadence, Speed MULTI CLASS SWITCHABLE : Class 1 / Class 2 ***

Outland Torngat RS1 display and throttle

i G O

E LE CT R I C

B I KES

OFF ROAD

OUTLAND

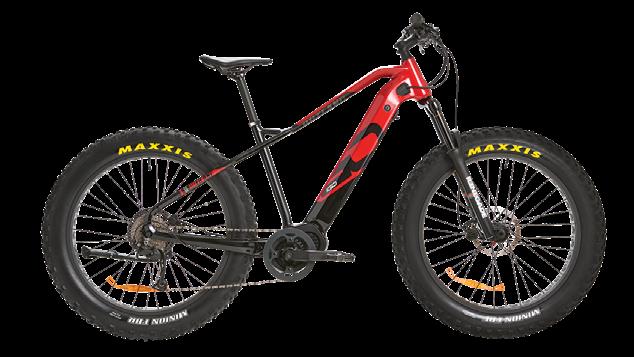

TORNGAT RS 2 6” x 4 . 8” e FATB I KE

OUTLAND TORNGAT RS FRAMESET FRAME COLOR FORK

Hydroformed Alloy, 26 Fatbike frame, internal cable routing head tube ported, fender mounts, key lock secured internal downtube battery compartment (removable battery) Red and Black RST RENEGADE 26″ air suspension, 120mm travel, lockout, Thru Axle

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

COMPONENTS SHIMANO ALIVIO 9-speed Rapidfire Plus 34T Narrow Wide KMC E9-S SHIMANO ALIVIO 9-speed SHIMANO ALIVIO 9-speed 11-36T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

700mm, 28mm rise, 31.8mm dia.

VELO, Rubber with Microtech Texture, 132mm 75mm with 3 degree rise, 31.8mm clamp dia.

EXA KSP900-1 Dropper Post, 150mm travel (445mm) SELLE ROYAL Viento TEKTRO HDE350 with power cut off switch TEKTRO HDE350 Hydraulic Disc 180mm

MAXXIS Minion M346(F) M347(R) 26″x4.8″ 26″x95mm, Fatbike Rim

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE RS : 500W mid motor, 48V 130Nm 5000mAh SAMSUNG 21700 cell, removable with security lock (48V | 15Ah | 720Wh) 48V, 3A, 4 pin, UL Certified Outland Torngat RS display and throttle 60km (37mi) * Modes : Eco/Tour/Sport/Turbo/Boost (color coded) ** On-Demand, Removable Internal Torque, Cadence, Speed MULTI CLASS SWITCHABLE : Class 1 / Class 2 / Class 3 capable where permitted *** max speed 45km/h (28mph) Smart Battery Management System with increased safety features, additional diagnostic information, statistical usage analysis, simplified maintenance/care procedures. (Diagnostics and battery analysis information can be accessed through the display unit and when using the iGO Ride mobile app.)

iGO RIDE

mobile app

(Android and iOS) for more information : igoelectric.com/igoride

i G O

E LE CT R I C

B I KES

OUTLAND

TORNG AT

RS1

&

“The Torngat RS’ powerful motor, big tires, suspension, and handling make you feel more dominant on the trails.”

John S. Bozick - ELECTRIC BIKE REPORT

ACCESSORIES INCLUDED Front LED Light XC-259A (powered by main battery), Water Bottle Bosses on Seat Tube, Kickstand, VP-501 Alloy MTB Pedals, Tool Kit, Battery Charger (UL certified) NOTES BIKE WEIGHT (without battery) BATTERY WEIGHT

26.9kg (59.3 lbs) 3.5kg (7.7 lbs)

WEIGHT CAPACITY

125kg (275 lbs) 190 cm (6′2″) SUGGESTED MAX. RIDER HEIGHT

OUTLAND TORNGAT GEOMETRY

(in mm unless stated)

RS1

RS

48cm (19″)

48.5cm (19.1″)

SEAT TUBE LENGTH

480

485

B

SEAT TUBE ANGLE

73º

73º

C

EFFECTIVE TOP TUBE LENGTH

605

622

D

STACK

678

681

E

REACH

401

440

F

HEAD TUBE LENGTH

150

150

G

HEAD TUBE ANGLE

68.5º

68.5º

H

BOTTOM BRACKET HEIGHT

324

324

I

BOTTOM BRACKET DROP

59

59

J

CHAINSTAY LENGTH

494

494

K

CRANK LENGTH

170

170

L

WHEELBASE

1188

1228

SADDLE HEIGHT (MIN)

89cm (35″)

89.5cm (35.2″)

SADDLE HEIGHT (MAX)

104cm (41″)

104.5cm (41.1″)

STAND OVER HEIGHT

76.5cm (30.1″)

78cm (30.7″)

M N

47.2″ (120 cm)

FRAME SIZE A

SUGGESTED MIN. RIDER HEIGHT 160cm (5′3″)

74.8″ (190 cm)

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. **This bike is sold factory configured to CLASS 2 specifications. User configurable to CLASS 1 or CLASS 3. Always check the specific state/provincial laws when selecting the class of operation.

Specifications & pricing subject to change.

***Electric bike class regulation: Class 1 - Pedal assist motor with maximum assisted speed 32km/h (20mph) Class 2 - Pedal assist motor and throttle with maximum assisted speed 32km/h (20mph) Class 3 - Throttle and/or pedal assist motor with maximum assisted speed 45km/h (28mph) all classes allow a maximum motor power of 750W(US) or 500W(Canada)

RS

W WW. iGOE L E CTR IC .C OM / TORN G AT

RIDE THIS WAY

RIDE THIS WAY

WWW.i GOELECTR IC.COM/ THEROYA L

UTILITY

THE

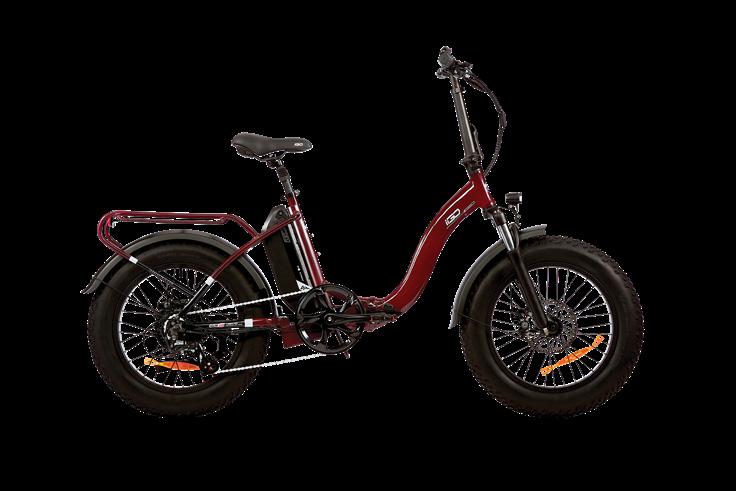

ROYAL FOLDING eUTILITY

i G O

E LE CT R I C

B I KES

UTILITY

THE

ROYAL UF FO L D IN G e UTI LI TY

THE ROYAL UF FRAMESET FRAME COLOR FORK

Hydroformed Alloy, Foldable Step Through 20″ Fatbike frame, integrated rear rack, fender mounts, internal cable routing, Electronic Access Port, Removable battery with security lock Kandy Apple Red or Gloss Jet Black WB800 - 20″ suspension COMPONENTS

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

SHIMANO 8-speed trigger shift 52T KMC Z7 SHIMANO ALTUS 8-speed SHIMANO 8-speed 11-32T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

Alloy flat bar 600mm VELO non-slip, shock-absorbing, kraton gel (120mm) iGO adjustable height folding stem Alloy 27.2mm suspension with quick release (350mm) SELLE ROYAL with Royal Gel comfort E-brake levers TEKTRO ARIES Mechanical Disc 180mm

KENDA 20″x4″, 5 to 30 psi Alloy fat 20″

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM THROTTLE SENSOR CLASS

iGO DRIVE UF : 500W geared rear hub motor, 48V 80Nm 2600mAh LG removable lithium battery with security lock (48V | 13Ah | 624Wh) 48V, 3A, 4 pin, UL Certified 60km (37mi) * The Royal UF display and throttle Modes : Eco/Tour/Sport/Turbo/Boost (color coded) ** On-Demand, Removable Electronic 32 pulse Cadence Sensor integrated into the bottom bracket MULTI CLASS SWITCHABLE : Class 1 / Class 2 / Class 3 capable where permitted *** max speed 45km/h (28mph)

Smart Battery Management System with increased safety features, additional diagnostic information, statistical usage analysis, simplified maintenance/care procedures. (Diagnostics and battery analysis information can be accessed through the display unit and when using the iGO Ride mobile app.)

iGO RIDE

mobile app

(Android and iOS) for more information : igoelectric.com/igoride

500W | 48V

hub motor

80Nm

max. torque

624Wh battery

60 km (37 miles) range*

i G O

E LE CT R I C

B I KES

THE

ROYA L

ACCESSORIES INCLUDED Front & Rear LED Lights (powered by main battery), Front & Rear Fenders, Rear Integrated Cargo Rack, Kickstand, Wellgo Folding Pedals, In Frame Cable Routing, Tool Kit, Battery Charger (UL certified) NOTES

SIZE WHEN FOLDED

50cm (W) x 90cm (L) x 75cm (H)

THE ROYAL UF GEOMETRY

25.8kg (56.9 lbs) 3.7kg (8.2 lbs)

WEIGHT CAPACITY

114kg (250 lbs)

190 cm (6′2″) SUGGESTED MAX. RIDER HEIGHT SUGGESTED MIN. RIDER HEIGHT 152cm (5′0″)

(in mm unless stated) 42cm (16.5″)

SEAT TUBE LENGTH

420

B

SEAT TUBE ANGLE

72º

C

EFFECTIVE TOP TUBE LENGTH

601

D

STACK

473

E

REACH

469

F

HEAD TUBE LENGTH

120

G

HEAD TUBE ANGLE

69º

H

BOTTOM BRACKET HEIGHT

325

I

BOTTOM BRACKET DROP

-31

J

CHAINSTAY LENGTH

485

K

CRANK LENGTH

170

L

WHEELBASE

1186

SADDLE HEIGHT (MIN)

81.2cm (32″)

SADDLE HEIGHT (MAX)

109.2cm (43″)

42.5″ (108 cm)

FRAME SIZE A

M

BIKE WEIGHT (without battery) BATTERY WEIGHT

68.9″ (175 cm)

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. **This bike is sold factory configured to CLASS 2 specifications. User configurable to CLASS 1 or CLASS 3. Always check the specific state/provincial laws when selecting the class of operation.

Specifications & pricing subject to change.

***Electric bike class regulation: Class 1 - Pedal assist motor with maximum assisted speed 32km/h (20mph) Class 2 - Pedal assist motor and throttle with maximum assisted speed 32km/h (20mph) Class 3 - Throttle and/or pedal assist motor with maximum assisted speed 45km/h (28mph) all classes allow a maximum motor power of 750W(US) or 500W(Canada)

UF

RIDE THIS WAY

WWW.i G OELECTR IC.COM/CAM I LLI EN

ALL ROAD

ASPIRE

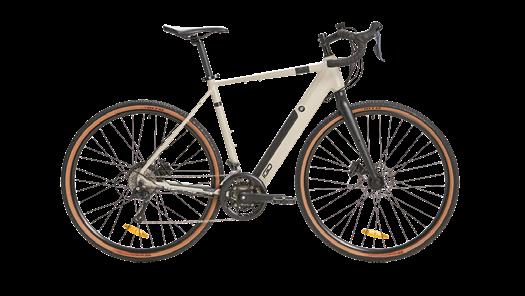

CAMILLIEN G R AV E L e R O A D

i G O

E LE CT R I C

B I KES

ALL ROAD

ASPIRE

CAMILLIEN CE G R AVE L e R OA D

ASPIRE CAMILLIEN CE FRAMESET FRAME COLOR FORK

Hydroformed 6061 Aluminum Alloy 700 Gravel frame with smooth welds, fender/rack mounts, internal cable routing, key lock secured integrated downtube battery compartment (removable battery) Matte Taupe with Black accents Hydroformed alloy 700C with quick release COMPONENTS

DRIVETRAIN SHIFTERS FRONT DERAILLEUR CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

MICROSHIFT CENTOS 2x10 MICROSHIFT CENTOS FD-R712-B 48/32T KMC X10 Double X-Durability MICROSHIFT CENTOS RD-R51M 10-speed MICROSHIFT CENTOS 10-speed 11-32T

WHEELS TIRES RIMS

HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

Alloy drop bar, 420mm FSA bar tape - black Alloy 4 bolt, 90mm, 31.8mm clamp dia.

Alloy 30.4mm with quick release (350mm) VELO for iGO MICROSHIFT CENTOS TEKTRO Cable Actuated Hydraulic Disc HY/RD F160/R160

WTB Resolute 700X42C - tanwall Alloy P23D 700C - black

ELECTRIC TECHNOLOGY DISPLAY UNIT

2″ HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

MOTOR MAX. TORQUE BATTERY BATTERY CHARGER RANGE PEDAL ASSIST SYSTEM SENSOR CLASS

iGO DRIVE CE : 250W geared rear hub drive, 36V 45Nm 3500mAh SAMSUNG 21700 cell, removable with security lock (36V | 10.5Ah | 378Wh) 36V, 2A, 3 pin, UL Certified 90km (56mi) * Aspire Camillien CE display Modes : Eco/Tour/Sport/Turbo/Boost (color coded) ** Dual sided 40 pulse Torque Sensor MULTI CLASS SWITCHABLE : Class 1 / Class 3 capable where permitted *** max speed 40km/h (25mph)

Smart Battery Management System with increased safety features, additional diagnostic information, statistical usage analysis, simplified maintenance/care procedures. (Diagnostics and battery analysis information can be accessed through the display unit and when using the iGO Ride mobile app.)

iGO RIDE

mobile app

(Android and iOS) for more information : igoelectric.com/igoride

250W | 36V

hub motor

45Nm

max. torque

378Wh battery

90 km (56 miles) range*

i G O

E LE CT R I C

B I KES

ASPIR E

CA M I LLI EN

ACCESSORIES INCLUDED Water Bottle Bosses on Seat Tube & Under Top Tube, Tool Kit, Battery Charger (UL certified) NOTES BIKE WEIGHT (without battery) BATTERY WEIGHT

16.7kg (36.8 lbs) 2kg (4.4 lbs)

WEIGHT CAPACITY

125kg (275 lbs) s/m - 175 cm (5′9″) m/l - 190 cm (6′2″) SUGGESTED MAX. RIDER HEIGHT

ASPIRE CAMILLIEN CE GEOMETRY

(in mm unless stated)

(s/m)

(m/l)

48cm (19″)

54cm (21″)

SEAT TUBE LENGTH

480

540

B

SEAT TUBE ANGLE

74º

74º

C

EFFECTIVE TOP TUBE LENGTH

534

550

D

STACK

609

609

E

REACH

360

375

F

HEAD TUBE LENGTH

160

160

G

HEAD TUBE ANGLE

73º

73º

H

BOTTOM BRACKET HEIGHT

275

275

I

BOTTOM BRACKET DROP

65

65

J

CHAINSTAY LENGTH

445

445

K

CRANK LENGTH

170

170

L

WHEELBASE

1013

1028

SADDLE HEIGHT (MIN)

79cm (31.1″)

85cm (33.5″)

SADDLE HEIGHT (MAX)

99cm (39″)

105cm (41.3″)

STAND OVER HEIGHT

77.5cm (30.5″)

79.5cm (31″)

M N

43.3″ (110 cm)

FRAME SIZE A

SUGGESTED MIN. RIDER HEIGHT s/m - 152 cm (5′0″) m/l - 170 cm (5′7″)

67.3″ (171 cm)

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. **This bike is sold factory configured to CLASS 1 specifications. User configurable to CLASS 3. Always check the specific state/provincial laws when selecting the class of operation.

Specifications & pricing subject to change.

***Electric bike class regulation: Class 1 - Pedal assist motor with maximum assisted speed 32km/h (20mph) Class 2 - Pedal assist motor and throttle with maximum assisted speed 32km/h (20mph) Class 3 - Throttle and/or pedal assist motor with maximum assisted speed 45km/h (28mph) all classes allow a maximum motor power of 750W(US) or 500W(Canada)

C E

iGOELECTRI C .C OM

BACK COVER

ROULER AUTREMENT RIDE THIS WAY
