Metro CX city/commuter eBike

electric bike

Explore the city Commute with confidence

Reclaim your commute HEALTHY, ENJOYABLE, FUN Don’t be stuck in traffic when you can ride around it. Take the scenic route, take it at your own pace. Take back control.

Work out as much or as little as you want. Simply riding an iGO Metro CX eBike encourages better breathing regulation and can deliver a fully controllable cardiovascular exercise. The power assisted input is manually regulated suiting the requirements of each journey to arrive feeling refreshed and sweat free, or to keep the preferred level of exercise manageable while easily adapting to suite the terrain or physical ability and personal fitness of the rider.

Join the thousands of riders who have discovered the mobility choice that promotes both a physical and mentally healthy lifestyle. It is easy to enrich your quality of life with the iGO Metro CX.

EFFICIENT MODE OF TRANSPORT Shorter journeys are more efficient on an electric bike than a car as the electric bike requires less power to travel the same distance (the electric bicycle has a more efficient power transfer). They can also access areas and require less space to maneuver making them a good way to relieve congestion around city hubs.

An electric bike is not restricted to a schedule like a bus or train allowing the rider freedom to move where and when they want and at their own pace.

As an amazingly affordable entry into eBikes the Metro CX delivers a level of excellence that can seem unbelievable.

Discover your environment and view your surroundings from a new perspective

Reconnect to your surroundings and feel the stress wash away as you travel with ease. Put your cares on pause and enjoy the moment.

STRESS FREE IS THE WAY TO BE Tasks seem simpler, journeys more appealing, regular exercise a breeze when riding the iGO Metro CX. When traveling is as much fun as this you may not want to reach your destination.

Electric bikes reduce muscle fatigue. They have extra power to get you to your location. They can travel quickly, with less effort and the rider can arrive sweat free. The Metro CX bears the certainty of a Canadian designed hydroformed frame for assured structural stability, balance and quality. Its all day battery range gets you where you need worry free, cost pennies and is as good for the environment as it is for your pocket.

Being part of the solution has never felt safer, easier, more accessible, or fun.

BUILT FOR Cycling can improve cardiovascular health, heart health as well as helping to improve general wellbeing, muscle tone, reduce stress and improve quality of sleep.

Clean, quiet, and smooth running - making every ride a pleasure.

EVERYDAY USE Straightforward responsive control and monitoring of the Power Assist System (PAS) allows on the fly personalization of pedal pace and instant adaptability over variable terrain.

Power on demand thumb throttle for short bursts of acceleration when tackling sudden changes in incline, safely negotiate traffic, or to cruise the street.

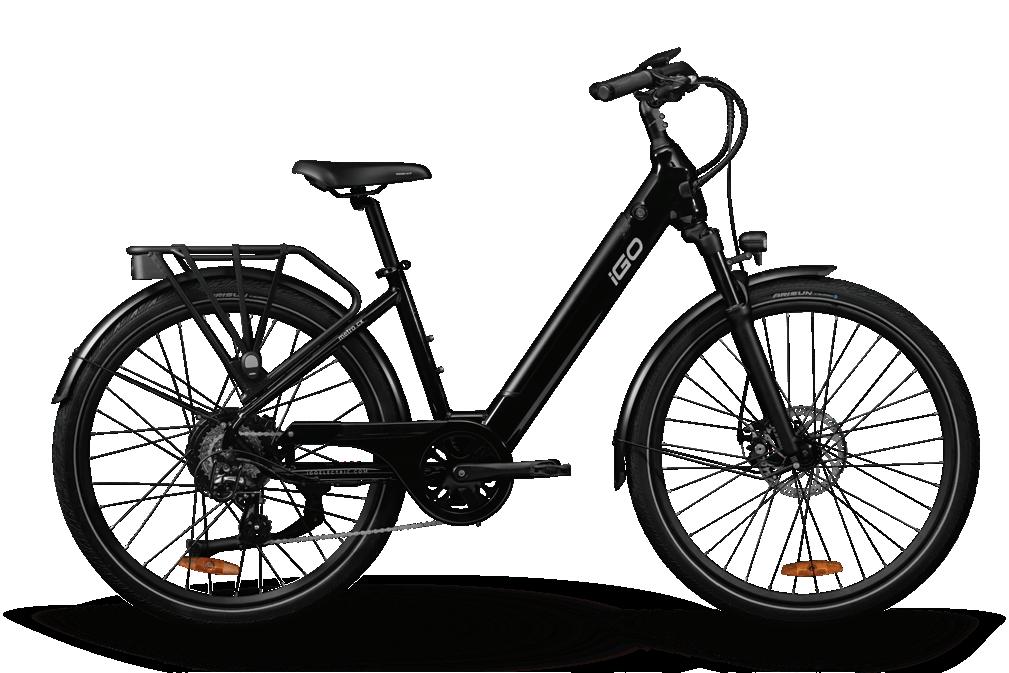

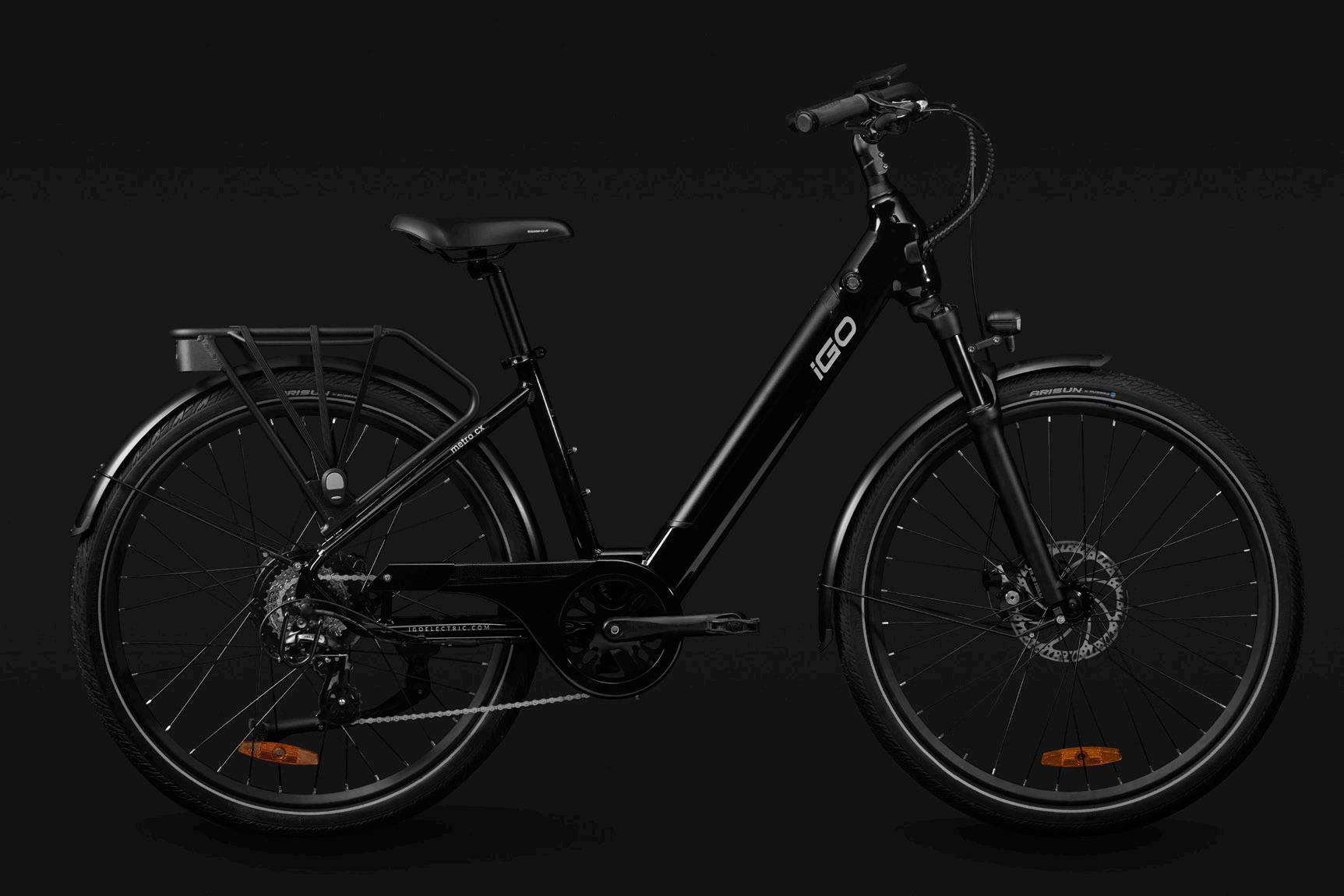

City/Commuter step through eBike

POWER

‘Whisper quiet’ slim motor with up to 48 Nm torque delivering effortless climbing, consistent pedal assist and smooth speed control through 9 Levels of power assisted pedaling and a power on demand throttle override (throttle is disabled in level 0 for safety).

482 Wh Lithium Ion battery for all day riding.

Battery can be charge on or off the bike for convenience.

The iGO Metro CX is a Class 2 electric bike.

All specifications maximize power output while still conforming to Transport Canada regulations for legal use on public roads.

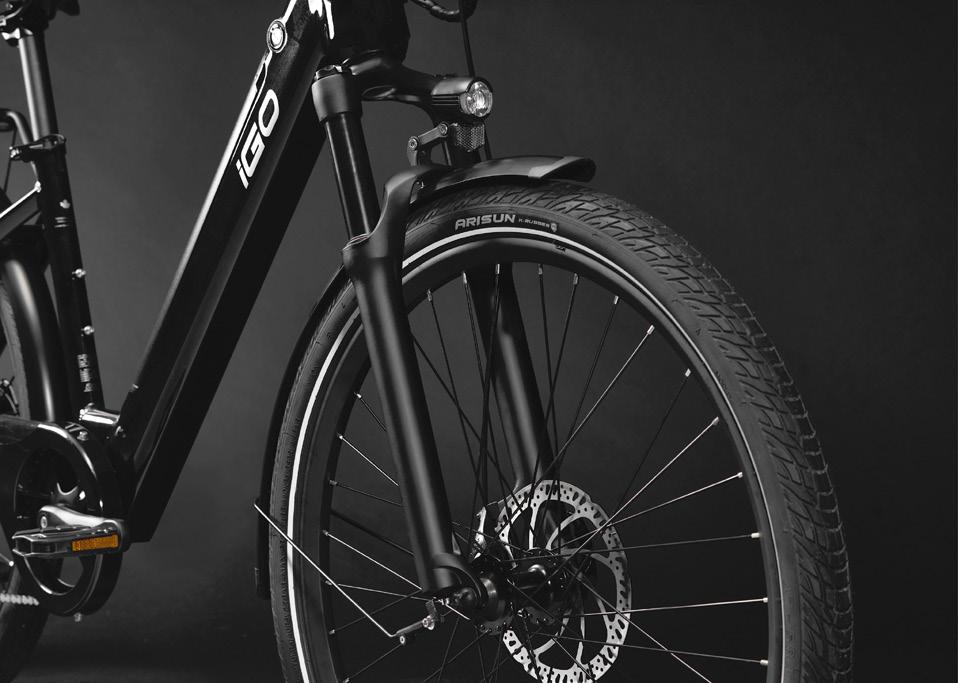

The suspension fork is perfectly suited to handle uneven riding surfaces and reduce arm fatigue over extended long distance outings. It is equipped with a lock out system that will enhance energy efficiency when riding on smooth surfaces.

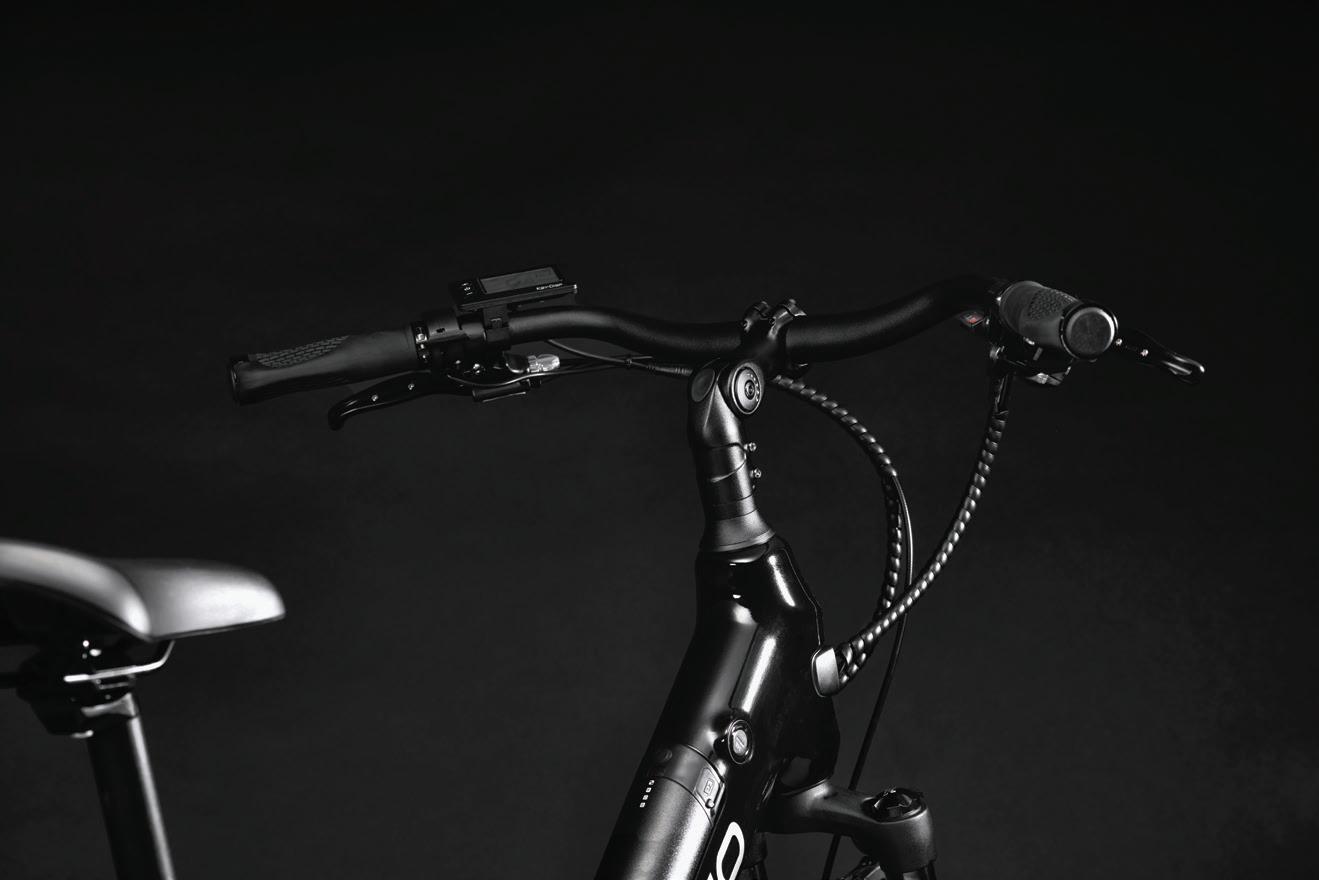

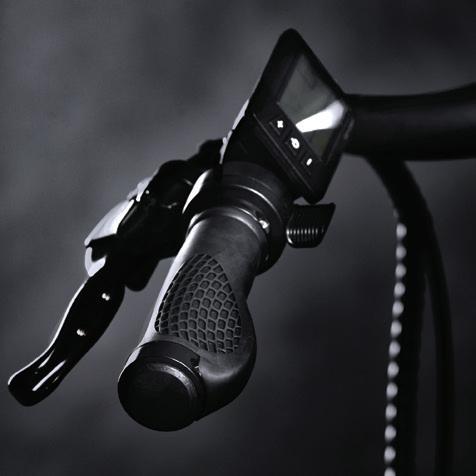

COMFORT Ergonomic textured grips absorb vibration and provide comfort, support and slip free assurance. The elegant yet sporty semi-cruiser handlebar and adjustable stem deliver adaptability to the reach and handlebar pitch and height to suit any preferred riding posture. From an upright and relaxed measure position to a more aggressive, sporty and powerful pose, when used in collaboration with the quick release seat post it easy to establish, modify and fine-tune a position that feels relaxed and comfortable to your specific body type for extended riding duration.

Rear light acts as a brake light to make sure other road users are aware of your actions.

The brake levers are fitted with motor cut off to ensure stopping can be performed safely at all times. Integrated bell on the right brake lever to announce your presence to other road/path users.

Tektro disc brakes with large (180mm) rotor provide decisive stopping power in all weather conditions.

SAFETY

BIKE GEOMETRY Setup is simple with only three steps to complete once out of the box: SUGGESTED MAX. RIDER HEIGHT

6′2″ (190 cm)

SUGGESTED MIN. RIDER HEIGHT

5′3″ (160 cm)

HANDLEBAR

FRONT WHEEL

PEDALS

44″ (112 cm)

43.4″ (110.3 cm) 72″ (190 cm)

SEAT TUBE LENGTH

420mm

HEAD TUBE ANGLE

70.1º

SEAT TUBE ANGLE

71.2º

BOTTOM BRACKET HEIGHT

297mm

EFFECTIVE TOP TUBE LENGTH

526mm

BOTTOM BRACKET DROP

45mm

STACK

632mm

CHAINSTAY LENGTH

450mm

REACH

403mm

CRANK LENGTH

170mm

HEAD TUBE LENGTH

161mm

WHEELBASE

1103mm

FULL SPECIFICATIONS FRAMESET FRAME COLOR FORK

Hydroformed 6061 Aluminum step through frame. Fender/rack mounts, internal cable routing.

Removable integrated battery with security lock Black Suspension, 70mm travel with lockout and quick release

DRIVETRAIN SHIFTERS CHAINRINGS CHAIN REAR DERAILLEUR CASSETTE

SHIMANO 8-speed Rapidfire 44T KMC Z8.3 SHIMANO ALTUS 8-speed 11-32T

COMPONENTS HANDLEBAR GRIPS STEM SEAT POST SADDLE BRAKE LEVERS BRAKE CALIPERS ROTORS

Alloy low ride Semi Cruiser, 640mm, 31.8mm dia.

Ergonomic Rubber 130mm Adjustable 90mm, 0 - 40 degree rise Alloy 28.6mm with quick release (350mm) SELLE ROYAL TEKTRO ARIES, right lever integrated bell TEKTRO ARIES mechanical disc 180mm

WHEELS TIRES RIMS

27.5”x1.95” Chaoyang 27.5" Dual Wall Alloy

ELECTRIC TECHNOLOGY DISPLAY UNIT MOTOR TORQUE CONTROLLER BATTERY TYPE VOLTAGE BATTERY Ah BATTERY CAPACITY RANGE POWER ASSIST THROTTLE SENSOR CLASS BATTERY CHARGER

LCD Backlit, Main Power, Battery Status, Light Switch, Pedal Assist Level Selector, Speedometer, Max Speed, Avg Speed, Odometer, Trip Timer 500W (900W peak) geared brushless rear hub motor up to 48Nm 48v 9 Mosfet 3350mAh Lithium-Ion removable battery 48V 10.05Ah 482Wh 50km (32mi) * 9 Levels of power assisted pedaling Any time on demand thumb throttle Cadence Sensor Class 2 ** 110/220V Smart charger, LED status, CUL, 2A

ACCESSORIES INCLUDED Front & Rear LED Lights (powered by main battery), Rear Cargo Rack, Front & Rear Fenders, Rear Bungee Straps, Chain Guard, Water Bottle Boss on Seat Tube, Kickstand, Pedals, Tool Kit, Battery Charger NOTES FRAME SIZE SEAT HEIGHT (MIN/MAX) BIKE WEIGHT BATTERY WEIGHT WEIGHT CAPACITY

42cm (16.5”) 80cm / 100cm (31.5” / 39.5”) 22.6kg (49.8 lbs) 3.1kg (6.83 lbs) 100 kg (220 lbs)

*Actual range may vary depending on Ah of battery rider weight and other riding conditions. **electric bike class regulation: Class 1 - Pedal assist motor with maximum assisted speed 32km/h (20mph) Class 2 - Pedal assist motor and throttle with maximum assisted speed 32km/h (20mph) Class 3 - Throttle and/or pedal assist motor with maximum assisted speed 45km/h (28mph) all classes allow a maximum motor power of 750W(US) or 500W(Canada) This bike is sold factory configured to CLASS 2 specifications.

(Specifications & pricing subject to change)

ENVIRONMENT A true zero emission vehicle with exceptionally low running costs. iGO are proud to present the Metro CX as an affordable option to aid in the ongoing and essential transition to electric vehicles use in North America.

Using vehicles that do not emit carbon by-products is one of the best ways to ensure a greener environment as they are an effective tool in the struggle to reduce the effects of global warming. Studies have shown switching to electric bikes can reduce our carbon footprint by up to 50%* Major city hubs have a problem with air pollution. In addition to the environmental effect of the pollution this smog can lead to respiratory and other health issues. Increased electric bikes use in built up areas can greatly reduce smog.

Noise pollution is more than a nuisance. Studies have shown that there are direct links between noise and health** Electric bikes are near silent. This benefits the rider and the community in general.

As part of the national ‘Call2Recycle’ program iGO are committed to ensuring responsible reclamation and disposal of eBike batteries to minimize waste, maximise repurposing of assets and reduce the environmental impact of the increasing battery demand in our society.

SUPPORT

EMISS I RO

N O

All iGO customers have access to a wealth of knowledge and information, assembly videos, general maintenance guides and everything necessary to be self sustaining in the up keep of your iGO electric bike. Our highly trained bilingual support staff are located in our Montreal head office where they have the resources to look further into any queries, consult our technical experts, and check inventory for parts and supplies.

I

O

ZE

R

ON

ZE

iGO is the original Canadian company dedicated to perfecting electric bike technology since 2006.

E MISS

iGO take the quality of our products seriously and back them with a guarantee by design and/or material defects for 12 months.

*Research study carried out by CREDS ‘e-bike carbon savings – how much and where?’ Jillian Anable **U.S. Environmental Protection Agency ‘What is Noise Pollution?’

Safe, Simple, Sustainable

The Metro CX puts the rider in control with effortless confidence and peace of mind for every journey. The low step through frame makes this one of the most accessible ‘hop-on, hop-off’ electric bikes available. A true zero emission vehicles with exceptionally low running costs.

iGO are committed to the responsible reclamation and disposal of eBike batteries.
