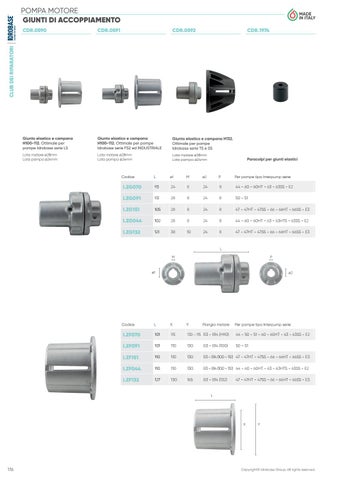

POMPA MOTORE GIUNTI DI ACCOPPIAMENTO CDR.0591
CDR.0592
CDR.1974
Giunto elastico e campana H100-112. Ottimale per pompe Idrobase serie LS
Giunto elastico e campana H100-112. Ottimale per pompe Idrobase serie FS2 ed INDUSTRIALE
Giunto elastico e campana H132. Ottimale per pompe Idrobase serie TS e SS
Lato motore ø28mm Lato pompa ø24mm
Lato motore ø28mm Lato pompa ø24mm
Lato motore ø38mm Lato pompa ø24mm
CLUB DEI RIPARATORI
CDR.0590
Codice
Paracolpi per giunti elastici
L
ø1
M
ø2
P
Per pompe tipo Interpump serie
I.ZG070
93
24
8
24
8
44 - 60 - 60HT - 63 - 63SS - E2
I.ZG091
93
28
8
24
8
50 - 51
I.ZG151
105
28
8
24
8
47 - 47HT - 47SS - 66 - 66HT - 66SS - E3
I.ZG044
102
28
8
24
8
44 - 60 - 60HT - 63 - 63HTS - 63SS - E2
I.ZG132
121
38
10
24
8
47 - 47HT - 47SS - 66 - 66HT - 66SS - E3
L M
P
ø1
Codice
ø2
L
X
Y
Flangia motore
Per pompe tipo Interpump serie
I.ZF070
101
95
130 - 115 B3 - B14 (H90)
44 - 50 - 51 - 60 - 60HT - 63 - 63SS - E2
I.ZF091
101
110
130
B3 - B14 (100)
50 - 51
I.ZF151
110
110
130
B3 - B14 (100 - 112) 47 - 47HT - 47SS - 66 - 66HT - 66SS - E3
I.ZF044
110
110
130
B3 - B14 (100 - 112) 44 - 60 - 60HT - 63 - 63HTS - 63SS - E2
I.ZF132
127
130
165
B3 - B14 (132)
47 - 47HT - 47SS - 66 - 66HT - 66SS - E3
L
X
176
Y
