The Catalogue of Solutions 2021/22

Page 144

ZX.0693

ZX.0698

ZX.0696

ZX.0760

ZX.0763

Kit Dolly 43, valves + O-Rings

Kit Dolly 113, seal packing ø30

Kit Dolly 79, seal packing ø45

Kit Dolly 65, head rings ø30

Kit Dolly 48, head rings ø45

quantity 2x6

quantity 3x3

quantity 3x3

quantity 1x6

quantity 1x6

ZX.0761

ZX.0765

ZX.0762

ZX.0764

ZX.0699

Kit Dolly 66, intermediate rings ø30

Kit Dolly 81, intermediate rings + restop ø45

Kit Dolly 114, packing retainers + O-Rings ø30

Kit Dolly 47, packing retainers + O-Rings ø45

Kit Dolly 115, complete seal packing ø30

quantity 1x3

quantity 2X3

quantity 2X3

quantity 2X3

quantity 7x1

ZX.0697

ZX.0070

ZX.1468

ZX.0643-3

ZX.0644-3

22mm

22mm

70mm

70mm

30mm

45mm

Kit Dolly 80, complete seal packing ø45

Kit Dolly 44, plunger oil seals ø35x52x7

Kit Dolly 32, shaft oil seals ø35x52x8

Set Dolly i8, ceramic plungers ø30x70

Set Dolly i9, ceramic plungers ø45x70

quantity 7x1

quantity 1x3

quantity 1x2

quantity 1x3

quantity 1x3

• • • •

• • • • • •

• • • • • •

• • • • •

• • • • •

Set Dolly i8 ZX.0643-3

Kit Dolly 32 ZX.1468

Plungers

Kit Dolly 44 ZX.0070

Oil seals

Kit Dolly 80 ZX.0697

Kit Dolly 115 ZX.0699

Complete seal packing

Kit Dolly 47 ZX.0764

Kit Dolly 114 ZX.0762

Kit Dolly 47 ZX.0765

Kit Dolly 66 ZX.0761

Intermediate rings + packing retainers

Kit Dolly 48 ZX.0763

Kit Dolly 65 ZX.0760

Kit Dolly 113 ZX.0698

Kit Dolly 43 ZX.0693

For pumps fitting:

Kit Dolly 79 ZX.0696

Seal packing + head rings

Valves

Set Dolly i9 ZX.0644-3

CLUB DEI RIPARATORI

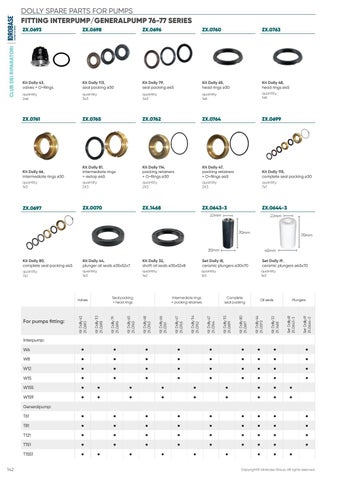

DOLLY SPARE PARTS FOR PUMPS FITTING INTERPUMP/GENERALPUMP 76-77 SERIES

Interpump: W6 W8 W12 W15 W155 W159

• • • • • •

• • • • • •

• • • • • •

• • • • • •

• • • • • •

• •

• • • • • •

Generalpump: T61 T81 T121 T151 T1551

142

• • • • •

• • • • •

• • • • •

• • • • •

• • • • •

• • • • •

• • • • •
