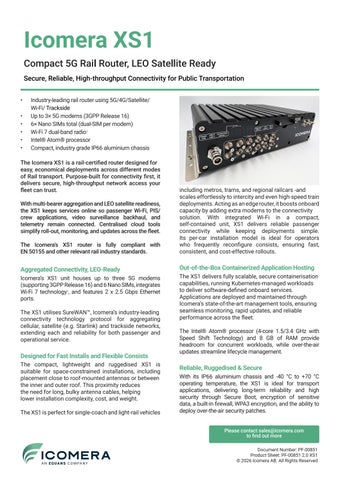

Icomera XS1 Compact 5G Rail Router, LEO Satellite Ready Secure, Reliable, High-throughput Connectivity for Public Transportation • • • • • •

Industry-leading rail router using 5G/4G/Satellite/ Wi-Fi/ Trackside Up to 3× 5G modems (3GPP Release 16) 6× Nano SIMs total (dual‑SIM per modem) Wi‑Fi 7 dual‑band radio1 Intel® Atom® processor Compact, industry grade IP66 aluminium chassis

The Icomera XS1 is a rail‑certified router designed for easy, economical deployments across different modes of Rail transport. Purpose‑built for connectivity first, it delivers secure, high‑throughput network access your fleet can trust.

The Icomera’s XS1 router is fully compliant with EN 50155 and other relevant rail industry standards.

including metros, trams, and regional railcars -and scales effortlessly to intercity and even high‑speed train deployments. Acting as an edge router, it boosts onboard capacity by adding extra modems to the connectivity solution. With integrated Wi‑Fi in a compact, self‑contained unit, XS1 delivers reliable passenger connectivity while keeping deployments simple. Its per‑car installation model is ideal for operators who frequently reconfigure consists, ensuring fast, consistent, and cost‑effective rollouts.

Aggregated Connectivity, LEO‑Ready

Out‑of‑the‑Box Containerized Application Hosting

With multi‑bearer aggregation and LEO satellite readiness, the XS1 keeps services online so passenger Wi‑Fi, PIS/ crew applications, video surveillance backhaul, and telemetry remain connected. Centralised cloud tools simplify roll‑out, monitoring, and updates across the fleet.

Icomera’s XS1 unit houses up to three 5G modems (supporting 3GPP Release 16) and 6 Nano SIMs, integrates Wi-Fi 7 technology1, and features 2 x 2.5 Gbps Ethernet ports. The XS1 utilises SureWAN™, Icomera’s industry-leading connectivity technology protocol for aggregating cellular, satellite (e.g. Starlink) and trackside networks, extending each and reliability for both passenger and operational service.

Designed for Fast Installs and Flexible Consists The compact, lightweight and ruggedised XS1 is suitable for space‑constrained installations, including placement close to roof‑mounted antennas or between the inner and outer roof. This proximity reduces the need for long, bulky antenna cables, helping lower installation complexity, cost, and weight. The XS1 is perfect for single‑coach and light‑rail vehicles

The XS1 delivers fully scalable, secure containerisation capabilities, running Kubernetes‑managed workloads to deliver software‑defined onboard services. Applications are deployed and maintained through Icomera’s state‑of‑the‑art management tools, ensuring seamless monitoring, rapid updates, and reliable performance across the fleet. The Intel® Atom® processor (4-core 1.5/3.4 GHz with Speed Shift Technology) and 8 GB of RAM provide headroom for concurrent workloads, while over-the-air updates streamline lifecycle management.

Reliable, Ruggedised & Secure With its IP66 aluminium chassis and -40 °C to +70 °C operating temperature, the XS1 is ideal for transport applications, delivering long-term reliability and high security through Secure Boot, encryption of sensitive data, a built-in firewall, WPA3 encryption, and the ability to deploy over-the-air security patches. Please contact sales@icomera.com to find out more Document Number: PF-00851 Product Sheet: PF-00851 2.0 XS1 © 2026 Icomera AB. All Rights Reserved

XS1 Chassis Material

CPU Intel® Atom® 1.5 / 3.4 GHz Processor, 4-core with Speed Shift Technology

Aluminium

RAM

IP66

8 GB

Ingress Protection

Environmental (Operating & Storage Temperature Info)

Storage

Operating temp: -40 to +70 °C (85 °C for 10 minutes), EN50155 OT4 ST1

256 GB SSD WWAN Radio Up to 3 5G modems supporting: • 5G: sub-6 FDD and TDD, SA and NSA operations, 3GPP Release 16 • 4G: CAT. 19 (1.6 Gbps) on DL, CAT. 18 (211 Mbps) on UL, 3GPP Release 16 • 5G bands: n1, n2, n3, n5, n7, n8, n12, n13, n18, n20, n25, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79, n106 • LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 • 5G 4 × 4 MIMO support on Bands: n1, n2, n3, n7, n25, n30, n38, n40, n41, n48, n66, n75, n77, n78, n79 • LTE 4 × 4 MIMO support on Bands: B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B42, B43, B48, B66 • 2 Nano SIM (4FF) cards per modem

• Humidity operating: 10 to 90% r.H. non cond. • Storage temp: -40 to +85 °C • Humidity Storage: 5 to 95% r.H. non cond. Power Inputs • 24 to 110 VDC, compliant to EN 50155 • M12 K-coded Power connector Power Interruption EN 50155, Class S2 (10ms interruptions)

• 92-channels • GNSS constellations: • GPS L1 • QZSS L1 C/A • Galileo E1B/C • Positional Accuracy (CEP): 2.0 m • Acquisition (@ -130 dBm) • Hot start: 2 s • Cold start: 29 s Dimensions 292.5 x 201.6 x 79 (W x D x H mm)

Weight 2.8 kg

• EN 45545 Fire Assessment HL3 • EN 50155 Rolling Stock (EMC, Environmental) • EN 50121-3-2 • IEC 61373 • EN IEC 63000 • EN 50125 Environmental • EN 50153 Electrical Safety USA and Canada market:

• 14 QMA for cellular and Wi-Fi • 1 QN for GNSS

Additional compliance

Ethernet

• IP66 rating to EN 60529 • Conflict Minerals

< 41 W

LEDs LEDs indicating status of Power, Wi-Fi, LAN 1-2, SSD, Application and System Connectivity, Cellular links 1-3

Network Services • Icomera patented seamless WAN switching and aggregation. • DHCP, DNS, SNTP/NTP, SNMP version 3 service, etc

Compliance

Supported Protocols

• CE Conformity

• VLAN (802.1q), QoS (802.1p), etc

• RED (2014/53/EU)

GNSS Info

• Rail Industry Requirements

Antenna Connectors

Power Consumption

Dual band concurrent Wi-Fi • 2.4 GHz, supporting 802.11b/g/n/ax/be1 • 5 GHz, supporting 802.11a/n/ac/ax/be1 • Encryptions: WPA-PSK, WPA2-PSK, WPAEAP, WPA3-SAE, WPA3-SAE mixed mode, WPA3-enterprise, Wi-Fi Enhanced Open. • Can operate as either an Access Point or as a client.

• RoHS (2011/65/EU & 2015/863) • REACH (EC) 1907/2006

• FCC: • 47 CFR FCC Part 15b, 2.1091, 15.31(h) • CP65 • ISED: • ICES-003 Issue 7 • RSS-102 Issue 5

2x M12 X-coded 2.5 Gbps Ethernet (also supporting 1 G / 100 M / 10 M bps)

Wi-Fi

• EN 301 908-1 • EN 301 908-2 • EN 301 908-13 • EN 301 908-25 • EN 303 413 • Article 3.3: Cybersecurity • EN 18031-1 • EN 18031-2

• Article 3.1 (a): Health and Safety of the User: • EN 50385 • EN IEC 62311 • EN IEC 62368-1 • Article 3.1 (b): Electromagnetic Compatibility: • EN 301 489-1 • EN 301 489-17 • EN 301 489-19 • EN 301 489-52 • EN 55032 • EN 55035 • Article 3.2 : Effective and efficient use of RF spectrum: • EN 300 328 • EN 301 893

Application Support Supports virtualisation technologies to allow applications to run in Kubernetes containers. The number of containers that can run on the system depends on the available resources on the host machine as well as the resource requirements and configuration of the deployed applications. Cloud-Based Management Tools Post-installation, Icomera’s technology empowers you to manage your solution independently. Designed specifically for public transport applications, Icomera’s Network Insights and Control (ICONIC) cloud-based software tools allow remote monitoring and updating of systems, without any disruption.

The content of this document is subject to revision without notice due to continued progress in methodology, design and manufacturing. Icomera shall have no liability for any error or damage of any kind resulting from the use of this document. 1. Hardware ready. Software support in future OS release.
