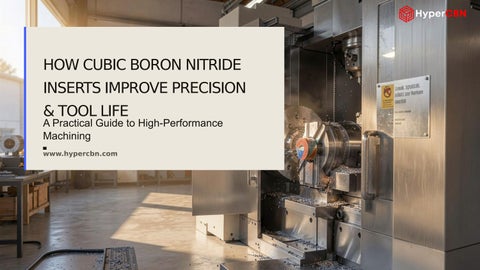

HOW CUBIC BORON NITRIDE INSERTS IMPROVE PRECISION & TOOL LIFE
A Practical Guide to High-Performance Machining www.hypercbn.com
01 | WHY CBN INSERTS MATTER
Modern manufacturing demands higher precision, faster production, and consistent quality. When machining hardened materials, cutting tools are exposed to intense heat, friction, and abrasive wear. These conditions can cause premature tool failure and affect the accuracy of finished components. Cubic Boron Nitride Inserts provide a solution by combining:
HIGH HARDNESS Maintains a strong and durable cutting edge when machining hard materials.
THERMAL STABILITY Performs reliably under the high temperatures generated during demanding machining operations.
WEAR RESISTANCE Resists abrasive wear and helps the cutting edge remain effective for longer.
PRECISION Helps maintain consistent dimensions and surface quality throughout production.
02 | WHAT ARE CUBIC BORON NITRIDE INSERTS? Cubic boron nitride (CBN) is a synthetic superhard material widely used in cutting tools for machining difficult and hardened materials. CBN inserts are particularly suited to applications involving: • Hardened steels • Cast iron • Tool steels • Bearing components • Automotive components • Wear-resistant materials Unlike conventional cutting tools that may experience rapid wear when machining hardened materials, CBN maintains its hardness and cutting performance under demanding conditions.
03 | HOW CBN INSERTS IMPROVE PRECISION
Precision is critical when manufacturing components that must meet tight dimensional requirements. A worn cutting edge can change the geometry of the cut, resulting in dimensional variation, poor surface finish, or rejected components. CBN inserts help address these challenges through their excellent wear resistance and cutting-edge stability.
01 — STABLE CUTTING EDGE The cutting edge remains effective for longer, supporting consistent machining performance.
03 — BETTER SURFACE FINISH A stable cutting edge can produce smooth and consistent machined surfaces.
02 — DIMENSIONAL CONSISTENCY Reduced edge wear helps maintain component dimensions throughout a production run.
04 — REDUCED PROCESS VARIATION Consistent tool performance can help reduce variations between components.
04 | HOW CBN INSERTS EXTEND TOOL LIFE Tool life directly affects manufacturing costs and productivity. Frequent insert changes can increase downtime, interrupt production, and require additional operator intervention. CBN inserts are designed to withstand demanding cutting conditions and resist several forms of tool wear.
WEAR RESISTANCE
HEAT RESISTANCE
CBN's exceptional hardness helps resist abrasive wear when machining hard materials.
CBN can retain its useful properties at elevated cutting temperatures.
EDGE RETENTION
FEWER TOOL CHANGES
The cutting edge can remain effective over longer machining cycles when the insert and cutting conditions are correctly matched.
Longer-lasting cutting edges can reduce the frequency of insert replacement.
05 | THE CBN PERFORMANCE ADVANTAGE
CBN INSERTS AT A GLANCE PERFORMANCE FACTOR
ADVANTAGE
Hardness
★★★★★
Wear Resistance
★★★★★
Thermal Stability
★★★★★
Dimensional Consistency
★★★★★
Surface Finish
★★★★☆
Production Efficiency
★★★★☆
THE BIG PICTURE Longer Tool Life ↓ Fewer Tool Changes ↓ More Consistent Production ↓ Better Machining Efficiency
06 | COMMON APPLICATIONS CBN inserts are widely used in industries where hard materials, precision, and repeatability are important.
AUTOMOTIVE Used for machining gears, shafts, brake components, and other hardened parts.
GENERAL ENGINEERING Used for demanding turning and finishing applications involving hard materials.
BEARING MANUFACTURING Suitable for precision machining of hardened bearing components.
TOOL & DIE Useful for machining hardened tool steels and wear-resistant components.
07 | HARD TURNING WITH CBN INSERTS One of the most important applications for CBN inserts is hard turning. Hard turning involves machining hardened materials, often where traditional cutting methods may face challenges. With the right insert grade, geometry, and cutting parameters, CBN inserts can help manufacturers achieve: HIGH PRODUCTI VITY
CONSISTEN GOOD LONGER T SURFACE TOOL LIFE DIMENSIO FINISH NS In some applications, hard turning can also reduce the need for separate finishing operations, potentially simplifying the overall manufacturing process.
08 | CHOOSING THE RIGHT CBN INSERT Selecting the correct CBN insert is essential for achieving the expected performance.
CONSIDER THESE FACTORS: 01
01 | WORKPIECE MATERIAL
02
02 | MACHINING OPERATION
03
03 | CUTTING SPEED Select cutting parameters
Identify the material being machined and its hardness.
Determine whether the application involves roughing, semi-finishing, or finishing.
04
05
06
04 | FEED RATE
05 | DEPTH OF CUT
Use a suitable feed rate to balance productivity, surface finish, and tool life.
Choose an insert and cutting strategy suited to the required depth of cut.
06 | INSERT GEOMETRY
appropriate for the material and insert grade.
Consider insert shape, nose radius, edge preparation, and chip-control requirements.
09 | CBN INSERTS VS. CONVENTIONAL CUTTING TOOLS CONVENTIONAL TOOLS • May experience faster wear in hardened materials • Cutting-edge stability can decrease as wear progresses • More frequent tool changes may be required • Performance can vary as the tool wears
CBN INSERTS • Designed for hard and demanding machining • Excellent resistance to abrasive wear • Strong performance at elevated cutting temperatures • Helps maintain consistent cutting performance • Can support longer production cycles
