Hydralada®

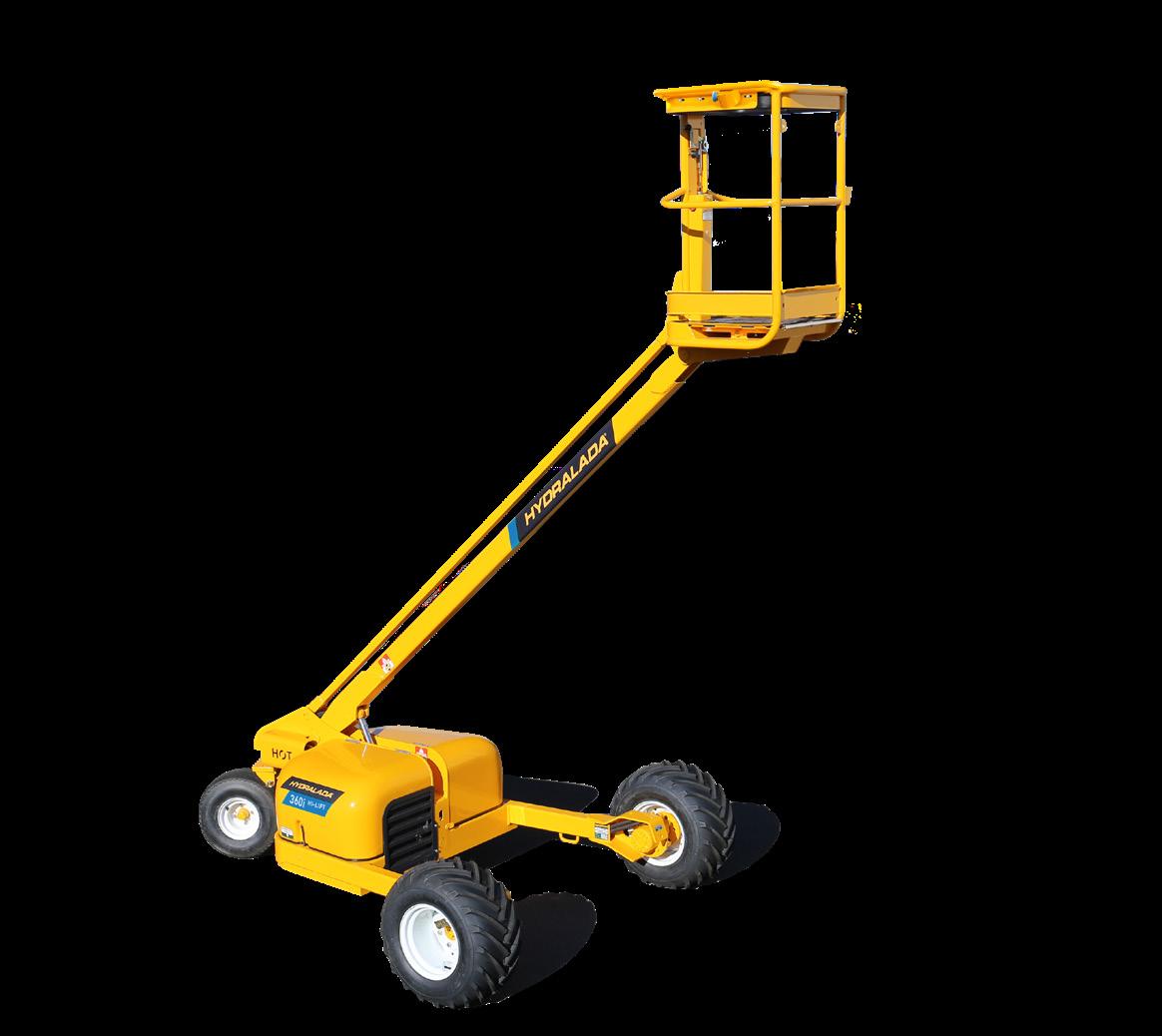

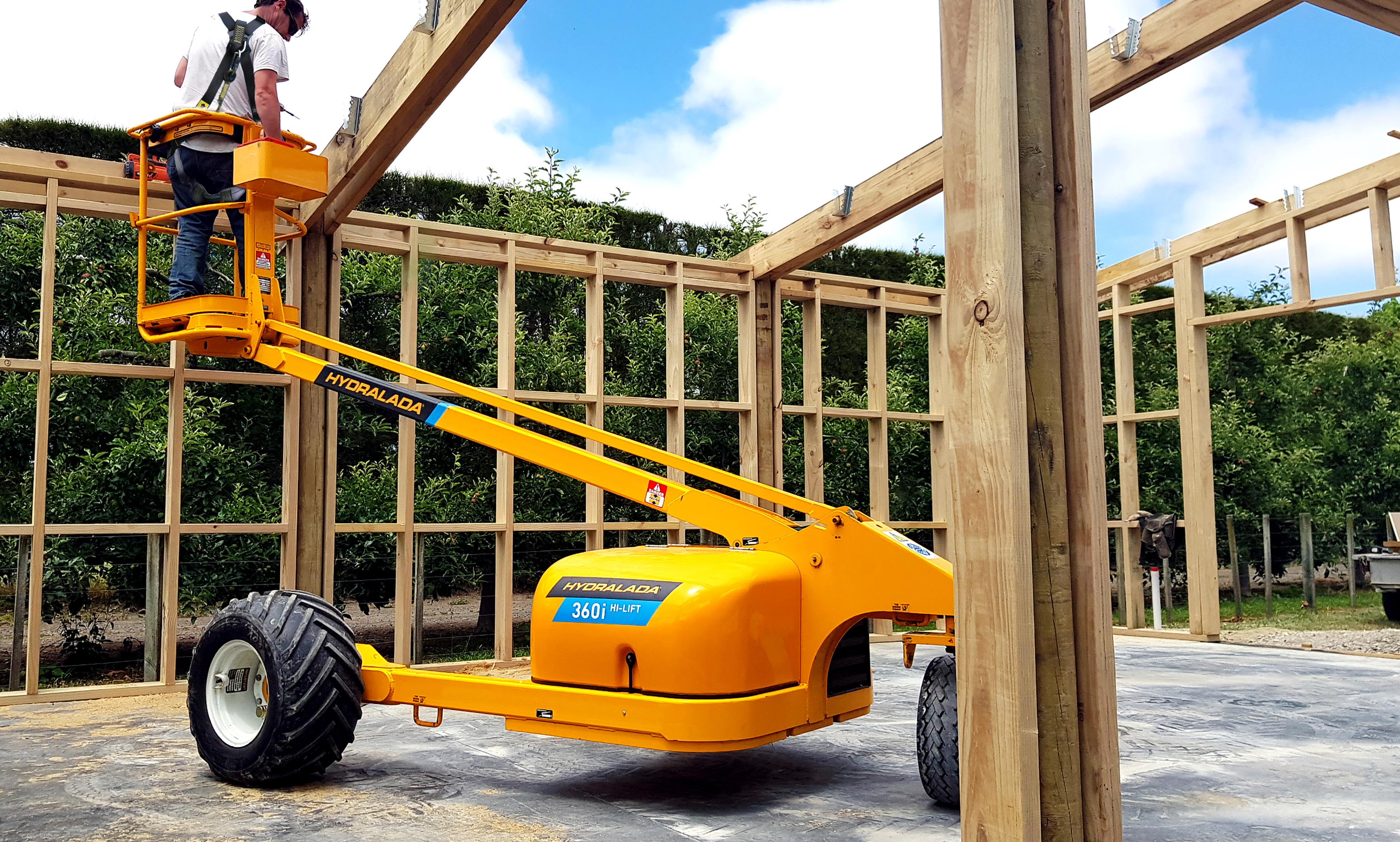

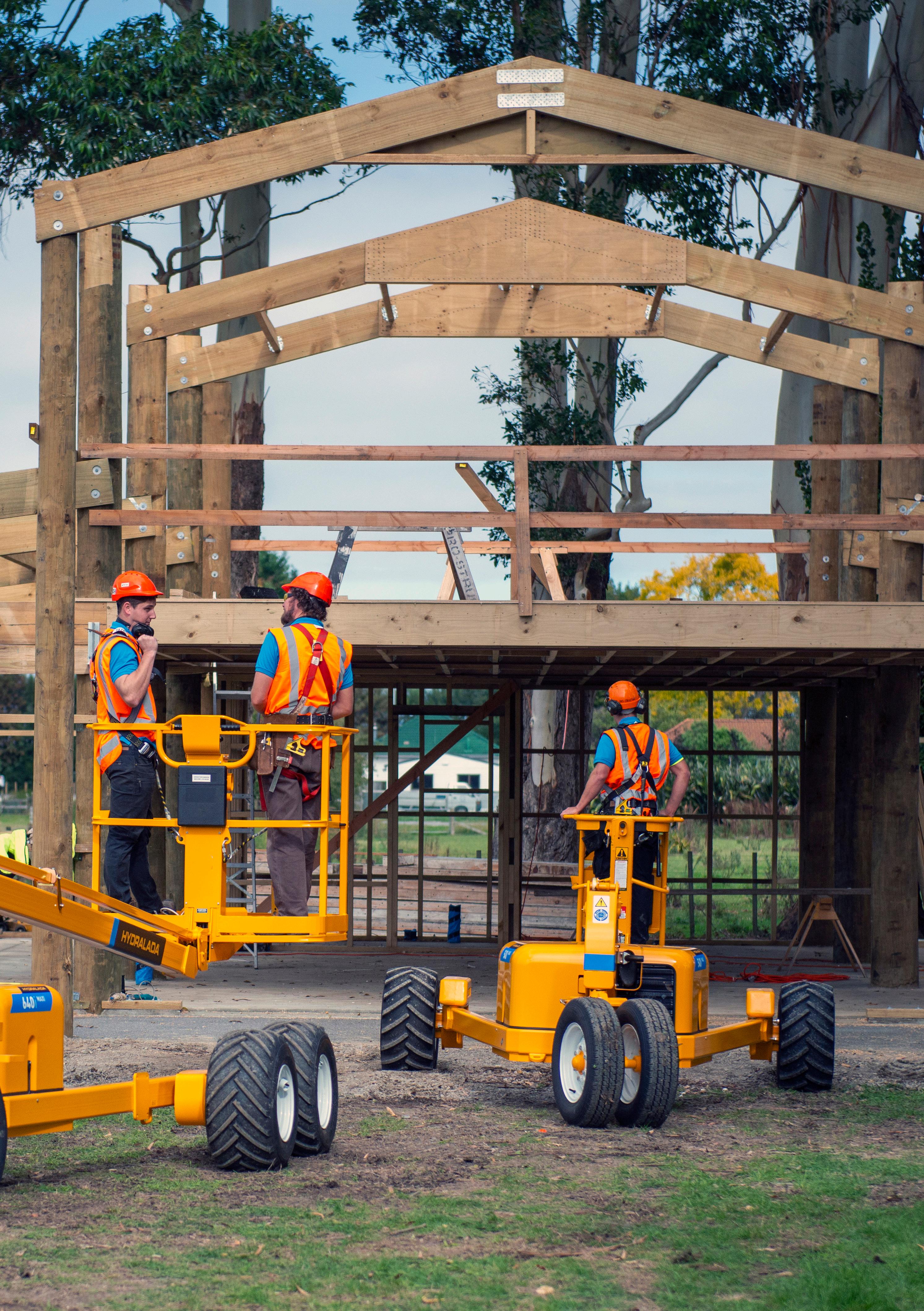

Hydralada® 360i HiLift
The 360i HiLift is a very compact and nimble access platform giving up to 5.60m working height. This model is ideal for all construction work and single level building maintenance. A popular model for farm barn building and general construction work. UP TO 5.60M WORKING
6.40m
Maximum load rating on platform
STANDARD SPECIFICATIONS
MAX LIFT TO CAGE FLOOR
3.60m / 11.8 ft
MAX WORKING HEIGHT
5.60m / 18.4 ft
AUXILIARY OIL SUPPLY
26 Lit / Min | @ 2000 psi
OVERALL WIDTH
2.08m / 6.8 ft
OVERALL LENGTH
3.80m / 12.46 ft
WEIGHT
840 kg / 1850 ib
TOTAL LIFT CAPACITY
175 kg / 385 ib
ENGINE
Kohler CH19hp Petrol / Gasoline EFI
DRIVE WHEEL
26 x 12.00 x 12 8 Ply EWP Tyre
OVERALL STOWED HEIGHT 1300mm / 4.26 ft
CASTOR WHEEL
18.5 x 8.50 x 8
STOWED CAGE FLOOR HEIGHT 495 mm / 1.6 ft
HYDRAULIC TANK CAPACITY 25 litres / 6 gallons
FUEL TANK CAPACITY 30 litres / 8 gallons
WHEEL TRACK
2.08m / 6.08 ft
GROUND CLEARANCE
257 mm / 0.84 ft
CONTROLS
Standard 3 Pedal Control (other control options are available)
All specifications are nominal only. Some images on this leaflet may feature other models and optional equipment.
• Hydrostatic Proportional Drive
• Multi Speed
Four Wheel Drive
• Four Wheel Steering Hydraulic Power Steering
• Steering Wheel
• Independent Rear Steering
• Three Pedal Foot Controls
• Hand Operated Accelerator
Heavy Duty Rigid Chassis
• Heavy Duty Lift Boom
Low Profile Tail
• Smooth Hydraulic Valve
• Dual station with base controls for emergency situations
• Foot Deadman Switch
• Hand Deadman Switch
SAFE, MANOEUVRABLE, FAST AND EFFICIENT.
Low tail profile, good reach, and a working height of up to 5.60m. Operates easily in tight spaces and is ideal to work alongside the taller 540i and 640i Maxi models.

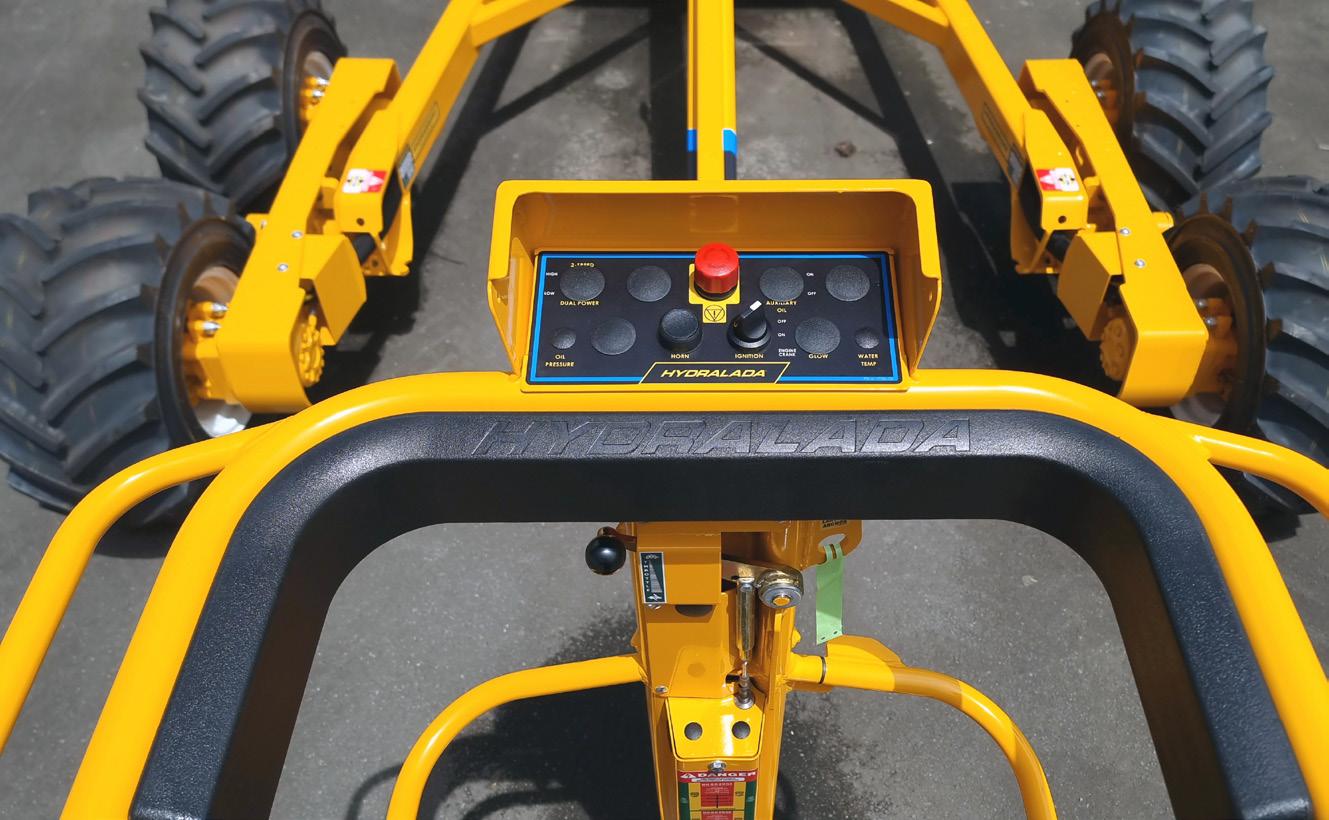

FOOT OPERATED CONTROLS FOR OPTIMUM VERSATILITY.

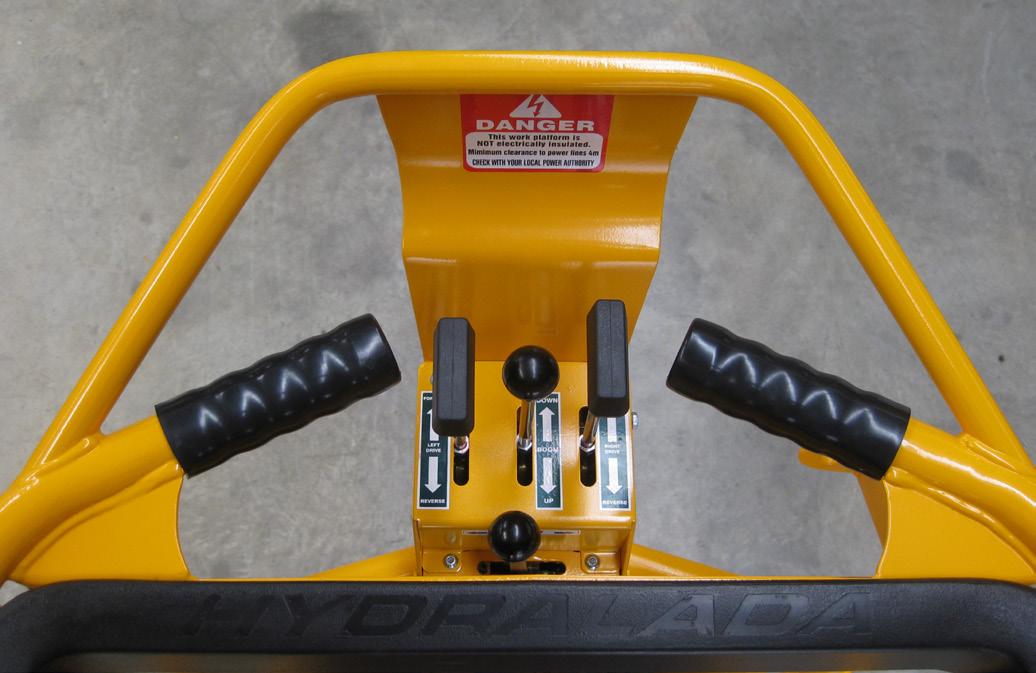

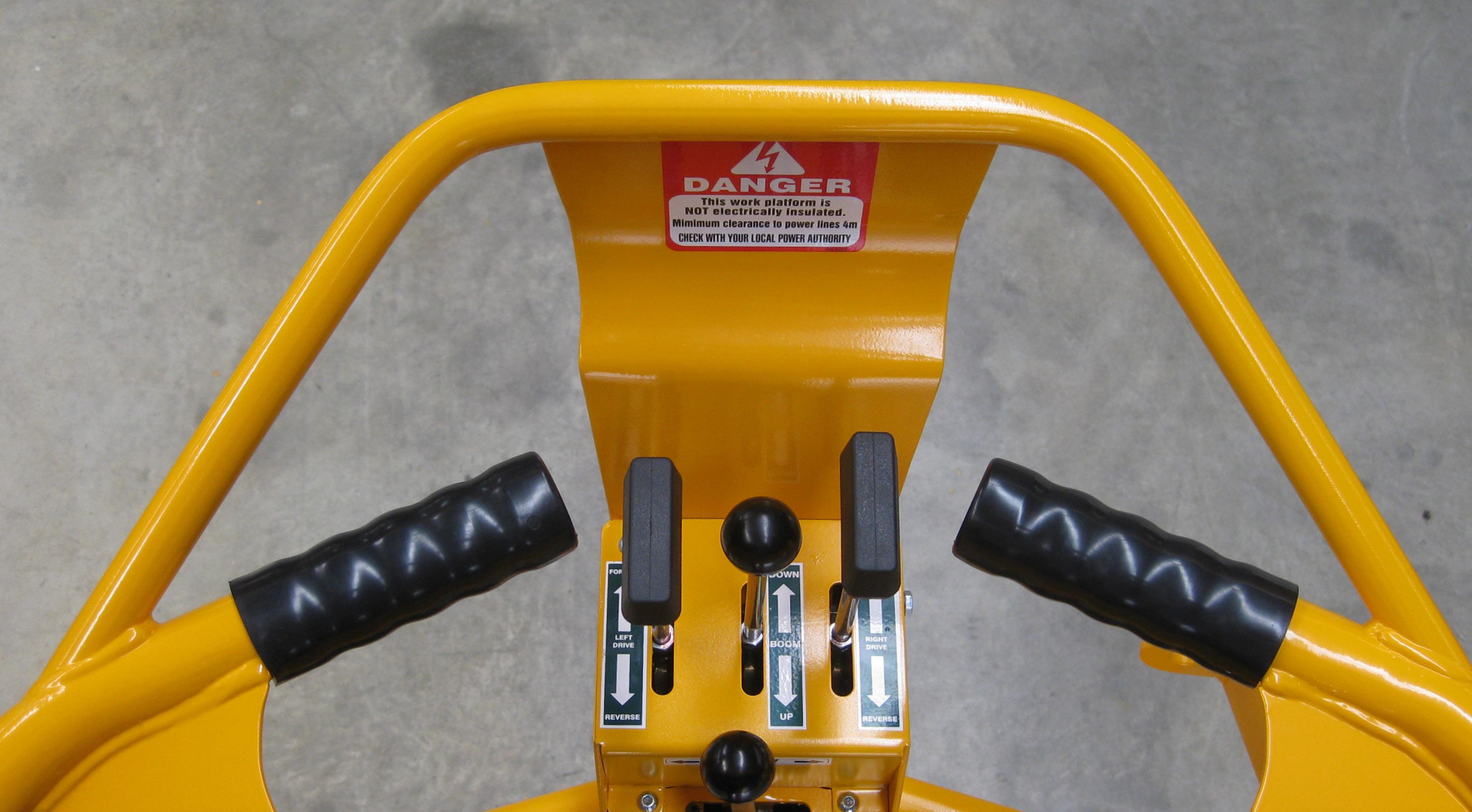

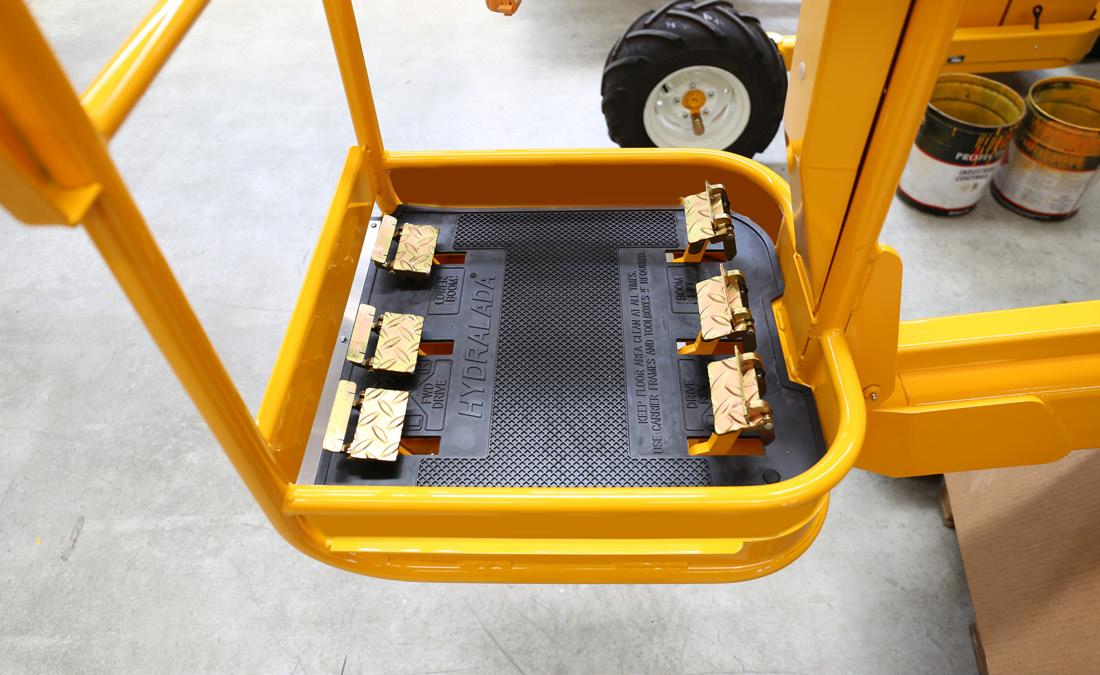

three pedal foot control is the most popular. Includes hand deadman switch. Hand controls are optional.

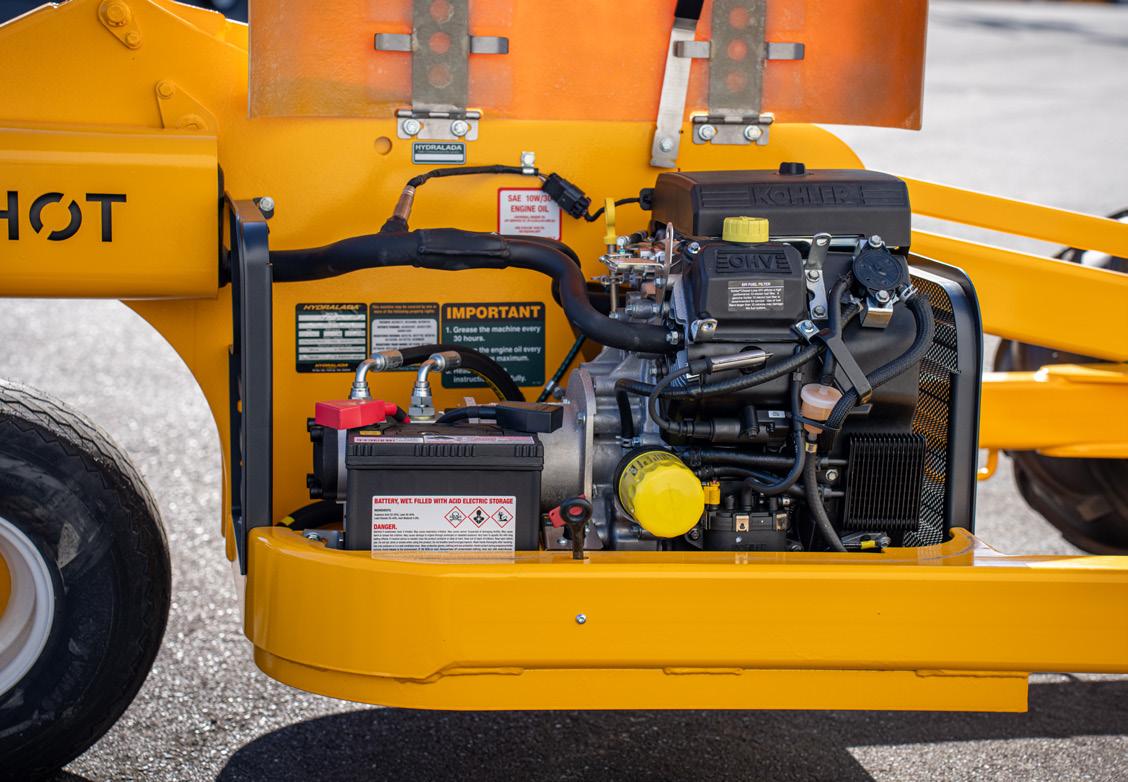

POWERED BY HIGH TORQUE PETROL ENGINE.

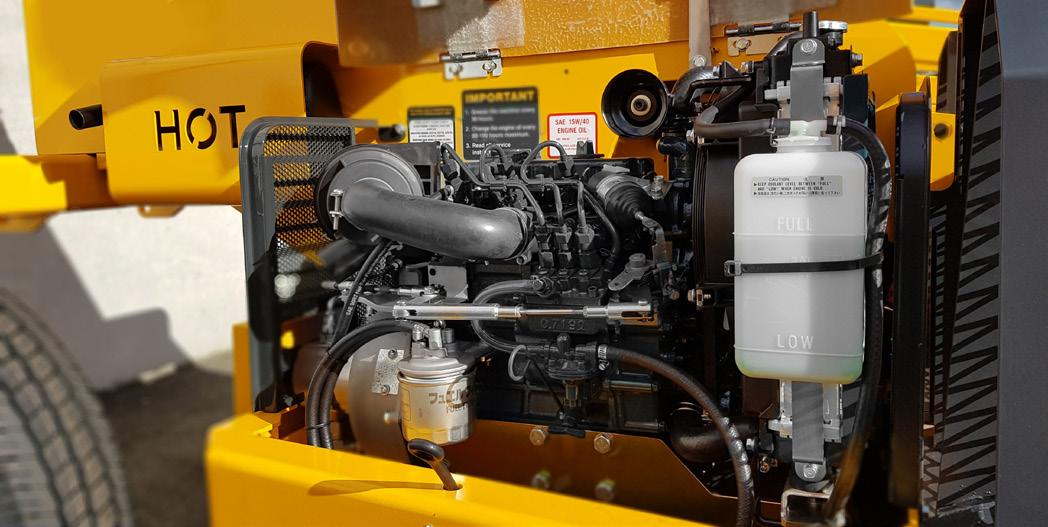

Kohler petrol engines are reliable, powerful and fuel efficient, with low noise and vibration levels. They’ve been powering Hydralada machines since 1975.
sales@hydralada.com
LOW TAIL PROFILE
Hydralada
FOOT CONTROL
FOR MEDIUM SIZE CONSTRUCTION.
Hydralada®

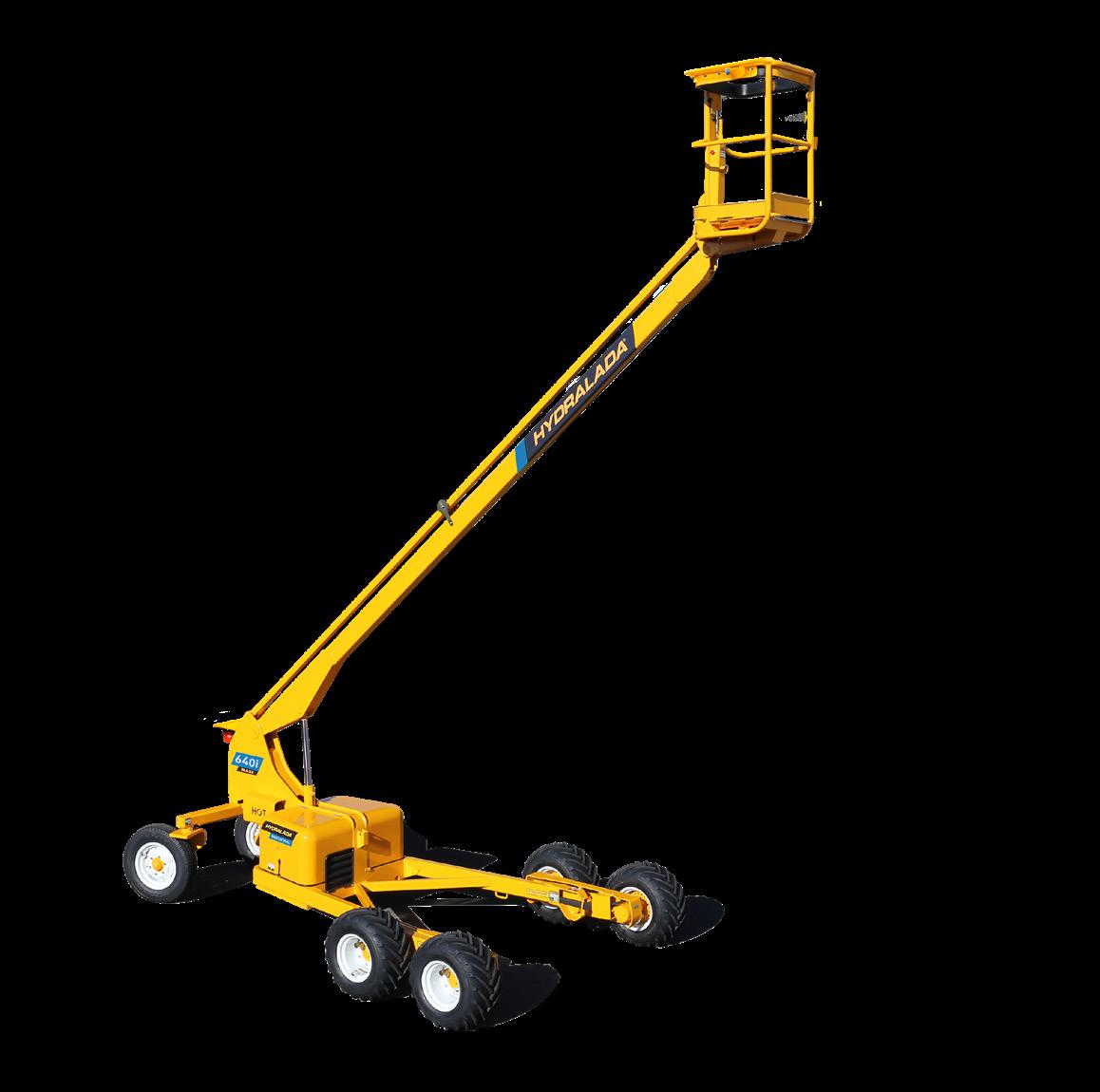

440i MAXI
Hydralada access equipment is second to none when it comes to strength, rigidity, and stability. These machines are designed to lift and operate on all terrain. The 440i MAXI is the ideal model for small to medium construction work and its ability to operate on unprepared surfaces without the need of outriggers sets it apart from other elevating work platforms. Depending on the job at hand this model can be specified with all popular options and attachments.
6.40m
STANDARD SPECIFICATIONS
MAX LIFT TO CAGE FLOOR
4.40 m / 14.45 ft
MAX WORKING HEIGHT
6.40 m / 20.9 ft
AUXILIARY OIL SUPPLY
26 Lit / Min | @ 2000 psi
OVERALL WIDTH
2.50 m / 8.20 ft
OVERALL LENGTH
5.01 m / 16.44 ft
WEIGHT
175 kg / 385 ib
DRIVE TRAIN & WHEELS
• Hydrabrake System
• 185 x 14 Rear Castor Wheel
• Six Stud Heavy Duty Wheel Equipment
• High Torque Hydraulic Motors
CUSTOMISE & ADD-ON
Tandem Four Wheel Drive
• Free Wheeling Hubs
ENGINE
Kohler CH23 Petrol Gasoline
DRIVE WHEEL
26 x 12.00 x 12 EWP Tyres
OVERALL STOWED HEIGHT
1.20m / 3.90 ft
CASTOR WHEEL
185 x 14 Single
STOWED CAGE FLOOR HEIGHT
339 mm / 5.25 inch
HYDRAULIC TANK CAPACITY
25 litres / 6 gallons
CHASSIS CONSTRUCTION
• Heavy Duty Rigid Chassis
• Heavy Duty Lift Boom
• Low Profile Tail
• Externally Mounted Muffler
FUEL TANK CAPACITY
30 litres / 8 gallons
WHEEL TRACK
2.50m / 8.20 ft
GROUND CLEARANCE
275mm / 0.90 ft
CONTROLS
Standard 3 Pedal Control (other control options are available)
All specifications are nominal only. Some images on this leaflet may feature other models and optional equipment.
CONTROLS
• Three Pedal Foot Controls
• Hand Operated Accelerator
• Smooth Hydraulic Valve
• Dual station with base controls for emergency situations
• Deadman Controls
• Hydraulic Power Tools
• Twin Castor Rear Wheels
LOW TAIL PROFILE
• Hand Control
Low tail profile, good reach, and a working height of up to 6.40m. Operates easily in tight spaces and is ideal to work alongside the taller 540i and 640i Maxi models.
Hydralada three pedal foot control is the most popular. Includes hand deadman switch. Hand controls are optional.

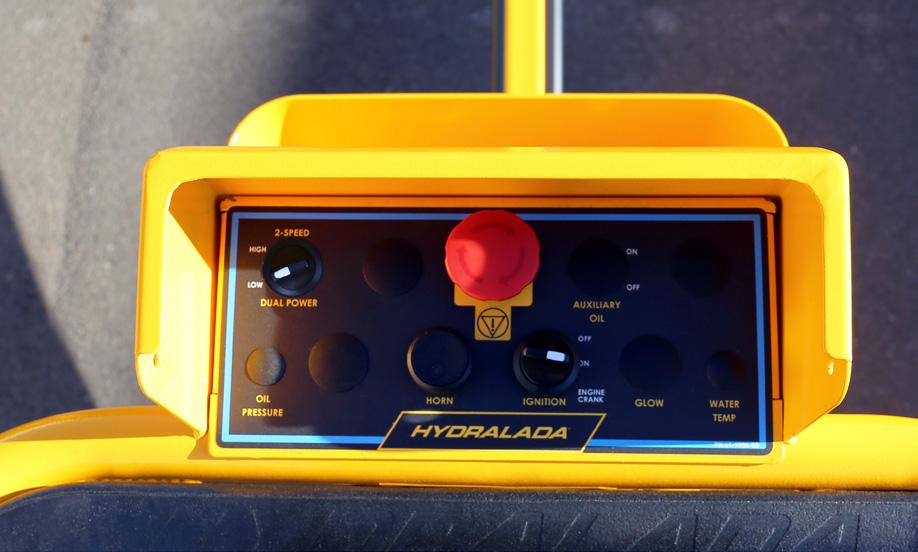

All switches + emergency stop are located on a central dashboard with indicator lamps and optional controls.
sales@hydralada.com
SAFE, FAST, AND EFFICIENT WORK AT HEIGHT
Hydralada®

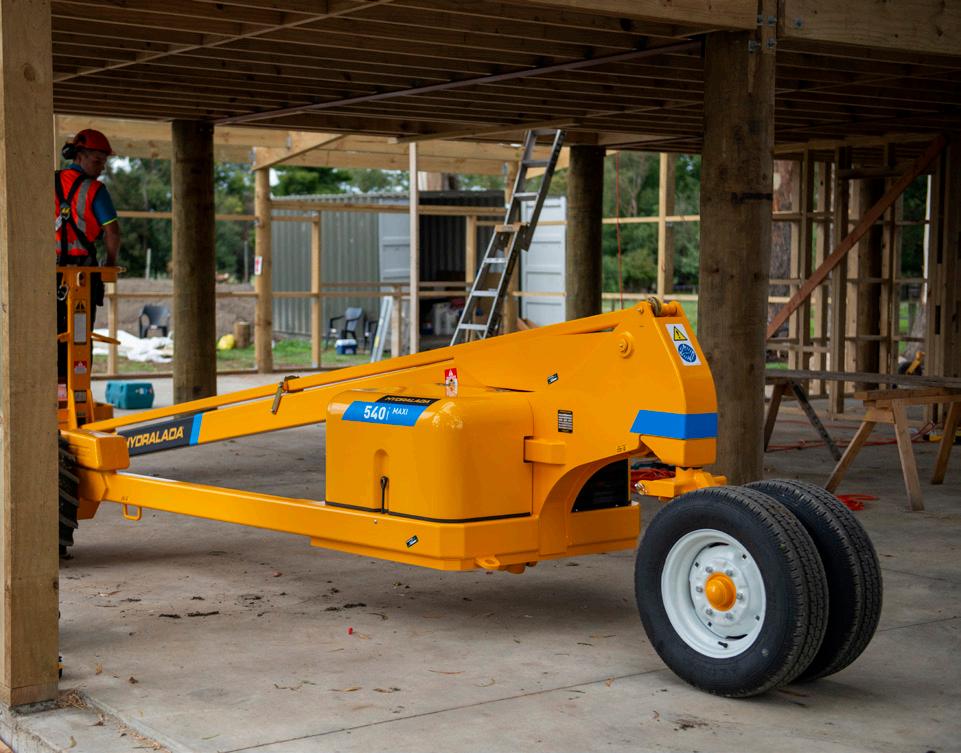

540i Maxi
The 540i MAXI Elevating Work Platform has all the features and benefits common to the full range of Hydralada models.
With more than 47 years of experience manufacturing self propelled elevating work platforms, Hydralada Access
MEWP’s are renown for their unique design, using sound engineering practices to produce machines that meet industry standards and are safe, reliable, and efficient to operate.
7.40m Maximum
STANDARD
SPECIFICATIONS
MAX LIFT TO CAGE FLOOR
5.40 m / 17.7 ft
MAX WORKING HEIGHT
7.40 m / 24.27 ft
AUXILIARY OIL SUPPLY
26 Lit / Min | @ 2000 psi
OVERALL WIDTH
2.50 m / 8.20 ft
OVERALL LENGTH
6.50 m / 21.30 ft
WEIGHT
1220 kg / 2689 ib
TOTAL LIFT CAPACITY
175 kg / 385 ib
• Hydrabrake System
• 185 x 14 Rear Castor Wheel
• Six Stud Heavy Duty Wheel Equipment
High Torque Hydraulic Motors
CUSTOMISE & ADD-ON
• Tandem four wheel drive
Free wheeling hubs
ENGINE
Kohler CH23 Petrol Gasoline
DRIVE WHEEL
26 x 12.00 x 12 EWP Tyre
OVERALL STOWED HEIGHT 1.58 m / 5.20 ft
CASTOR WHEEL
185 x 14 Single
STOWED CAGE FLOOR HEIGHT
465 mm / 7.2 inch
HYDRAULIC TANK CAPACITY
25 litres / 6 gallons
FUEL TANK CAPACITY
30 litres / 8 gallons
WHEEL TRACK
2.50m / 8.20 ft
GROUND CLEARANCE
275 mm / 0.90 ft
CONTROLS
Standard 3 Pedal Control (other control options are available)
All specifications are nominal only. Some images on this leaflet may feature other models and optional equipment.
CHASSIS CONSTRUCTION CONTROLS
• Heavy Duty Rigid Chassis
• Heavy Duty Lift Boom
• Low Profile Tail
Externally Mounted Muffler
• Hydraulic power tools
• Twin Castor Rear Wheels
• Three Pedal Foot Controls
• Hand Operated Accelerator
• Smooth Hydraulic Valve
Dual station with base controls for emergency situations
• Deadman Controls
Hand Control
SAFE, MANOEUVRABLE, FAST AND EFFICIENT.
Low tail profile, good reach, and a working height of up to 5.60m. Operates easily in tight spaces and is ideal to work alongside the taller 540i and 640i Maxi models.
sales@hydralada.com
FOOT OPERATED CONTROLS FOR OPTIMUM VERSATILITY.
Hydralada three pedal foot control is the most popular. Includes hand deadman switch. Hand controls are optional.
POWERED BY HIGH TORQUE PETROL ENGINE.
Kohler petrol engines are reliable, powerful and fuel efficient, with low noise and vibration levels. They’ve been powering Hydralada machines since 1975.

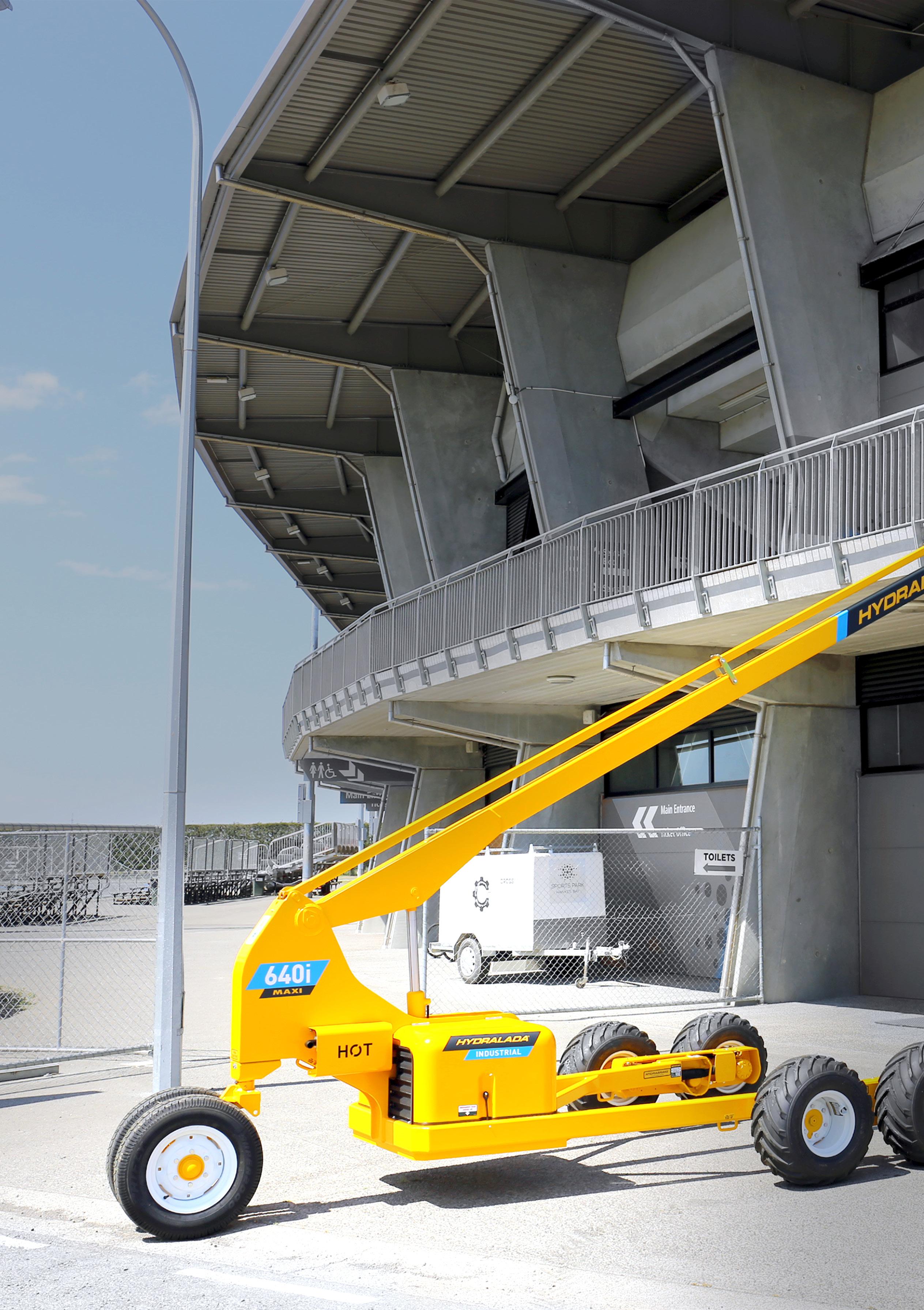

Known as the `workhorse’ of the range due to its heavy duty construction and reliable trouble free operation. When fitted with the single man platform the 640i MAXI is very productive for installing purlins and erecting frames on industrial buildings. Where two people are required for heavier work the machine can be specified with a two man platform. With all the features found on the smaller models, the 640i MAXI will safely manoeuvre on rough unprepared ground without the need of outriggers for stability.
Image shows Two Man Platform and Tandem Four Wheel Drive.
Fourt wheel drive option
Kohler twin cylinder OHV petrol engine
Maximum load rating on platform*
(*two man platform has higher load capacity)
STANDARD SPECIFICATIONS
MAX LIFT TO CAGE FLOOR
6.40 m / 21 ft
MAX WORKING HEIGHT
8.40 m / 27.5 ft
AUXILIARY OIL SUPPLY
26 Lit / Min | @ 2000 psi
OVERALL WIDTH
2.50 m / 8.20 ft
OVERALL LENGTH
6.50 m / 21.30 ft
WEIGHT
1680 kg / 3703 ib
TOTAL LIFT CAPACITY
175 kg (2 Man Cage - 220 kg) 385 ib
ENGINE
Kohler CH23 Petrol Gasoline
DRIVE WHEEL
26 x 12.00 x 12 EWP Tyre
OVERALL STOWED HEIGHT 1.58m / 5.2 ft
CASTOR WHEEL
185 x 14 Single
STOWED CAGE FLOOR HEIGHT
495 mm / 1.6 ft
HYDRAULIC TANK CAPACITY
25 litres / 6 gallons
FUEL TANK CAPACITY
30 litres / 8 gallons
WHEEL TRACK
2.50m / 8.20 ft
GROUND CLEARANCE
275 mm / 0.90 ft
CONTROLS
Standard 3 Pedal Control (other control options are available)
All specifications are nominal only. Some images on this leaflet may feature other models and optional equipment.
• Hydrabrake System 185 x 14 Rear Castor Wheel
• Six Stud Heavy Duty Wheel Equipment
• High Torque Hydraulic Motors
• Heavy Duty Rigid Chassis Heavy Duty Lift Boom
• Low Profile Tail Externally Mounted Muffler
• Three Pedal Foot Controls Hand Operated Accelerator
• Smooth Hydraulic Valve Dual station with base controls for emergency situations Deadman Controls
• Tandem four wheel drive
Hand Control CUSTOMISE & ADD-ON
• Free wheeling hubs
• Hydraulic power tools Twin Castor Rear Wheels
TILLER LEVER HAND CONTROLS
This model machine can be specified with Tiller Lever Hand Control leaving a clear floor within the platform to stand.
FOOT OPERATED CONTROLS FOR OPTIMUM VERSATILITY.
Hydralada three pedal foot control is the most popular. Includes hand deadman switch. Hand controls are optional.
Kohler petrol engines are reliable, powerful and fuel efficient, with low noise and vibration levels. They’ve been powering Hydralada machines since 1975. POWERED BY HIGH TORQUE PETROL ENGINE.
HAND CONTROLS
FOOT CONTROL
DRIVE TRAIN & WHEELS
CHASSIS CONSTRUCTION CONTROLS

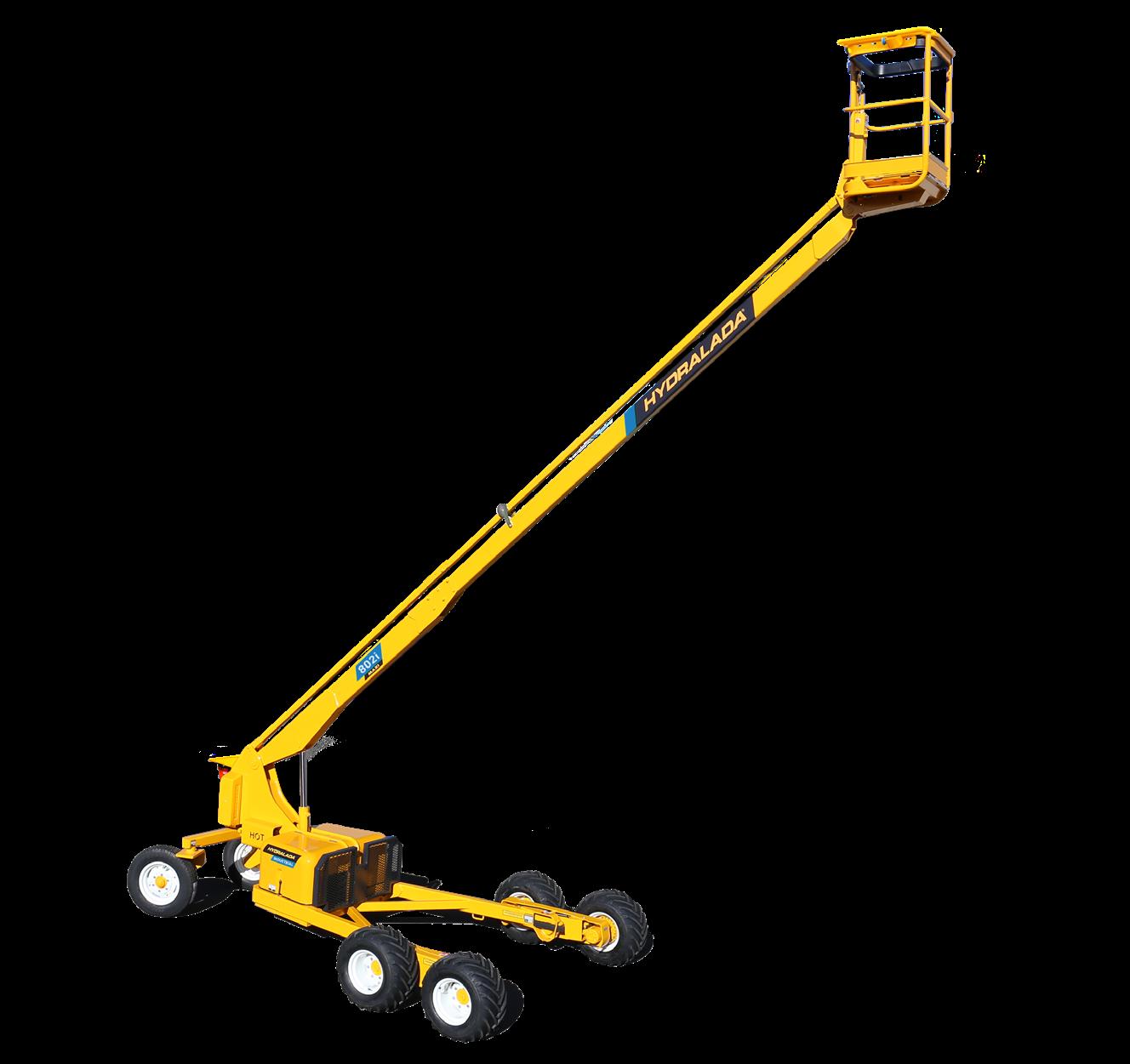

TELESCOPIC BOOM ADDS TO THE VERSATILITY.
The 750i MAXI with Telescopic Boom gives the extra lift height while remaining compact in the overall chassis size. Fitted with optional Tandem Four Wheel Drive for extra stability and traction, this is an excellent model machine for more confined areas. The overall physical size and footprint is similar to the 640i MAXI with the added benefit of extra reach afforded by the telescopic boom.
2.00m
Image shows cage variation and optional bonnet guards.
STANDARD SPECIFICATIONS
MAX LIFT TO CAGE FLOOR
7.50 m / 24.6 ft
MAX WORKING HEIGHT
9.50 m / 31.16 ft
AUXILIARY OIL SUPPLY
26 Lit / Min | @ 2000 psi
OVERALL WIDTH
2.50 m / 8.20 ft
OVERALL LENGTH
6.60 m / 21.65 ft
WEIGHT
1850 kg / 4078 ib
MAX SWL 175 kg (2 Man Cage - 220 kg) 385 ib
ENGINE
Kohler CH23 Petrol Gasoline
DRIVE WHEEL
26 x 12.00 x 12 EWP Tyres
OVERALL STOWED HEIGHT 1226mm / 4 ft
CASTOR WHEEL
185 x 14 Twin Castor
STOWED CAGE FLOOR HEIGHT 544 mm / 1.78 ft
HYDRAULIC TANK CAPACITY 25 litres / 6 gallons
FUEL TANK CAPACITY 30 litres / 8 gallons
WHEEL TRACK
2.50m / 8.20 ft
GROUND CLEARANCE
275 mm / 0.9 ft CONTROLS
Standard 3 Pedal Control (other control options are available)
All specifications are nominal only. Some images on this leaflet may feature other models and optional equipment.
System
• 185 x 14 Rear Castor Wheel
• Six Stud Heavy Duty Wheel Equipment
High Torque Hydraulic Motors
Heavy Duty Rigid Chassis
• Heavy Duty Lift Boom
• Low Profile Tail
• Externally Mounted Muffler
• Tandem four wheel drive Free wheeling hubs Hydraulic power tools
• Twin Castor Rear Wheels
Three Pedal Foot Controls
• Hand Operated Accelerator
• Smooth Hydraulic Valve
• Dual station with base controls for emergency situations
• Deadman Controls
Control
POWERED BY HIGH TORQUE PETROL ENGINE.
The telescopic boom extends a further 2.00m and is standard with hydraulic slew cage. All hoses are enclosed within the boom
Hydralada three pedal foot control is the most popular. Includes hand deadman switch. Hand controls are optional.
Kohler petrol engines are reliable, powerful and fuel efficient, with low noise and vibration levels. They’ve been powering Hydralada machines since 1975.
sales@hydralada.com
Hydrabrake

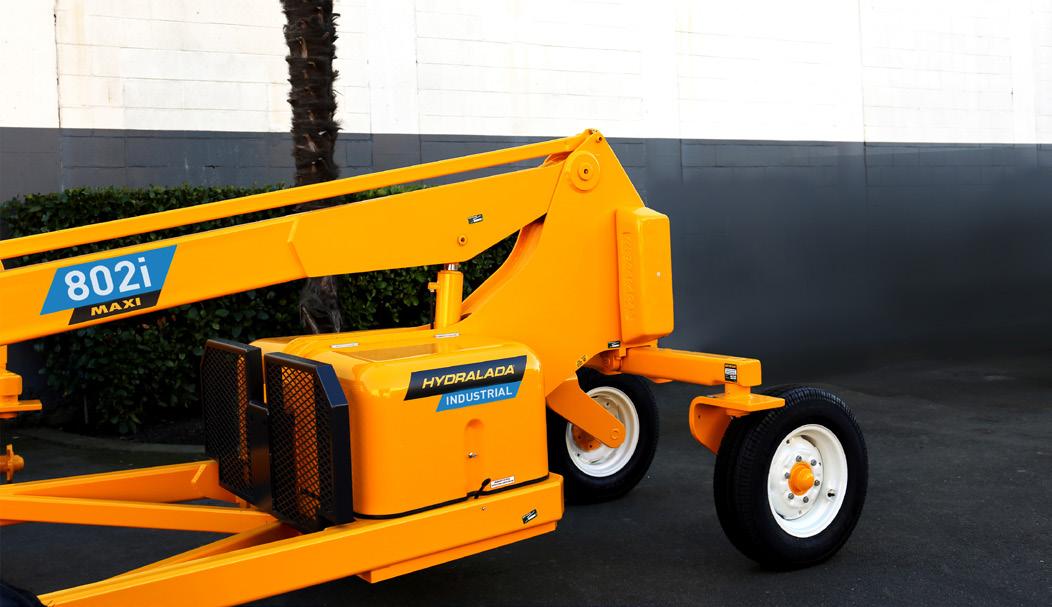

The 802i MAXI is a safe and reliable elevating work platform designed to access heights of up to ten metres. Fitted with optional Tandem Four Wheel Drive for added stability and traction, this model has a relatively light foot print and can be used on the upper levels of multi story buildings. With the same rigid chassis and drive components as the 640i MAXI, the 802i MAXI is ideal for construction of taller buildings or any other work at high elevation.
10.00m
Image shows Tandem Four Wheel Drive.
STANDARD SPECIFICATIONS
MAX LIFT TO CAGE FLOOR
8.00 m / 26.24 ft
MAX WORKING HEIGHT
10.00 m / 32.8 ft
AUXILIARY OIL SUPPLY
26 Lit / Min | @ 2000 psi
OVERALL WIDTH
2.50 m / 8.20 ft
OVERALL LENGTH
7.85 m / 25.75 ft
WEIGHT
1870 kg / 4122 ib
MAX SWL 175 kg (2 Man Cage - 220 kg) 385 ib
ENGINE
Kohler CH23 Petrol Gasoline
DRIVE WHEEL
26 x 12.00 x 12 EWP Tyres
OVERALL STOWED HEIGHT 1558 mm / 5.1 ft
CASTOR WHEEL
185 x 14 Twin Castor Wheels
STOWED CAGE FLOOR HEIGHT 1490 mm / 4.89 ft
HYDRAULIC TANK CAPACITY 25 litres / 6 gallons
FUEL TANK CAPACITY 30 litres / 8 gallons
WHEEL TRACK
2.50m / 8.20 ft
GROUND CLEARANCE
275 mm / 0.9 ft
CONTROLS
Standard 3 Pedal Control (other control options are available)
All specifications are nominal only. Some images on this leaflet may feature other models and optional equipment.
• Hydrabrake System
• 185 x 14 Rear Castor Wheel
Six Stud Heavy Duty Wheel Equipment
• High Torque Hydraulic Motors
CUSTOMISE & ADD-ON
• Free wheeling hubs
• Heavy Duty Rigid Chassis
• Heavy Duty Lift Boom
Low Profile Tail
• Externally Mounted Muffler
• Hydraulic power tools
• Twin Castor Rear Wheels
• Three Pedal Foot Controls
• Hand Operated Accelerator
Smooth Hydraulic Valve
• Dual station with base controls for emergency situations
• Deadman Controls
• Hand Control
Low tail profile, good reach, and a working height of up to 10.00m. Manoeuvrable with Hydralada EWP independent wheel drive.
Hydralada three pedal foot control is the most popular. Includes hand deadman switch. Hand controls are optional.
Kohler petrol engines are reliable, powerful and fuel efficient, with low noise and vibration levels. They’ve been powering Hydralada machines since 1975. POWERED BY HIGH TORQUE PETROL ENGINE.
sales@hydralada.com
FOOT CONTROL
LOW TAIL PROFILE
QUIET ENGINE
Tandem four wheel drive
DRIVE TRAIN & WHEELS
CHASSIS CONSTRUCTION CONTROLS
Hydralada® | Add-ons
OPTIONAL CONTROLS
HAND CONTROLS - When hand controls are preferred to the standard Hydralada Three Pedal Control a simple Tiller Lever system located in the front of the operator’s platform is available. Two handle bars and two tiller levers (one for each drive wheel) makes this very safe and smooth to operate. Uses the foot deadman control option.
PROVIDES CLEAR PLATFORM. SIX PEDAL CONTROL
Six Pedal Control is available as an option to the standard Hydralada Three Pedal Control. This provides a clear platform area for the operator to stand. The four RH pedals control the drive, and the two LH pedals control lift/lower of the boom. Hand activated deadman control.

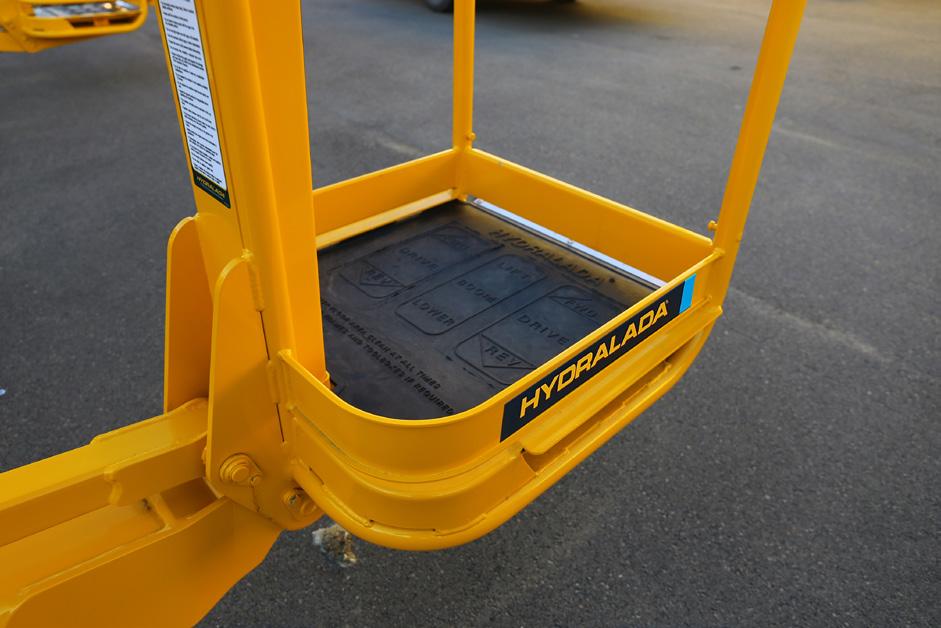

SLEWS PLATFORM LEFT/RIGHT.
The operator can slew the platform 45 degrees left or right of centre without moving the chassis of the machine on the ground. A lever located in the front of the platform activates a hydraulic ram that significantly increases the working envelope.
Two options, High & Low Speed and Dual Power. High & Low speed means the machine ground speed can be halved when working elevated. Dual Power gives 50 % increase in ground speed only with the boom lowered.

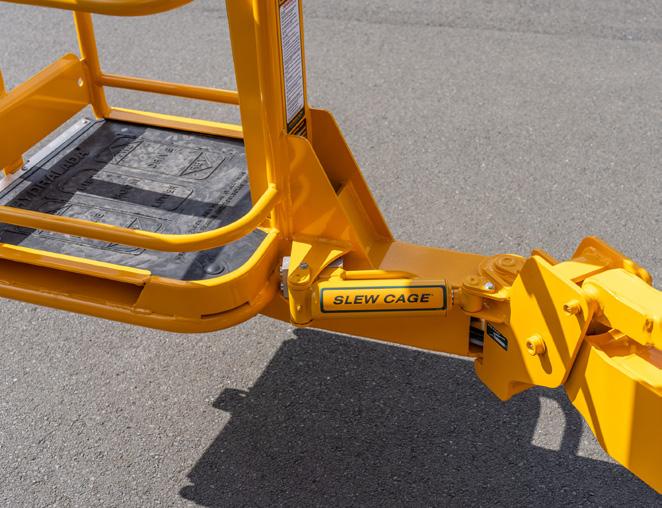

HYDRAULIC SLEW CAGE
Hydralada® | Add-ons
TILT TRAILER

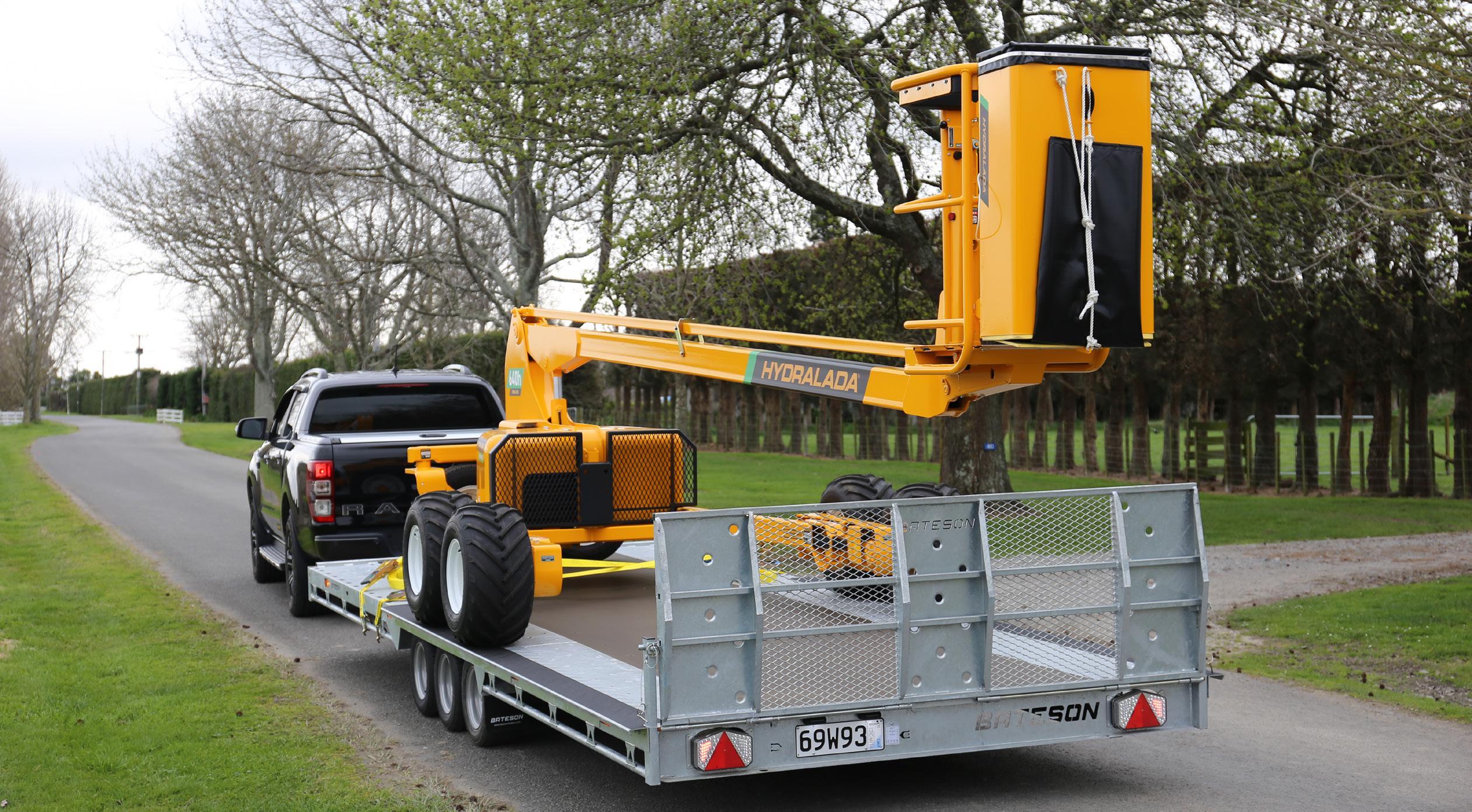

TRAILER- The new Hydralada Trailer is an addition to our range of quality products. Well engineered, and relatively lightweight, this trailer is rated to 3.50 tonne gross. It includes over-ride hydraulic brakes, m x m hydraulic tilt deck, and triple axle with six low profile wheels. Well balanced, the trailer is designed to transport Hydralada Elevating Work Platforms.
FREE WHEELING HUBS
TOWING WITHOUT TRAILER.
Free Wheel Hubs allow the drive wheels to be disengaged and the machine can be towed on its own wheels at low speed (max. 30kph) behind a vehicle. In NZ, no registration is required to tow the machine on the highway. Includes heavy duty ball hitch drawbar.
ADDITIONAL TRACTION AND STABILITY

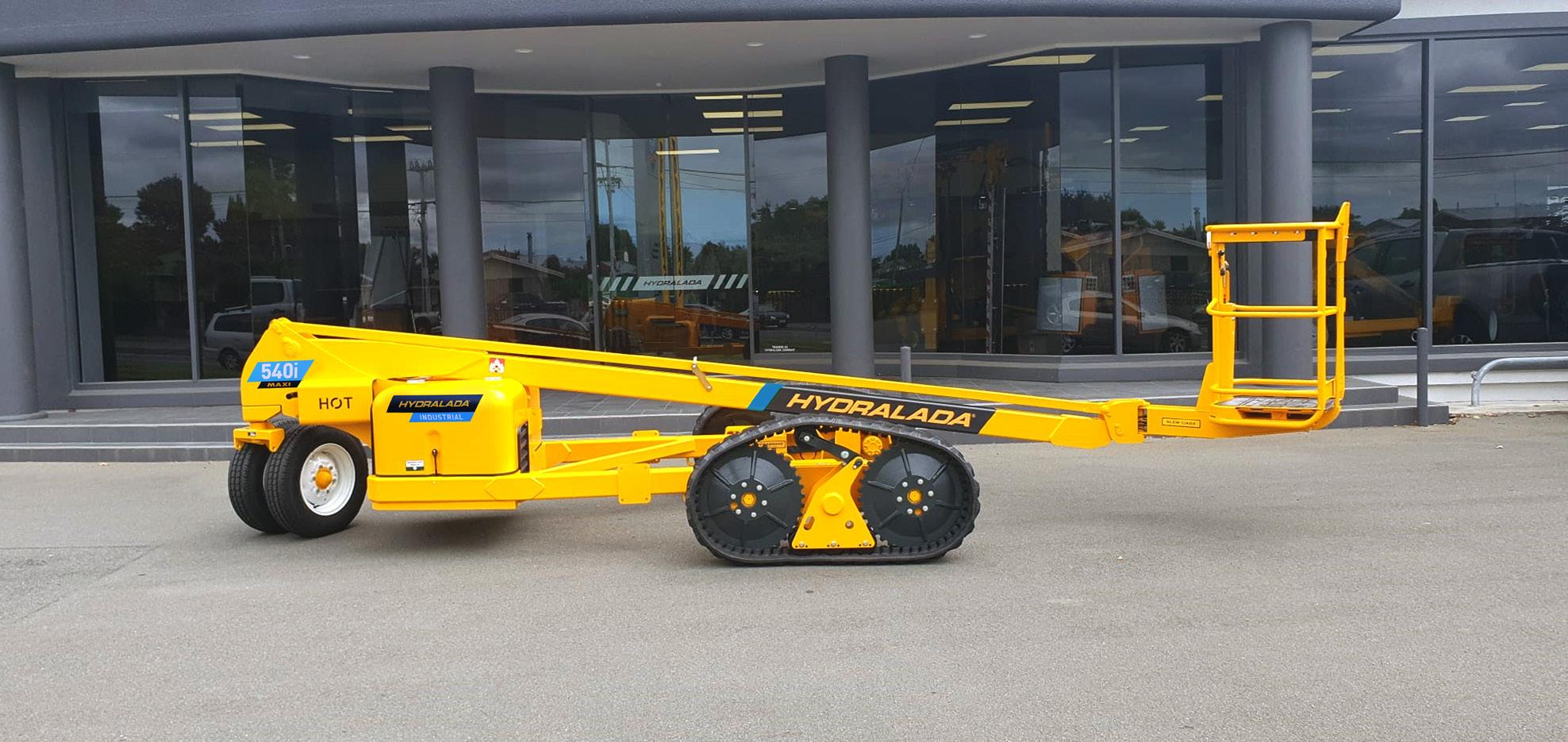

Heavy duty cast sprockets with steel reinforced rubber tracks and powerful hydraulic drives mounted on an osicillating beam increases the machines stability and traction for working on difficult terrain.
Increases the machines overall stability and improves traction on rough, uneven and sloping terrain. Includes four powerful hydraulic motors and the driving wheels are mounted on an oscillating beam for suspension and smoother ride.
RUBBER TRACKS
TANDEM FOUR WHEEL DRIVE.
TANDEM DRIVE
Hydralada® | Add-ons
POPULAR OPTIONS
TWO MAN PLATFORM - Two Man Platform is ideal for some applications in the construction industry. Includes a Tiller Lever Hand Control located at the rear of the platform and has a foor operated deadman switch to meet Industry Standards.

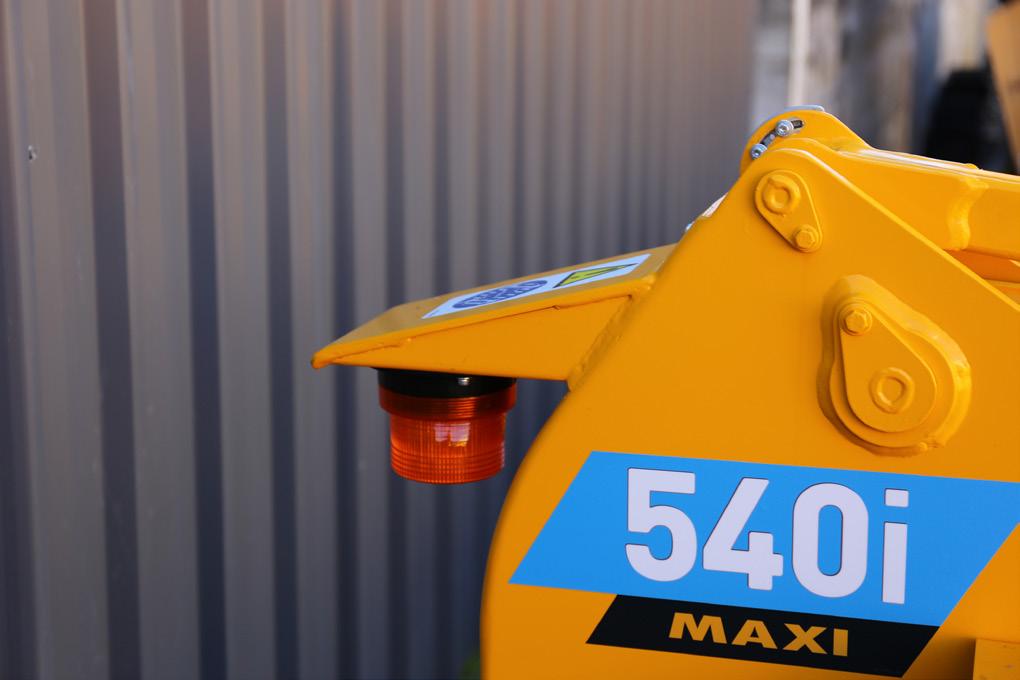

A flashing beacon mounted on the tail of the EWP ensures the machine is clearly visible when operating in populated areas, public arenas, or urban street enviroments.
Front and rear mounted tool boxes can be fitted to the operator platform to carry accessories. Construction of heavy duty steel with sturdy mounts, these allow the operatotr to have tools available.
A twin cylinder water cooled Kubota diesel engine is an option instead of the standard Kohler petrol engine. A quiet, fuel efficient, and high torque alternative.
BEACON FOR STREET WORK.
FLASHING BEACON
PLATFORM TOOL BOX.
TOOL BOXES
KUBOTA DIESEL POWER.
DIESEL ENGINE
POPULAR OPTIONS
FULL BODY SAFETY HARNESS - Hydralada Access Equipment meets the Industrial Standard and each machine is supplied with a Full Body Harness and Lanyard. This connects to a certified lanyard anchor point in the platform.

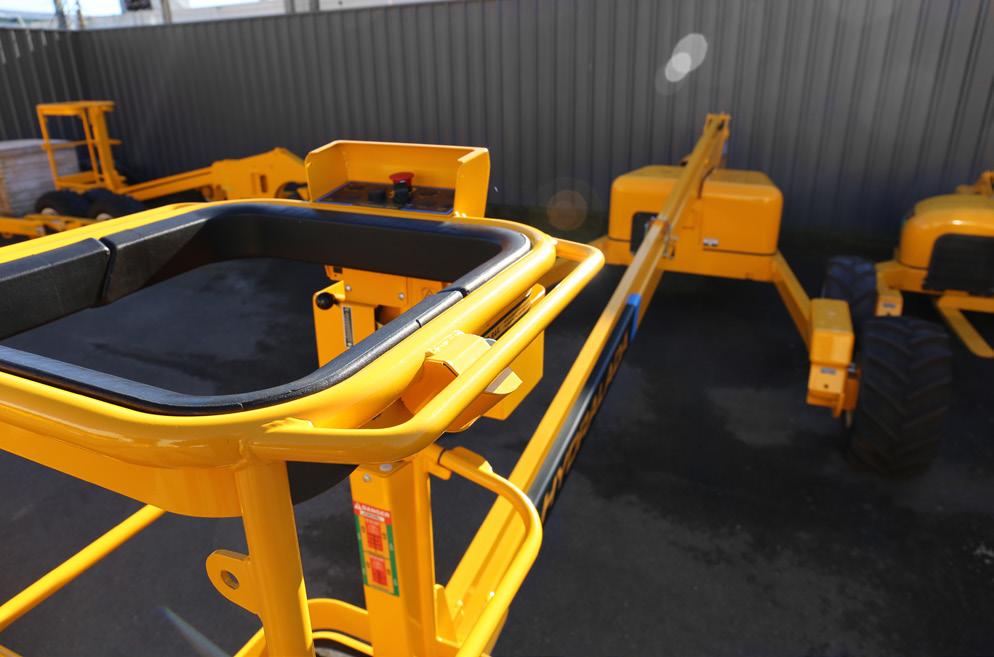

FOOT DEADMAN
FOOT ACTIVATED SAFETY SWITCH.
The foot safety switch means all drive / lift controls are inactive until this deadman is activated.

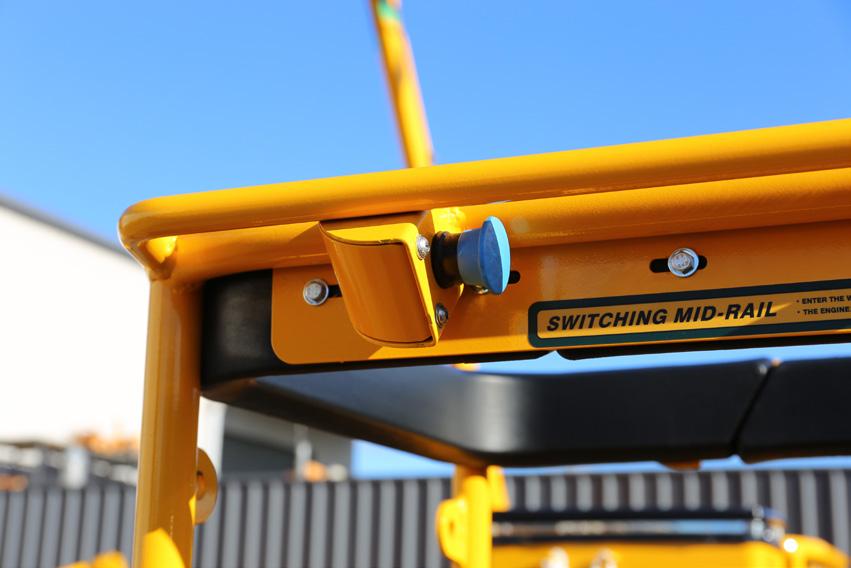

PLATFORM FINGER GUARDS
HAND ACTIVATED SAFETY SWITCH.
The Hydralada machine hand
must be activated before the machine can drive or operate.
OPERATOR FINGER PROTECTION.
Recommended guard rails to protect the operators fingers when working up against fixed obstacles.
deadman switch
HAND DEADMAN
POPULAR OPTIONS
NON MARKING TYRES - Non marking tyres are widely used to eliminate black marks on warehouse floors. These exclude the black component found in common tyres and are recomended on Hydralada machines to be used on specially prepared surfaces.
AUXILIARY OIL PTO.
Dual

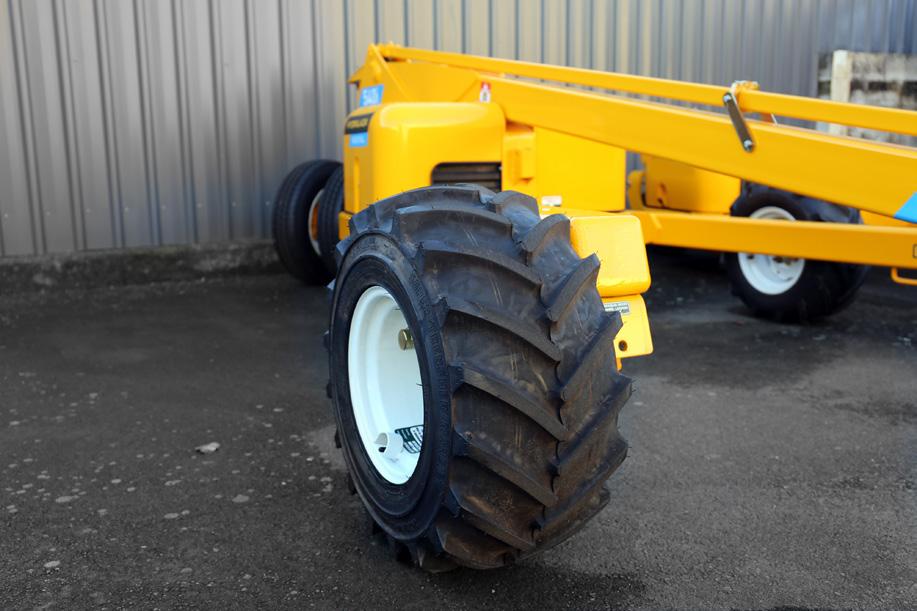

A more aggressive tread with rigid side walls, these heavy duty EWP wheel assemblies are available in several sizes.
23 x 10.50 x 12
26 x 12.00 x 12
29 x 12.50 x 15
31 x 15.50 x 15

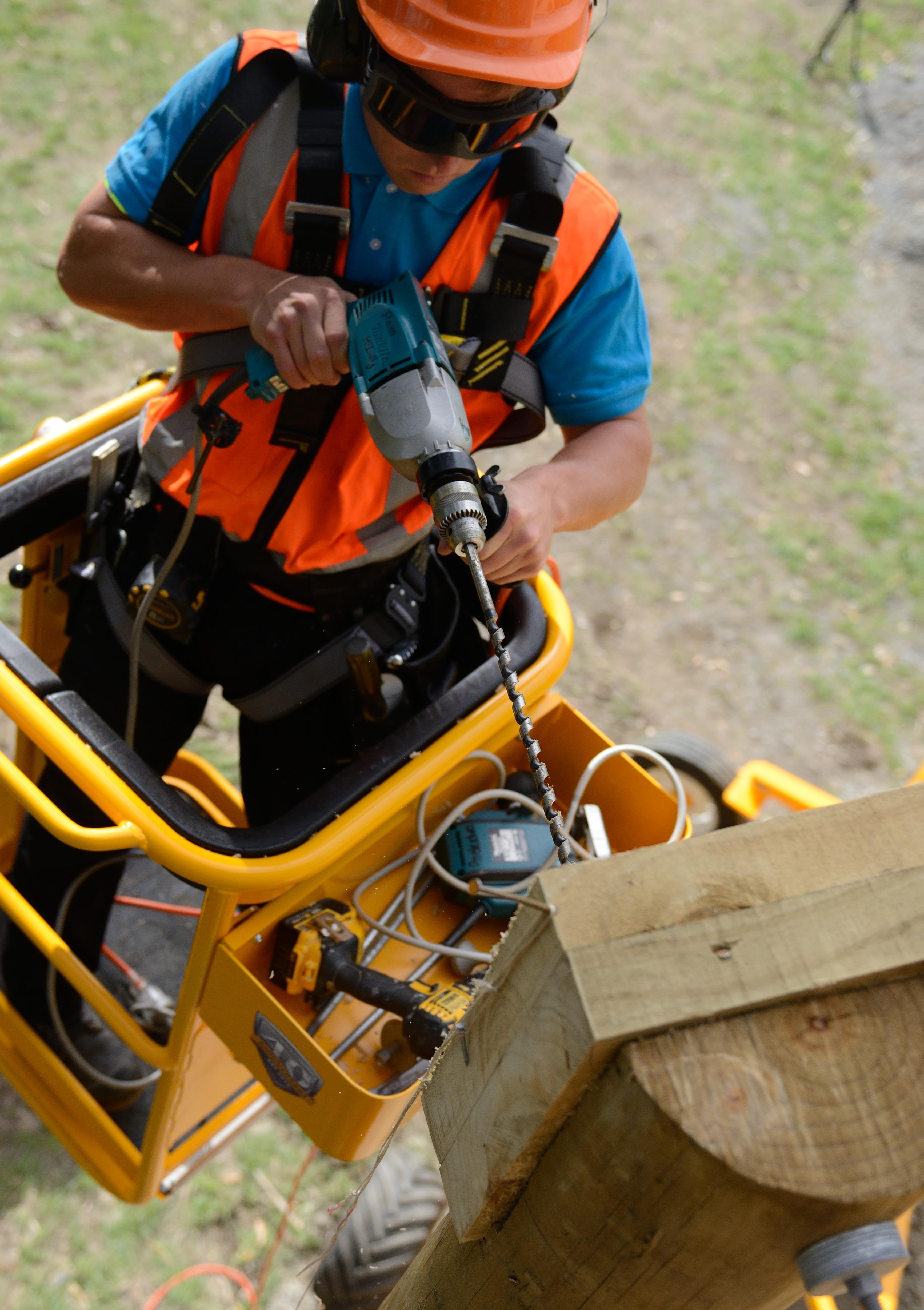

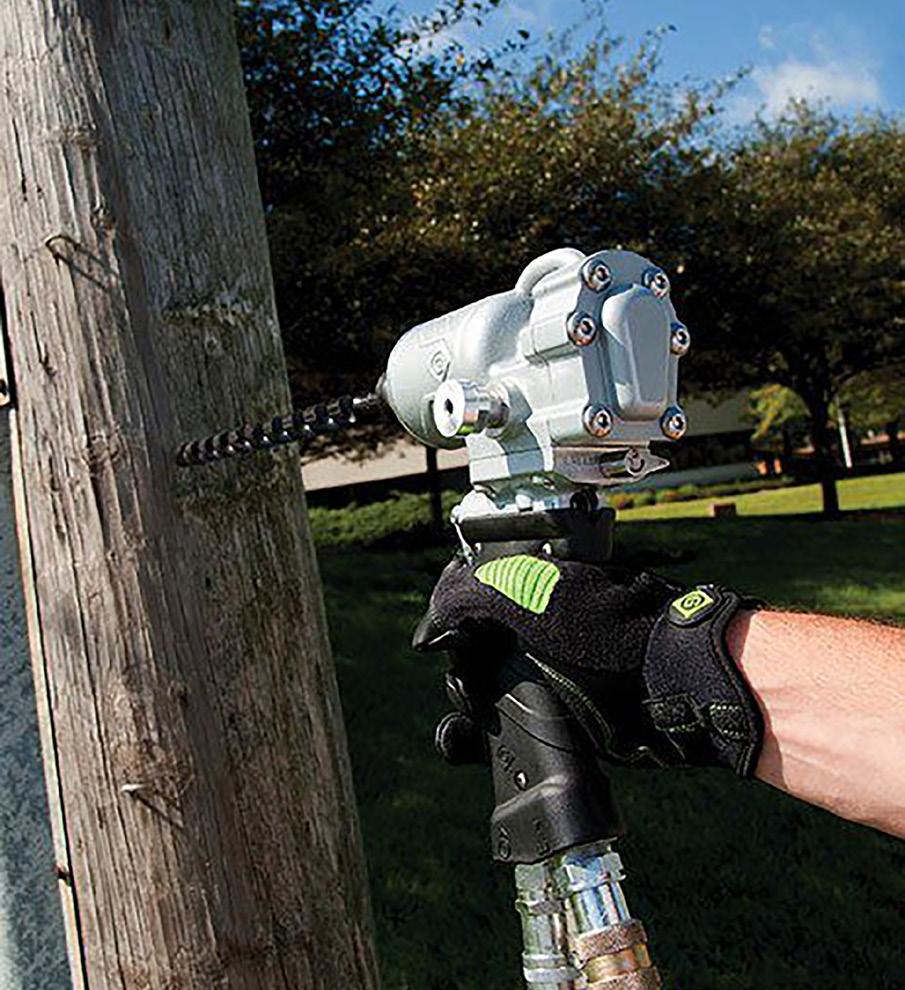

Auxiliary PTO oil outlets in the Hydralada platform allow you to connect hydraulic tools, drills, impact wrenches. Shown in this picture is an impact wrench with nail eating drill bit drilling hardwood poles with ease.

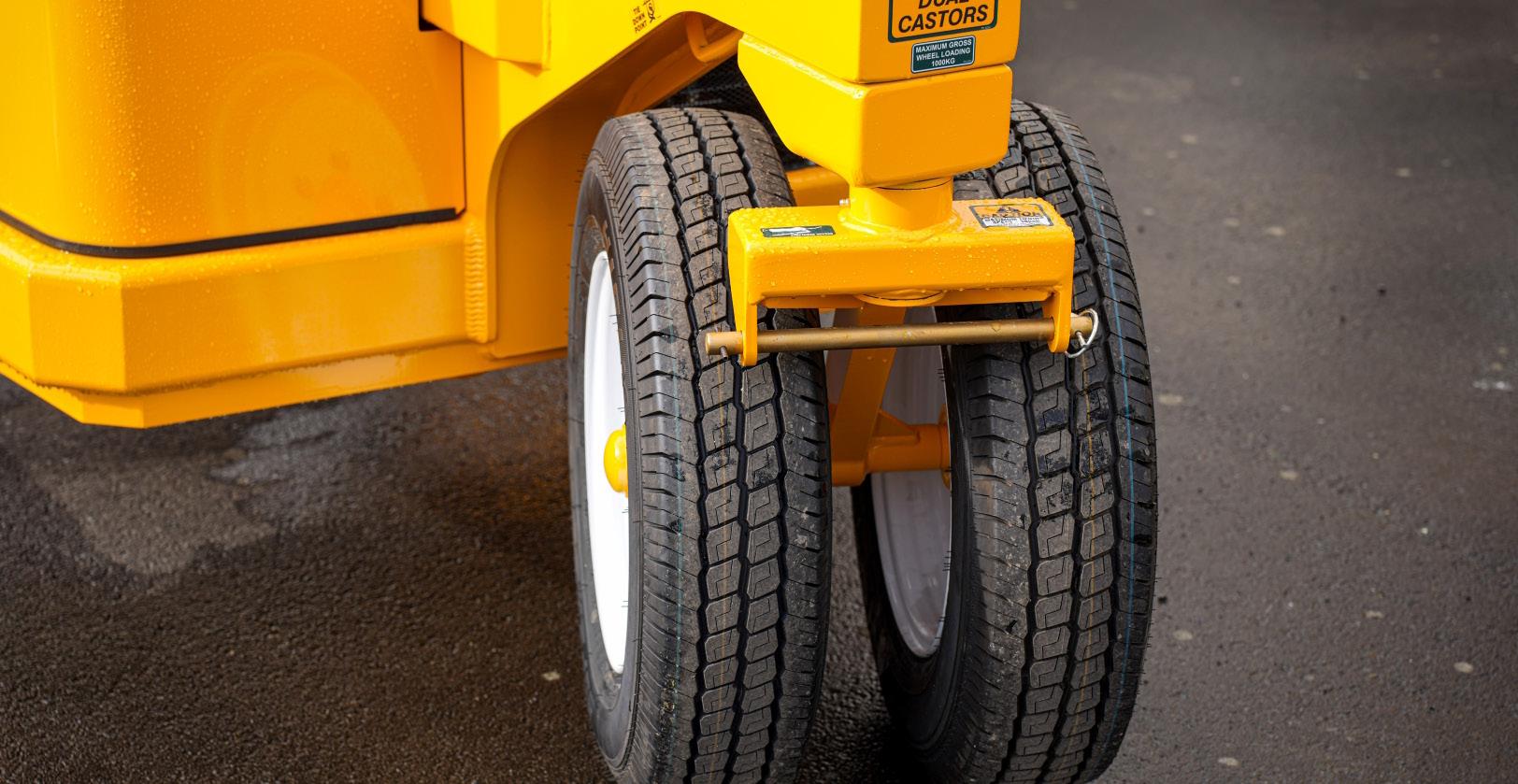

DUAL CASTOR WHEEL.
DUAL CASTOR
HEAVY DUTY EWP TYRES.
Castor Wheels turn a lot easier than the standard single wheel system. Reduces friction when castoring.
HEAVY DUTY TYRES
HYDRAULIC TOOLS
POPULAR OPTIONS

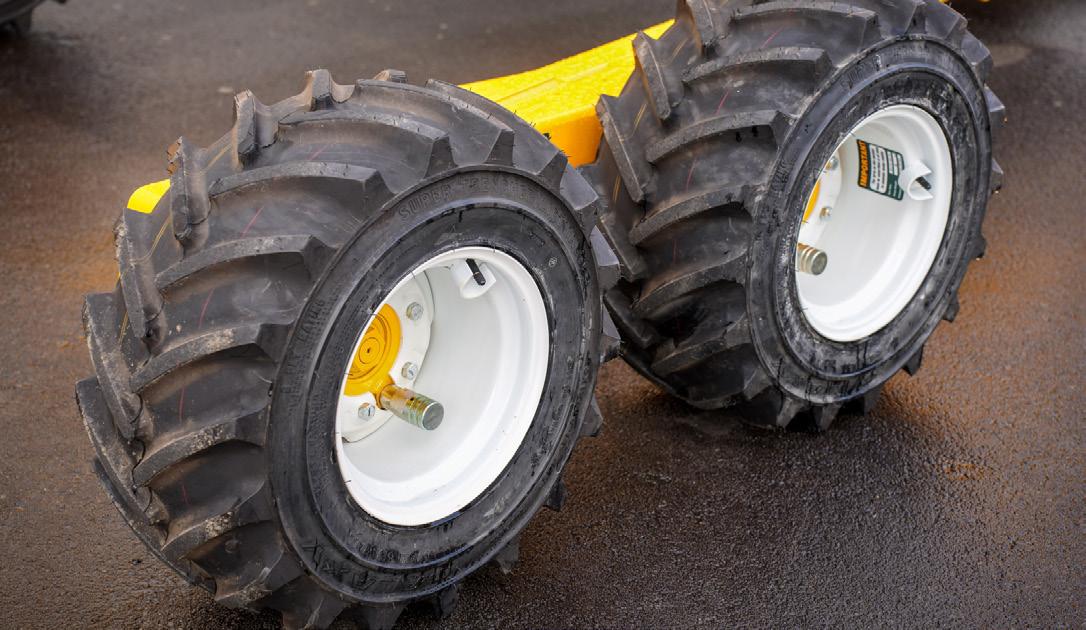

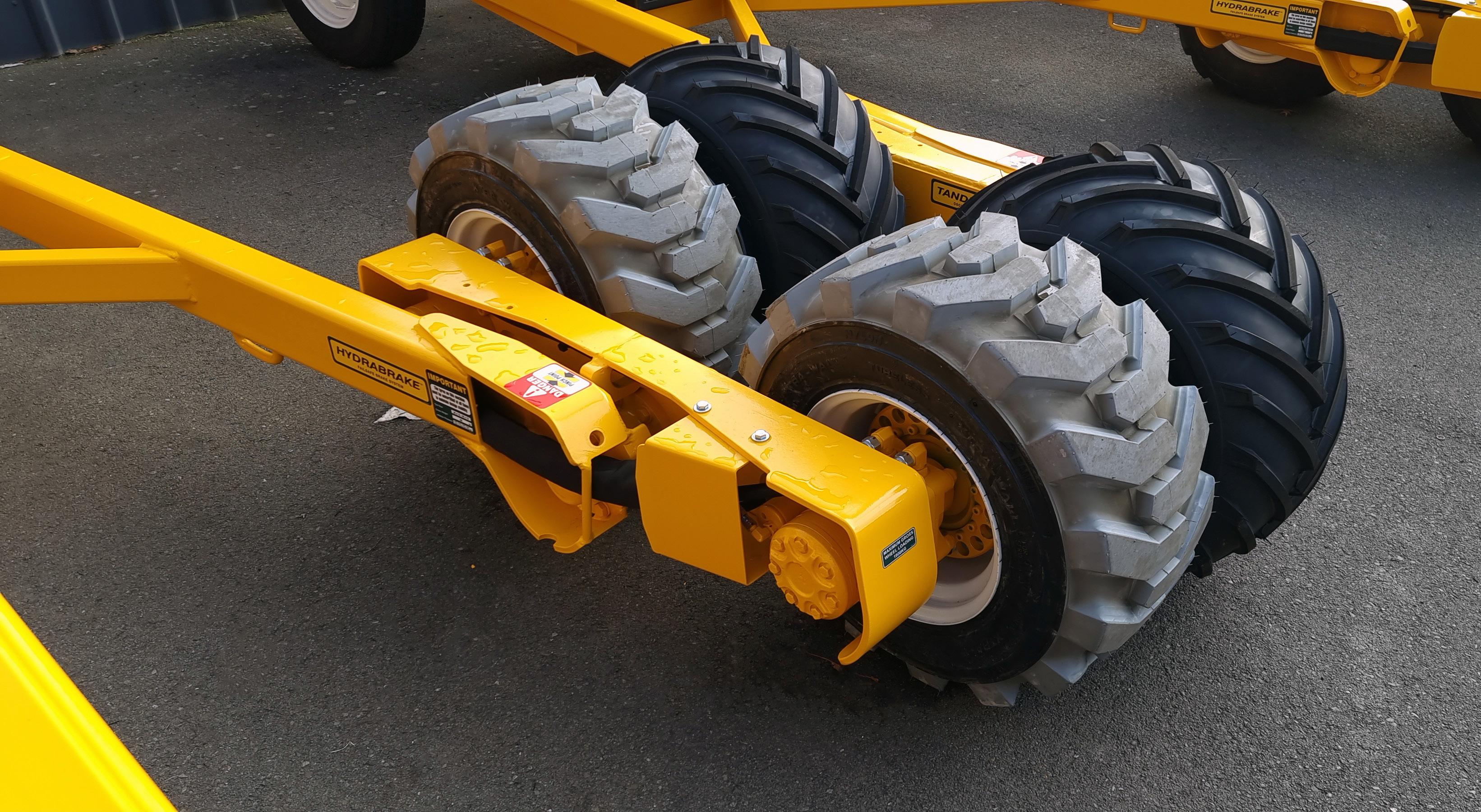

TWIN CASTOR REAR AXLE - These wheels are mounted on an oscillating beam to increase the machines stability. This feature is standard on some Hydralada models and available as an option on others in lieu of the single castor rear wheel.

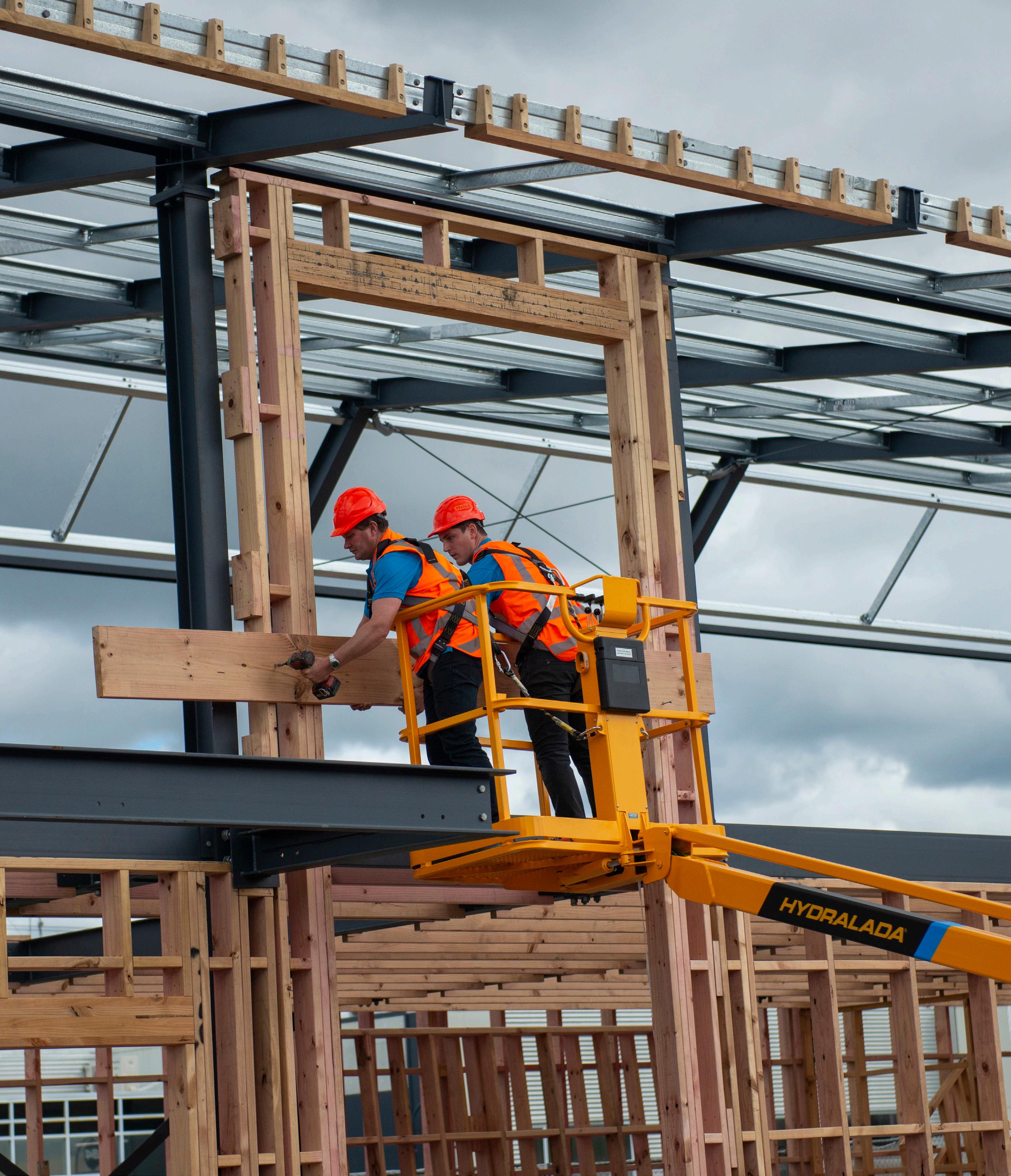

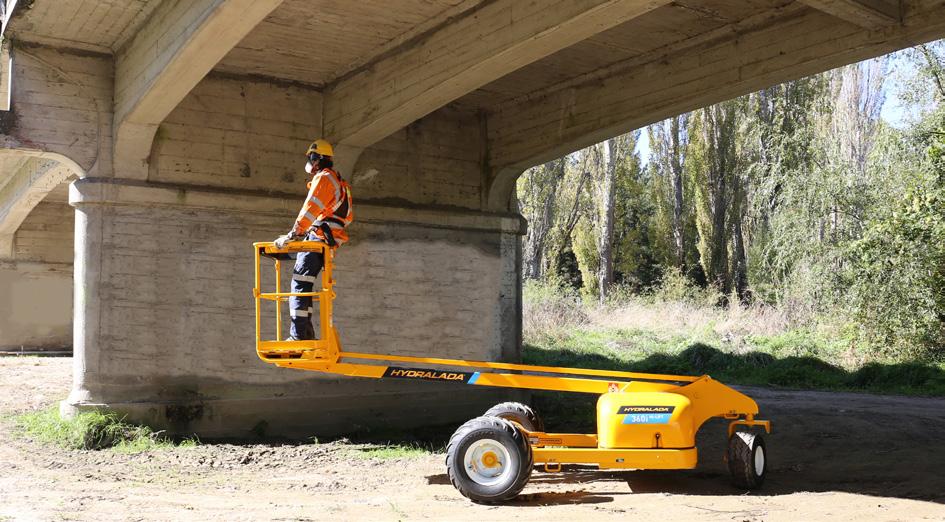

HYDRALADA OFFERS YOU CONVENIENT, EFFICIENT, AND VERSATILE ACCESS, ENABLING YOU TO SAFELY WORK AT HEIGHT ON ALL TERRAIN.

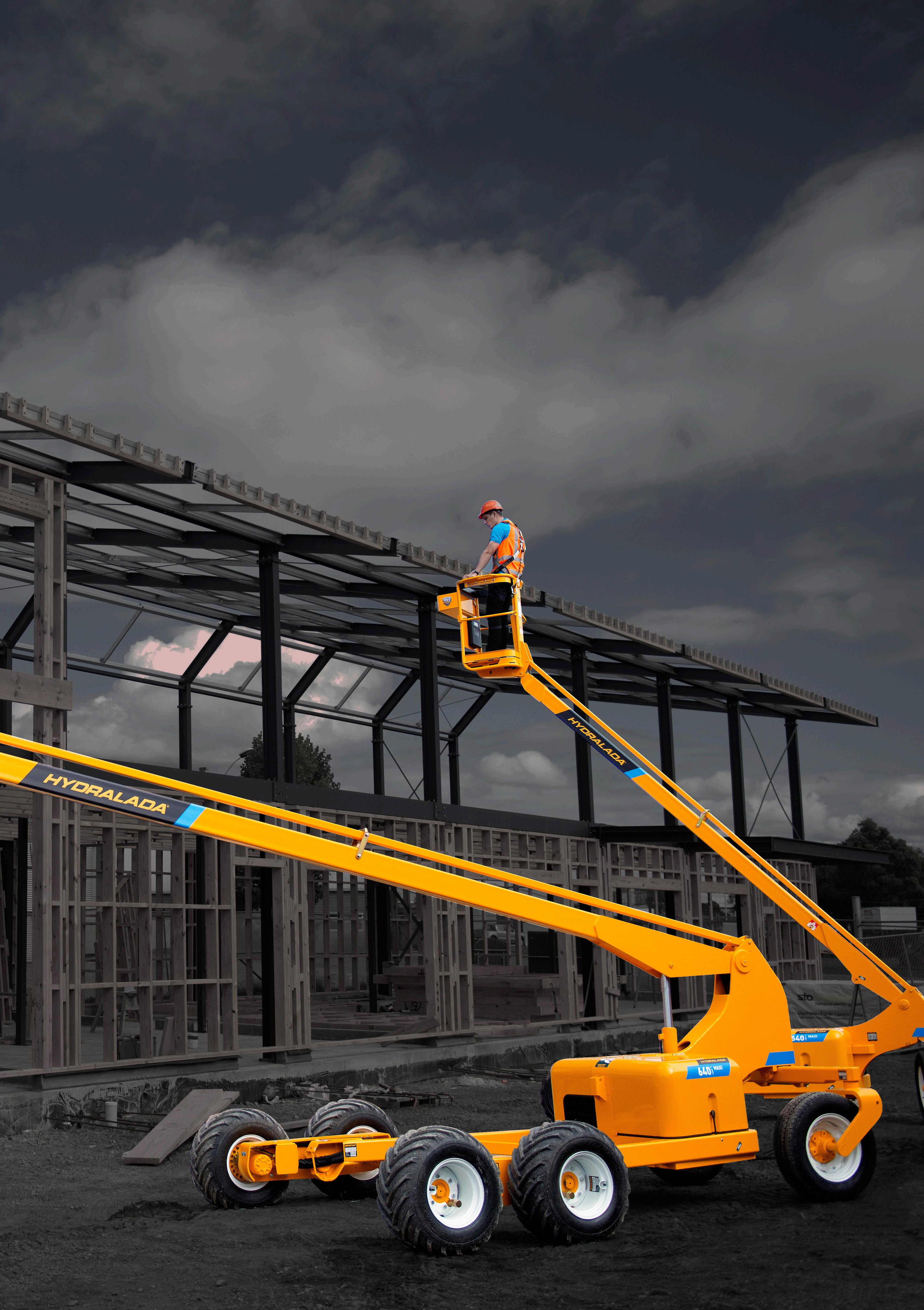

THE SAFE WAY TO TACKLE TRICKY TERRAIN.

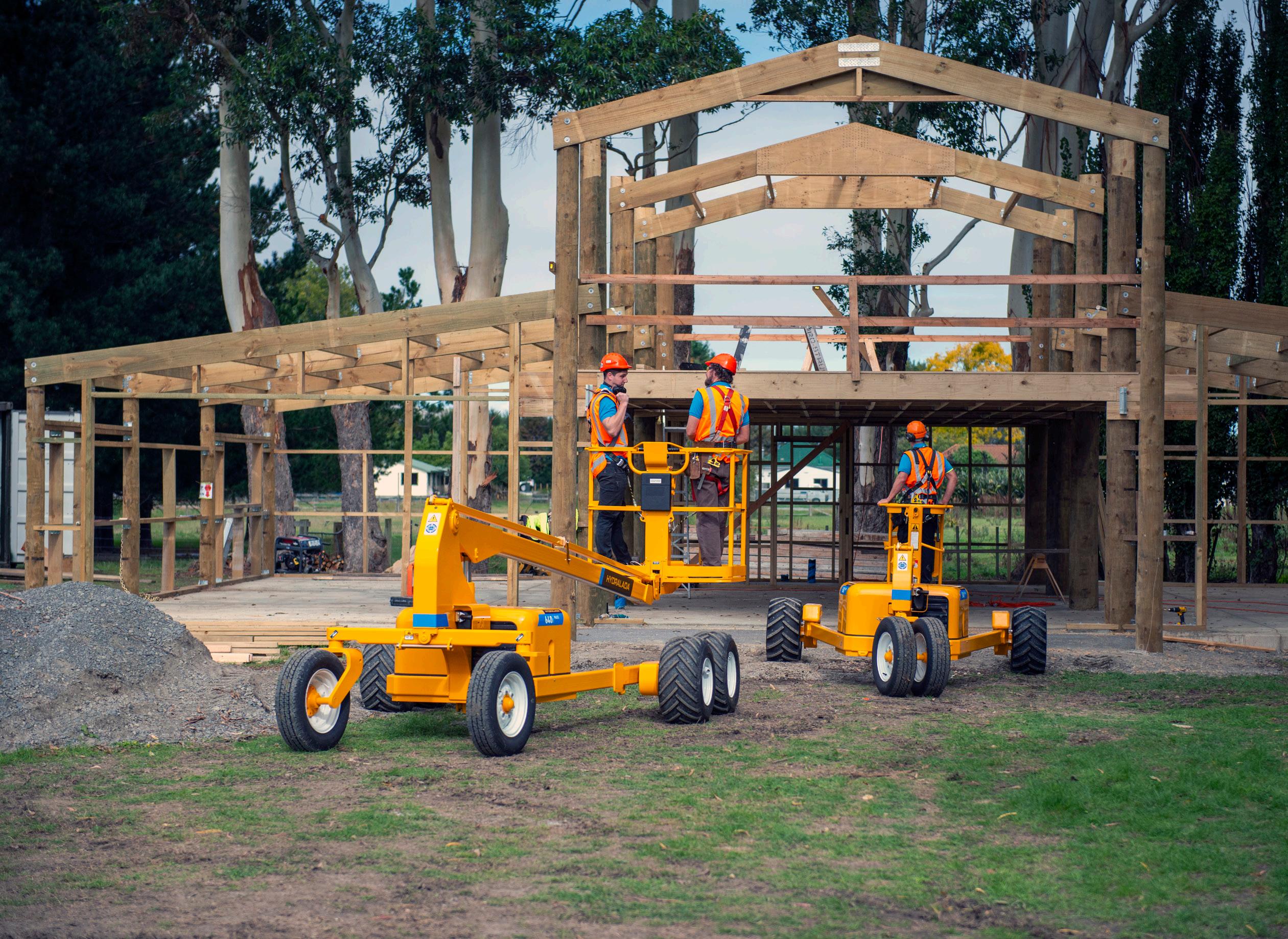

Reliable on every surface and proven for safety, with Hydralada elevating work platforms you can eliminate the need of expensive scaffolding structures.

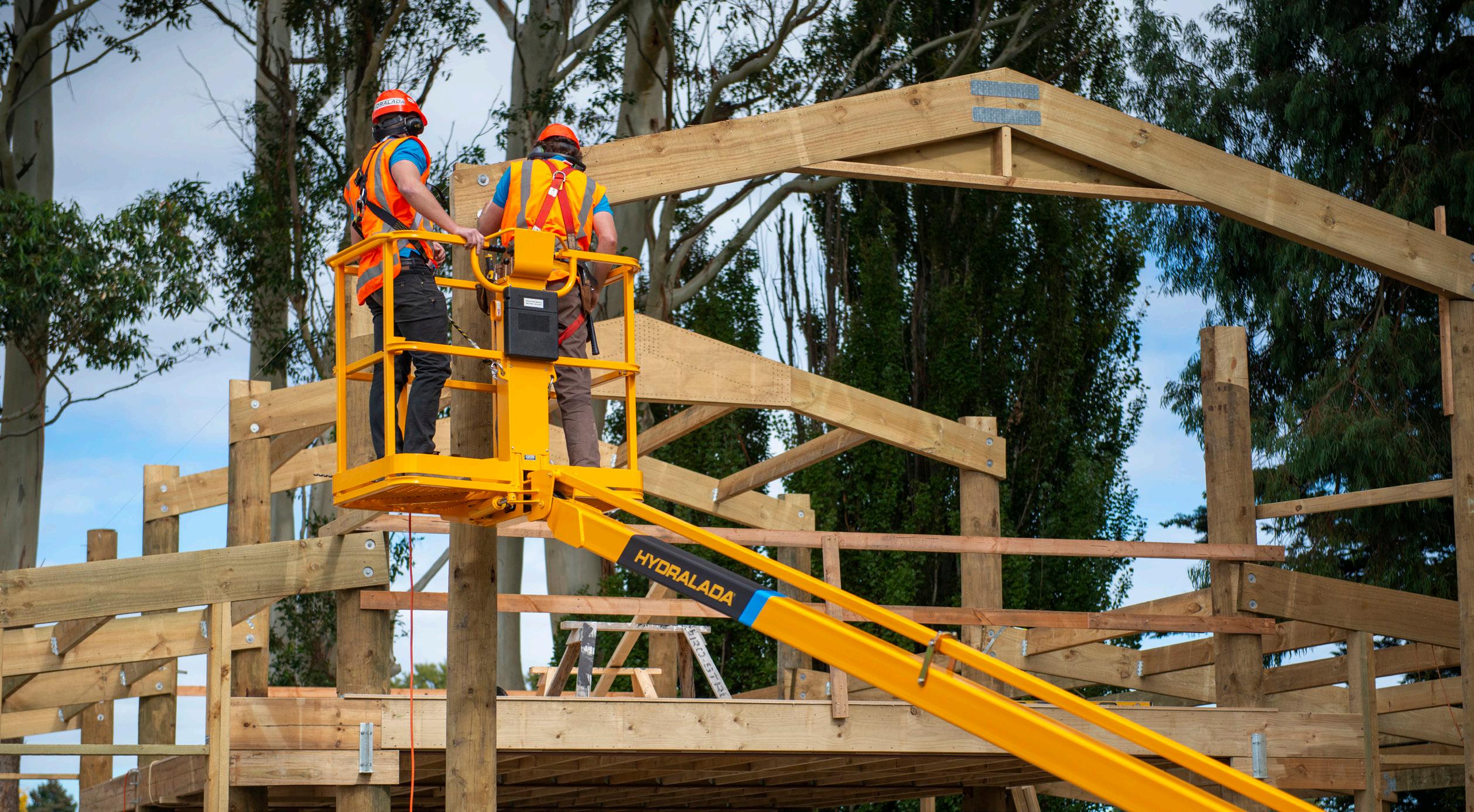

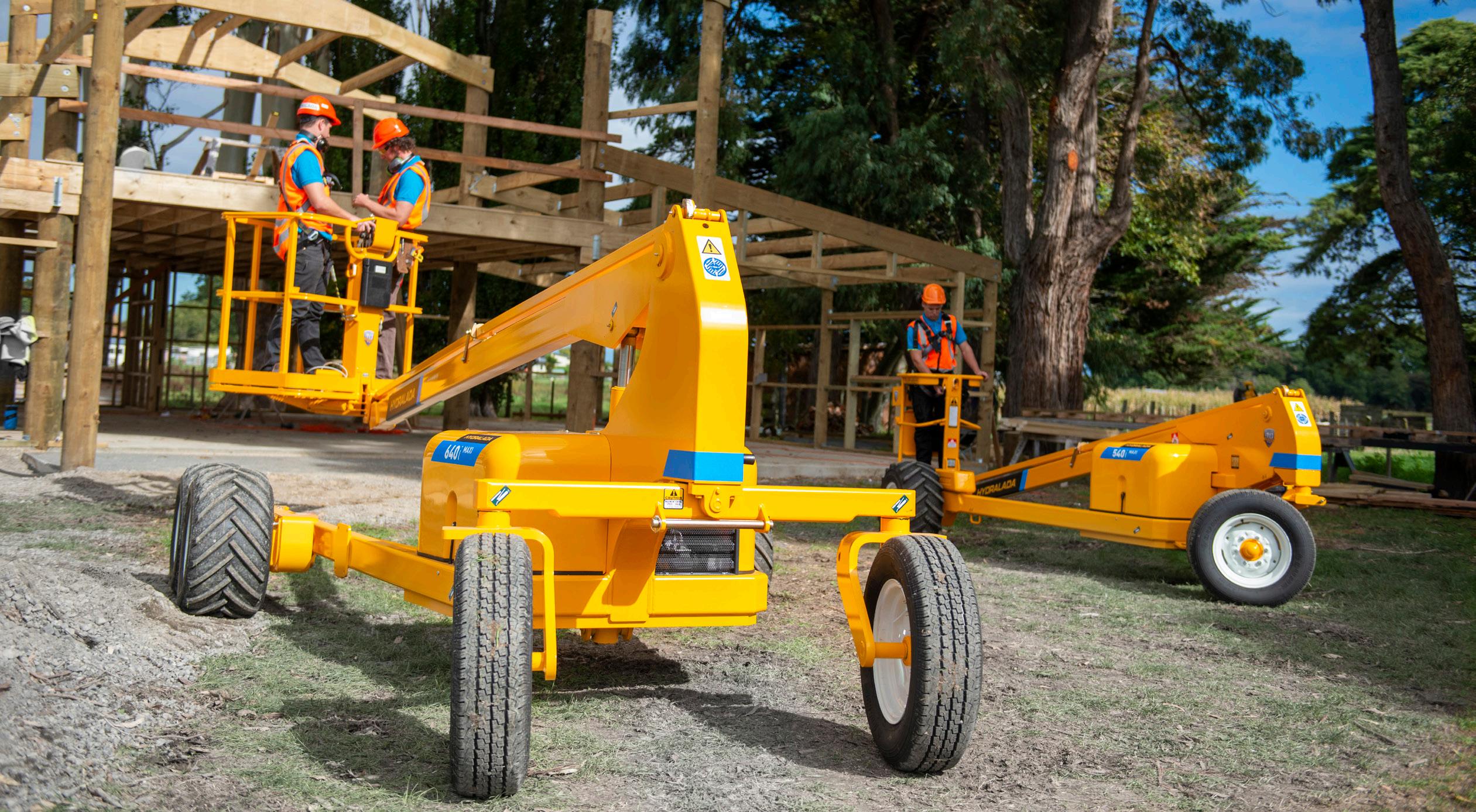

DRIVEN FROM THE PLATFORM.
Fitted with standard foot controls, or hand tiller lever, Hydralada machines can easily be maneuvered at all heights, without the need of outriggers for stability. Cleaning, painting, or building repairs, Hydralada removes the hard work.
SAFETY COMPLIANT.
Hydralada elevating work platforms are strictly manufactured to the guidelines of AS/NZS 1418-10 2011. Compliant for industrial work on commercial sites.
