ROTARY VINE TRIMMERS. VINEYARD MANAGEMENT MADE EASY. / hydralada.com

PRODUCT CATALOGUE

OUR PROMISE

FROM THE MOMENT YOU BUY YOUR MACHINE A LONG AND POSITIVE PARTNERSHIP BEGINS. Hydralada Company Ltd is a family-owned business in Hawke’s Bay, New Zealand.

We’ve been designing and manufacturing the very best specialist equipment for growers around the world for close to 50 years.

Our world-class reliability, service and support keeps our customers coming back for more.

From hand tools to harvesters, Hydralada Company Ltd offer a comprehensive range of safe, quality equipment to help you increase your productivity and optimise quality.

Hydralada®

www.hydralada.com

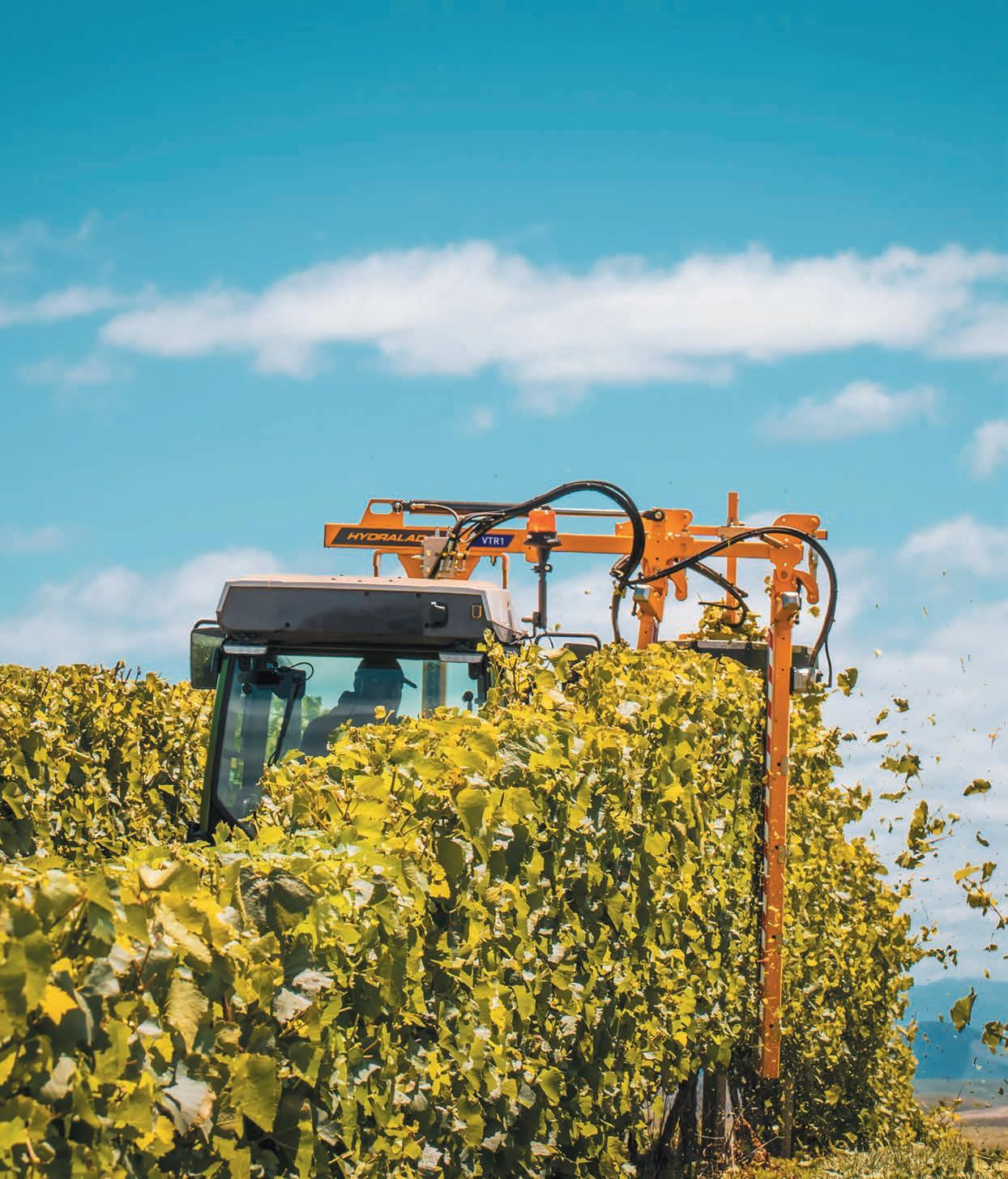

TRIM ONE HALF-ROW OR ONE FULL ROW IN ONE PASS.

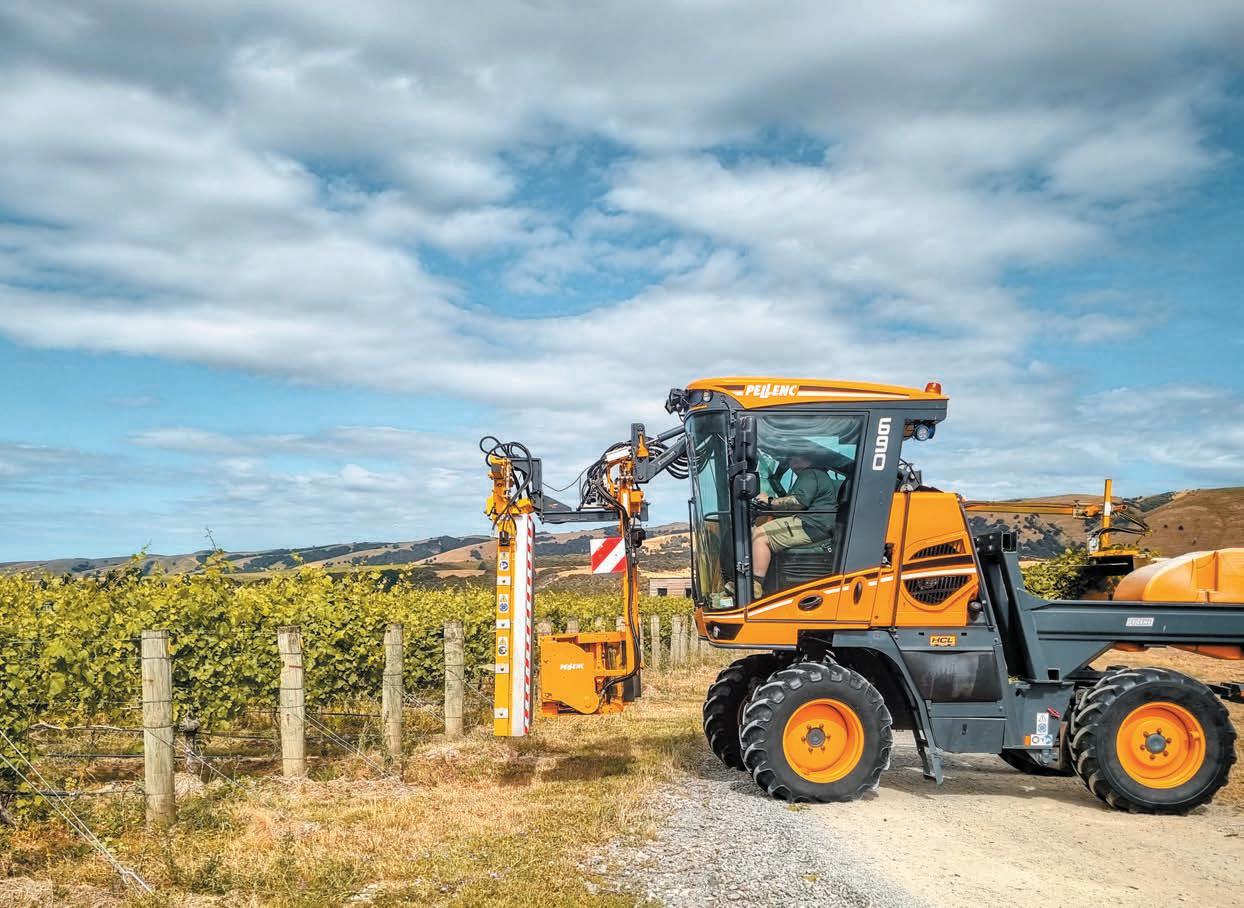

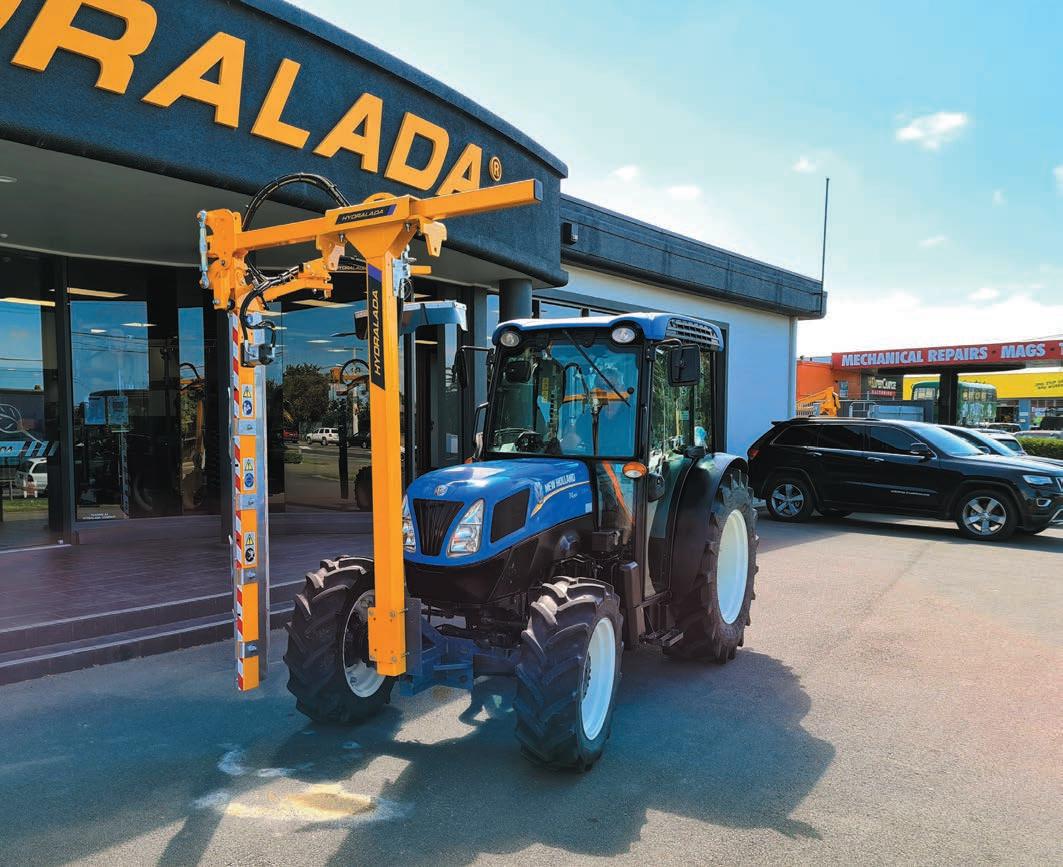

VTR1 HALF-ROW / OVER-ROW The Hydralada Half Row VTR1 Trimmer has a single mast with one vertical cutter board and one rotary topper, trimming one half of a row in one pass. Can be adapted to trim one complete row by fitting an over row module which includes one additional vertical trimmer board.

Single mast design, 1.80m vertical cutter board, five rotary blades, plus topper assembly.

1.80m

800mm

5x Blades

Single Cutter Board

Tri-Star Topper Diameter

Rotary Blades

4

CUSTOMISATION OVER-ROW MODULE The Half Row VTR1 Trimmer can be adapted to trim one complete row by adding an over row attachment.

HYDRAULIC LIFT MODULE This machine can be fitted with optional Hydraulic Lift.

HYDRAULIC TILT MODULE A Hydraulic Tilt module can be fitted to the VTR1 Trimmer. This allows the operator to adjust the angle of the trimmers while in operation.

ROTARY TOPPER Two different topper configurations available, Tri-Star (shown), or Twin Rotary blade.

FRAME

TRACTOR OIL SUPPLY

TRIMMER BOARD

• Single mast

• 2000 psi

• Single vertical cutter board

• Heavy duty headstock

• Dual tractor auxiliary oil remote outlets

• Rotary blades x 5

• Breakaway system • Durable • Hydraulic height adjustment 400 mm (standard)

• Joystick remote control station (optional) • 20 L/min Flow Controller

• Heavy duty spindles • Heavy duty bearings • Belt drive • Rigid board • Wire deflection

HEAVY-DUTY

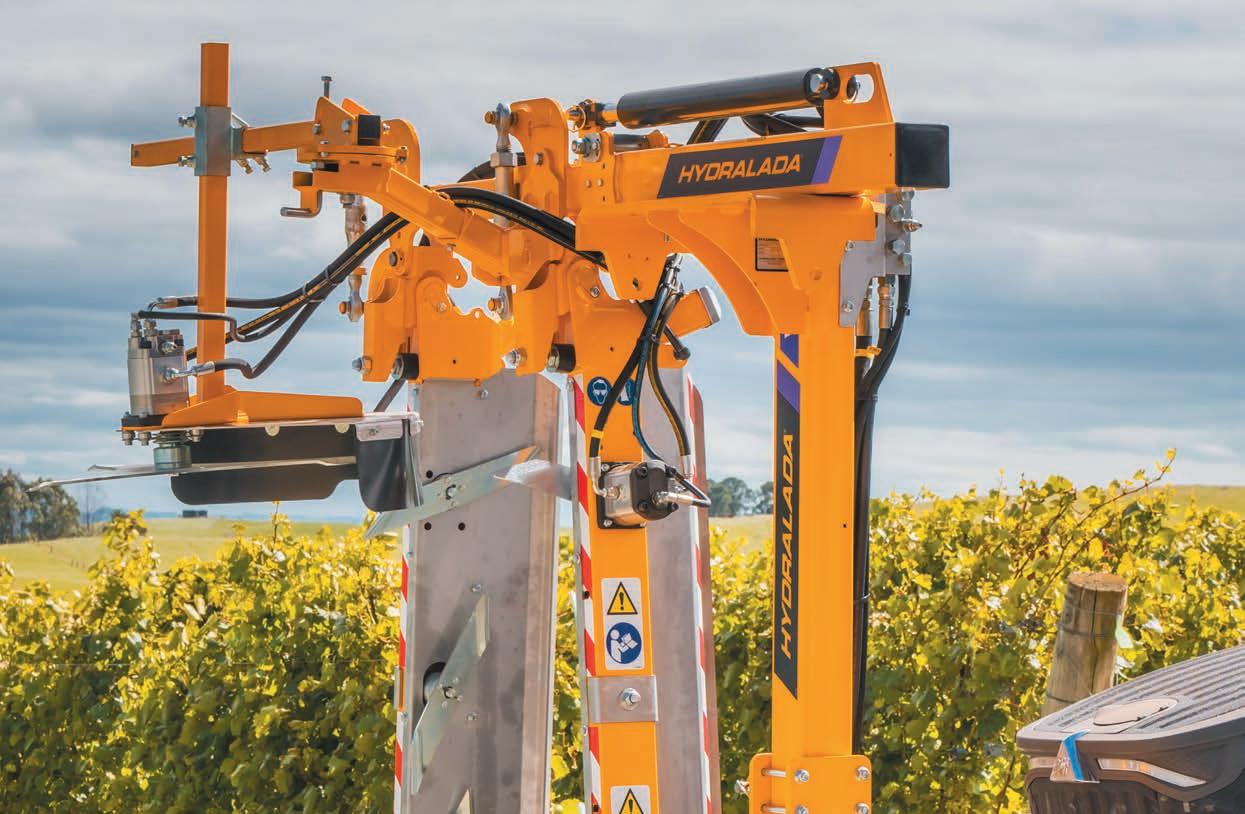

STRONG RIGID FRAME DESIGN WITH HEAVY-DUTY HEADSTOCK. The VTR1 Single Side trimmer is designed to trim fast and efficiently and last through many hours of hard work.

The VTR breakaway system mounted at the top of the cutter bar lets go in the event of accidental contact.

sales@hydralada.com

TWIN ROTARY TOPPER

UNIQUE BLADE DESIGN

DIFFERENT TOPPER OPTIONS AVAILABLE.

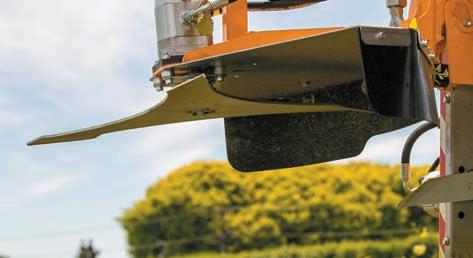

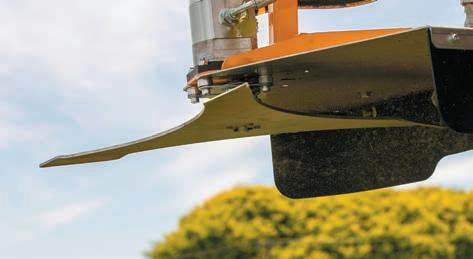

SPECIAL BLADE DESIGNED TO SUCK AND TRIM.

Two different topper configurations available, Twin Rotary Blade (shown 700 mm), or Tri-Star.

Rotary blade creates suction, drawing the vine leaves into the trimmer. A sharp cutting edge is maintained due to this effect.

Superior Spindle design with four bearings per spindle.

5

TRIM TWO HALF-ROWS OR TWO FULL ROWS IN ONE PASS.

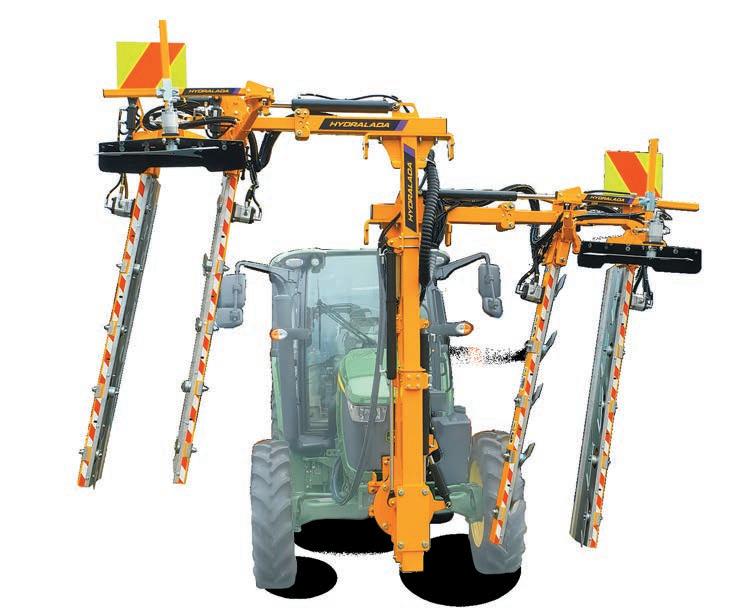

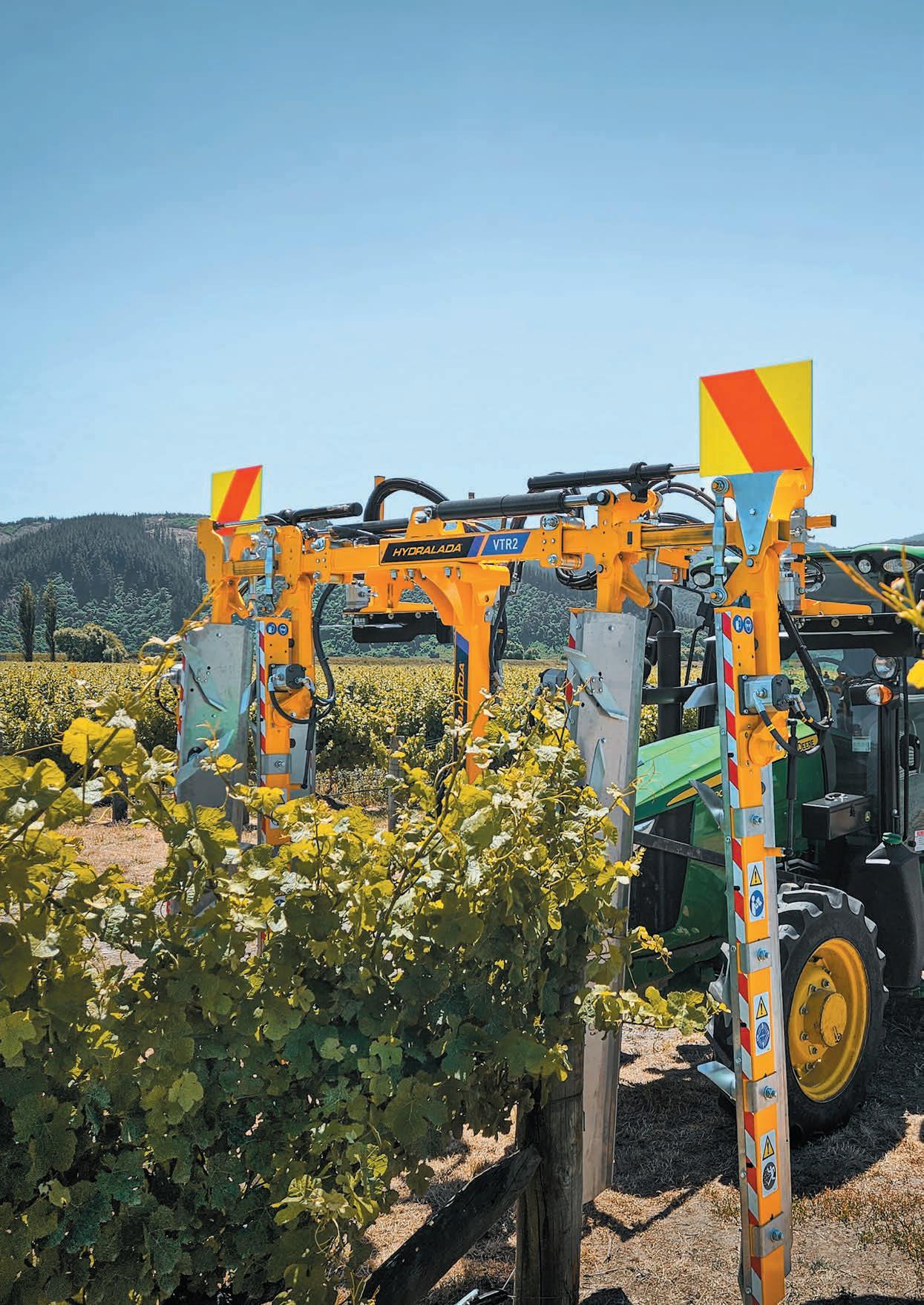

VTR2 G3 INTER-ROW / TWO-ROW The VTR2 can be configured in two distinct ways: A) Inter-Row (pictured above) Two boards = trims two half-rows (one on each side of tractor’s centreline).

B) Two-Row Four boards = trims two complete rows in one pass (tractor straddles the centre between two rows).

2x 1.80m

800mm

10x Blades

Cutter Boards

Tri-Star Topper Diameter x2

Rotary Blades

6

CUSTOMISATION HYDRAULIC LIFT & TILT MODULE Hydraulic Lift and/or Tilt Module is available to be fitted to the Inter Row VTR2 machine, allowing operator to adjust height and/or angle of trimmer while in operation.

REMOTE CONTROL STATION This option includes a hydraulic control bank with flow control and requires only one tractor remote outlet. Up to six functions can be operated with this intuitive control panel. Ideal for higher spec trimmers and tractors.

ROTARY TOPPER Two different topper configurations available, Tri-Star (shown), or Twin Rotary blade.

FRAME

TRACTOR OIL SUPPLY

TRIMMER BOARD

• Single mast

• 45 L/min

• 2 x vertical boards

• Heavy duty headstock with nylon brush inserts

• 2000 psi

• Rotary blades x 10

• Gas strut breakaway system

• Dual tractor auxiliary oil remote outlets

• Heavy duty bearings

• Excellent visibility

• Belt drive

• Durable construction

• Rigid board

• Hydraulic height adjustment 400 mm (standard)

TRI-STAR TOPPER

• Heavy duty spindles

• Wire deflection

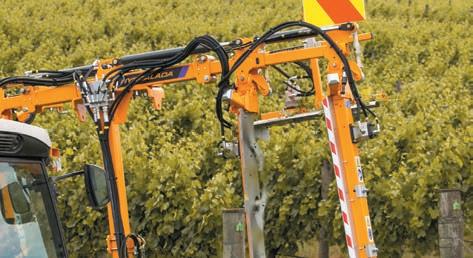

ADAPTABLE FRAME

UNIQUE BLADE DESIGN

EJECTS TRIMMINGS AWAY FROM VINE.

HEAVY-DUTY AND ADJUSTABLE.

SPECIAL BLADE DESIGNED TO SUCK AND TRIM.

Available in Tri-Star Flail, or Twin Rotary Blade. Both options have been specially designed and are effective for trimming and removing the vegetation into adjacent rows.

Single mast frame with hydraulic width adjustment makes it easy to adapt to suit different vineyards.

Two vertical cutter boards can be adjusted and toppers moved independently. The single mast frame provides excellent visibility.

Rotary blade creates suction, drawing the vine leaves into the trimmer. A sharp cutting edge is maintained due to this effect.

Superior Spindle design with four bearings per spindle.

sales@hydralada.com

7

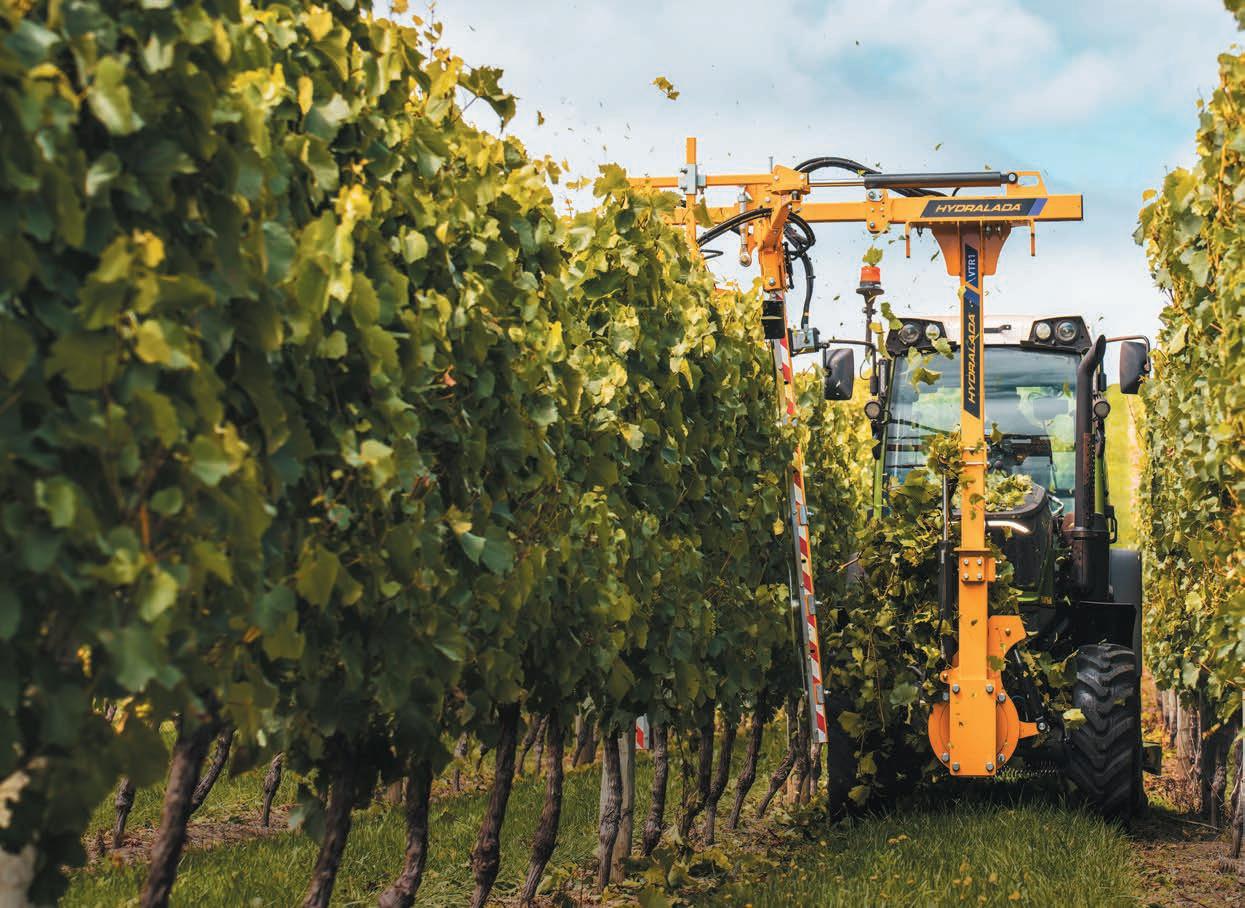

NEXT GENERATION OVER-ROW ROTARY VINE TRIMMER.

VTR2 G4 INTER-ROW / TWO-ROW The VTR2 can be configured in two distinct ways: A) Inter-Row Two boards = trims two half-rows (one on each side of tractor’s centreline).

B) Two-Row (pictured above) Four boards = trims two complete rows in one pass (tractor straddles the centre between two rows).

2x 1.80m

800mm

10x Blades

Cutter Boards

Tri-Star Topper Diameter x2

Rotary Blades

8

NEW G4 VERTICAL CUTTER BAR BREAKAWAY DESIGN. (OPTIONAL ITEM)

NEW G4 TOPPER BREAKAWAY. (OPTIONAL ITEM)

CUSTOMISATION | HYDRAULIC LIFT & TILT MODULE

REMOTE CONTROL STATION

Hydraulic Lift and/or Tilt Module is available to be fitted to the Inter Row VTR2 machine, allowing operator to adjust height and/or angle of trimmer while in operation.

FRAME

NEW G4 ENCLOSED VERTICAL CUTTER BAR. (OPTIONAL ITEM)

This option includes a hydraulic control bank with flow control and requires only one tractor remote outlet. Up to six functions can be operated with this intuitive control panel. Ideal for higher spec trimmers and tractors.

TRACTOR OIL SUPPLY

TRIMMER BOARD

• Single mast

• 45 L/min

• 2 x vertical cutter boards

• Heavy duty headstock with nylon brush inserts

• 2000 psi

• Rotary blades x 10

• Gas strut breakaway system

• Dual tractor auxiliary oil remote outlets

• Heavy duty bearings

• Excellent visibility

• Belt drive

• Durable construction

• Rigid board

• Hydraulic height adjustment 400 mm (standard)

TRI-STAR TOPPER

• Heavy duty spindles

• Wire deflection

ADAPTABLE FRAME

UNIQUE BLADE DESIGN

EJECTS TRIMMINGS AWAY FROM VINE.

HEAVY-DUTY AND ADJUSTABLE.

SPECIAL BLADE DESIGNED TO SUCK AND TRIM.

Available in Tri-Star Flail, or Twin Rotary Blade. Both options have been specially designed and are effective for trimming and removing the vegetation into adjacent rows.

Single mast frame with hydraulic width adjustment makes it easy to adapt to suit different vineyards.

Two vertical cutter boards can be adjusted and toppers moved independently. The single mast frame provides excellent visibility.

Rotary blade creates suction, drawing the vine leaves into the trimmer. A sharp cutting edge is maintained due to this effect.

Superior Spindle design with four bearings per spindle.

sales@hydralada.com

9

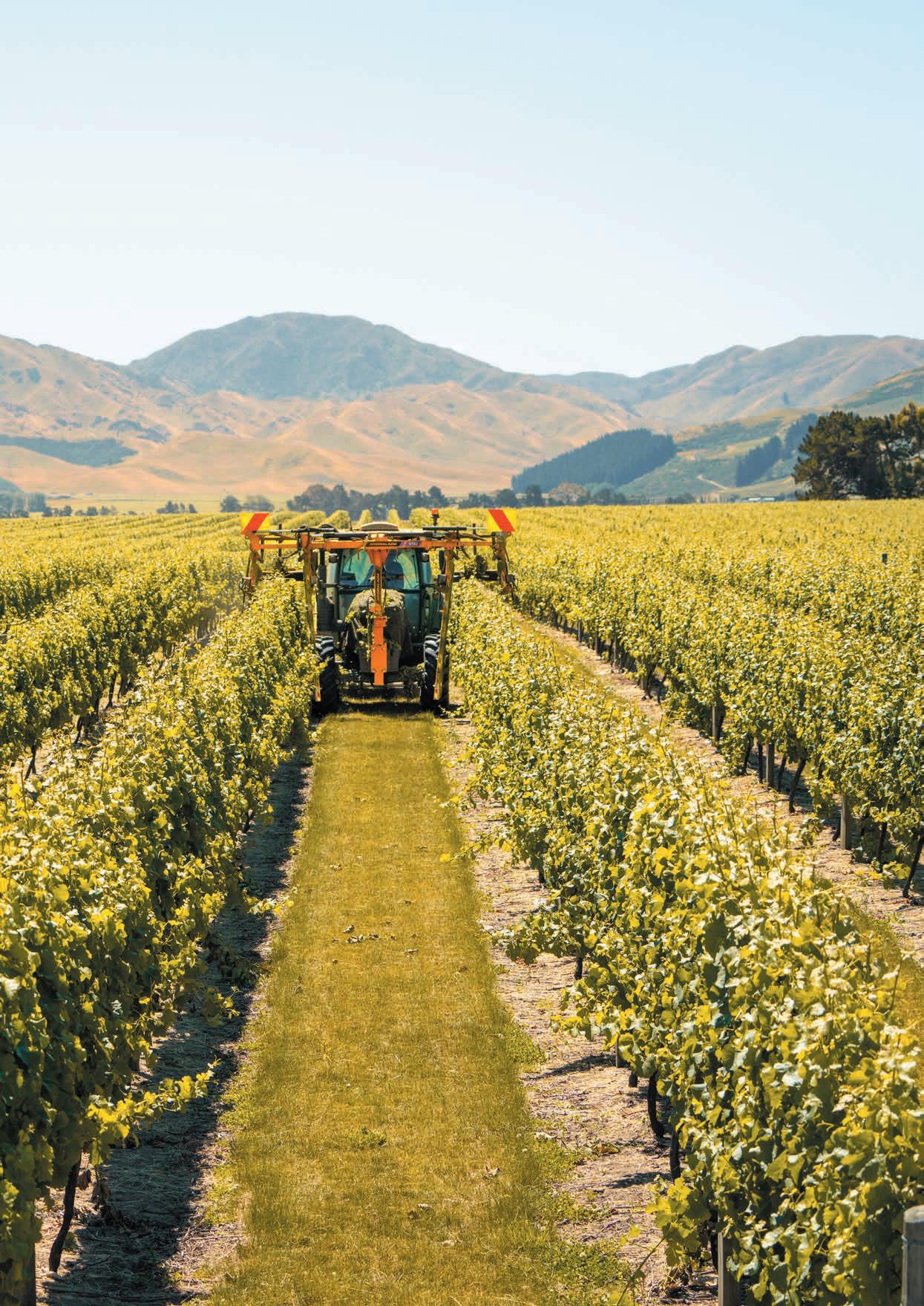

DOUBLE MAST FOR Hydralada INDEPENDENT LIFT ON VTR3 G3 TERRACED VINEYARDS. ®

Inter-row or Two-row

VTR3 G3 INTER-ROW / TWO-ROW The Hydralada Inter Row VTR3 Trimmer has a double mast with independent Hydraulic lift and a vertical cutter boards and a rotary topper each side trimming two full rows in one pass.

4x 1.80m

800mm

20x Blades

Cutter Boards

Tri-Star Topper Diameter x2

Rotary Blades

10

CUSTOMISATION REMOTE CONTROL STATION This option includes a hydraulic control bank with flow control and requires only one tractor remote outlet. The standard five function system can be operated with this intuitive joystick control panel.

ROTARY TOPPER Two different topper configurations available, Tri-Star (shown), or Twin Rotary blade.

FRAME

TRACTOR OIL SUPPLY

TRIMMER BOARD

• Double mast

• 45 L/min

• 4 x vertical cutter boards

• Heavy duty headstock with nylon brush inserts

• 2000 psi

• Rotary blades x 10 per vertical cutter board

• Gas strut breakaway system

• Dual tractor auxiliary oil remote outlets

• Heavy duty spindles

• Excellent visibility

• Heavy duty bearings

• Durable construction

• Belt drive

• Hydraulic height adjustment 400 mm (standard)

• Rigid board

TRI-STAR TOPPER

• Wire deflection

ADAPTABLE FRAME

UNIQUE BLADE DESIGN

EJECTS TRIMMINGS AWAY FROM VINE.

HEAVY-DUTY AND ADJUSTABLE.

SPECIAL BLADE DESIGNED TO SUCK AND TRIM.

Available in Tri-Star Flail, or Twin Rotary Blade. Both options have been specially designed and are effective for trimming and removing the vegetation into adjacent rows.

Double mast frame with hydraulic width adjustment makes it easy to adapt to suit different vineyards.

Two vertical cutter boards can be adjusted and toppers moved independently.

Rotary blade creates suction, drawing the vine leaves into the trimmer. A sharp cutting edge is maintained due to this effect.

Superior Spindle design with four bearings per spindle.

sales@hydralada.com

11

TRIM ONE FULL ROW IN ONE PASS.

VTR-M ONE-ROW The Hydralada one-row VTRM Trimmer has a chassis designed specifically for over-row tractors with two vertical cutter boards and one rotary topper, trimming one row in one pass. Can be adapted to mount in conjunction with a leaf remover (front arm mount and leaf remover not included).

2x 1.80m

800mm

10x Blades

Cutter Boards

Tri-Star Topper Diameter x1

Rotary Blades

12

CUSTOMISATION ROTARY TOPPER Two different topper configurations available, Tri-Star (shown), or Twin Rotary blade.

ADAPTABLE Can be adapted to most over-row tractors.

FRAME

TRACTOR OIL SUPPLY

TRIMMER BOARD

• Heavy duty headstock with nylon brush inserts

• 20 L/min

• 2 x vertical boards

• 2000 psi

• Gas strut breakaway system

• Dual tractor auxiliary oil remote outlets

• Rotary blades x 10

• Manually adjustable vertical cutter bar width

• 20 L/min Flow Controller

• Heavy duty spindles • Heavy duty bearings • Belt drive

• Hydraulic cutter bar width & angle adjustment (optional)

• Rigid board • Wire deflection

TRI-STAR TOPPER

DIFFERENT TOPPER OPTIONS AVAILABLE. Two different topper configurations available, Twin Rotary Blade (shown 700 mm), or Tri-Star.

sales@hydralada.com

ADAPTABLE FRAME

STRONG RIGID FRAME DESIGN WITH HEAVY-DUTY HEADSTOCK. The VTRM one-row trimmer is designed to trim fast and efficient and last for many hours of hard work. The VTR breakaway system mounted at the top of the cutter bar lets go in the event of accidental contact.

UNIQUE BLADE DESIGN

SPECIAL BLADE DESIGNED TO SUCK AND TRIM. Rotary blade creates suction, drawing the vine leaves into the trimmer. A sharp cutting edge is maintained due to this effect.

Superior Spindle design with four bearings per spindle.

13

TRIMMER ADD-ON FEATURES TRI-STAR TOPPER - Includes three flail blades designed to trim and eject vegetation away

from the tractor and out of the top of the vines. Fast, clean and efficient trimming action.

A simple and effective system with low cost of operation.

TWIN ROTARY BLADE

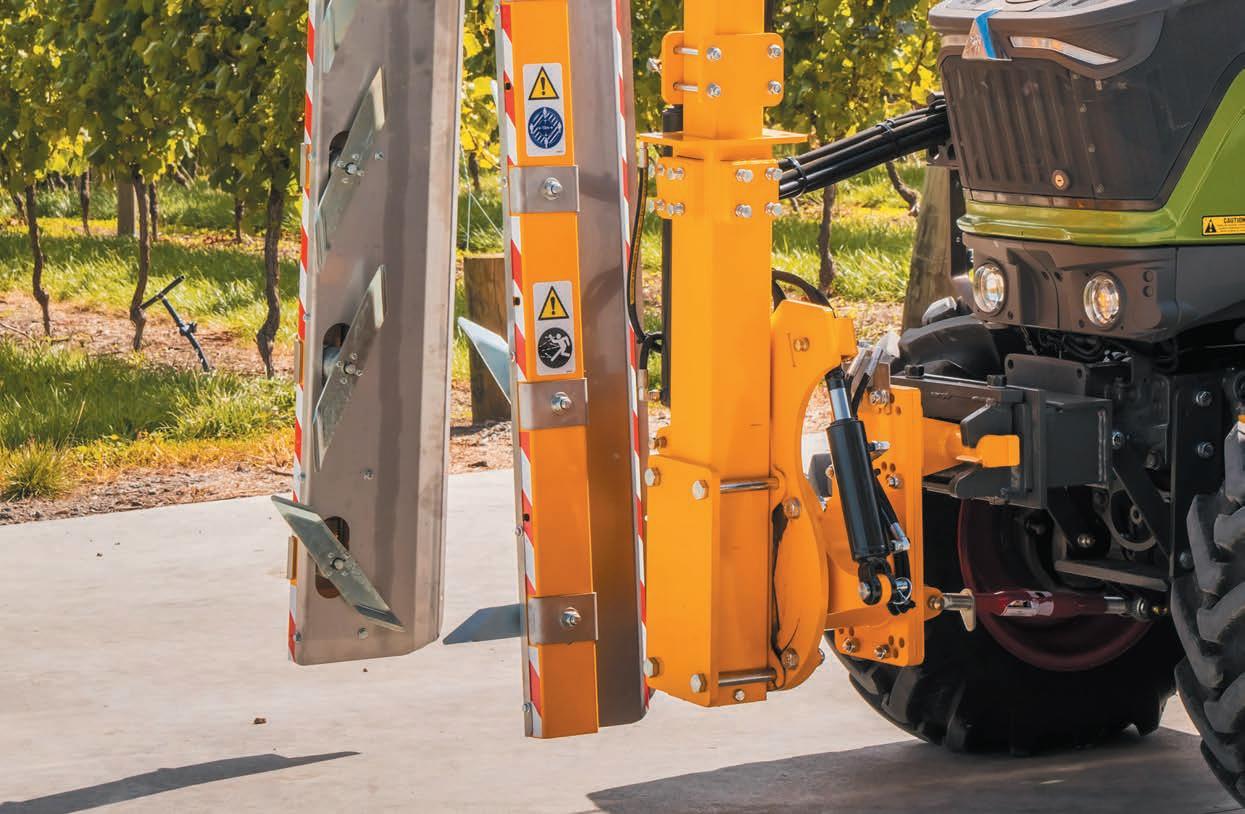

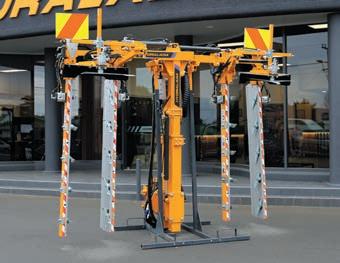

TRIMMER STAND

INDEPENDENT TILT

TWIN ROTARY TOPPER.

TRIMMER STAND.

HYDRAULIC BOARD TILT.

An alternative to the Tri-Star Topper.

This Twin Rotary Topper trims clean and fast. Uses the unique Hydralada Trimmer Blade.

A robust, well balanced stand to store the trimmer when it has been removed from the tractor.

This allows the vertical trimmer board to be hydraulically angled independent to the main frame.

14

TRIMMER ADD-ON FEATURES HYDRAULIC MAST TILT - Hydraulically adjustable tilt of the complete trimmer assembly enables the

machine to be angled during the trimming operation.

HYDRAULIC THROAT

HYDRAULIC THROAT ADJUSTMENT FOR OVER-ROW Allowing your over-row vertical cutter board to be hydraulically extended or retracted to suit your row width.

sales@hydralada.com

ERGONOMIC JOYSTICK

FULL ROW TRIMMING

TRACTOR CAB CONTROLS.

OVER-ROW TRIMMING.

Includes a hydraulic control station with electric remote joystick for all functions. On/off, tilt, lift, side-shift of the trimmer head.

Both the VTR1 and VTR2 can be fitted with an extra over-row vertical cutter board which allows a full row to be trimmed in one pass. This is a modular attachment option.

15

TRIMMER ADD-ON FEATURES HYDRAULIC SIDE SHIFT ADJUSTMENT - (OPTIONAL ON VTR1 & VTRM - STANDARD

ON VTR2)

FRONT 3-POINT HITCH

OPTIONAL 3-POINT FRONT MOUNT FRAME KIT.

16

TRIMMER BLADE

TRIMMER BLADE STAINLESS STEEL SAFETY GUARDS

PTO POWER PACK

HYDRALADA 3PT HITCH PTO POWER PACK. Independent hydraulic reservoir / oil supply with oil cooler. Tank size: 145 litres. Pump output (at 540 rpm): 68 L/min @ 140 bar.

PTO drive shaft. Single pressure/return coupling. Excludes control valve.

sales@hydralada.com

17

18

sales@hydralada.com

19
