TBX_Titan660

INDUSTRIAL POWER, PRECISION ENGINEERED

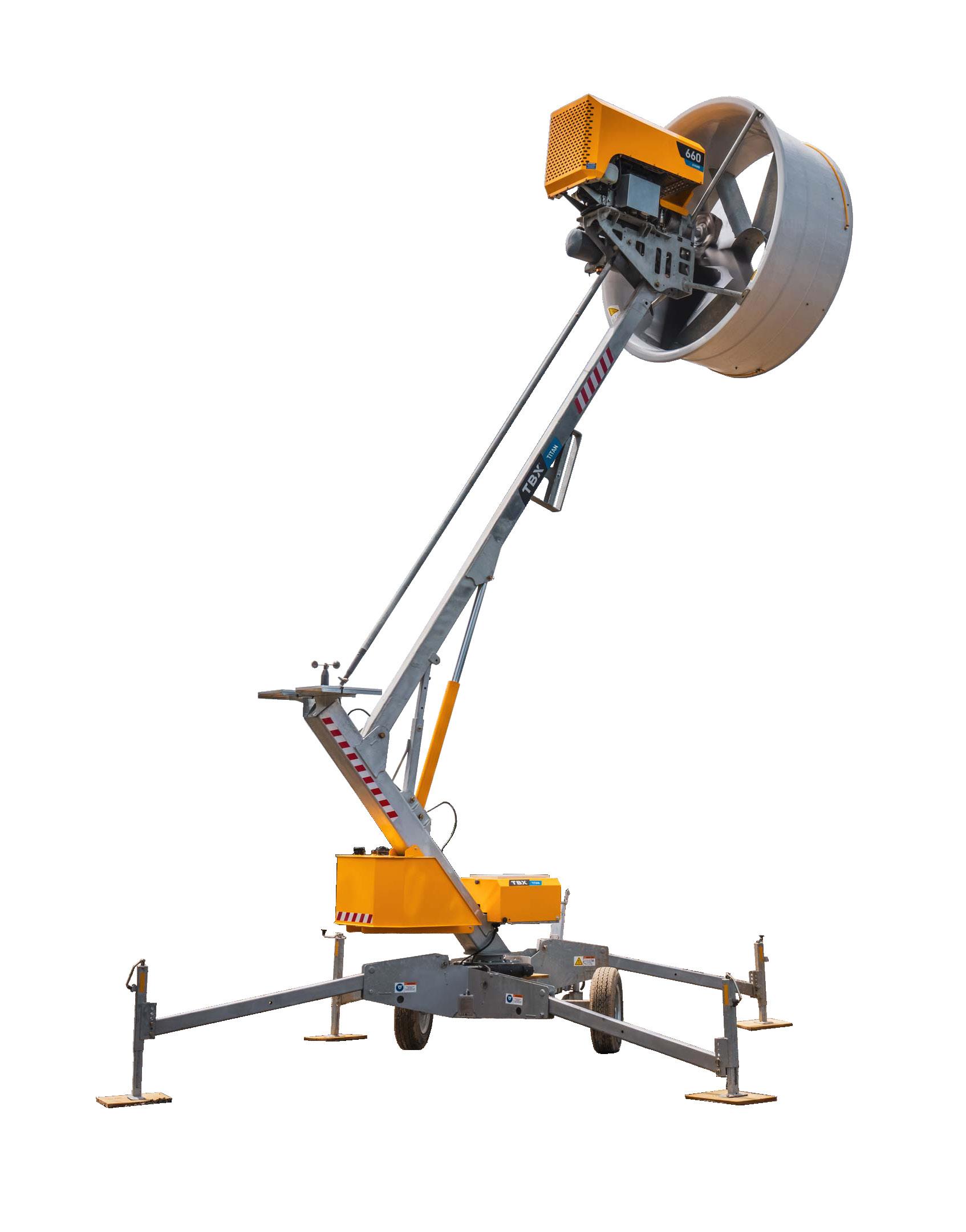

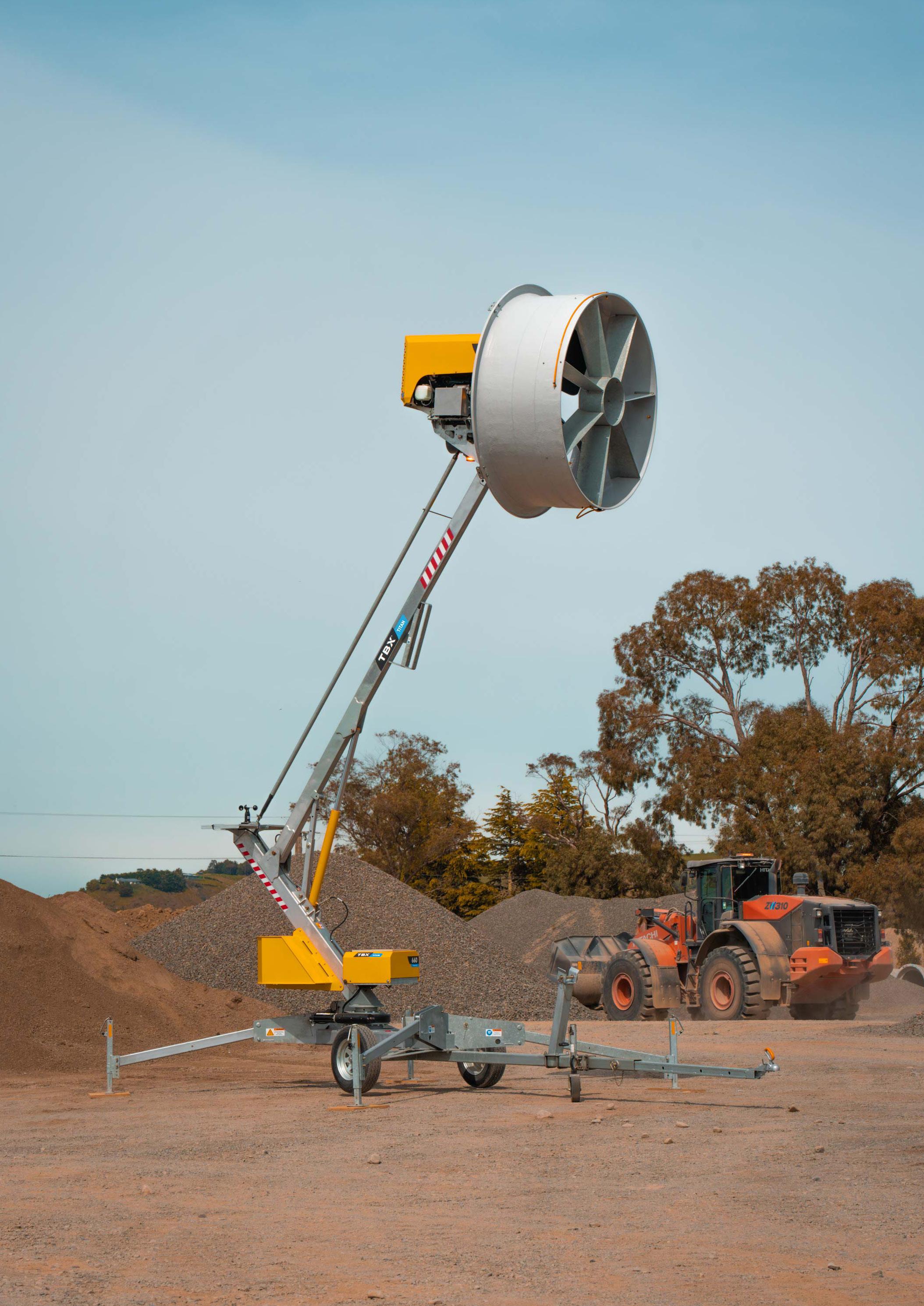

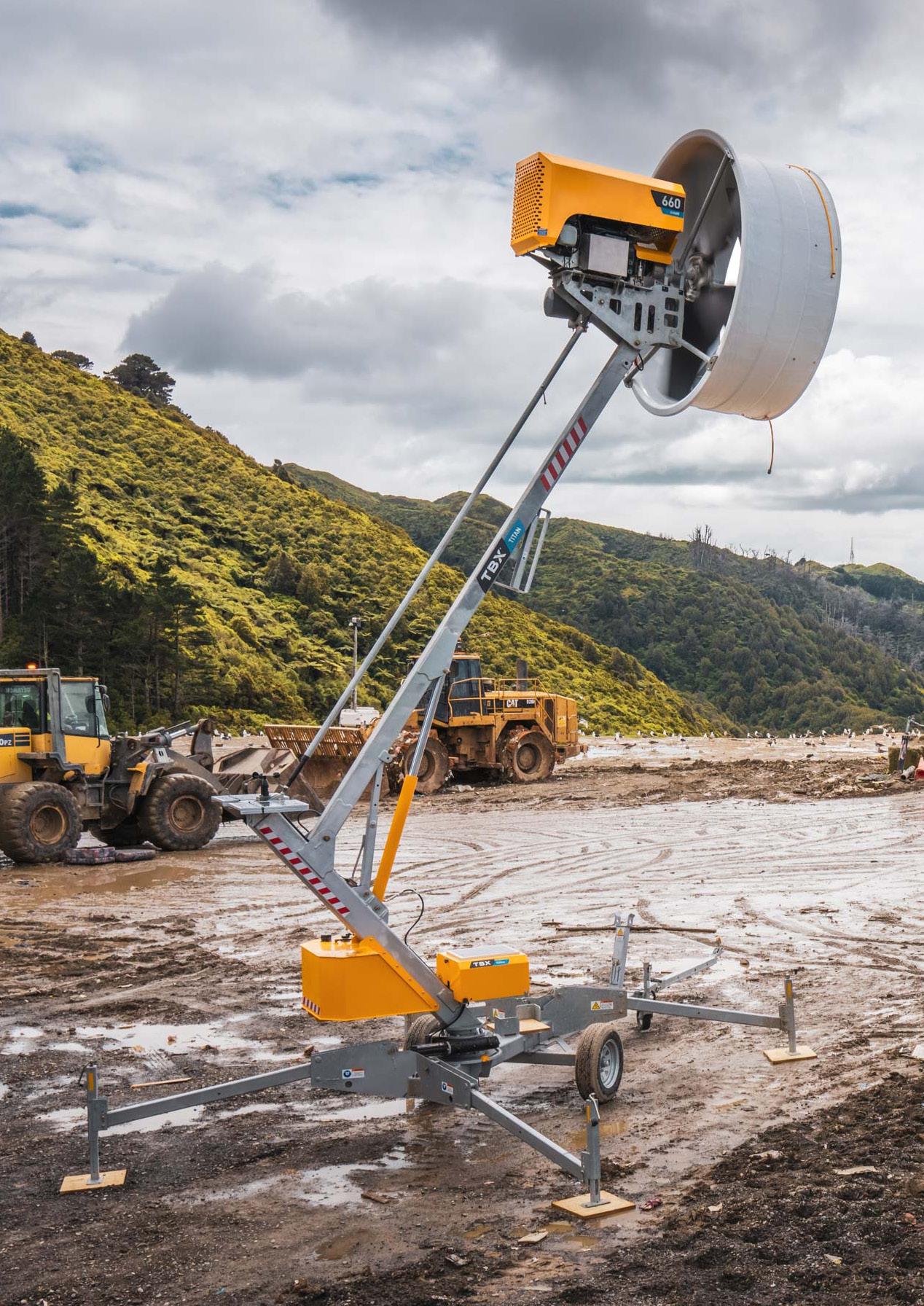

ROBUST AND ADAPTABLE The TITAN by TBX brings proven, powerful fan technology to your most demanding industrial challenges. This machine's unique design provides an effective solution for dust suppression, accelerated timber drying, and large-scale odour control - even across complex sites with uneven terrain.

FLEXIBLE SITE CONTROL The TITAN fan can be set to oscillate through any arc, offering exceptional operational versatility that sets it apart from fixed systems. Preset the tower to rotate through any angle up to a full 360°. The rotation speed is fully adjustable, ensuring you can target and control air quality precisely where it's needed, whatever the shape or layout of your worksite.

EFFICIENT AND COMPLIANT Engineered for performance, the TITAN operates with outstanding fuel efficiency, lowering your site's operational costs. Combined with low exhaust emissions, this makes the TITAN a responsible choice for meeting environmental and site compliance standards. Its powerful, nonfluctuating air stream provides consistent performance without unnecessary excess noise.

RAPID DEPLOYMENT The TITAN's portability is second to none, easily towed by a standard site vehicle to any location.

It's a high-power air-moving solution that brings efficiency and mobility to your operations. With no need for cranes, concrete foundations, or complex installation, you can deploy a TITAN fan immediately, wherever the challenge arises.

TBX TITAN HIGHLIGHTS Direct-drive system minimises power loss, maximising fuel efficiency and performance.

Integrated straightening vanes ensure direct, non-turbulent airflow for enhanced effective range.

Engineered fan shroud generates a high-velocity, columned air jet for superior performance.

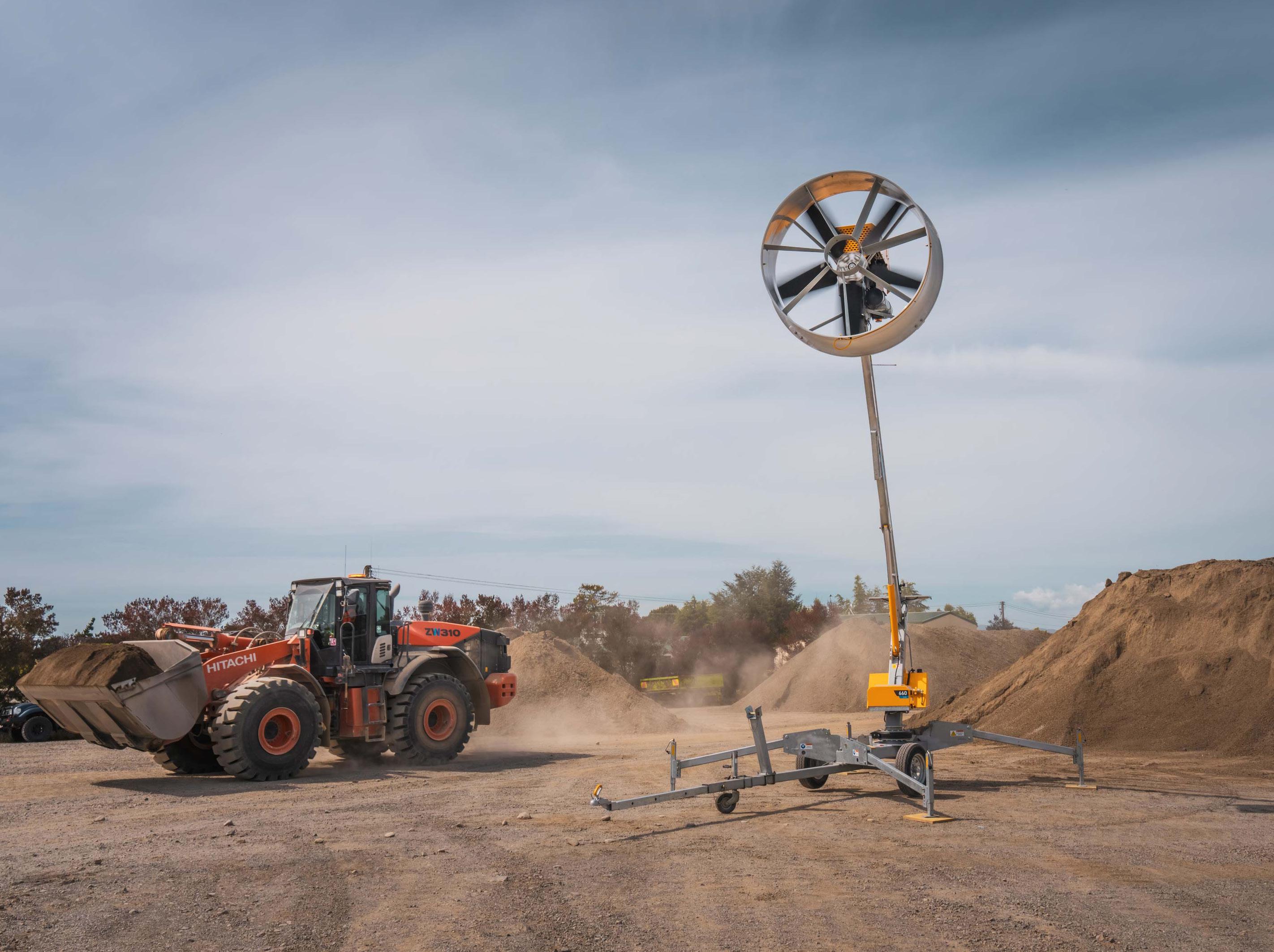

High-velocity air stream for maximum throw distance and impact on dust and odors.

Retractable boom minimises transport size, simplifies maintenance, and reduces operational footprint.

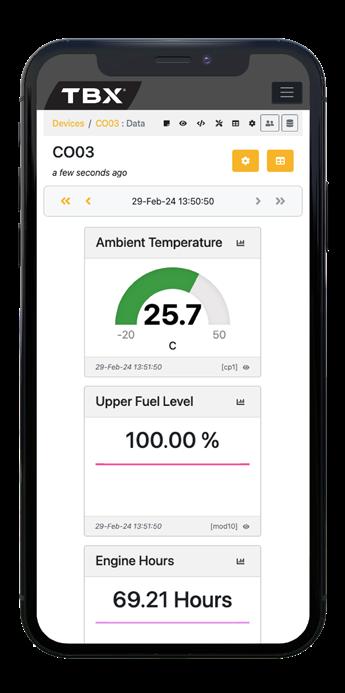

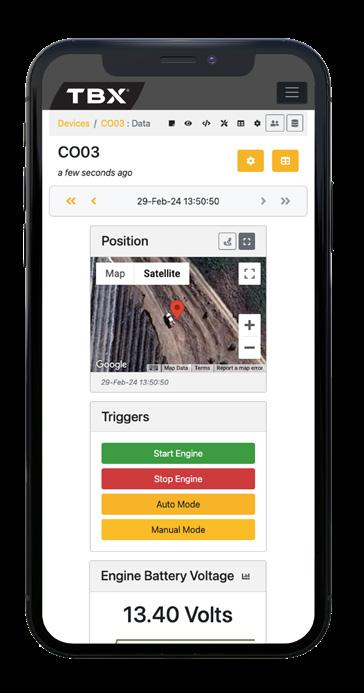

Optional Extra: For total operational oversight, monitor and control your TITAN live via your computer or smartphone with TBX Smart Connect.

Intuitive, easy-touch Digital Controls for simple on-site operation.

Fully portable and easily transported for rapid deployment across multiple sites or zones.

Customisable oscillation angle and rotation speed to match any site layout or specific target area.

ENGINEERED FOR DEMANDING ENVIRONMENTS AERODYNAMIC DESIGN

SOLAR BACKUP CHARGING

The aerodynamically designed shroud captures and focuses the total air volume. This design optimises blade performance, creating a focused, high-velocity jet of air capable of carrying mist for dust and odour control over vast distances.

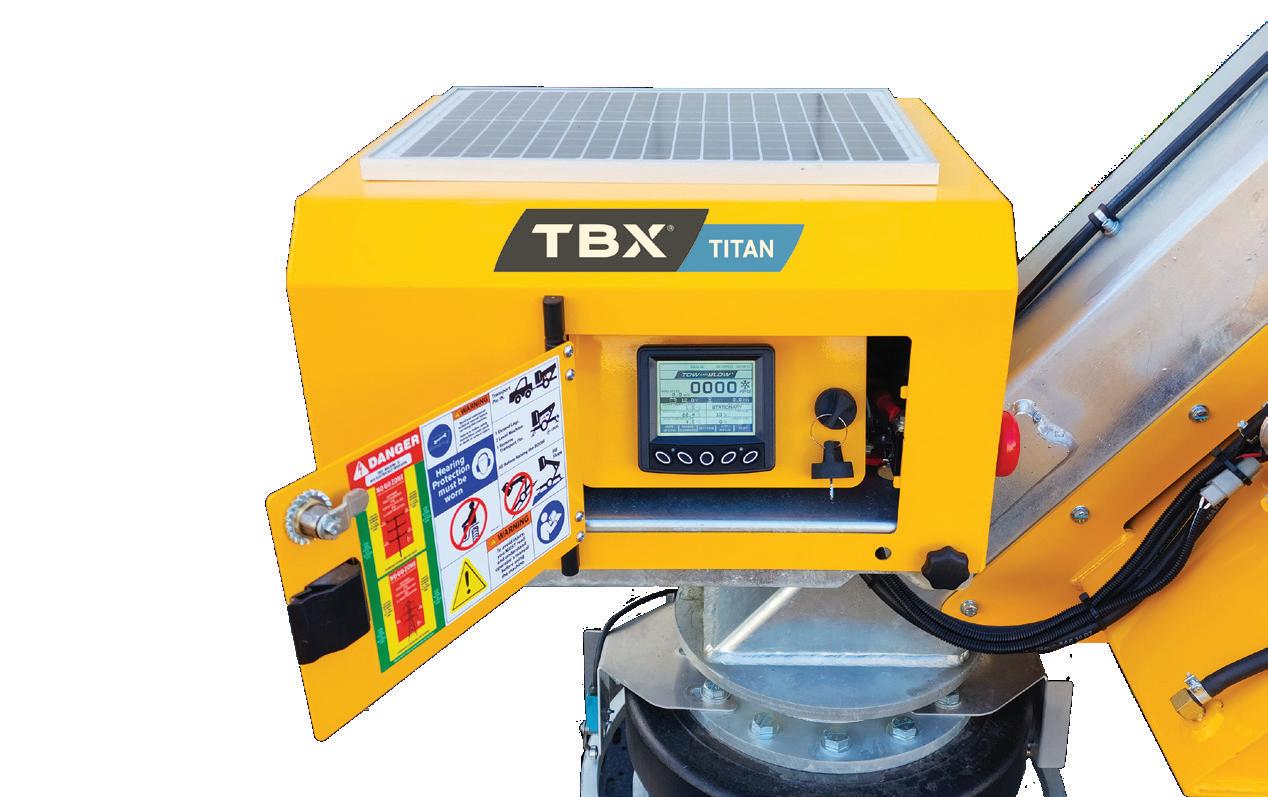

An integrated solar panel provides continuous trickle charging to the battery. This ensures the unit is always ready for an automated start, even when left on standby for extended periods on a remote site.

FIVE BLADE IMPELLER FAN

The user-friendly digital control panel clearly displays all machine settings and live data, including start/ stop triggers, current operational status, fuel level, hour clock, battery voltage, rotation settings, RPM, and more, all designed for ultimate ease of use.

The unique five-bladed fan is manufactured from durable, glass-reinforced polyamide. Performance tested to world industry standards, its unique airfoil design saves power while efficiently moving a massive volume of air. Unlike other fans, the air thrusts directly away, unobstructed, to the target zone.

STRAIGHTENING VANES Conventional fans expel air in a spiral motion, which rapidly loses energy and range. The TITAN’s static exit vanes correct this motion, delivering a columned, direct airflow. This maintains thrust and ensures you achieve maximum effective range and impact on dust or odours.

DIRECT POWER TO FAN A reliable and efficient Kubota 65hp Diesel engine delivers power directly to the fan shaft. This smart design eliminates the power loss and maintenance complexities associated with the angle drive gearboxes and long drive shafts.

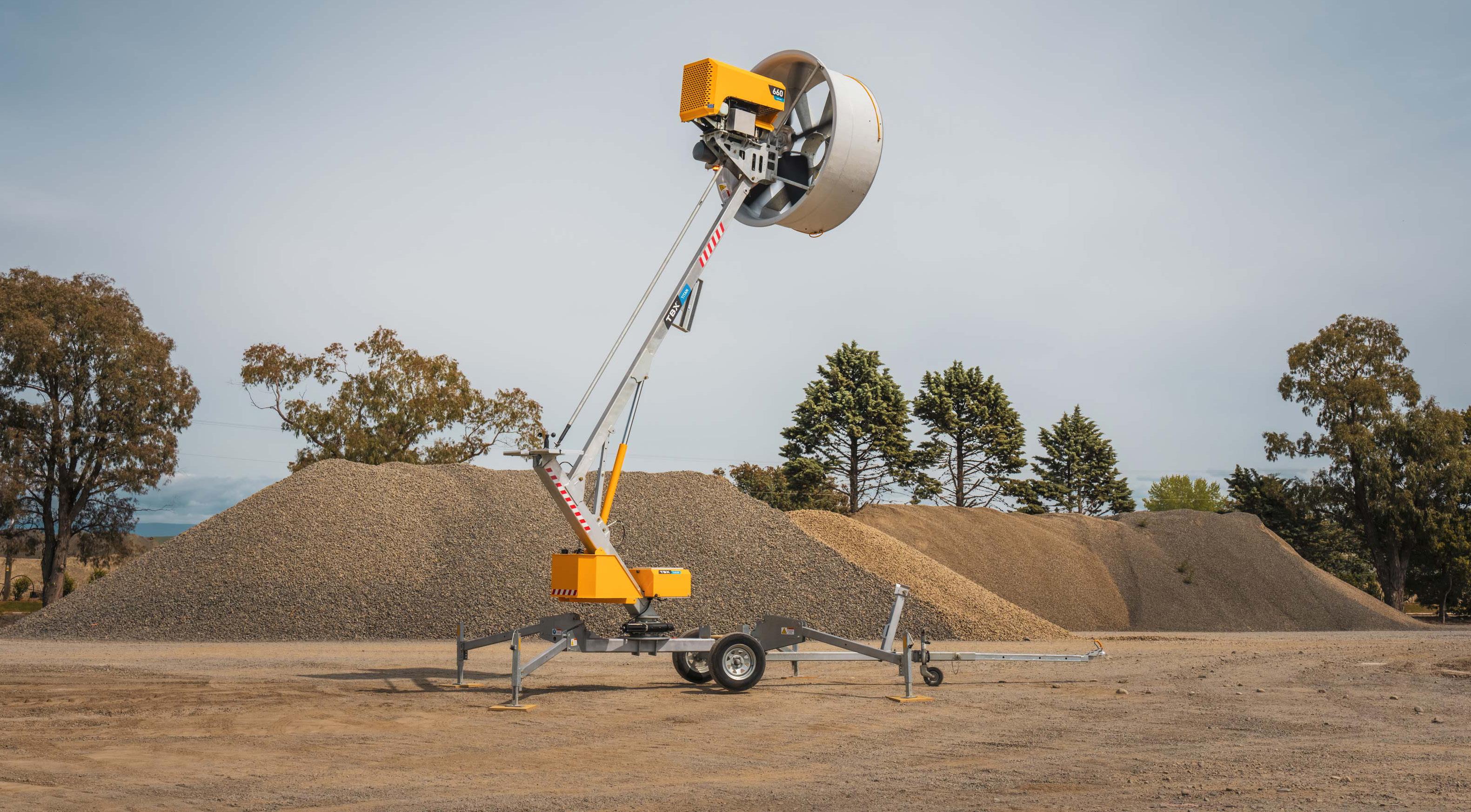

HYDRAULIC RETRACTABLE BOOM The ability to lower the entire boom to the ground provides safe and easy access for servicing, drastically reducing downtime. The fan can be transported with the boom retracted for a minimal footprint and only raised to its operational height when needed.

ADJUSTABLE ROTATION & OSCILLATION The tower can oscillate through any chosen angle or rotate a full 360 degrees to provide completely customised site coverage. The oscillation arc is simple to adjust, allowing operators to adapt to changing wind conditions or operational needs in moments.

AUTOSTART AND SHUTDOWN Auto-start functionality enables triggered start-up and shutdown based on sensor inputs. The system can be integrated with wind sensors to automate air-quality control, saving fuel and ensuring a response only when needed.

INTUITIVE DIGITAL CONTROLS

RELIABLE ENGINE AND DRIVETRAIN The proven Kubota diesel engine drives a robust planetary gearbox, a combination renowned for its reliability, low fuel consumption, and low emissions— critical for minimising operational costs and meeting site regulations.

EASY, SAFE SERVICING Servicing and maintenance on the TITAN is safe and simple. By lowering the fan head to ground level, all checks and servicing can be performed without needing elevating work platforms or certified working-at-height operators, saving time and money.

UNOBSTRUCTED AIRFLOW The fan projects its air stream away from the tower, ensuring there is no obstruction to interfere with the air's momentum or direction. This guarantees that maximum power is delivered directly to the target area for the most effective result.

ADJUSTABLE FAN HEAD The fan head angle is easily adjustable. This allows operators to aim the airflow precisely, compensating for terrain variations like slopes or benches in a quarry, or directing air over obstacles and into specific zones.

DIMENSIONS AND SPECIFICATIONS ENGINE - KUBOTA Fuel

Diesel

Fuel consumption

13 Litres per hour (average)

Engine description

4 Cylinder; Turbo Charged

Fan engine power (maximum)

48.6 Kw (65 hp) @ 2,500 rpm

Emissions compliance

Stage 5

Cooling system

Water cooled

Ignition system

12 V electric starter with 45 amp alt.

CAPACITIES Hydraulic tank

5L

Fuel tank

200 L

DRIVE TRAIN Heavy duty planetary drive train

Engine power direct to fan shaft

DIMENSIONAL DATA Machine height (fan in operating position)

7800 mm

Machine height (fan in transport position)

2800 mm

Machine width (stabiliser legs retracted)

2315 mm

Machine length

6300 mm

Master Your Environment.

PN 62-51561-00 V1
