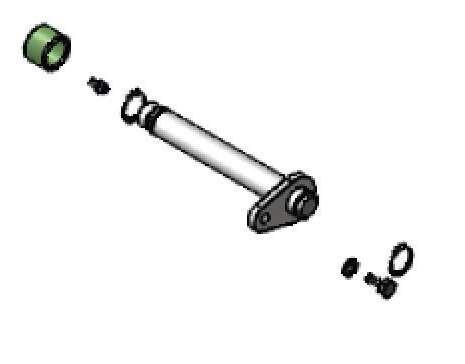

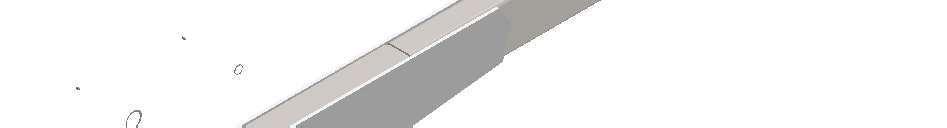

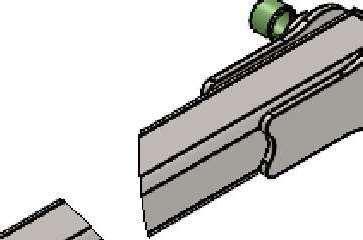

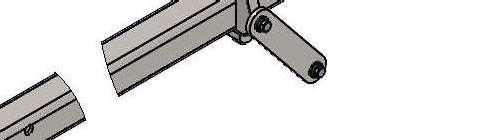

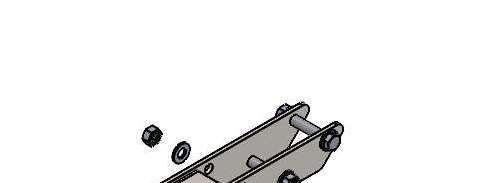

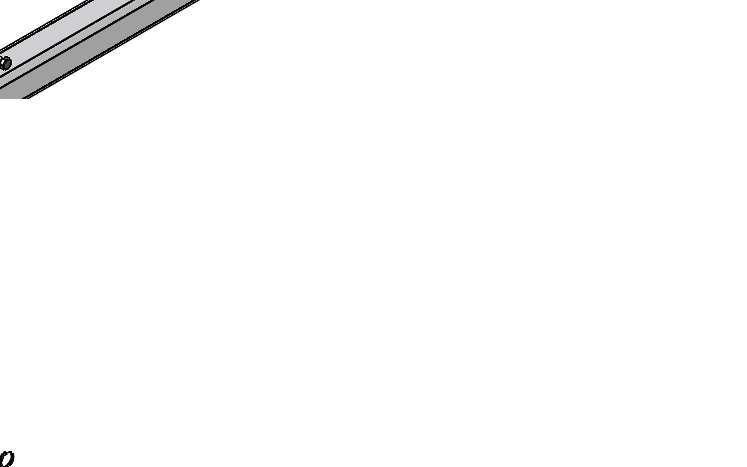

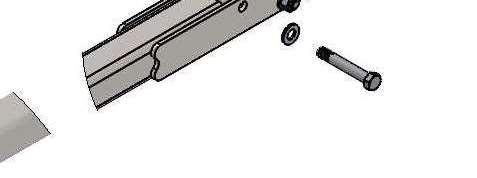

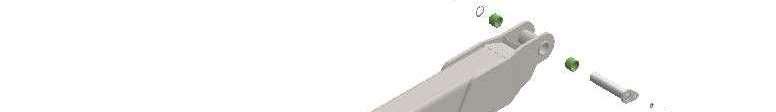

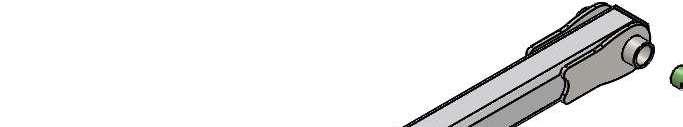

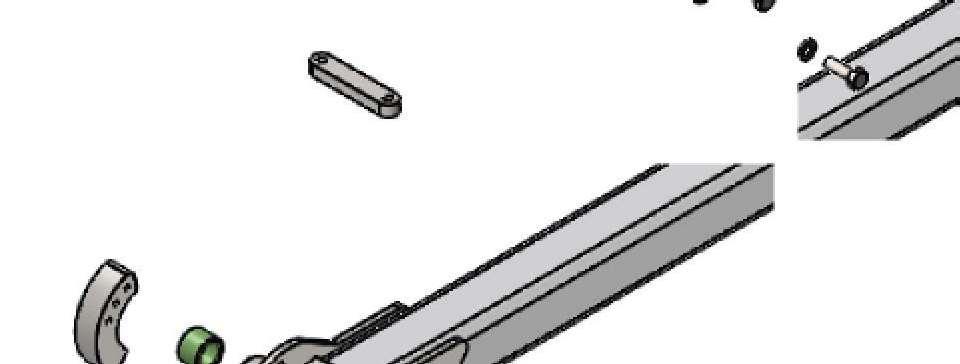

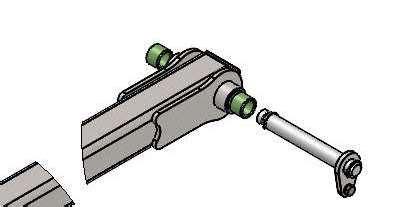

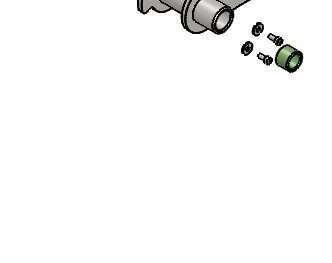

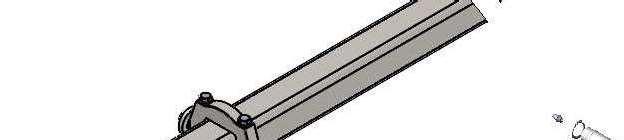

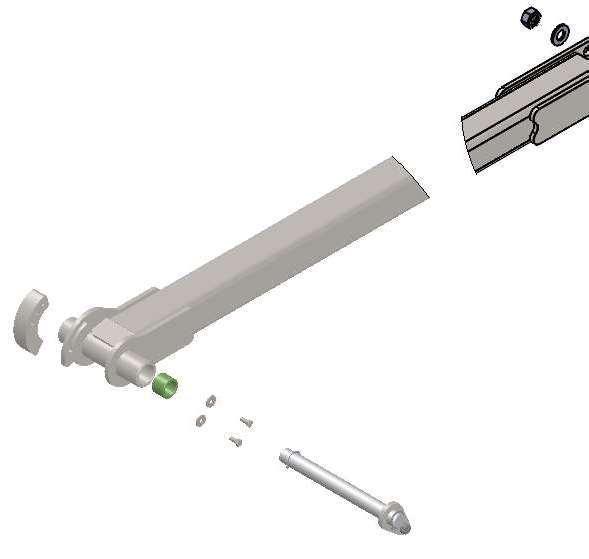

BOOMASSEMBLY
13-4111-00 640 BOOM BUSH
13-1279-00 GREASE NIPPLE
21-1223-00 CIRCLIP EXTERNAL56mm

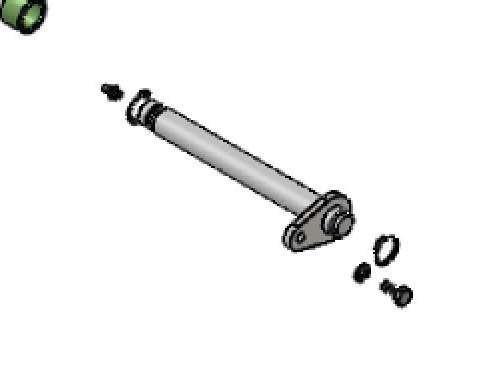

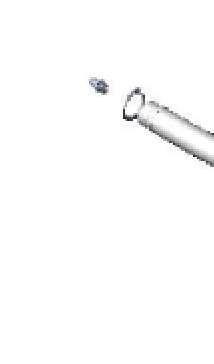

13-9315-00 PINASSY BOOM 60MM 640/802
23-1102-00 5-16 spring washer
22-1121-00 BOLT5-16 UNCX3-4 HEX HEAD
21-1225-00 CIRCLIP EXTERNAL28mm

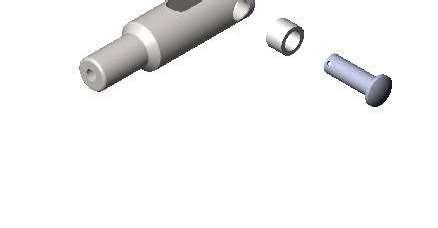

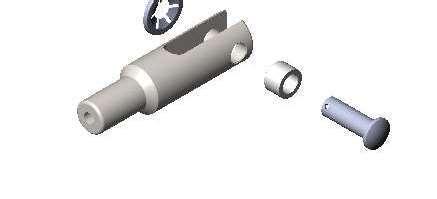

13-9322-00 PINTOPRAM640-802 ASSY
13-2043-00 BUSH, NYLON, CAGEPIN, 30mm
13-9320-00 PIN BOOM CAGE END 1
& 640 Cageend
Chassisend

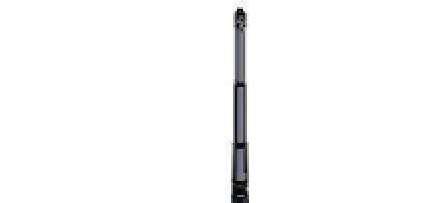

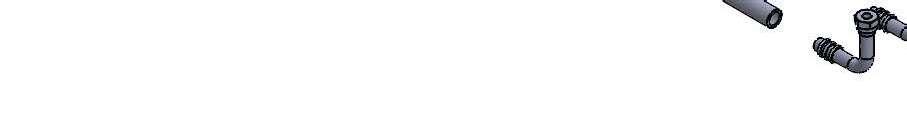

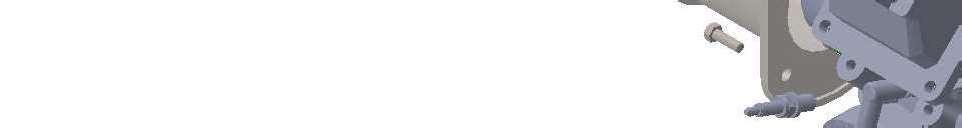

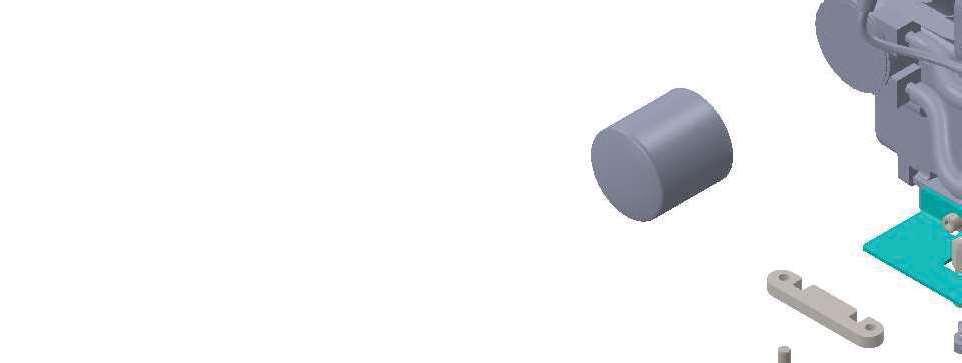

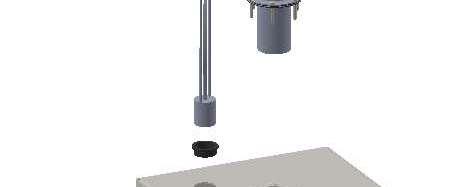

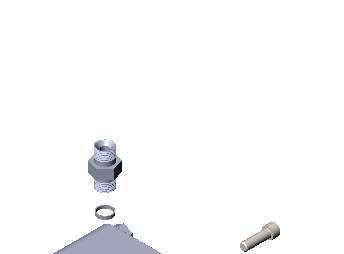

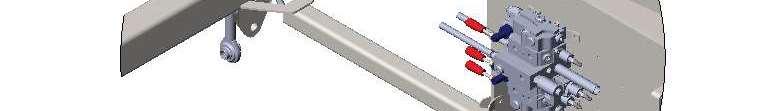

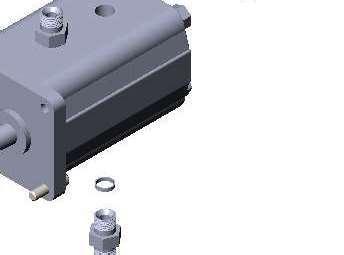

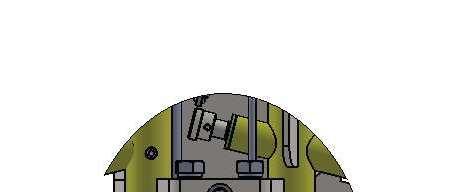

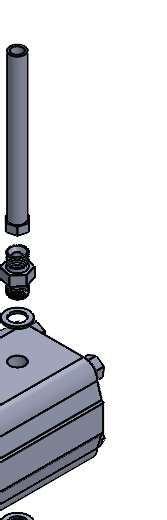

LIFT CYLINDER, HOSE & INTERFACING PART:
l /4" PUSH-LOCK HOSING, 1200mm l TAIL, PUSH ON l O-RING 3
ADAPTOR, G-N-0909 l HOSE ASSEMBLY #lA l Hydraulic cylinder, Refer machine build l
CARTRIDGE, FLOW CONTROL, l0L/M l BUSH, BOTTOM RAM PIN 2 BLOCK, LIFT FLOW CONTROL l DOWTY WASHER 3-4in l
BOLT, BANJO 3/8 BSP l ADAPTOR 1
CARTRIDGE VALVE SOLENOID 1
COIL, SOLENOID, DEUTSCH PLUG 1
ADAPTOR, Pl8-09-04 1
PORT 9-16 UN O RING BLOCK 1
BUSH, RAM EYE 48MM LONG 1
SEAL KIT 640/802
SEAL KIT 540/440
