Full Product Guide

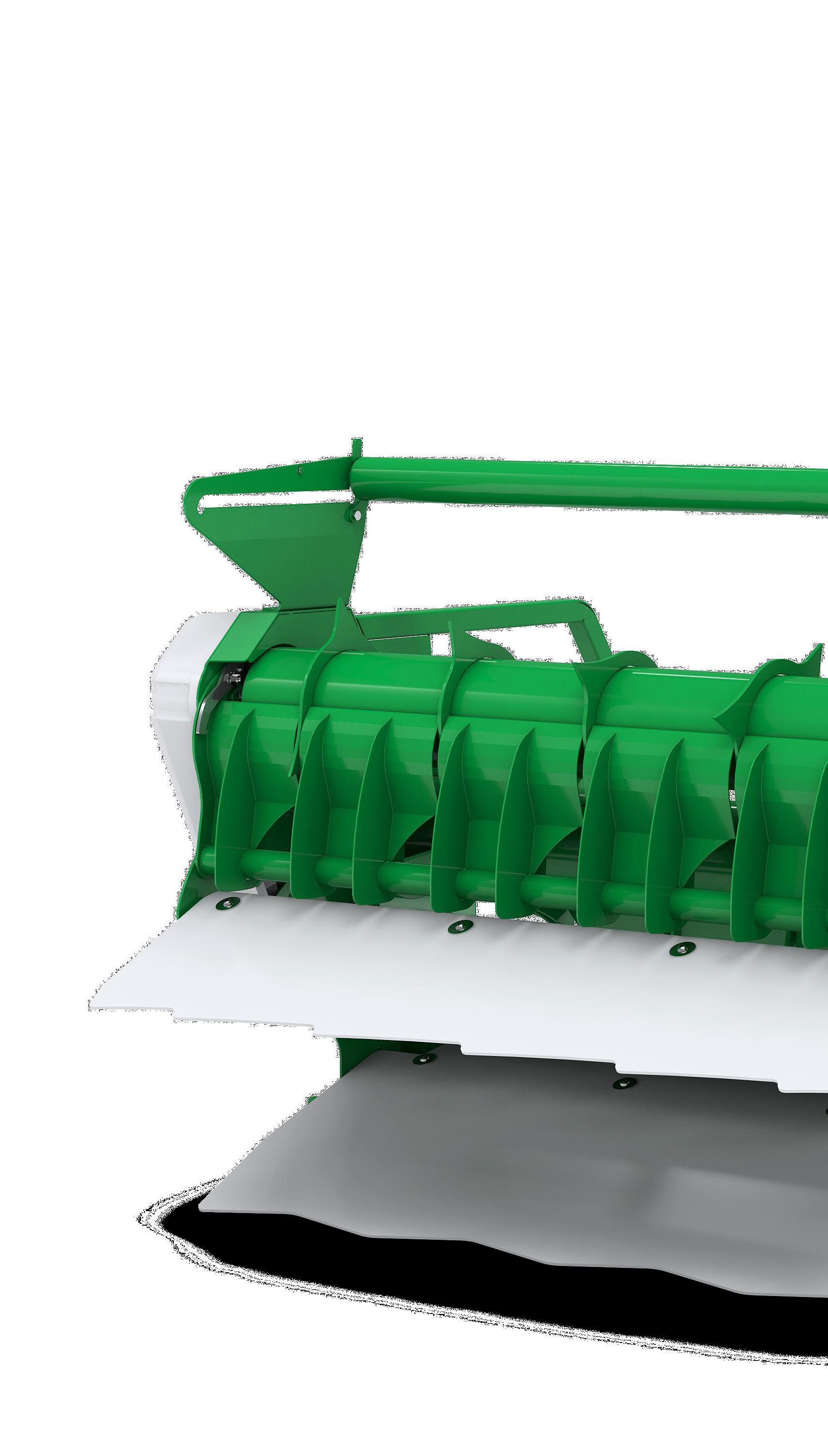

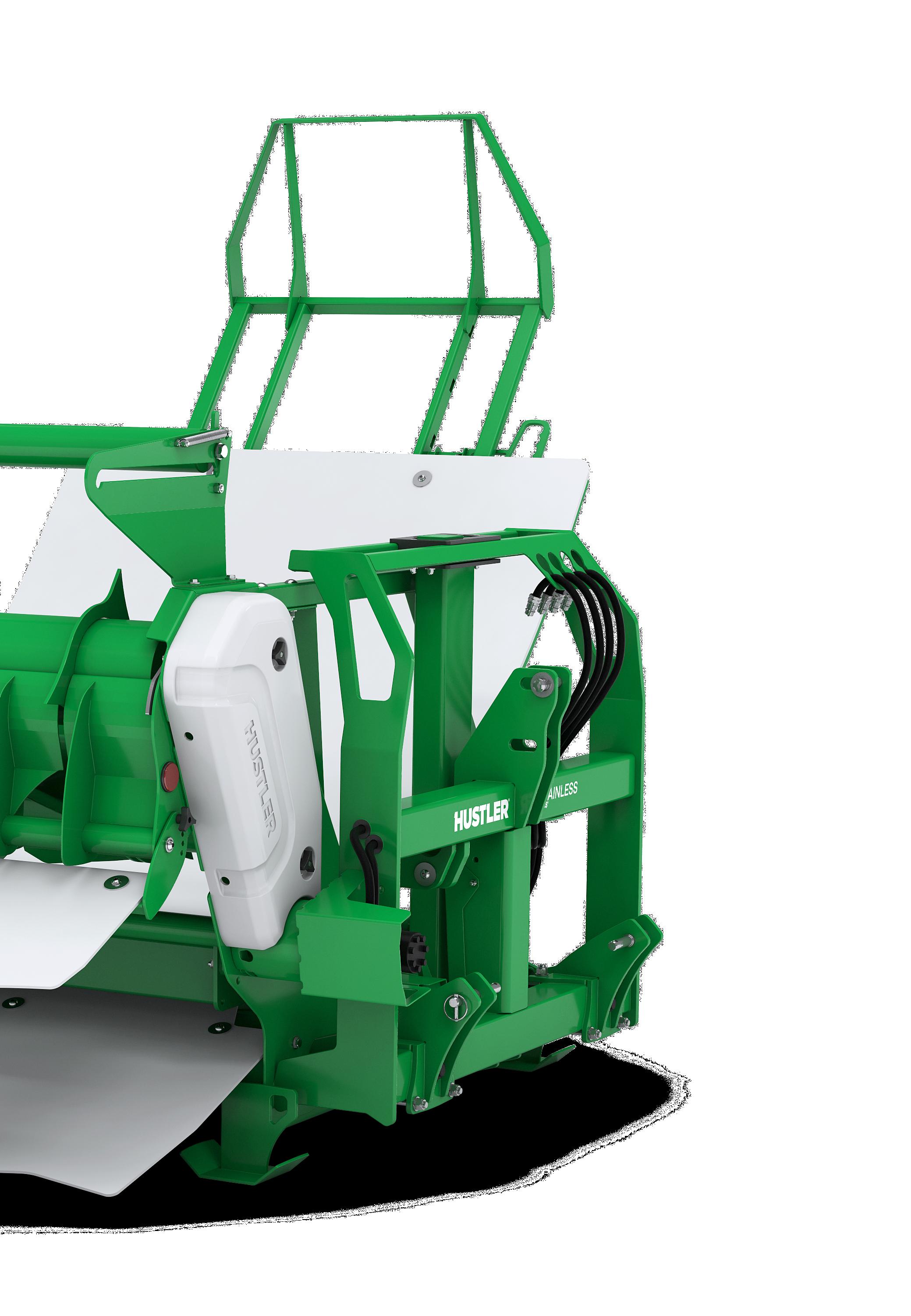

Chainless LX1052 The world’s most versatile round and square bale feeder can be mounted on a skid-steer loader, front loader, telehandler or 3-point hitch. At the core is our patented Chainless feeding system which processes every type of round or square bale with ease, minimizing feed waste. Hustler ‘s patented hands-free automatic connection system Snaplox simplifies operation eliminating the need to pull a rope to disconnect the loading spears.

OPTIONAL EVEN FEED ROLLER Designed to accept our new Even Feed Roller for breaking apart highest density square bales into tighter windrows, and easier operation with round bales. It has a built in quick release system to switch

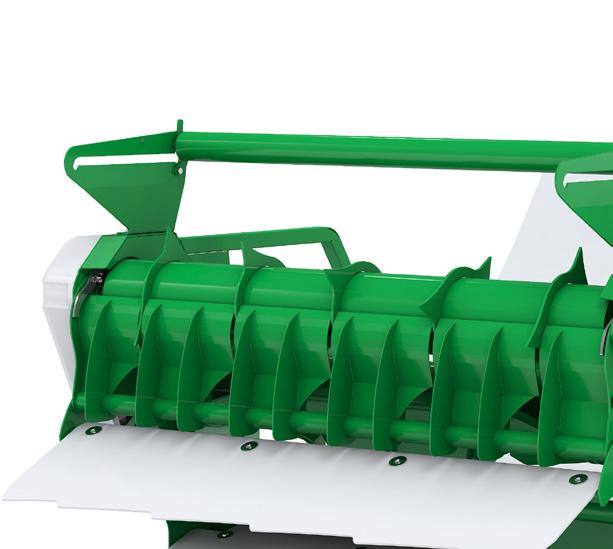

ROTOR TEETH New rotor teeth shape give better penetration of tight bales and improved cleaning as they pass through Hypaflo™ wiper panel.

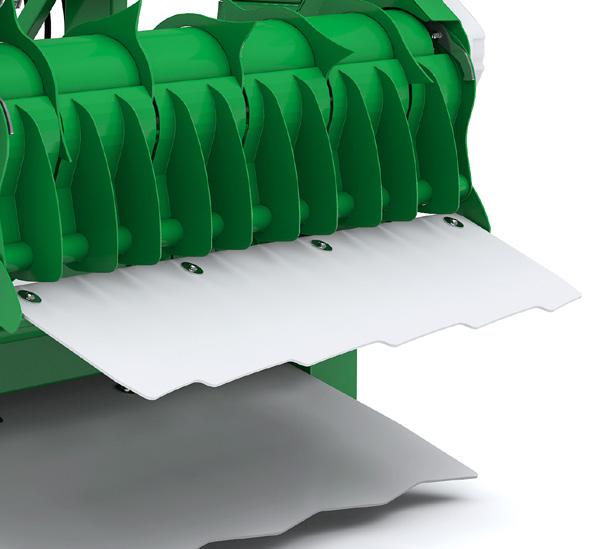

HYPAFLO™ WIPER Quick release Hypaflo™ wiper panel makes for easy cleaning and eliminates blockages.

CHASSIS STRUCTURE Huge monoque main chassis structure provide massive strength and long service life.

PLATFORM ADJUSTMENT 2 Position lower platform adjustment to handle the tightest frozen square bales.

OPTIONAL SIDE CHUTE | UPPER OR LOWER The chainless side chute catches fines and deflects the hay into a trough or bunk.

OPTIONAL TELESCOPIC BALE EXTENSION New optional telescopic square bale extension can accomodate square bales or all lengths

ULTIMATE MOUNTING OPTIONS Operate easily on the 3-point linkage, front end loader or telehandler thanks to the unique Snaplox auto connection system and TouchFeed hydraulic diverter system. Mount on the front for great visibility and forward reach or mount on the rear for practicality and stability in hilly terrain plus carry a second bale on the front loader.

3-POINT LINKAGE Removable 3-point linkage mount allows for loader or telehandler bracket to be mounted.

DRIVE SYSTEM New heavy duty drive system runs on 2 double sealed bearings instead of troublesome bushes.

SPECIFICATIONS BALE SIZES ROUND: 4’ X 4’ – 6’ X 5’ BALE SIZES SQUARE: All sizes (over 6’ long requires optional platform extension) WEIGHT CAPACITY: 2,755 lb UNIT WEIGHT: 1873 lb

CAPACITY: 1 bale LENGTH: 94 in MIN/MAX WIDTH: 104 in MIN/MAX HEIGHT: 50 in

HYDRAULICS REQUIRED: 2 x double-acting, 8-16 gal/min, 2250-3000 psi LOADING: Patented Snaplox™ self-loading system TYNES: 2 x forged high-tensile

Mounted Chainless Versatility. When it comes to feeding and bedding livestock, no other machine is as versatile as the Chainless 20004. Livestock farmers can achieve more from one machine, saving on capital expenditure, maintenance and operator training.

Selective Bedding. Selective bedding is a feeding technique being embraced in developed markets. Bedding straw lasts longer, straw consumption is reduced, and dust is all but eliminated. By improving the conditions livestock live in farmers are reducing health complications such as frozen udders, pneumonia, and other illness caused by conventional bedding methods.

Feed into TMR

Feed onto pasture

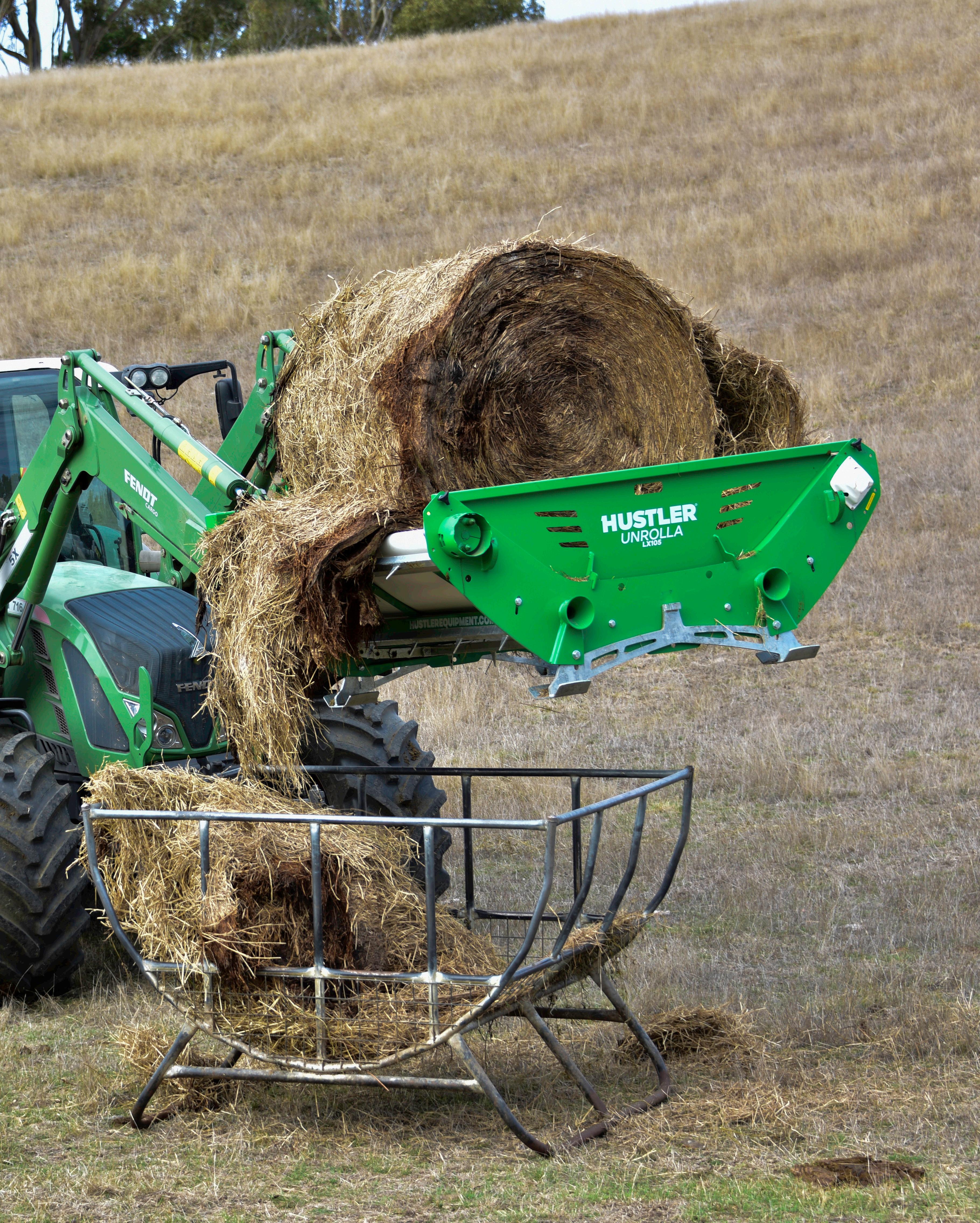

Feed into rings

Accurately measure in as much hay as you need and eliminate having to wait for the mixer wagon to grind bales to bits.

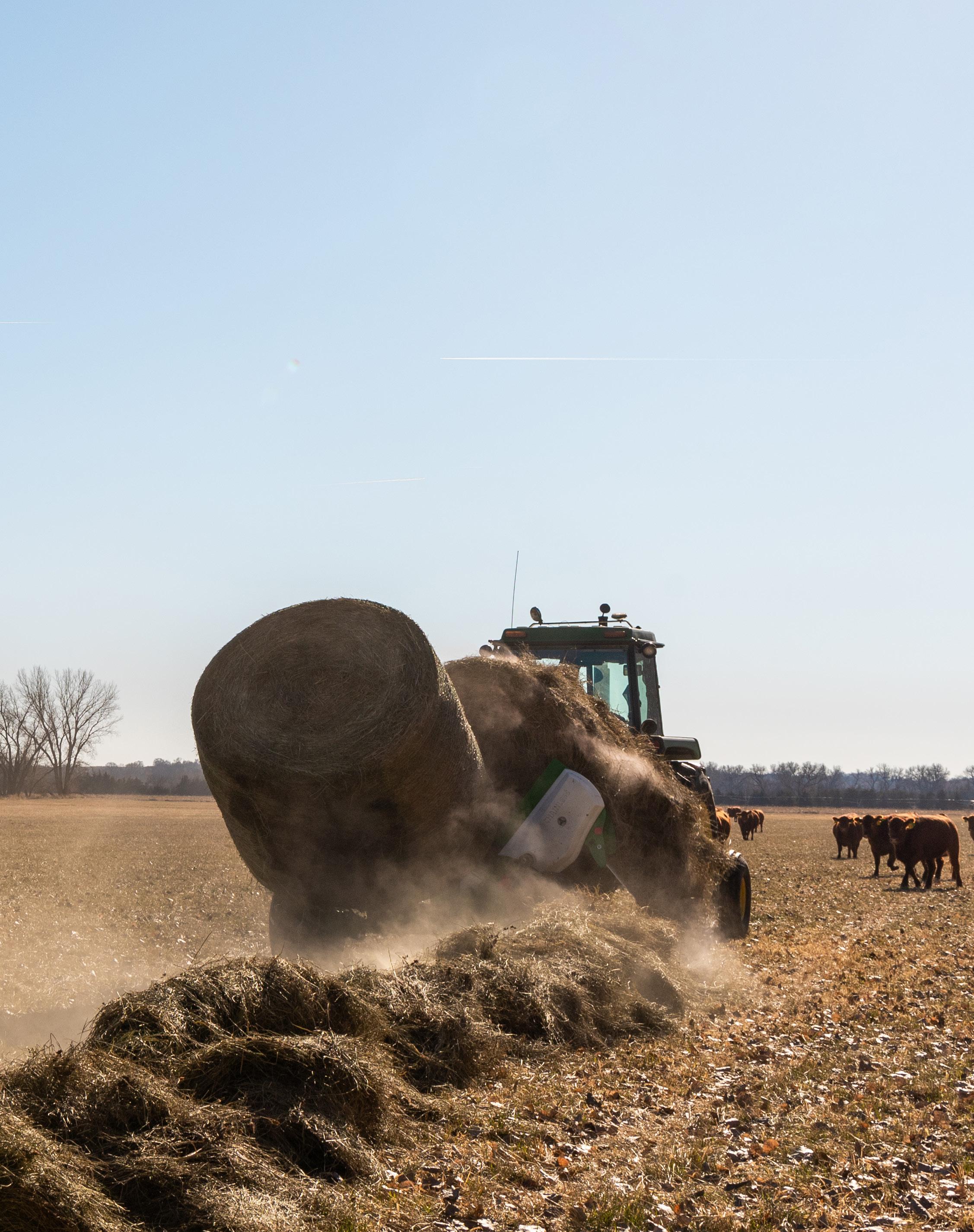

Chainless is equally at home feeding the traditional way on open fields and pastures.

Feeding each bale into multiple hay rings, can substantially reduce waste, and spoiling of silage bales.

Feed into troughs or bunks

Feed in barns

Feed over fences

The new design with a higher and wider discharge, is now the best feeder on the market for trough & bunk feeding.

Indoor feeding made easy with the new compact design, which allows the Chainless to be operated on loaders or 3-point hitch.

Eliminate the time it takes to enter each paddock to feed in and eliminate trampled feed, by feeding along a fence line.

Chainless 20004 MOUNTED CHAINLESS BALE FEEDERS The original, proven and extremely popular Chainless bale feeder for round and square bales has kept the DNA of the original such as the 3:1 teasing function, in an new and improved, economical design that can now be fitted to your tractor 3 point linkage or front loader, skid-steer or telehandler with the optional brackets.

PROVEN CURVED PLATFORM Market tested for the stickiest of alfalfa bales, the polyethylene platform is slippery and the new shape helps to break apart flakes better.

NEW PLATFORM MOUNT Using bearings instead of wear pads for increased durability and reliability.

BUILT TOUGHER The new model is rated to handle 1,000kg / 2,204.6 lb bales with ease.

PROVEN ROTOR DESIGN Same proven rotor shape, and paddle design as the original Chainless 2000.

Want more? Visit our website and check out our videos.

OPTIONAL EXTENSION Optional platform extension available for 8’ long square bales.

hustlerequipment.com

BOLTED HITCH MOUNTS Gives you more flexibility, replace them with skidloader brackets for front mounted loader flexibility, reach and visibility.

STRONGER DRIVE SYSTEM

PROVEN FREE-FLO WIPER PANEL The same Free-Flow wiper panel design as the original Chainless 2000. Show with optional side chute.

The new Drive Dog system utilises two heavy-duty bearings instead of bushes, which lasts longer can provides more rigidity.

> Specifications subject to change without prior notice - check hustlerequipment.com for current specifications and options > Some models not available in all territories, check with your local Hustler Field Consultant for availability in your country

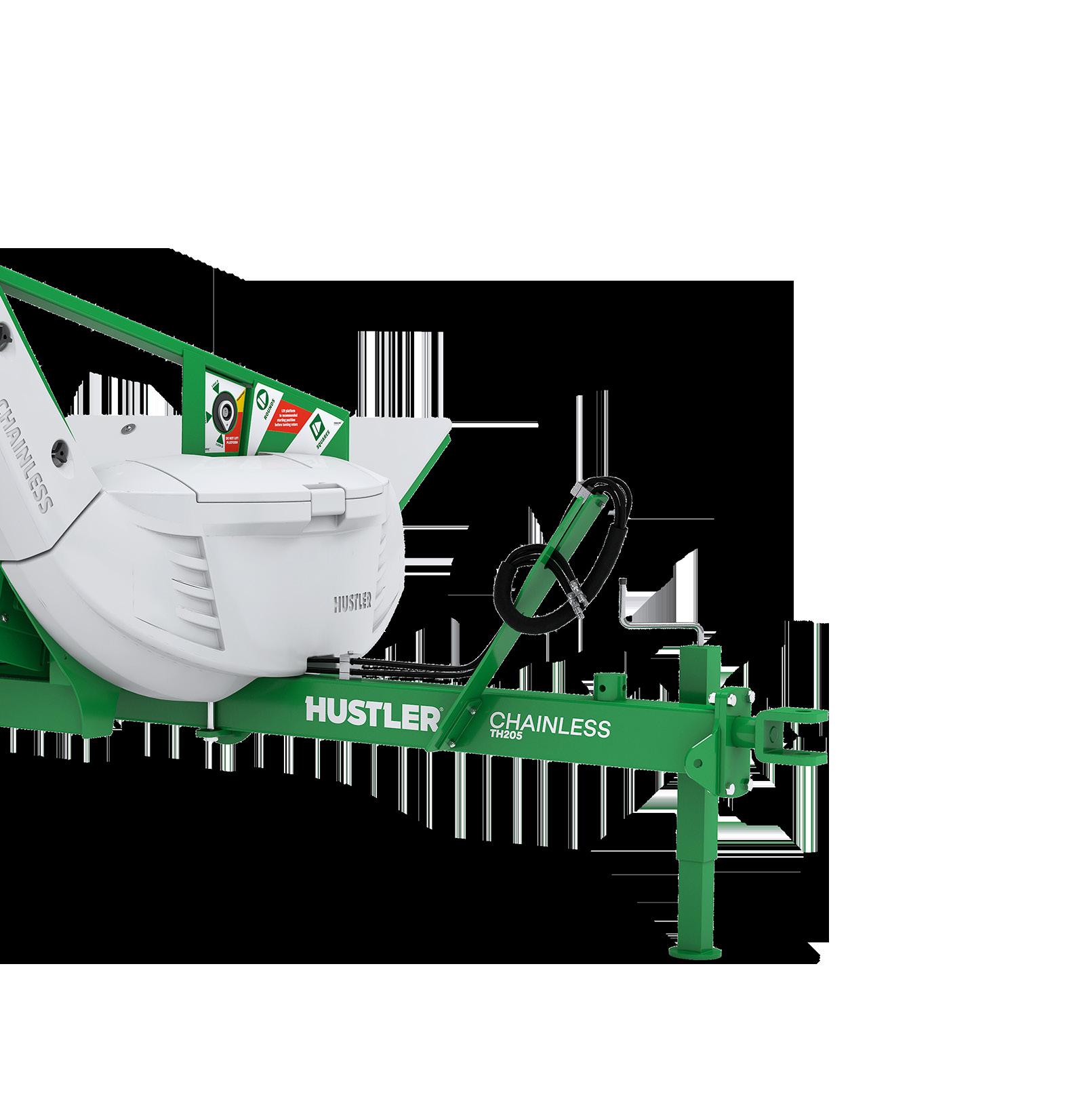

Chainless TH205 TOUGHER LOADING SYSTEM A new forged link arm, larger bushings and more leverage allows the loading system to handle larger 3,307 lbs bales with ease.

HYPAFLO™ WIPER Designed to clean the rotors more efficiently the Hypaflo™ Wiper Panel minimizes blockages and ensures that hay drops outside the wheel tracks to avoid being flattened into the mud. An Easy Clean function quickly releases the wiper panel for easy cleaning.

TOUGHER DRIVE SYSTEM The rear mounted drive system is out of harms way and allows sharper turning and better manoeuvrability. With larger shafts, bearings and keys the Chainless can handle bigger, heavier bales.

LARGER WHEELS Provide more cushion and flotation.

> Specifications subject to change without prior notice - check hustlerequipment.com for current specifications and options

BIGGER CHAMBER The feeding chamber itself is wider and deeper which prevents bale rub, wastage and the need for continuous adjustment of the platform making it simple and easy for any operator to feed out like a pro.

STRING BOX Our massive new string-box keeps your wrap and string out of harms way and your tractor cab clean and odor-free. Big enough to hold fencing standards, knives and anything else you need on the job.

COUPLING GRIPS New hand grips make plugging the hydraulic hoses in much easier, saving your knuckles. And the drawbar needle keeps the hoses out of harms way when operating, and has a built in holder to store hoses out of the dirt when not in use.

PATENTED AXIAL ROTOR

CHASSIS DESIGN

No bale is a match for the new Axial Rotor with centralizing paddles, which keeps the bale positioned in the centre of the feeding chamber to minimize wastage and provides better grip for feeding out soft centre and rotor cut bales.

The clean underside of the Chainless allows you to drive across hot wires without getting snagged, and all the workings are out of harms way. Chassis members are larger to enable handling heavier bales.

SPECIFICATIONS BALE SIZES ROUND: Up to 5’ x 6’ BALE SIZES SQUARE: All sizes (over 6’ long requires optional platform extension) BALE WEIGHT: Up to 3300lbs ea. UNIT WEIGHT: 3,100lbs CAPACITY: 2 bales (round or square)

AXLES: 6 stud, 2.25” square WHEELS: 400/60-R15.5 GROUND CLEARANCE: 19.5” LENGTH: 175” MIN/MAX WIDTH: 77”/106” MIN/MAX HEIGHT: 50”/106”

TINES: 2 x forged high-tensile HYDRAULICS REQUIRED: 2 x double-acting, 8-16gal/min, 2250-3000 psi LOADING: Patented Total Control self-loading system

Customize your Chainless. Side Chute

Even Feed Roller

Adjustable 153/4” wide wiper panel extension, ideal for feeding into bunks giving extra reach. Standard on the Chainless TH205.

Allows any Chainless bale processor to break up the tightest of High-Density Square bales.

SUITS: all models

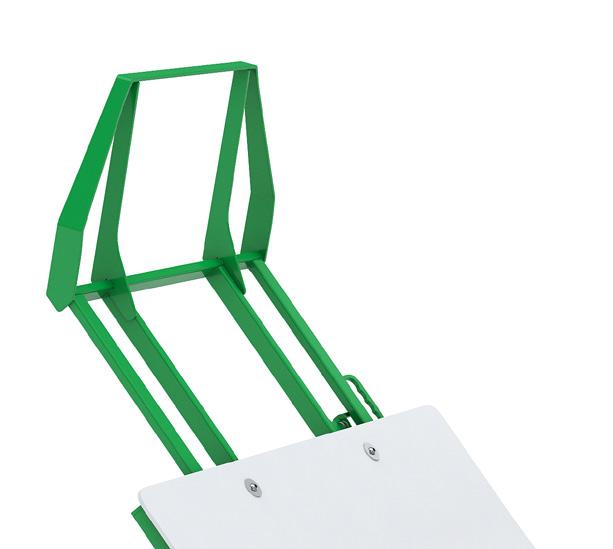

Platform Extension Extend the platform length to handle larger 8’ long square bales. Standard on the Chainless TH205.

SUITS: all models

Multihitch Allows the machine to be connected to the front loader or 3-point linkage in minutes without any tools.

SUITS: Chainless LX105²

> Specifications subject to change without prior notice - check hustlerequipment.com for current specifications and options

“ With the Hustler, I can put out 19 bales in a day where before it would have been 30 or more” Stephen Gaskins - North Carolina (USA) Rancher and owner of a Hustler Chainless TX205

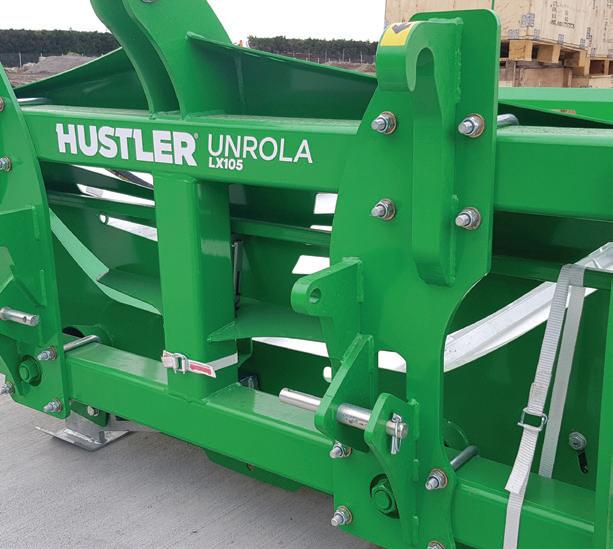

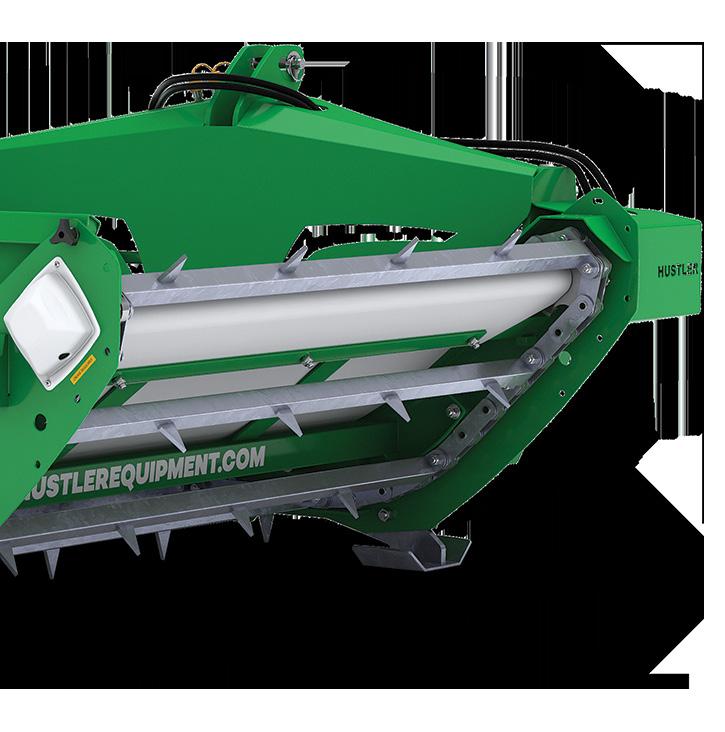

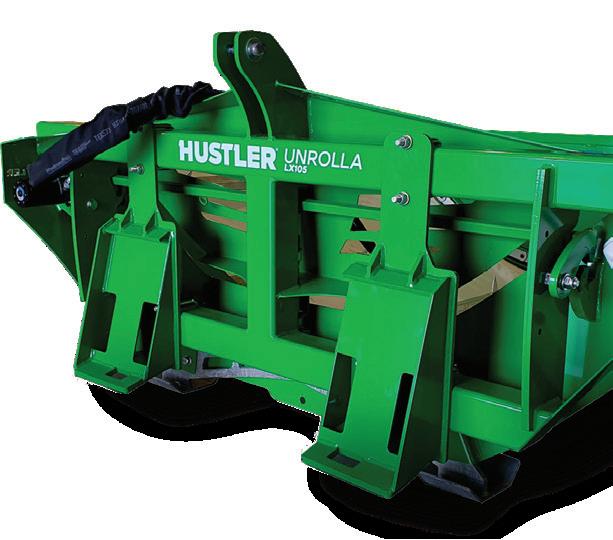

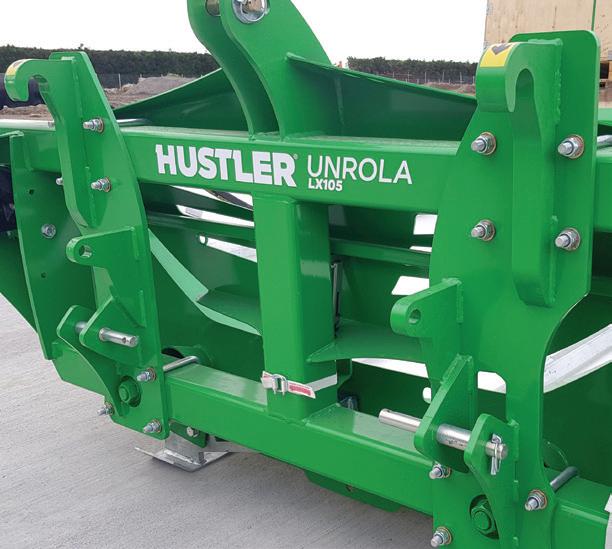

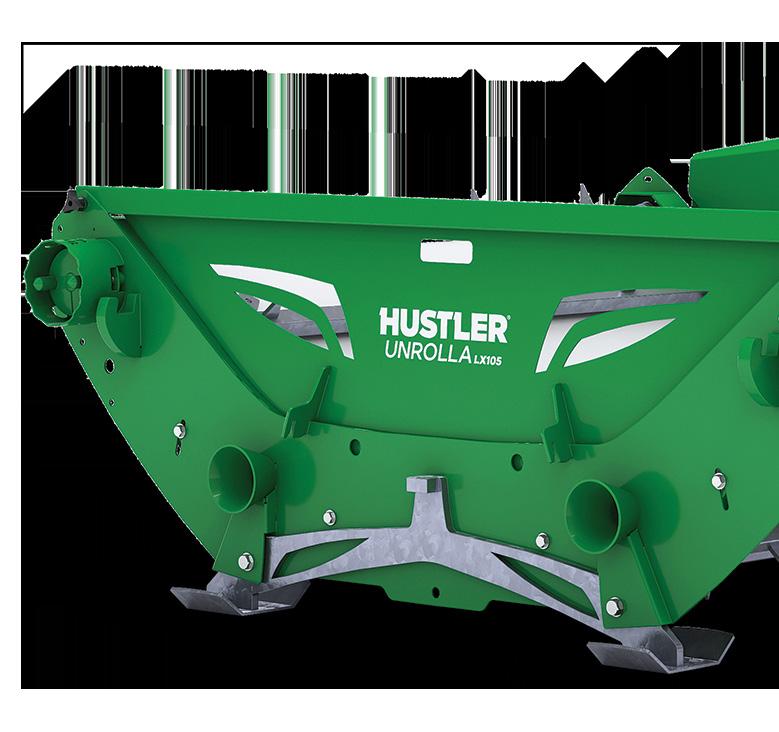

Unrolla LX105 Easier to use than any other type of chain feeder on the market today – nothing comes close to the LX105. Loaded with unique features that give more versatility and time savings, including the ability to mount on 3-point linkage, front loader, skid-steer or telehandler to give greater flexibility of use. Suitable for feeding out all but the tightest of round bales and baled silage, loose silage, maize/corn silage, fodder-beet and more. COVERED DRIVE SHAFTS ENCLOSED FENCE

Prevents long chop hay or balage from wrapping around drive shafts.

Ideal for loose feeds and working on steep terrain.

BEARINGS

DUAL SIDE FEED

Self-aligning, low maintenance bearings will easily outlast any type of bush system.

A single lever control enables feeding out to either side & precise rate of feed.

CONNECT EITHER END Easily connecting from either end makes operation quicker and simpler in tight situations.

SPECIFICATIONS BALE SIZES ROUND: Up to 5’ x 6’ BALE SIZES SQUARE: Up to 3’ x 4’ x 7’ (requires optional rail/roller kit) BALE WEIGHT: Up to 2200lbs UNIT WEIGHT: 1265lbs 11

CAPACITY: 1 bale LENGTH: 81” WIDTH: 81” HEIGHT: 42”

LOADING: Patented Snaplox self-loading system TINES: 2 x forged high-tensile HYDRAULICS REQUIRED: 1 x double-acting, (8-16gal/min), 2250-3000 psi

See the 60 Seconds of MiNT video about why we chose bearings. hustlerequipment.com/bearings

OPTIONAL BUILT IN ROPE Built in rope for thoses who prefer pulling rope BALE CHAMBER Steeper and deeper, it can hold and retain a variety of types of feed.

SNAPLOX ™ AUTO-LATCH This patented system lets you connect & disconnect without tugging a rope.

TOUGHEST CHAIN Zinc-plated 12,000 lbs chains with heavy duty rollers and pins are almost twice as strong as others.

STRONG FLOOR BARS Toughest feed bars in the game.

hustlerequipment.com

TEETH Unique, extra-strong shark teeth designed to prevent feed from being dragged under the machine.

Want more? Visit our website and check out our videos.

> Specifications subject to change without prior notice - check hustlerequipment.com for current specifications and options

Customize your Unrolla.

Side Chute

Side Rollers

Extends the feed drop point and helps feeding into troughs, bunks or along hot-wires or against head-bails.

Prevents your bale from falling out of the cradle when operating in hilly country & allows you to feed square bales.

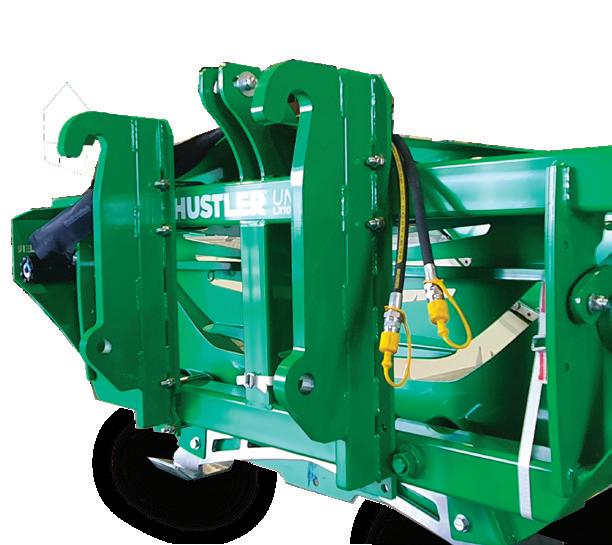

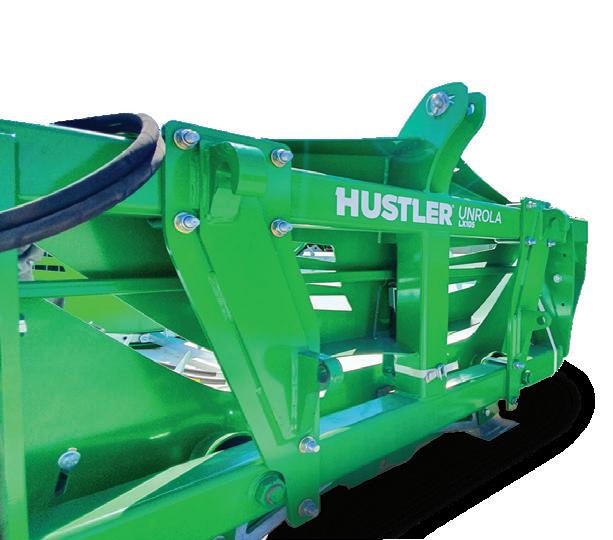

Multihitch mounts

Skid steer loader mounts

Allows the machine to be connected to the front loader or 3-point linkage in minutes without any tools.

Allows the machine to be connected to a skid-steer loader.

Telehandler mounts (Indent order only) Allows the machine to be connected to a telehandler.

Other available hitches (Indent order only). • CB 526 tool carrier CB Brackets • Euro/3-PTL combo Brackets • Manitou/NH Brackets • JCB 530 Q-Fit Brackets • Matbro Loader Brackets

• Merlo Brackets • Manitou/NH Q-Fit Brackets • Weidemann Brackets • MX Brackets • Kramer Brackets

• Plain Backing Plates (Narrow - JCB Fitment) • Plain Backing Plates (Wide - Skidsteer Fitment) • JCB

Want to see it in action? Check out our Unrolla working on real ranches www.hustlerequipment.com/bale-feeders/mounted-bale-unrollers

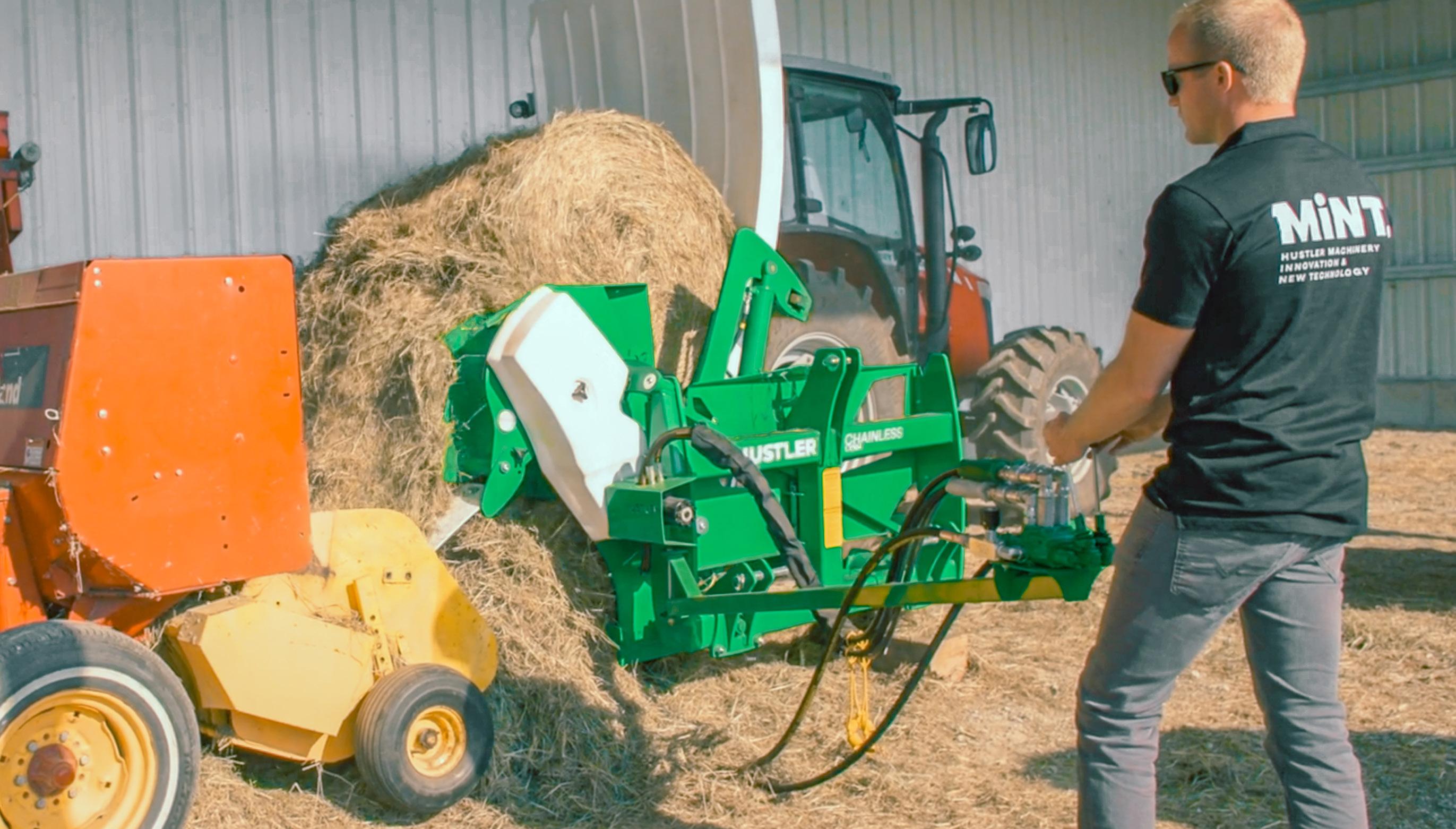

The most efficient system for rebaling There are many time, storage and cost saving benefits of producing large round bales in the field then converting them to small squares on demand, which are more saleable and have higher value. However this conversion process can be troublesome,and the additional labour, consumption and capital outlay offset the benefits of Rebaling. Thats why Hustler introduced the Chainelss Re-baler. The Chainless Re-baler makes the process simple economical, and with minimal labor.

“You’re able to dig in and really separate the hay. Which for a re-baling operation, the Hustler rips it apart in a way that makes it goes in there in a fluffy way.” Justin and Lauren Hansen - Texas (USA) Rancher and owner of a Hustler Chainless Rebaler

Hustler’s EZ remote option can be added onto any mounted bale feeder. This the most simple and costeffective solution to break down can large bales ready for Rebaling. Tease apart your large round bales in less than 2 minutes to convert them into small square bales! Make your rebaling operation more efficient and more profitable with huge time, labour cost and fuel savings.

In under 4 minutes 15-20 small square bales can be converted from 1 large bale at a value of approx $10 each, that equates to $200 worth of small hay bales. 15

Increase Hay Value by up to

3 times

DID YOU KNOW

Hustler’s bale processors are the perfect addition to rebaling and hemp processing operations. These are developed specifically for the use of rebaling, breaking down bales for mixer wagons, and processing hemp, providing huge savings in both time and diesel.

Make & Store

Convert & Sell

SEE HOW TO CONVERT LARGE BALES WITH HUSTLER CHAINLESS BALE FEEDERS 16

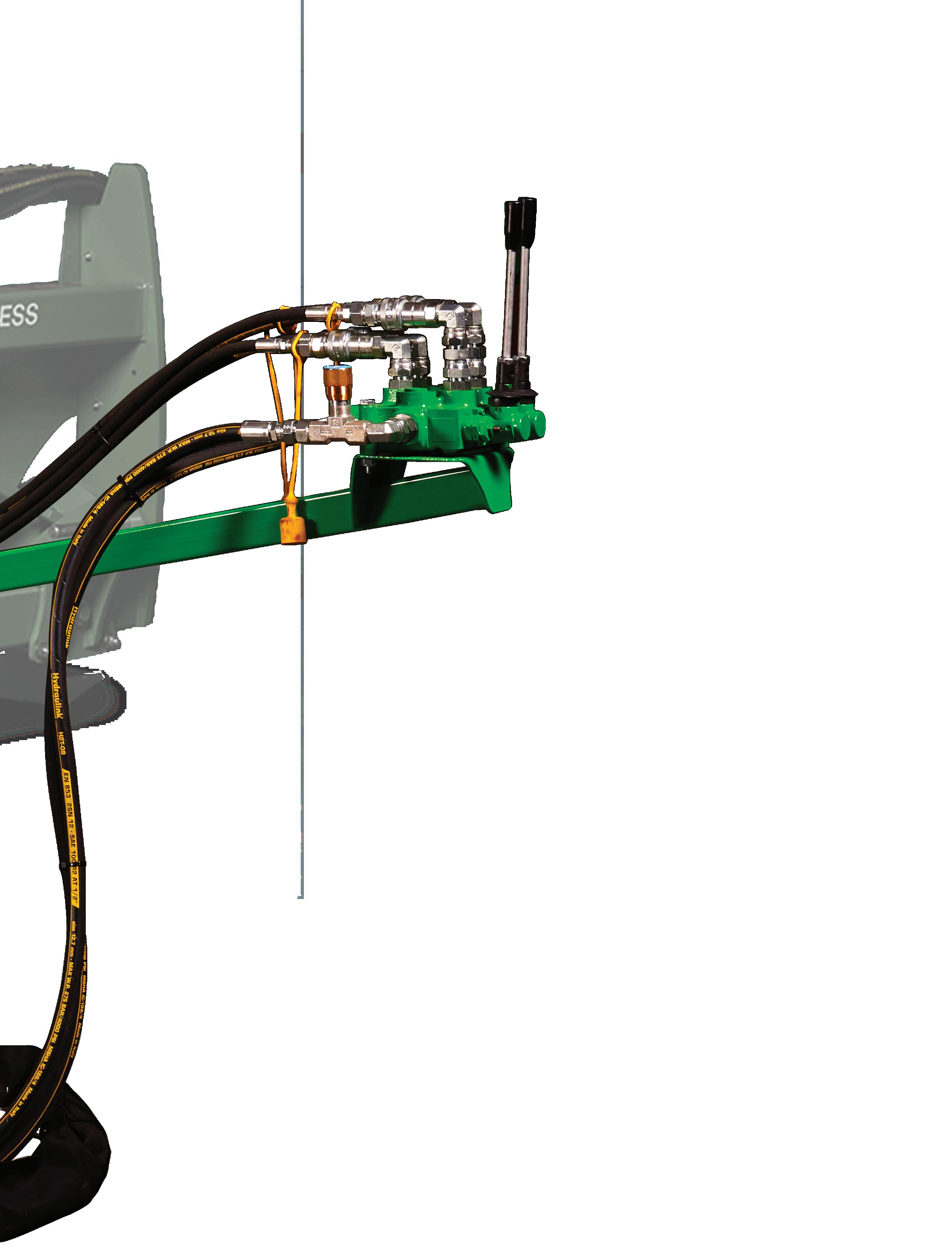

Ez Remote for Rebaling Tease apart your large round bales in less than 2 minutes to convert them into small square bales! Make your rebaling operation more efficient and more profitable with huge time, labor cost and fuel savings.

160-DEGREE ANGLE

RETROFITTABLE

The Ez Remote for Rebaling control valve can be positioned within a 160º arc to suit indivicual operator preferences.

If you already own a Hustler bale feeder, it is possible to convert it into a rebaler since the Ez Remote for Rebaling is retrofittable with almost all models. Talk to your Hustler sales rep for further information.

QUICK COUPLING HOSES Quick coupling hoses are supplied within the Ez remote attachment kit for a quick and easy fit.

SANDBLASTED AND ARMACOTE FINISH

EASY TO USE

All Hustler products are made to last, and a sandblasted finish combined with an impressively durable power-coat means your machine will look new for years to come.

The simple hydraulic design makes it very easy for any operator to master quickly.

CONTROL LEVERS Easy levers give you control of the amount of hay that is processed, and allows you to control the speed of the rotors and the height of the platform.

IMPROVED VISIBILITY The remote, adjustable placement allows the operator to stand wherever they can best see the processor at work, allow you to quickly and accurately process your bales.

ONE SET OF DOUBLE ACTING HYDRAULICS A single set of double acting hydraulics means a single tractor can run both the square baler and the bale processor.

Benefits of Rebaling. +

Preserve feed quality for longer

Substantially reduce handling time and cost

Eliminate hours of back-breaking labor or expensive equipment to collect small bales

Increase the value of your feed

Store the large bales and re-bale the small squares on demand or during winter

One tractor can run both the square baler and the bale feeder

> Specifications subject to change without prior notice - check hustlerequipment.com for current specifications and options

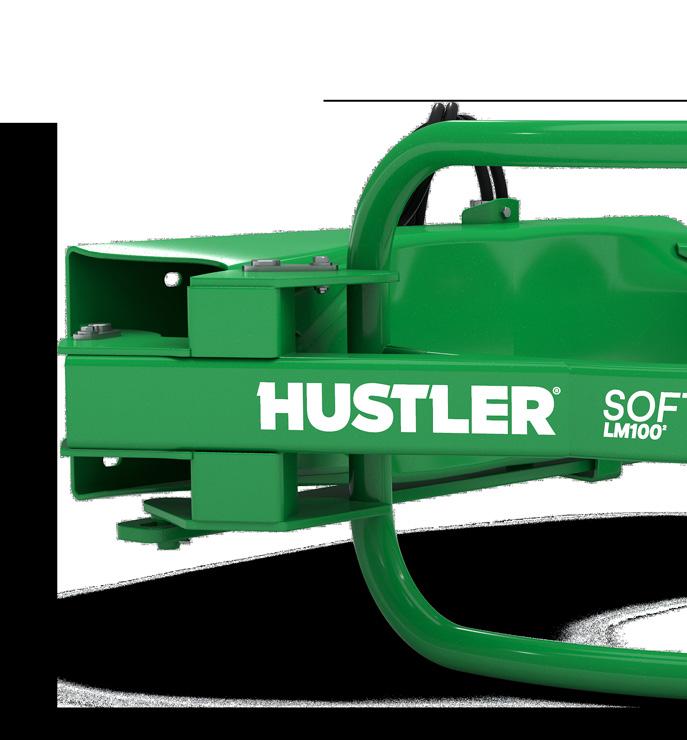

Softhands LM1002 Built for farmers and contractors who handle bales every day, the new Series 2 Softhands LM100 is built to make round bale handling faster, easier and more controlled than ever before. Its compact mainframe improves visibility while keeping the load closer to your machine for greater stability. The unique hand profile slips easily between tightly packed bales, while the patented floating equaliser —described by operators as a game changer— provides exceptional bale control giving operators unmatched confidence when handling wrapped or dry bales. Now stronger than ever and packed with practical new features, the Series 2 delivers contractorgrade performance in an affordable package.

TOP EXIT HOSES The hydraulic cylinder is fully protected inside the main structure and the top exit hoses are out of harms way when connecting to the loader.

HEAVY DUTY PIVOTS Large 1.25” pivot pins, with massive surface area provides years of trouble-free use. Greasable pivots also provide easy maintenance.

MONOQUE MAIN FRAME Uniquely formed main frame, that is both strong, lightweight and smooth to reduce bale damage.

PATENTED FLOATING EQUALISER BAR The ultimate in precision bale handling, the Equaliser® keeps both hands moving simultaneously for accurate bale placement. The 2” of float makes loading and stacking easier.

LOADER BRACKETS Standard with integrated Euro-Hitch, skid steer brackets or plain (no brackets). The LM100 has many other bracket options to suit other loaders e.g. Plain Euro, Manitou JCB Q-FIT, Matbro (Pin and Cone), Merlo, Kramer, Wiedemann, MX, Skidsteer

> Specifications subject to change without prior notice - check hustlerequipment.com for current specifications and options

“ They last for a long time so in that respect they’re saving us a lot of money because we’re not having to go and replace them all the time.” John Vallance Owner of Hustler Softhands

UNIQUE HAND SHAPE The unique hand shape follows the radius of the bale for a perfect grip and the straight ends extend past the center point of the bale which allows the hands to easily slip between bales and eliminates damage to wrapping.

BALE SUPPORT The RHS center bars provide unparalleled bale support to reduce bale deformation during handling, and provide

SLIM HAND DESIGN The slim hand design slides between bales easier and simplifies stacking, loading

COMPACT MAIN FRAME Keeps load as close to tractor as possible to minimize load centre

SPECIFICATIONS BALE SIZES ROUND: Up to 1574mm | 62 in MAX OPENING/CLOSING: 1760mm/165mm | 68in/5in LIFT CAPACITY: 1,500kg | 3,300lb

UNIT WEIGHT: 190kg | 418lb HYDRAULICS REQUIRED: 1 x double-acting, (3-16gal/min), 2250-3000 psi

Softhands LX200 Built for the contractor who simply cannot compromise on user-friendliness, strength, downtime or damaged bales. Field-tested to handle bales over two tonnes, the LX200 Softhands® are the favorite choice for large-scale ranchers and contractors who handle between 1,000 and 100,000 bales each year. These bigger, taller hands allow you to move twice the number of bales in almost half the time.

LARGER HANDS Largest hands on the market allow operators to clamp two bales at once, reducing the time it takes to unload/load trucks. Also handles up to 2 tonnes (4,409.25 lbs).

HUGE 38MM PINS Largest in the industry, with beefed-up pivots and greasable, replaceable bushes.

THREE POSITION ADJUSTABLE HANDS The easy-to-adjust threeposition hand design allows the LX200 to get the perfect grip on both round or square bales and operators can customize the position for different bale sizes.

EQUALISER BAR Factory fitted Equaliser® as standard which keeps hands moving simultaneously for precision bale control and operator safety.

> Specifications subject to change without prior notice - check hustlerequipment.com for current specifications and options

SLIM HANDS The slim hand design reduces chance of damage to adjacent bales and allows bales to be stacked closer.

HEAVY-DUTY CONSTRUCTION The toughest bale handler on the market, the LX200 has proven itself time and time again with the largest of contractors.

EVEN CLAMPING PRESSURE The contoured design provides even clamping pressure on the bale eliminating pressure points

MOUNTING VERSATILITY

NEW CONTOURED SHAPE Integrated, contoured nudge bars eliminate any bale tearing or ripping and support the bale better when driving across rough terrain.

Bracket options include: • Euro • Skidsteer • MX • P20 Pearson • Merlo • Plain backing

SPECIFICATIONS BALE SIZES ROUND: All sizes BALE SIZE SQUARE: Will clamp 0.9 m (2.9 ft) up to 1.8 m (5.9 ft) MAX OPENING/CLOSING: 2300mm/400mm | 89in/21in

LIFT CAPACITY: 1,800kg | 4000lb UNIT WEIGHT: 290kg | 638lb HYDRAULICS REQUIRED: 1x double-acting, 12-60 litres/min (3-15.8 gallons/ min), 2250-3000 psi

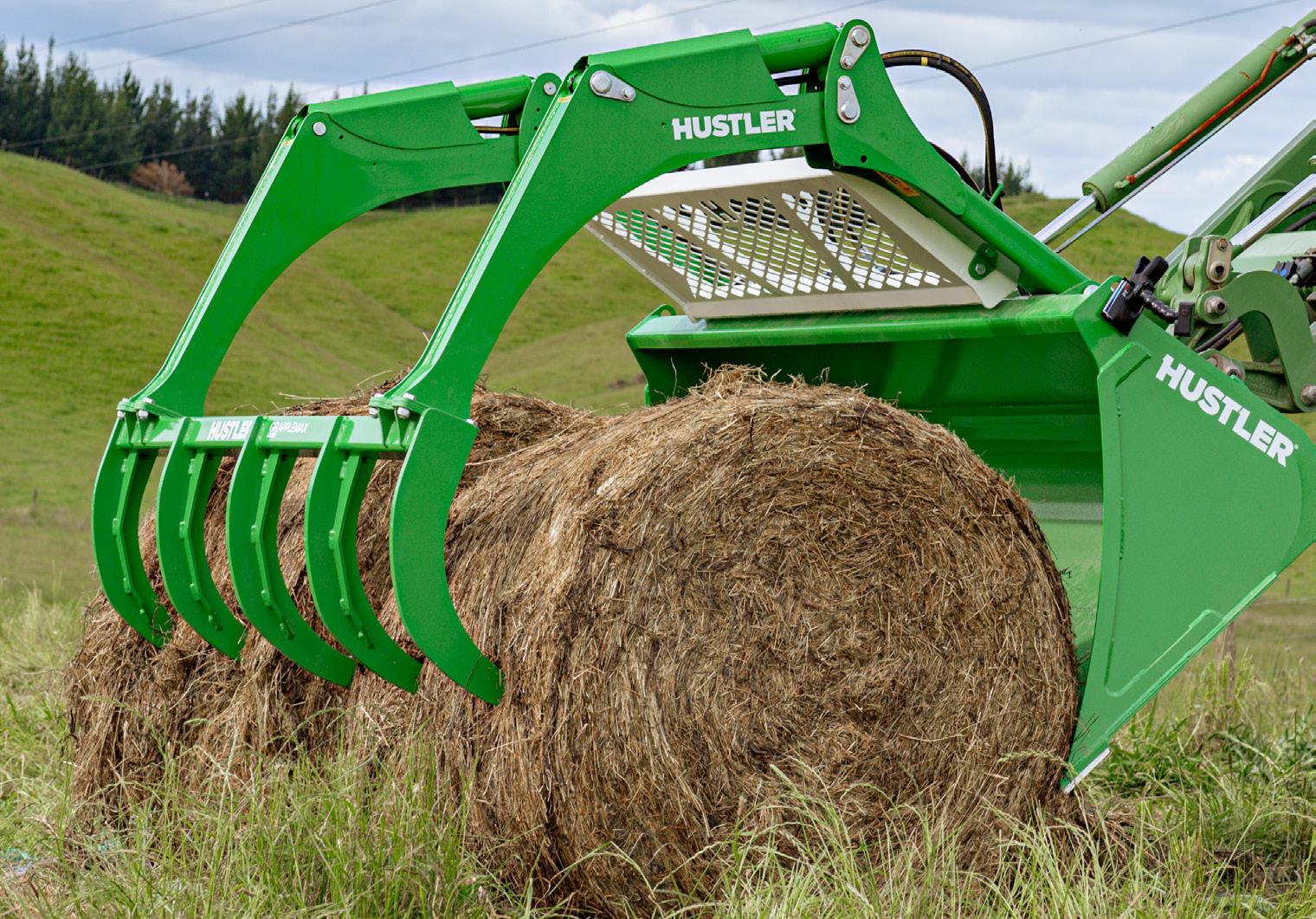

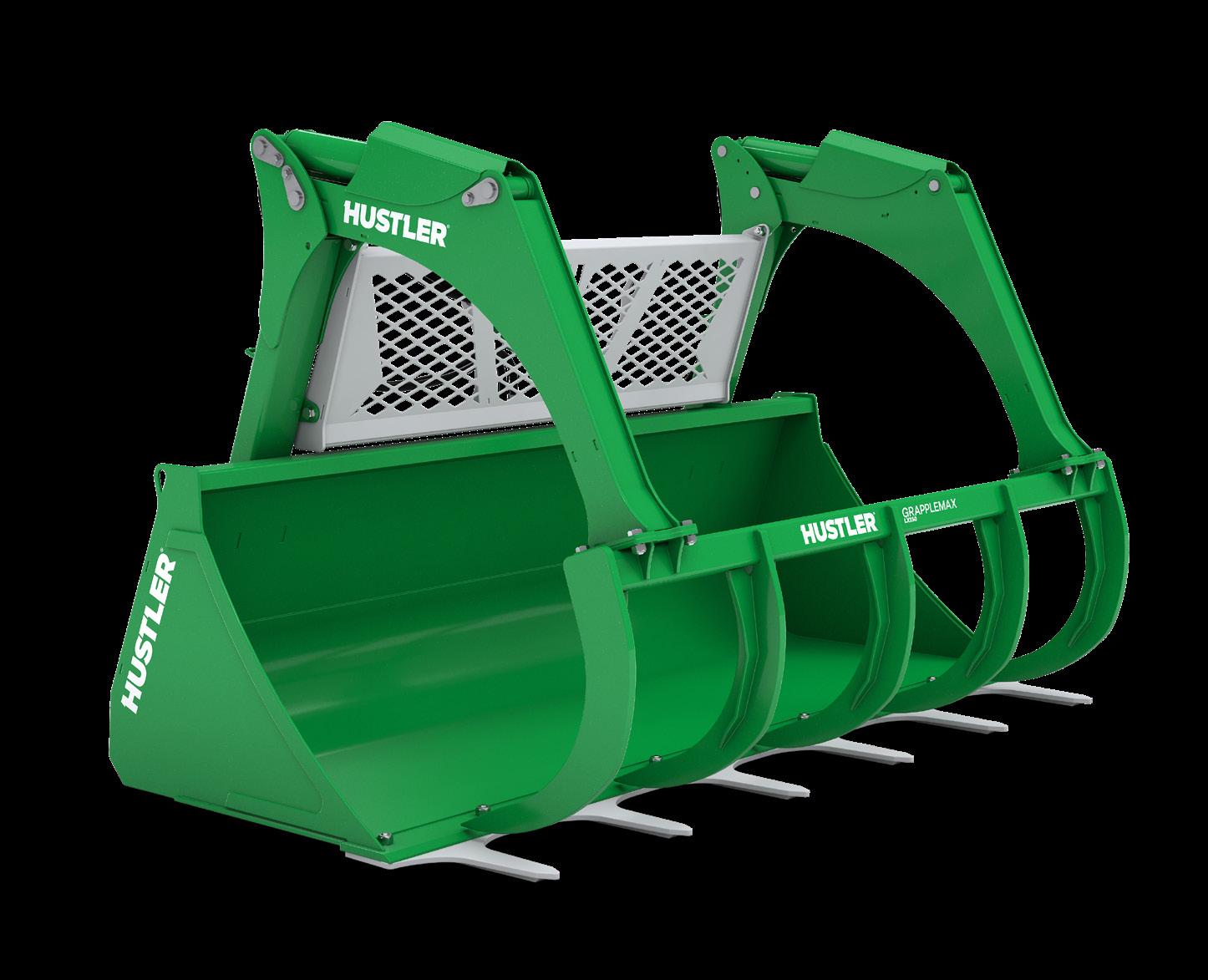

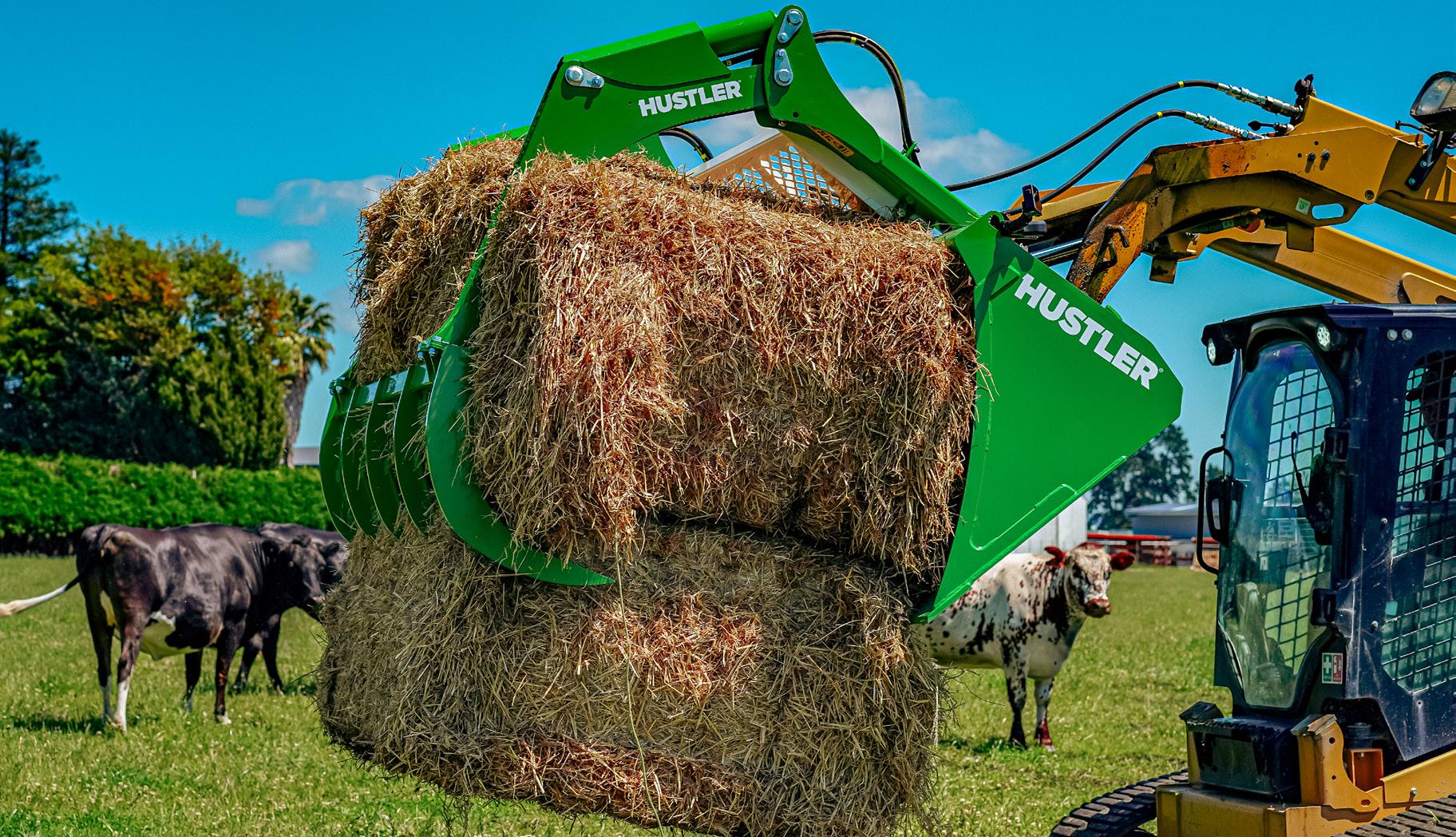

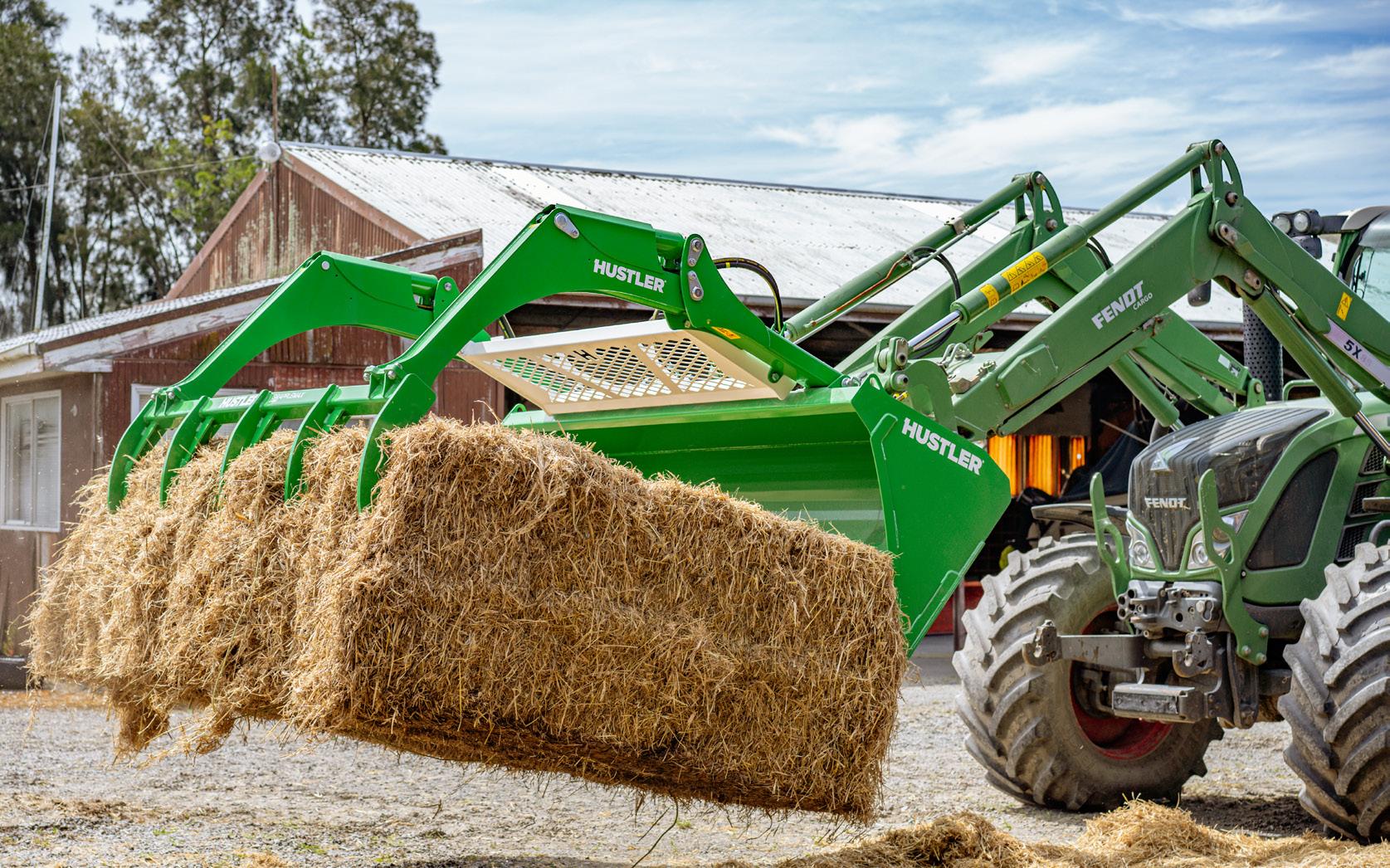

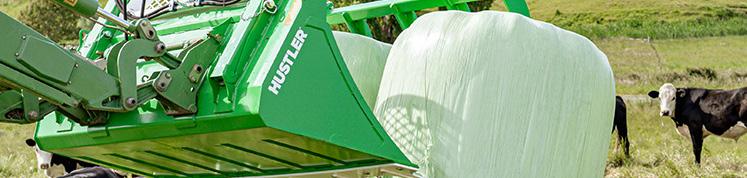

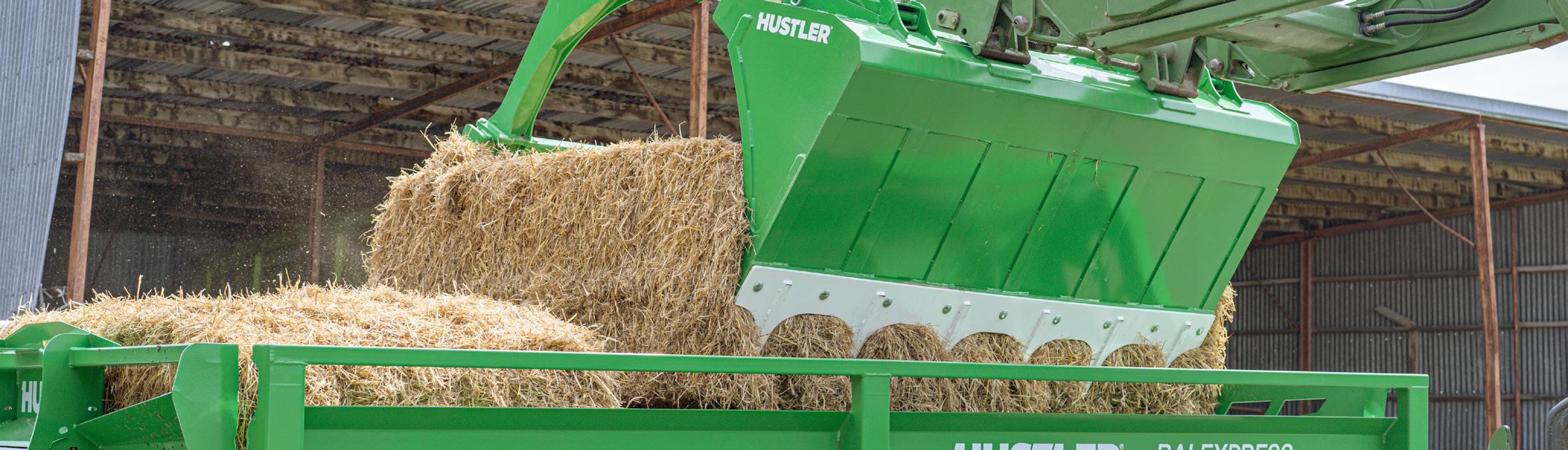

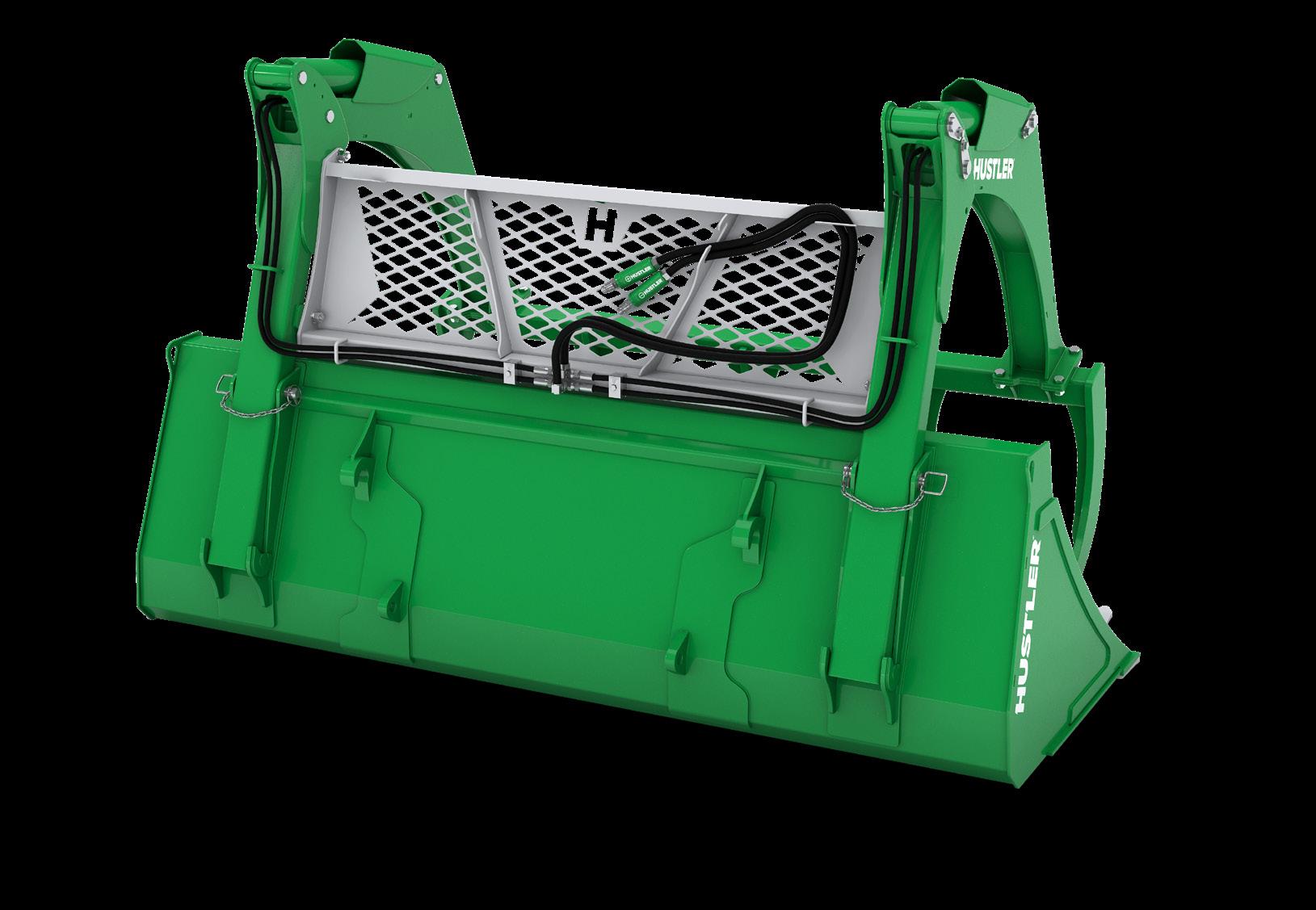

GRAPPLEMAX LX250 LOADER MOUNTED GRAPPLE BUCKET FOR HANDLING ROUND AND SQUARE BALES, BUT ALSO SCOOPING, MOVING OR LOADING LOOSE FEEDS, SOIL, ROCKS, BRUSH, POSTS, LOGS AND MUCH MORE! The ultimate grapple bucket for livestock ranchers who demand nothing but the very best and want a versatile attachment for handling, loading and feeding round or square bales and other commodities. Get the job done, whatever it may be, with GrappleMax grapple bucket. The super tough design, combined with clever use of the highest-grade materials and built-in protection for the vital parts could be the last grapple bucket you ever buy!

TRIPLE-SECTION REINFORCED BUCKET DESIGN Unlike other buckets, GrappleMax has three hollow sections, providing unparalleled torsional strength, unbeatable durability, and a long life.

CENTRAL VERTICAL HOSES WITH HOOKS

STRONG SPILL GUARD GRILL

Hoses are kept out of harm’s way on the loader carrier frame, preventing damage during hookup. Hose-holding hooks are also available for storage when not in use.

WE ADDRESSED A COMMON FAILURE IN OTHER GRAPPLE BUCKETS WITH A TOUGH RHS-REINFORCED GRILL FEATURING A LARGE MESH DESIGN FOR EXCELLENT VISIBILITY.

QUICK-RELEASE GRAPPLE JUST TWO LOOSE-FITTING PINS REMOVE THE COMPLETE GRAPPLE, INCLUDING THE GRILL AND HOSES. NO NEED TO DETACH HOSES, ALLOWING THE BUCKET FOR OTHER TASKS.

PROTECTED CYLINDER SPEARS Large steel shields protect the ram’s spears to prevent damage from falling materials. TAPERED BUCKET DESIGN The top of the bucket is narrower than the bottom floor, and the back of the bucket is narrower than the bucket opening. This design enables easier material emptying and reduces corner clogging when handling sticky materials.

WEAR PLATES BUILT-IN

OPTIONAL REMOVABLE TEETH

Cutting edge made from RockGuard™ 500 wear plate, and bucket floor and side wear plates built from RockGuard™ 400 wear plate ensure GrappleMax is the longest-lasting grapple bucket in the game.

REINFORCED TINES THAT DON’T COME LOOSE

Crafted from RockGuard™ 500 wear plate and reinforced for strength and durability with RockGuard™ 500 stiffeners, these optional teeth are excellent for spearing bales or breaking up ice or other hard surfaces.

GrappleMax has five large tines made from RockGuard™ 400 wear plate, reinforced and welded to prevent loosening or bending.

SPECIFICATIONS UNIT WEIGHT: 1278 lb DEPTH: 57.2 in WIDTH: 96 in HEIGHT: 56 in (28.3 in bucket only)

BUCKET CAPACITY: 1.56 yd³ FULL GRAPPLE CAPACITY: 3.23 yd³ GRAPPLE TINES: Replaceable 5x RockGuard™ 400 reinforced tines CLAMP: Twin-ram JAW OPENING: 84 in 24

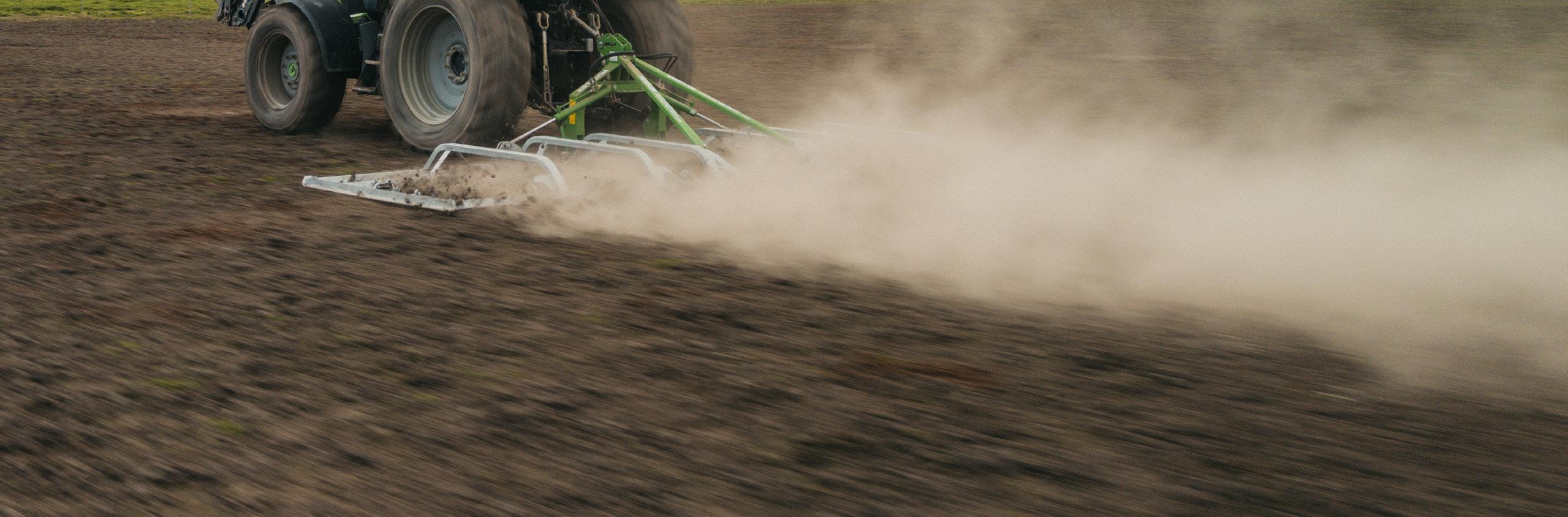

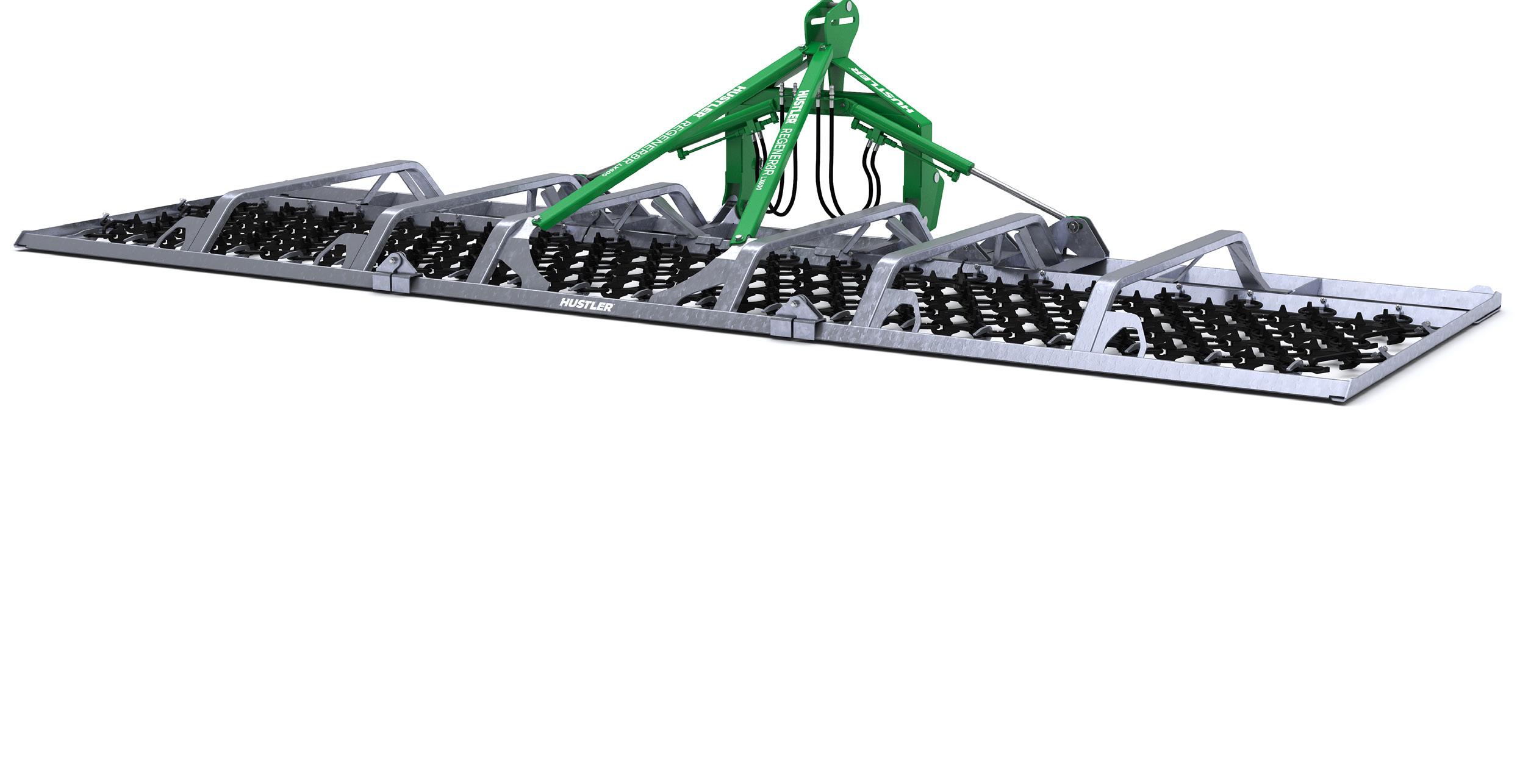

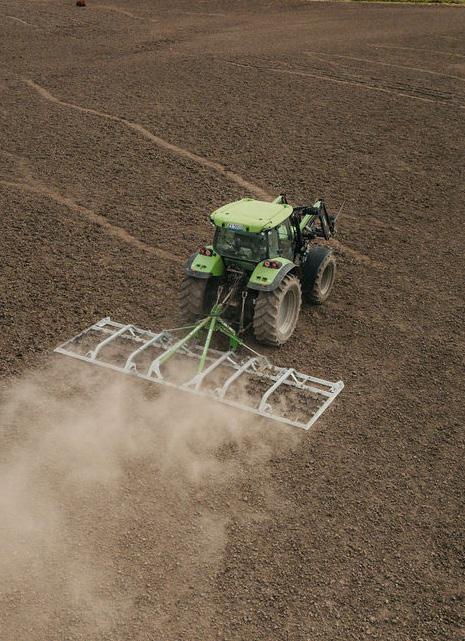

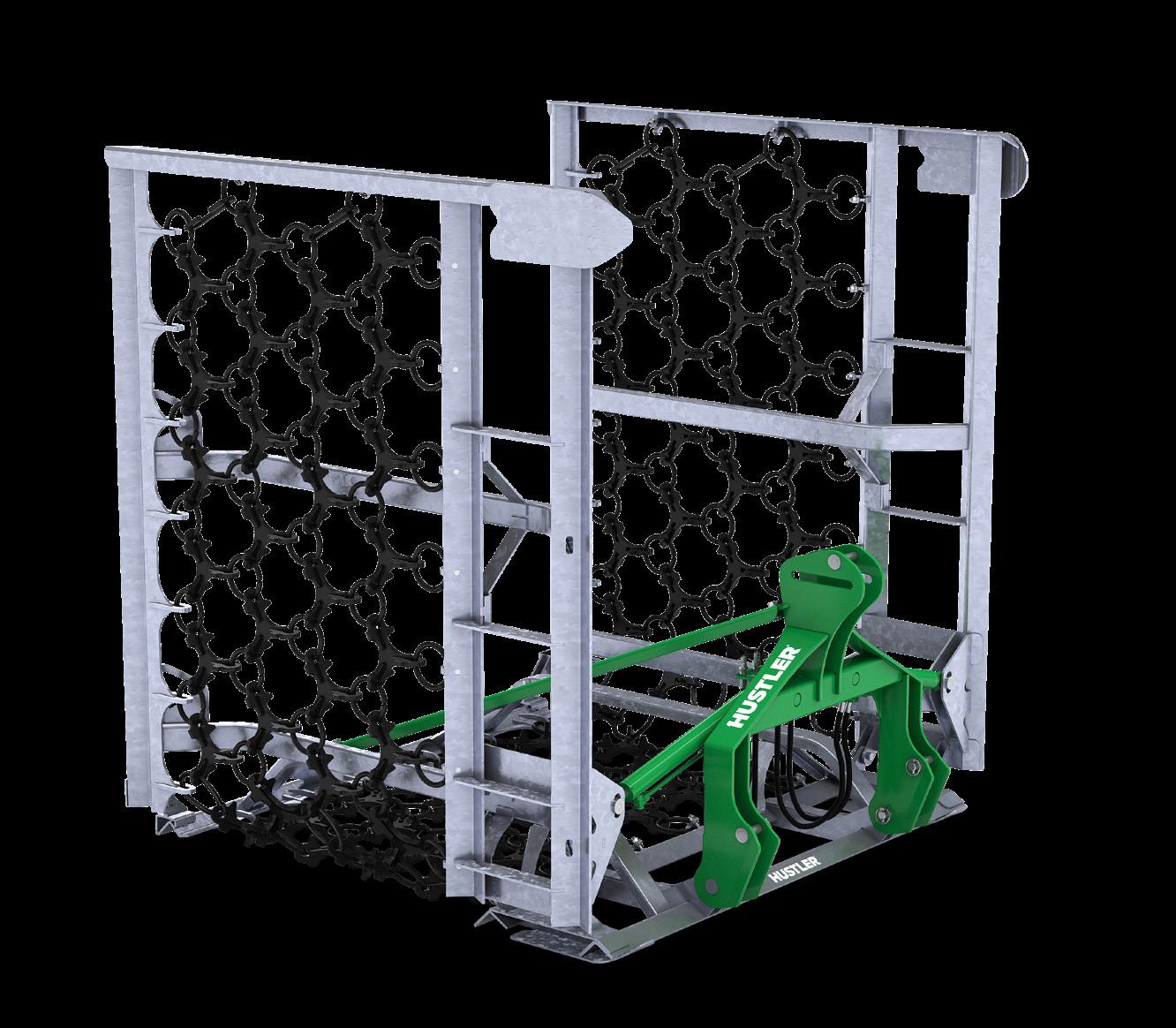

REGENER8R LX600 THE LAST CHAIN HARROW & LEVELLER YOU’LL EVER NEED TO BUY The NEW Hustler Regener8r Chain Harrow will improve your pasture productivity, manure uptake and your bottom-line. The 4 rows of double side fabricated steel agitators (that don’t shatter at the sight of the first pebble) provide a superior bite and more consistent spread with thorough pasture harrowing / aeration and the triple levelling bars leave an amazing finish! Can also be used for covering seed and cultivation finishing.

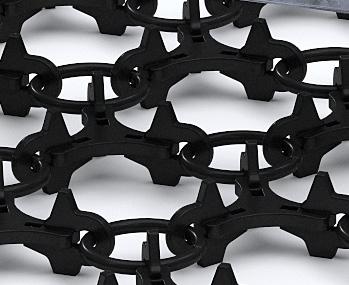

LARGER CHAIN RINGS 14% stronger rings than others and our unique design allows for changing out teeth without needing to cut, bend and reweld rings.

SPECIFICATIONS UNIT WEIGHT: 1653.5 lb DIMENSIONS OPEN (W x D x H): 82.6” x 236.2” x 41.7” DIMENSIONS FOLDED (W x D x H): 82.6” x 78.7” x 87.4”

WORKING WIDTH: 236.2” TRANSPORT WIDTH: 78.7” HYDRAULIC REQUIRED: 3.96 gal/min, 2x double-acting

8MM LEVELLING BAR

OVERSIZED TOUGH FRAMES We switched from round tubes, to RHS sections and went oversize (80x40x4mm!) to save you from wasting time back to the shop for welding or replacement.

Achieve More Every day! The Integrated Bended 8mm Levelling bar means you can achieve 2 applications in one pass.

FOLDABLE FRAME NEW STRENGTHED 3PH HEADSTOCK DESIGN Prevent breakages, plus faster and easier hitching thanks to our unique lower hitch guides, and extra-long slot for more floatation and better contour following.

UNIQUE INDIVIDUAL FOLDING

LARGE SKIDS Our extra-large skids protects the centre and wing sections of the harrow from sinking or digging in, in soft ground for a better finish.

Left and right folding is individual, so that you can operate with one or both sides up giving more versatility.

BUSHED PIVOTS We’ve designed Regener8r with bushed pivots that can easily be replaced if ever needed so you’re not needing to replace a whole wing after a few years work.

DUAL SIDED TEETH

4 TOOTH ROWS

One side is more aggressive than the other - flip the matt over depending on your

GALVANIZED GE FRAMES

preference. And get twice For longevity in corrosive

when worn out!

applications, we have

INDESTRUCTIBLE TEETH

galvanised the ground

Unique fabricated steel teeth (which don’t shatter) made from RockGuard TM 400 (AR400) wear plate teeth for extreme wear resistance to ensure you’re not wasting time in the workshop replacing teeth.

mind and wear resistance.

WARRANTY

The 4 Tooth Row Harrow results in higher agitation and a more efficient harrow operation.

the lifespan, flip the matt

engaging frames for peace of

5 YEAR

Foldable 3PL frame and harrow for efficient space utilisation in storage and transport. With built in hydraulic Lock-valves for added safety when travelling on the road.

5 YEAR WARRANTY Backed by Hustler’s legendary 5 year warranty and customer support.

NORTH AMERICAN SPRAYER PACKS. The choice is yours! Choose from one of our most popular build packs developed specifically to suit the most common needs of farmers, ranchers and contractors to make choosing the right sprayer straight-forward and simplify the aftersales support.

» Or you can customize from scratch with the most comprehensive list

of options using our intuitive online sprayer configurator. Our experts are happy to assist you in custom building a sprayer that suits your specific needs.

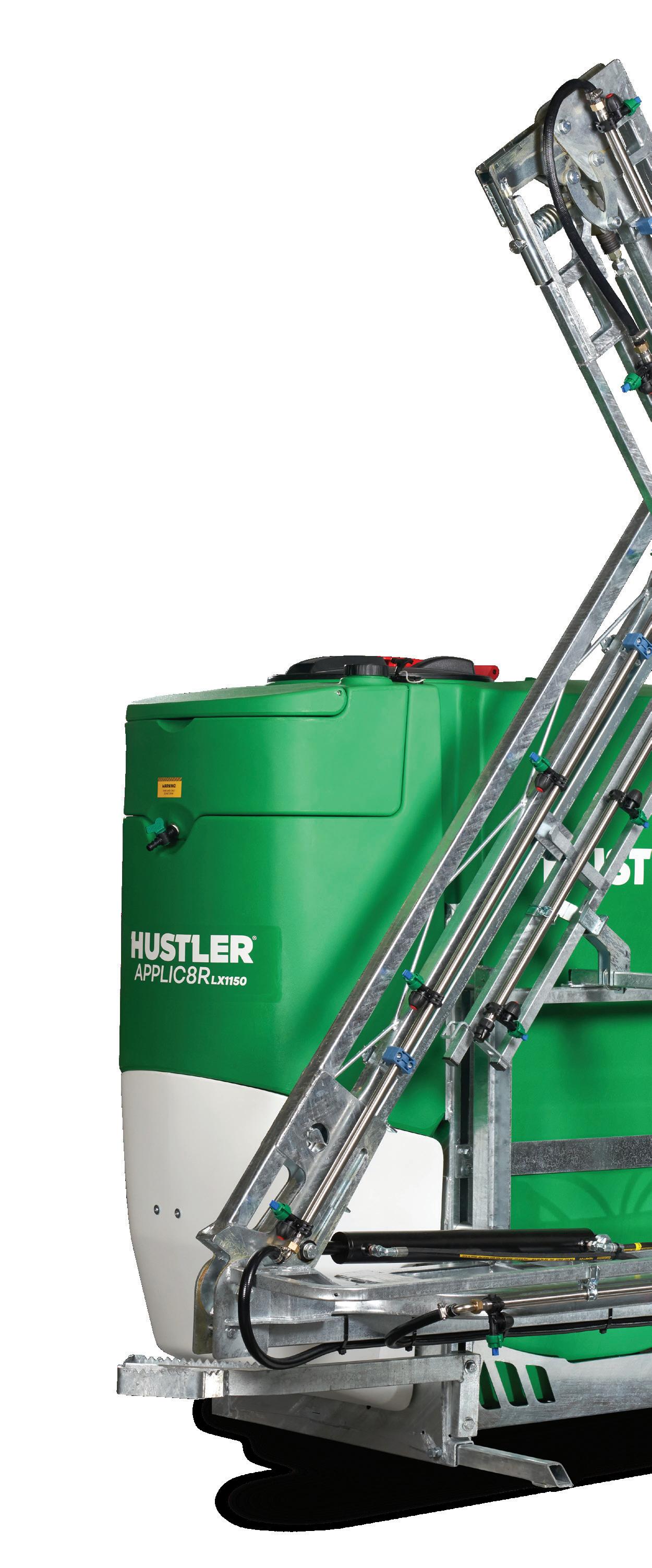

EFFICIENCY PACK APPLIC8R LX1150 - 107 Includes:

300 Gallon (1150L) Main Tank Capacity

26 Gallon (100L) QuickFlush™ Tank Capacity

46ft (14m) Hydraulic Folding EagleTech Boom c/w Hydraulic Mast Lift, Wing-Lift, Self-Levelling & Triple Suspension System with Shock Absorbers

29gpm (110l/min) Pump inc PTO Shaft

ISOBus Auto Application Rate Controls for 5 Boom Sections, GPS Swath Control Ready (Requires Tractor Activation)

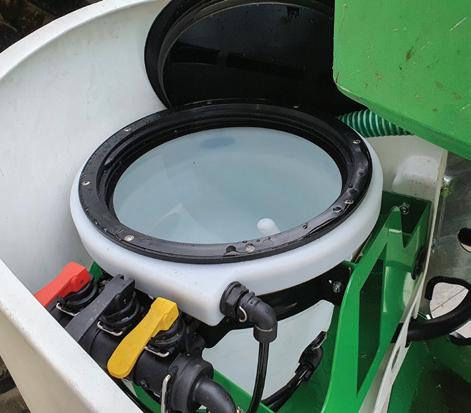

ErgoMax™ induction hopper

MixMax™ Adjustable Agitation

Hand Wash Station & Toolbox

ASK ABOUT OUR FRONT MOUNT TANK OPTIONS TO DOUBLE YOUR CAPACITY!

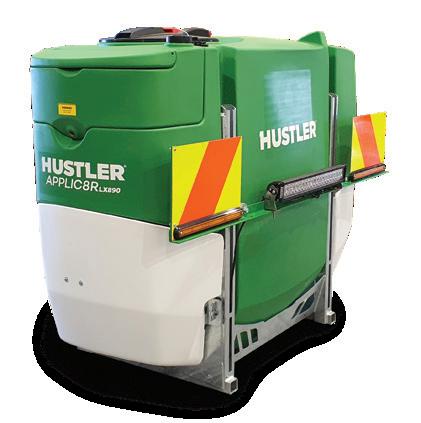

APPLIC8R LX890 402 PACK +

Applic8r® LX890 3PT Sprayer 235 Gallon (890L)

29gpm PTO pump

Mix/Max™ agitation

Handwash station

Toolbox

26ft Duraboom

3 Section Manual Electric Controls

Foam Marker

26 Gallon Flush Tank

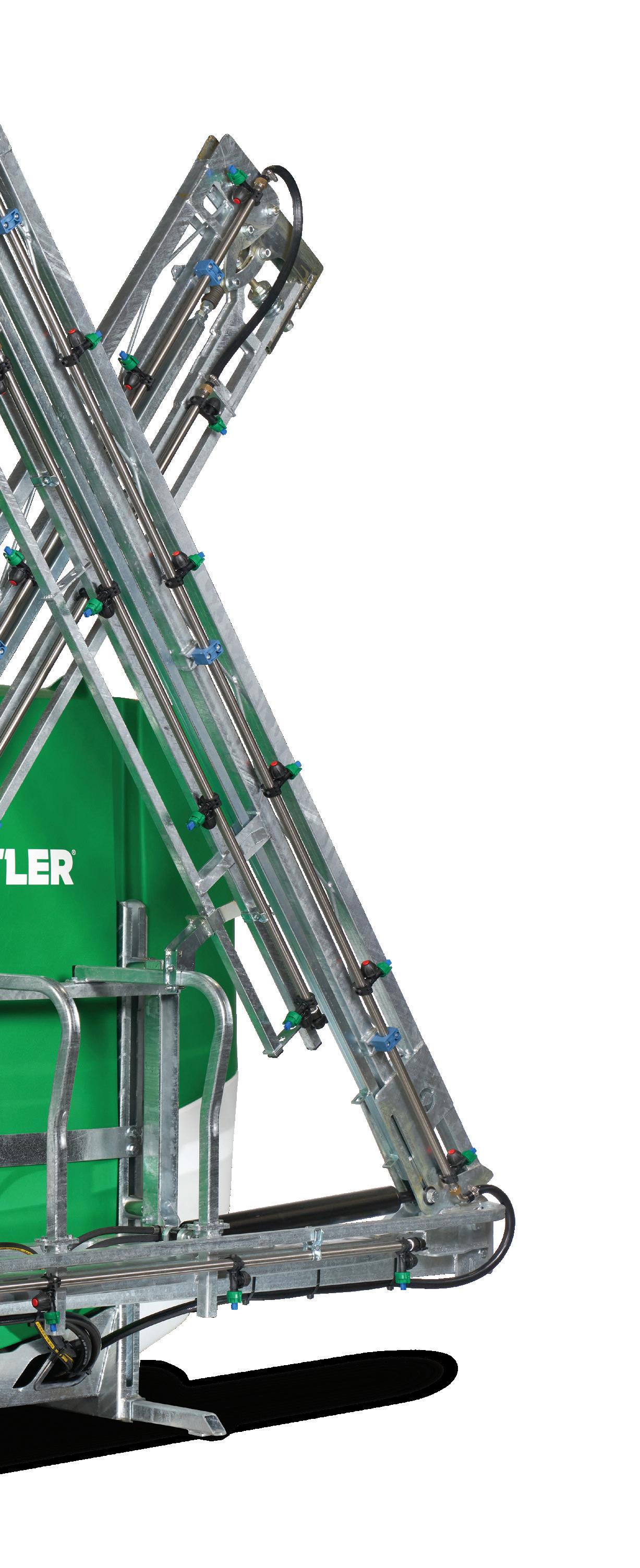

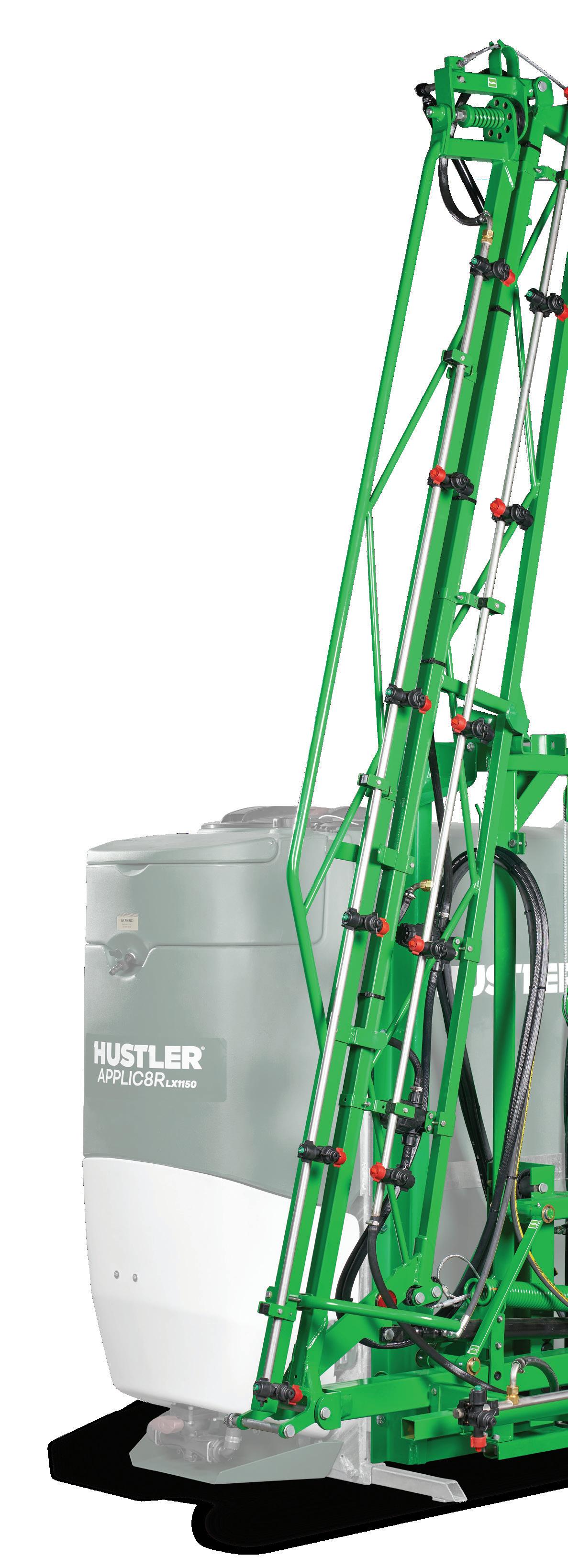

PRODUCTIVITY PACK APPLIC8R LX1150 - 104 Includes:

300 Gallon (1150L) Main Tank Capacity

26 Gallon (100L) QuickFlush™ Tank Capacity

40ft (12m) Hydraulic Folding SonicBoom

29gpm (110l/min) Pump inc PTO Shaft

Electric In-cab Controls for 3 Boom Sections, Master & Pressure Adjustment

164ft (50m) Bi-Directional Hose Reel & Pistol Gun

ErgoMax™ induction hopper

MixMax™ Adjustable Agitation

Hand Wash Station & Toolbox

Yellow Air Induction Anti-Drift Nozzles

Extension feet & Access Step 28

NORTH AMERICA HQ Toll-free: 855-430-0010 Office: (612)-351-4885 21725 Hamburg Ave, Lakeville, Minnesota 55044 USA

CANADA Phone: 778-262-2830 4909 Bruce Rd Vegreville, AB T9C 1C1 Canada

hustlerequipment.com
