FLOOR SAWING
INNOVATIVE SOLUTIONS FOR A MORE PRODUCTIVE DAY
Husqvarna floor saws balance power, ergonomics, torque, manoeuvrability and reliability to deliver great productivity. By creating machines and diamond blades that offer clear operational and technical benefits, your working day gets easier and more profitable.

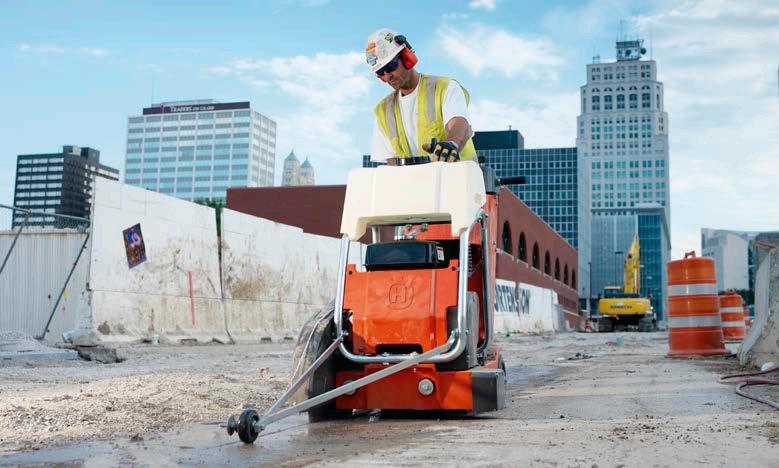

HUSQVARNA FS400LV
The FS 400 LV is a convenient, ergonomically designed push floor saw. Excellent weight distribution and an adjustable handles ease strain on the user as well creating stability while sawing. This floor saw is ideal for smaller road repair jobs in concrete or asphalt.
REDUCED STRAIN ON THE USER
Ergonomic handles provide a closer, more comfortable position to the cutting side for easier alignment and straighter cuts. Usercomfort is further optimised thanks to an engine and blade shaft mounting system with low vibrations.
SMART SOLUTIONS
Features include a large integrated water tank with quick, tool-free dis-assembly and connection of the water hose to the blade guard. Otherenabling solutions include a clear depth indicator and retractable handwheel.
EASY TO OPERATE AND TRANSPORT
FS400LV offers excellent weight distribution and stability while its compact design and foldable handles makes it easy to lift and transport between jobs.

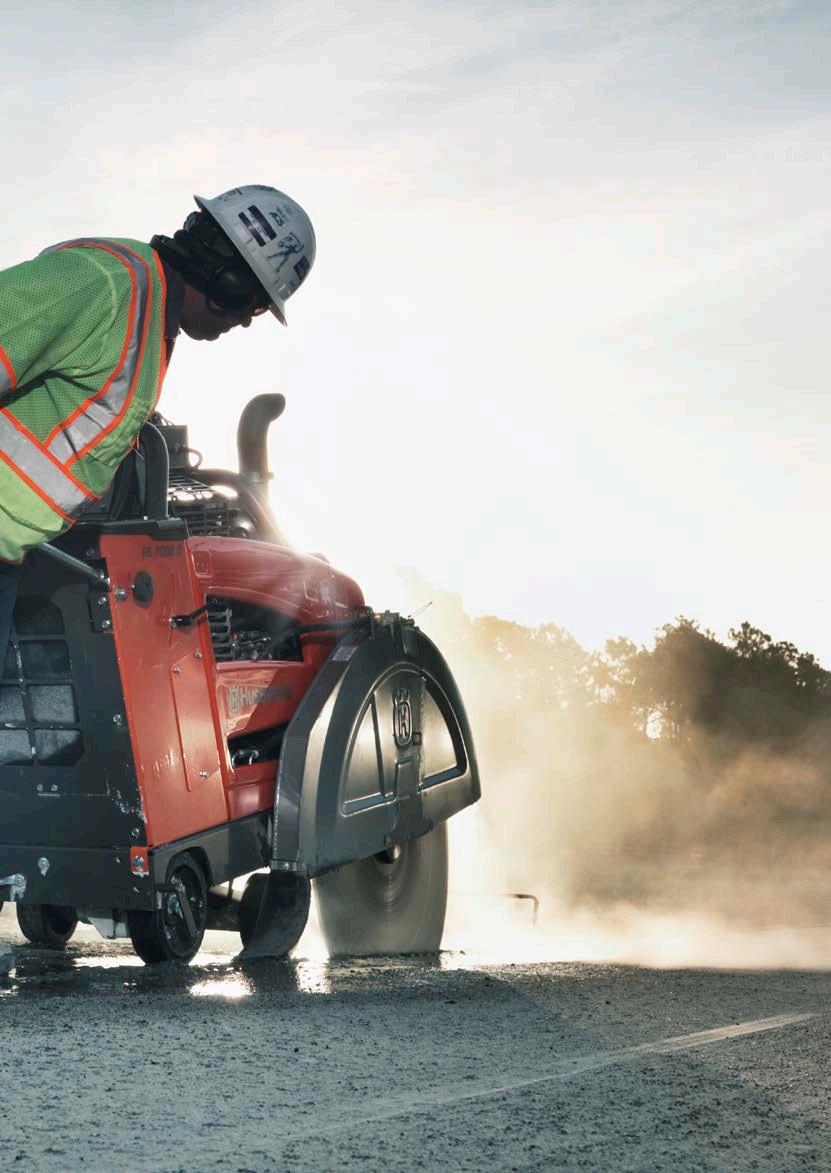

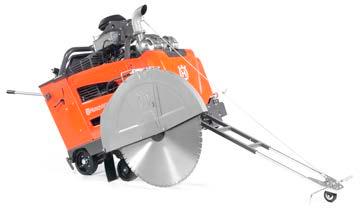

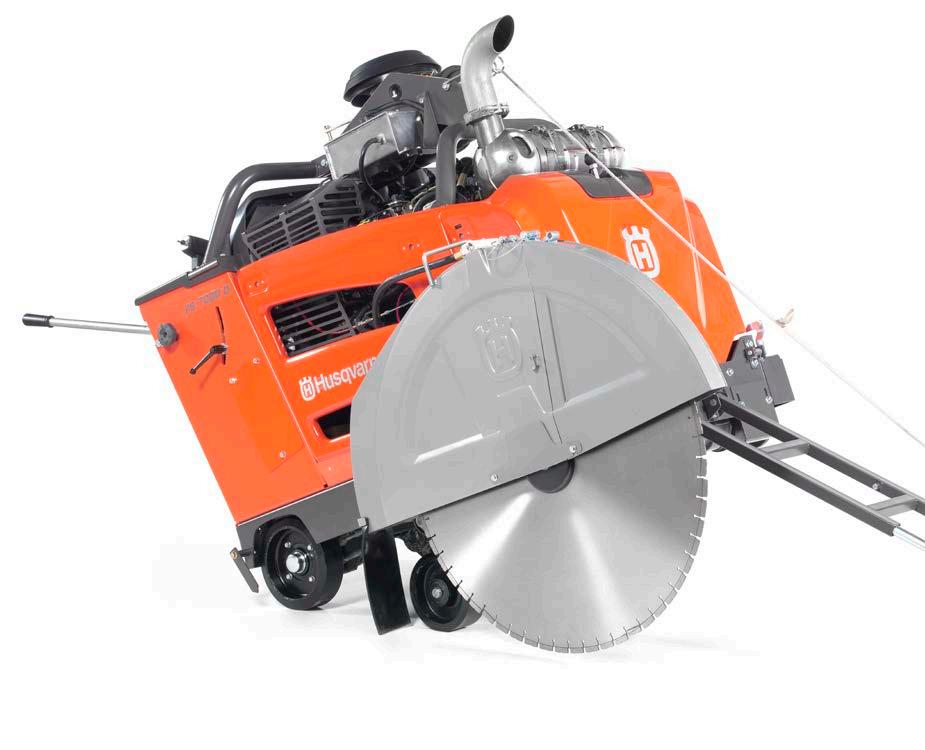

HUSQVARNA FS7000 DL/D
The Husqvarna FS 7000 DL / D are powerful diesel walk-behind floor saws characterised by convenient, service-friendly design, ergonomic controls and intuitive electronic support systems. Their size, weight and balance are optimised for high production in applications such as deep cutting asphalt and concrete. With an impressive level of sustainable torque, both saws greatly increase production rates in tough conditions.
SMART DESIGN
Optimised weight distribution, adjustable handles, simple blade guard assembly, low emissions and lowmaintenance demands make this floor saw asmart choice from an ergonomic, financial and user perspective.

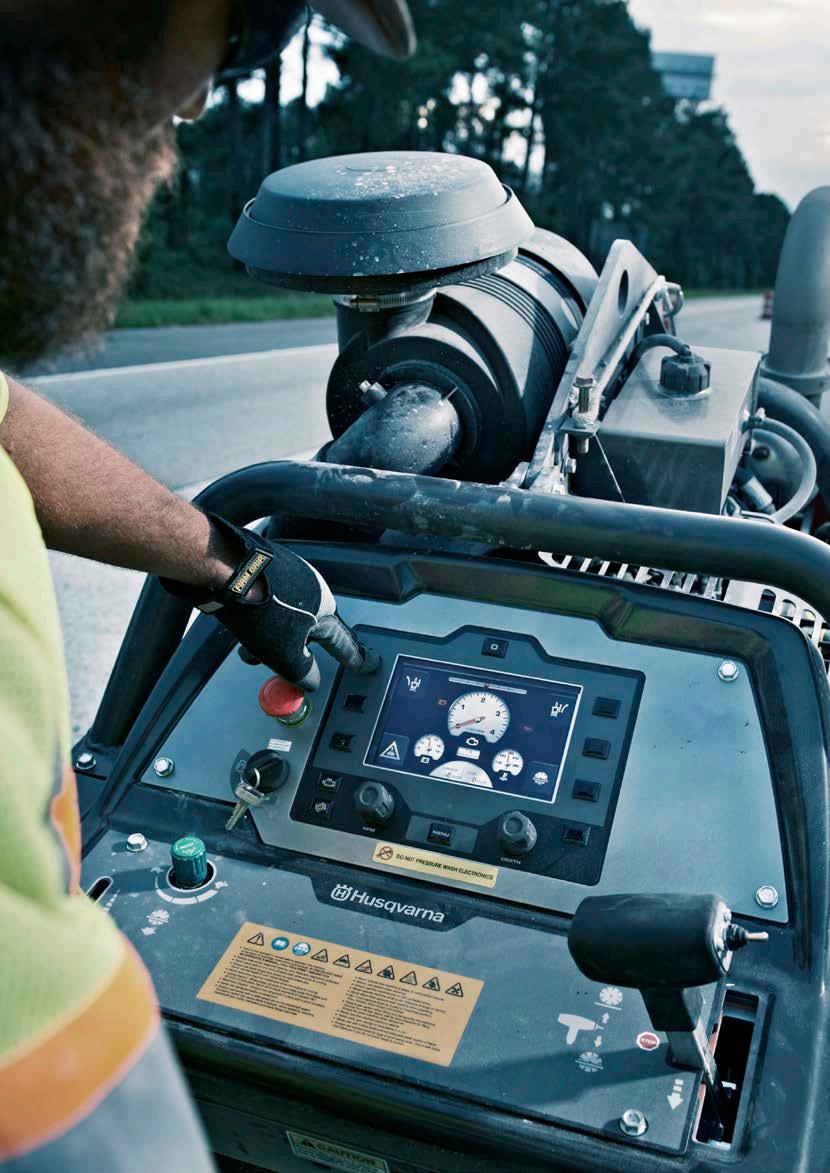

INTUITIVE CONTROLS
All important functions such as such as bladerpm, forward speed, electronic tracking, depth gauge, belt and pulley ratios, runtime and service minder are easy to reach and monitor.
OPTIONAL 5TH WHEEL OPTIMISES MANOEUVRABILITY
An optional 5th wheel helps raise and lower the rear of the saw, making it easier for the operator to pivot right or left, which is particularly helpful when lining up a cut.
DEEP CUTTING
With a cutting depth up to 625mm and an extension kit to run a Ø1500mm diamond blade, this floor saw offers increased areas of application, optimising versatility.
EASY TRACKING ADJUSTMENT FOR STRAIGHT CUTS
An electric tracking system includes a position indicator on the display which can automatically return to the neutral position and memorise the last used setting.
DIAMOND TOOLS FOR FLOOR SAWING
Husqvarna floor sawing diamond blades cover most applications, ranging from sawing in asphalt to heavily reinforced concrete and slot cutting for electric cables. The high cutting speed and prolonged durability make our floor saw blades ideal for roadwork and other jobs with tight schedules. They can be used with all equipment, ranging from smaller low-powered electric saws to large high-powered dieselmachines.

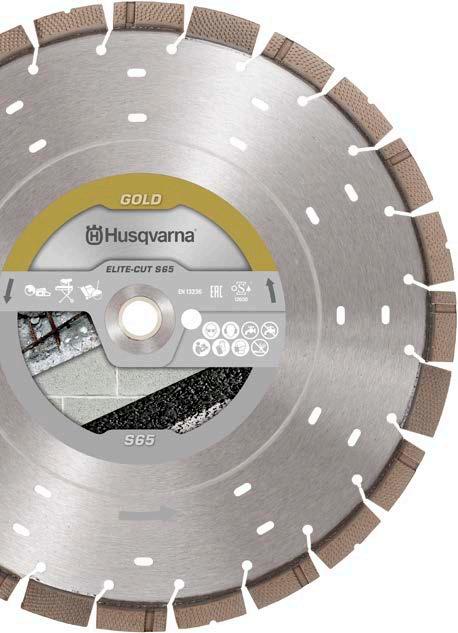

NEW EXO-GRIT BLADES
The new Elite-Cut S35, S45 and S65 blades for low-powered floor saws feature the EXO-GRIT diamond segment. This new design decreases lateral friction, improving the cutting speed and smoothness as well as providing better cooling and improved dust evacuation.
FLOOR SAWS
Our floor saw range includes everything from large, powerful road saws to small agile floor saws with reliable petrol engines.

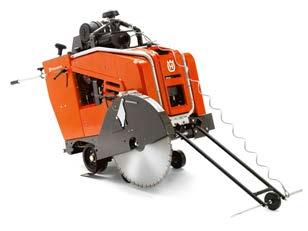

FS7000DL
Max cutting depth Output power Max blade diameter
623 mm 50.4 kW 1500 mm FS7000D
Max cutting depth Output power Max blade diameter
411 mm 50.4 kW 1000 mm
FS5000D
Max cutting depth Output power Max blade diameter
374 mm 35.5 kW 900 mm FS4800D*
Max cutting depth Output power Max blade diameter
*Not for sale in EU or North America
375 mm 35 kW 900 mm FS3500G
Max cutting depth Output power Max blade diameter
312 mm 27.5 kW 750 mm
HUSQVARNA DIAMOND TOOLS FOR FLOOR SAWING
The advanced design and high cutting speed of Husqvarna diamond blades make them the ideal choice for all sawing tasks. Available in Gold, Silver and Bronze performance levels.

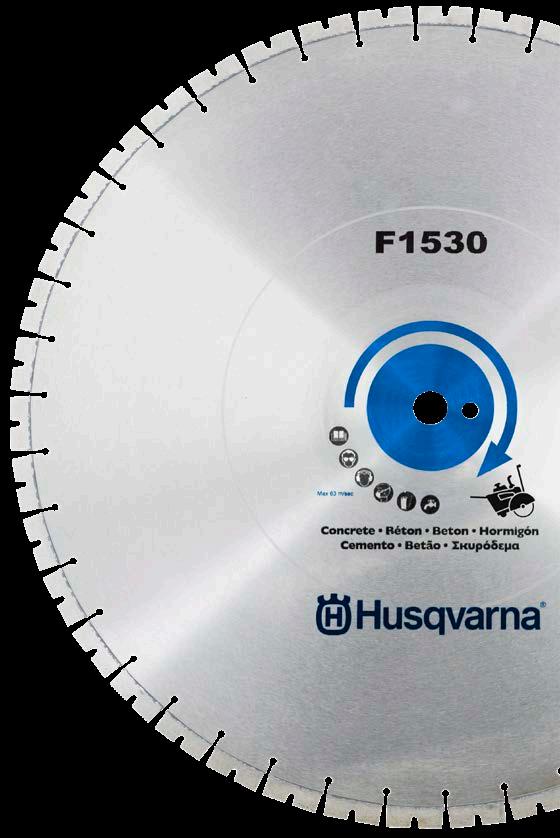

F-SERIES BLADES FOR HIGH- AND MID-POWERED FLOOR SAWS
The Gold level F-series diamond blades are developed floor saws 25 kW and up, with blade diameters typically ranging from 500 mm to 1500 mm. Our optimal diamond distribution technology ensures smooth and fast cutting.
FS600E
Max cutting depth Output power Max blade diameter
240 mm 7.5 kW 600 mm FS524
Max cutting depth Output power Max blade diameter
241 mm 15.5 kW 600 mm
FS500E
Max cutting depth Output power Max blade diameter
190 mm 7.5 kW 500mm FS413
Max cutting depth Output power Max blade diameter
189 mm 8.7 kW 500 mm
S-SERIES BLADES FOR LOW-POWERED FLOOR SAWS
For floor saws up to 25 kW, a wide range of blades for different materials are available for professional use and general contractors, such as the new Gold level EXO-GRIT blades with improved segment design for even more efficient cutting.
FS410D
Max cutting depth Output power Max blade diameter
189 mm 6.8 kW 500 mm FS400LV
Max cutting depth Output power Max blade diameter
162 mm / 187 mm 8.7 kW 450 mm / 500 mm
FS309
Max cutting depth Output power Max blade diameter
122 mm 6.3 kW 350 mm FS305
Max cutting depth Output power Max blade diameter
125 mm 3.6 kW 350 mm
FLOOR SAW ACCESSORIES
In our floor saw accessory range, you’ll find innovative solutions designed to let you get even more from your Husqvarna.
FIFTH WHEEL KIT
LIFTING BAIL
WEIGHT KIT, 30 KG DUAL LIGHT KIT WATER PUMP KIT

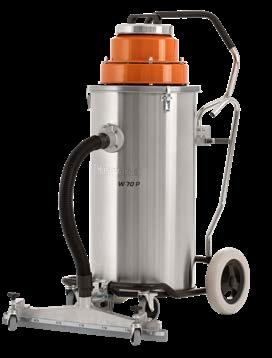

W70P DUST EXTRACTOR
Rated current Voltage Max vacuum Air flow Weight
