LEATT ADV Workbook 2024

SKETCHBOOK

WHAT IS AN

EAR

ADVENTURE

JACKETS & PANTS

• From April 2018 European 2016/425 directive became active, meaning

o All gear must be tested and approved by an independent party

o Gear must meet the directive to be officially legal to sell in European and UK markets

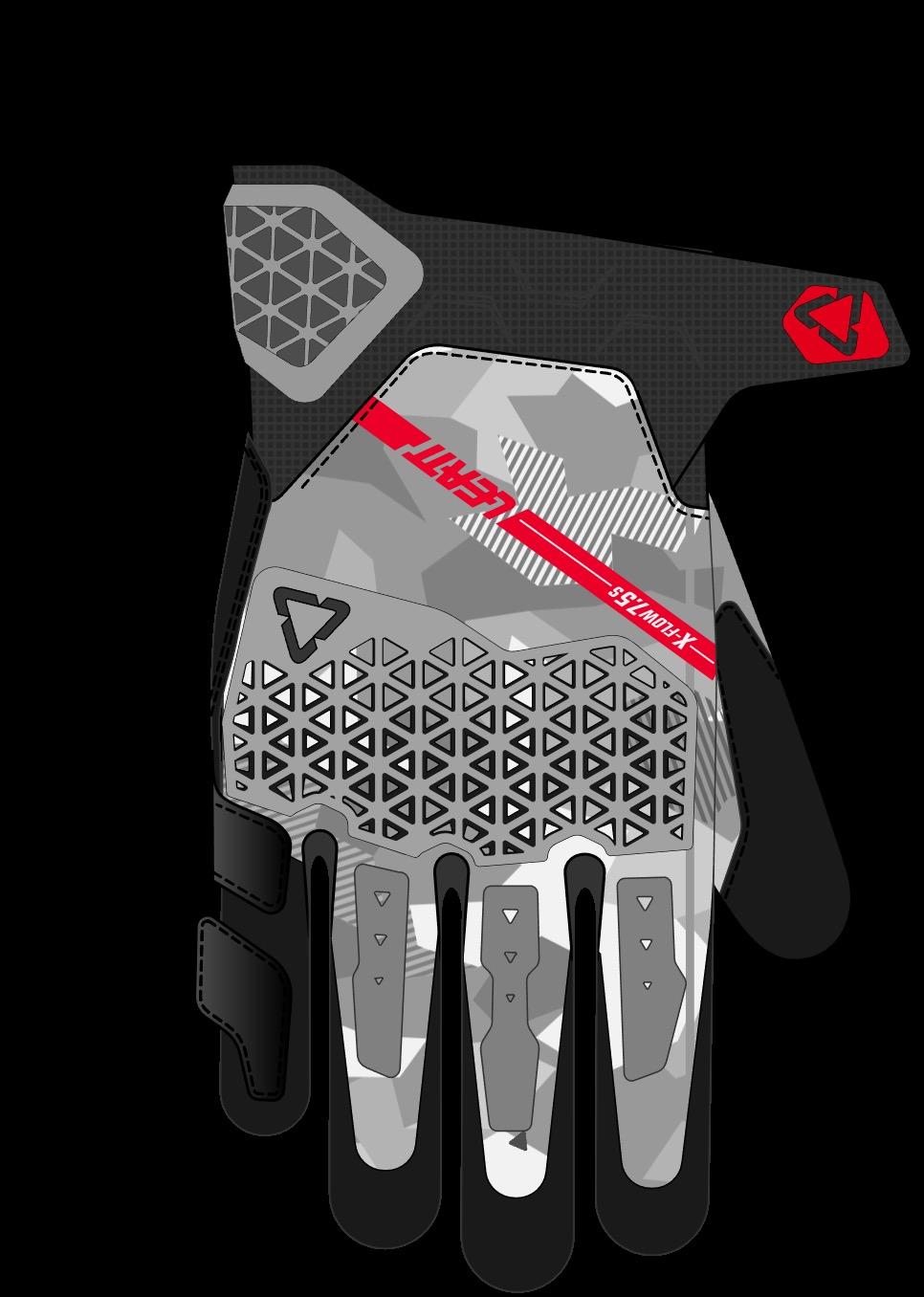

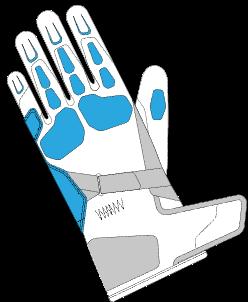

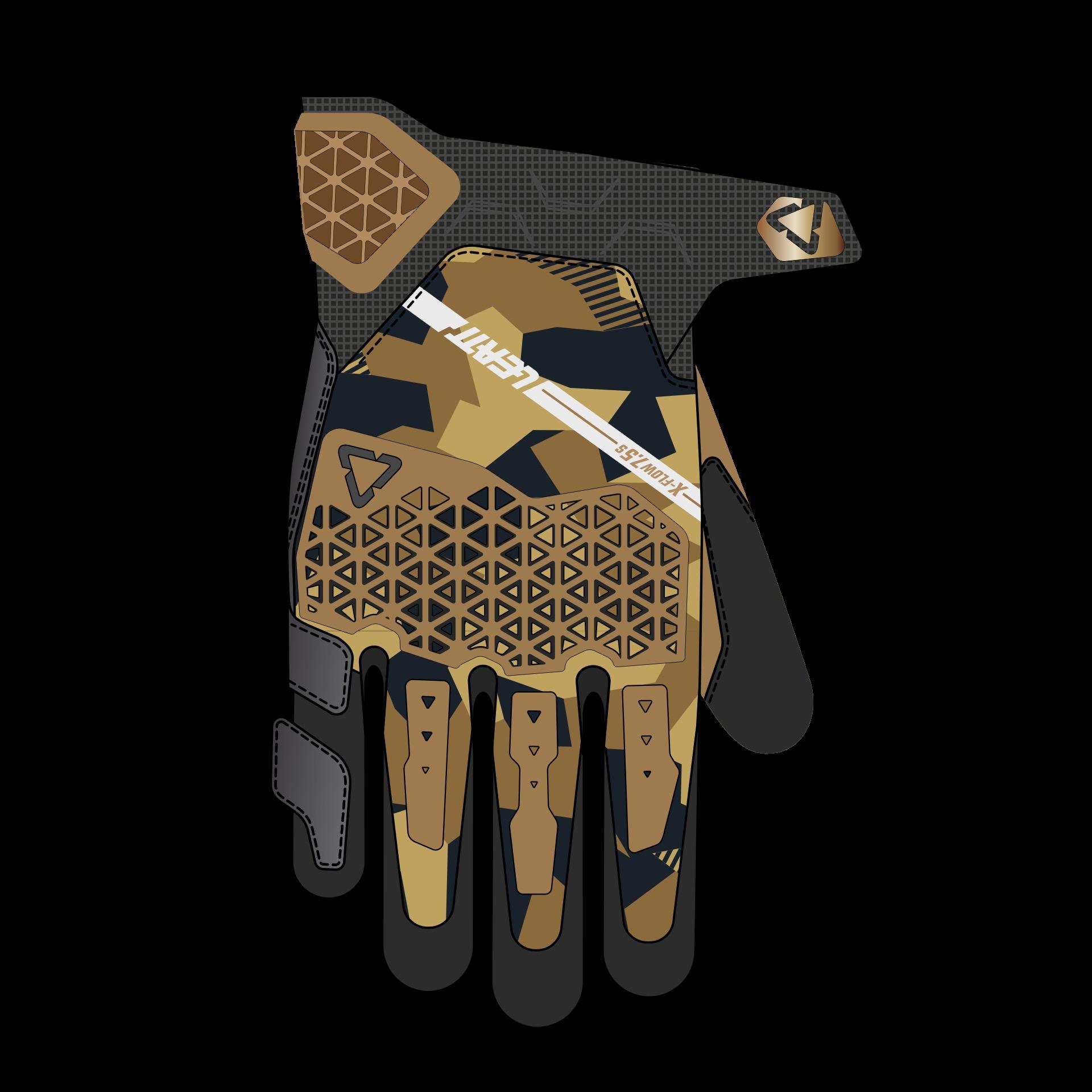

GLOVES

• For gloves there is and already was a suitable norm; EN 13594-2002.

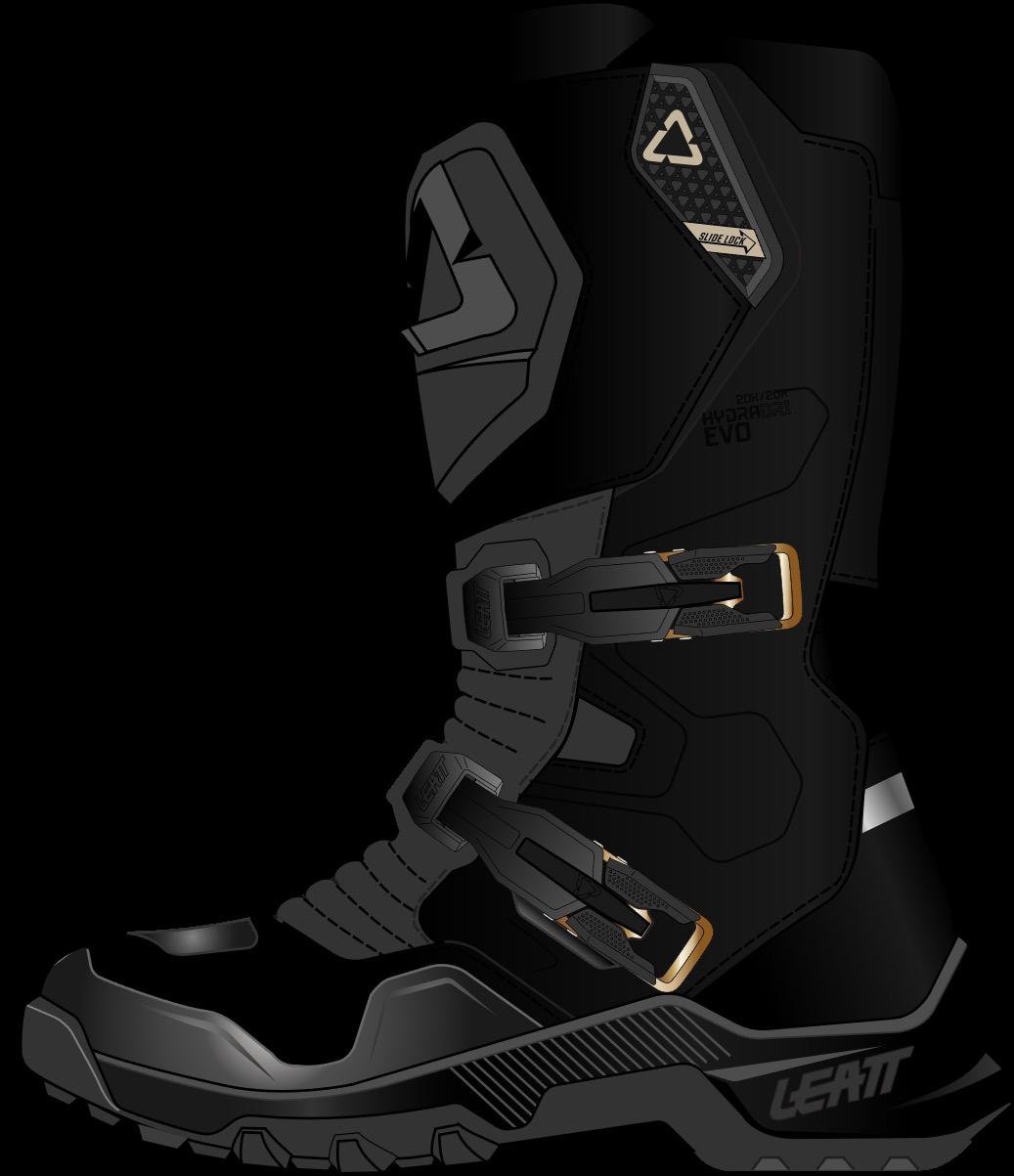

BOOTS

• The new ADV boots will follow the same norm as all our boots, there is no difference here, and no specific ADV/road norm is available.

IS IT MANDATORY TO WEAR GEAR WITH CE APPROVAL?

• As of today, only one European country enforces that gear needs approval. In France gloves need to have the CE ( EN13594 ) and Police could check a rider. All other gear is not mandatory, the approvals are strictly aiming at what can or can not be sold within the EU.

LEATT

FOR LEATT IT WASN’T SUCH A CHALLENGE

has always been a company that tested to ensure products are safe and last, so the step into having an independent notified body double checking is not a big one. We were already on track.

WHY IS ADVENTURE GEAR DIFFERENT TO OFF ROAD

When protection is added to a garment it will suggest you are selling protective gear for a motorcyclist that will travel on the road.

WHICH CE RATING AND WHY

• Leatt has chosen to follow the AA level, this is the most suitable to ensure, protection, quality and comfort.

• AAA is traditionally used for Leather suits, this tends to create discomfort and bulk.

• Level A would not to be up to the standard we set out to achieve in the initial brief.

• B and C are for different motorcycle use.

PROTECTION

PROTECTION IN CRITICAL AREAS

TECHNOLOGY

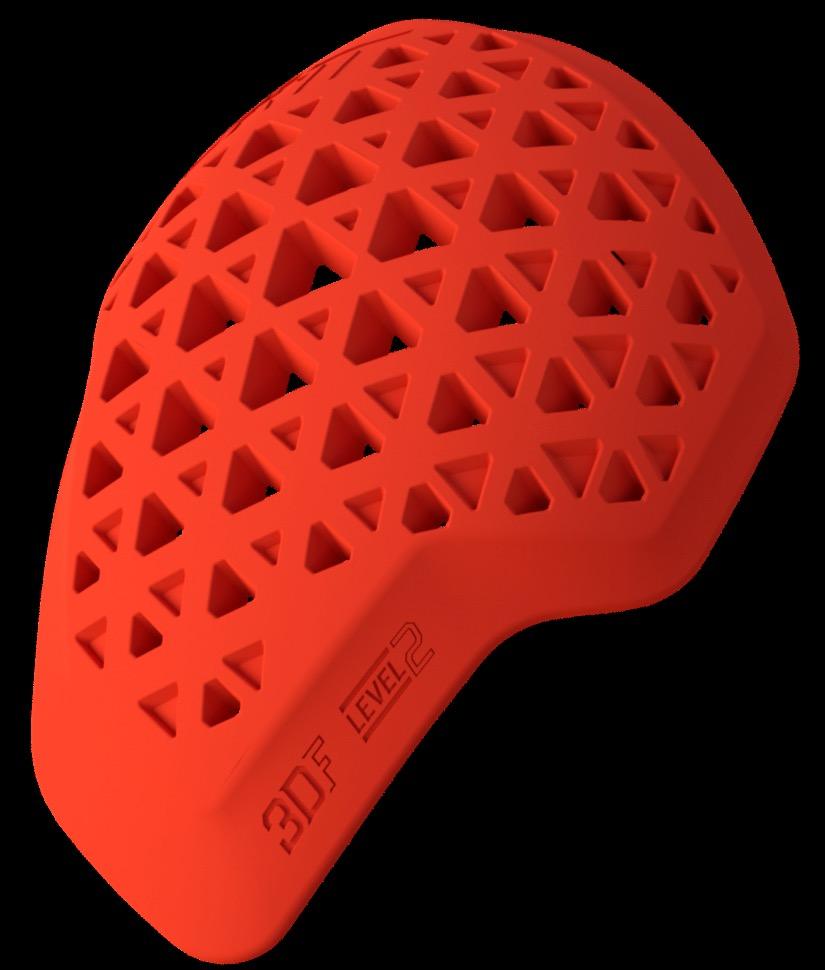

ENERGY ABSORBING IMPACT FOAM

Reduces forces during impact

MULTI-IMPACT

Can be impacted time and time again

SOFT & COMFORTABLE

Shapes to your body for best comfort

& LIGHTWEIGHT

Keeps bulk and weight to a minimum

NO MATTER WHICH LEVEL, ALL TESTS ARE THE SAME, BUT DEPENDING ON THE LEVEL, DEPENDS ON, FOR EXAMPLE SPEED OR TEAR STRENGTH IT NEEDS TO ACHIEVE.

INNOCUSNESS

• No harmful substances are used in materials, all materials are tested and separately approved

DIMENSIONAL STABILITY

• To ensure no change to product dimensions following washing and drying, and that the size and fit is within the standards for general size and fit

IMPACT TESTING

• Impact energy absorption of the insert following the mandatory EN 1621. Under AA level 1 as well as level 2 is permitted

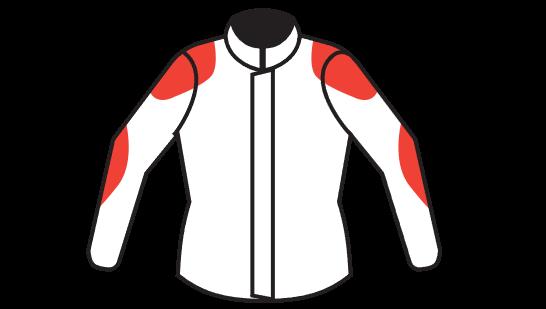

JACKET

o Elbow and Shoulder: Level 2

o Chest and Back are optional – Leatt chose level 2 back and provision for level 1 chest

PANTS

o Knee and Hip,

– Leatt chose level 2 knee and level 1 hip

IMPACT PROTECTORS LOCATION & FIXATION

• Must be positioned to cover the necessary impact area’s and are retained, even the protector pockets are tested on their seam strength and to ensure they keep the impact insert in place.

MATERIAL TESTING

• Abrasion resistance using Darmstadt method and machine, values according to each zone are used in.

o Seam testing, tear strength

o Tear strength of fabric according to the needs of each zone

o Color fading of fabrics

Independently Tested & Certified to AA Standard

AA CE STANDARD

• The second highest standard possible to achieve with CE

• The best balance for optimal safety with great comfort and rideability

PROTECTION TESTING & CE CERTIFICATION

• Chest Protection Level 1

• Back Protection Level 2 (highest protection level)

• Elbow & Shoulder Level 2 (highest protection level)

• Knee Protection Level 2 (highest protection level)

• Hip Protection Level 1

PROTECTION LOCATION & FIXATION

• Locations & Fixations techniques are Certified for optimal safety

CARE & WEAR

• All materials Chemical substances Certified

• Garment fit & size variation after wash & dry are certified

MATERIAL TESTING & CE CERTIFICATION

• Fabrics are Abrasion & Tear strength Certified per protection area

• Seams are Abrasion & Tear strength Certified

• Fabric Color fading passes Certification

TECHNOLOGY

ON ALL ADVENTURE

ADV MULTITOUR TECHNOLOGY

HEAVY-DUTY ALL-WEATHER SOLUTION

MATERIALS

• Heavyduty Leatt Ripstop outer shell

• Superfabric in critical impact areas

• Removable HydraDri waterproof casual inner jacket

CE TESTED AND CERTIFIED AS IMPACT PROTECTION

• Back EN1621 -2 Level 2

• Elbow and Shoulder EN1621 -1 Level 2

• Chest EN1621 -3 Level 1

5 YEAR WARRANTY

HYDRADRI MAX

3 0.000mm/30.000g/m ² Waterproof/Breathable

• Removable thermal casual liner

MULTITOUR JACKET

• All 3 layers, Outer jacket with HydraDri and thermal liners

• Outer jacket with HydraDri liner

• Outer jacket with thermal liner

• Outer jacket

• HydraDri and thermal liners as a casual jacket

• HydraDri liner as a casual jacket

OUTER SHELL WITH PROTECTORS

REMOVABLE HYDRADRI LINER

REMOVABLE THERMAL LINER

REMOVABLE HYDRADRI LINER

REMOVABLE

THERMAL LINER

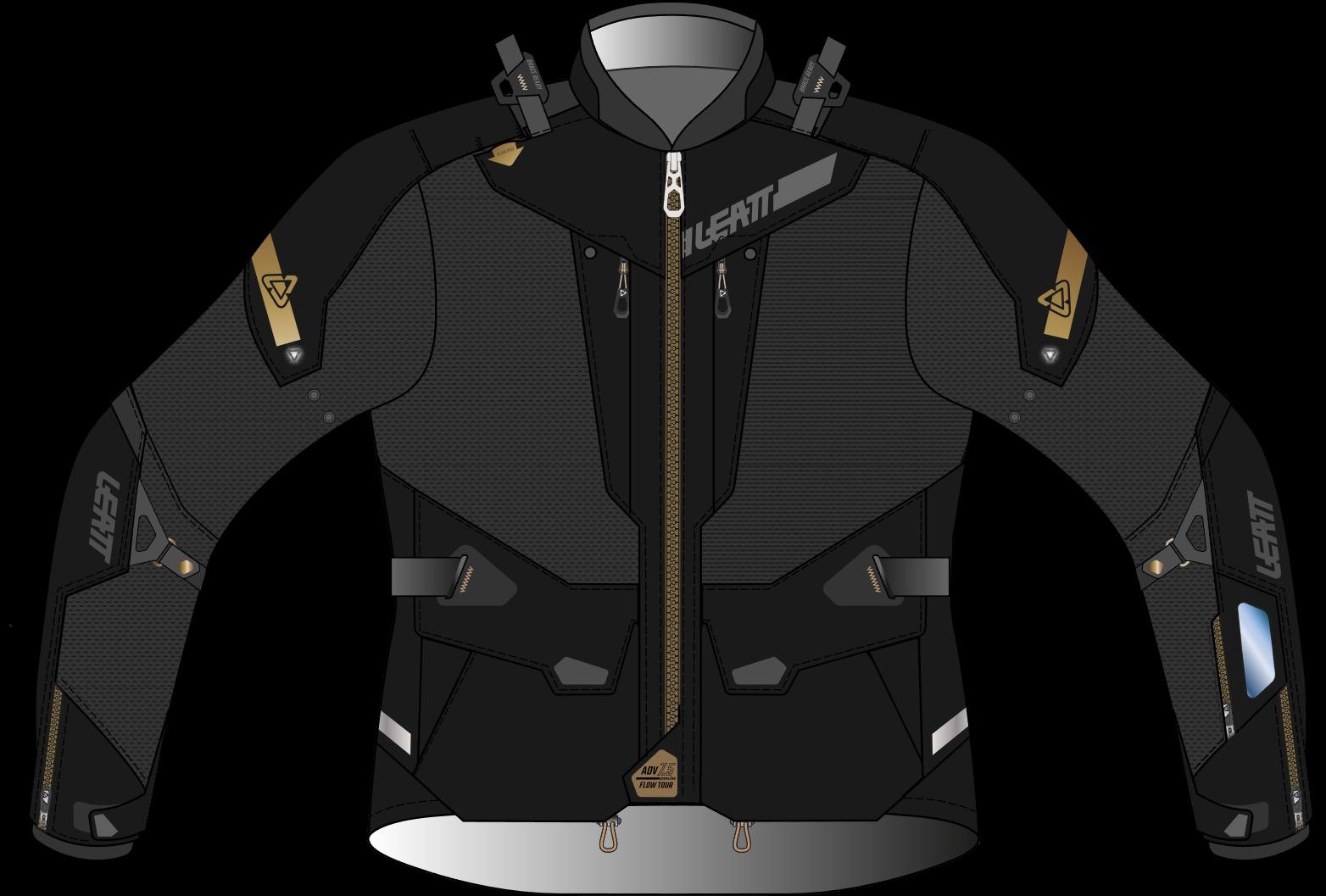

JACKET ADV HEAVY-DUTY ALL-WEATHER SOLUTION WITH IMPACT PROTECTION

• 5-year warranty included

• 6-way function

• Heavy-duty with removable waterproof/breathable and thermal liners

• HydraDri Max:

• 30.000mm/30.000g/m² Waterproof/Breathable

• EN 17092-3-2020, Class AA tested and approved

• CE tested and certified impact protection:

• Back EN1621-2 Level 2

• Elbow and Shoulder EN1621-1 Level 2

• Chest EN1621-3 Level 1

• Inner liner:

• Zipped in liner gives smooth sleeve entry

• Removable waterproof casual inner jacket

• Removeable thermal casual inner

• Materials:

• Leatt Ripstop main shell material

• Superfabric reinforcement areas

• Stretch material in cuffs

• Outer jacket storage:

• Large waterproof front pockets

• Handwarmer pockets

• Large rear waterproof pocket

• Rear mesh pocket for wet clothing

• Waterproof phone pocket

• Thermal inner jacket storage:

• Mesh pocket

• Waterproof inner jacket storage:

• Two zipped handwarmer pockets

• Ventilation:

• Large ventilation panels on chest and back

• Ventilation zippers on arms

• Adjustment and closure:

• Velcro double waist straps

• Upper arm

• Lower arm to secure protector

PARTNO:

DLA3000-039-S

DLA3000-039-M

DLA3000-039-L

DLA3000-039-XL

DLA3000-039-2XL

DLA3000-039-3XL

DESCRIPTION: PRICE:

Jacket ADV MultiTour 7 5 #SStealth

Jacket ADV MultiTour 7.5 #M Stealth

Jacket ADV MultiTour 7.5 #L Stealth

Jacket ADV MultiTour 7 5 #XL Stealth

Jacket ADV MultiTour 7.5 #XXL Stealth

Jacket ADV MultiTour 7.5 #3XL Stealth

• Velcro on cuff

• Velcro on hip

• Velcro Collar

• Long connection zipper for pant integration

• YKK main zippers

• Hydration:

• Rear HydraPak ready (1.5lt) pocket with integration for feed tube

• Feed tube clip holder

• Internal weight distribution straps

• Neck brace ready

• Reflective visibility detailing

• Sizing:

• S – 5XL

• Plastic free recyclable packaging

DLA3000-839-

DLA3000-839-

DLA3000-839-

DLA3000-839-

DLA3000-839-

DLA3000-839-

JACKET ADV

HEAVY-DUTY ALL-WEATHER SOLUTION WITH IMPACT PROTECTION

HYDRADRI MAX

3 0.000mm/30.000g/m ² Waterproof/Breathable

HEAVY-DUTY ALL-WEATHER SOLUTION

MATERIALS

• Leatt Ripstop main shell

• Superfabric in critical impact areas

• Removable waterproof liner

• Removable thermal liner

CE TESTED AND CERTIFIED AS IMPACT PROTECTION

• Knee EN1621 -2 Level 2

• Hip EN1621 -1 Level 1

5 YEAR WARRANTY

MULTITOUR PANTS

• All 3 layers, Outer pant with HydraDri and thermal liners

• Outer pant with HydraDri liner

• Outer pant with thermal liner

• Outer pant

OUTER SHELL WITH PROTECTORS REMOVABLE THERMAL LINER

REMOVABLE HYDRADRI WP LINER

PANT ADV

HEAVY-DUTY ALL-WEATHER SOLUTION WITH IMPACT PROTECTION

• 5-year warranty included

• 4-Way function

• Heavy duty waterproof, breathable and insulated with removable liners

• HydraDri Max:

• 30.000mm/30.000g/m² Waterproof/Breathable

• EN 17092-3-2020, Class AA tested and approved

• CE tested and certified as impact protection:

• Knee EN1621-1 Level 2

• Hip EN1621-1 Level 1

• Inner liners:

• Zipped in liners give smooth entry

• Removable waterproof liner

• Removeable thermal liner

• Material:

• Leatt RipStop main shell

• Superfabric reinforcements on high impact zones

• Heat resistant panels inside both lower legs

• Leather inside knees for grip and wear resistance

• Stretch areas in, Knee, crotch and back yoke

• Smooth non snagging material inside of boot area

• Storage:

• Large waterproof pockets on upper legs

• Zipped handwarmer pockets

• Ventilation:

• Ventilation zippers on front and back of legs

• Adjustment and closure:

• Ratchet system front closure

• Waist adjustment straps

• Adjustment strap at calf to fix protector in place

• Large lower leg velcro adjustment to work for wider over the boot fit

• Removable suspenders/braces

• Long connection zipper for jacket integration

DLA4000-039-S

DLA4000-039-M

DLA4000-039-L

DLA4000-039-XL

DLA4000-039-2XL

DLA4000-039-3XL

DLA4000-039-KXL

Pant ADV MultiTour 7.5 #S/US30/EU48 Stealth

Pant ADV MultiTour 7.5 #M/US32/EU50 Stealth

Pant ADV MultiTour 7.5 #L/US34/EU52 Stealth

Pant ADV MultiTour 7.5 #XL/US36/EU54 Stealth

Pant ADV MultiTour 7.5 #XXL/US38/EU56 Stealth

Pant ADV MultiTour 7.5 #3XL/US40/EU58 Stealth

Pant ADV MultiTour 7.5 #Short-XL/US36/EU54 Stealth

DLA4000-039-K2XL Pant ADV MultiTour 7.5 #Short-XXL/US38/EU56 Stealth

• YKK main zippers

• Reflective visibility detailing

• Sizing:

• S – 4XL (30-42”)

• Available in short leg length

• Plastic free recyclable packaging

ADV DRITOUR TECHNOLOGY

HEAVY-DUTY WATERPROOF

MATERIALS

• Direct laminated waterproof Leatt Ripstop main shell

• Superfabric in critical impact areas

• Removeable thermal casual inner jacket

CE TESTED AND CERTIFIED AS IMPACT PROTECTION

• Back EN1621 -2 Level 2

• Elbow and Shoulder EN1621 -1 Level 2

• Chest protector EN1621 -3 Level 1

HYDRADRI MAX

• Removeable thermal casual inner jacket

5 YEAR WARRANTY

3 0.000mm/30.000g/m

² Waterproof/Breathable

DRITOUR JACKET

HYDRADRI WP OUTER SHELL WITH PROTECTORS

REMOVABLE THERMAL LINER

• Outer jacket with thermal liner

• Outer jacket

• Thermal liner as a casual jacket

REMOVABLE THERMAL LINER

JACKET ADV

HEAVY-DUTY WATERPROOF WITH IMPACT PROTECTION

• 5-year warranty included

• 3-Way function

• Waterproof, breathable, laminated shell with removable thermal liner

• HydraDri Max:

• 30.000mm/30.000g/m² Waterproof/Breathable

• EN 17092-3-2020, Class AA tested and approved

• CE tested and certified as impact protection:

• Back EN1621-2 Level 2

• Elbow and Shoulder EN1621-1 Level 2

• Chest EN1621-3 Level 1

• Inner Liner:

• Zipped in liner gives smooth sleeve entry

• Removeable thermal casual inner jacket

• Materials:

• Direct laminated waterproof Leatt RipStop

• Superfabric reinforcements on high impact zones

• Stretch material in cuffs

• Outer jacket storage:

• Magnetic pocket closure

• Large waterproof front pockets

• Handwarmer pockets

• Large rear waterproof pocket

• Vertical, zipped waterproof phone pocket

• Thermal Inner liner jacket storage:

• Two zipped handwarmer pockets

• Mesh pocket in liner

• Ventilation:

• Ventilation zippers on chest

• Large mesh panel on back.

• Adjustment and closure:

• Velcro central waist 2 into 1 system

• Upper arm

• Lower arm to secure protector

• Velcro on cuff

• Velcro on hip

• Velcro collar

• Long connection zipper for pant integration

• YKK main zippers

• Neck brace ready

• Reflective visibility detailing

• Sizing:

• S

– 5XL

• Plastic free recyclable packaging

JACKET ADV

HEAVY-DUTY WATERPROOF WITH IMPACT PROTECTION

PARTNO: DESCRIPTION:

DLA3001-942-S Jacket ADV DriTour 7.5 #S Royal

DLA3001-942-M Jacket ADV DriTour 7.5 #M Royal

DLA3001-942-L Jacket ADV DriTour 7.5 #L Royal

DLA3001-942-XL Jacket ADV DriTour 7.5 #XL Royal

DLA3001-942-2XL Jacket ADV DriTour 7.5 #XXL Royal

ADV DRITOUR TECHNOLOGY

HEAVY-DUTY WATERPROOF

HYDRADRI MAX

3 0.000mm/30.000g/m ² Waterproof/Breathable

CE TESTED AND CERTIFIED AS IMPACT PROTECTION

• Knee EN1621 -2 Level 2

• Hip EN1621 -1 Level 1

MATERIALS

• Direct laminated waterproof Leatt Ripstop main shell

• Superfabric in critical impact areas

• Heat resistant panels inside both lower legs

• Removable thermal liner

5 YEAR WARRANTY

DRITOUR PANTS

• Outer pant with thermal liner

• Outer pant

HYDRADRI WP OUTER SHELL WITH PROTECTORS

REMOVABLE THERMAL LINER

PANT ADV

HEAVY-DUTY WATERPROOF WITH IMPACT PROTECTION

• 5-year warranty included

• 2-Way function

• Laminated Waterproof, breathable with removable thermal liner

• HydraDri Max:

• 30.000mm/30.000g/m² Waterproof/Breathable

• EN 17092-3-2020, Class AA tested and approved

• CE tested and certified as impact protection:

• Knee EN1621-1 Level 2

• Hip EN1621-1 Level 1

• Inner liner:

• Removeable thermal liner

• Material:

• Direct laminated waterproof Leatt RipStop

• Superfabric reinforcements on high impact zones

• Heat resistant panels inside both lower legs

• Leather inside knees for grip and wear resistance

• Stretch areas, at knee, knee hollow, crotch and back yoke

• Smooth non snagging material inside of boot area

• Storage:

• Large waterproof pockets, zipped with magnetic closure

• Zipped handwarmer pockets

• Ventilation:

• Ventilation zippers on back of legs

• Adjustment and closure:

• Ratchet system front closure

• Waist adjustment straps

• Adjustment strap at calf to fix protector in place

• Large lower leg velcro adjustment to work for wider over the boot fit

• Removable suspenders/braces

• Long connection zipper for jacket integration

• YKK main zippers

• Reflective visibility detailing

• Sizing:

• S – 4XL (30-42”)

• Available in short leg length

• Plastic free recyclable packaging

PARTNO:

PANT ADV

HEAVY-DUTY WATERPROOF WITH IMPACT PROTECTION

DESCRIPTION:

DLA4001-039-S Pant ADV DriTour 7.5 #S/US30/EU48 Stealth

DLA4001-039-M Pant ADV DriTour 7.5 #M/US32/EU50 Stealth

DLA4001-039-L Pant ADV DriTour 7.5 #L/US34/EU52 Stealth

DLA4001-039-XL Pant ADV DriTour 7.5 #XL/US36/EU54 Stealth

DLA4001-039-2XL Pant ADV DriTour 7.5 #XXL/US38/EU56 Stealth

DLA4001-039-3XL Pant ADV DriTour 7.5 #3XL/US40/EU58 Stealth

DLA4001-039-4XL Pant ADV DriTour 7.5 #4XL/US42/EU60 Stealth

DLA4001-039-KXL Pant ADV DriTour 7.5 #Short-XL/US36/EU54 Stealth

DLA4001-039-K2XL Pant ADV DriTour 7.5 #Short-XXL/US38/EU56 Stealth

DLA4001-039-K3XL Pant ADV DriTour 7.5

DLA4001-039-K4XL Pant ADV DriTour 7.5

PARTNO:

DESCRIPTION:

DLA4001-093-S Pant ADV DriTour 7.5 #S/US30/EU48 Steel

DLA4001-093-M Pant ADV DriTour 7.5 #M/US32/EU50 Steel

DLA4001-093-L Pant ADV DriTour 7.5 #L/US34/EU52 Steel

DLA4001-093-XL Pant ADV DriTour 7.5 #XL/US36/EU54 Steel

#Short-3XL/US40/EU58 Stealth

#Short-4XL/US42/EU60 Stealth

DLA4001-093-2XL Pant ADV DriTour 7.5 #XXL/US38/EU56 Steel

DLA4001-093-3XL Pant ADV DriTour 7.5 #3XL/US40/EU58 Steel

ADV FLOWTOUR TECHNOLOGY

VENTILATED WITH WATERPROOF OPTION

MATERIALS

• Leatt Ripstop main shell

• Large X -Flow mesh panels

• Removable waterproof casual liner for use inside or outside the main shell

CE TESTED AND CERTIFIED AS IMPACT PROTECTION

• Back EN1621 -2 Level 2

• Elbow and Shoulder EN1621 -1 Level 2

• Chest protector EN1621 -3 Level 1

5 YEAR WARRANTY

HYDRADRI MAX

30.000mm/30.000g/m ² Waterproof/Breathable

• Removable waterproof casual liner for use inside or outside the main shell

FLOWTOUR JACKET

• Outer jacket with HydraDri liner on the inside

• Outer jacket with HydraDri liner on the outside of the main jacket

• Outer jacket

• HydraDri casual jacket

OPTION

1 OPTION 2 OPTION

REMOVABLE HYDRADRI

WP LINER

REMOVABLE HYDRADRI WP LINER ON INSIDE

JACKET ADV

VENTILATED WITH WATERPROOF OPTION AND IMPACT PROTECTION

• 5-year warranty included

• 4-Way function

• Ventilated for permanent airflow with removable waterproof liner

• HydraDri Max:

• 30.000mm/30.000g/m² Waterproof/Breathable

• EN 17092-3-2020, Class AA tested and approved

• CE tested and certified as impact protection:

• Back EN1621-2 Level 2

• Elbow and Shoulder EN1621-1 Level 2

• Chest EN1621-3 Level 1

• Inner liner:

• Zipped in liner gives smooth sleeve entry

• Removeable waterproof inner casual jacket can be used, outside or inside main shell

• Material:

• Leatt RipStop main shell material

• Large X-Flow mesh panels

• Collar with soft neoprene finish

• Outer jacket storage:

• Large waterproof front pockets

• Zipped chest pockets

• Handwarmer pockets

• Large rear waterproof pocket

• Waterproof phone pocket

• Waterproof inner jacket storage:

• Two zipped handwarmer pockets

• phonepocket

• Adjustment and closure:

• Velcro Waist straps

• Upper arm

• Lower arm to secure protector

• Zip and Velcro cuff closure

• Velcro on hem

• Long connection zipper for pant integration

• YKK main zippers

• Hydration:

• Rear HydraPak ready (1.5lt) pocket with integration for feed tube

• Feed tube clip holder

• Internal weight distribution straps

• Neck brace ready

• Reflective visibility detailing

• Sizing:

• S – 5XL

• Plastic free recyclable packaging

PARTNO

DLA3003-838-

DLA3003-838-

DLA3003-838-

DLA3003-838-

DLA3003-838-

DLA3003-838-

JACKET ADV

VENTILATED WITH WATERPROOF OPTION AND IMPACT PROTECTION

ADV FLOWTOUR TECHNOLOGY

HYDRADRI MAX

3 0.000mm/30.000g/m ² Waterproof/Breathable

CE TESTED AND CERTIFIED AS IMPACT PROTECTION

• Knee EN1621 -2 Level 2

• Hip EN1621 -1 Level 1

MATERIALS

• Ventilated Leatt Ripstop main shell

• Heat resistant panels inside both lower legs

• Removable waterproof liner

5 YEAR WARRANTY

FLOWTOUR PANTS

• Outer pant with HydraDri liner

• Outer pant

VENTILATED OUTER SHELL WITH PROTECTORS

REMOVABLE HYDRADRI WP LINER

PANT ADV

VENTILATED WITH WATERPROOF OPTION AND IMPACT PROTECTION

PART NO: DESCRIPTION

DLA4002-039-S Pant ADV FlowTour 7.5 #S/US30/EU48 Stealth

DLA4002-039-M Pant ADV FlowTour 7.5 #M/US32/EU50 Stealth

DLA4002-039-L Pant ADV FlowTour 7.5 #L/US34/EU52 Stealth

DLA4002-039-XL Pant ADV FlowTour 7.5 #XL/US36/EU54 Stealth

DLA4002-039-2XL Pant ADV FlowTour 7.5 #XXL/US38/EU56 Stealth

DLA4002-039-3XL Pant ADV FlowTour 7.5 #3XL/US40/EU58 Stealth

DLA4002-039-KXL Pant ADV FlowTour 7.5 #Short-XL/US36/EU54 Stealth

DLA4002-039-K2XL Pant ADV FlowTour 7.5 #Short-XXL/US38/EU56 Stealth

• 5-year warranty included

• 2-Way function

• Ventilated for permanent airflow

• HydraDri Max:

• 30.000mm/30.000g/m² Waterproof/Breathable

• EN 17092-3-2020, Class AA tested and approved

• CE tested and certified as impact protection:

• Knee EN1621-1 Level 2

• Hip EN1621-1 Level 1

• Inner liner:

• Removable waterproof liner

• Material:

• Leatt RipStop main shell

• Leather reinforcements inside of knees

• Heat resistant panels on lower inside leg

• Stretch areas, at knee, knee hollow, crotch and back yoke

• Smooth non snagging material inside of boot area

• Storage:

PRICE:

• Large waterproof pockets

• Zipped handwarmer pockets

• Adjustment and closure:

• Ratchet system front closure

• Waist adjustment straps

• Adjustment strap at calf to fix protector in place

• Large lower leg velcro adjustment to work for wider over the boot fit

• Removable suspenders/braces

• Long connection zipper for jacket integration

• YKK zippers

• Reflective visibility detailing

• Sizing:

• S – 4XL (30-42”)

• Available in short leg length

• Plastic free recyclable packaging

TECHNOLOGY

COLD WEATHER AND WATERPROOF

PROTECTION

• CE tested and certified as impact protection

• Knuckle EN13594: 2015

• 3DF soft impact foam

• Dual layer material used in

HYDRADRI EVO

20.000mm/20.000g/m ² Waterproof/Breathable

LENGTH

Available in both standard and short

GLOVE ADV

COLD WEATHER AND WATERPROOF WITH IMPACT PROTECTION

• Cold weather, waterproof, breathable with impact protection

• HydraDri EVO:

• 20.000mm/20.000g/m² Waterproof/Breathable

• CE tested and certified as impact protection:

• Knuckle EN13594: 2015 Level 1

• Protection:

• 3DF soft impact foam

• TPR protection on fingers, with palm sliders

• Dual layer material used in critical impact area’s

• Length:

• Available in both standard and short

• Standard length has Velcro FreeFlex strap fastening gives great range on motion in wrist area

PARTNO: DESCRIPTION:

DLA6000-039-S Glove ADV SubZero 7.5 #S/EU7/US8 Stealth

DLA6000-039-M Glove ADV SubZero 7.5 #M/EU8/US9 Stealth

DLA6000-039-L Glove ADV SubZero 7.5 #L/EU9/US10 Stealth

DLA6000-039-XL Glove ADV SubZero 7.5 #XL/EU10/US11 Stealth

DLA6000-039-2XL Glove ADV SubZero 7.5 #XXL/EU11/US12 Stealth

DLA6000-039-3XL Glove ADV SubZero 7.5 #3XL/EU12/US13 Stealth

• Material:

• Thermal insulated

• Leather seamless palm

• Stretch Micro Leatt RipStop

• Multi-row, technical thread stitching for durability

• Fit:

• Pull loop at cuff for easy entry

• Closure:

• Velcro cuff closure

• Features:

• Rain/screen wiper on left thumb

• Reflective detailing

• Sizing:

• S-XXXL

• Plastic free recyclable packaging

ADV HYDRADRI TECHNOLOGY

WATERPROOF WITH IMPACT PROTECTION

PROTECTION

• CE tested and certified as impact protection

• Knuckle EN13594: 2015

• 3DF soft impact foam

• Dual layer material used

HYDRADRI EVO

20.000mm/20.000g/m ²

Waterproof/Breathable

MATERIALS

• Stretch Micro Leatt Ripstop

• Leather seamless palm

LENGTH

Available in both standard and short

GLOVE ADV

WATERPROOF WITH IMPACT PROTECTION

PARTNO: DESCRIPTION:

DLA6002-039-S Glove ADV HydraDri 7.5 #S/EU7/US8 Stealth

DLA6002-039-M Glove ADV HydraDri 7.5 #M/EU8/US9 Stealth

DLA6002-039-L Glove ADV HydraDri 7.5 #L/EU9/US10 Stealth

DLA6002-039-XL Glove ADV HydraDri 7.5 #XL/EU10/US11 Stealth

DLA6002-039-2XL Glove ADV HydraDri 7.5 #XXL/EU11/US12 Stealth

DLA6002-039-3XL Glove ADV HydraDri 7.5 #3XL/EU12/US13 Stealth

• Waterproof, breathable with impact protection

• HydraDri EVO:

• 20.000mm/20.000g/m² Waterproof/Breathable

• CE tested and certified as impact protection:

• Knuckle EN13594: 2015 Level 1

• Protection:

• 3DF soft impact foam

• TPR protection on fingers, with palm sliders

• Dual layer material used in critical impact area’s

• Length:

• Available in both standard and short

• Standard length has Velcro FreeFlex strap fastening gives great range on motion in wrist area

• Material:

• Leather seamless palm

• Stretch Micro Leatt RipStop

• Multi-row, technical thread stitching for durability

• Fit:

• Pull loop at cuff for easy entry

• Closure:

• Velcro cuff closure

• Features:

• Rain/screen wiper on left thumb

• Reflective detailing

• Sizing:

• S-XXXL

• Plastic free recyclable packaging

GLOVE ADV

WATERPROOF WITH IMPACT PROTECTION

PARTNO: DESCRIPTION:

DLA6003-039-S Glove ADV Hydradri 7.5 Short #S/EU7/US8 Stealth

DLA6003-039-M

DLA6003-039-L

DLA6003-039-XL

DLA6003-039-2XL

DLA6003-039-3XL

Glove ADV Hydradri 7.5 Short #M/EU8/US9 Stealth

Glove ADV Hydradri 7.5 Short #L/EU9/US10 Stealth

Glove ADV Hydradri 7.5 Short #XL/EU10/US11 Stealth

Glove ADV Hydradri 7.5 Short #XXL/EU11/US12 Stealth

Glove ADV Hydradri 7.5 Short #3XL/EU12/US13 Stealth

PARTNO: DESCRIPTION:

DLA6003-099-S

DLA6003-099-M

DLA6003-099-L

DLA6003-099-XL

DLA6003-099-2XL

Glove ADV Hydradri 7.5 Short #S/EU7/US8 Camo

Glove ADV Hydradri 7.5 Short #M/EU8/US9 Camo

Glove ADV Hydradri 7.5 Short #L/EU9/US10 Camo

Glove ADV Hydradri 7.5 Short #XL/EU10/US11 Camo

Glove ADV Hydradri 7.5 Short #XXL/EU11/US12 Camo

ADV X - FLOW TECHNOLOGY

VENTILATED WITH IMPACT PROTECTION

MATERIALS

• NanoGrip palm

• Gives superior bike feel

• Ultimate dry and wet grip

• Nano fiber technology

• 7.500 times thinner than hair

PROTECTION

• CE tested and certified as impact protection

• Knuckle EN13594: 2015 Level 1

• ReaFlex soft impact gel

• Dual layer material used in critical impact areas

LENGTH

Available in both standard and short

GLOVE ADV

VENTILATED WITH IMPACT PROTECTION AND GREAT FEEL

• Ventilated for permanent airflow with impact protection

• CE tested and certified as impact protection:

• Knuckle EN13594: 2015 Level 1

• Protection:

• ReaFlex soft impact gel

• Dual layer material used in critical impact area’s

• Gel padding protection for palm

• Length:

• Available in both standard and short

• Standard has Velcro FreeFlex strap fastening gives great range on motion in wrist area

PARTNO: DESCRIPTION:

DLA6004-039-S Glove ADV X-Flow 7.5 #S/EU7/US8 Stealth

DLA6004-039-M Glove ADV X-Flow 7.5 #M/EU8/US9 Stealth

DLA6004-039-L Glove ADV X-Flow 7.5 #L/EU9/US10 Stealth

DLA6004-039-XL Glove ADV X-Flow 7.5 #XL/EU10/US11 Stealth

DLA6004-039-2XL Glove ADV X-Flow 7.5 #XXL/EU11/US12 Stealth

DLA6004-039-3XL Glove ADV X-Flow 7.5 #3XL/EU12/US13 Stealth

• Material:

• NanoGrip palm

• Gives superior bike feel

• Ultimate dry and wet grip

• Nano fiber technology 7.500 times thinner than hair

• Multi-row, and technical stretch stitch thread for strength and durability

• Fit:

• Pre-curved, snug fit and seamless palm

• FormFit finger stitching gives ultimate feel and grip

• Closure:

• Velcro cuff closure

• Velcro FreeFlex strap fastening gives great range on motion in wrist area

• Sizing:

• S-XXXL

• Plastic free recyclable packaging

GLOVE ADV

VENTILATED WITH IMPACT PROTECTION AND GREAT FEEL

DLA6004-838-S Glove ADV X-Flow 7.5 #S/EU7/US8 Desert

DLA6004-838-M Glove ADV X-Flow 7.5 #M/EU8/US9 Desert

GLOVE ADV

VENTILATED WITH IMPACT PROTECTION AND GREAT FEEL

PARTNO: DESCRIPTION:

DLA6005-039-S Glove ADV HydraDri 7.5 Short #S/EU7/US8 Stealth

DLA6005-039-M Glove ADV HydraDri 7.5 Short #M/EU8/US9 Stealth

DLA6005-039-L Glove ADV HydraDri 7.5 Short #L/EU9/US10 Stealth

DLA6005-039-XL Glove ADV HydraDri 7.5 Short #XL/EU10/US11 Stealth

DLA6005-039-2XL Glove ADV HydraDri 7.5 Short #XXL/EU11/US12 Stealth

DLA6005-039-3XL Glove ADV HydraDri 7.5 Short #3XL/EU12/US13 Stealth

PARTNO: DESCRIPTION:

DLA6005-093-S Glove ADV HydraDri 7.5 Short #S/EU7/US8 Steel

DLA6005-093-M Glove ADV HydraDri 7.5 Short #M/EU8/US9 Steel

DLA6005-093-L Glove ADV HydraDri 7.5 Short #L/EU9/US10 Steel

DLA6005-093-XL Glove ADV HydraDri 7.5 Short #XL/EU10/US11 Steel

DLA6005-093-2XL Glove ADV HydraDri 7.5 Short #XXL/EU11/US12 Steel

GLOVE ADV

VENTILATED WITH IMPACT PROTECTION AND GREAT FEEL

PARTNO: DESCRIPTION:

DLA6005-838-S Glove ADV HydraDri 7.5 Short #S/EU7/US8 Camo

DLA6005-838-M Glove ADV HydraDri 7.5 Short #M/EU8/US9 Camo

DLA6005-838-L Glove ADV HydraDri 7.5 Short #L/EU9/US10 Camo

DLA6005-838-XL Glove ADV HydraDri 7.5 Short #XL/EU10/US11 Camo

DLA6005-838-2XL Glove ADV HydraDri 7.5 Short #XXL/EU11/US12 Camo

PROTECTION:

ReaFlex Impact Gel -

3DF Impact Foam -

Palm Slider -

Gel Padding Palm - -

NanoGrip Palm - -

Primaloft Insulated - -

MATERIAL:

Leather Seamless Palm -

Stretch Micro Leatt RipStop -

FIT:

Pull LoopPre-Curved - -

FormFit Finger Stitching - -

Rain/Screen Wiper -

FEATURES:

Reflective Detailing -

Velcro Cuff Closure

CLOSURE:

Velcro FreeFlex (Not Short Version) - -

PROTECTION AREAS:

BOOTS

ADV HYDRADRI TECHNOLOGY

WATERPROOF, PROTECTIVE AND ALL-DAY COMFORT

PROTECTION

• Flex limiter for improved boot control

• Impact reinforced shin plate

• 3DF Impact foam protection in ankle area’

SLIDELOCK

• Auto -locking one -way sliding closure that offers the best seal around top of the boot

HYDRADRI EVO

20.000mm/20.000g/m ² Waterproof/Breathable

TOE -BOX

• Shaped profile for easy gear changing

SOLE

• ADV pattern for great feel on and off the bike

BOOT ADV

WATERPROOF, PROTECTIVE AND ALL-DAY COMFORT

PARTNO: DESCRIPTION:

DLA7000-039-40.5

DLA7000-039-42

DLA7000-039-43

DLA7000-039-44.5

DLA7000-039-45.5

DLA7000-039-47

Boot ADV HydraDri 7.5 #US7/UK6/EU40.5/CM27.5 Stealth

Boot ADV HydraDri 7.5 #US8/UK7/EU42/CM27.5 Stealth

Boot ADV HydraDri 7.5 #US9/UK8/EU43/CM27.5 Stealth

Boot ADV HydraDri 7.5 #US10/UK9/EU44.5/CM29 Stealth

Boot ADV HydraDri 7.5 #US11/UK10/EU45.5/CM29.5 Stealth

Boot ADV HydraDri 7.5 #US12/UK11/EU47/CM30.5 Stealth

• Waterproof, breathable membrane

• HydraDri EVO:

• 20.000mm/20.000g/m² Waterproof/Breathable

• Nubuck leather for durability with additional exterior waterproof treatment.

• Fit:

• Great comfort and fit even for wide feet

• CE certified

• Closure:

• SlideLock system, Auto-locking one way sliding closure for great seal at top of boot

• Forged aluminum buckles with Over-lock system and stainless-steel base

• Bike Grip:

• Flat inner side profile with protective and grippy TPU panel

• Toe-Box:

• Shaped-profile, for easy gear shifting

• Protection:

• Ankles:

• Flex limiter for improved boot control

• 3DF Impact foam protection in ankle area’

• Shin:

• Impact reinforced shin plate

• Heel:

• Sole:

• Shaped support

• ADV pattern for great feel on and off the bike

• Mid-sole foam for damping effect

• Oil and petrol resistant sole

• Steel shank reinforced and CE certified

• CE tested and certified as:

• prEN 13634: 2017

• Sizing:

• US 7-13, UK 6-12, EU 40.5-48, CM 25,5 -31

• Plastic free recyclable packaging

distributed by

hostettler gmbh

Neuenburger Straße 33 79379 Müllheim/Baden

T +49 7631 1804 -0 order@hostettler.de www.hostettler.de
