Trimble releases PreDesign as part of SketchUp Pro & SketchUp Studio

On 17 November 2020 Trimble released PreDesign, a new service for SketchUp’s professional & student subscribers, which enables architects and designers to test design strategies and understand how a site’s climate and environment will impact design proposals. Created to help better prepare designers for the conceptual phase, PreDesign also provides the data and graphics needed to articulate and build a narrative around early-stage climate-related design decisions.

Nowadays it is relatively common for architects and consultants to run analysis on weather data as part of the research process at the start of the design. A challenge with this process has been converting this data into useful information that can push the initial design in a more sustainable direction. PreDesign tries to do this by converting the weather into design guidance, and including easy-to-interpret graphics that can be added to presentations and reports.

The app generates results with a location and building type. It then analyses weather sourced from climate.onebuilding.org to present guidance across 6 categories:

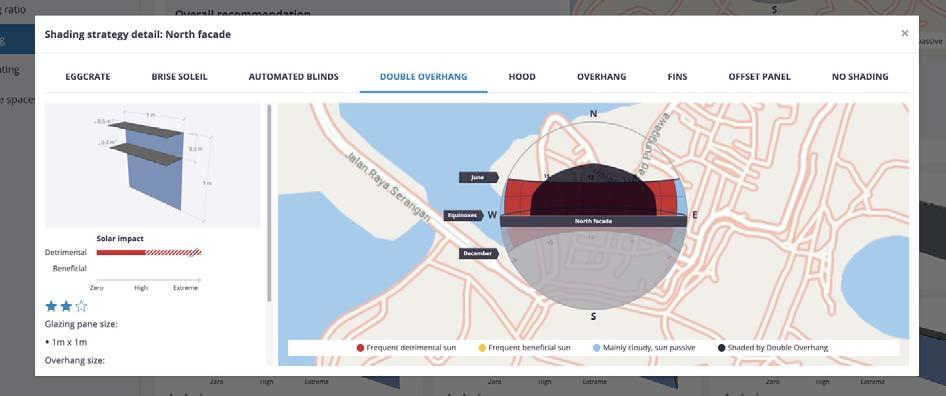

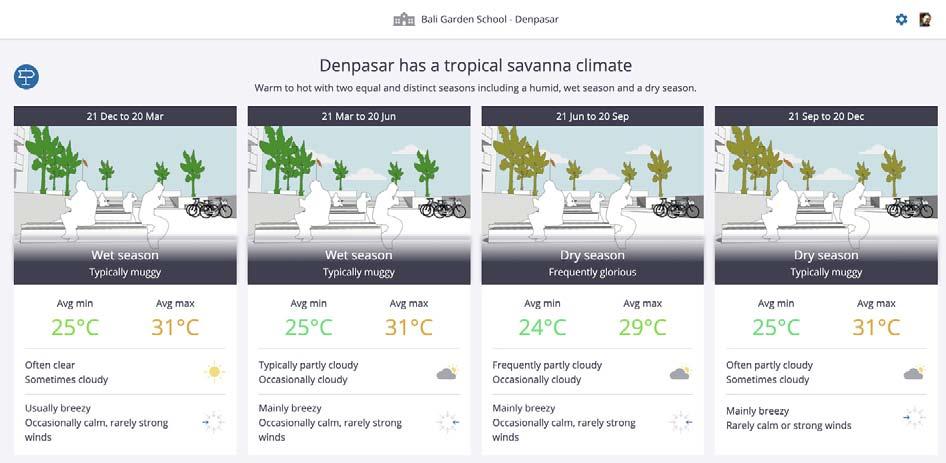

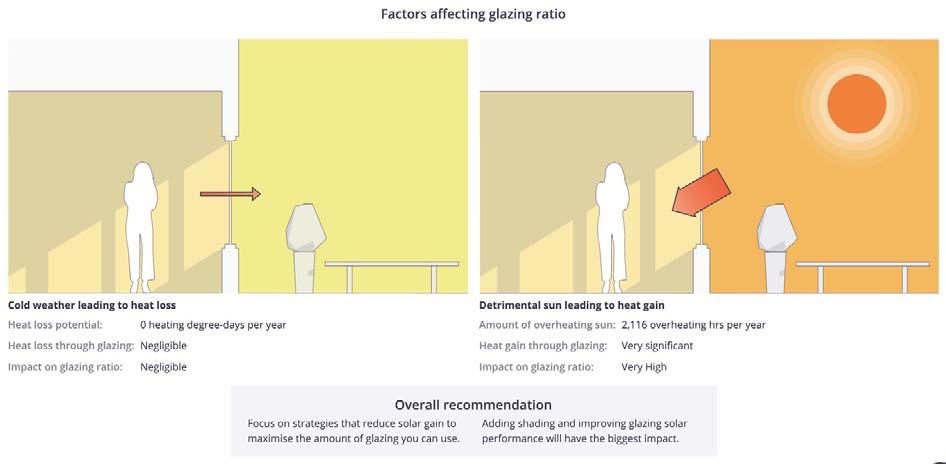

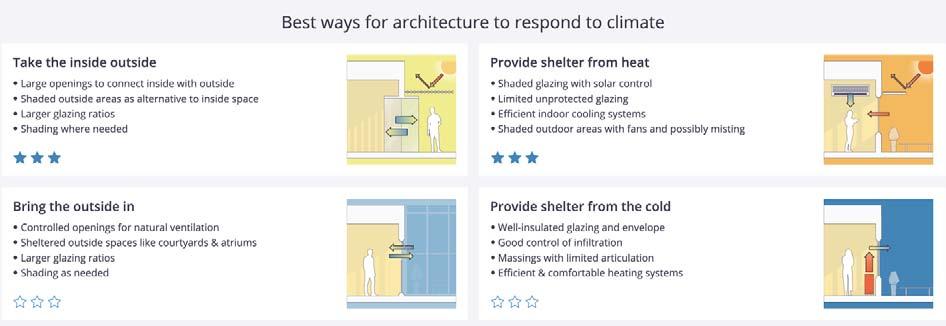

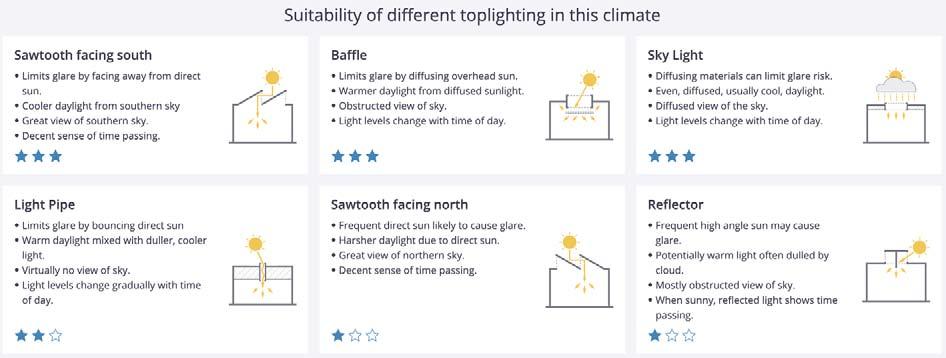

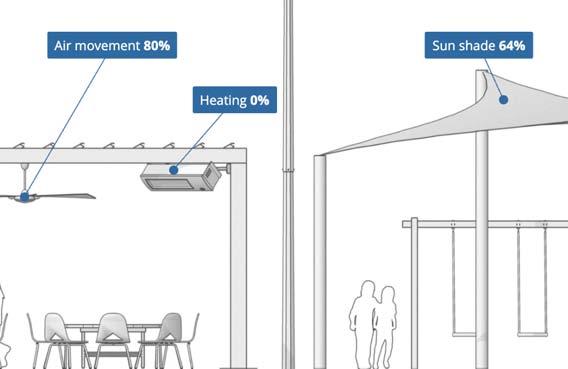

n Seasons n Architectural Response n Glazing Ratio n Shading n Toplighting n Outside Spaces

Experienced consultants and academics may see results from PreDesign and think “well of course, that’s obvious”. However the point for experienced practitioners is that PreDesign can help join the dots when explaining the implications of climate research to clients, designers and students with less building physics knowledge. If you’re in an architecture fi rm, it’s a great way to get designers, who may not be thinking about these issues at all, to incorporate climate into their design research.

The app is accessed at predesign.sketchup.com and is included if you have a SketchUp Pro, Studio (Student or Professional) or Enterprise license.
