WHISPERS IN THE BAMBOO FOREST Project Type :

DESIGN CONCEPT

Medical Clinic

The clinic interior use the biophilia-based design that brings

Year:

maximal natural light into every single space to bring better

2022 Winter

wellness experience. Using vertical louvers behind the glass curtain walls with the bamboo-colored wall of corridors. The

Area:

louvers can have 360° rotation to keep the patient’s privacy and

1540 sq ft

bring rich natural light change and break down the gray corridor space, which gives people an “alive” sense when walking

Location:

through. The application of vertical lines from endless bam-

530 Spring Street, Winthrop, AR

boos, such as doors and trimmers, bookshelves, and louvers accentuates the advantages of the tall ceilings. The ceiling LED

Client:

linear lights give the feeling of a breeze whispering through the

Dr. Janice Rockefeller

bamboo forest.

The interior design uses natural health materials and imagery to create a harmonic and relaxing space. Promoting health programs and the responsibility of the community.

Existing Condition: 1913 Colonial Revival-style school that listed in Arkansas Register of Historic Places on 11/7/01. location at half of the first floor of the building, ceilings height is 11’-0”.

BLOCK DIAGRAM PLAN

EXAM

EXAM

WAITING

EXAM

EXAM

CONS ADA RM

RCPT / BIZ

LOBBY

NURSE

ADA RM

CONS

BRK

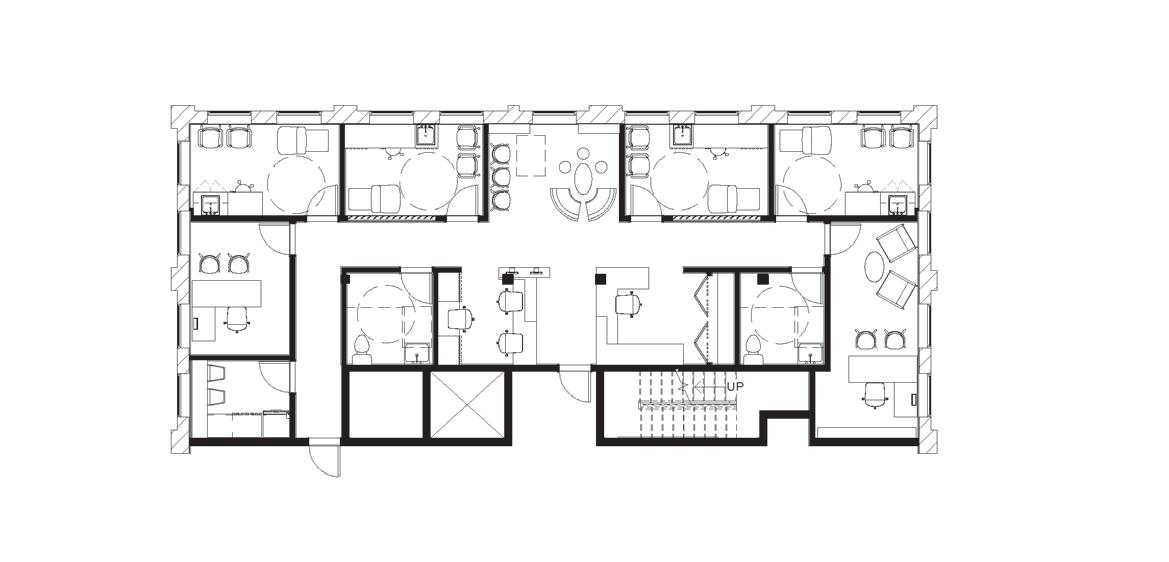

FLOOR PLAN

EXAM 103 SF

CONS 100 SF

EXAM 96 SF

ADA RM 60 SF

WAITING 96 SF

RCPT / BIZ 70 SF

LOBBY 43 SF

EXAM 99 SF

NURSE 79 SF

STO 16 SF

EXAM 100 SF

ADA RM 58 SF

CONS 151 SF

BRK 58 SF

N 1/8” =1’ - 00”

F L O O R F F & E PL A N

A ER I A L MO D EL

BAMBOO: INTEGRITY / HEALTH

Bamboo is a naturally sustainable material as the primary material and inspiration of the clinic. The bamboo’s unique properties of strong, flexible, and evergreen. The bamboo forest sway with even the slightest breeze while their trunks stay rooted firmly in the ground below. The characteristics are reminiscent of integrity, tenacity, and humility. Dr. Janice Rockefeller desired to change the “Under-served Area and Population” healthcare status of the town of Winthrop. Her vision reflects the character of bamboo and gives back to the community.

BIOPHILIC ELEMENT

Dynamic Lights

Biomorphic Form & Patterns

Natural Materials

A

B

A

B

ELEVATION A

ELEVATION B

Reception Area

Lobby Area

Exam Room

2

BIME S E C O BL O C K C OMPLE X Project Type :

SUSTAINABILITY

ECO Community Complex

All food & hops will be grown on site showcasing sustainability.

Year:

MIXED USE:

2022 Spring

Brewery & vegitarian restaurant, event space, yoga studio, training facility & residence.

Area:

Site Area: 237,580 sq ft

VISION:

Floor Area: 572,778 sq ft

Provide housing and employment for houseless people while

Block A: 435,488 sq ft

providing enrichment for the whole community and environ-

Block B: 66,400 sq ft Block C: 60,762 sq ft block D: 10,128 sq ft

Location: 55 S Atlantic St #205, Seattle, WA 98134

ment.

LBC: A block that is not only sustainable, but contributes to the community & environment.

INDEX Residential Area: 344,880 sq ft Ratio: 60.21% Dwelling Units: app. 328

Commercial Area: 227,898 sq ft ratio: 39.79%

FAR : 2.41

Site Cover Area: 141,098 sq ft

Site Coverage: 59.39%

Open Space Area: 150,880 sq ft

ECO BLOCK TR ANFORMATIONY

The site is an abandoned industrial space in the Pioneer square, Seattle.

This site was formerly a production plant.

The building and its surrounding block will be the site of an eco logical transformation.

To Ferries & highway Historic Block D (historic building / office)

To Public Transportasion Mixed High-rise Block A (Residention & Commercial) Isolation Noise from hignway Wind & Solar Energy collection on the rooftop

Green Block C (Vertical Farming Academy / Factory / Organic Market / Restaurant)

To Public Transportasion Commercial Low-Rise Block B (Entertainment / Retail)

ECO BLOCK WATER SAVING STRATEGY DIAGRAM

Rainwater From PV Arry Gutten Rainwater From Roof

Blac

Cooling Tower Makeup Water

High E Toilet Gray Water

LIVI SYST HOLDING TANK

FILTERATION

RESUED WATER TANK

ckwater to Living Mechine

Irrigation Greenroof

Organic Manure for Rreenroof

Blackwater to Composting Toilet

Efficiency

ING MACHINE TEM to High Efficiency Toilet

Composting Toilet

Overflow to Sewer Line

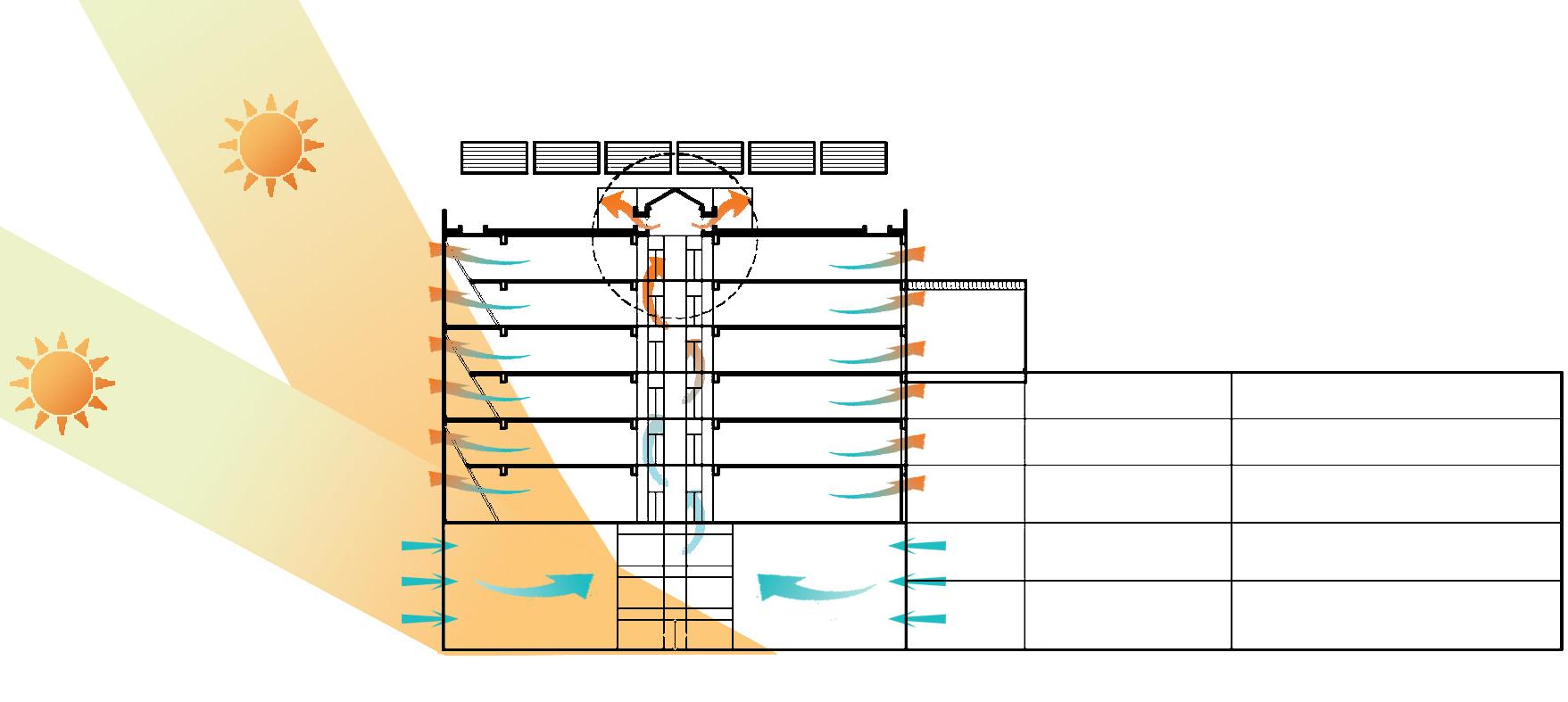

ECOBLOCK VENTILATION & LIGHTING STRATEGY

Summer sun

winter sun

Operatable Windows with Shades and Blinds

ECOBLOCK HUMAN / GREEN POWER TR ANSIT

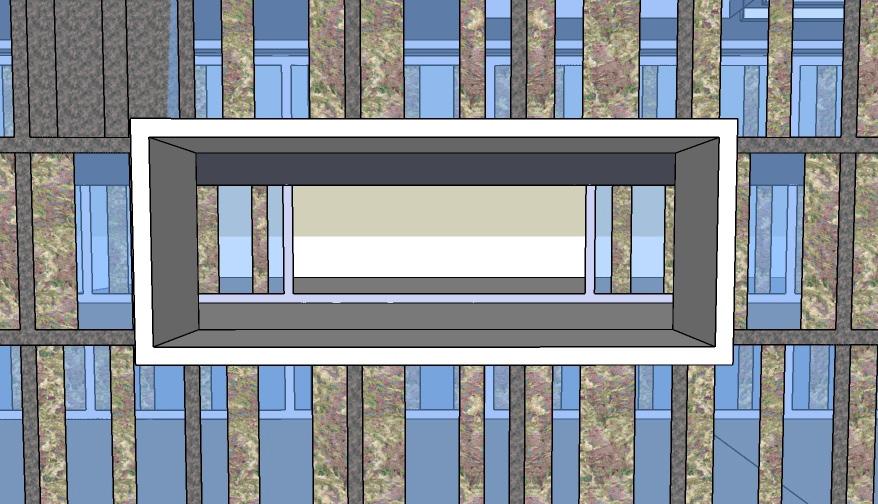

Nature Light Glazed Skylights

The ECO Block is in a prime location to be accessed by food, bicycle, ferries , buses, railways etc. public transit.

Green Roof Hot Air blow out Louvered Vent Over Flow Rainwater Collection Gutter Hot Air Raise

Atrium

Most underground spaces are for mechanical use.

Set limited parking spots underground for green power cars only.

There are shower rooms for bikers to support a human powered living style.

ECOBLOCK ENVELOPE INSTUL ATION STR ATEGY

Material: used tire ourdoor floor

High-Performance Windows Insulation Glazing Option: triple, argon gas-filled glazing Frame: made of low conductive materials (with C2C certificated wood)

Standard Intensive Green Roof

Material: Fernale Ready Mix & Gravel Fly Ash Concrete Location: Ecoblock Construction

ECOBLOCK E XTERIOR MATERIALS

Material: SunEwat BIPV Glass Brand: AGC Certification: C2C

Material: Paving Stones Brand: GODELMANN GMBH & CO. KG Certification: C2C

Material: outdoor wood / window frames Brand: Accoya® Wood Certification: C2C / fsc

Material: Quartzite stone Brand: LAS VEGAS ROCK, INC. Certification: C2C

ECOBLOCK BIOPHILIC DESIGN ELEMENTS Prospect

Refuge / Visual Connection with Nature

Thermal & Airflow Variabilit

Block A openning activity areas have unimpeded views over a distance.

Green roofs are withdrawn from environmental conditions and the main flow of activity, in which humans and other wildlife are protected physically and mentally.

Block C restaurant changes in air from horizontal level.

Dynamic & Diffuse Light

Biomorphic Forms & Patterns

Biomorphic Forms & Pattern

Skylights of block c rooftop restaurant leverages varying intensities of light and shadow that change over time to create conditions that occur in nature.

Facade of “block a” is biomorphic in form.

Block C restaurant rooftop f biomorphic in form.

ty

Non-Visual Connection with Nature

Presence of Water

r temperature, relative humidity

Block C water fountain in living machine provide a nonvisual experience of nature that engender a deliberate and positive reference to nature, living systems or natural processes.

Living machine in block c enhances the experience of a place through seeing, hearing or touching water.

ns

Material Connection with Nature

Complexity & Order

frame using fabrics wave is

Block C restaurant roof use natral wood material facade use natral stones material Connection with Nature.

Block C restaurant spiral staircase adheres to a spatial hierarchy similar to encountered conch shells in nature.

ECOBLOCK C ECOLOGICAL CYCLE DIAGR AM

Composting toilet produce plant fertilizer green roof / vertical farming irrigation.

Green Roof

Organic Restaurant

Fresh Market Vertical Farming Factory Edible

Reusetank

Produce edible plants, and fish that are suitable for the freshmarket and organic restaurant.

Treatment water for green roof / vertical farming irrigation.

Wastewater Traetment

Water View

Living Machine treat ecoblock’s wastewater without the use of chemicals by mimicking the cleansing properties of wetlands.

Integrate biophilic design to realize human-water interaction. enhances the experience by through seeing, hearing or touching water.

ECOBLOCK C RESTAUR ANT AERIAL MODEL

ECOBLOCK C RESTAURANT PLAN

ECOBLOCK C RESTAURANT ROOF PLAN

ECOBLOCK C RESTAURANT ROOF WOODFRAME PLAN

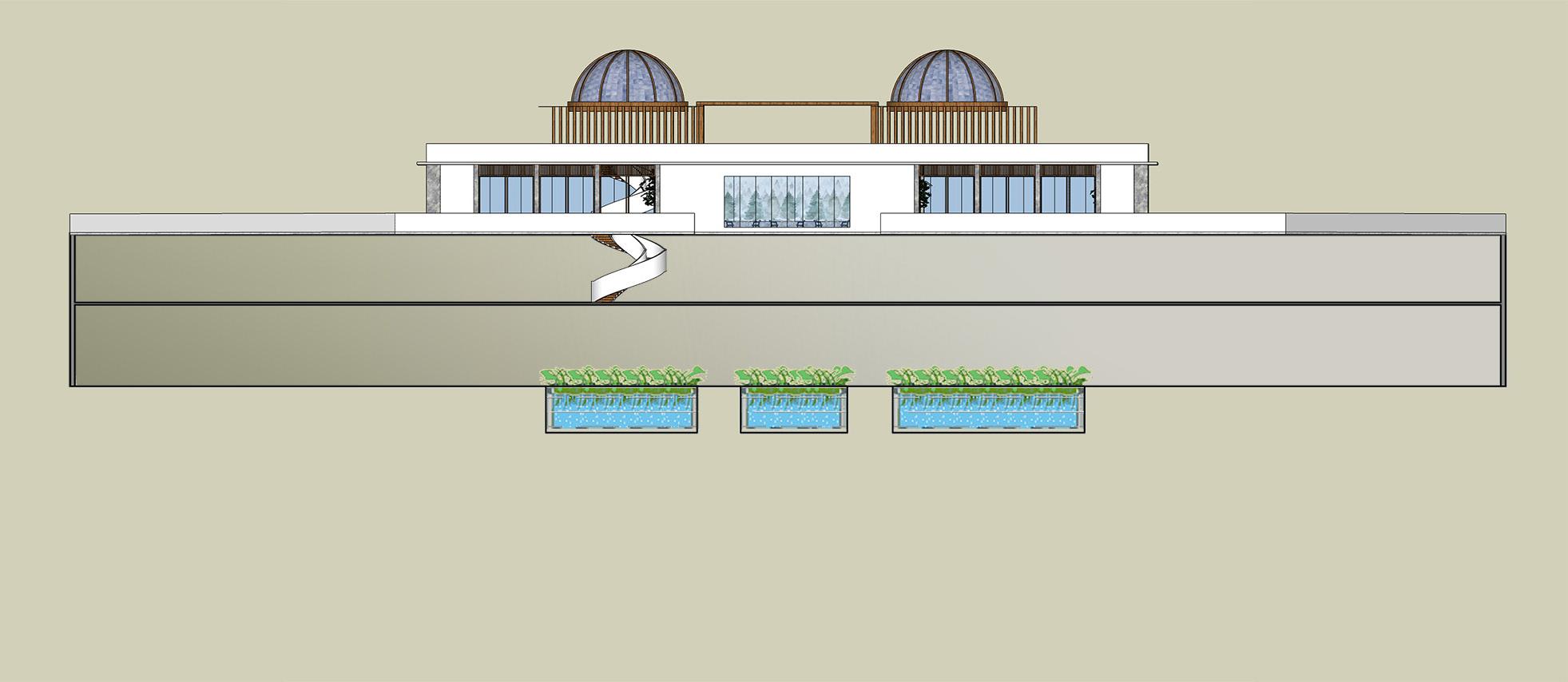

ECOBLOCK C RESTAURANT ELEVATION

ECO BLOCK C RESTAURANT ENTRANCE

ECO BLOCK C RESTAURANT BAR AREA

ECO BLOCK C RESTAURANT ROOF AREA A

ECO BLOCK C RESTAURANT ROOF AREA B

3

INNOTEK OFFICE - NIRVANA Project Type :

Construction Type:

Construction Material:

Office

Type Ⅲ B

brick masonr y shell, with a heavy timber and wood frame interior

Year:

Sprinkler System Requirement:

2022 Spring

No

Exterior Bearing Wall: 2 Hr

Building Area:

Zoning District:

10,800 sq ft

MU 0-Mixed uesd office

Interior Bearing and Non-Bearing Wall:

Floor Area

Building Height:

0 Hr

3,342 sq ft

43’ - 9 15/32”

Floor and Roof Construction: Location:

Number of Stories Above Grade:

500 Second Street,

3

San Francisco, CA

Building Constructed: Client: Innotek

1919

0 Hr

4

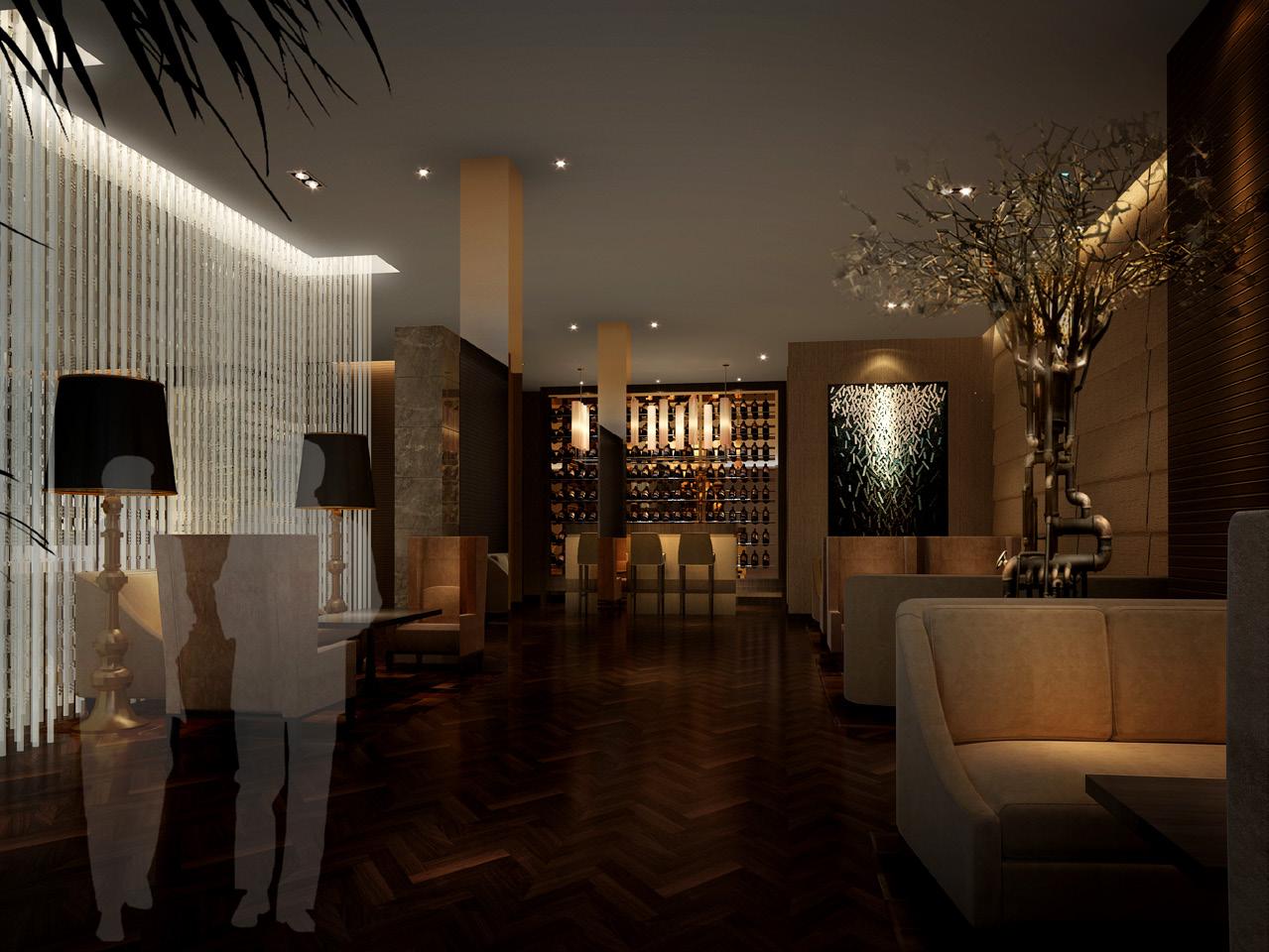

VANKE ZI TAI SALES CENTER

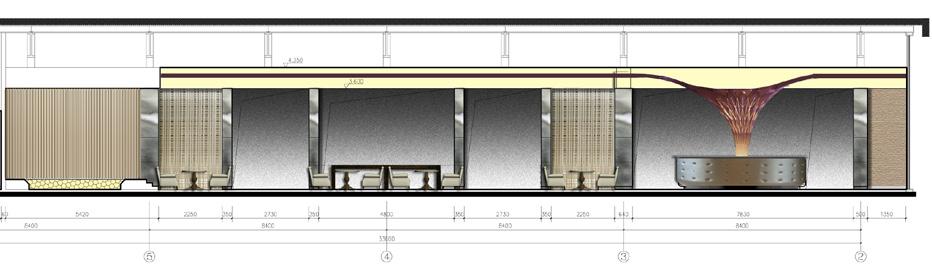

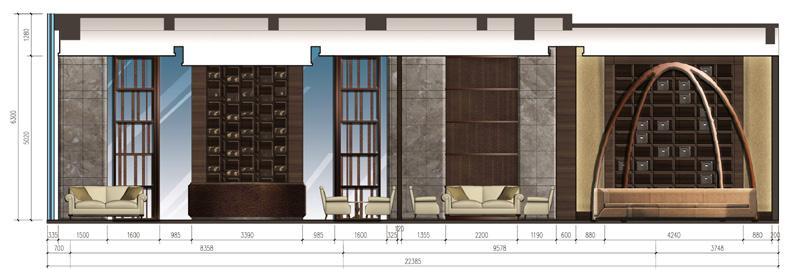

VANKE BEIJING HILL SALES CENTER 更衣 接电室 VIP

卫生间

展示区

接待区

办公区

吧台 财务 资料室

洽谈区

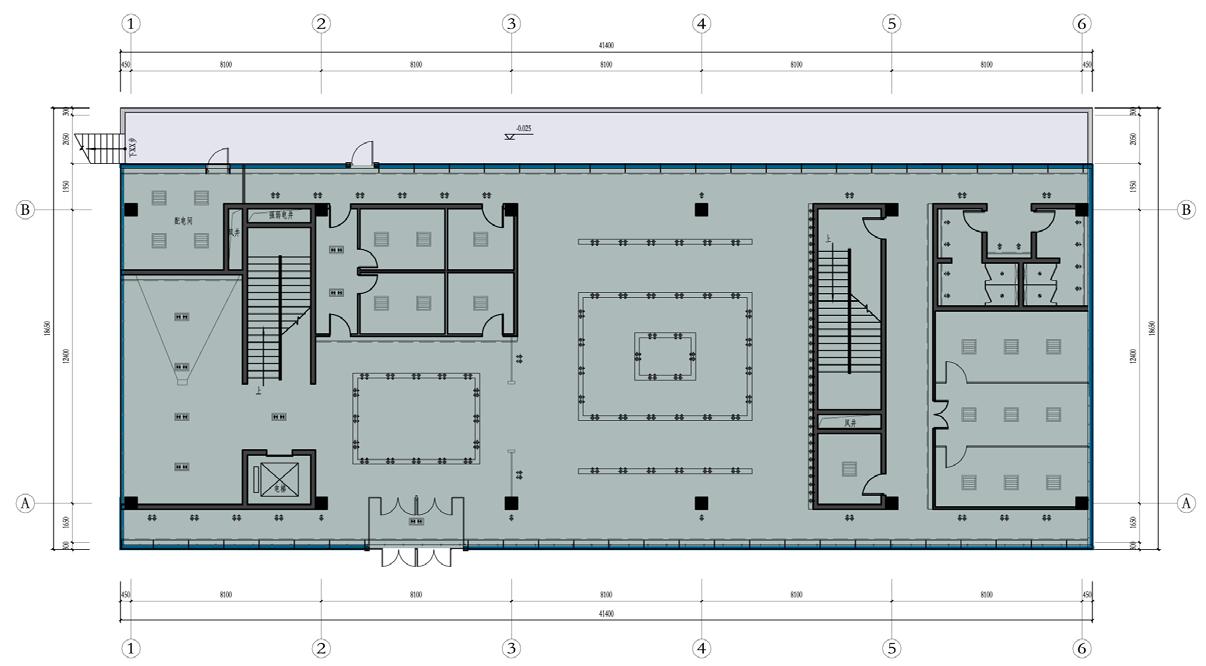

DINGRUN GORGEOUS PAL ACE SALES CENTER

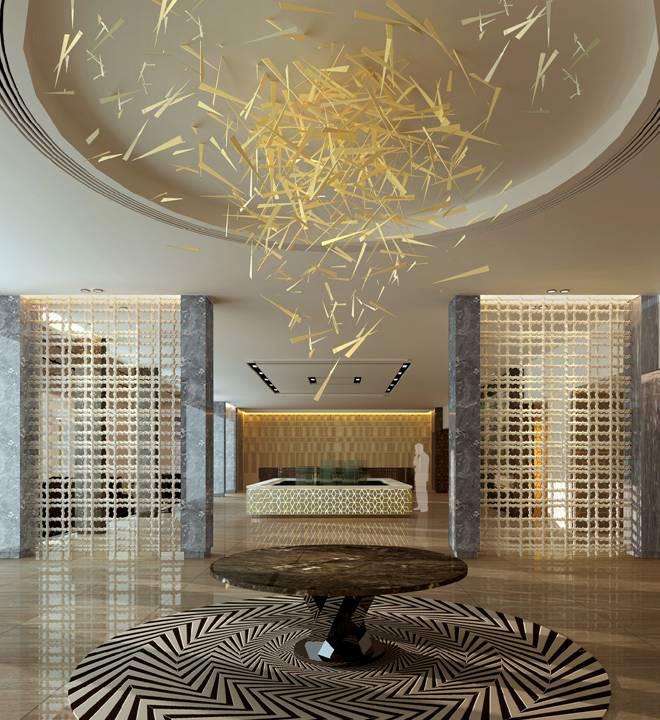

VANKE L AKESIDE GR AND VIEW SALES CENTER

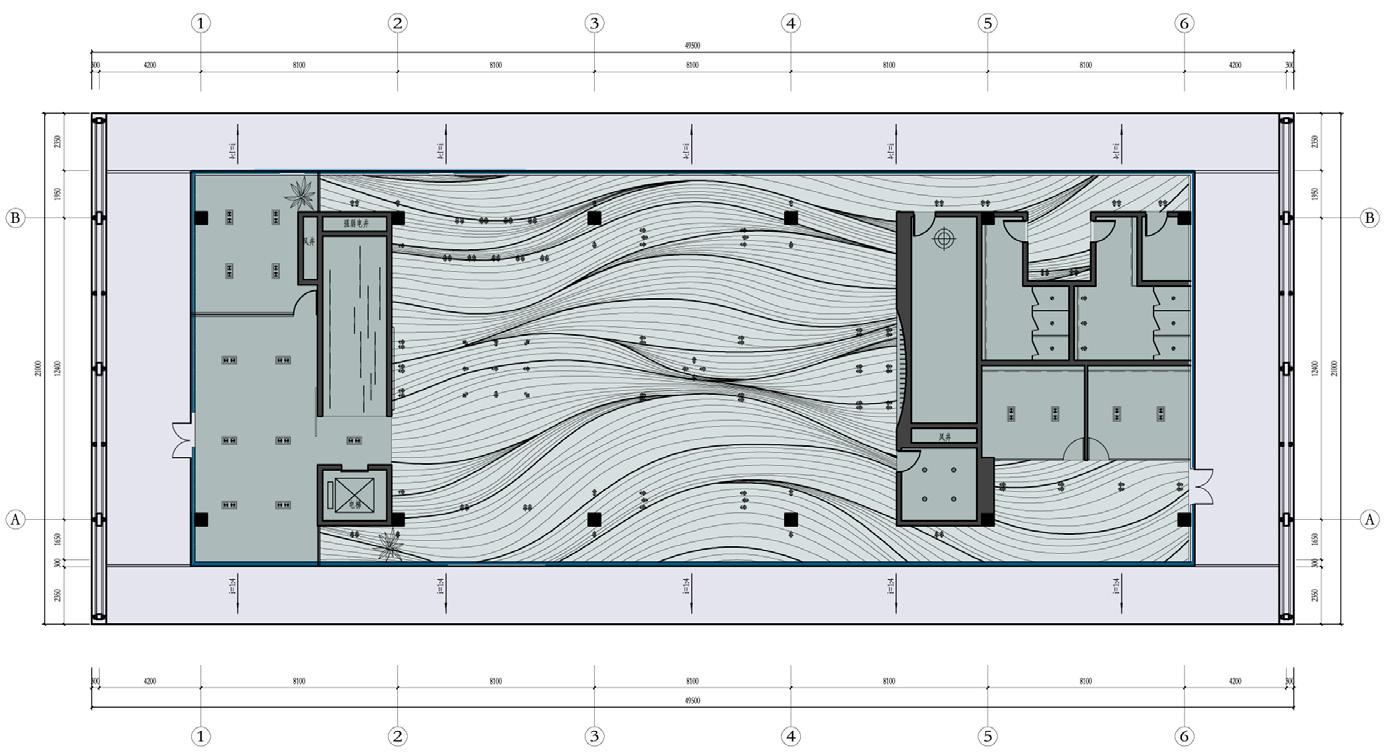

VANKE ECO CIT Y SALES CENTER

办公区

露台

卫生间 接待区

沙盘区 7500X5000

过厅

设备 影音 2200X 3000

2200X 2500

按揭区

财务

洽谈区

洽谈区 VIP 设备

吧台

景观区

5

HAND SKETCHING
