Introduction
Many manufacturers now combine AOI and X-ray inspection in PCB manufacturing and assembly to achieve the highest quality, improve defect detection as PCB designs become more complex and densely packed.
But do you know the difference between AOI and X-ray inspection machines?
Let’s understand this better so you can choose the best one for your SMT line.
Both AOI and X-ray inspection machines are designed to catch defects, yet they work very differently and solve different problems.
Understanding the key differences isn’t just a technical discussion. It’s a strategic decision that affects yield, quality, and long-term reliability.
In this presentation, we’ll break down the difference between AOI and X-ray inspection machines in a practical, no-fluff way.
DifferenceBetweenAOIandX-rayInspection Machines:CompleteGuide
Let’s understand the difference between AOI and X-ray inspection machines.

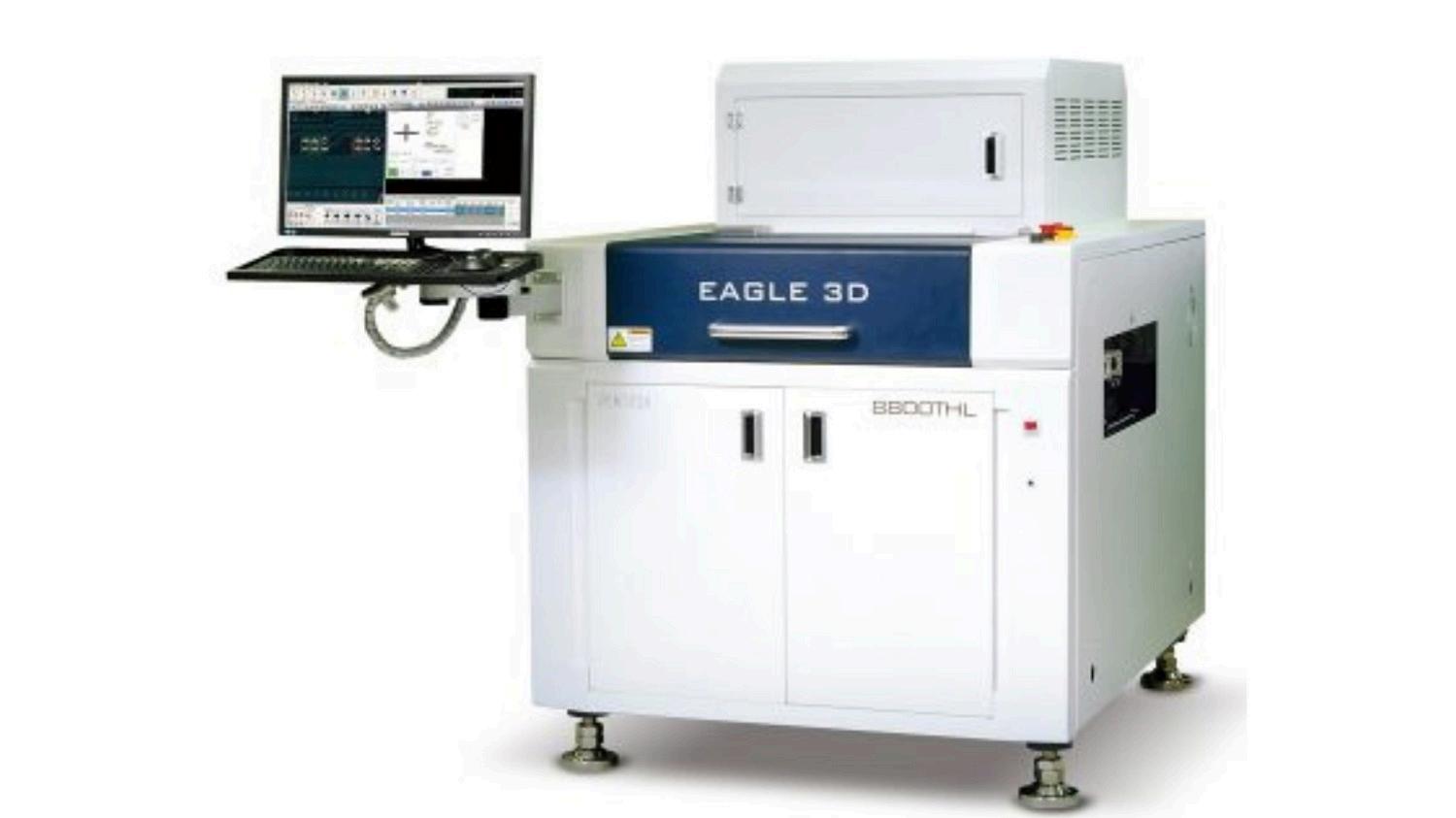

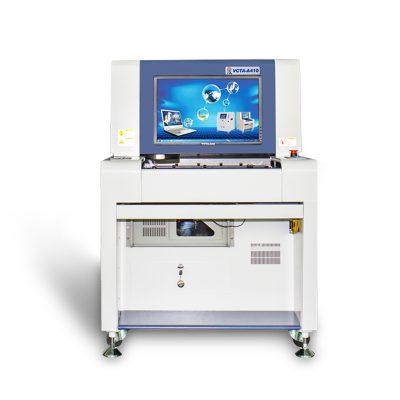

WhatIs(AutomatedOpticalInspection)AOI?
AOI uses high-resolution cameras and advanced image-processing software to visually inspect PCBs. It compares the actual board against a golden reference and flags deviations.
AOI systems excel at surface-level inspections, such as:
Missing or misplaced components
Polarity errors
Incorrect component values (via marking recognition)
Solder bridging and insufficient solder
Tombstoning and skewed parts
Here’sWhyManufacturersLoveAOI:
Fast inspection speeds suit high-volume lines
Non-destructive and safe for all boards
Excellent for early defect detection, especially post-reflow
Relatively cost-effective compared to X-ray systems
In short, AOI is often the first line of defence in SMT quality control.

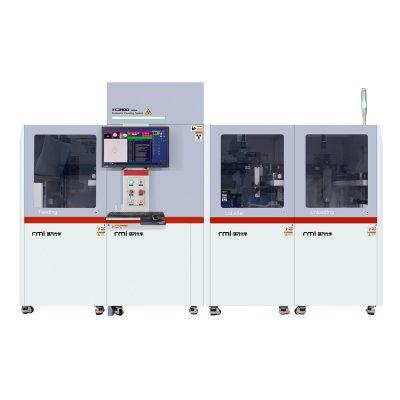

WhatisanX-rayInspectionMachine?
X-ray inspection machines use controlled X-ray radiation to inspect the inside of a PCB. Instead of looking at the surface, they visualise internal solder joints, hidden connections, and component structures.
Here’s where X-ray inspection shines:
BGA and QFN solder joints
Void analysis in solder joints
Head-in-pillow defects
Internal shorts and opens
Through-hole and multilayer PCB inspections
Here’s Why X-ray Is Critical in Advanced Electronics:
As components get smaller and packages get denser, many solder joints are completely hidden. No camera, no matter how advanced, can see through silicon and solder. That’s where X-ray becomes non-negotiable.
DifferenceBetweenAOIandXrayInspectionMachines
Here’s a clear comparison to highlight the difference between AOI and X-ray inspection machines:
InspectionMethod
AOI: Visual, camera-based inspection
X-ray: Internal inspection using radiation
DefectsDetected
AOI: Surface defects, placement issues, visible solder problems
X-ray: Hidden solder joints, voids, internal cracks, BGAs
Speed
AOI: Very fast, ideal for inline inspection
X-ray: Slower, often used for sampling or critical boards
Cost
AOI: Lower investment and operating cost
X-ray: Higher upfront and maintenance costs
UseCase
AOI: High-volume production, general SMT inspection
X-ray: High-reliability electronics, automotive, aerospace, medical
DoYouNeedAOI,X-ray InspectionMachine,or Both?
Here’s a practical truth many manufacturers discover over time. AOI and X-ray aren’t competitors. They’re collaborators.
ChooseAOIWhen:
You want fast feedback on placement and solder quality
Your designs use mainly visible joints
You’re optimising throughput and cost
ChooseX-rayWhen:
You’re working with BGAs, QFNs, or CSPs
Reliability standards are strict
Failure is not an option
Many advanced SMT lines deploy AOI inline and X-ray offline for critical inspections. It’s not overkill, it’s smart risk management.
WHYCHOOSEHJETECH INDIAPVT.LTD.
At HJE Tech India Pvt. Ltd., inspection isn’t treated as a checkbox. Here’s what sets us apart:
Expertise in SMT inspection solutions, including AOI and X-ray systems
End-to-end support in machine selection, installation, training, and service
Deep understanding of Indian manufacturing challenges and global quality standards
Customised recommendations based on your product mix and production goals
OurKeyServicesInclude:
AOI and X-ray inspection machine supply
SMT line setup and optimisation
Process consultation and quality improvement strategies
After-sales support and technical training
Whether you’re upgrading an existing line or building a new one from scratch, HJE Tech India Pvt. Ltd. brings clarity where confusion often exists.
CONCLUSION
The difference between AOI and X-ray inspection machines comes down to visibility, surface versus internal.
AOI ensures speed and consistency. X-ray ensures depth and reliability. Together, they form a robust inspection strategy that protects your product, brand, and customers.
If you’re unsure which inspection solution fits your production needs, or whether you need both, HJE Tech
India Pvt. Ltd. is here to help. Reach out today to explore AOI systems, X-ray inspection machines, and complete SMT inspection solutions designed for modern electronics manufacturing.
