Contents
Chatbox Single 5
Chatbox Duo 8
Chatbox Quattro 11
Exterior colors collection 15
Worldwide distributors
Silen operates 6 regional warehouses (including United States) with an active sales network in 55 countries
Silen is represented on 6 continents and offers the largest collection of privacy pods for indoor and outdoor work environments
Additional conditions
The offer is valid for products, conditions, and amounts described in this document. This offer is valid together with Silen General Terms and Conditions of Sale
DELIVERY TIME: by order confirmation.
DELIVERY TERMS: EXW Tallinn, Estonia
PAYMENT TERMS: by order confirmation
OWNERSHIP: Silen retains the ownership of goods delivered and to be delivered until such time that Customer has fulfilled all payment obligations. These commitments include paying the Project price, including any extra work. If Silen, for any reason, must rely on the right of retention, the relevant agreement has been terminated without prejudice to the right of Silen to claim compensations for damages, loss of profit and interest.
WARRANTY: Silen offers, with normal use, a two-year warranty for Space products. Standard handling and Warranty terms available at Chatbox by Silen website: chatboxbysilen.com
* Please note that due to significant fluctuations in logistics costs, material availability and material costs, our prices may change prior to the indicated date in this document. If this occurs, Silen will notify distributors three months in advance of this change.

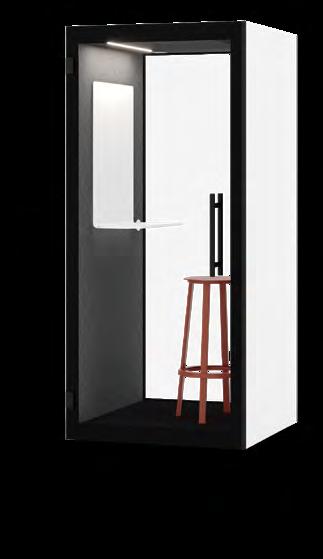

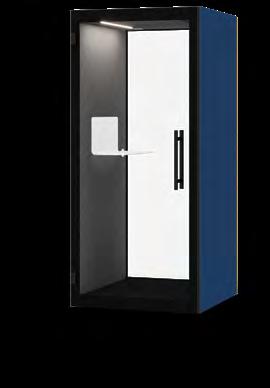

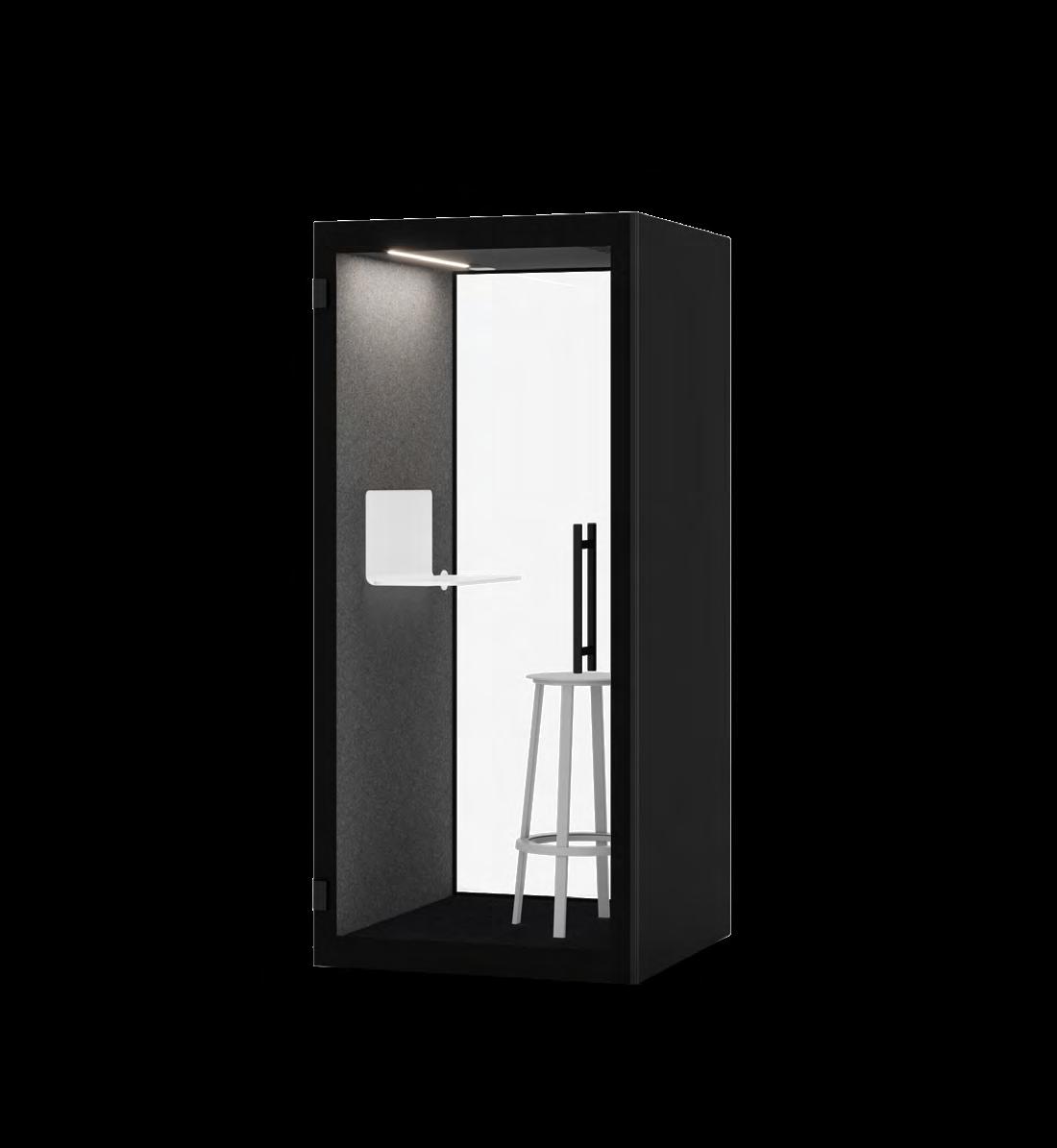

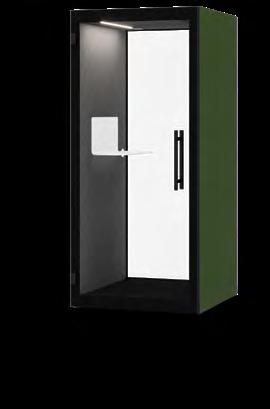

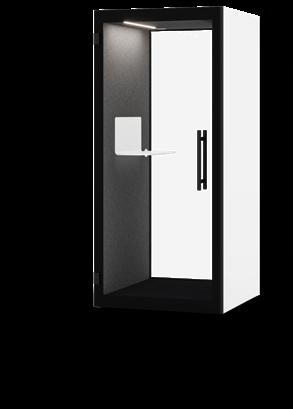

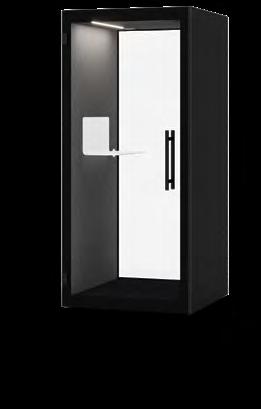

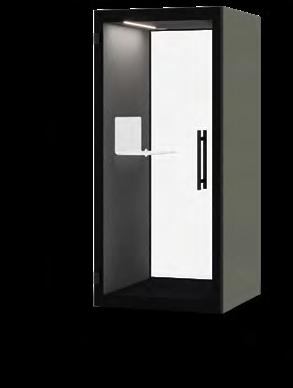

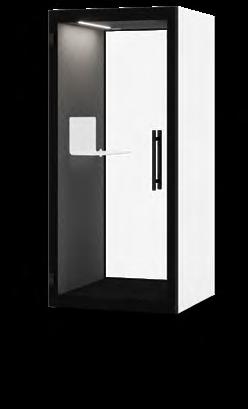

Chatbox Single
A space to focus on your work or make uninterrupted phone calls in
• New door frame
• New back glass solution
• Easier installation
• Sturdier construction
• Improved sound reduction
Stool is not included in standard
Chatbox Single prices in detail
Product CHATBOX SINGLE
Exterior (W x H x D): 100 x 222 x 100 cm
Interior (W x H x D): 87 x 204 x 98 cm
Weight: net 330 kg
Product packed on a pallet: 230 x 120 x H 65 cm, total weight 360 kg
Price includes:
• Glass: Sound Control laminated safety glass
• Exterior: Painted sheet metal in 2 standard colours (black RAL9011 & white RAL9003) or Colour Collection for additional price
• Interior: Dark grey
• Door: right- or left-handed
• Antibacterial table top: Depth 30 cm, height 105 cm
• Power socket: On wall, 110-240 V (10 A) + USB-A + USB-C charger
• Integrated air circulation system
• LED light with presence sensor
• Adjustable gliders for easy levelling
INTEGRATED STOOL
• Diameter: 350 mm
• Height: min 560 mm, max 820 mm
• Adjustable leg: black (with chrome bottom tube)
• Seat fabric: dark grey (Quest QUE04 Mussel (dark gray), other colours available upon request. Custom colours for additional cost +70 €/pc. Longer lead time may apply)

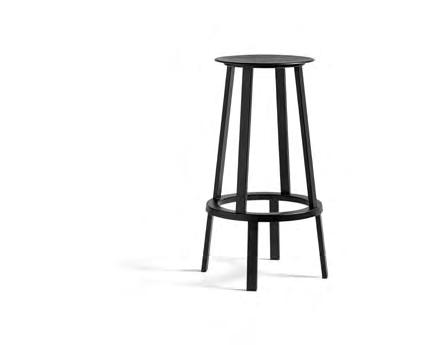

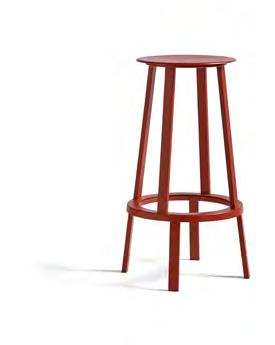

HAY REVOLVER BAR STOOL
• Black, red or grey metal frame
• Stool turns 360 degrees
• Height: 76 cm
• Weight: 10 kg

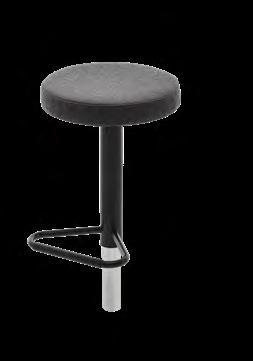

Integrated adjustable stool
Power socket with USB A/C charger (socket type according to region)
TABLE WITH WHITEBOARD
• Metal sheet with whiteboard paint, 60 x 80 cm
VC READY
• Universal bracket for 24-in screen recessed into the wall (screen not included)
• VESA 100x100 and 200x200 mounting
• Extra power outlet for screen
AIR FLOW AND LIGHTNING DIMMER
COLOUR COLLECTION SIDES
CHATBOX SINGLE SLATTED WALL
WOODEN CRATE TRANSPORTATION
• Size 115 x 230 x 60 cm (W x H x D)

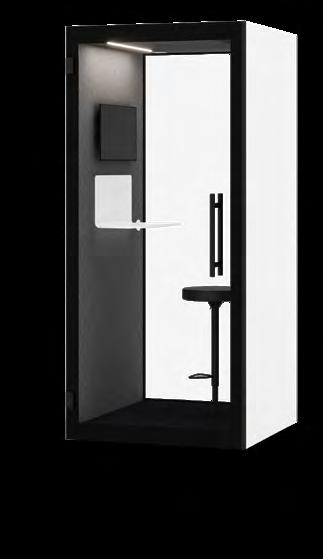

Chatbox Single with VC Ready (screen is not included)

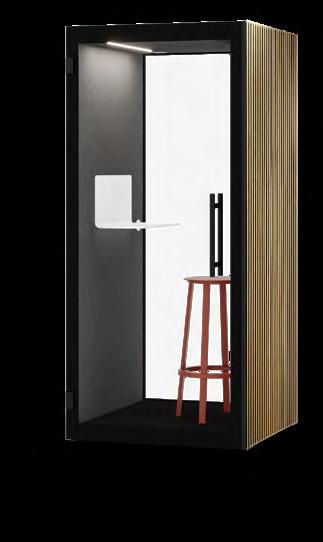

Chatbox Single with slatted wall
Chatbox Single with whiteboard.
Airflow and lighting dimmer
Chatbox Duo
Perfect for 1-on-1 meetings and small brainstorming sessions.
• Glass back wall
• Thicker acoustic glass
• Easier installation
• Improved sound reduction
• Modularity
• Sockets on the floor
Chatbox Duo prices in detail
Product
CHATBOX DUO
Exterior (W x H x D): 213 x 222 x 103 cm
Interior (W x H x D): 200 x 204 x 93 cm
Weight: net 490 kg
Product packed on a pallet: 230 x 120 x H 110 cm, total weight 580 kg
Price includes:
• Glass: Sound Control laminated safety glass (6+6 mm with acoustic film)
• Exterior: Painted sheet metal in 2 standard colours (black RAL9011 & white RAL9003) or Colour Collection for additional price
• Interior: Dark grey
• Door: right- or left-handed
• Electrical connections: 110-240 V (10 A) + 2x USB (5 A)
• Integrated air circulation system
• LED light with presence sensor
CHATBOX DUO WITH BACK WALL (OLD VERSION)
Exterior (W x H x D): 213 x 222 x 103 cm
Interior (W x H x D): 200 x 204 x 93 cm
Weight: net 550 kg
Product packed on a pallet: 230 x 120 x H 110 cm, total weight 580 kg
SOFA SET
• Low-back Vega sofas (2 pcs)
• Length: 90 cm
• Sofa fabric colour: Light grey, dark grey, black
• Legs black metal
• Other colours available upon request, additional cost for custom colour 50 €/pc.

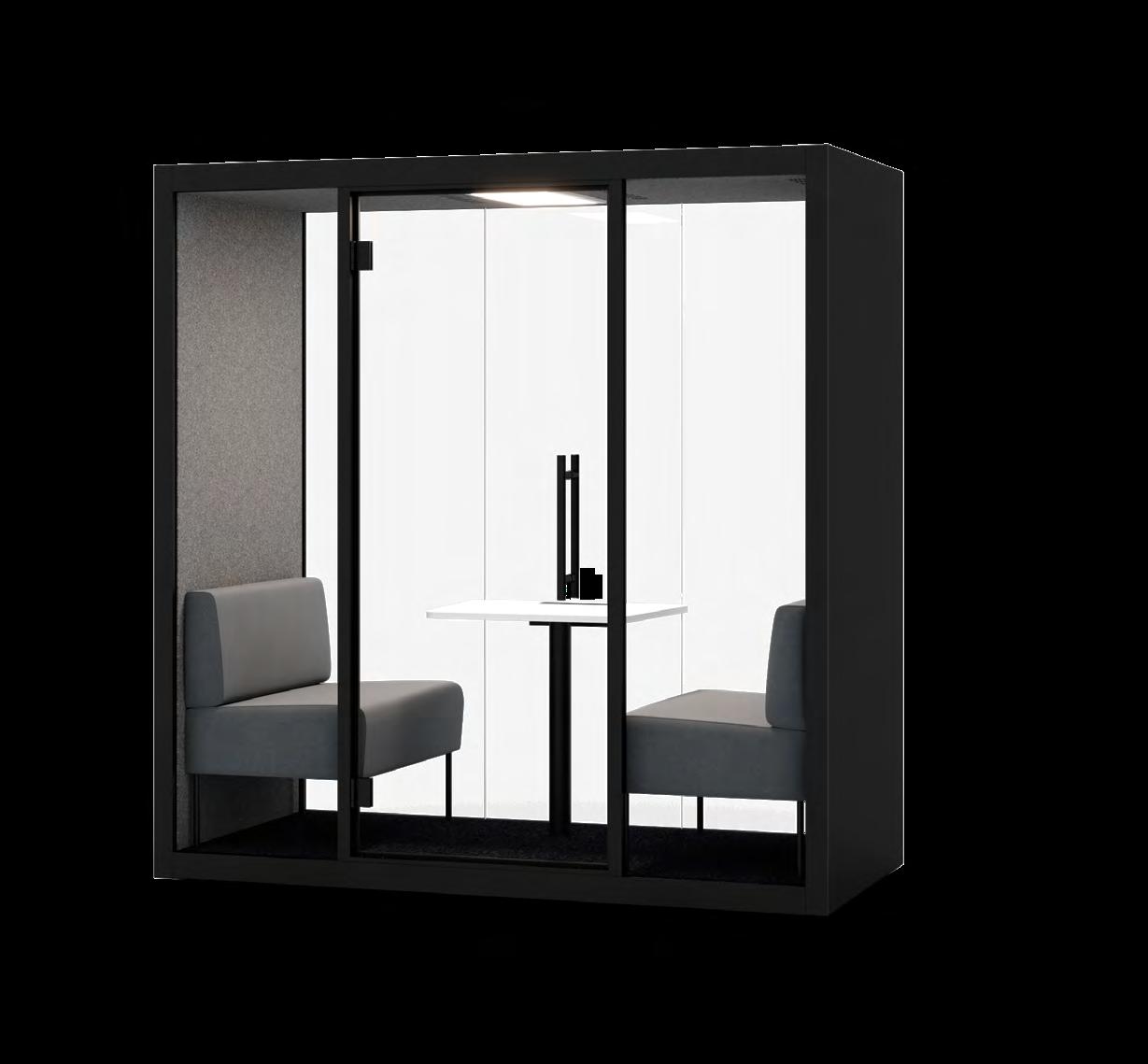

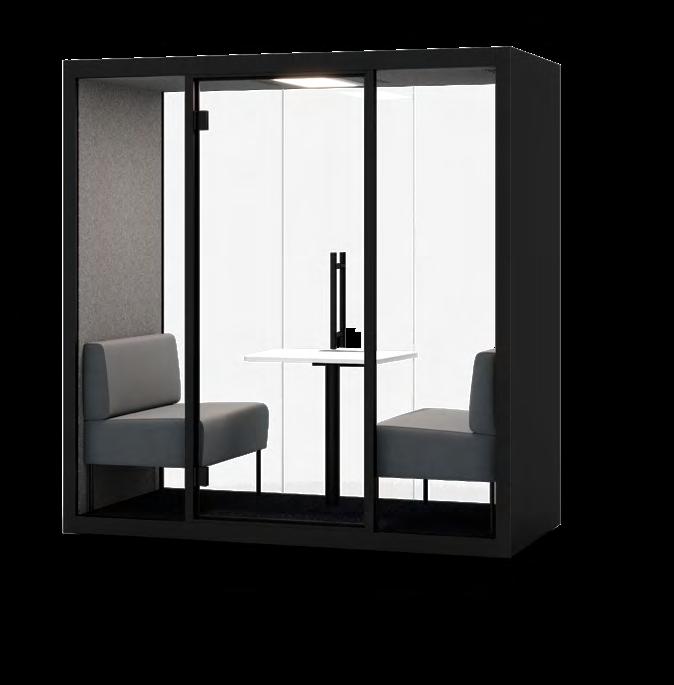

Chatbox Duo with low-back sofas
GAIA TABLE
• Table top finish: White or black Fenix NTM laminate with beveled plywood edge
• Powder coated table leg (black)
• Height: 69 cm
• Weight: 15 kg
INTEGRATED TABLE
• Table top dimensions: 500 x 716 mm
• Height: 730 mm
• Table top: white (antibacterial) laminated MDF, black leg
• Metal base hidden under the carpet
HEIGHT ADJUSTABLE TABLE (ELECTRIC)
• Height: min 70 cm, max 115 cm
• Tabletop size: 55 x 90 cm
• Table top: white (antibacterial) laminated MDF, black leg
AIR FLOW AND LIGHTING DIMMER
LAN/RJ45/HDMI CONNECTIONS
• Other power and data options available upon request (LAN, RJ45, HDMI, USB C)
COLOUR COLLECTION SIDES
CHATBOX DUO SLATTED WALL ON SIDES
WOODEN CRATE
• Size 115 x 230 x 110 cm (W x H x D)
EXTENSION MODULE
• An extension module to create Quattro
• Without glasses and covering trims
Gaia table

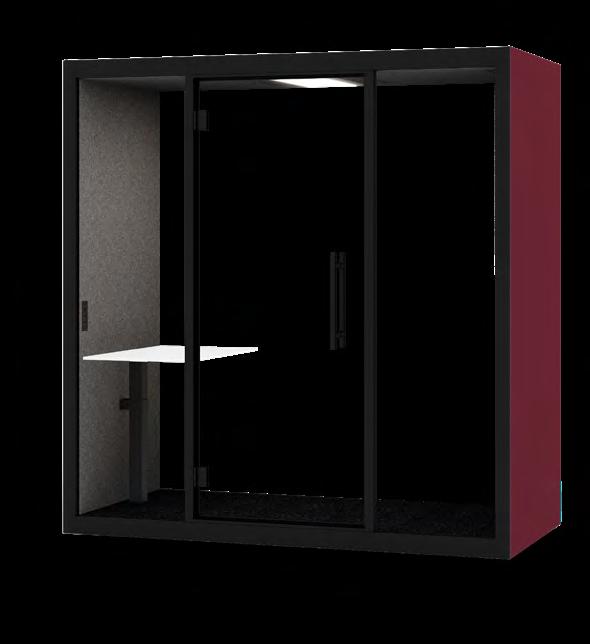

Chatbox Duo with height adjustable table
Airflow and lighting dimmer
Chatbox Quattro
Boost your productivity in an office that is a bit too open.
• Thicker acoustic glass
• New module connection solution
• Easier installation
• Modularity
• Improved sound reduction
• Sockets on the floor
Chatbox Quattro prices in detail
Product CHATBOX QUATTRO
Exterior (W x H x D): 213 x 222 x 194 cm
Interior (W x H x D): 200 x 204 x 186 cm
Weight: net 980 kg
Product packed on a wooden pallet: 230 x 120 x H 150 cm, total weight 1010 kg
Price includes:
• Glass: Sound Control laminated safety glass (6+6 mm with acoustic film)
• Exterior: Painted sheet metal in 2 standard colours (black RAL9011 & white RAL9003) or Colour Collection for additional price
• Interior: Dark grey
• Door: right- or left-handed
• Electrical connections: 110-240 V (10 A) + 2x USB (5 A)
• Integrated air circulation system
• LED light with presence sensor
SOFA SET
• Low-back Vega sofas (4 pcs)
• Length: 90 cm
• Sofa fabric colour: Light grey, dark grey, black
• Legs black metal
• Other colours available upon request, additional cost for custom colour 50 €/pc.
SCREEN BRACKET ON BACK GLASS
• Universal bracket, for up to 32“ screen (screen not included)
• VESA 100x100 and 200x200 mounting

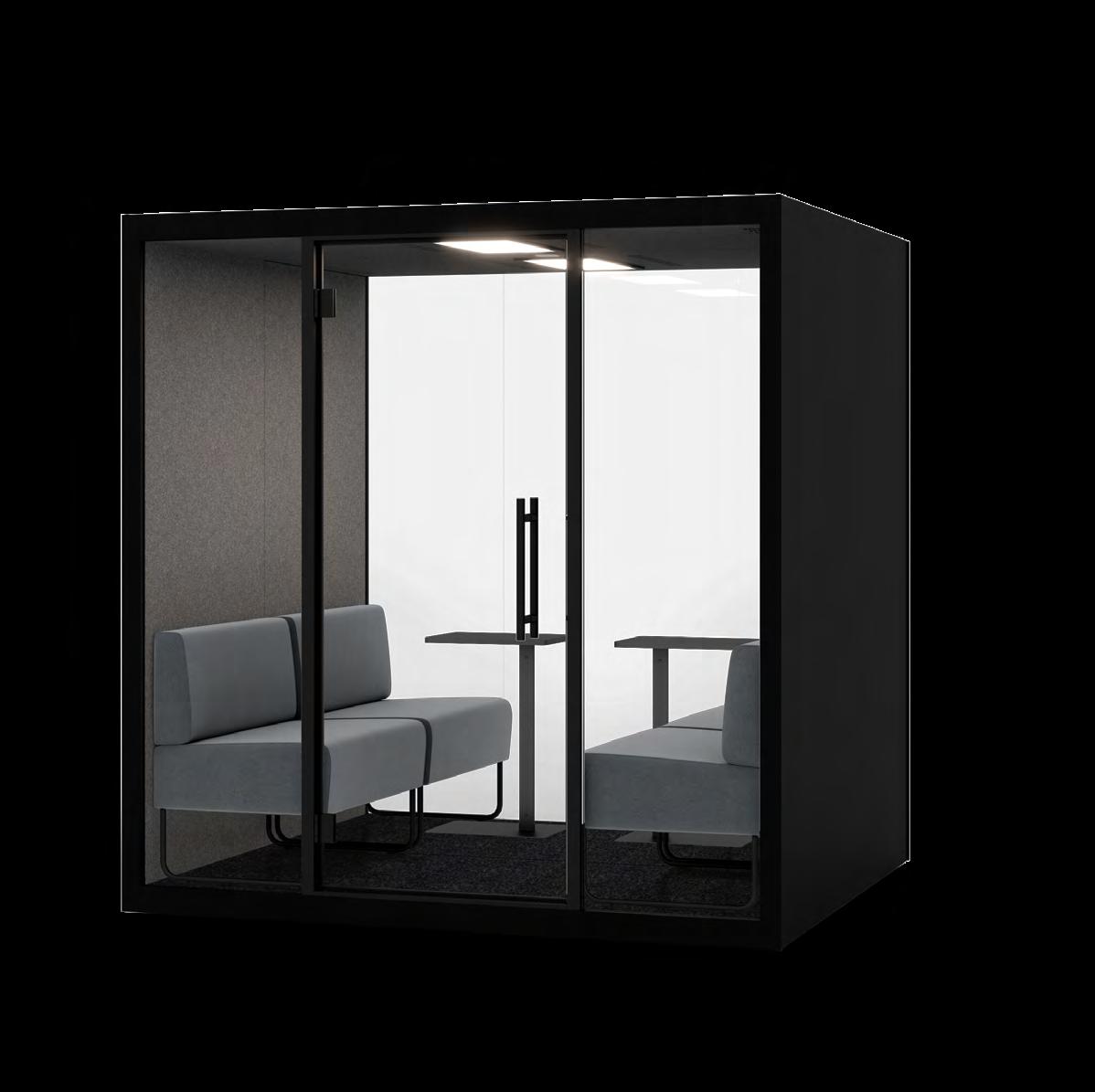

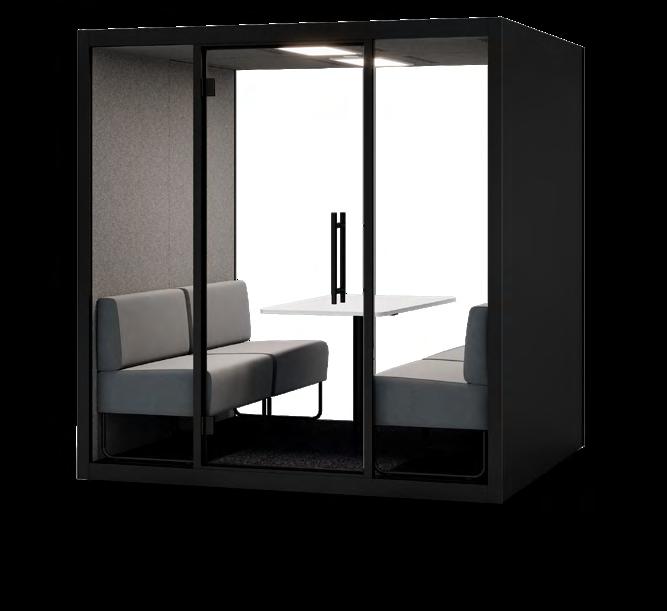

Chatbox Quattro with low-back sofas and integrated table.
Vega sofa low-back
INTEGRATED TABLE
• Table top dimensions: 500 x 716 mm
• Height: 730 mm
• Table top: white (antibacterial) laminated MDF, black leg
• Metal base hidden under the carpet
GAIA TABLE
• Table top finish: White or black Fenix NTM laminate with beveled plywood edge
• Powder coated table leg (black)
• Height: 69 cm
• Weight: 15 kg
ADDITIONAL POWER OUTLET PLUTO UNDER THE TABLE
• Additional power outlet under the table
• 2 x 230V +1 x USB-A +1 x USB-C
• Cables routed through the leg
ADDITIONAL POWER OUTLET DESK2 ON THE TABLE
• Additional power outlet on the table
• 2 x 230V +1 x USB-A +1 x USB-C
• Cables routed through the leg
ADDITIONAL POWER OUTLET SLIM ON THE TABLE (US)
• 3 x 120V + 2 x USB-A
AIR FLOW AND LIGHTING DIMMER
LAN/RJ45/HDMI CONNECTIONS
• Other power and data options available upon request (LAN, RJ45, HDMI, USB C)
COLOUR COLLECTION SIDES
Additional power outlet Pluto
Additional power outlet Desk2
Additional power outlet Slim on the table (US)
Airflow and lighting dimmer
CHATBOX QUATTRO SLATTED WALL
WOODEN CRATE
• Size 2 x (115 x 230 x 85 cm) (W x H x D)
SEPARATION KIT
• A kit to split Quattro into two Duo rooms
• Includes front and back glass set, door and cover trims

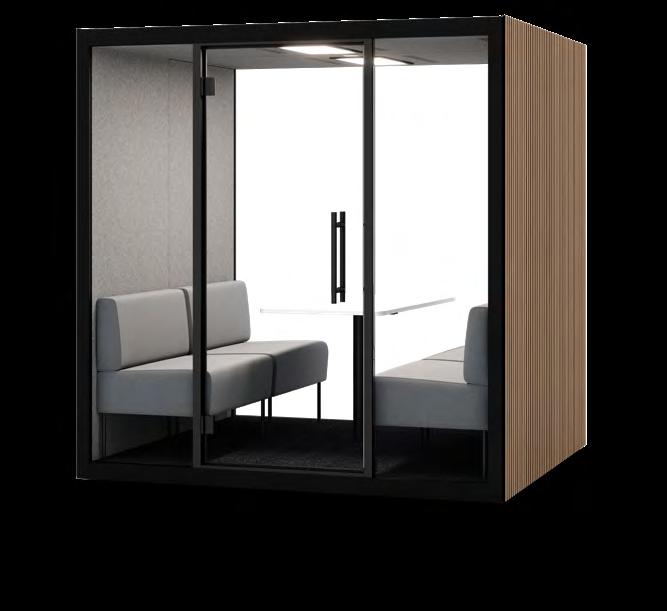

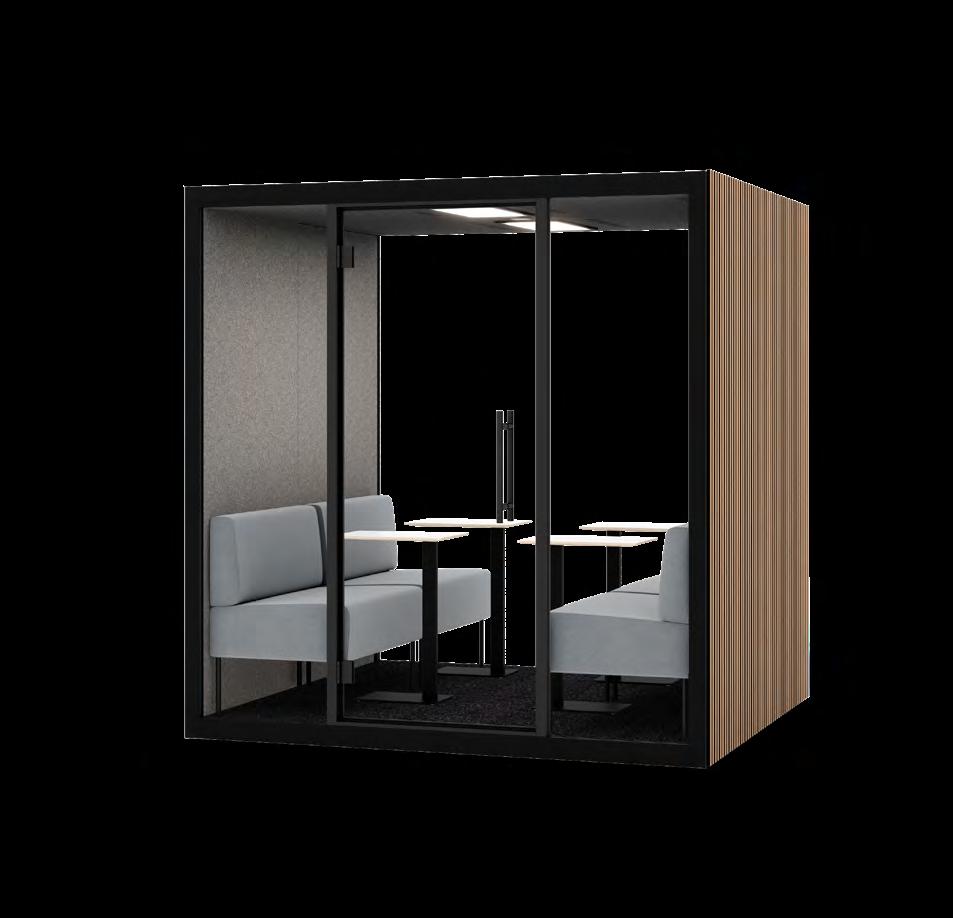

Chatbox Quattro with slatted wall.

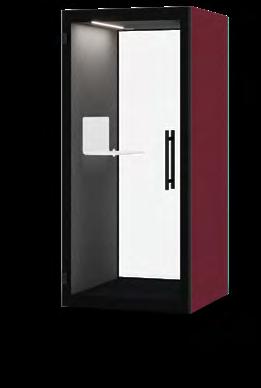

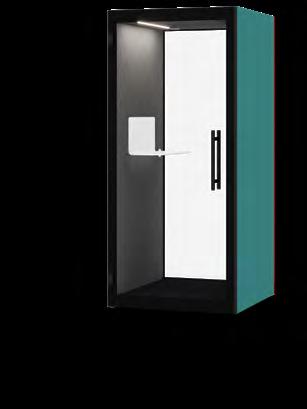

Exterior colors collection
Standard wall and ceiling
Misty Creek RAL 6033
Black RAL 9011
White RAL 9003
Charming Smoke RAL 7039
Evergreen RAL 6020
Sangria RAL 4002
Estonian Mustard RAL 1024
Slatted wall
Ocean Tide RAL 5003
Whiteboard paint RAL 9003
Standard floor
Standard profile
Dark gray
Dark gray
Black
