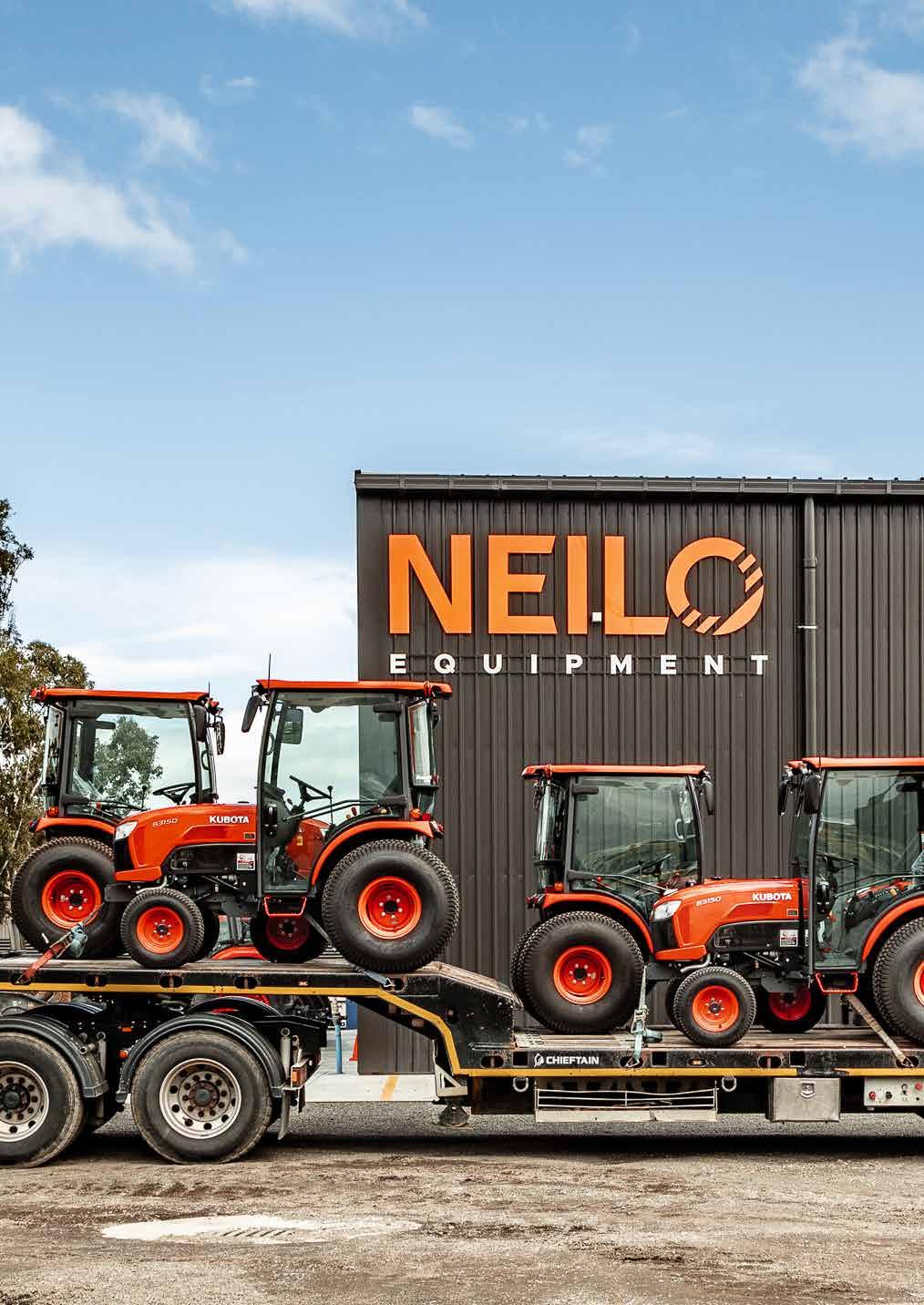

ABOUT US
We’re a grassroots equipment manufacturer, based in Palmerston North, New Zealand. Focused on the Civil and Construction industries, we’ve combined the absolute reliability of the Kubota tractor range with our engineering know-how to produce a range every contractor would be proud to own. We aim to create the most fit-for-purpose Graders & Brooms that will outlast and outperform all others and continue to provide value for many years to come.
THE RANGE
BROOMS
NEILO B3150 BROOM
The compact NEILO B3150 Broom is the ultimate combination of performance and reliability. Its large, highperformance 1.75m Road Broom is hydraulically operated from the air-conditioned / heated Cab.
NEILO L5740 BROOM
The NEILO L5740 is the big brother to the B3150, offering nearly double the horse power to help you speed through your tasks and sweep the streets with ease.
TRUCK MOUNTED BROOM KIT
Add some Neilo sweeping brilliance to your new or existing Trucks to maximise your investment and improve your site cleanliness and finishing.
GRADERS
NEILO B3150 ROP’S GRADER
Although it’s the smallest Tractor Grader in our range, the B3150 Grader packs a real punch. Its 31 HP engine combined with a versatile 1.8 M mid-mounted box blade makes for a powerful combo.
NEILO M7040 ROP’S GRADER
The NEILO M7040 is a powerful 70HP Tractor, the ideal candidate for our 2.4m 8-way mid-mounted grading system. The perfect machine for larger roadworks or site works.
NEILO M7040 CAB GRADER
The NEILO M7040 Grader tractor is the ultimate grading machine for general roadworks or site leveling and the innovative grading system enables the finest of adjustments as you grade.
Grader tractor machine for or leveling system as
NEILO M5111 ROP’S GRADER
Meet the NEILO M5111, a mighty 110.5hp Grader combining Neilo’s signature engineering brilliance with Kubota’s unmatched reliability.
NEILO M5111 CAB GRADER
The new gold standard in compact grading. Achieve the same level of precision as some of the biggest name grader manufacturers out there. This machine will be one of your hardest-working assets.
SPECIALTY

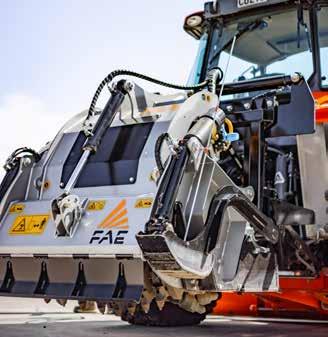

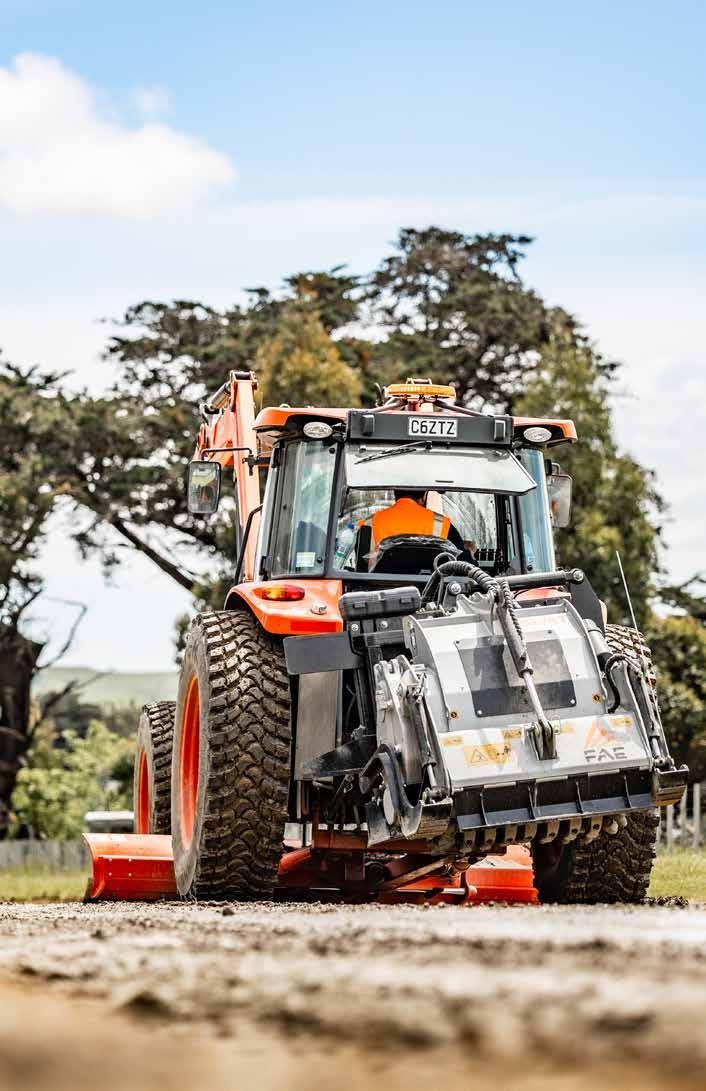

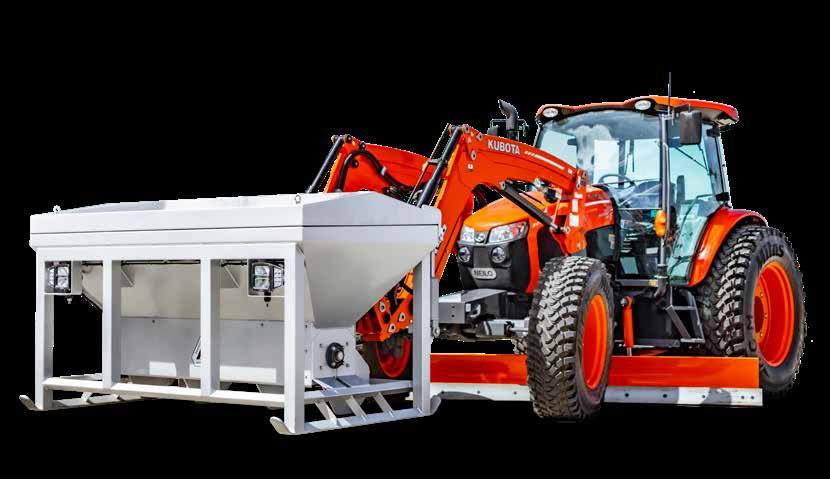

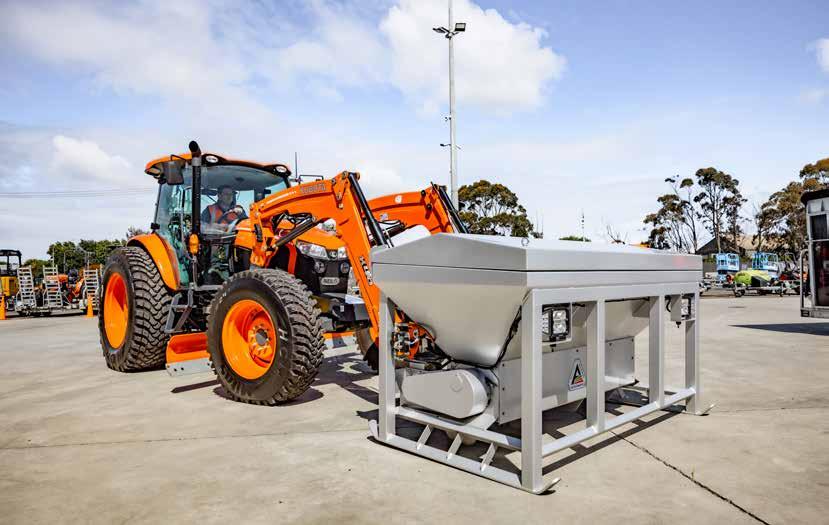

NEILO M5111 w/STABILIZER UNIT

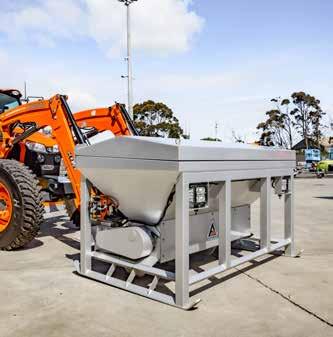

Cross a NEILO Grader with a state-of-the-art Road Mill and Cement Vane, you get yourself a road stabilising beast. An already highly capable machine is now the must-have for any contractor in the road stabilising game.

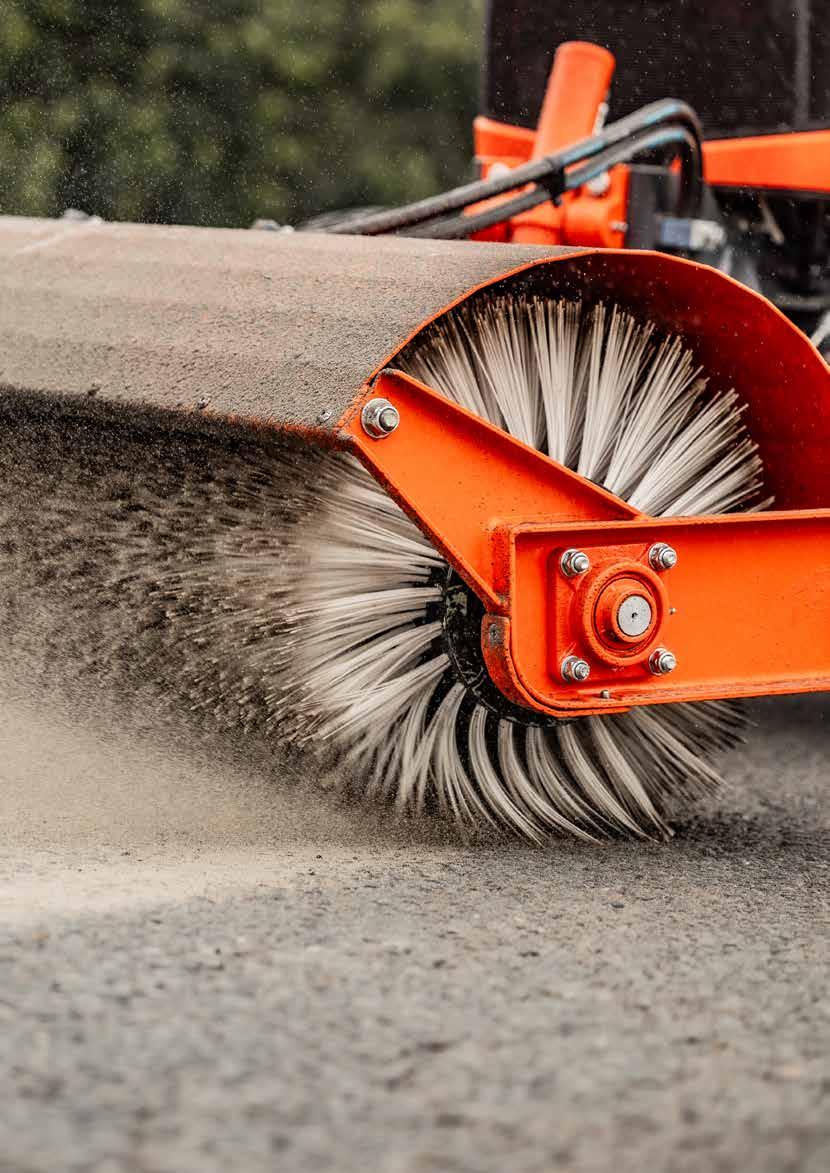

BROOMS SWEEP YOUR WAY TO PERFECTION
NEILO’s highly advanced road-broom systems enable you and your operators to perfectly finish your projects with the least amount of fuss. Our innovative contour-following brush design significantly reduces brush wear and coning, while our simple design enables quick two minute brush changes. Add our dust suppression kit to meet your specific site requirements or utilise our wide range of options to improve sweeping operation and safety.
Whether it’s a purpose-built Tractor or Truck you’re after, we can work with you to configure your ideal machine.

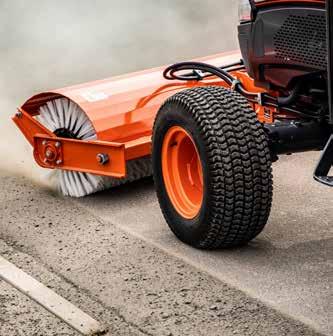

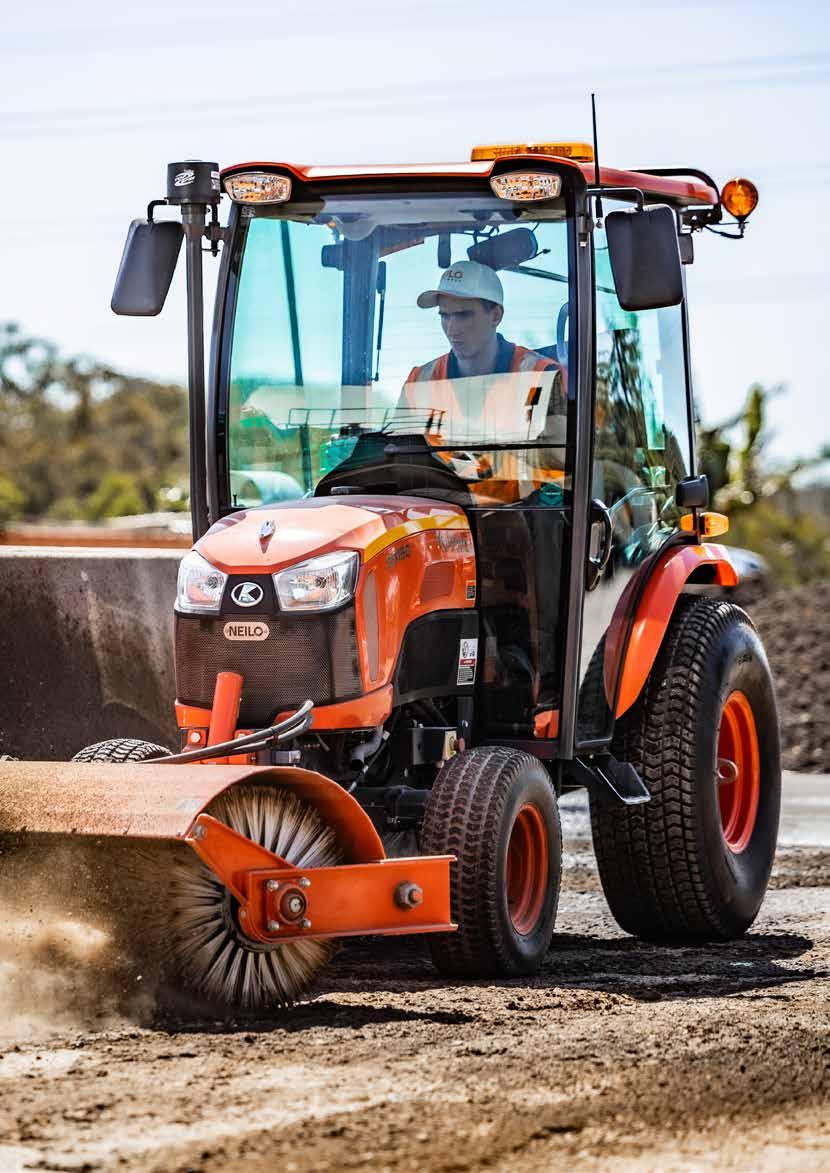

OUR MOST POPULAR BROOM.
The compact NEILO B3150 Broom is the ultimate combination of performance and reliability. Its large, high-performance 1.75m Road Broom is hydraulically operated from the air-conditioned/ heated cab.
The innovative design allows you to sweep at the exact positioning you require with minimal coning and an even sweep. Its unique spring-activated contour follows the lateral pivot, which substantially reduces brush wear & coning.
KEY FEATURES
+ 31HP Diesel Engine
+ 3-speed Hydrostatic Drive
+ 1.75M Broom
+ Contour-following broom head
+ Anti-drop safety valve fitted to broom
+ Climate-controlled cabin
+ Turf tyres as standard
+ Easily accessible tie-down points

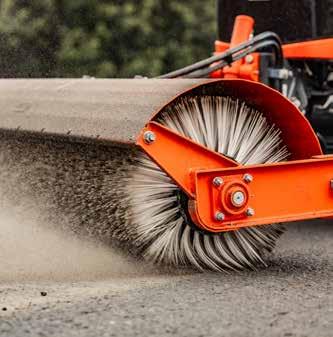

Perform quick brush replacements onsite, needing only two spanners and a pair of hands.

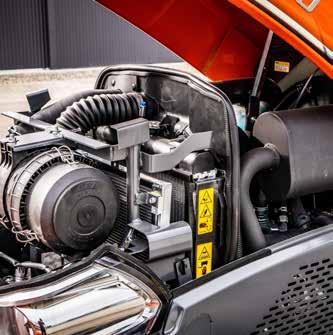

A ‘Top Spin’ pre-cleaner prevents dust from entering the engine compartment. When used with the purpose-built Neilo brooms trailer, it can be quickly and safely moved between sites. A huge range of add-ons enable you to customise this broom to meet your site’s safety and operational specifications.

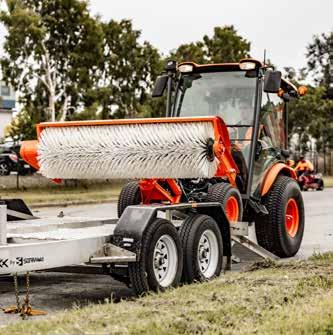

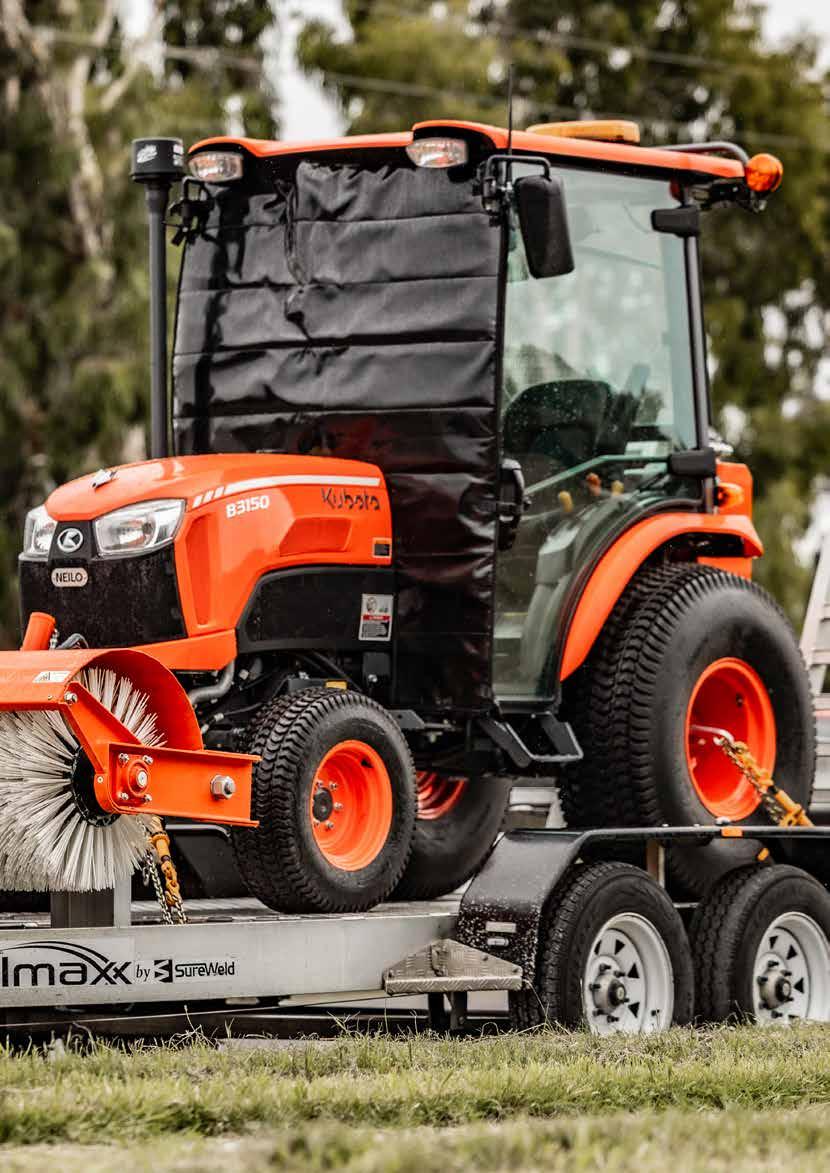

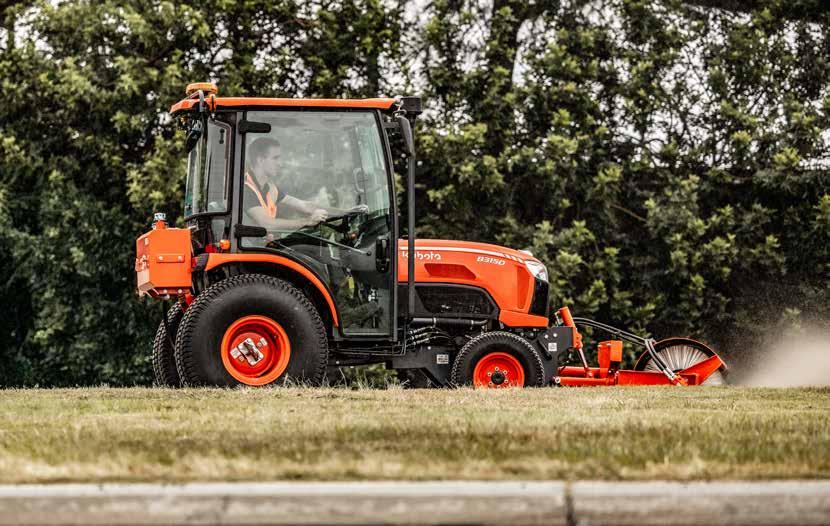

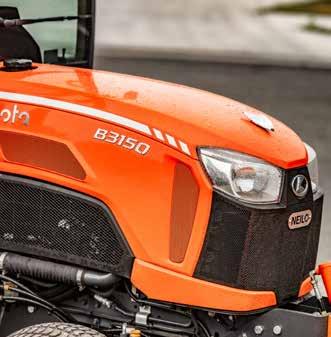

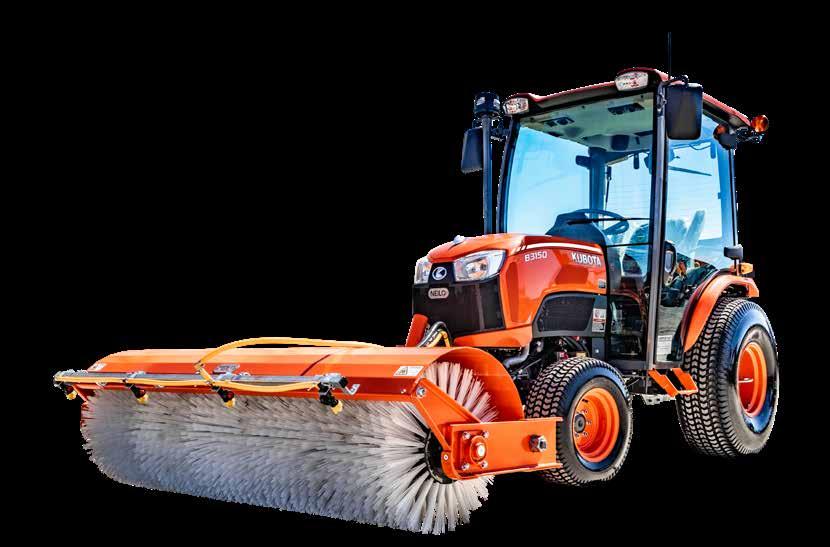

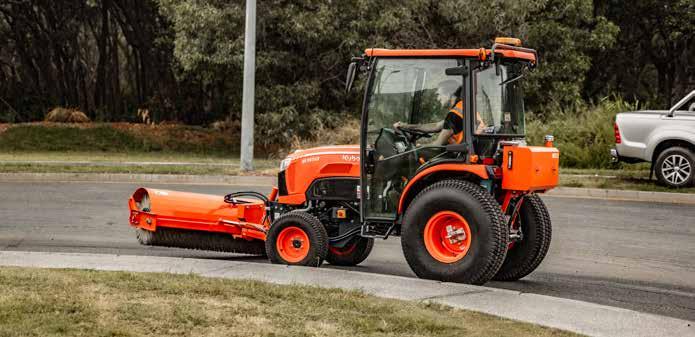

B3150 BROOM TRACTOR
OPTIONS TECHNICAL DATA
WEIGHT
LENGTH
TRACTOR WIDTH
SHROUD WIDTH
BROOM WIDTH
FUEL CAPACITY
BROOM SPEED
STANDARD
1,585kg
3,900mm (Without dust suppression)
1,420mm 2,130mm 1,740mm
27L
127 RPM
TRACTOR ADD-ONS SAFETY ADD-ONS
+ Canvas Seat Cover
+ Additional Set of Keys (2X)
+ Heated Mirrors
+ LED Headlight Upgrade
+ Rear Facing Flashing Lights
+ Windscreen Protector for Transport

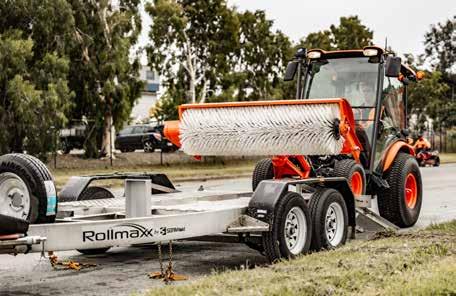

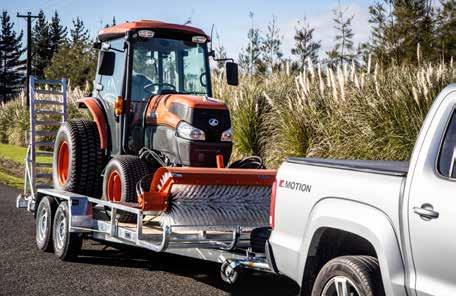

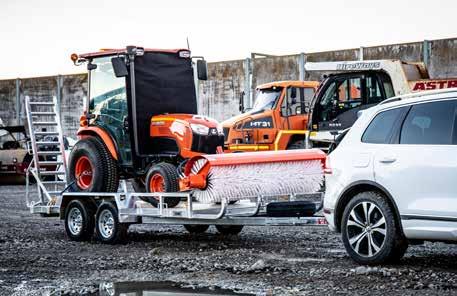

+ Premium purpose-built Trailer
+ Dust Suppression system - with 98L tank
+ Rubber broom flap
+ Road Registered
+ Battery Isolation Switch
+ Engine Over-heat Alarm
+ Reverse Squawker
+ Emergency Stop Button
+ Fire Extinguisher w Bracket
+ 75mm Seat Belt (From 50mm)
+ Green/red approach light system
+ Red Rear facing LED Night light
+ Door open engine cutoff trip

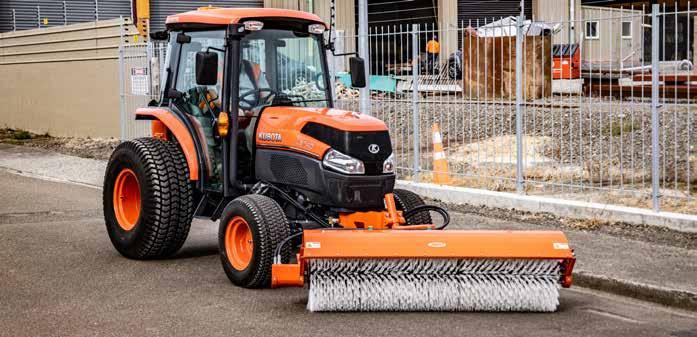

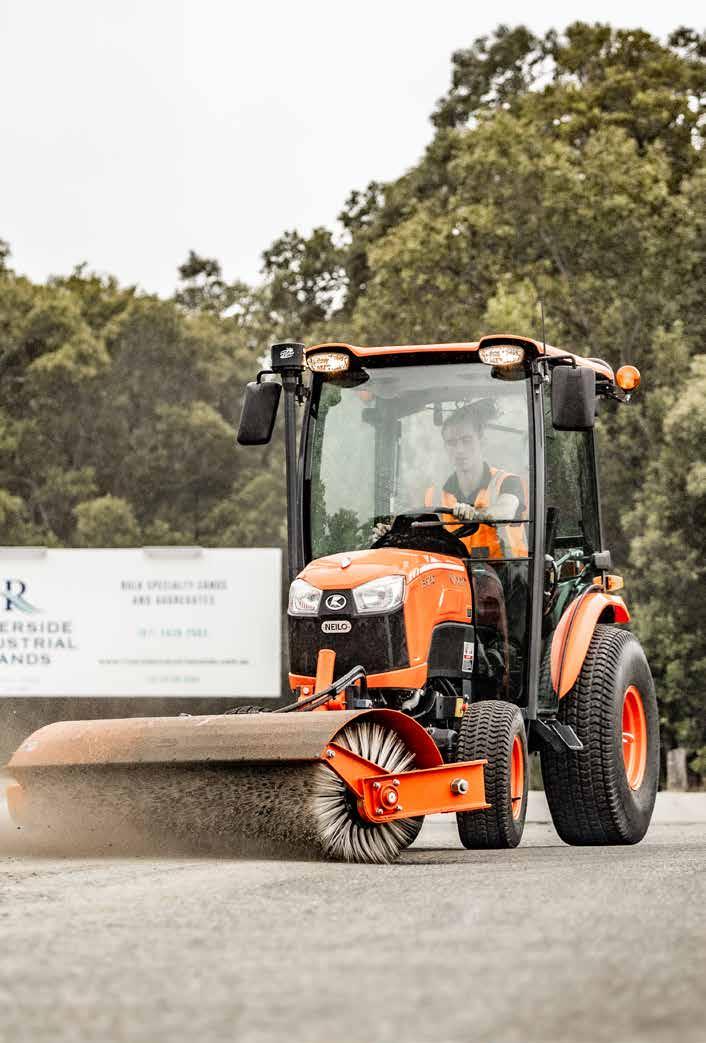

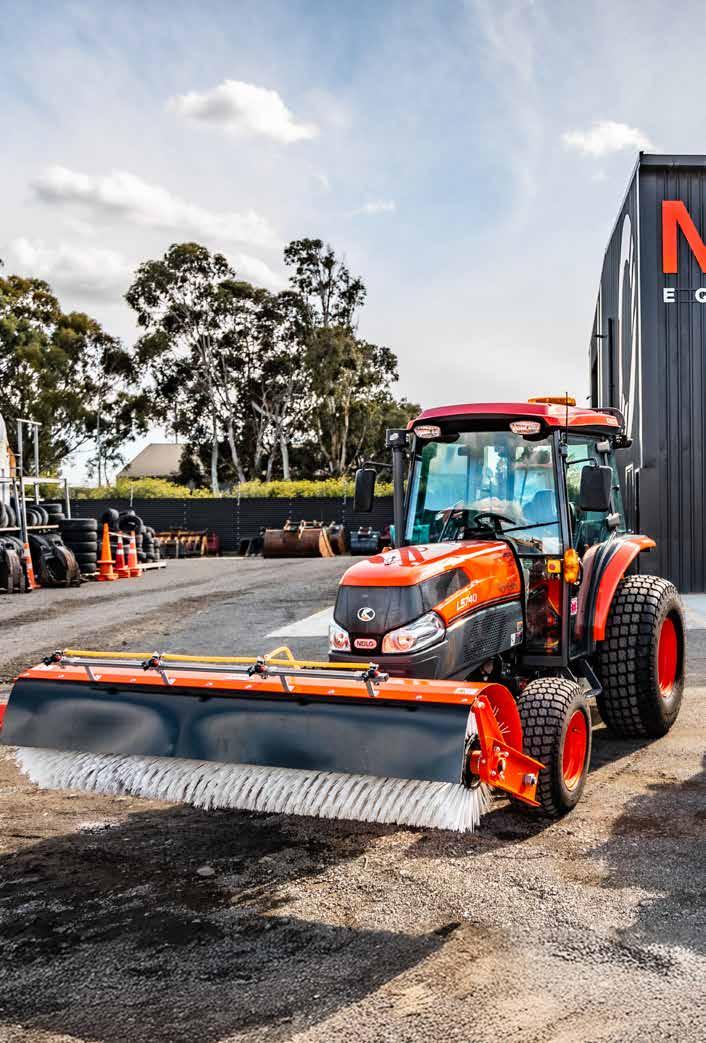

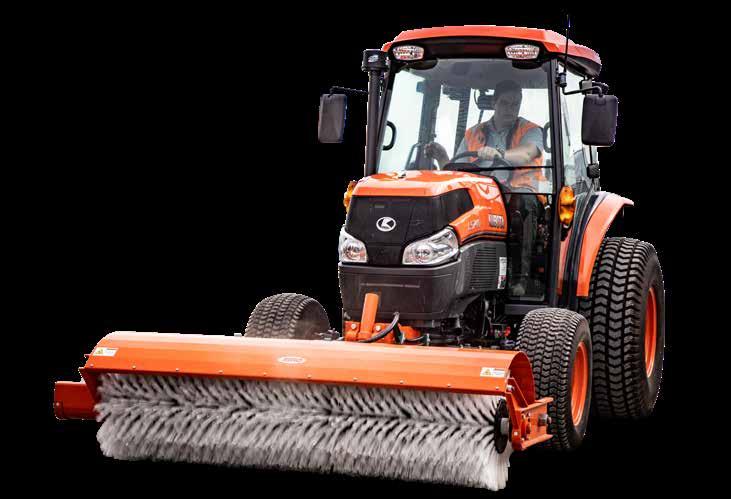

L5740 BROOM
THE ROAD SWEEPER FOR THE SERIOUS CONTRACTOR.
The NEILO L5740 is the big brother to the B3150, offering nearly double the horse power (59HP) to help you speed through your tasks. Sweep the streets with ease with the same 1.75 metre front mounted broom as the B3150, or if size is important, upgrade to the 2.1 metre broom. The unique spring-activated contour follows the lateral pivot, substantially reducing brush wear & coning.
KEY FEATURES
+ 59HP Diesel Engine
+ 3-speed Hydrostatic Drive
+ 2.1M Broom
+ Contour-following broom head
+ Anti-drop safety valve fitted to broom
+ Cruise control
+ Auto load-sensing throttle
+ PTO Clutch
+ Climate-controlled cabin
+ Turf tyres as standard
+ Easily accessible tie-down points
The L5740 comes kitted with convenient features like cruise control and a load sensing auto throttle. Designed to be used for long hours on the longest of roads, this sweeper will keep your operators comfortable and safe.
The air-conditioned and heated cab ensures the operator is comfortable in all elements. Large windows on all four sides of the cab offer the operator great visibility of the surroundings too.

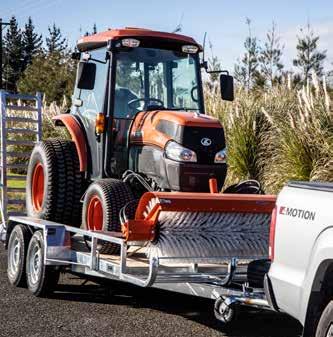

L5740 BROOM TRACTOR WITH OPTIONAL RUBBER BROOM FLAP
WEIGHT
LENGTH
TRACTOR WIDTH
SHROUD WIDTH
BROOM WIDTH
FUEL CAPACITY
BROOM SPEED
2,220kg 4,400mm 1,895mm 2,140mm 1,750mm 44L 150 RPM
TRACTOR ADD-ONS SAFETY ADD-ONS
+ Canvas Seat Cover
+ Additional Set of Keys (2x)
+ Heated Mirrors
+ Rear Facing Flashing Lights
+ Windscreen Protector for Transport
+ Premium purpose-built Trailer
+ Dust Suppression system – with 200L tank
+ Rubber broom flap
+ Road Registered
+ Battery Isolation Switch
+ Engine Over-heat Alarm
+ Reverse Beeper
+ Emergency Stop Button
+ Fire Extinguisher w Bracket
+ 75mm Seat Belt (From 50mm)
+ Green/red approach light system
+ Red Rear facing LED Night light 5 SECTION STANDARD OPTIONAL 6 SECTION BROOM 2,240kg 4,400mm 1,895mm 2,490mm 2,100mm 44L 150 RPM

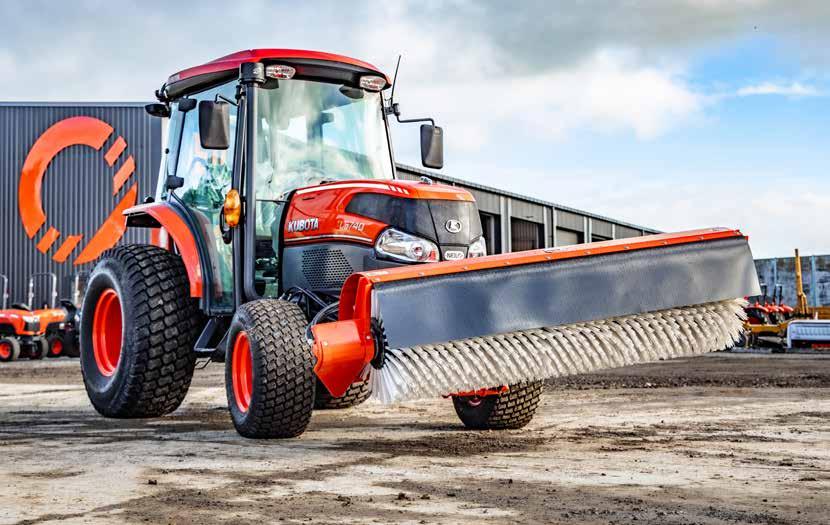

L5740 BROOM
PICTURED WITH DUST SUPPRESSION KIT

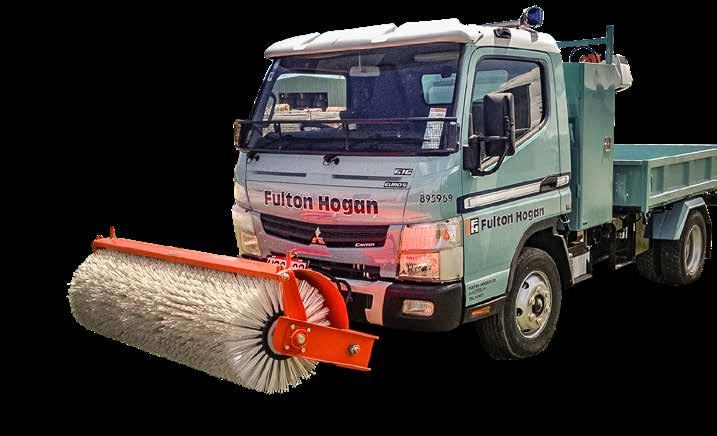

TRUCK MOUNTED BROOM KIT
CONVERT YOUR OWN TRUCK INTO A STREET SWEEPER.
Add some NEILO sweeping brilliance to your new or existing Trucks to maximise your investment and improve your site cleanliness and finishing.
Powered by your truck’s PTO, our Truck Broom kit increases your truck’s versatility, while removing the need to invest in a dedicated sweeper when you only use it every so often.
INCLUDES:
+ 1.75m Neilo Broom Shroud & Brushes
+ Hydraulic single-direction broom drive
+ Neilo’s unique springactivated contour following lateral pivot to substantially reduce brush wear & coning.
+ Generic bolt-on mounting plate to be engineered to fit onto truck
+ Lockable broom oscillation for traveling
+ Locator sticks for improved broom control/operation
Neilo does not provide installation, cabin controls, hydraulic hosing, truck modifications, PTO pump and hydraulic tank/reservoir as these requirements vary widely between trucks.
NOTE: An external vehicle modification certification required for road compliance.

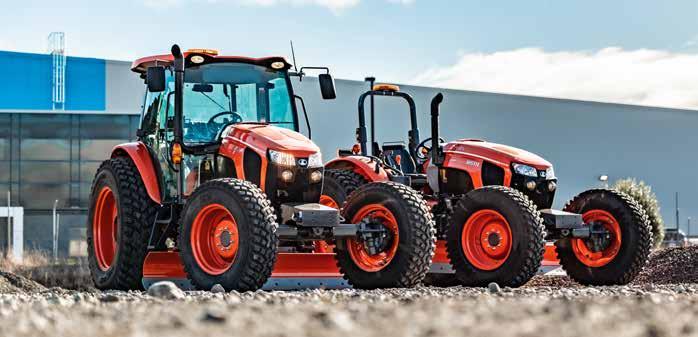

GRADERS VERSATILE COMPACT DURABLE
Are you searching for the ultimate grader for all your site leveling and construction tasks? A grader that will stand out and turn heads, whilst achieving outstanding results?
LOOK NO FURTHER.
Fitted onto reliable Kubota Tractors, NEILO goes about the difficult task of extending the chassis, adding grader mounts and control systems, and including a wide variety of other site specific requirements. Our Graders are renowned throughout Australasia for their reliability, value-for-money and most importantly, precision.
Developed and produced in Palmerston North, NZ by our team of expert engineers and operators, you can rest assured you’re making a wise investment that will last for many years.

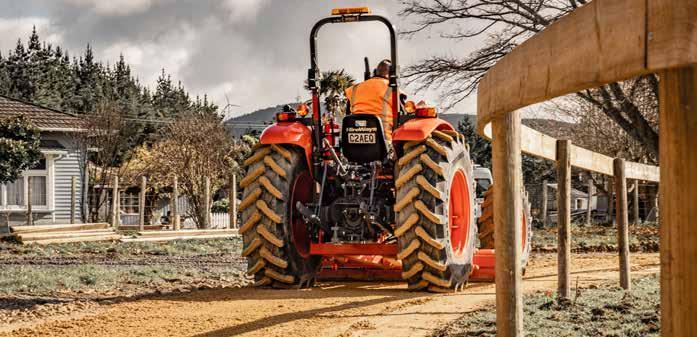

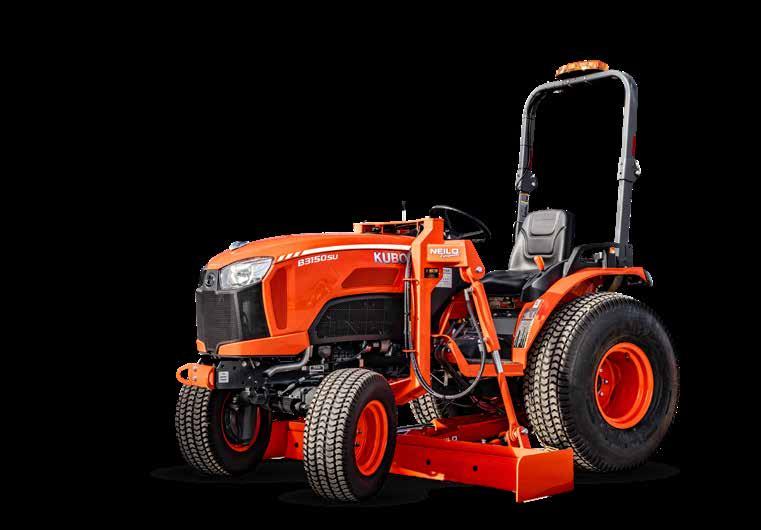

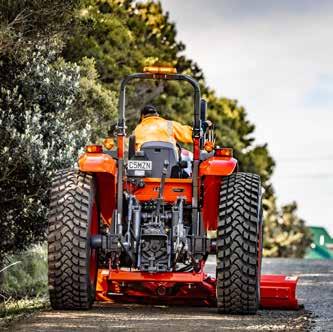

B3150 ROP’S GRADER
SMALL GRADER. LARGE PERFORMANCE.
Although it’s the smallest Tractor Grader in our range, the B3150 Grader packs a real punch. Its 31 HP engine combined with a versatile 1.8 M mid-mounted box blade makes for a powerful combo. This Grader is an open cab model, fitted with turf tyres to help protect sensitive surfaces. Available with the highly popular NEILO road broom or the Kubota front loader for the ultimate versatility onsite.
KEY FEATURES
+ 31HP Diesel Engine
+ 3-speed Hydrostatic Drive
+ 1.8M/6ft Blade with a reversible and replaceable cutting edge

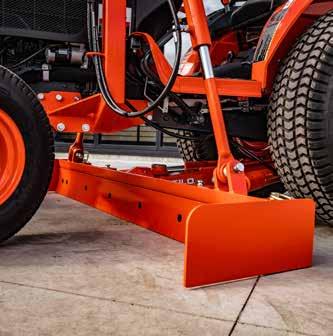

+ 4-way adjustable Box blade
+ Turf tyres as standard
+ Flashing LED beacon
+ Fully compliant ROP’S (roll over protection system)
+ Easily accessible tie-down points

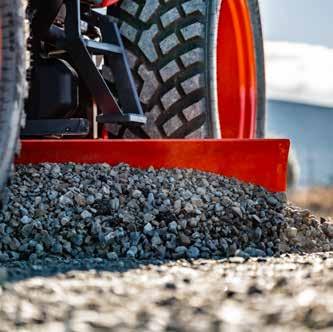

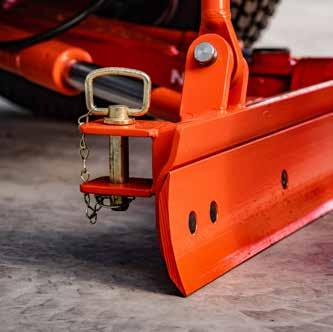

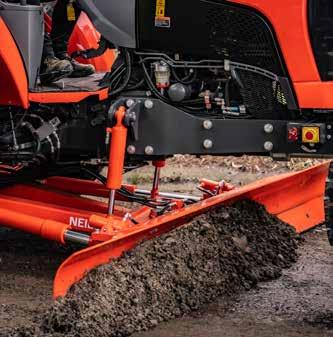

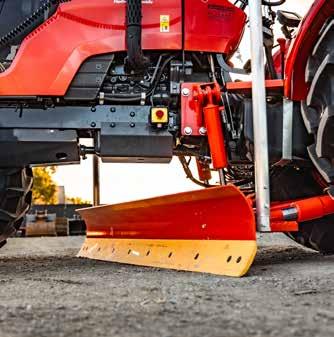

The smart blade design includes a reversible & replaceable cutting edge as well as 2 detachable wings for increased capacity. Also, the folding ROP’s allows you to enter through lower doorways and tighter spaces. The ideal grader for those delicate finishing tasks, and perfect for working inside buildings.
Including your desired laser or GPS control system will enable precision finishing. We are approved Leica dealers, so can assist with any of your Laser/GPS needs and our interface system is also compatible with other brands.

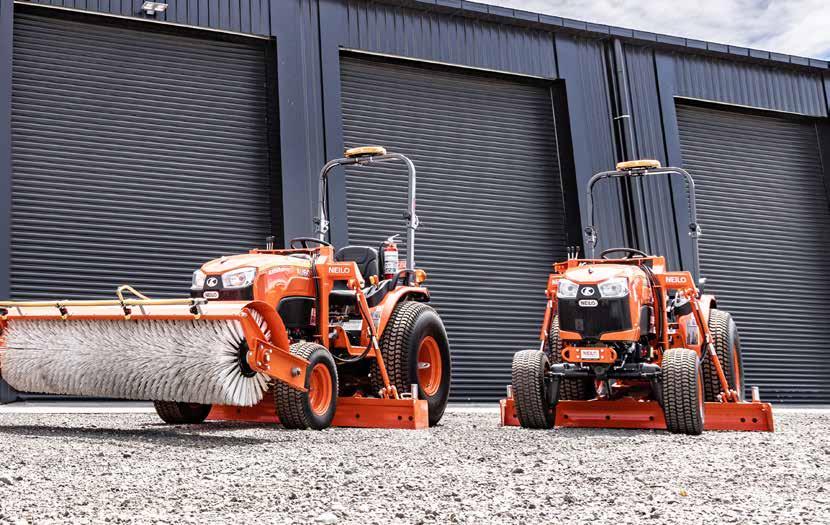

B3150 GRADER w BROOM
B3150 GRADER
WEIGHT LENGTH
TRACTOR WIDTH
SHROUD WIDTH
SLEWED WIDTH
GRADER BLADE WIDTH
SLEW ANGLE
BLADE CLEARANCE (FULLY RAISED)
25˚ Either Way 90mm
27L
+ Canvas Seat Cover
+ Additional Set of Keys (2X)
+ Plastic Overhead Canopy
+ Front Windscreen & Wiper
+ 1.75M Front Mounted Broom (with quick release hitch)
+ Rubber Broom Flap
+ Machine Control Mast’s
+ Premium Purpose-Built Trailer
+ Machine Control Valve Body/Interface
+ Road Registered
FUEL CAPACITY w BROOM 1,700kg 3,900mm 1,400mm 2,130mm 1,850mm 1,845mm (6ft)
TRACTOR ADD-ONS SAFETY ADD-ONS
+ Battery Isolation Switch
+ Engine Over-heat Alarm
+ Reverse Beeper
+ Emergency Stop Button
+ Fire Extinguisher w Bracket
+ 75mm Seat Belt (From 50mm )
25˚ Either Way 90mm
27L
+ Green/red approach light system
+ Red Rear facing LED Night light STANDARD 1,290kg 3,000mm 1,400mm n/a 1,850mm 1,845mm (6ft)

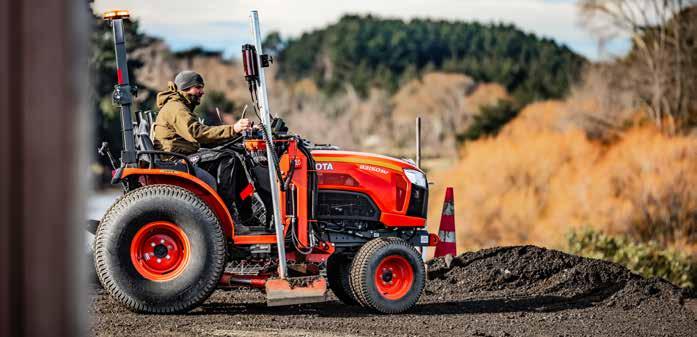

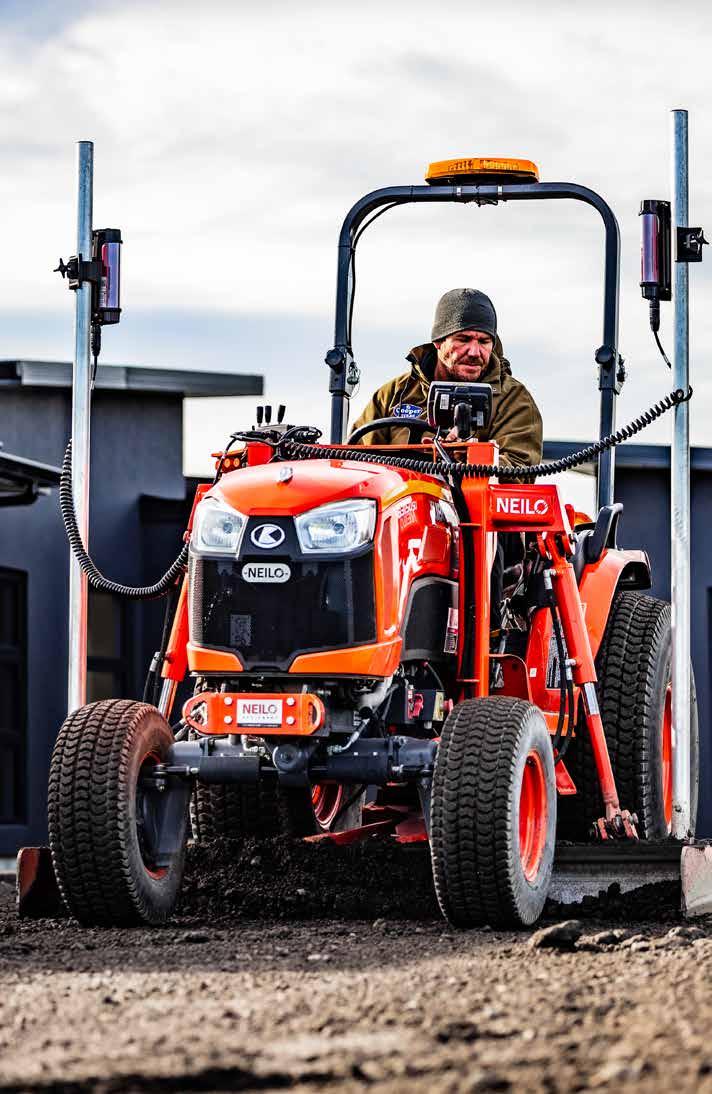

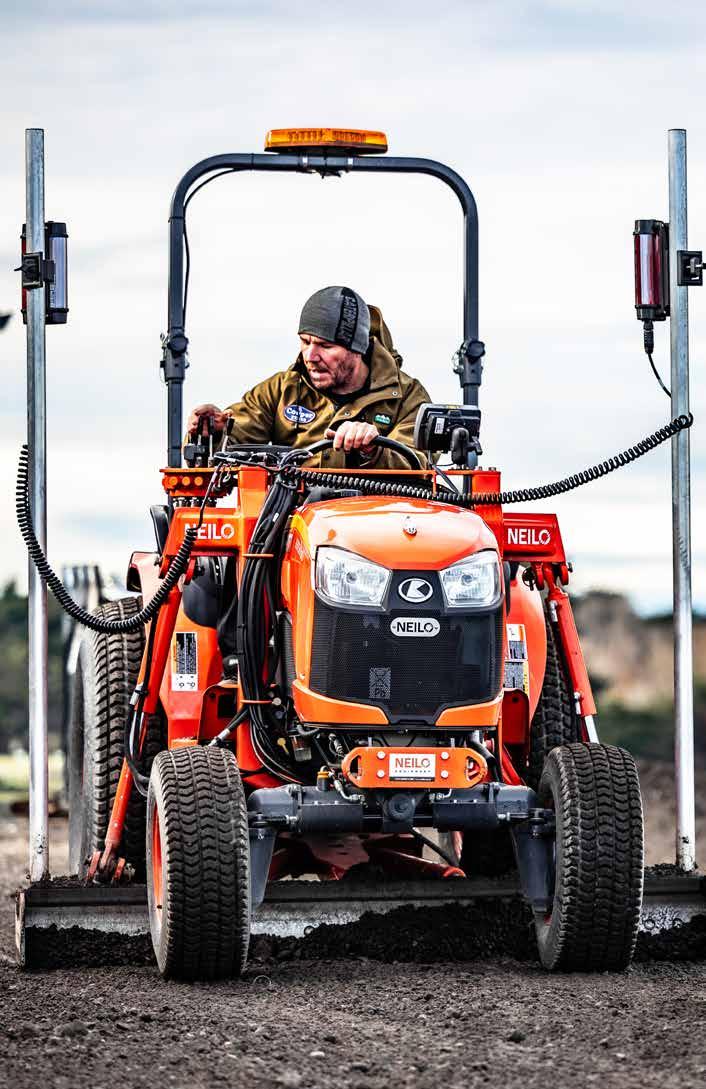

B3150 ROP’S GRADER
COMPATIBLE Laser/2D/3D systems
PICTURED WITH NEILO SUPPLIED LEICA 2D LASER SYSTEM

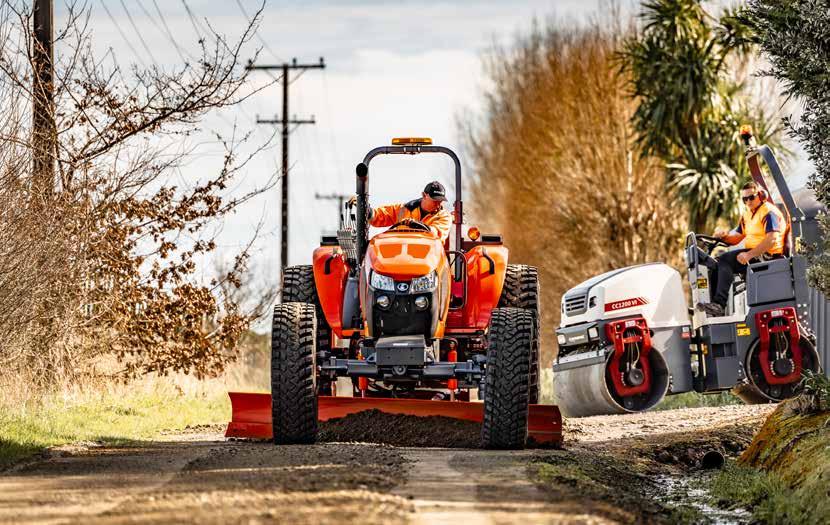

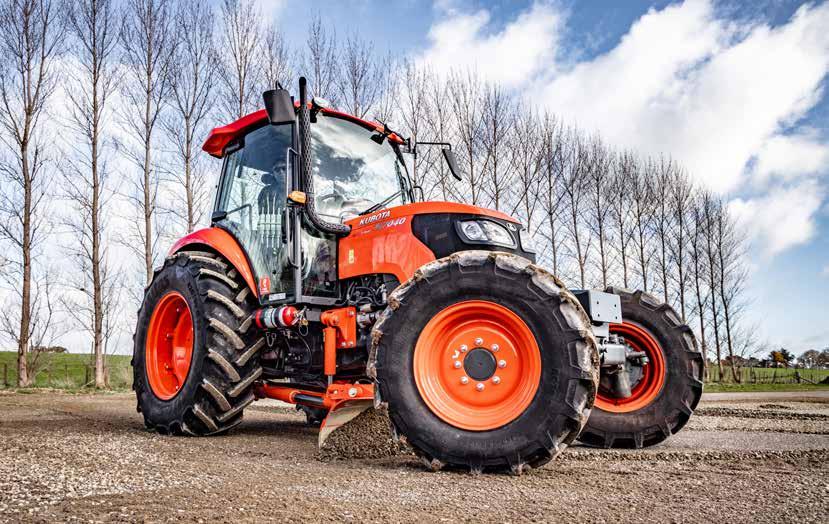

The NEILO M7040 is a powerful 70HP Tractor, the ideal candidate for our 2.4m 8-way mid-mounted grading system.
The perfect machine for larger roadworks or site works. The ROP’s can be fitted with a windscreen and plastic roof for sun protection, and the open-cab style allows for great visibility of your grading surface.
KEY FEATURES
+ 70HP Diesel Engine
+ 4 speed shuttle box with wet clutch
+ Extended wheel base
+ Reversible and replaceable 2.4M/8FT blade
+ 8 way blade (Crowd, Slew, side shift and height)
+ Flashing LED beacon
+ Easily accessible tie-down points
+ Fully compliant ROP’S (roll over protection system)
+ Ag Tyres as standard
Including your desired laser or GPS control system will enable precision finishing. We are approved Leica dealers, so can assist with any of your Laser/GPS needs and our interface system is also compatible with other brands.

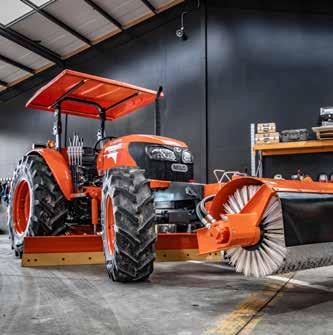

Add a 1.75m or 2.1m NEILO broom with a quick hitch for the ultimate in versatility. Get your site leveled, then sweep up when you’re done, with the same machine!
TECHNICAL DATA
M7040 ROP’S TRACTOR GRADER
WEIGHT LENGTH
TRACTOR WIDTH
SLEWED WIDTH
GRADER BLADE WIDTH
SLEW ANGLE
BLADE CLEARANCE (FULLY RAISED) FUEL CAPACITY
STANDARD 3,320kg 4,120mm 2,000mm 2,240mm 2,400mm (8ft)
25˚ Either Way 185mm 57L
w OPTIONAL BROOM 3,620kg 5,515mm 2,000mm 2,240mm 2,400mm (8ft)
25˚ Either Way 185mm 57L
OPTIONS
TRACTOR ADD-ONS SAFETY ADD-ONS
+ Canvas Seat Cover
+ Additional Set of Keys (2X)
+ Plastic Overhead Canopy
+ Front Windscreen & Wiper
+ 1.75M or 2.1M Front Mounted Broom (with quick release hitch)
+ Rubber Broom Flap
+ Machine Control Valve Body/Interface
+ Machine Control Mast’s
+ Road Registered

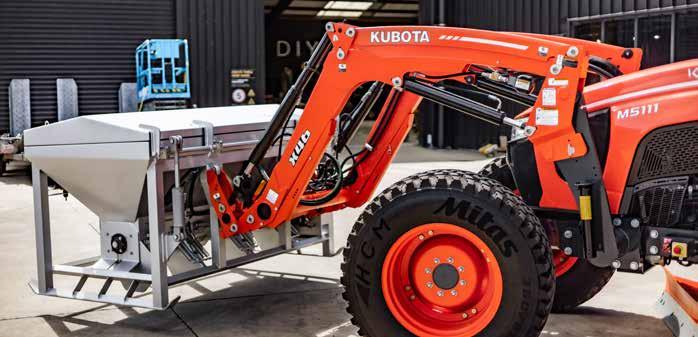

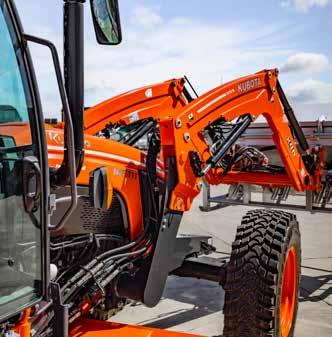

+ Front End Loader
+ Battery Isolation Switch
+ Engine Over-heat Alarm
+ Reverse Beeper
+ Emergency Stop Button
+ Fire Extinguisher w Bracket
+ 75mm Seat Belt (From 50mm )
+ Green/red approach light system
+ Red Rear facing LED Night light

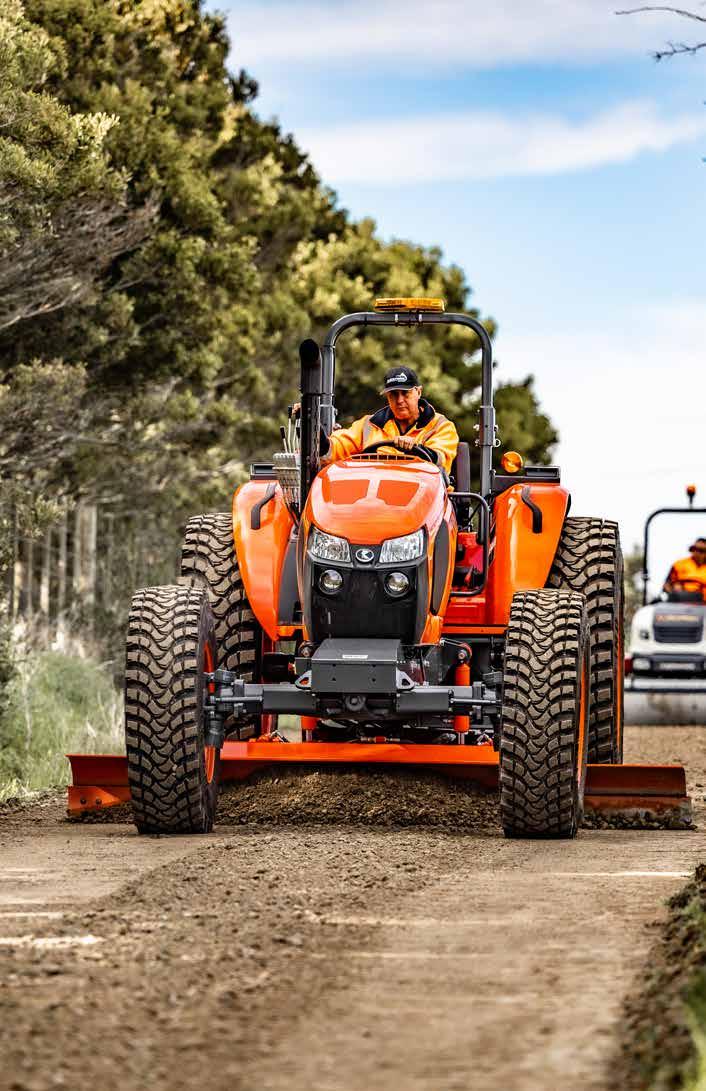

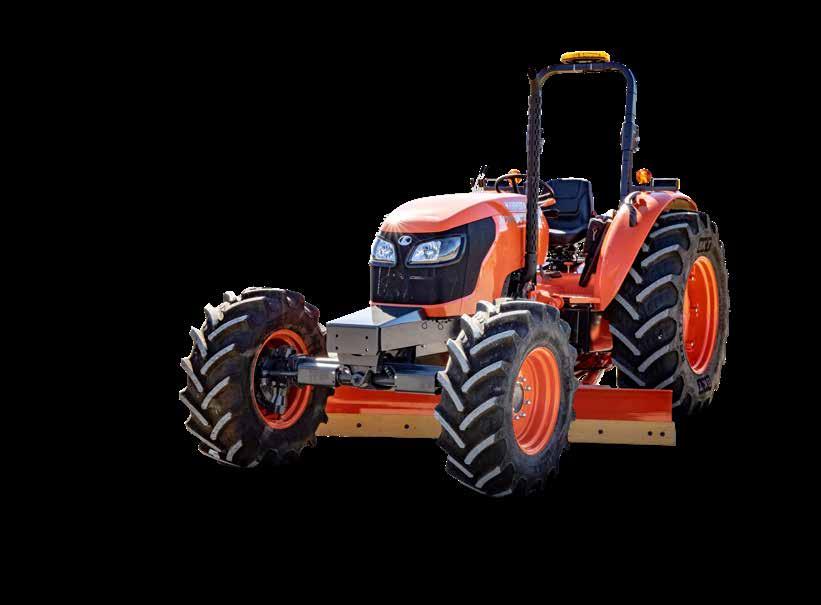

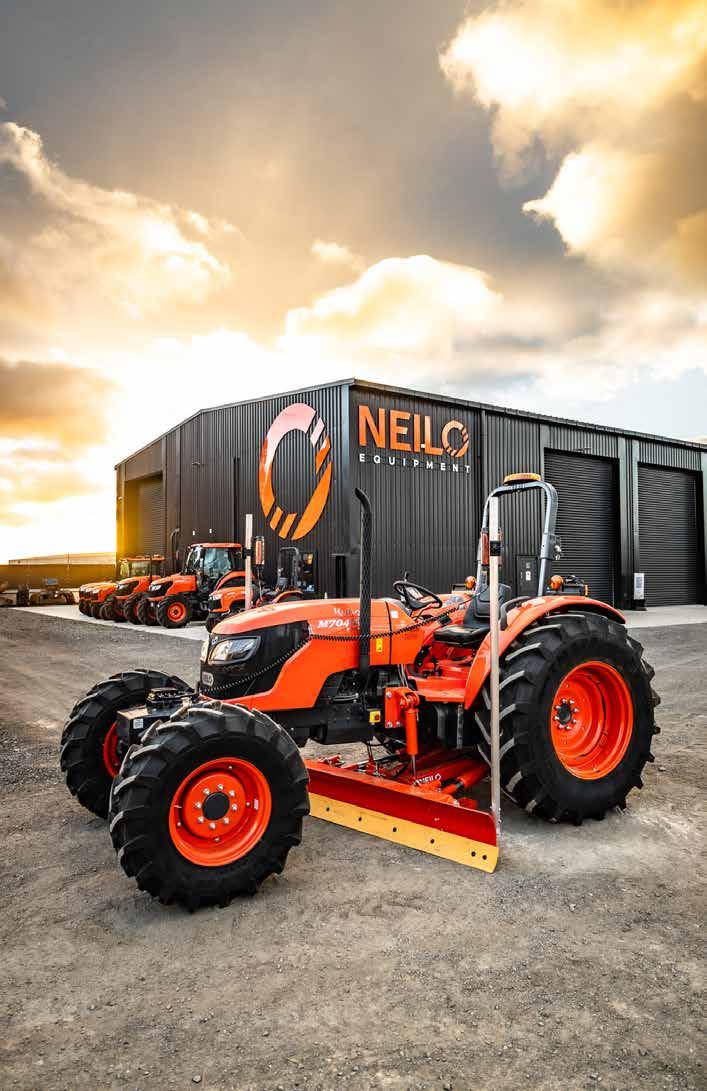

M7040 ROP’S GRADER
PICTURED WITH NEILO SUPPLIED LEICA 2D LASER SYSTEM

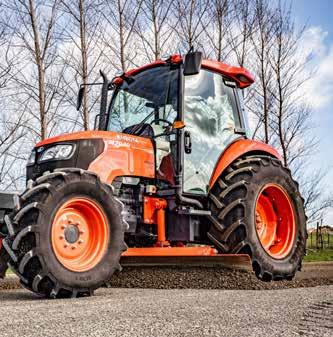

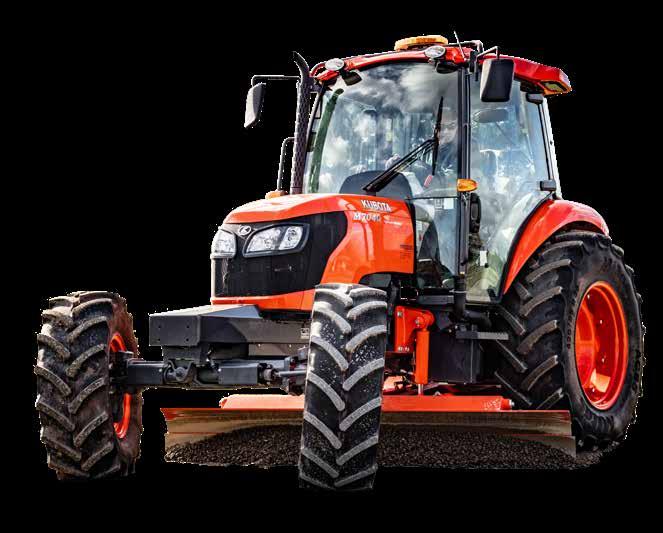

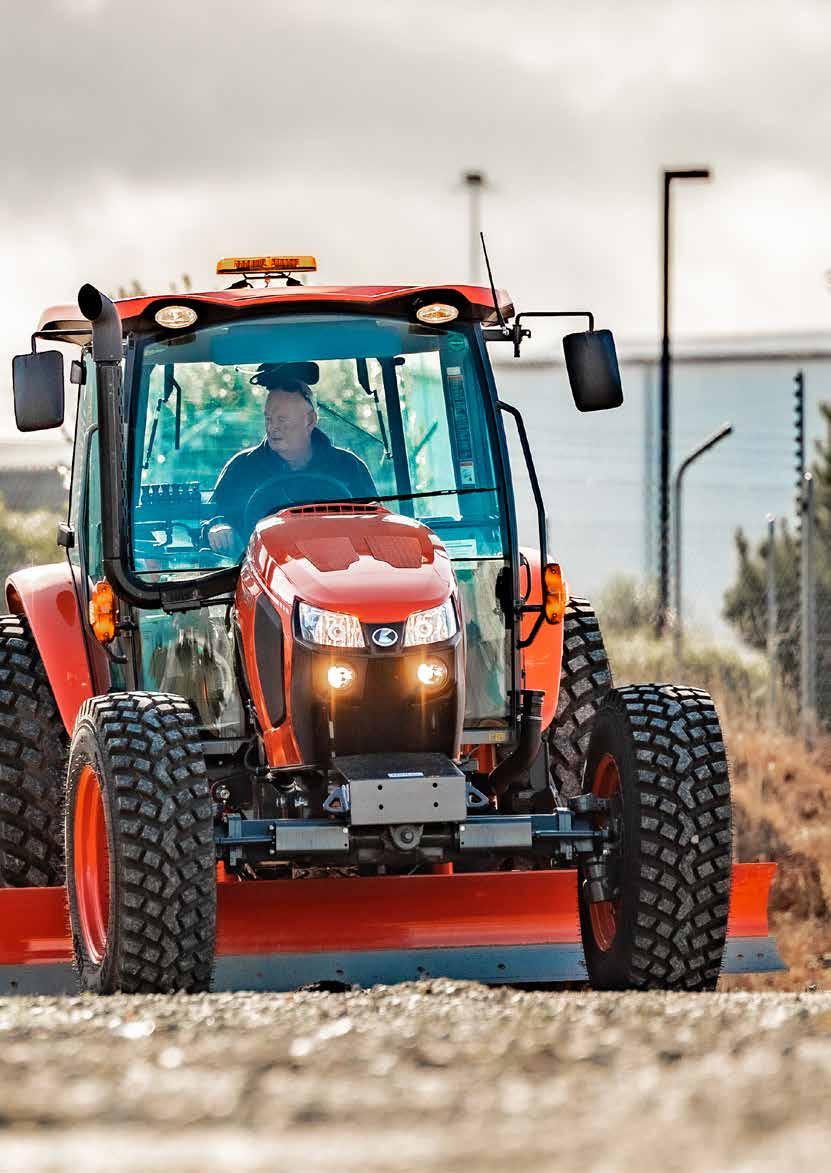

M7040 CAB GRADER
THE HIGH PERFORMER.
The NEILO M7040 Grader tractor is the ultimate grading machine for general roadworks or site leveling. The innovative grading system enables the finest of adjustments as you grade and the 2.4m blade design maintains a level plain when slewing at ground level in rolled back mode.

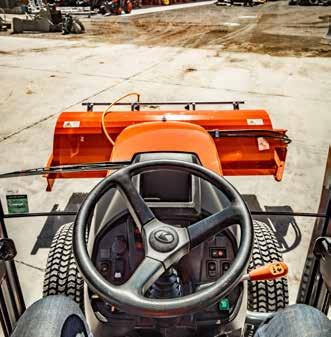

The AC provides comfort in all weather conditions, while the cab layout allows for superior visibility, keeping your people safe.
KEY FEATURES
+ 70HP Diesel Engine
+ 4 speed shuttle box with wet clutch
+ Extended wheel base
+ Reversible and replaceable 2.4M/8FT blade
+ 8 way blade (Crowd, Slew, side shift and height)
+ Flashing LED beacon
+ Easily accessible tie-down points
+ Fully compliant ROP’S (roll over protection system)
+ Ag Tyres as standard
Including your desired laser or GPS control system will enable precision finishing. We are approved Leica dealers, so can assist with any of your Laser/GPS needs and our interface system is also compatible with other brands.
Add on a 1.75m or 2.1m NEILO broom with a quick hitch for the ultimate in versatility. Get your site to grade, then sweep up when you’re done with the same machine.
M7040 CAB TRACTOR GRADER
OPTIONS TECHNICAL DATA
WEIGHT LENGTH
TRACTOR WIDTH
SLEWED WIDTH
GRADER BLADE WIDTH
SLEW ANGLE
BLADE CLEARANCE (FULLY RAISED) FUEL CAPACITY
STANDARD 3,660kg 4,250mm 2,000mm 2,240mm 2,400mm (8ft)
25˚ Either Way 185mm 67L
w OPTIONAL BROOM 3,960kg 5,645mm 2,000mm 2,240mm 2,400mm (8ft)
25˚ Either Way 185mm 67L
TRACTOR ADD-ONS
+ Canvas Seat Cover
+ Additional Set of Keys (2X)
+ Plastic Overhead Canopy
+ Front Windscreen & Wiper
+ 1.75M or 2.1M Front Mounted Broom (w quick-release hitch)
+ Rubber Broom Flap
+ Machine Control Valve Body/Interface
+ Machine Control Mast’s
+ Road Registered
+ Front End Loader
SAFETY ADD-ONS
+ Battery Isolation Switch
+ Engine Over-heat Alarm
+ Reverse Beeper
+ Emergency Stop Button
+ Fire Extinguisher w Bracket
+ 75mm Seat Belt (From 50mm )
+ Green/red approach light system
+ Red Rear facing LED Night light
+ Door open engine cutoff trip
+ Rear Facing Amber flashing lights

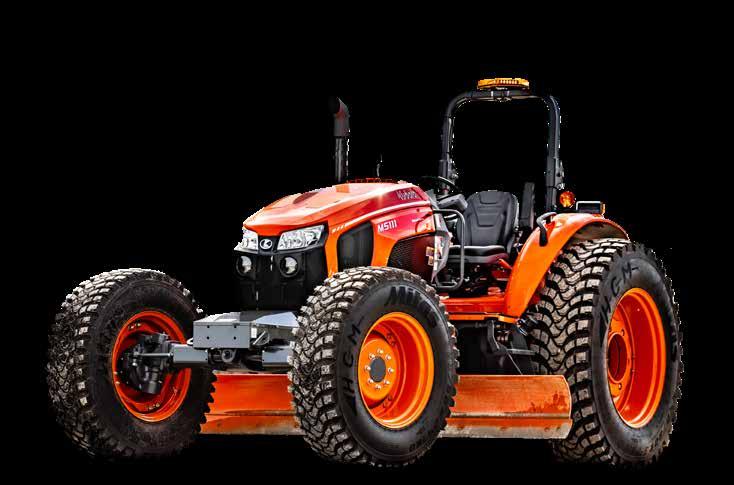

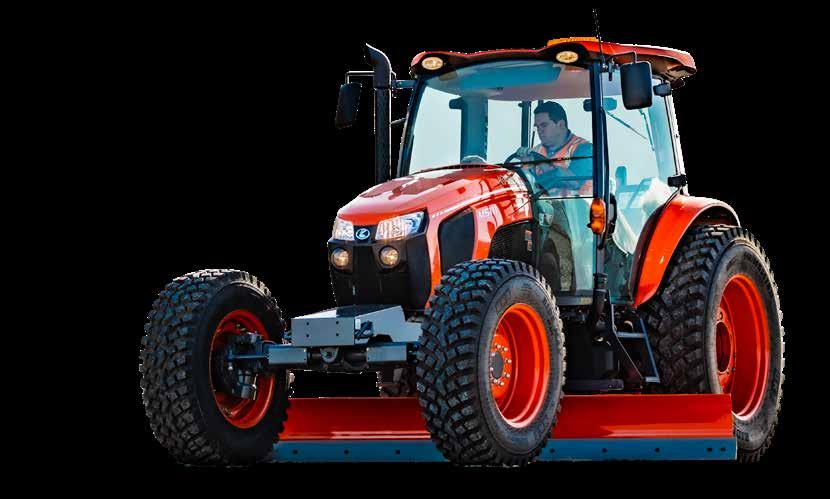

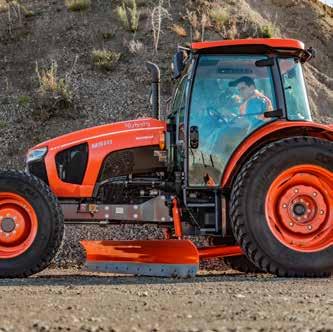

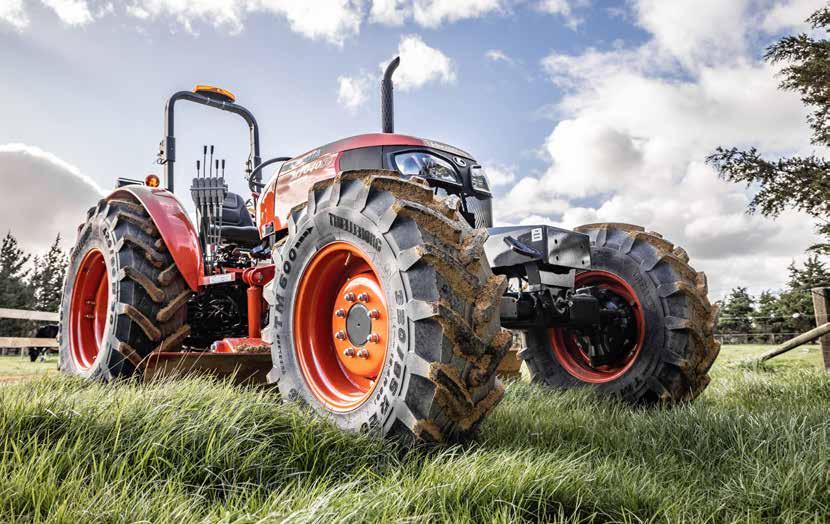

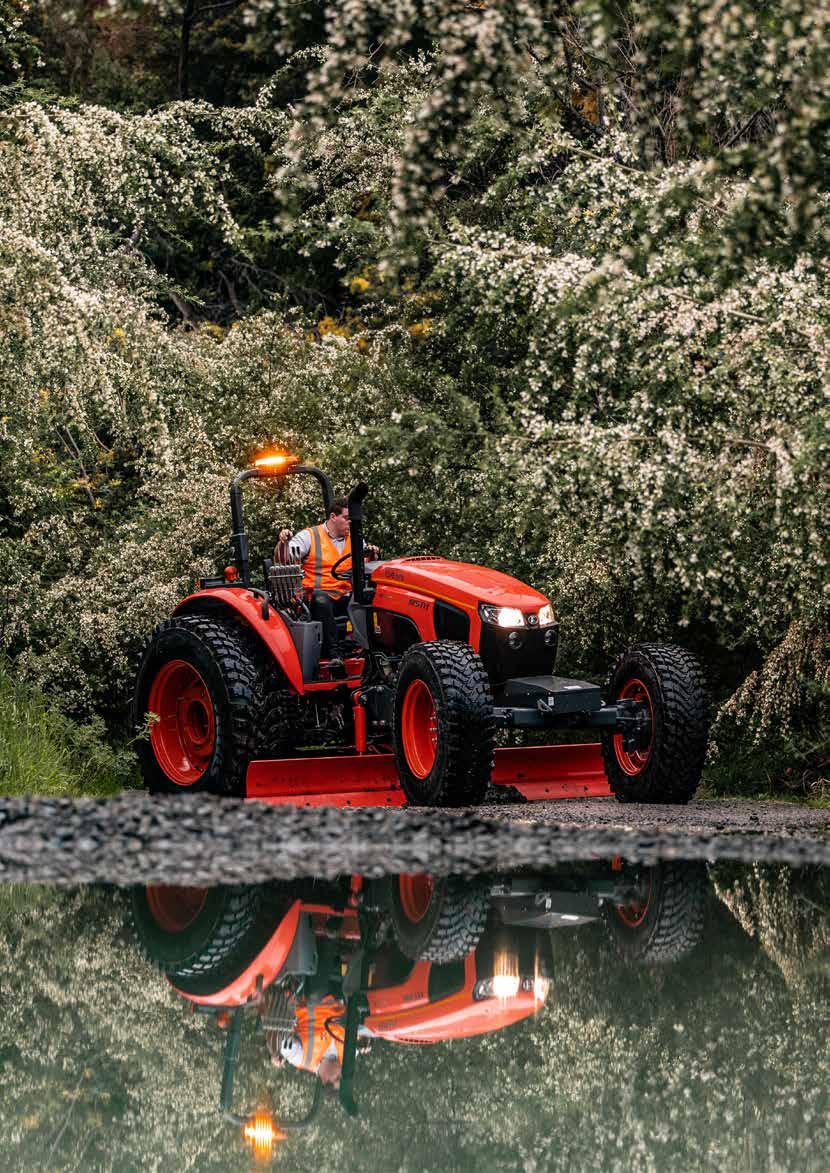

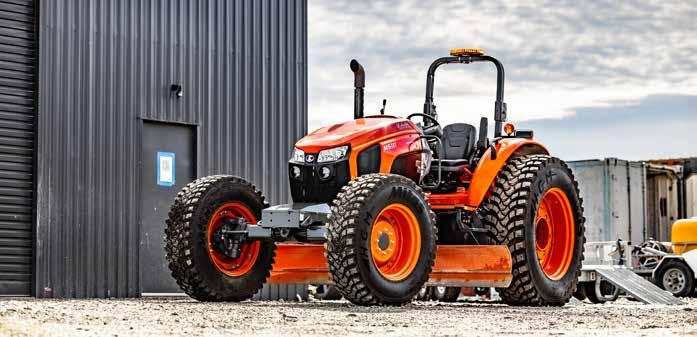

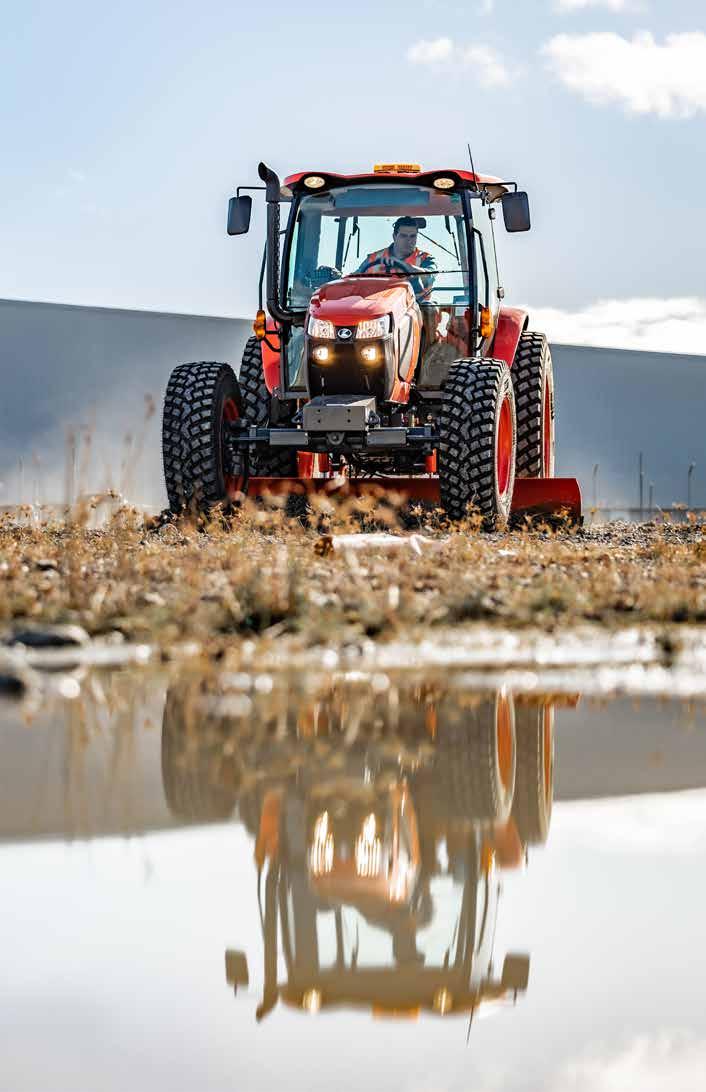

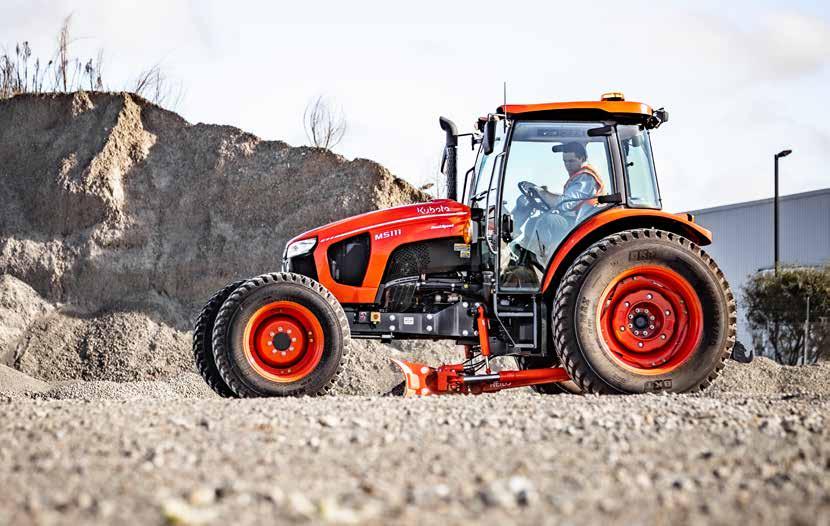

M5111 ROP’S GRADER
THE GRADER WITH A DIFFERENCE
Meet the NEILO M5111, a mighty 110.5hp Grader combining Neilo’s signature engineering brilliance with Kubota’s unmatched reliability.
The wide-open design of the Tractor gives your operator a prime view of the blade below, enabling them to fine-tune the grade for an ultimate finish.
KEY FEATURES
+ 110HP Diesel Engine
+ 6 speed shuttle box with wet clutch
+ Extended wheel base
+ Reversible and replaceable 3.05M/10FT blade
+ 8 way blade (Crowd, Slew, side shift and height)
+ Flashing LED beacon
+ Easily accessible tie-down points
+ Fully compliant ROP’S (roll over protection system)
+ Ag Tyres as standard
An all-around top performer, this Grader will put its 3,050mm 8-way blade to full use on every job site. Easy to use and simple to maintain, this machine will prove itself to be one of your hardest-working and longest-lasting assets.

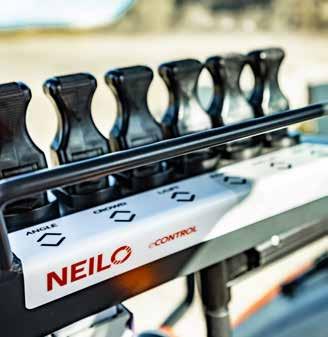

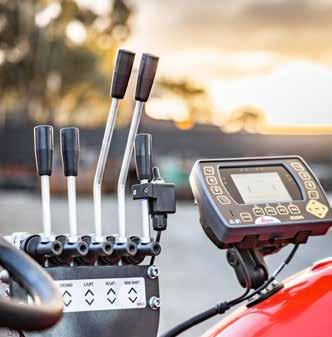

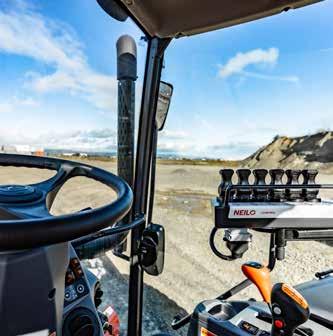

Its straightforward and ergonomic control system comes standard with a laser/2D/3D interface (compatible with most popular brands), enabling you to transform your Neilo into a highly accurate grading machine.
M5111 ROP’S GRADER
OPTIONS TECHNICAL DATA
WEIGHT LENGTH
TRACTOR WIDTH
SLEWED WIDTH
GRADER BLADE WIDTH
SLEW ANGLE
BLADE CLEARANCE (FULLY RAISED) FUEL CAPACITY
STANDARD 4,640kg 4,420mm 2,210mm 2,800mm 3,050mm (10ft) 22.5° each way 185mm 105L
TRACTOR ADD-ONS SAFETY ADD-ONS
+ Canvas Seat Cover
+ Additional Set of Keys (2X)
+ Plastic Overhead Canopy
+ Front Windscreen & Wiper
+ 1.75M or 2.1M Front Mounted Broom (with quick release hitch)
+ Rubber Broom Flap
+ Machine Control Valve Body/Interface
+ Machine Control Mast’s
+ Industrial Tyres
+ Road Registered
+ Front End Loader
+ Battery Isolation Switch
+ Engine Over-heat Alarm
+ Reverse Beeper
+ Emergency Stop Button
+ Fire Extinguisher w Bracket
+ 75mm Seat Belt (From 50mm )
+ Green/red approach light system
+ Red Rear facing LED Night light
w BROOM
4,940kg 5,800mm 2,210mm 2,800mm 3,050mm (10ft)
22.5° each way 185mm 105L

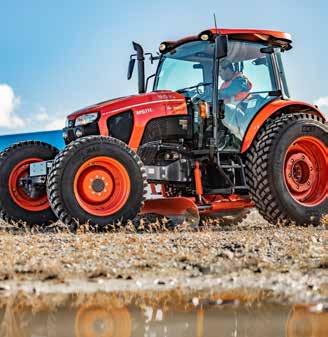

NEILO’S MOST POWERFUL GRADER + A CABIN

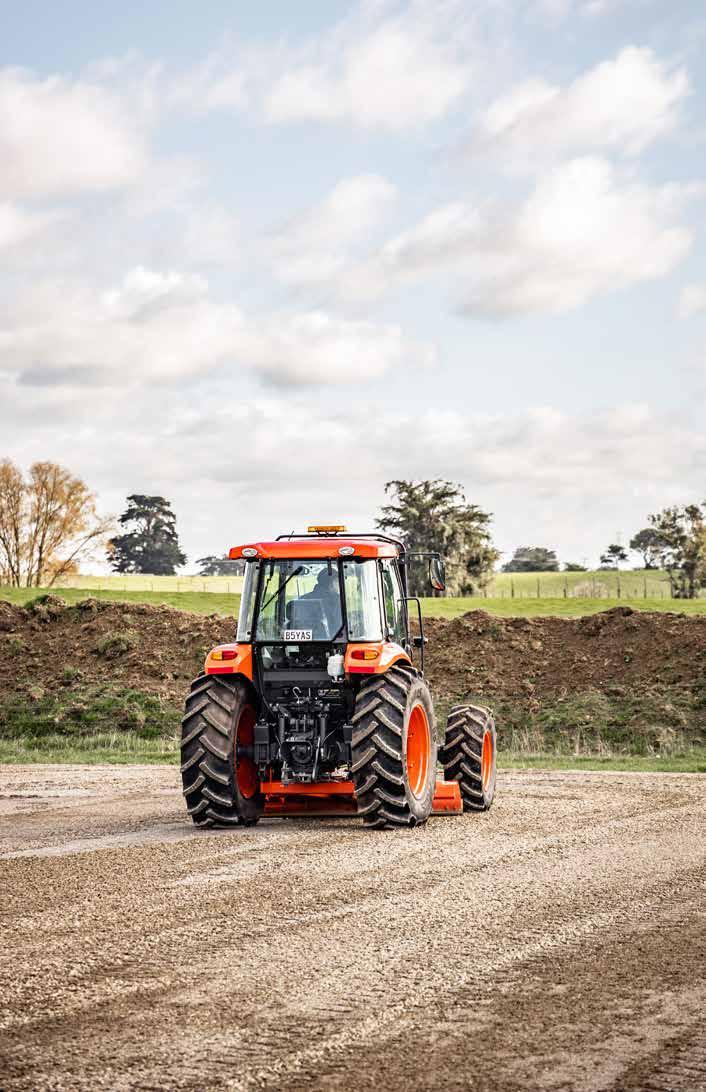

Meet our newest and largest – the comfortable, yet impressively capable M5111 Cabin Grader.
The 3,050mm 8-way blade is the new gold standard in compact grading. Achieve the same level of precision as some of the biggest name grader manufacturers out there in a much more compact and affordable machine. Easy to use and simple to maintain, this machine will be one of your hardest-working assets.
KEY FEATURES
+ 110HP Diesel Engine
+ 6 speed shuttle box with wet clutch
+ Extended wheel base
+ Reversible and replaceable 3.05M/10FT blade
+ 8 way blade (Crowd, Slew, side shift and height)
+ Flashing LED beacon
+ Easily accessible tie-down points
+ Air conditioned and heated cabin
+ Fully sealed and positive pressure cab
+ Ag Tyres as standard

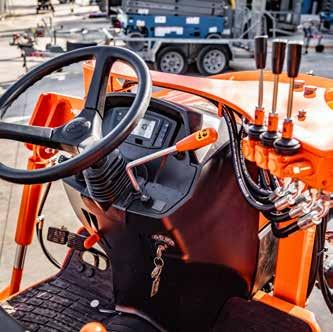

The innovative new NEILO eCONTROL system enables a more tactile and easy to use operation experience. The levers require less effort, whilst providing more control over your grading. The fully adjustable control arm allows you to position the levers in the best position to suit your operators.
It's straightforward and ergonomic control system comes standard with a laser/2D/3D interface (compatible with most popular brands), enabling you to transform your Neilo into a highly accurate grading machine.
OPTIONS TECHNICAL DATA
M5111 CABIN TRACTOR GRADER
WEIGHT LENGTH
TRACTOR WIDTH
SLEWED WIDTH
GRADER BLADE WIDTH
SLEW ANGLE
BLADE CLEARANCE (FULLY RAISED) FUEL CAPACITY
STANDARD 5,070kg 4,420mm 2,210mm 2,800mm 3,050 mm (10ft)
22.5° each way 185mm 105L w OPTIONAL BROOM 5,370kg 5,800mm 2,210mm 2,800mm 3,050mm (10ft)
22.5° each way 185mm 105L
TRACTOR ADD-ONS SAFETY ADD-ONS
+ WOF on Tractor
+ Additional Set of Keys (2 Provided)
+ Canvas Seat Cover
+ Laser/GPS Interface & poles
+ Any Leica system (2D/3D)
+ Optional front mounted broom
+ Machine Control Mast’s
+ Industrial Tyres
+ Road Registered
+ Front End Loader
+ Battery Isolation Switch
+ Engine Over-heat Alarm
+ Reverse Beeper
+ Emergency Stop Button
+ Fire Extinguisher w Bracket
+ 75mm Seat Belt (From 50mm )
+ Green/Red approach light system
+ Red Rear facing LED Night light
NEWMO
A WORLD FIRST ALL-IN-ONE STABILISING UNIT
When you cross a Neilo Grader with a state-of-the-art Road Mill and Cement Vane, you get yourself a road stabilising beast. The Neilo M5111 Grader, an already highly capable machine, is now the new must-have for any contractor in the road stabilising game. Ideal for patching smaller areas.
It truly shines when used with small stabilising teams, where it can be quickly driven between sites (with all attachments), and be put straight to use. Waste less time and reduce costs with a significantly reduced need for transportation.
Use the front-mounted cement vane to lay cement, before utilising the 1,000mm wide rear-mounted FAE stabiliser to mill this into your material. The Fae unit is capable of milling asphalt and aggregate up to 280mm deep, and can be hydraulically side-shifted (optional) to the left or kept in the centre.
Pack all of this onto the robust and low-maintenance Kubota M5111 and you’ve got a true contractors dream.

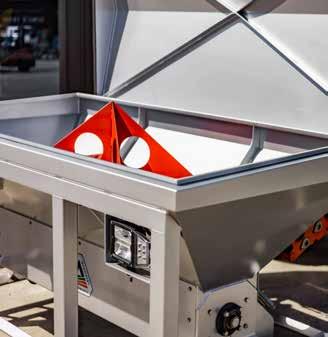

KEY CEMENT VANE FEATURES
+ Easy adjustment of Application rates 0.5 to 20 kg/m2
+ Variable Application widths via 3 Auto Hydraulic Doors
+ Fits up to 1t Cement Bags
+ Sealed Lid with Hydraulic Open/Close
+ Single Hydraulic Circuit Operation
+ Electrically operated valve block (in-cab operation of valves)
+ Internal Bag cutter for ease of selfloading cement into hopper
+ Sight glass for ease of identifying cement volume
+ Tare weight of spreader is 900kg
KEY MILLING UNIT FEATURES
+ FAE Group RSL/ST – 100/540 Stabilizer
+ Working width of 1,000mm
+ Total width is 1,340mm
+ Weight 1,600kg
+ Rotor Diameter 595mm
POTENTIAL
CONFIGURATIONS
+ M5111 Grader with Front End Loader
+ FAE Mill (Optional side-shift)
+ FEL mounted Cement Vane
+ FEL Bucket
+ FEL Bag Lifter (to load cement into vane)
+ FEL mounted Neilo Broom
TECHNICAL DATA
M5111 CAB GRADER w/STABILIZER UNIT
TRACTOR WIDTH
SLEWED WIDTH
GRADER BLADE WIDTH
SLEW ANGLE
BLADE CLEARANCE (FULLY RAISED)
FUEL CAPACITY
WATER TANK CAPACITY
(10ft)
each way
TRACTOR ADD-ONS SAFETY ADD-ONS
+ WOF on Tractor
+ Additional Set of Keys (2 Provided)
+ Canvas Seat Cover
+ Optional front mounted broom
+ Industrial Tyres
+ Road Registered
+ Battery Isolation Switch
+ Engine Over-heat Alarm
+ Reverse Beeper
+ Emergency Stop Button
+ Fire Extinguisher w Bracket
+ 75mm Seat Belt (From 50mm)
+ Green/Red approach light system
+ Red Rear facing LED Night light
OPTIMISE YOUR MACHINE
NEILO prides itself on producing machines that last, and building your machines to fit your specific requirements is a key aspect in that. In fact, some of our original machines from 2005 are still in use, thanks to their high quality engineering and Neilo's premium parts & support.
From squawkers to seatbelts, we're here to make sure you're NEILO gear is optimised as much as possible.
ADD-ONS
ADDITIONAL SET OF KEYS
FITS: ALL MODELS
EMERGENCY STOP BUTTON
FITS: ALL MODELS
ENGINE OVERHEAT ALARM
FITS: ALL MODELS
BATTERY ISOLATOR
FITS: ALL MODELS
APPROACH LIGHTS
FITS: BROOM MODELS PHOTO COMING SOON
REAR FACING AMBER FLASHERS
FITS: ALL MODELS
DOOR OPEN ENGINE CUTOFF
FITS: CAB MODELS
REVERSE SQUAWKER
FITS: ALL MODELS
UHF - 40 or 80 CHANNEL (Aus only)
FITS: ALL MODELS
HEATED MIRRORS
FITS: CAB MODELS
WINDSCREEN PROTECTOR
FITS: B3150 & L5740 CAB MODELS
NEILO SEAT COVER
FITS: ALL MODELS
FRONT BROOM FLAP
FITS: BROOM MODELS
FIRE EXTINGUISHER (MOUNTED)
FITS: ALL MODELS
WINDOW TINTING (Aus only)
FITS: CAB MODELS
75MM SEAT BELT
FITS: BROOM & GRADER MODELS
DUST SUPPRESION KIT
FITS: BROOM MODELS
GPS/LASER READY KIT
FITS: GRADER MODELS
MACHINE CONTROL INTERFACE AND LASER POLES
FITS: GRADER MODELS
GPS/LASER CONFIGURATIONS
#1 DUAL LASER RECEIVER 2D MACHINE CONTROL
Dual receiver Leica system utilises two mast-mounted laser receivers integrated into the smart touchscreen system. Laser receivers rely on a tripod mounted laser station to maintain accurate levels.
#2 SINGLE LASER RECEIVER & TRI-SONIC 2D MACHINE CONTROL
Single receiver Leica system combined with a sonic-tracer, enables /reference point following on tracer side of blade, and height control on mast side of blade.
Laser receiver relies on tripod mounted laser station to maintain accurate results.
#3 DUAL LASER RECEIVER 3D MACHINE CONTROL
Dual Mast 3D Leica Machine control system enables 3D machine control with a total station for positioning reference. Dual Prism’s are mounted on mast’s to obtain and communicate accurate positioning data, enabling accurate grading.
B3150 GRADER WITH 2DLEICA MACHINE CONTROL PLATFORM

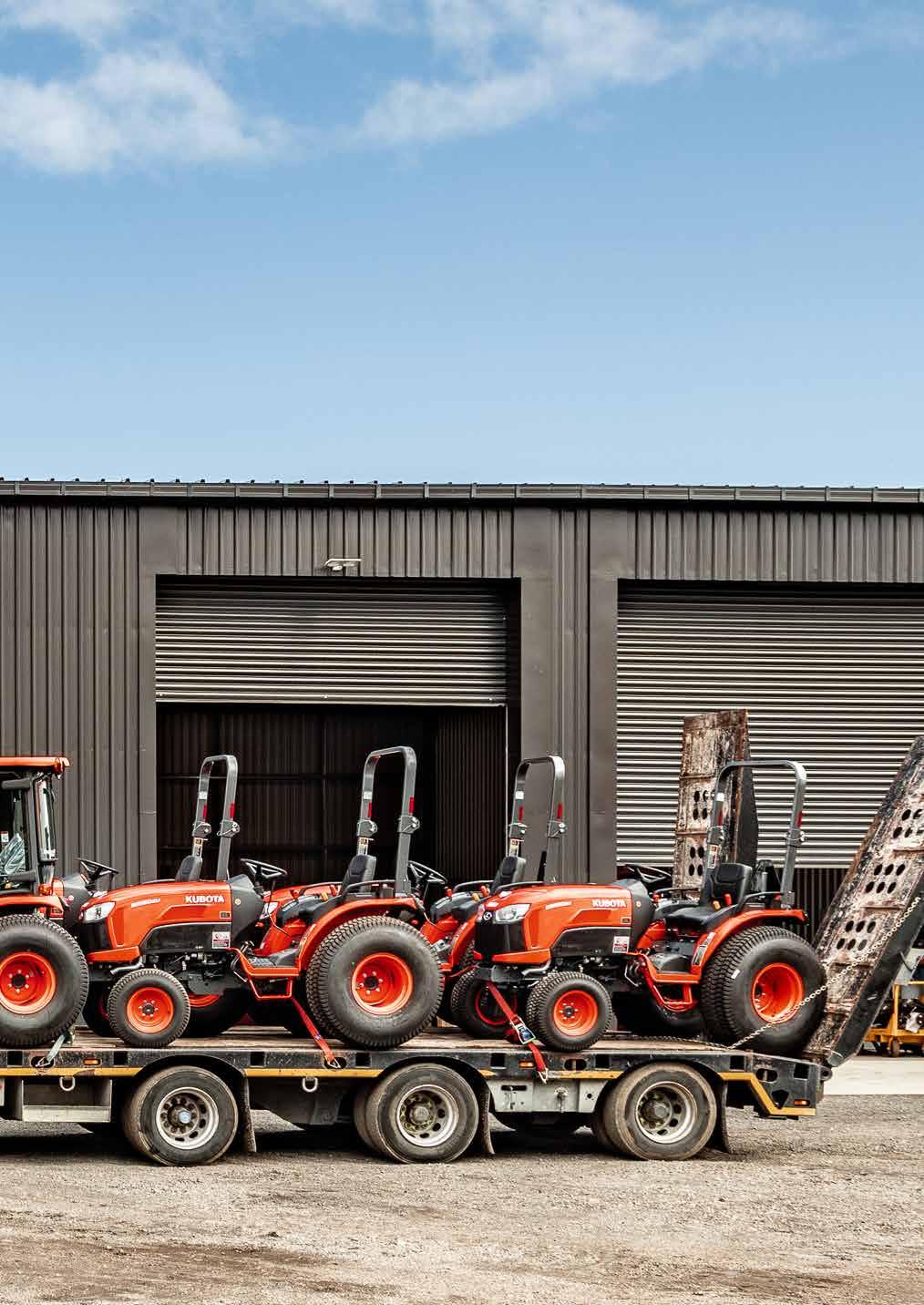

NEW ZEALAND TRAILERS

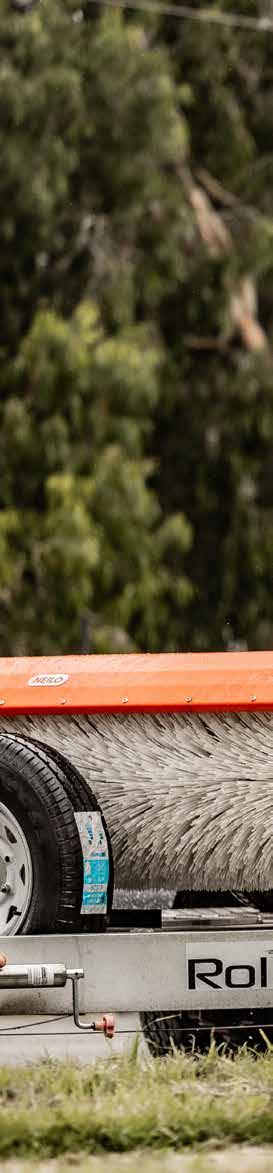

NEILO B3150 BROOM TRAILER
Take your sweeping to the next level with our specifically designed Tractor Trailers. Perfect for businesses that require the transportation of their Tractor Broom between sites.
Designed to haul the Kubota B3150 Tractor Broom over long distances, this Tractor Broom Trailer is rated for an all up weight of 2500kg. As a tandem trailer, the extra set of wheels helps support heavier loads. Available with our chain and ratchet tie-down system to help quickly secure your tractor.
NEILO L5740 BROOM TRAILER
Designed to haul the Kubota L5740 Tractor Broom over long distances, this Tractor Broom Trailer is rated for an all up weight of 3500kg.
With a Knott Braking system, the Kubota L5740 Broom Trailer has steel galvanised spoked rims with spare wheel. Broom Cradle at the front and folding ramps at rear. Available with our chain and ratchet tie-down system to help quickly secure your tractor.
AUSTRALIA TRAILERS
NEILO B3150 SUREWELD BROOM TRAILER
Designed to transport the B3150 only, the all-aluminium Sureweld trailer makes towing easy. Rated to 3,500kg, and with the B3150 Broom loaded weighs in at 2,300kg.
Creature comforts such as aluminium fold-down ramps, electric braking system and a purposebuilt broom mount make this unit simple to work with. Available with our chain and ratchet tiedown system to help quickly secure your tractor.
Not suited to be towed with vehicles over 8.7t GVM.
NEILO L5740 OX TRAILER
Built to handle the heavier L5740 Tractor broom, the OX trailers feature a all-steel construction. With a 3,500kg rating, and combined with the L5740, weighs 3,400kg.
Beavertail design, short ramps, and built-in tie-down points, means a trailer operators will love. Also suits the smaller B3150 Tractor Broom and Grader. Designed to be towed behind all vehicles. Available with our chain and ratchet tie-down system to help quickly secure your tractor.
KEY FEATURES:
+ Rated to 2,500kg, all up weight with B3150 loaded 2,240kg
+ Deck Length 3.7m, deck width 1.6m
+ Tandem axle/override type two wheel hydraulic disc brakes
+ Steel galvanised spoked rims with spare
+ Broom cradle at front for spares, new extended rear tie downs
+ Suitable for B Series Tractor Broom models only
+ Drawbar now upgraded to 6mm (same as opt. 3,500kg trailer)
+ CM auto/multi fit coupling
KEY FEATURES:
+ Rated to 3500kg, all up weight with L5740 loaded 3,130kg
+ Drawbar weight loaded 240kg
+ Deck Length 4,450m, deck width 1,950m
+ Tandem axle/electric 4 wheel brakes with in cab control
+ Steel galvanised spoked rims with spare, broom cradle at front
+ Suitable for L Series tractor broom models only
KEY FEATURES:
+ Rated to 3,500kg
+ All up weight with B3150 broom 2,200kg
+ Deck length 2,600mm, 1,870mm deck width
+ Tandem axle with 12” electric brake
+ Steel Powder coated rims
+ Purpose-designed broom stool
+ Suitable for B3150 broom only
KEY FEATURES:
+ Rated to 3,500kg
+ All up weight with L5740 broom 3,400kg
+ Deck Length 3,800mm, 1,920mm Deck Width
+ Tandem Axle with dual electric brake on each axle
+ Purpose-designed bar stool
+ Suitable for both L5740 and B3150 Tractors
PHOTO COMING SOON
5 Kelvin Grove Rd, Kelvin Grove Palmerston North, 4414, New Zealand
P 0800 NEILO 4 ME (0800 634 564) W www.neilo.co.nz E sales@neilo.co.nz
NEILO AUSTRALIA
198 Paradise Rd, Willawong Queensland, 4110, Australia
P 1800 4 NEILO (0800 463 456) W www.neilo.com.au E sales@neilo.com.au NEILO NEW ZEALAND (HQ)
NZ
