Dingli adds three new zero-oil models
Dingli's latest oil-free, electric scissor offer

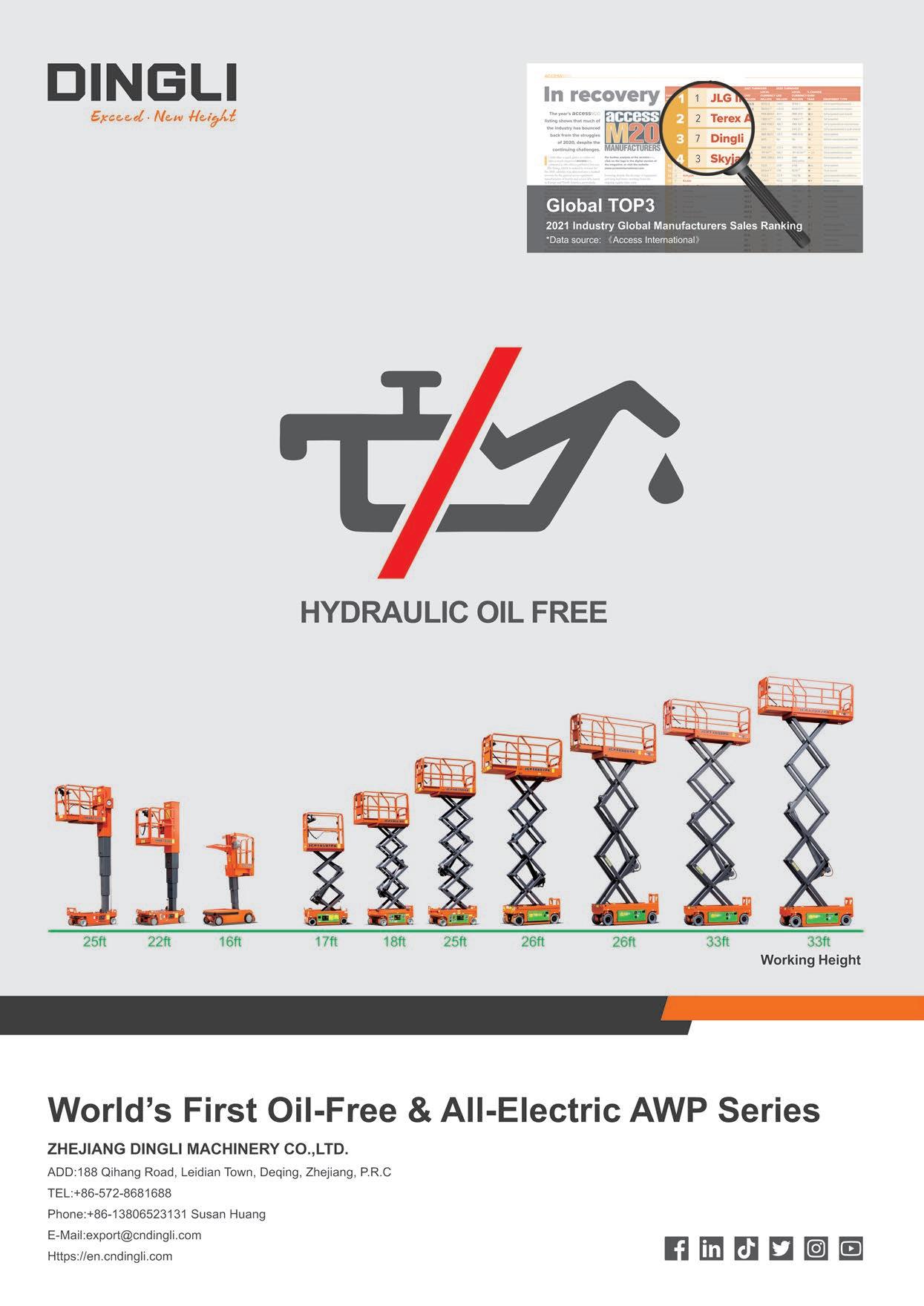

Dingli’s Oil-Free & AllElectric Series Adds Three New Models
DINGLI’S OIL-FREE & ALL-ELECTRIC SERIES OFFERS MAXIMUM WORKING HEIGHT OF 5–16M AND MAXIMUM LOAD OF 230–450KG.
The first batch of these 6 models was mass-produced in the first half of 2022. The entire series has no hydraulic system, using electric actuators for lifting, lowering and steering instead of traditional hydraulic oil cylinders.
Dingli has now added three new models to its oil-free & all-electric scissor series, the JCPT1012PA, JCPT1008PA and JCPT0808PA.
Across the three models, the maximum working height is 10 meters, boasting a maximum load of 450kg. The range achieves low energy consumption, where the total transmission efficiency from the direct motor drive systems reaches 95%, achieving more than 30% energy savings compared with the traditional hydraulic system. The models also offer safer, higher levels of water and dust resistance, with built-in position sensors, real-time data monitoring of the full stroke. Synergistic drives enable temperature, load, and variable torque control, delivering high active safety.
Designed with simple maintenance in mind, with no hydraulic system, the machines avoid issues such as valve core sticking, oil leakage and changing, as well as improved operational temperature efficiency reductions. They are also equipped with maintenance-free permanent magnet synchronous motor and AGM, deep-cycle batteries, further reducing maintenance costs.
Full stroke proportional control eliminates the vibrations and jerkiness often associated with self-gravity lowering of the hydraulic system, providing a more comfortable operator experience.
All-electric and oil-free, the zero-emission models deliver a high degree of environmental protection and operate with lower machine noise.
To find out more about Dingli in Australia, contact www.accesssalesandspares.com.au
