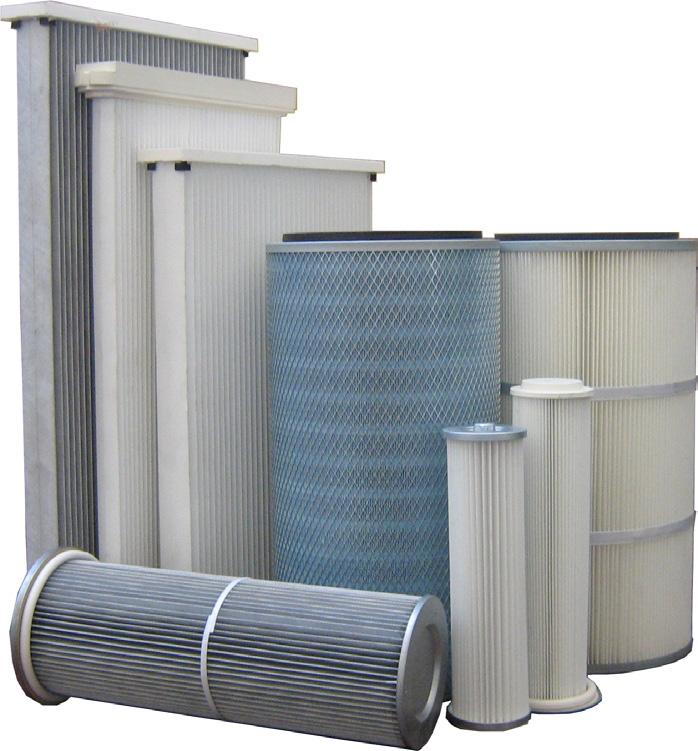

DUST COLLECTOR FILTERS, CARTRIDGES AND BAGS

Total Filtration, a Division of the Westbury Group of Filtration Companies, is your one stop shop for the manufacture and supply of liquid and dust filters and associated components.

Total Filtration is one of the UK’s leading filter manufacturers of filter cartridges, bags and housings with an enviable reputation for quality and reliability, at a very competitive price. The company invests in strong relationships with their clients across all industries to provide quality Dust Filter Cartridges. All our bespoke and alternative cartridges are handmade in the UK using the highest quality media.

Some of our popular filters and cartridges include:-

Airmaster Filter Alternative

The Airmaster Dust Filter alternative is a pleated cartridge made in two lengths, 450mm (type 1) and 920mm (type 2). The end caps can be Galvanised Steel or Stainless Steel.

There are three types of filter available with spun polyester standard, Anti-Static, PTFE media and Anti-Static PTFE.

Altair Filter Alternative

The Altair dust filter alternative range of cartridge filters are made in several lengths; 600mm, 660mm, 1000mm and 1200mm (Other lengths are available). They are also available in a range of medias.

Camfil Farr Alternative

Total Filtration manufacture their own range of Goldcone style filters but without the cone.

They are available in a length of 1000mm and come in a variety of medias including: Cellulose blend 80/20FR, STD Polyester and A/Stat Polyester.

Camfil Tenkay Mark 1 to 4 Alternatives

range of Square top filters in both 325mm and 225mm (closed end cap sizes). These are also known as Camfill Farr Tenkay Mark 1, 2, 3 and 4 alternatives. They are available in a choice of lengths and medias. All lengths are also available in the round end cap version. Donaldson Unicell Alternative

Total Filtration manufacture a complete range of Unicell type cartridge filters which include the two size 70mm x 475mm x 1004mm with 5.00M² and 70mm x 475mm x 800mm with 4.00M².

These two sizes can be made using any of the following filter media: 260g Spunbonded Polyester, Anti-Static finish / Oleophobic coat/ PTFE Coat or Membrane.

Dantherm Cartridge Filter Alternative

The New ABS Dantherm Cartridge Filter Alternative (also known as an Airmaster, Nederman or Disa Dust Filter Cartridge.) is made of a lightweight strong plastic version of the Type 66,44,40,22 and 20. Also available in carbon impregnated for A/Stat requirements.

Donaldson Siloair Filter Alternative

The DCE Torrit Siloair Filter alternatives are perfect for silo vending machines. The filter is made in three lengths; 565mm, 800mm and 1000mm. They are available in a range of medias including Standard, Anti-Static, PTFE Standard and Anti Static PTFE.

Donaldson TDS Alternative

The Donaldson TDS alternatives are available with single or double ended end caps. These cartridges are available in three basic diameters (202mm, 325mm and 350mm) with six different lengths. They are available in different medias however this depends on the application which best suits your needs, these include Nano Fibre, Spun Bonded Polyester, PTFE and anti-static.

Donaldson Torit ECB and DF+ Alternatives

The Donaldson TORIT Cartridge Filter alternatives come in two basic diameters (325mm and 350mm) with six different lengths. There are several medias to choose from depending on the application, these include Nano Fibre, Spun Bonded Polyester, PTFE and anti-static. For more information or advice on filtration please contact the Total Filtration team either by telephone or email.

Telephone: +44 (0) 1282 459744 Email: sales@totalfiltration.com Visit: www.totalfiltration.com

8 Valley Works, Grange Lane, Sheffield, S5 0DQ, United Kingdom

Table Wheel Blasting Machines

• Work zone mm; 1803 Dia x 1500 H • Work zone mm; 1803 Dia x 1200 H • Work zone mm; 2743 Dia x 400 H • Work zone mm; 1500 Dia x 1000 H • Work zone mm; 1000 Dia x 400 H • Work zone mm; 1200 Dia x 1200 H

Tumblast Wheel Machines

• Type; Rubber Belt Volume Litre; 420 Litre • Type; Steel Belt Volume Litre; 425 Litre • Type; Steel Belt Volume Litre; 425 Litre • Type; Rubber Belt Volume Litre; 50 Litre • Type; Steel Barrel Volume Litre; 200 Litre • Type; Rubber Belt Volume Litre; 150 Litre • Type; Drum Basket Volume Litre; 700L x 500 Dia

Hook Wheel Machines

• Type; I Track Work Zone mm; 1800 Dia x 1800L • Type; Y Track Work Zone mm; 1500 Dia x 1700L • Type; Y Track Work Zone mm; 800 Dia x 1200L Roller Conveyor Wheel Machines • Type; Roller Conveyor Work Zone mm; 1000 x 500 Wheel No; 4 • Type; Roller Conveyor Work Zone mm; 1000 x 500 Wheel No; 4

Air Blast Hand Cabinets

• Type; Pressure Work Zone mm; 900W x 600D x 350H • Type; Pressure Work Zone mm; 900W x 700D x500H • Type; Pressure Work Zone mm; 900W x 700D x500H • Type; Pressure Work Zone mm; 900W x 700D x500H • Type; Suction Work Zone mm; 700W x 500D x400H • Type; Pressure Work Zone mm; 800 Dia Turntable • Type; Pressure Work Zone mm; 500 Dia Basket • Type; Pressure Work Zone mm; 1200 x 750 x400 • Type; Suction Work Zone mm; 700W x600D x300H • Type; Pressure Work Zone mm; 600W x 500D x 400H • Type; Pressure Work Zone mm; 1400W x 700D x 600H

Blast Rooms

• Work Zone mm; 4000L x 2000W x 2000H Type; Room Abrasive Recovery; Waffle Floor • Work Zone mm; 4000L x 2000W x 2000H Type; Room Abrasive Recovery; Waffle Floor • Work Zone mm; 20ft x 8ft x 8ft Type; Container Abrasive Recovery; Sweep Up

Dust Filters

• Various Types & Sizes
