RIFLE COMBAT HELMET STRIKER RCH | LEVEL III+ COMBAT HELMET

RIFLE RATED HighCom Armor and XTEK are proud to offer some of the world’s strongest and lightest armor solutions for our operators on the front line.

Our primary focus across our business units is to save lives. This is at the forefront of our latest development effort with a focus on quality and performance above all else. Introducing the Striker RCH series of rifle rated helmets.

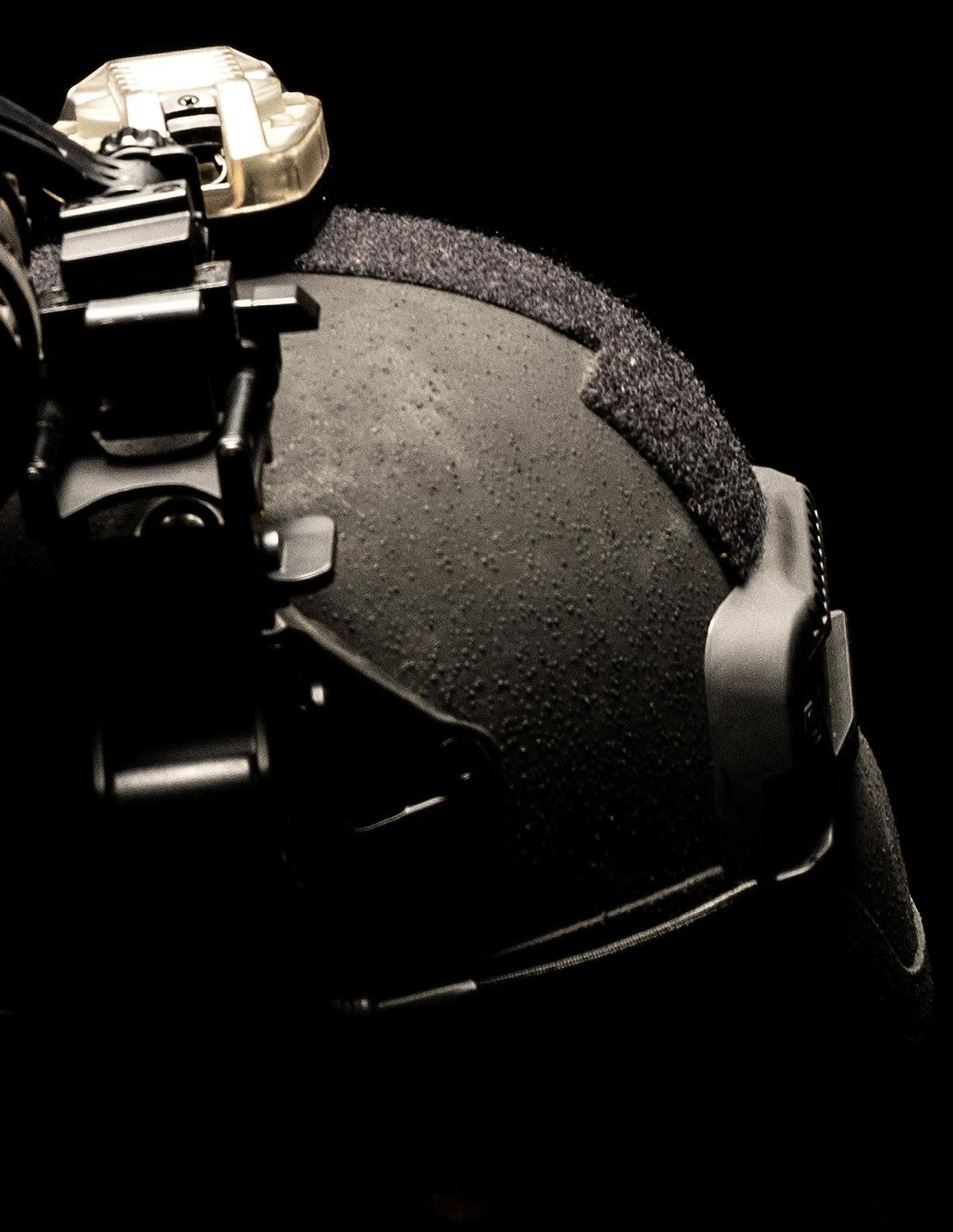

The Striker RCH Level III+ Combat Helmet is a lightweight rifle helmet with enhanced ballistic capabilities capable of stopping rifle special threats, fragmentation, and blunt impact.

CONTENTS RCH - Rifle Combat Helmet

05

Key Advantages

06

XTclave™ Technology

08

XTclave™ Advantages

09

DSM Dyneema®

10

Product Specifications

12

Sizes and Weight

14

Ballistic Capabilities

16

Comparison Chart

17

RCH Accessories

18

“I have been impressed with the urgency of doing.

Knowing is not enough; we must apply.

Being willing is not enough; we must do.”

Leonardo da Vinci

LEADERSHIP Established in 1997, HighCom Armor is a name that is synonymous with quality and performance. Our personal protective equipment, including military and law enforcement body armor, has been deployed to millions worldwide. Today, HighCom Armor offers a full line of personal protective equipment, providing a complete system of integrated armor from helmets, soft armor systems, rifle armor inserts, and ballistic shields for front line operators.

In 2019, HighCom Armor was acquired by XTEK Ltd combining 40 years of homeland security and engineering excellence with HighCom Armor’s 25 years of armor design, manufacturing, and distribution experience. Together, our team members have served in nearly all branches of the military, law enforcement, business administration, finance, supply chain management, quality management, and are supported by a team of world-class scientists and engineers focused on a shared purpose of protecting the front-line protectors. HighCom Armor’s streamlined operating and manufacturing capability, combined with the innovative and technologically advanced engineering capabilities of XTEK is allowing us to streamline the delivery of groundbreaking performance in advanced protective materials.

In combination with our ISO 9001:2015 certification for the design, development, manufacturing, testing, and distribution of body armor, HighCom Armor is the first company in the world to achieve BA 9000 quality certification. HighCom’s engineering and operation teams have designed and commercialized numerous armor solutions, according to NIJ, MIL-SPEC, and International ballistic protective standards and testing protocols.

RCH THE FUTURE OF MODERN WARFIGHTER PROTECTION HighCom and XTEK are proud to introduce the RCH Rifle Combat Ballistic Helmet series with our revolutionary design and performance standard for the next generation of head protective systems.

The Striker RCH™ Level III+ Rifle Combat Helmet exceeds the U.S. military specifications for ballistic threats, fragmentation, and blunt impact. A true rifle rated helmet, the Striker RCH is capable of defeating multiple rifle special threats including 7.62 x 51mm (M80), 7.62 x 39mm (M43 MSC), 5.56 x 45mm (M193 FMJ), as well as Mil-STD frag protection beyond any protective helmet currently in theatre.

RIFLE SPECIAL THREAT TESTED PROTECTION Level III+ rifle rated ballistic helmet including frag protection. The RCH is multi-hit rated and stops the following rifle threats: 7.62 x 51mm FMJ, steel jacketed bullets (M80), 7.62 x 39mm (M43 MSC PS), 5.56 x 45mm M193 FMJ.

According to proprietary test requirements as defined by U.S. DOD.

EXCEEDS INDUSTRY STANDARDS Testing results show the RCH Helmet significantly exceeding other rifle rated helmets with Frag threats: US MIL-STDFrag 17 grain FSP V50 4187 f/s. This product has been independently tested by an NVLAP accredited NIJ approved laboratory against FRAG resistance as specified under MIL-STD 662F.

MATERIALS 100% UHMWPE DSM Dyneema®

ADJUSTABLE HARNESS & ACCESSORIES The RCH comes standard with D3O TRUST 7 Pad helmet system. Wilcox NVG shrouds and the Striker Rail System can be added to the RCH to accommodate any intended missions.

Multiple harness options available.

KEY ADVA

COMPLETE SYSTEM LIGHTWEIGHT The RCH 3.5 lbs is lighter than current competition today. The RCHcomes in 1-1.5lbs lighter than so-called rifle rated helmets.

Lightweight and true rifle protection!

ANTAGES

The RCH is one complete system and provides rifle rated protection without the use of adding or attaching any up-armor plates to the helmet like what is seen with competitors.

WARRANTY 5 years on all ballistic material excluding exterior cover, 1 year on exterior cover material and workmanship.

XTCLAVE Made in XTclave™ Ultra High-Pressure Consolidation. XTclave™ is a composite curing and consolidation technology that makes it possible to manufacture lighter, stronger and stiffer composite articles.

REPUTABLE ARMOR COMPANY HighCom Armor is a name recognized within the defense and law enforcement community as a trusted and valuable resource for high quality and cost-effective protective systems.

The company’s engineering and operation teams have designed and commercialized numerous solutions according to NIJ and MIL-SPEC body armor standards and testing protocols.

Thousands of customers from the United States Military and Law Enforcement to governments and agencies around the globe have come to depend on HighCom Armor’s advanced ballistic armor manufacturing processes.

PUSHING THE LIMITS OF MATERIAL SCIENCE & PROCESSING TECHNOLOGIES XTCLAVE TECHNOLOGY The Striker RCH Level III+ Combat Helmet is manufactured using XTclave™, a cutting edge composite curing and ultra-high pressure isostatic consolidation technology.

XTclave™ composite manufacturing process utilizes high pressures and high-efficiency heat exchange, along with a heat transfer fluid to produce stronger, lighter, and stiffer helmets.

By utilizing the unique advantages of the XTclave™ technology, even pressure is applied to the entire RCHshell resulting in the world’s lightest and thinnest true rifle rated helmet. The Striker RCHCombat Helmet is capable of stopping AK-47, 7.62, or M43 (MSC), M80 as well as frag projectiles all at muzzle velocity with full coverage across all shot locations.

KEY ADVANTAGES OF XTCLAVE Batch processing PV allows for many variants with production efficiencies

Globally Patented Hydroclave Technology

Ultra-high balanced Isostatic Pressure (300bar)

Greater ballistic capabilities possible with XTclave technology by co-consolidating composite to the ceramic

Up to 200 degC Consolidation Temperatures

Precise Process Control, Ideally suited for lightweight composite armor materials as well as hybrid constructions

Flexible manufacturing with consistency & accuracy

Individual lightweight Isostatic tools allow flexible shape options

“Floating” fluid pressure environment offers high uniformity of pressure

MANUFACTURING BENCHMARKS & COMPARISON CHART AXIAL PRESSING

AUTOCLAVE

XTCLAVE

Batch size

1-8

1-many

1-50

Tooling

Closed mould

Open mould

Closed or Open Mould

Tooling material

Alloy or Steel

Alloy, Steel or composite

Alloy, Steel or composite

Medium

Tool steel

Nitrogen

Heating oil

Heating

Conductive

Convective

Conductive

Pressure applied

Axial

Isostatic

Isostatic

Pressure

<300 bar

<15 bar

<320 bar

Temperature

Beyond 250 degC

Up to 200 degC

Up to 200 degC

Part complexity

Low, open geometries

High, closed geometries

High, closed geometries

Part Size

Small - Medium up to 2400 x 1200mm

Large up to 3600 x 14000mm

Small Up to 1000 x 3500mm

THE STRIKER RCH IS MADE FROM 100% UHMWPE DSM DYNEEMA 3 REASONS TO CHOOSE DYNEEMA

PROTECTION

LIGHTWEIGHT

USER MOBILITY

Trusted daily by the armed forces in the U.S. and beyond.

The weight difference in armor made with Dyneema® to other materials could be as much as 28 lbs vs. 3 lbs.

Freedom to carry extra mission critical equipment, such as NVG or visors.

DSM DYNEEMA HighCom Armor and XTEK partner directly with DSM Dyneema® to develop ultra-light armor solutions that provide maximum protection and comfort to the end-user.

DSM Dyneema® is a world leader in life protection materials and high-performance fiber and the manufacturer of ultra high molecular weight polyethylene (UHMWPE) fiber, branded as Dyneema®.

Helmets made with Dyneema® are typically up to 25% lighter than competitive materials!

Dyneema® UHMWPE fiber technology and unique unidirectional engineering provides excellent energy absorption and enhanced protection, in a lightweight solution.

Helmets made with Dyneema® are typically up to 25% lighter than competitive materials and offer advanced ballistic protection. Dyneema® has one of the highest strength-to-weight ratios of any material on Earth, allowing armor solutions to maintain the highest levels of protection without sacrificing user comfort or maneuverability. The lightweight construction of armor made with Dyneema® helps mitigate long-term injuries associated with the cumulative effect of daily armor use.

The Striker RCH is made from 100% UHMWPE Dyneema®.

This cutting edge material, coupled with our XTclave technology have allowed us to create a true rifle helmet that is ultra-light and ultra-strong – providing protection on the front lines and beyond.

SPECIFICATIONS Protection

Level III+ rifle rated ballistic helmet including frag protection

Rifle Special Threat Tested

According to proprietary test requirements as defined by U.S. DOD

MIL-STD 662F

This product has been independently tested by an NVLAP accredited NIJ approved laboratory against FRAG resistance as specified under MIL-STD 662F

XTclave Technology

Made in XTclave™ Ultra High Pressure Consolidation. XTclave™ is a composite curing and consolidation technology that makes it possible to manufacture lighter, stronger and stiffer helmets.

Materials

100% UHMWPE DSM Dyneema®

Weight

11 kgsm areal density, 1.2kg total weight (raw shell weight only, based on size large)

Thickness

0.43” / 11 mm

Cuts

Standard Cut, Mid Cut, High Cut

Padding

D3O TRUST Stealth™ Helmet Pad System, comprising 7 interior pads which offer extreme comfort and high-performance protection

Adjustable Harness

Multiple harness options available

Sizing

Circumference is measured around the head, similar to hat sizing. If a measurement falls on a dividing line between sizes, select the larger of the two sizes to ensure maximum ballistic protection.

Warranty

5 years on all ballistic material excluding exterior cover, 1 year on exterior cover material and workmanship

HELMET CUTS STANDARD CUT

MID CUT

HIGH CUT

COLORS BLACK

OD GREEN

COYOTE

DESERT

RANGER GREEN

FOLIAGE GREEN

NAVY

SIZE & WEIGHTS SHELL WEIGHT

FINISHED HELMET (SHELL, PADS, & HARNESS)

CUT

SIZE

CIRCUMFERENCE

Standard

S

485 mm - 564 mm

1.1 kg

2.4 lbs

1.6 kg

3.5 lbs

Standard

M

510 mm - 590 mm

1.1 kg

2.5 lbs

1.6 kg

3.6 lbs

Standard

L

533 mm - 613 mm

1.2 kg

2.7 lbs

1.7 kg

3.8 lbs

Standard

XL

569 mm - 649 mm

1.3 kg

2.9 lbs

1.8 kg

4 lbs

CUT

SIZE

CIRCUMFERENCE

Mid Cut

S

485 mm - 564 mm

1.0 kg

2.2 lbs

1.5 kg

3.2 lbs

Mid Cut

M

510 mm - 590 mm

1.1 kg

2.4 lbs

1.6 kg

3.4 lbs

Mid Cut

L

533 mm - 613 mm

1.2 kg

2.5 lbs

1.7 kg

3.6 lbs

Mid Cut

XL

569 mm - 649 mm

1.2 kg

2.7 lbs

1.7 kg

3.8 lbs

CUT

SIZE

CIRCUMFERENCE

High Cut

S

485 mm - 564 mm

0.9 kg

2.1 lbs

1.4 kg

3.1 lbs

High Cut

M

510 mm - 590 mm

1.0 kg

2.2 lbs

1.5 kg

3.3 lbs

High Cut

L

533 mm - 613 mm

1.1 kg

2.4 lbs

1.6 kg

3.4 lbs

High Cut

XL

569 mm - 649 mm

1.2 kg

2.5 lbs

1.7 kg

3.6 lbs

SHELL WEIGHT

SHELL WEIGHT

FINISHED HELMET (SHELL, PADS, & HARNESS)

FINISHED HELMET (SHELL, PADS, & HARNESS)

FULLY LOADED HELMET (BUNGEE, VELCRO, RAILS, SHROUD)

BUNGEE

VELCRO

RAILS

SHROUD

12 grams

16 grams

124 grams

45 grams

1.8 kg

3.9 lbs

12 grams

16 grams

124 grams

45 grams

1.8 kg

4.0 lbs

12 grams

16 grams

124 grams

45 grams

1.9 kg

4.2 lbs

12 grams

16 grams

124 grams

45 grams

2.0 kg

4.4lbs

BUNGEE

VELCRO

RAILS

SHROUD

12 grams

16 grams

124 grams

45 grams

1.7 kg

3.7 lbs

12 grams

16 grams

124 grams

45 grams

1.8 kg

3.9 lbs

12 grams

16 grams

124 grams

45 grams

1.8 kg

4.1 lbs

12 grams

16 grams

124 grams

45 grams

1.9 kg

4.2 lbs

BUNGEE

VELCRO

RAILS

SHROUD

12 grams

16 grams

124 grams

45 grams

1.6 kg

3.5 lbs

12 grams

16 grams

124 grams

45 grams

1.7 kg

3.7 lbs

12 grams

16 grams

124 grams

45 grams

1.8 kg

3.9 lbs

12 grams

16 grams

124 grams

45 grams

1.9 kg

4.1 lbs

FULLY LOADED HELMET (BUNGEE, VELCRO, RAILS, SHROUD)

FULLY LOADED HELMET (BUNGEE, VELCRO, RAILS, SHROUD)

BALLISTIC CAPABILITIES LEVEL III RIFLE THREAT CHART PROJECTILE

GR

VEL FT/S

VEL M/S

(+/- FT/S)

(+/- M/S)

7.62 x 51mm FMJ, steel jacketed bullets (M80)

147

2750

838

(+/- 50 fps)

(+/- 15 fps)

7.62 x 39mm (M43 MSC PS)

123

2350

716

(+/- 30 fps)

(+/- 9 fps)

5.56 x 45mm M193 FMJ

55

3250

991

(+/- 30 fps)

(+/- 9 fps)

MIL-STD 662F FRAG THREATS PROJECTILE

GR

VEL FT/S

VEL M/S

V50 FT/S

V50 M/S

US MIL-STD Frag 2 gr. RCC

2

4200

1280

5391

1643

US MIL-STD Frag 4 gr. RCC

4

3475

1059

5163

1574

US MIL-STD Frag 16 gr. RCC

16

2475

754

4074

1242

US MIL-STD Frag 64 gr. RCC

64

1750

533

2852

869

US MIL-STD Frag 17 gr. FSP

17

2200

671

4187

1276

US MIL-STD Frag 44gr. FSP

44

1750

533

1851

564

HELMET COMPARISON CHART PLT

PLTp4

ULPLT

HPPLT

ACH

ULACH

HPACH

RCH

NIJ Standard

0106.01

0106.01

0106.01

0106.01

0106.01

0106.01

0106.01

0106.01

Protection

IIIA

IIIA

IIIA

IIIA

IIIA

IIIA

IIIA

III+

Weight in Standard Cut Large

3.1 lbs

3.2 lbs

2.5 lbs

3.2 lbs

3 lbs

2.3 lbs

3 lbs

3.8 lbs

Sizes

S-XL

S-XL

S-XL

S-XL

S-XL

S-XL

S-XL

S-XL

Materials

Kevlar Fibers, Thermoset Resin Shell

Kevlar Fibers, Thermoset Resin Shell

UHMWPE Spectra Fibers, Thermoset Resin Shell

Hybridized Kevlar Fibers, UHMWPE Spectra® Shell

Kevlar Fibers, Thermoset Resin Shell

UHMWPE Spectra Fibers, Thermoset Resin Shell

Hybridized Kevlar Fibers, UHMWPE Spectra Shell

100% UHMWPE DSM Dyneema®

Cuts

PASGT

PASGT

PASGT

PASGT

Standard Cut Mid Cut High Cut

Standard Cut Mid Cut High Cut

Standard Cut Mid Cut High Cut

Standard Cut Mid Cut High Cut

US MIL-STD 2 gr. RCC

4382

4382

3939

5087

4754

4644

5059

5391

3610

3610

3450

4160

3595

3708

4168

5169

2712

2712

2545

2747

2457

2547

3042

4074

1753

1753

1851

2003

1877

1743

2188

2852

2433

2433

2367

2555

2221

2393

2607

4187

-

-

-

-

-

-

-

3177

Mil-Std 662f Warranty 5 Years Multiple Harness Options D30 Pads Rails & Shrouds Compatible XTclave Technology

V50 ft/s US MIL-STD 4 gr. RCC

V50 ft/s US MIL-STD 16 gr. RCC

V50 ft/s US MIL-STD 64 gr. RCC

V50 ft/s US MIL-STD 17 Gr. FSP

V50 ft/s US MIL-STD 44 gr. FSP

V50 ft/s

The chart above compares HighCom’s current ballistic helmet models which are designed and manufactured according to NIJ, Mil-Std, and International ballistic standards.

BE READY FOR ANY MISSION WITH RCH ACCESSORIES HighCom Armor’s Striker Helmet Accessories are lightweight, scalable, and multi-functional to meet the requirements of any mission. We also partner with leaders in impact technology and protection including Wilcox, D3O, and Paulson. Multiple harness options available, the RCH comes standard D3O TRUST 7 Pad helmet system. Wilcox NVG shrouds and the Striker Rail System can be added to the RCH to withstand the most grueling mission requirements.

RCH ACCESSORIES

STRIKER RAILS & PICATINNY

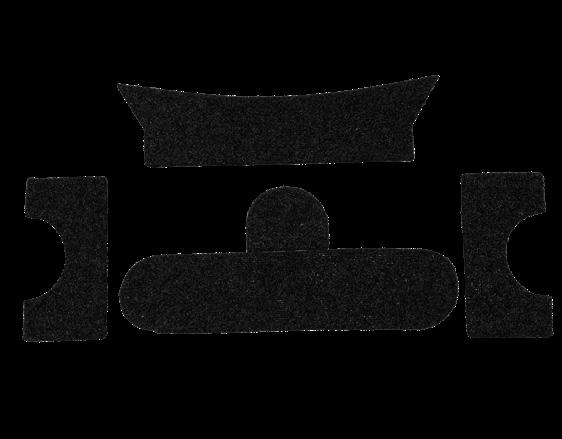

STRIKER VELCRO SYSTEM

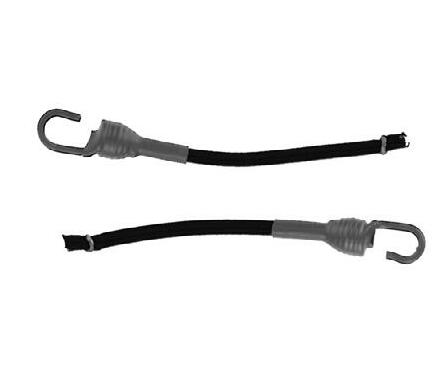

STRIKER BUNGEE

4 PT HARNESS

Quick and easy attachment to secure head-borne accessories on ACH/MICH helmets

Designed for incorporation when a rails and shroud application is required on ACH/MICH helmets

Provides additional support and stabilization for the NVG equipment

Stabilizes the weight of the helmet for a secure and comfortable fit.

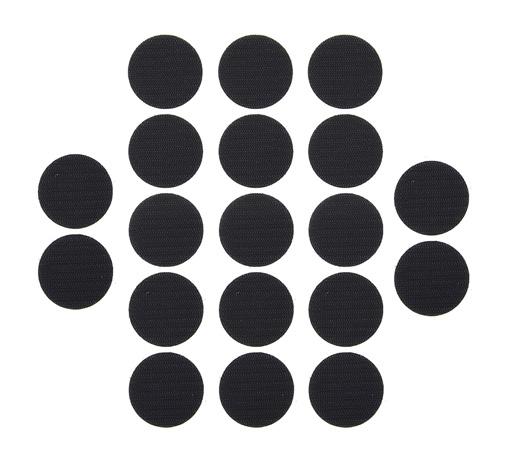

STRIKER VELCRO DOT KIT

STRIKER CARRYING BAG

D3O TRUST PADS

PAULSON DK7 RAIL MOUNT

Includes 20 (1 7/8”) dots for ACH/ MICH helmets

Nylon carrying bag fits variety of helmet styles. USA Made

Extreme comfort and high performance protection

Paulson Rail-Mount Tactical Face Shield attaches to rail system.

WILCOX WMS (MODULAR) SHROUD

WILCOX WLS (LIGHTWEIGHT) SHROUD

Wilcox Modular Shroud three-hole shroud with built in modularity, utilizes a removable lanyard clip that can be inserted at the 12, 3 and 9 o’clock positions. The WMS is available with or without a NVG lanyard.

Wilcox Lightweight Shroud three-hole shroud features a lower profile and 20% weight reduction. Available with or without a NVG lanyard. Compatible with the full line of Wilcox L4 series NVG mounts.

WILCOX HYBRID SHROUD

WILCOX L4 THREE-HOLE SHROUD

Wilcox Hybrid Shroud attaches to any of Wilcox’s L4 Series line of NVG mounts onto a One-Hole or Three-Hole MICH/ACH helmet.

The Wilcox L4 Three Hole Shroud fits MICH/ACH and Crye AirFrame helmets drilled with the standard three-hole pattern.

WILCOX RATCHET STRAP SHROUD

WILCOX 1-HOLE SHROUD

WILCOX INTERFACE PLATE ADAPTOR

Wilcox One Hole Ratchet Strap Shroud fits standard MICH/ACH style helmets with single hole pattern.

Wilcox L4 1-hole Shroud with Front Bracket mounts onto any standard MICH/ACH style helmet drilled with a single-hole pattern.

Wilcox L4 Interface Plate Adaptor gives you the ability to swap mounts between helmets without having to remove the shroud

ENGINEERED TO PROTECT HighCom Armor Solutions Inc 2901 E 4th Ave, Unit J Columbus, OH 43219, United States Phone: +1 (614) 500 3065 Fax: +1 (614) 405 7222 Email: sales@highcomarmor.com Web: www.highcomarmor.com

CAGE #: 1VHQ3 Duns #: 119881597 EIN #: 94-3266279 Ohio Tax ID #: 90-503-555 Seller’s permit #: 97-169632 GSA Contract #: GS-07F-9247S Sourcwell Contract #: 011221HCM NASPO #: 164714 ISO #: C2017-01167-R1

/HIGHCOMARMOR @HIGHCOMARMOR /HIGHCOM-ARMOR /HIGHCOMARMOR /HIGHCOMARMOR

200823.01.KG. VER 17 | APPROVED SEPTEMBER 7 2022
