Huawei Ar1220vw Brochure Datasheet

AR1220VW (02353528)

Datasheet

Overview 2GE WAN,8FE LAN,2 USB,2 SIC,build-in 32-channel DSP

Huawei AR1220VW is the small office or small and medium enterprises branch one router, providing both wired and wireless Internet access, access, PBX, integration of communication and security functions, widely deployed in small campus network export, small and medium enterprises headquarters or branch of the scene.

Quick Specification

eight FE electrical interfaces and two Wi-Fi

Product Details:

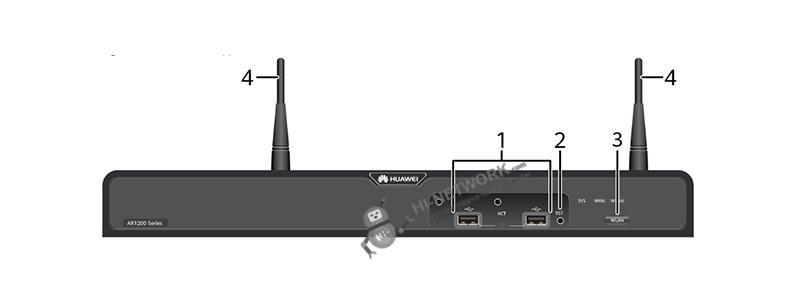

The Front Panel:

Buy Huawei, Cisco, Zte, Hpe, Dell, Fortinet

Online In China At Low Price! www.hi-network.com

Network Equipment

Model AR1220VW Part Number 02353528 Memory 512 MB Flash 256 MB Service interfaces

WAN interfaces:

LAN interfaces:

interfaces Extended slots 2xSIC Weight 2.9 kg (6.39 lb) Dimensions (W x D x H) With no mounting bracket installed: 44.5 mm x 390.0 mm x 232.5 mm (1.75 in. x 15.35 in. x 9.15 in.) With mounting brackets installed: 44.5 mm x 482.6 mm x 232.5 mm (1.75 in. x 19.00 in. x 9.15 in.)

(standard configuration)

two GE electrical interfaces

antenna

AR1220VW (02353528)

Datasheet

①

Two USB interfaces (host)

② RST button

③ WLAN button

④

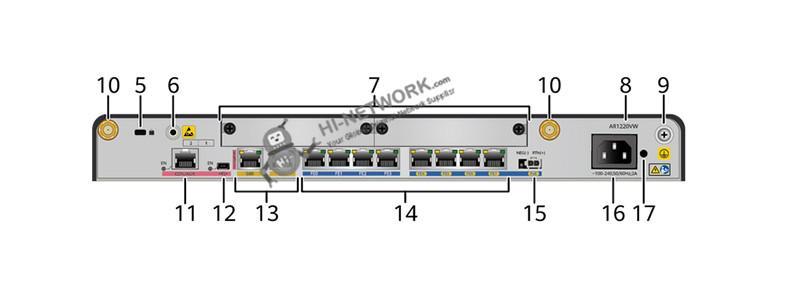

The Back Panel:

Two Wi-Fi antennas

Security lock

ESD jack ⑦

⑧

⑨

⑩

⑪

⑫

⑬

⑭

⑮

⑯

⑰

Two SIC slots

Product model silkscreen

Ground point

Two Wi-Fi antenna interfaces

CON/AUX interface

Mini USB interface

WAN interfaces: two GE electrical interfaces

LAN interfaces: eight FE electrical interfaces

PoE power jack

AC power jack

Jack for power cable locking strap

The Accessories for AR1220VW

The Modules, Cards

Model Description

Power Module

Buy Huawei, Cisco, Zte, Hpe, Dell, Fortinet Network Equipment Online In China At Low Price! www.hi-network.com

⑤

⑥

AR1220VW (02353528)

Compare to Similar Items

Specific Data Sheet:

Buy Huawei, Cisco, Zte, Hpe, Dell, Fortinet Network Equipment Online In China At Low Price! www.hi-network.com AR0MPSAP1000 100 WAC PoE power module Ethernet LAN interface card AR-4ES2G-S 4-Port 1000BASE-RJ45 L2 Ethernet Interface Card AR-9ES2-W 8 Port 100M-RJ45 and 1 Port 1000M- RJ45 L2 Ethernet Interface Card AR01WEG4SB 4-Port 1000BASE-SFP-L2 Ethernet Interface Card AR0MWMF9TT00 8-Port 10/100BASE(RJ45) and 1-Port 10/100/1000BASE(RJ45)-L3 Ethernet Switch Interface Card Voice service card AR-1VE1-S 1-Port VE1 Interface card AR01SVB4XA 4-Port FXO Voice Interface Card AR01WVADXA 16-Port FXS Voice Interface Card WAN interface card AR-1E3T3M-W 1-Port Channelized/Unchannelized E3/T3 WAN Interface Card AR01WDFE8A 8-Port Fractional Channelized E1 WAN Interface Card AR0MSDSA1A00 1-Port Sync/Async Serial Port Interface Card xDSL interface card AR01SLV1XA 1-Port VDSL2 over POTS WAN Interface Module AR0MSLA1XA01 1-PortADSL2+ANNEXA/M WAN Interface Module xPDN interface card AR0MSOPP2A00 1-Port GPON/EPON Dual-mode Interface Card

Datasheet

Model AR1220VW AR1220EVW Fixed WAN Ports 2 x GE 2 x GE Combo Fixed LAN Ports 8 x FE (can be configured as WAN interfaces) 8 x GE (can be configured as WAN interfaces) Slots SIC slots: 2 WSIC slots (default/max): 0/1 Memory 512 MB 1 GB Get more information: Do you have any question about theAR1220VW 02353528? Contact us now via e-mail: info@hi-network.com

Part Number 02353528 Model AR1220VW

AR1220VW (02353528) Datasheet

Want to Buy

Buy Huawei, Cisco, Zte, Hpe, Dell, Fortinet Network Equipment Online In China At Low Price! www.hi-network.com First Supported Version V200R001C01 Processor Dual-core, 500 MHz Memory 512 MB Flash 256 MB Micro SD card (default: sd1) None Hard disk Not supported Dimensions (H x W x D) With no mounting bracket installed: 44.5 mm x 390.0 mm x 232.5 mm (1.75 in. x 15.35 in. x 9.15 in.) With mounting brackets installed: 44.5 mm x 482.6 mm x 232.5 mm (1.75 in. x 19.00 in. x 9.15 in.) Weight 2.9 kg (6.39 lb) Rated input voltage range (AC) 100 V to 240 V, 50 Hz/60 Hz Maximum input voltage range (AC) 90 V to 264 V, 47 Hz to 63 Hz Maximum input current 2A Maximum output power 60 W RPS power supply Not supported PoE power supply Supported (interfaces FE4 to FE7) Typical power consumption 37 W Maximum power consumption 42 W Fans Built-in fans, not pluggable Airflow (facing the front panel) Left to right Management interfaces 1 (RJ45) CON/AUX interfaces 1 (RJ45) USB 2.0 interfaces 2 Service interfaces (standard configuration) WAN interfaces: two GE electrical interfaces LAN interfaces: eight FE electrical interfaces and two Wi-Fi antenna interfaces Extended slots 2xSIC DSP DIMM slot Supported Operating temperature 0°C to 45°C (32°F to 113°F) Storage temperature -40°C to +70°C (-40°F to +158°F) Operating relative humidity 5% to 95%, noncondensing Operating altitude < 5000 m (16404.2 ft.)
